The Obsolete Air-Cooled Documentation Project
Type 2 Parts Manual (1950-1954)

You may either download entire sections of the manual in PDFs, or download specific pages by using the table below. PNGs are used for black and white pages and JPGs are used for color pages. If you already know which page you want, use the quick index; if you're not sure where something is, use the full index. This manual basically covers most of the "barndoor" split-window Buses from 1950 to 1954. Files contain one page each.

Indexes
Quick Index

Table of Contents

i ii iii iv v vi
vii viii ix x xi xii

Main Group 1: Engine

1 2 3 4 5 6
7 8 9 10 11 12
13 14 15 16 17 18
19 20 21 22 23 24
25 26 27 28 29 30
31 32 33 34 35 36
37 38 39 40 41 42
43 44 45 46 47 48
49 50 51 52 53 54
55 56 57 58 59 60
61 62 63 64 65 66
67 68 69 70 71 72
73 74 75 76 77 78
79 80 81 82 83 84

Main Group 2: Fuel Tank, Exhaust System, Heater System

85 86 87 88 89 90
91 92 93 94 95 96
97 98 -- -- -- --

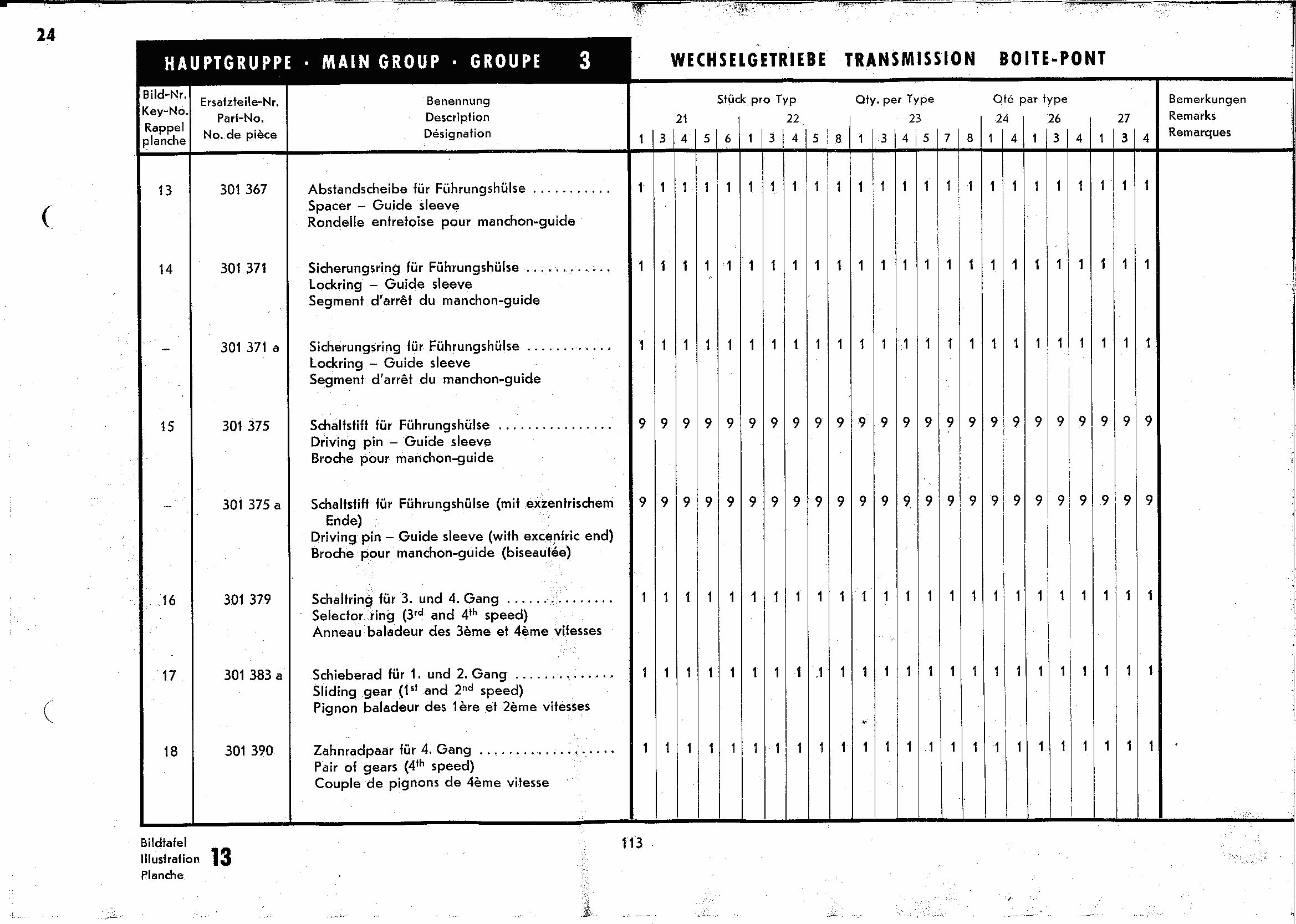

Main Group 3: Transmission

99 100 101 102 103 104
105 106 107 108 109 110
111 112 113 114 115 116
117 118 119 120 121 122
123 124 125 126 127 128
129 130 131 132 133 134

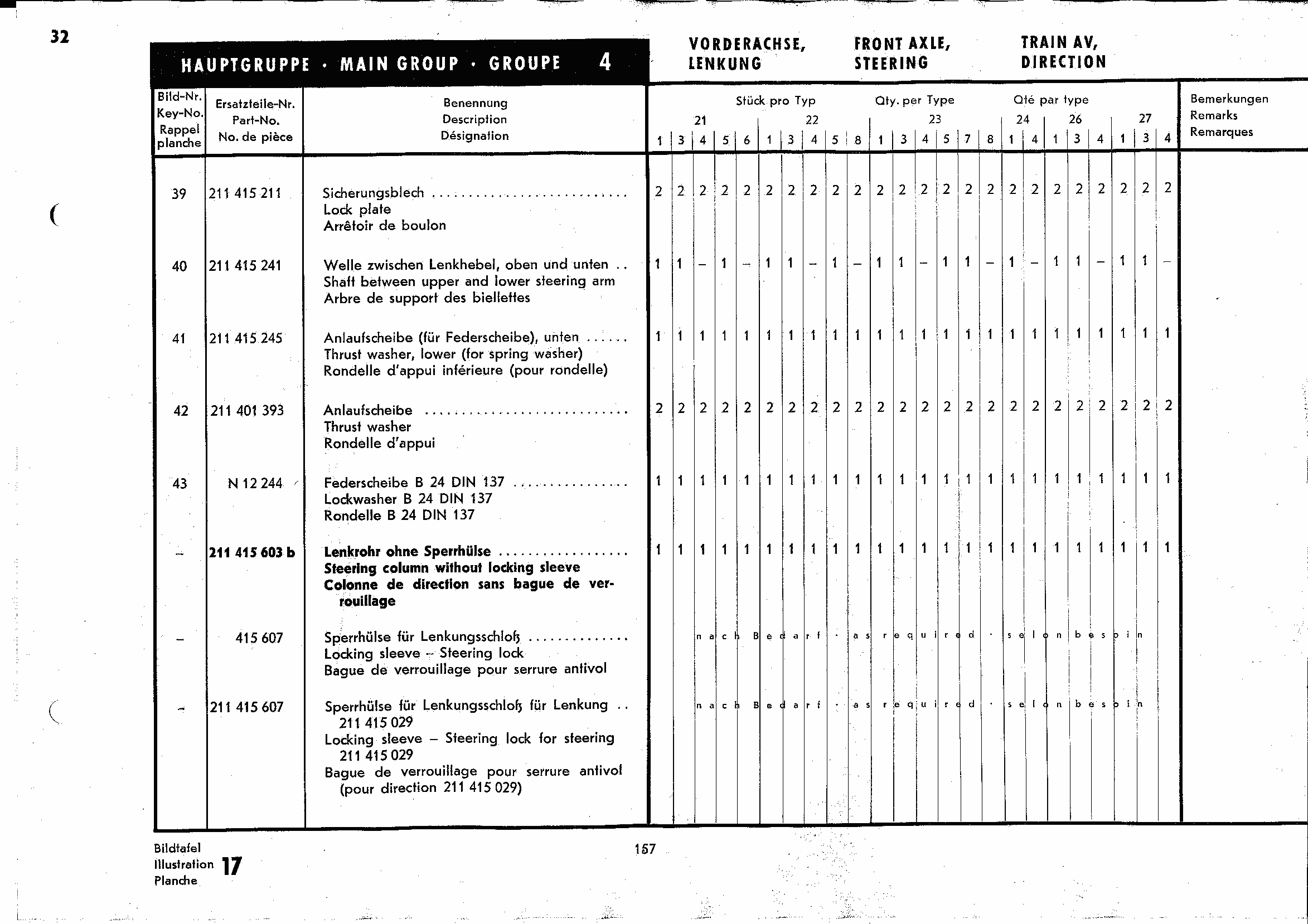

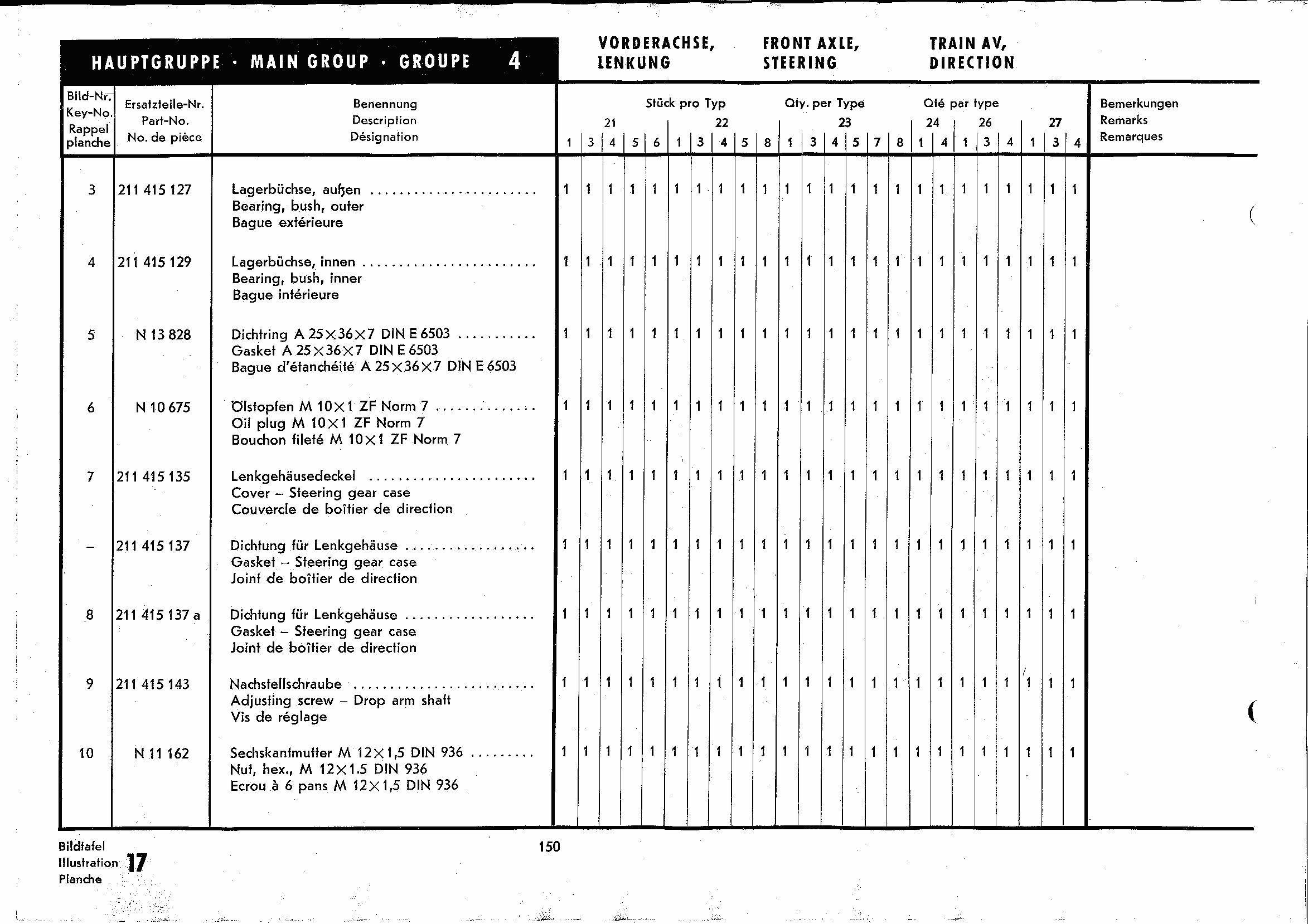

Main Group 4: Front Axle, Steering

135 136 137 138 139 140
141 142 143 144 145 146
147 148 149 150 151 152
153 154 155 156 157 158
159 160 161 162 163 164
165 166 167 168 -- --

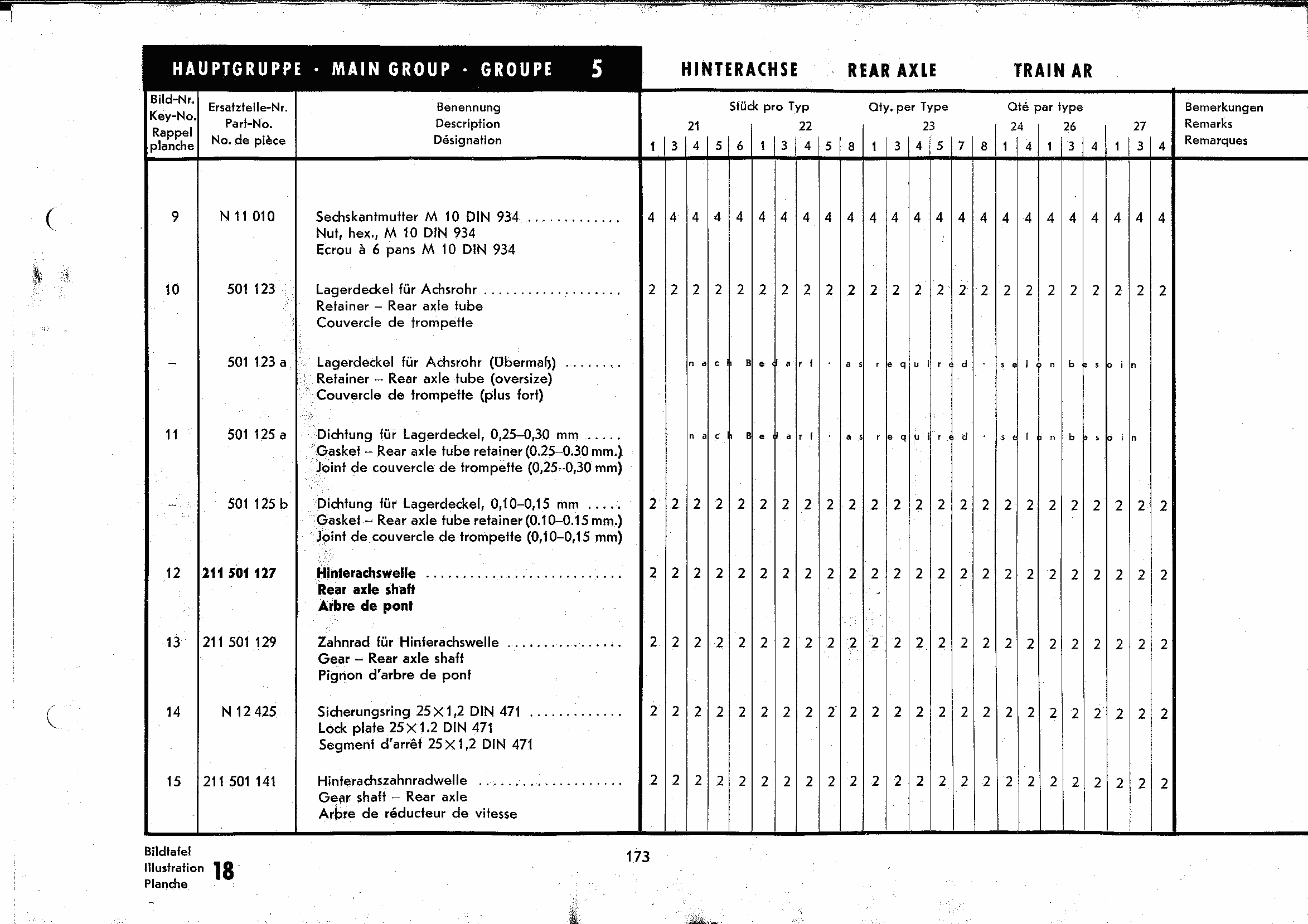

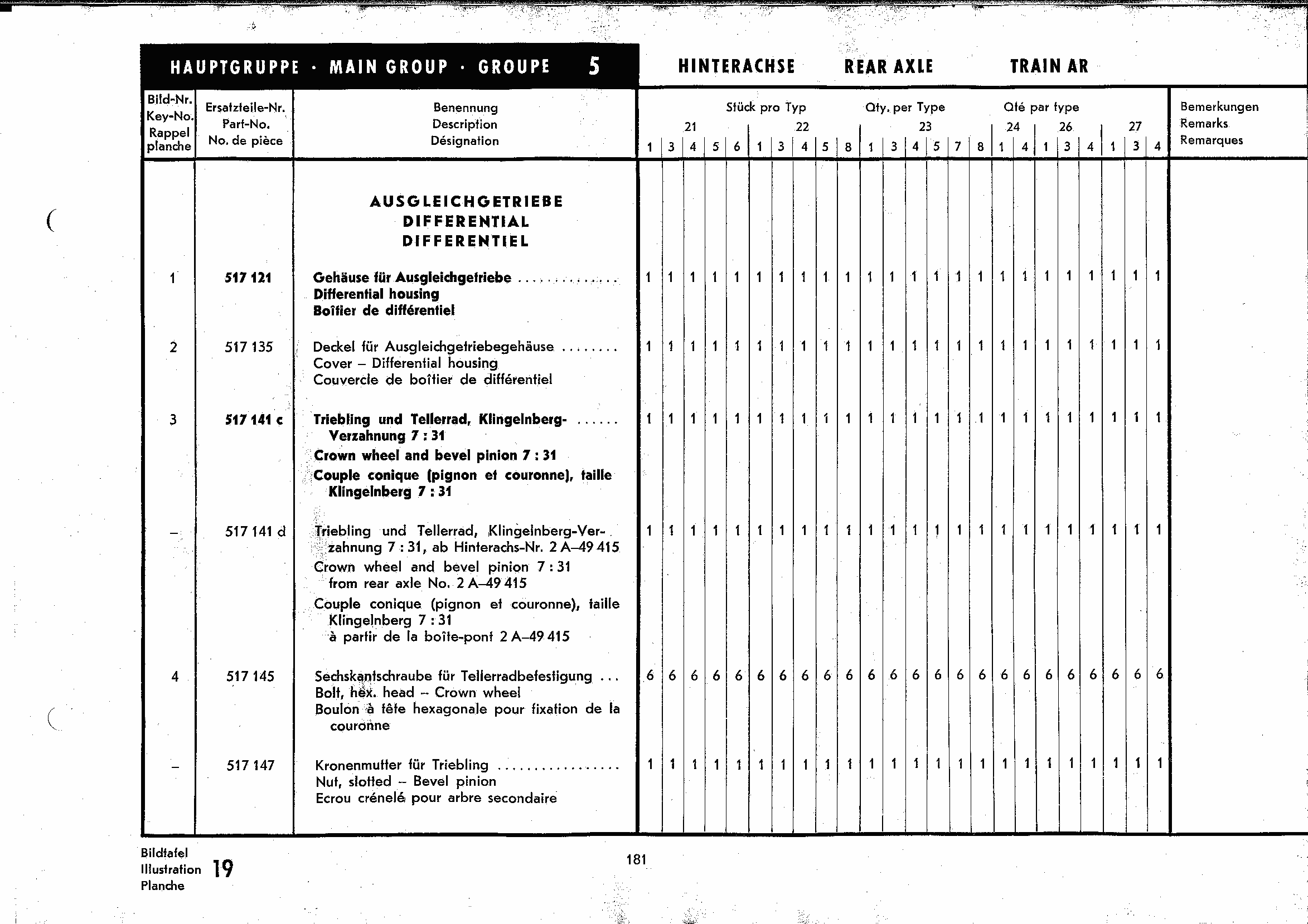

Main Group 5: Rear Axle

169 170 171 172 173 174
175 176 177 178 179 180
181 182 183 184 -- --

Main Group 6: Road Wheels, Brakes

185 186 187 188 189 190
191 192 193 194 195 196
197 198 199 200 201 202
203 204 205 206 -- --

Main Group 7: Frame, Hand and Foot Lever Systems

207 208 209 210 211 212
213 214 215 216 217 218
219 220 221 222 223 224
225 226 227 228 229 230
231 232 233 234 235 236
237 238 239 240 241 242

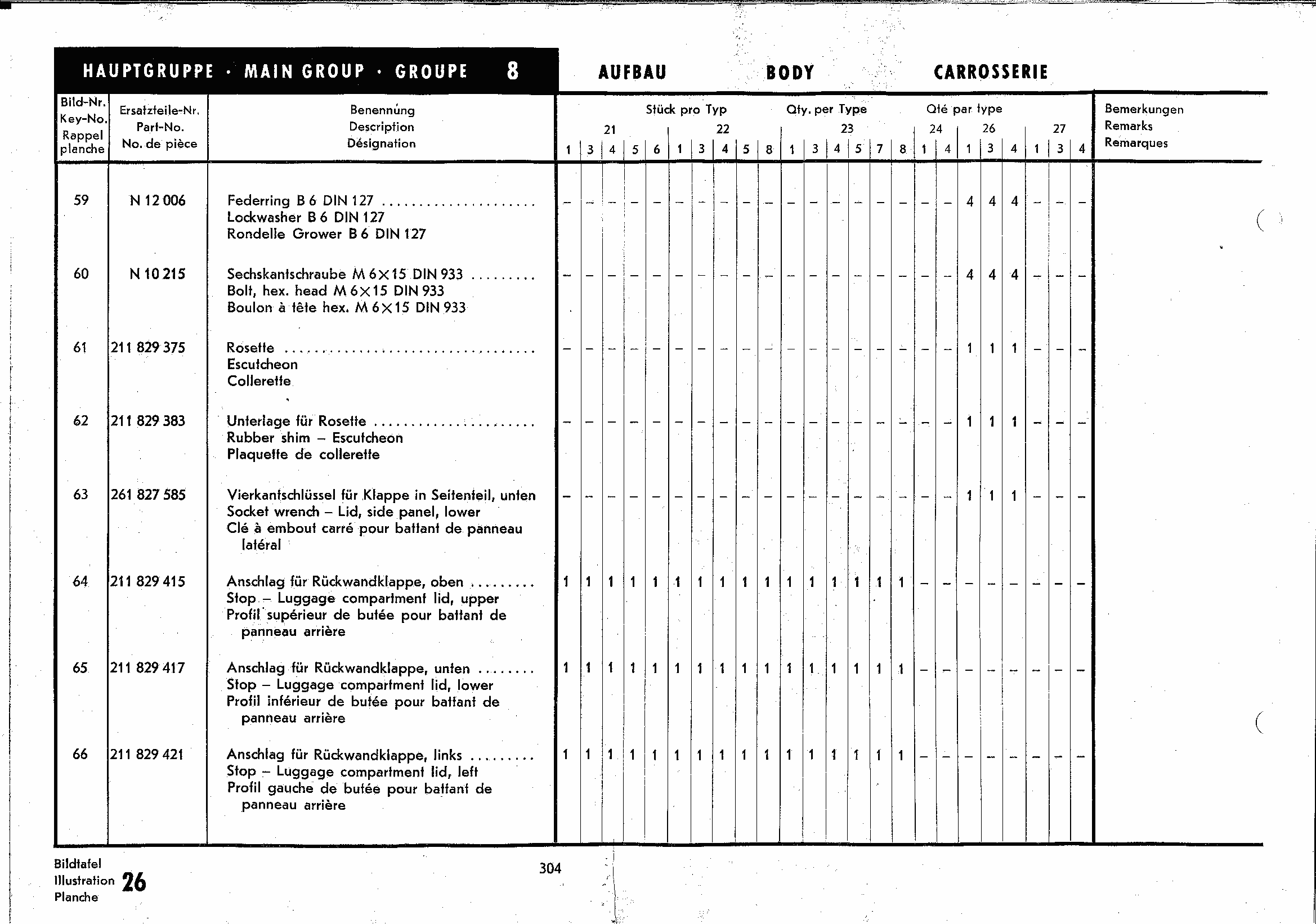

Main Group 8: Body

243 244 245 246 247 248
249 250 251 252 253 254
255 256 257 258 259 260
261 262 263 264 265 266
267 268 269 270 271 272
273 274 275 276 277 278
279 280 281 282 283 284
285 286 287 288 289 290
291 292 293 294 295 296
297 298 299 300 301 302
303 304 305 306 307 308
309 310 311 312 313 314
315 316 317 318 319 320
321 322 323 324 325 326
327 328 329 330 331 332
333 334 335 336 337 338
339 340 341 342 343 344
345 346 347 348 349 350
351 352 353 354 355 356
357 358 359 360 361 362
363 364 365 366 367 368
369 370 371 372 373 374
375 376 377 378 379 380
381 382 383 384 385 386
387 388 389 390 391 392
393 394 395 396 397 398
399 400 401 402 403 404
405 406 407 408 409 410
411 412 413 414 415 416
417 418 419 420 421 422
423 424 -- -- -- --

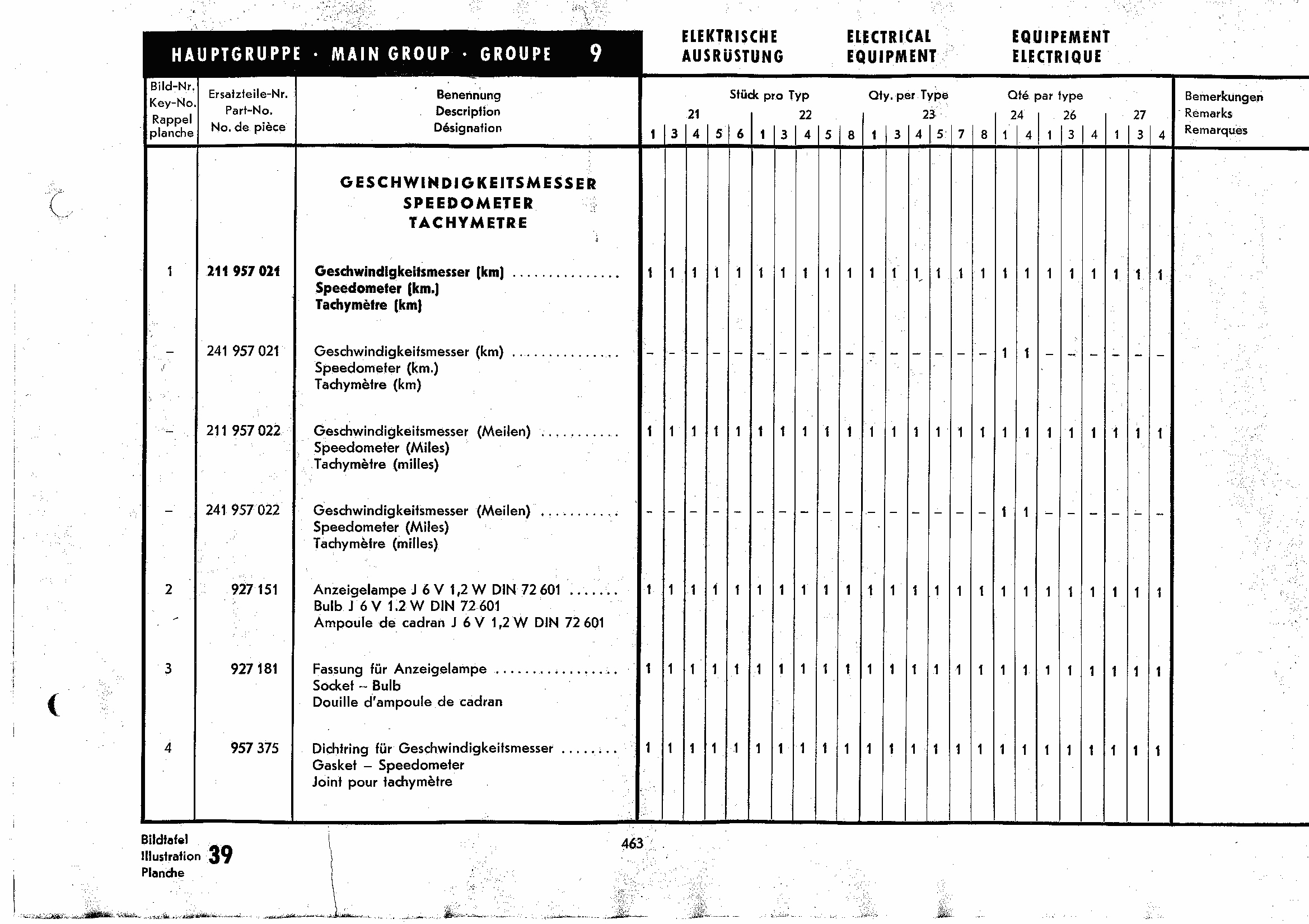

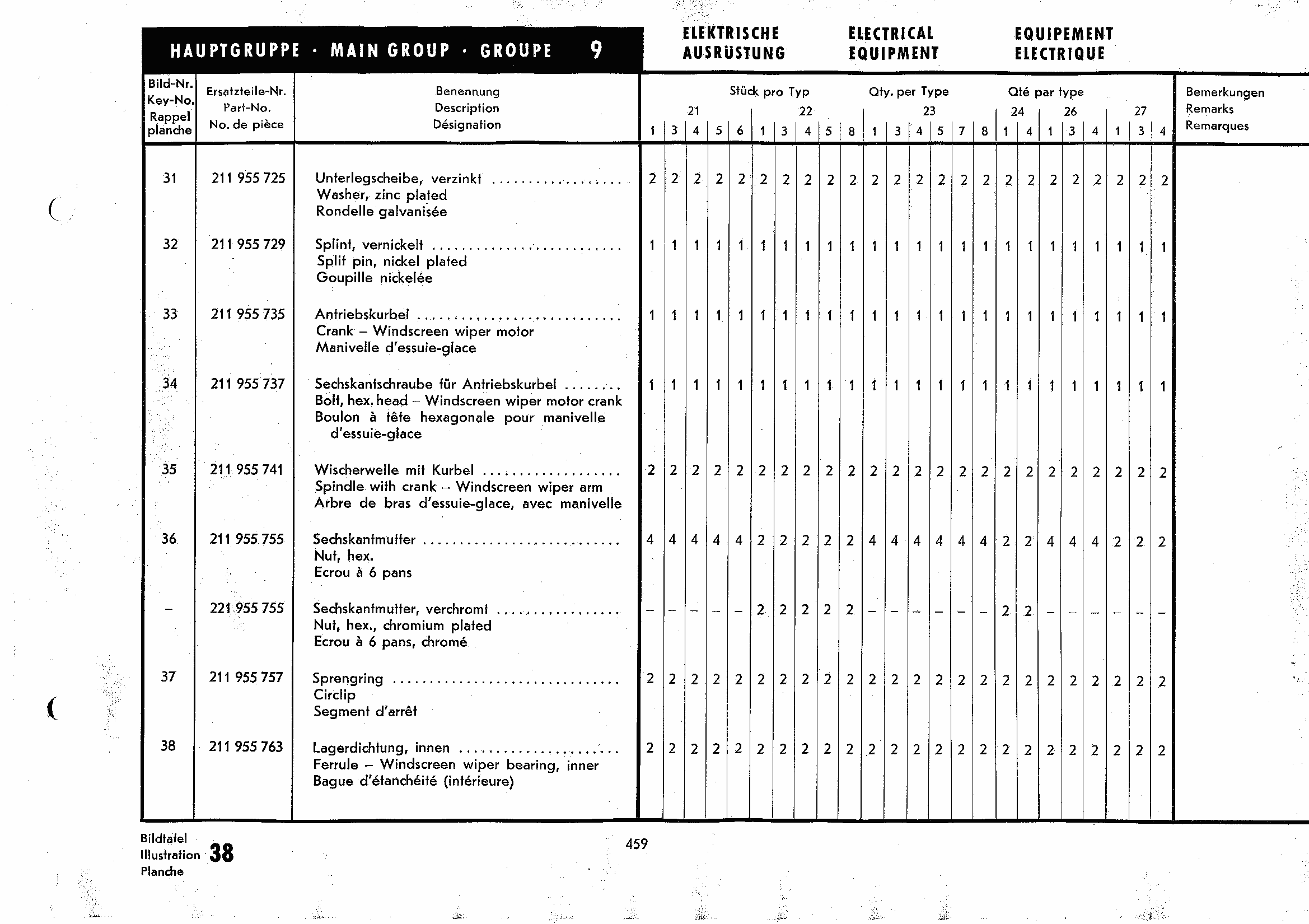

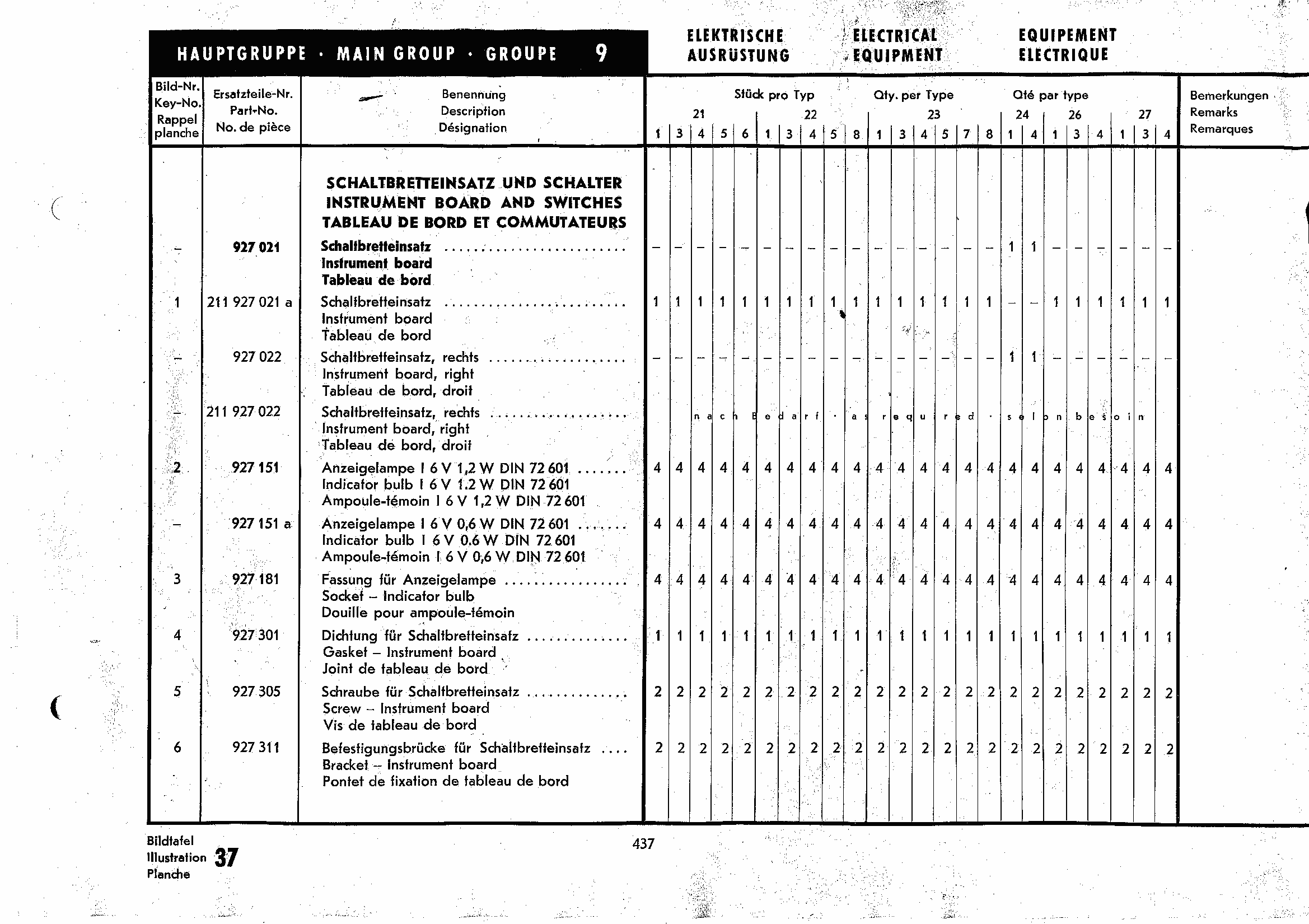

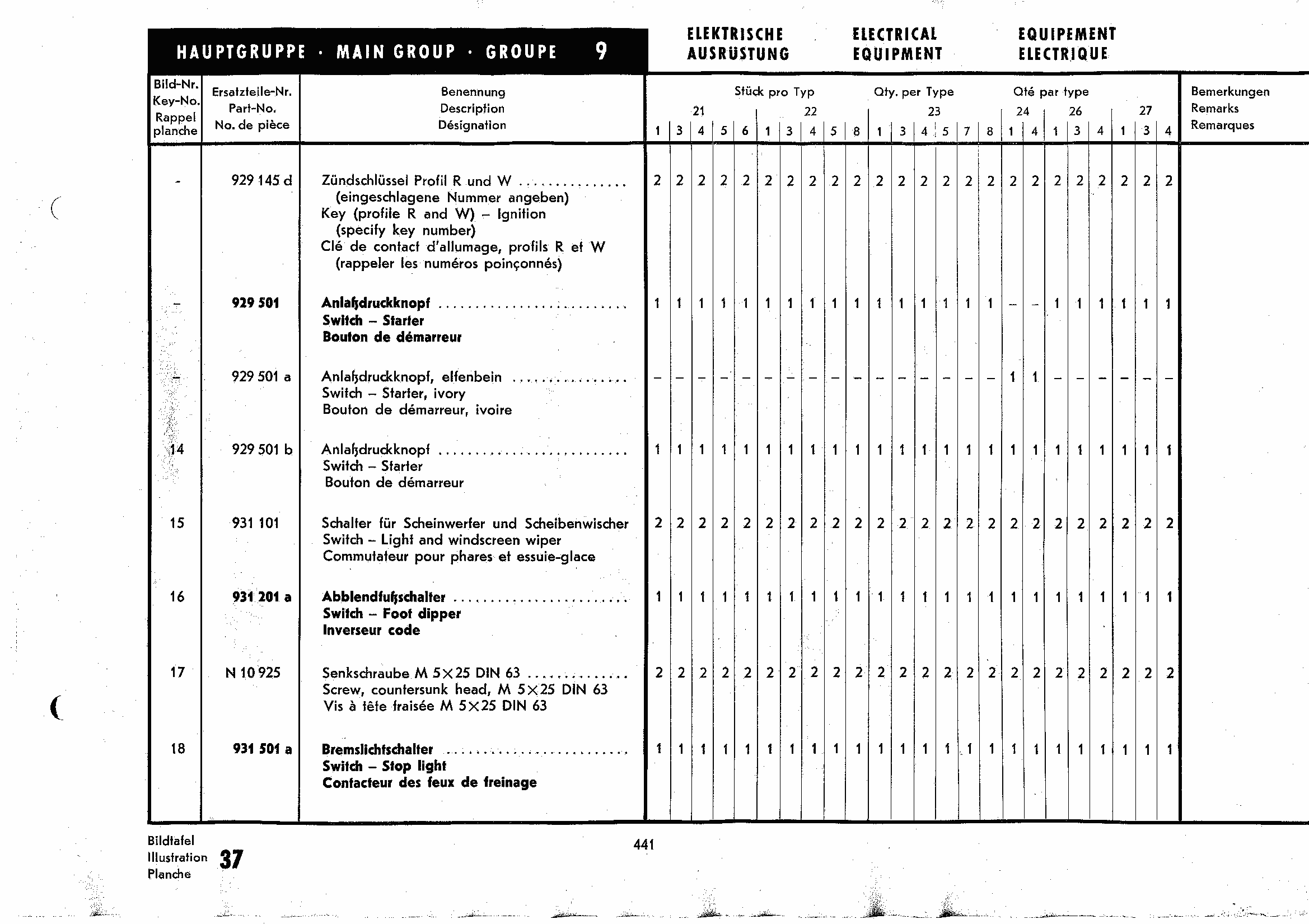

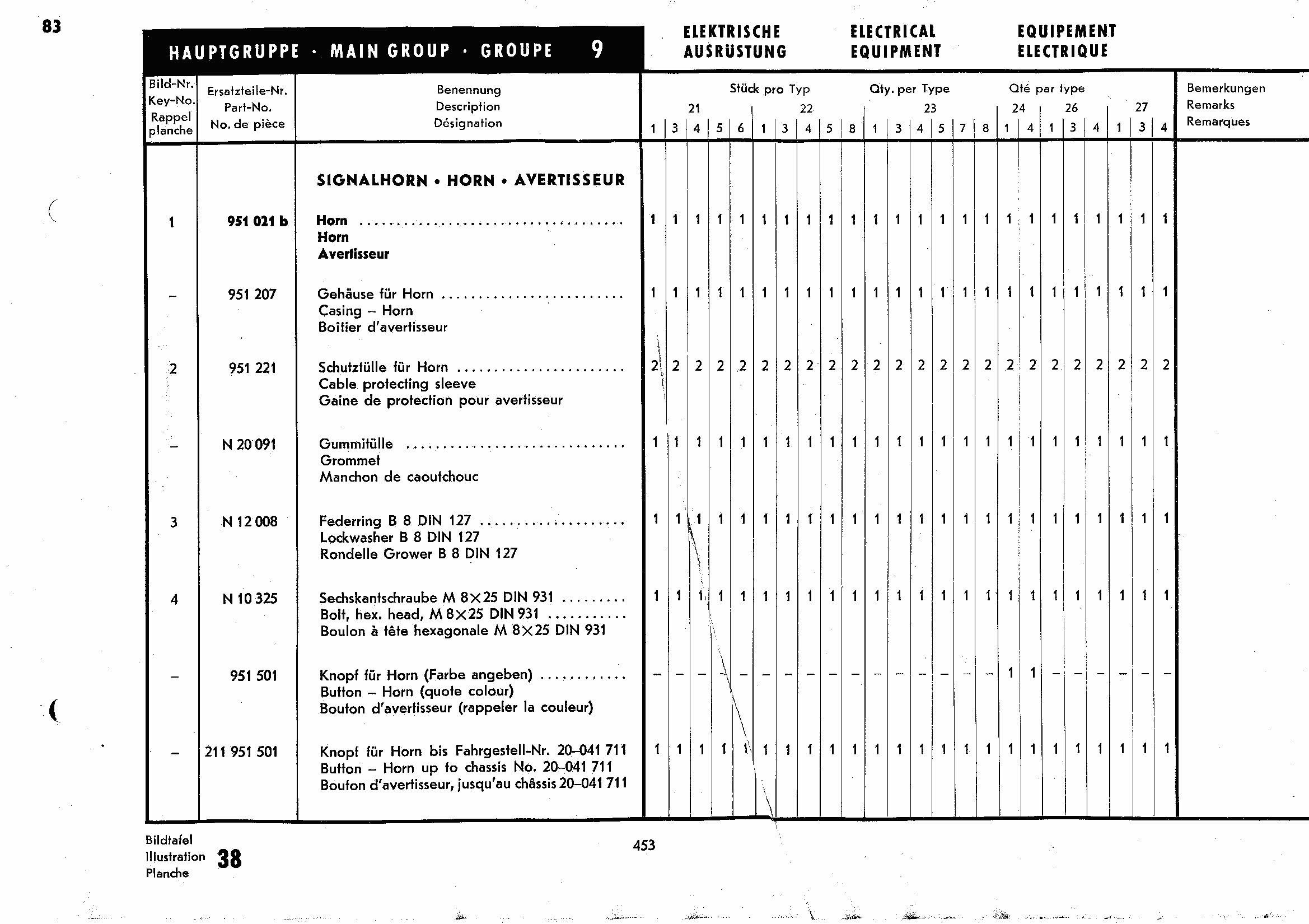

Main Group 9: Electrical Equipment

425 426 427 428 429 430
431 432 433 434 435 436
437 438 439 440 441 442
443 444 445 446 447 448
449 450 451 452 453 454
455 456 457 458 459 460
461 462 463 464 465 466
467 468 469 470 -- --

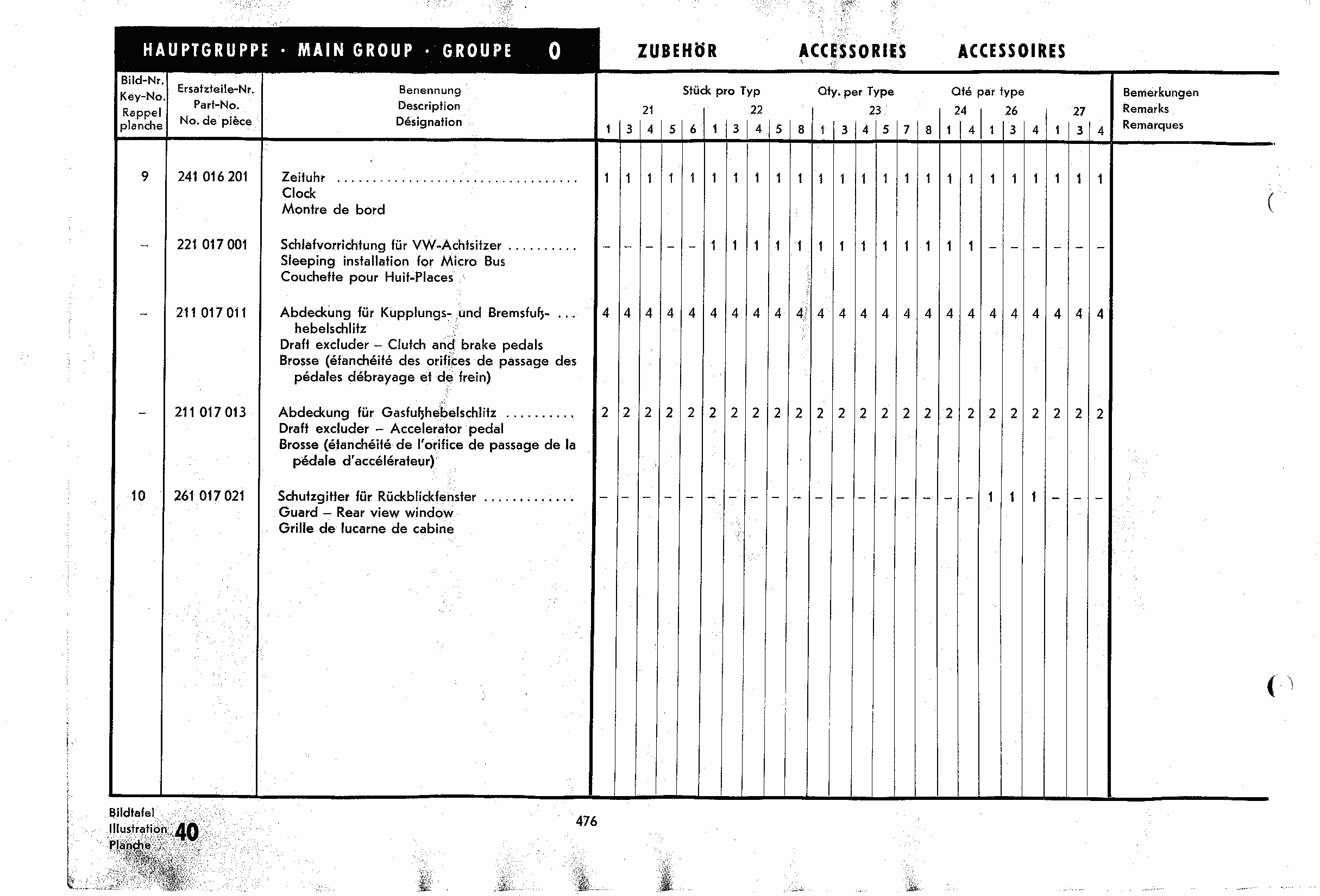

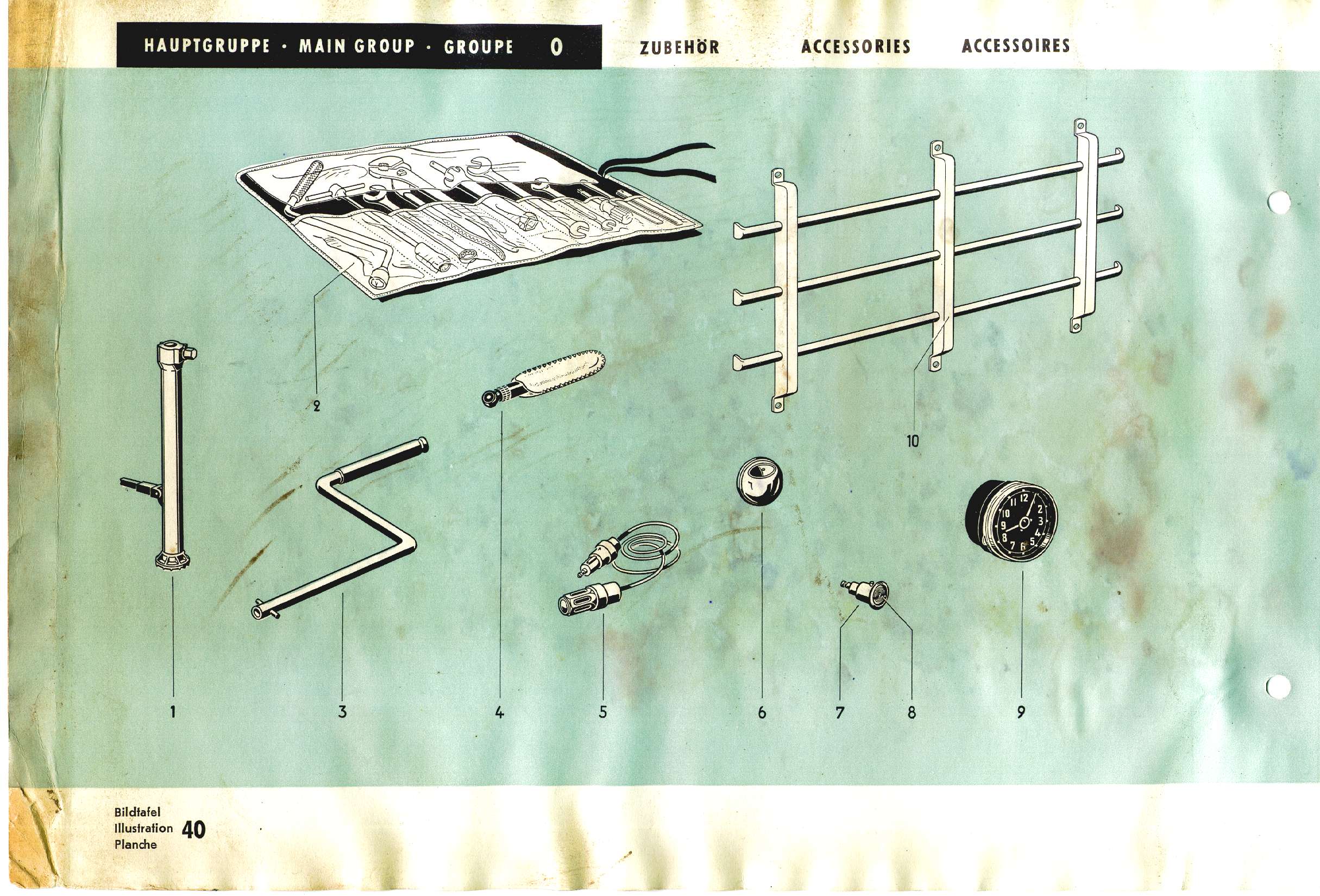

Main Group 0: Accessories and Standard Equipment

471 472 473 474 475 476

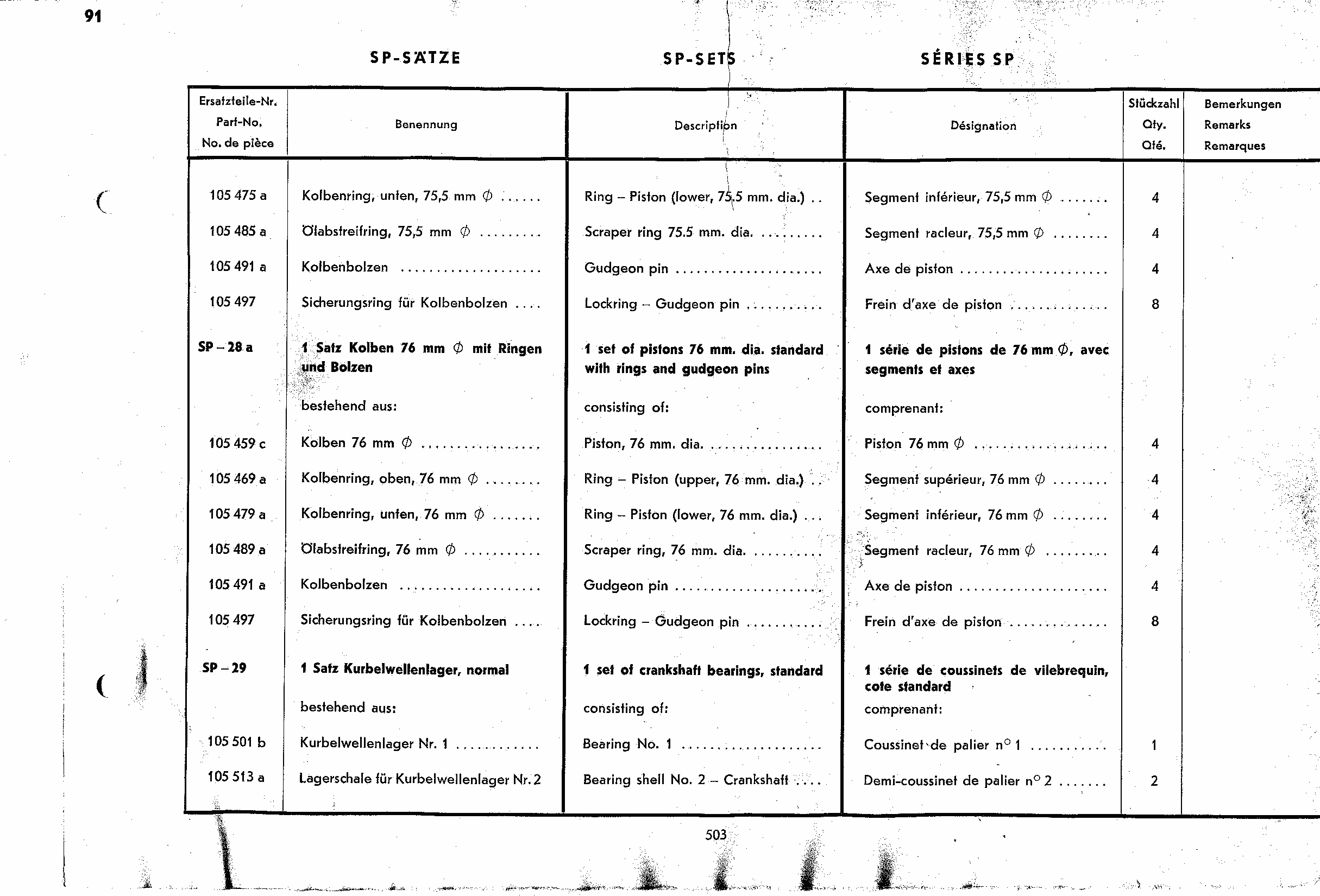

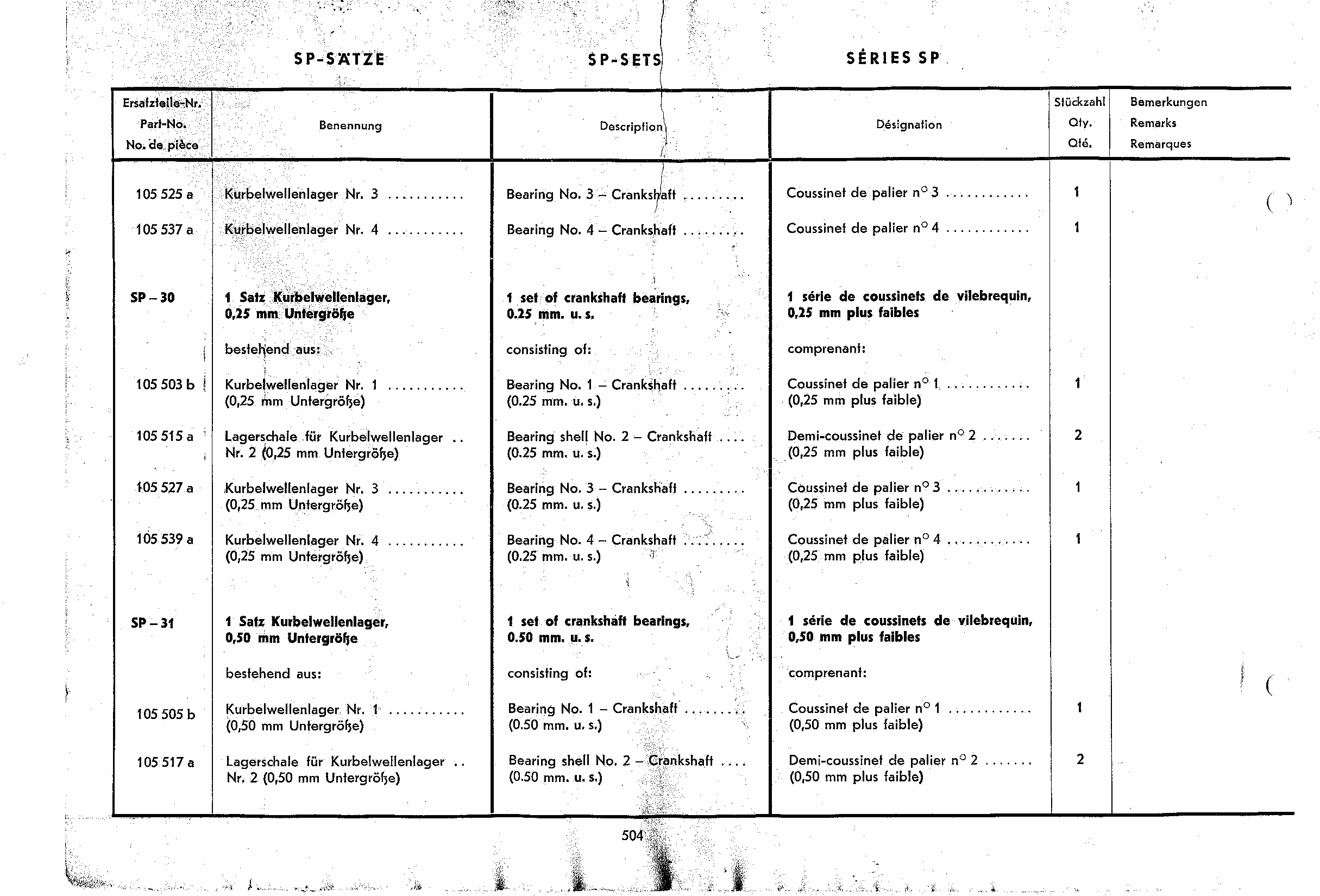

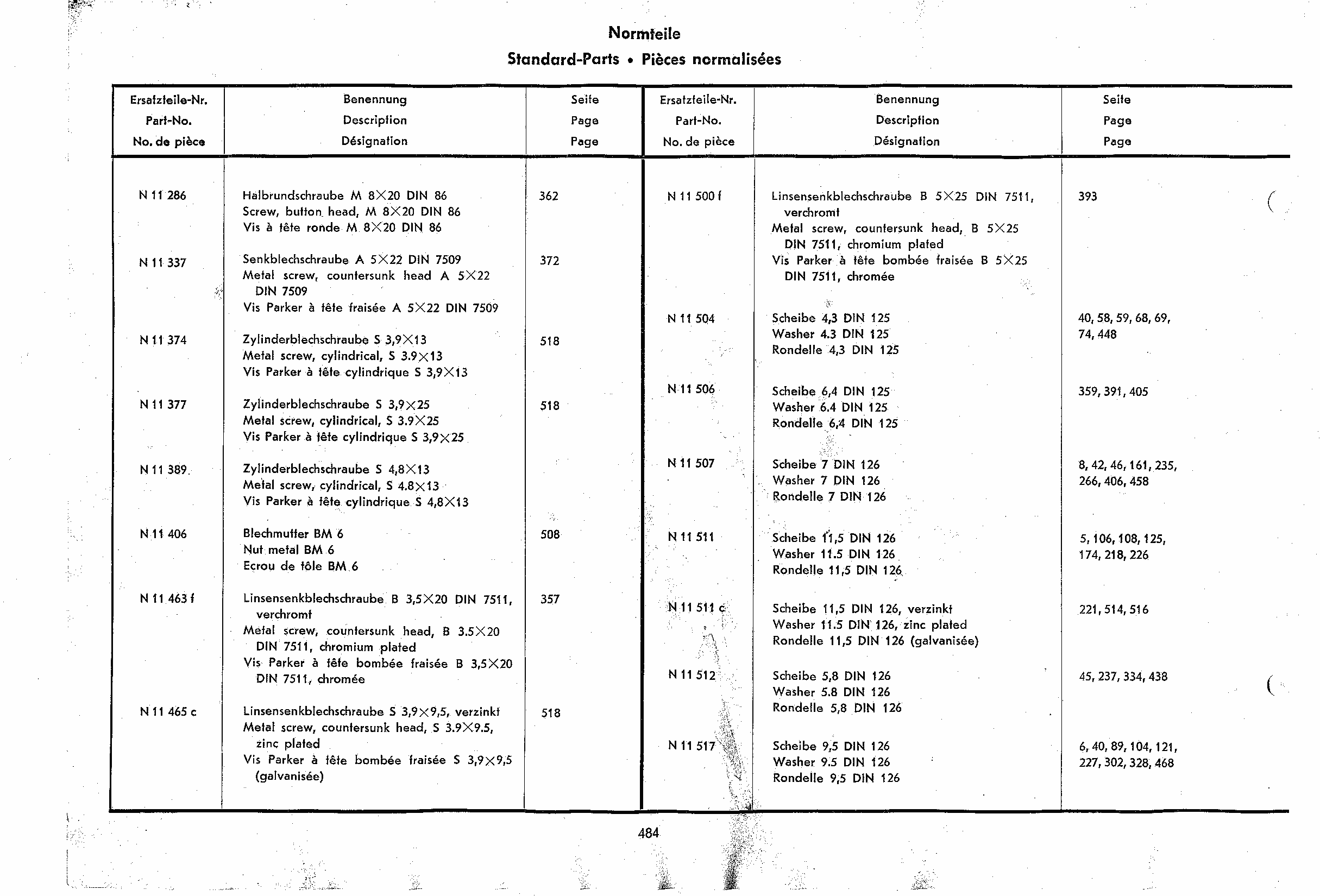

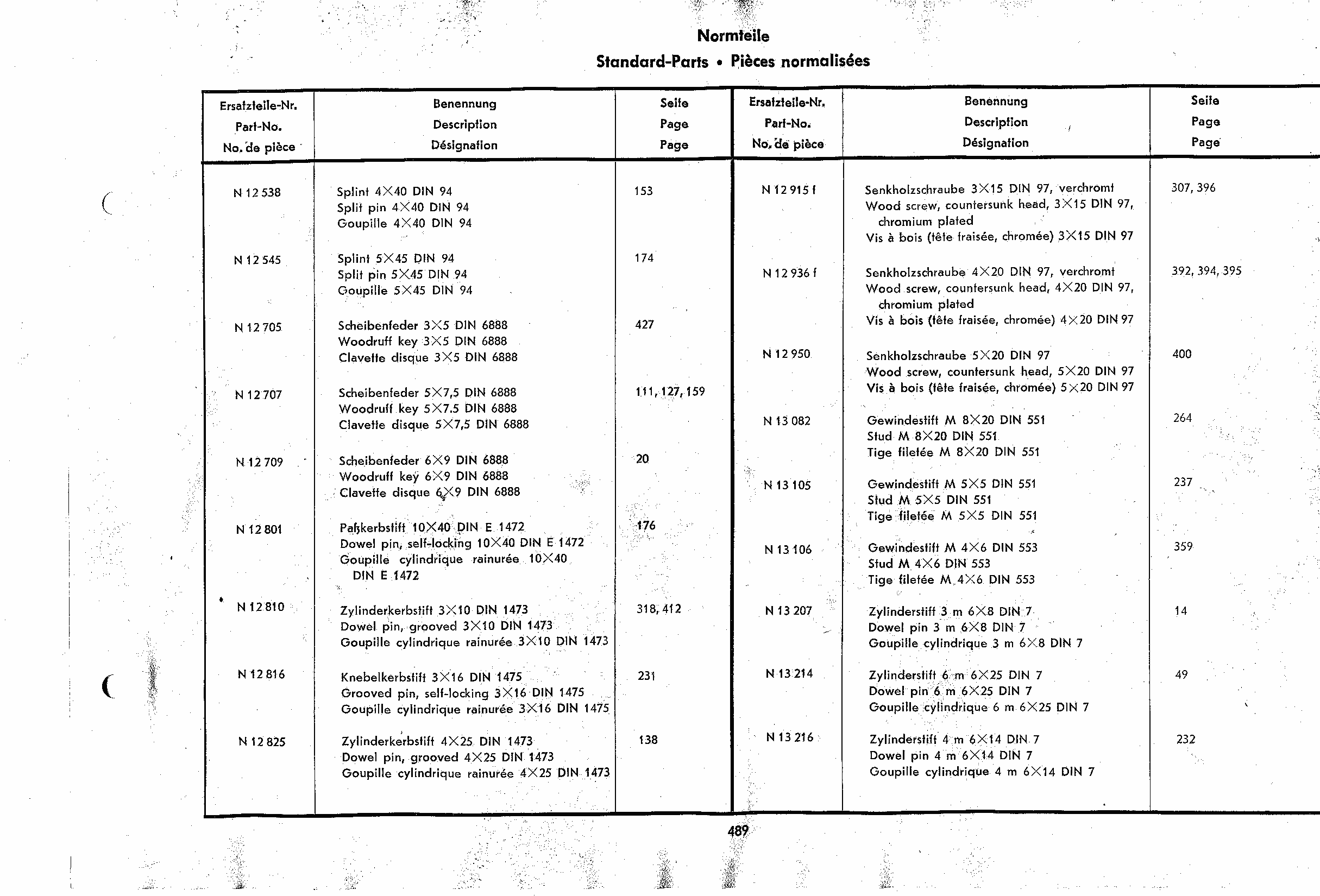

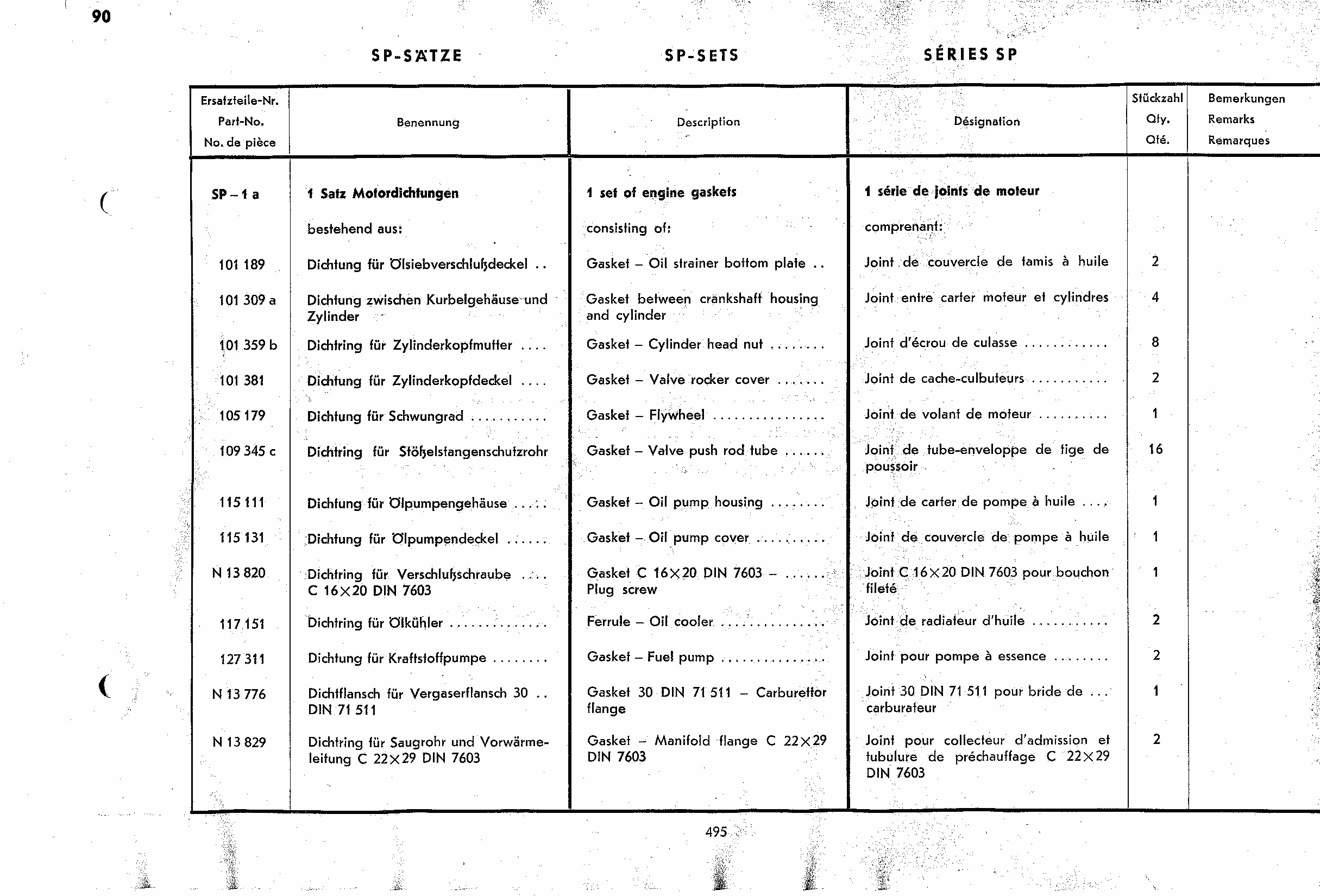

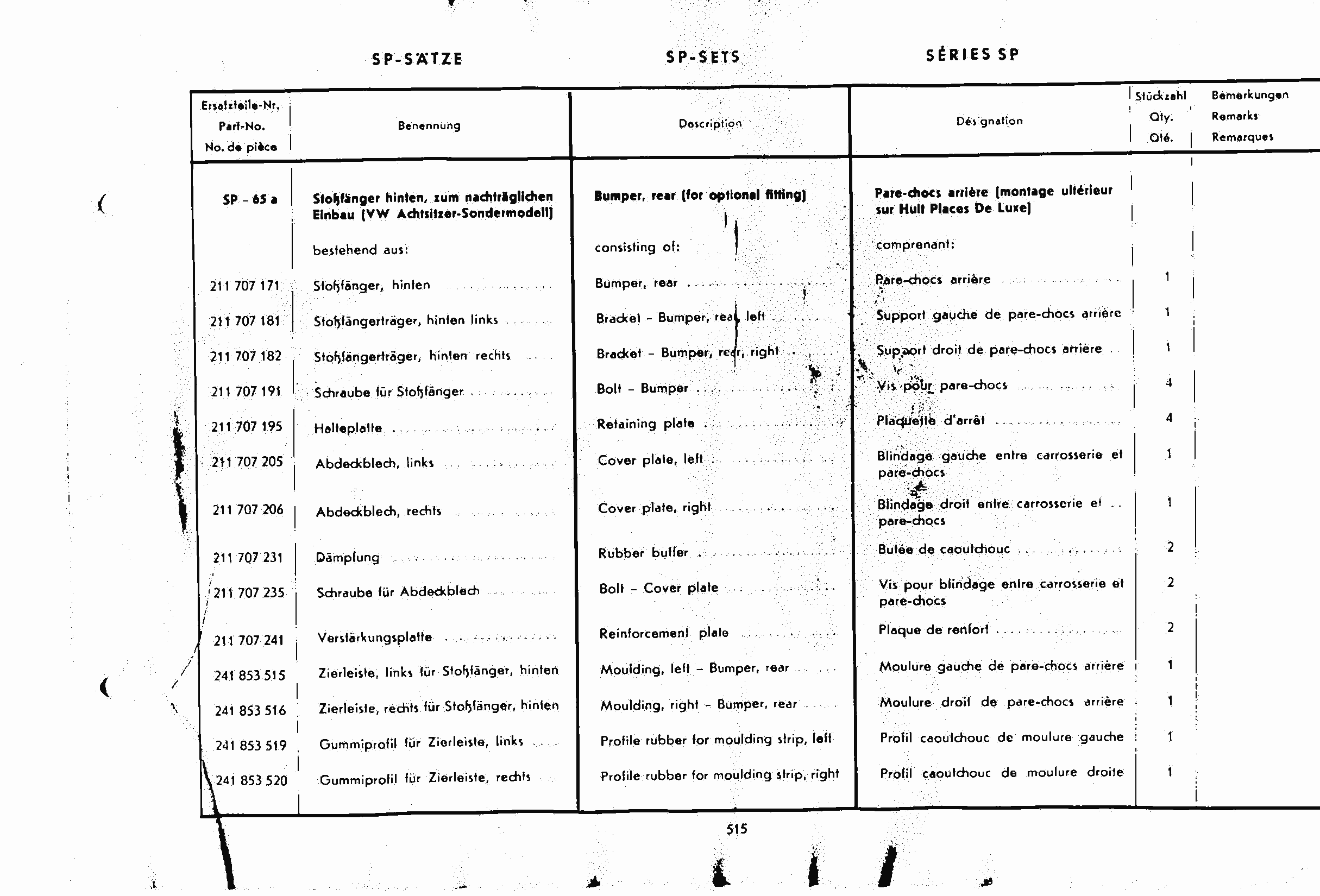

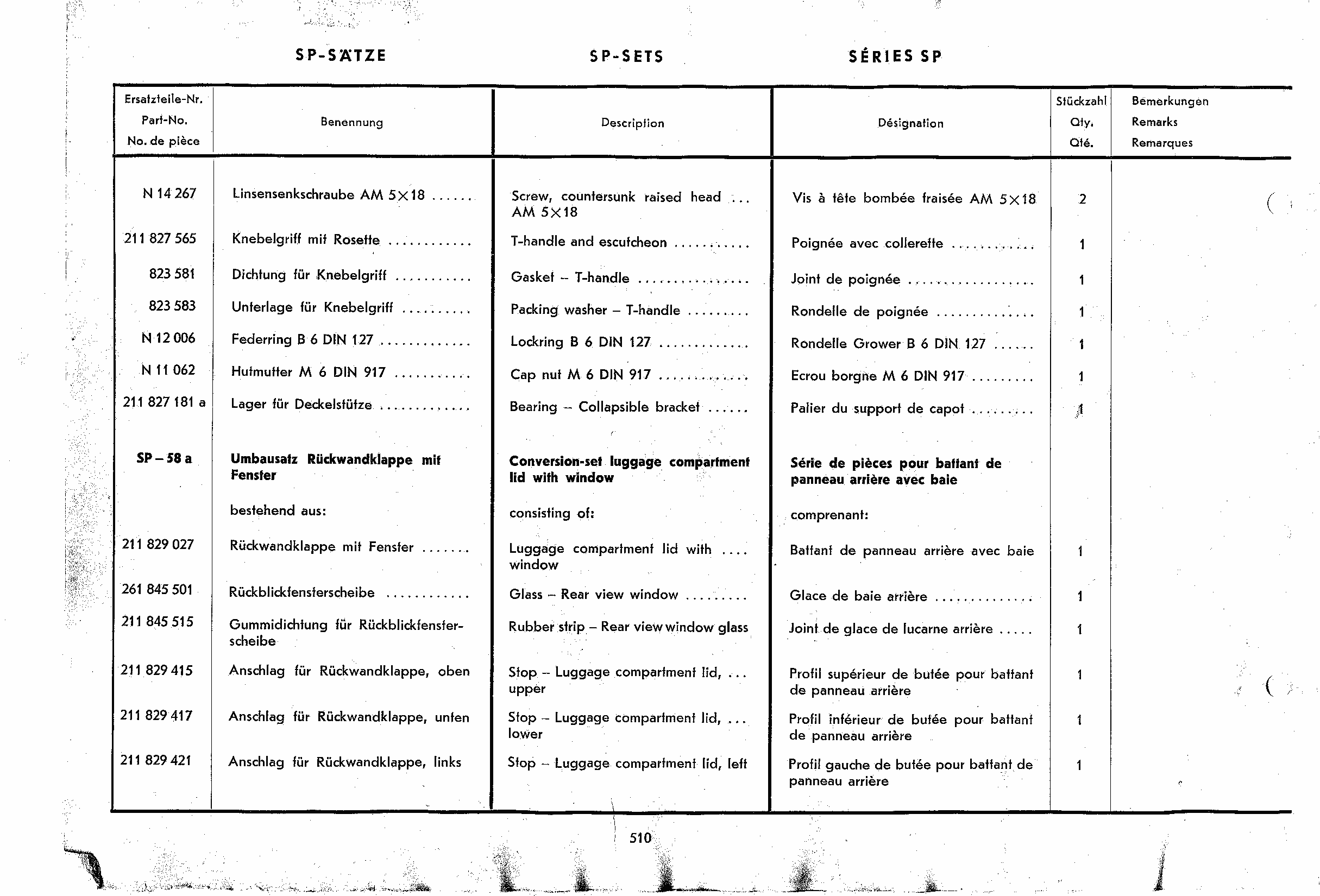

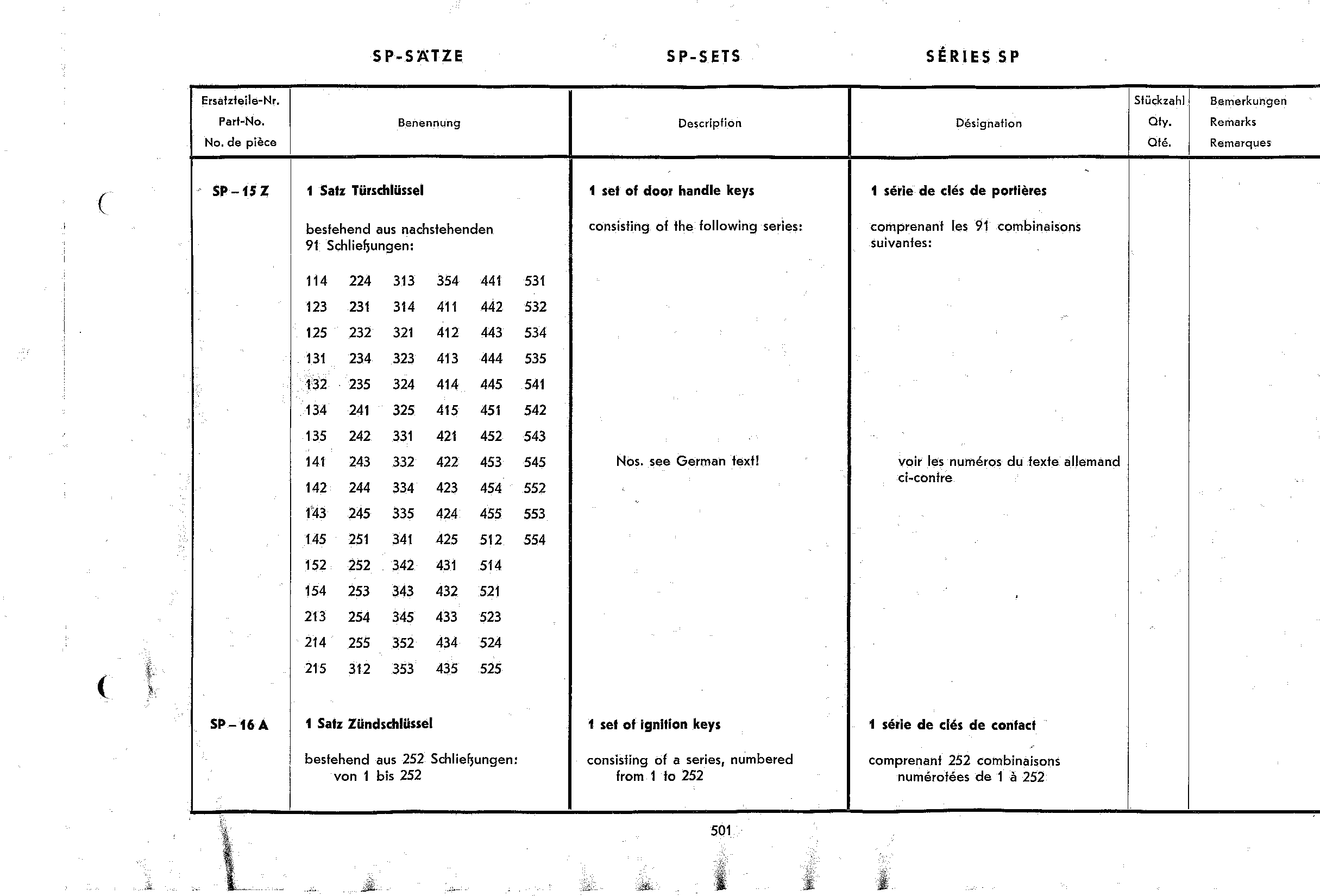

Addendum: Standard Parts and SP Sets

477 478 479 480 481 482
483 484 485 486 487 488
489 490 491 492 493 494
495 496 497 498 499 500
501 502 503 504 505 506
507 508 509 510 511 512
513 514 515 516 517 518
Full Index

Table of Contents

i special Title Page

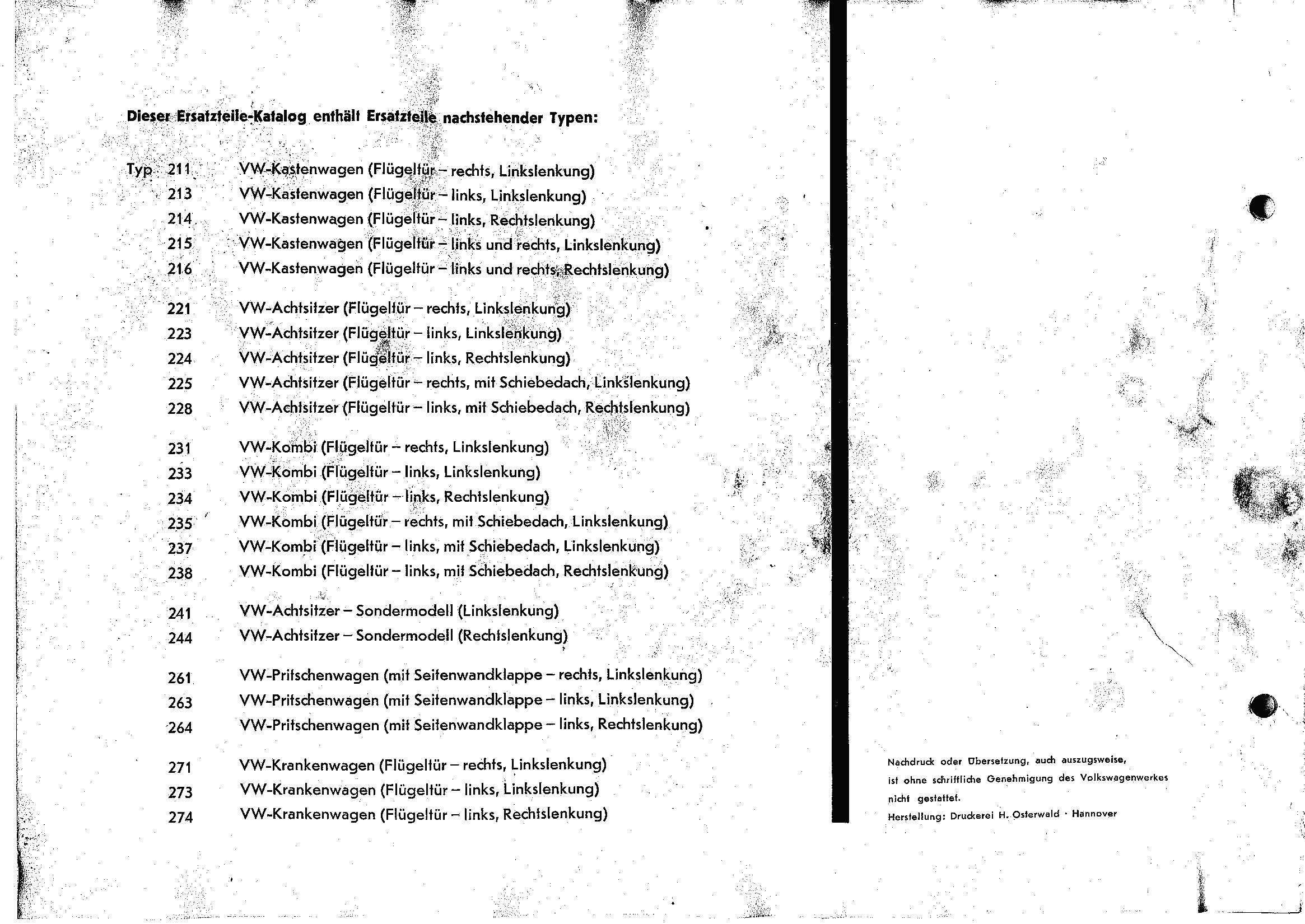

ii list Models covered - German

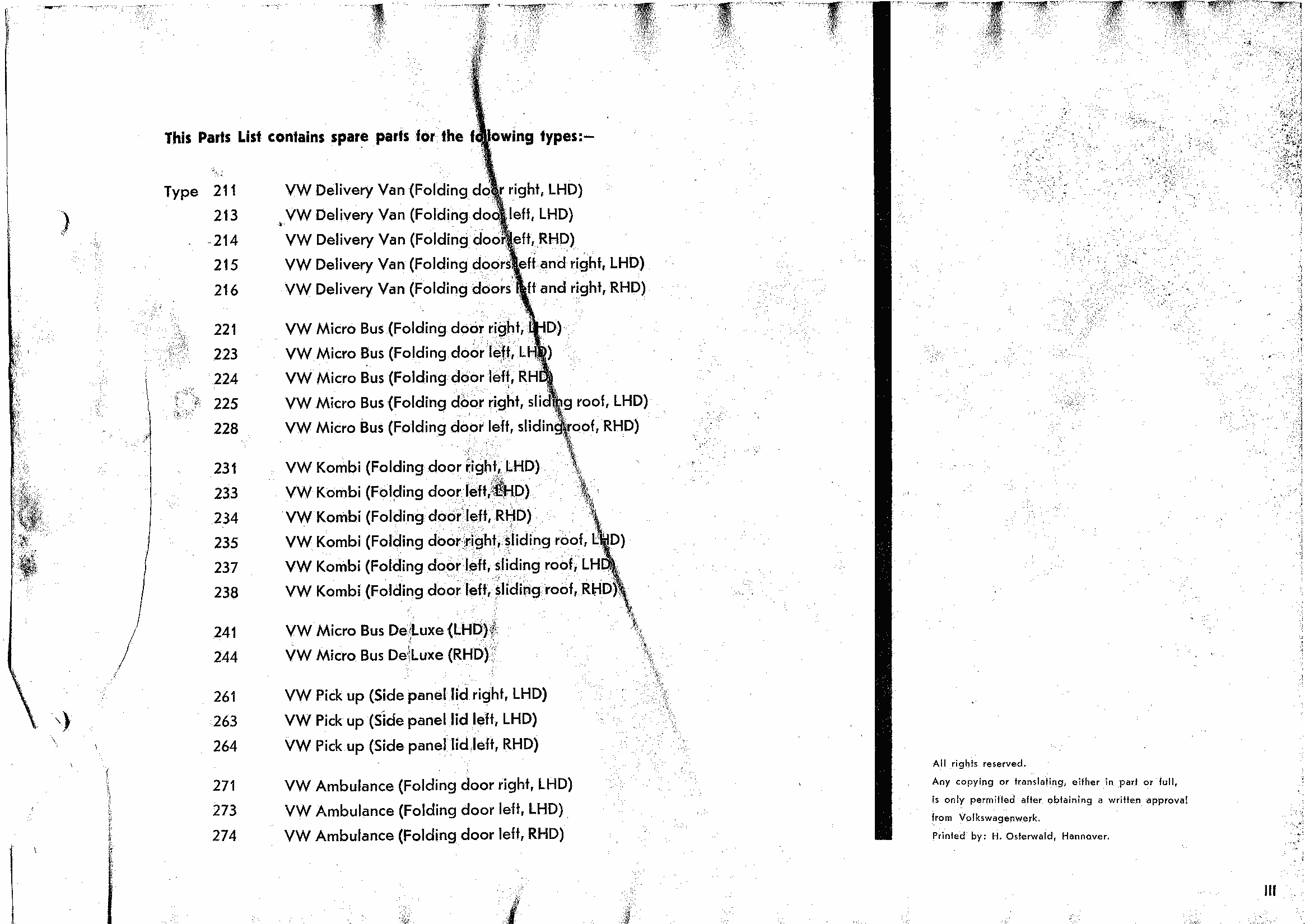

iii list Models covered - English

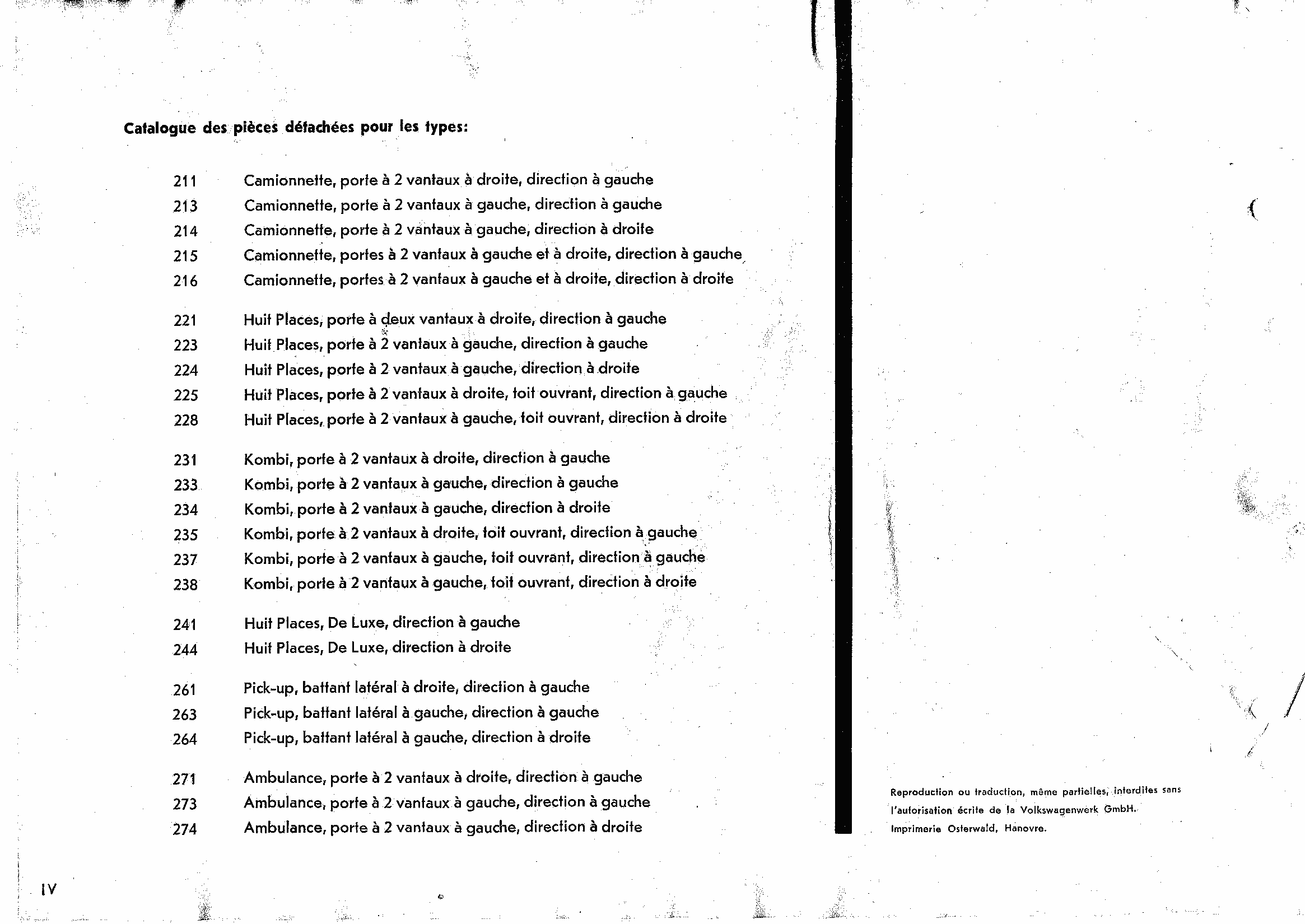

iv list Models covered - French
v special Ordering spare parts - German
vi special Ordering spare parts - English
vii special Ordering spare parts - French

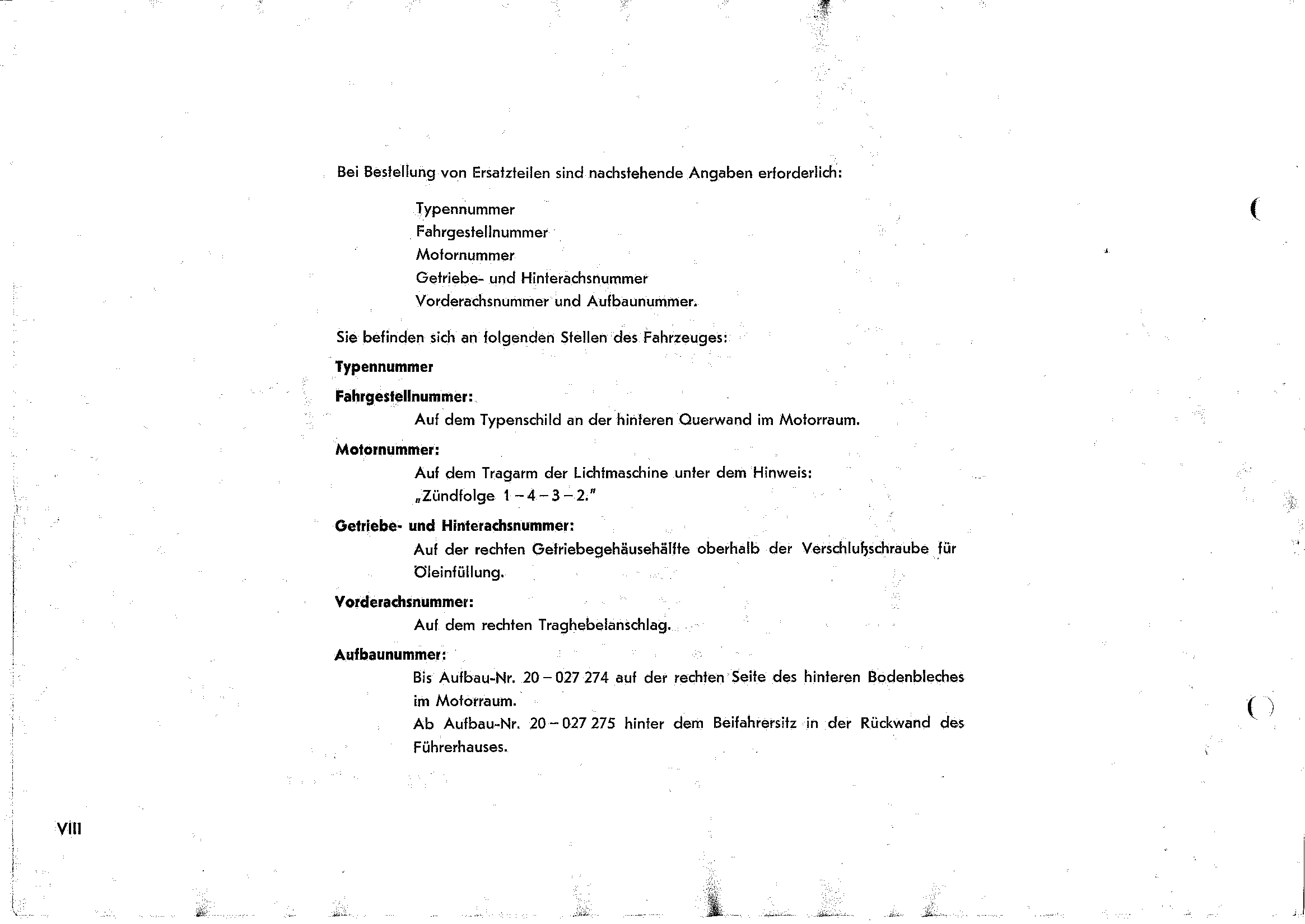

viii special Ordering spare parts - German

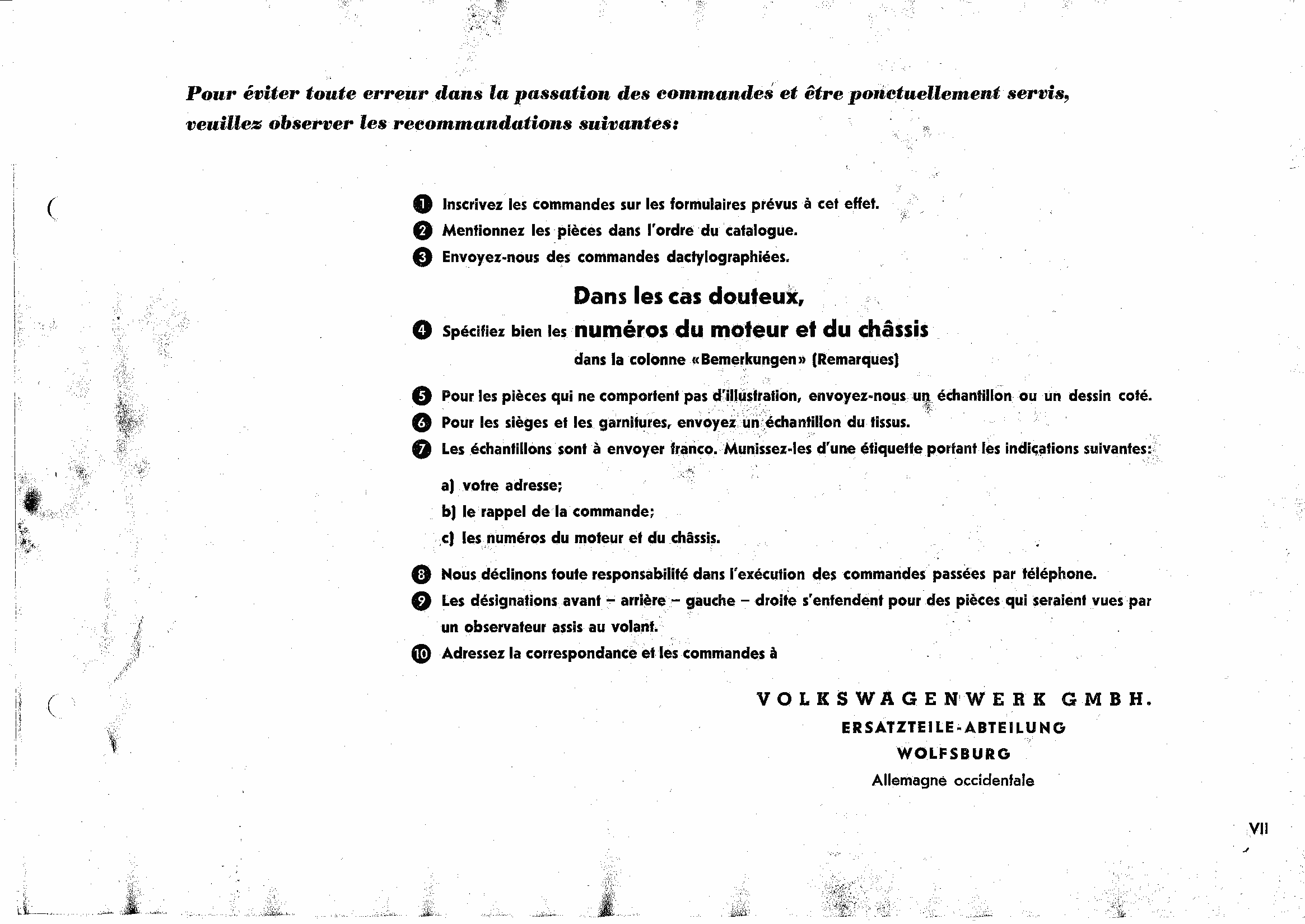

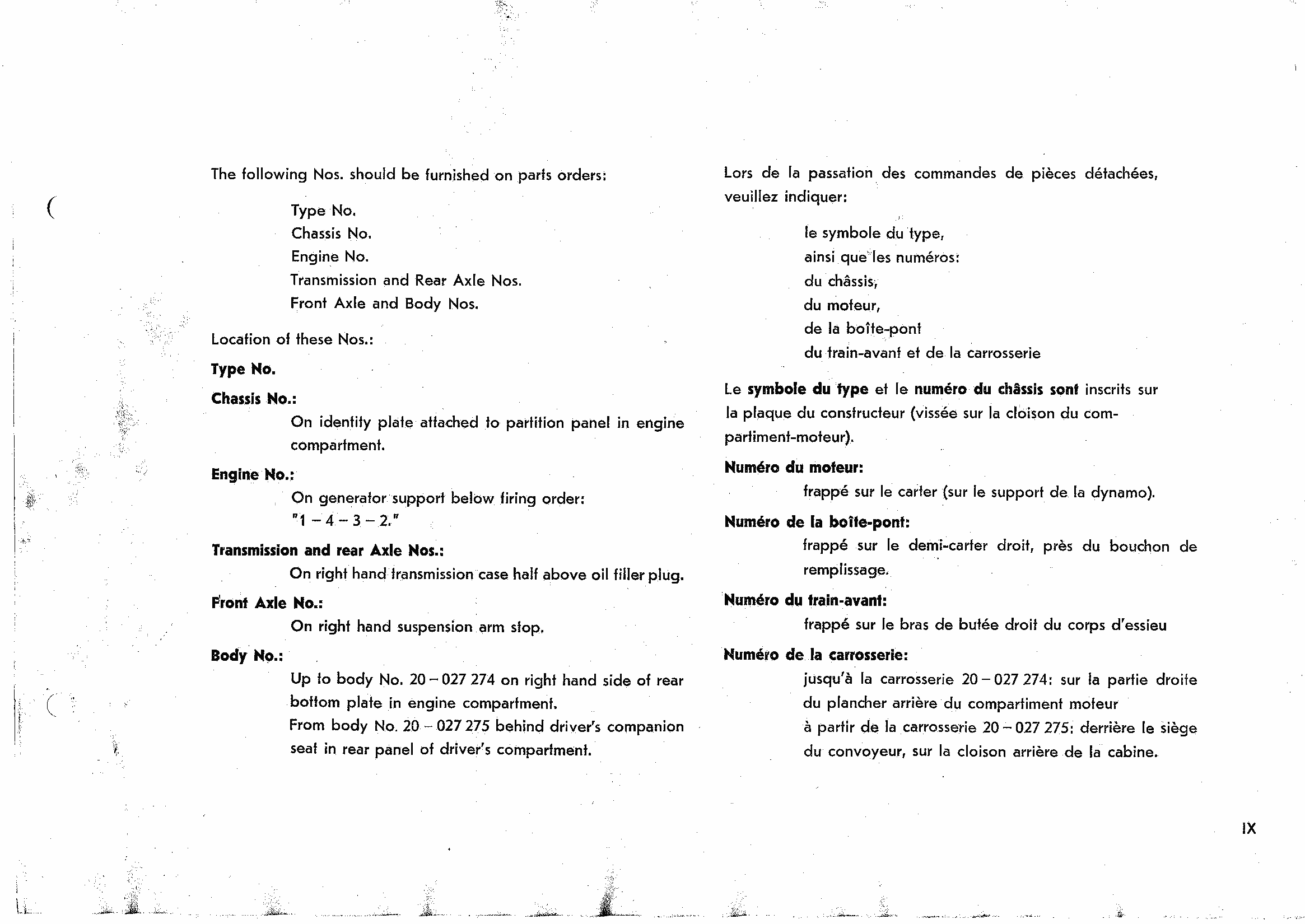

ix special Ordering spare parts - English and French

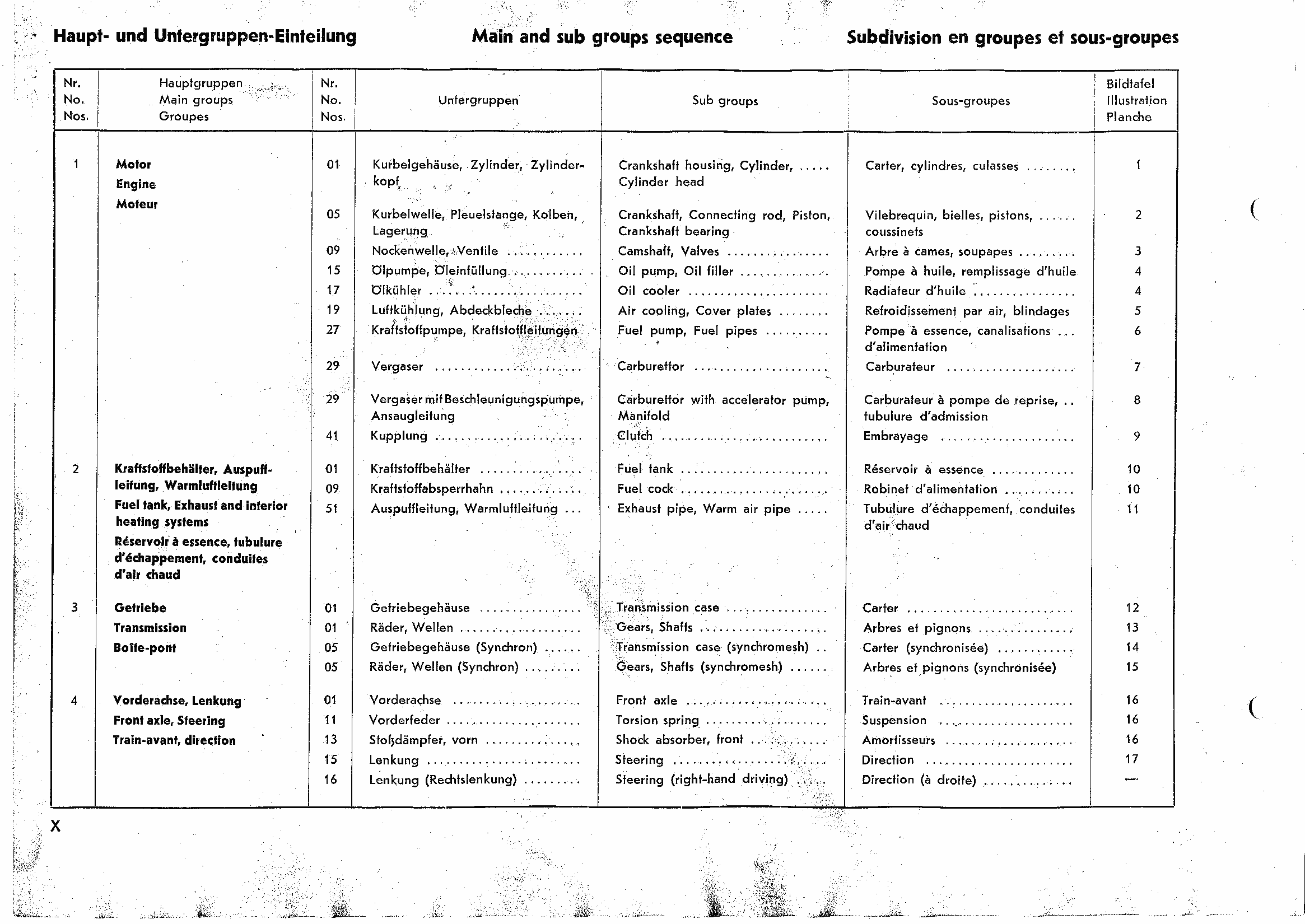

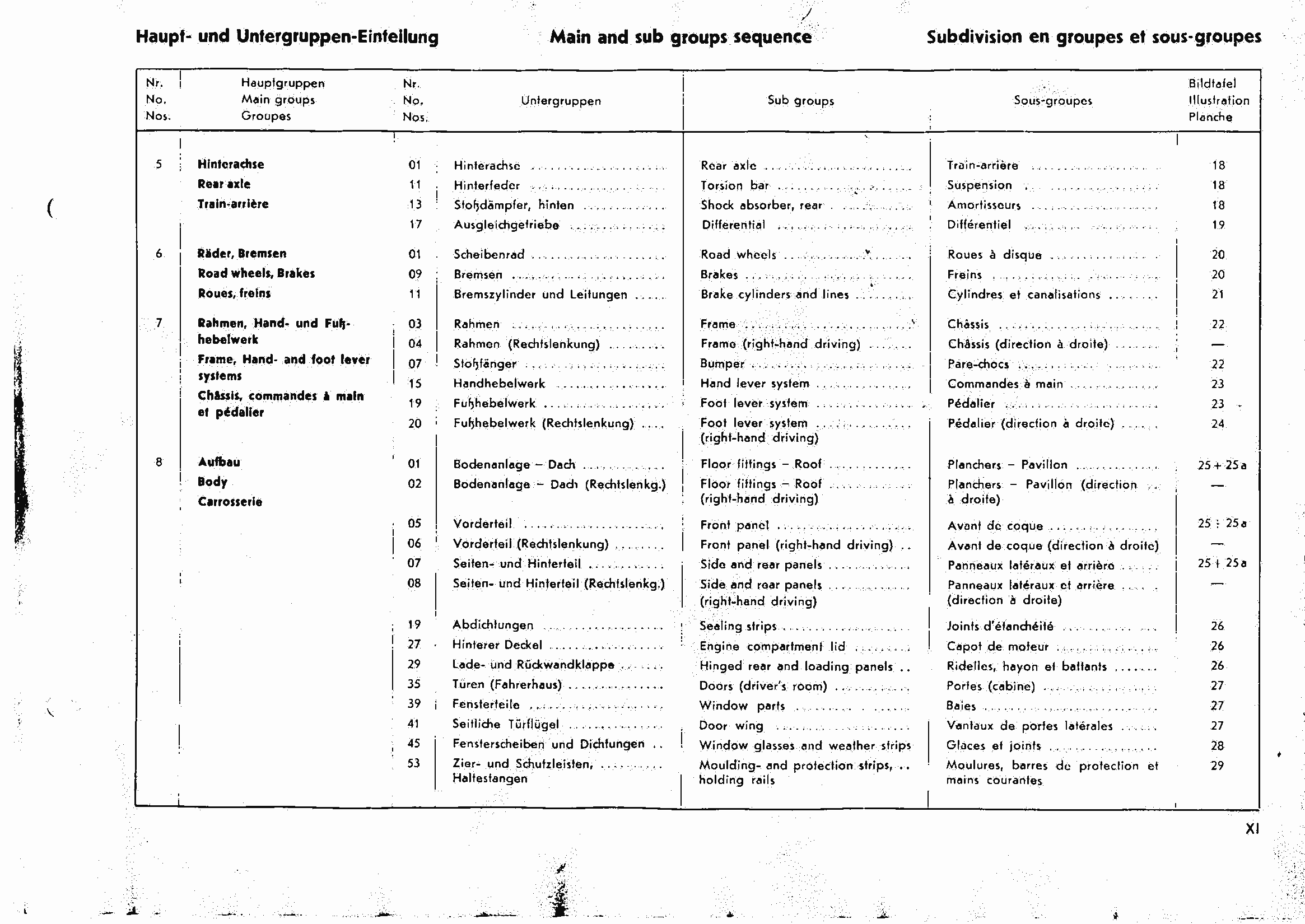

x list Main and sub groups sequence
xi list Main and sub groups sequence

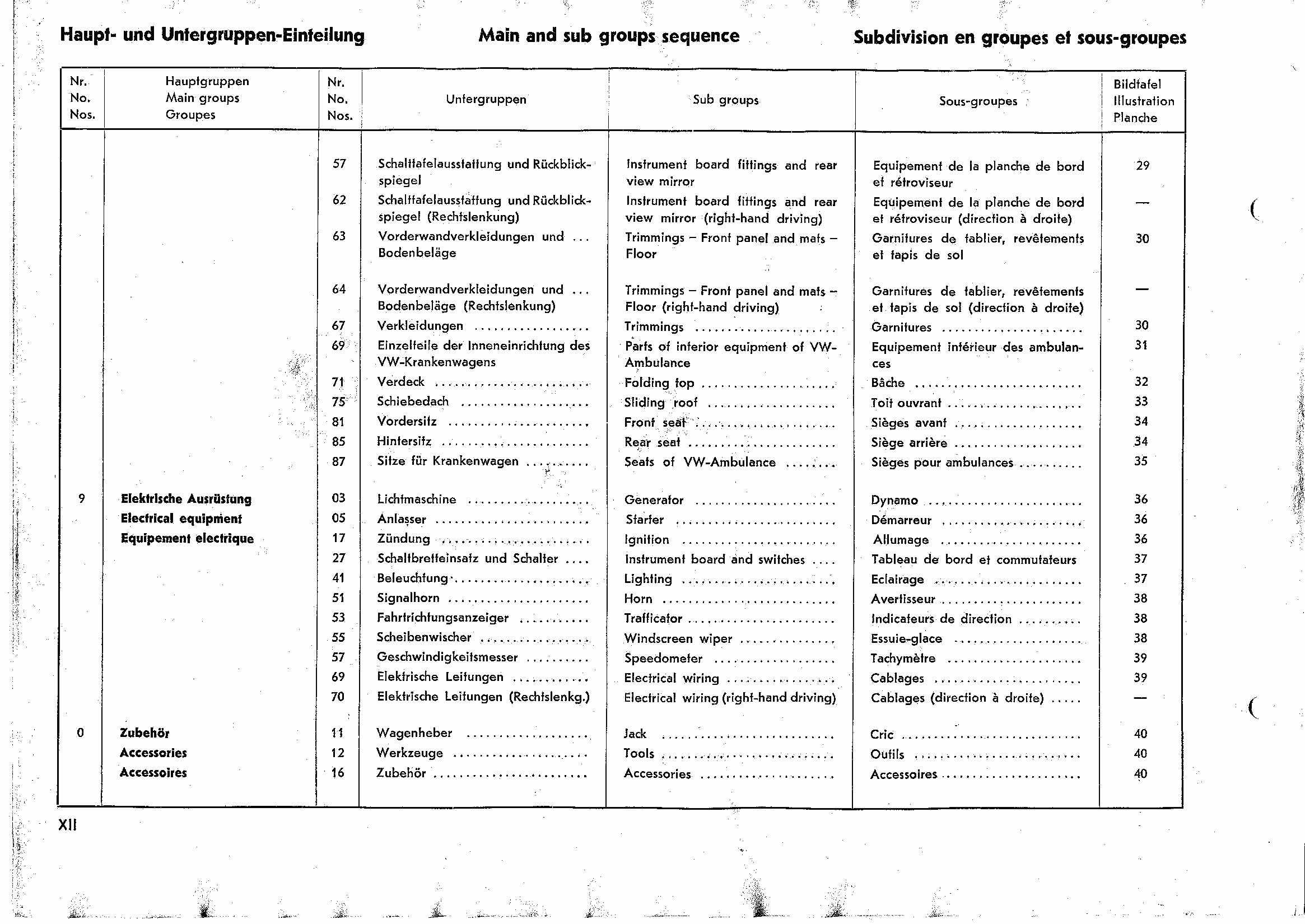

xii list Main and sub groups sequence

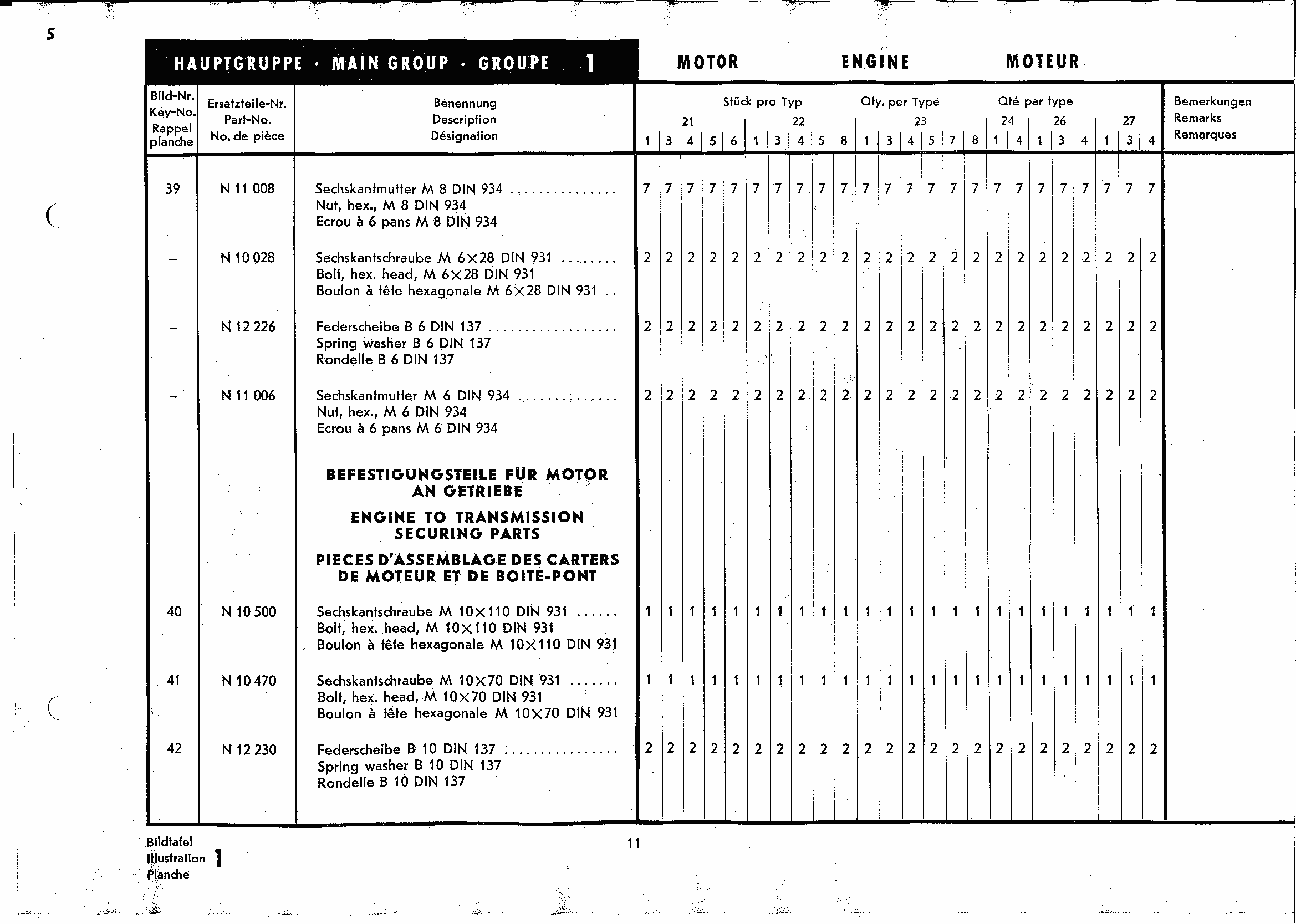

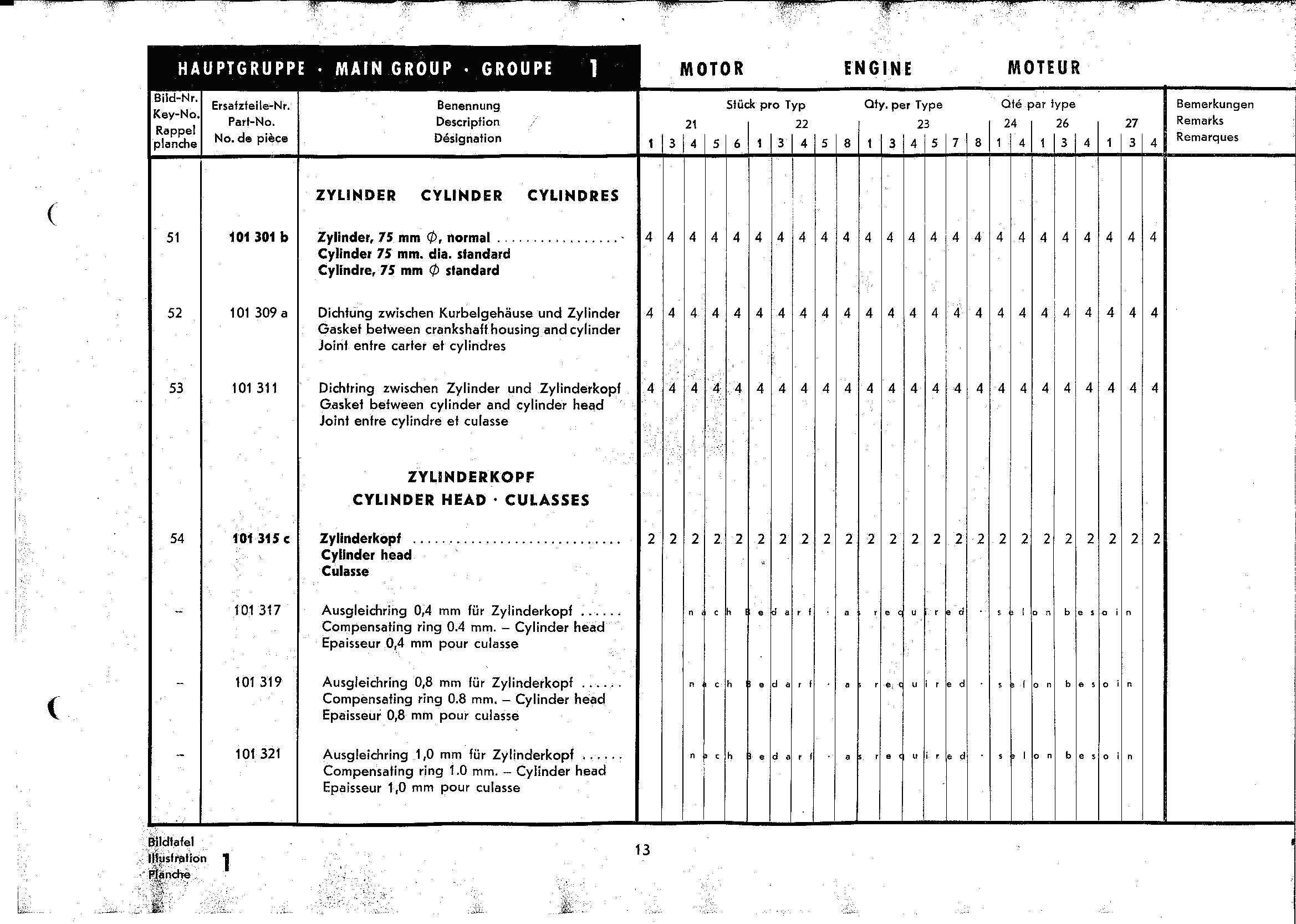

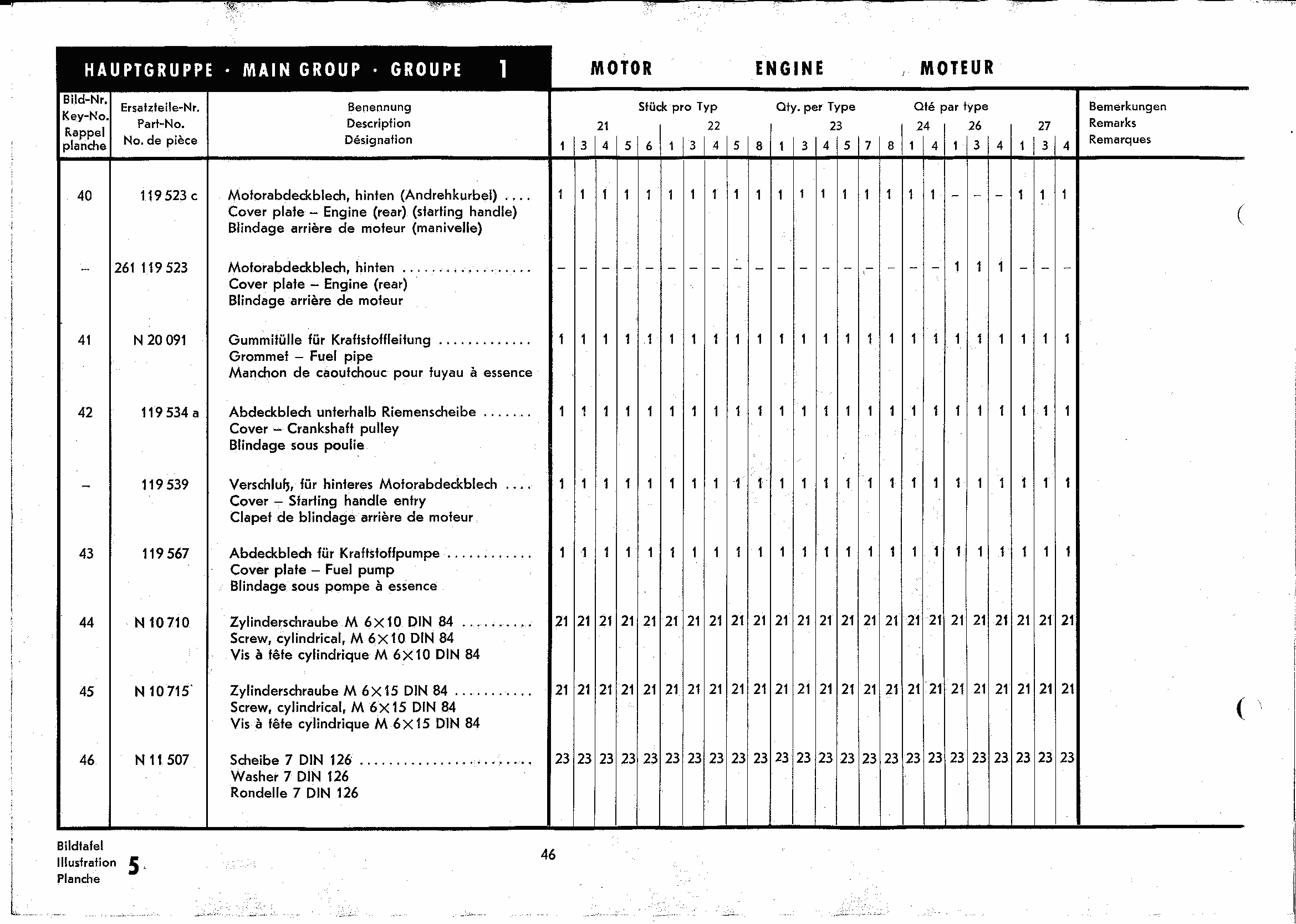

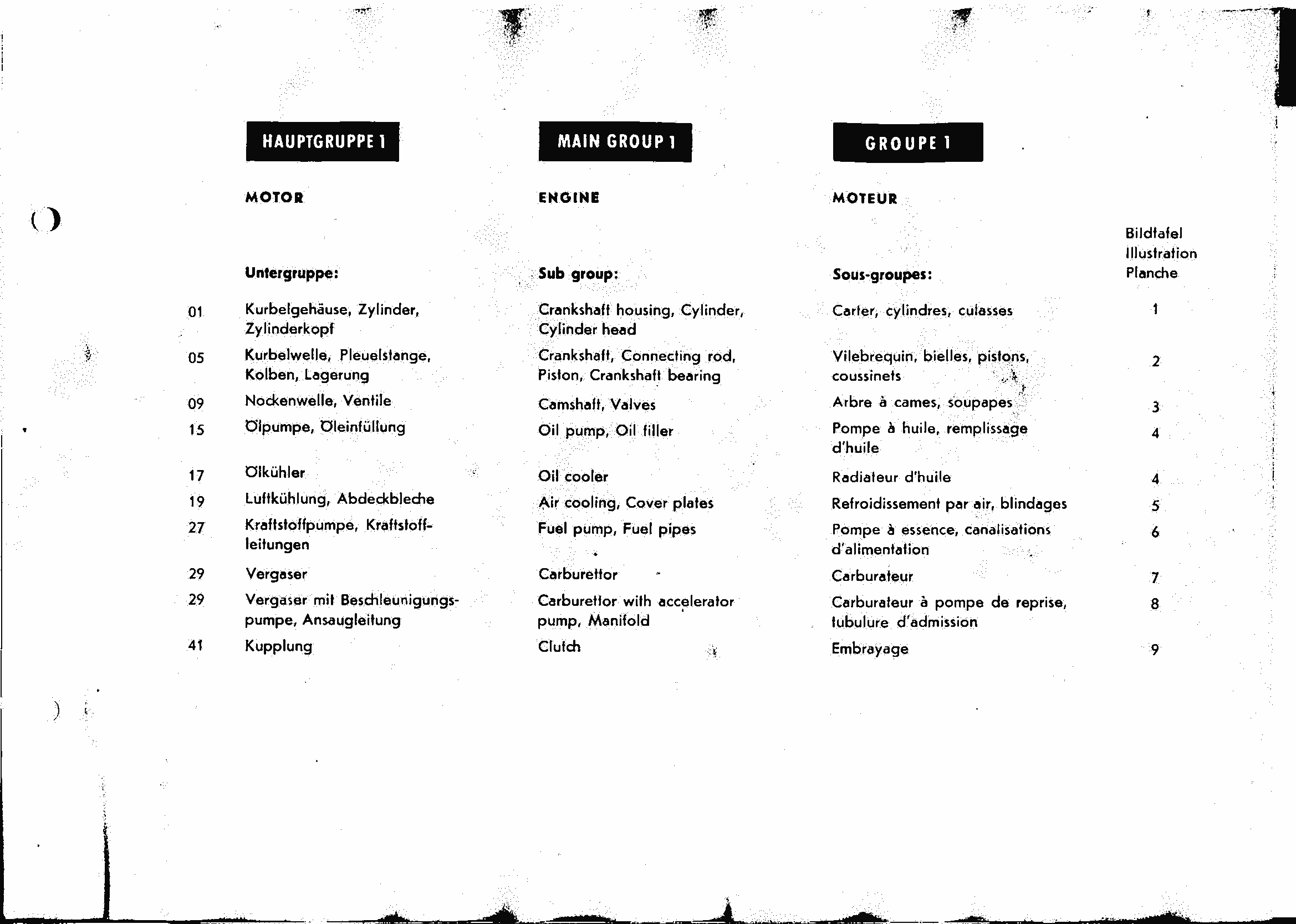

Main Group 1: Engine

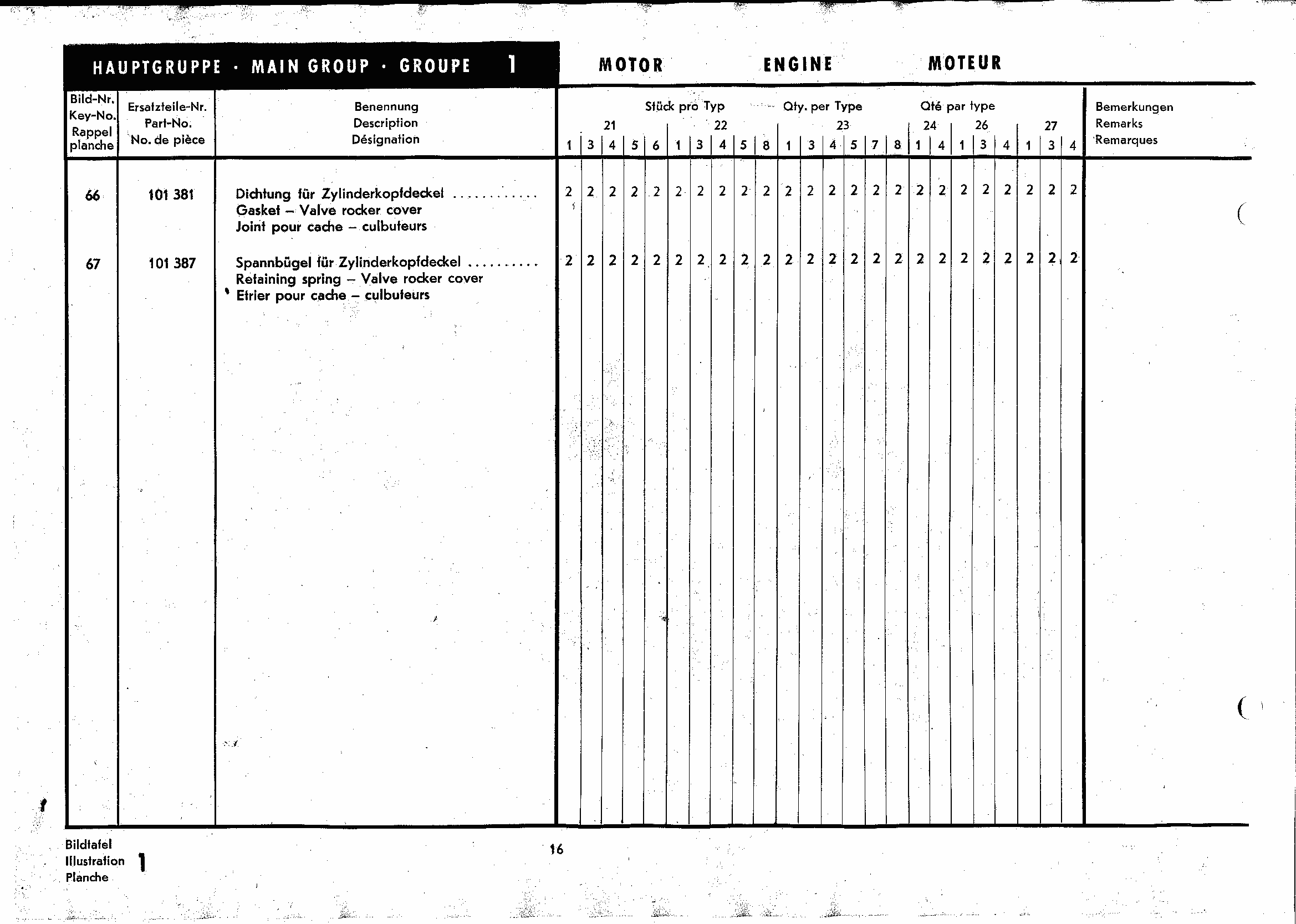

1 list Main Group 1 index

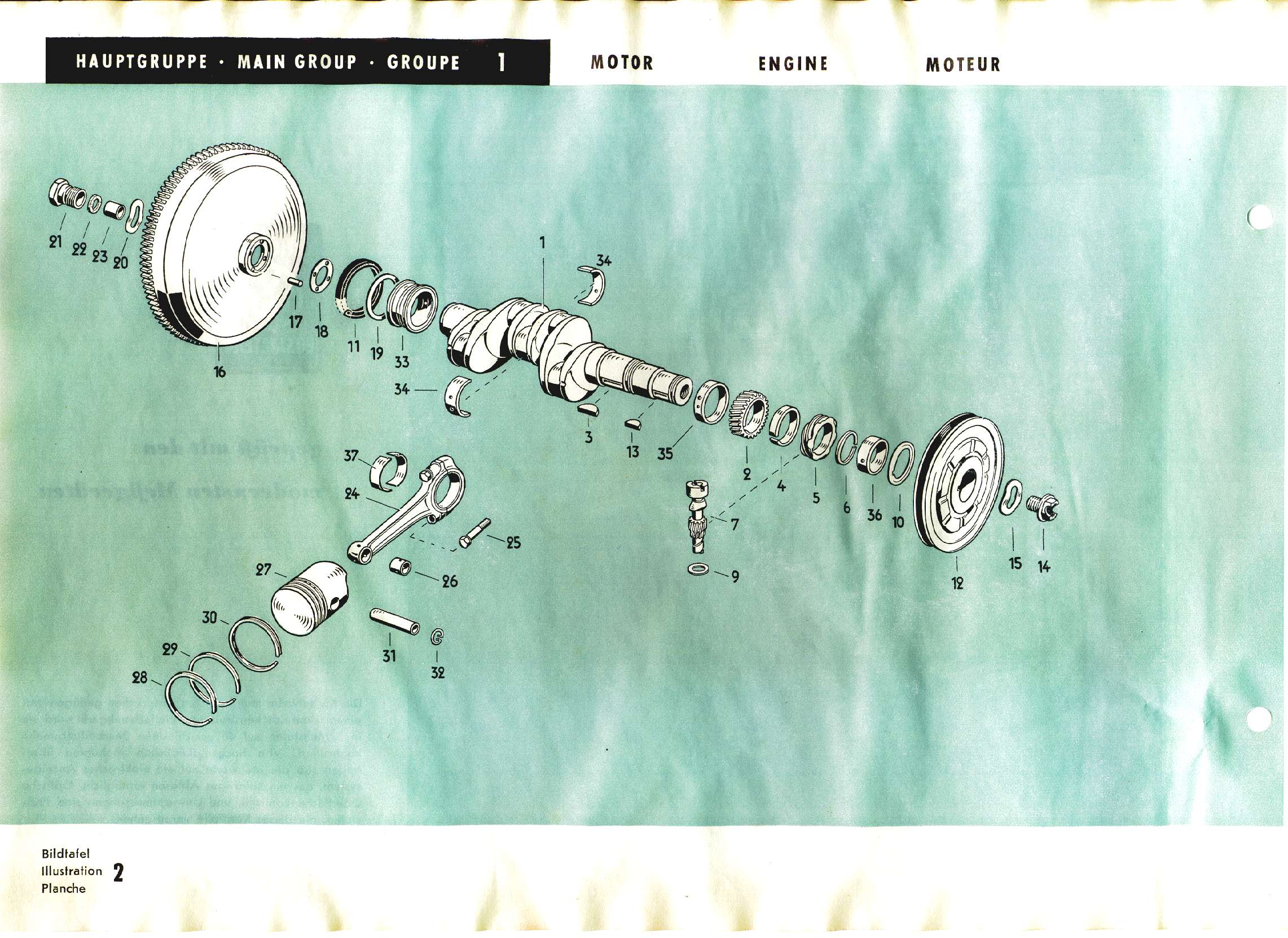

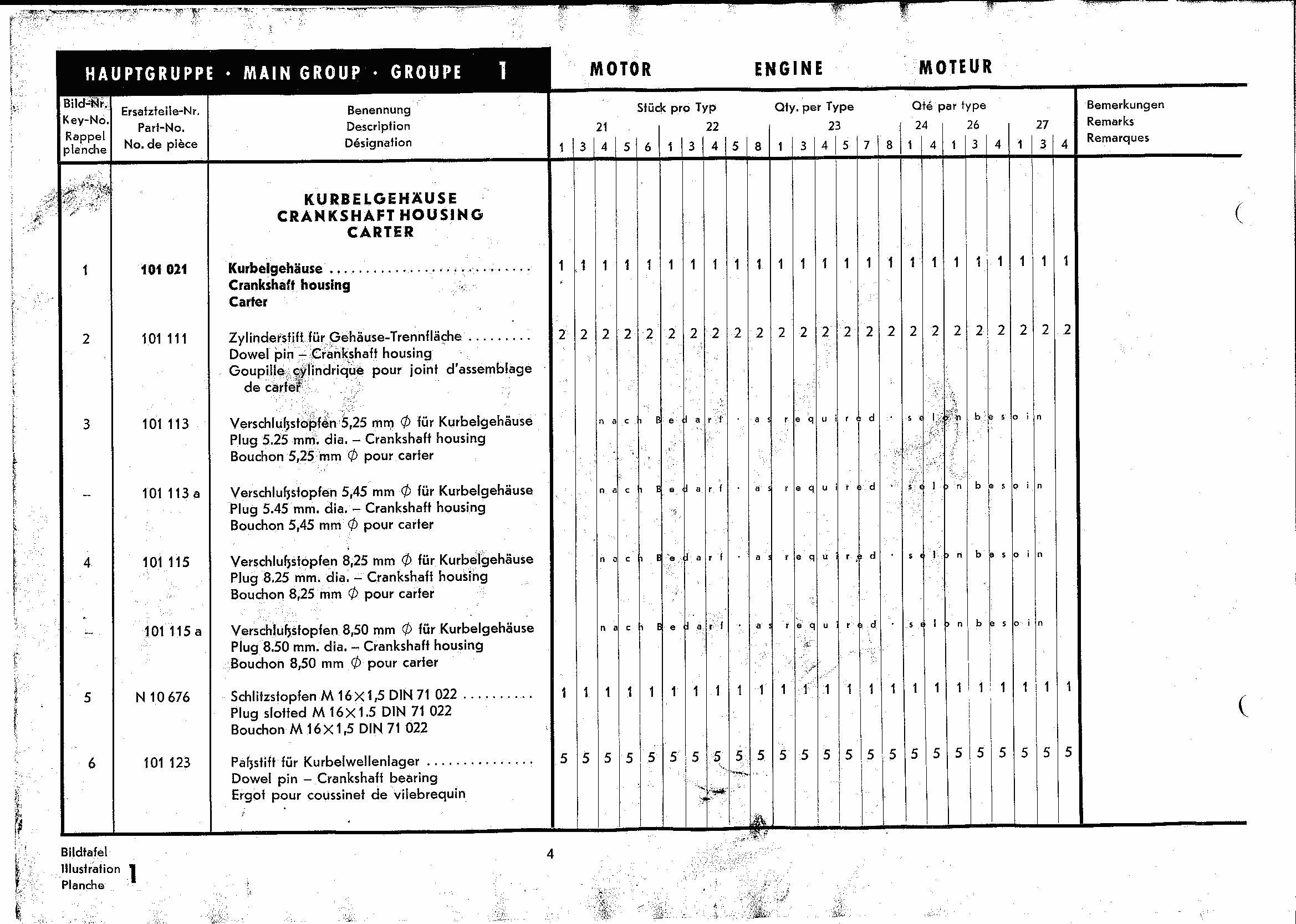

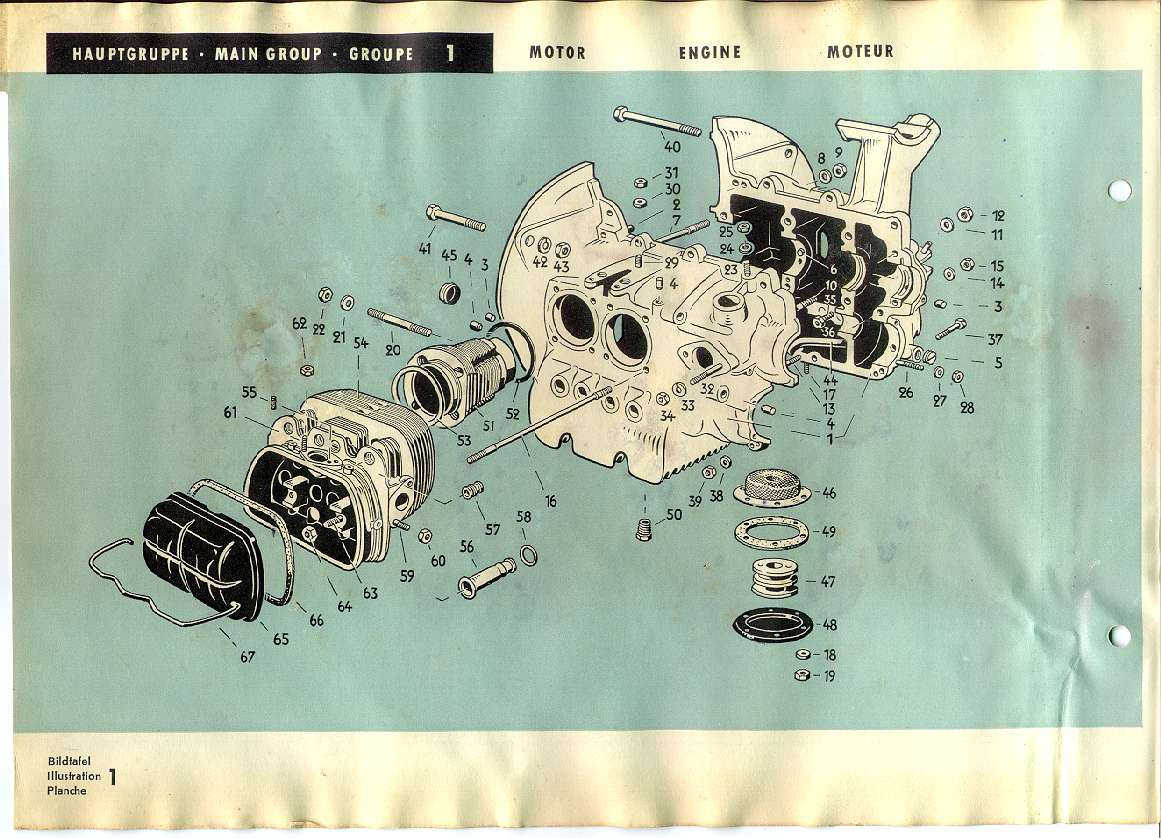

2 diagram Crankshaft housing

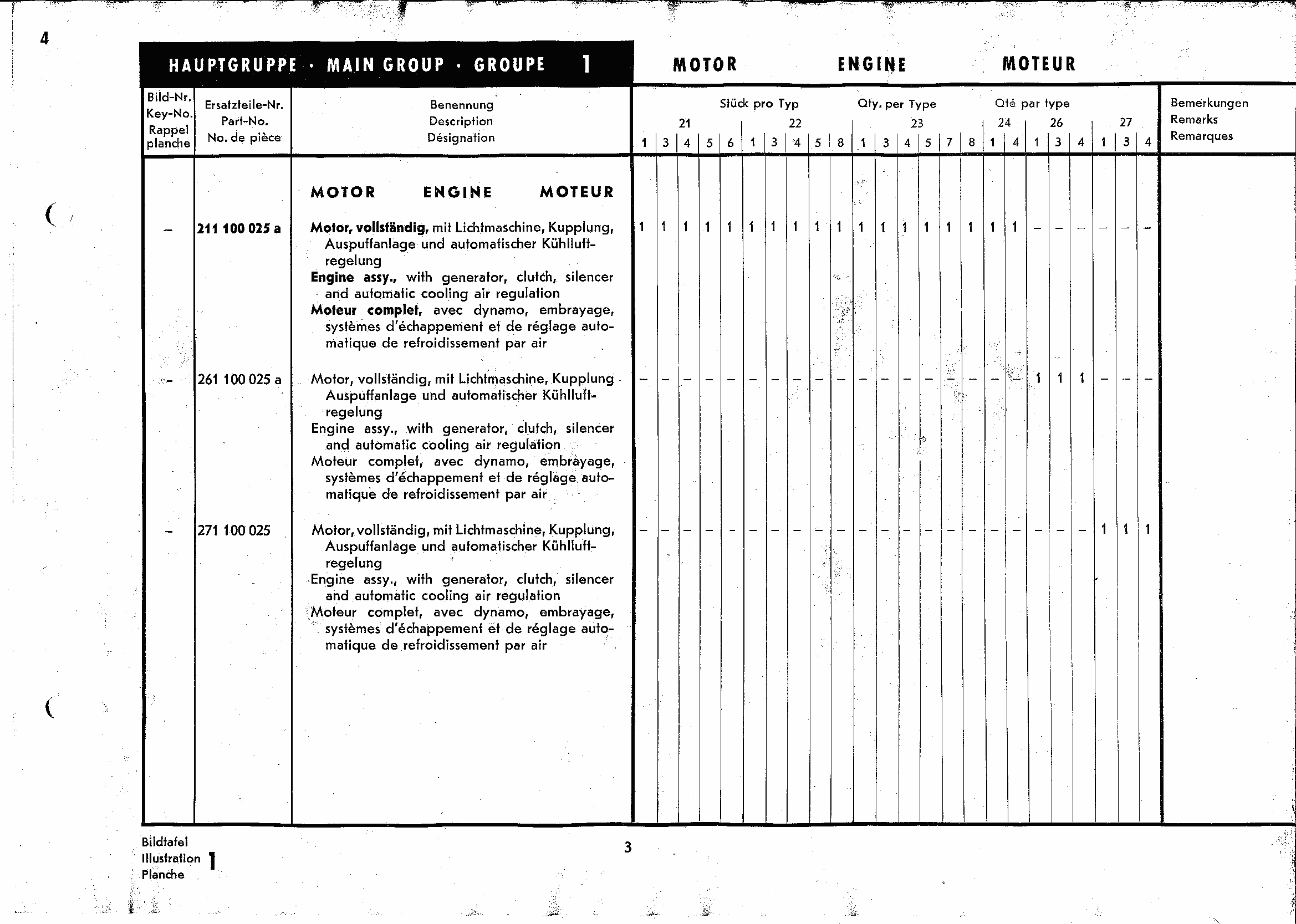

3 list Engine
4 list Crankshaft housing

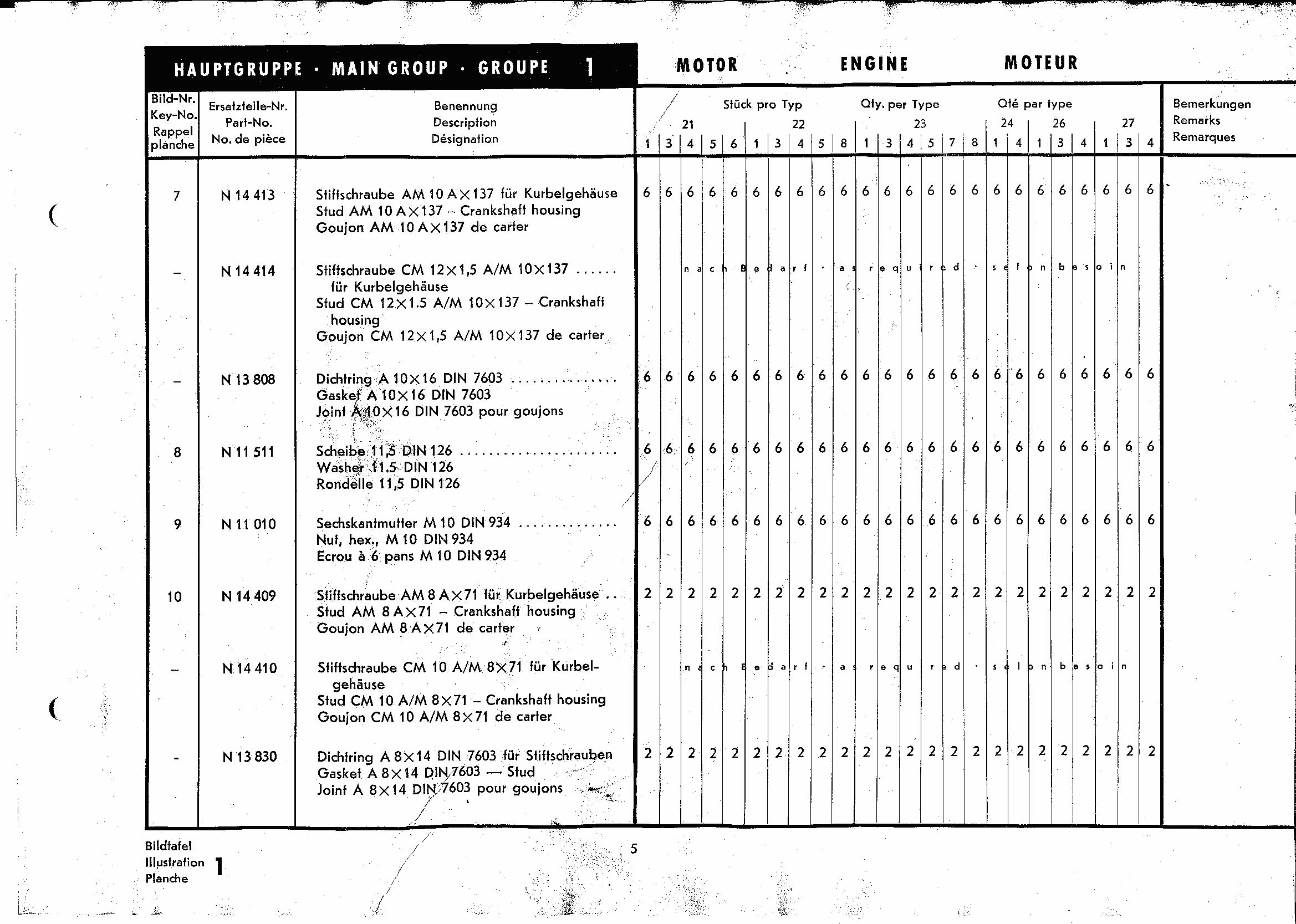

5 list Crankshaft housing

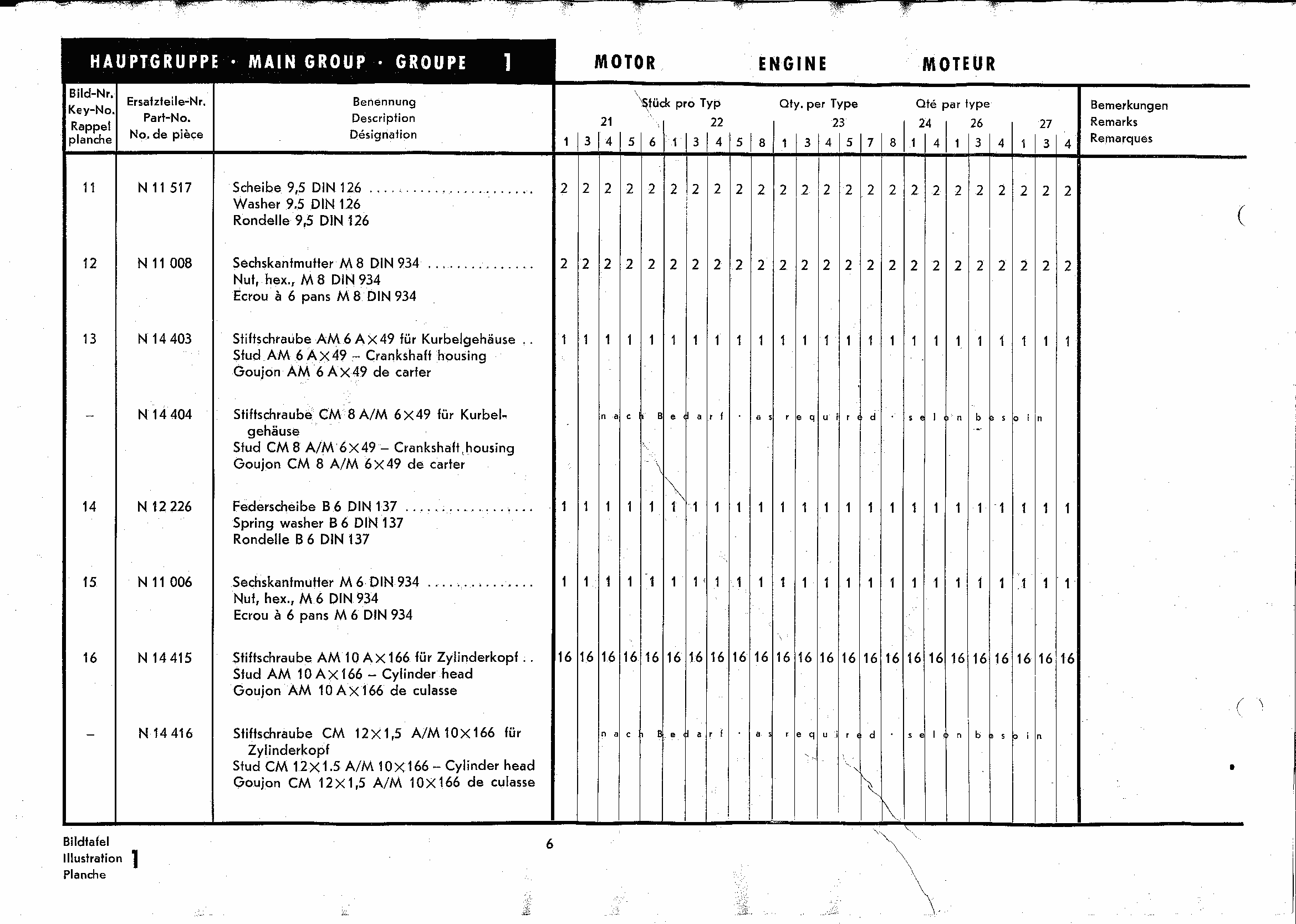

6 list Crankshaft housing

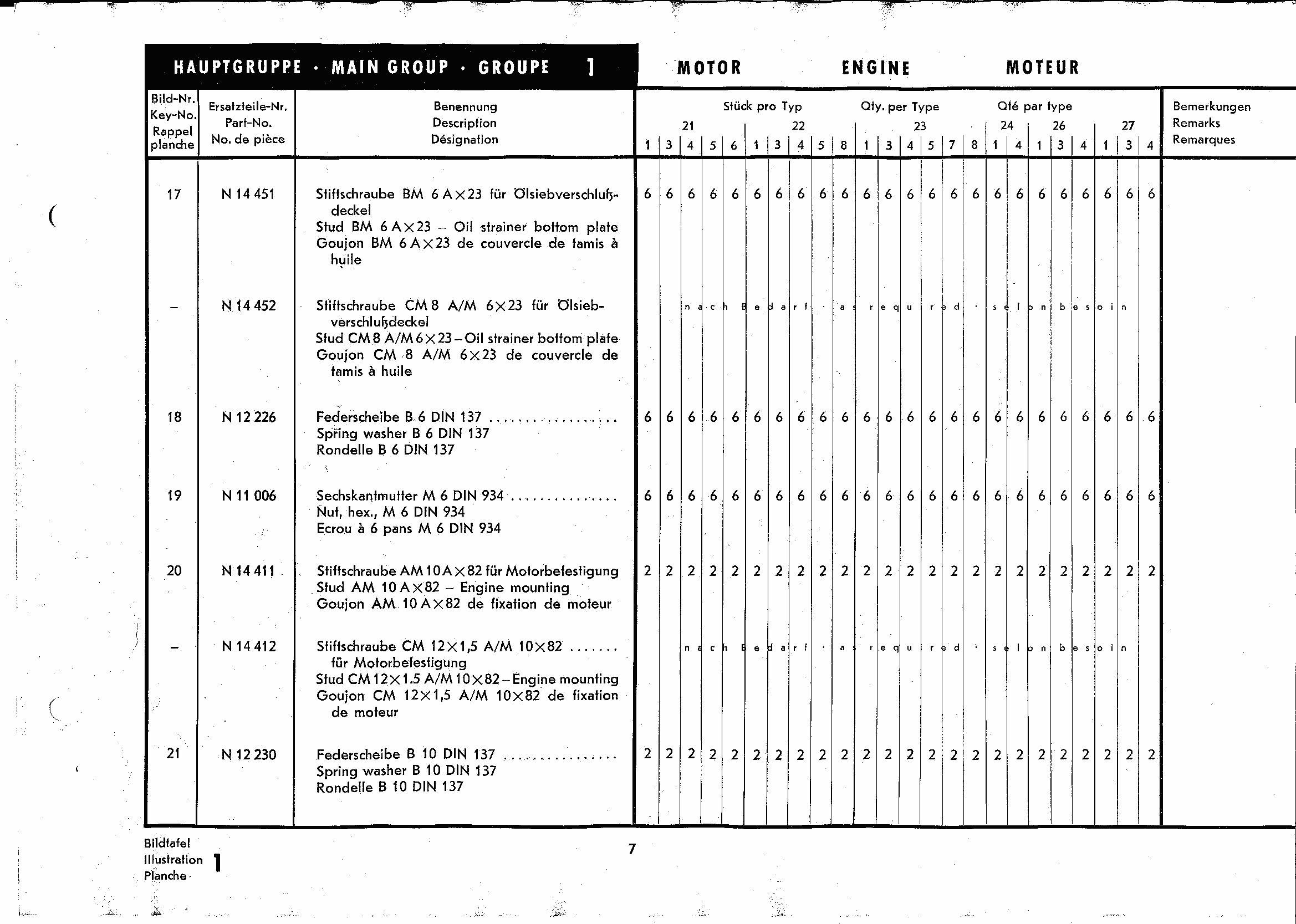

7 list Crankshaft housing

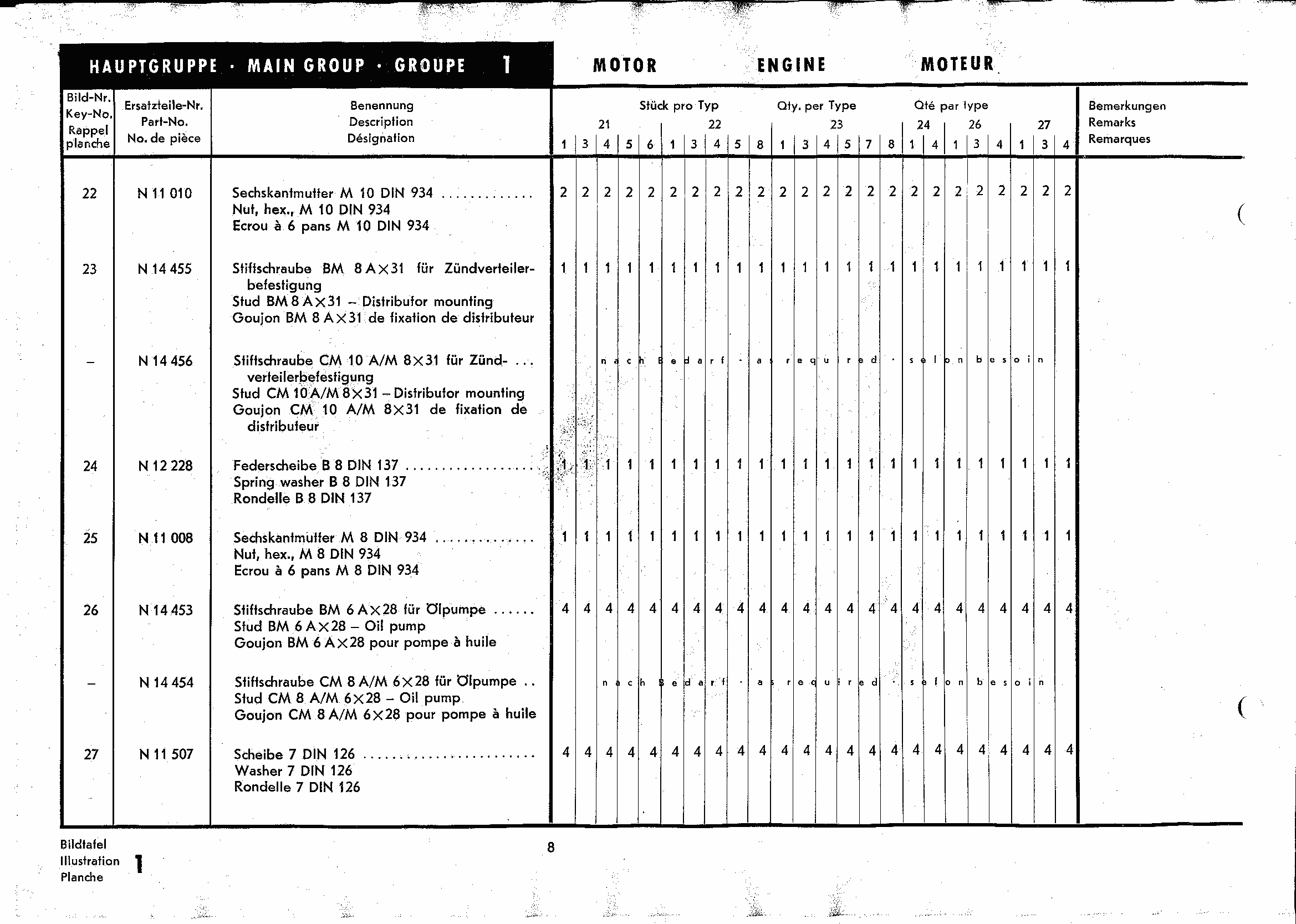

8 list Crankshaft housing

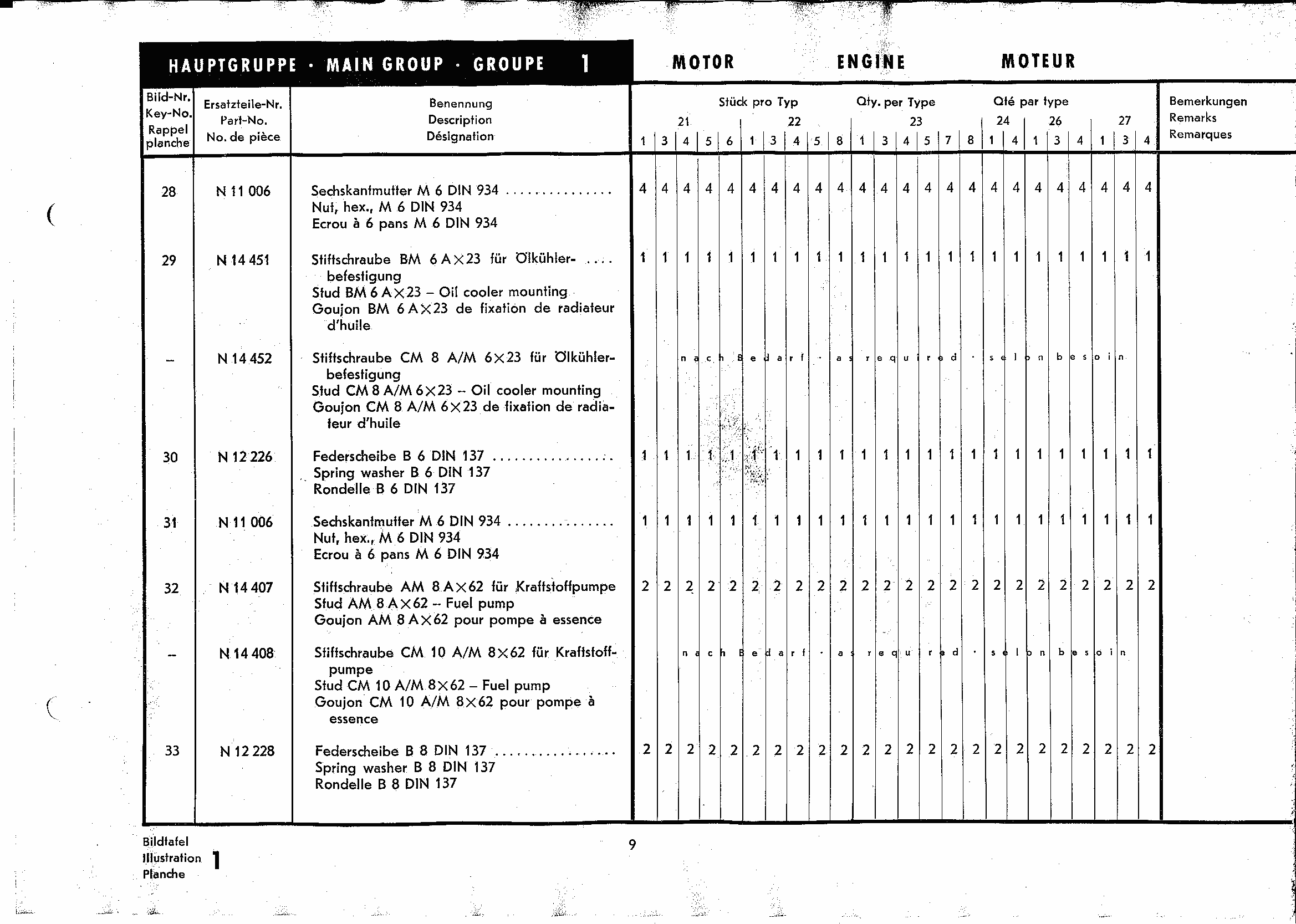

9 list Crankshaft housing

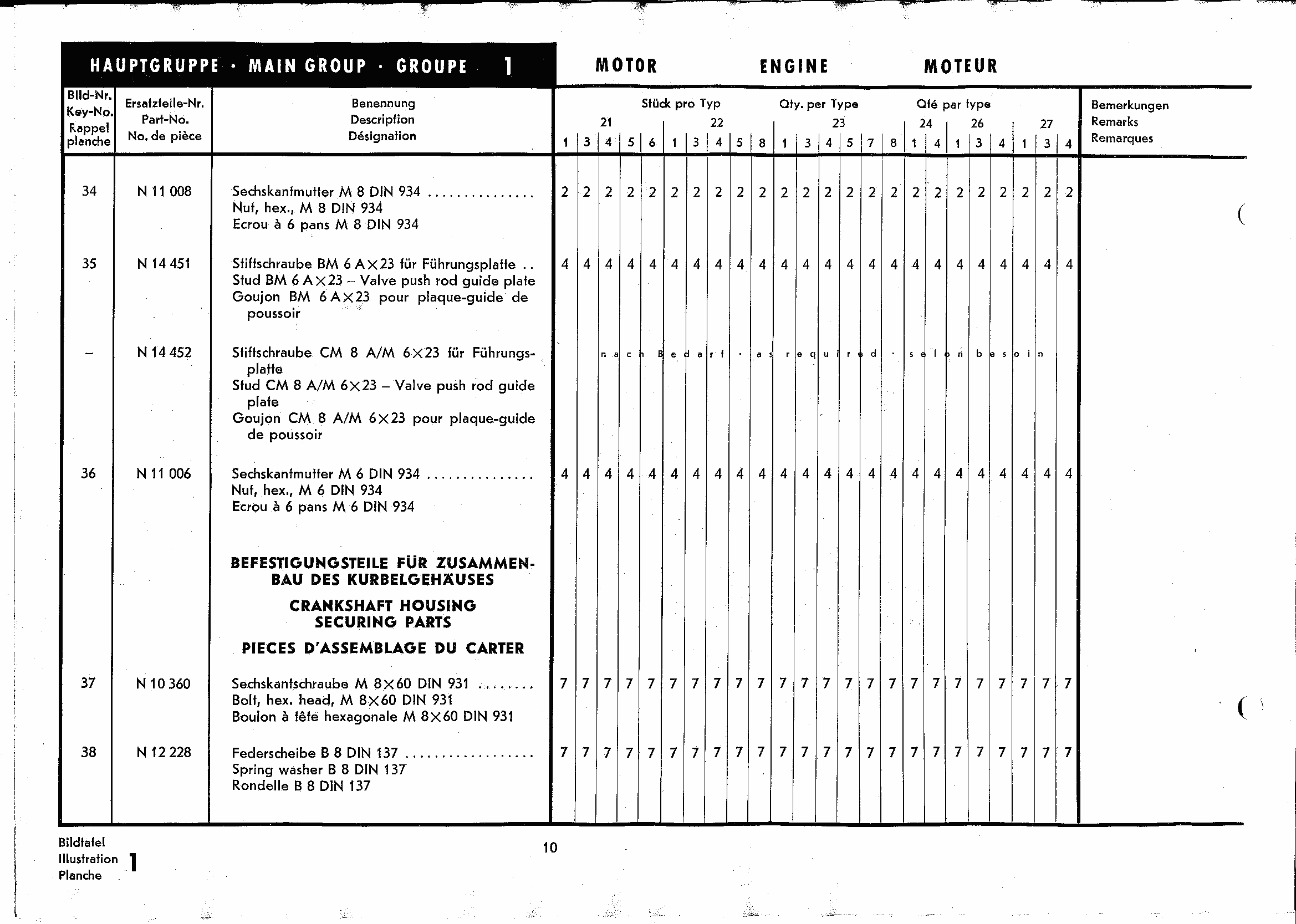

10 list Crankshaft housing, crankshaft housing securing parts
11 list Crankshaft housing securing parts, engine to transmission securing parts

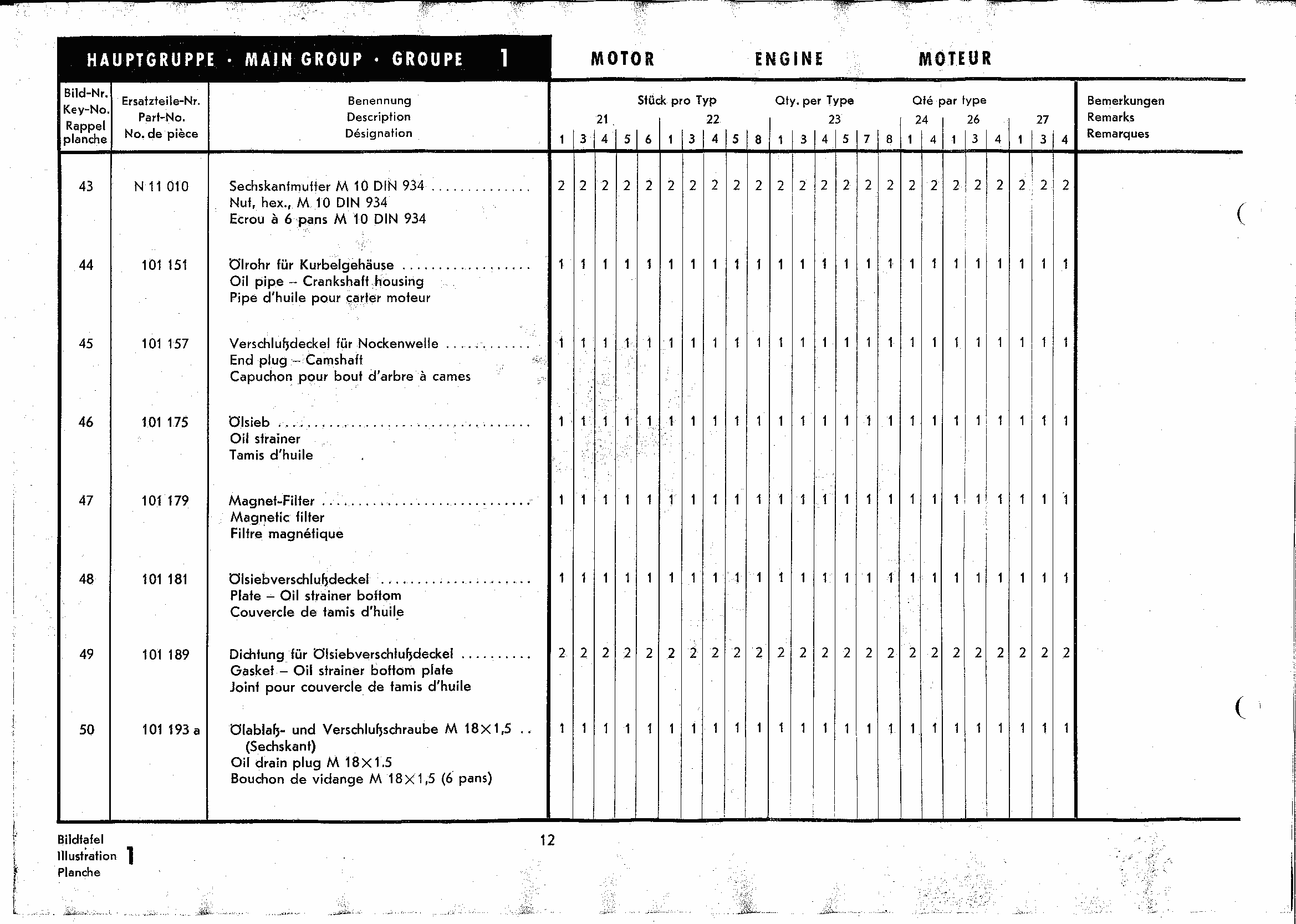

12 list Engine to transmission securing parts
13 list Cylinder, cylinder head

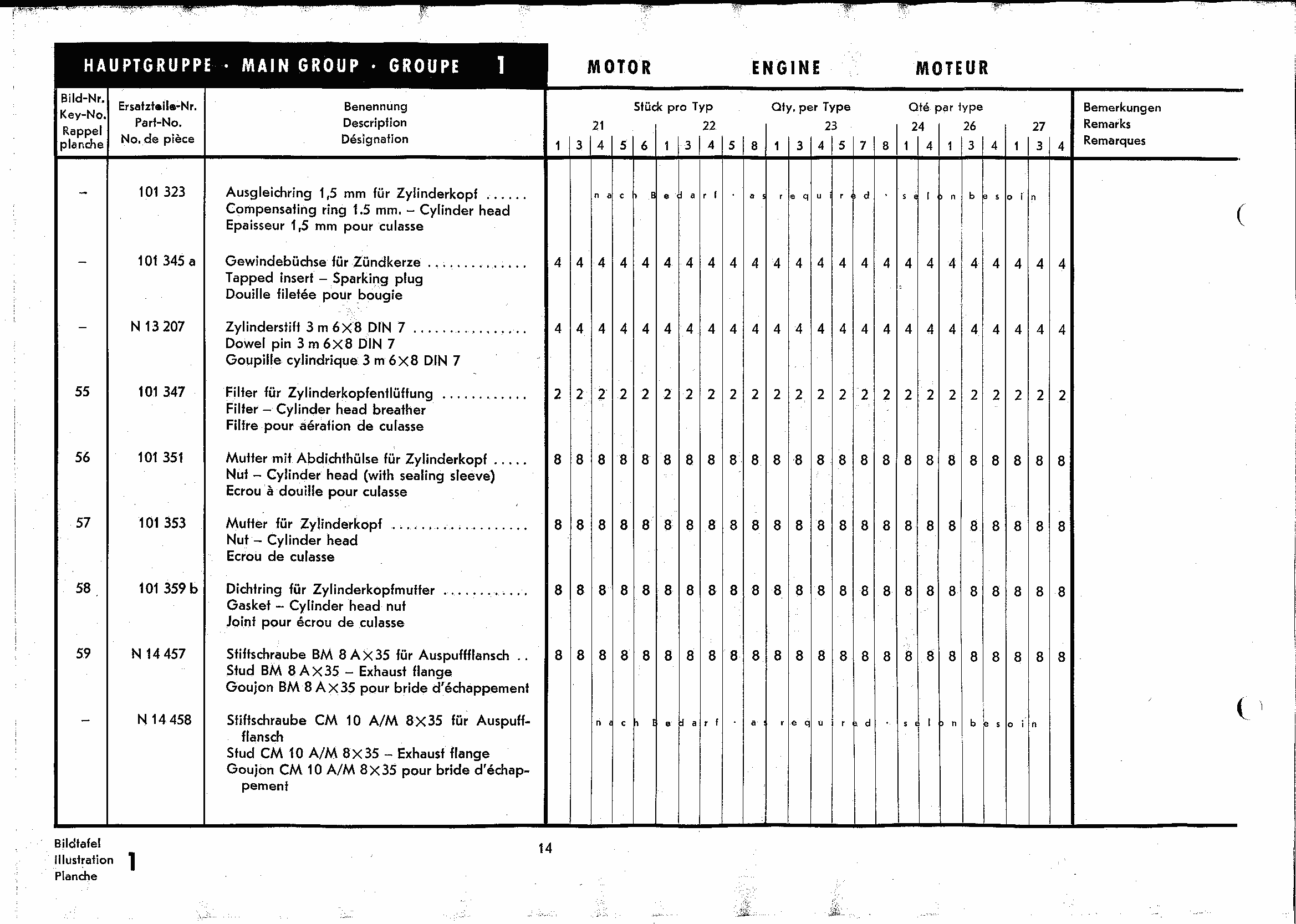

14 list Cylinder, cylinder head

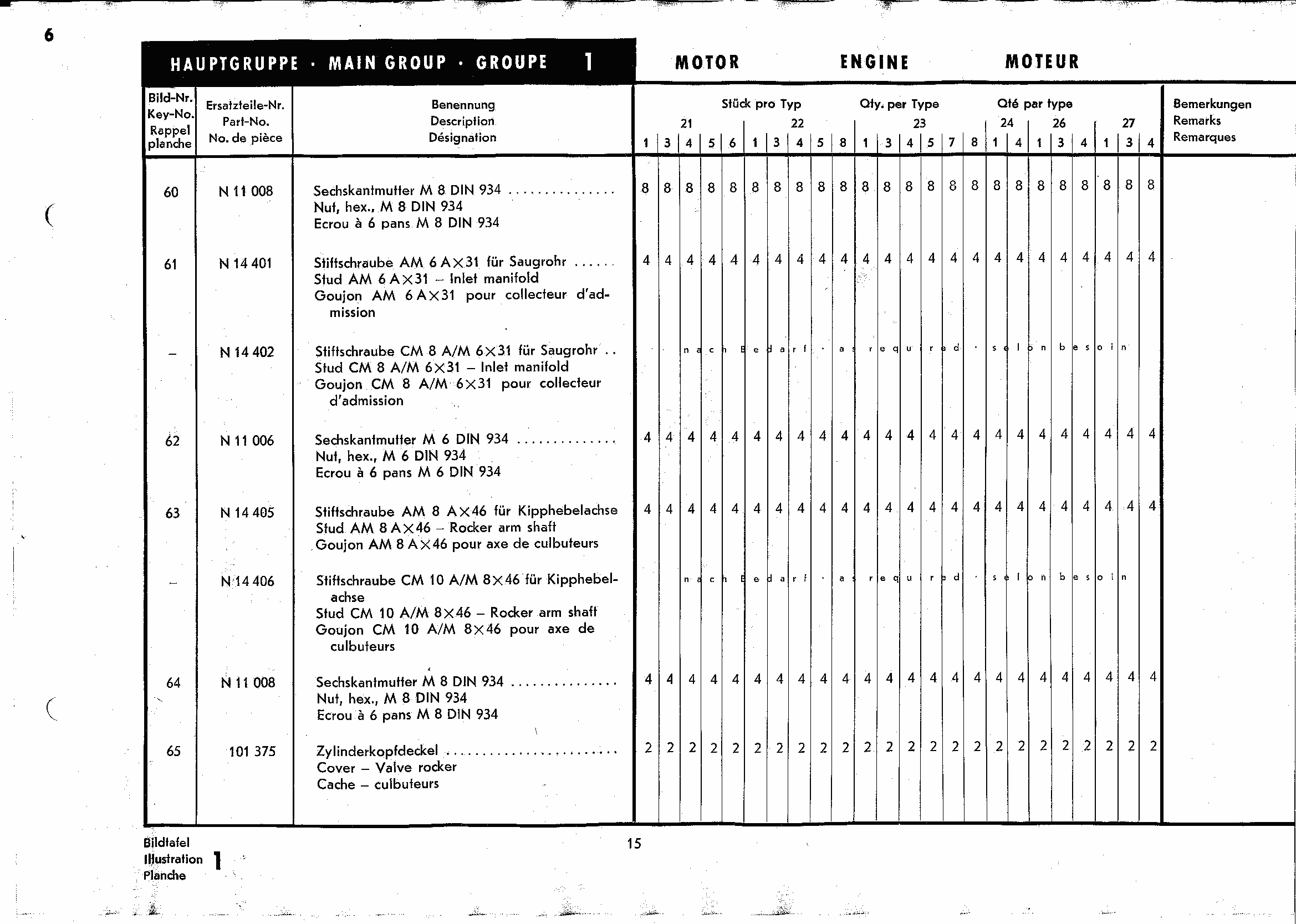

15 list Cylinder, cylinder head
16 list Cylinder, cylinder head
17 special geprueft mit den modernsten Messgeraeten
18 diagram Crankshaft

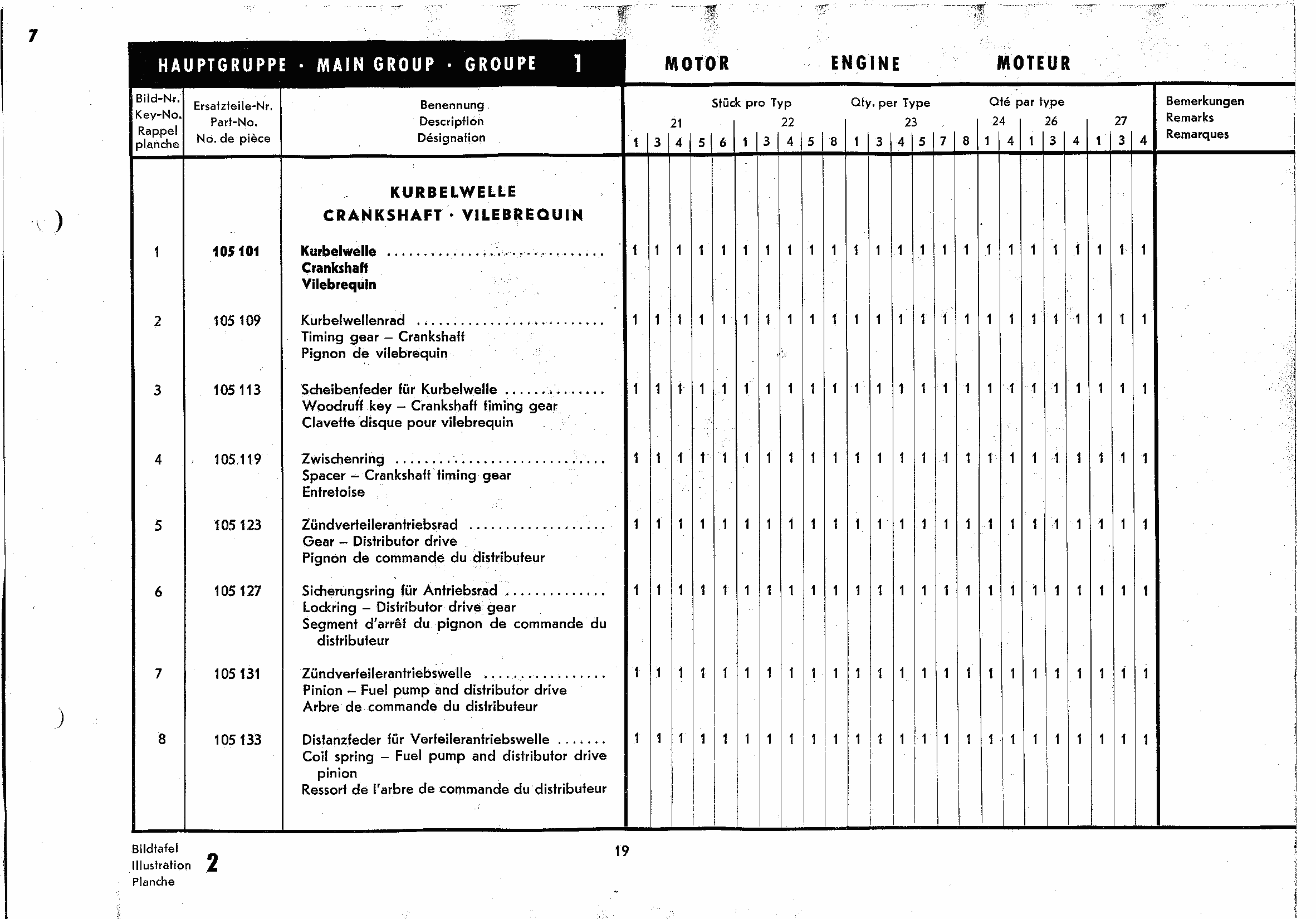

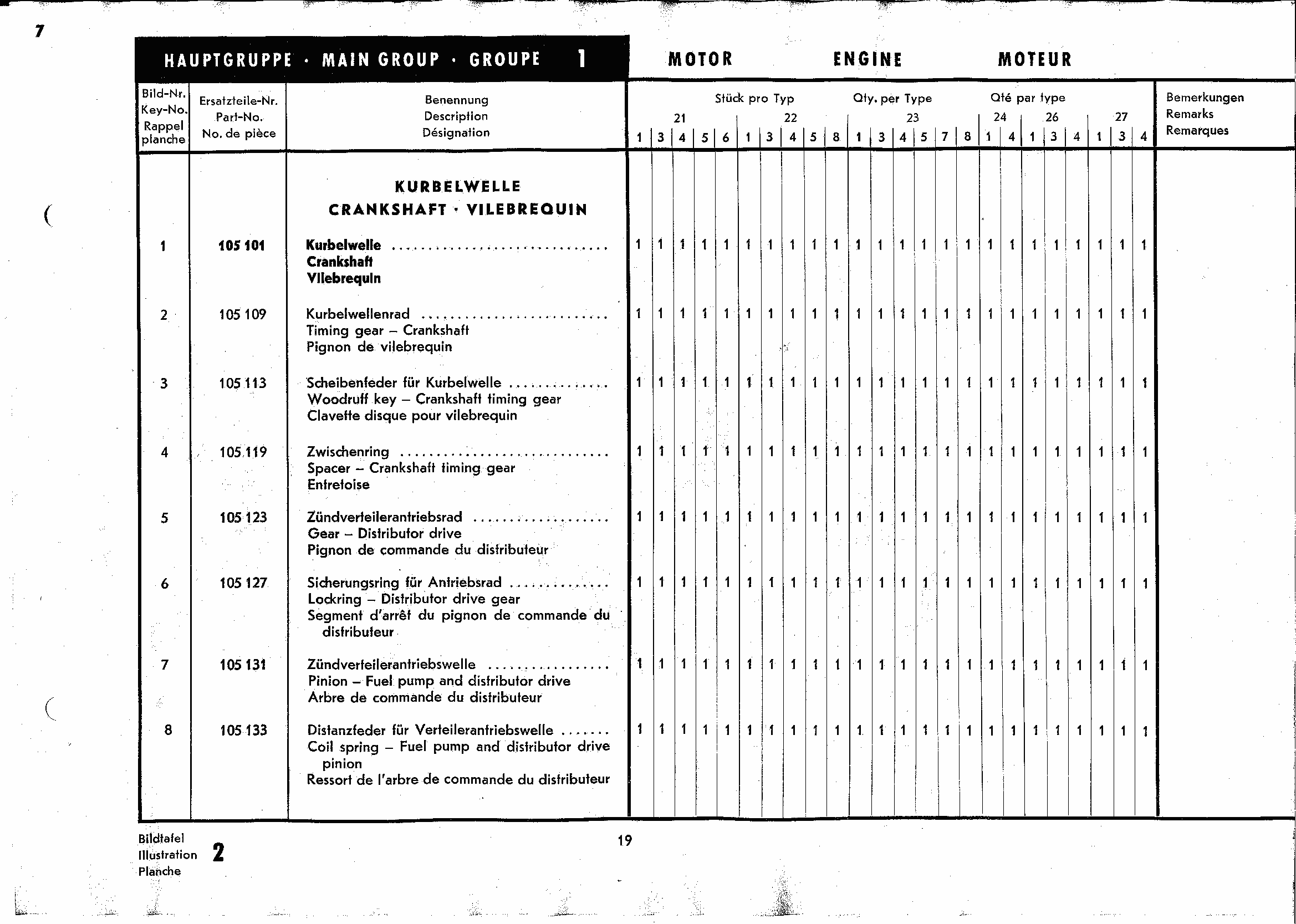

19 list Crankshaft
20 list Crankshaft

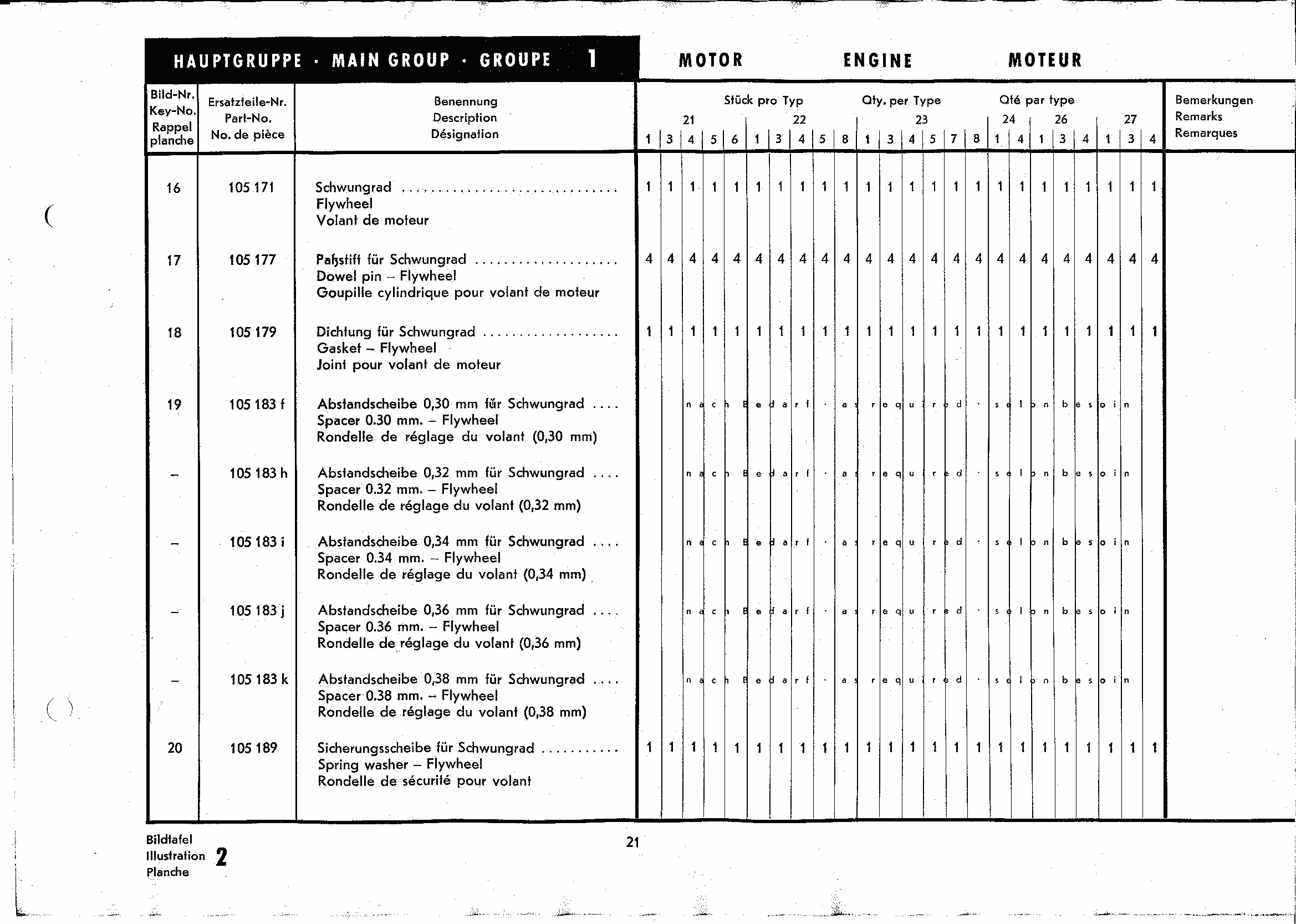

21 list Crankshaft

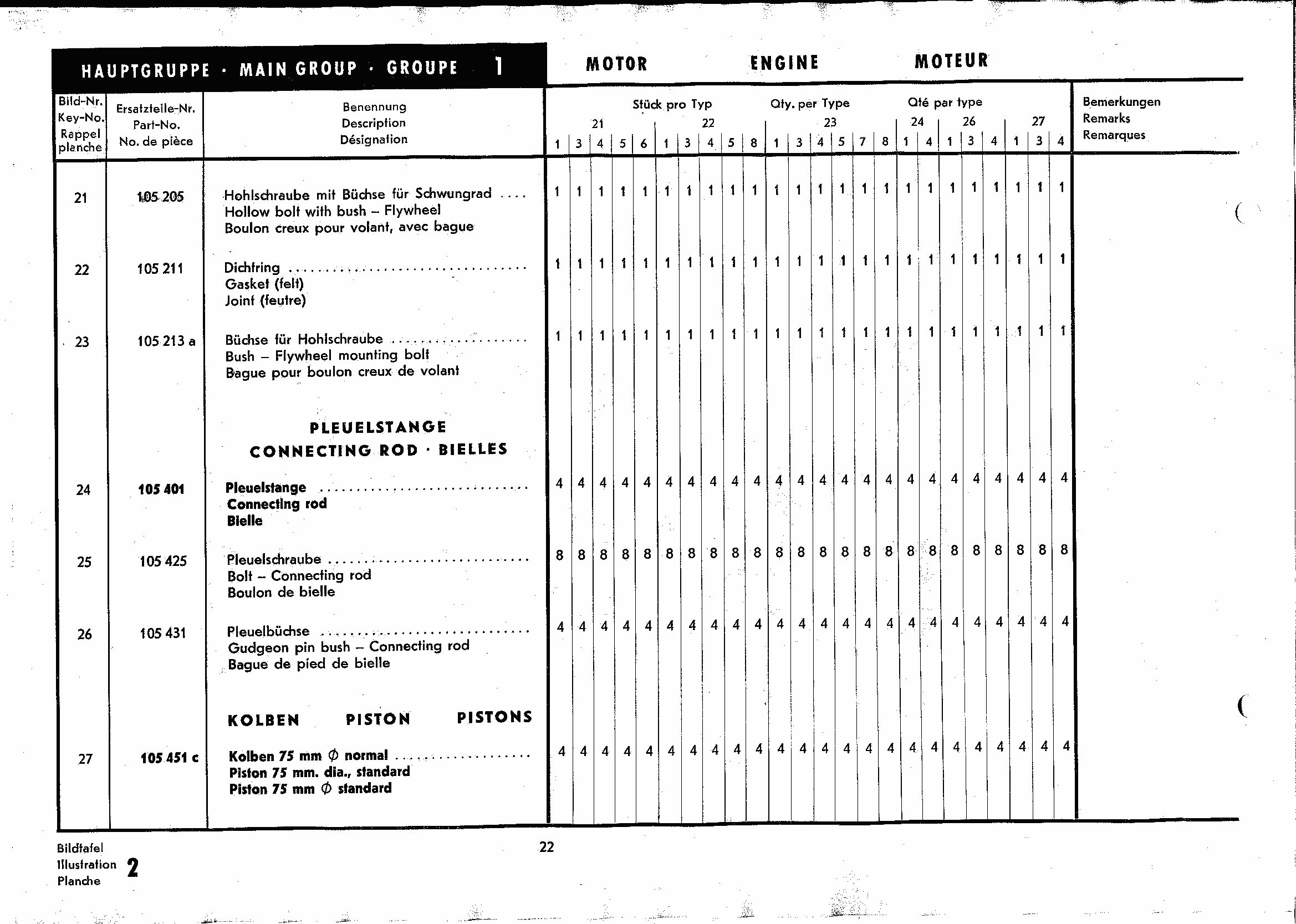

22 list Crankshaft, connecting rod

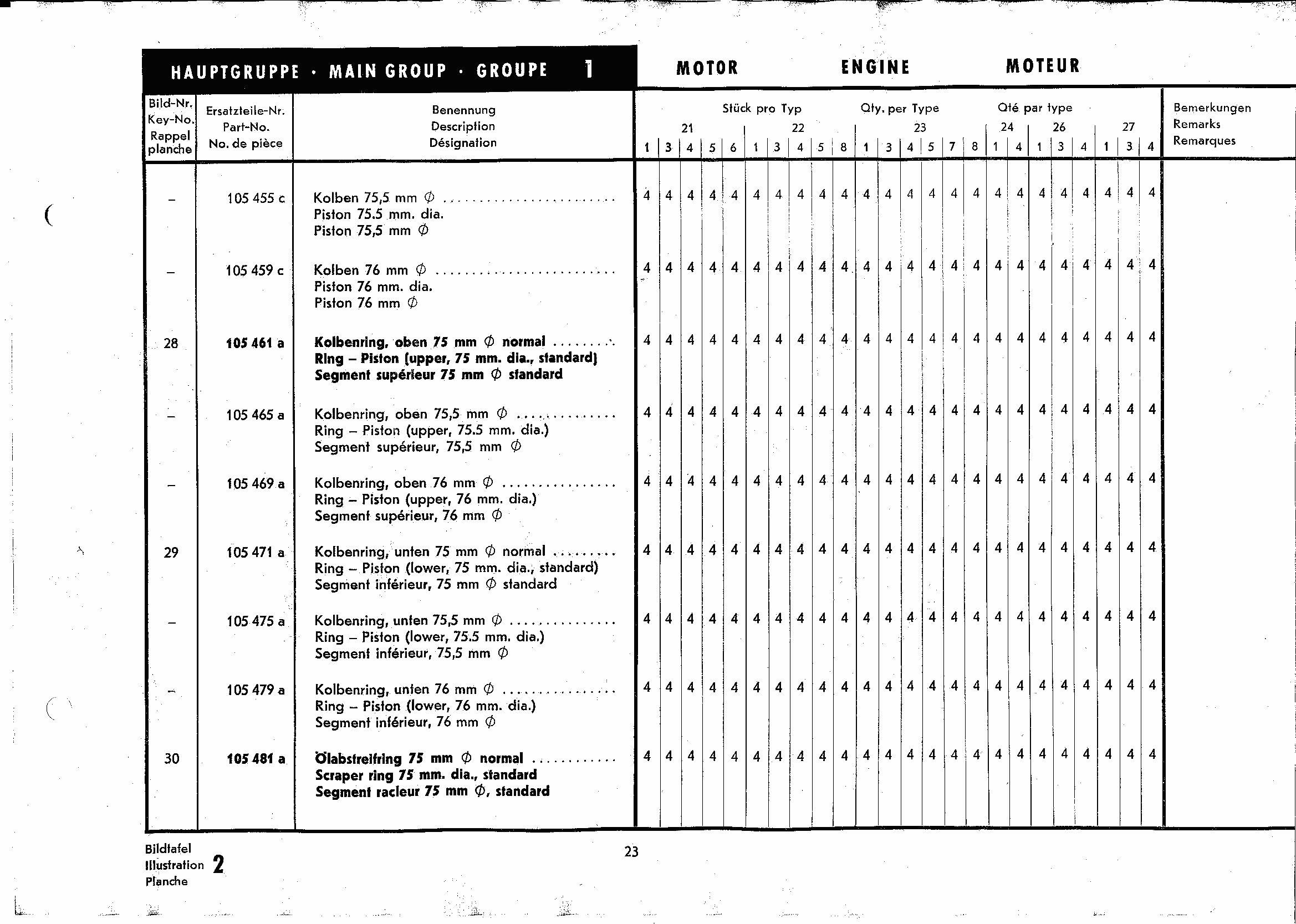

23 list Connecting rod

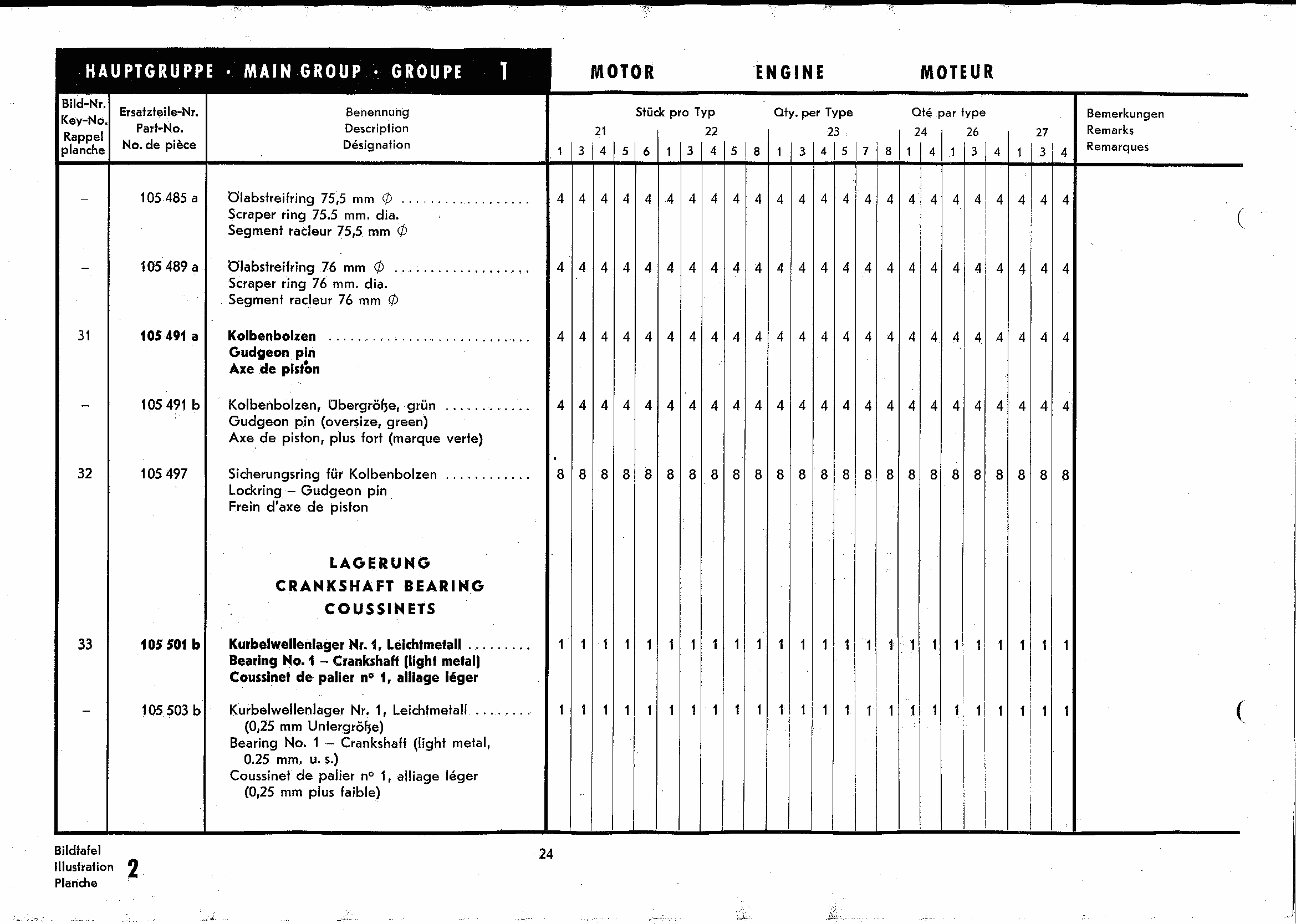

24 list Connecting rod, crankshaft bearing

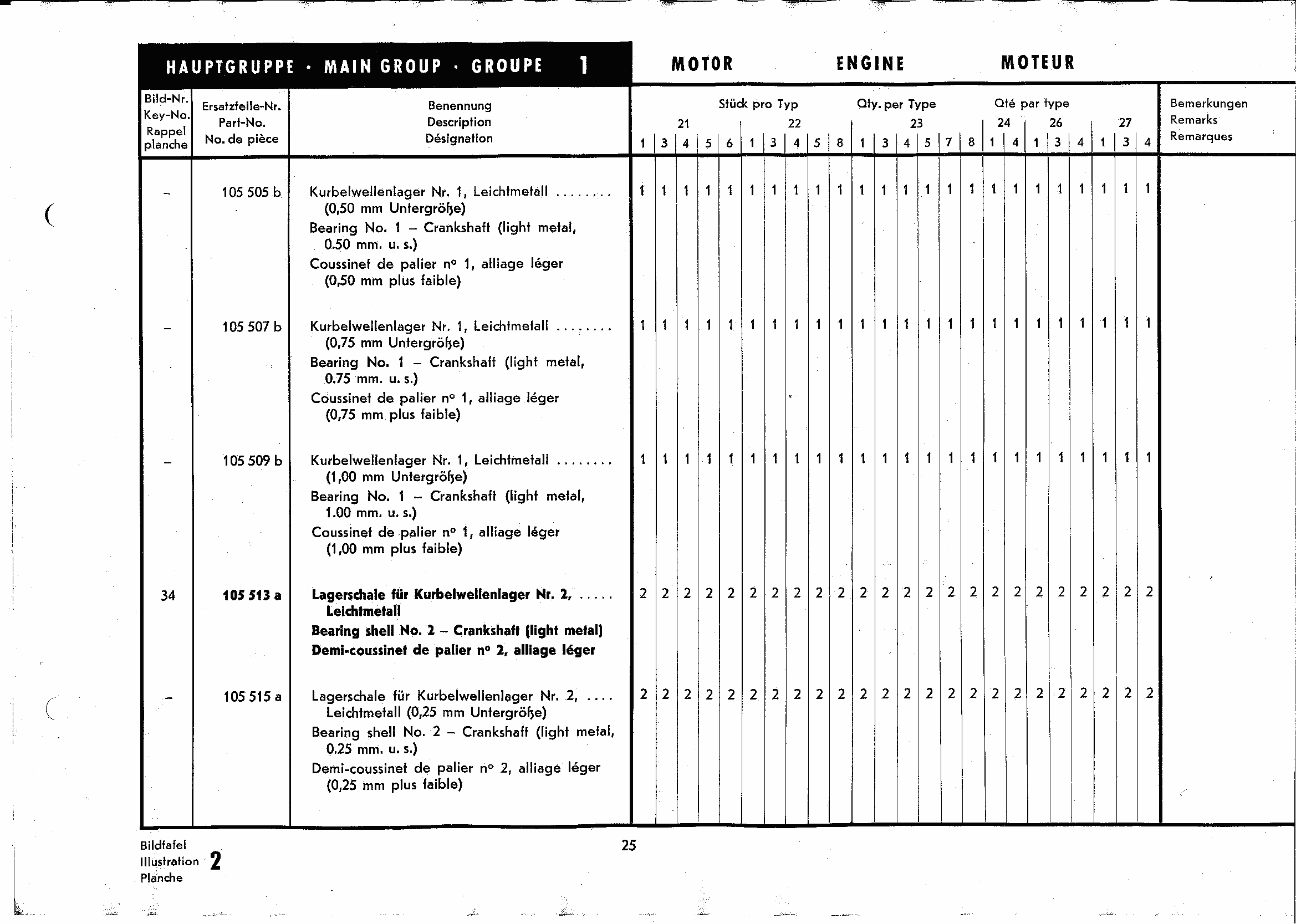

25 list Crankshaft bearing
26 list Crankshaft bearing

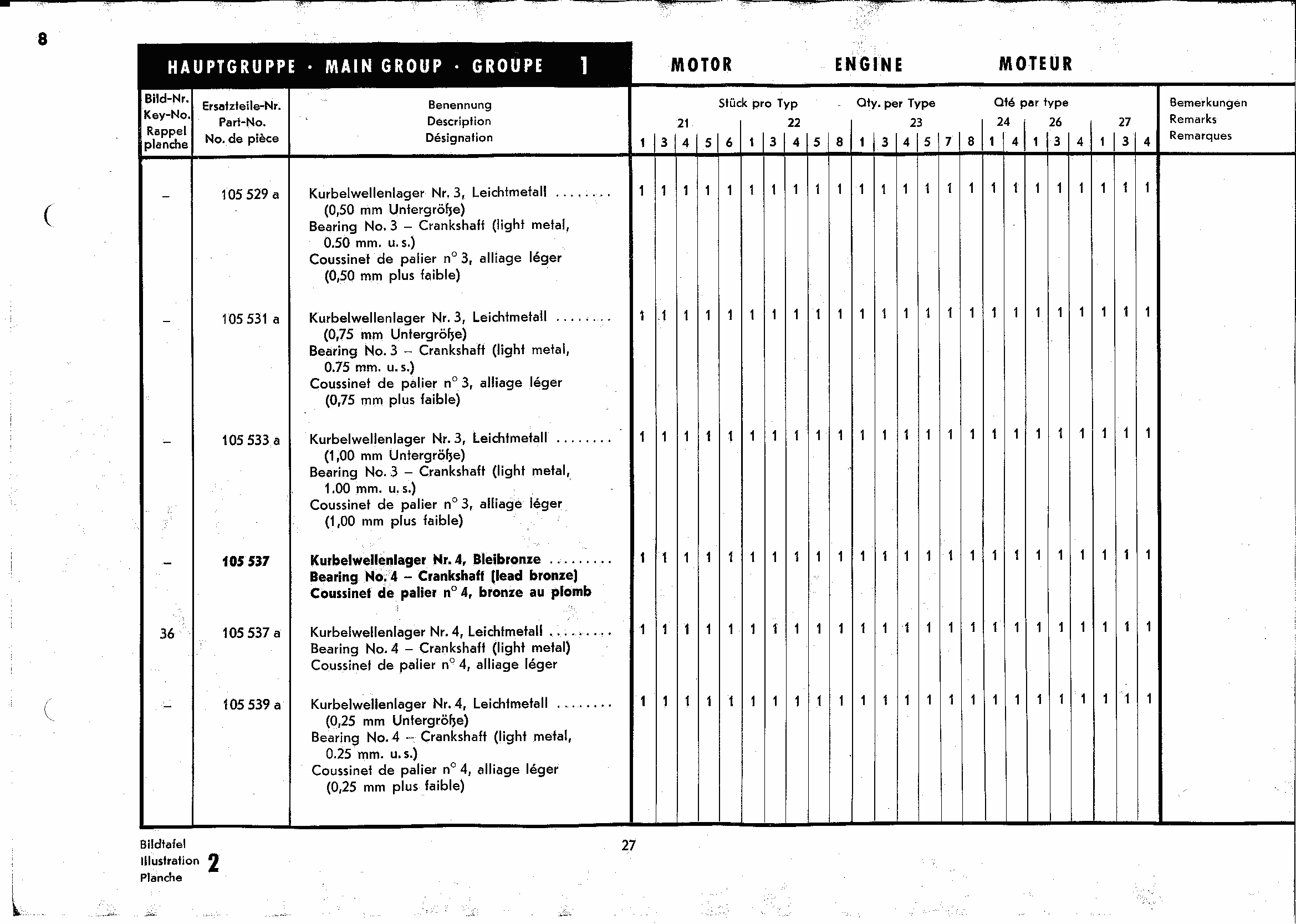

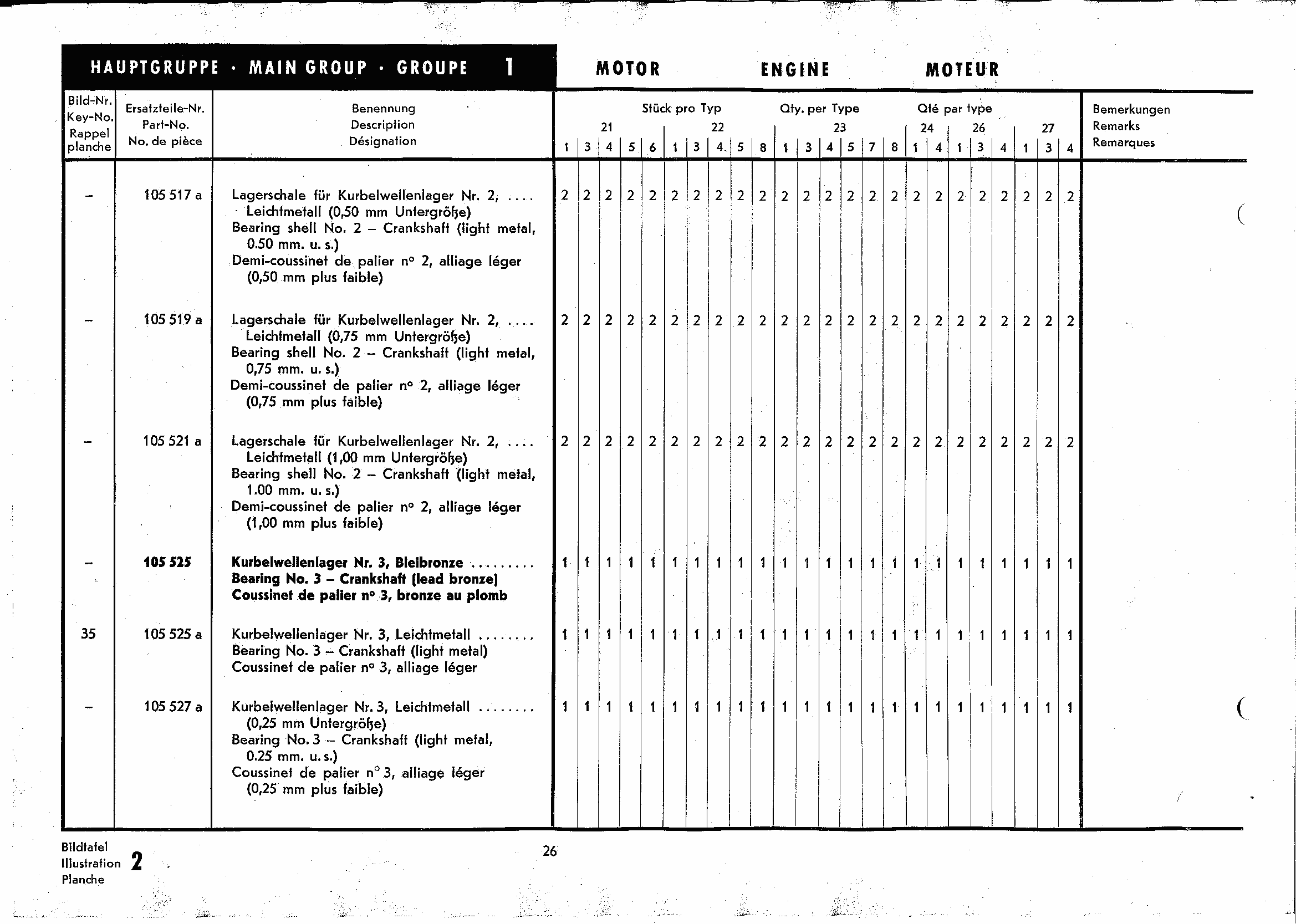

27 list Crankshaft bearing

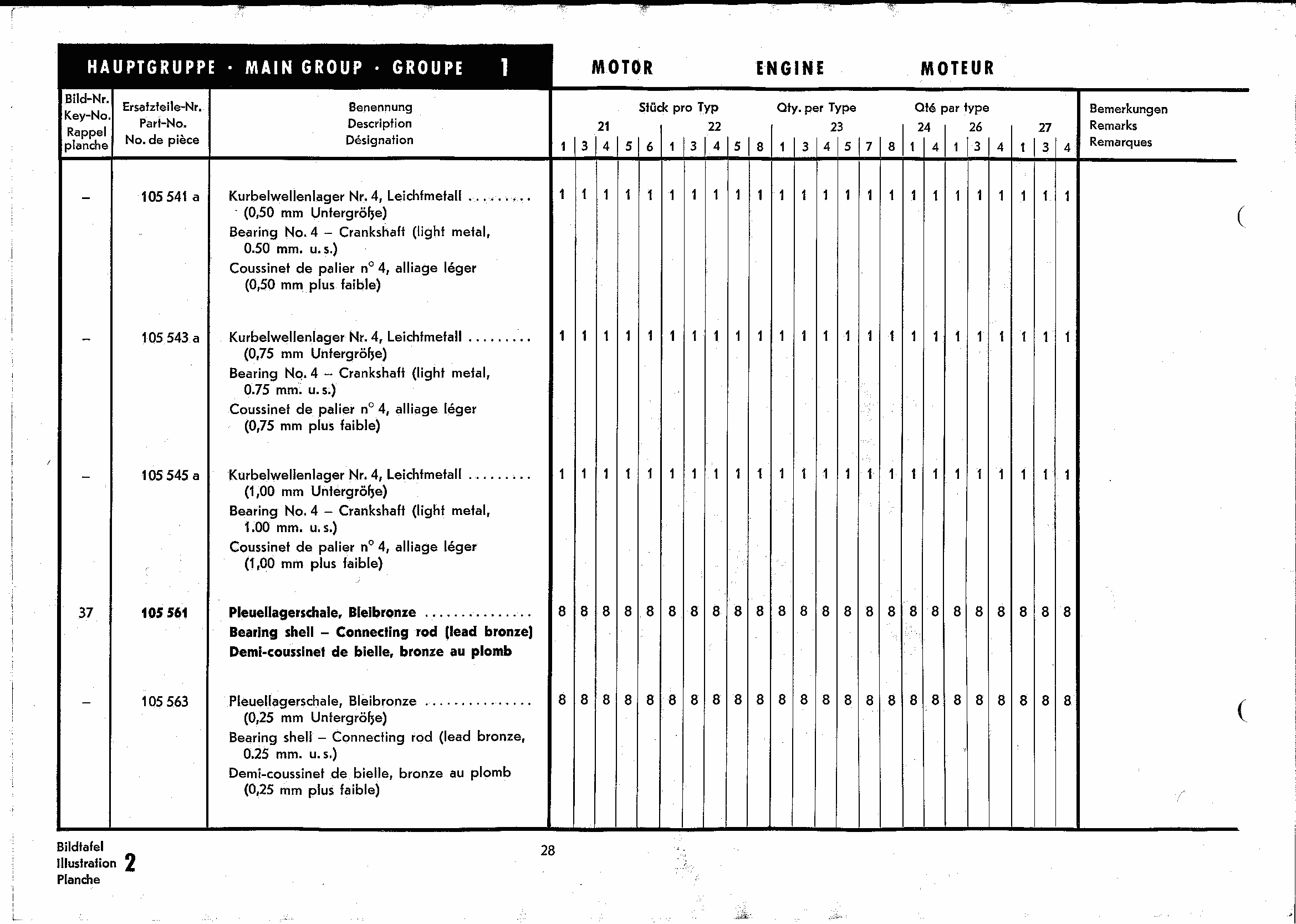

28 list Crankshaft bearing

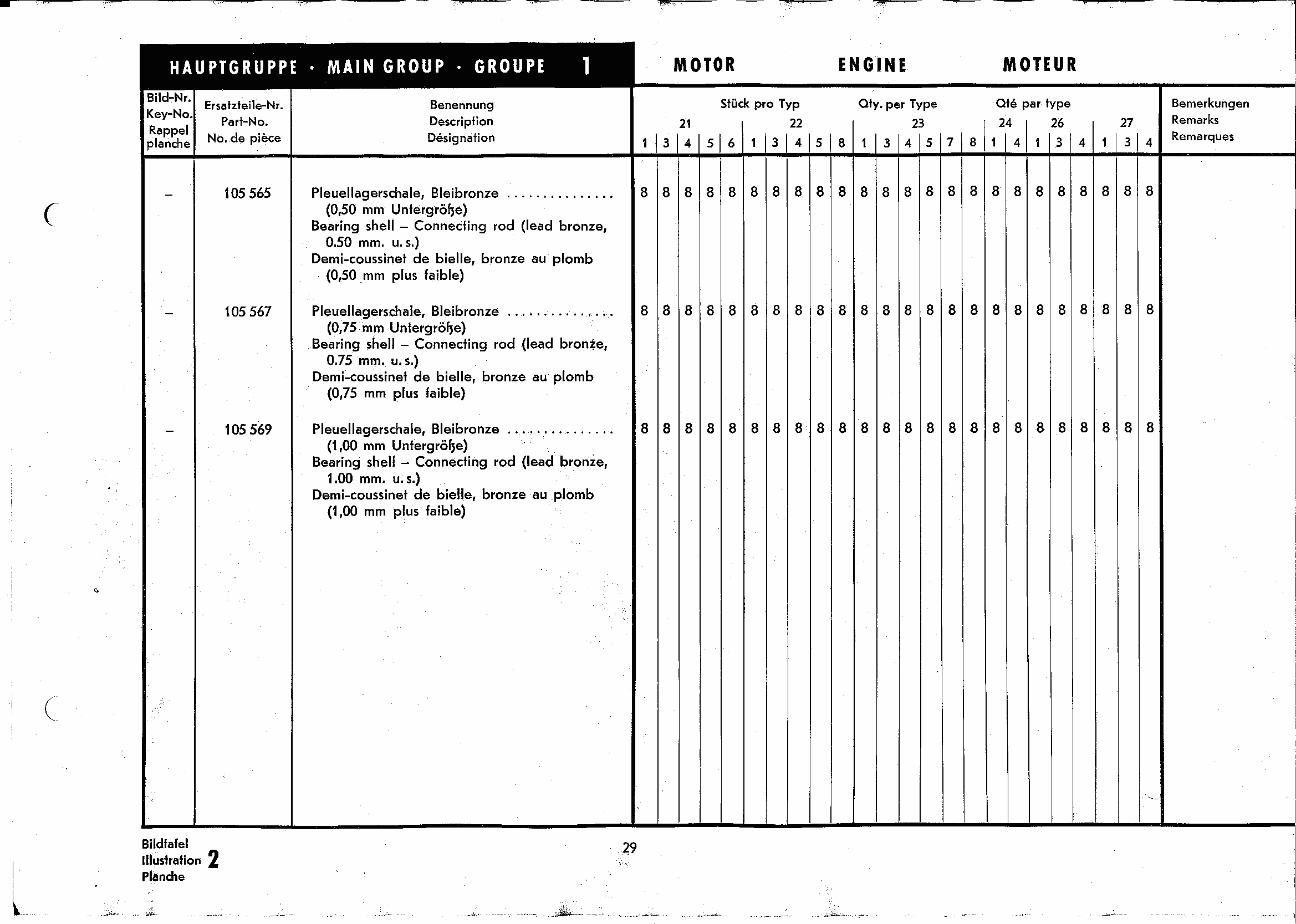

29 list Crankshaft bearing

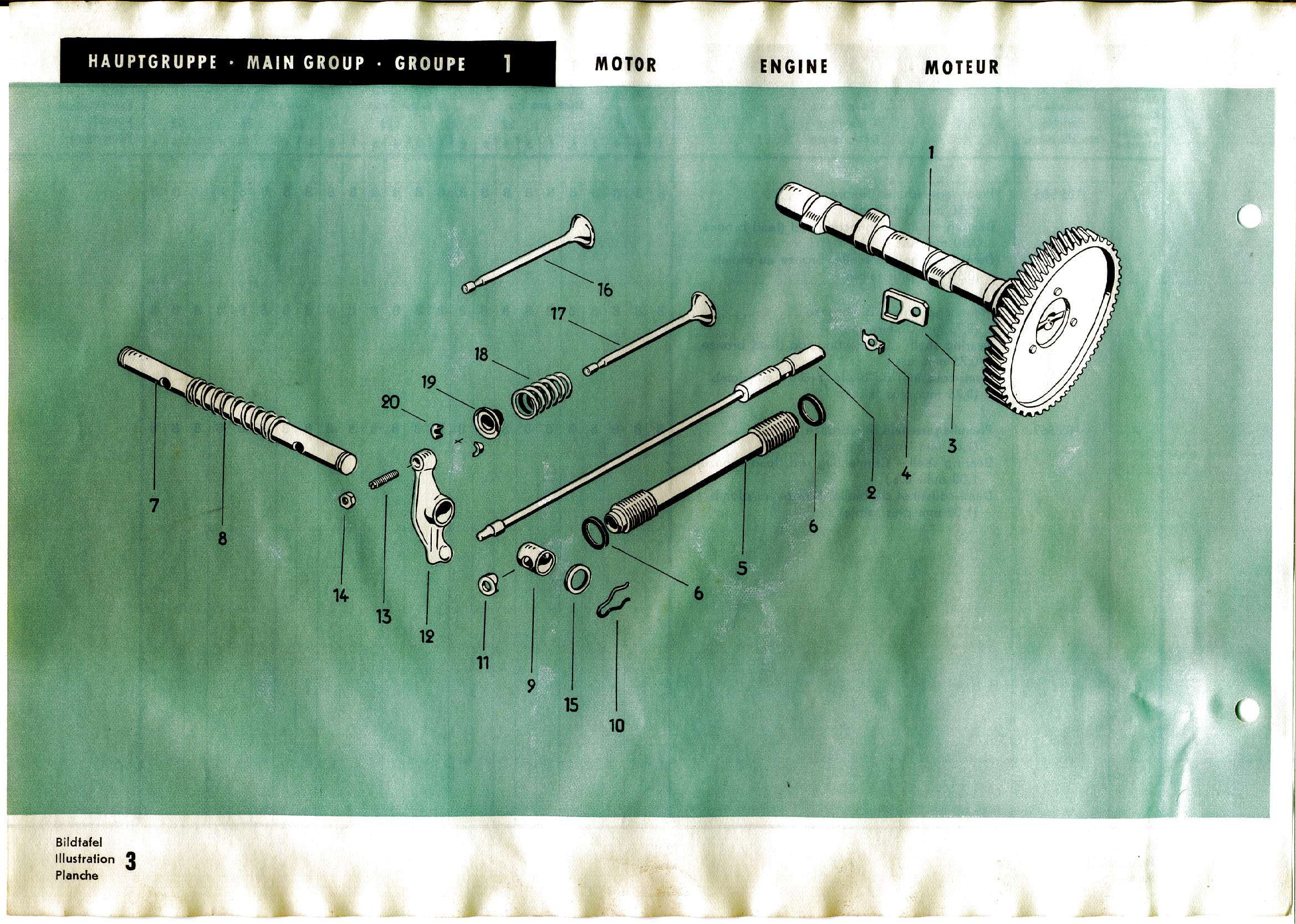

30 diagram Camshaft, valves

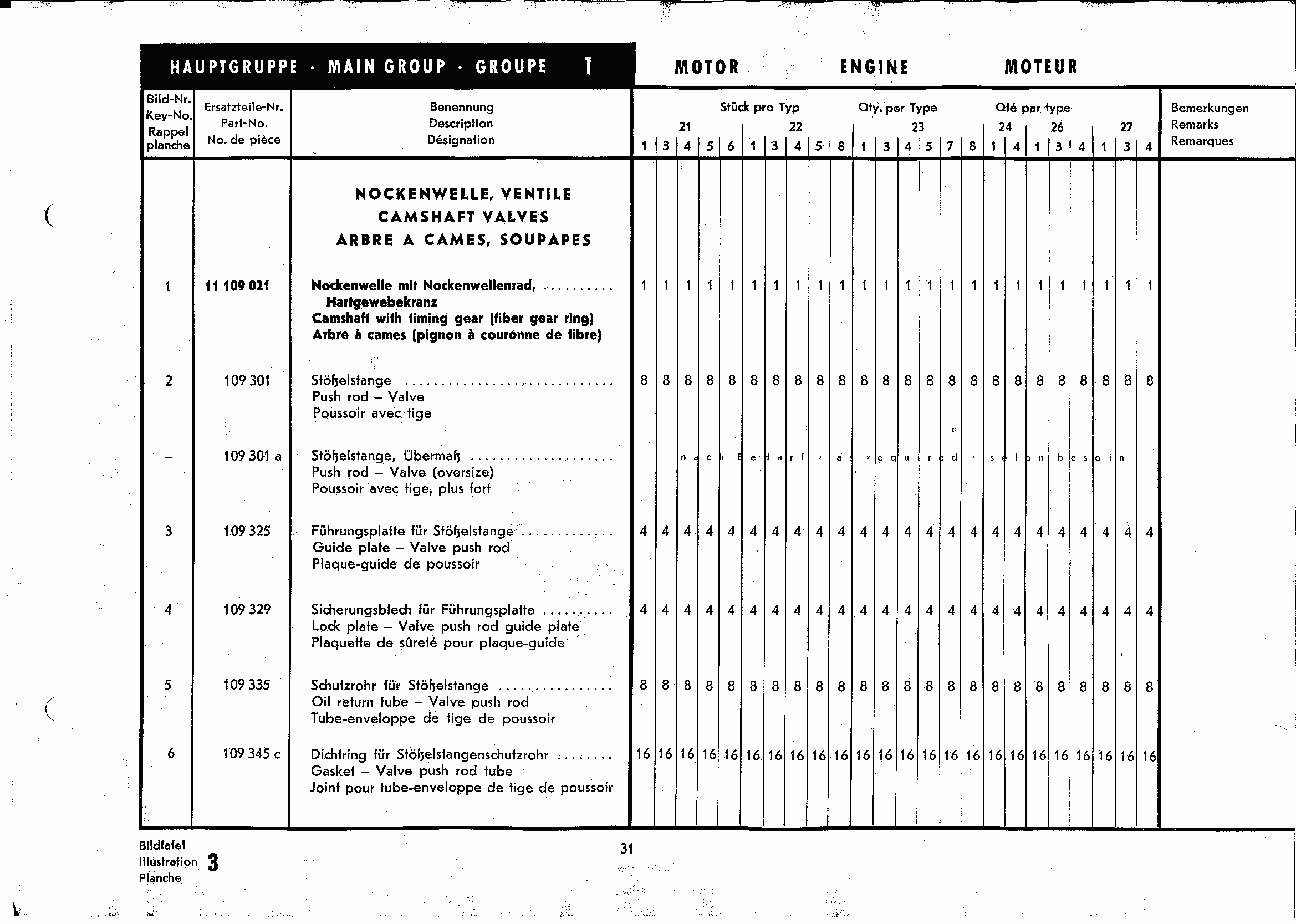

31 list Camshaft, valves

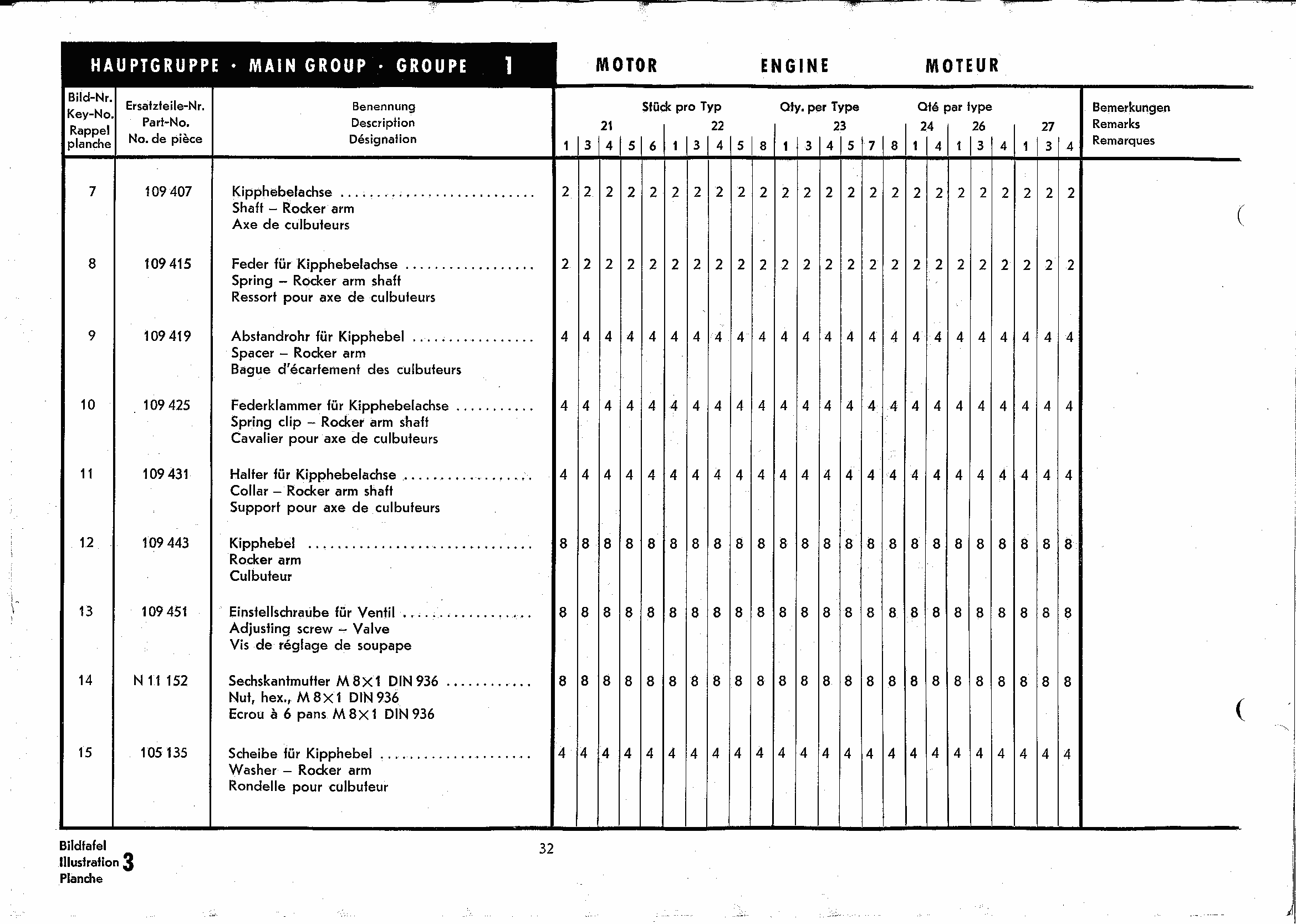

32 list Camshaft, valves

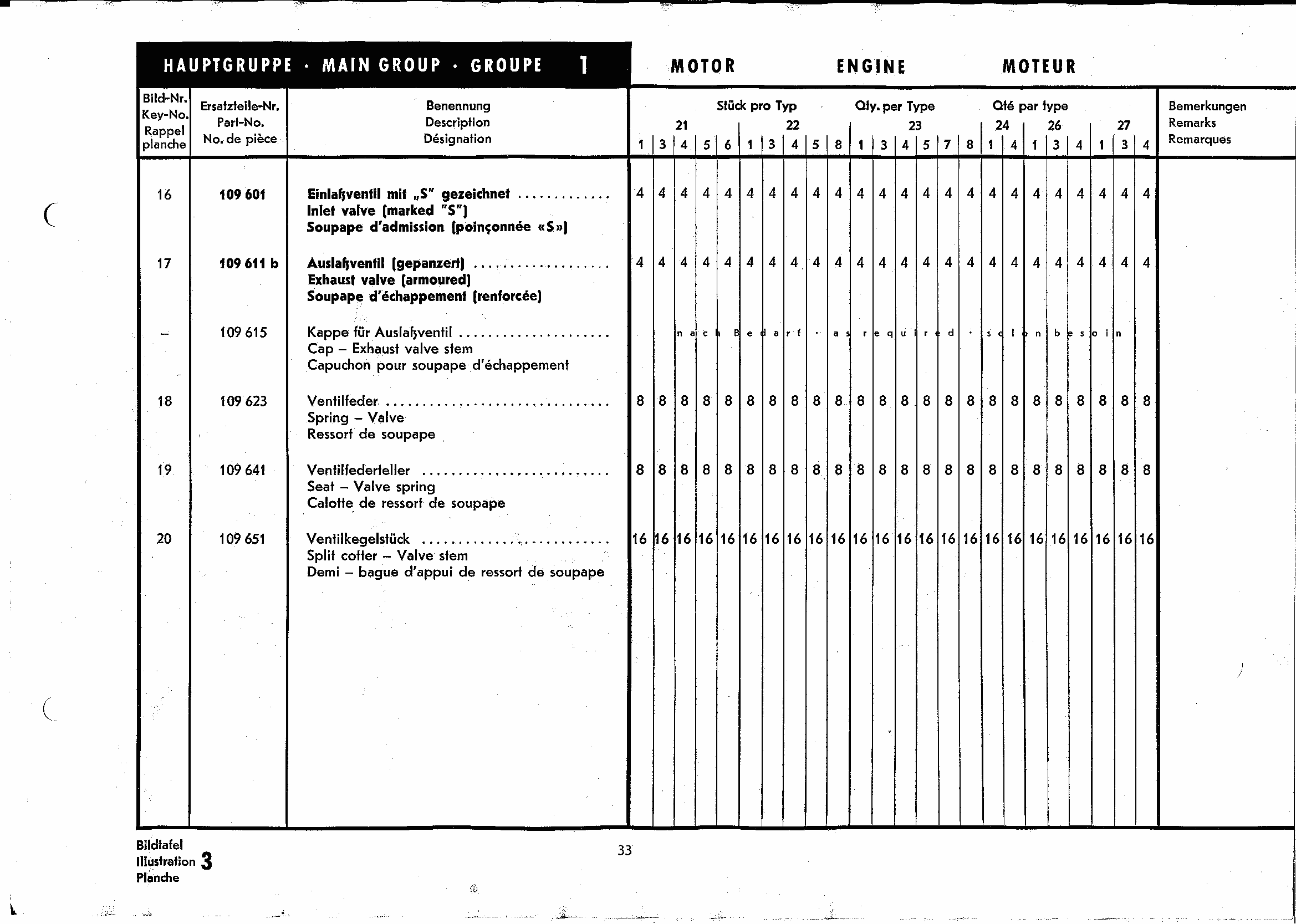

33 list Camshaft, valves

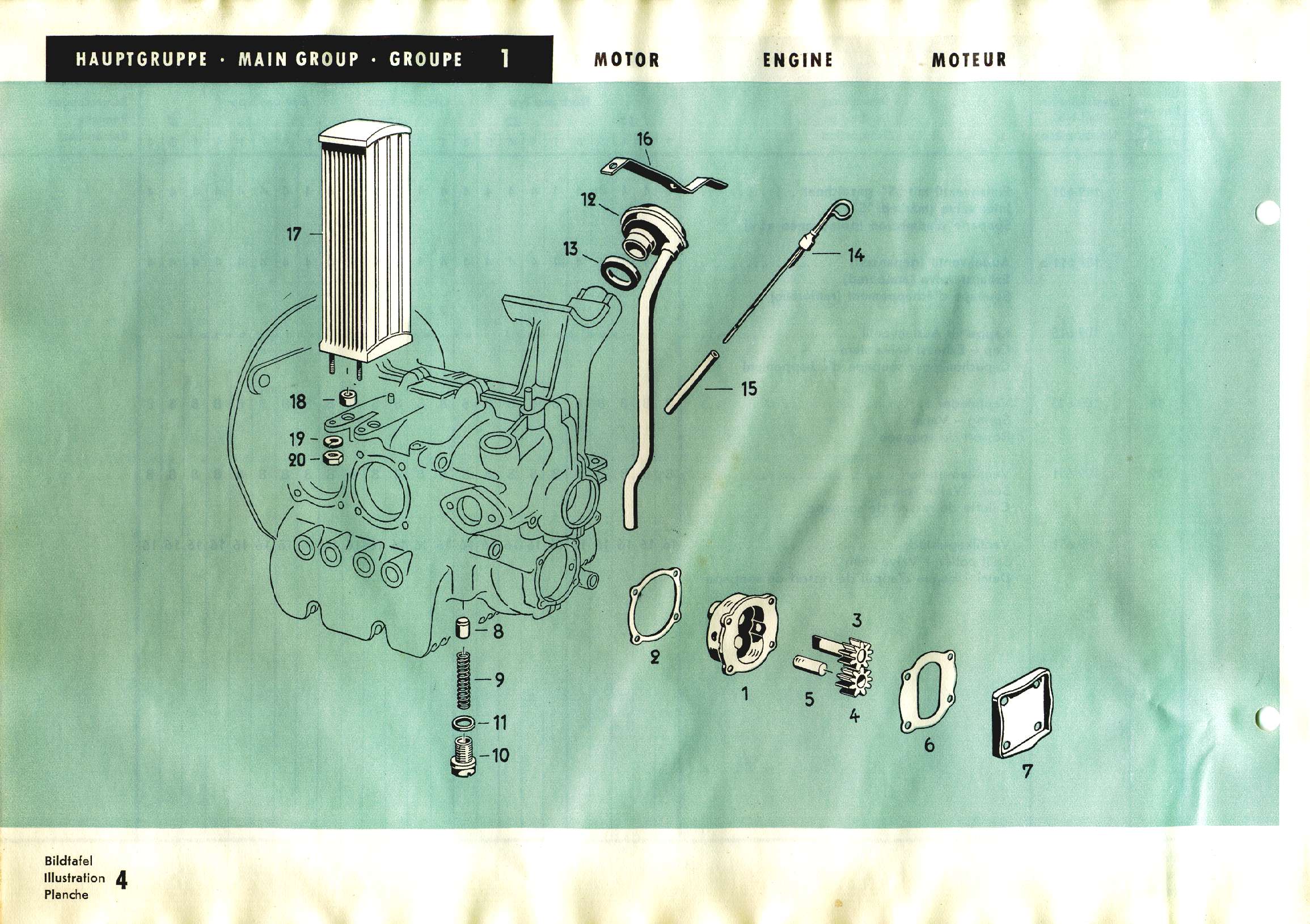

34 diagram Oiling system

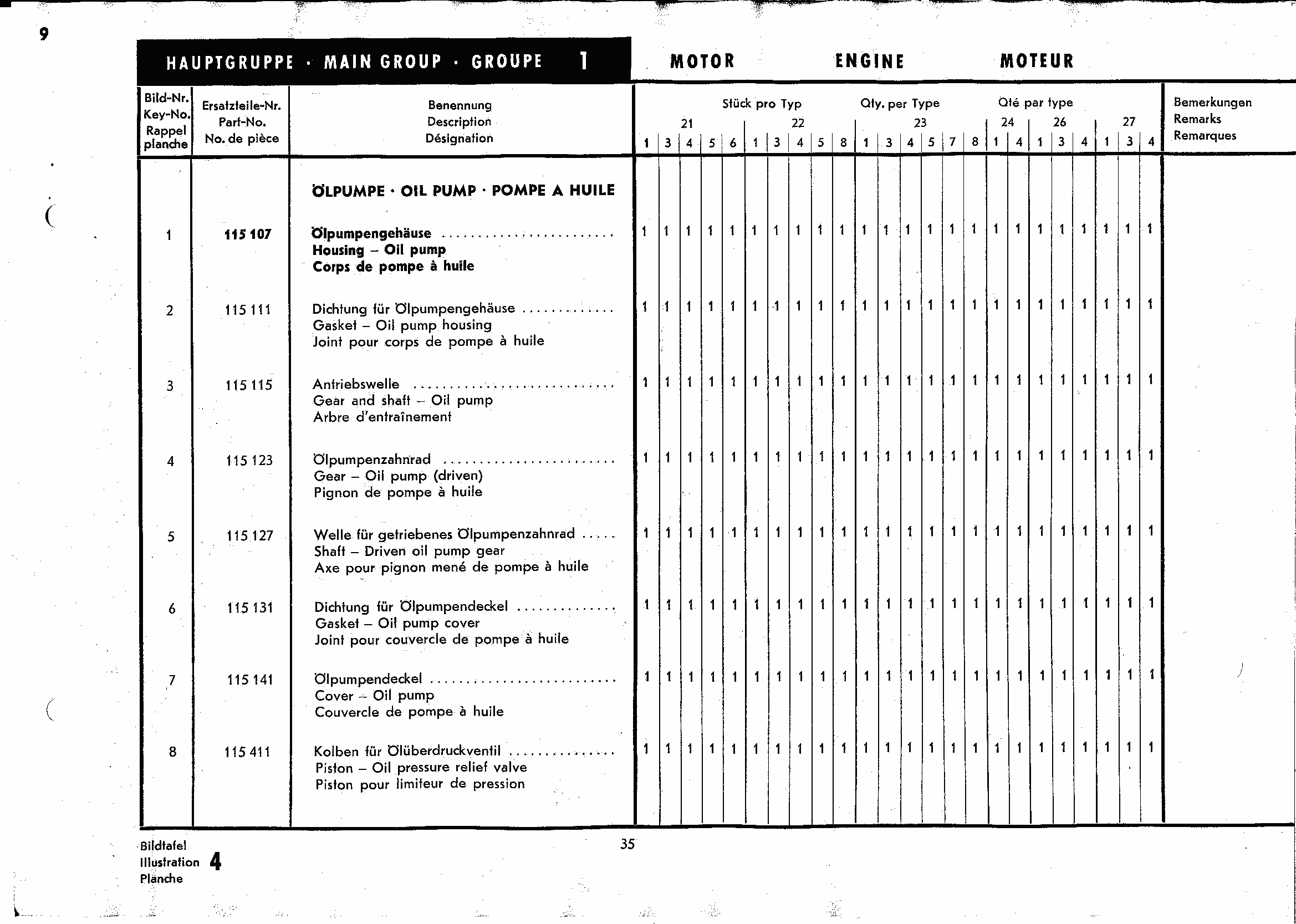

35 list Oil pump

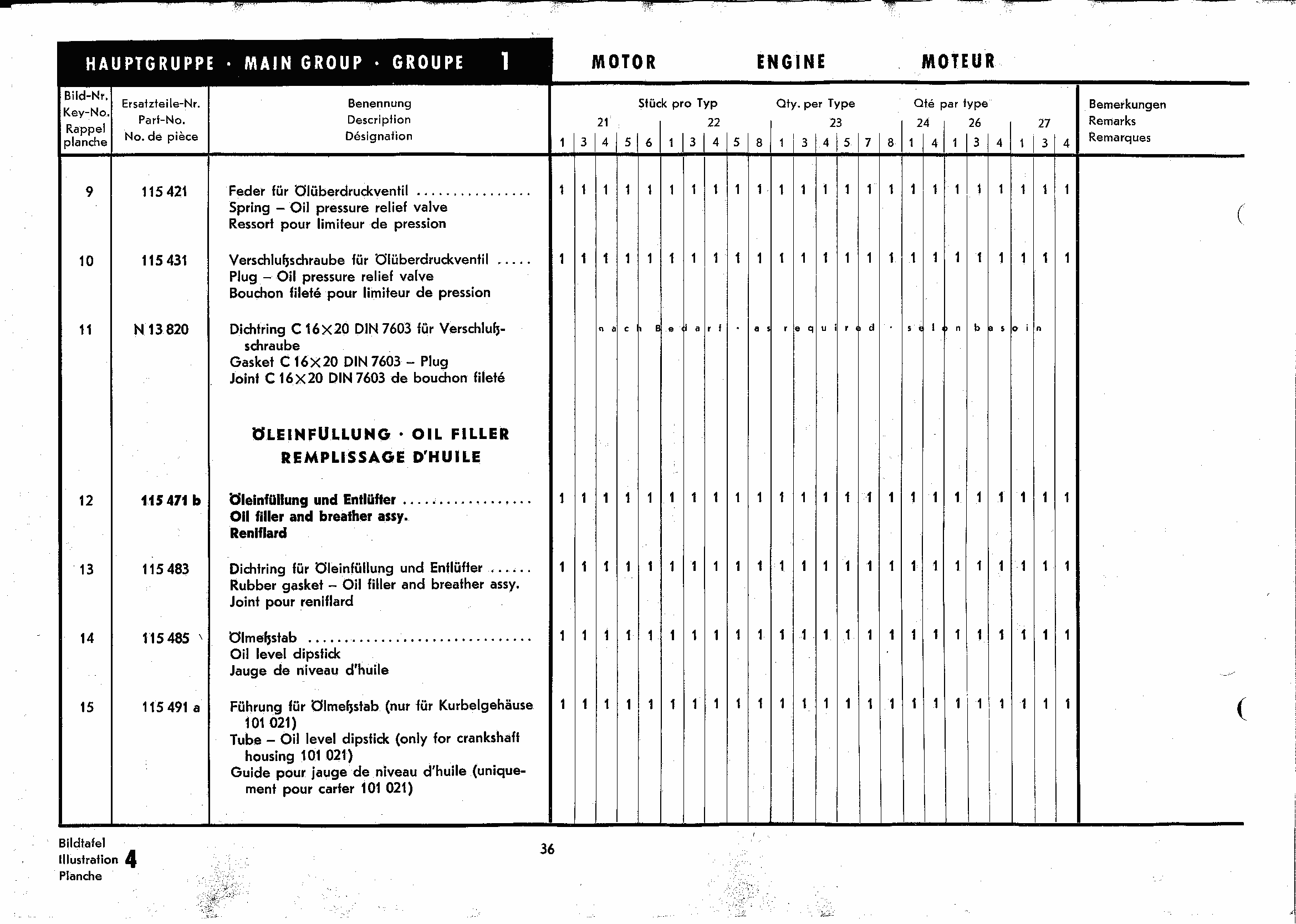

36 list Oil pump, oil filler

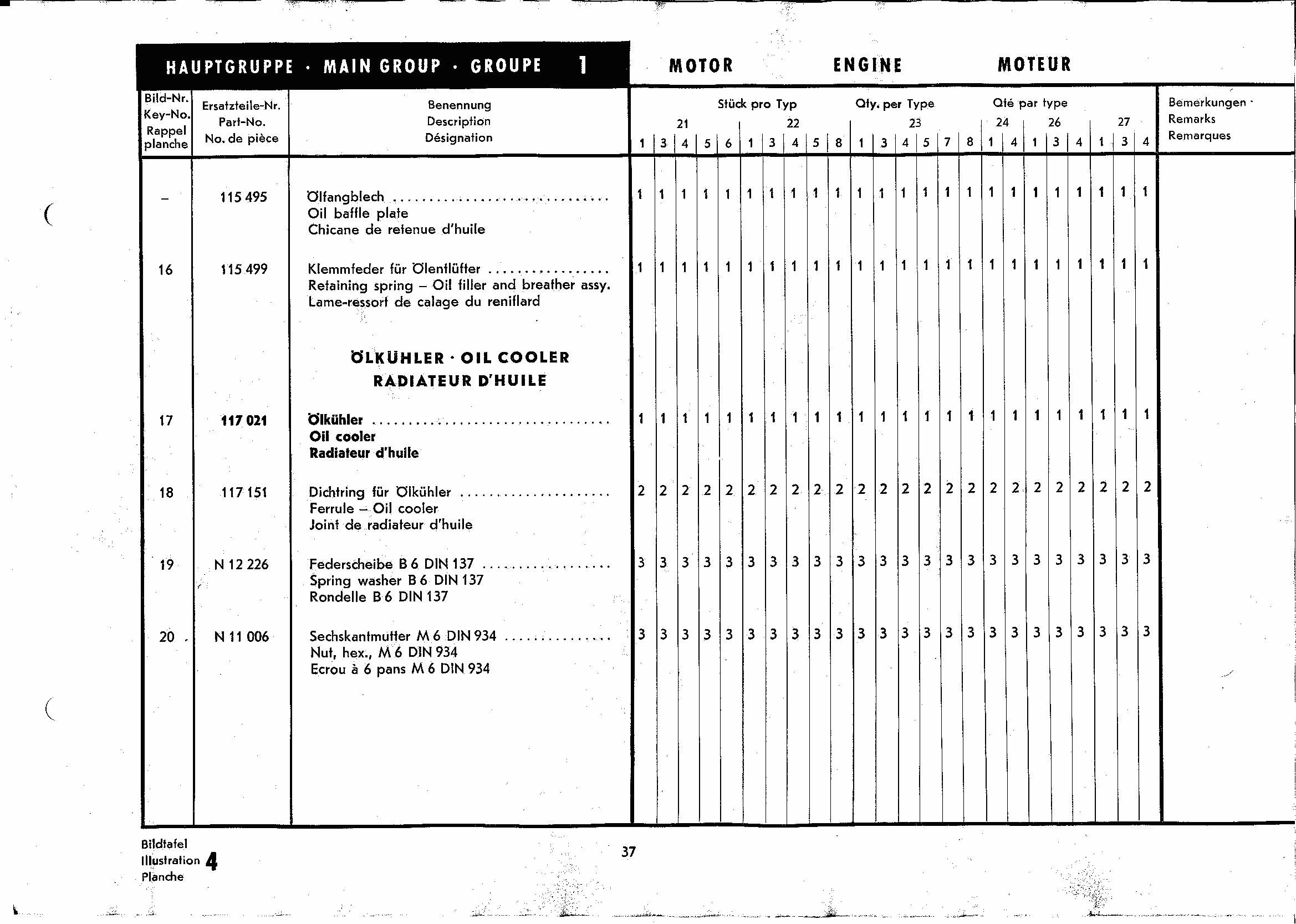

37 list Oil filler, oil cooler

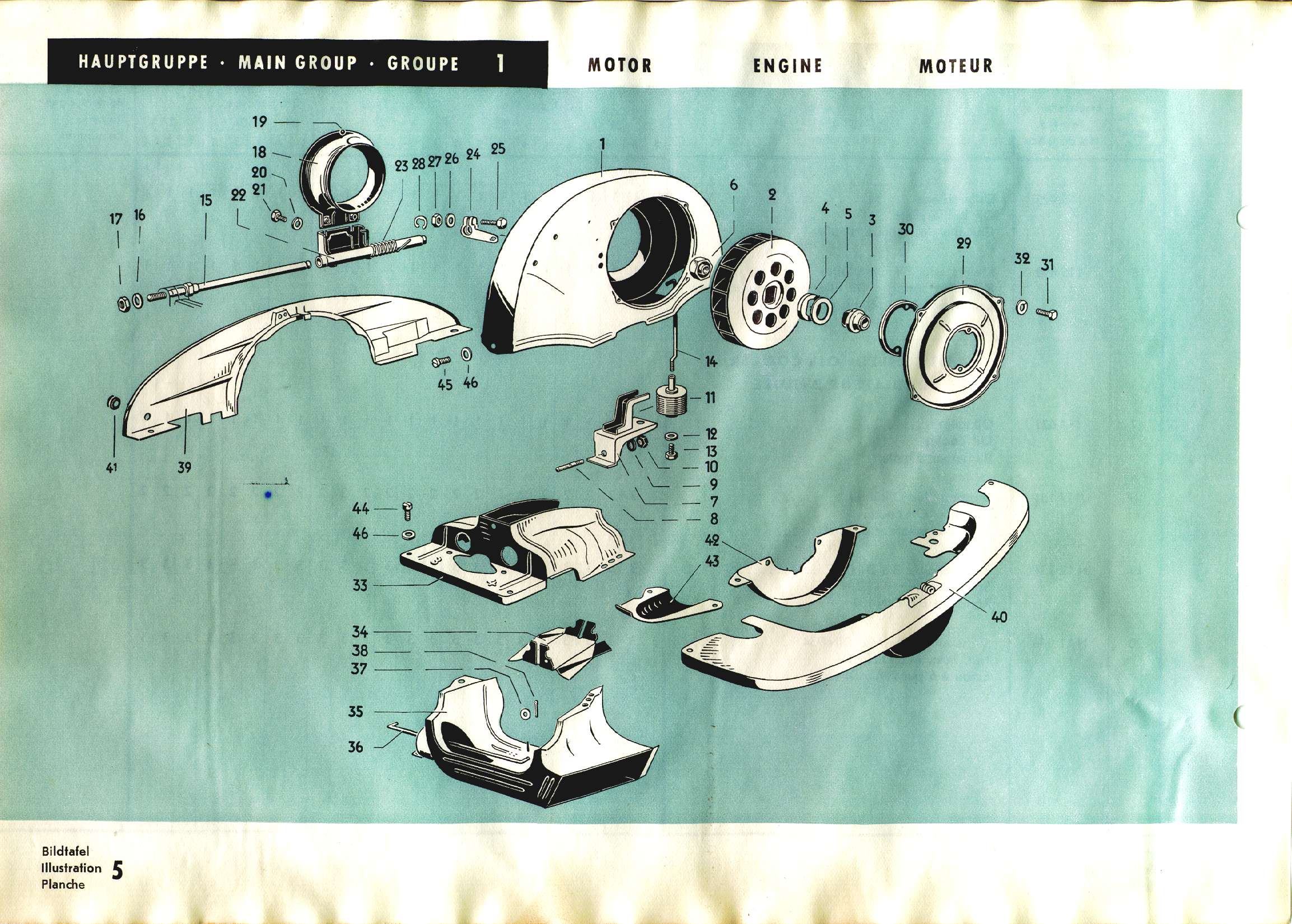

38 diagram Air cooling

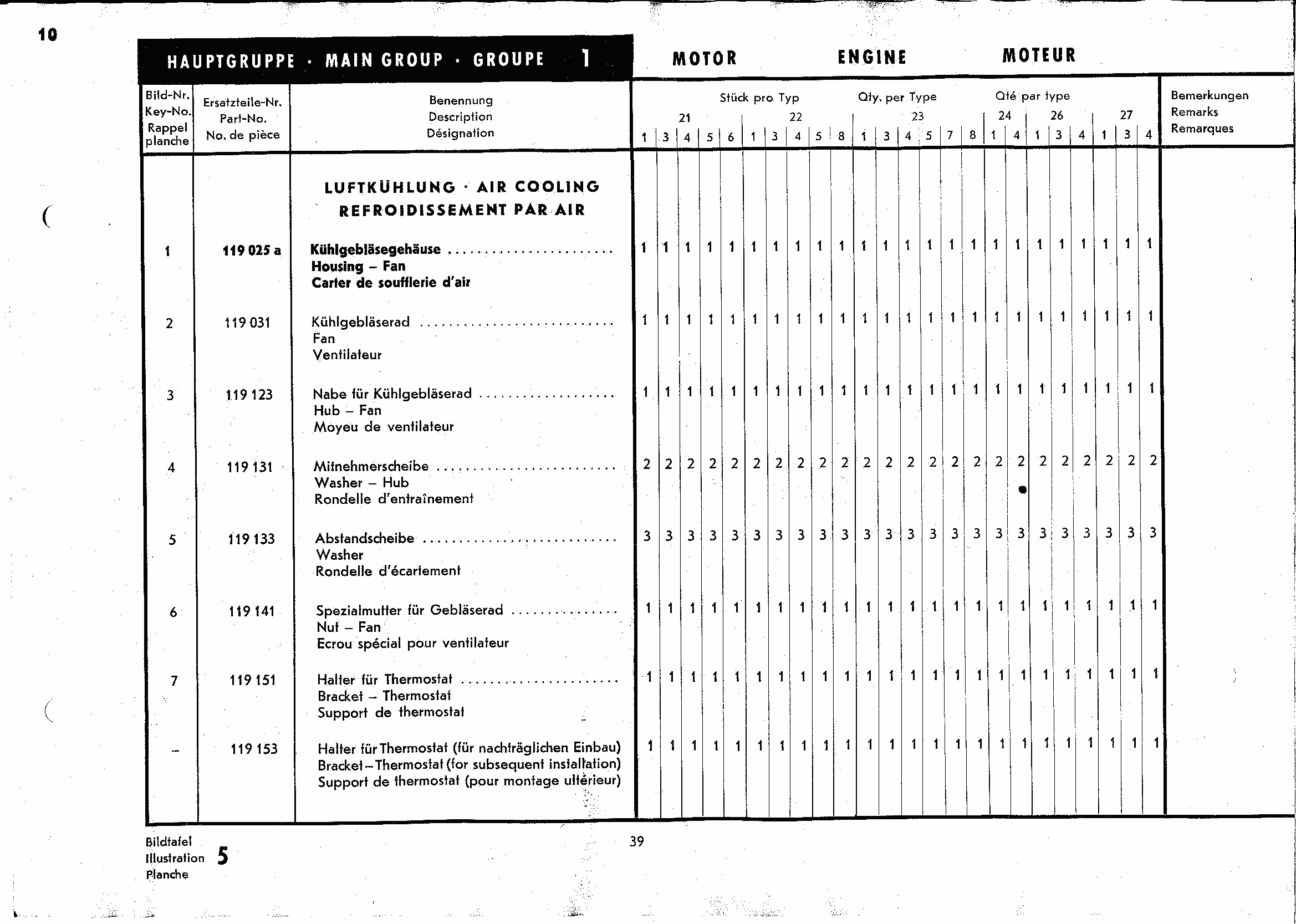

39 list Air cooling

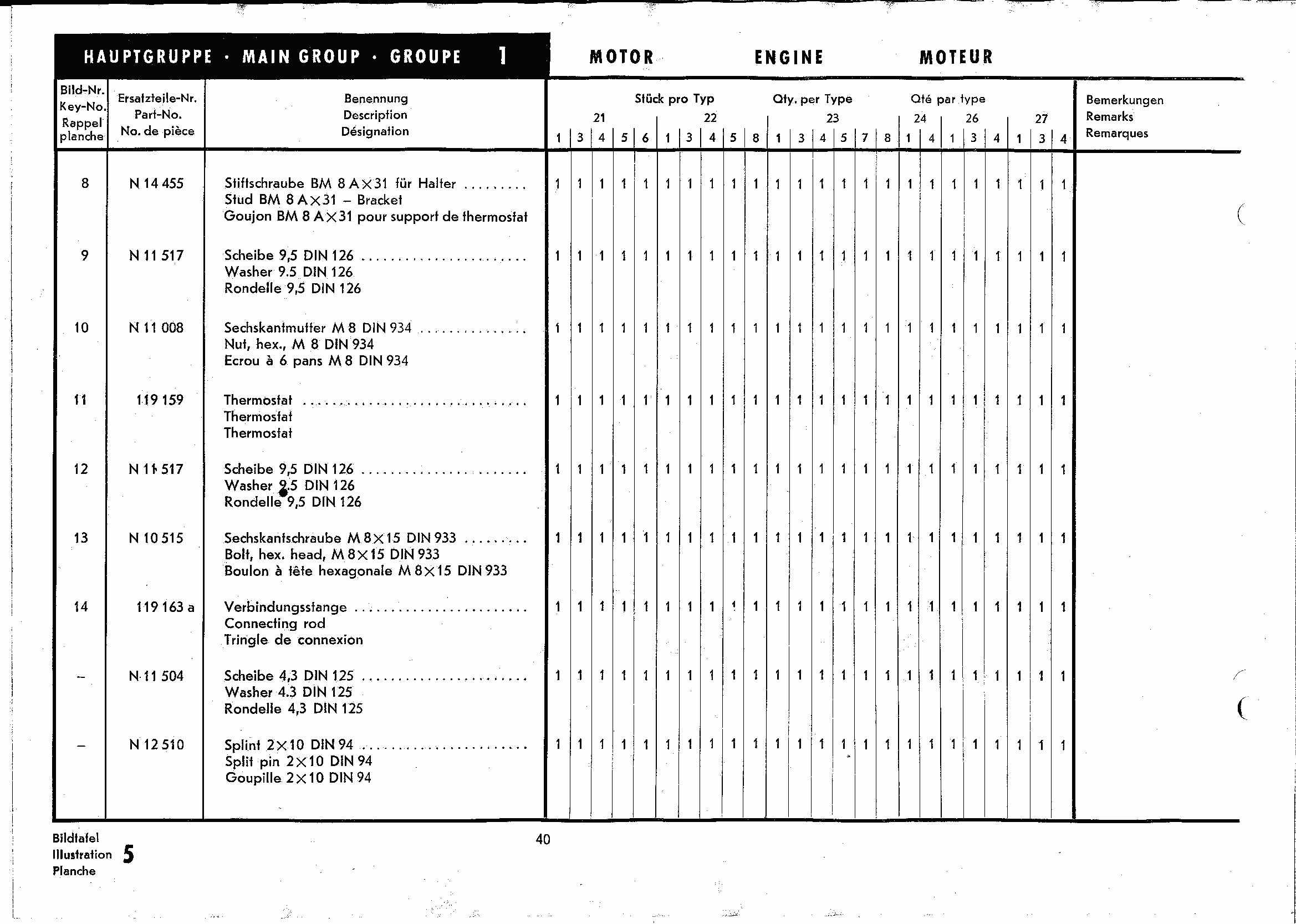

40 list Air cooling

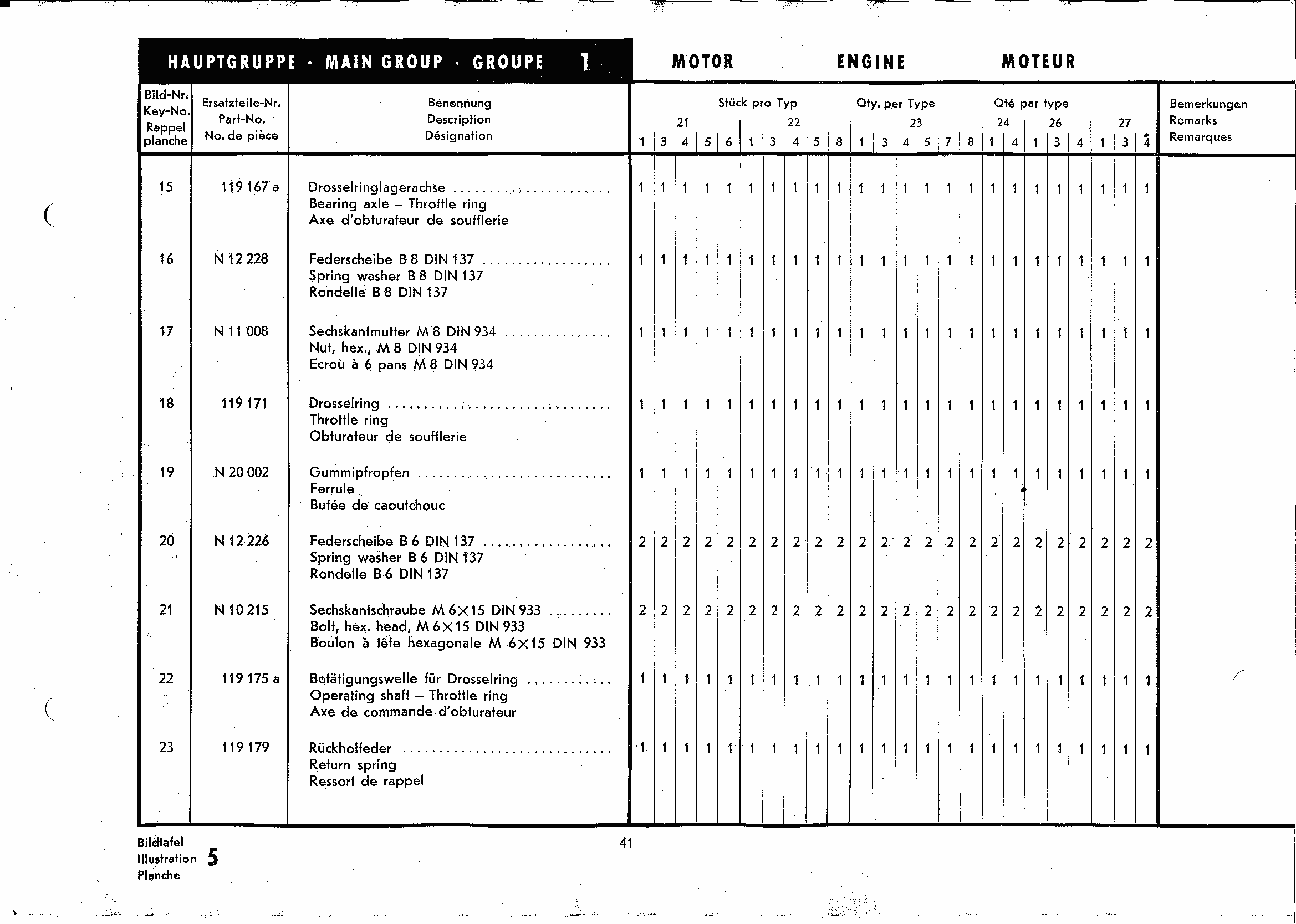

41 list Air cooling
42 list Air cooling

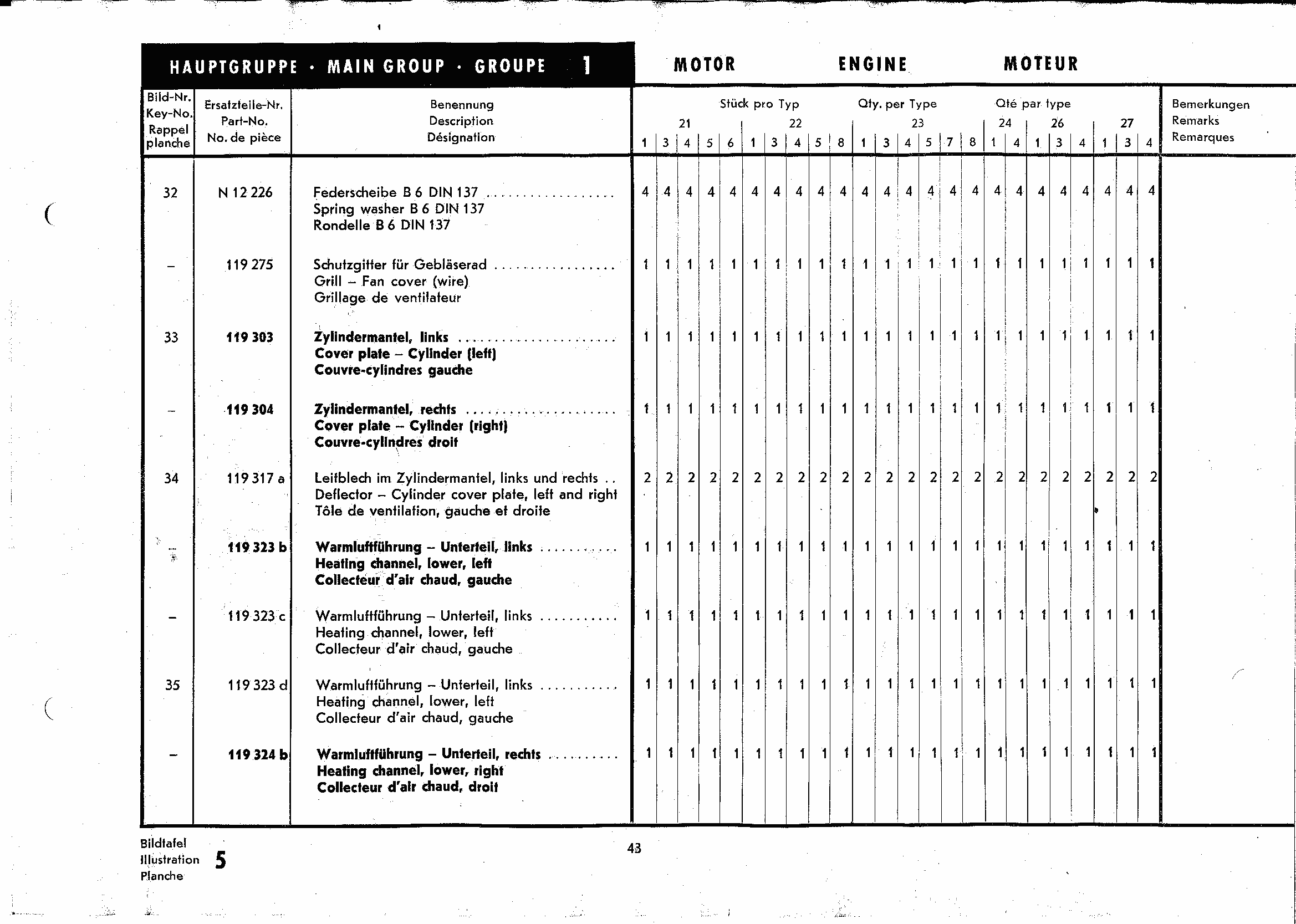

43 list Air cooling

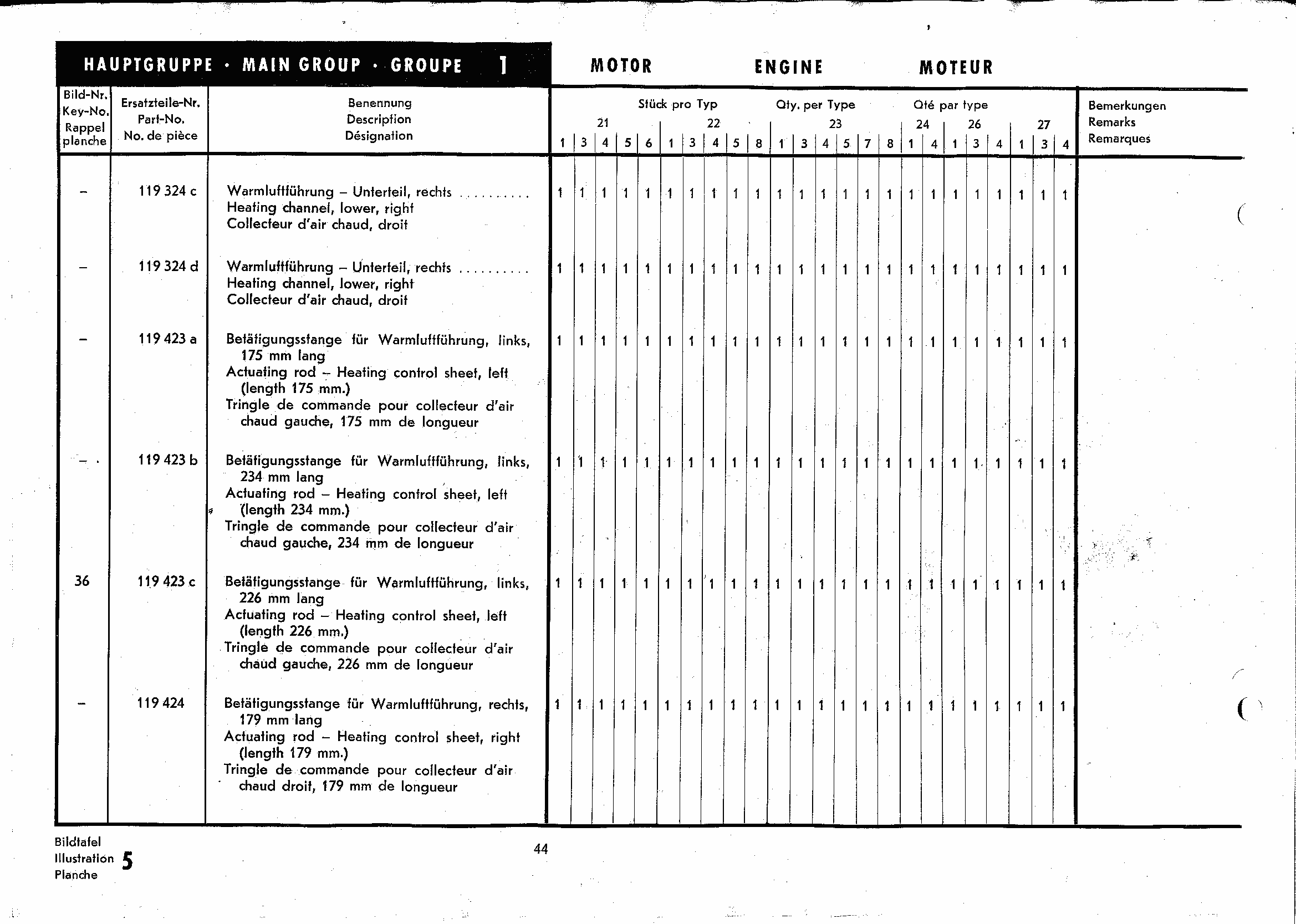

44 list Air cooling

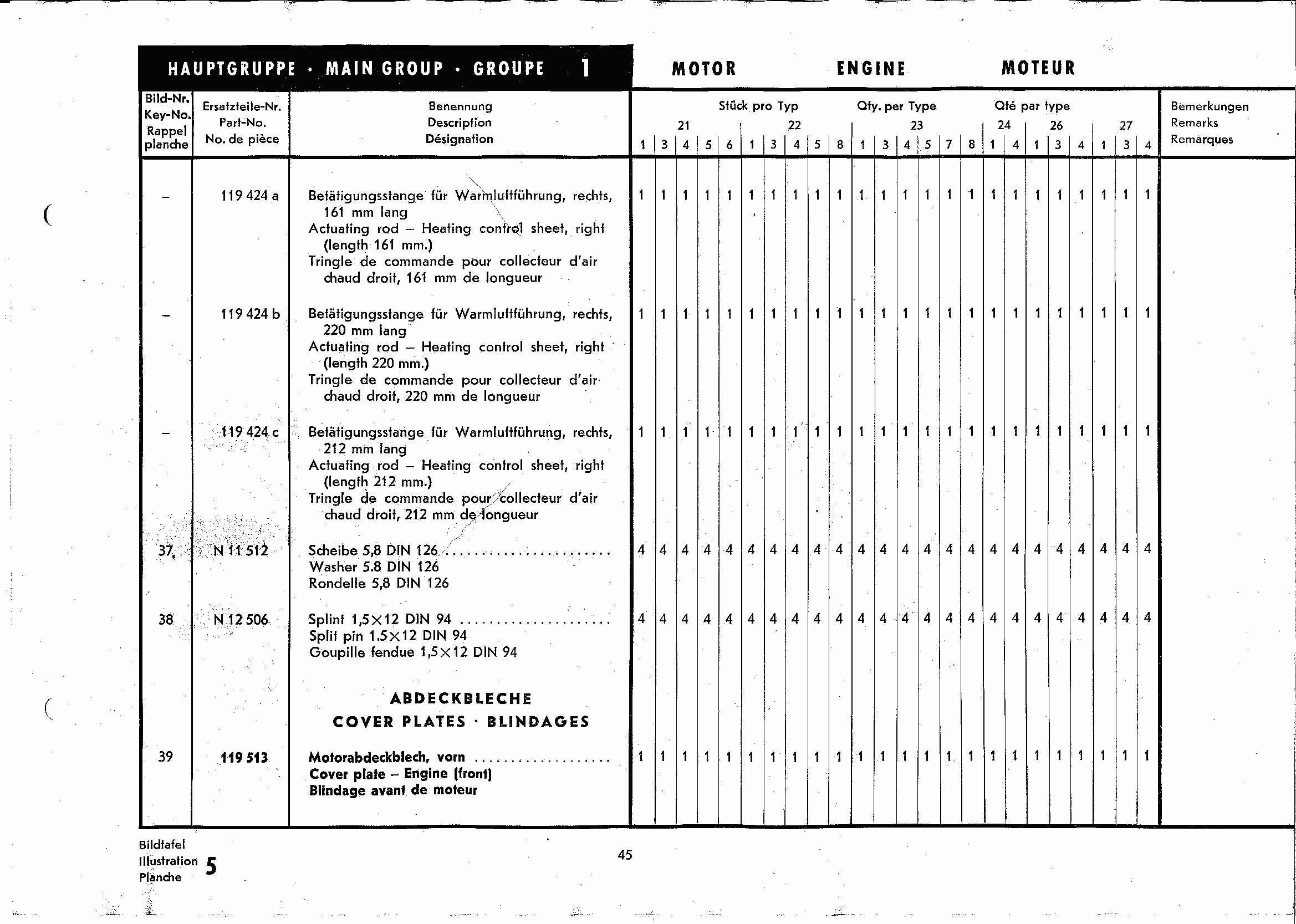

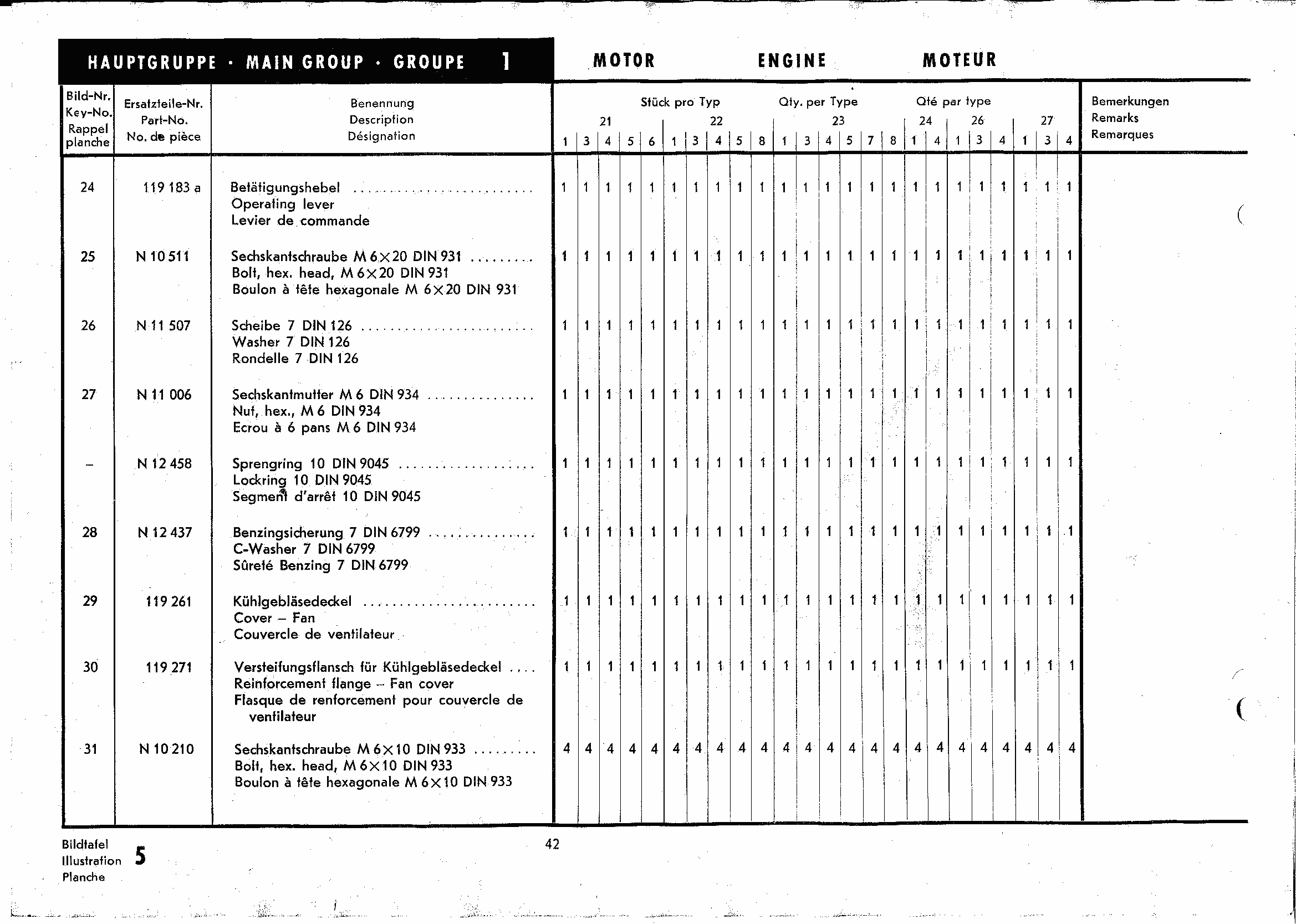

45 list Air cooling, cover plates
46 list Cover plates

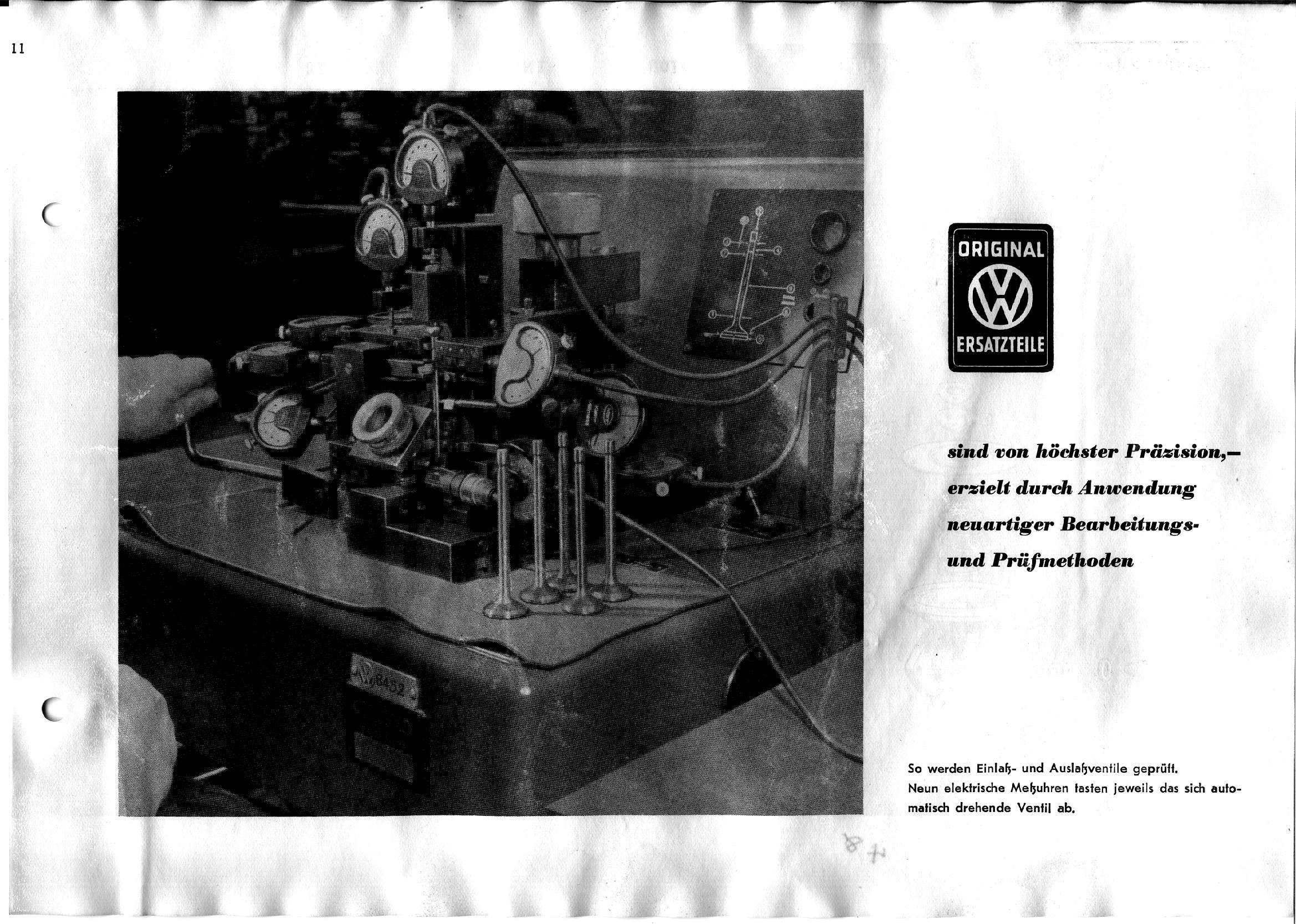

47 special sind von hoechster Praezision,- erzielt durch Anwendung neuartiger Bearbeitungs- und Pruefmethoden

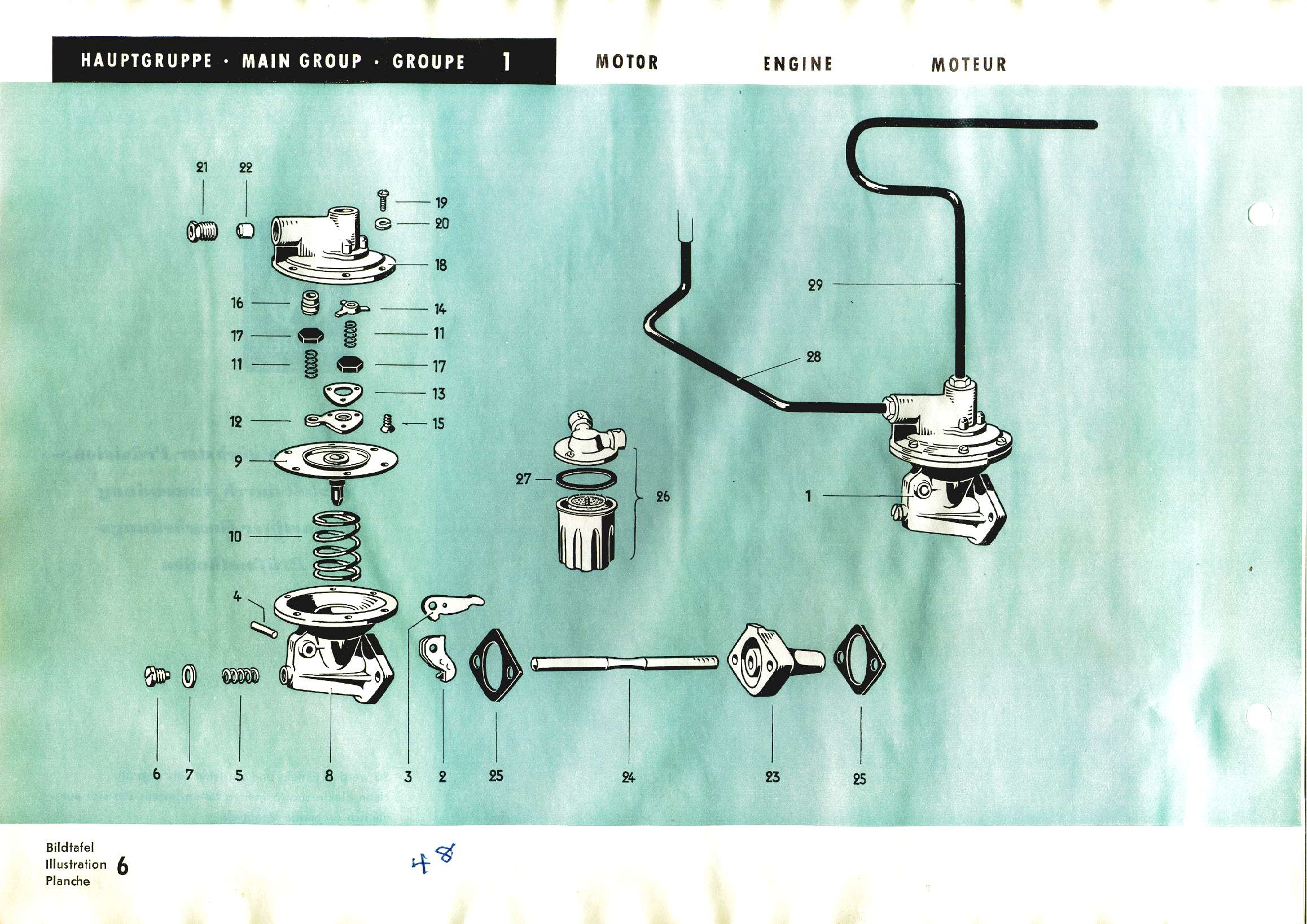

48 diagram Fuel pump

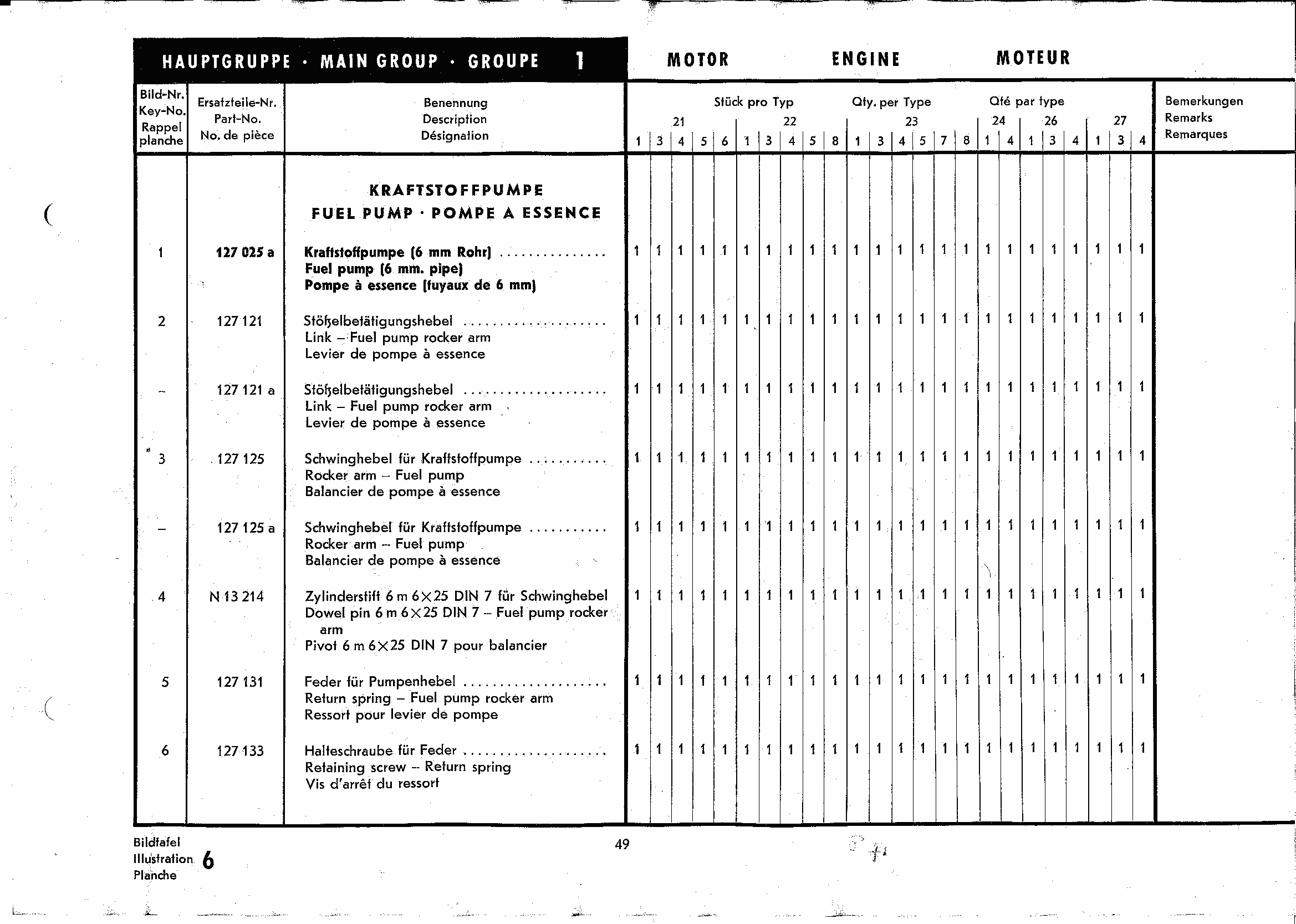

49 list Fuel pump

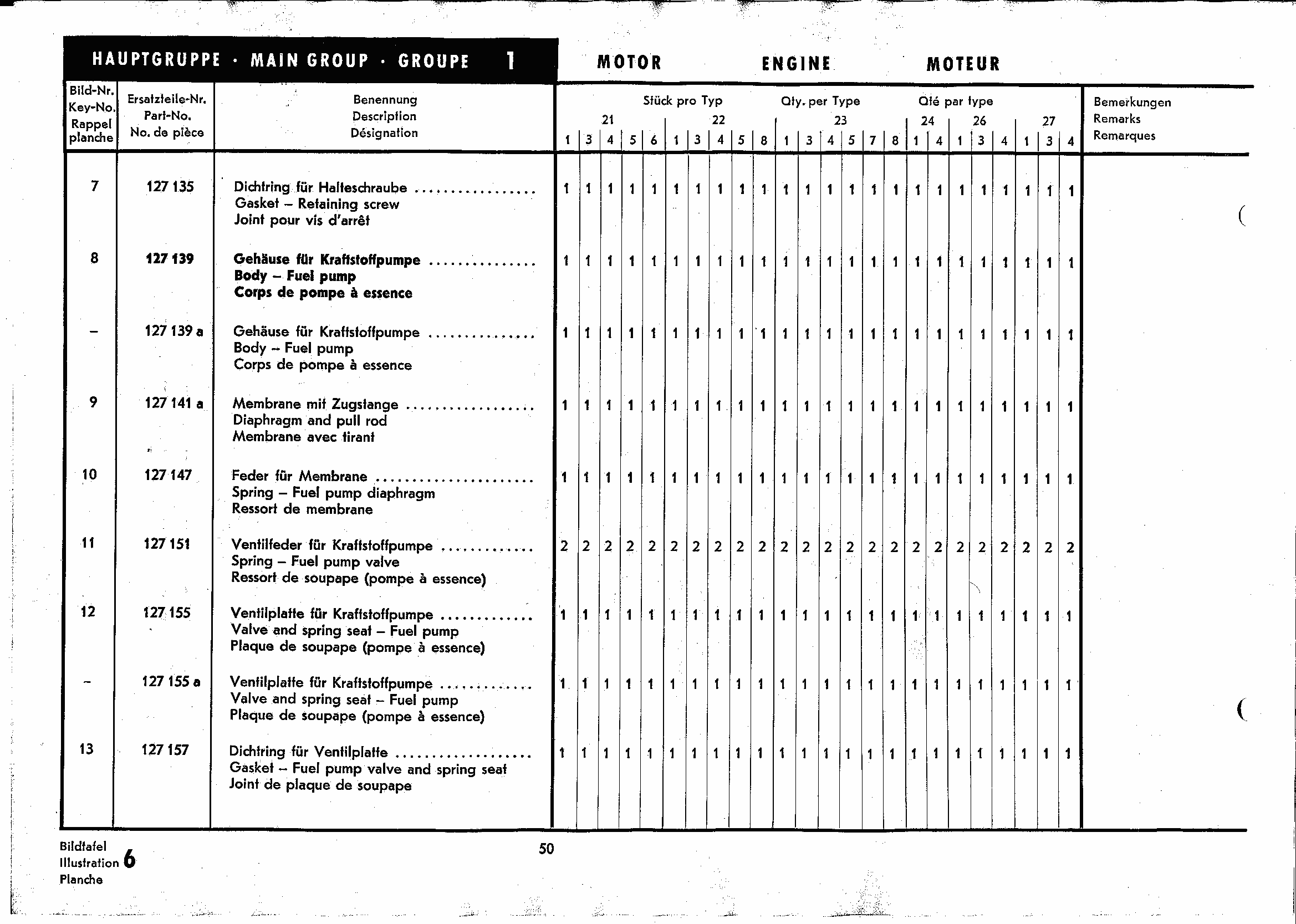

50 list Fuel pump

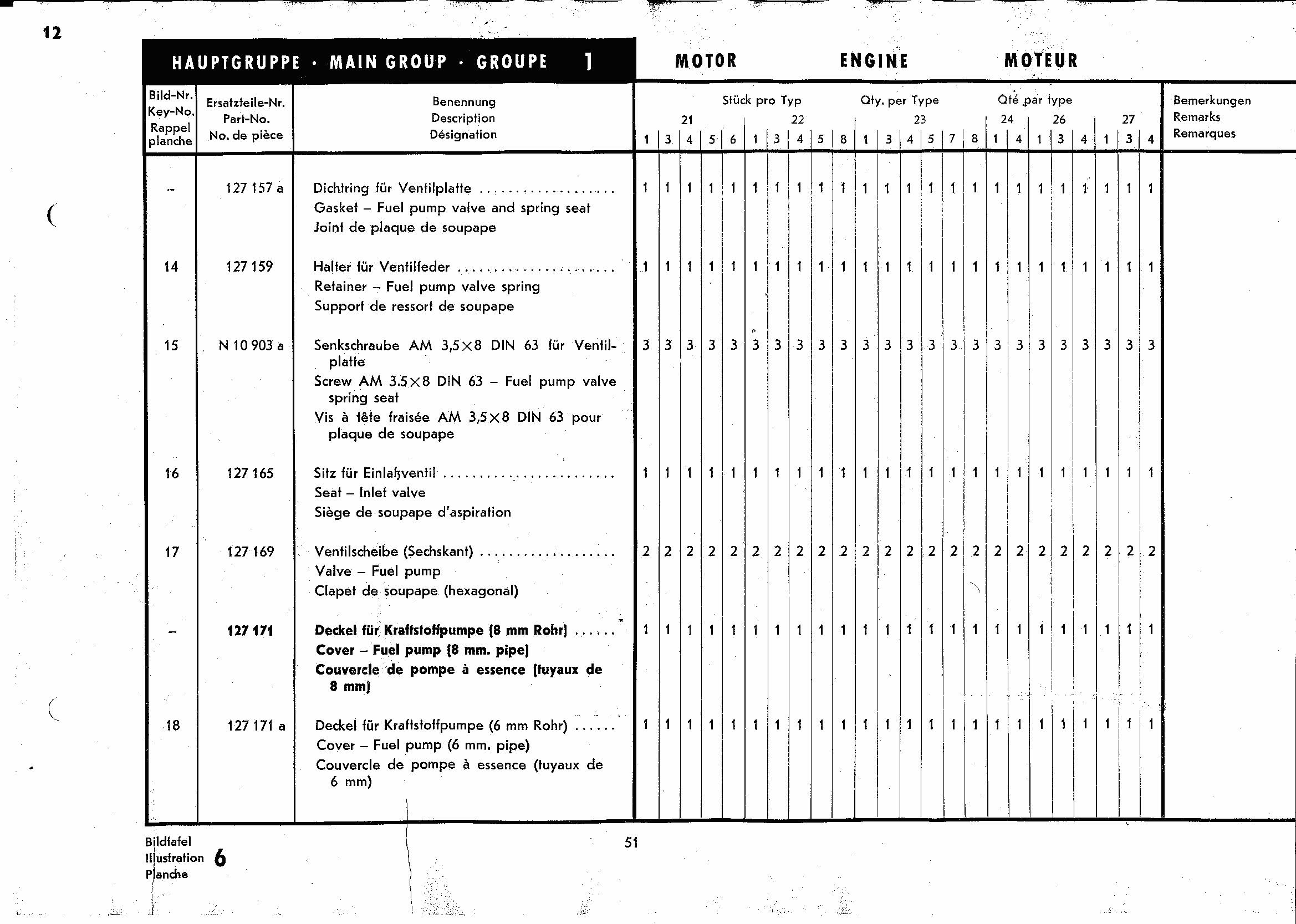

51 list Fuel pump

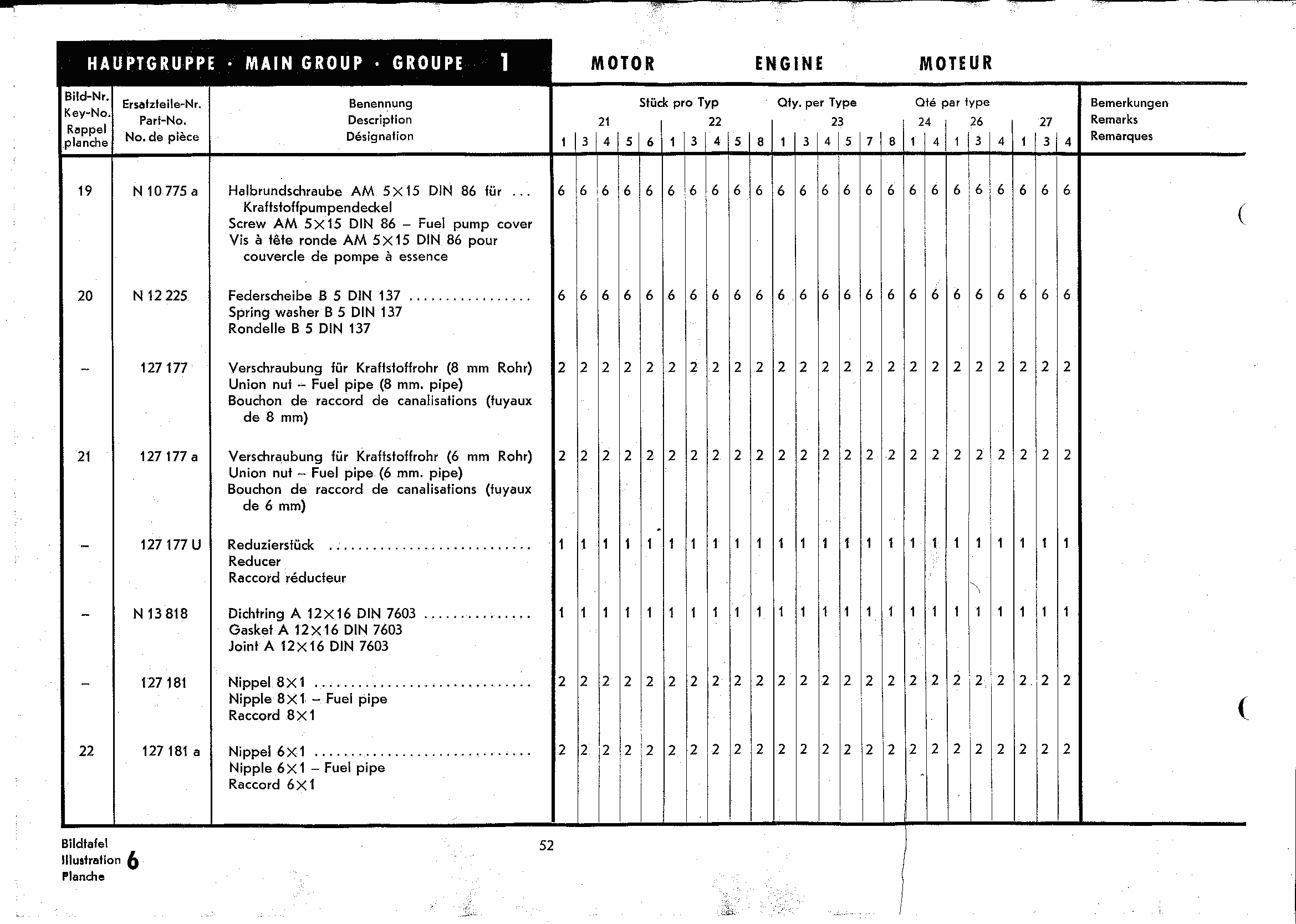

52 list Fuel pump

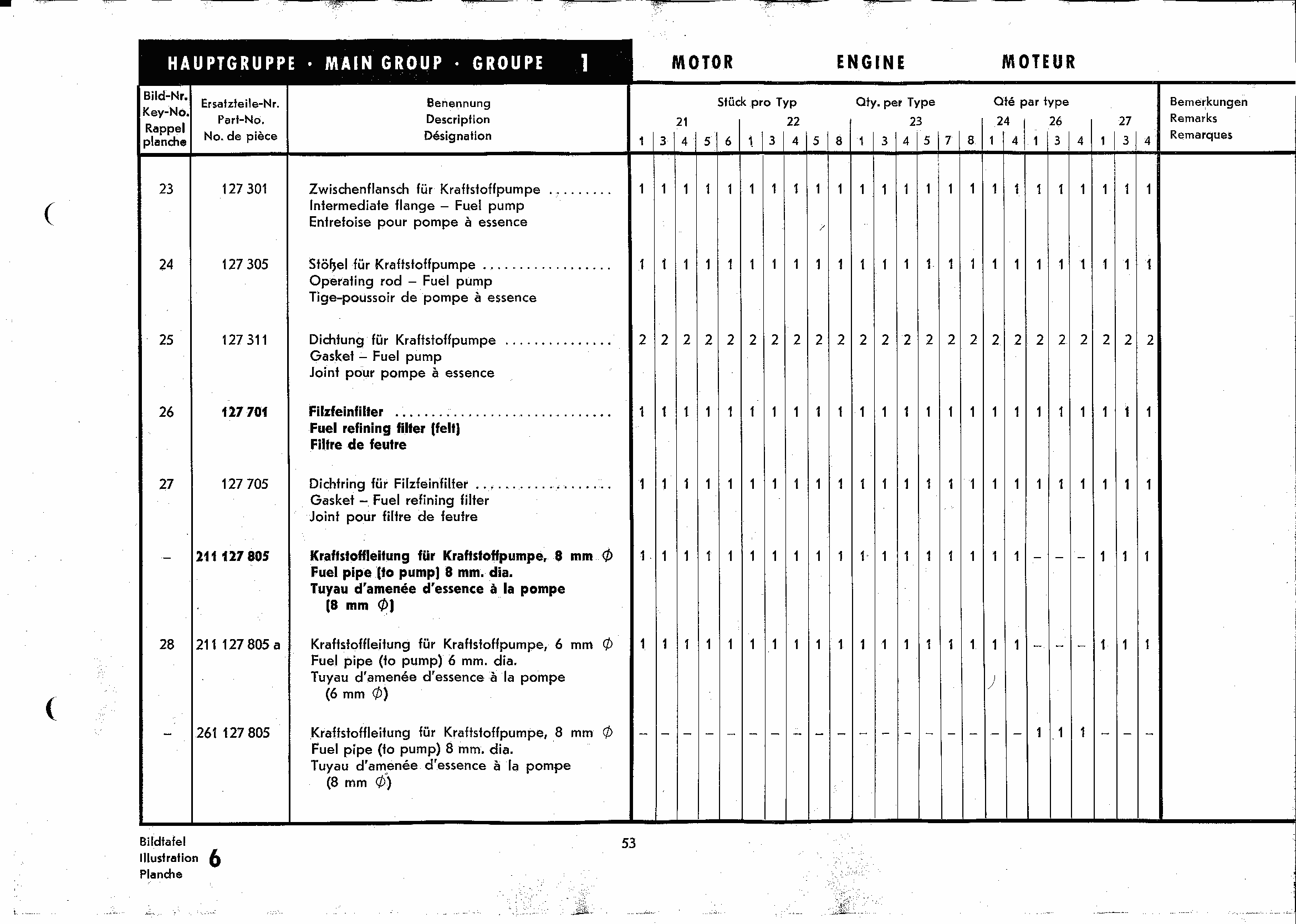

53 list Fuel pump

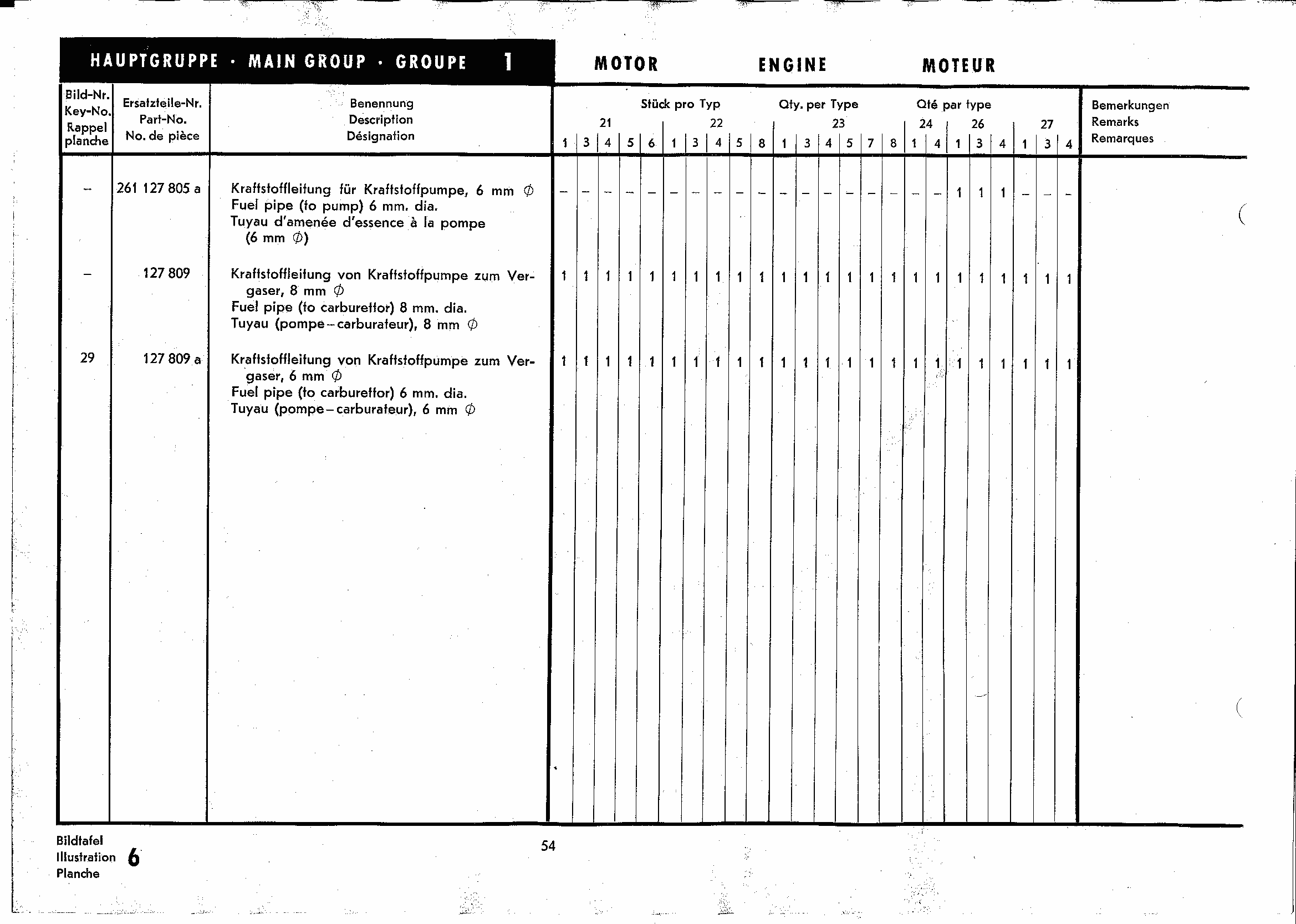

54 list Fuel pump
55 special Acten Sie immer auf unser Zeichen

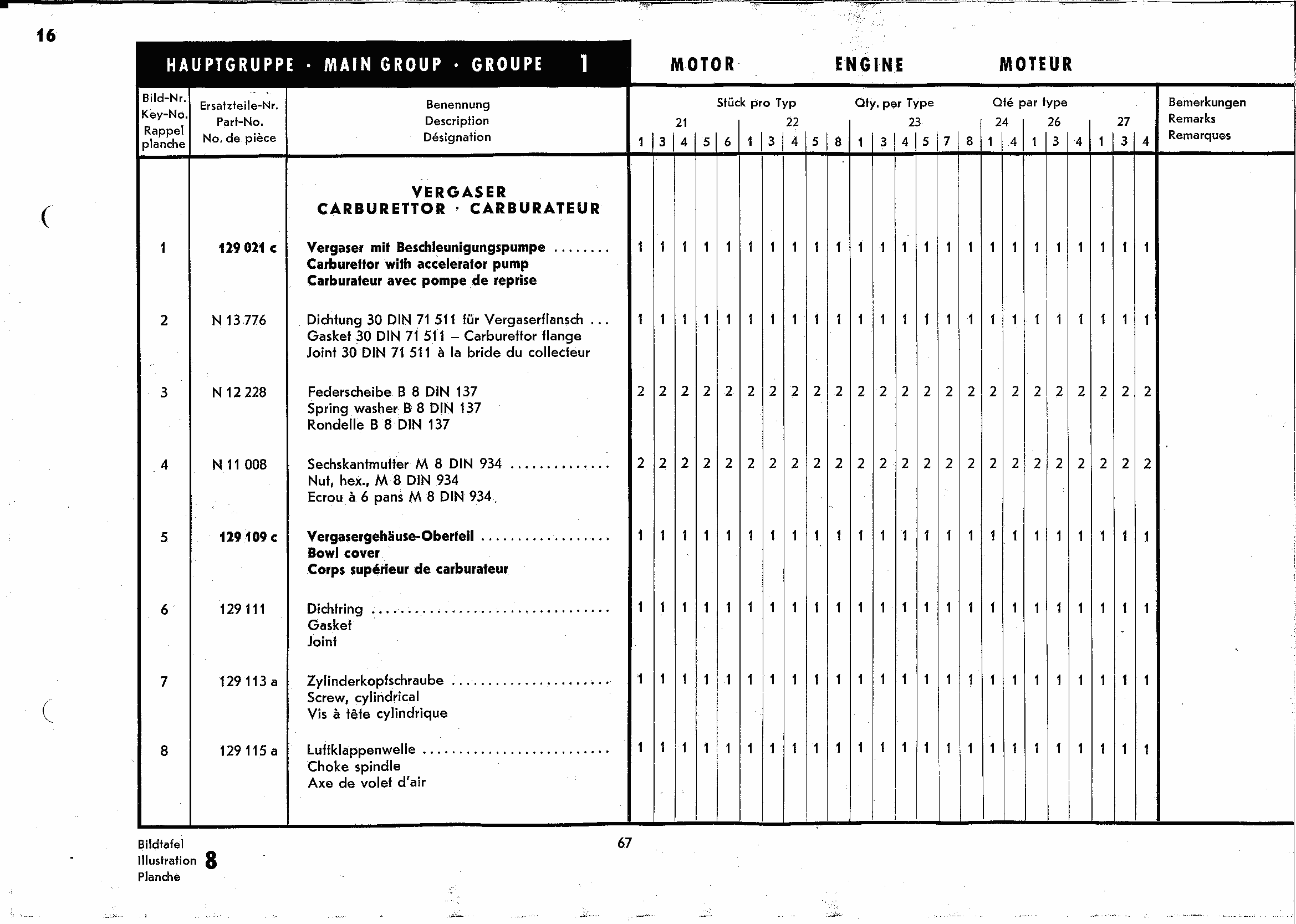

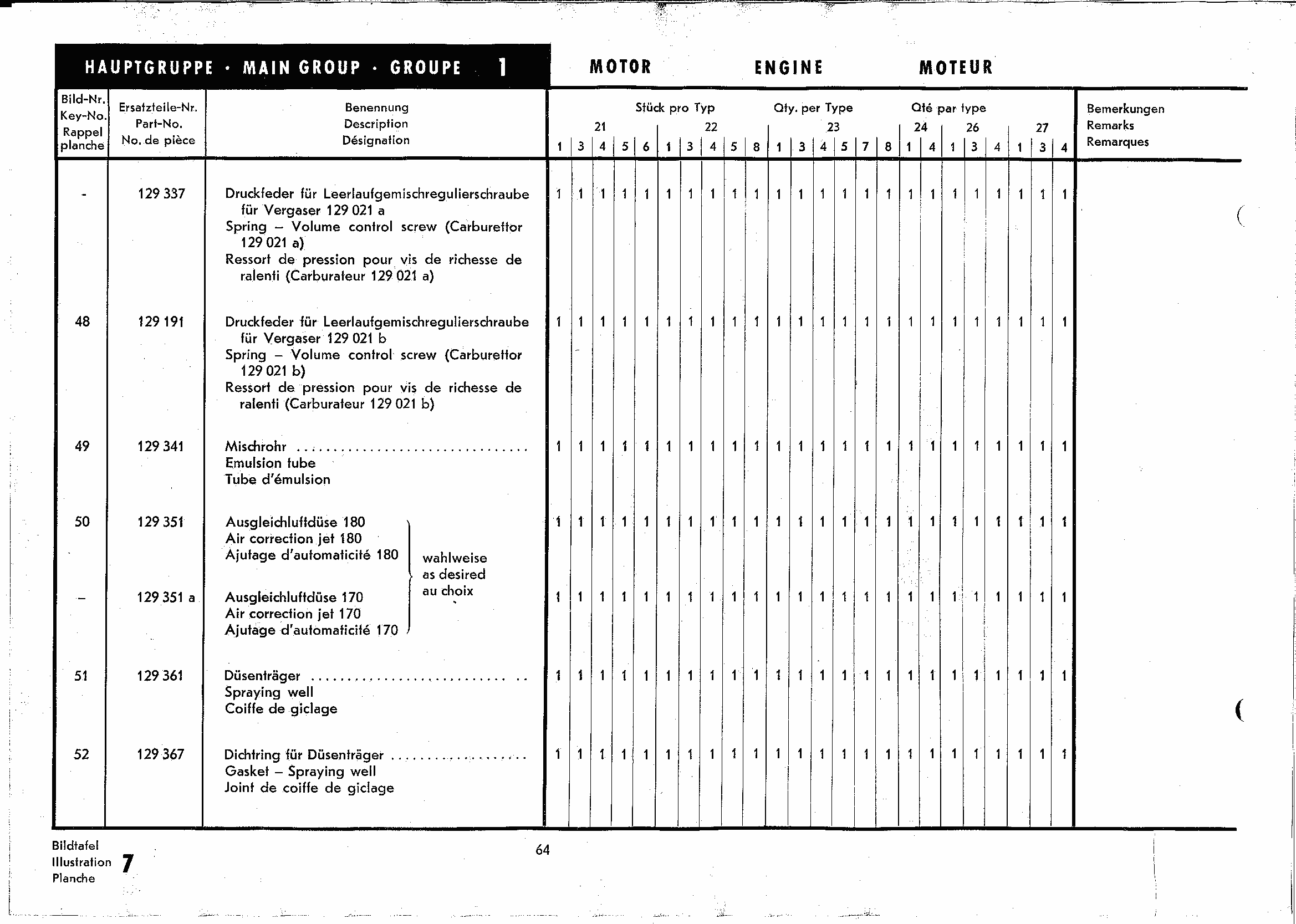

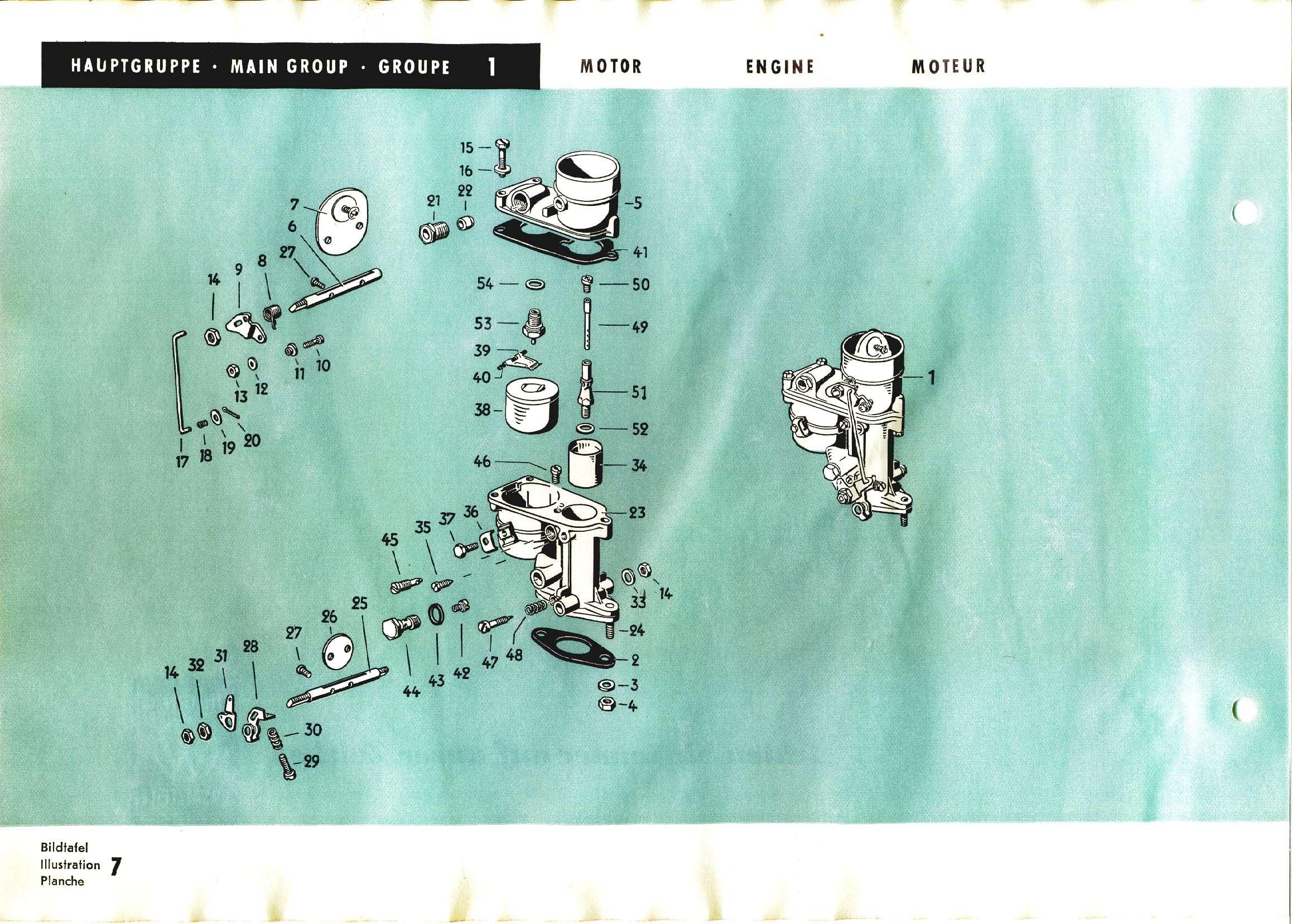

56 diagram Carburettor

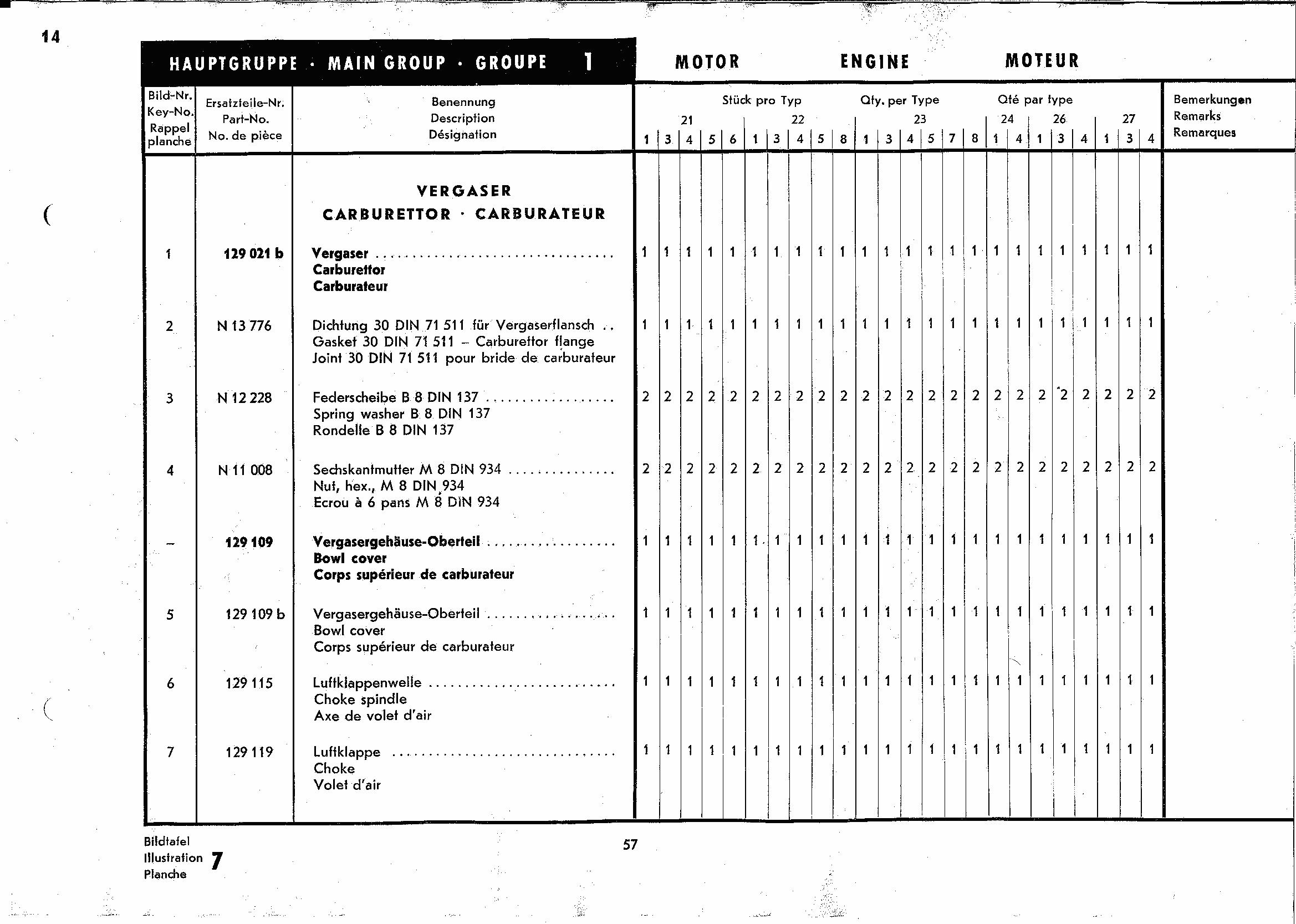

57 list Carburettor

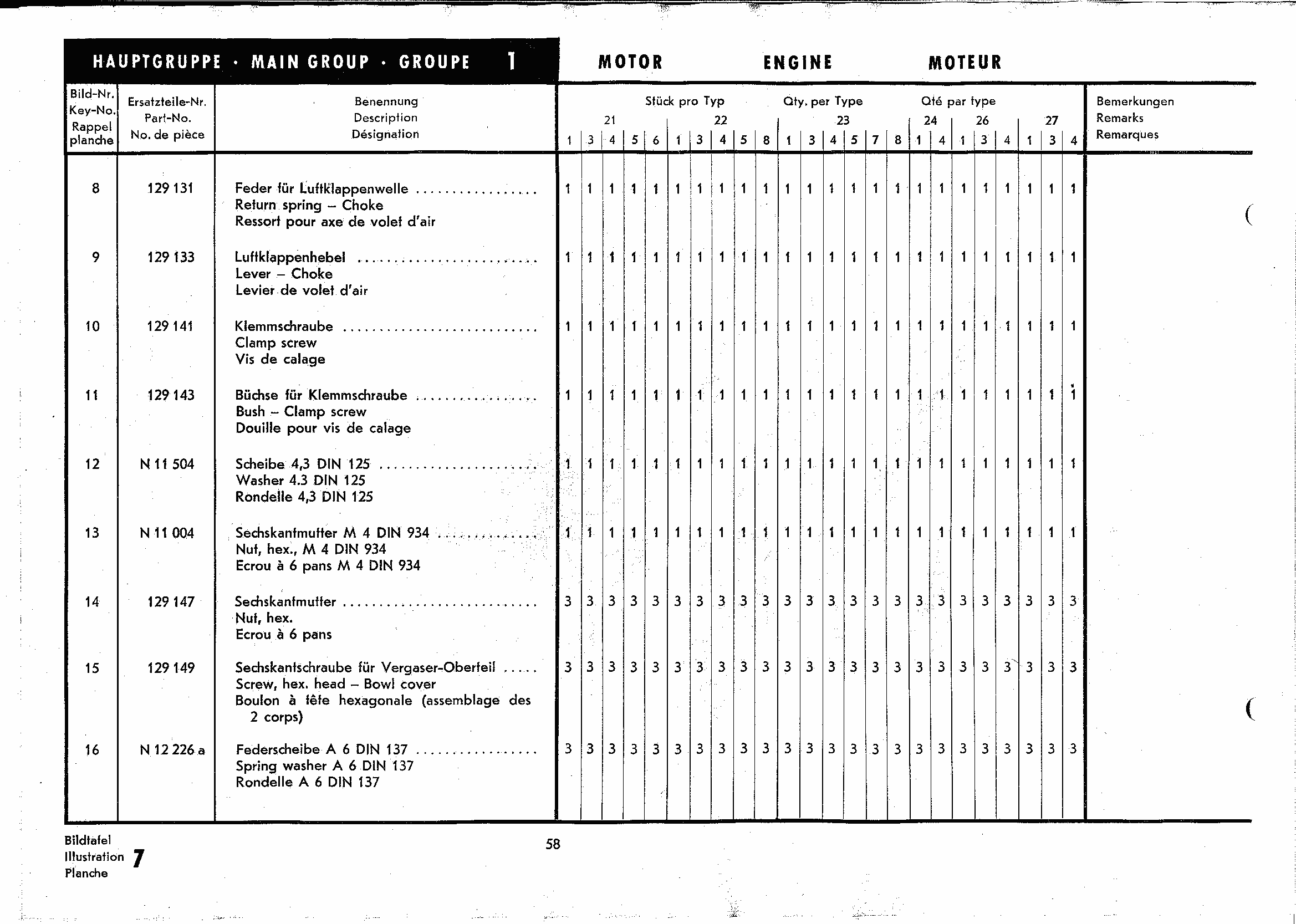

58 list Carburettor

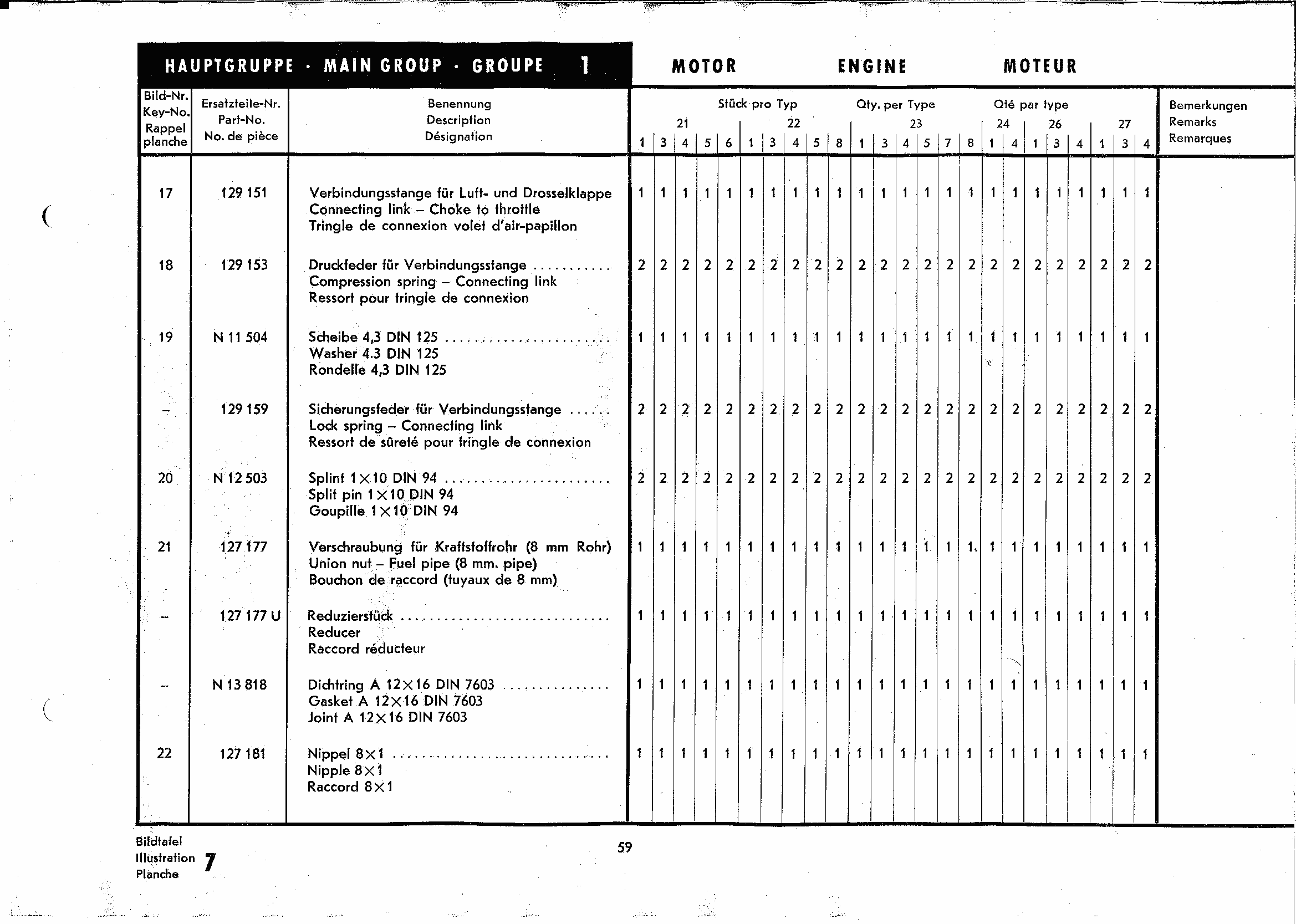

59 list Carburettor
60 list Carburettor

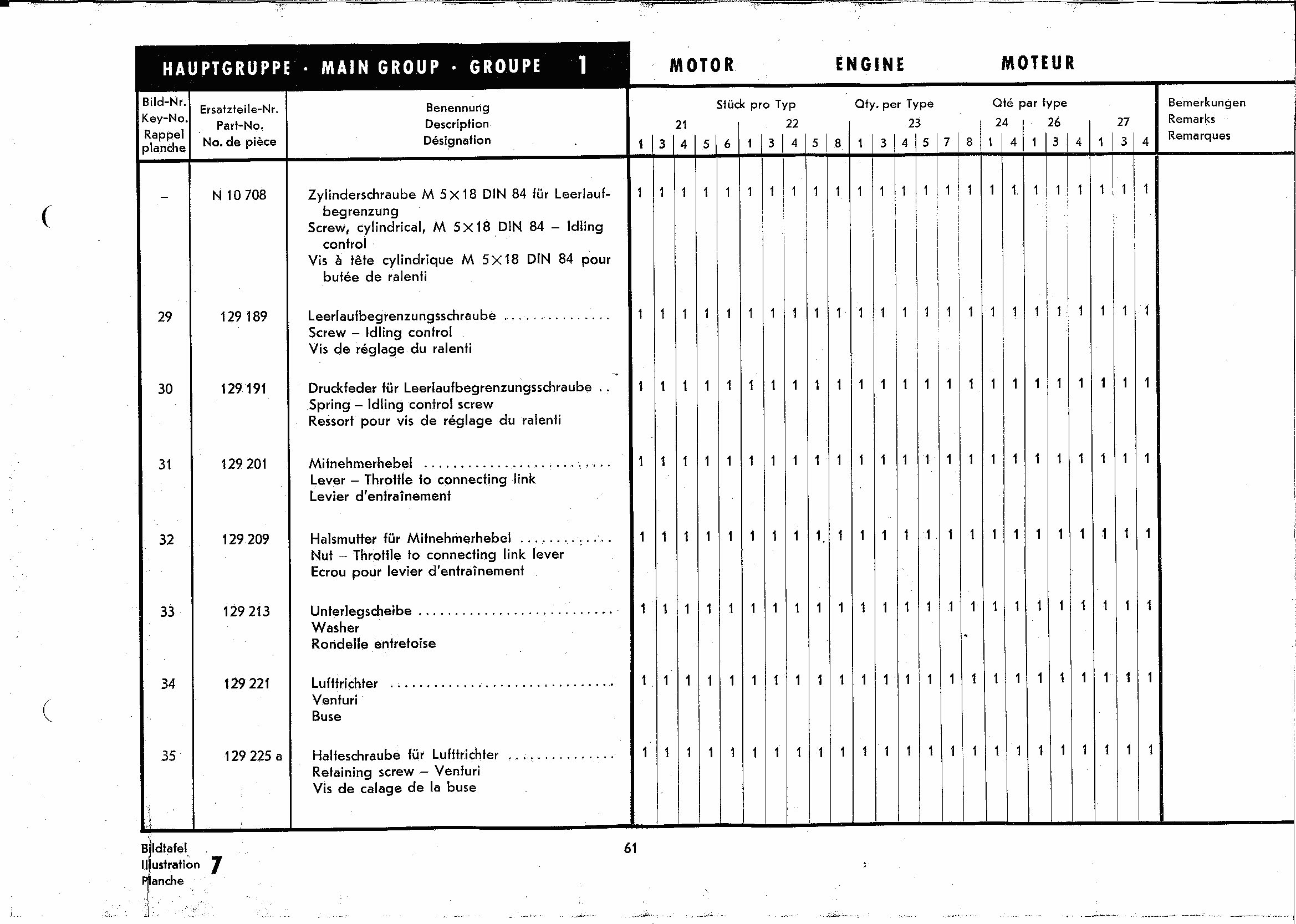

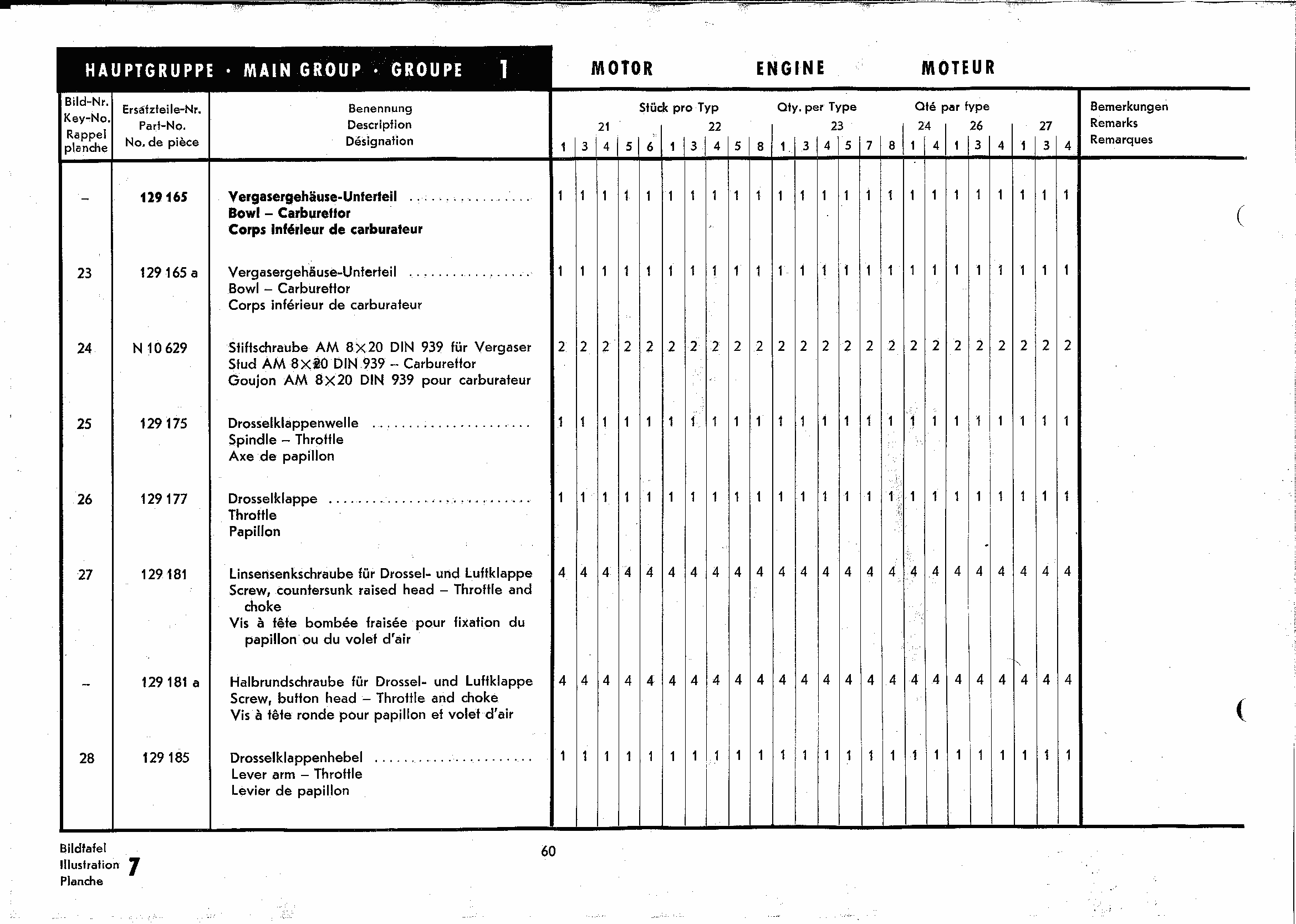

61 list Carburettor

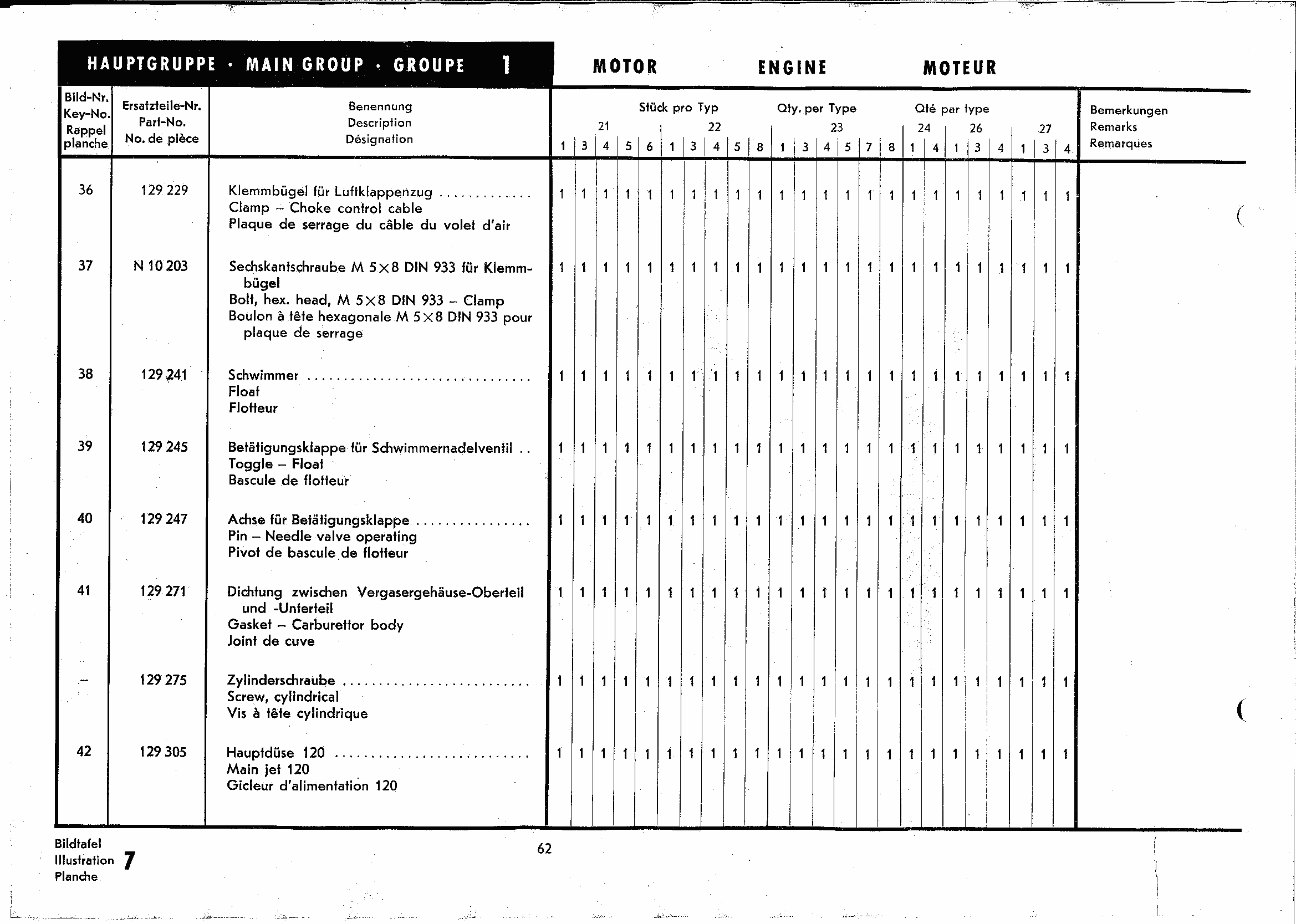

62 list Carburettor

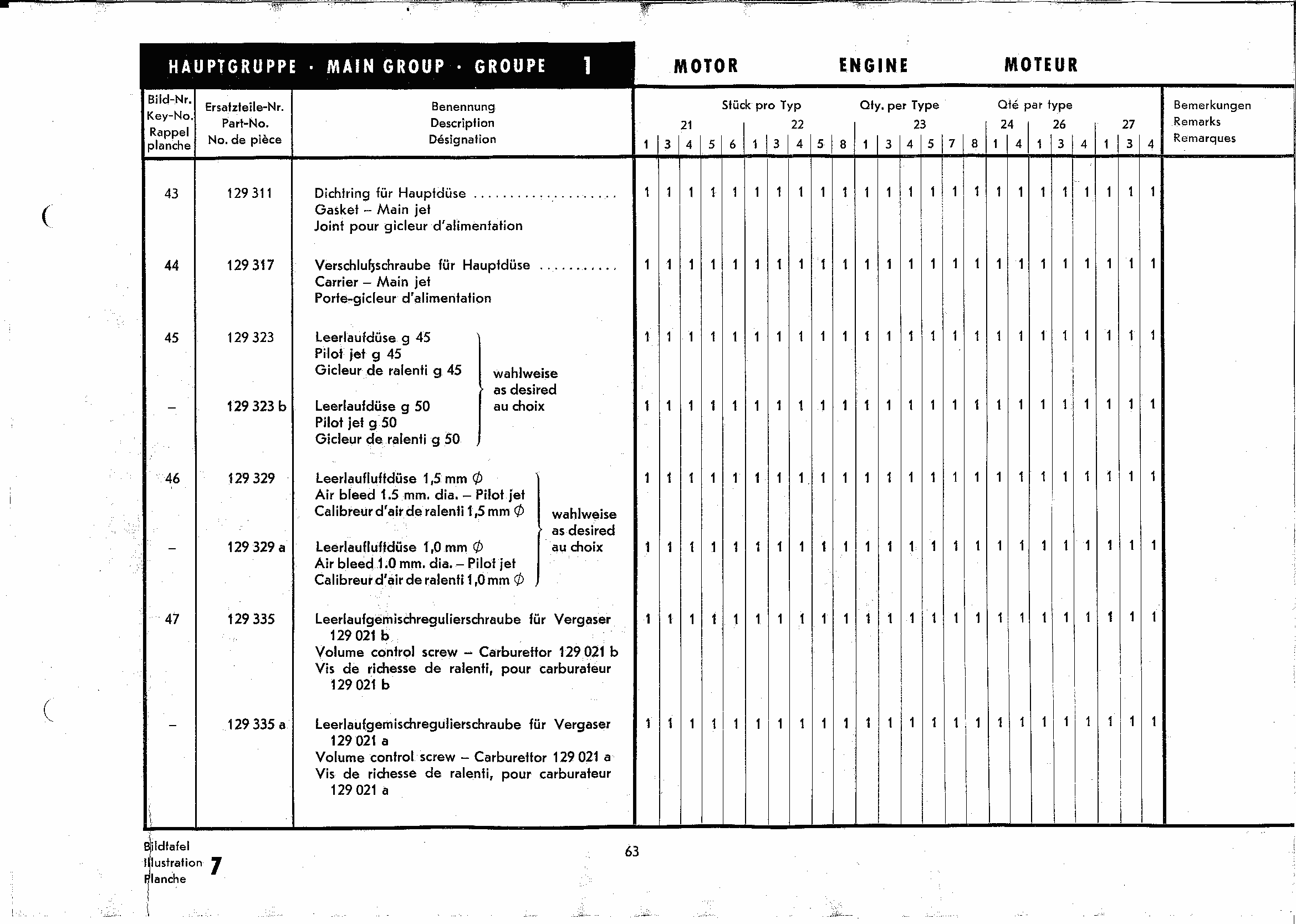

63 list Carburettor
64 list Carburettor

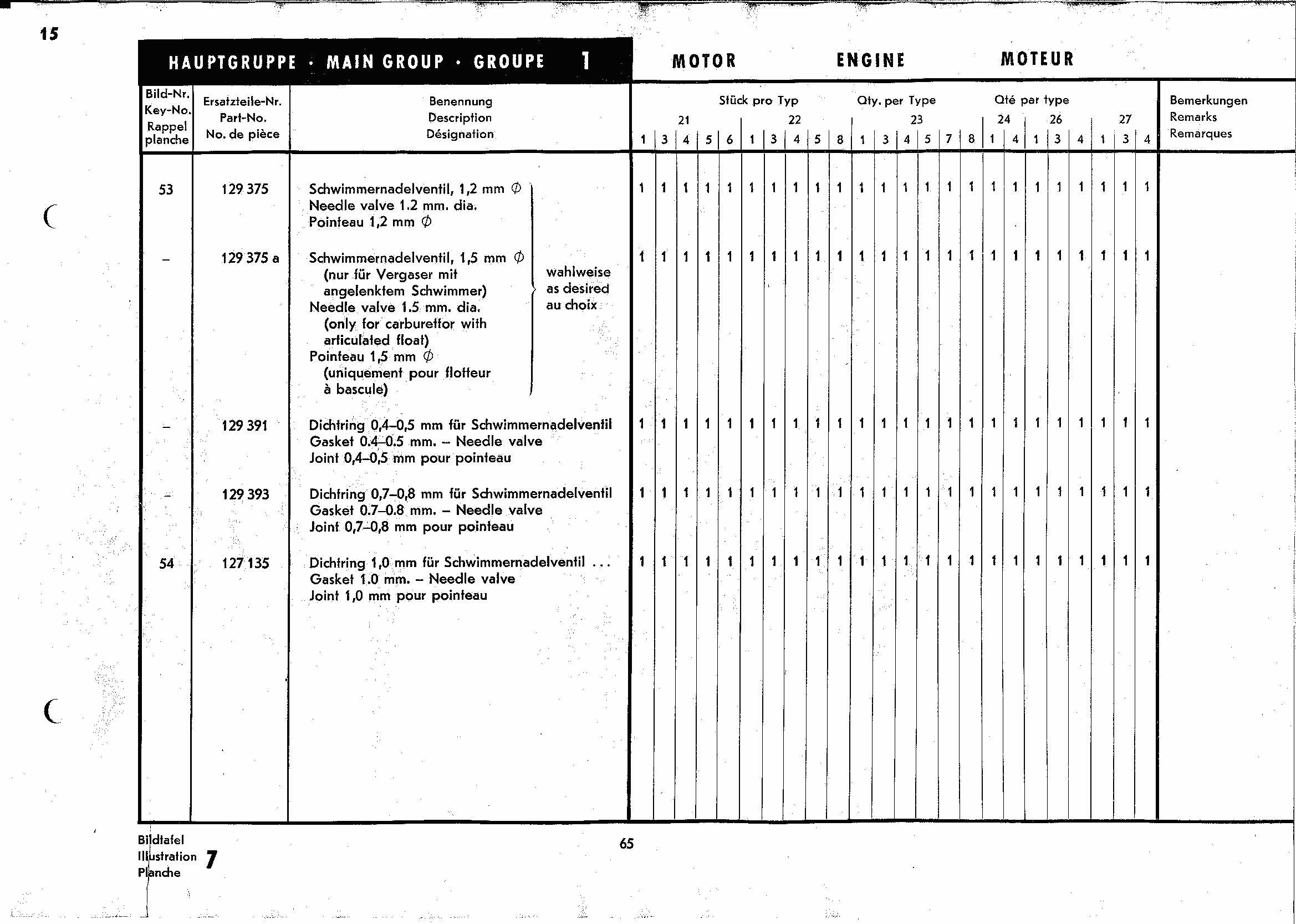

65 list Carburettor

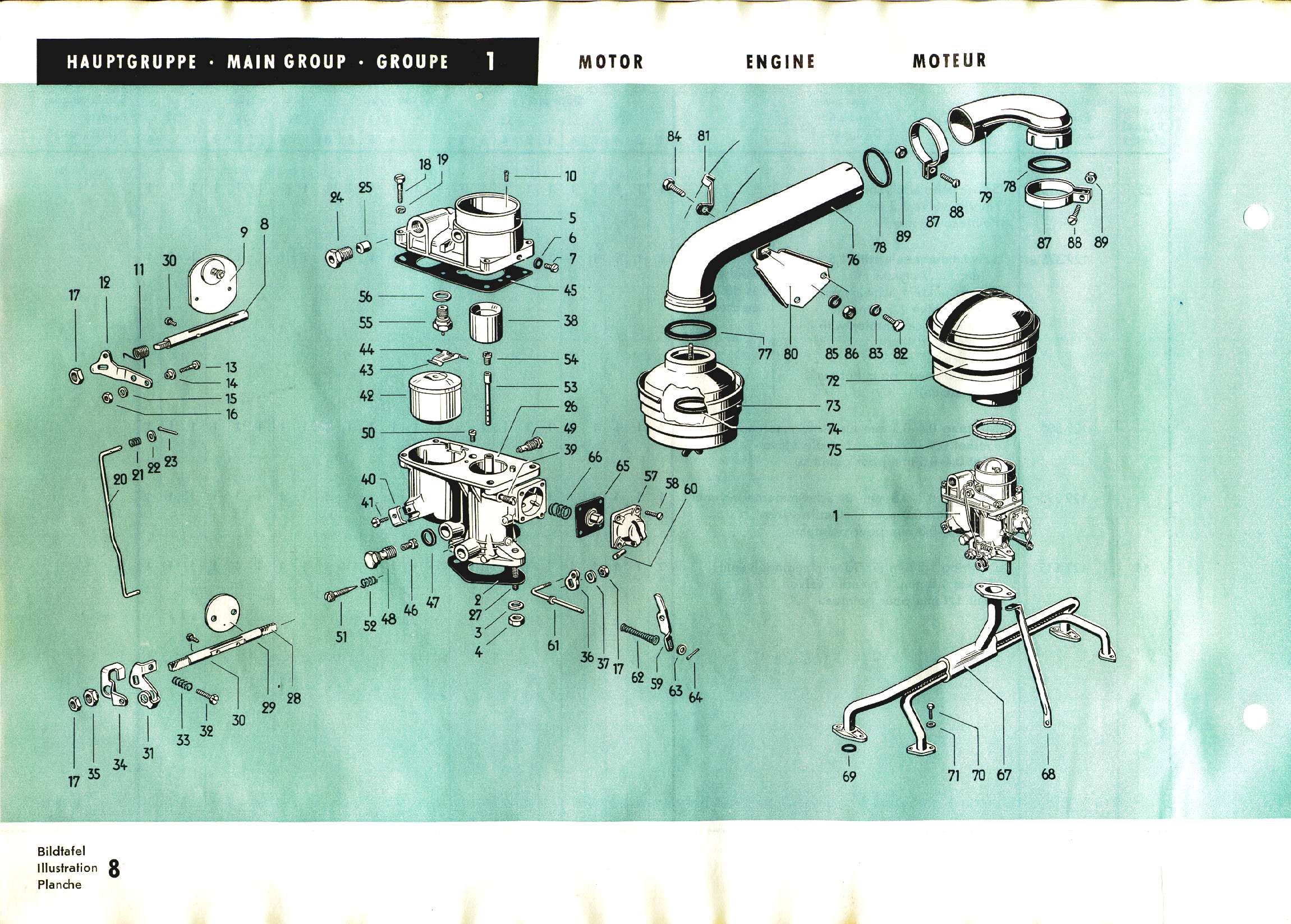

66 diagram Carburettor, air filter
67 list Carburettor

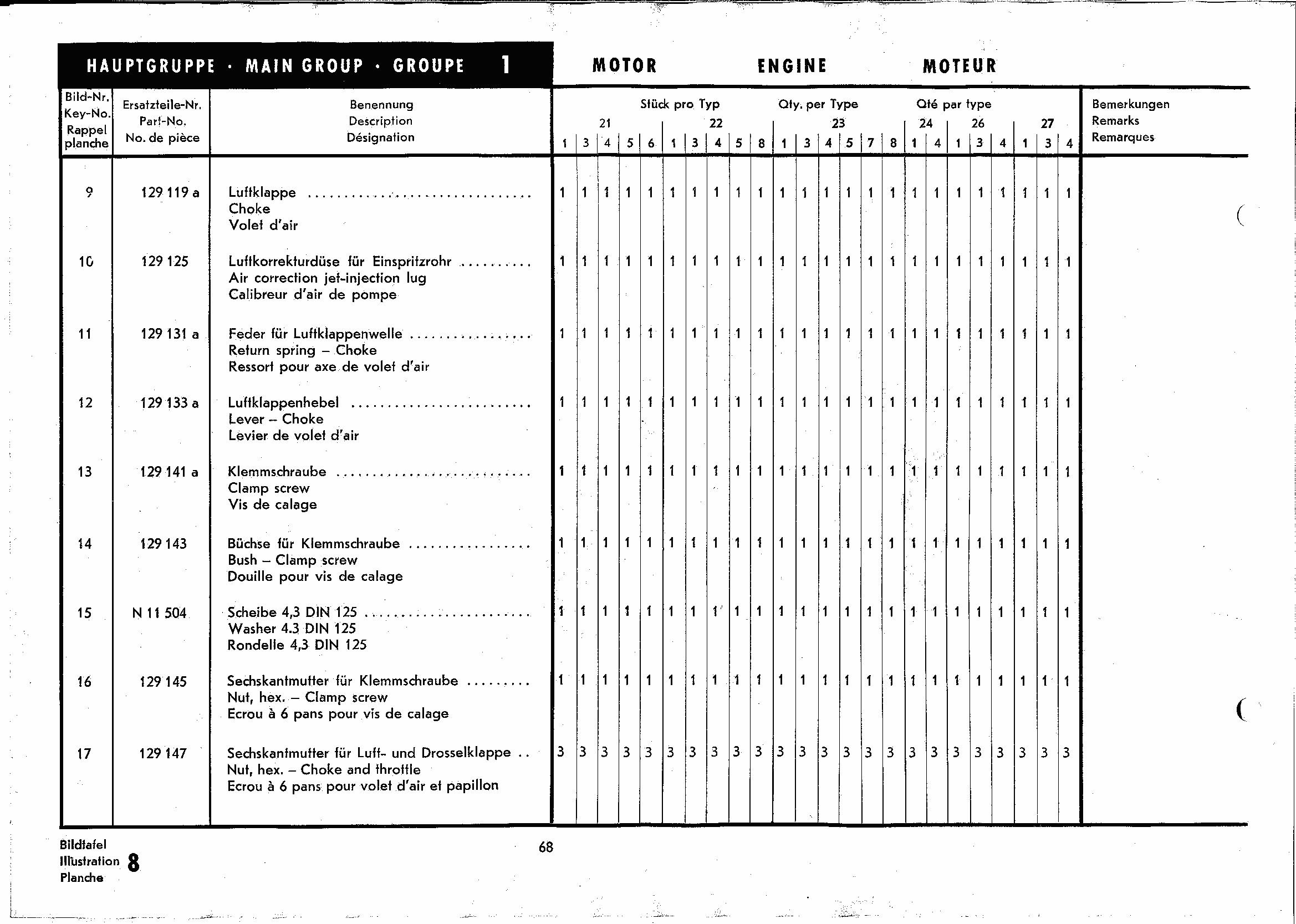

68 list Carburettor

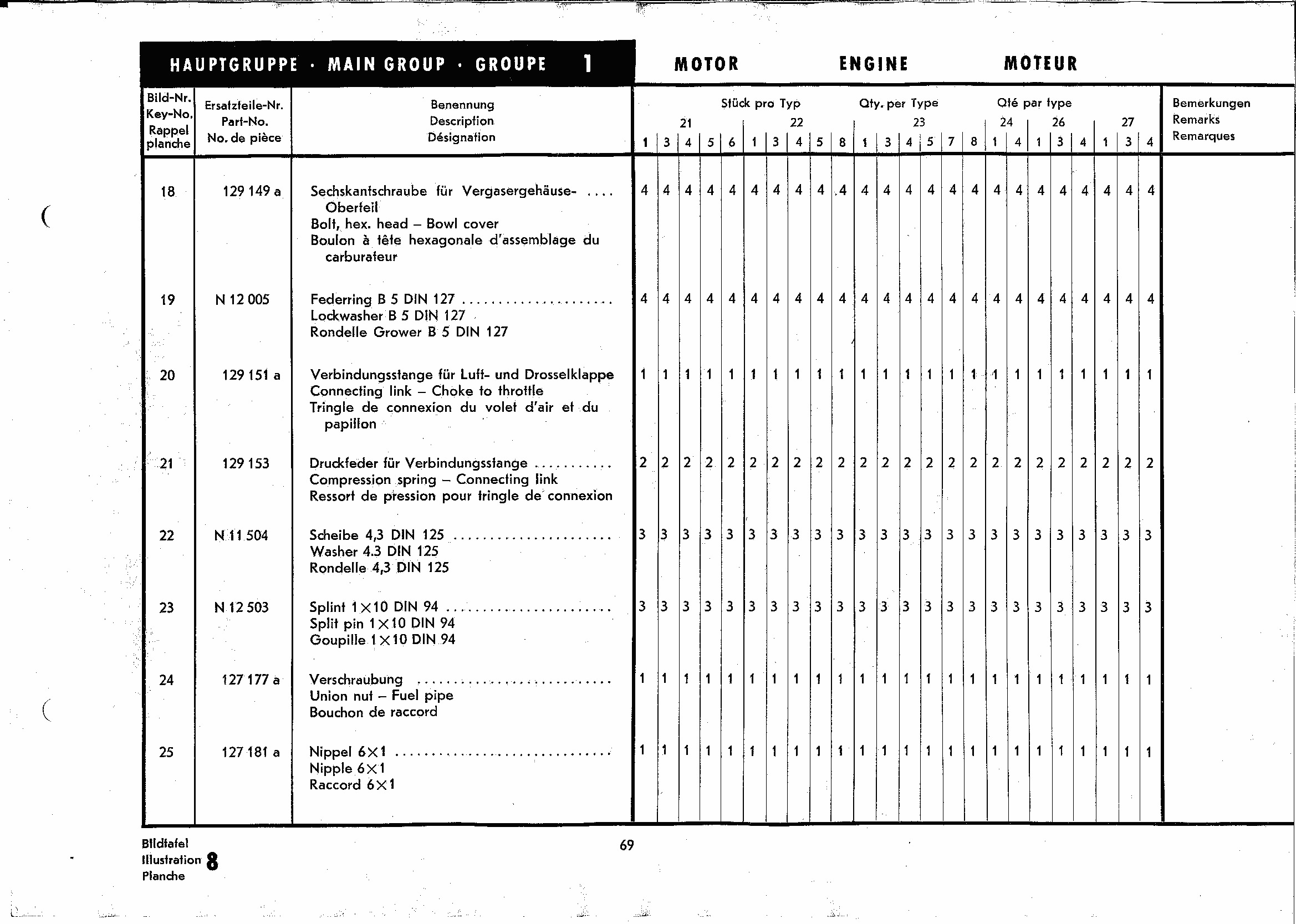

69 list Carburettor
70 list Carburettor

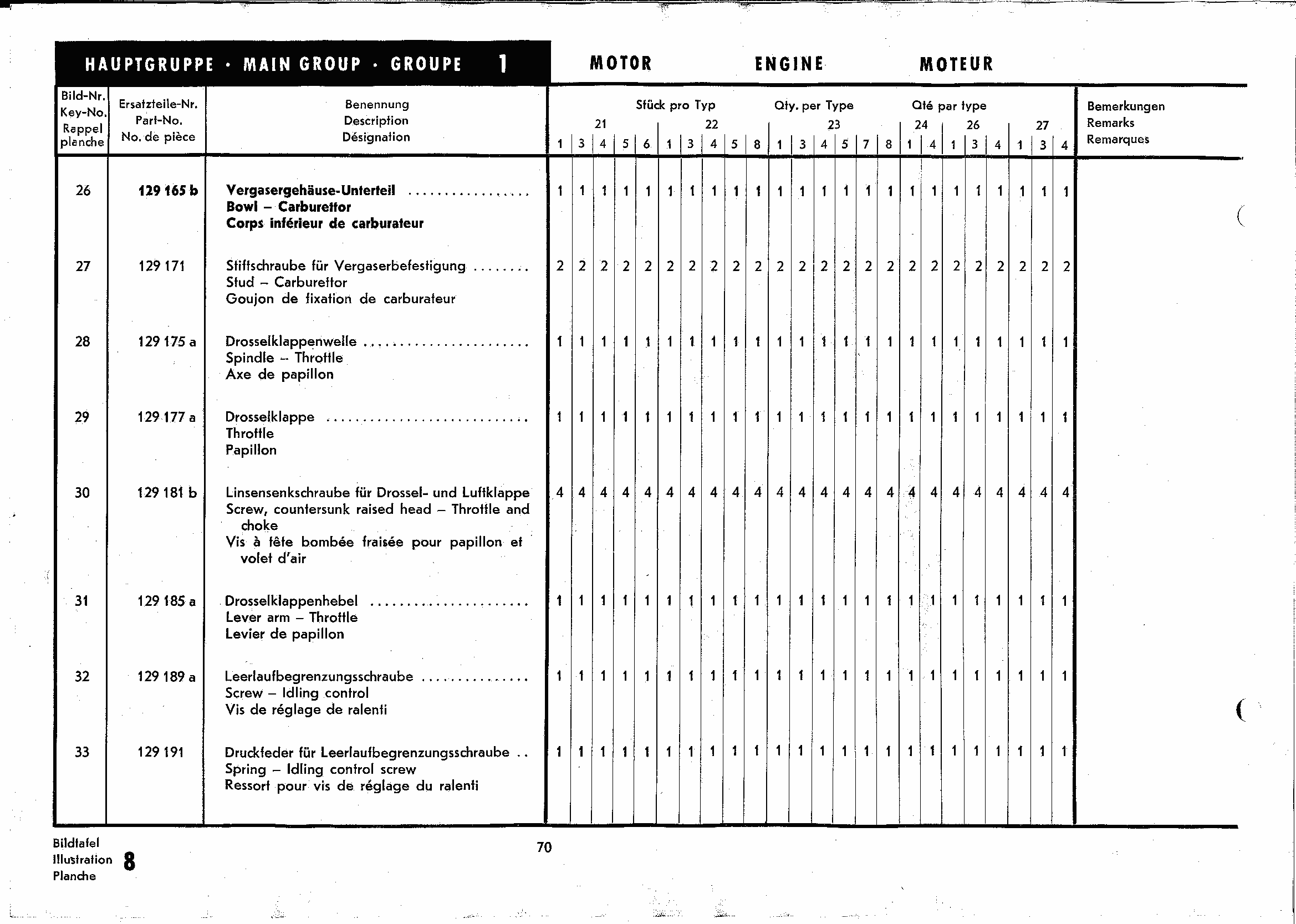

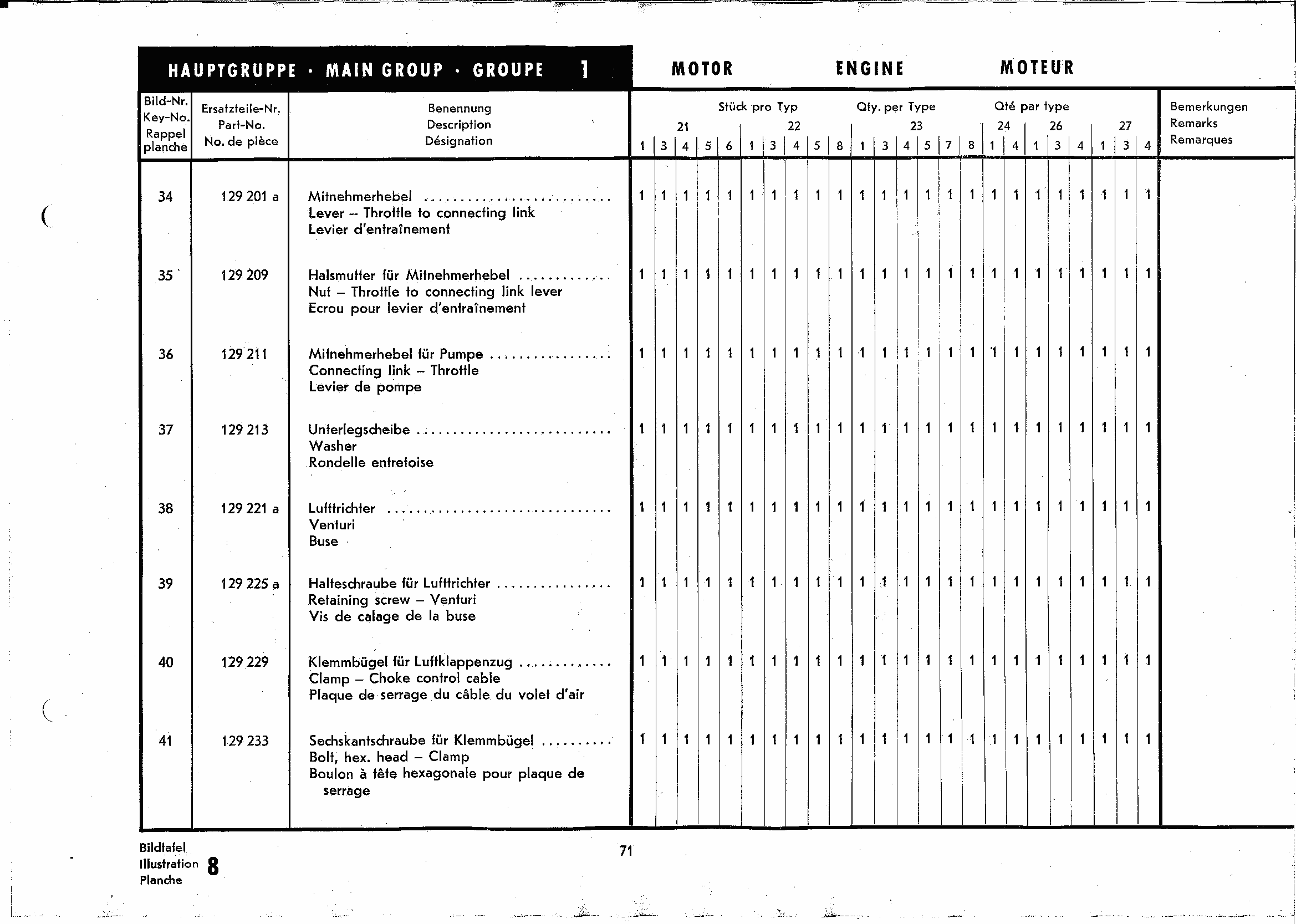

71 list Carburettor

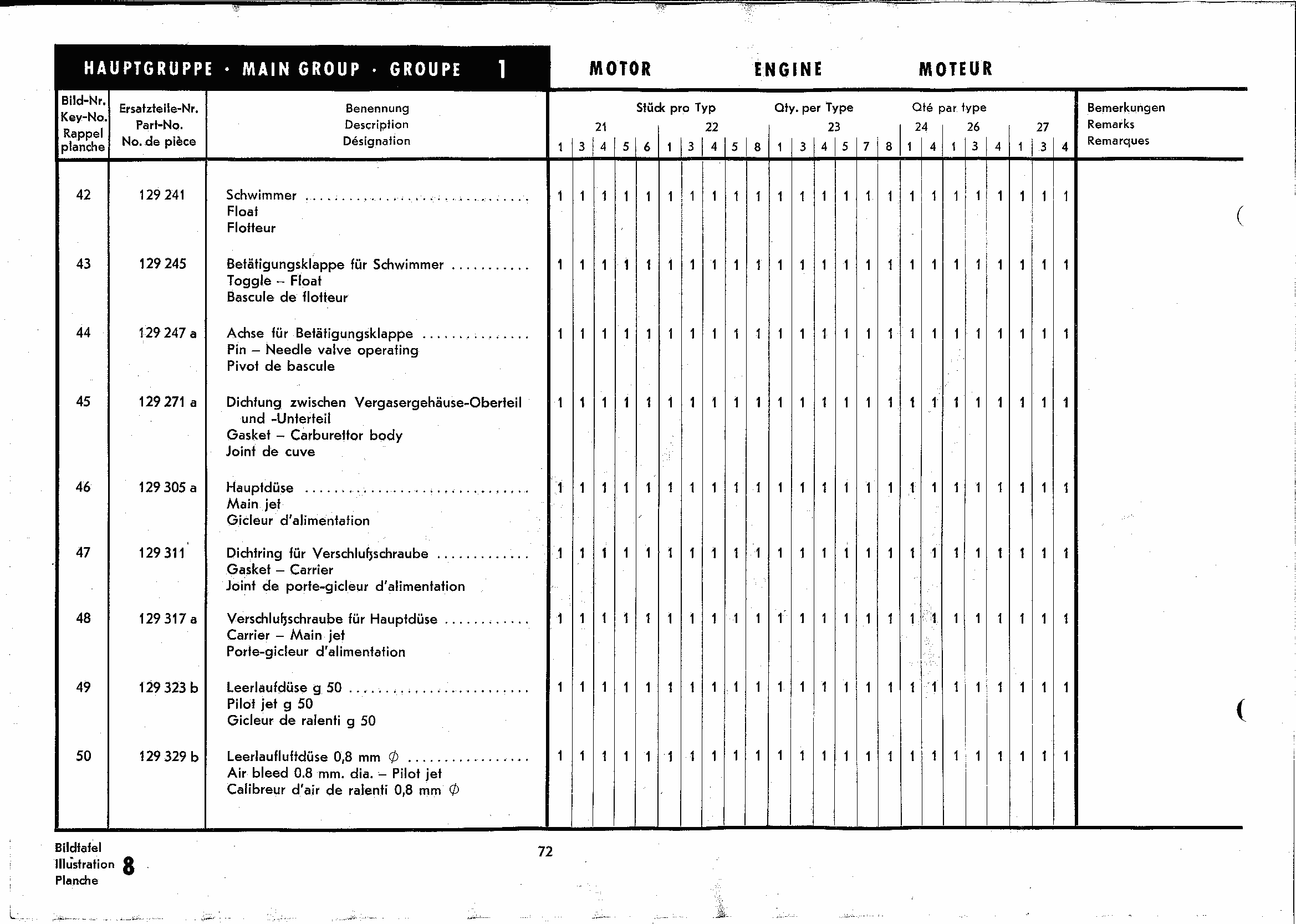

72 list Carburettor

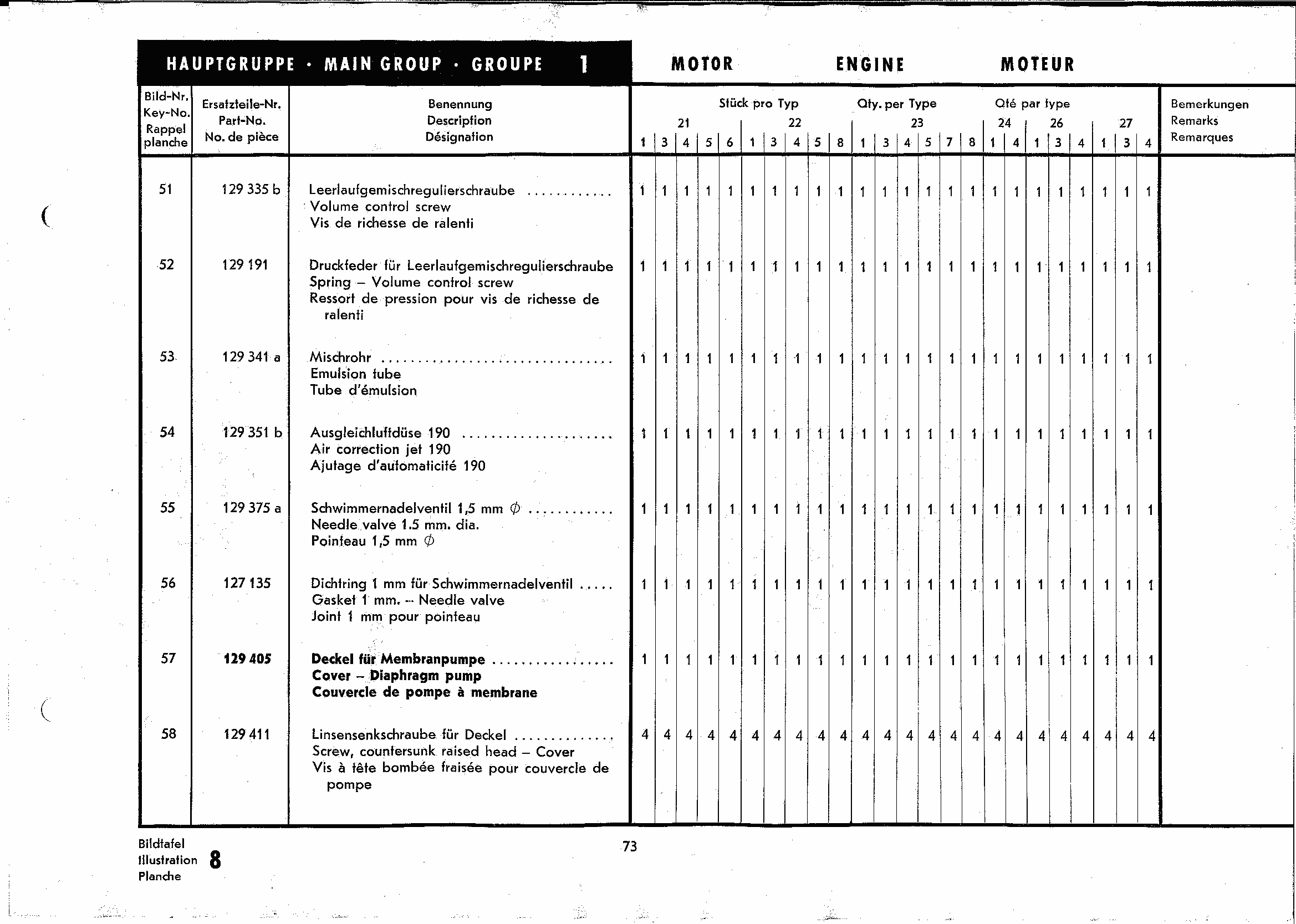

73 list Carburettor

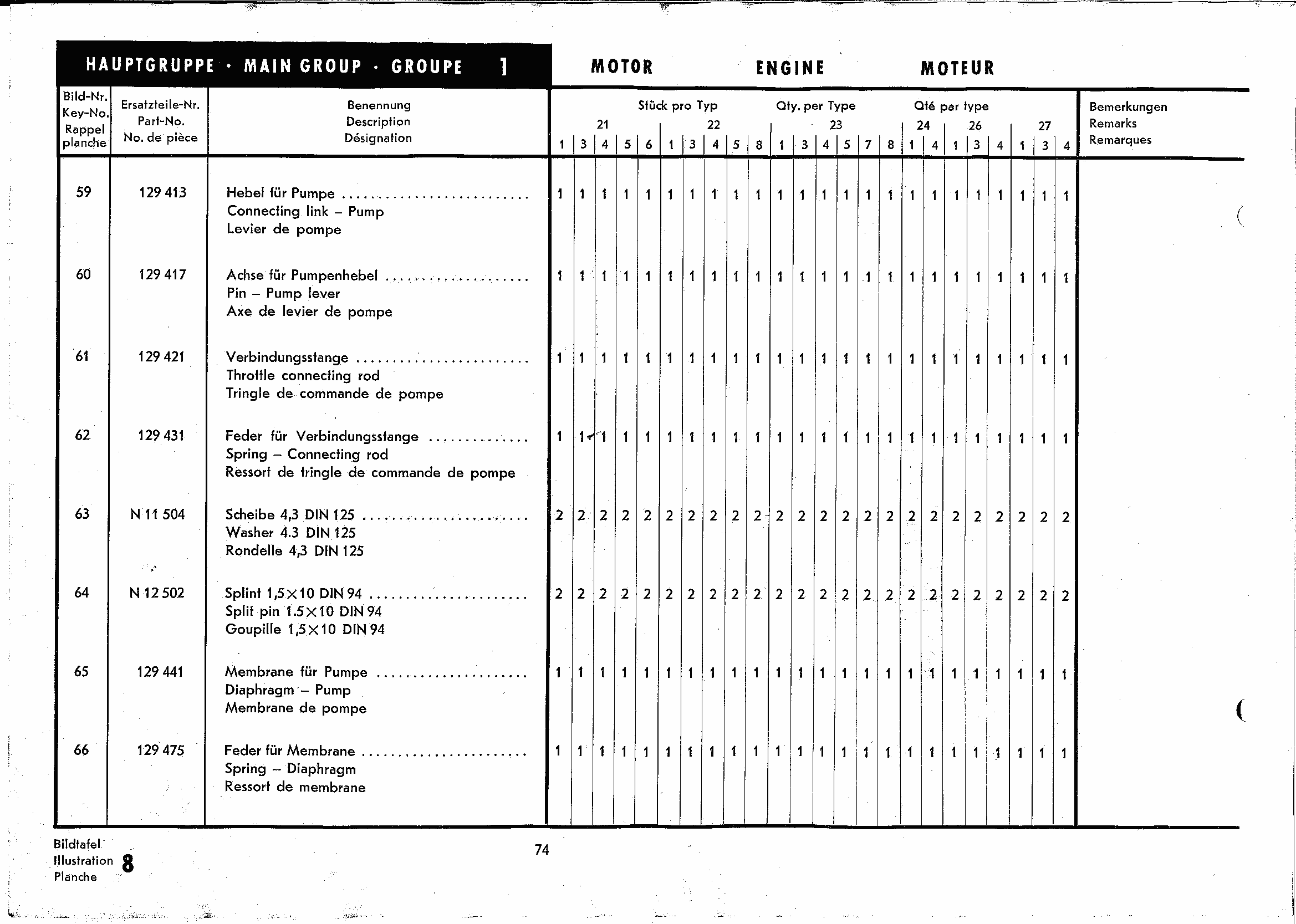

74 list Carburettor

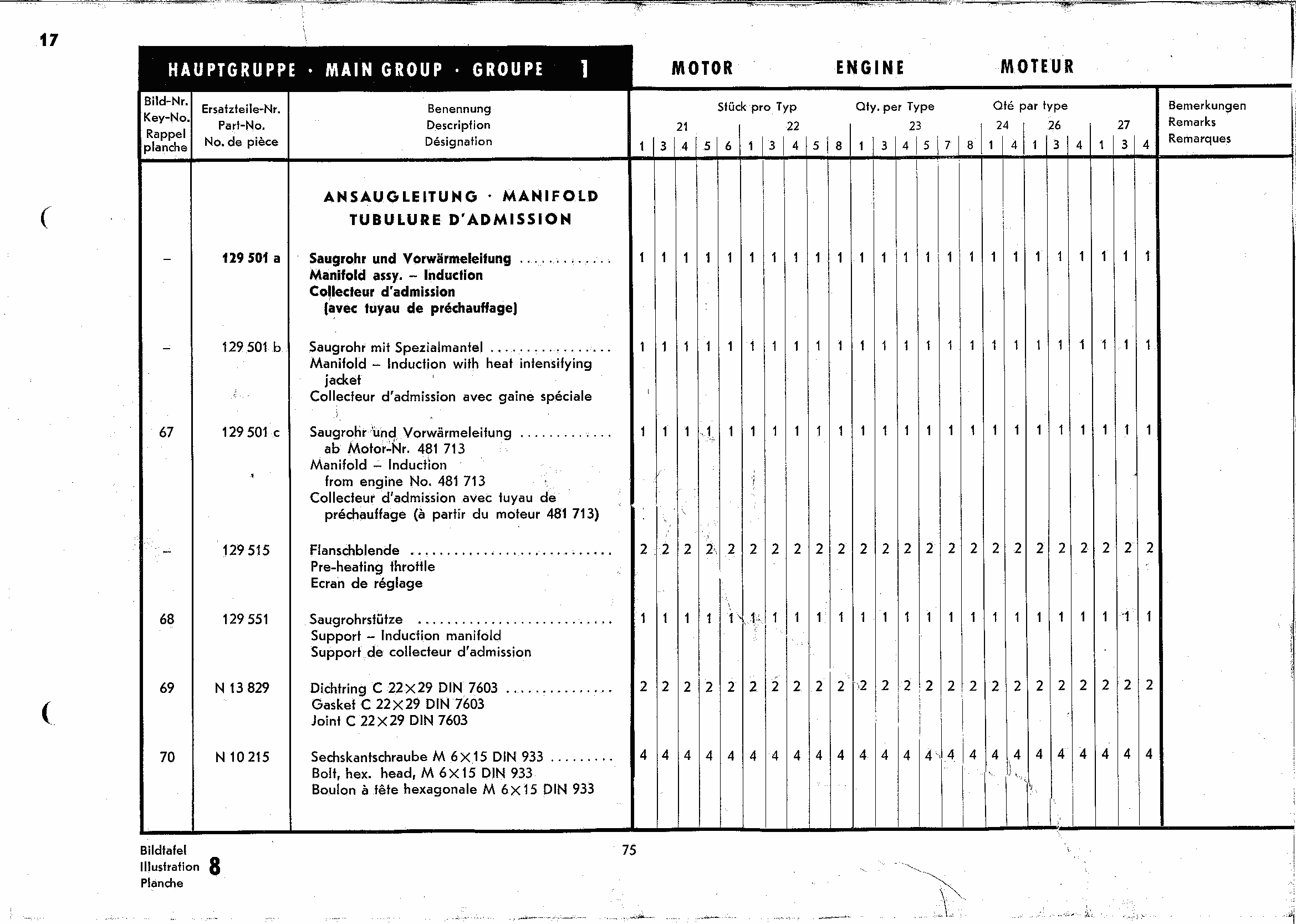

75 list Manifold
76 list Manifold

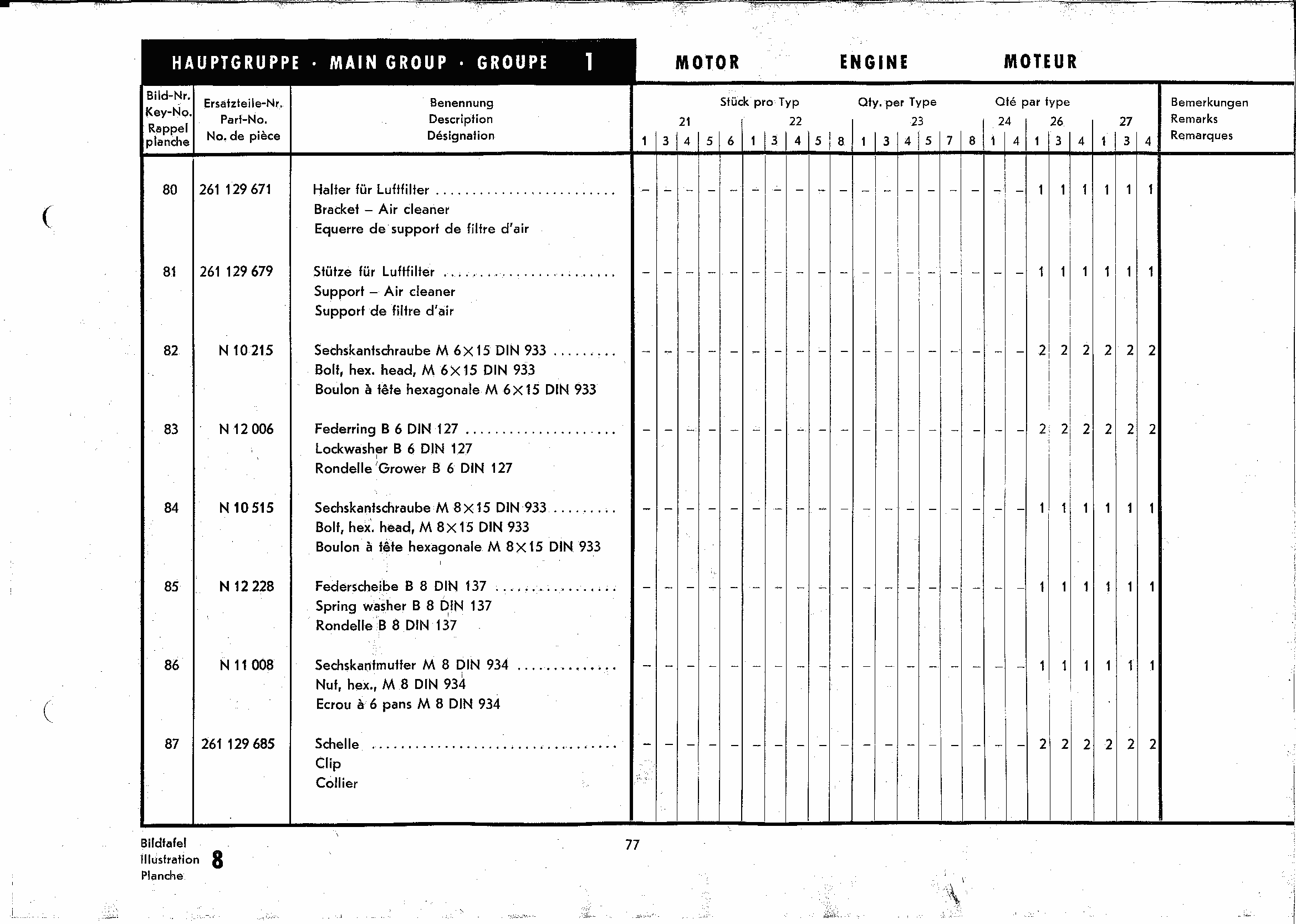

77 list Manifold

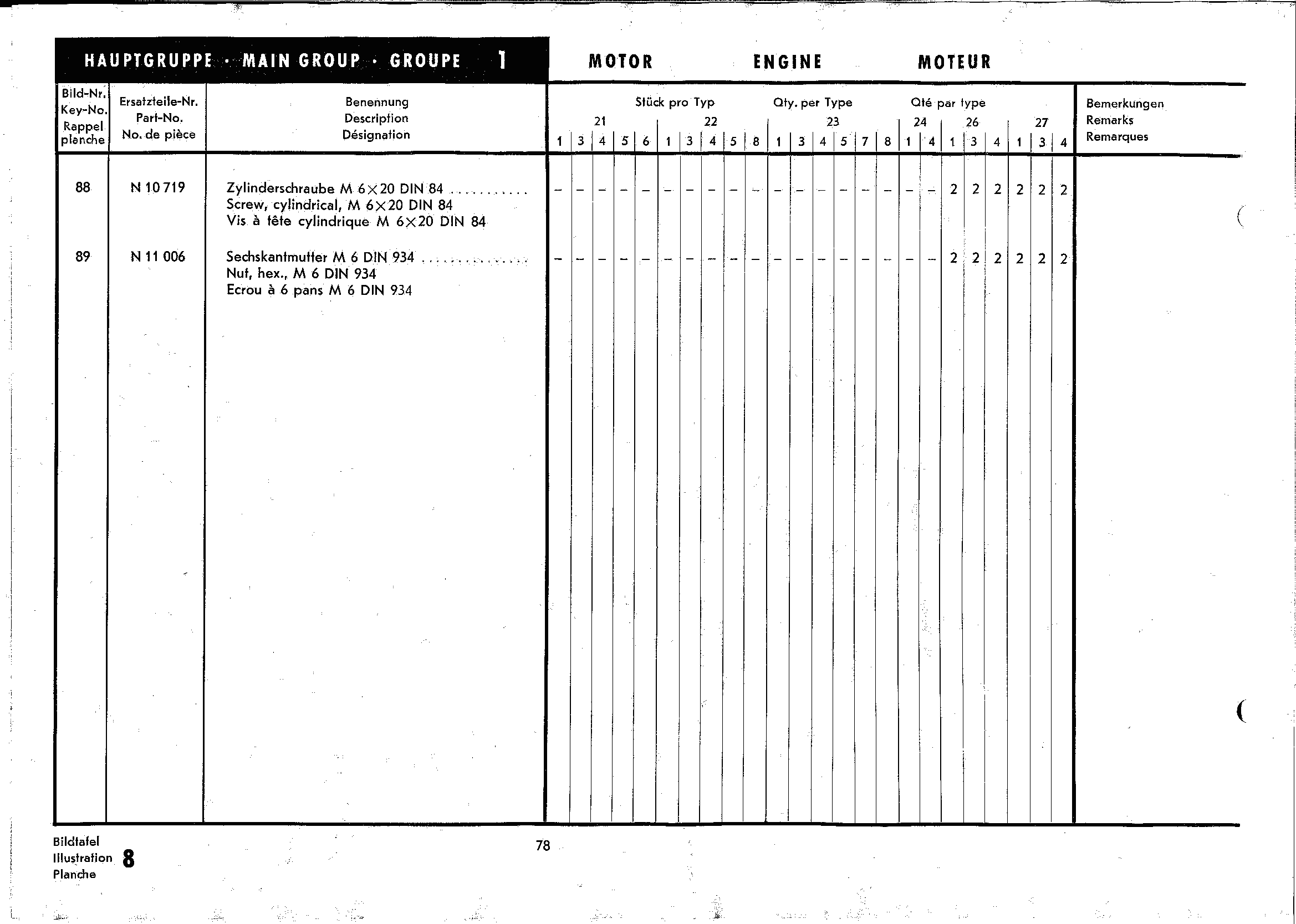

78 list Manifold

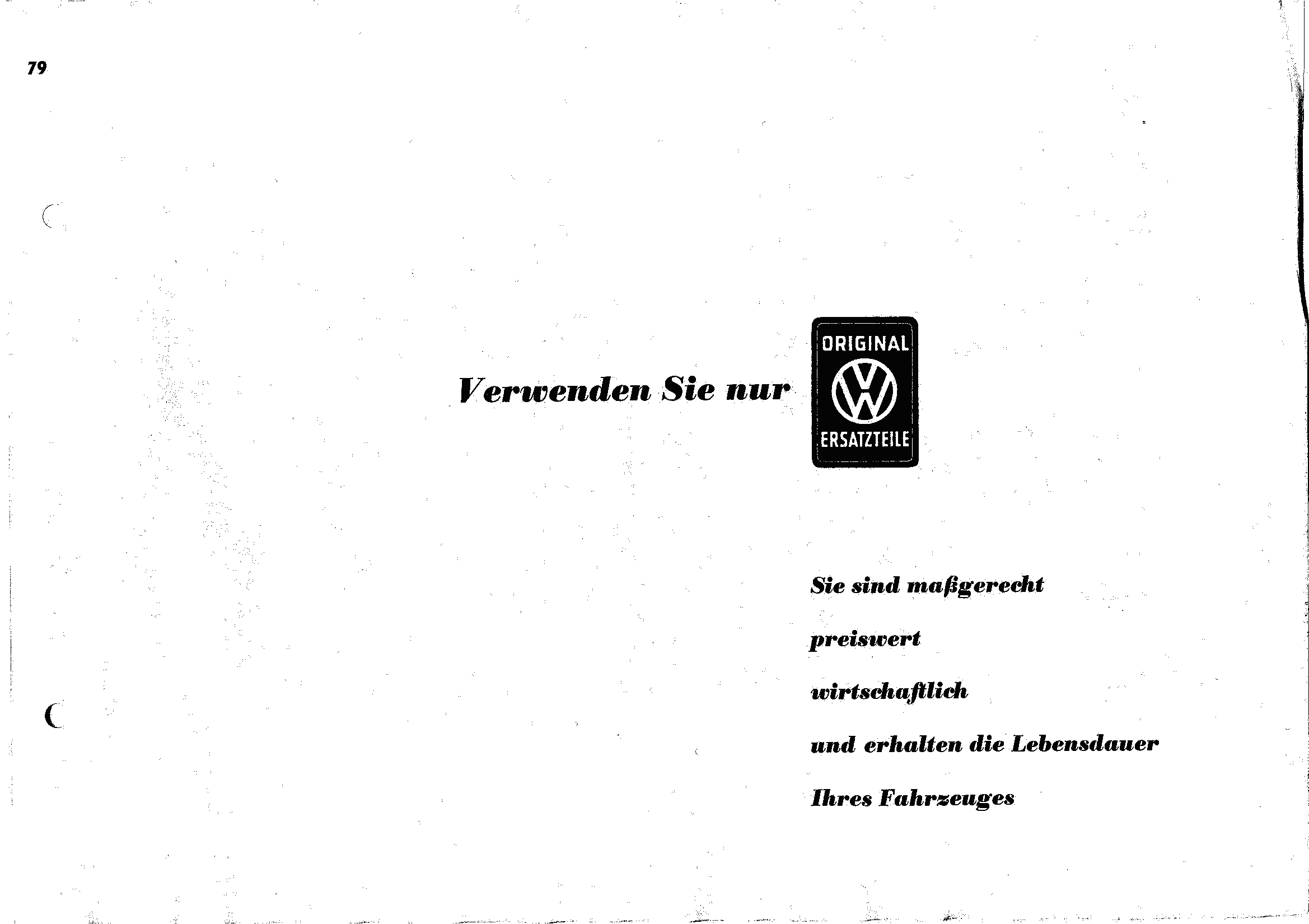

79 special Nur Original-VW-Ersatzteile sind auf ihre Werkstoff-Qualitaet geprueft

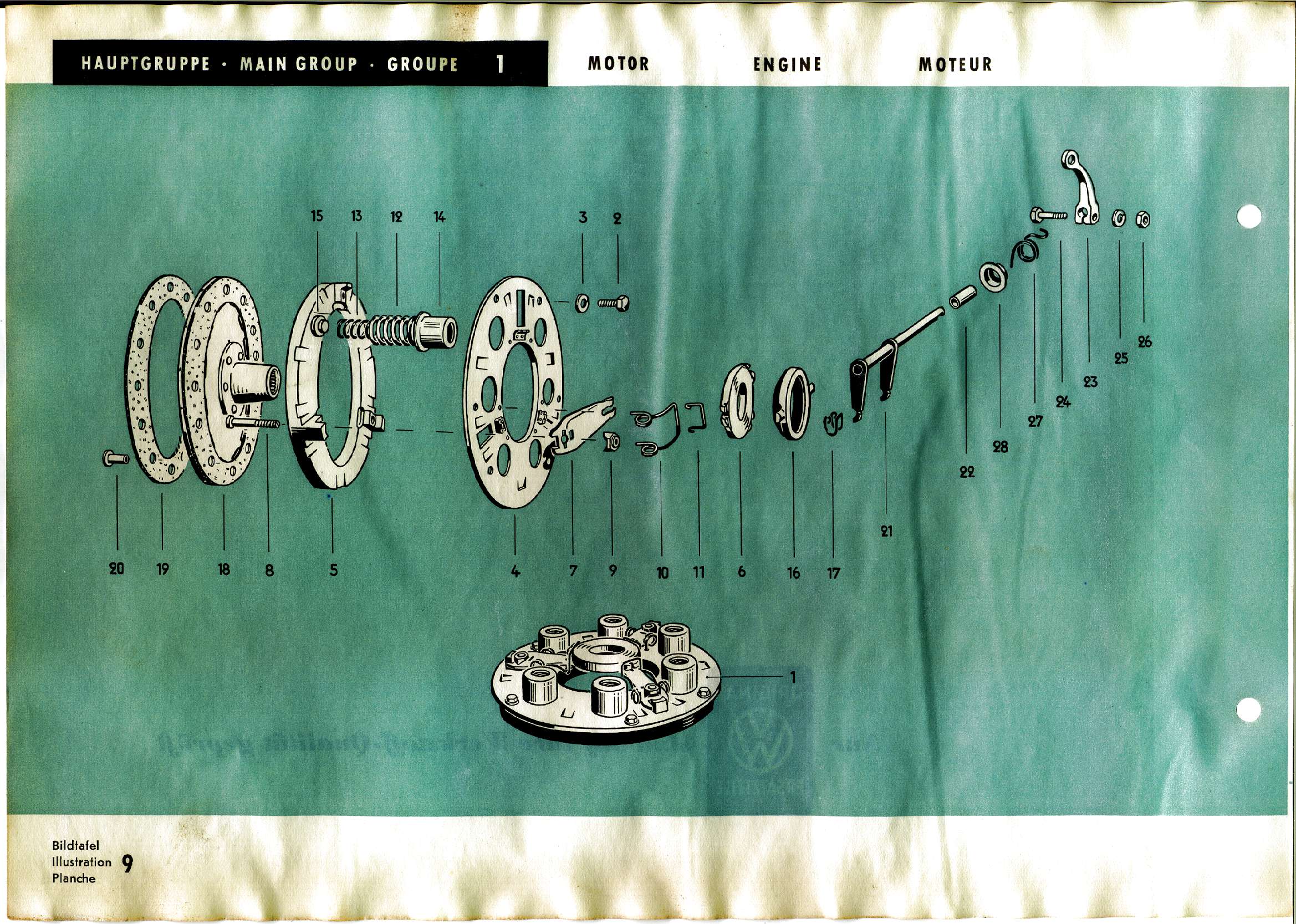

80 diagram Clutch

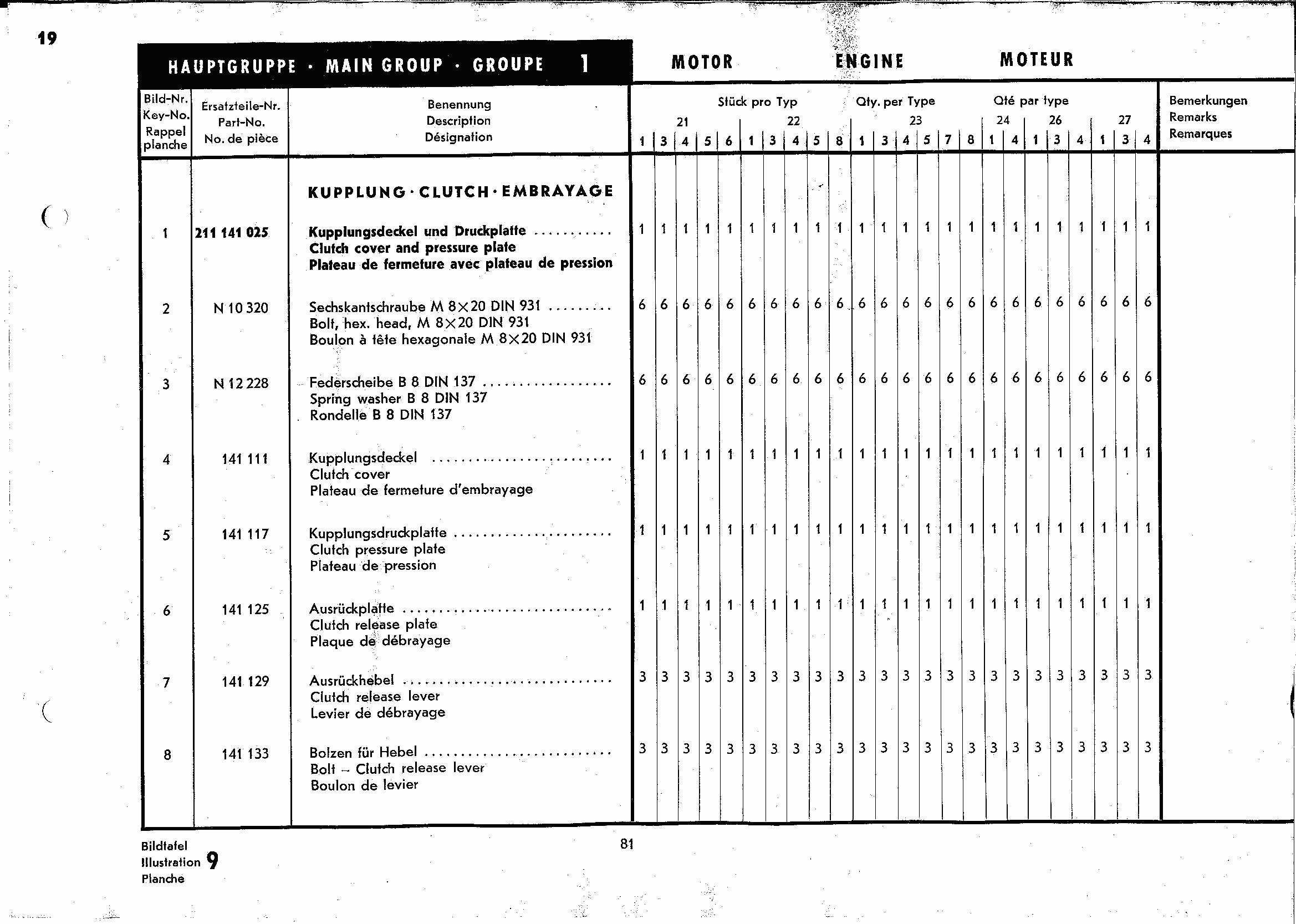

81 list Clutch

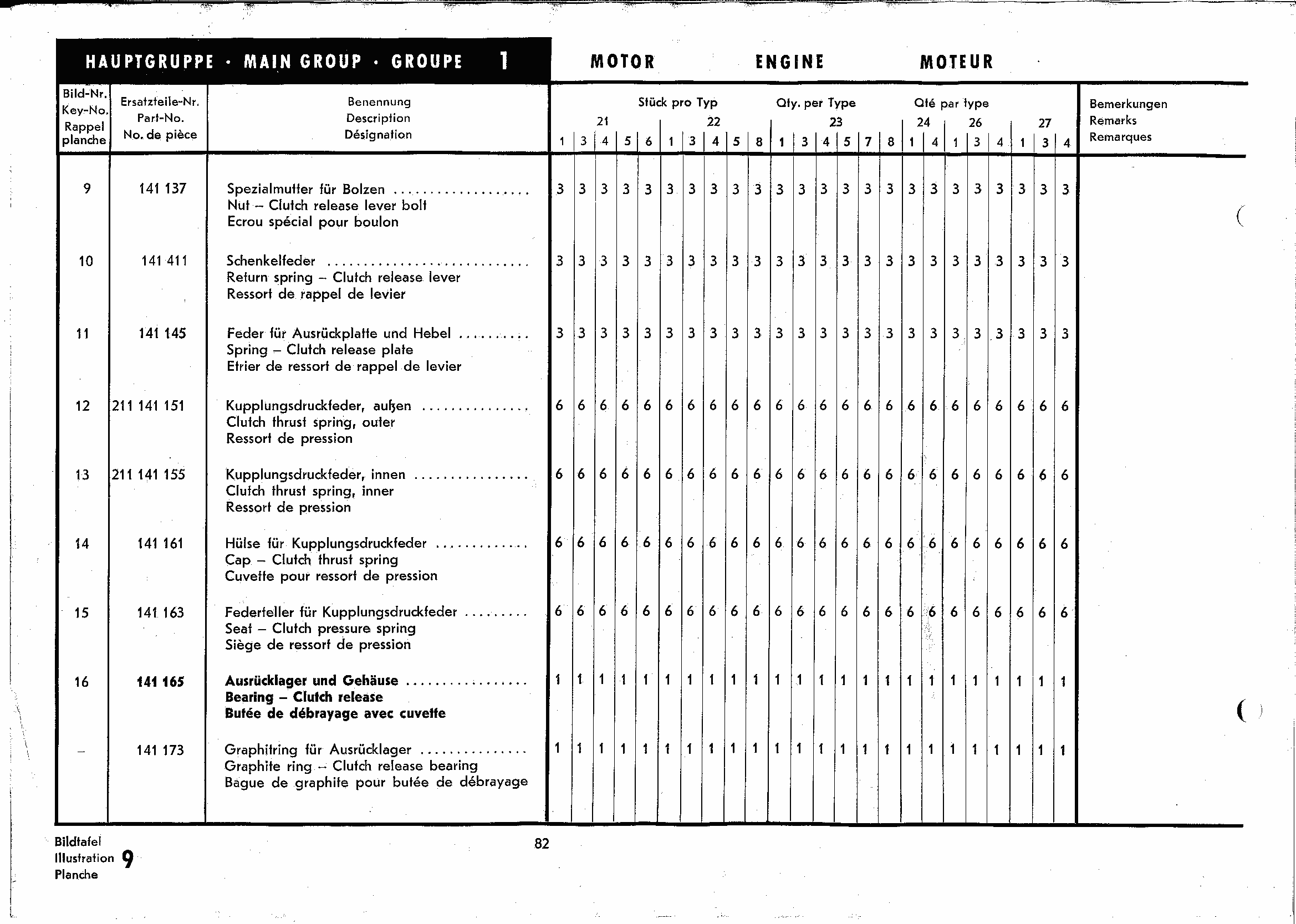

82 list Clutch

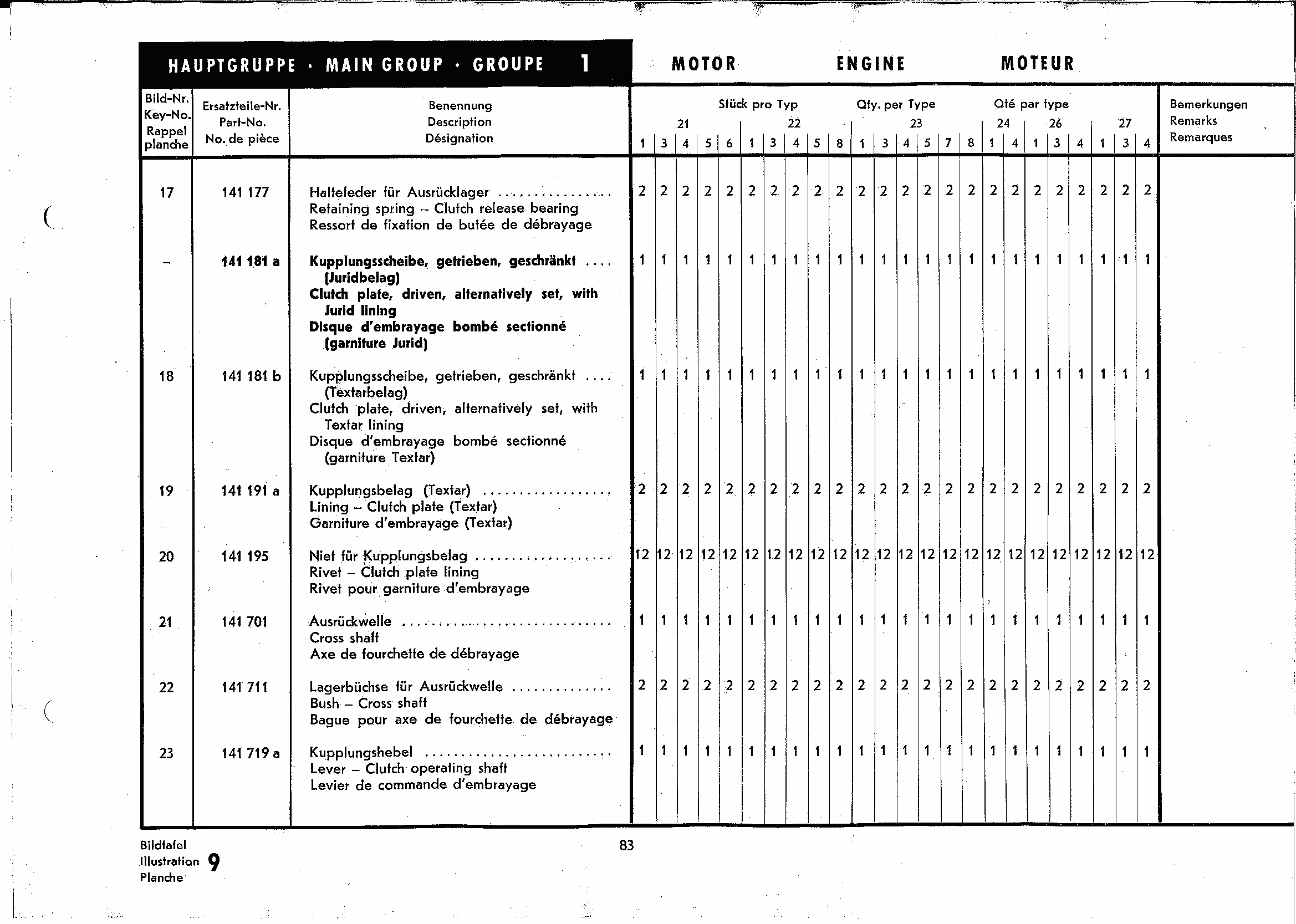

83 list Clutch

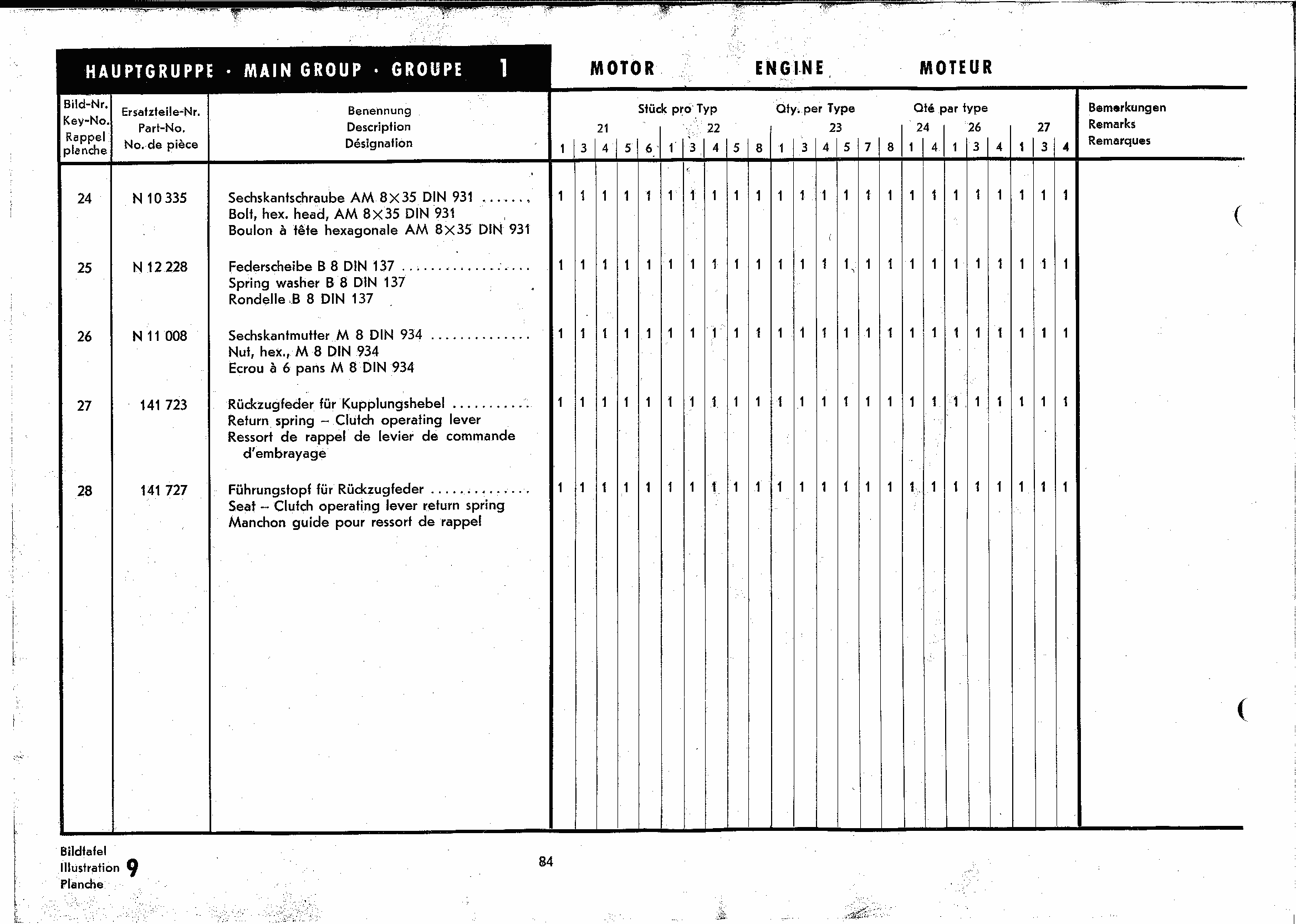

84 list Clutch

Main Group 2: Fuel Tank, Exhaust System, Heater System

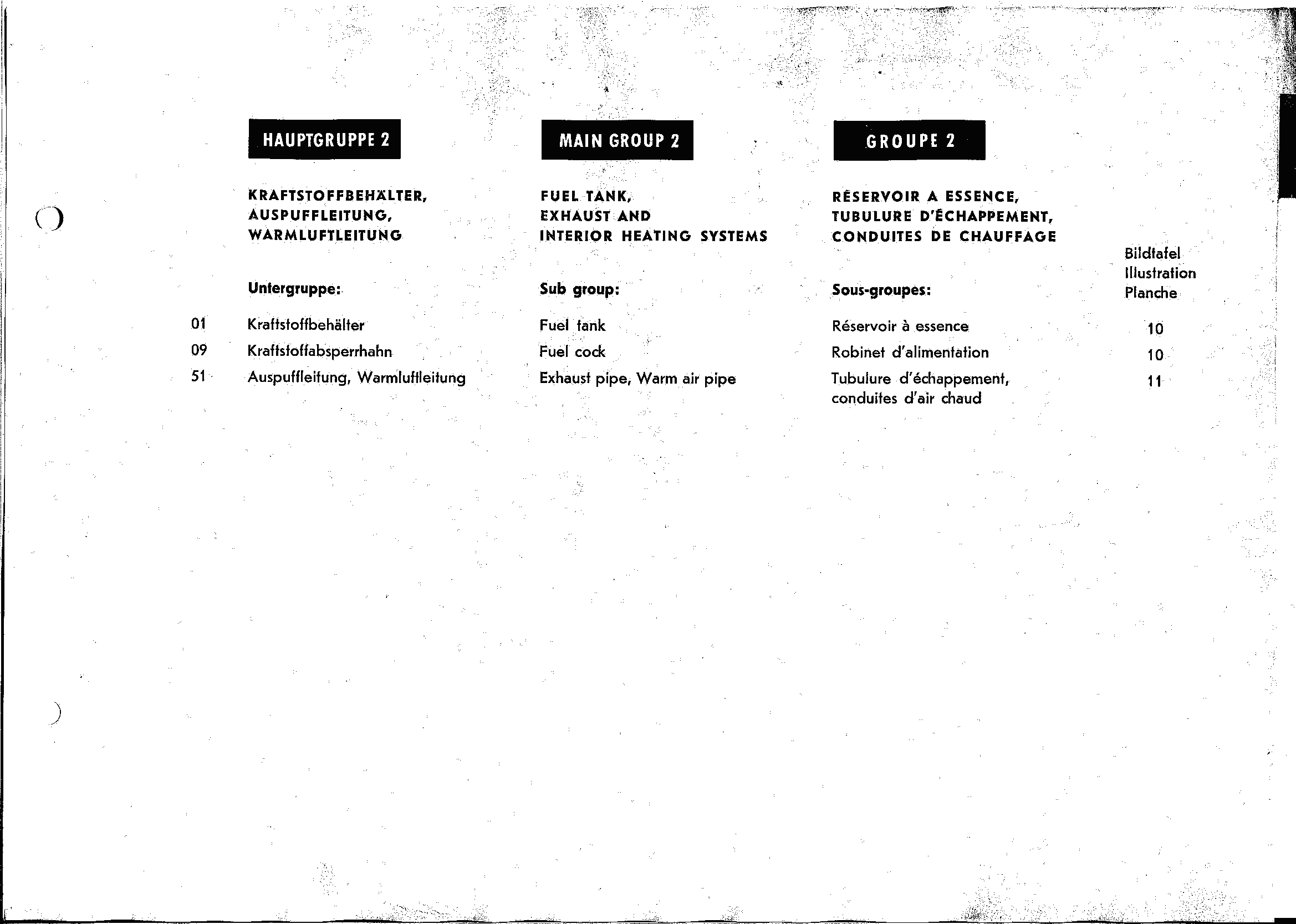

85 list Main Group 2 index

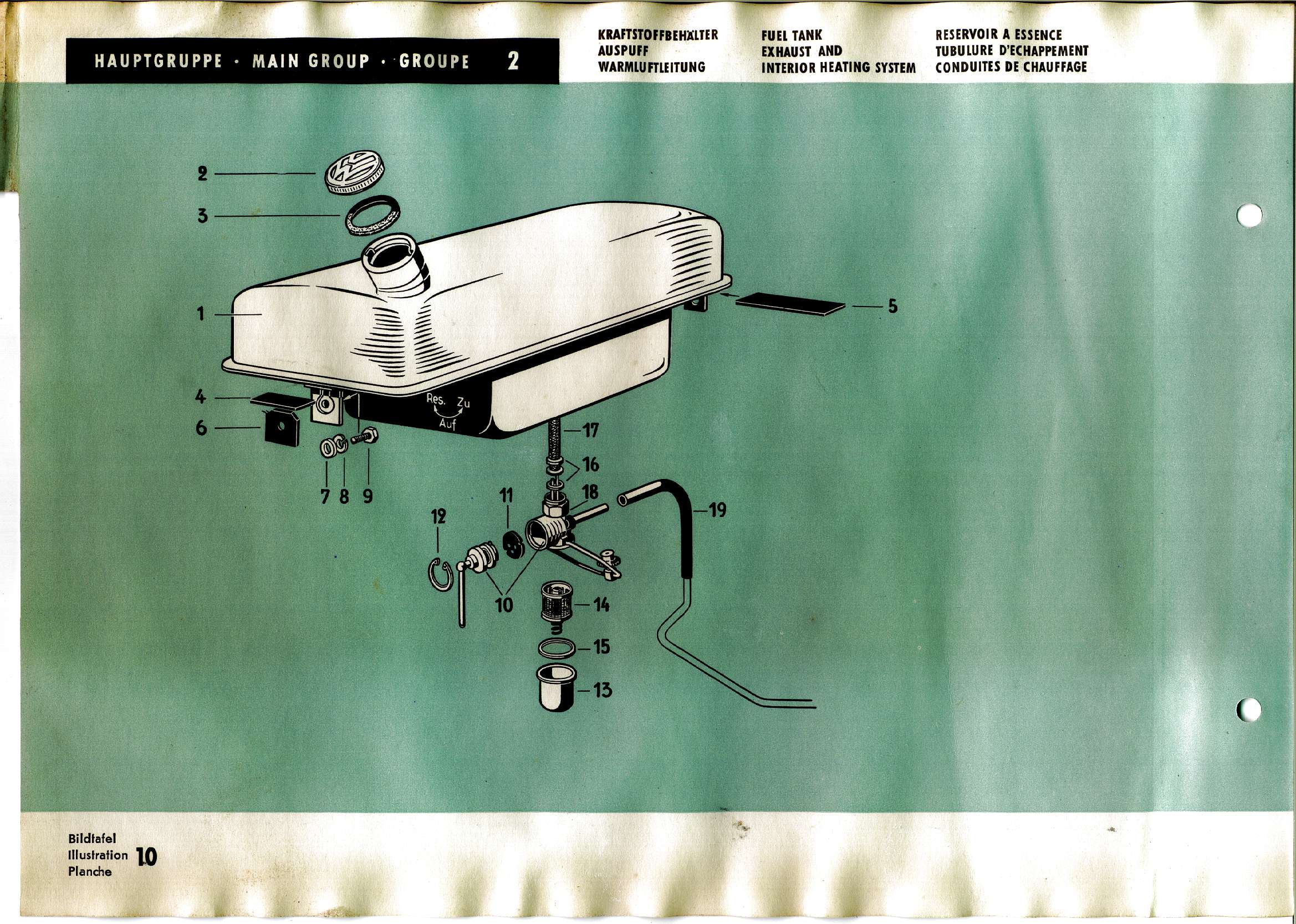

86 diagram Fuel tank

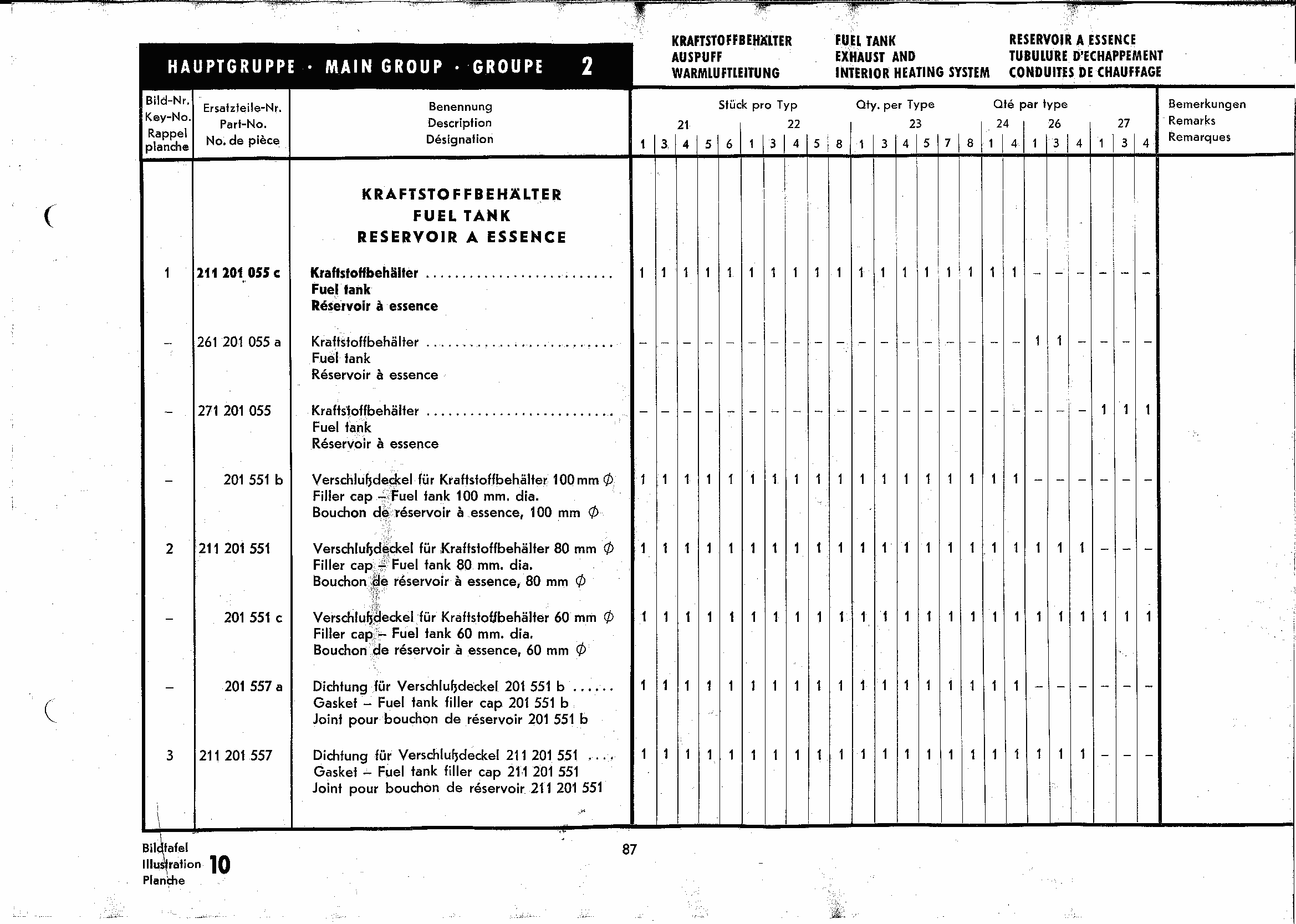

87 list Fuel tank

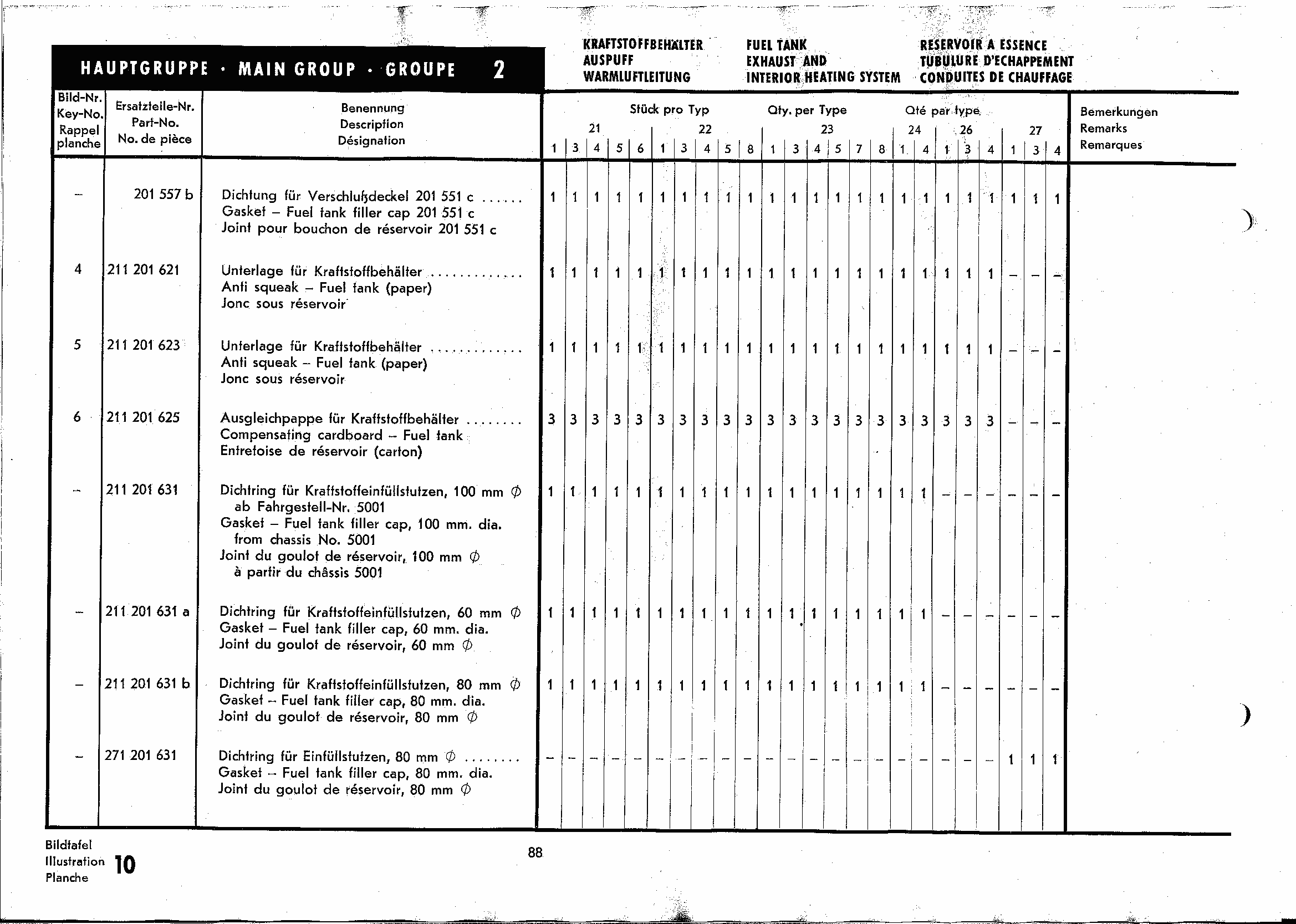

88 list Fuel tank

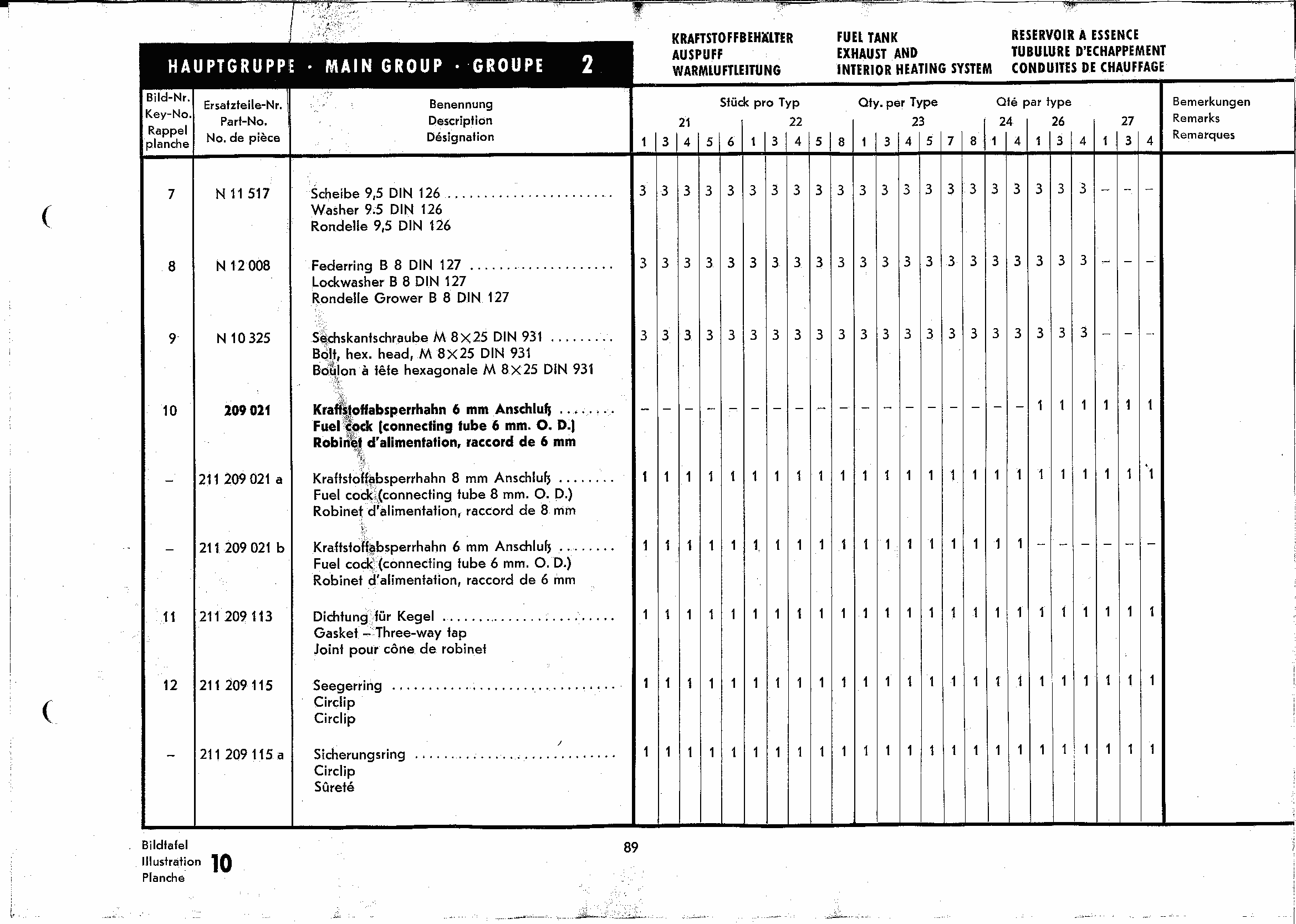

89 list Fuel tank

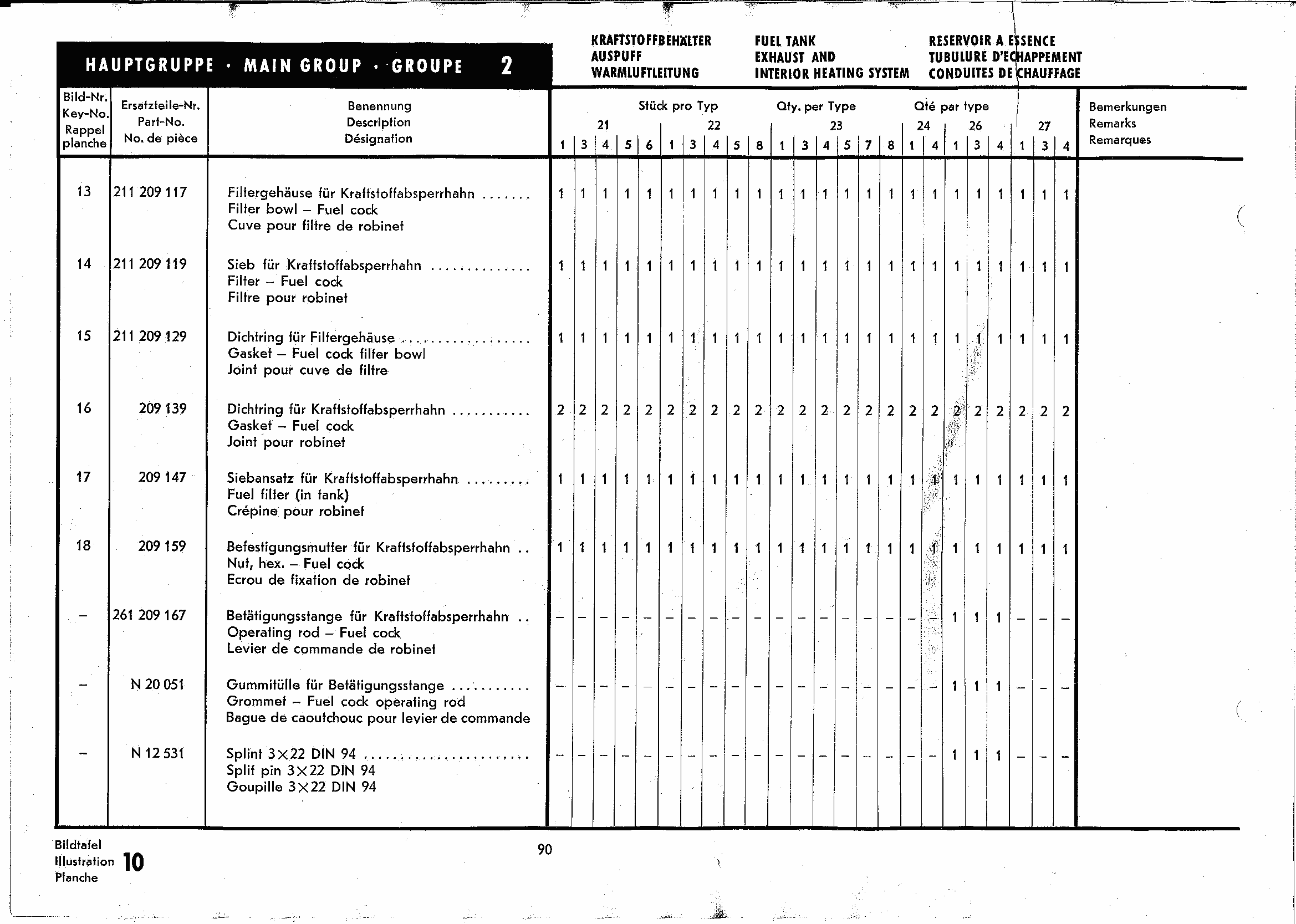

90 list Fuel tank

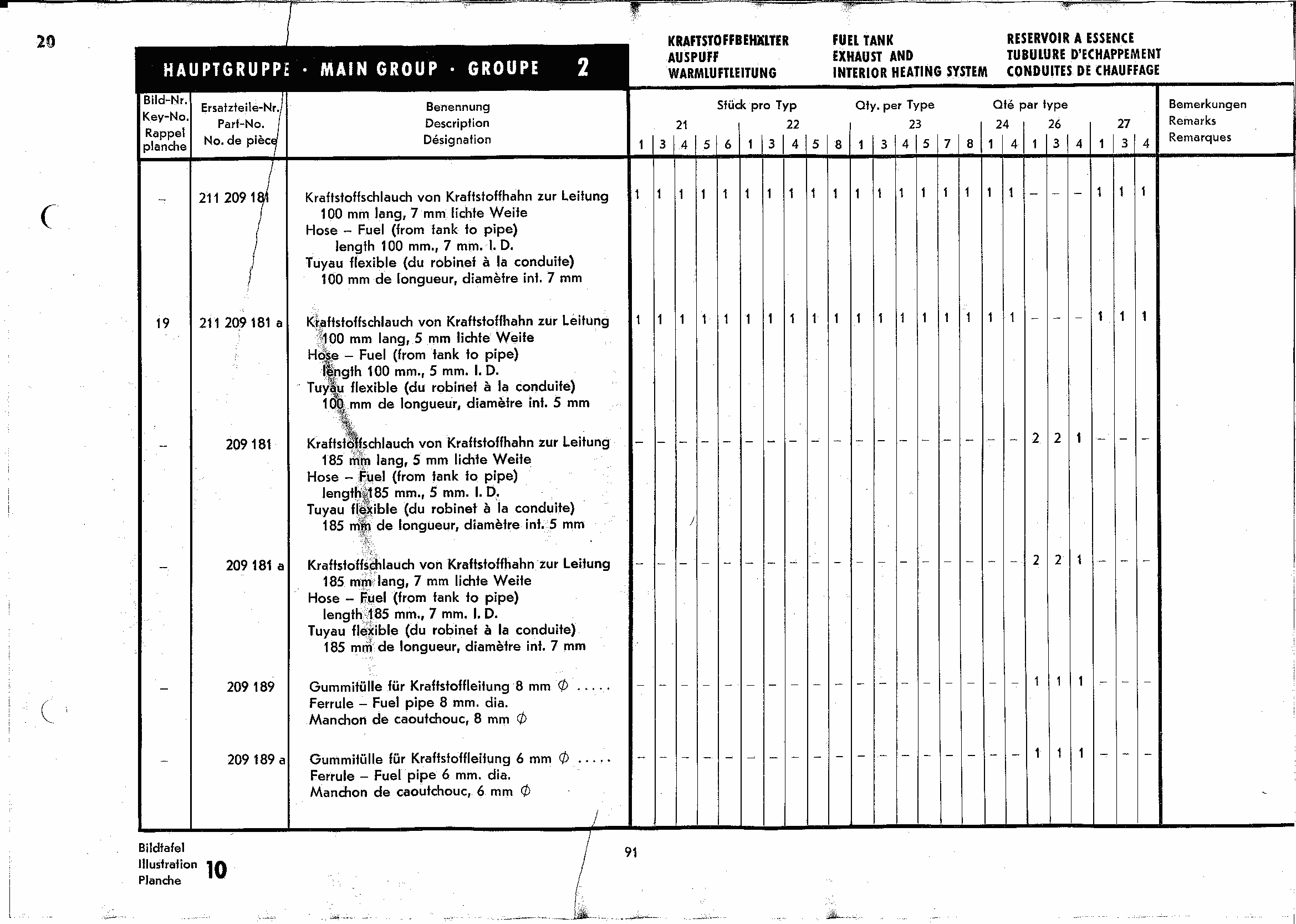

91 list Fuel tank

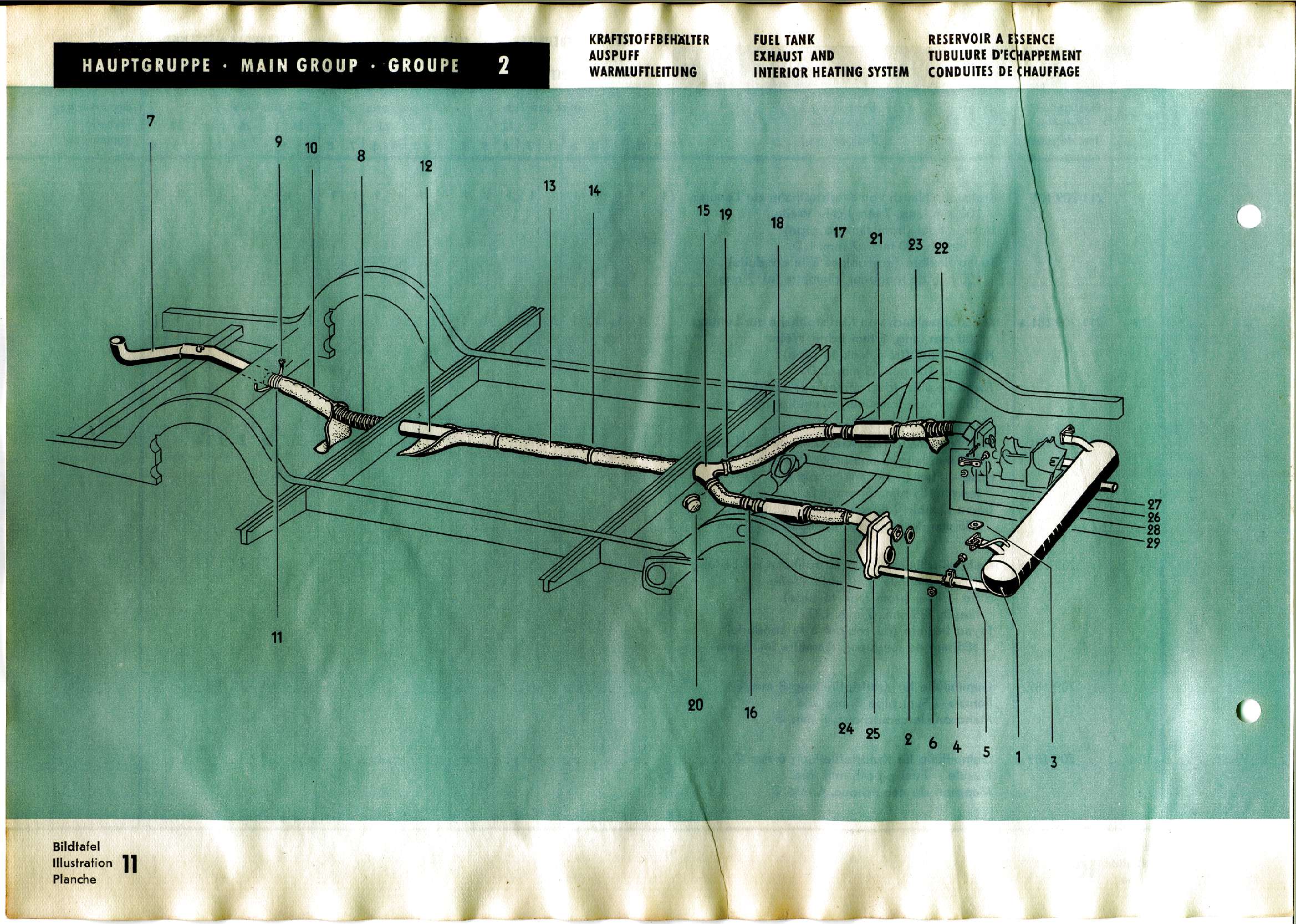

92 diagram Exhaust and warm air pipes

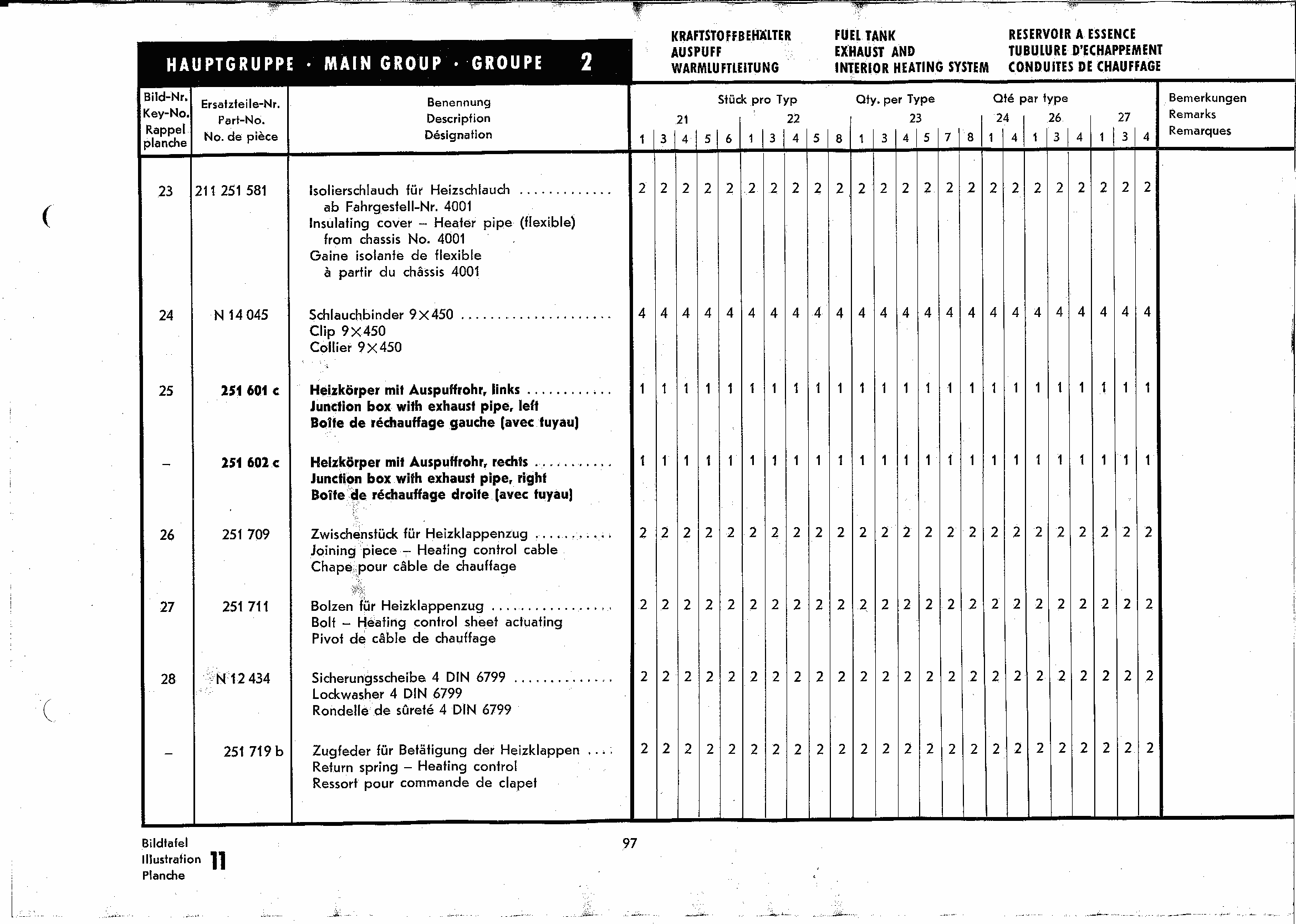

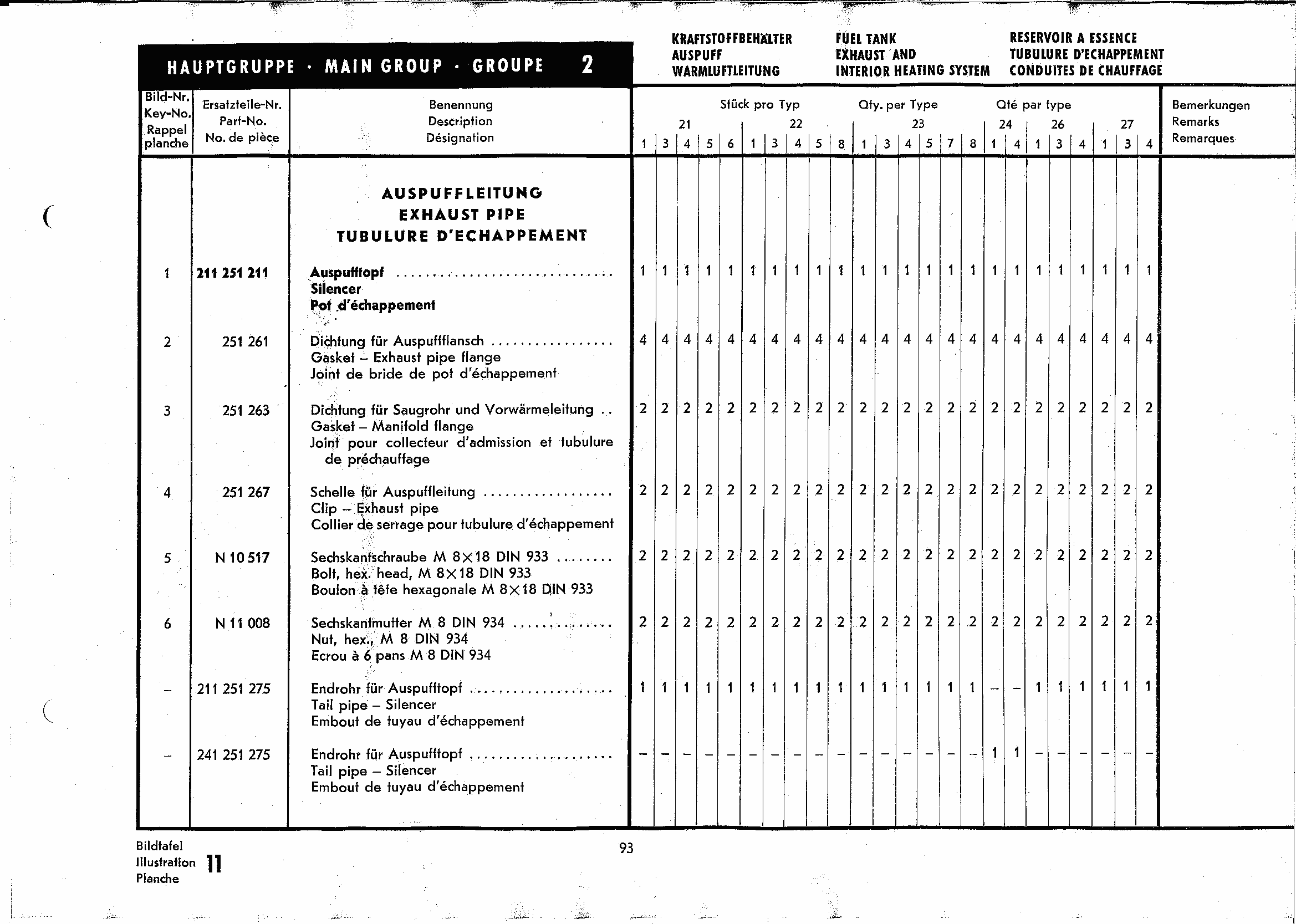

93 list Exhaust pipe

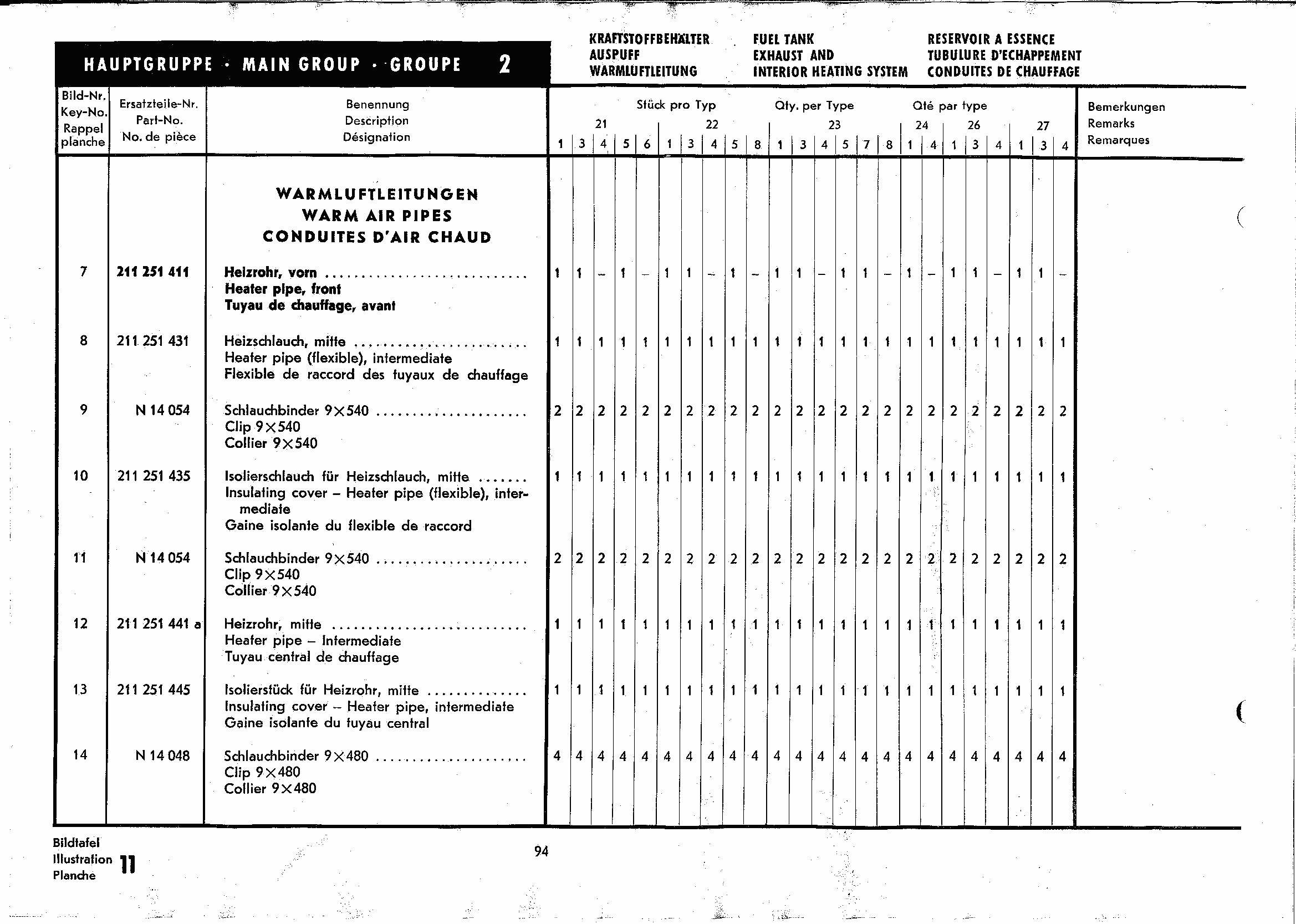

94 list Warm air pipes

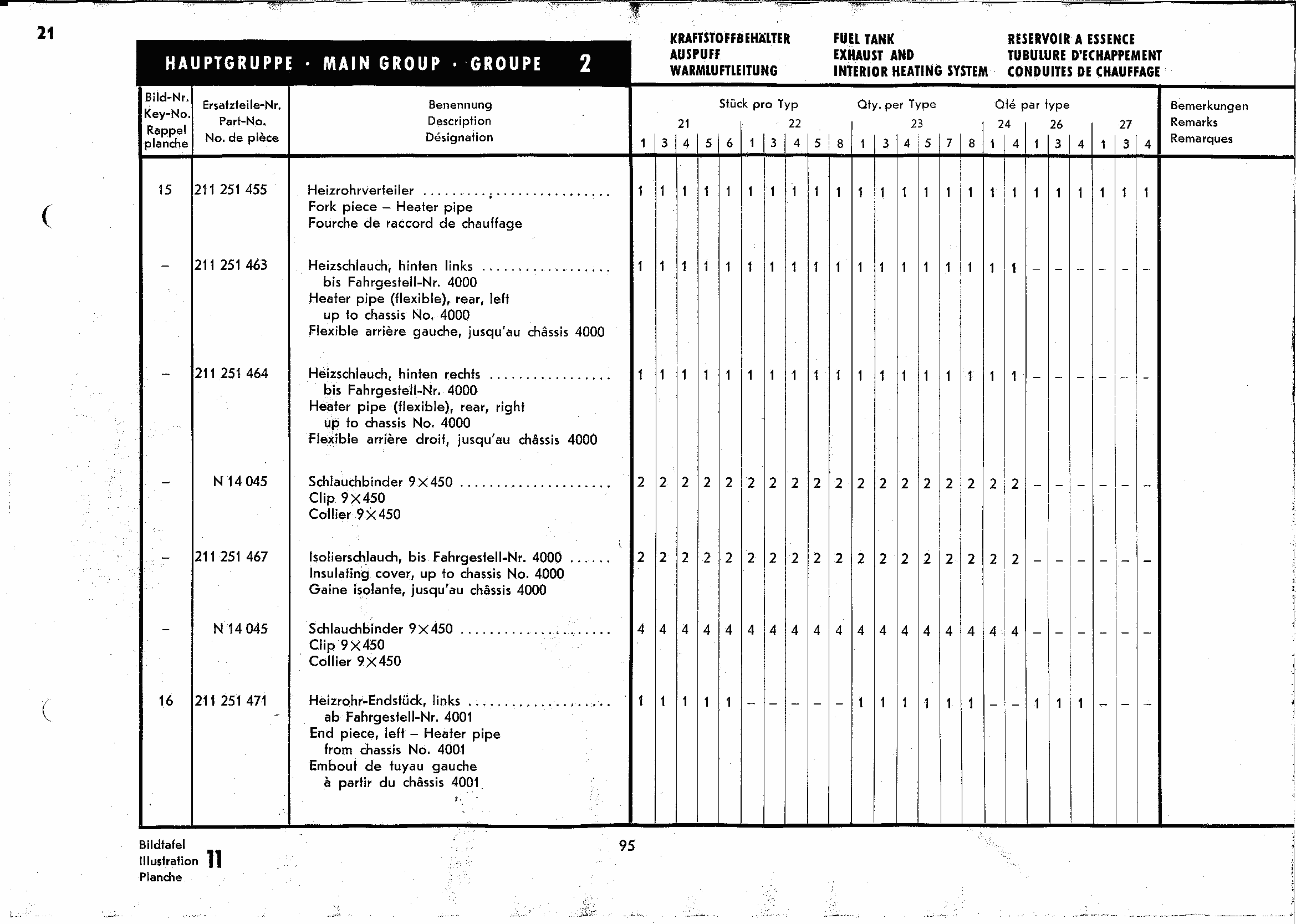

95 list Warm air pipes

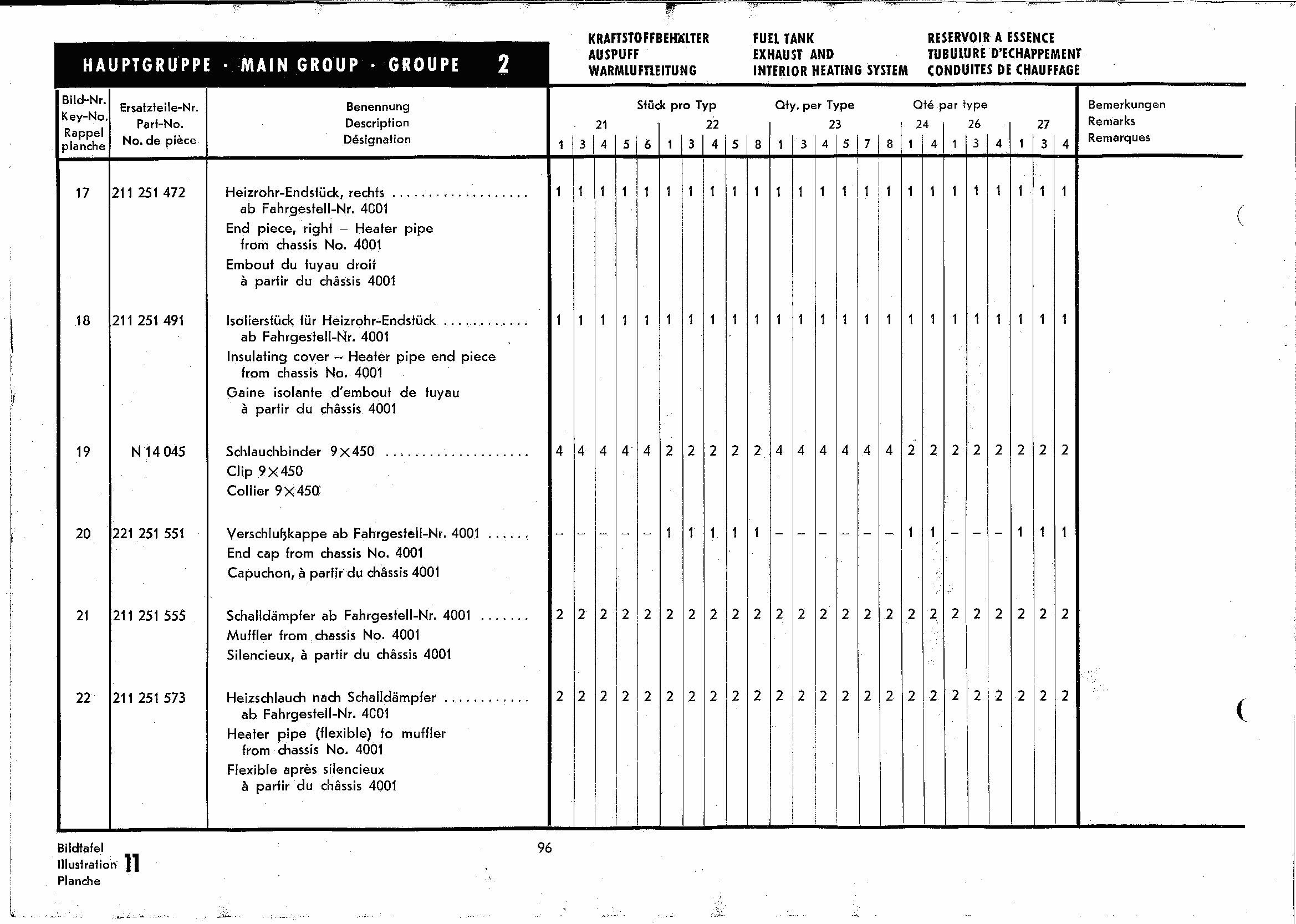

96 list Warm air pipes
97 list Warm air pipes

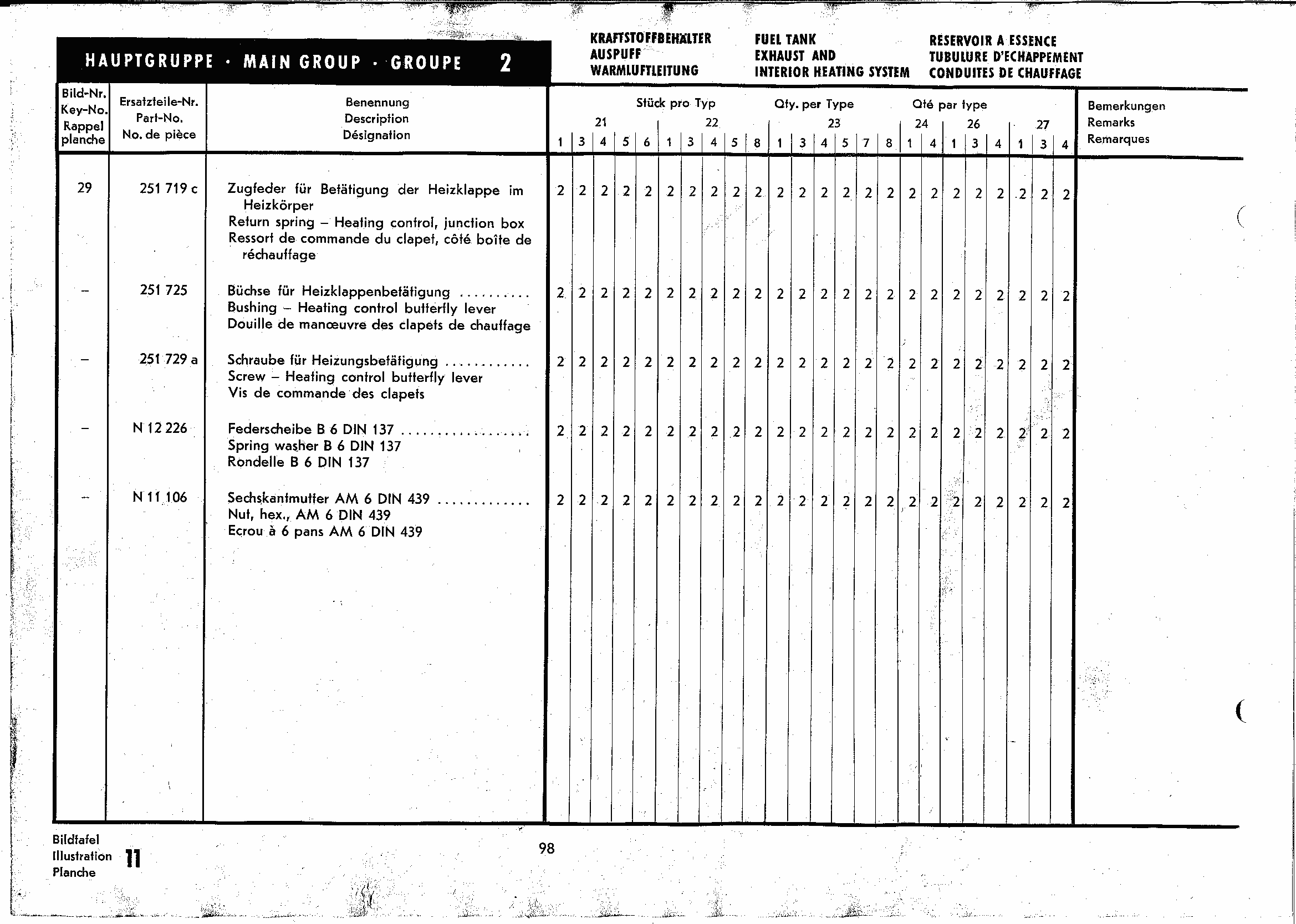

98 list Warm air pipes

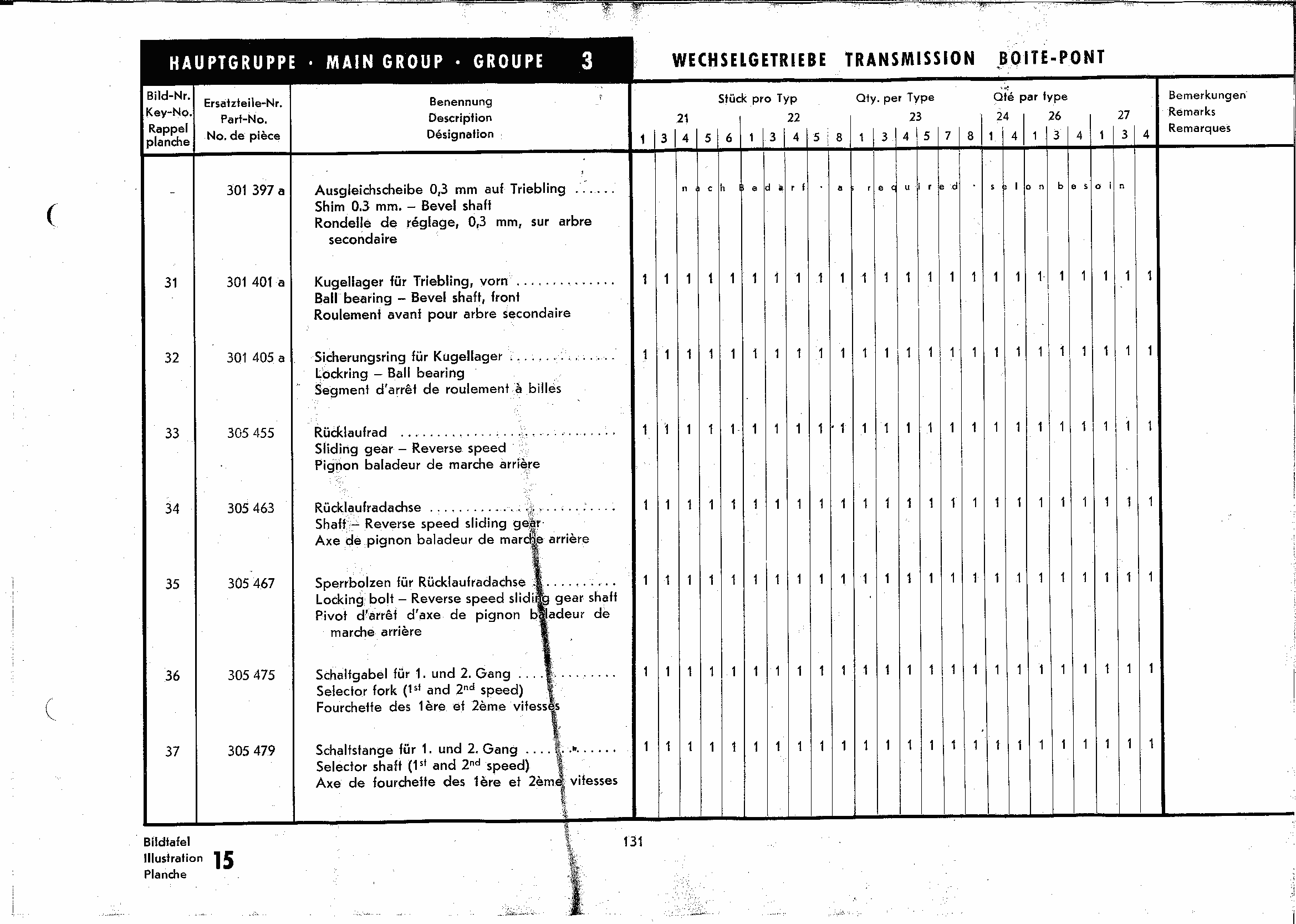

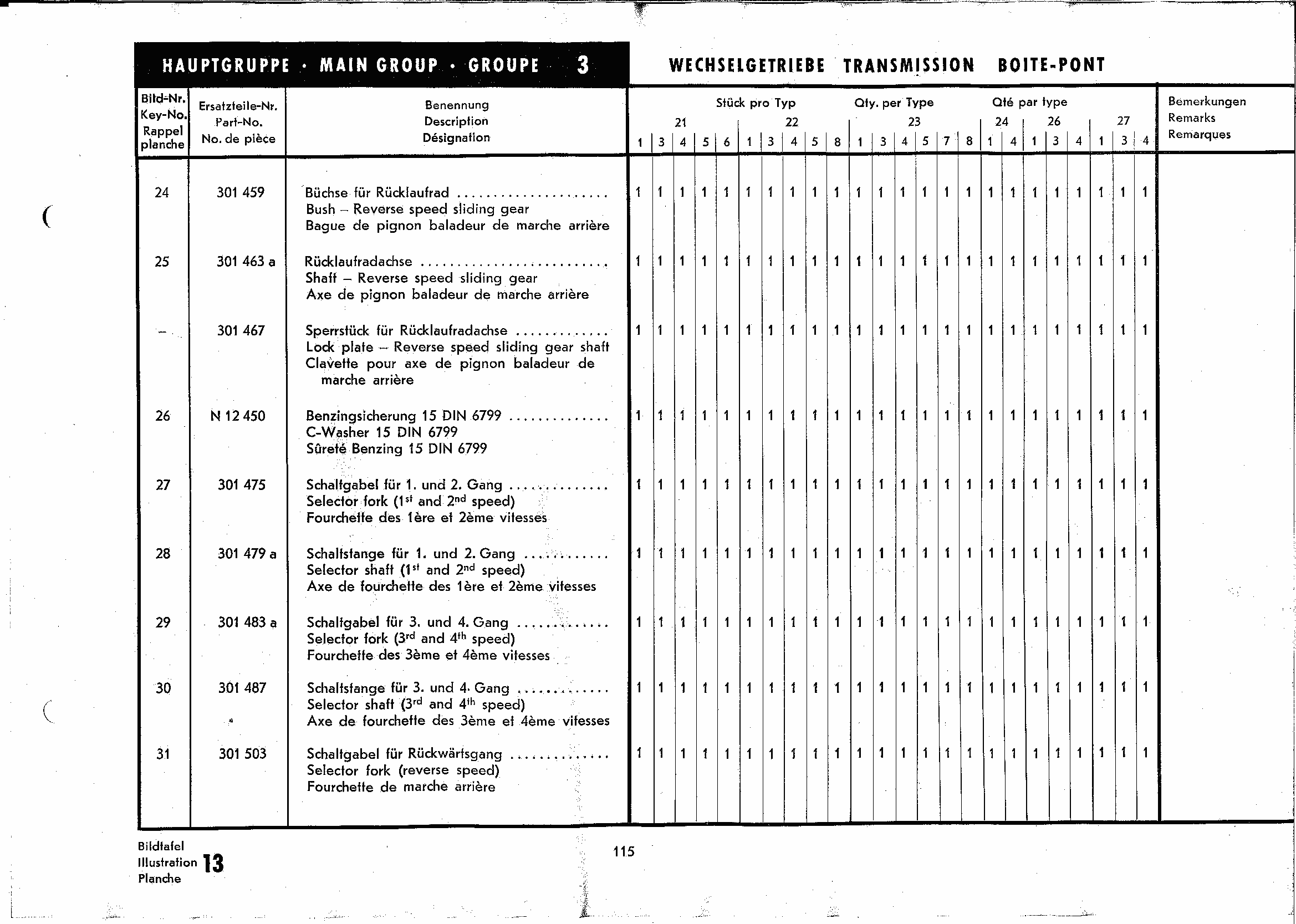

Main Group 3: Transmission

99 list Main Group 3 index

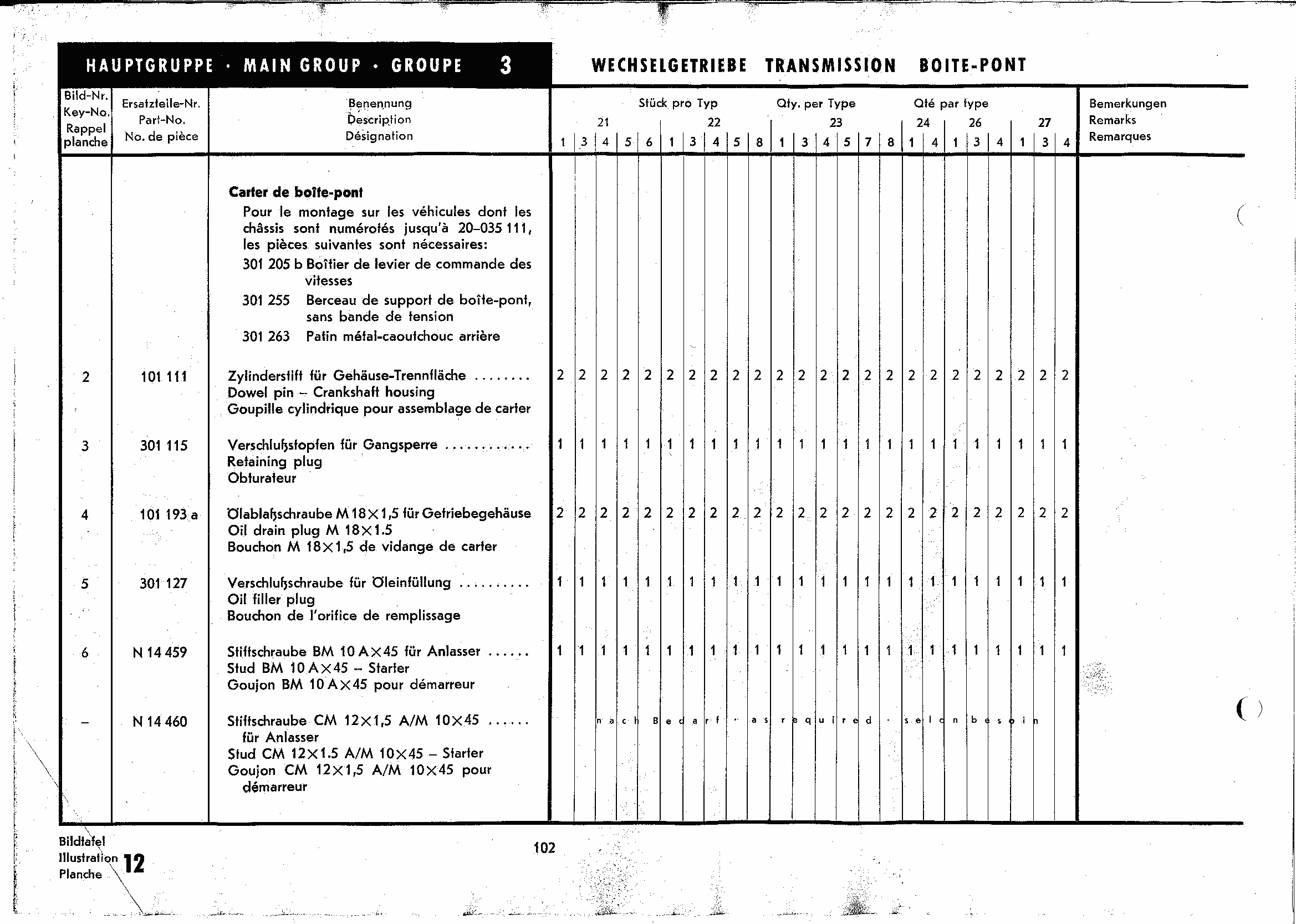

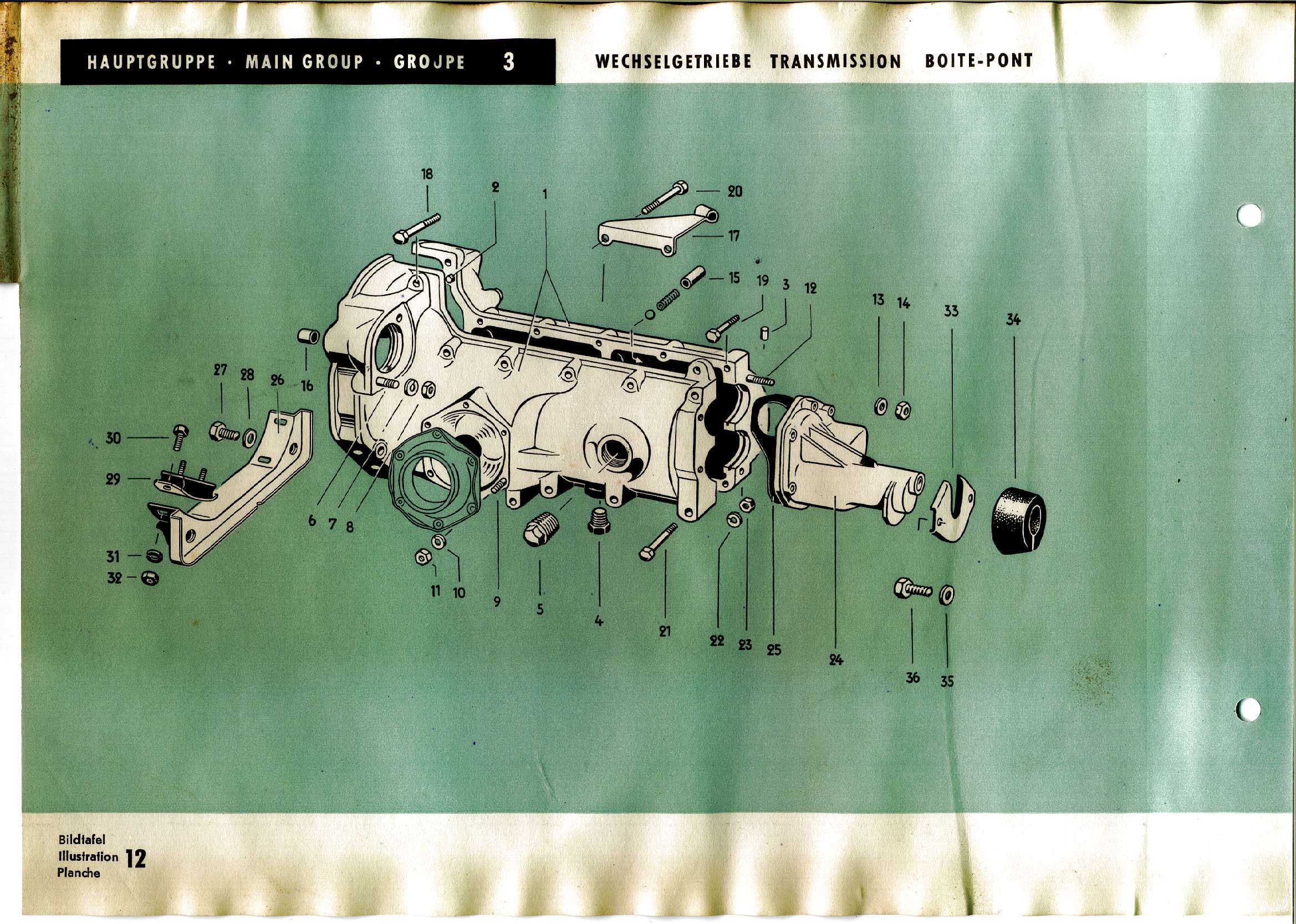

100 diagram Transmission case

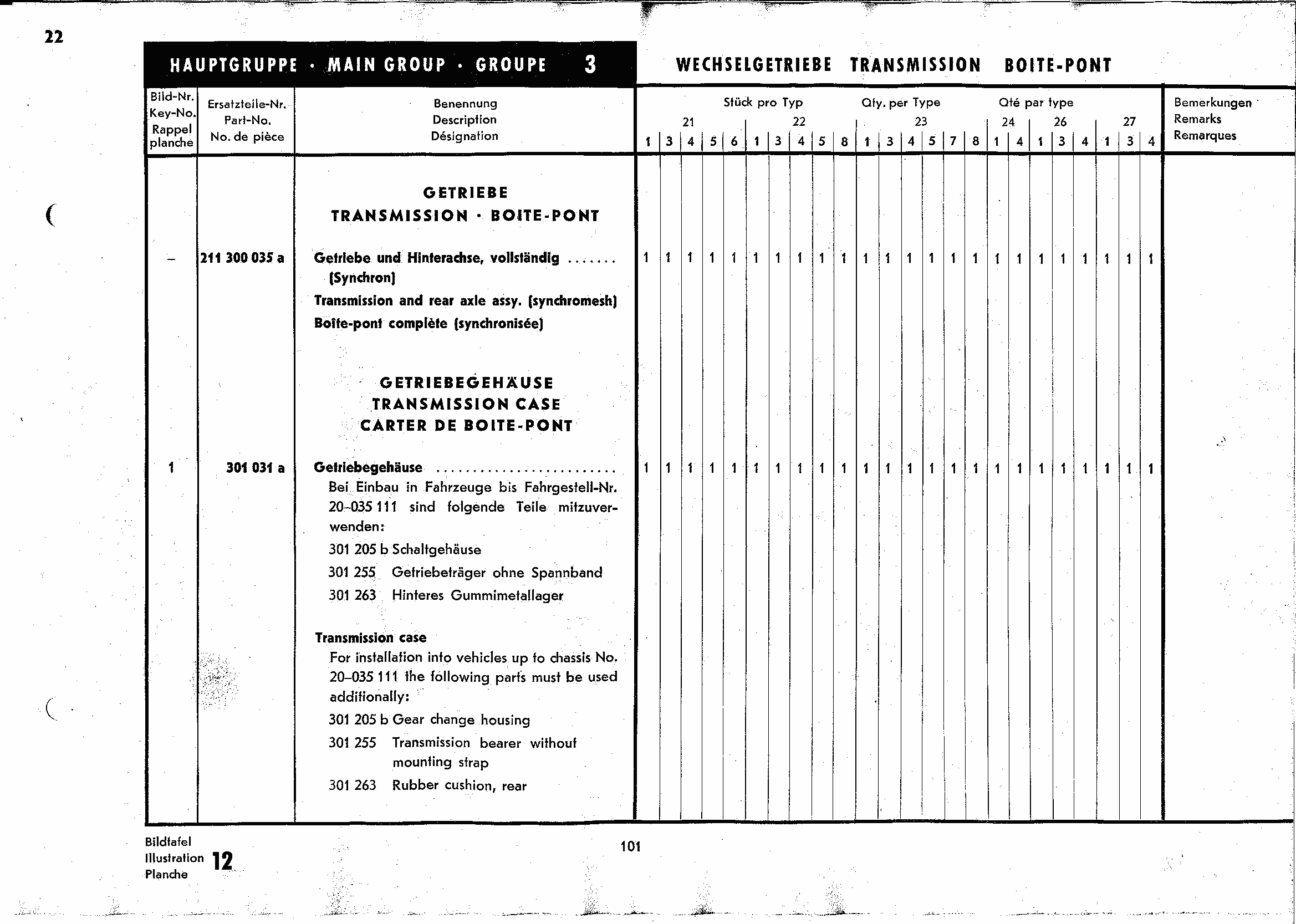

101 list Transmission, transmission case
102 list Transmission case

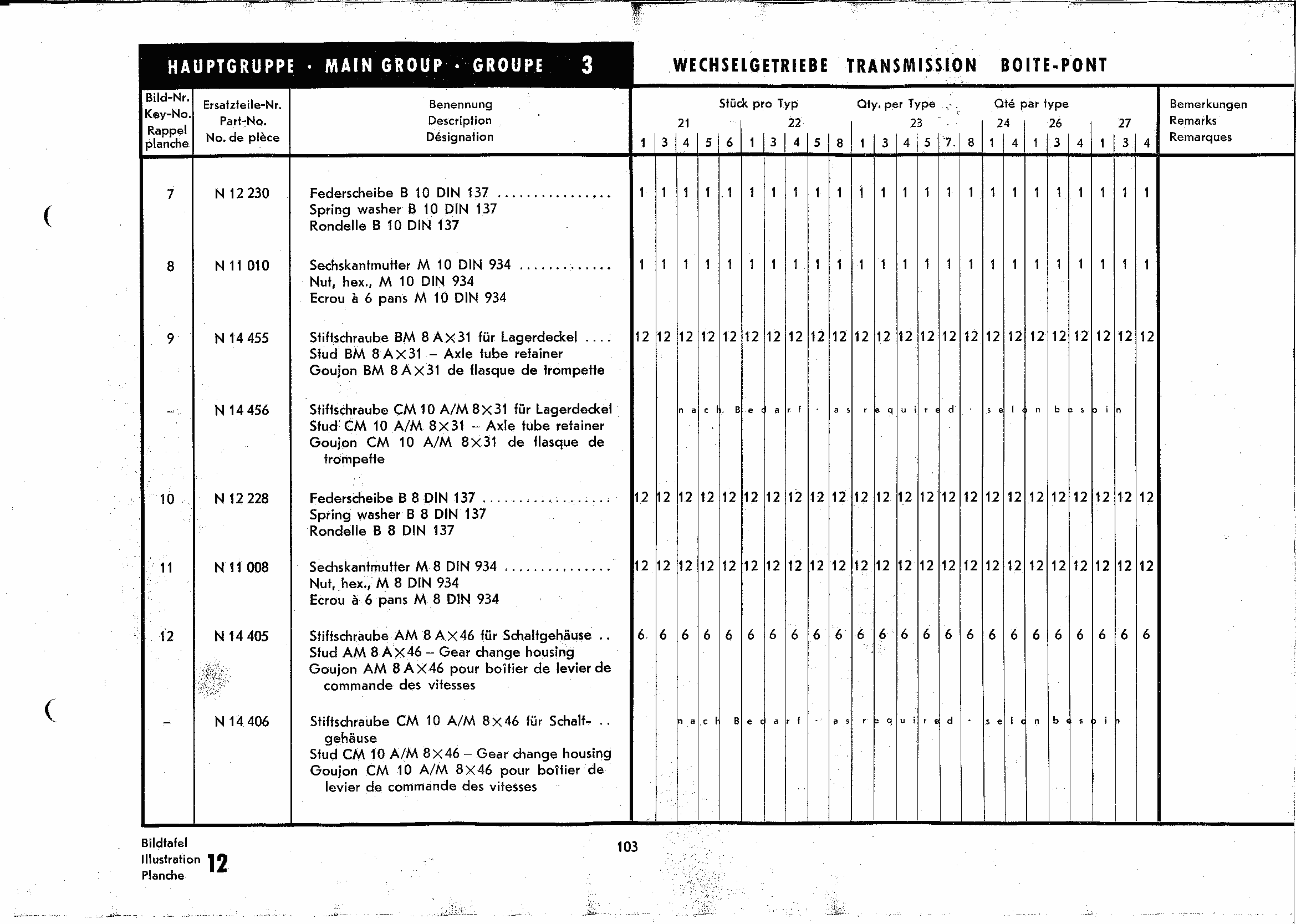

103 list Transmission case

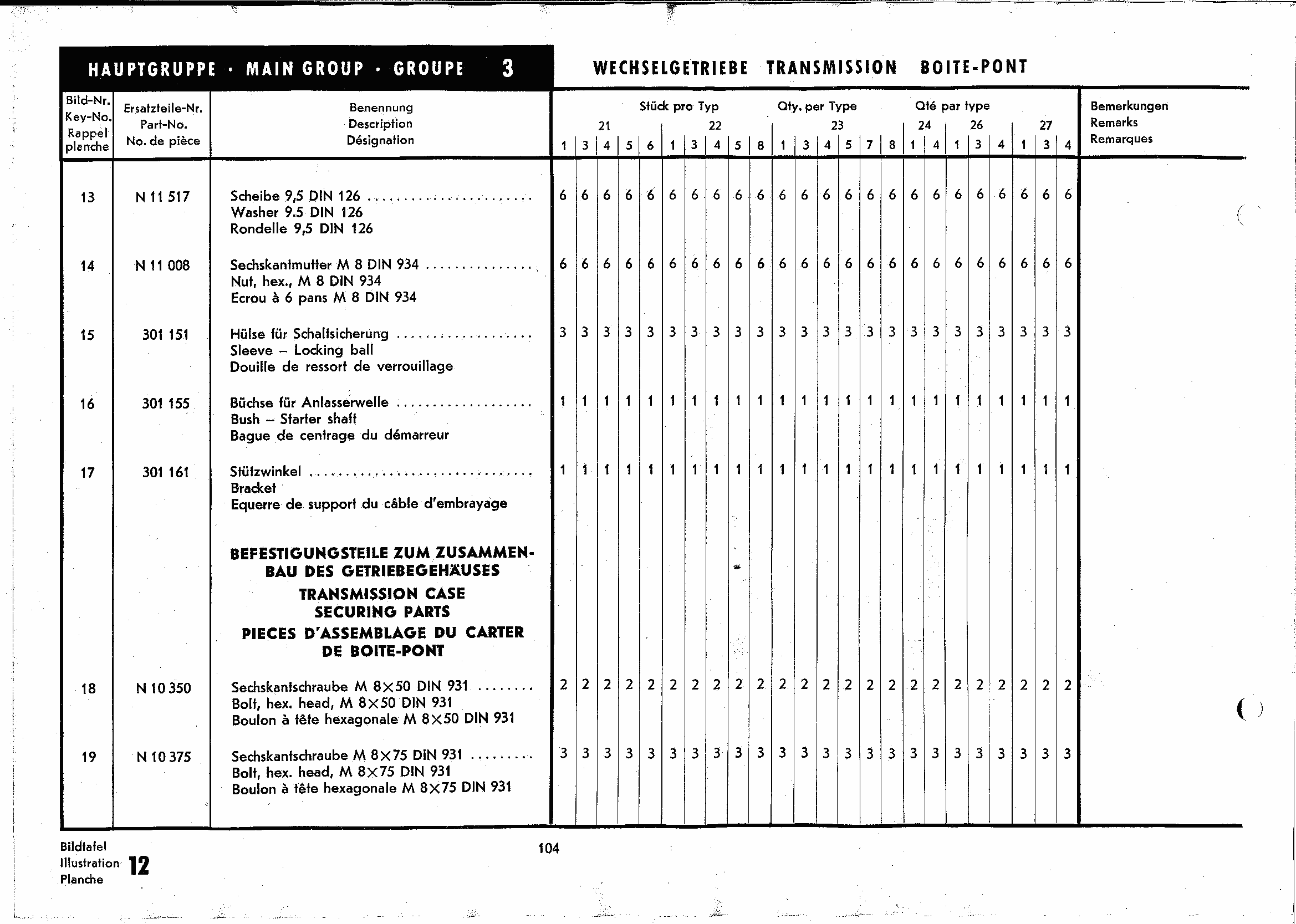

104 list Transmission case, transmission case securing parts

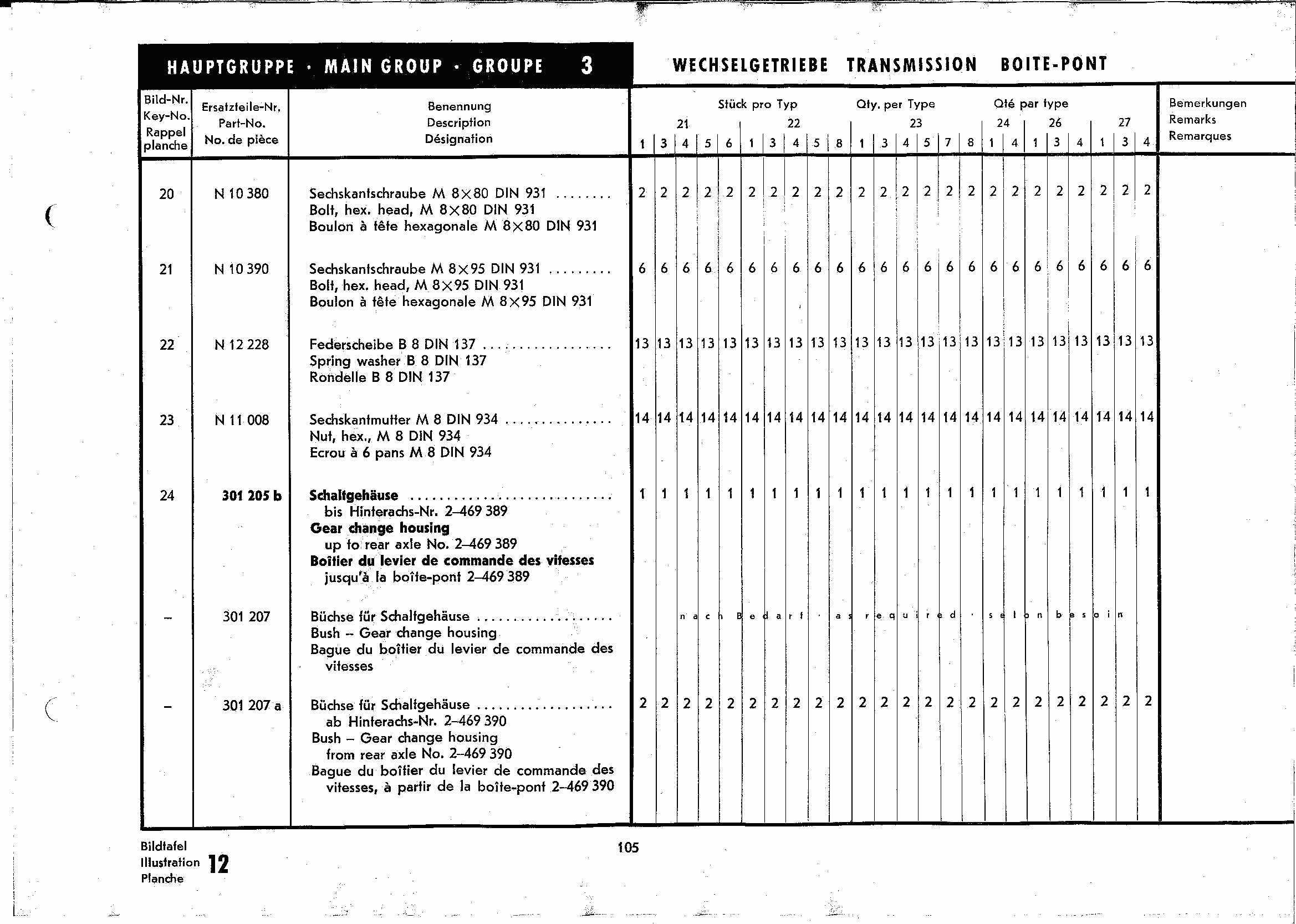

105 list Transmission case securing parts

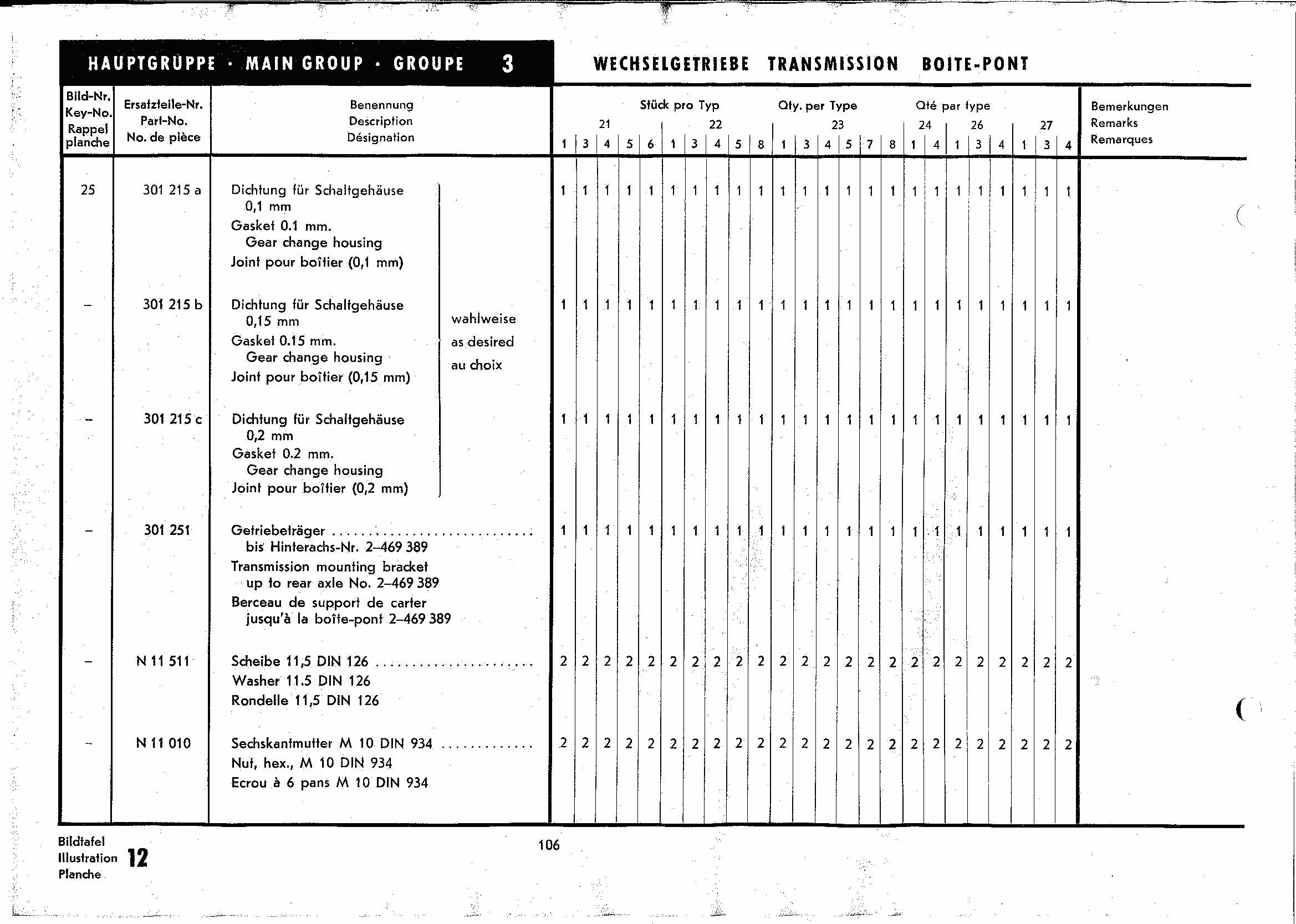

106 list Transmission case securing parts

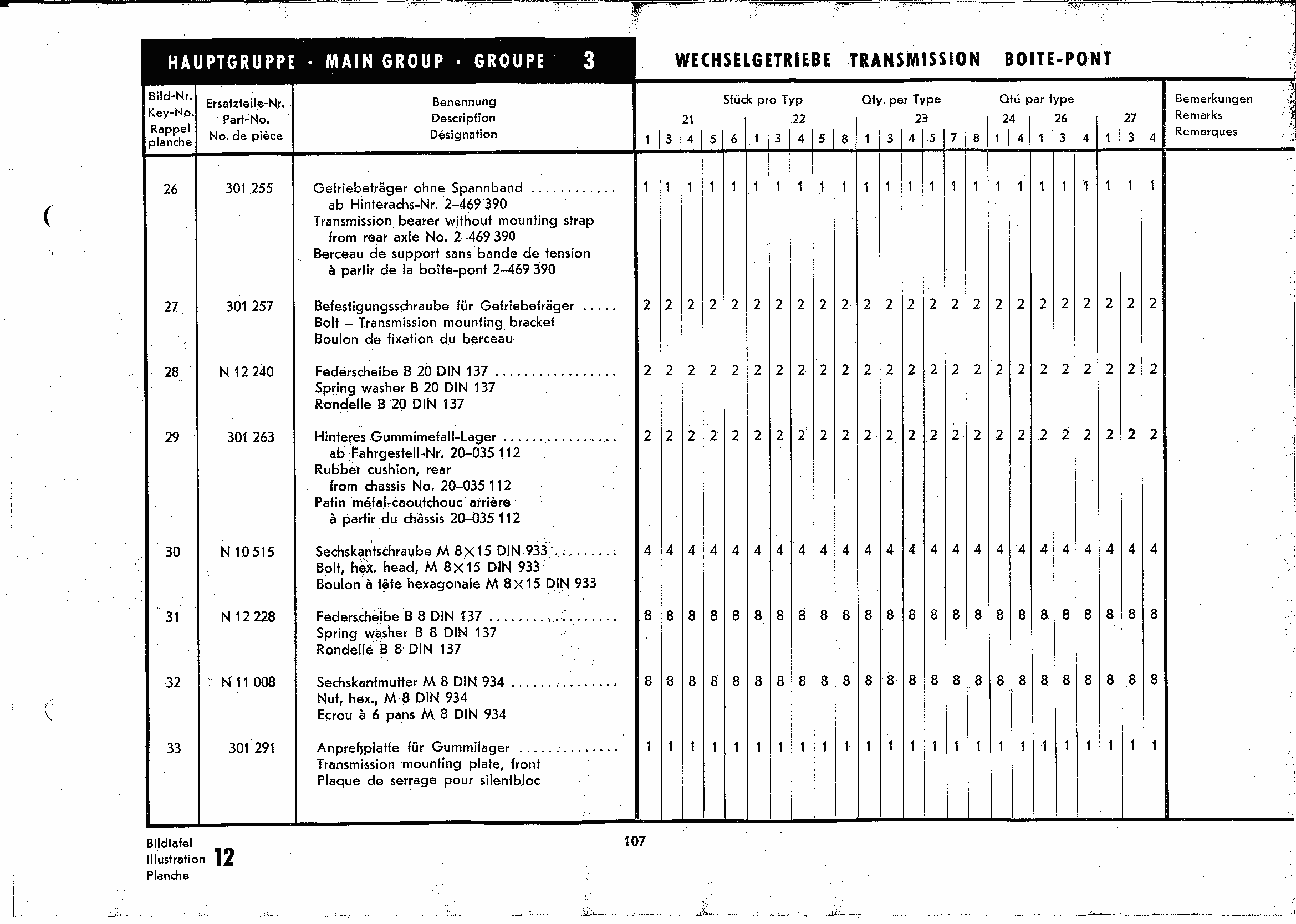

107 list Transmission case securing parts

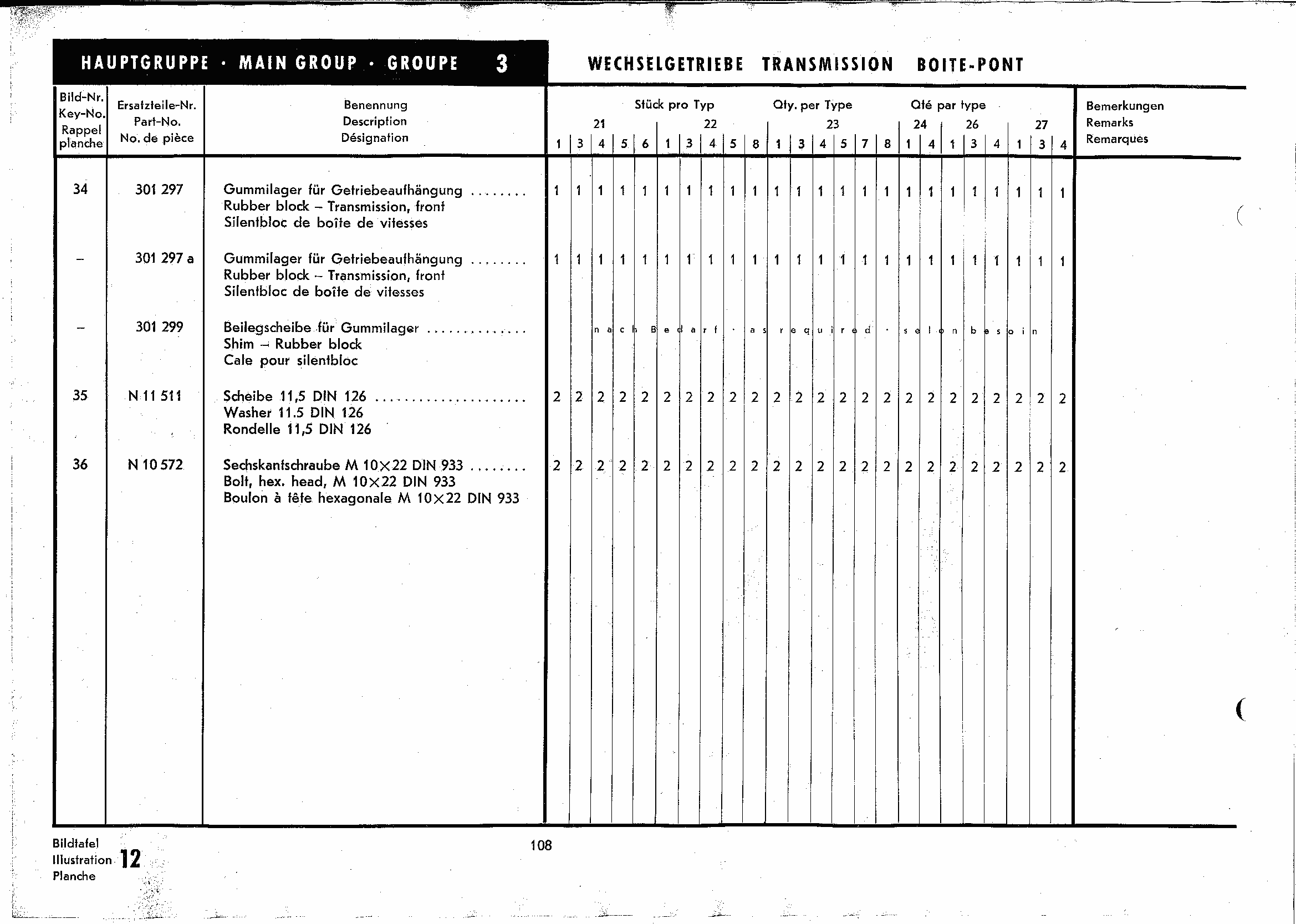

108 list Transmission case securing parts

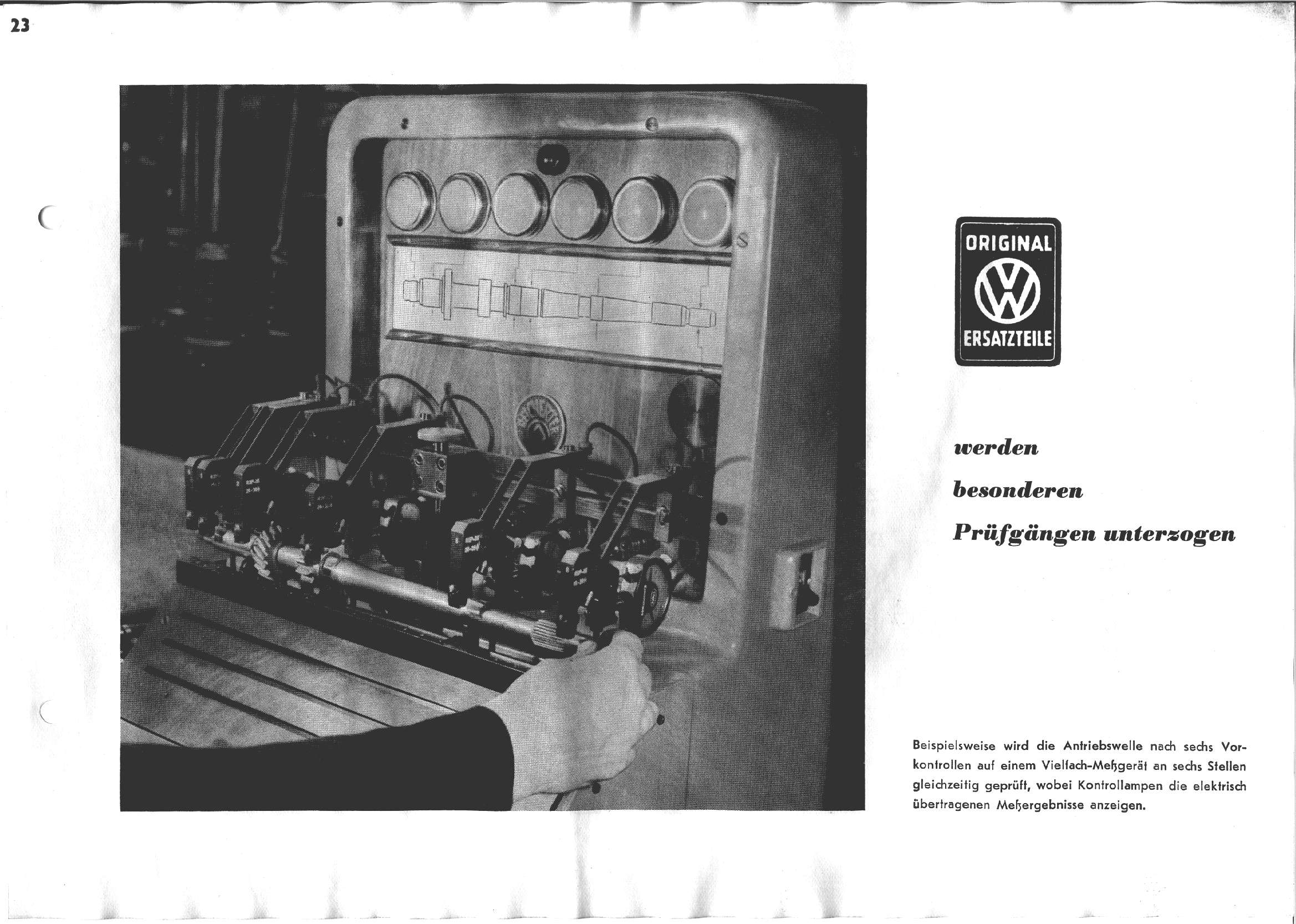

109 special werden besonderen Pruefgaengen unterzogen

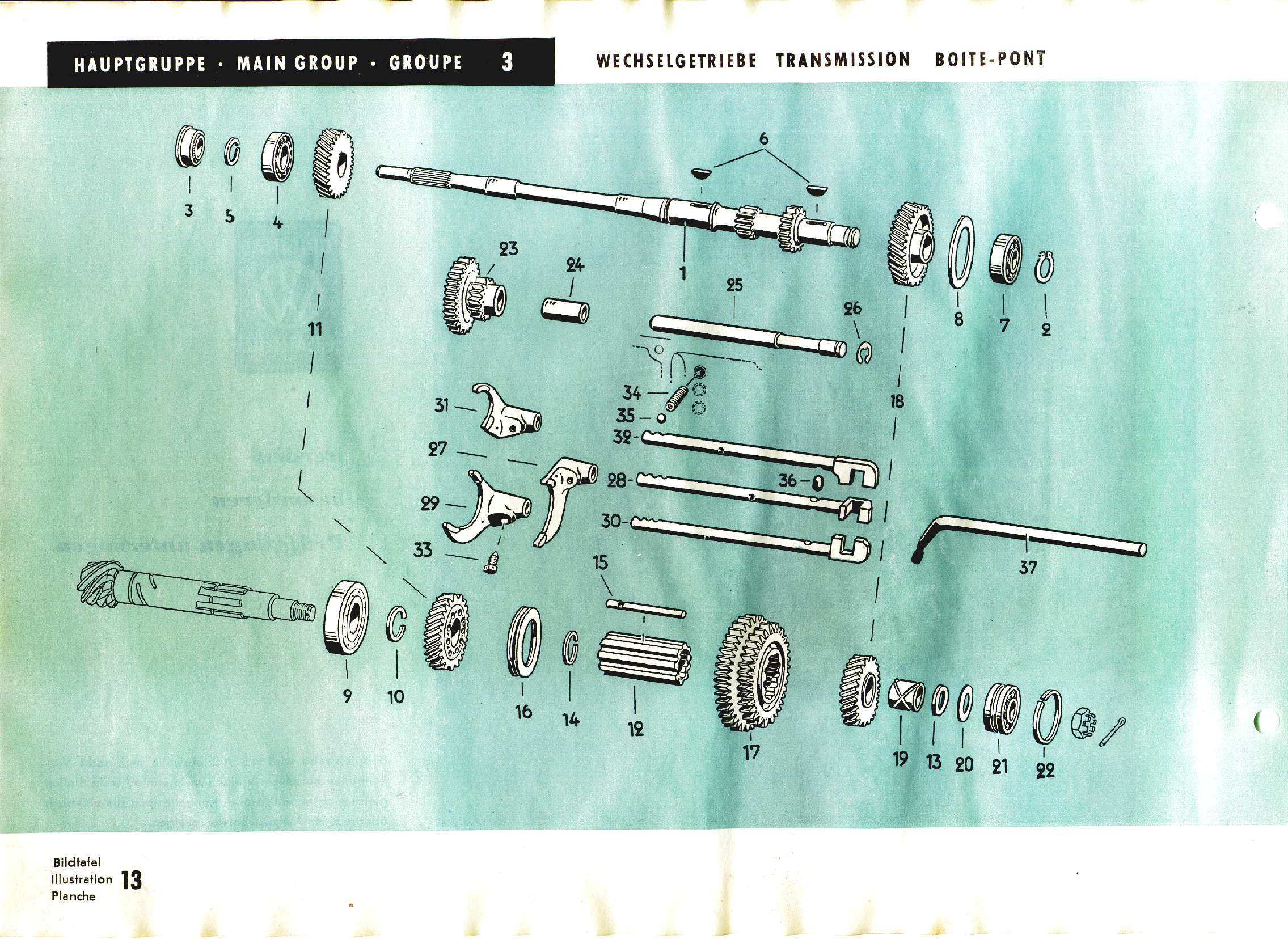

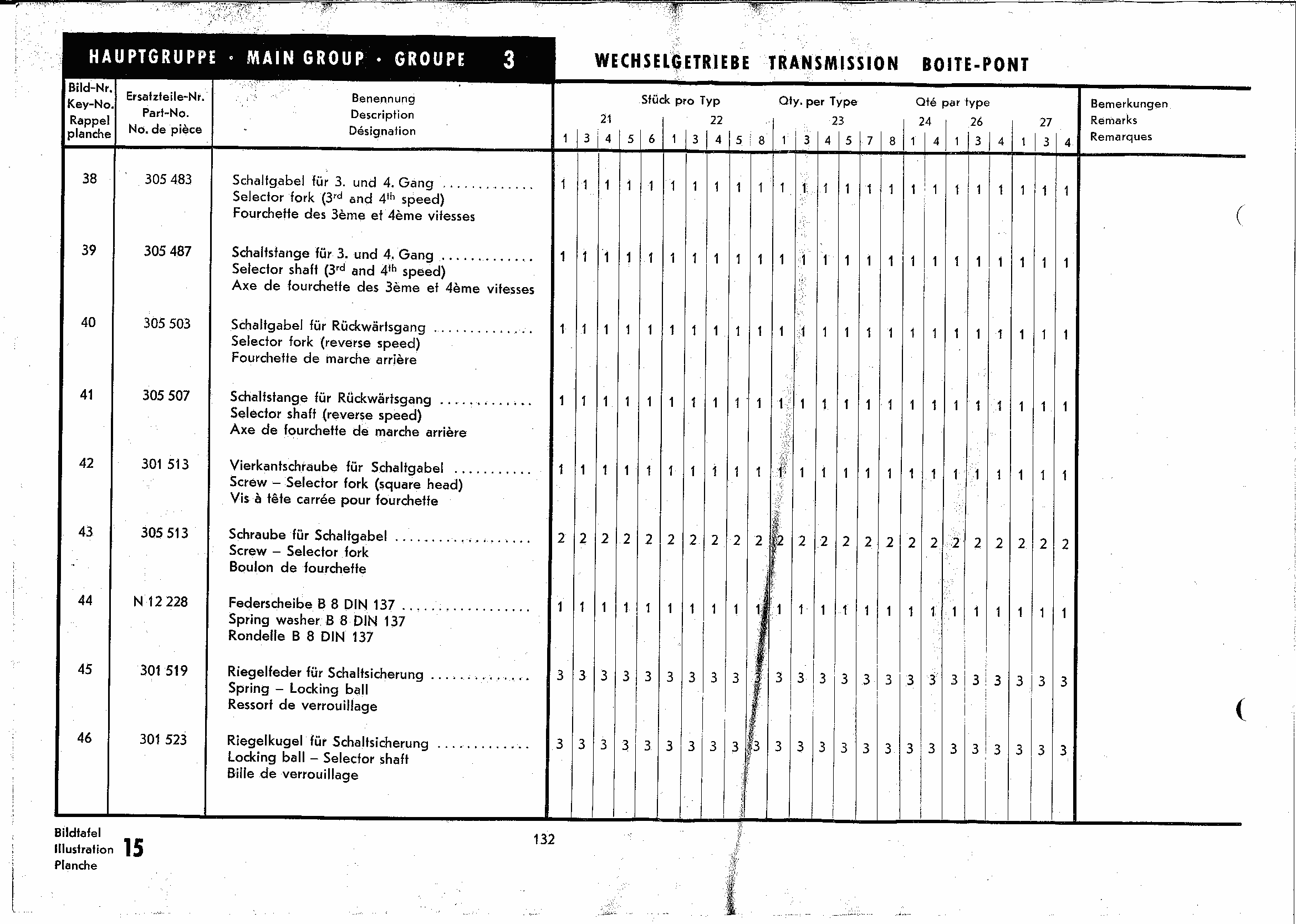

110 diagram Gears, shafts

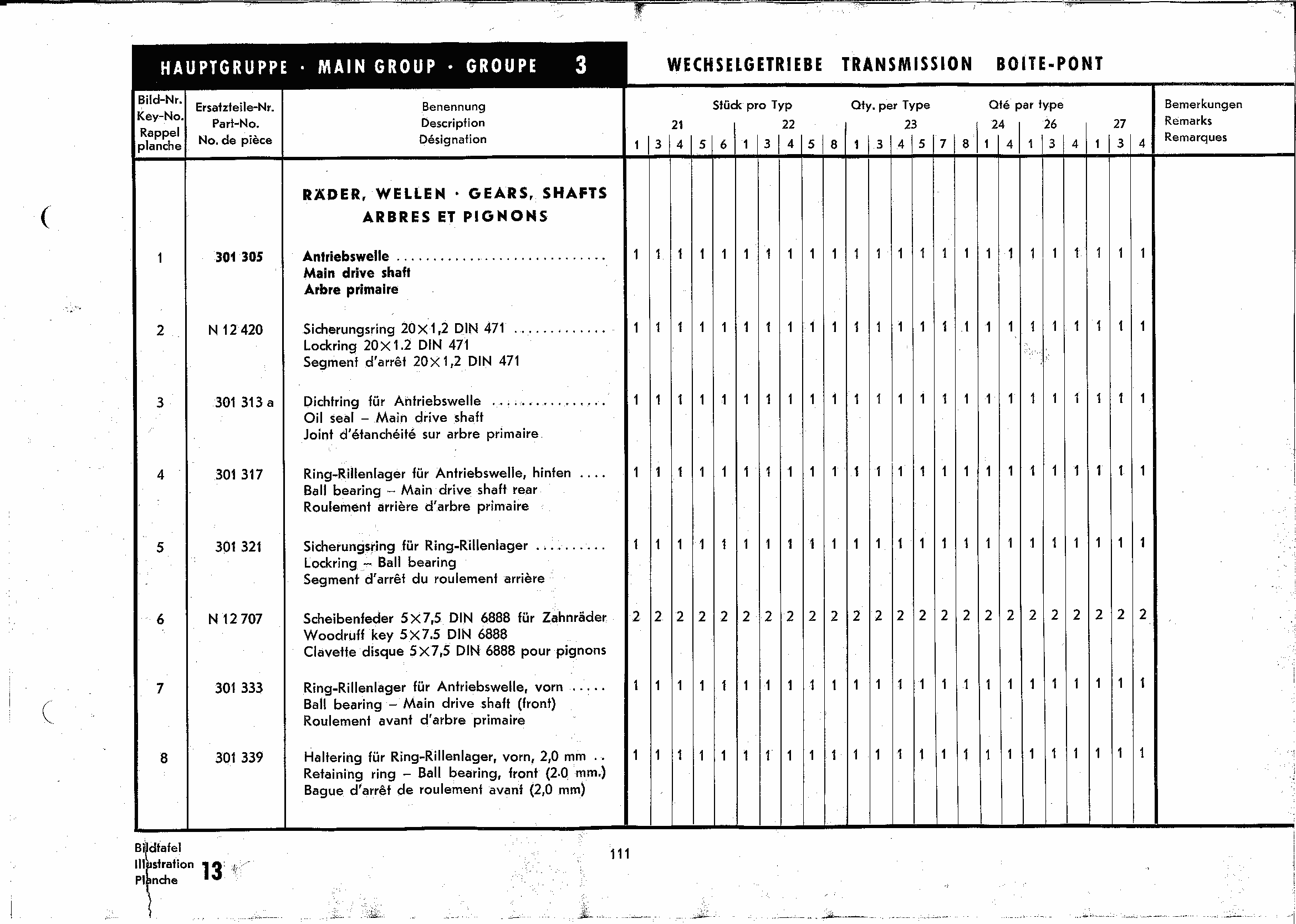

111 list Gears, shafts

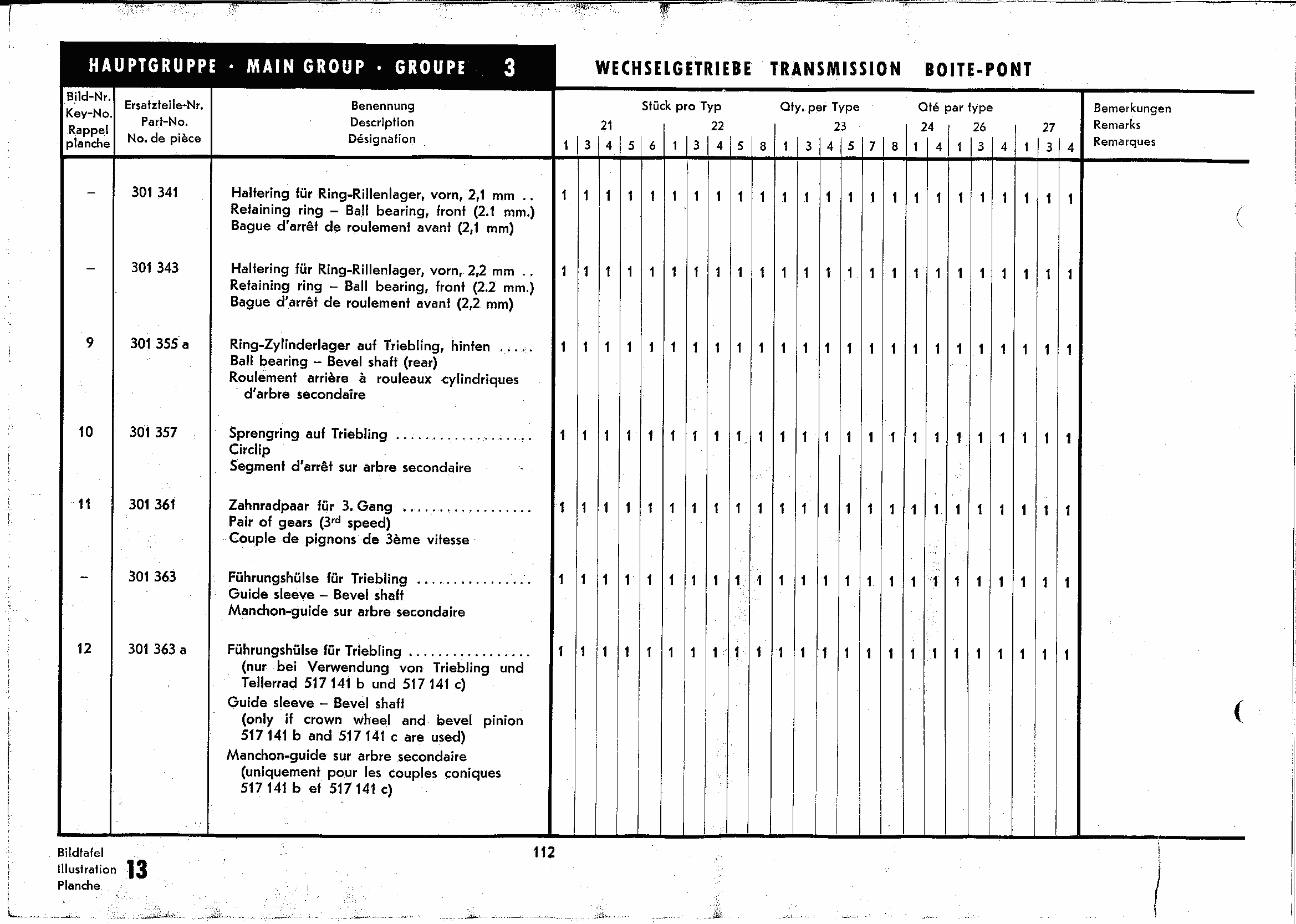

112 list Gears, shafts
113 list Gears, shafts

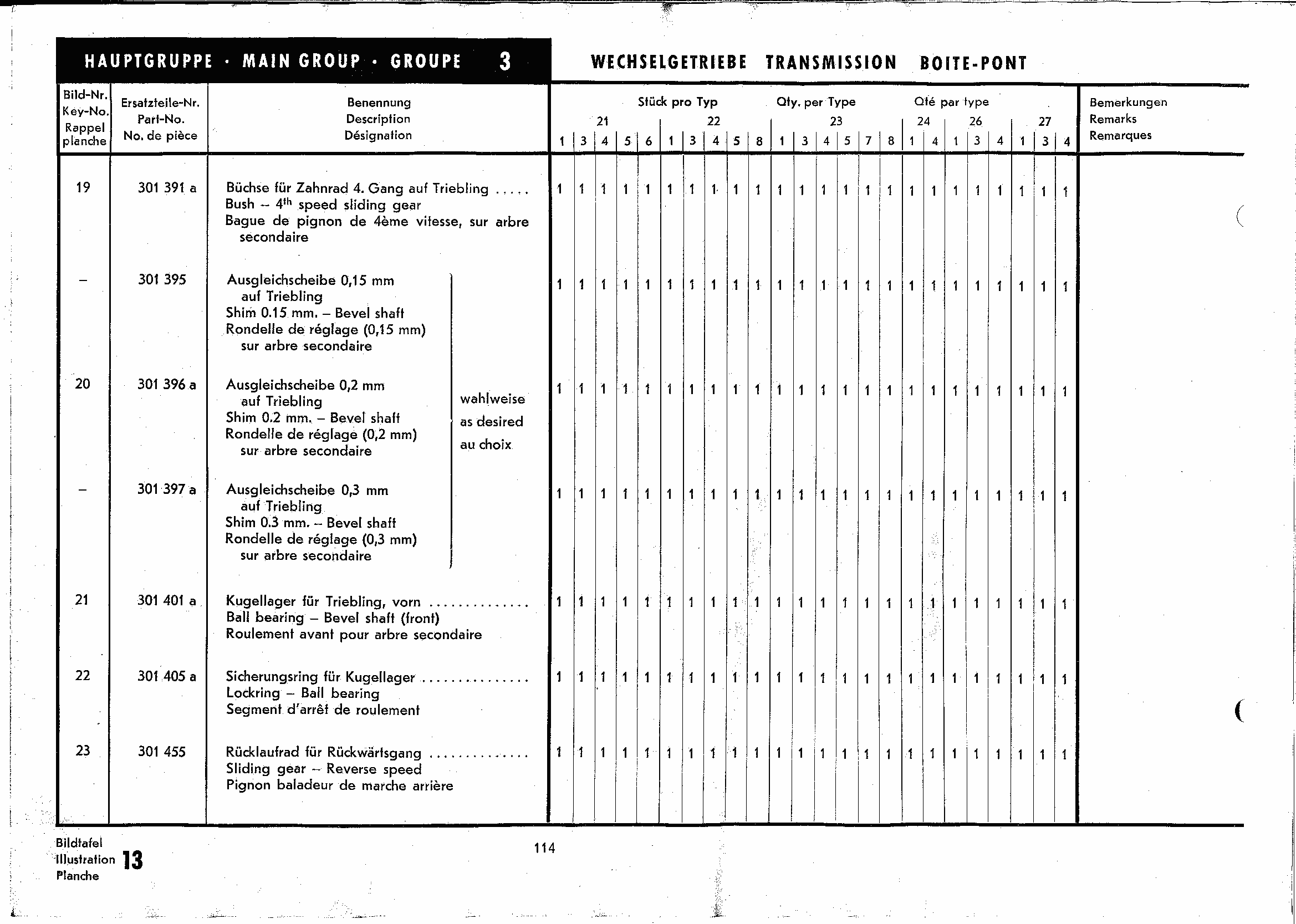

114 list Gears, shafts
115 list Gears, shafts

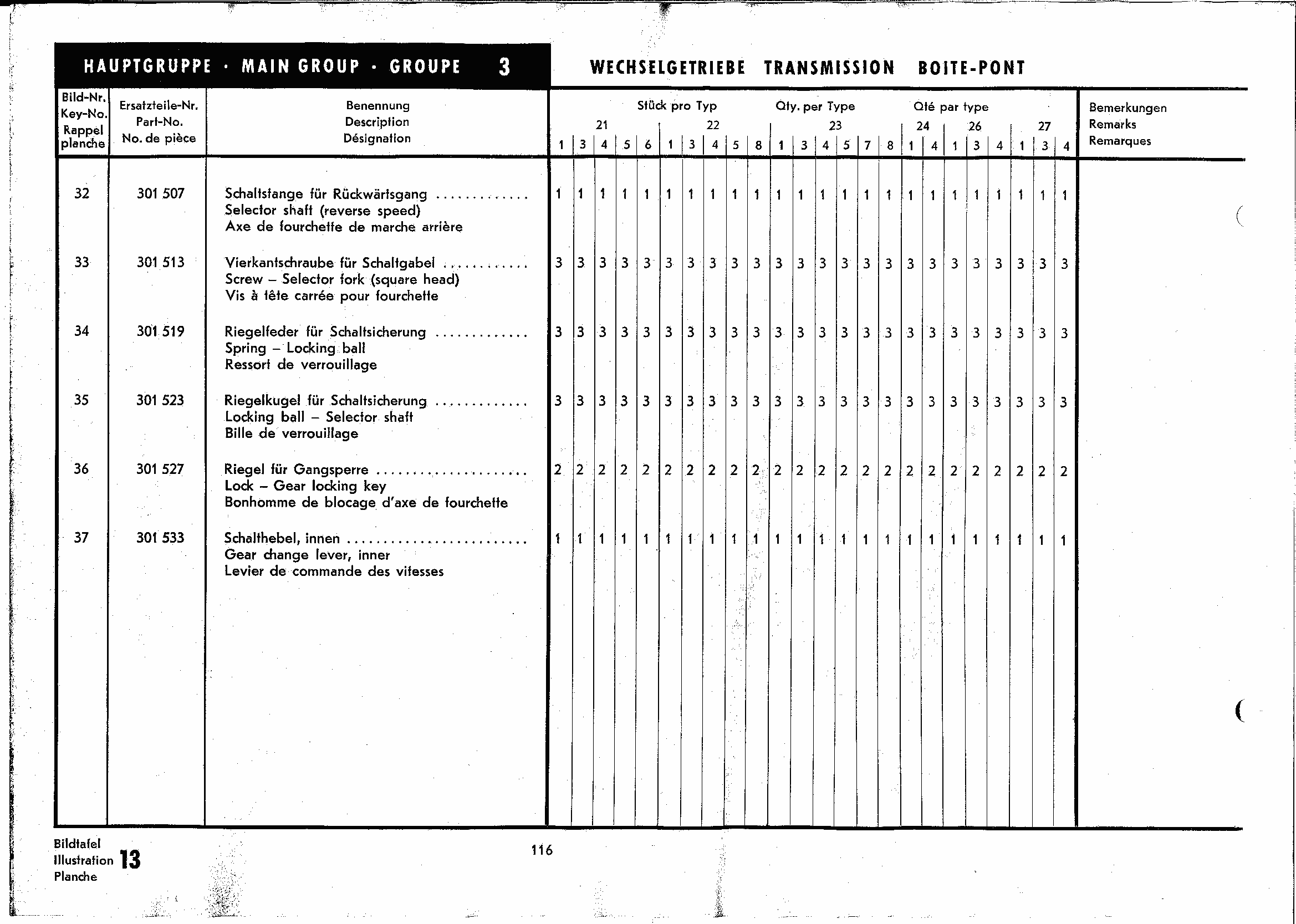

116 list Gears, shafts
117 special entsprechen den geforderten Toleranzen

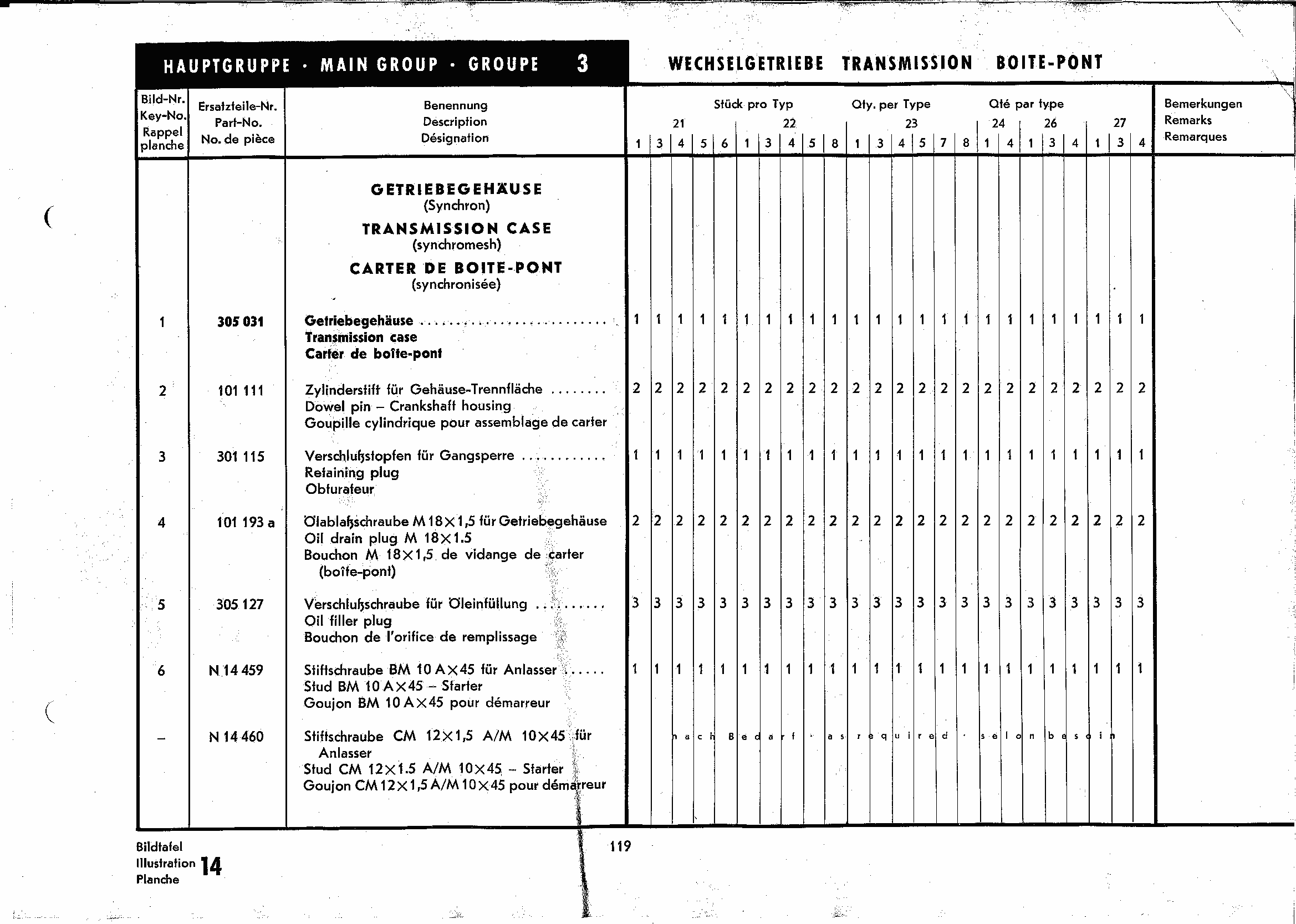

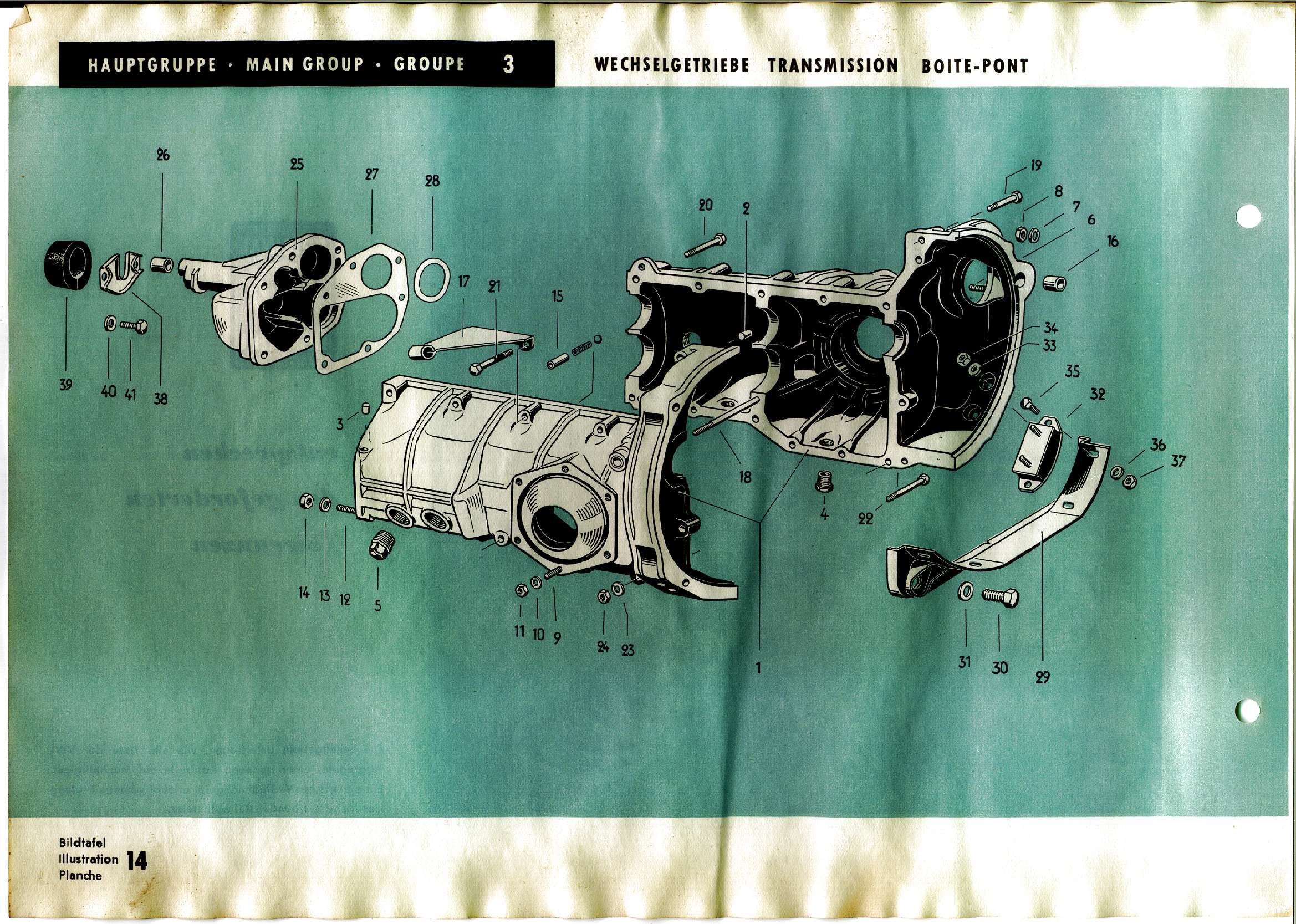

118 diagram Transmission case (synchromesh)
119 list Transmission case (synchromesh)

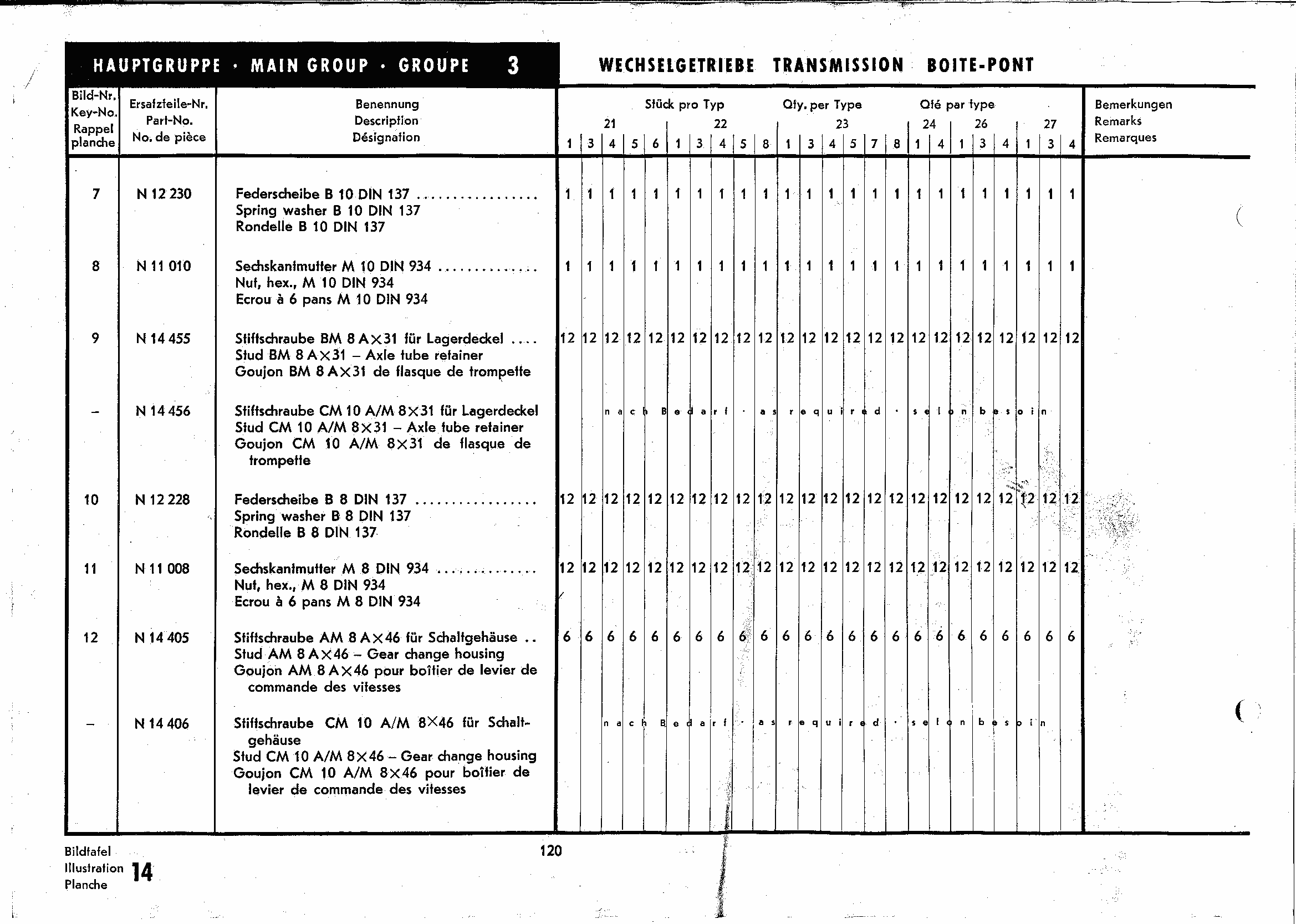

120 list Transmission case (syncrhomesh)

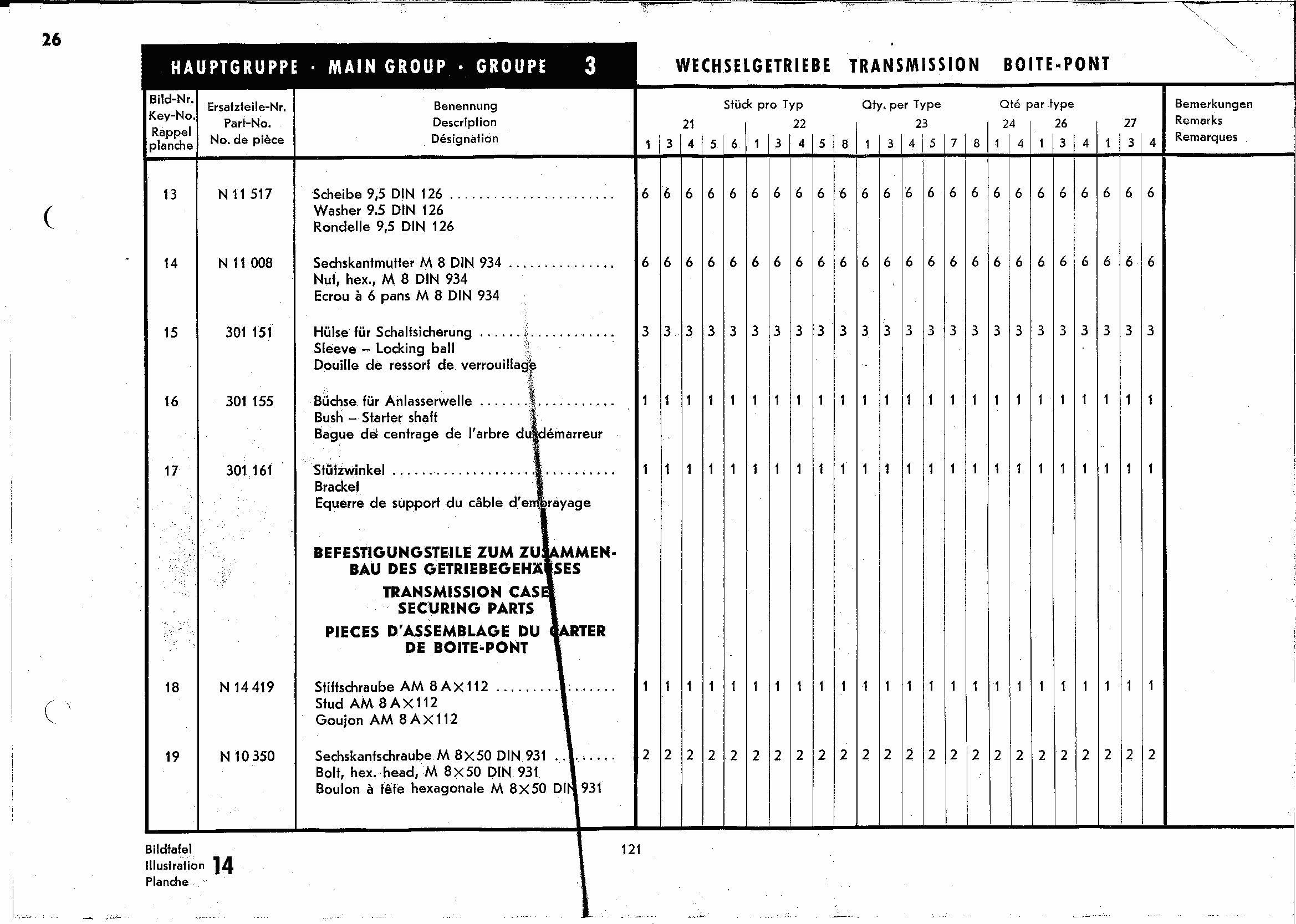

121 list Transmission case (syncrhomesh), transmission case securing parts

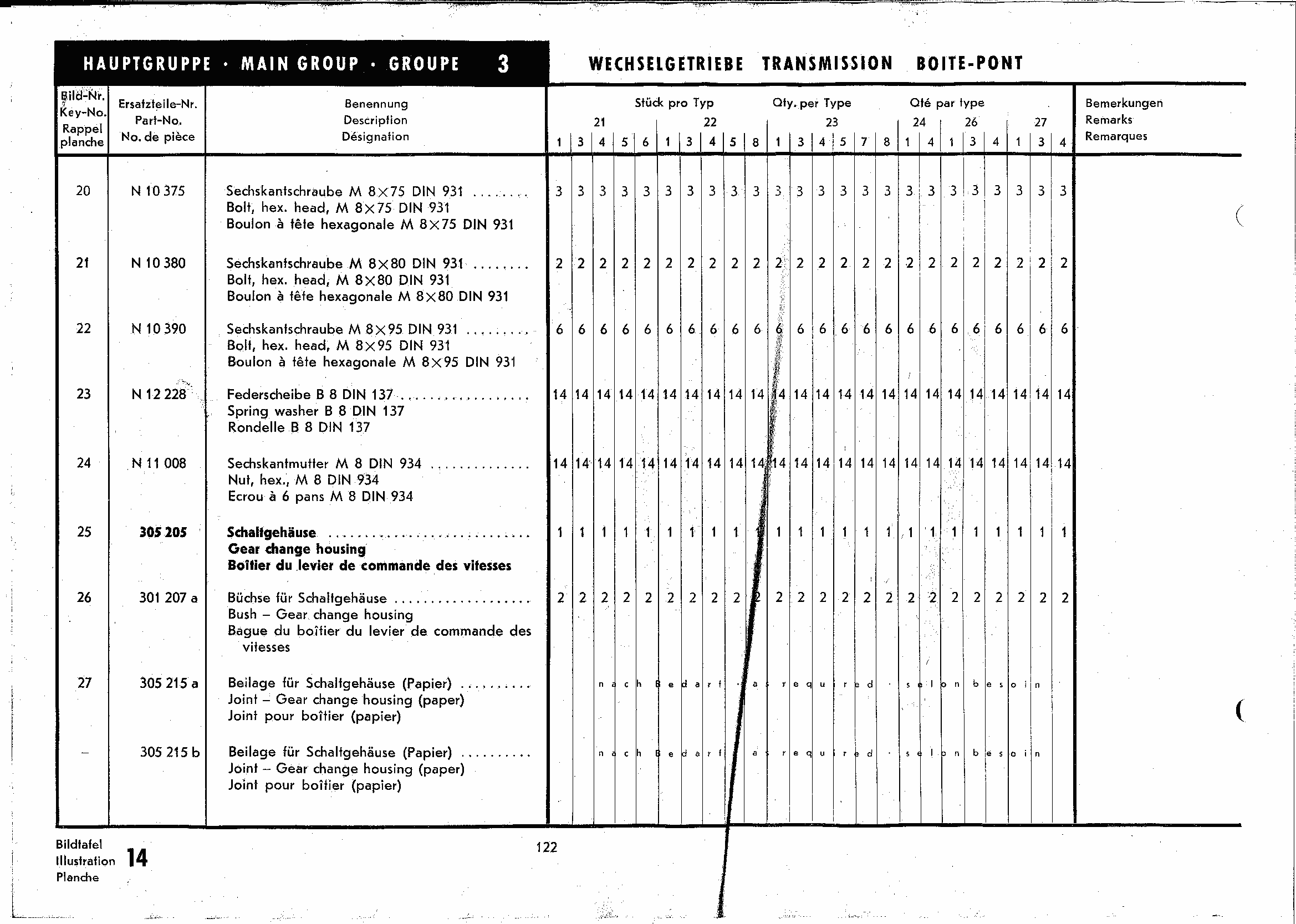

122 list Transmission case securing parts

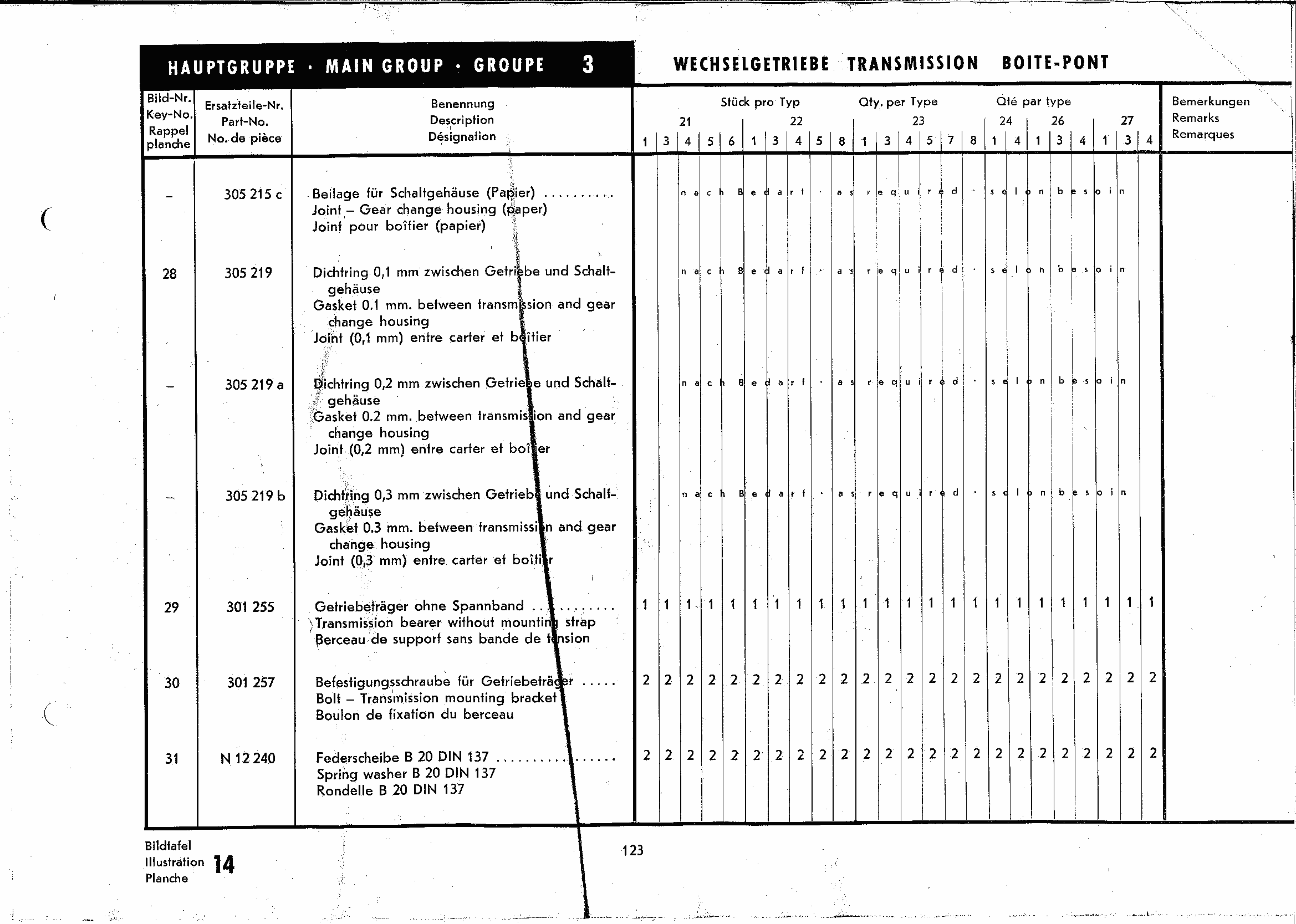

123 list Transmission case securing parts

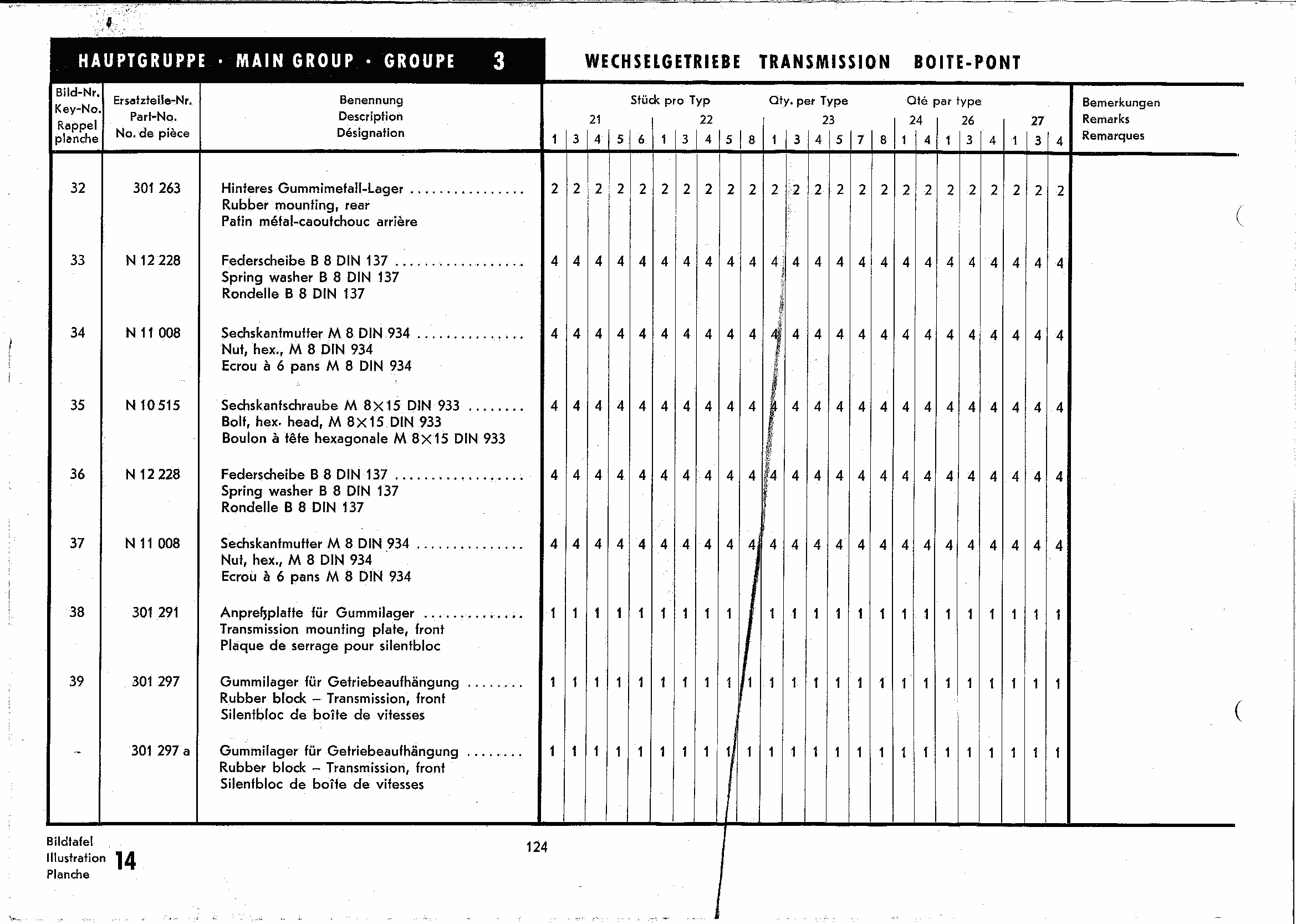

124 list Transmission case securing parts

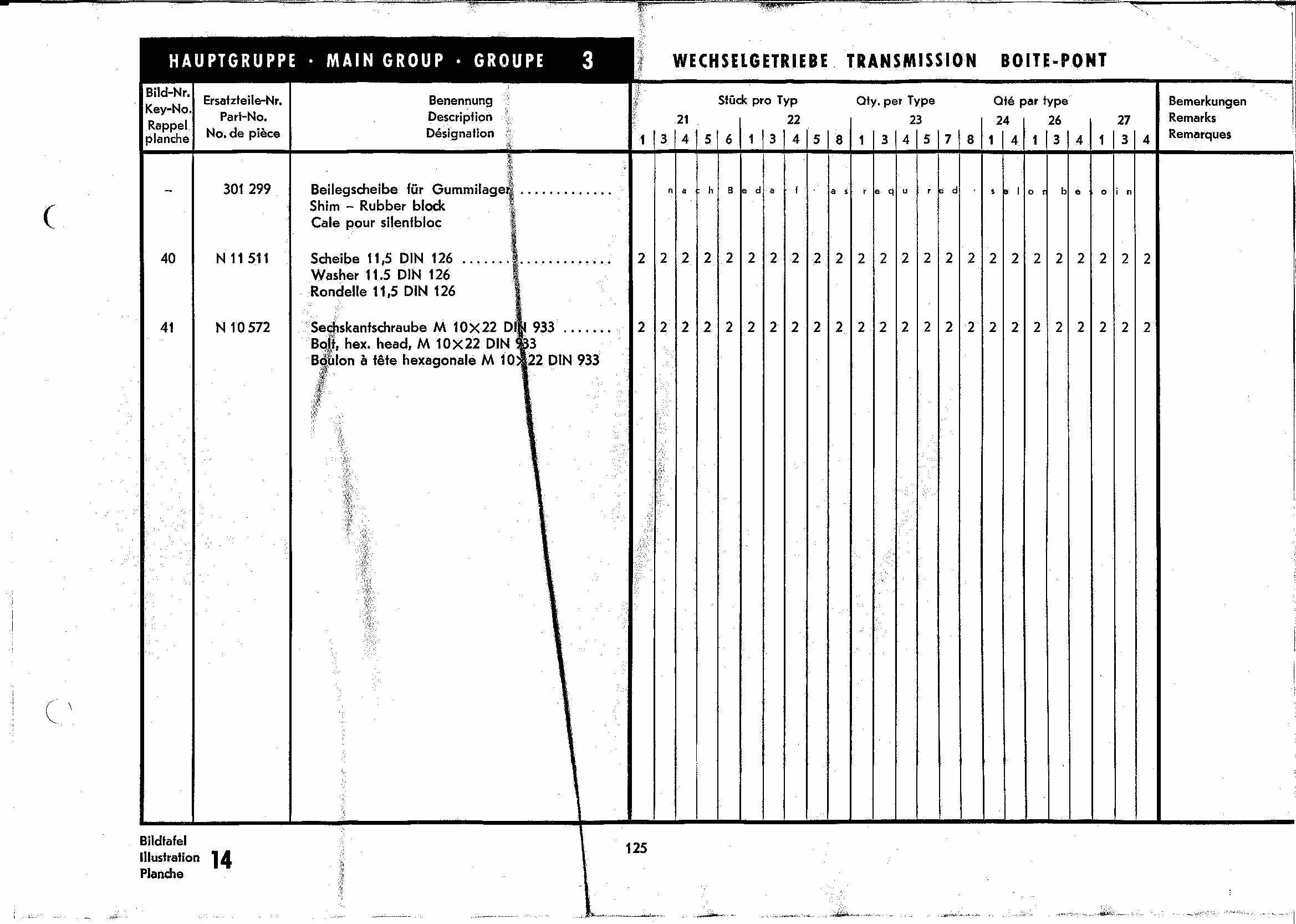

125 list Transmission case securing parts

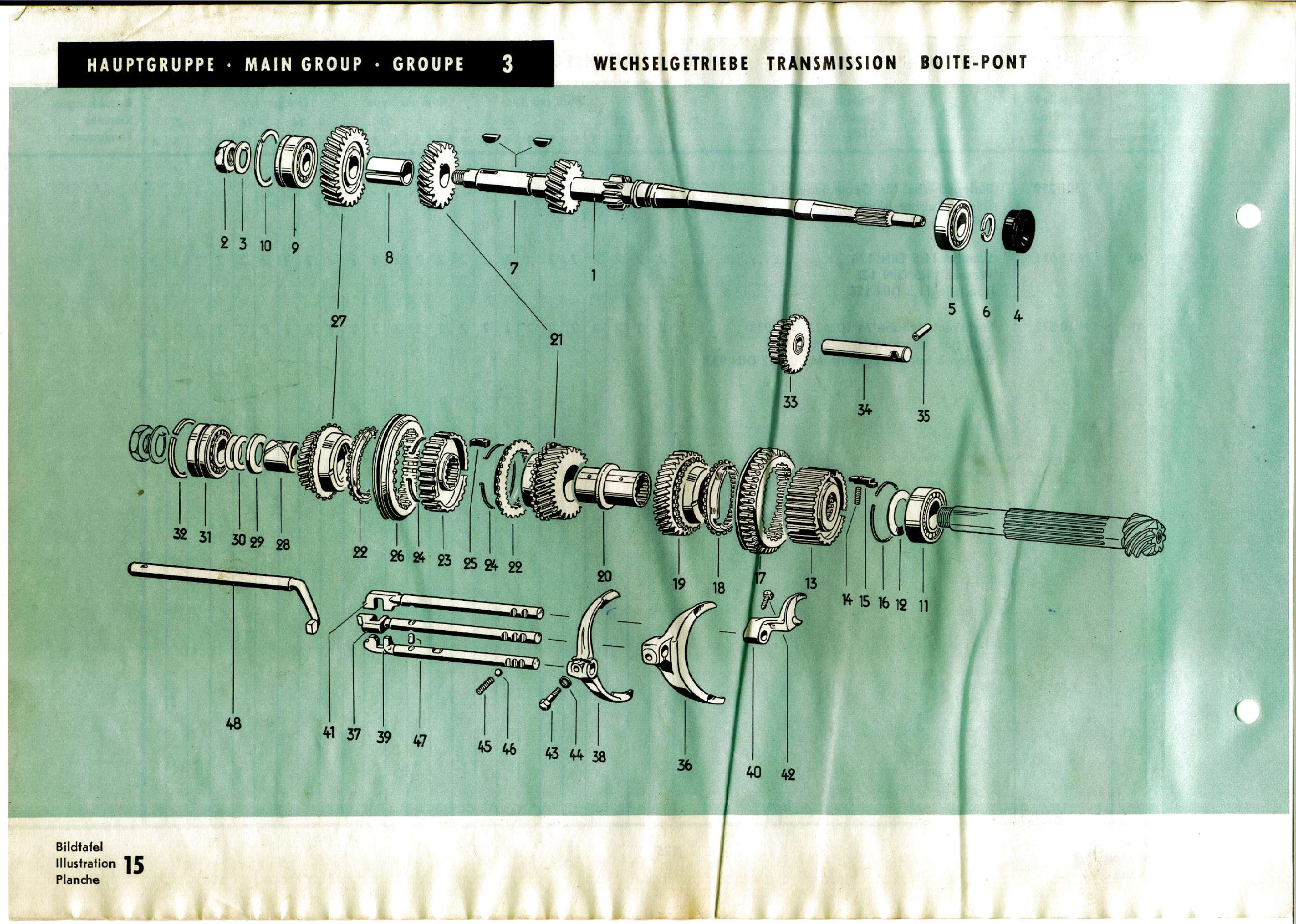

126 diagram Gears, shafts

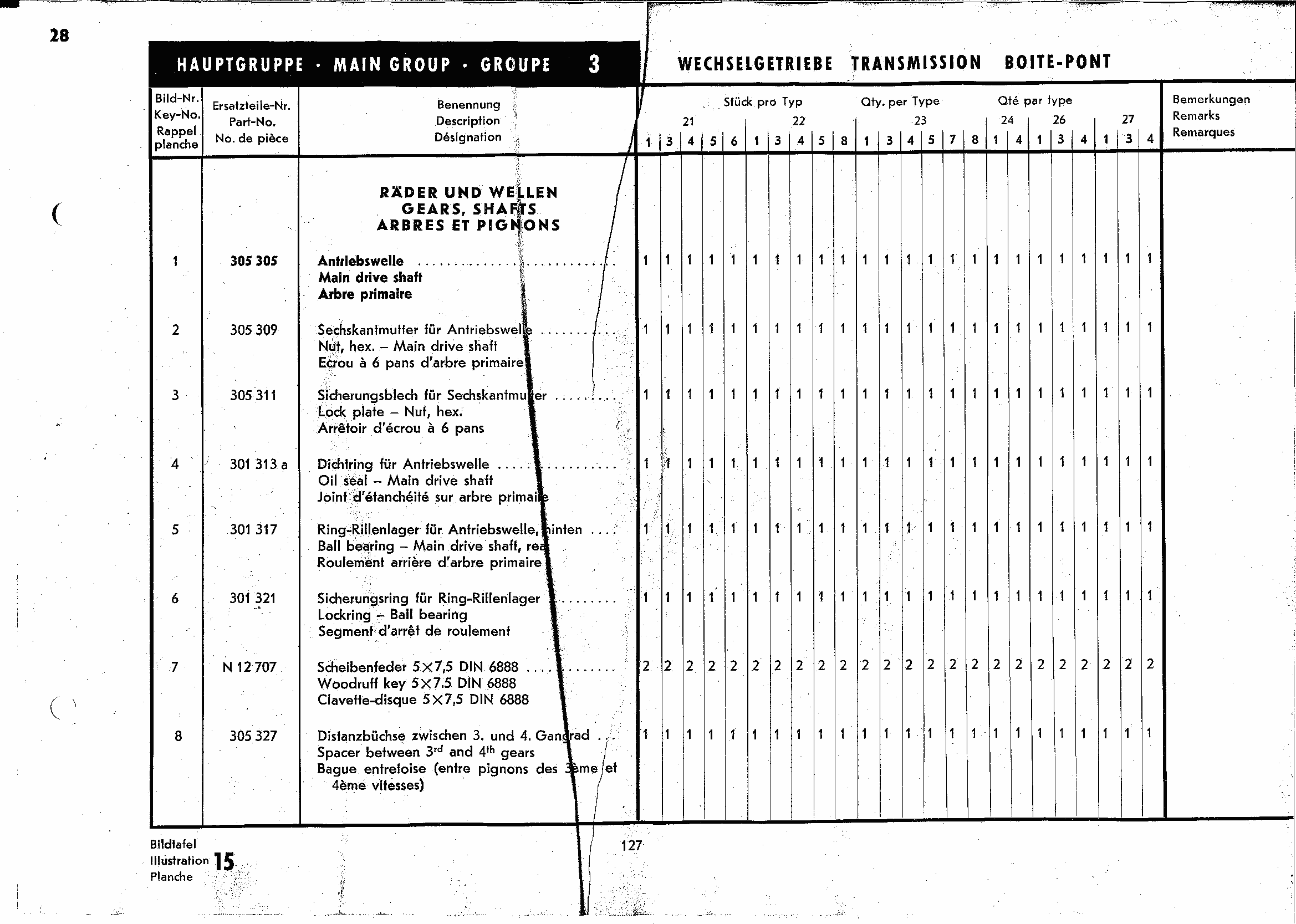

127 list Gears, shafts

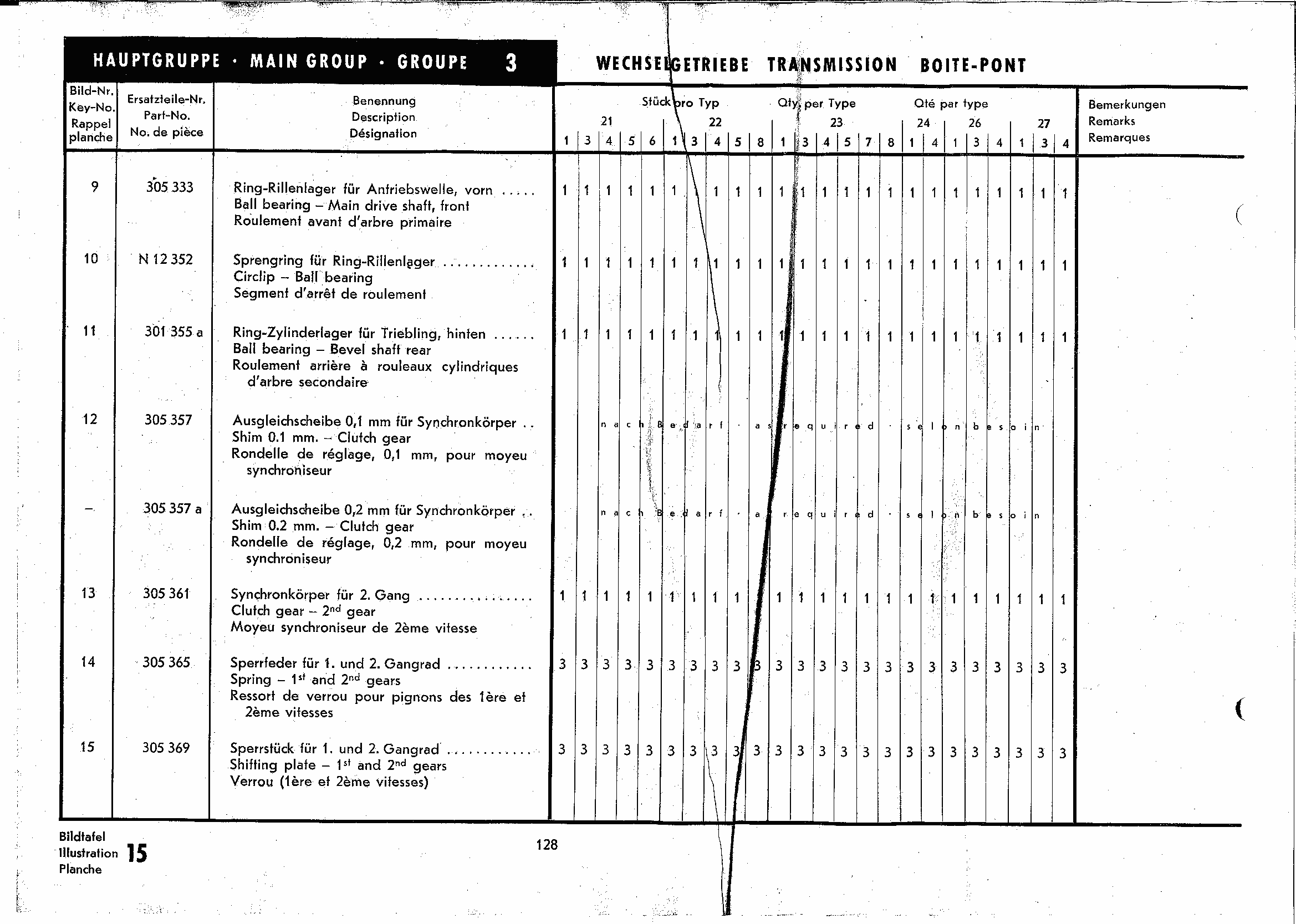

128 list Gears, shafts

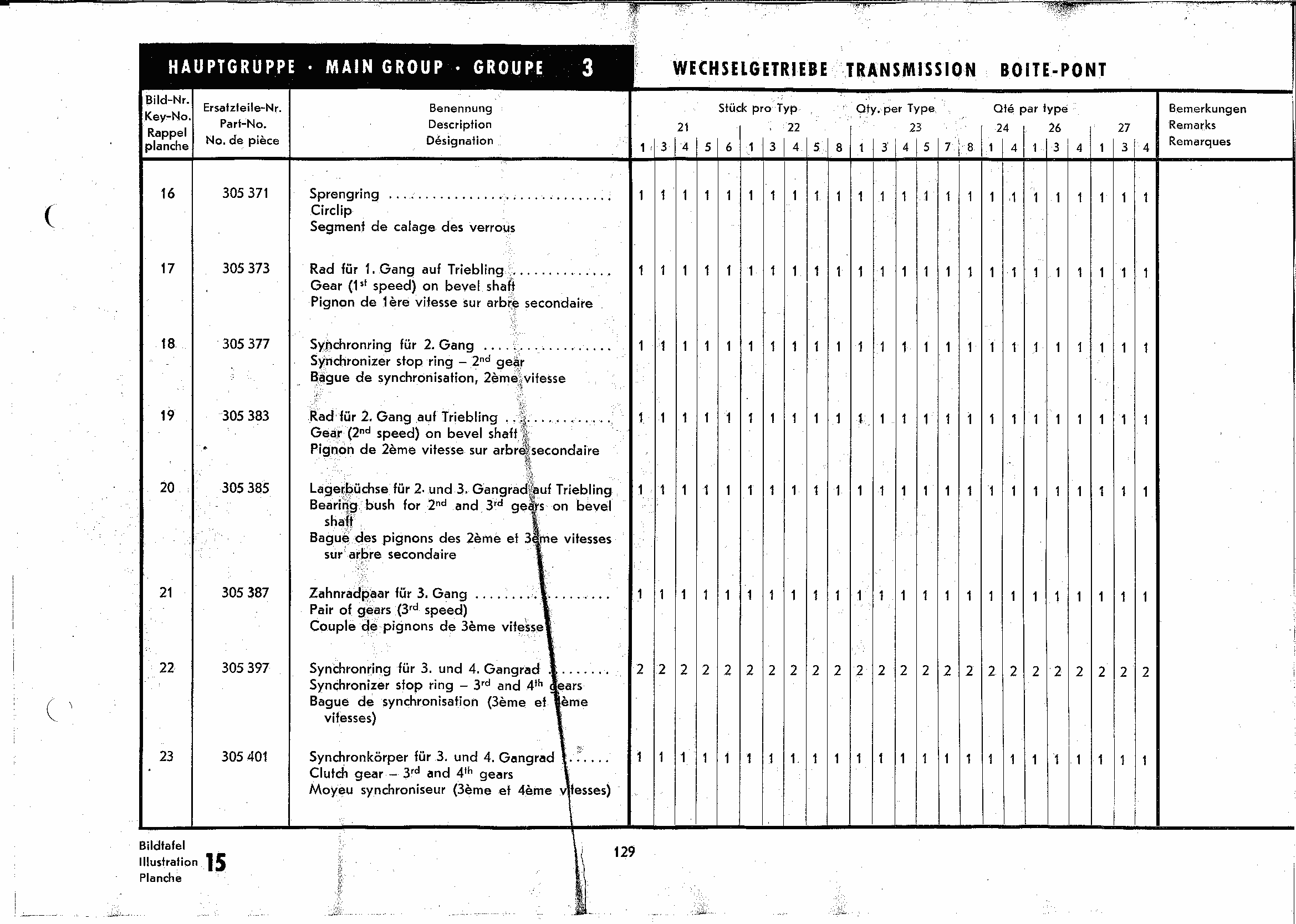

129 list Gears, shafts

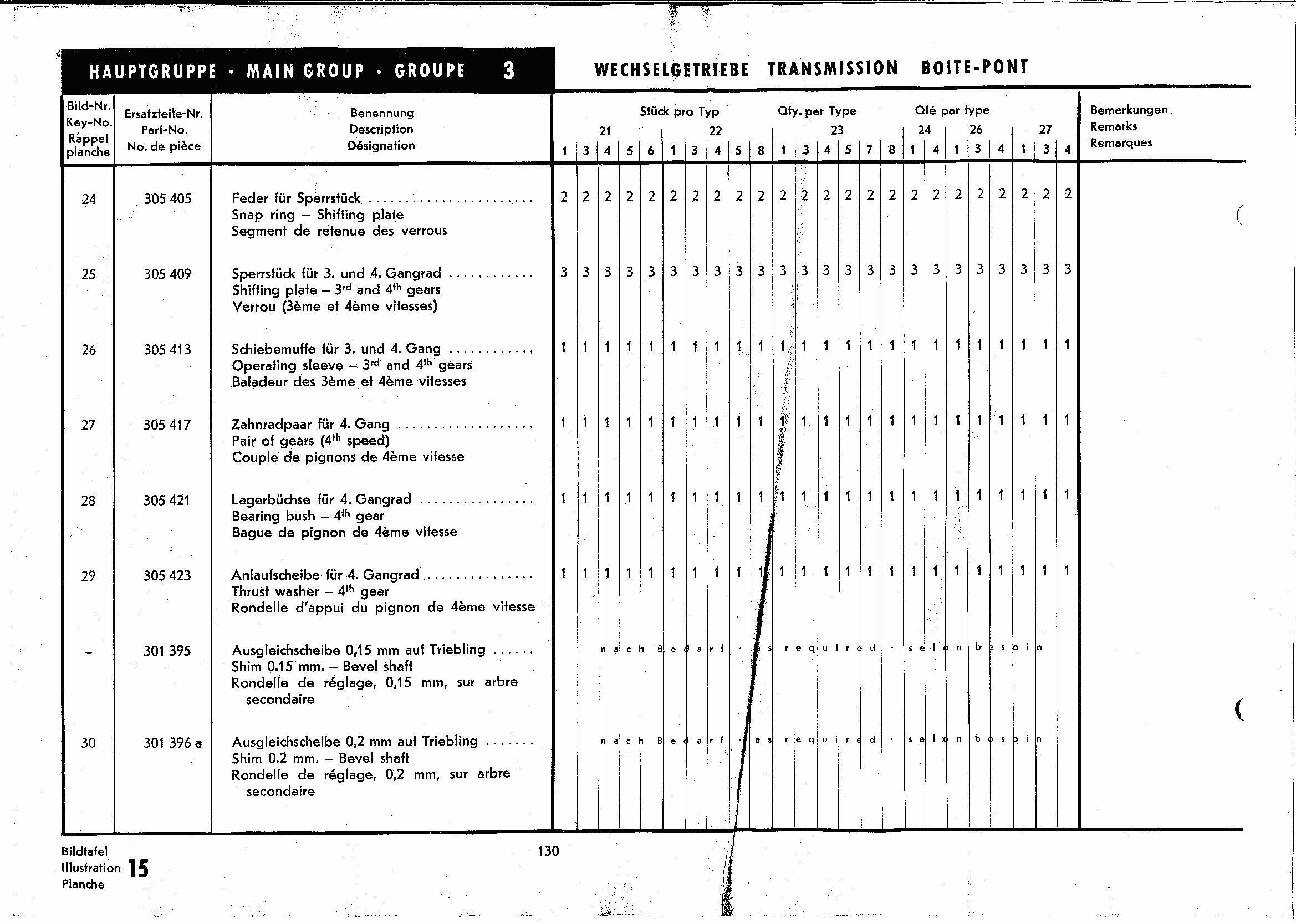

130 list Gears, shafts
131 list Gears, shafts
132 list Gears, shafts

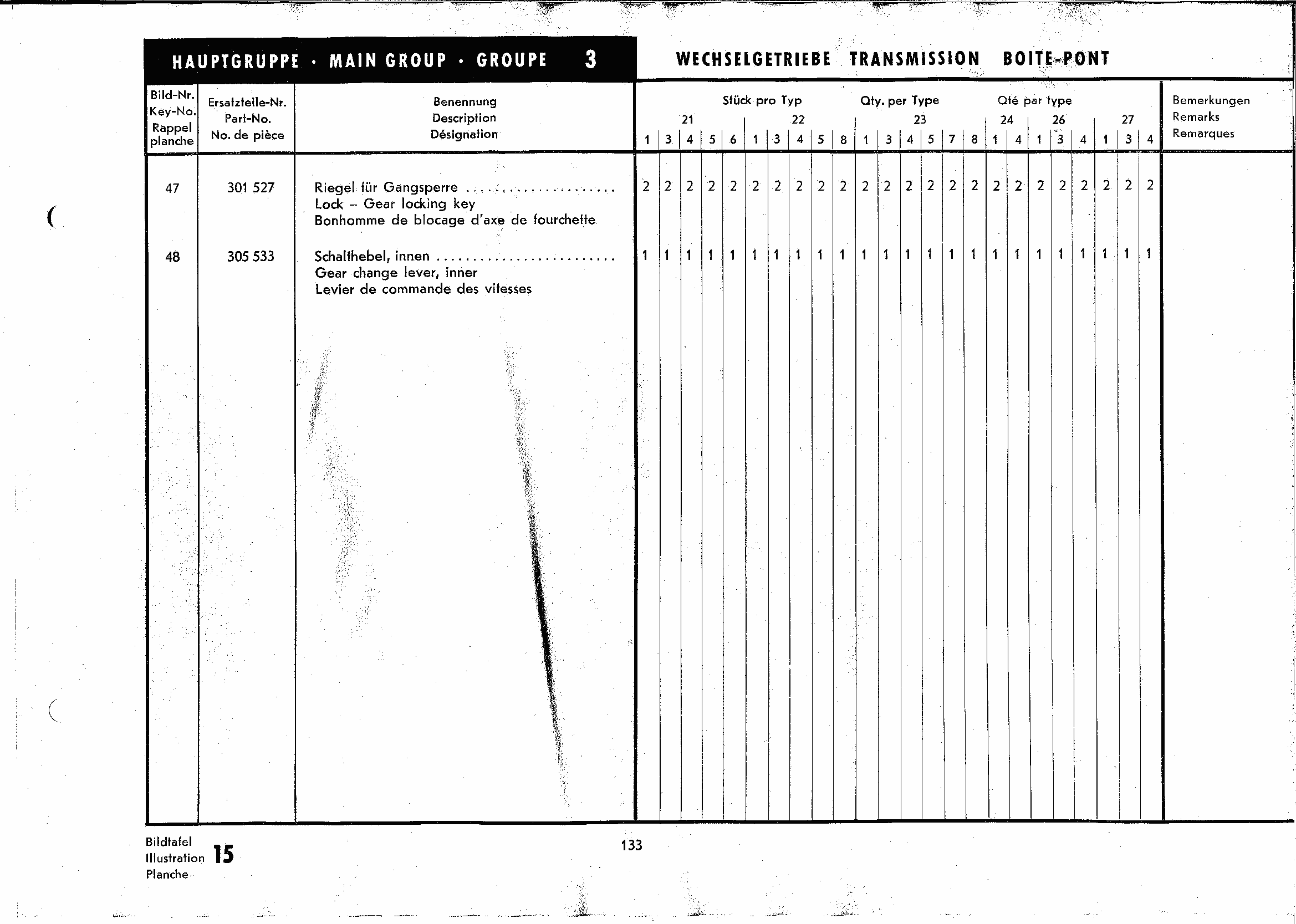

133 list Gears, shafts
134 special entsprechen den geforderten Toleranzen!

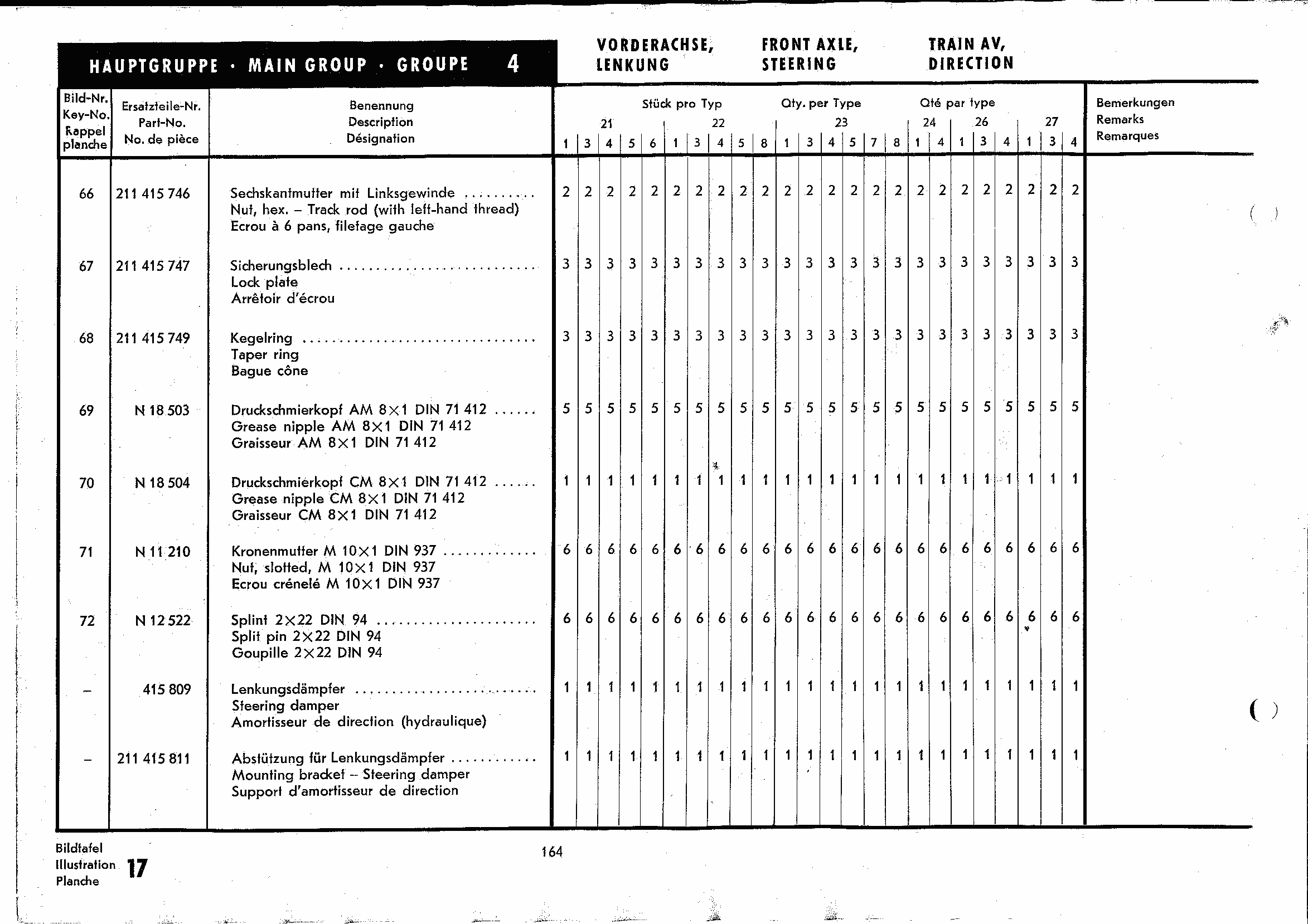

Main Group 4: Front Axle, Steering

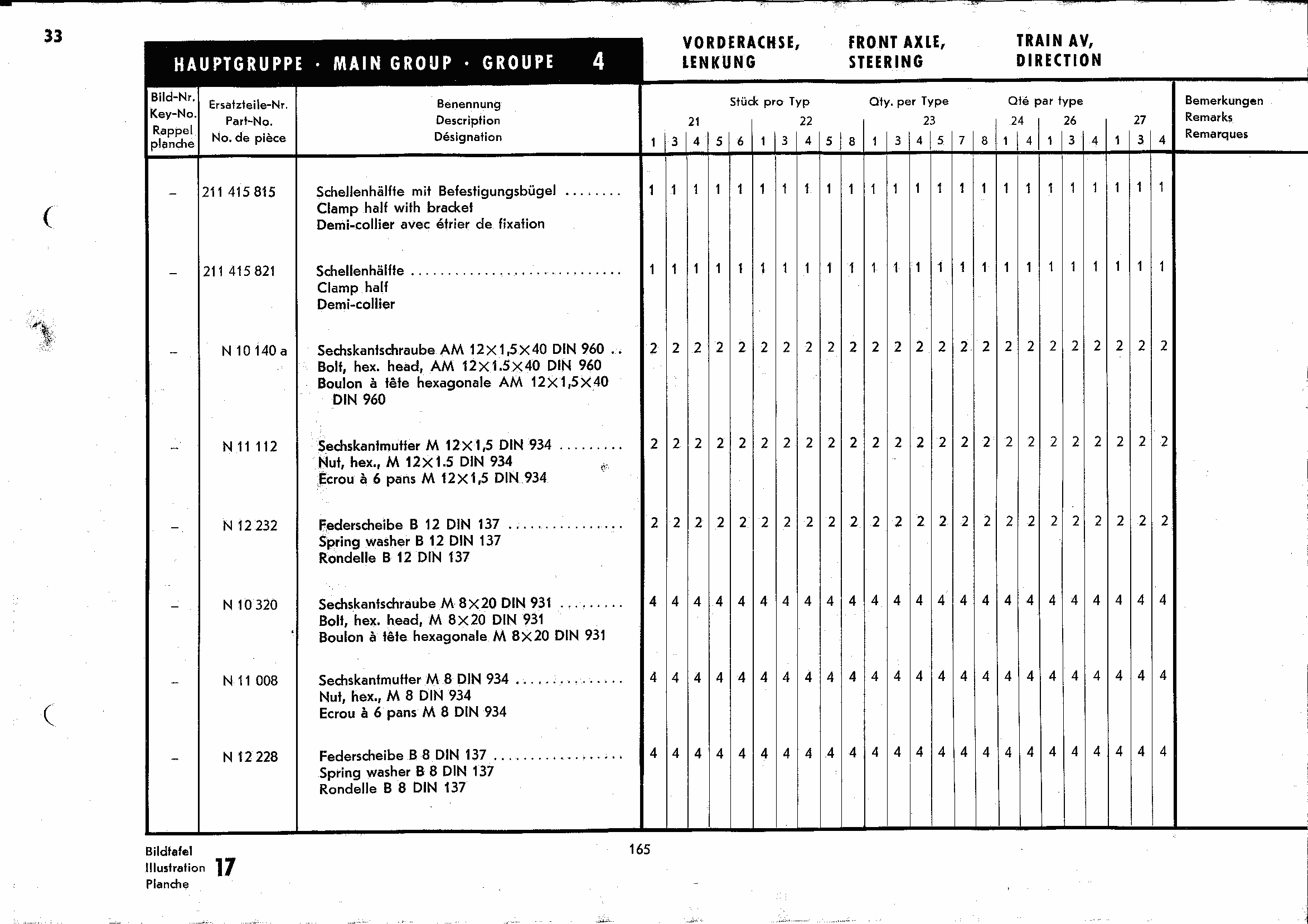

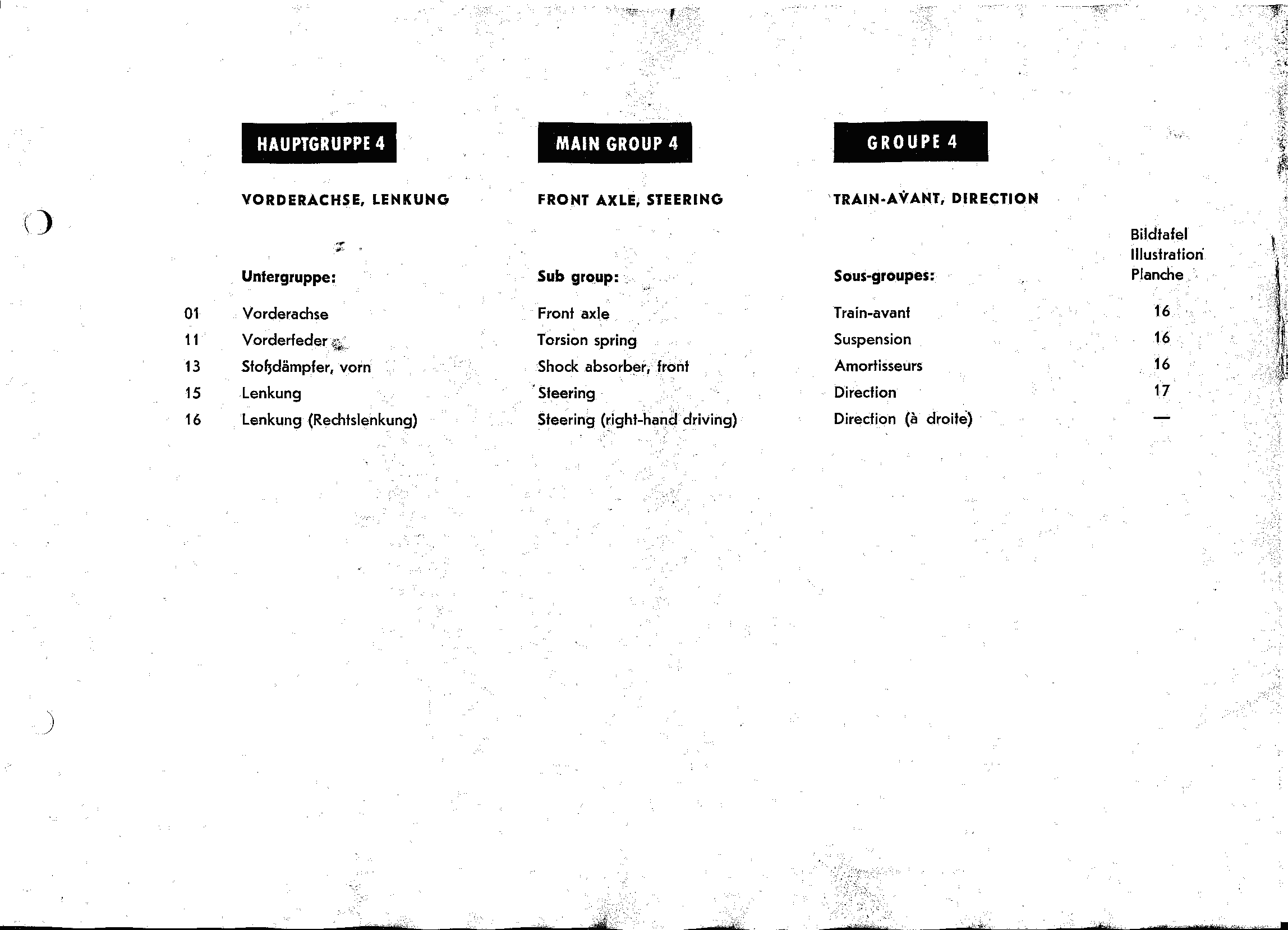

135 list Main Group 4 index

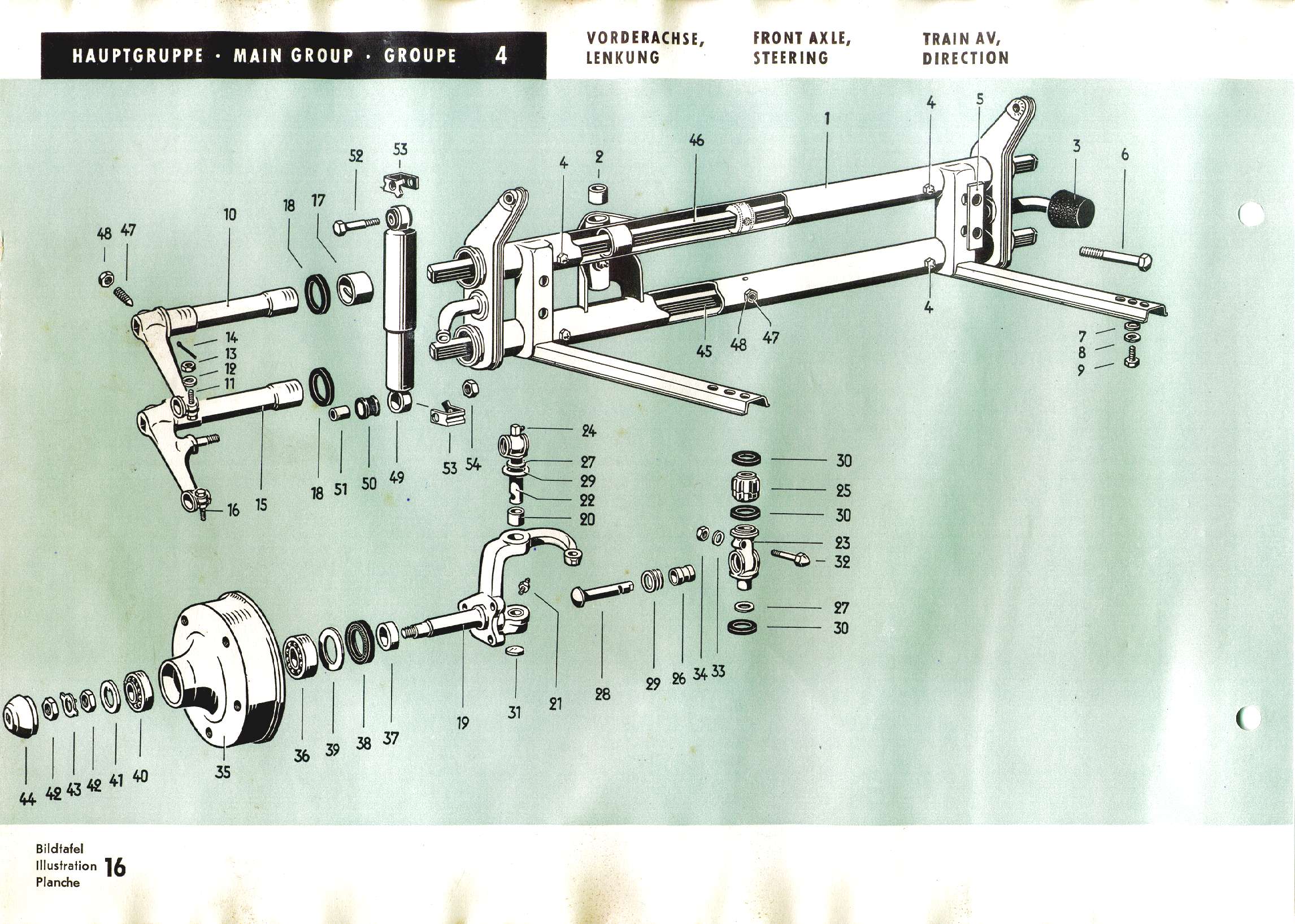

136 diagram Front axle

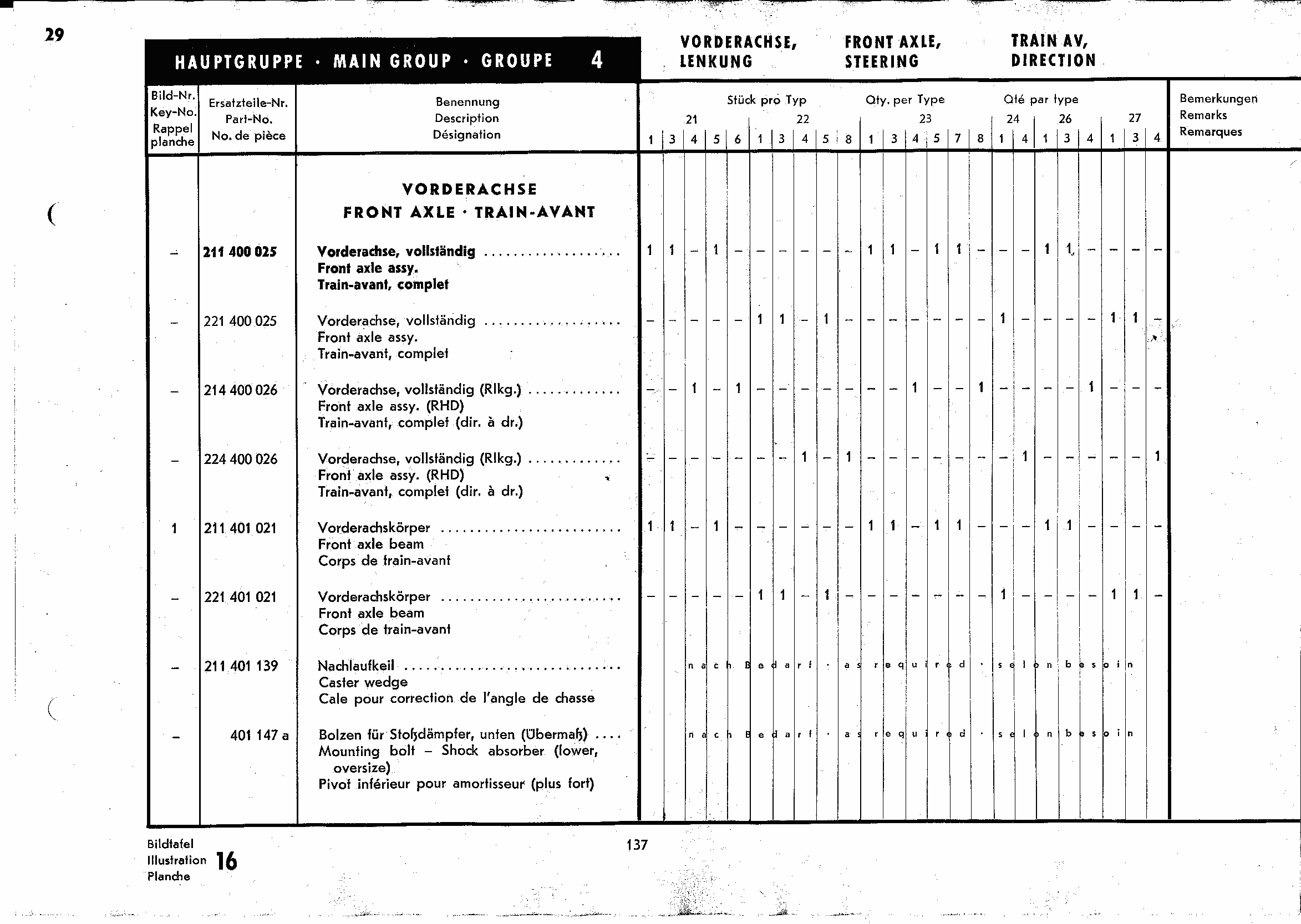

137 list Front axle
138 list Front axle

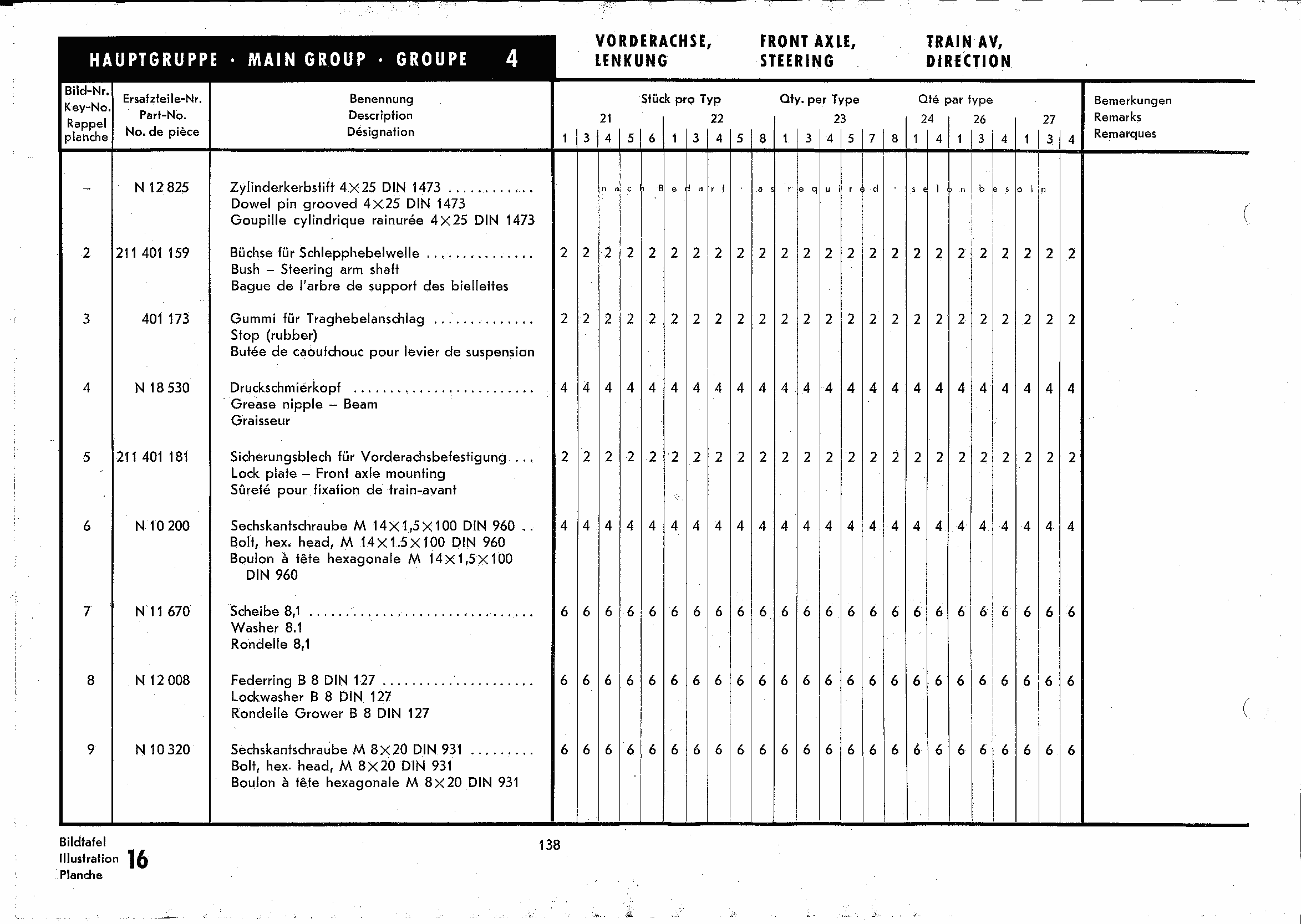

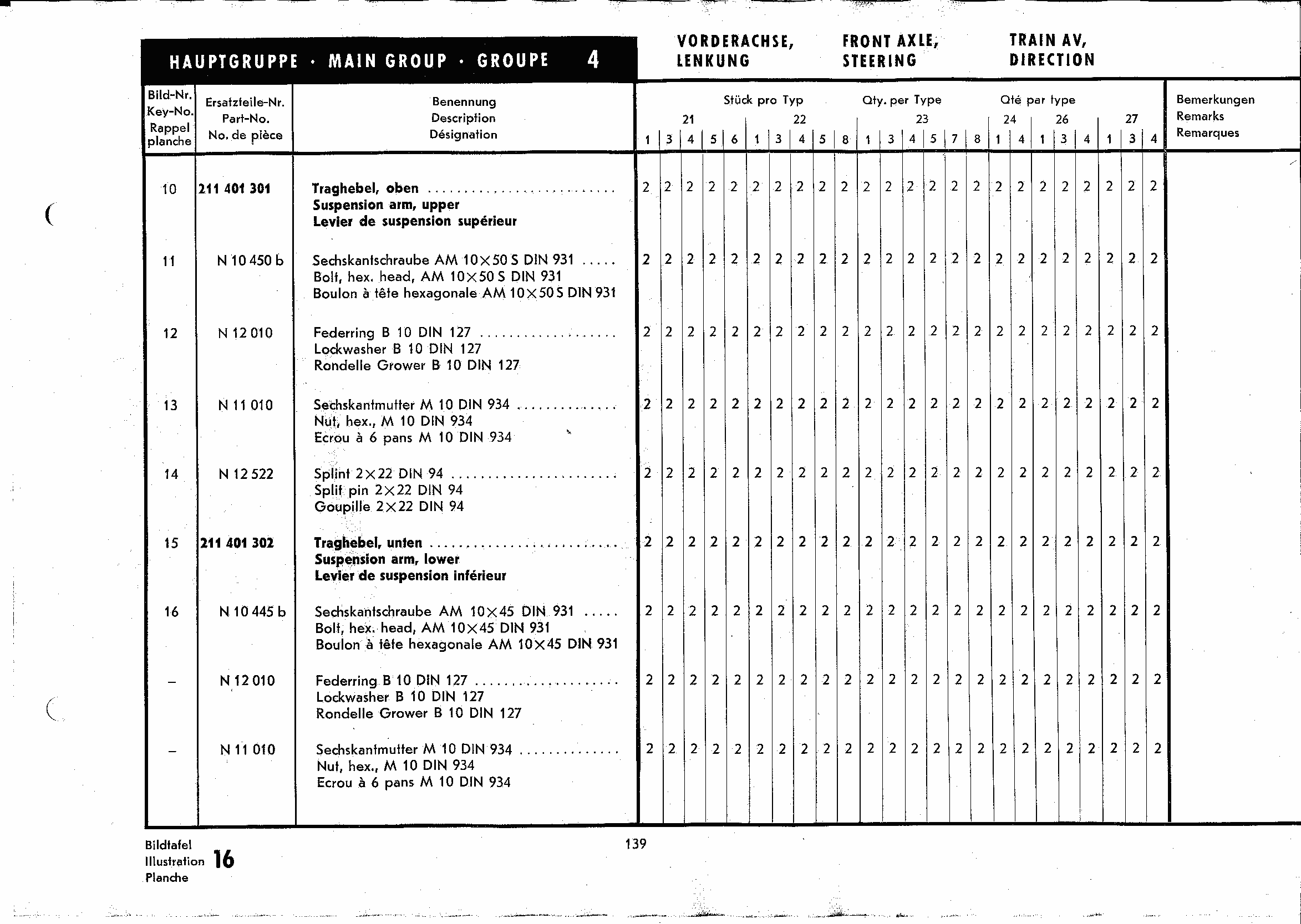

139 list Front axle

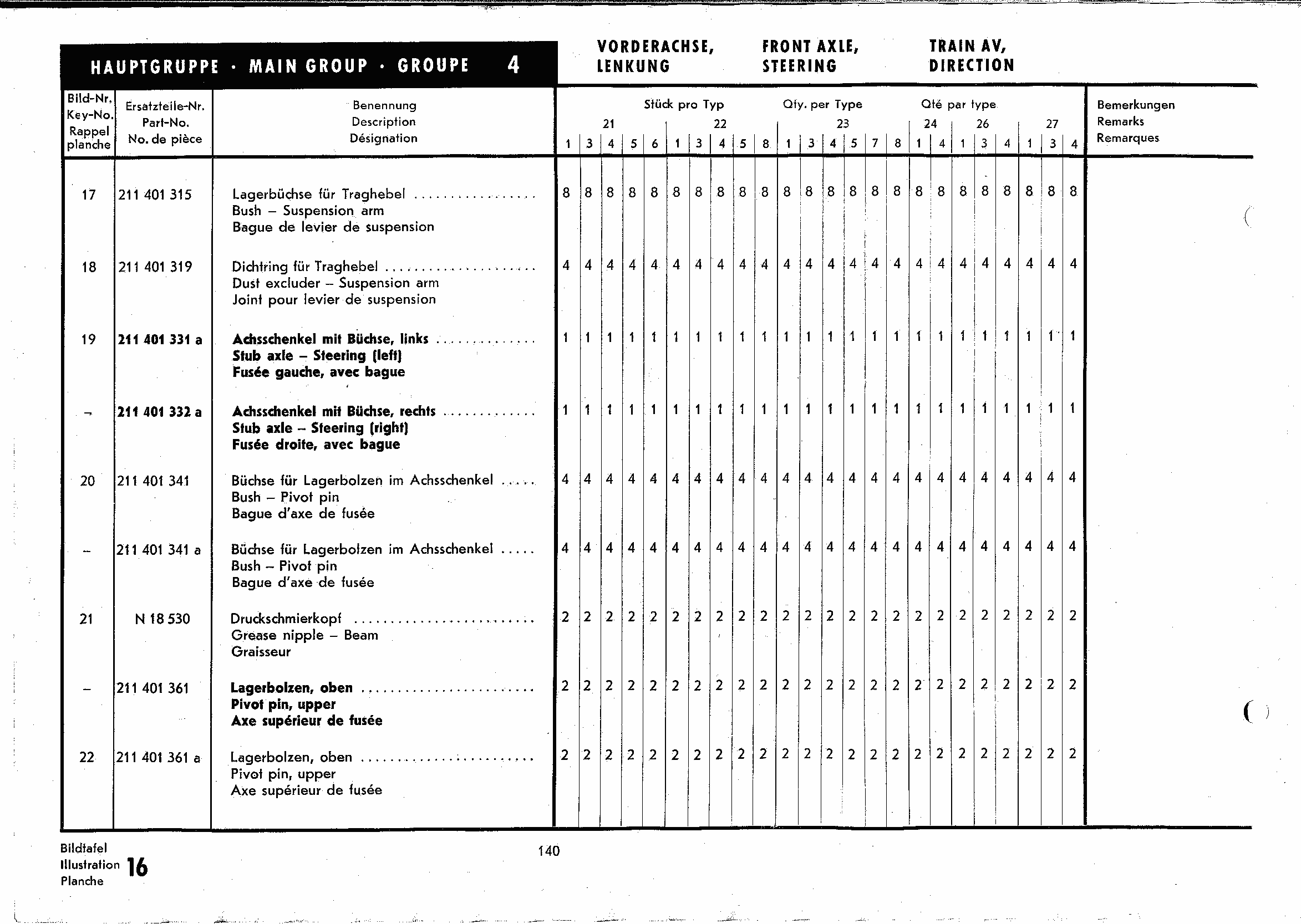

140 list Front axle

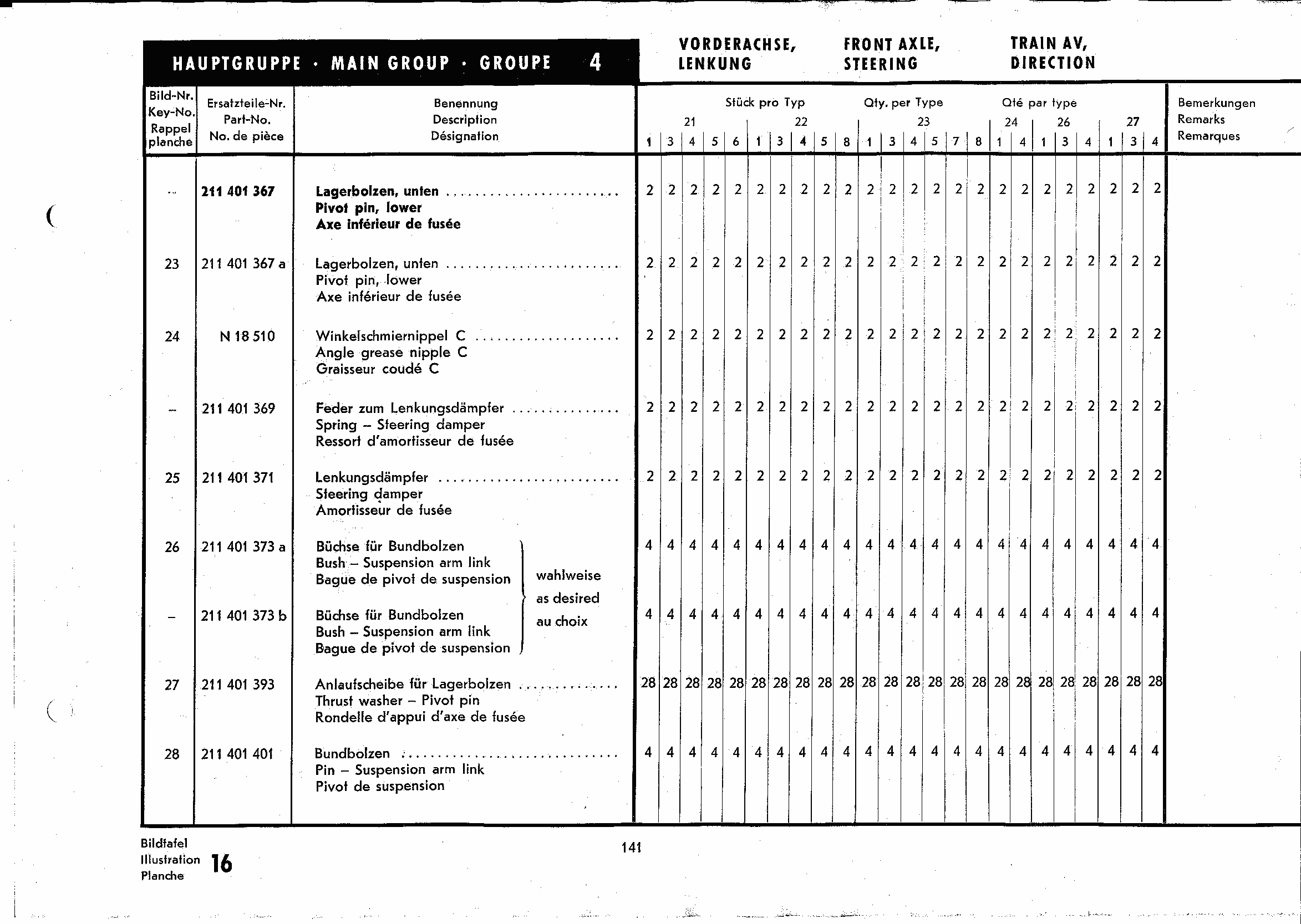

141 list Front axle

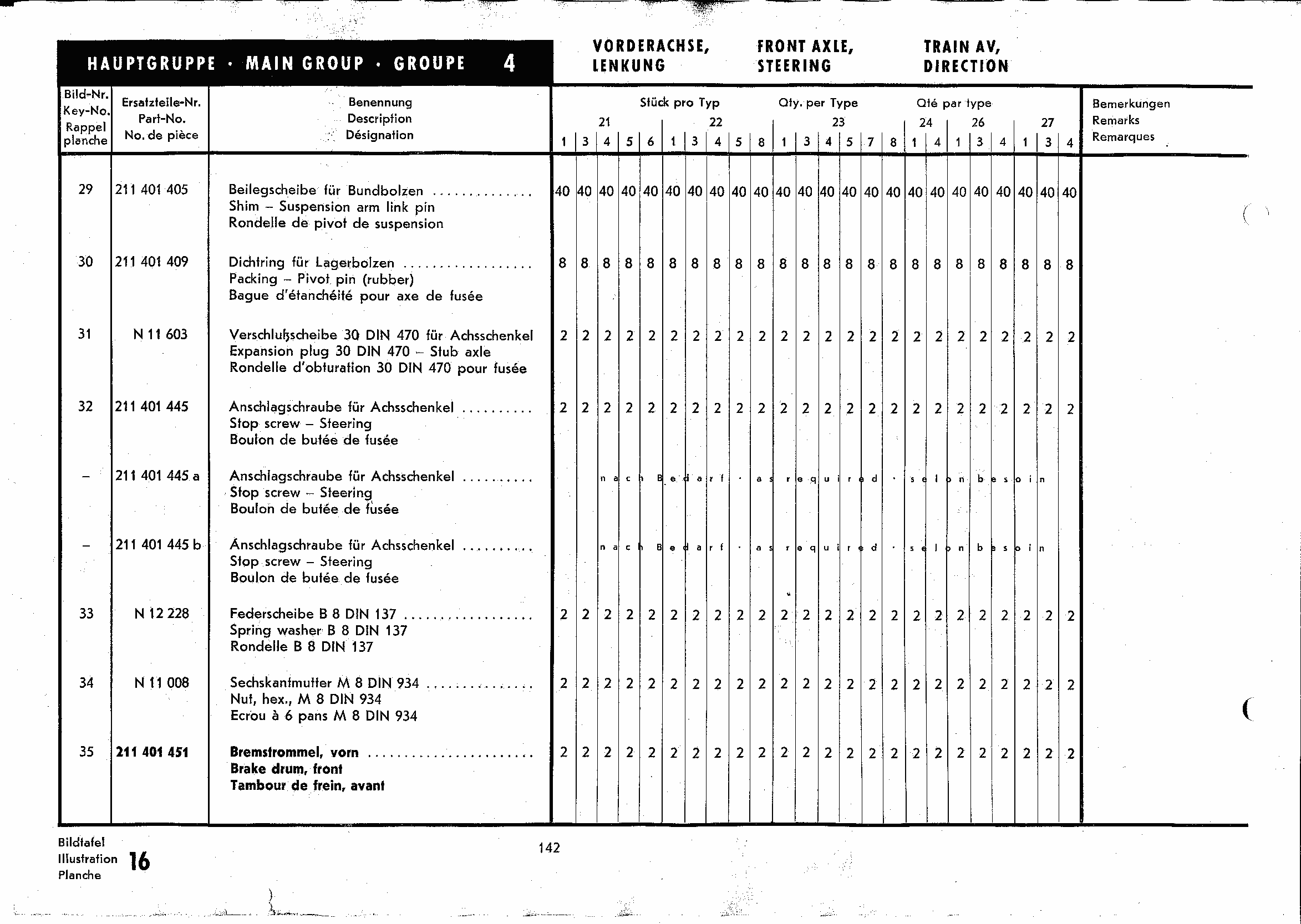

142 list Front axle

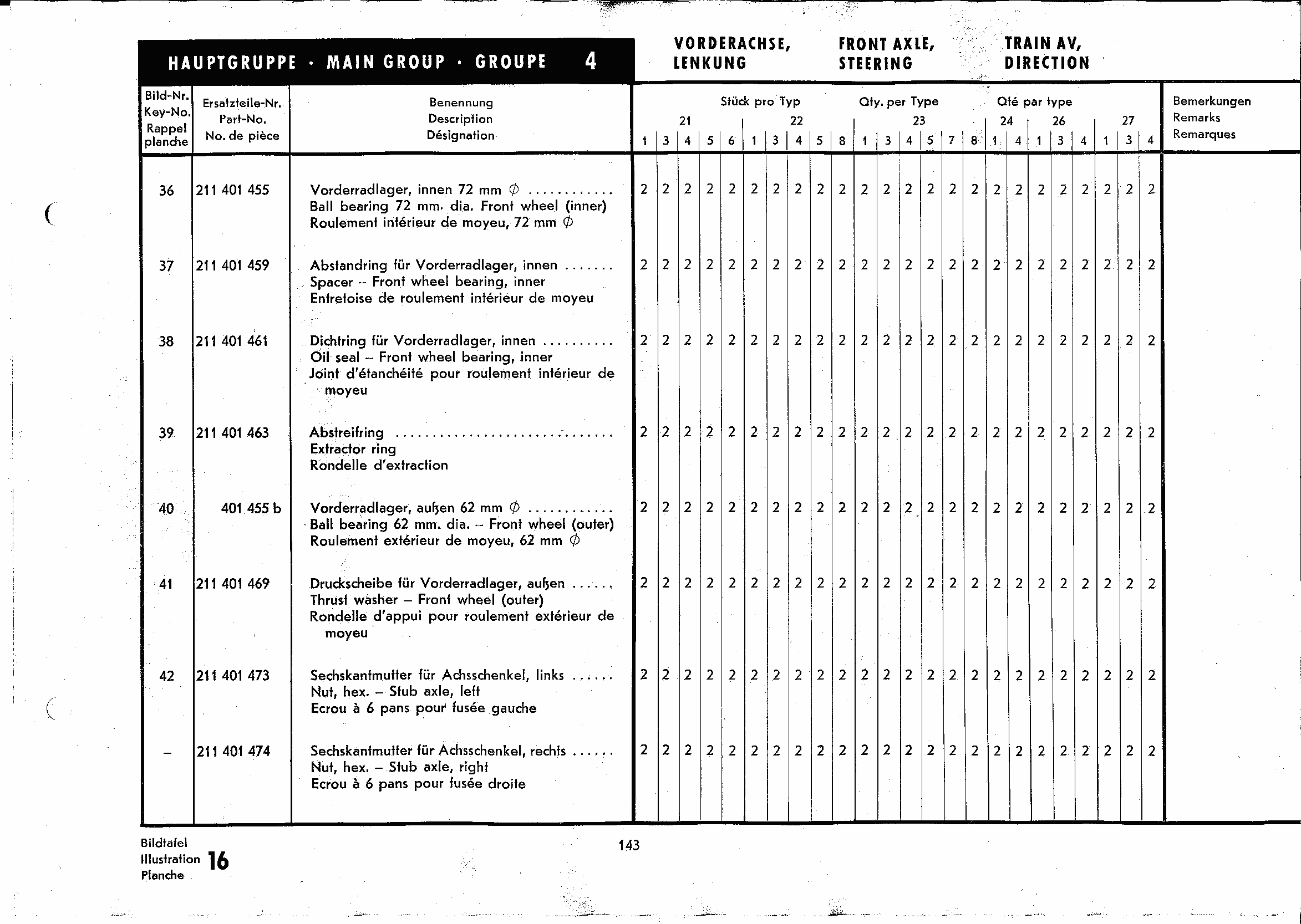

143 list Front axle

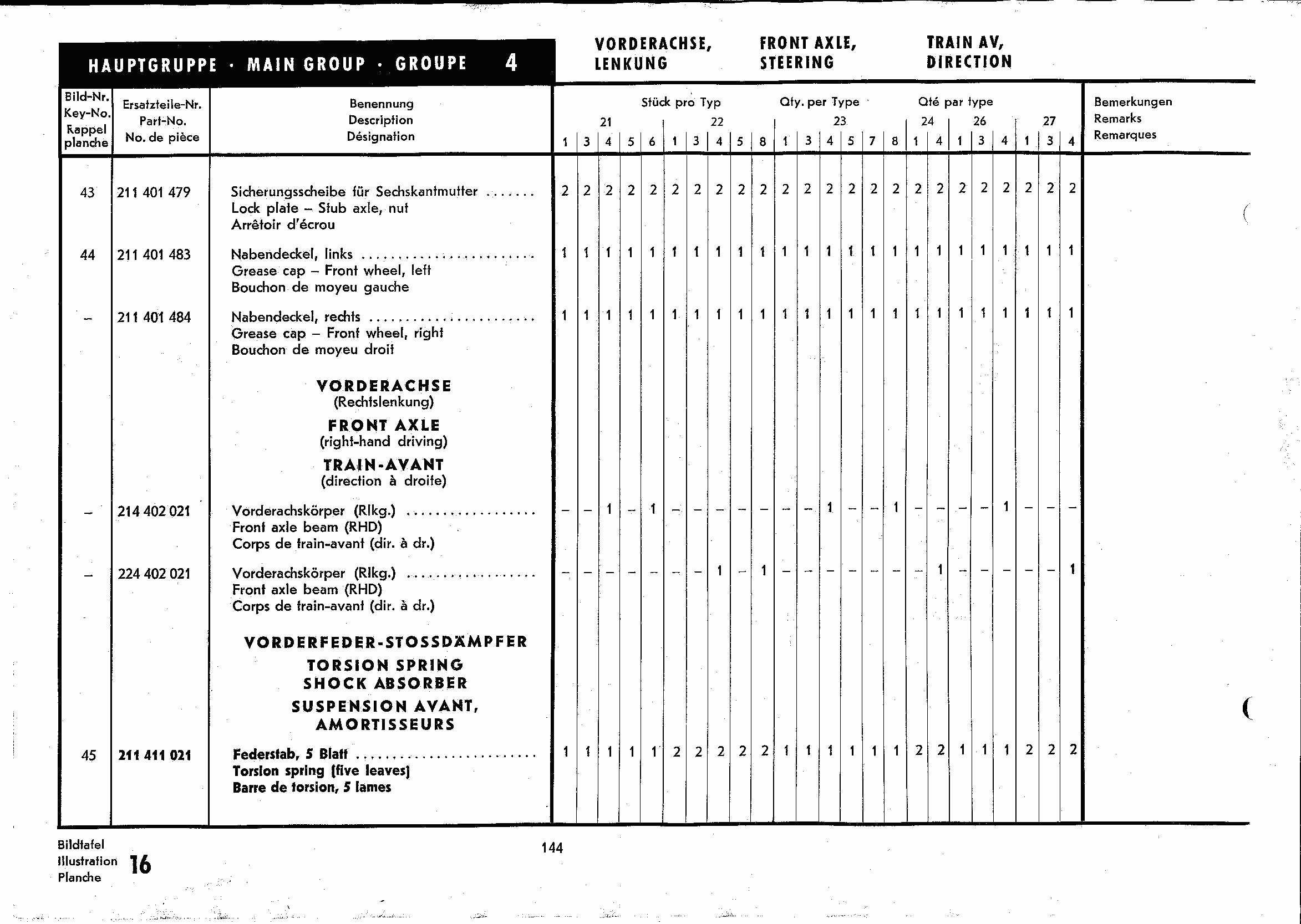

144 list Front axle, RHD front axle, torsion spring, shock absorber

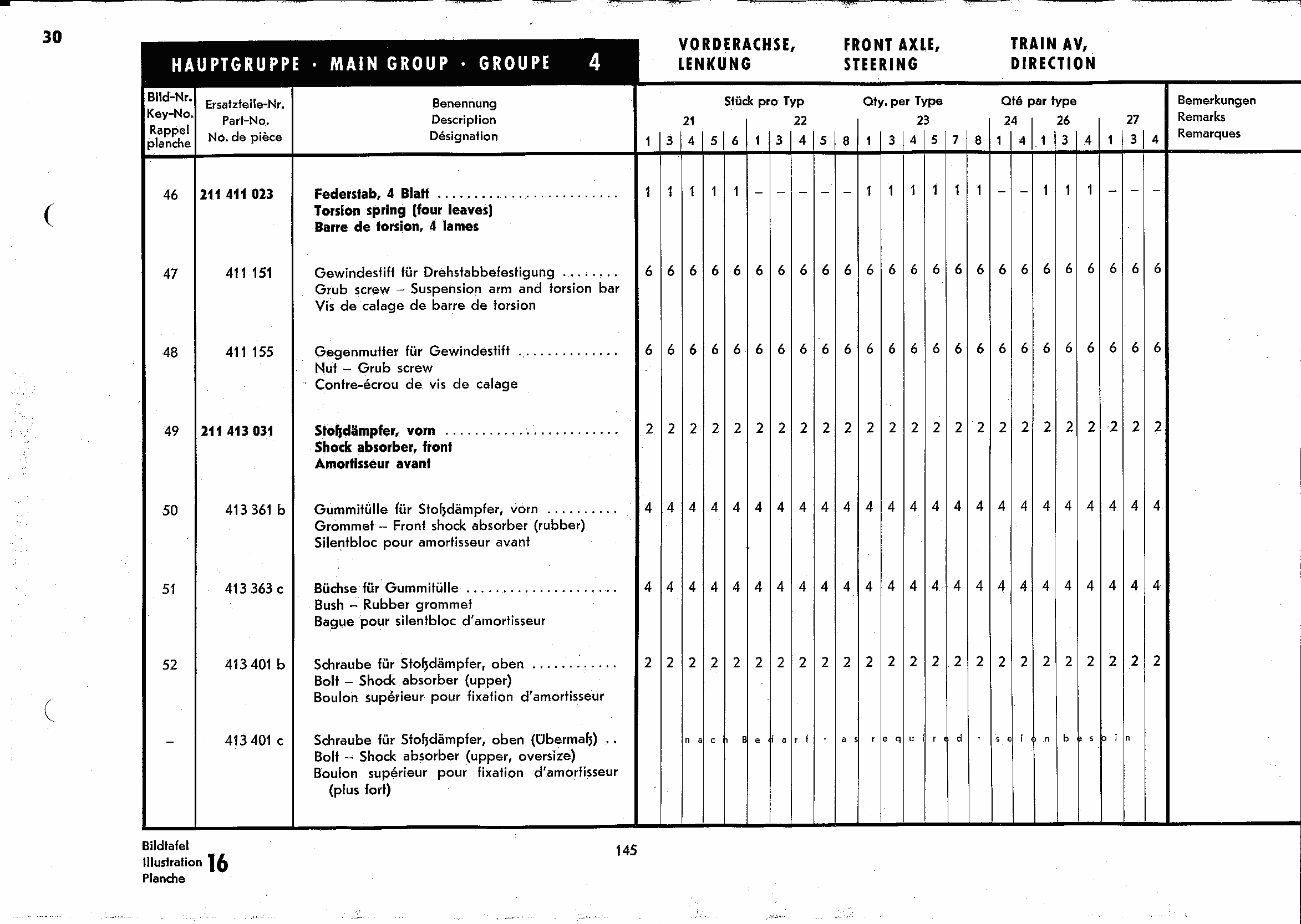

145 list Torsion spring, shock absorber

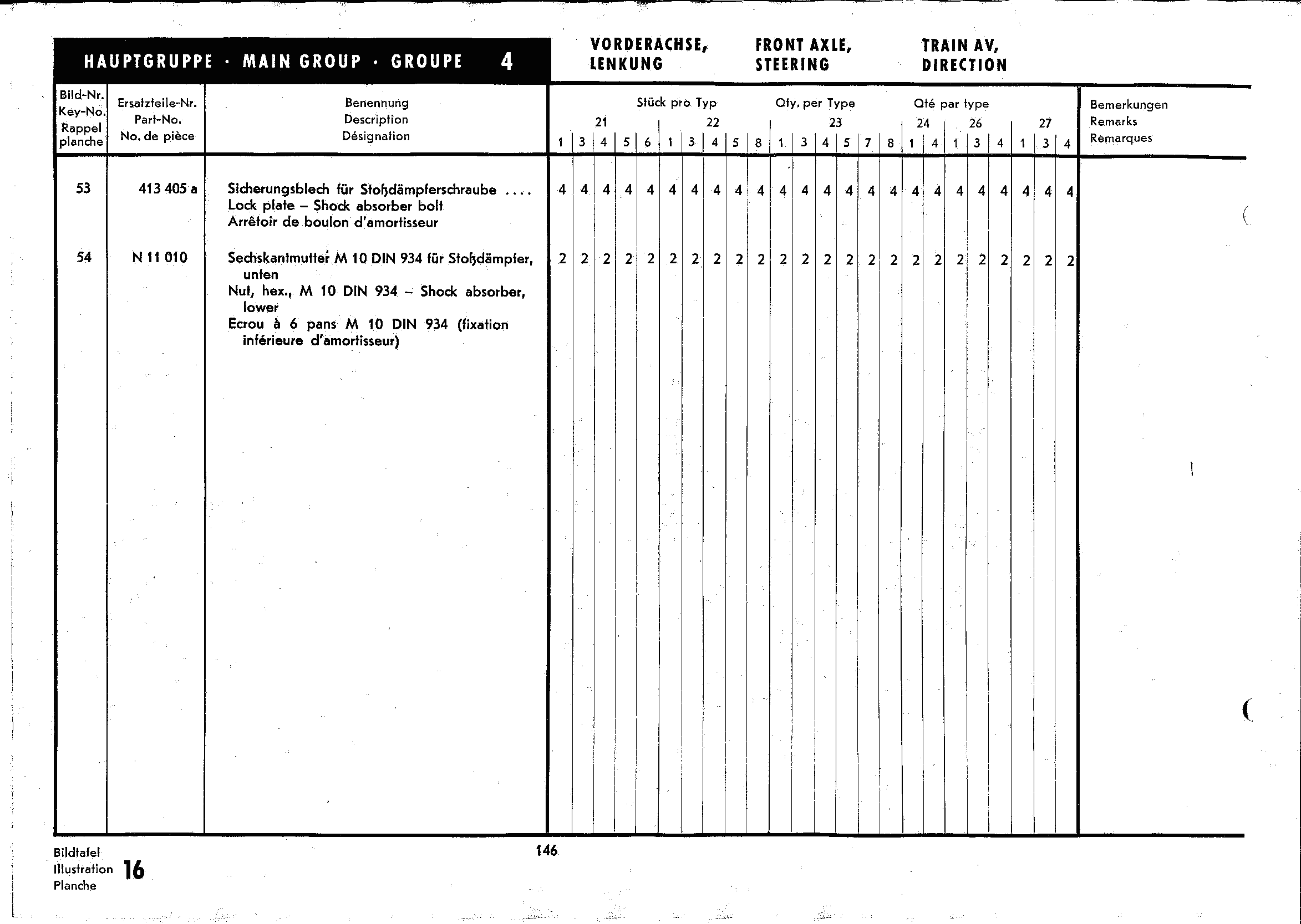

146 list Torsion spring, shock absorber

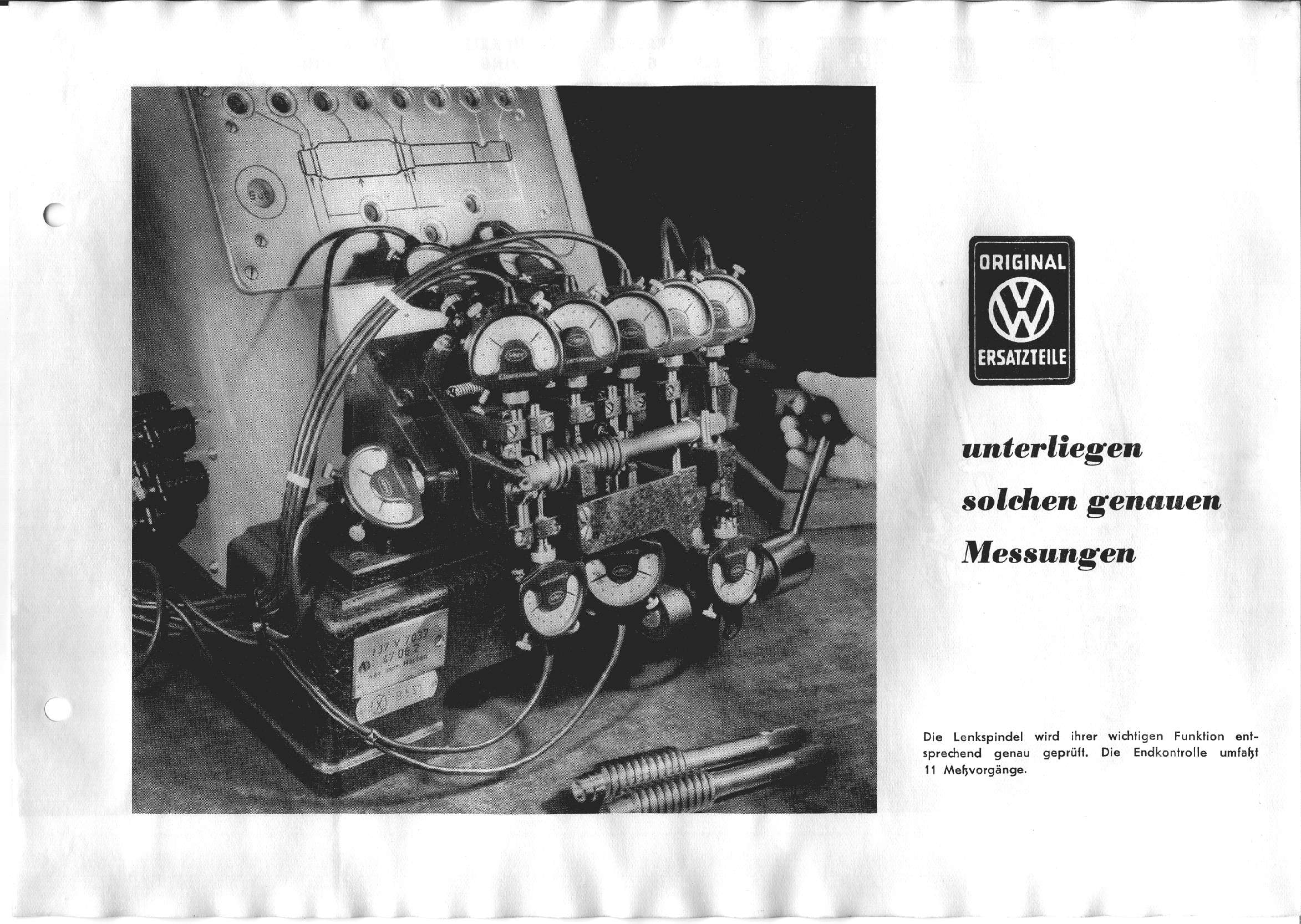

147 special unterliegen solchen genauen Messungen

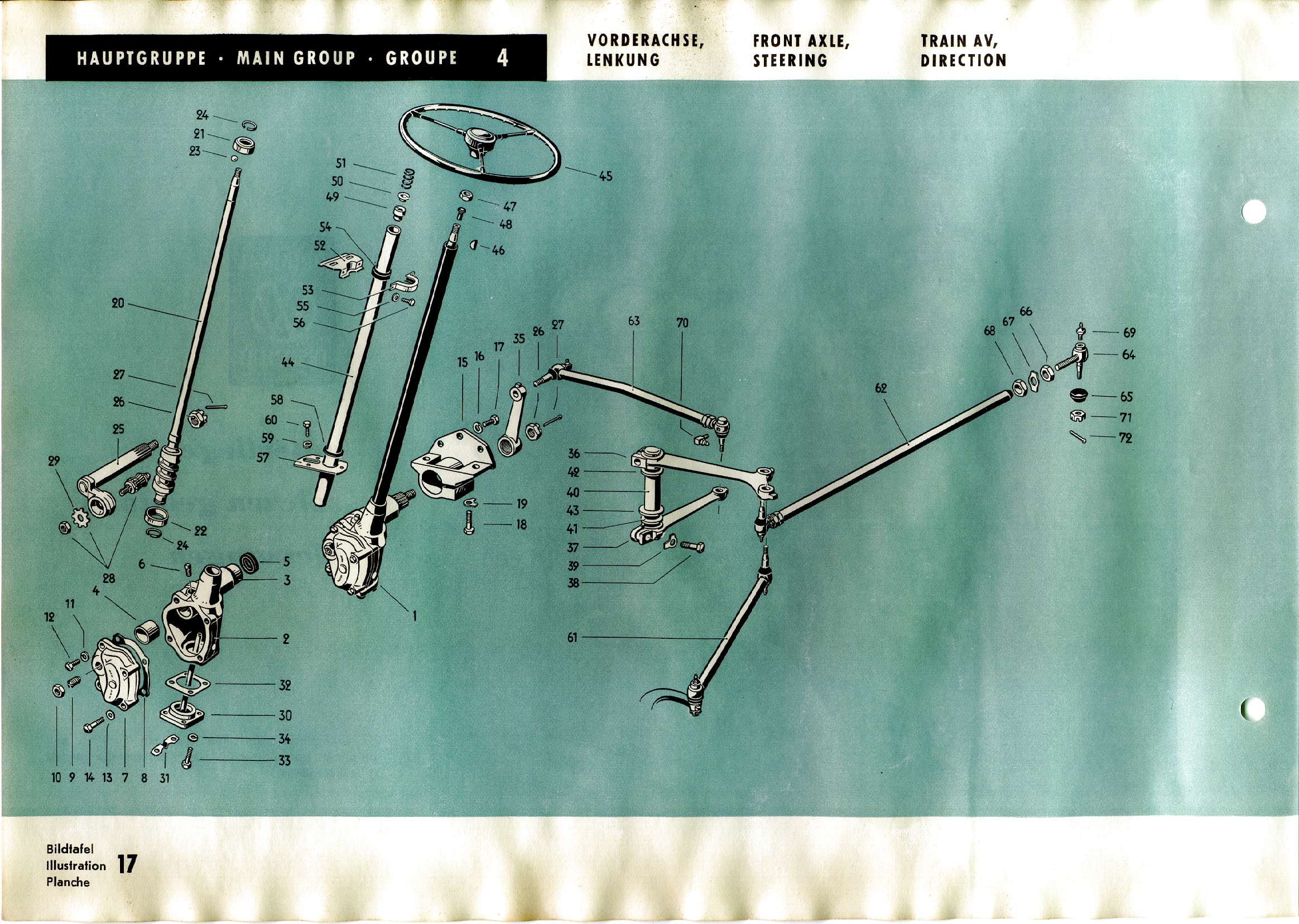

148 diagram Steering

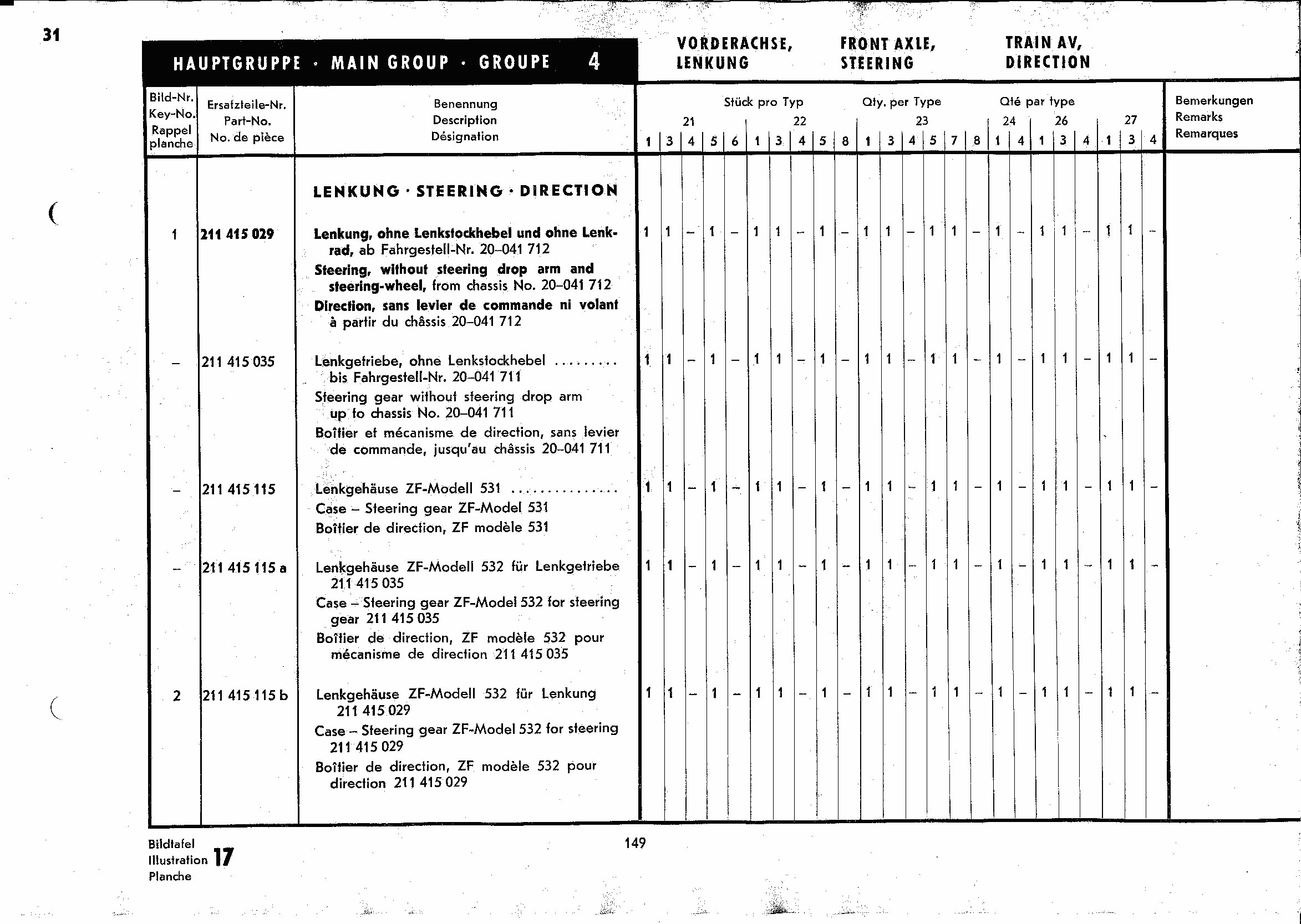

149 list Steering
150 list Steering

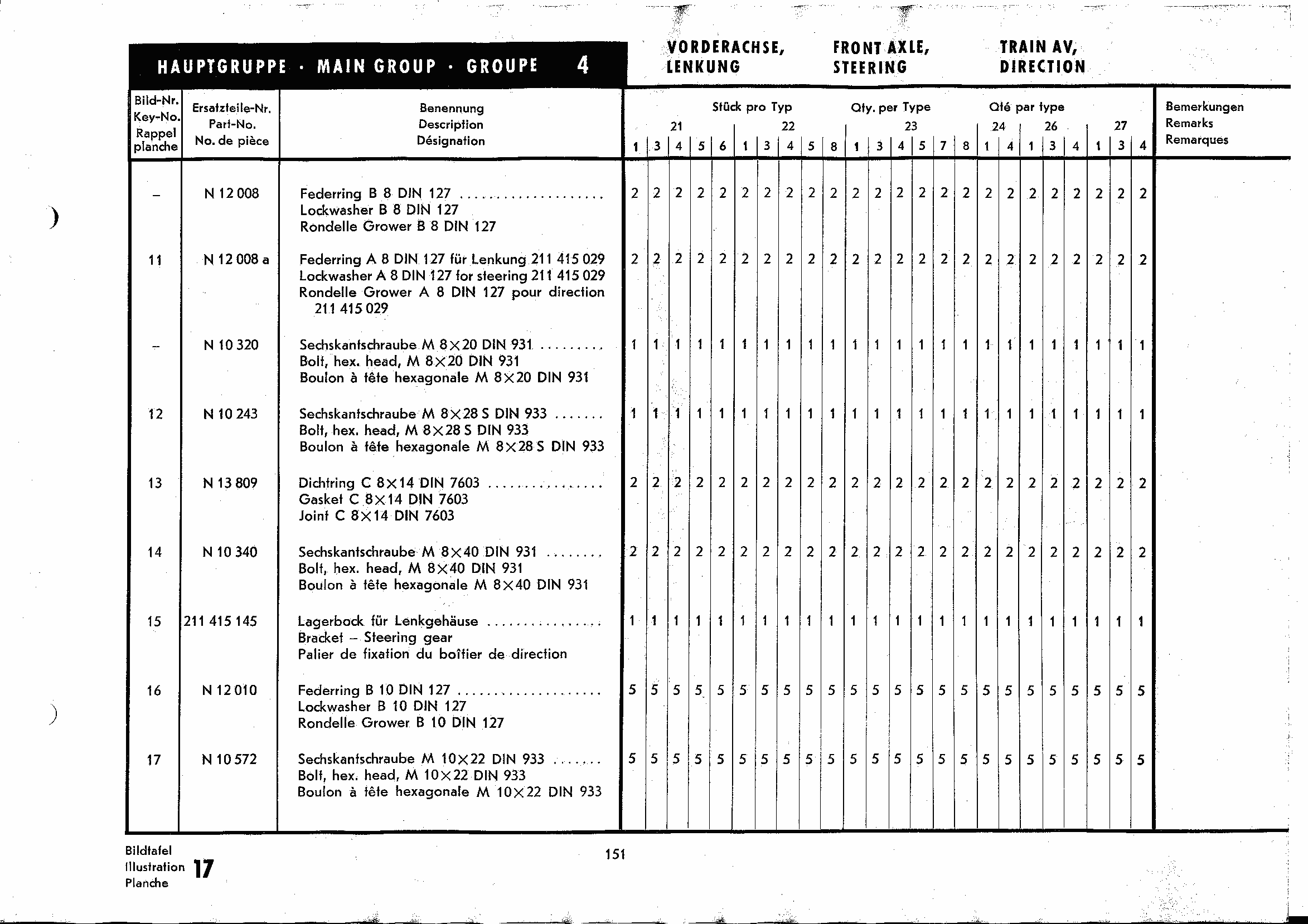

151 list Steering

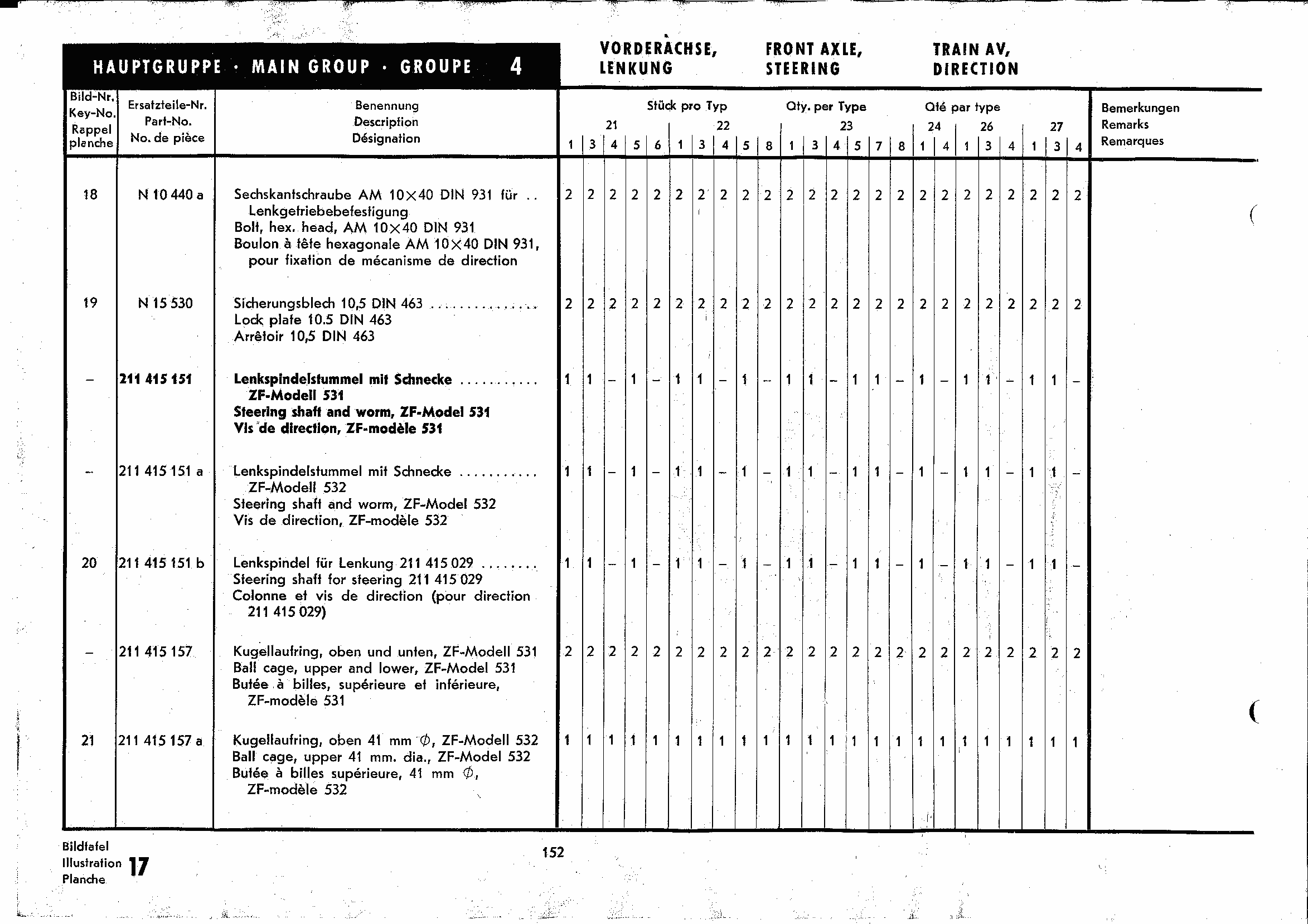

152 list Steering

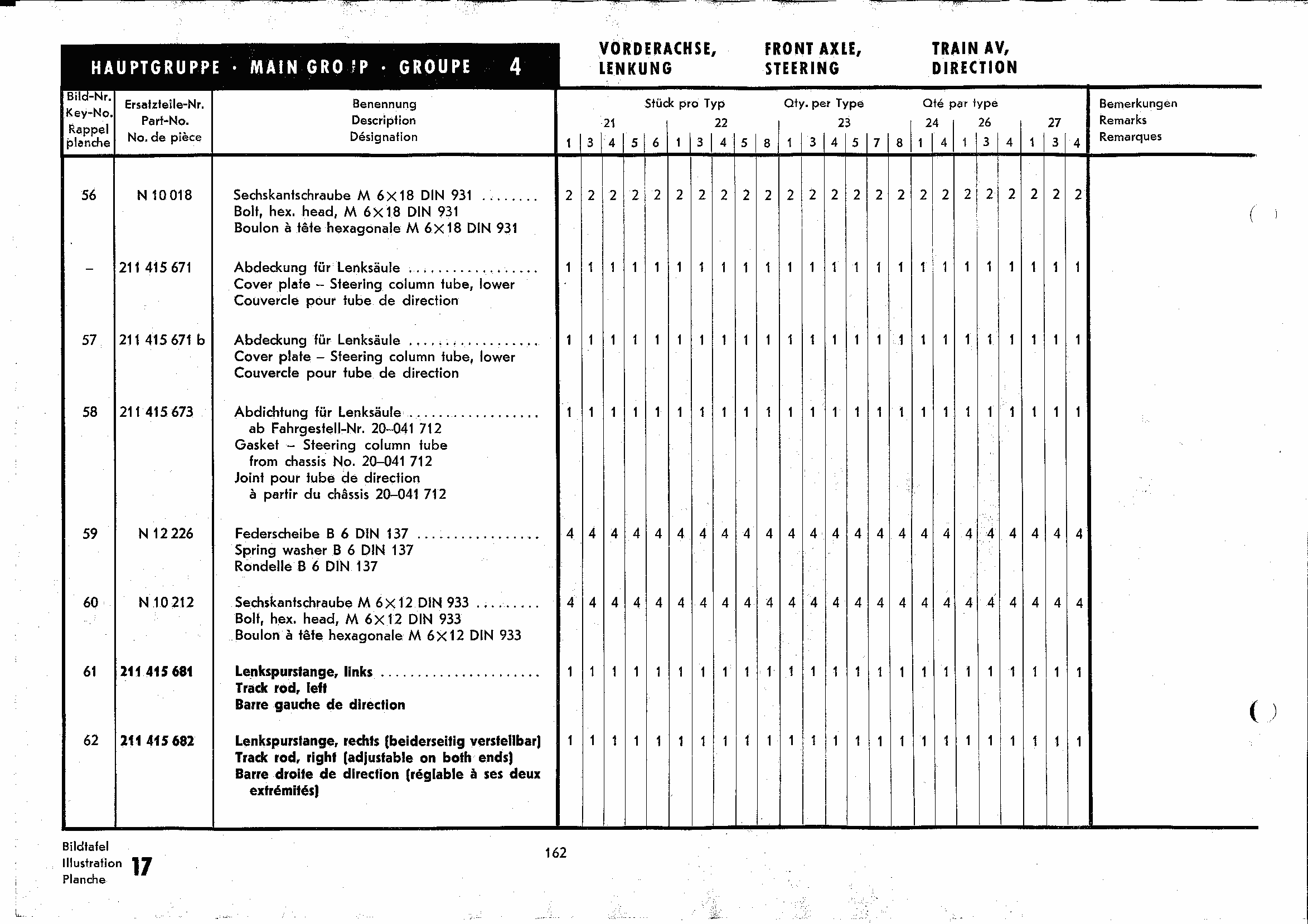

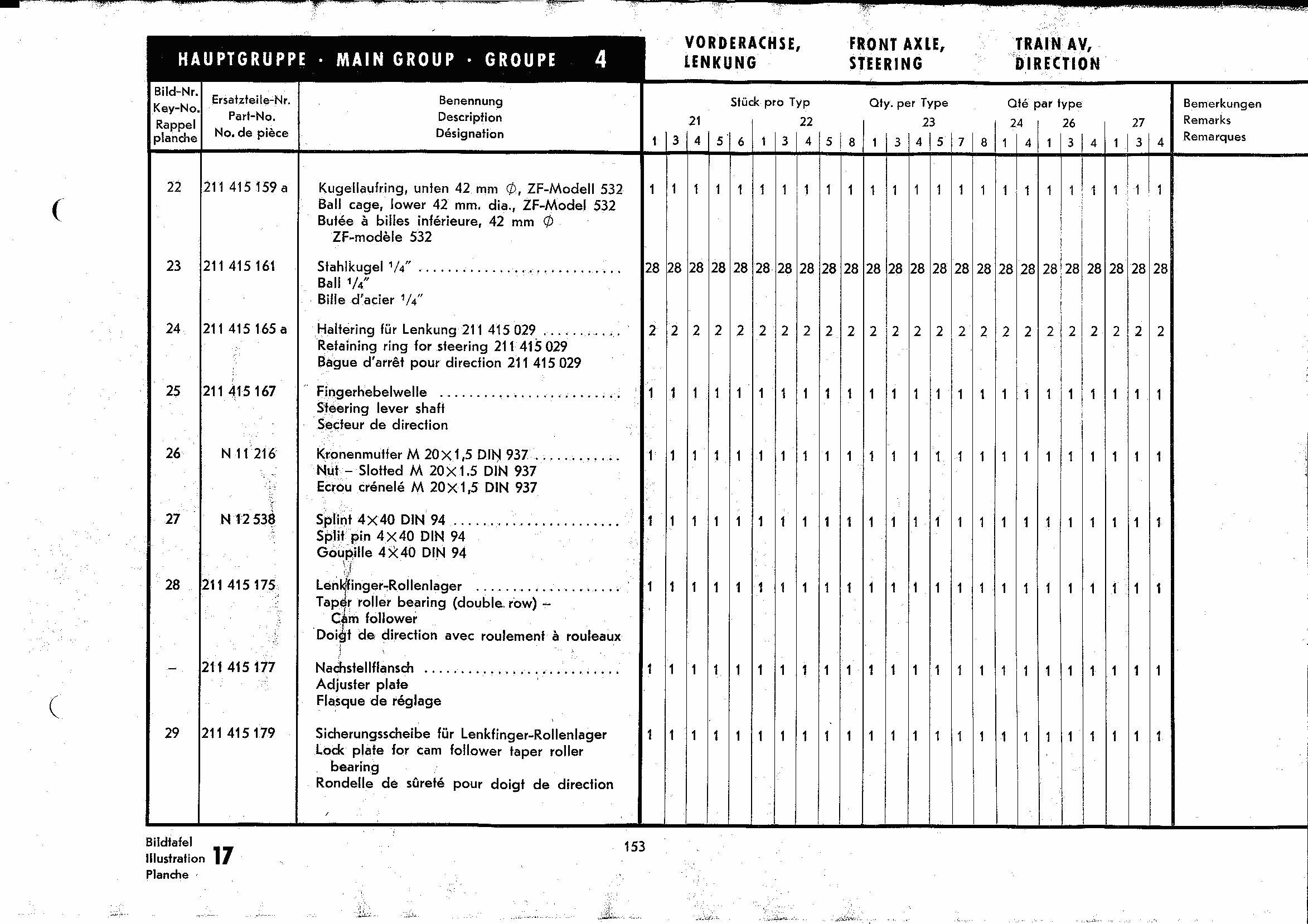

153 list Steering

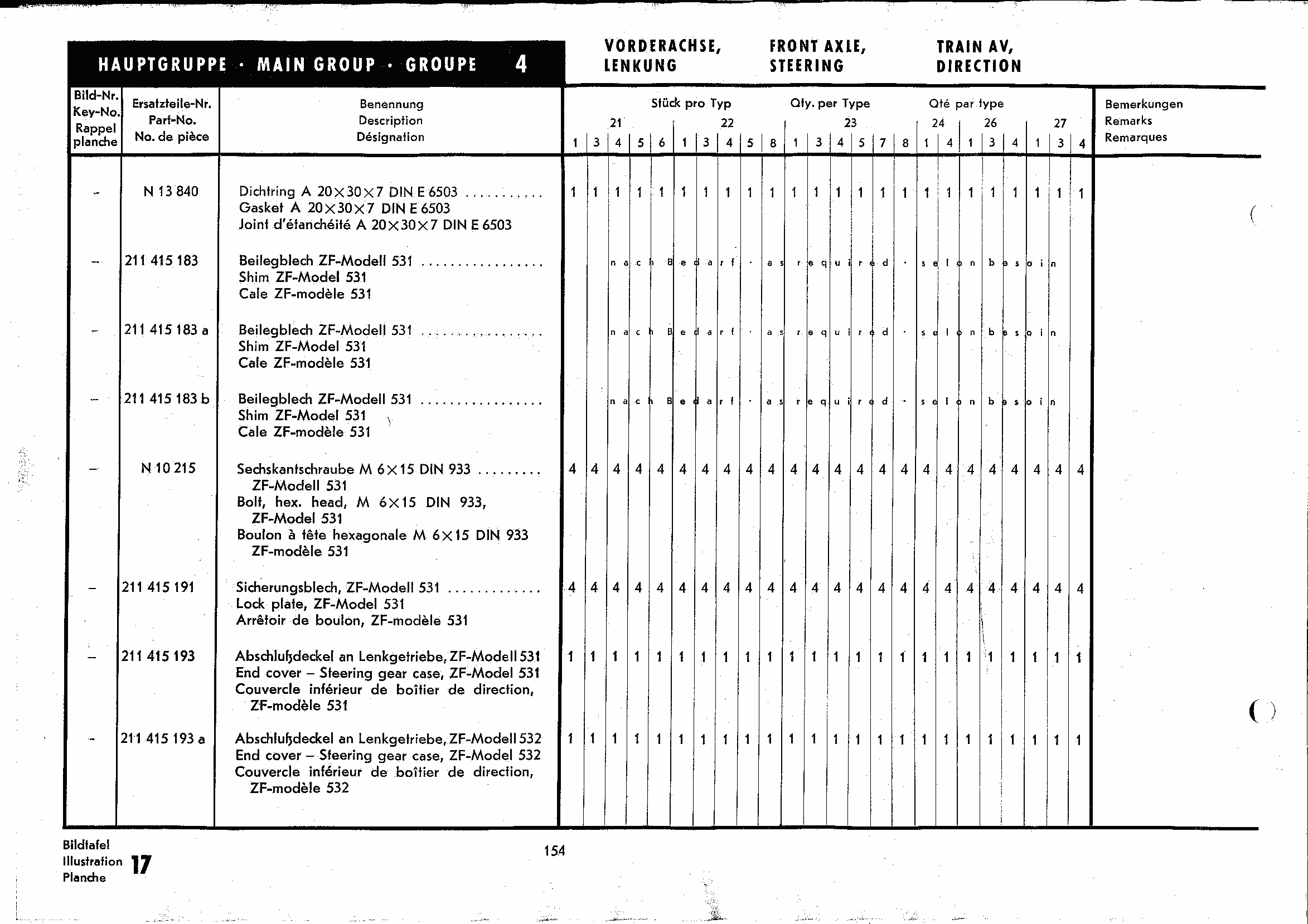

154 list Steering

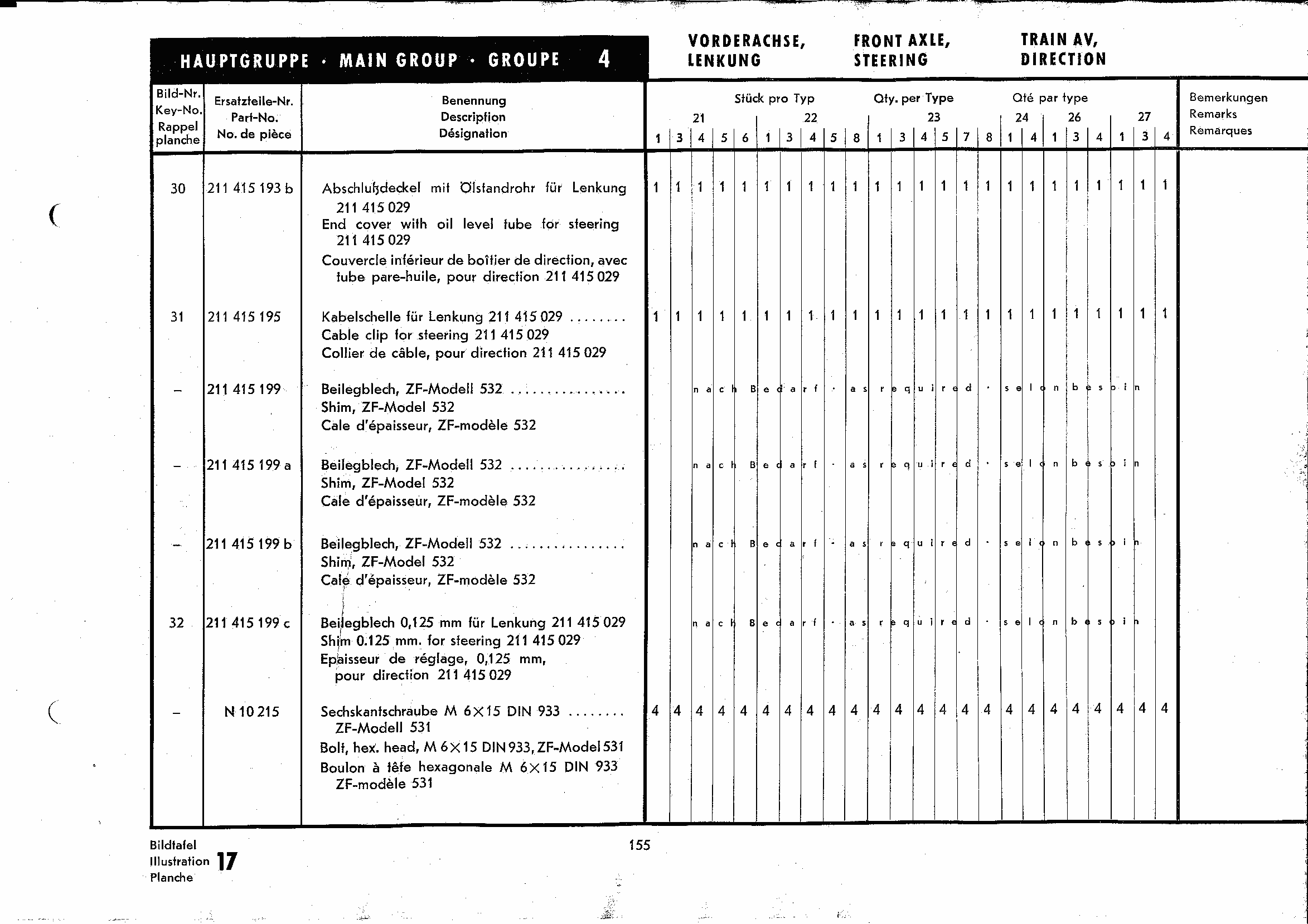

155 list Steering

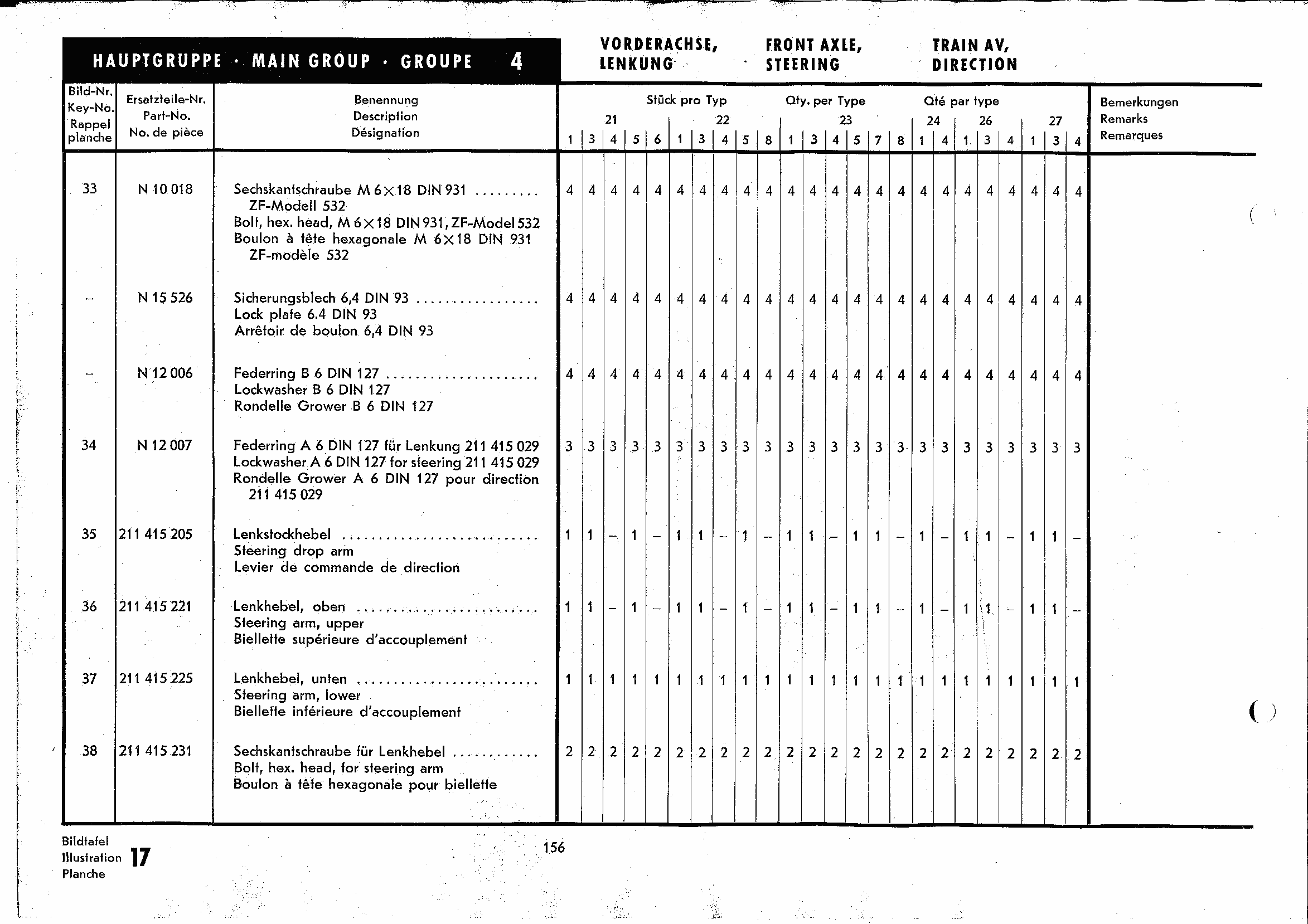

156 list Steering
157 list Steering

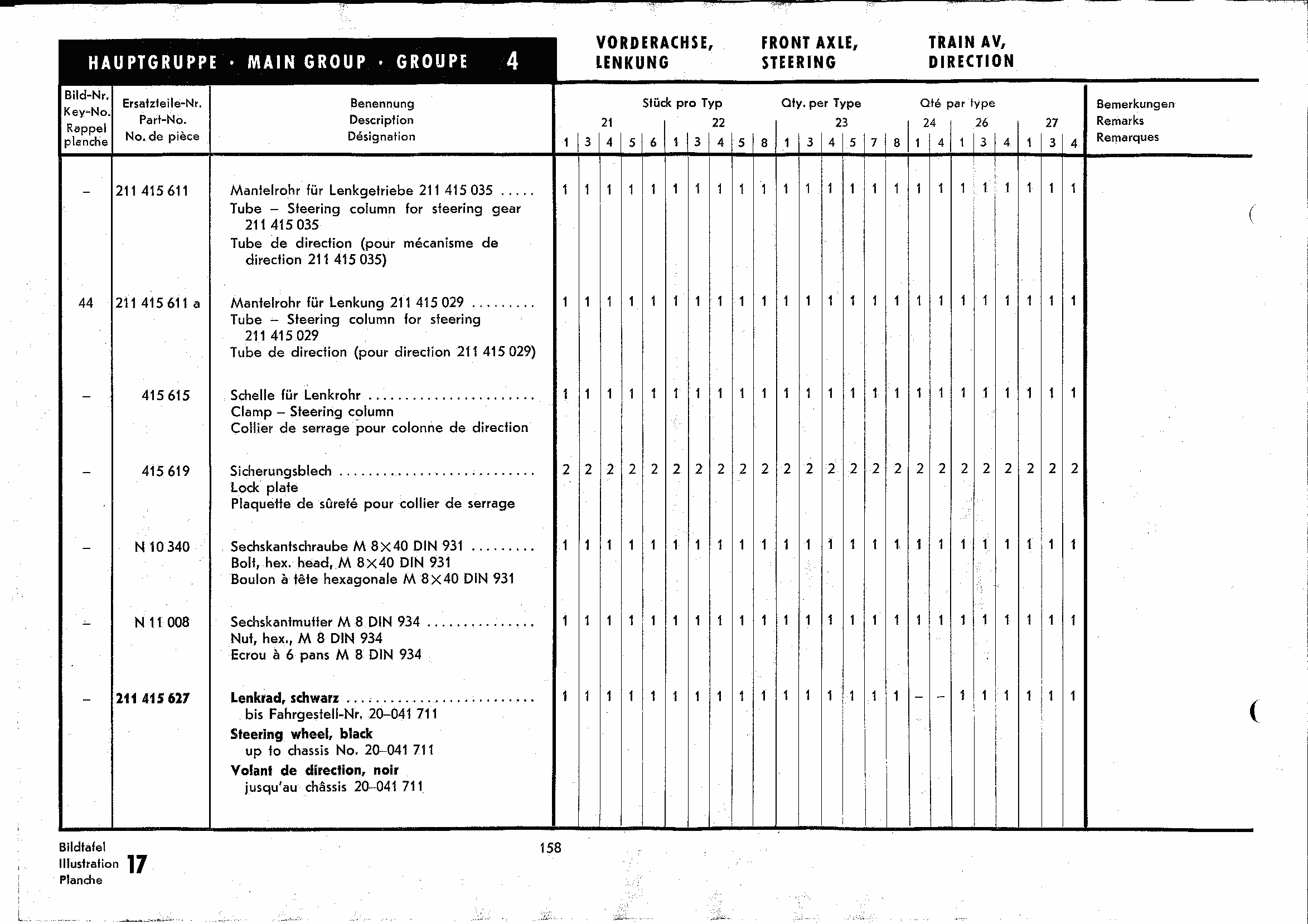

158 list Steering

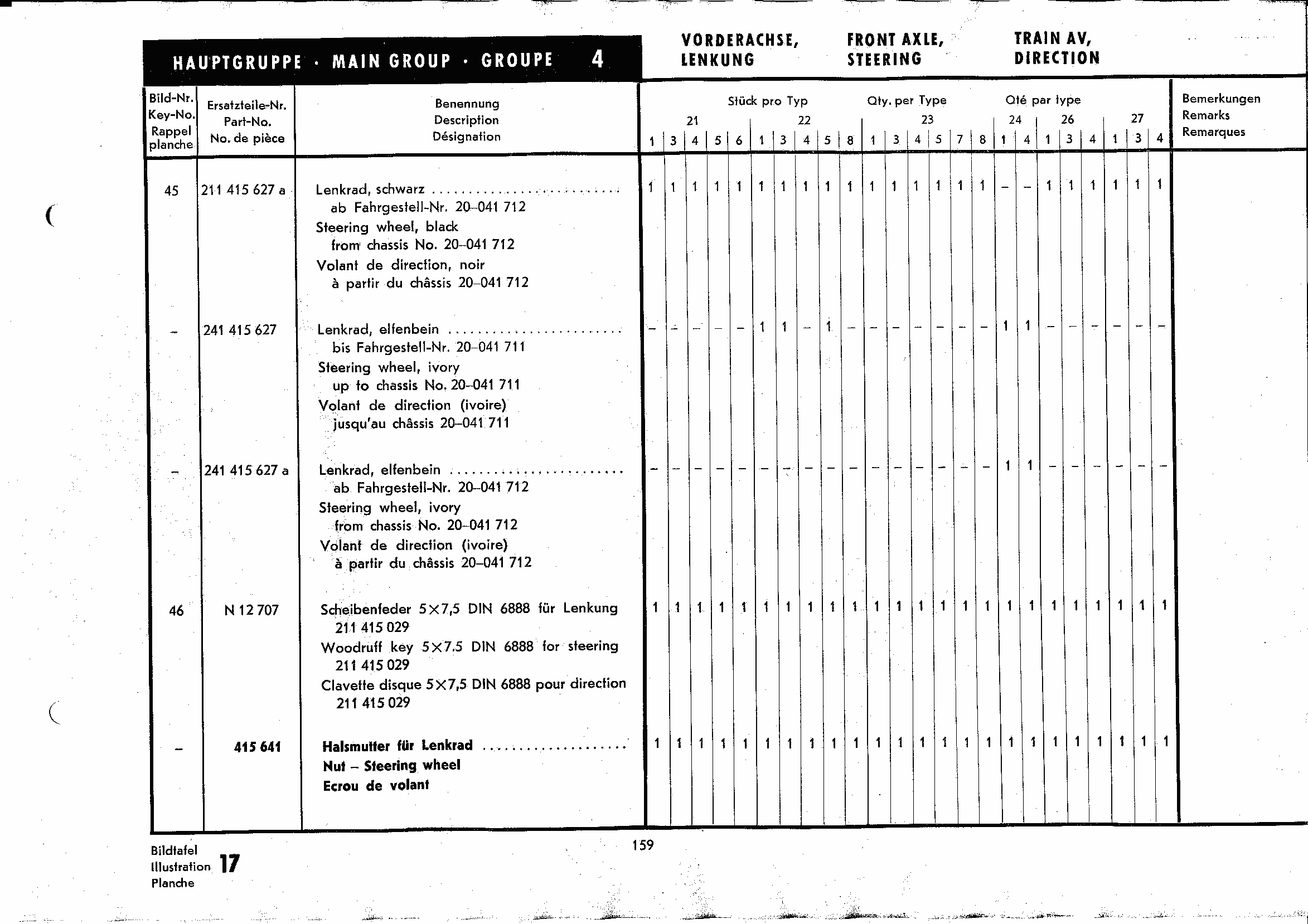

159 list Steering

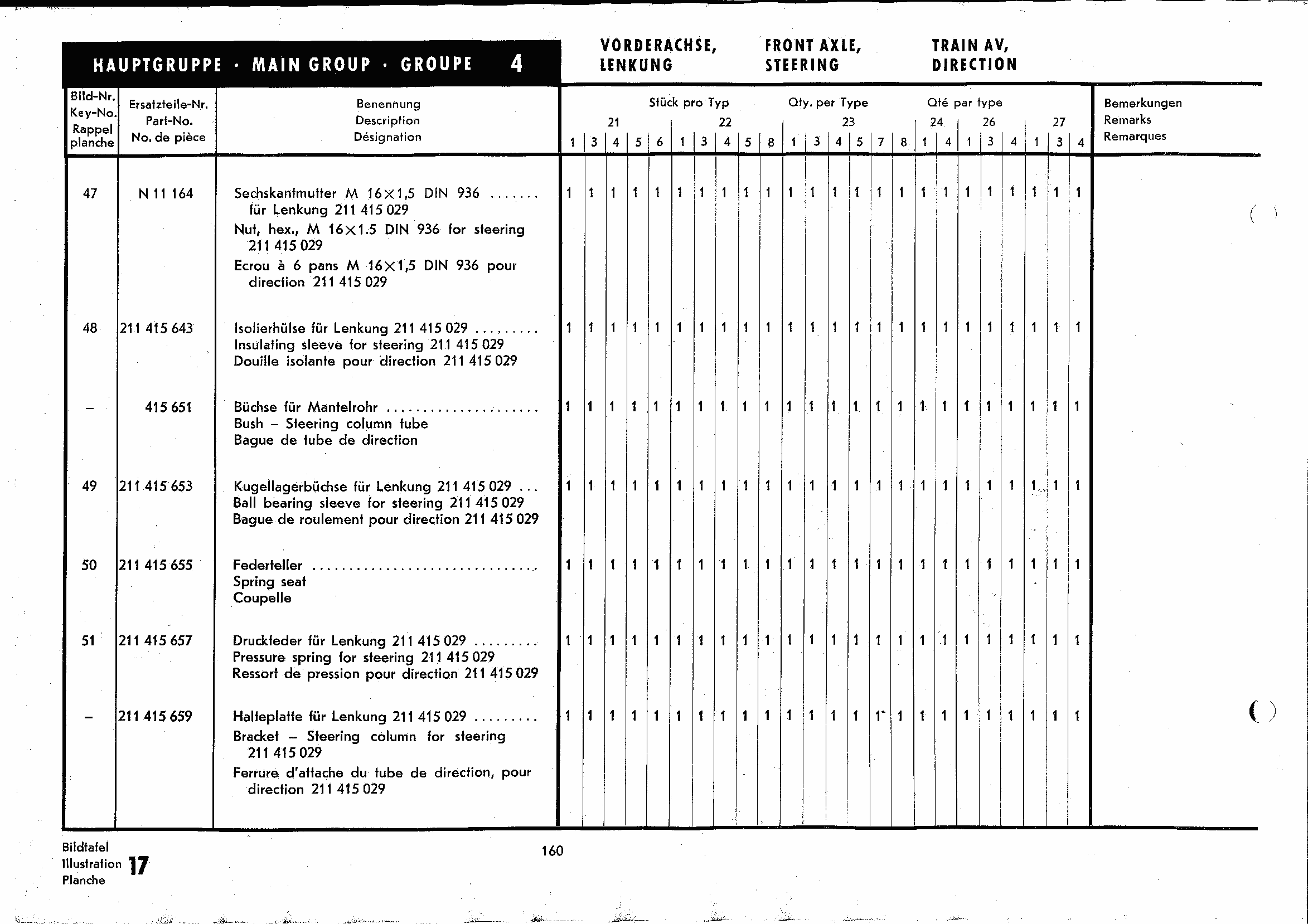

160 list Steering

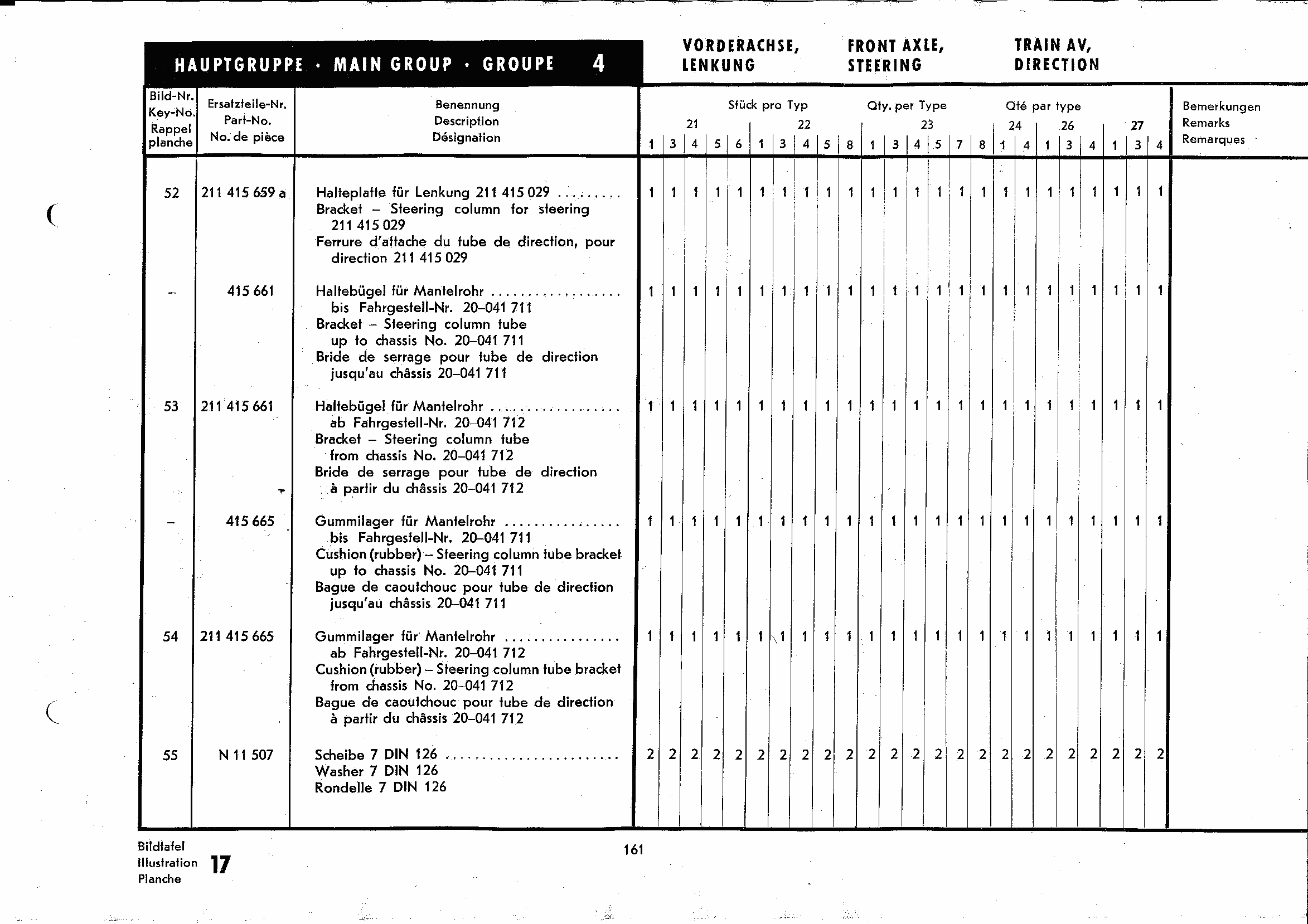

161 list Steering
162 list Steering

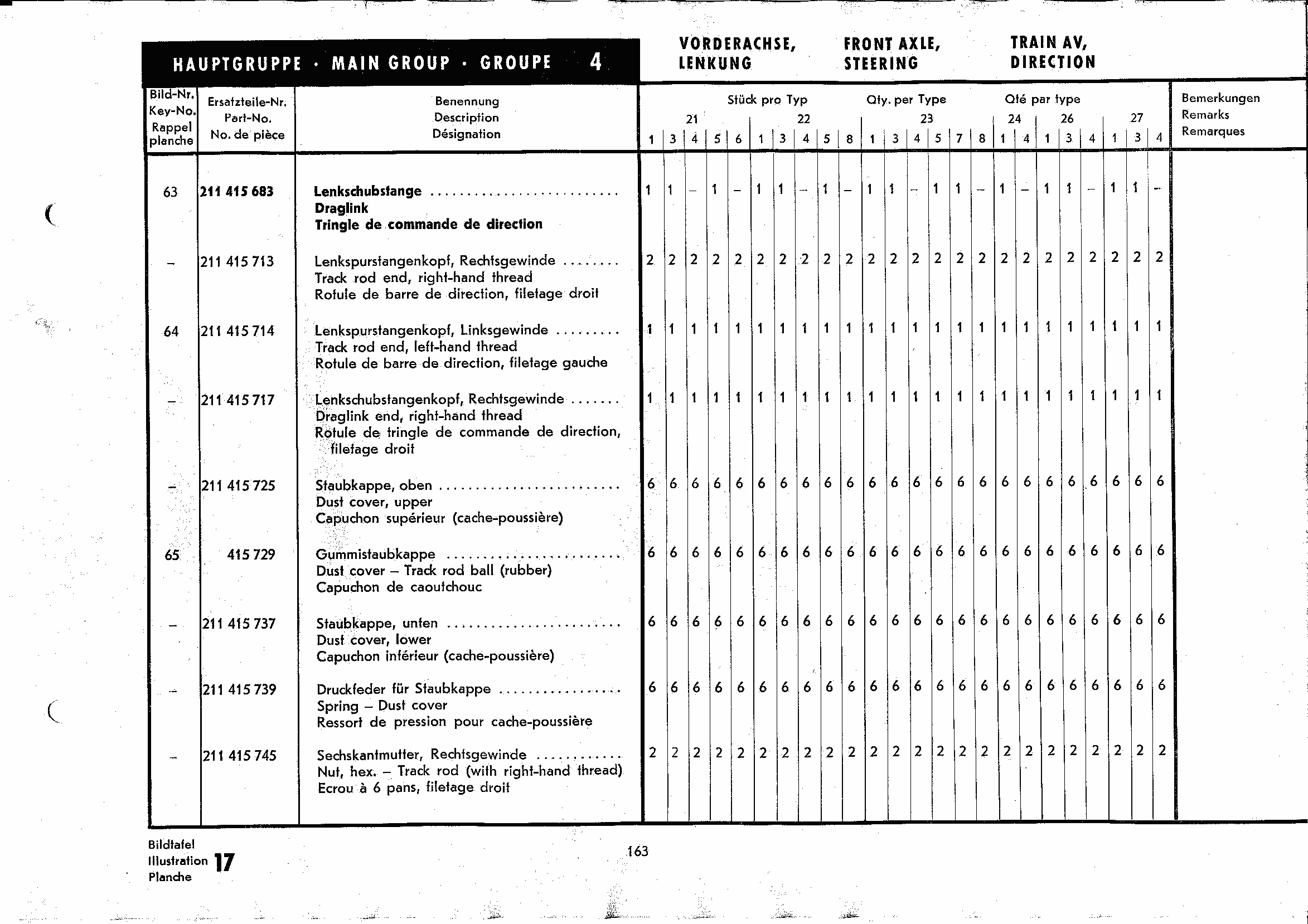

163 list Steering
164 list Steering
165 list Steering

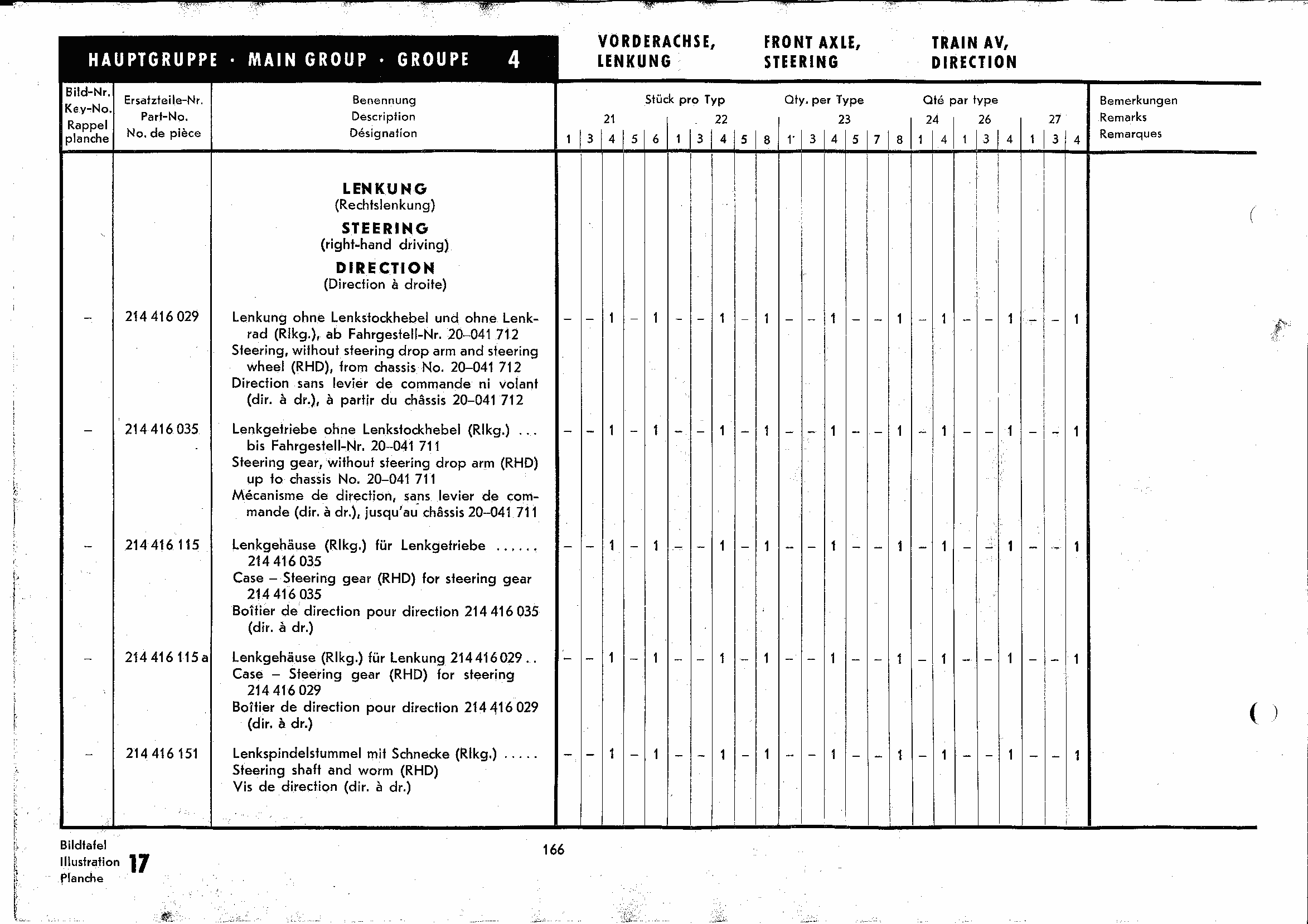

166 list Steering, RHD steering

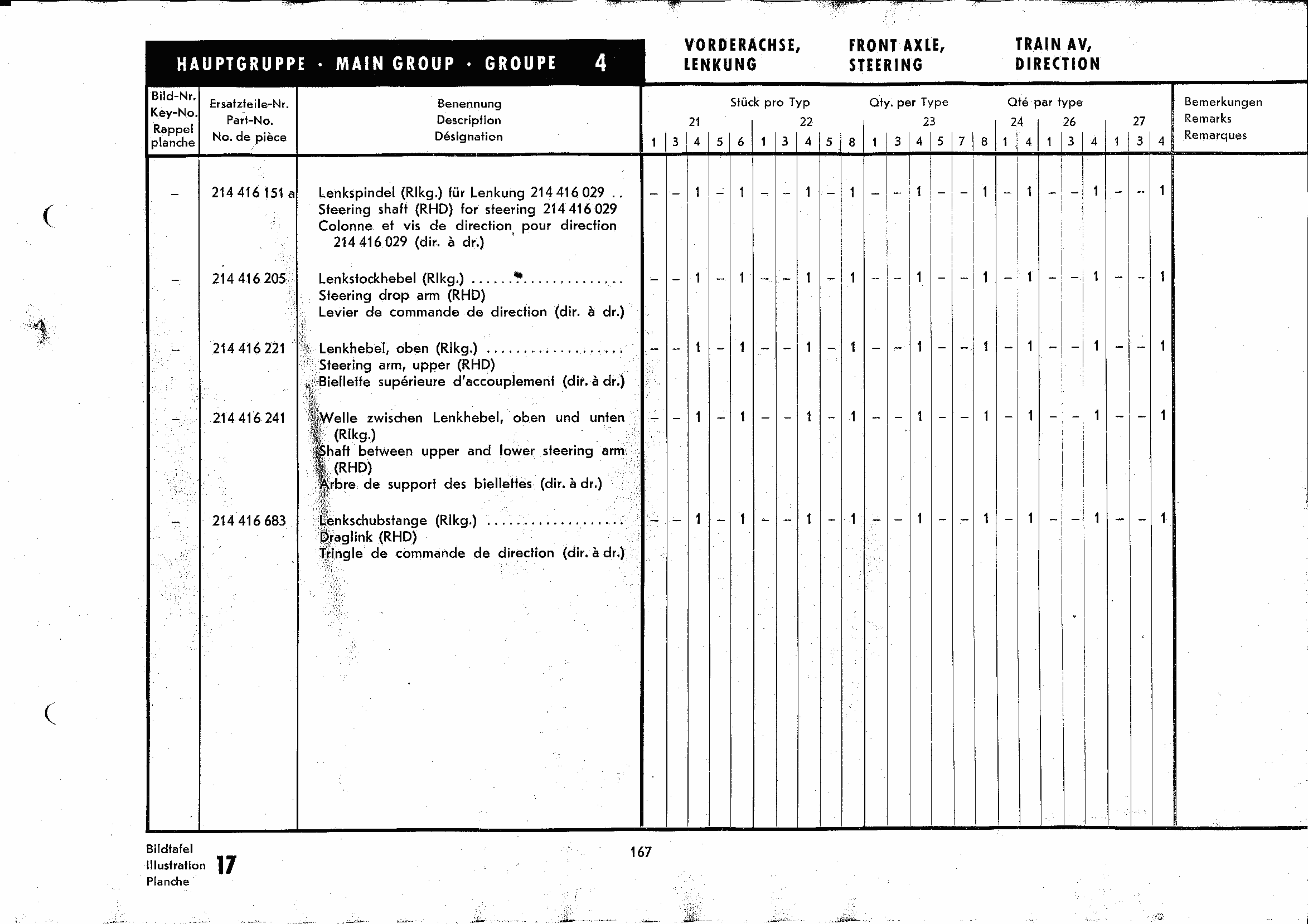

167 list RHD steering

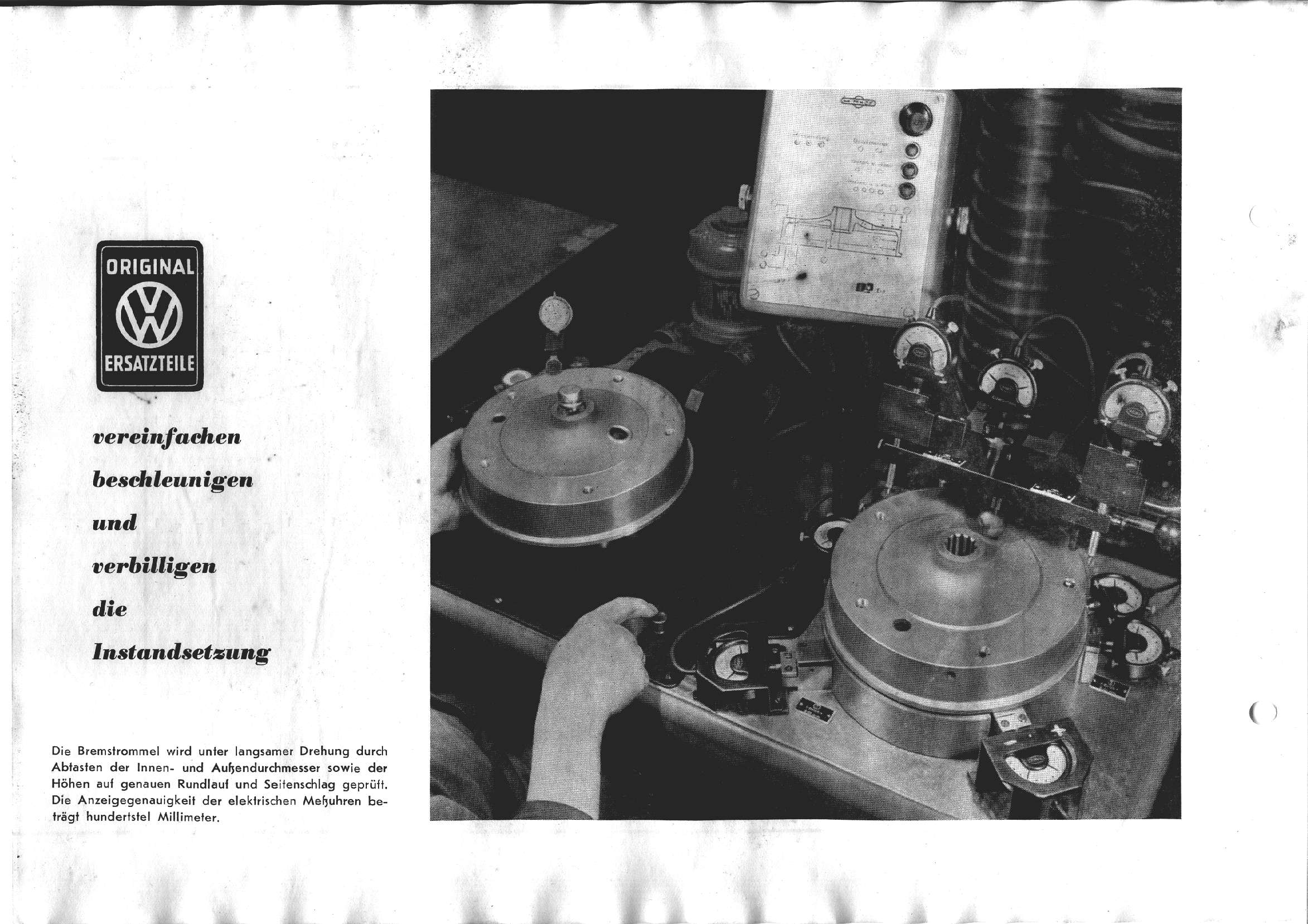

168 special vereinfachen beschleunigen und verbilligen die Instandsetzung

Main Group 5: Rear Axle

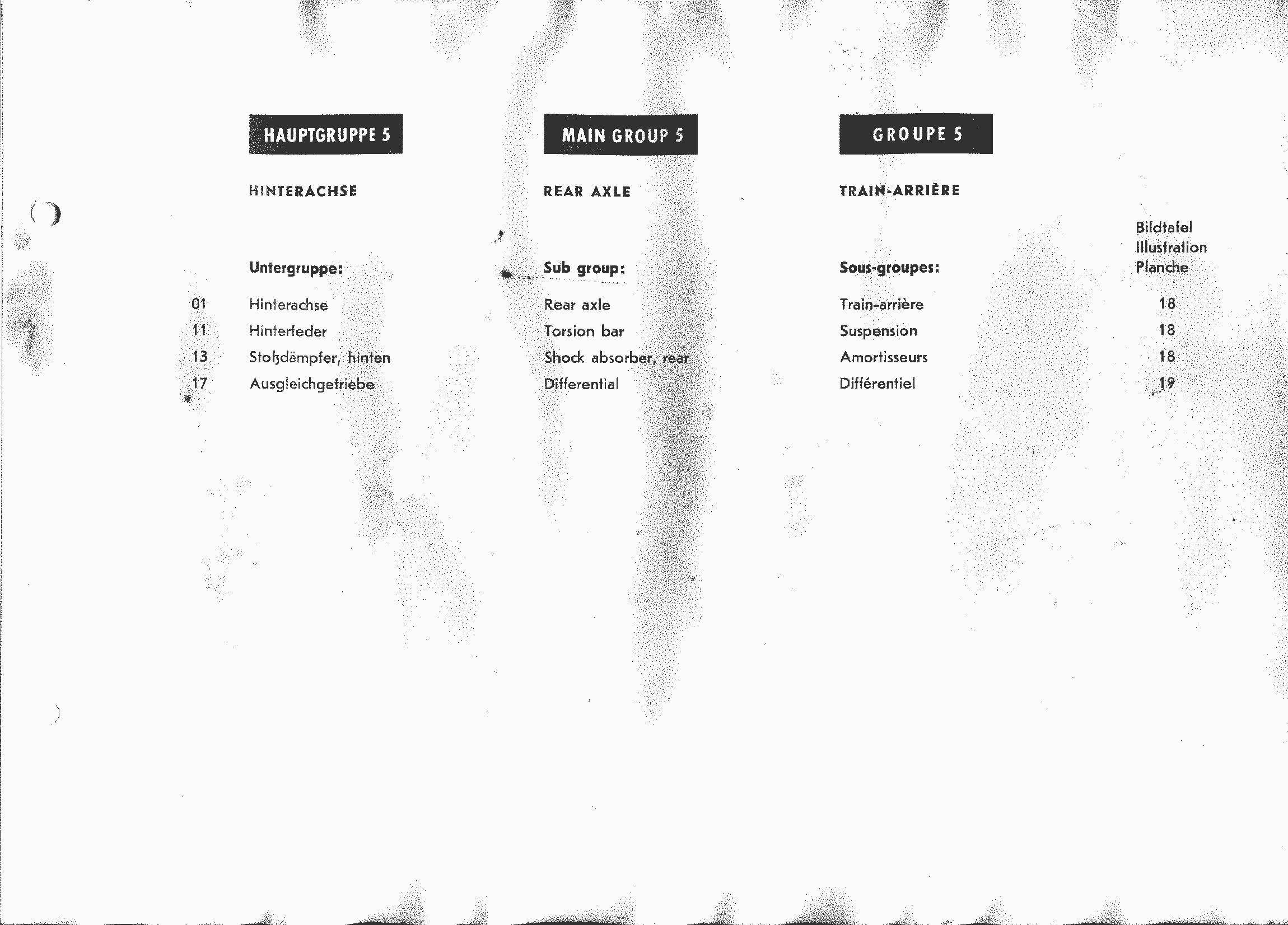

169 list Main Group 5 index

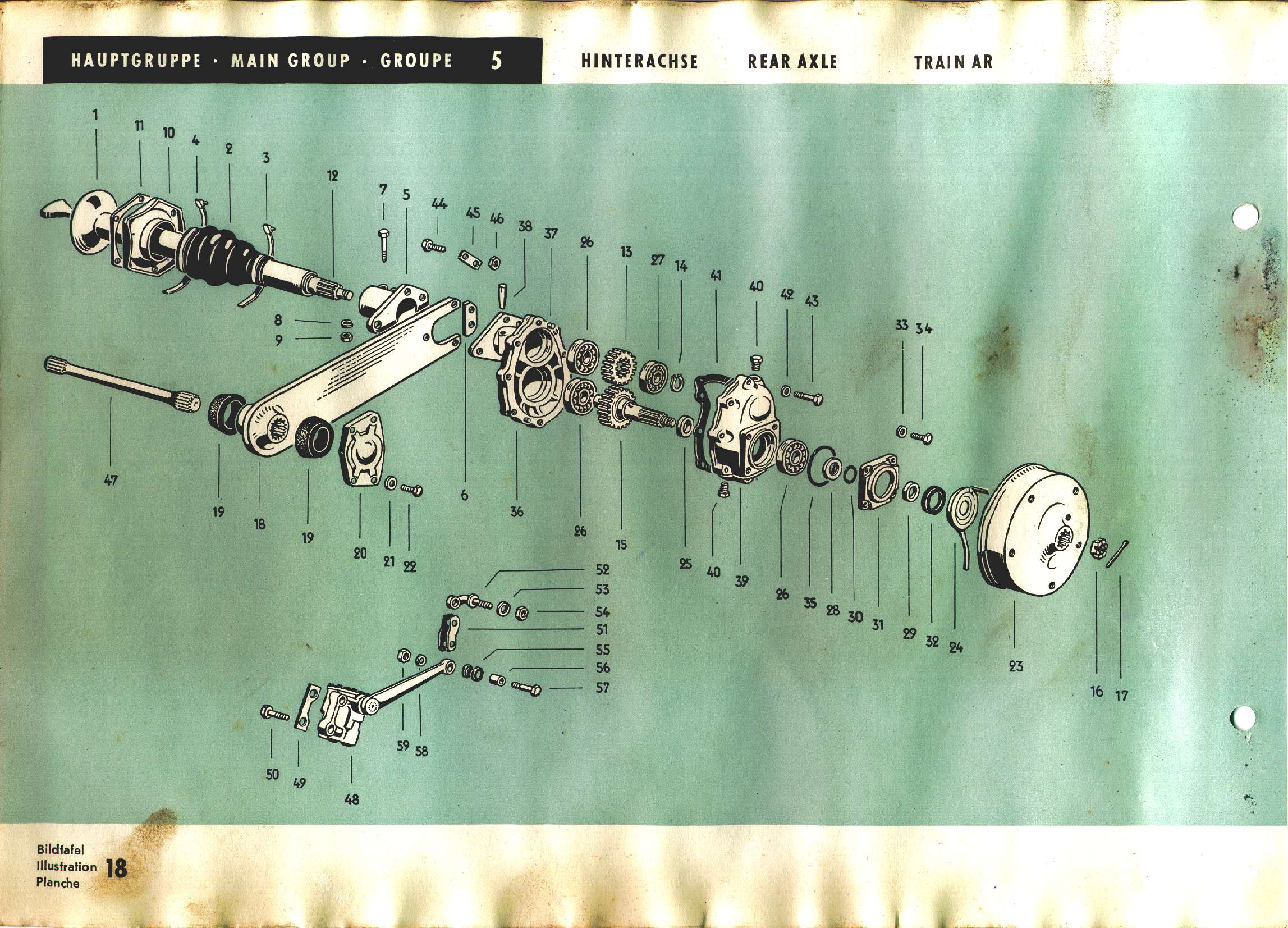

170 diagram Rear axle

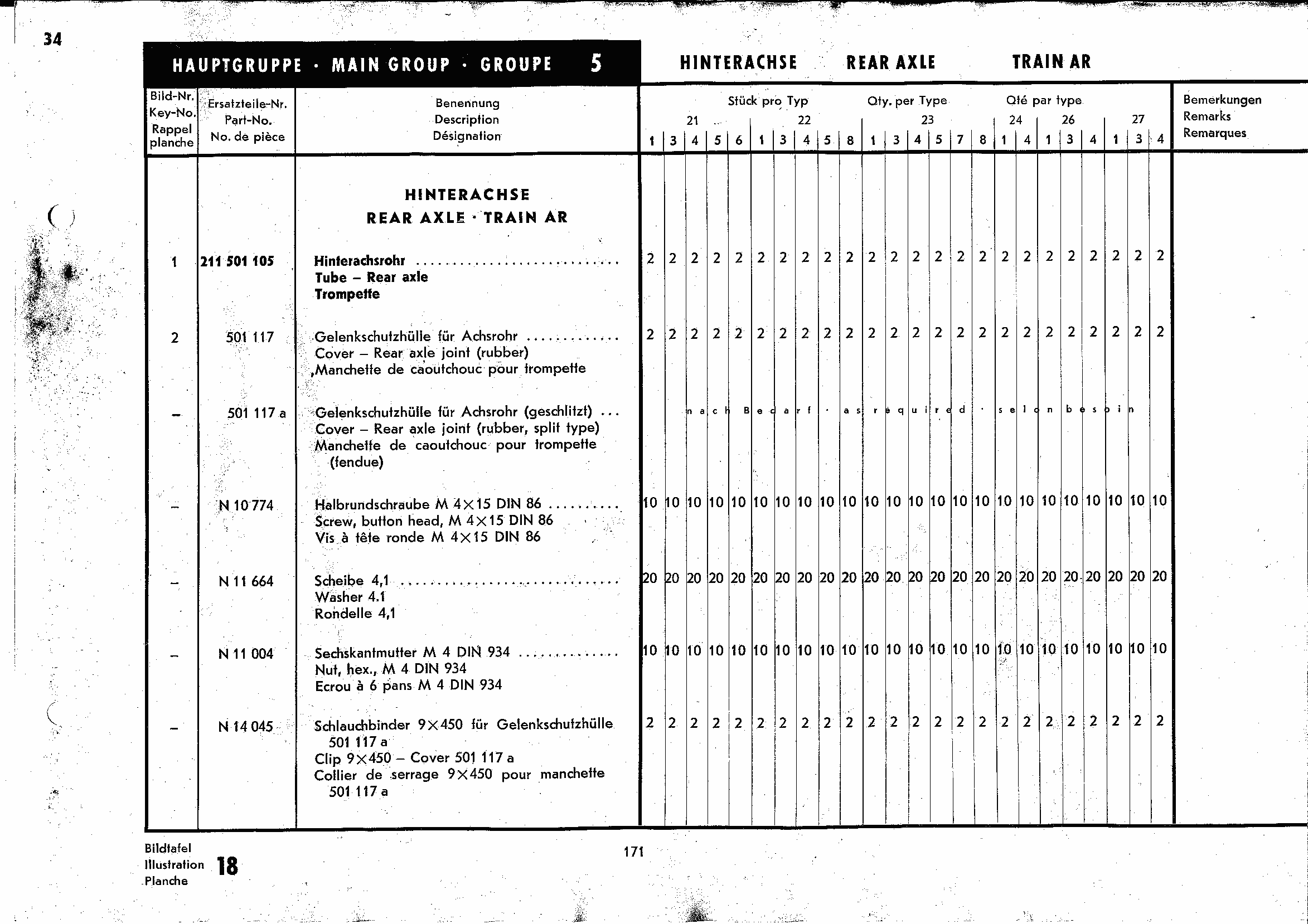

171 list Rear axle

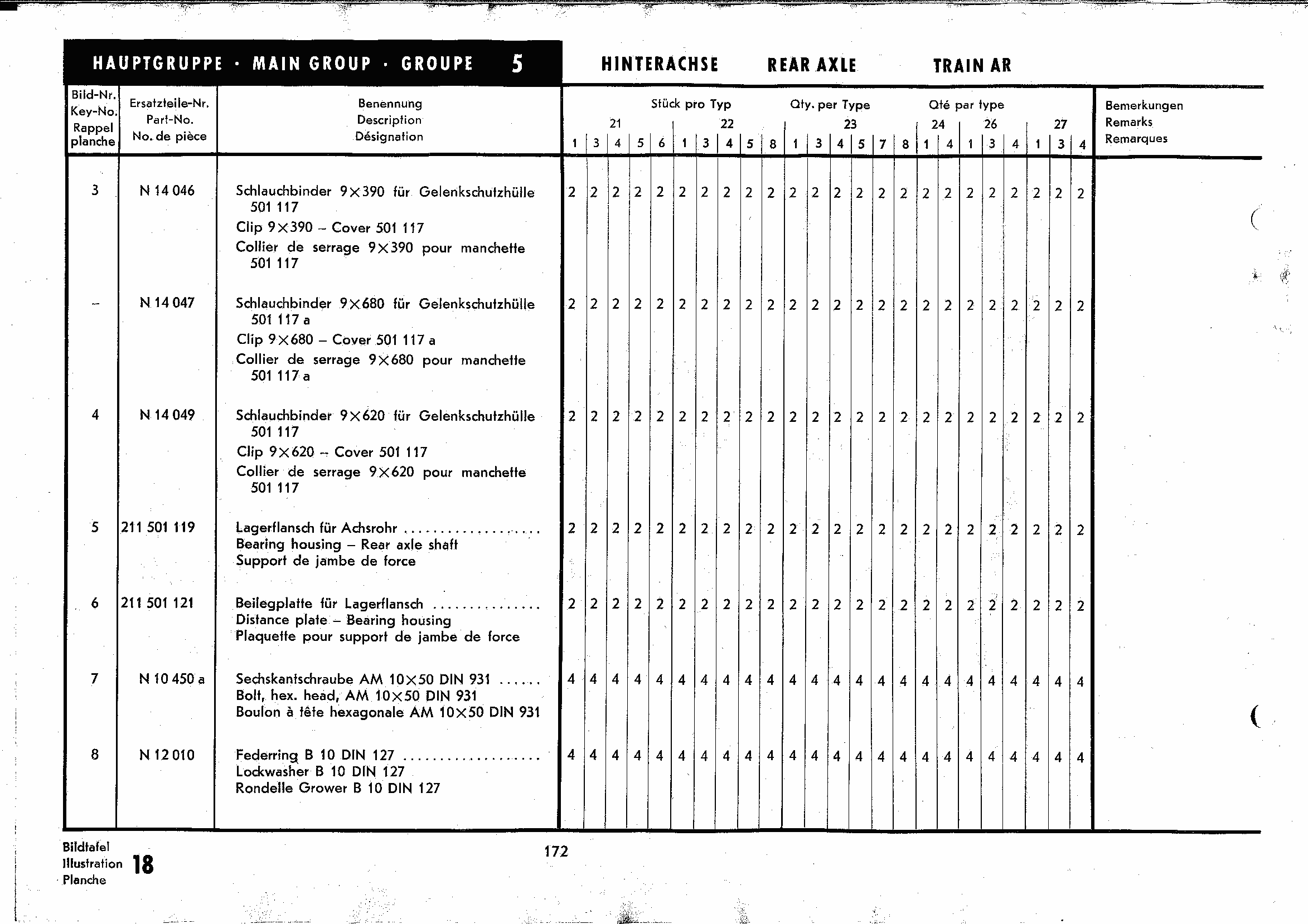

172 list Rear axle
173 list Rear axle

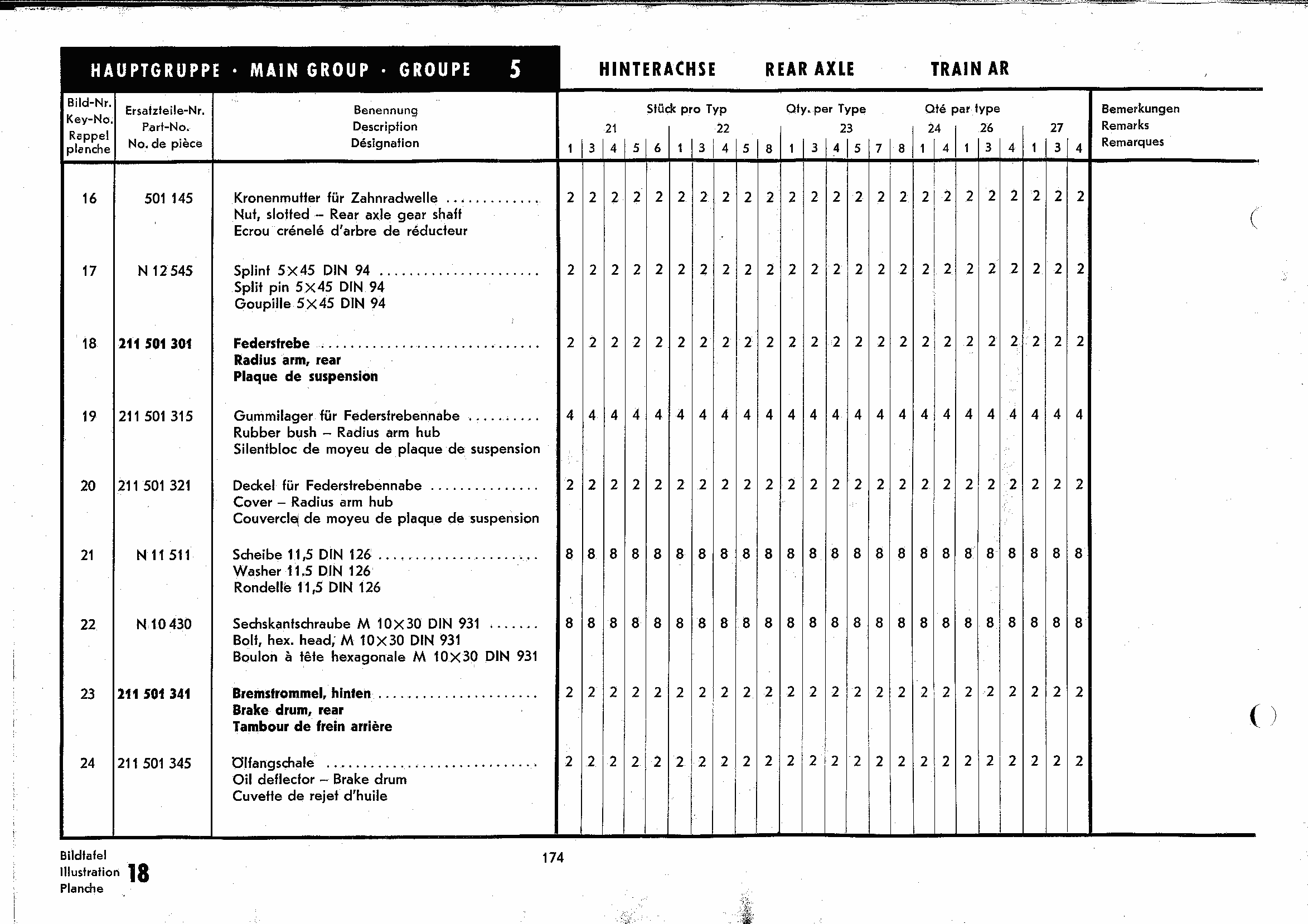

174 list Rear axle
175 list Rear axle

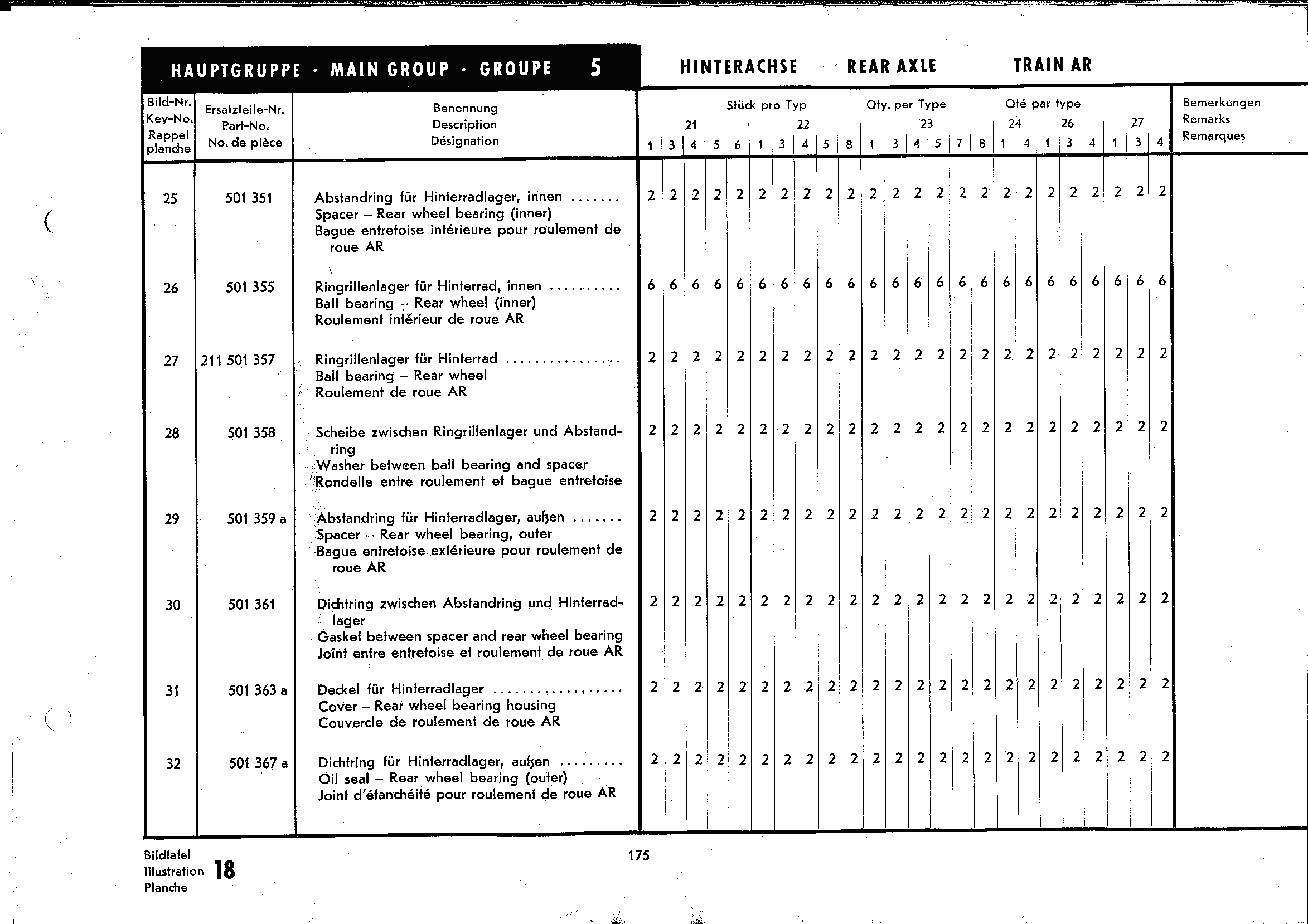

176 list Rear axle

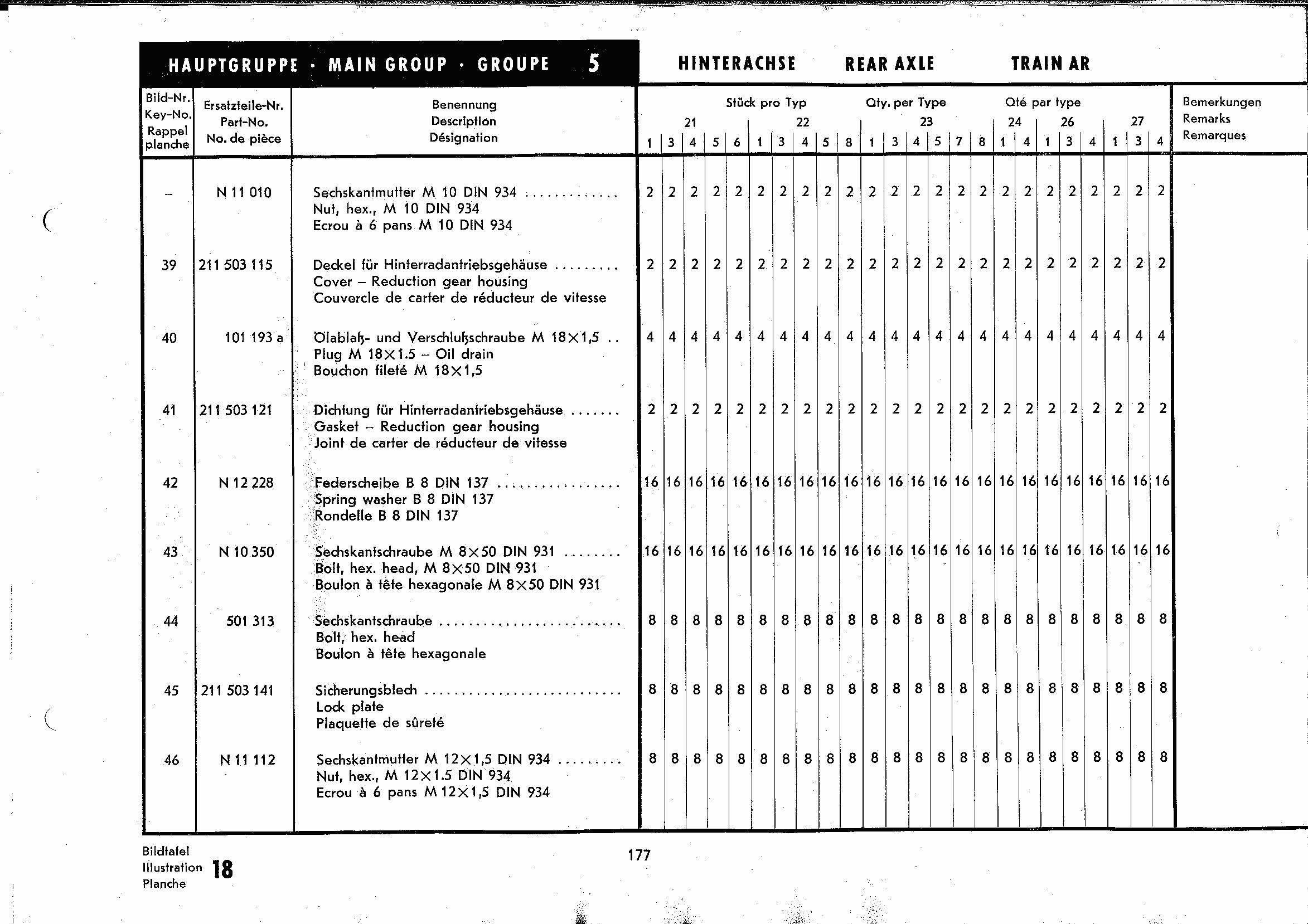

177 list Rear axle

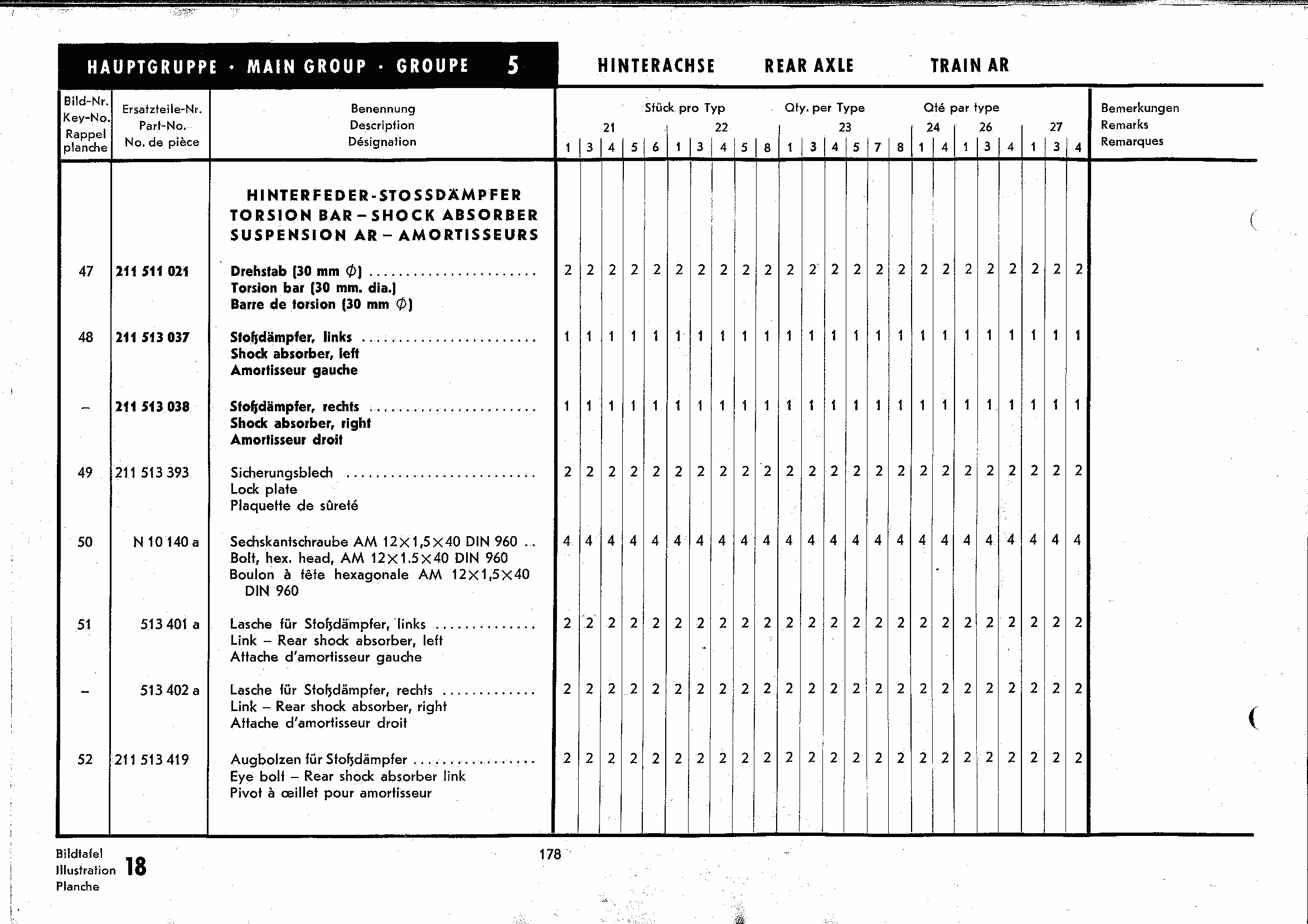

178 list Torsion bar, shock absorber

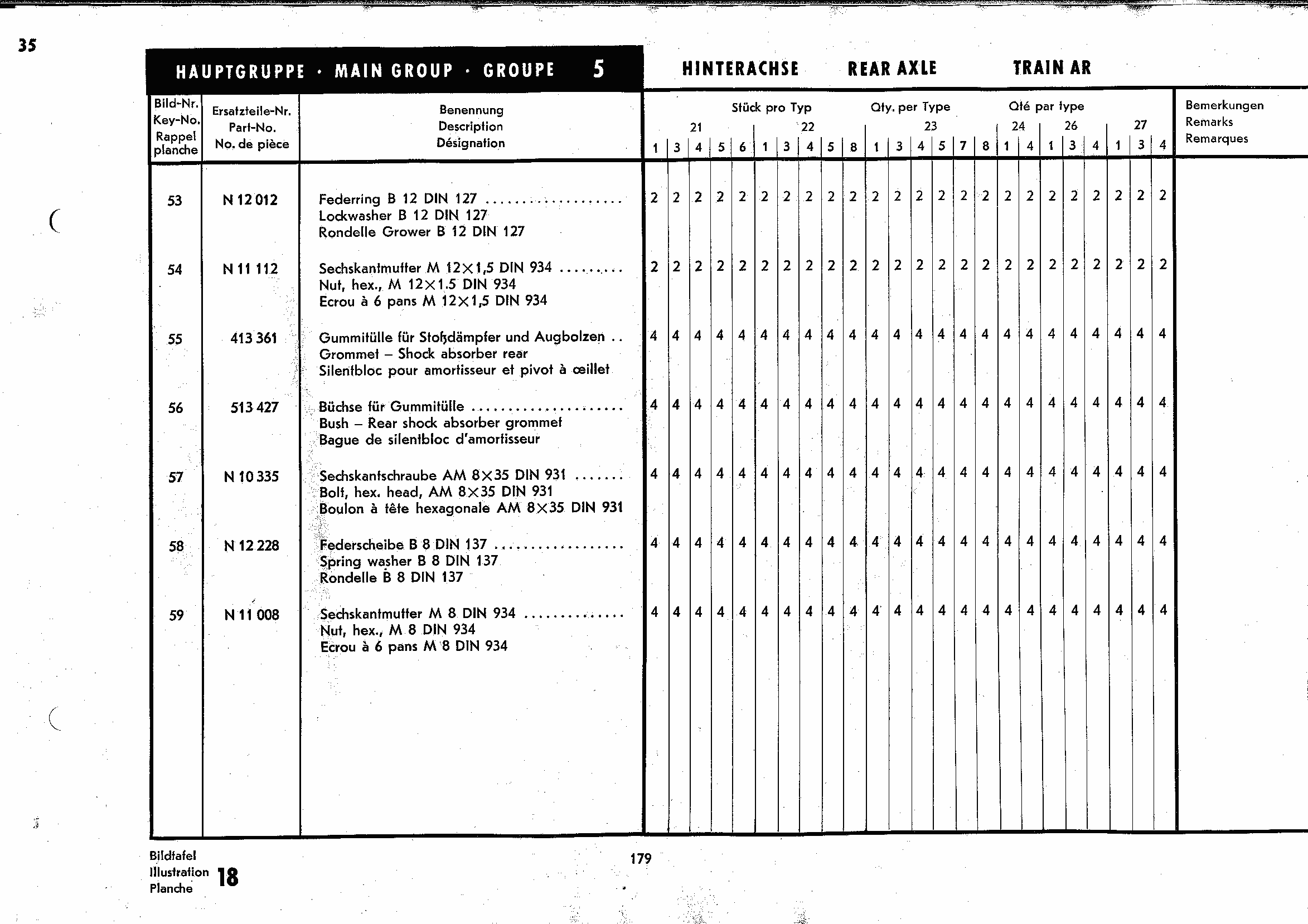

179 list Torsion bar, shock absorber

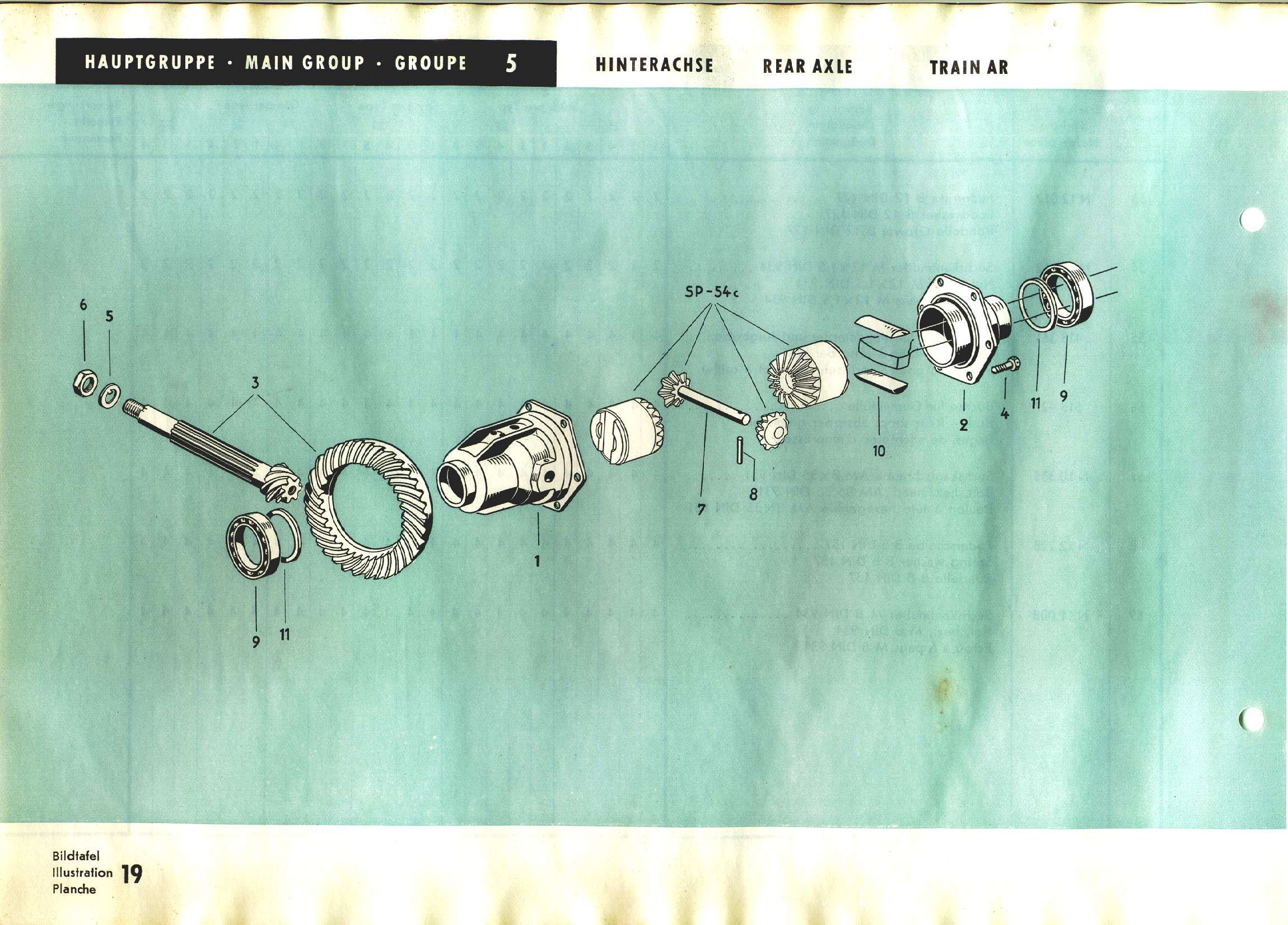

180 diagram Differential
181 list Differential

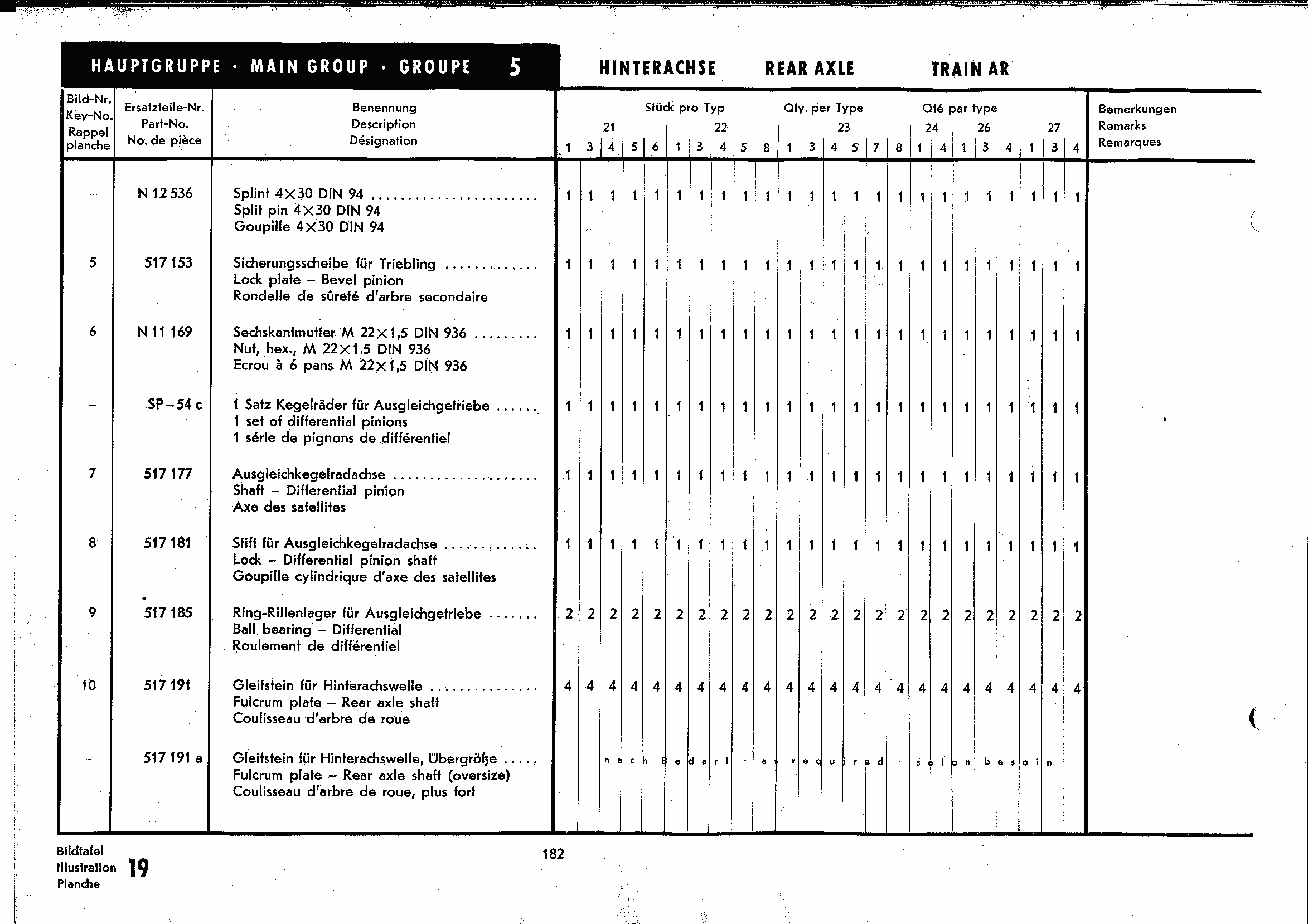

182 list Differential

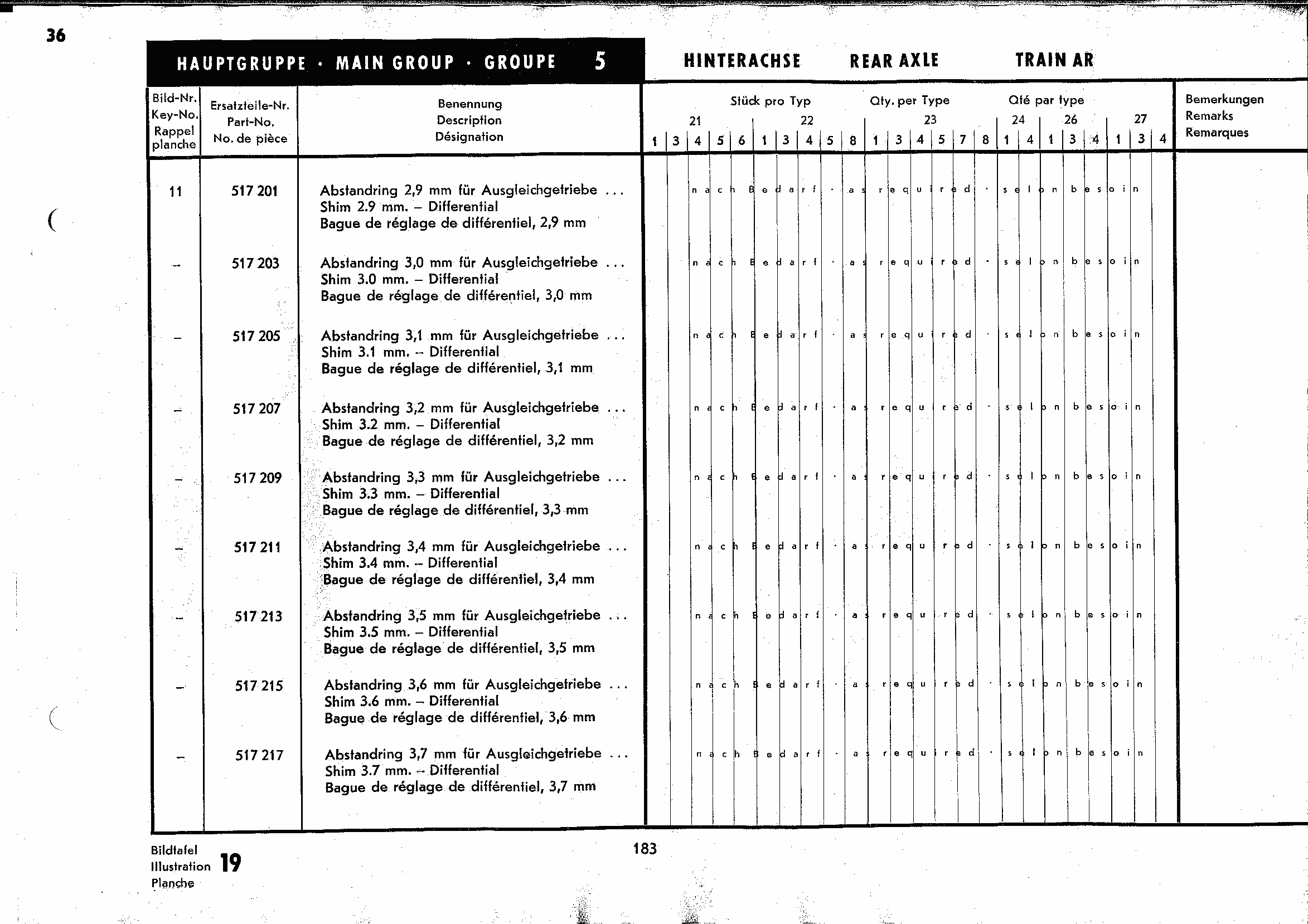

183 list Differential

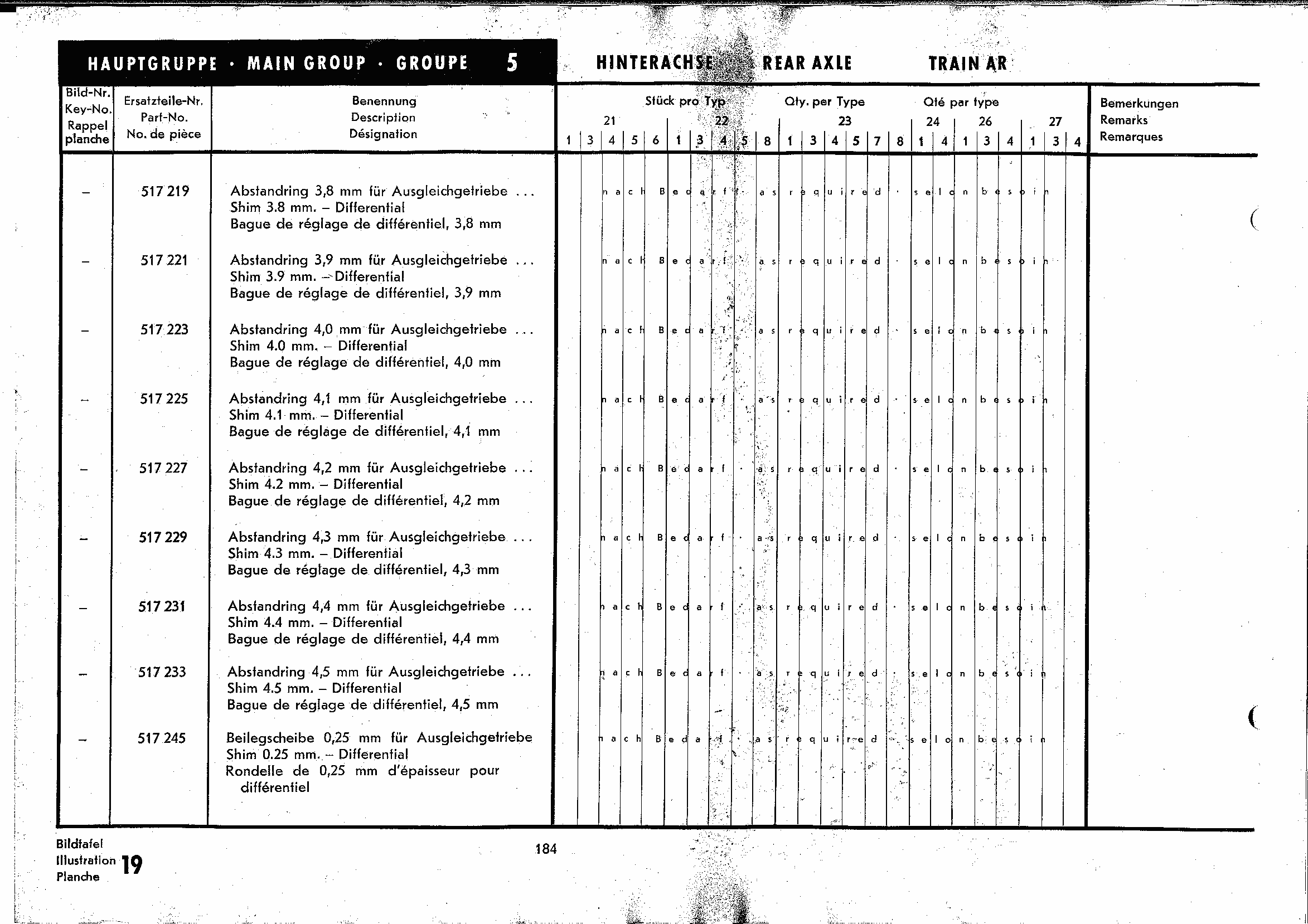

184 list Differential

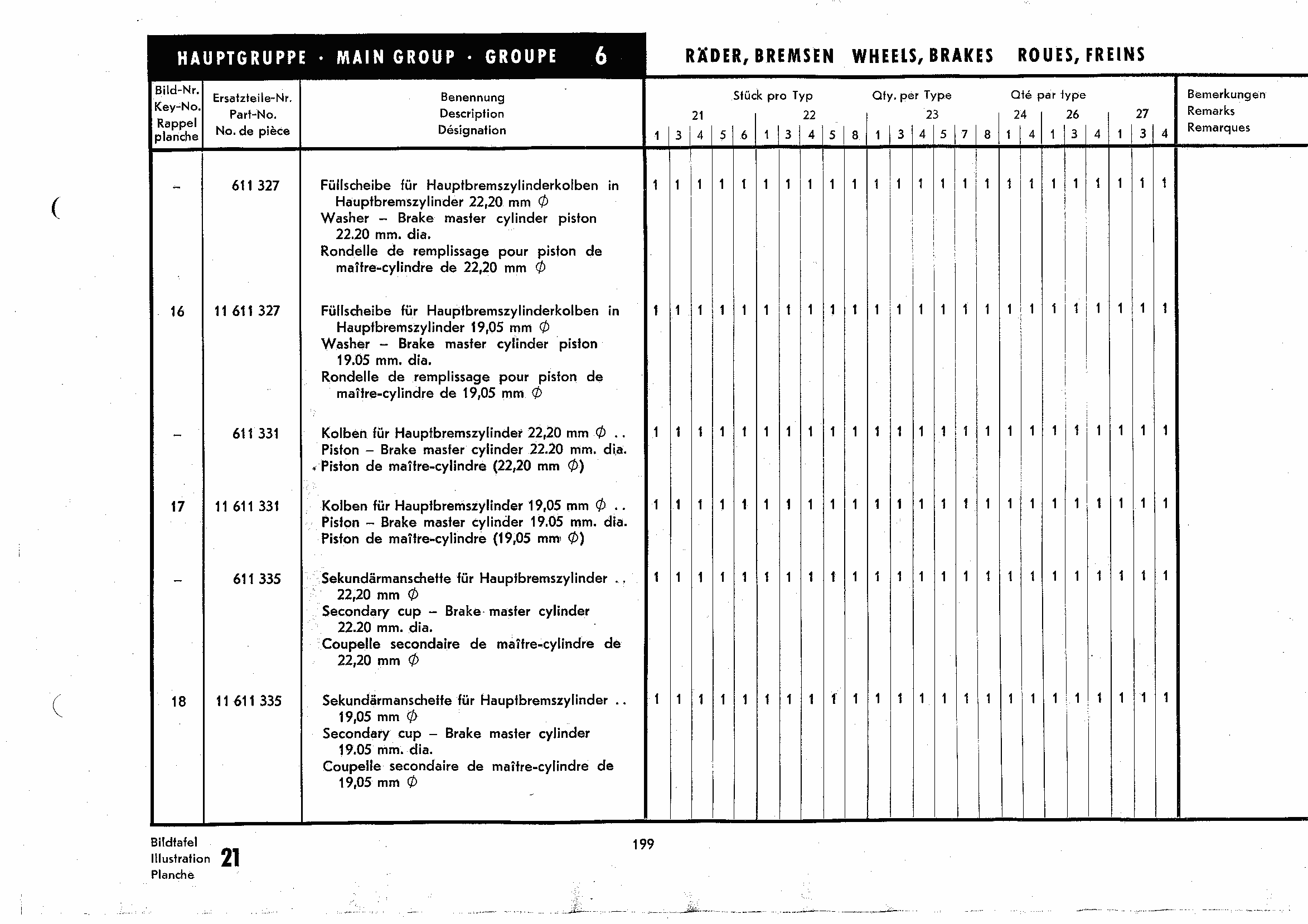

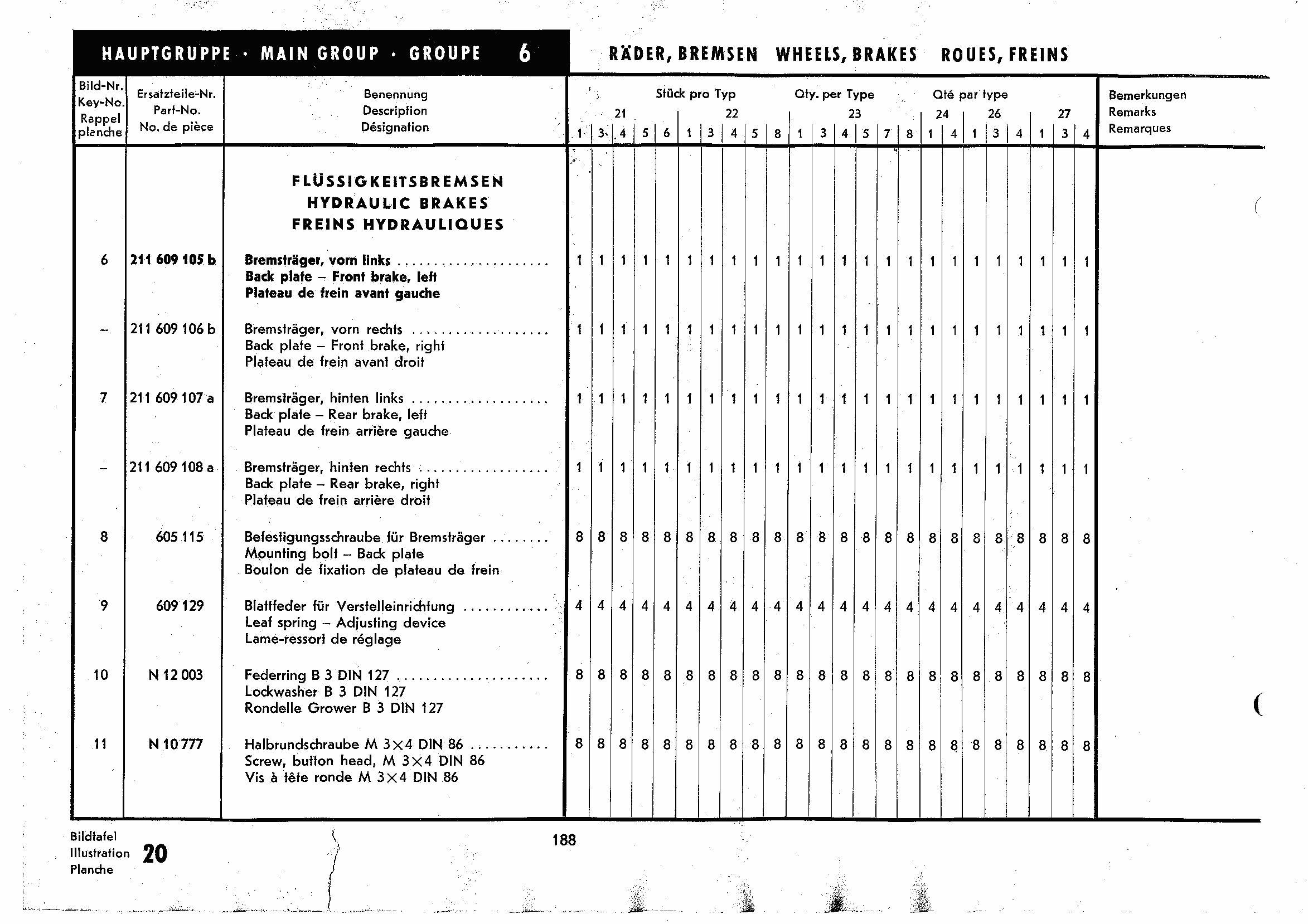

Main Group 6: Road Wheels, Brakes

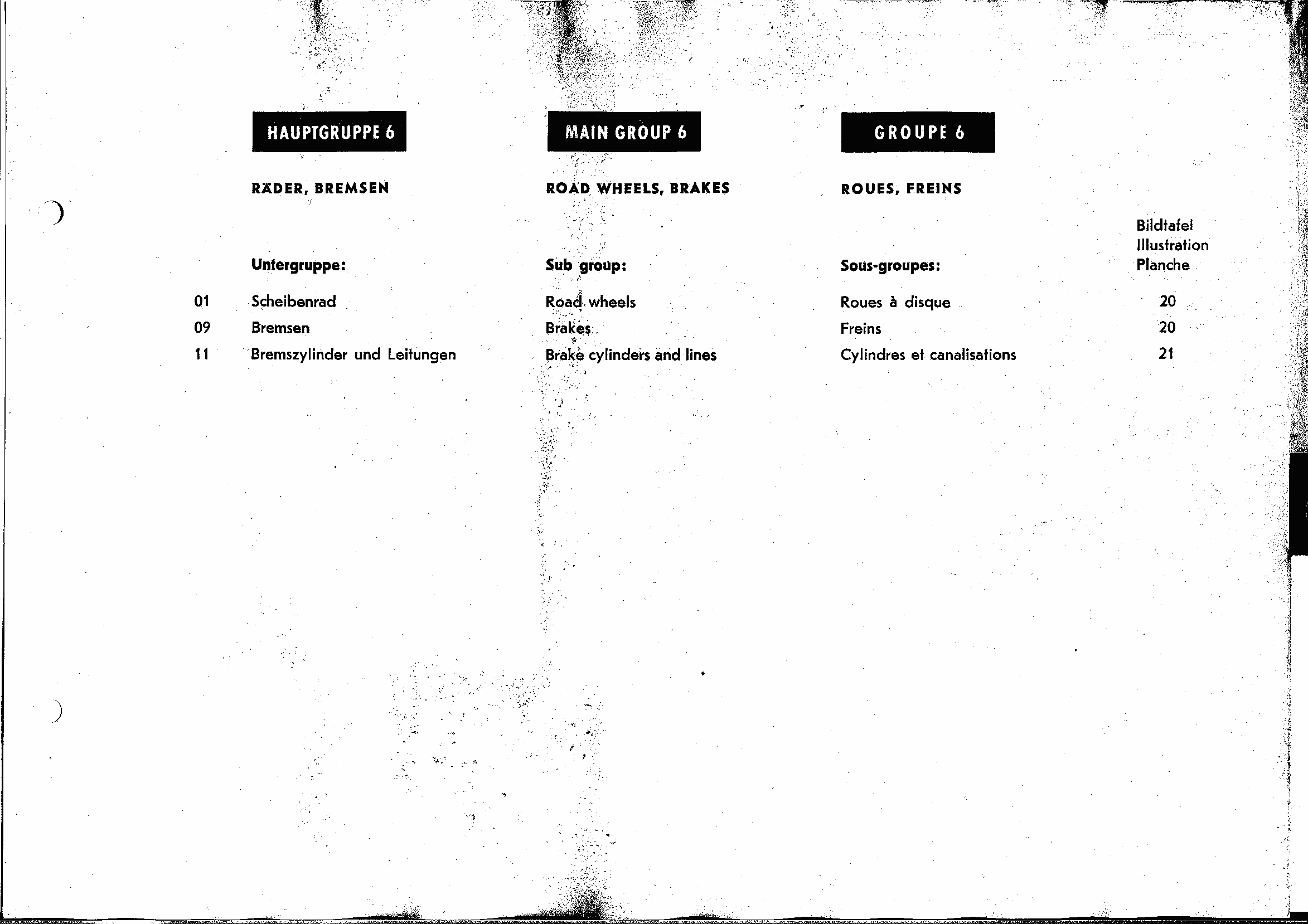

185 list Main Group 6 index

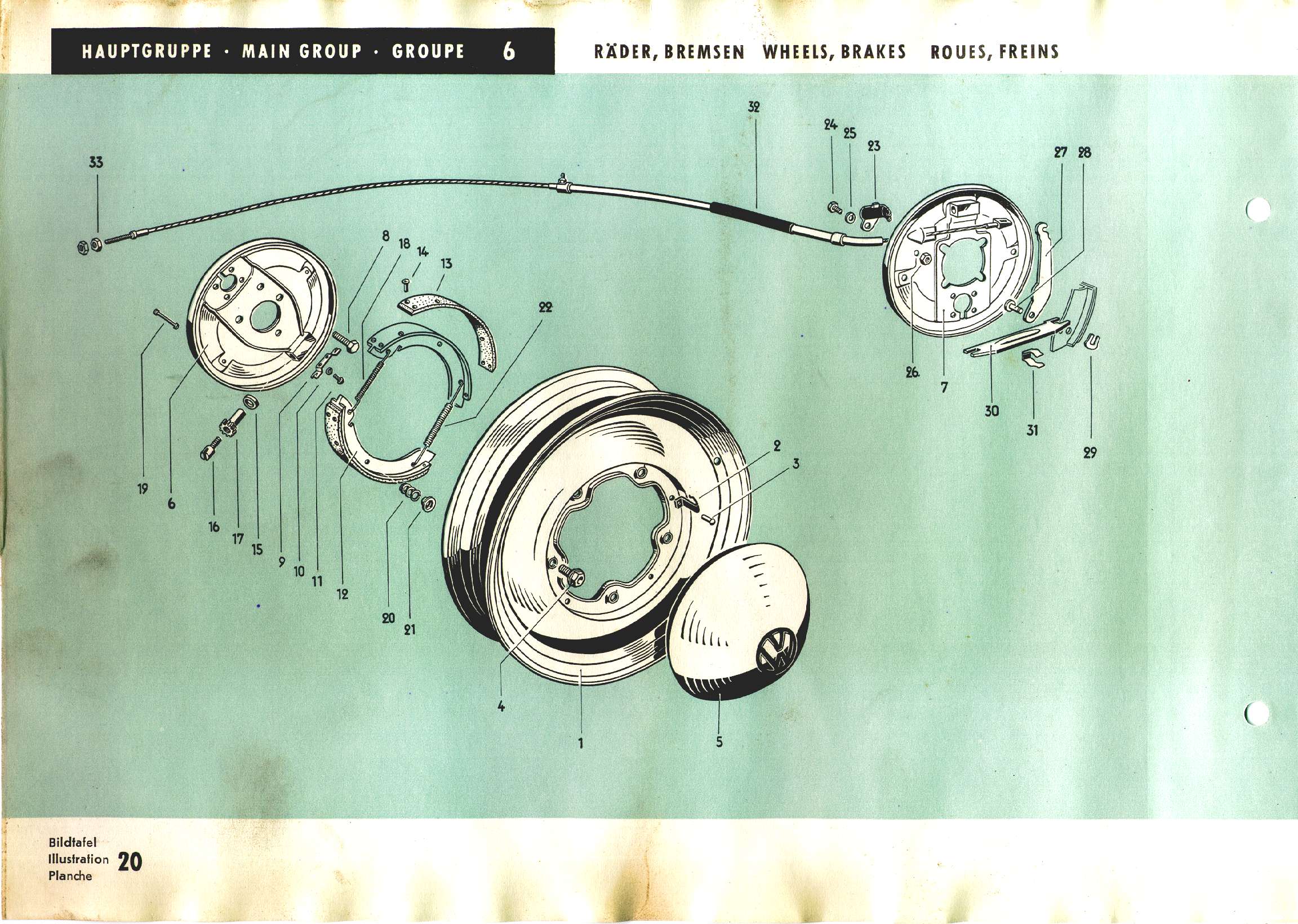

186 diagram Wheel disc, brakes

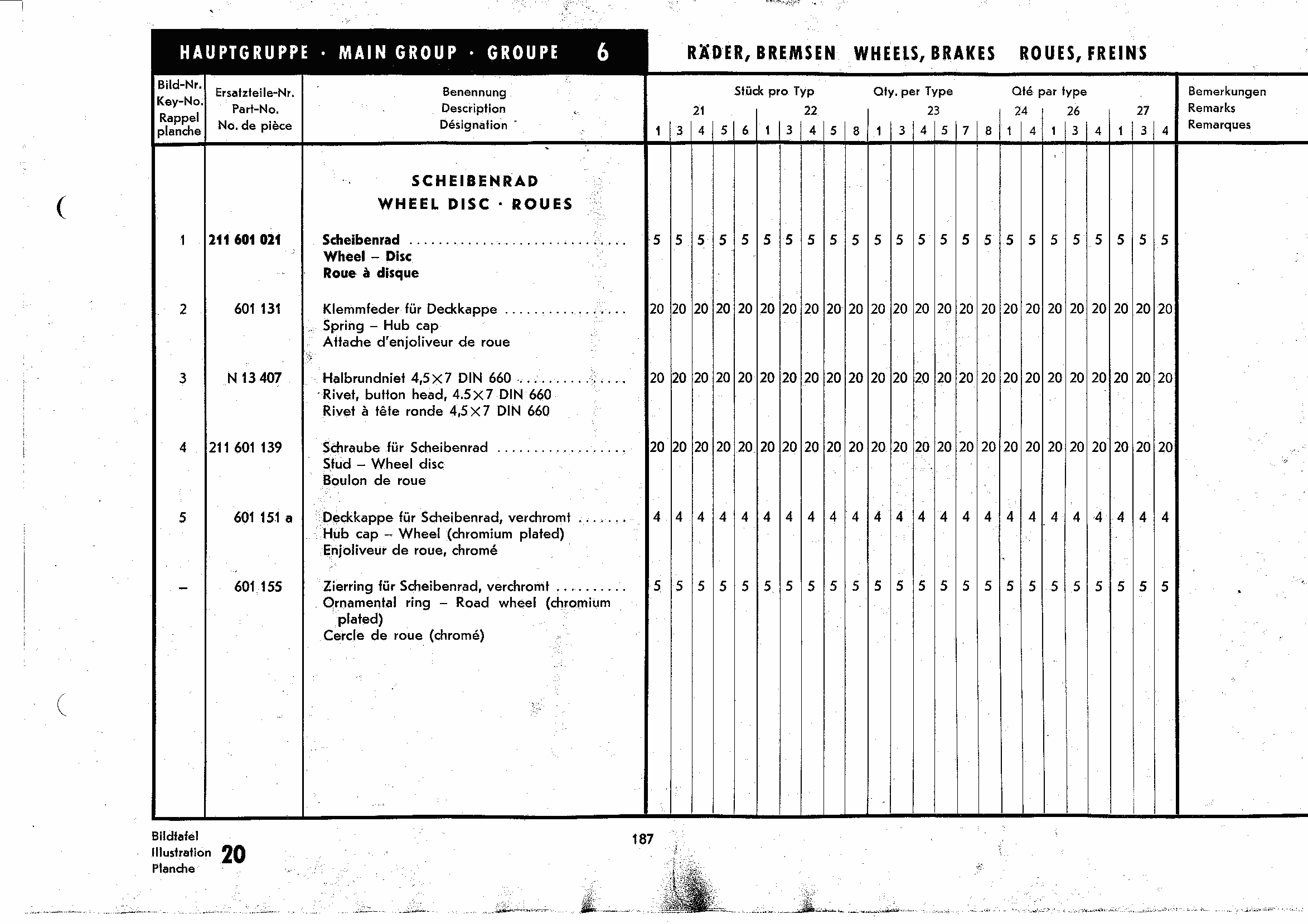

187 list Wheel disc
188 list Hydraulic brakes

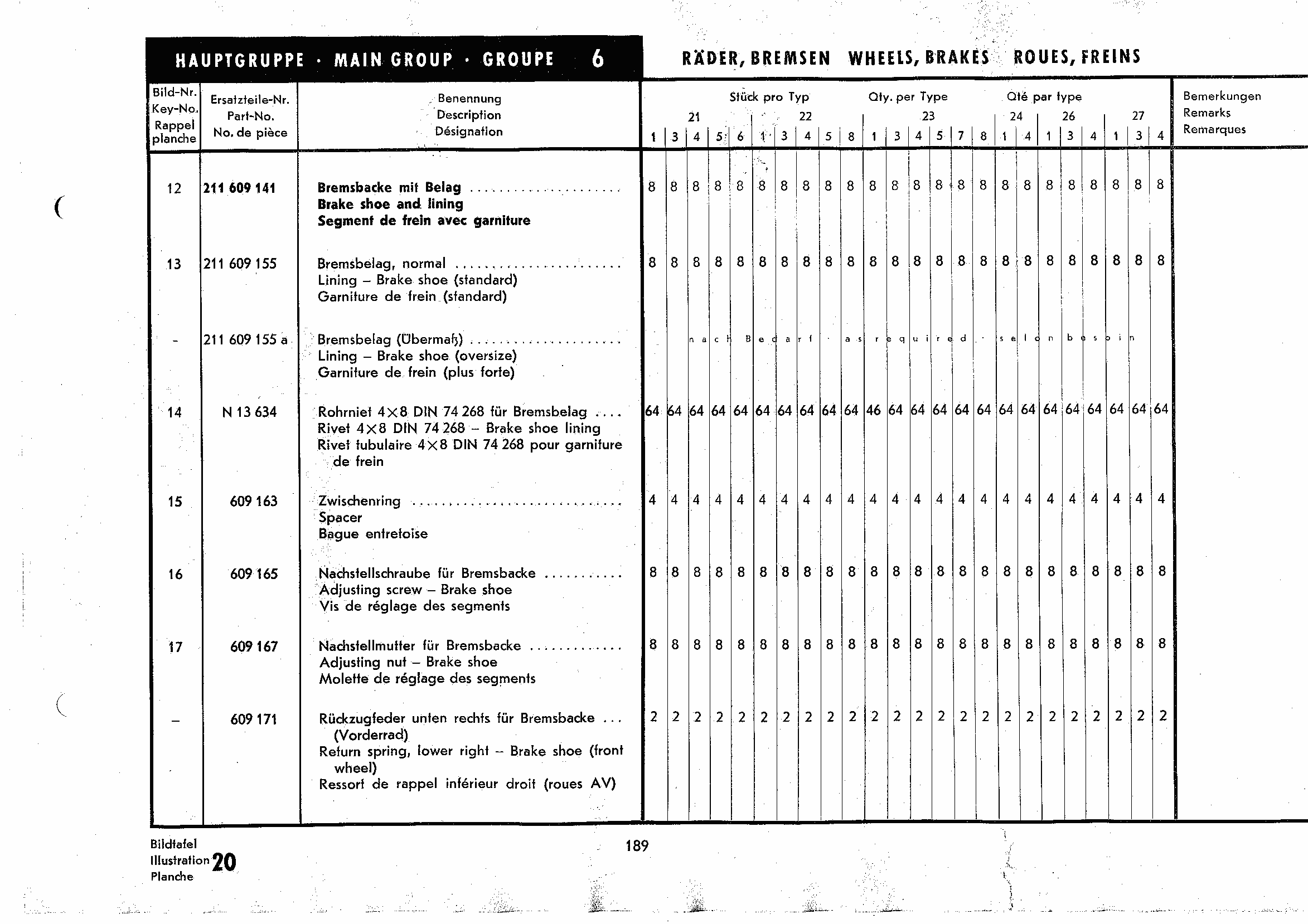

189 list Hydraulic brakes

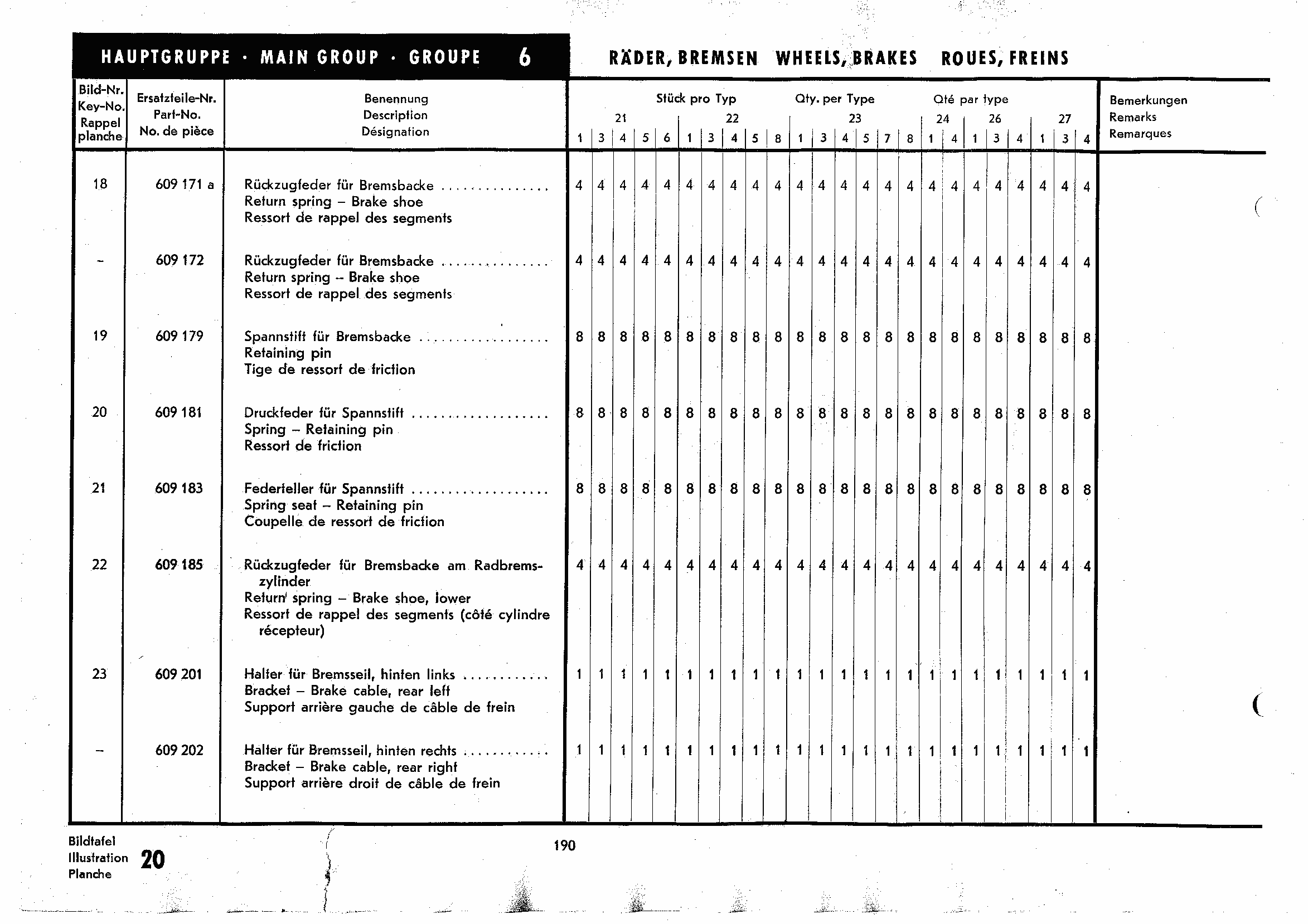

190 list Hydraulic brakes

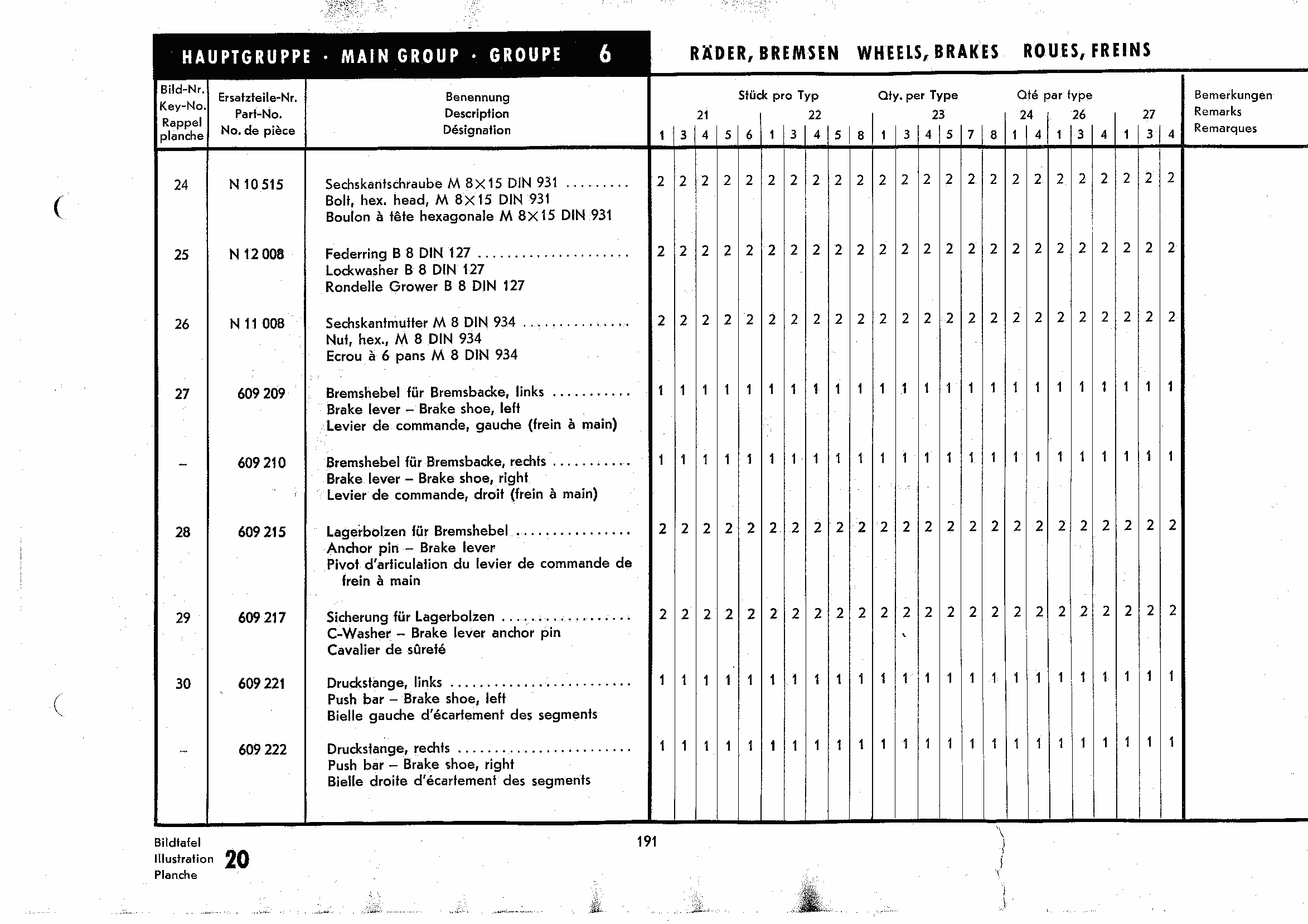

191 list Hydraulic brakes

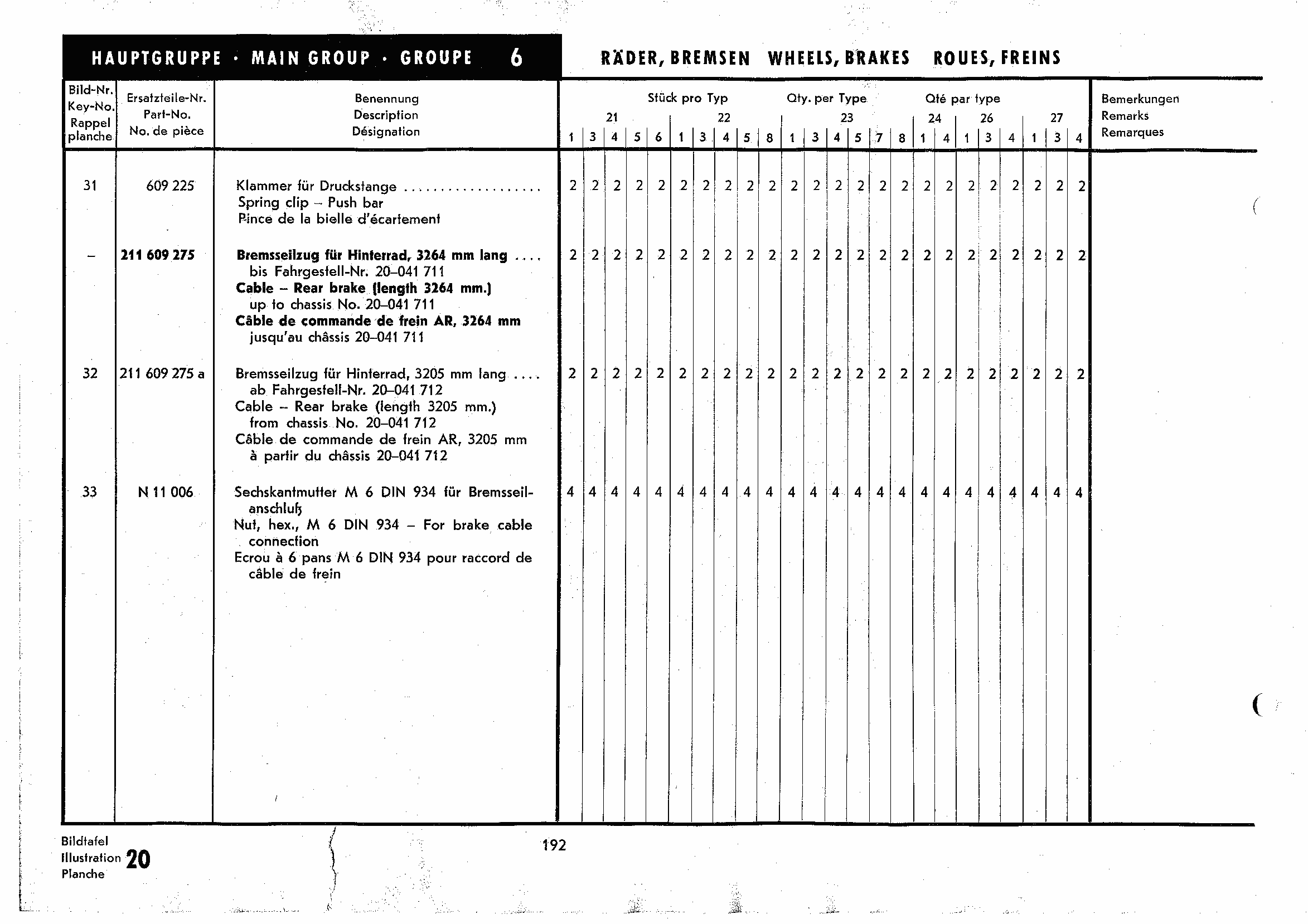

192 list Hydraulic brakes

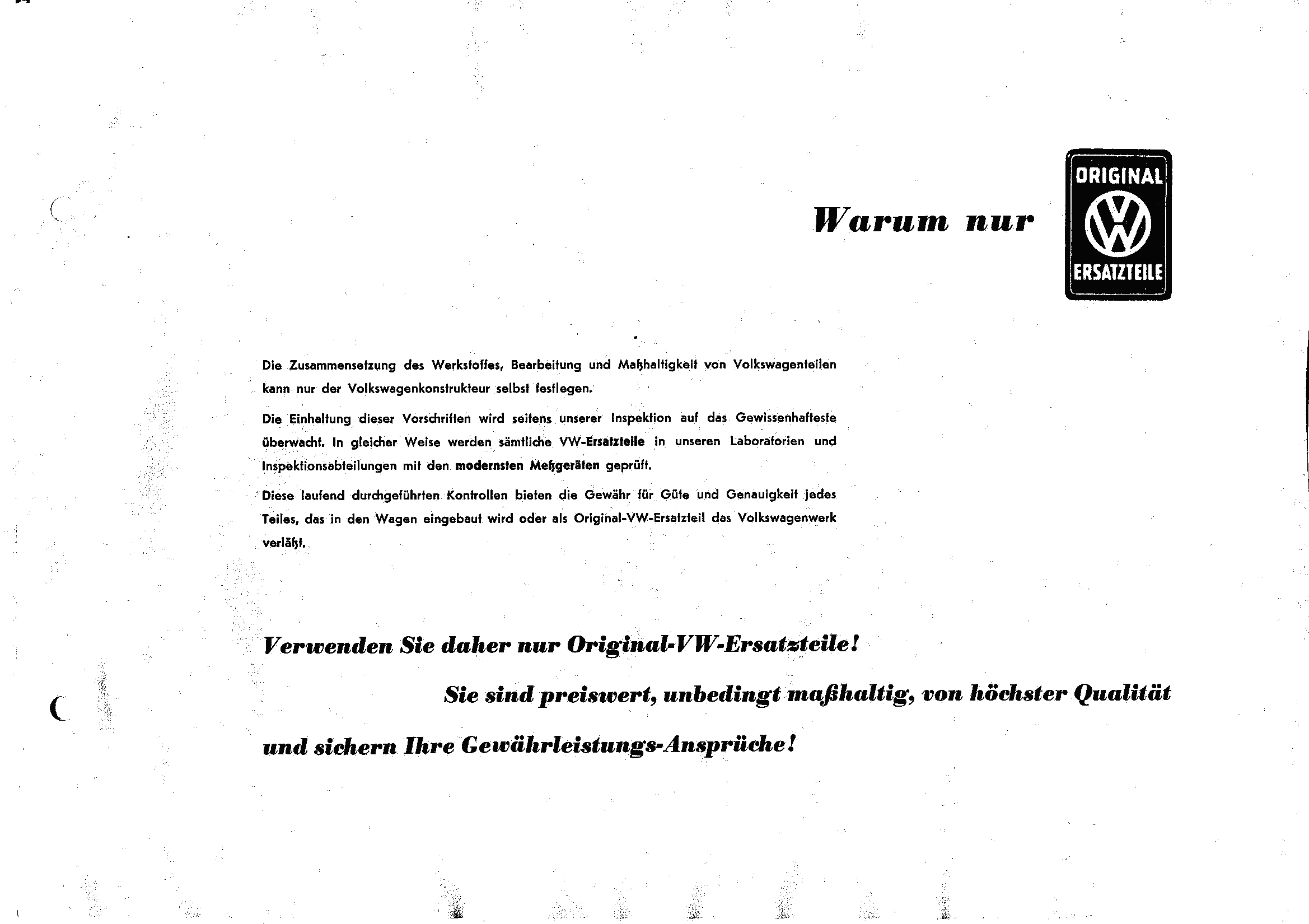

193 special Warum nur Original-VW-Ersatzteile

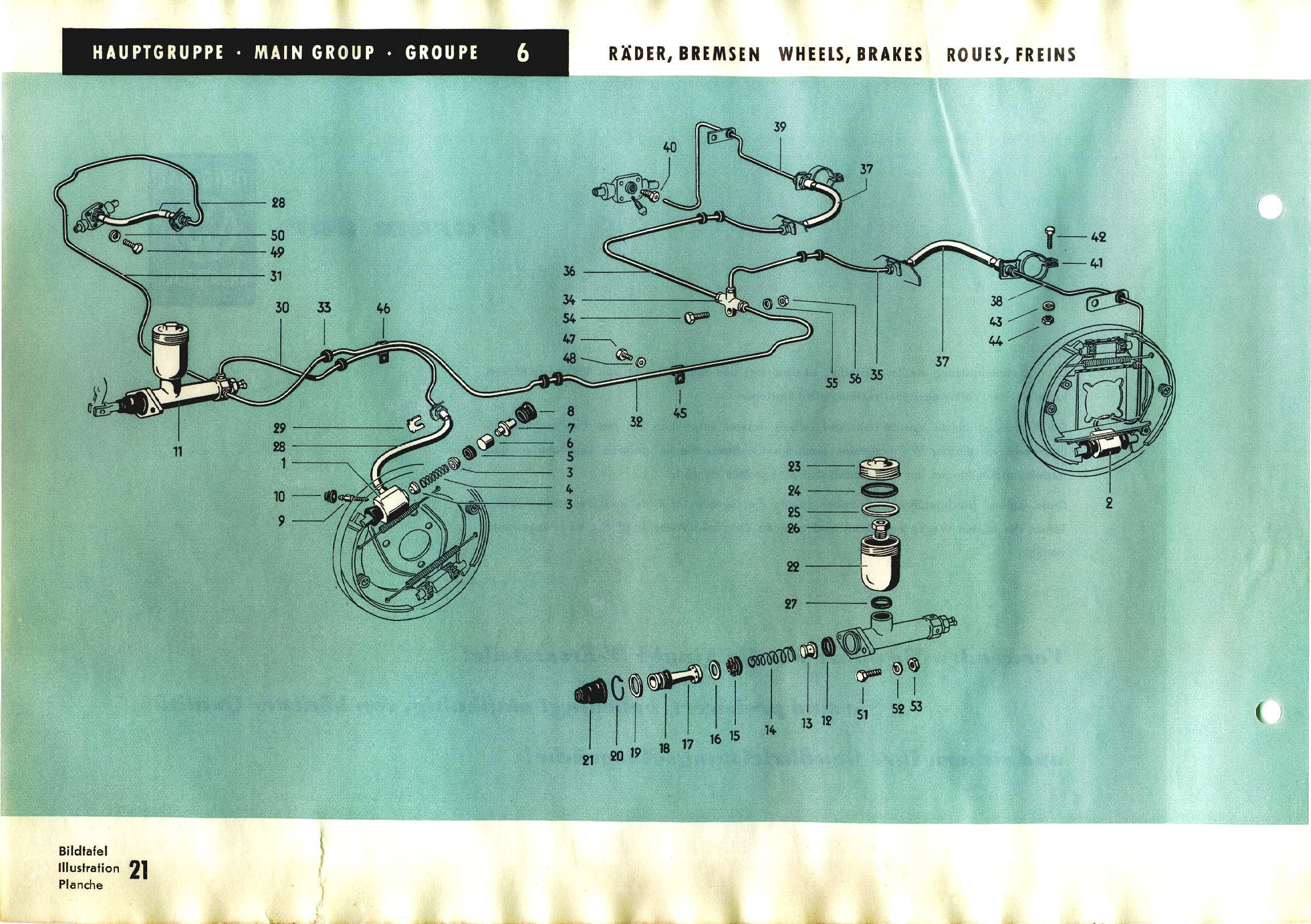

194 diagram Brake cylinder and lines

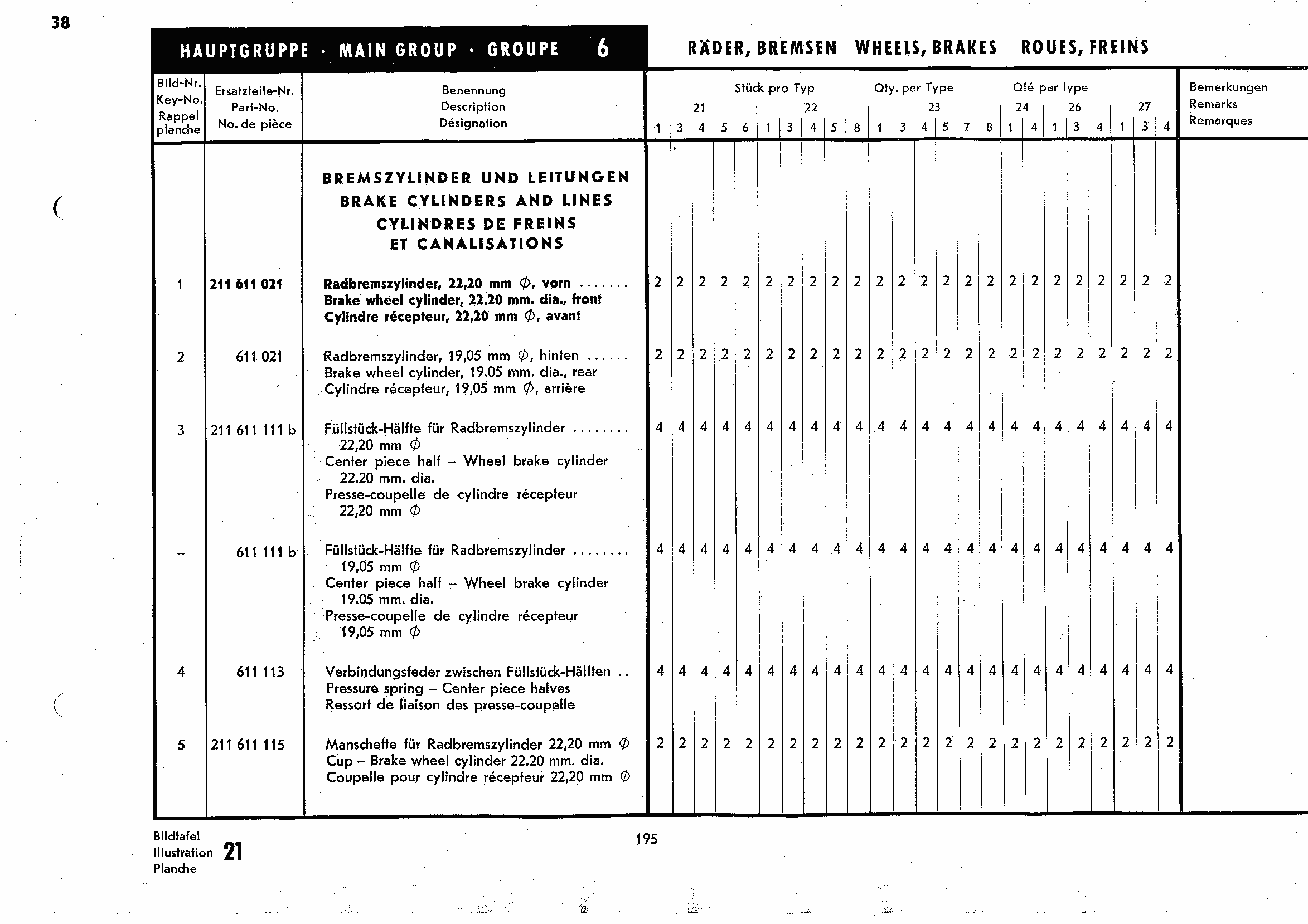

195 list Brake cylinder and lines

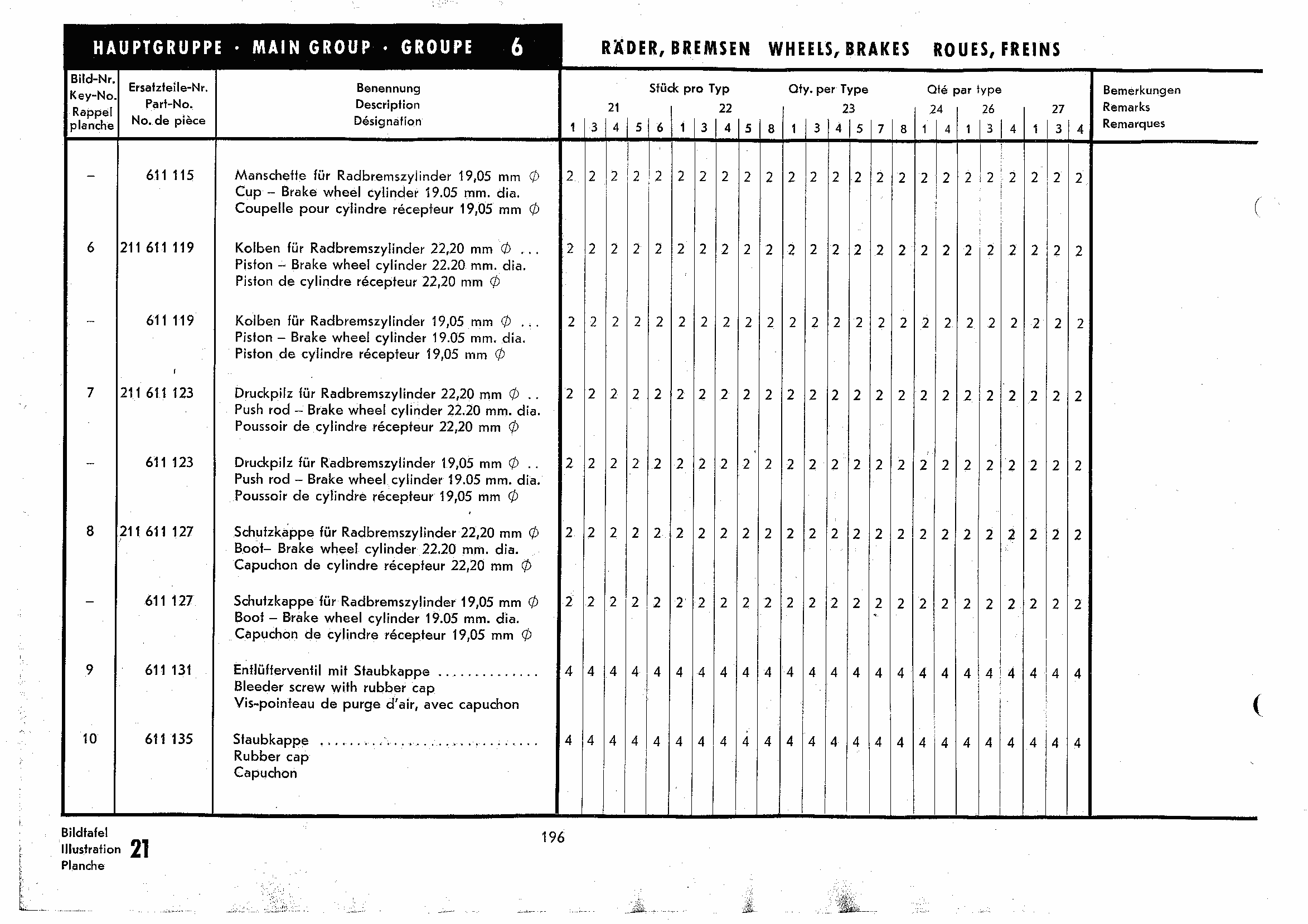

196 list Brake cylinder and lines

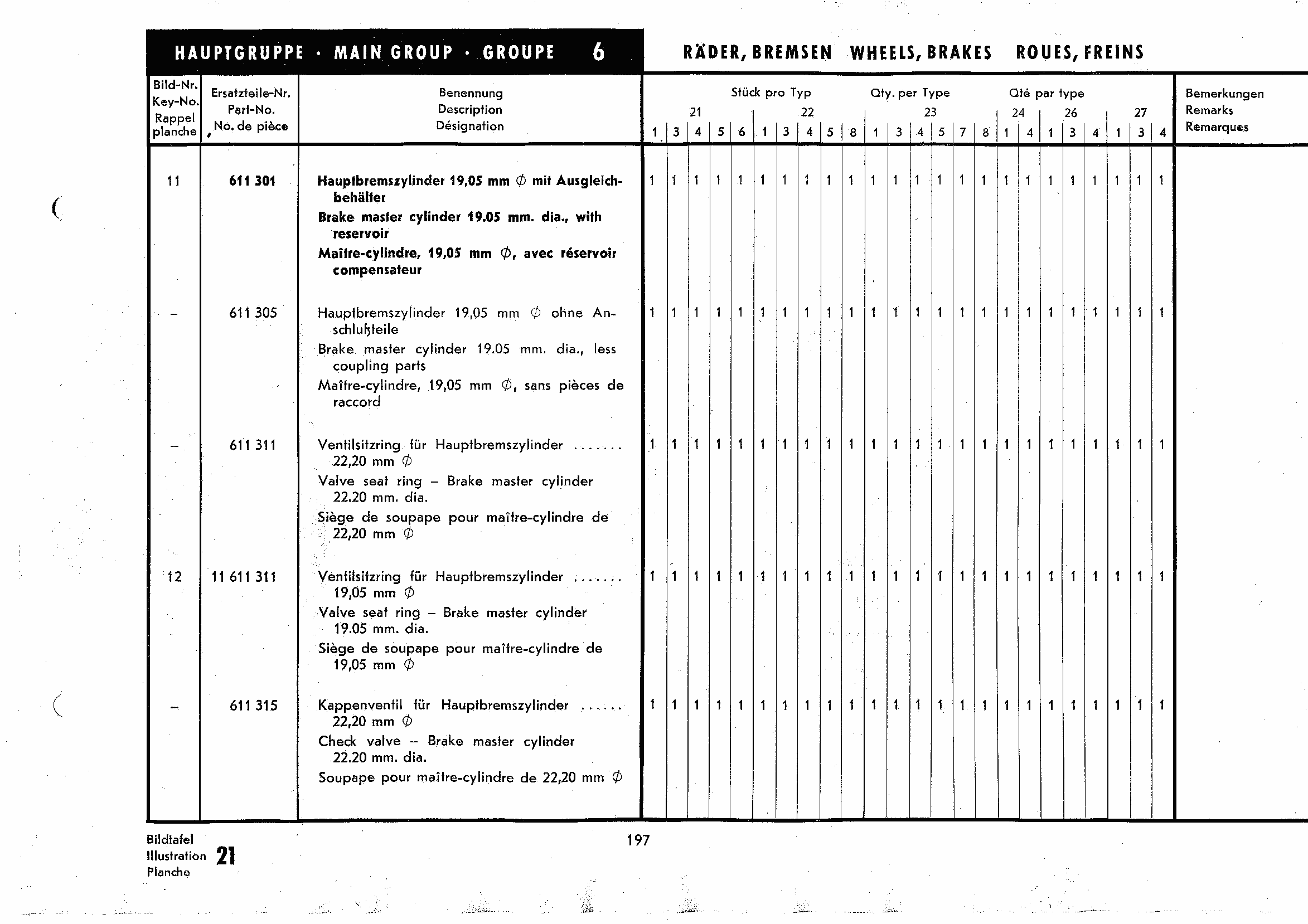

197 list Brake cylinder and lines

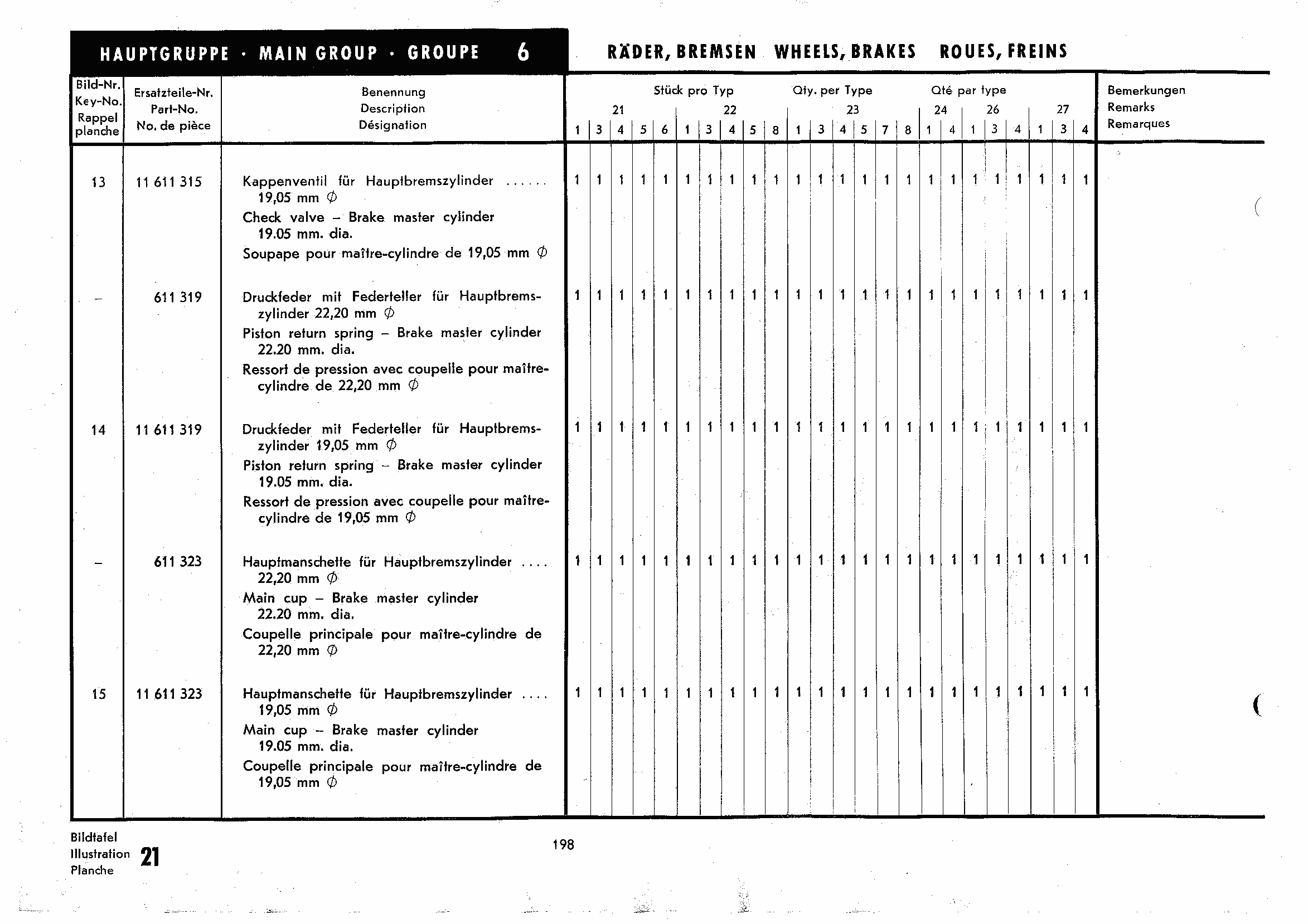

198 list Brake cylinder and lines
199 list Brake cylinder and lines

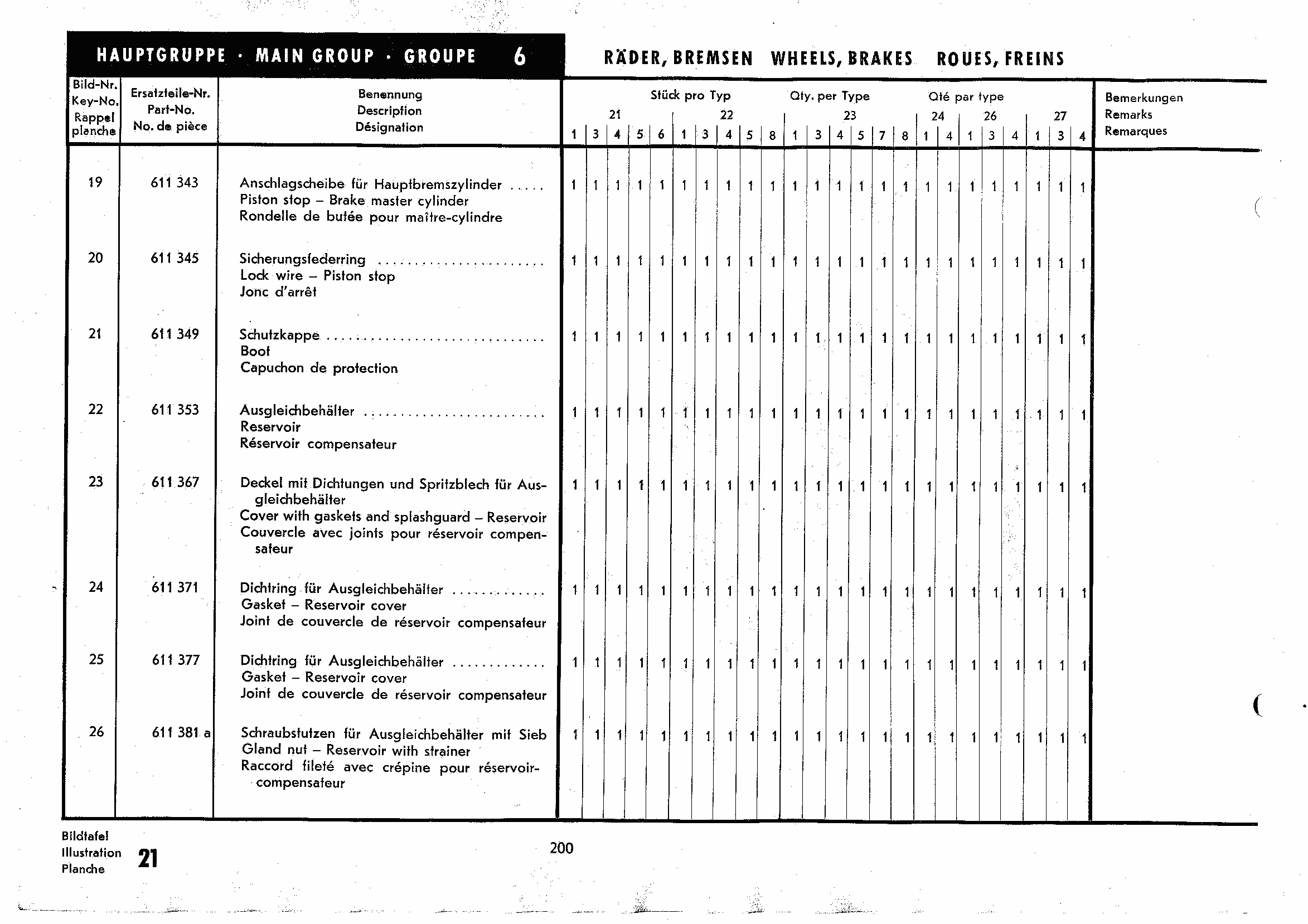

200 list Brake cylinder and lines

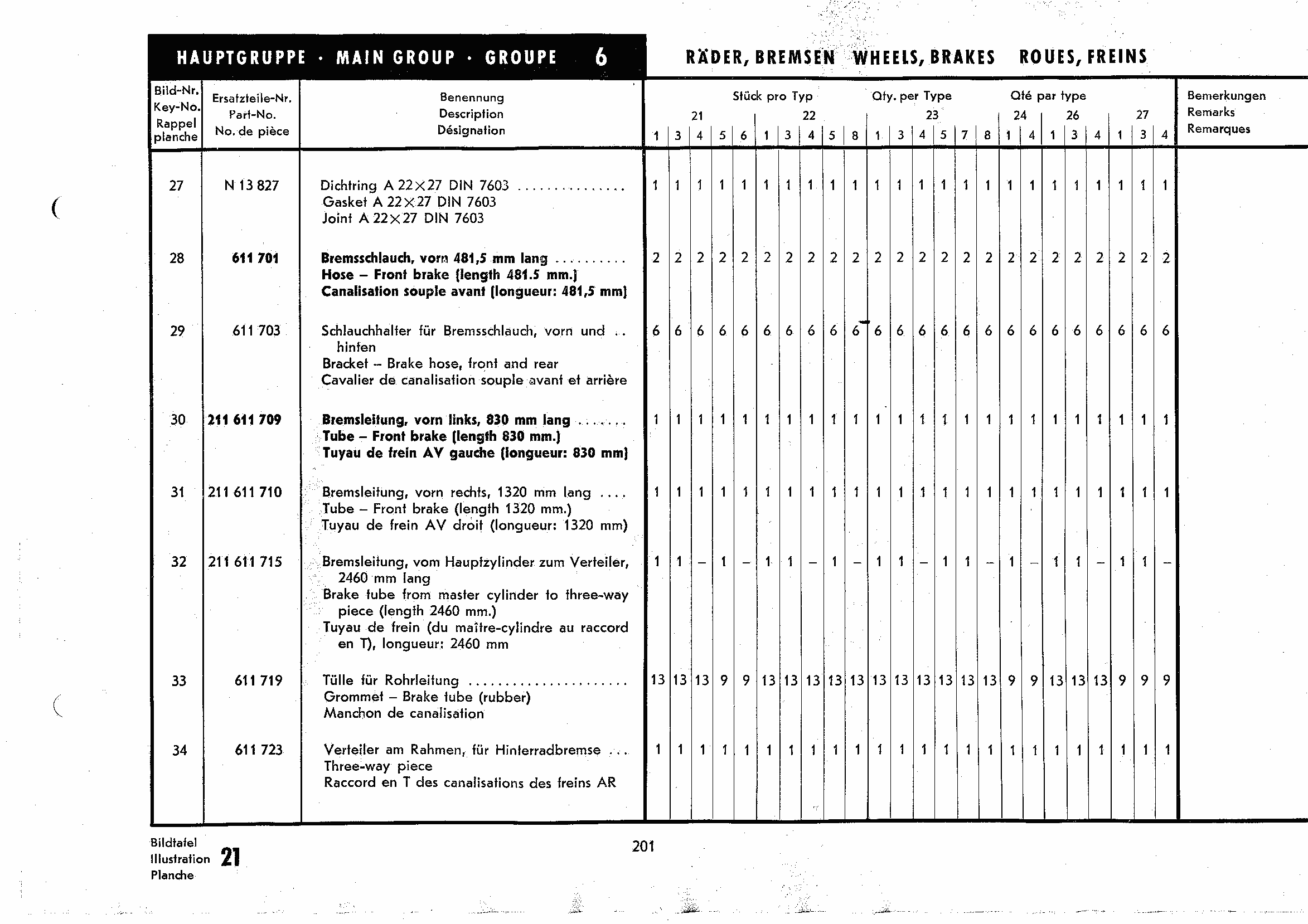

201 list Brake cylinder and lines

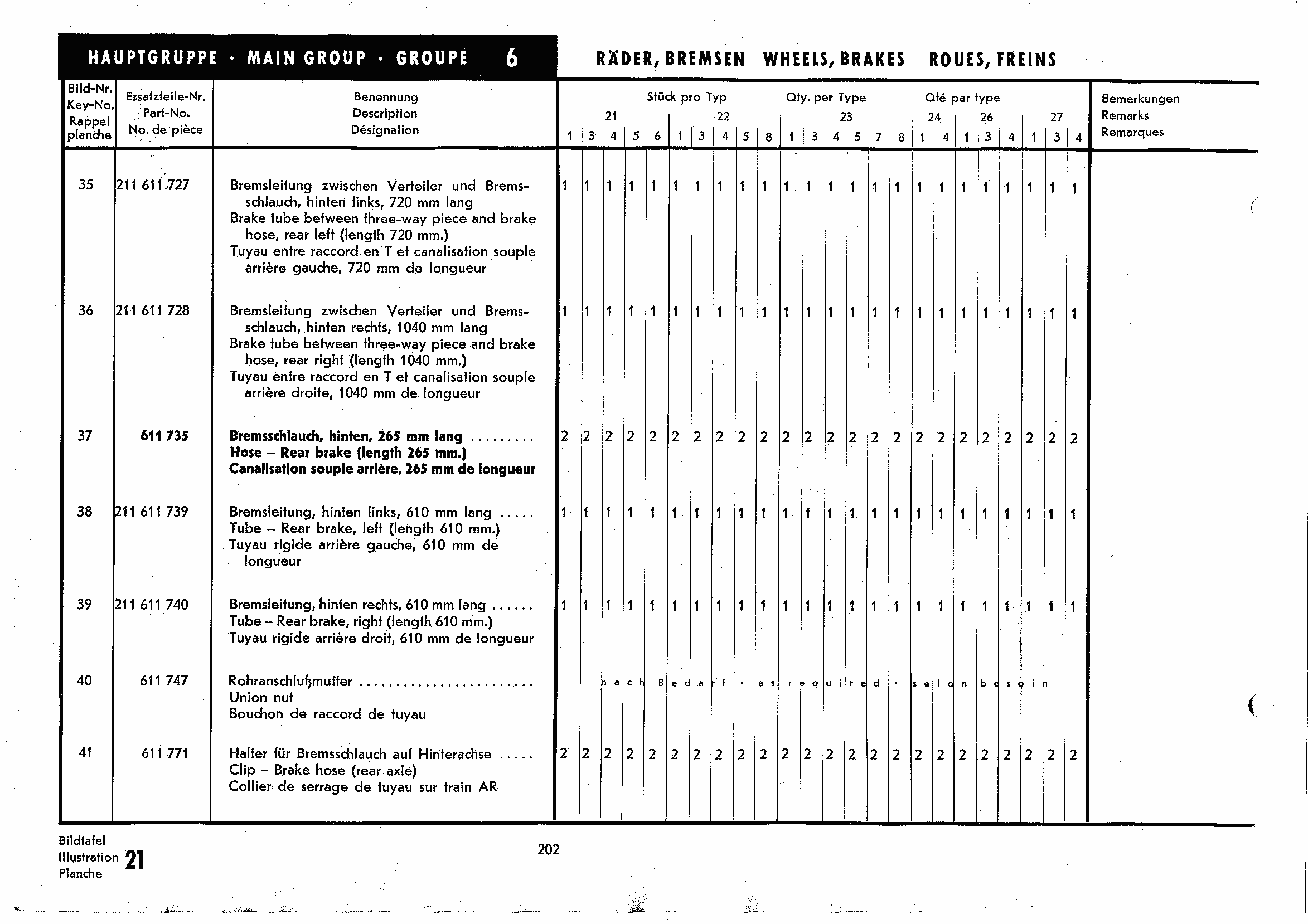

202 list Brake cylinder and lines

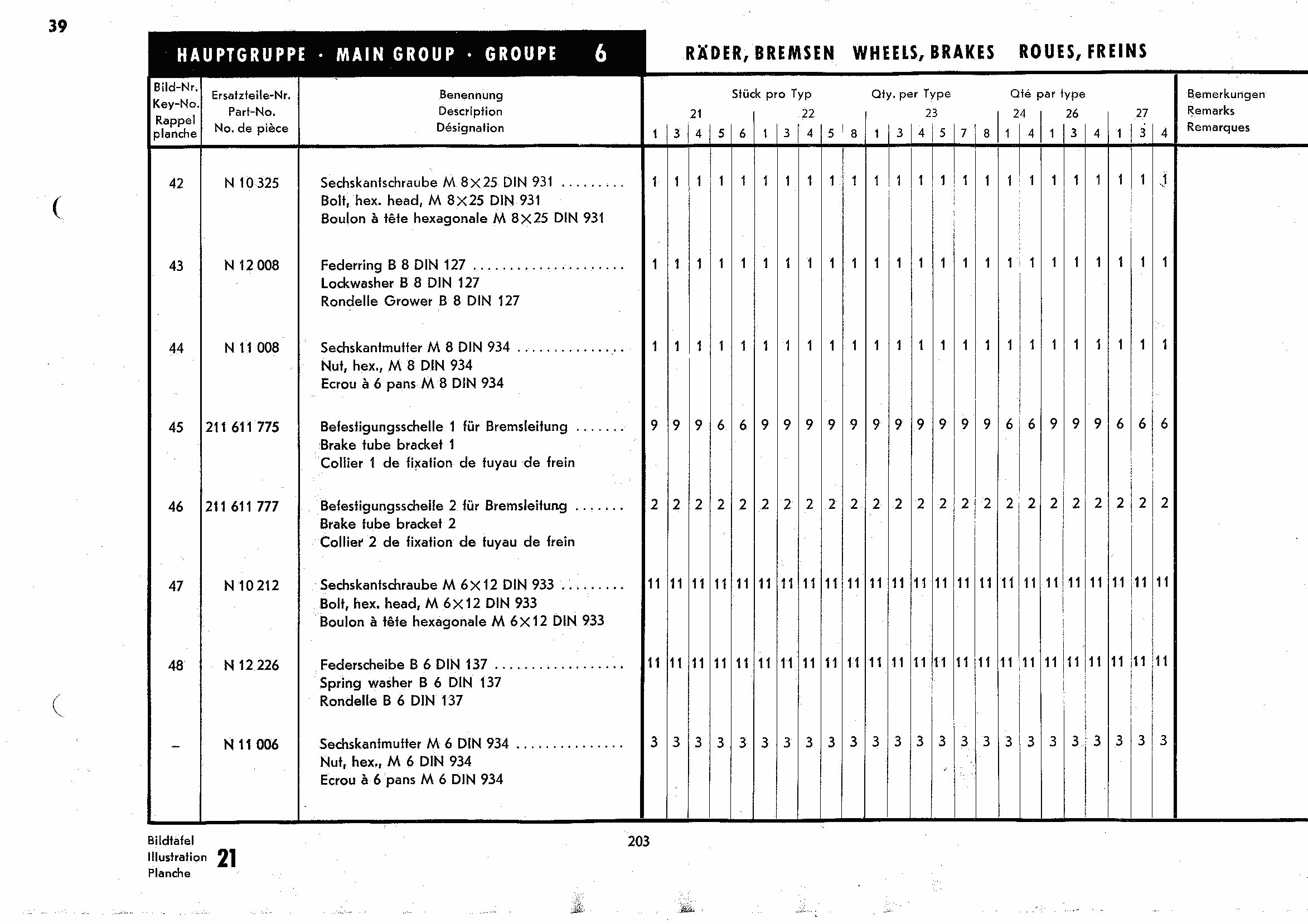

203 list Brake cylinder and lines

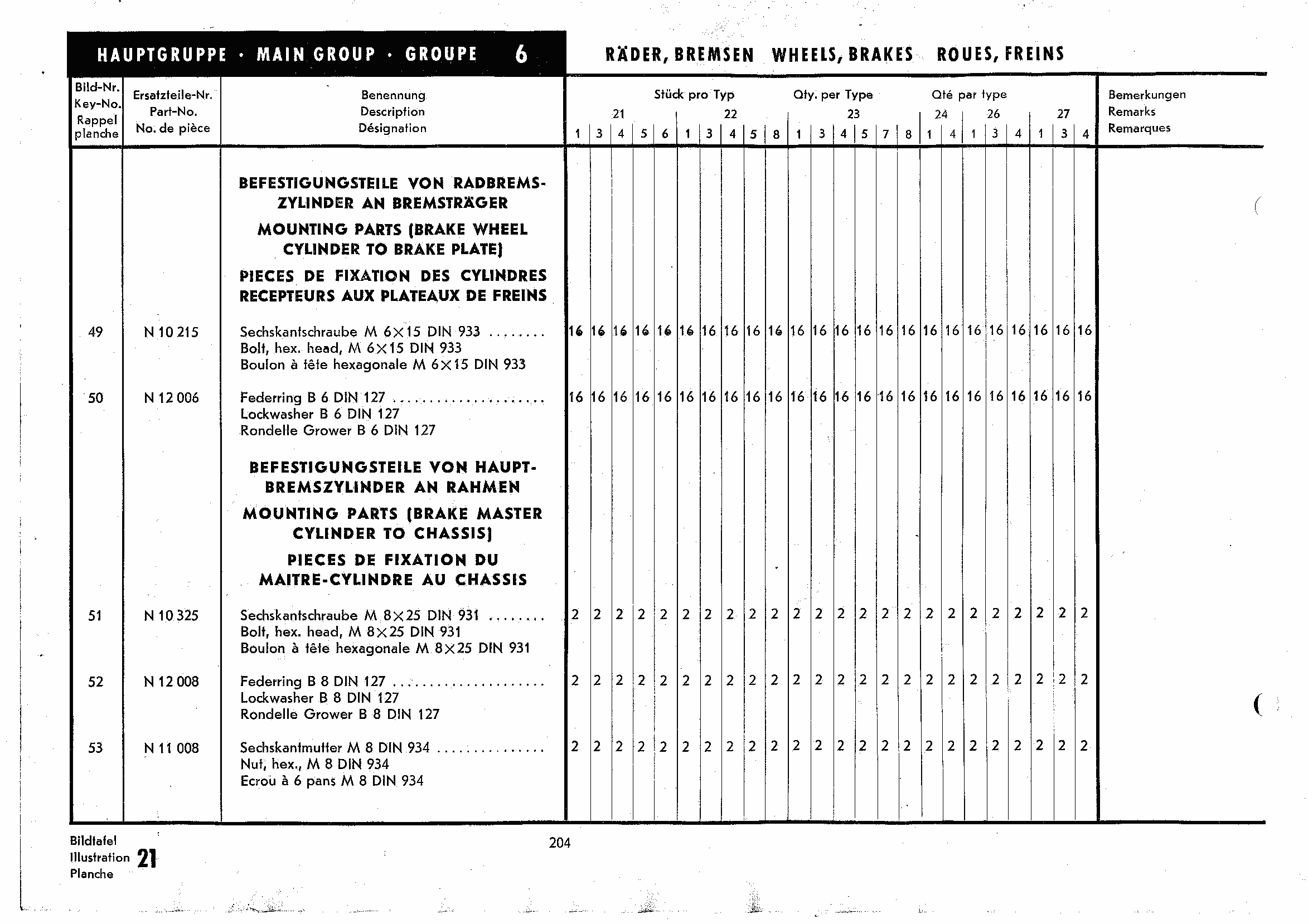

204 list Mounting parts

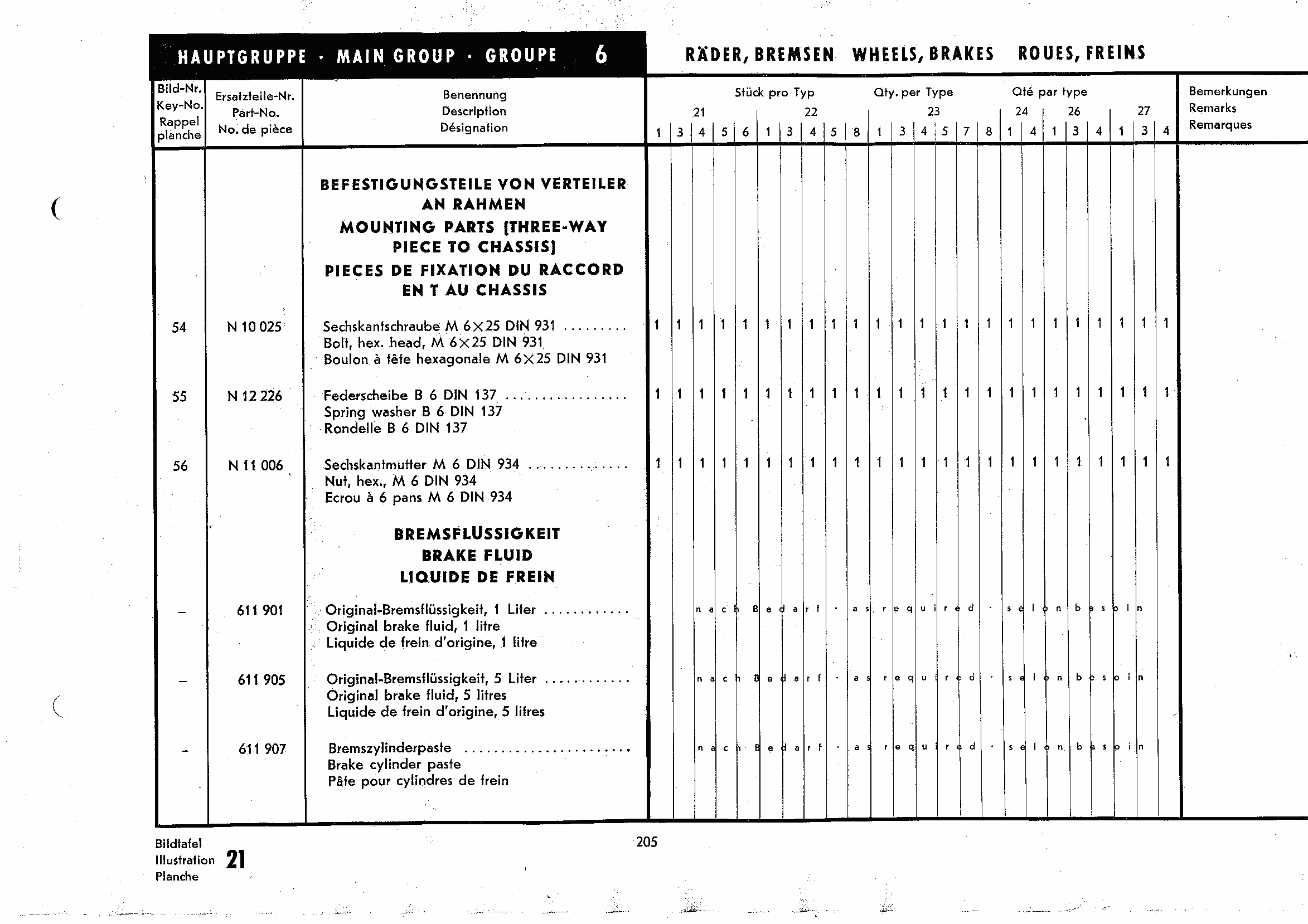

205 list Mounting parts

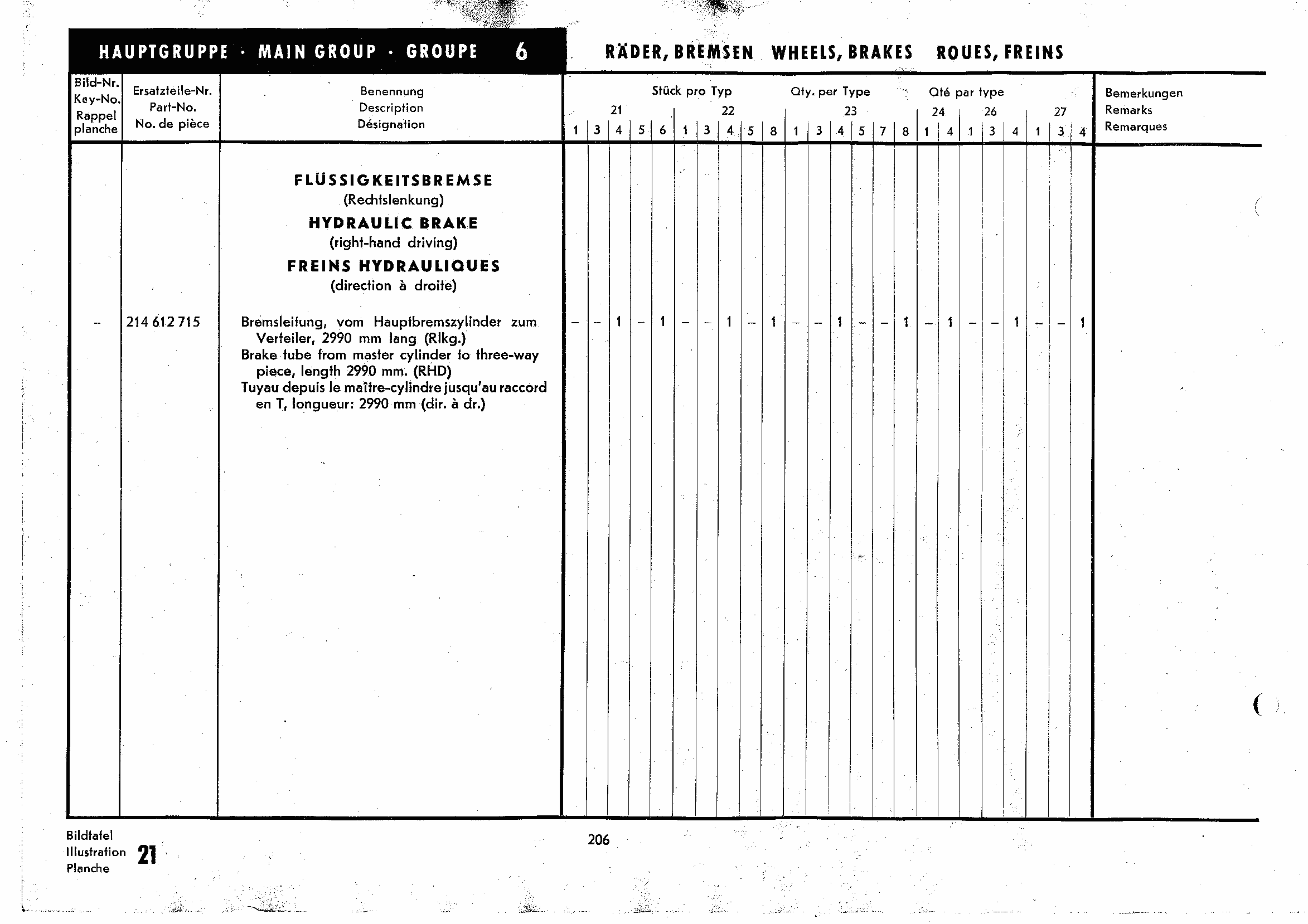

206 list Hydraulic brakes, RHD

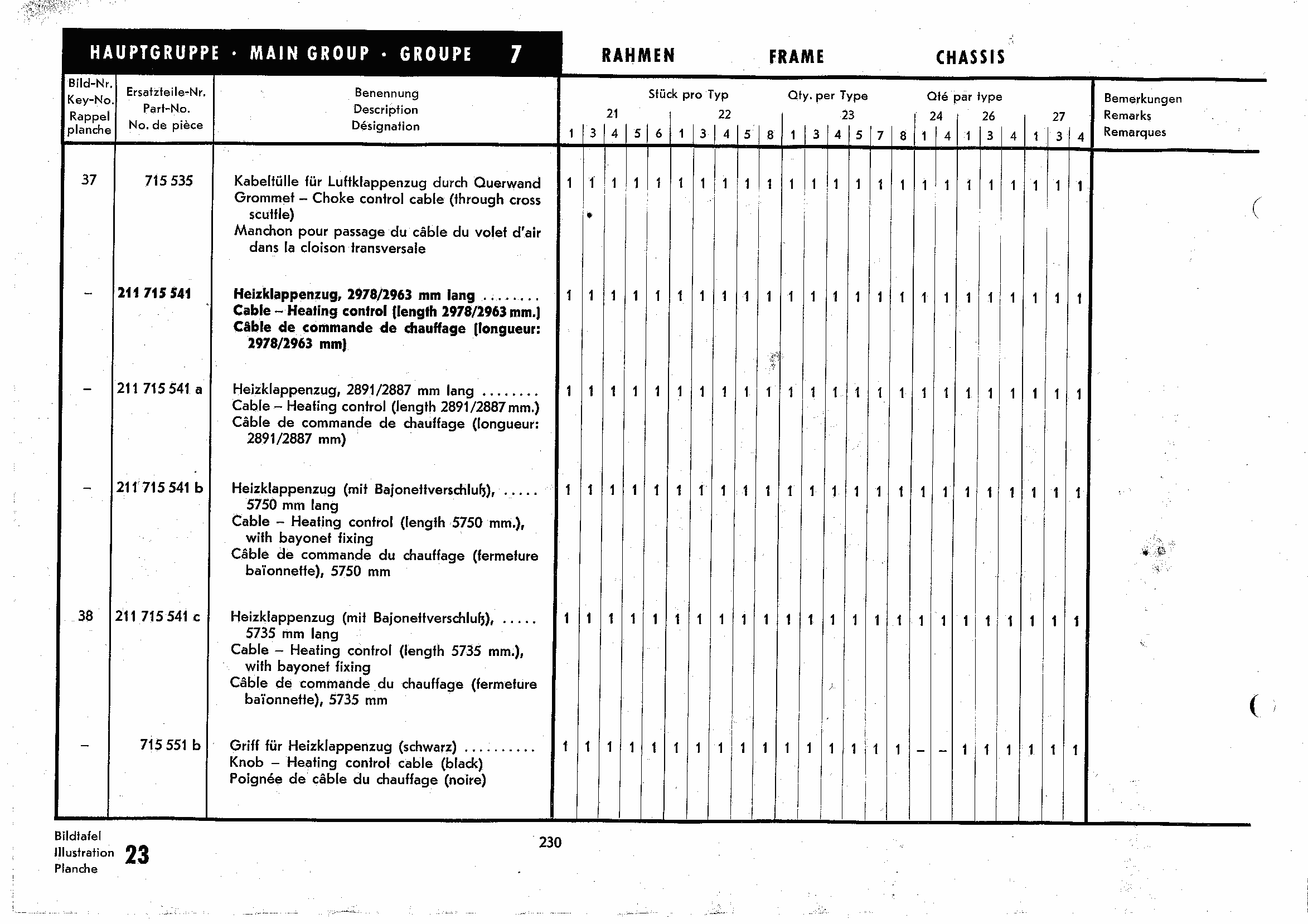

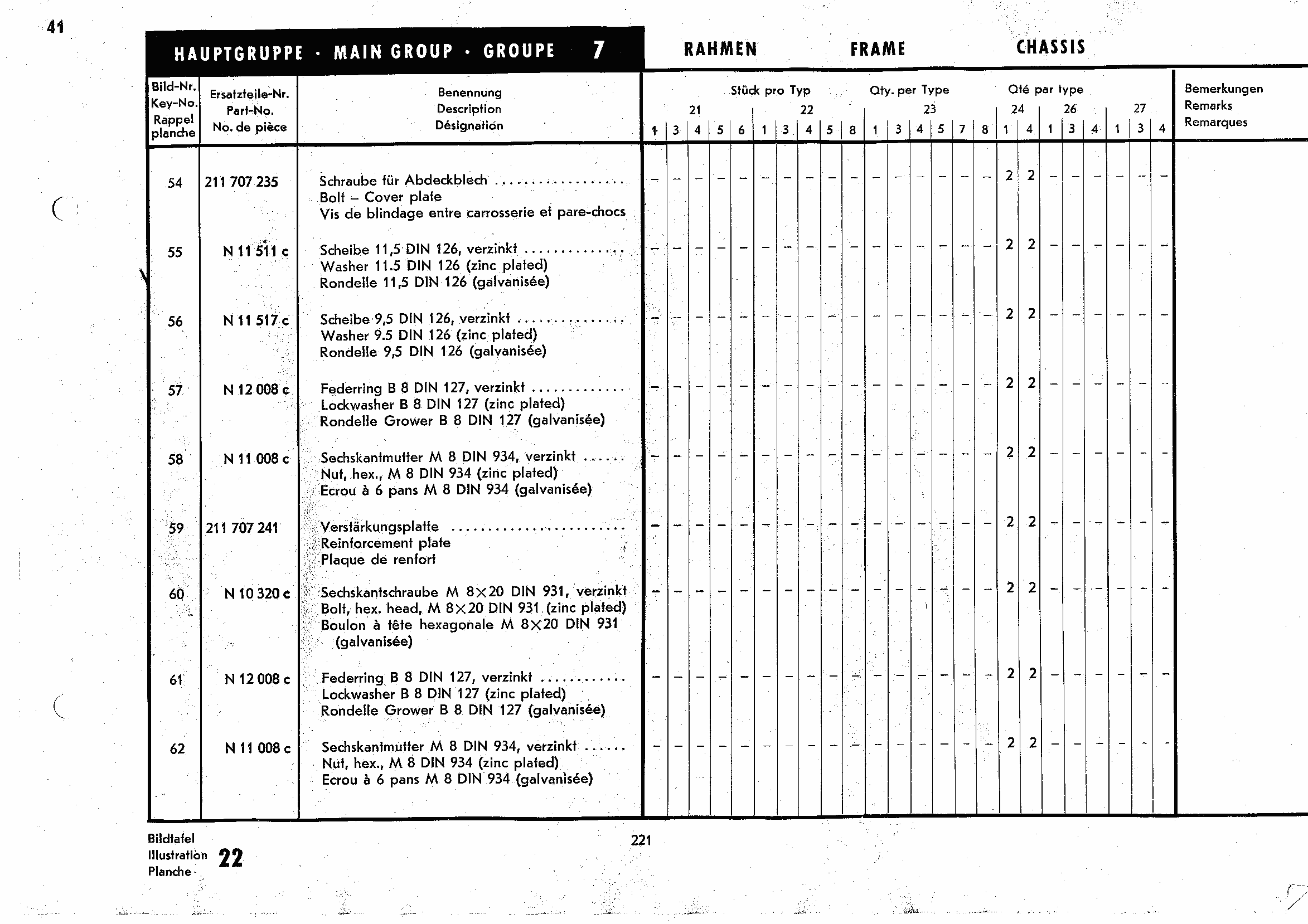

Main Group 7: Frame, Hand and Foot Lever Systems

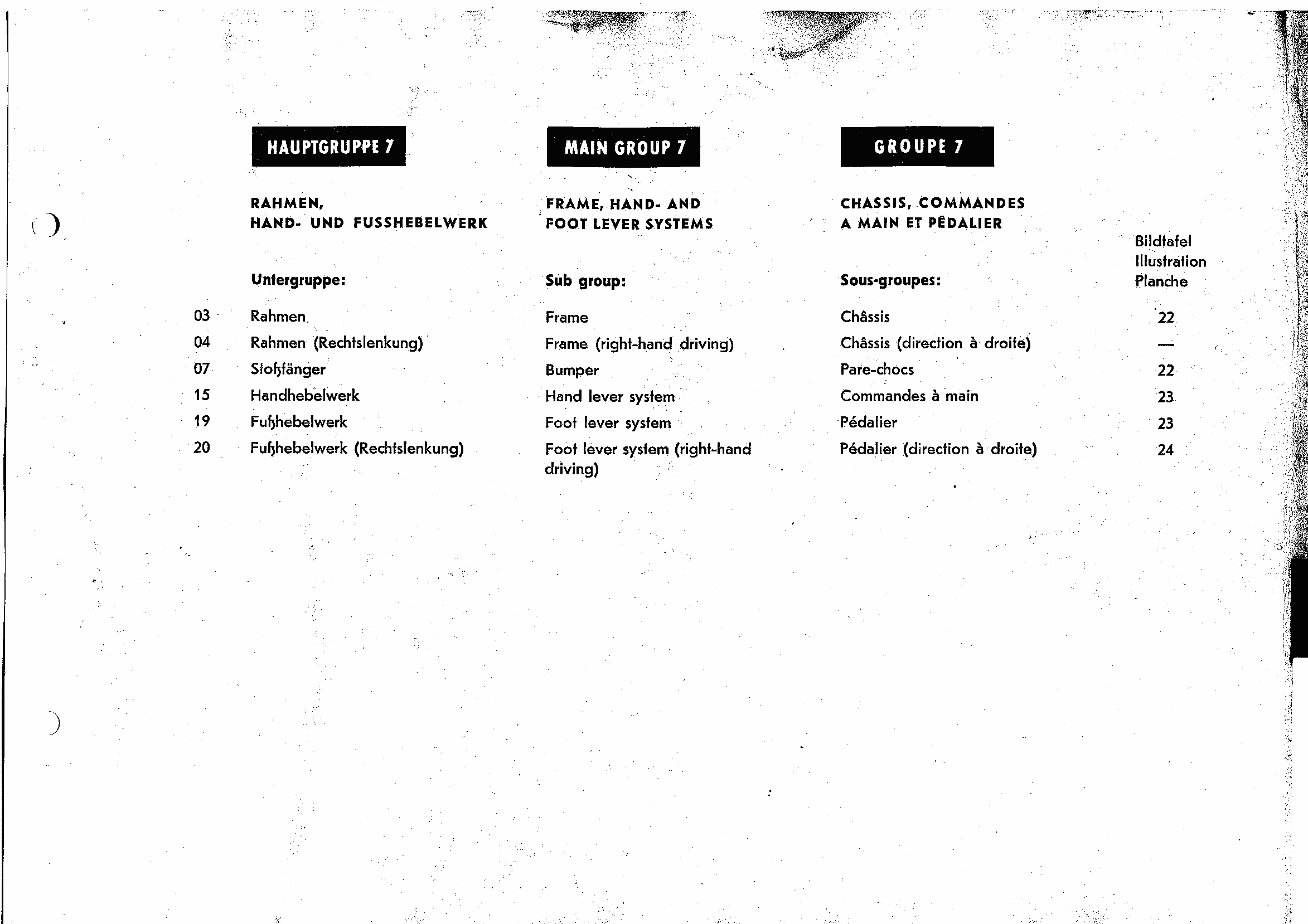

207 list Main Group 7 index

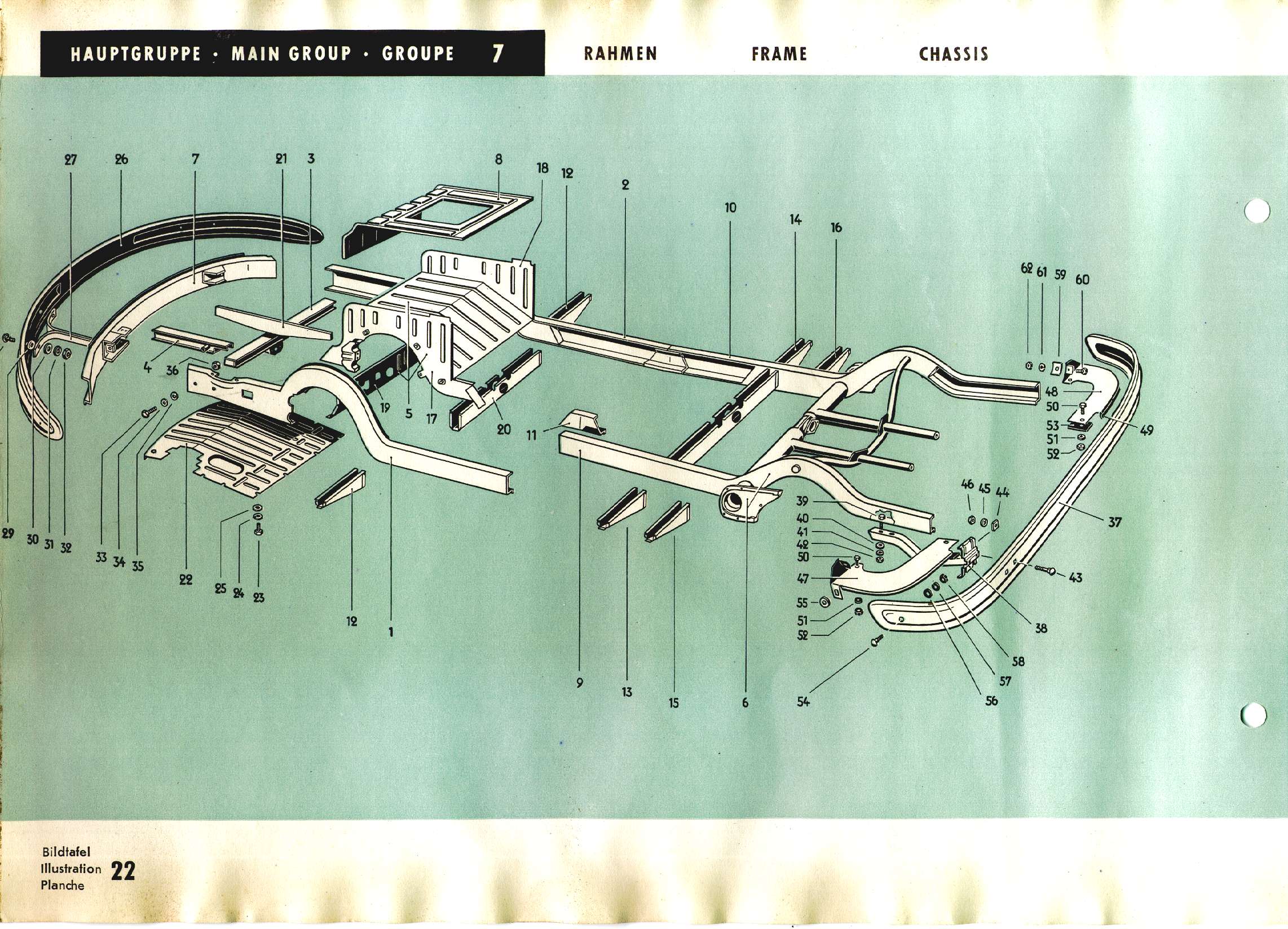

208 diagram Frame

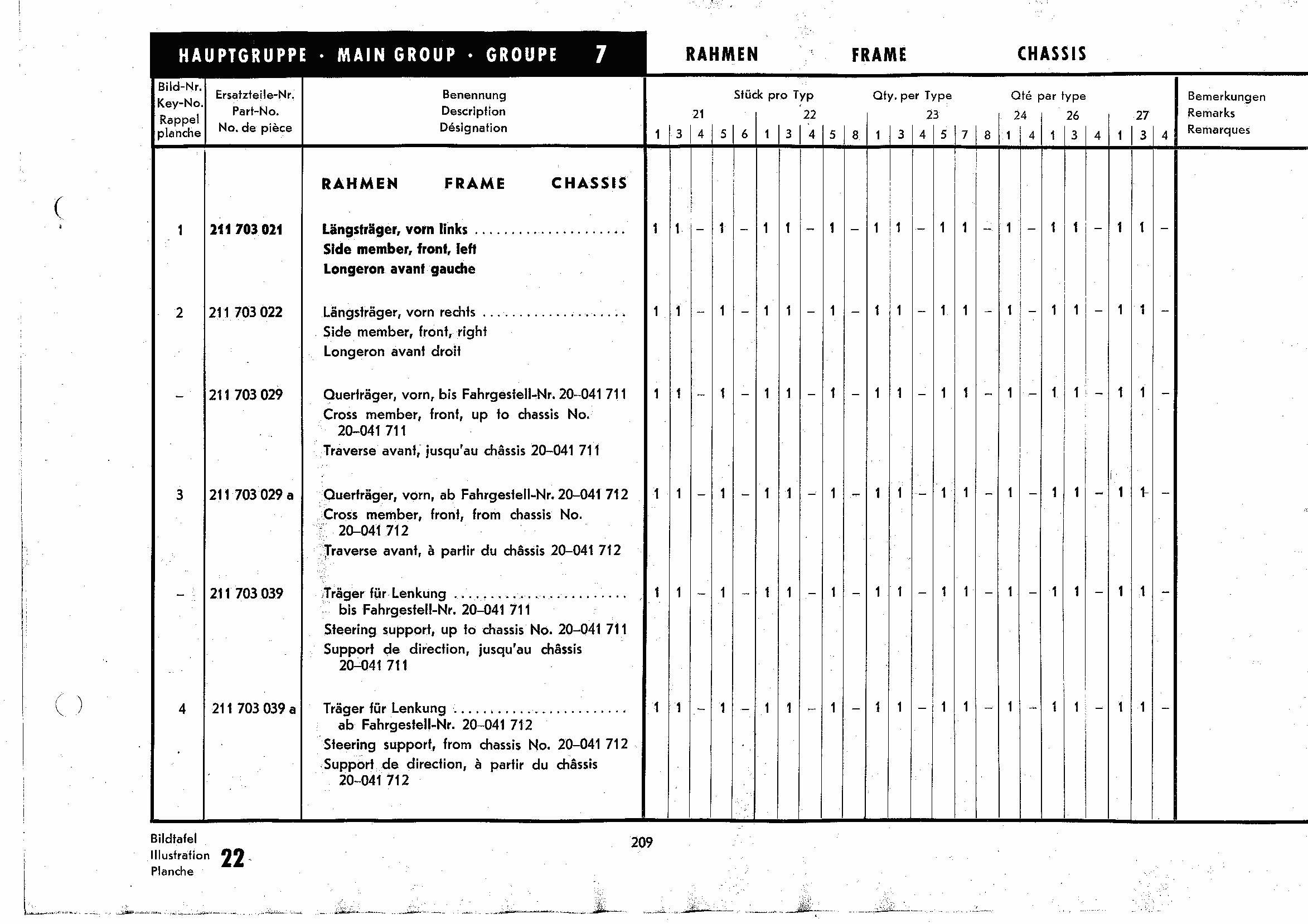

209 list Frame

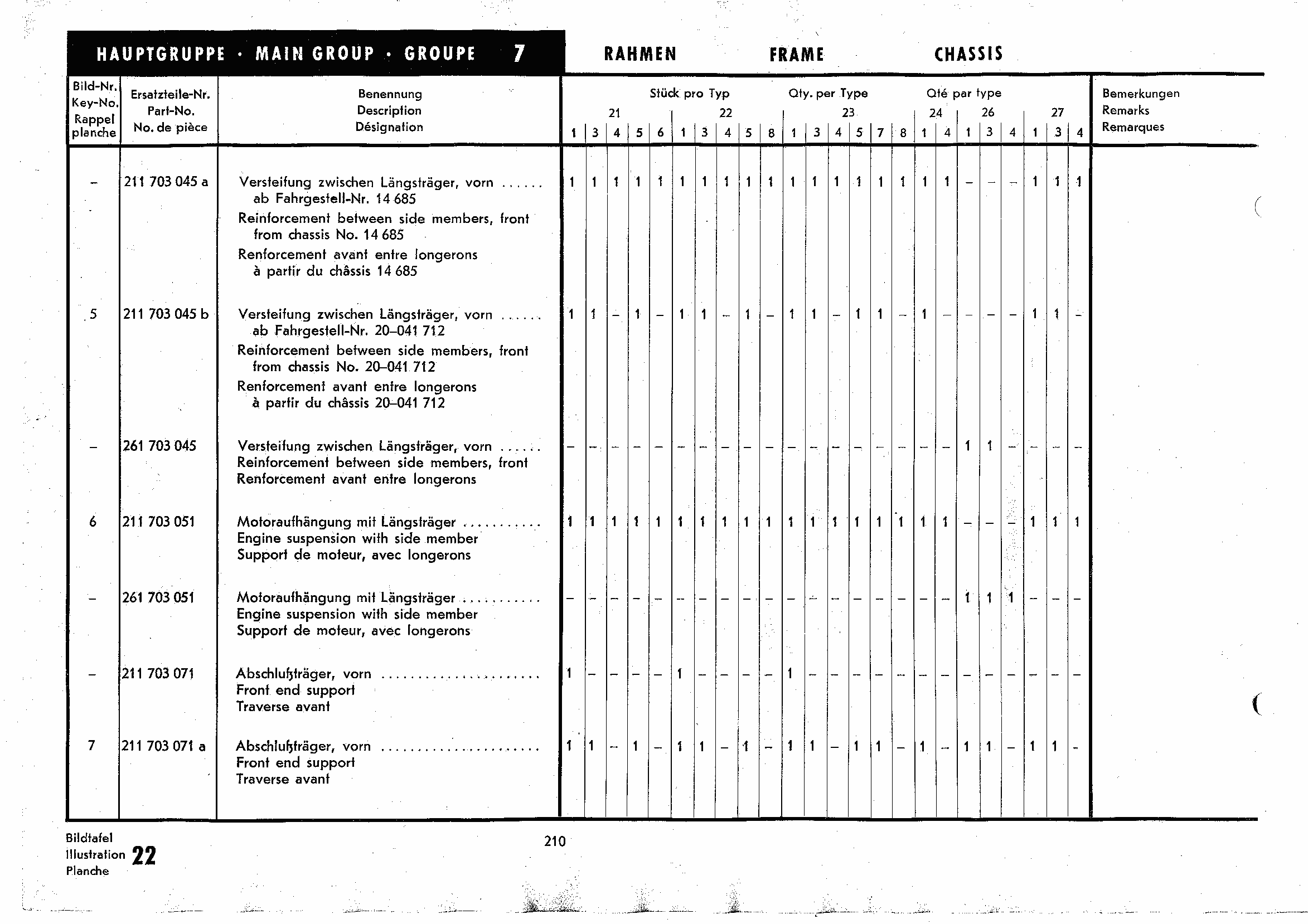

210 list Frame

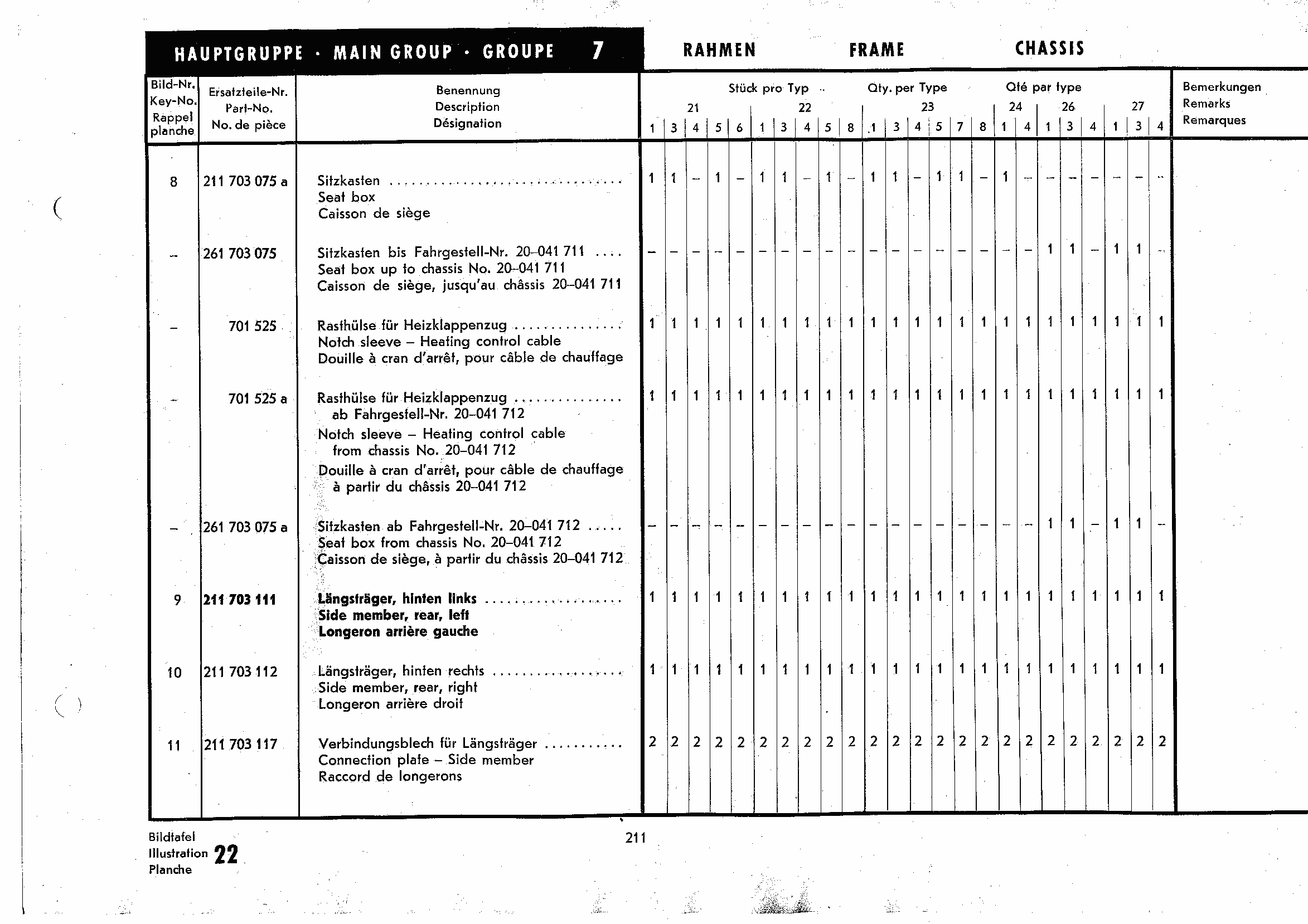

211 list Frame

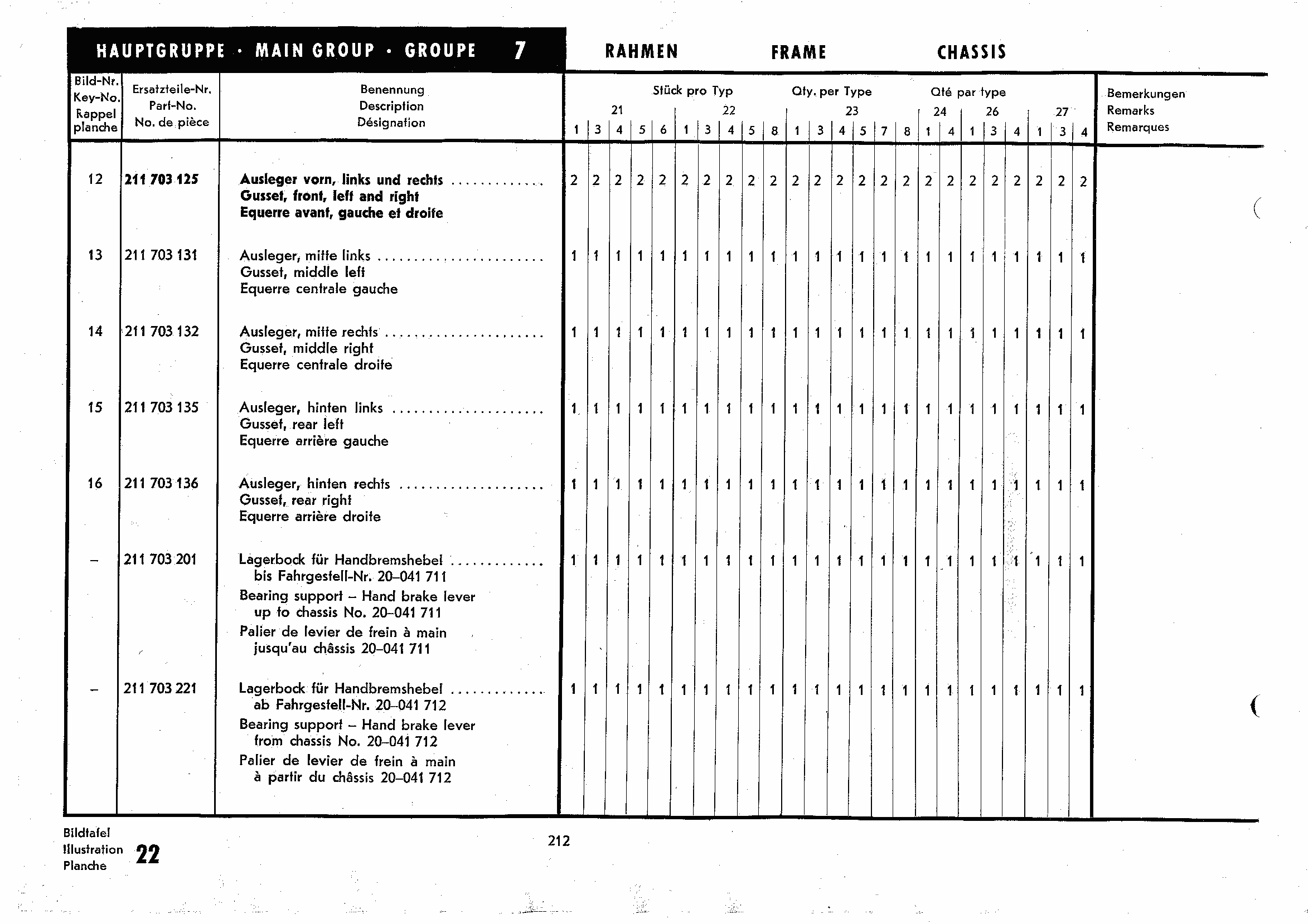

212 list Frame

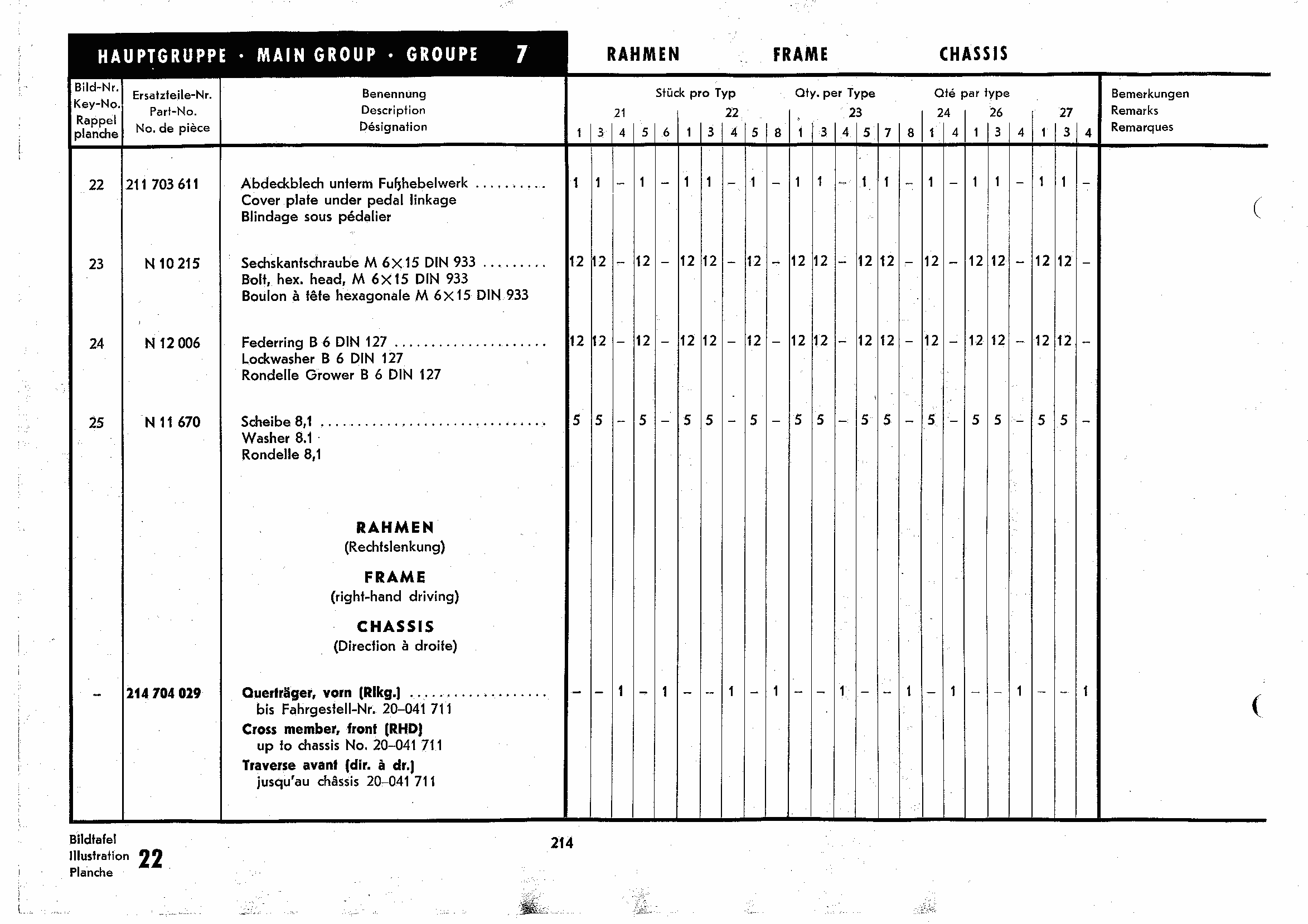

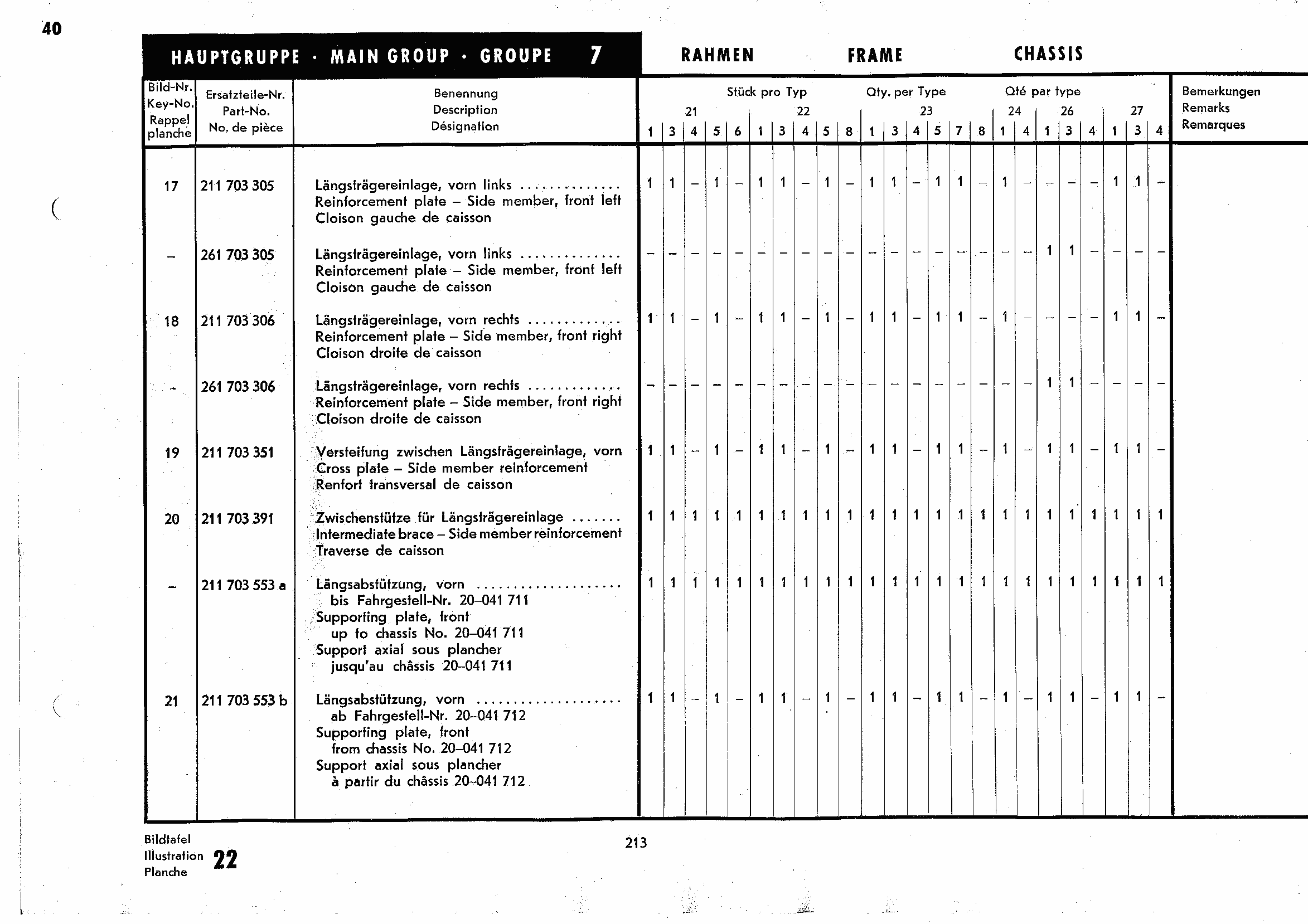

213 list Frame
214 list Frame, frame RHD

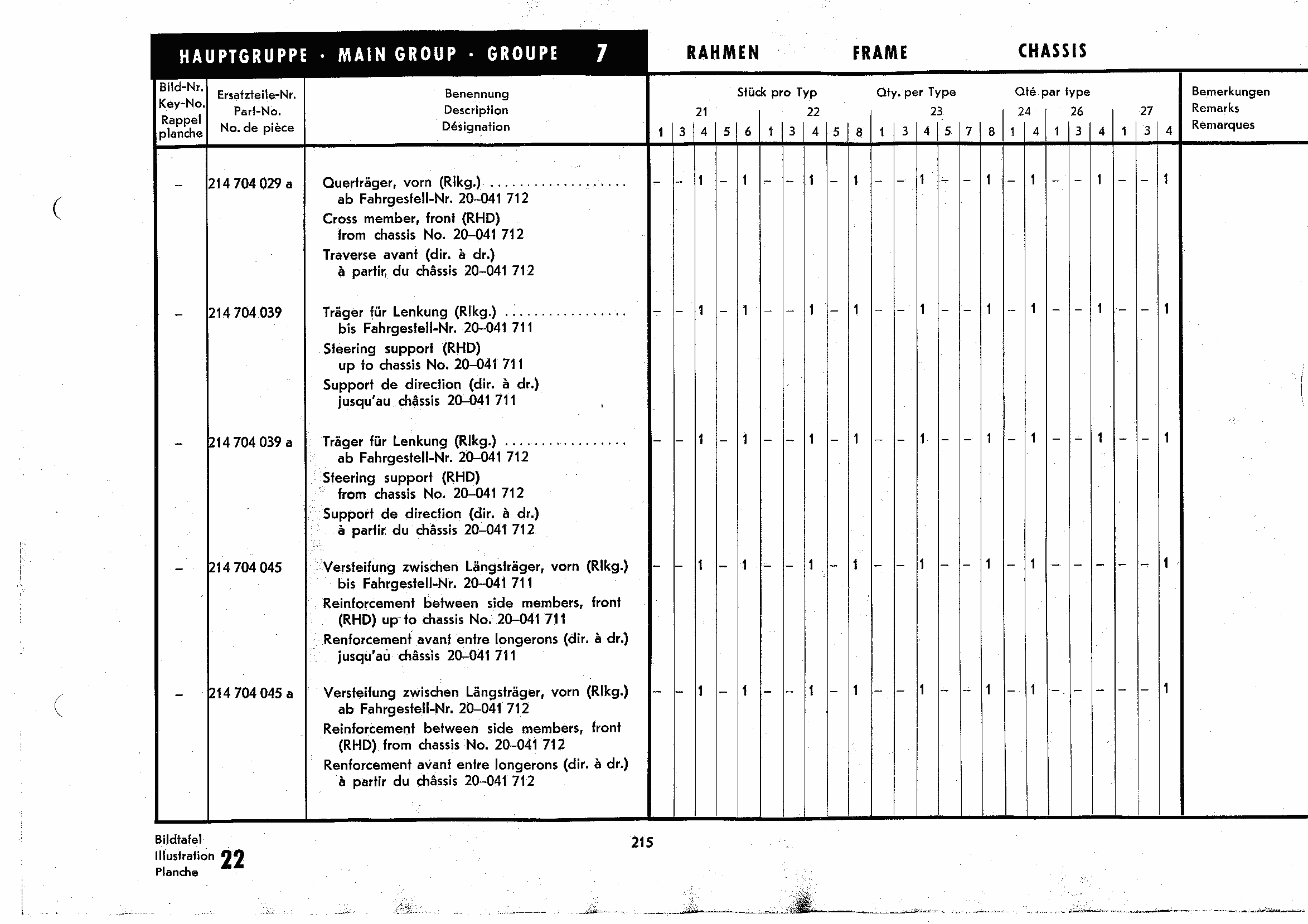

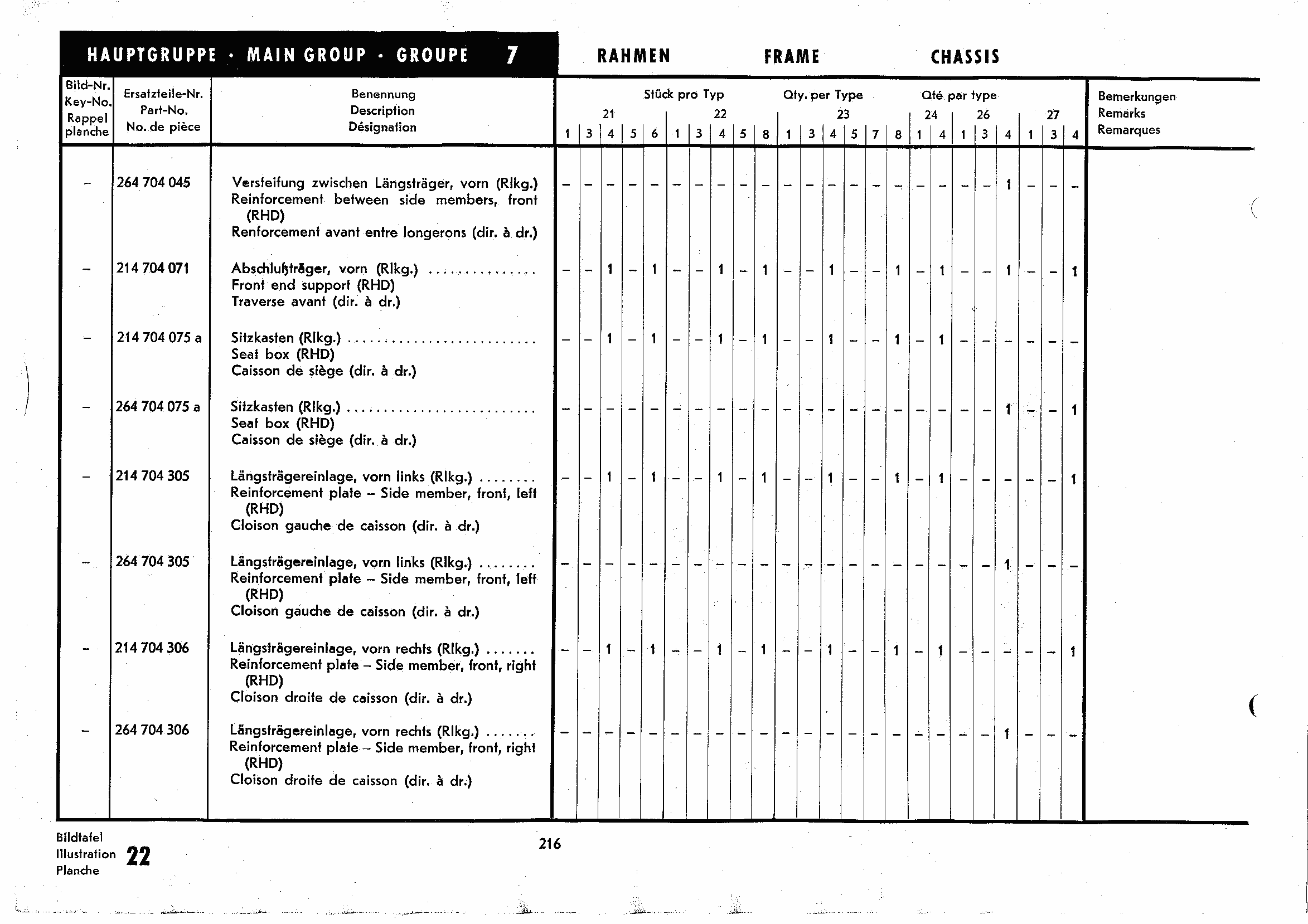

215 list Frame RHD
216 list Frame RHD

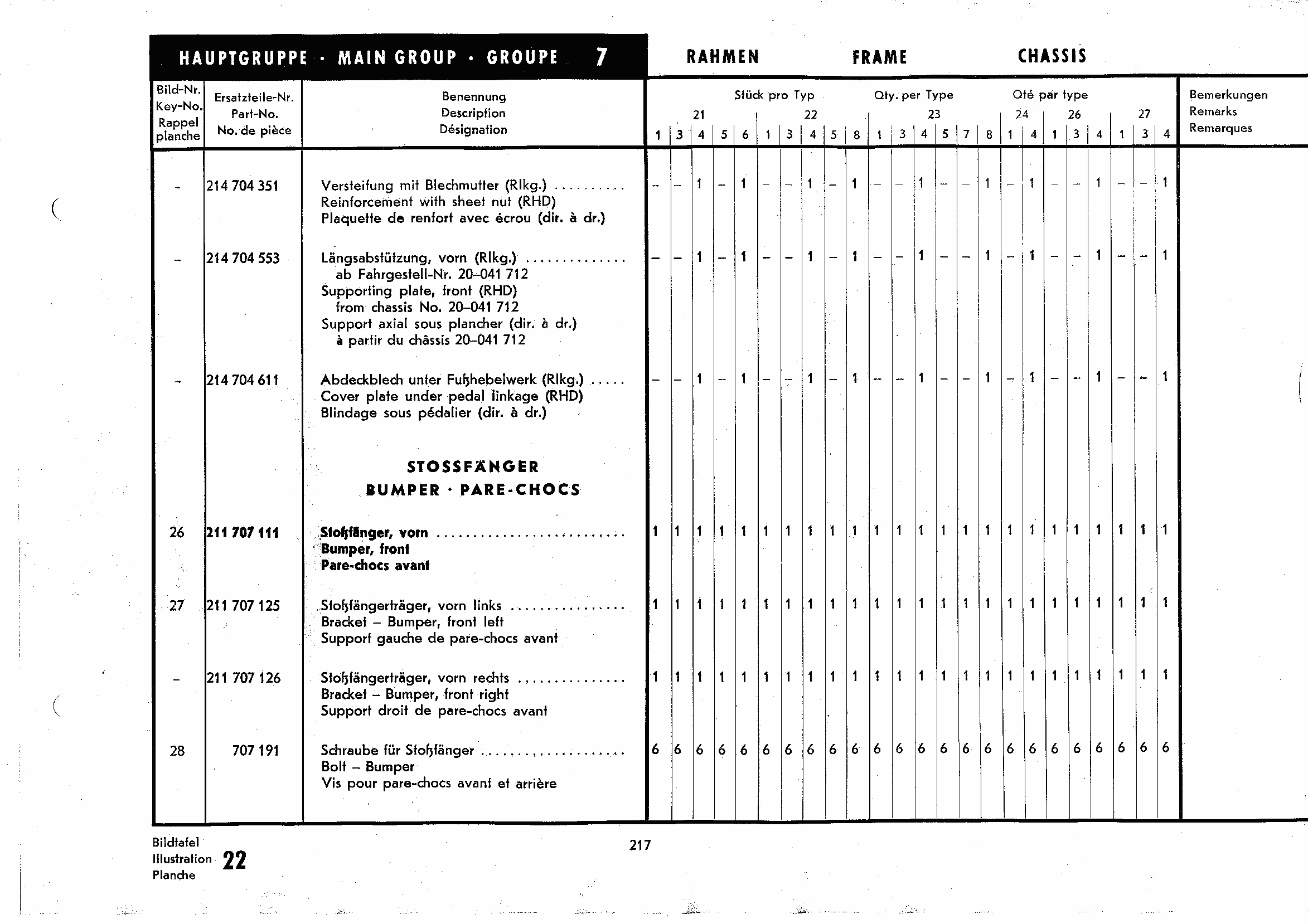

217 list Frame RHD, bumper

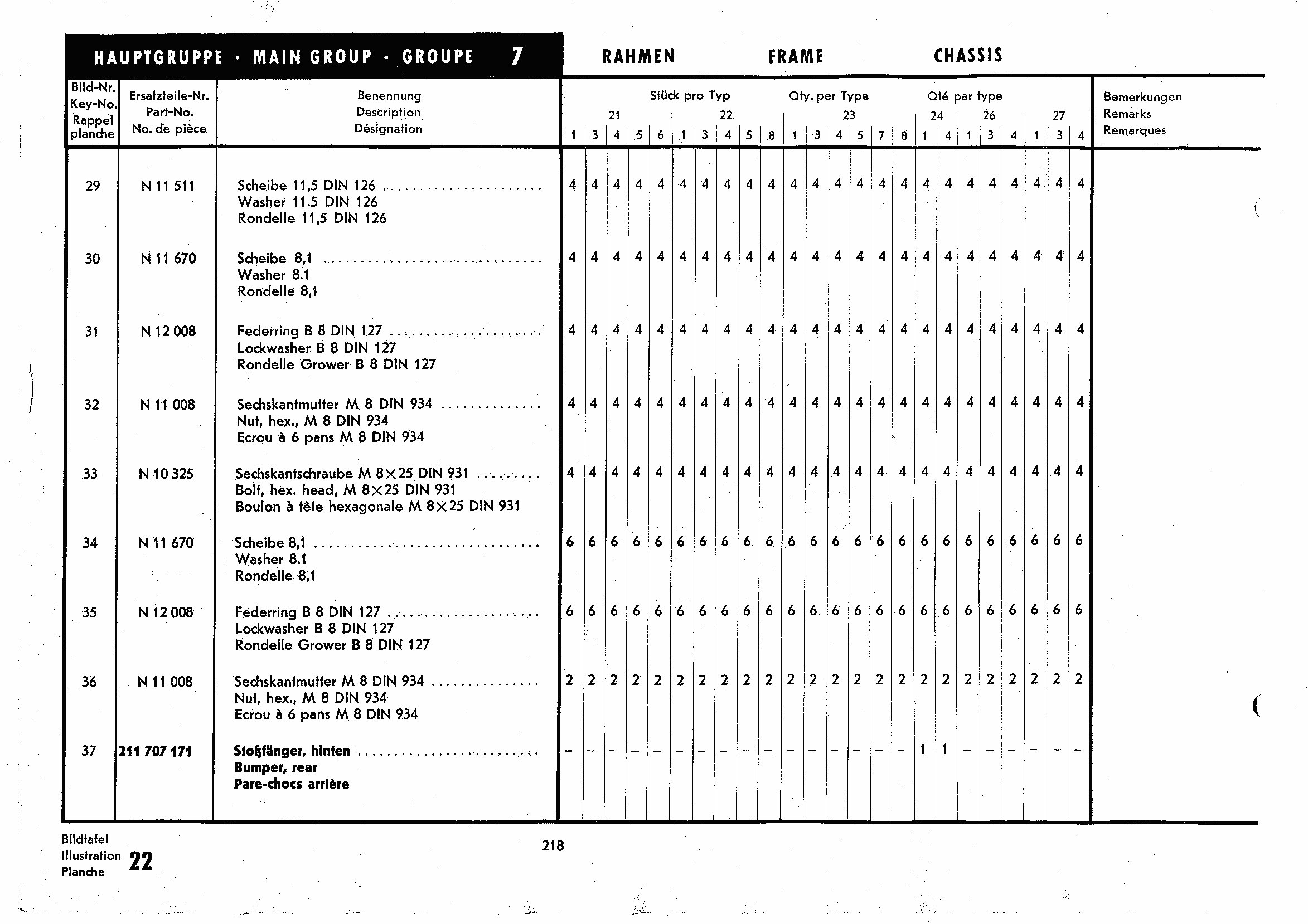

218 list Bumper
219 list Bumper

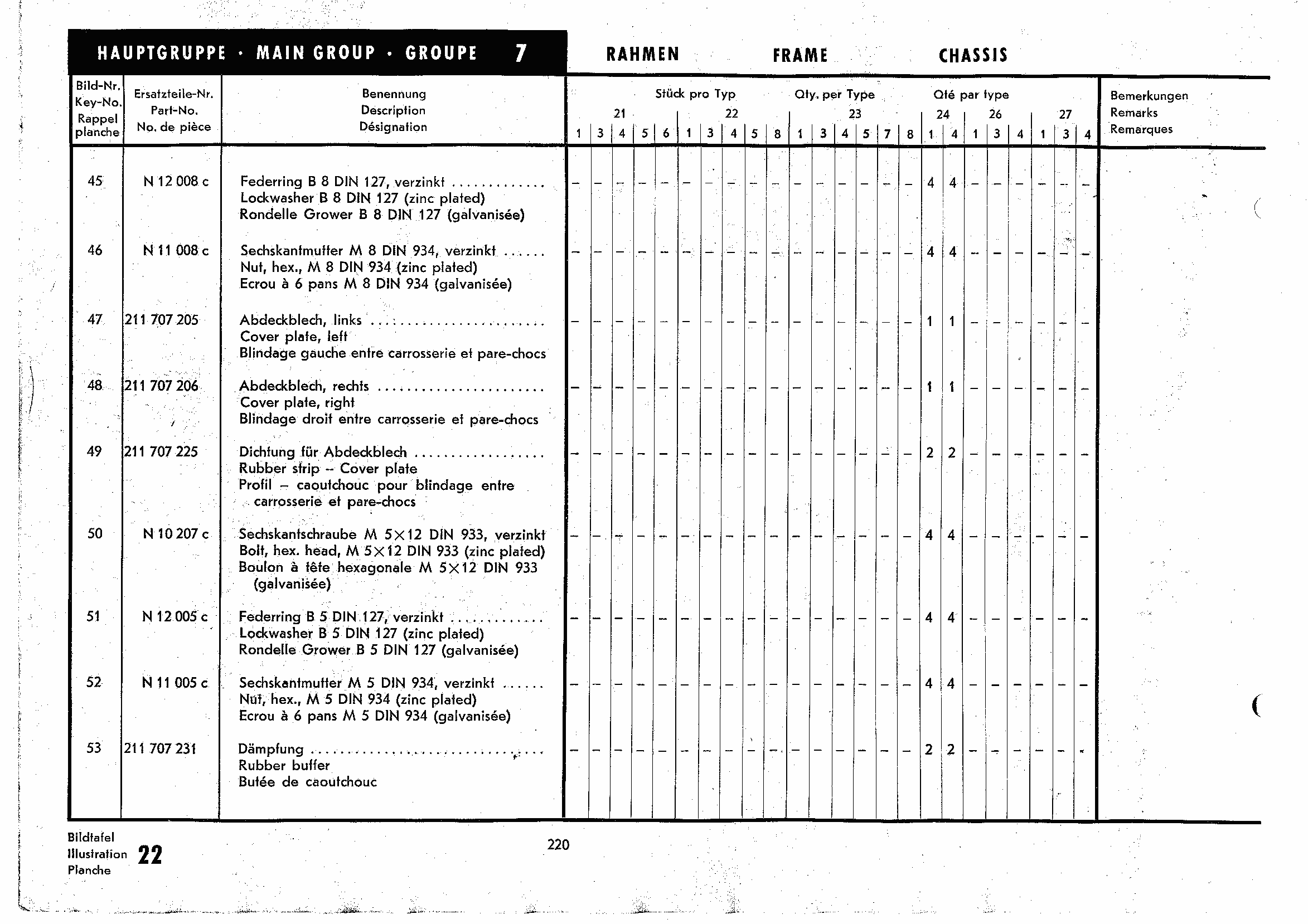

220 list Bumper

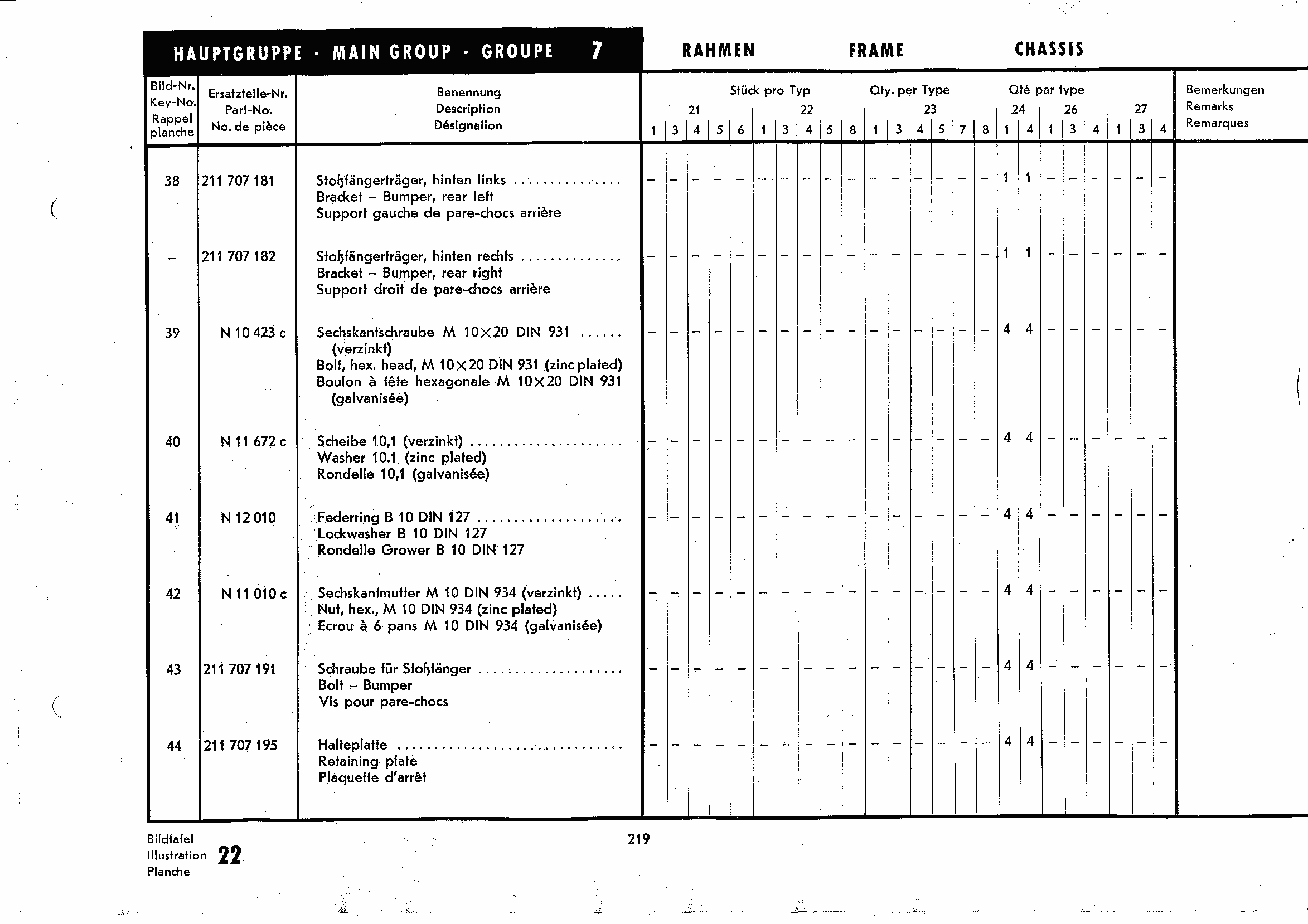

221 list Bumper

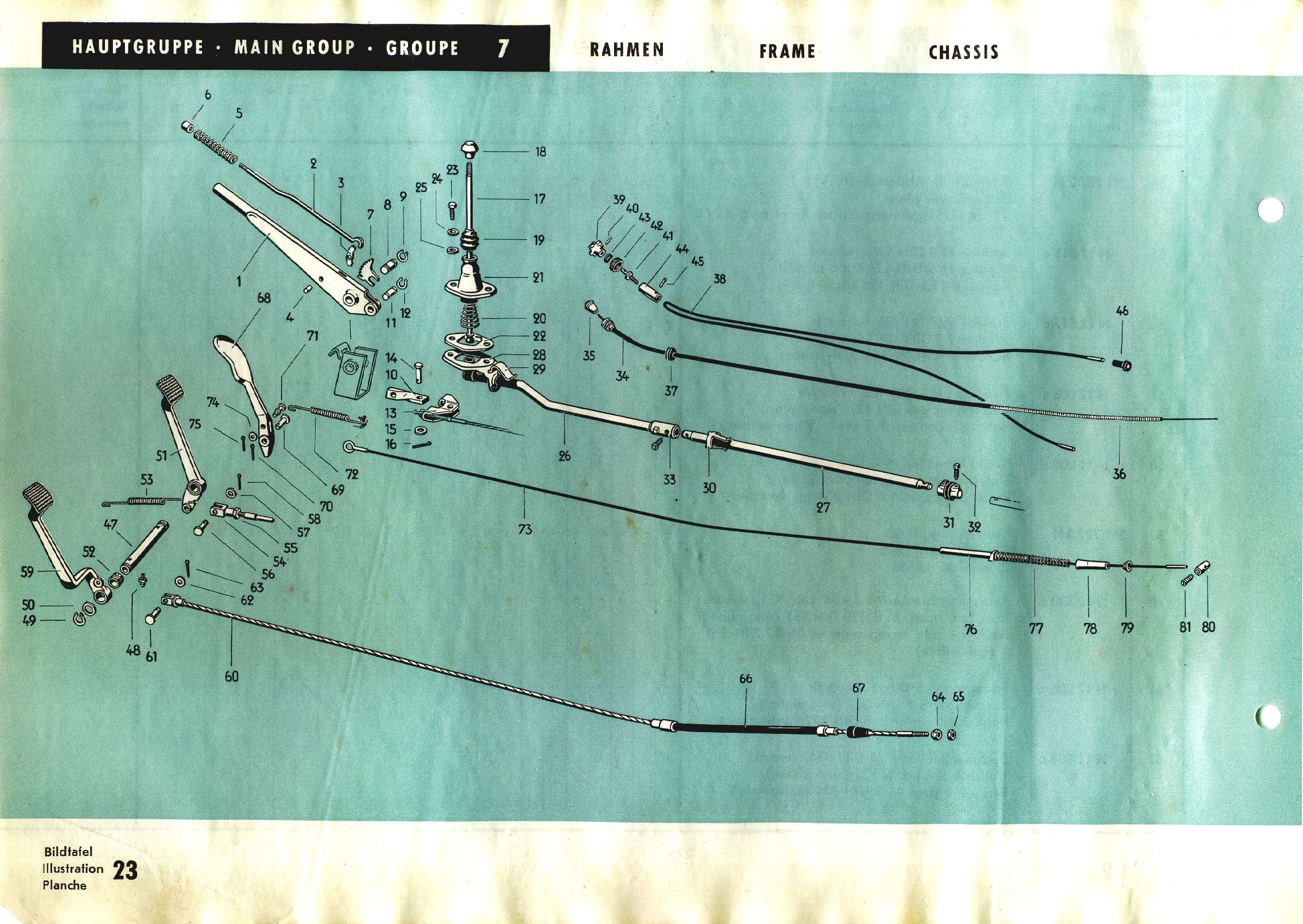

222 diagram Hand lever system, foot lever system

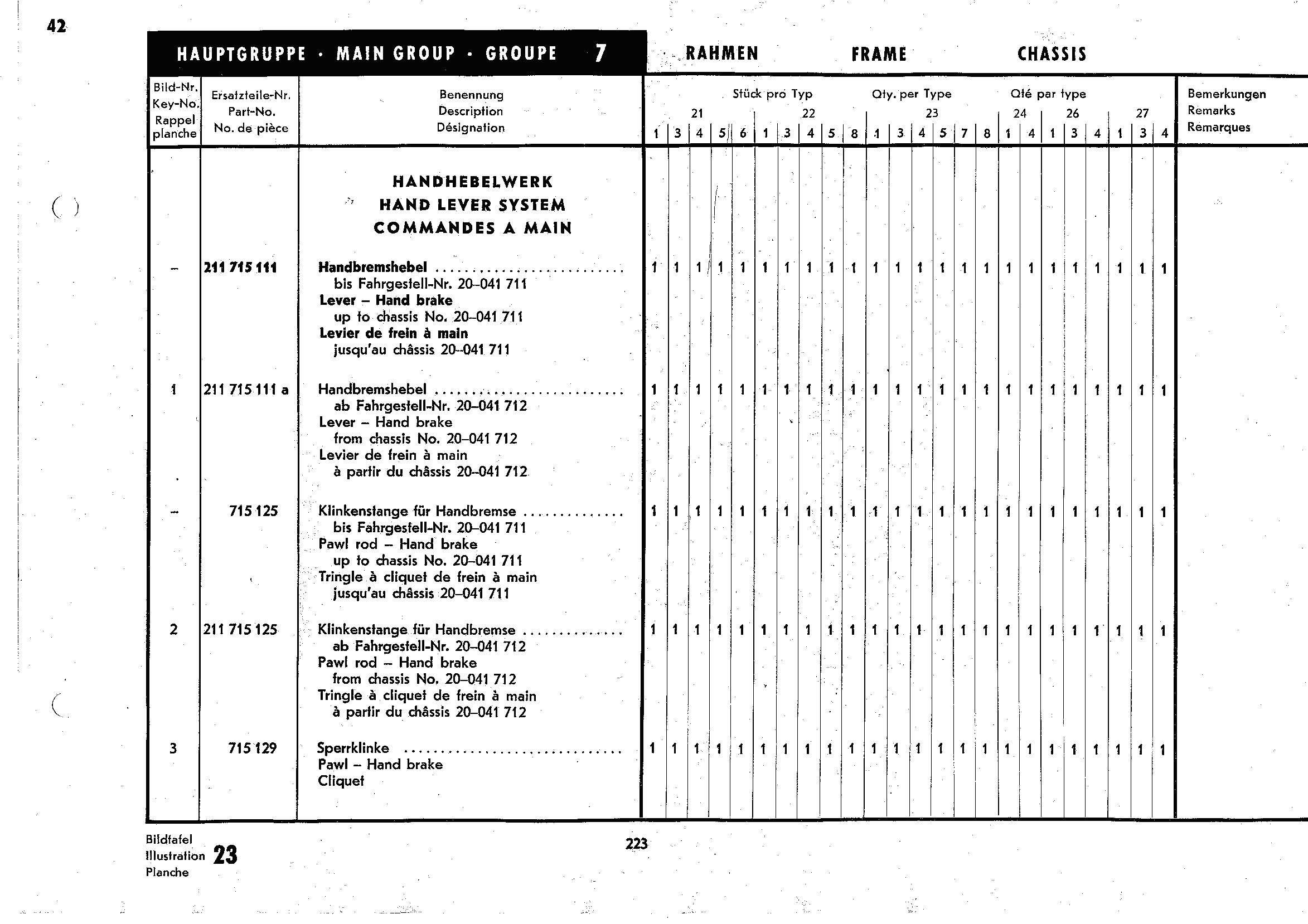

223 list Hand lever system
224 list Hand lever system

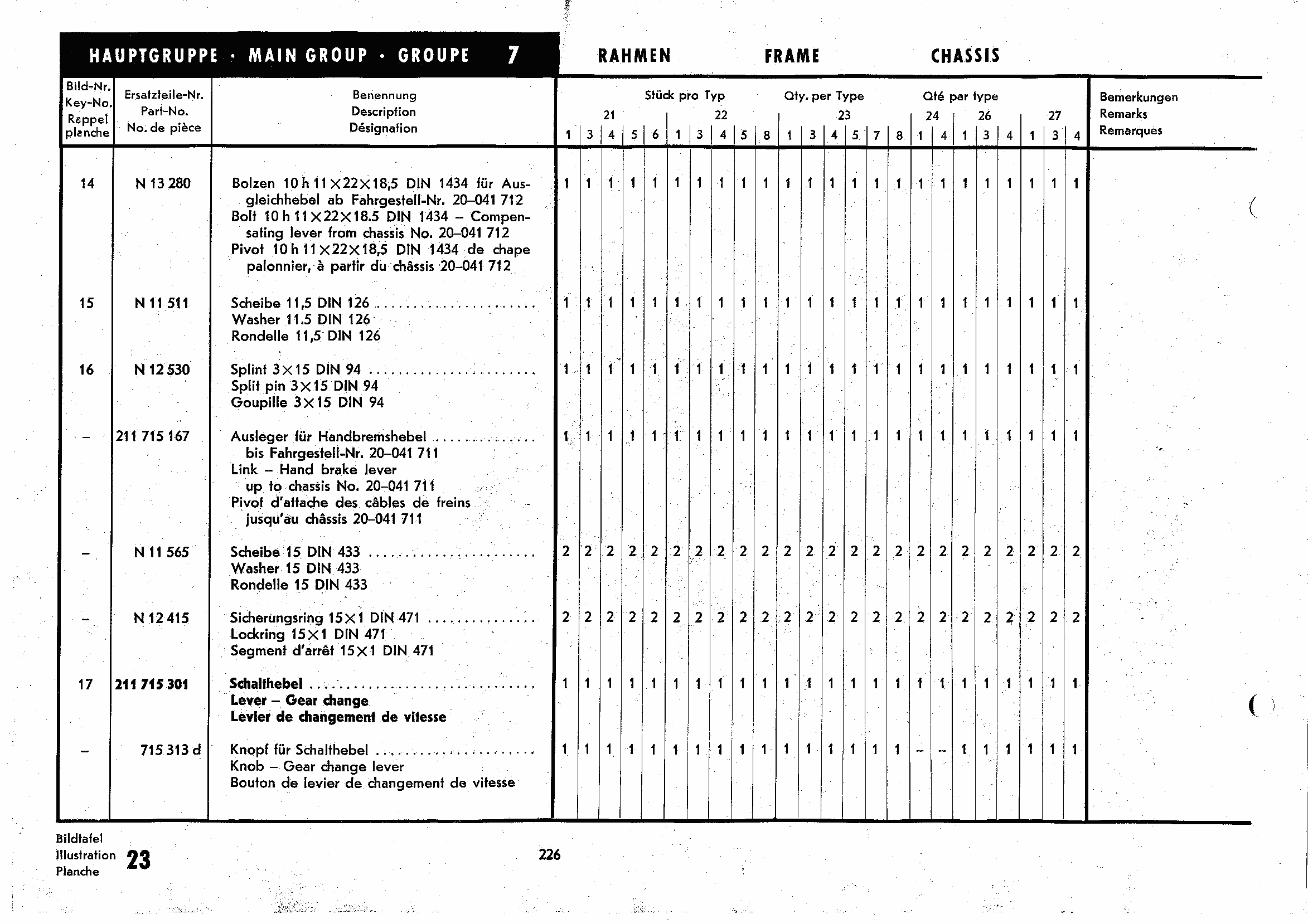

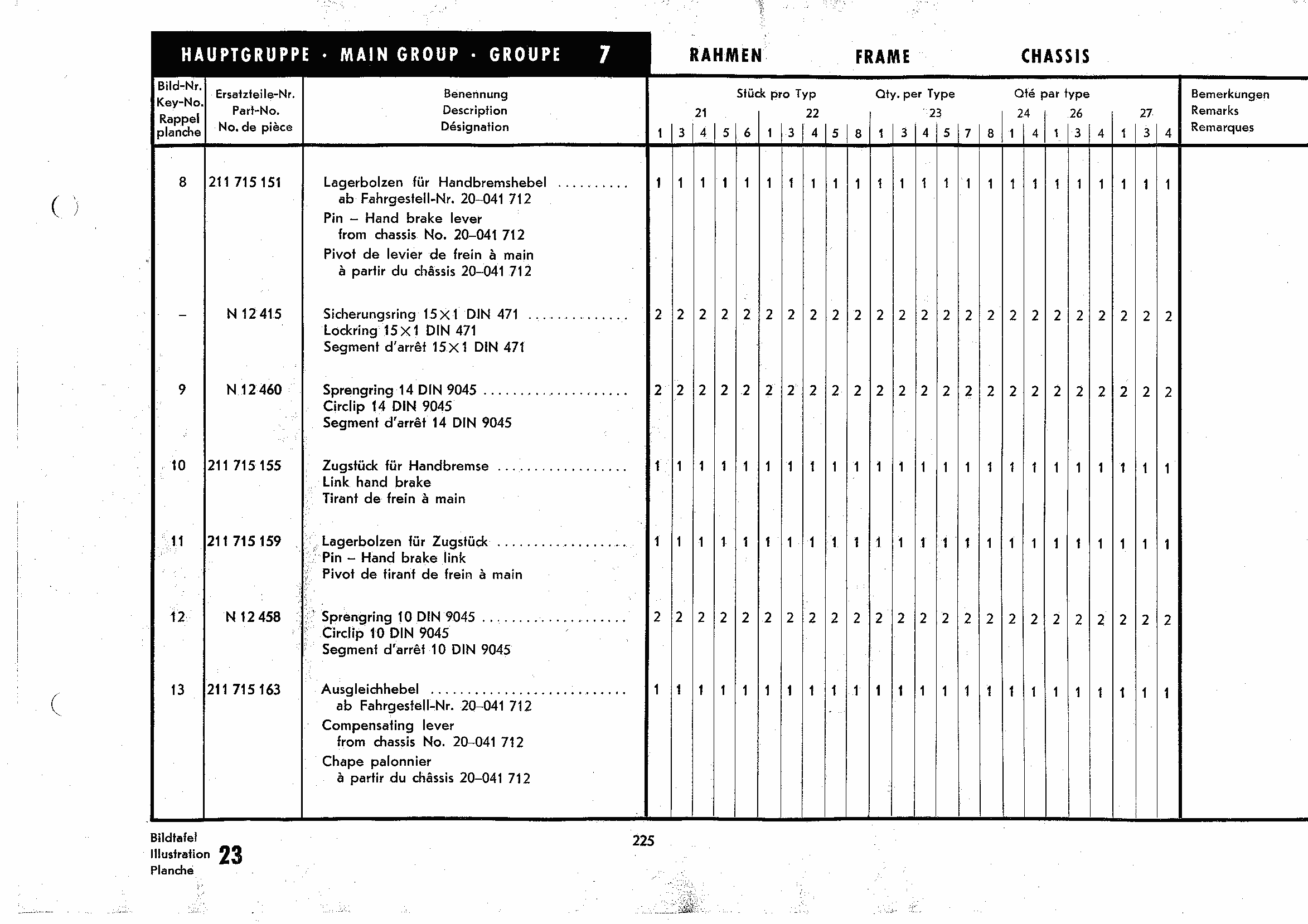

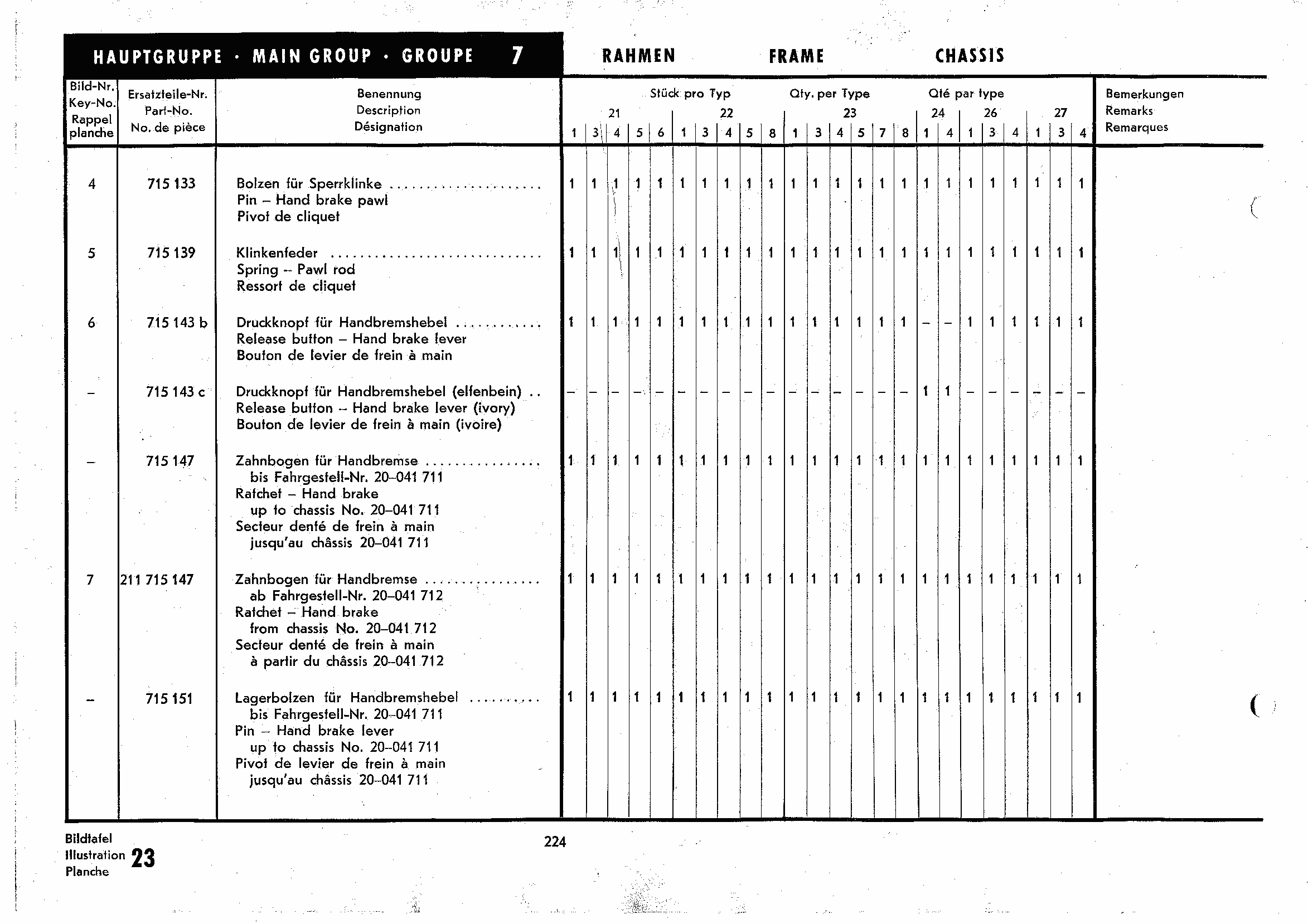

225 list Hand lever system
226 list Hand lever system

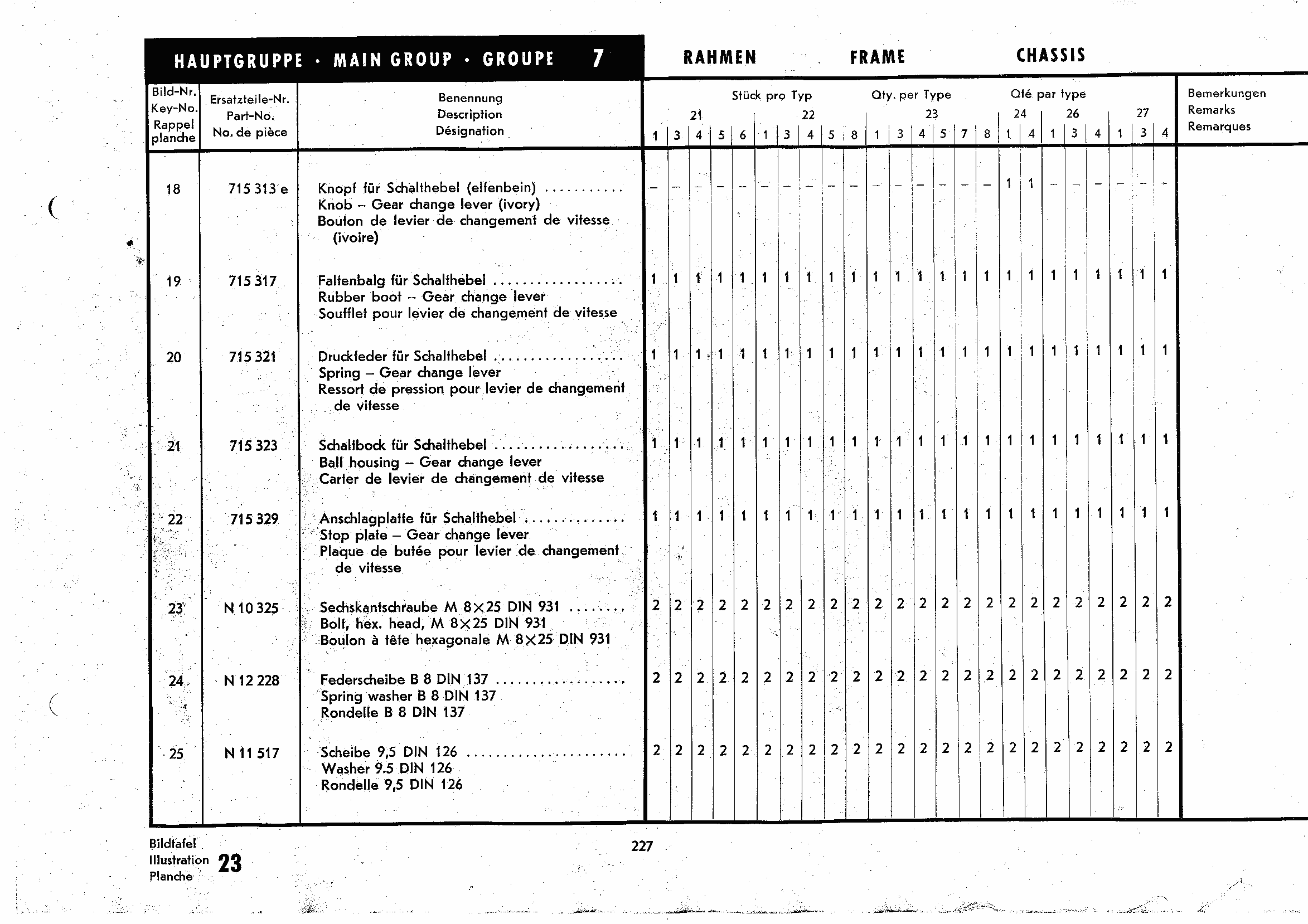

227 list Hand lever system

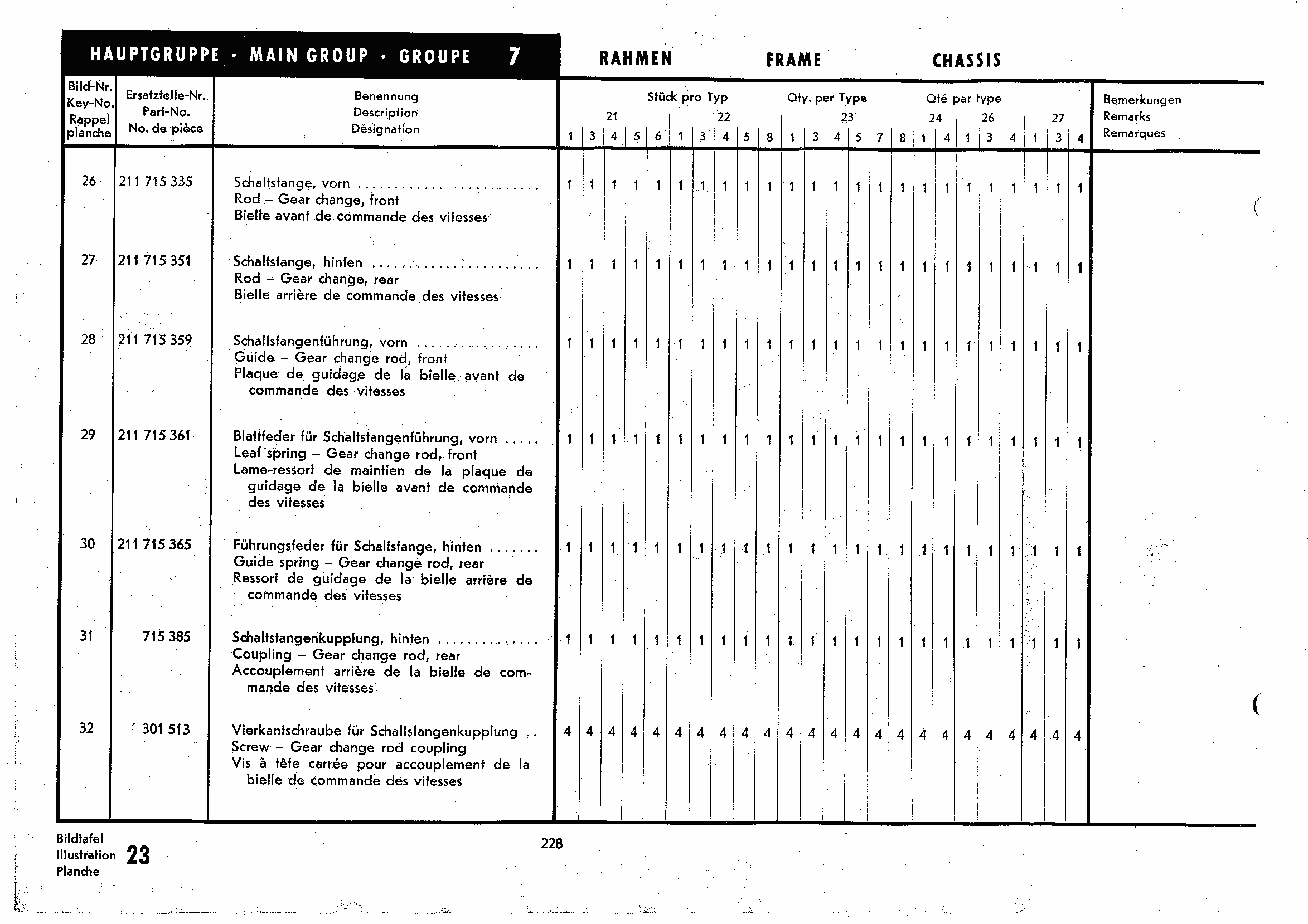

228 list Hand lever system

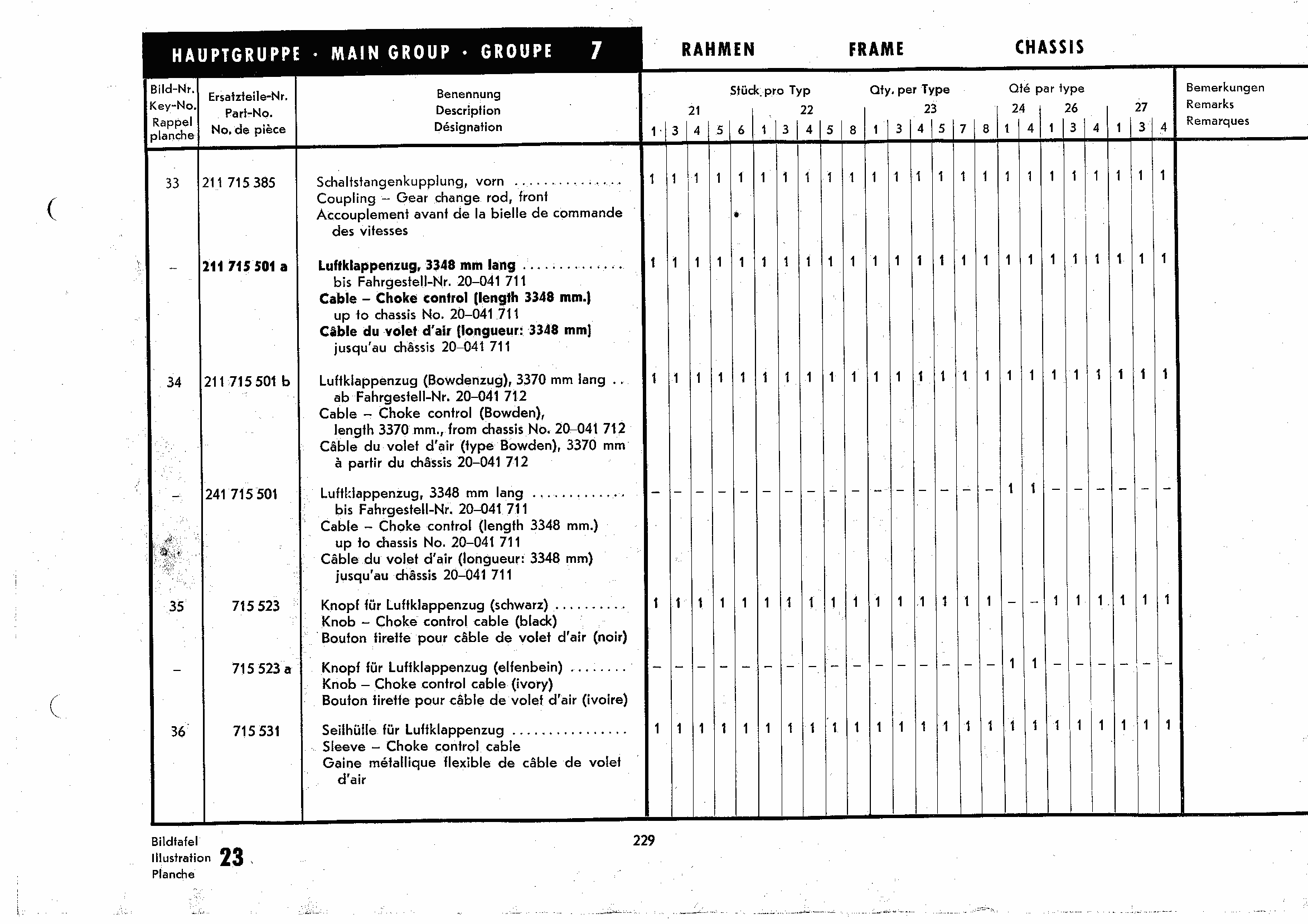

229 list Hand lever system
230 list Hand lever system

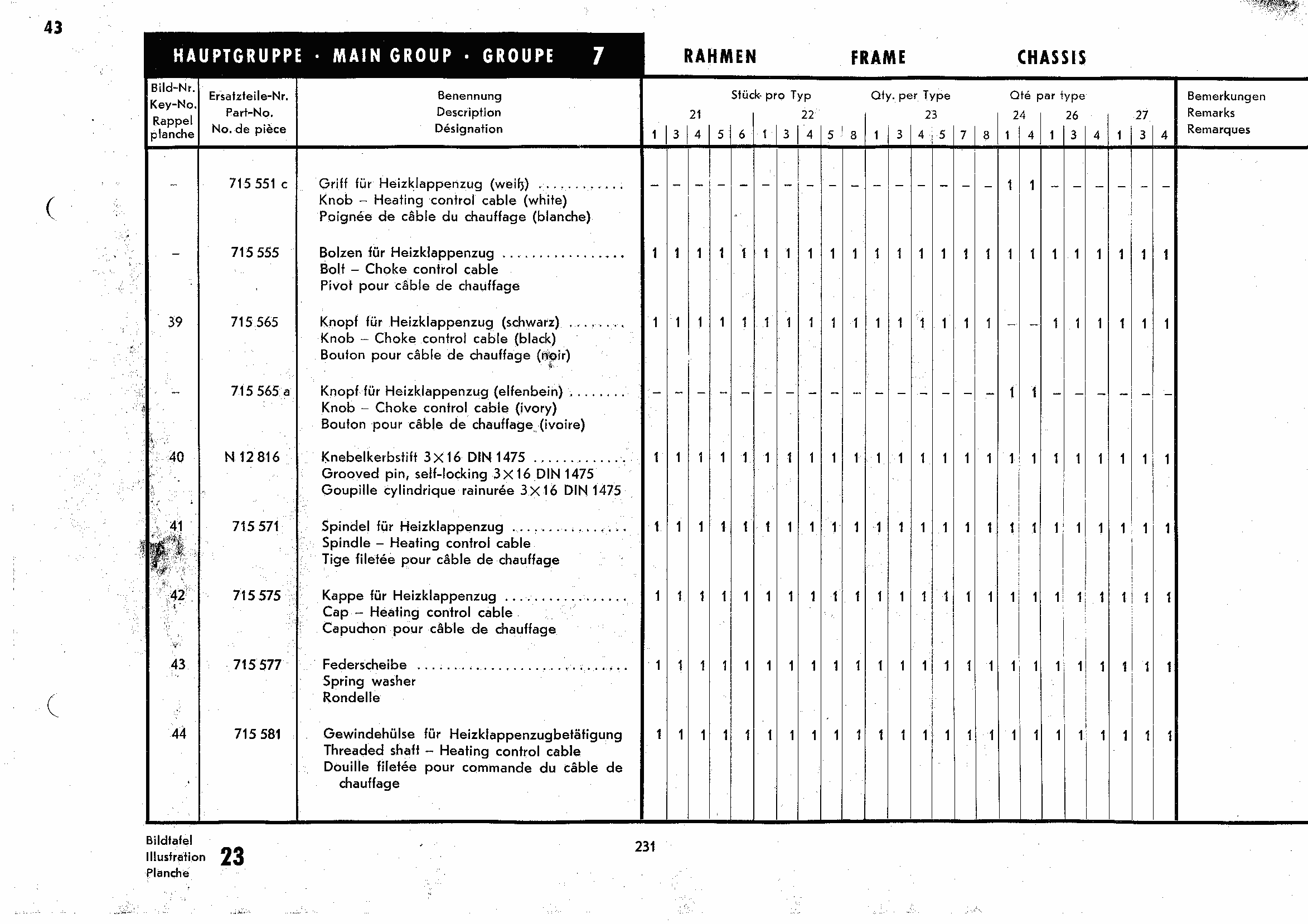

231 list Hand lever system

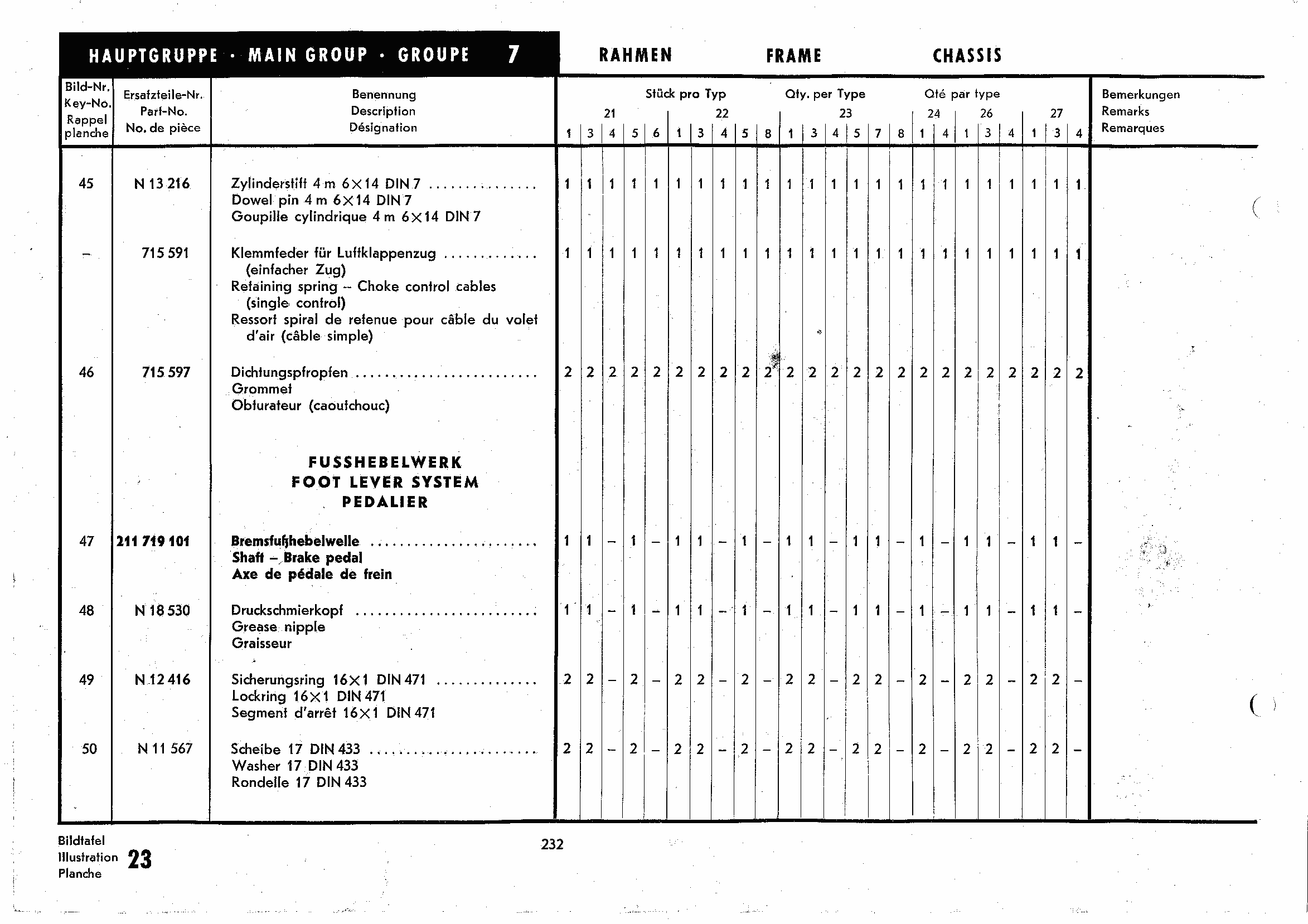

232 list Hand lever system, foot lever system

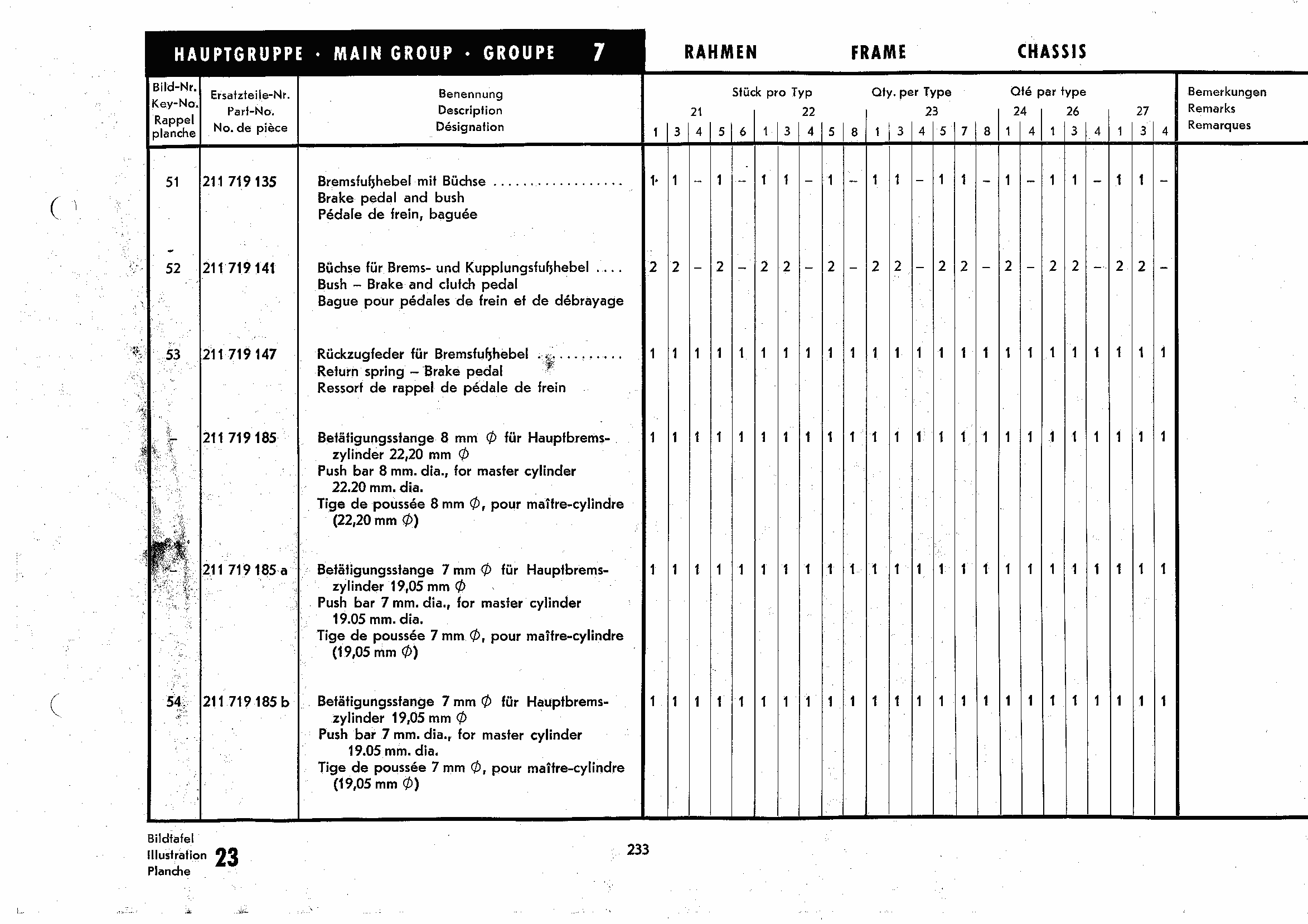

233 list Foot lever system

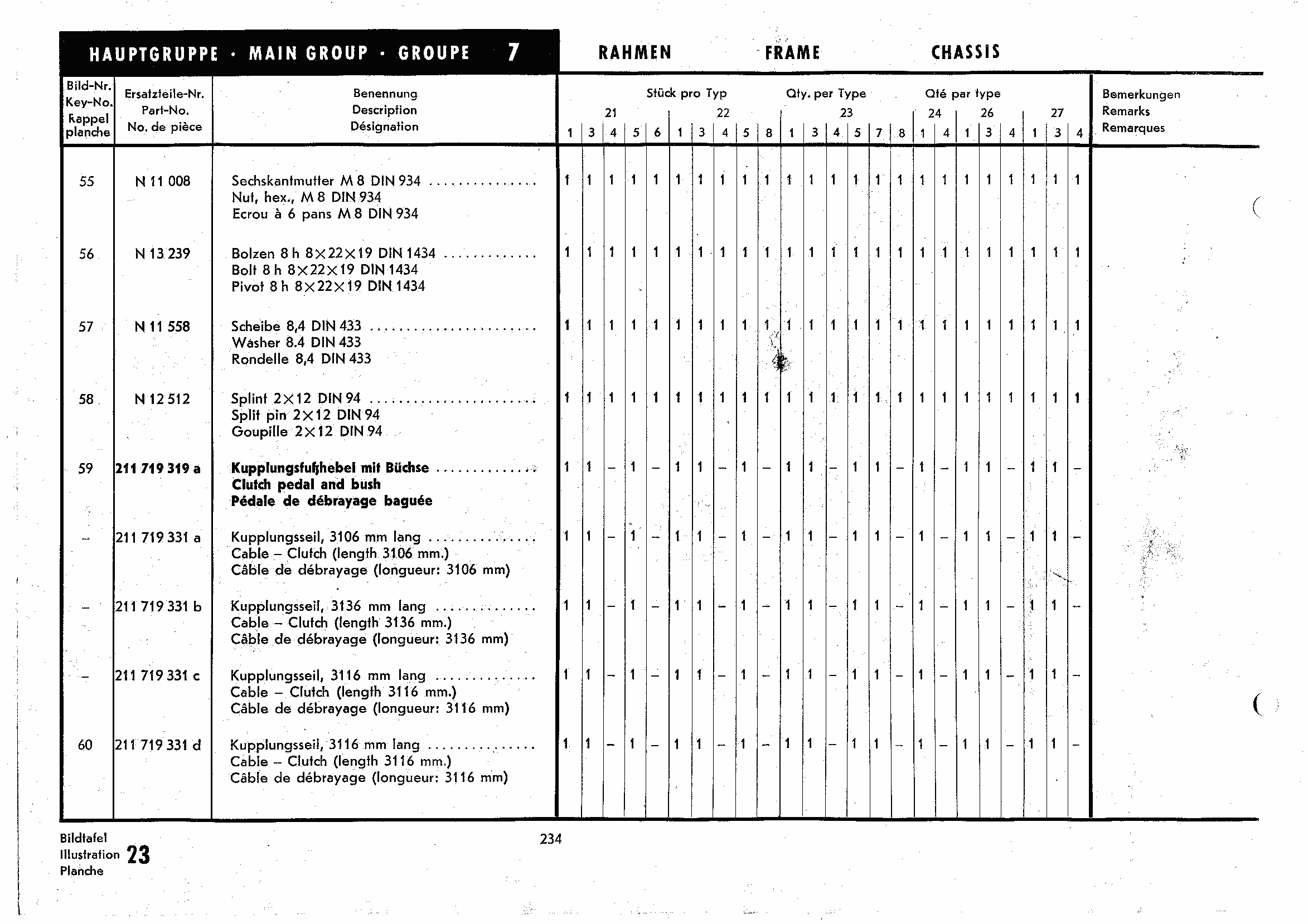

234 list Foot lever system

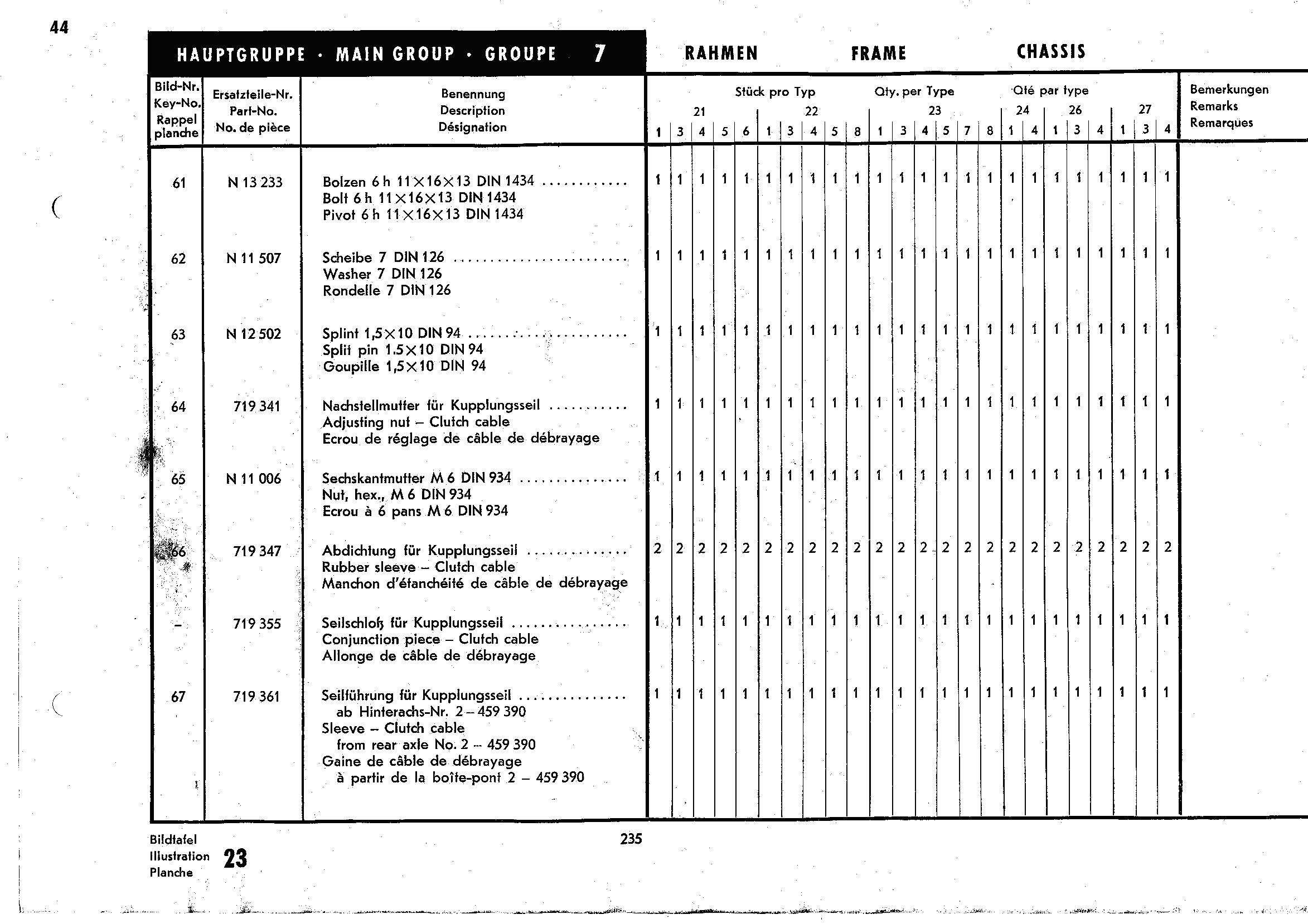

235 list Foot lever system

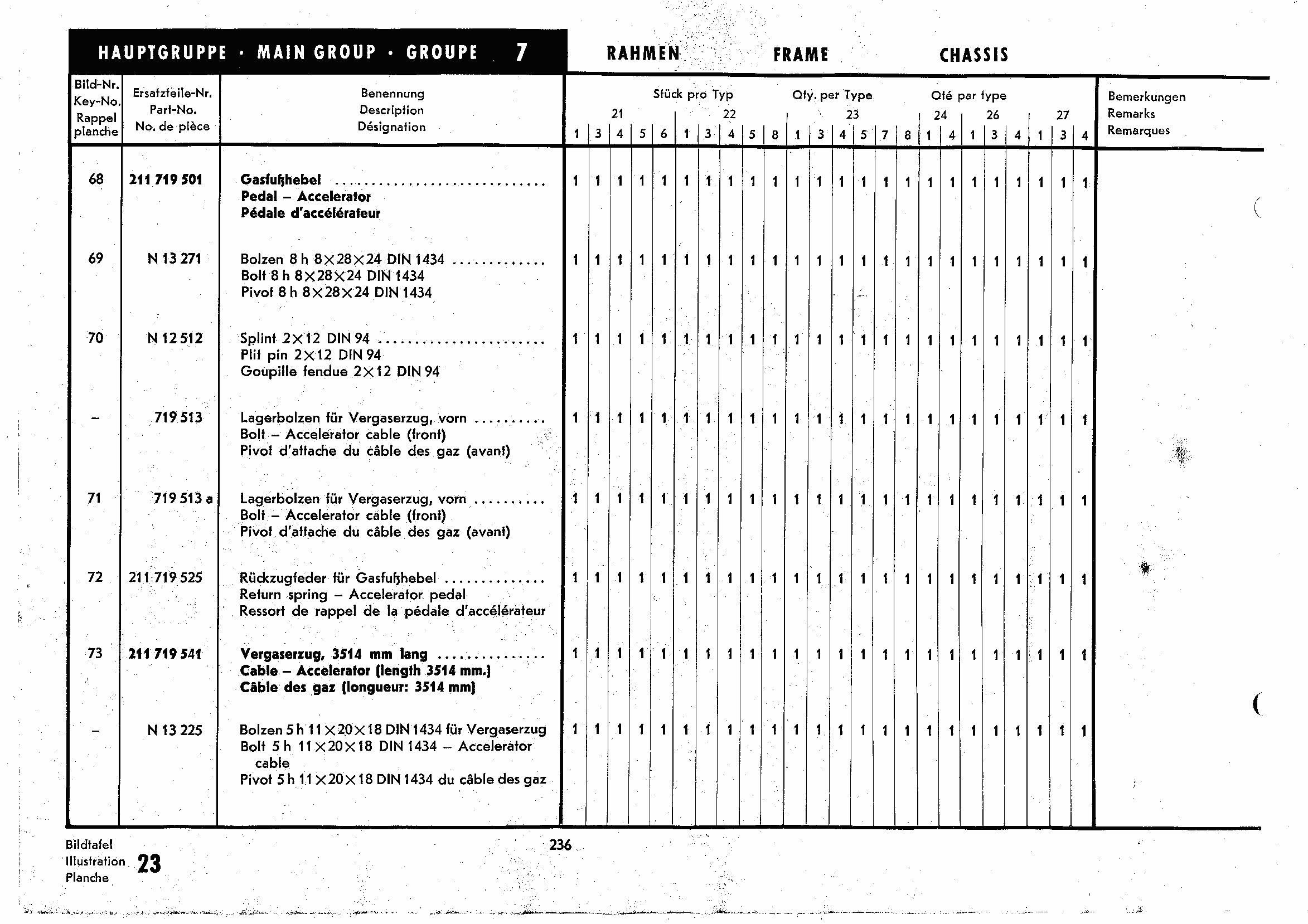

236 list Foot lever system

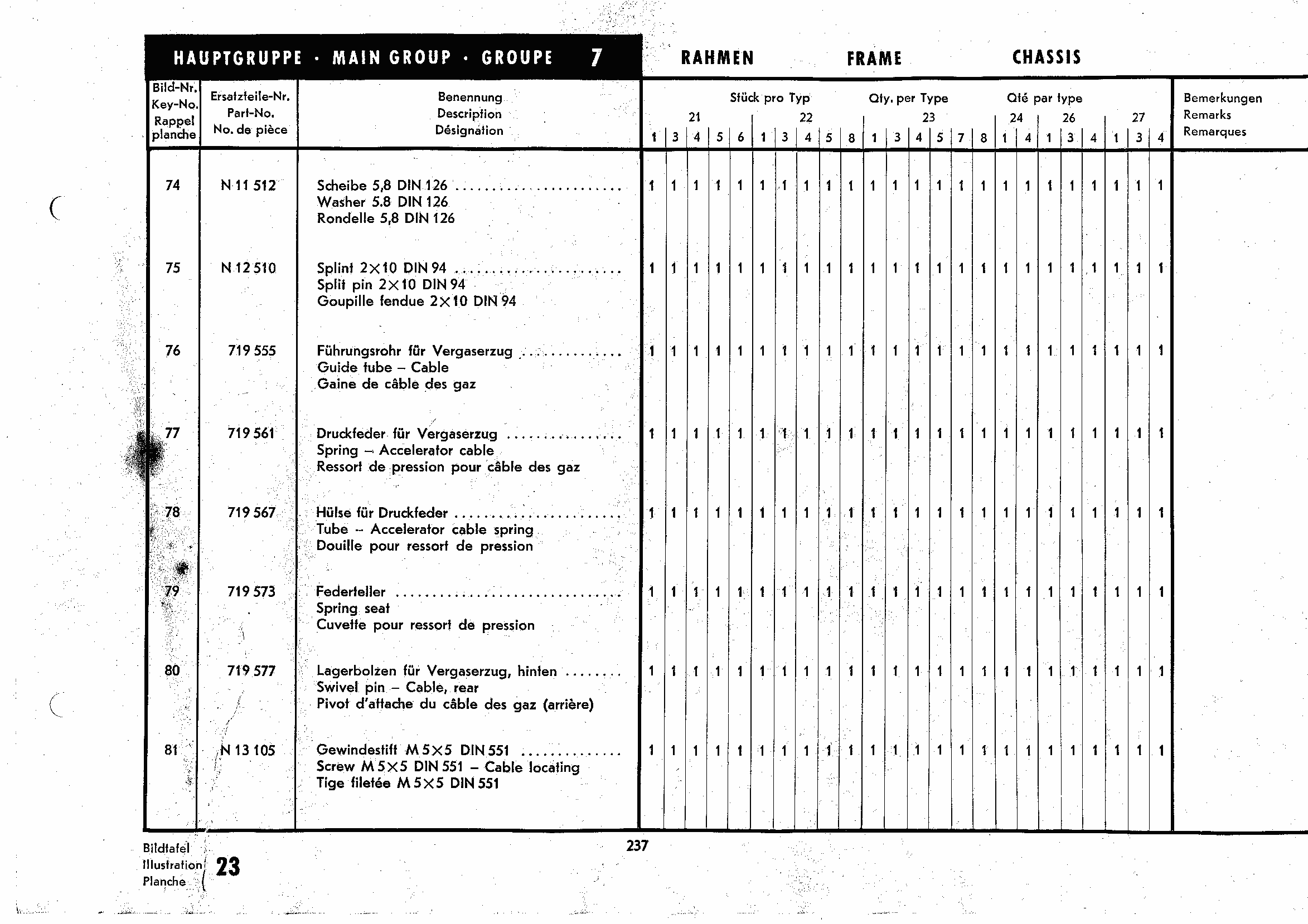

237 list Foot lever system

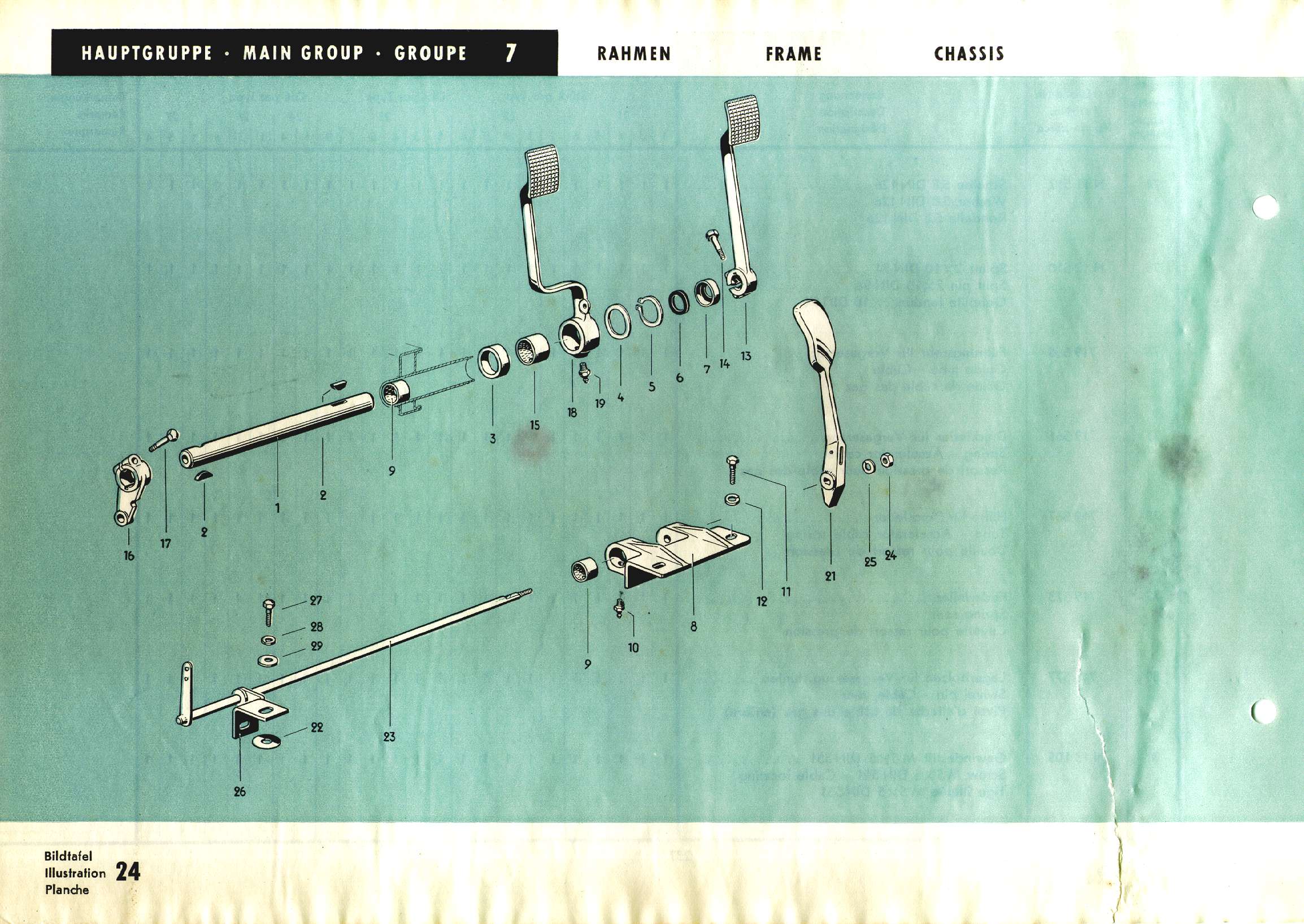

238 diagram Foot lever system RHD

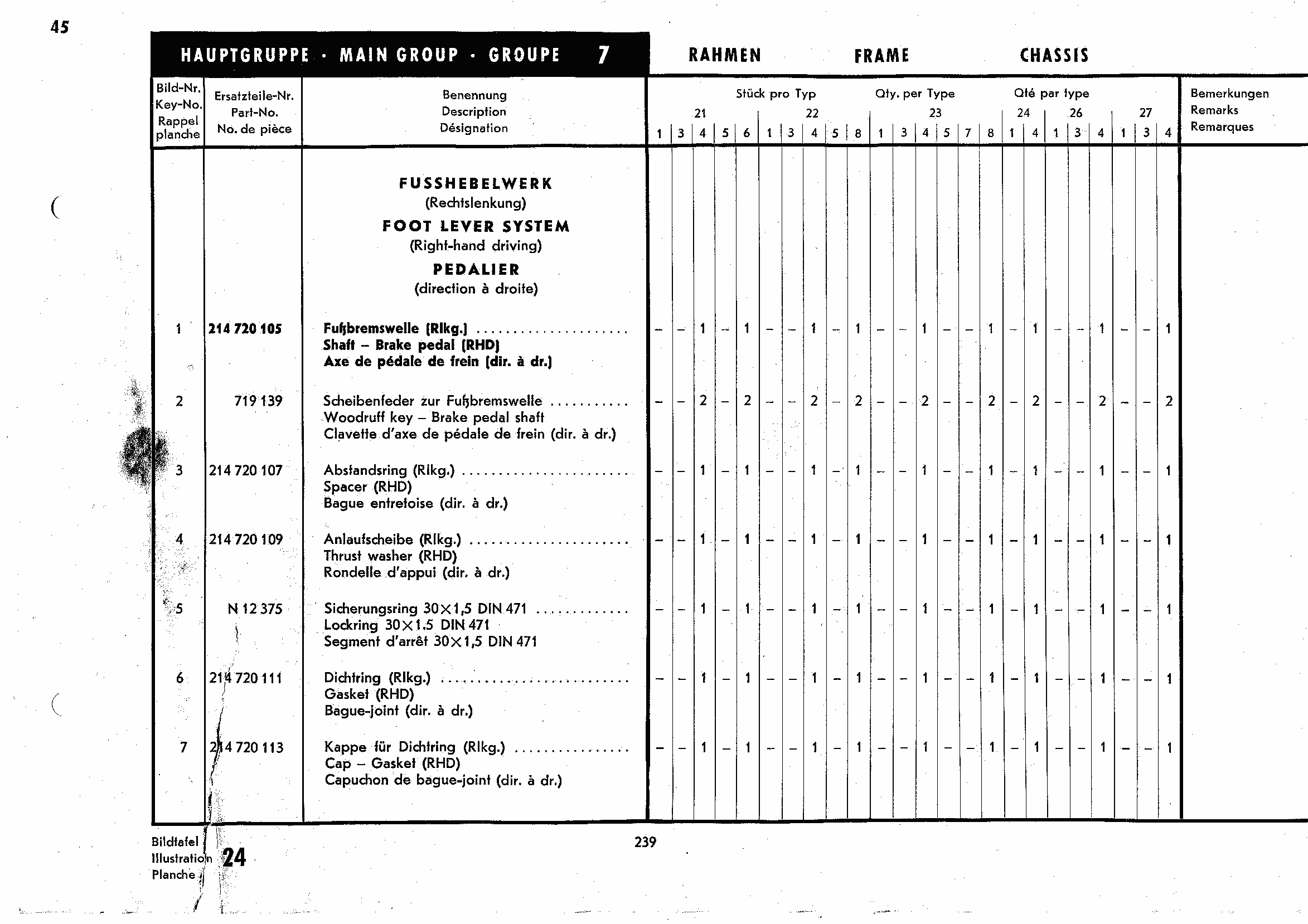

239 list Foot lever system RHD

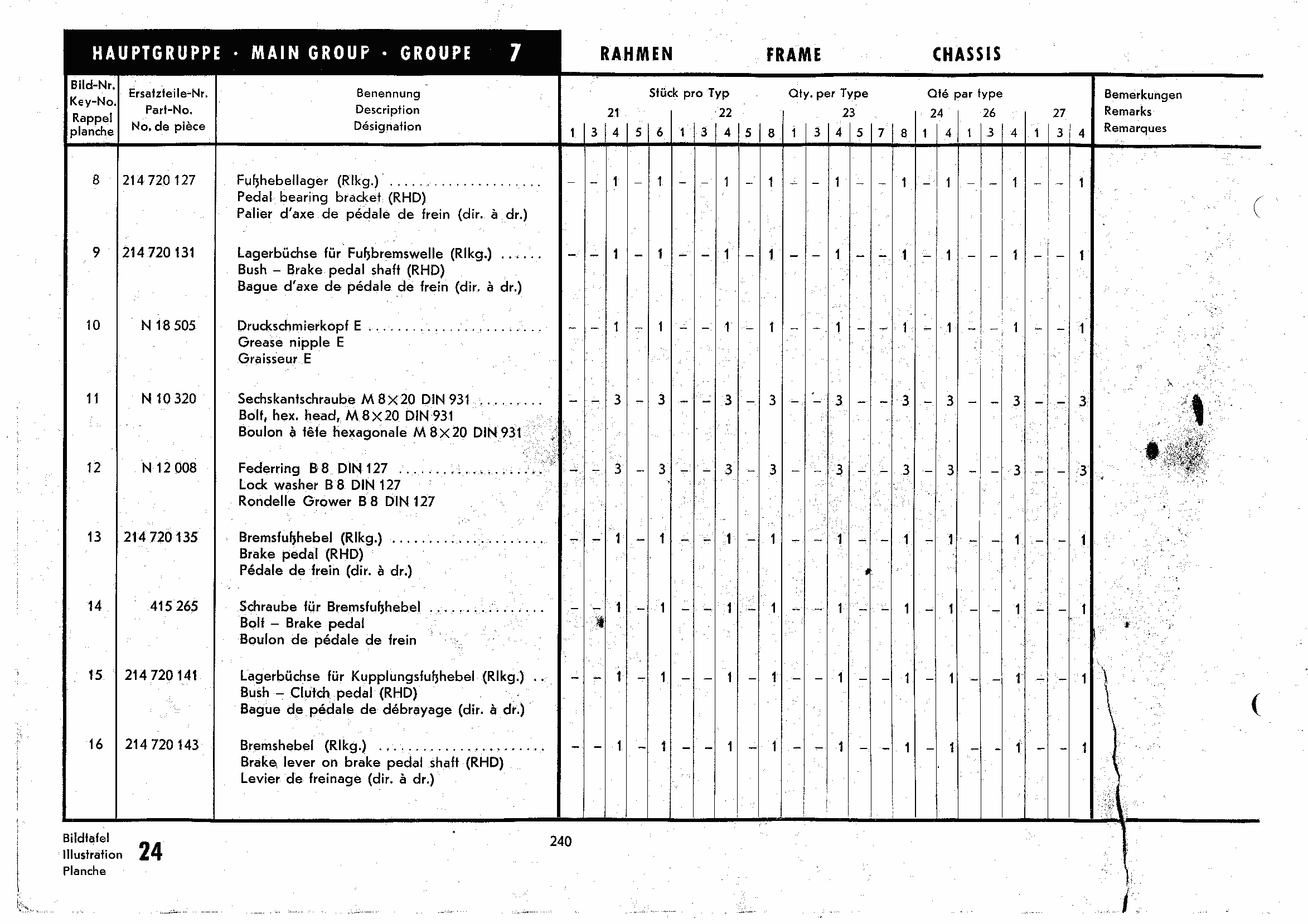

240 list Foot lever system RHD

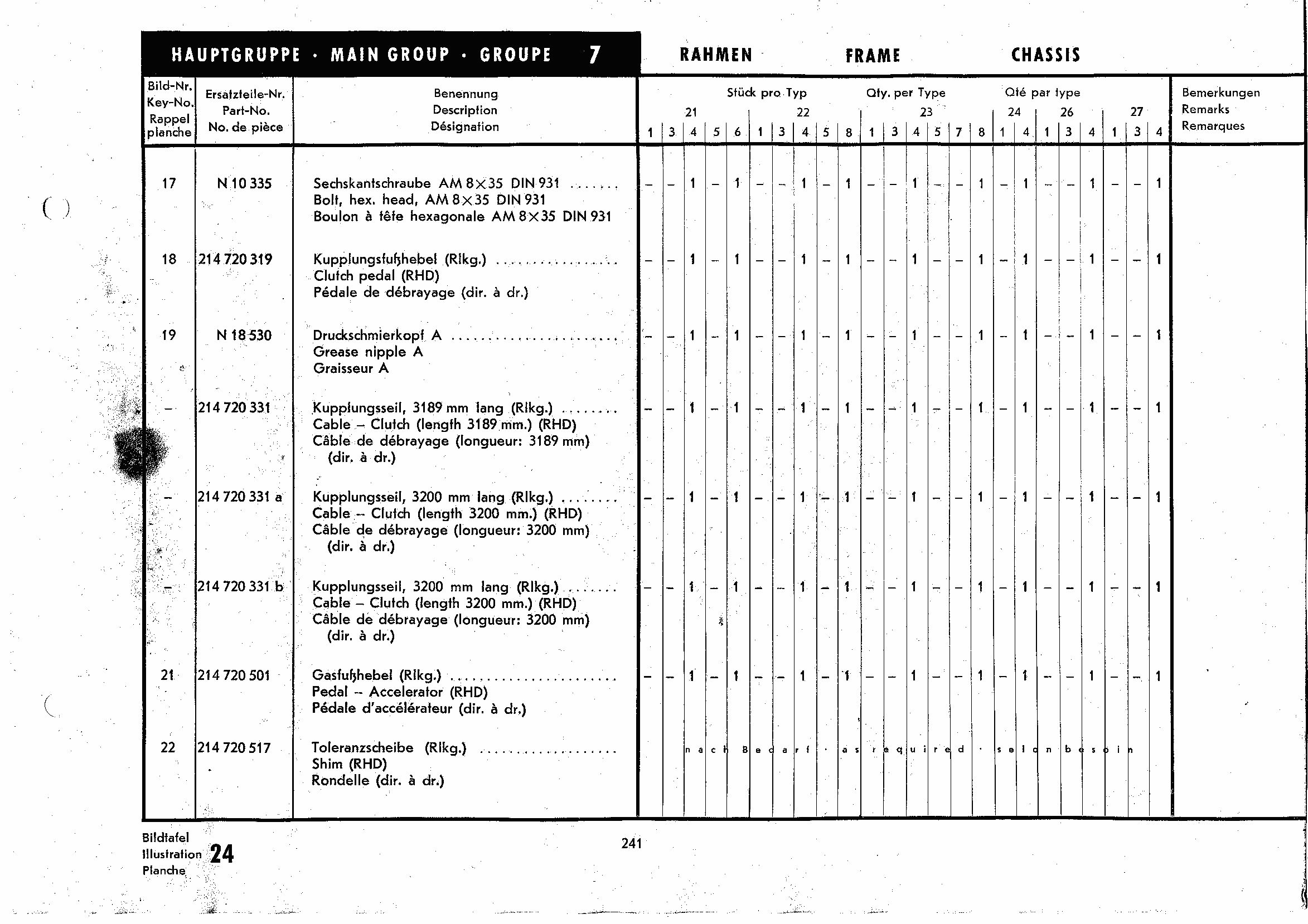

241 list Foot lever system RHD

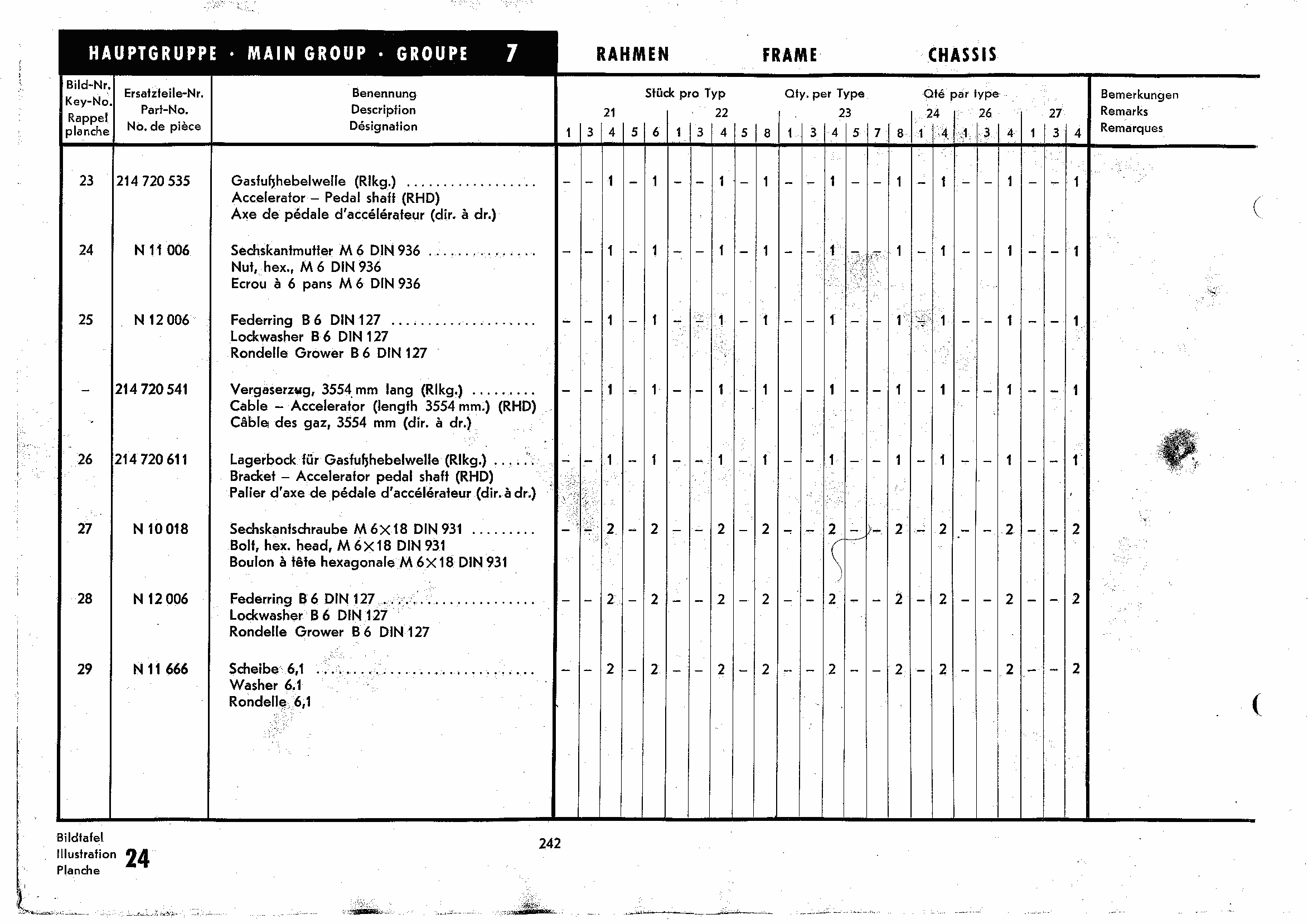

242 list Foot lever system RHD

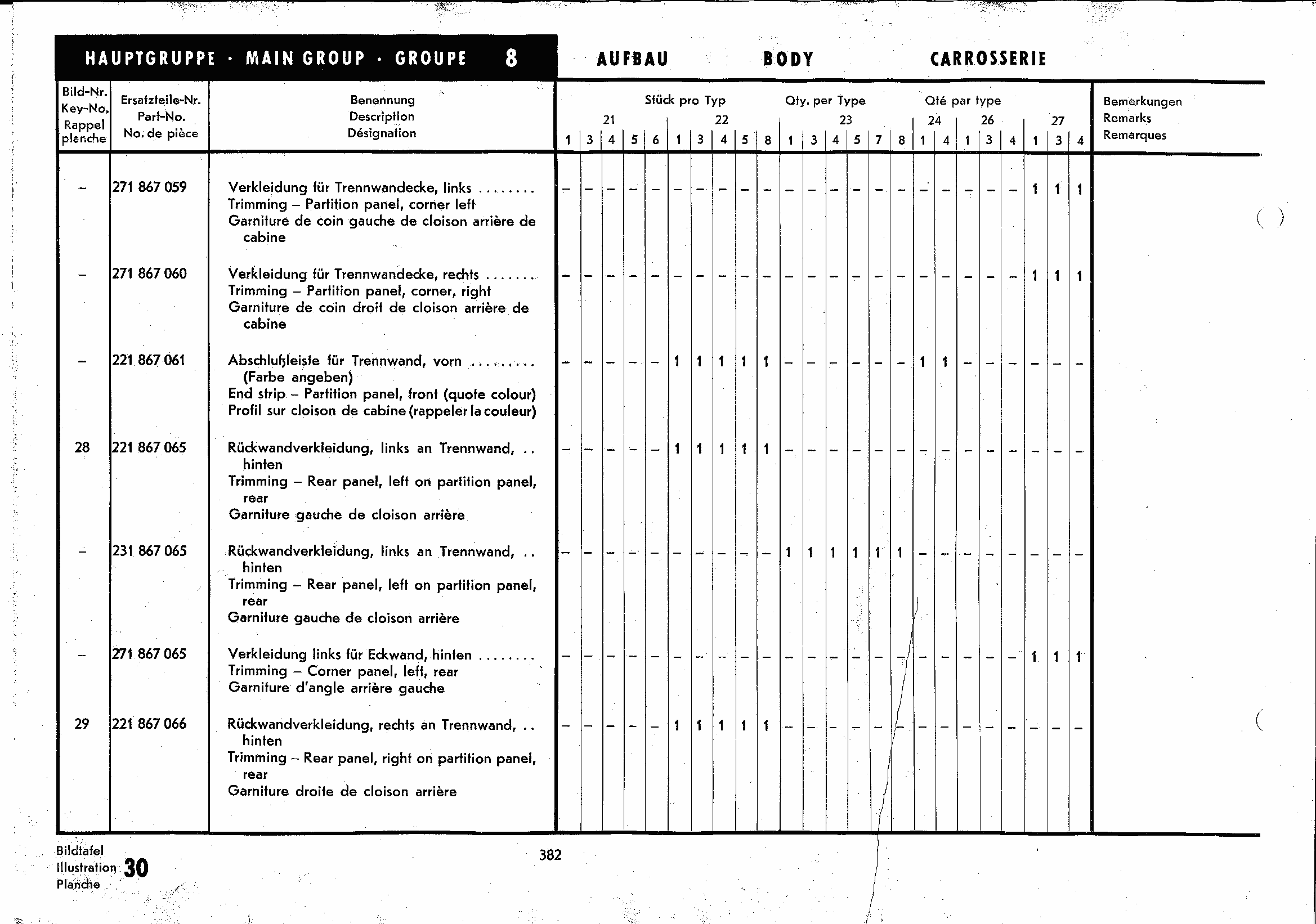

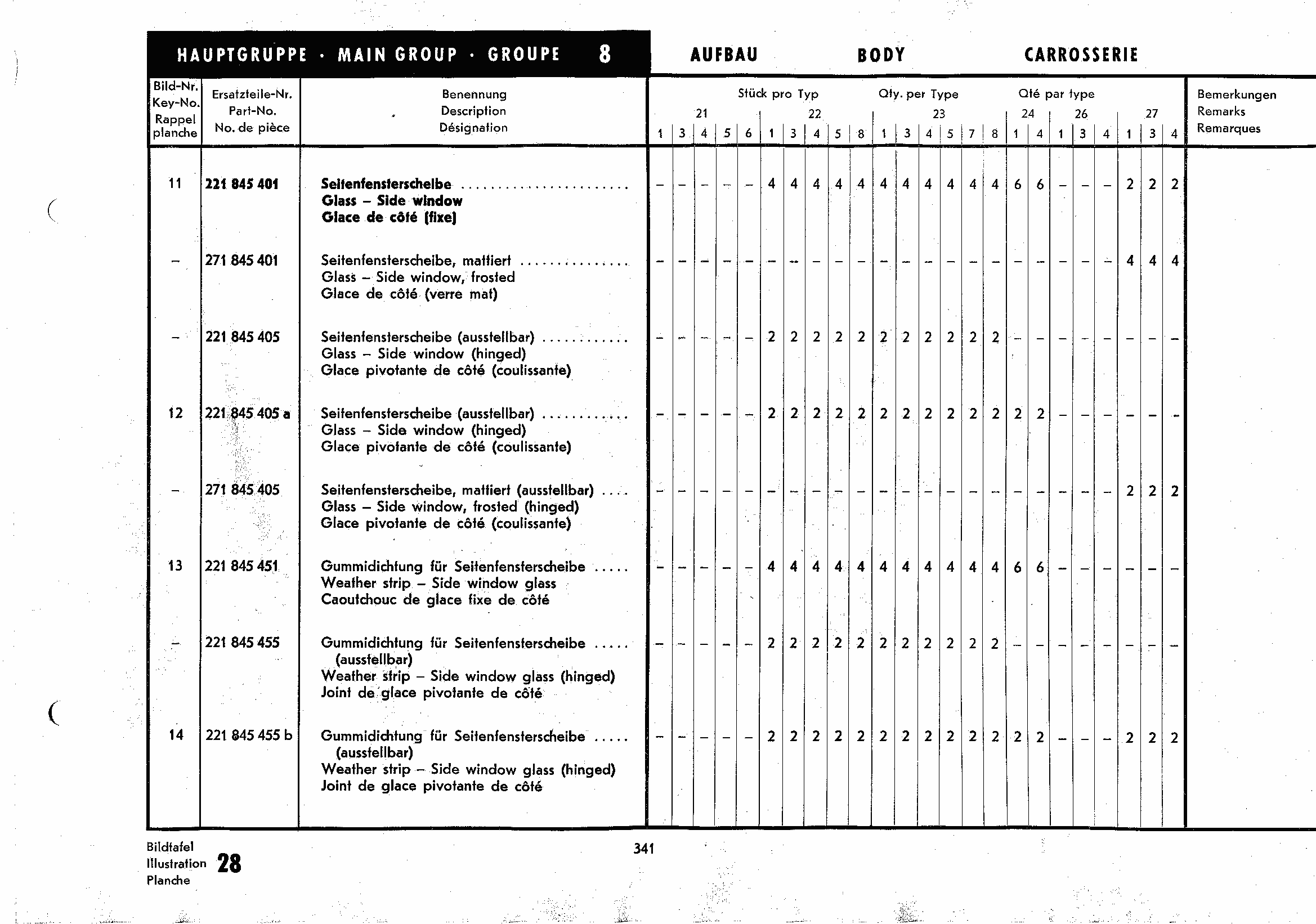

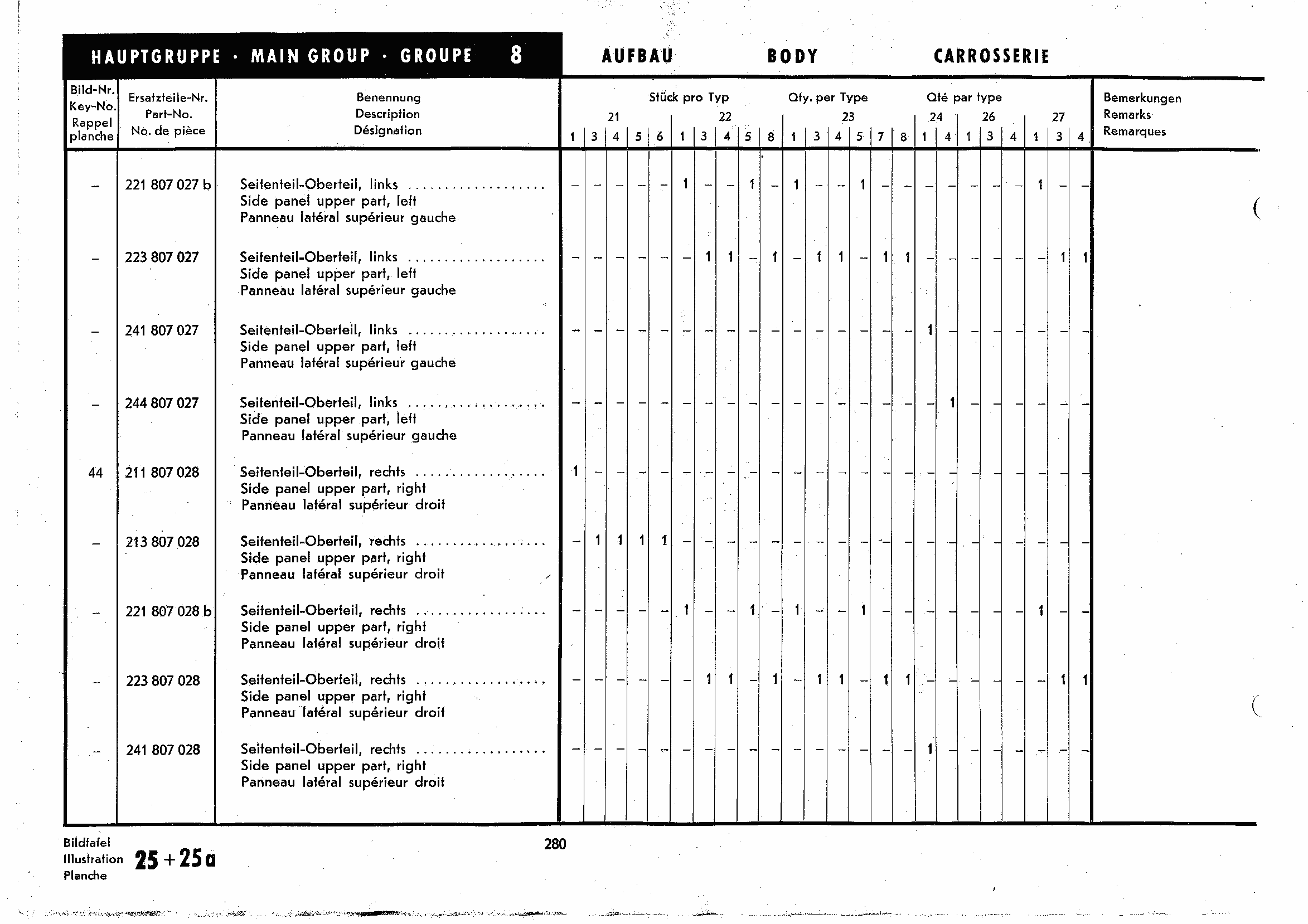

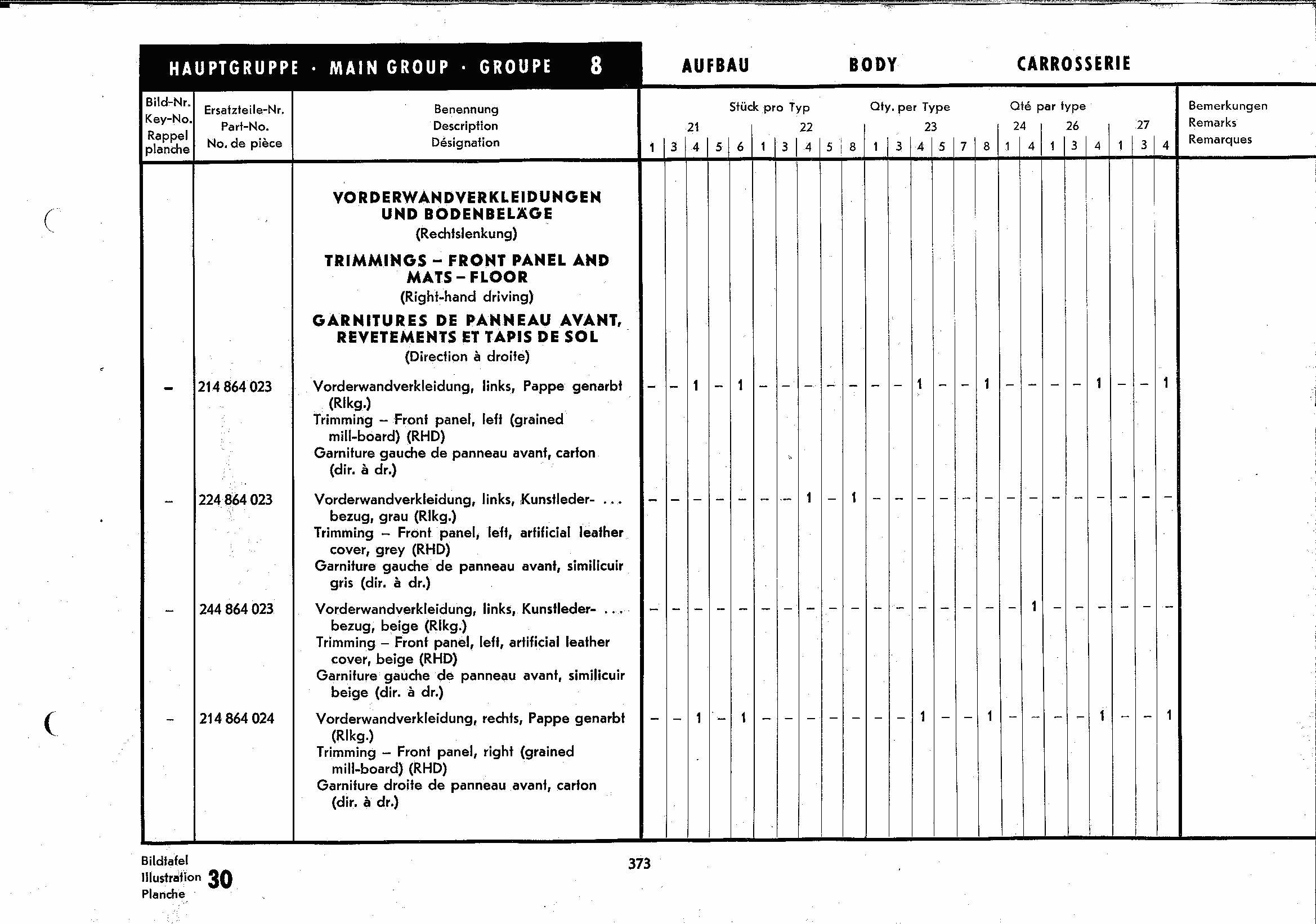

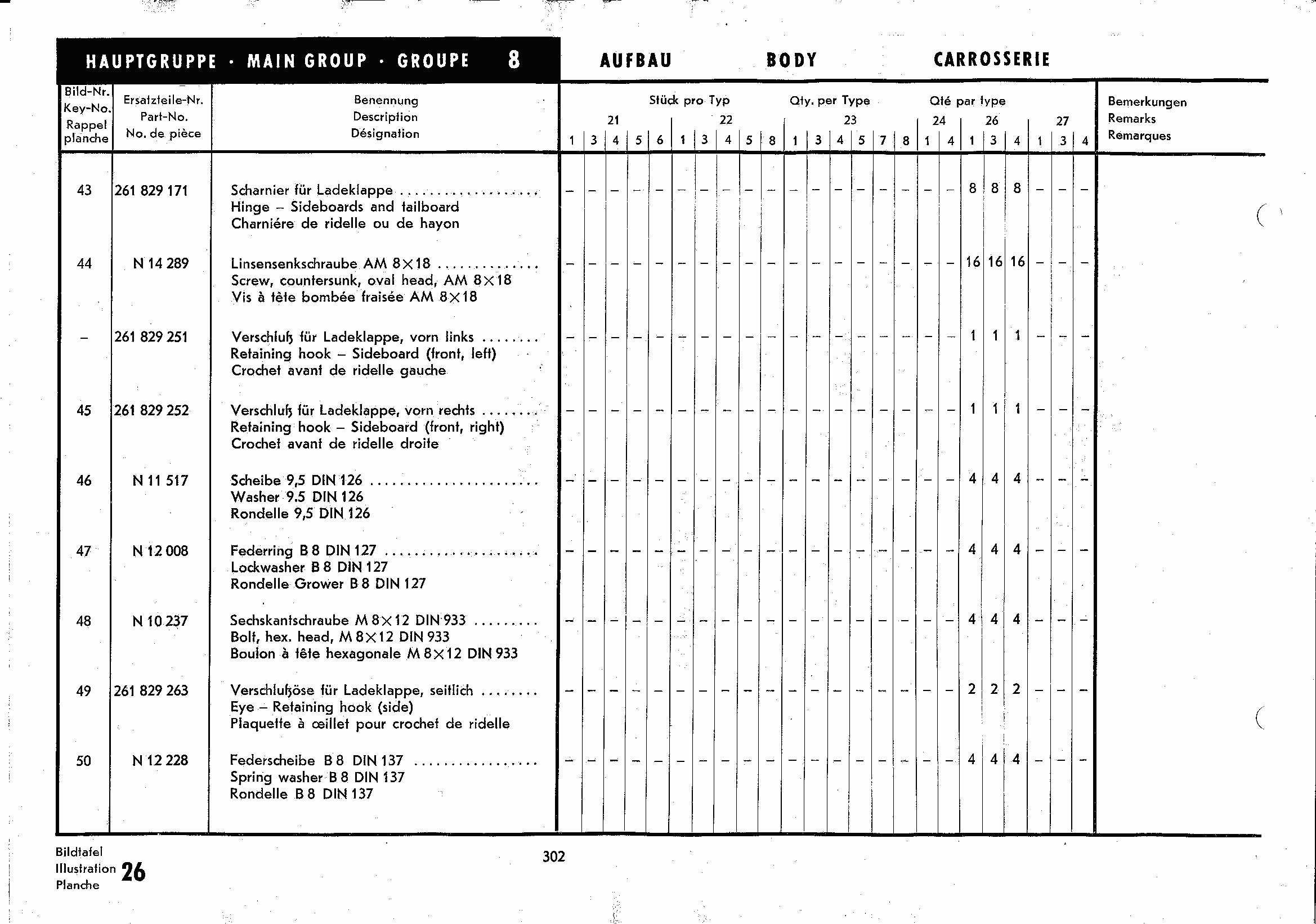

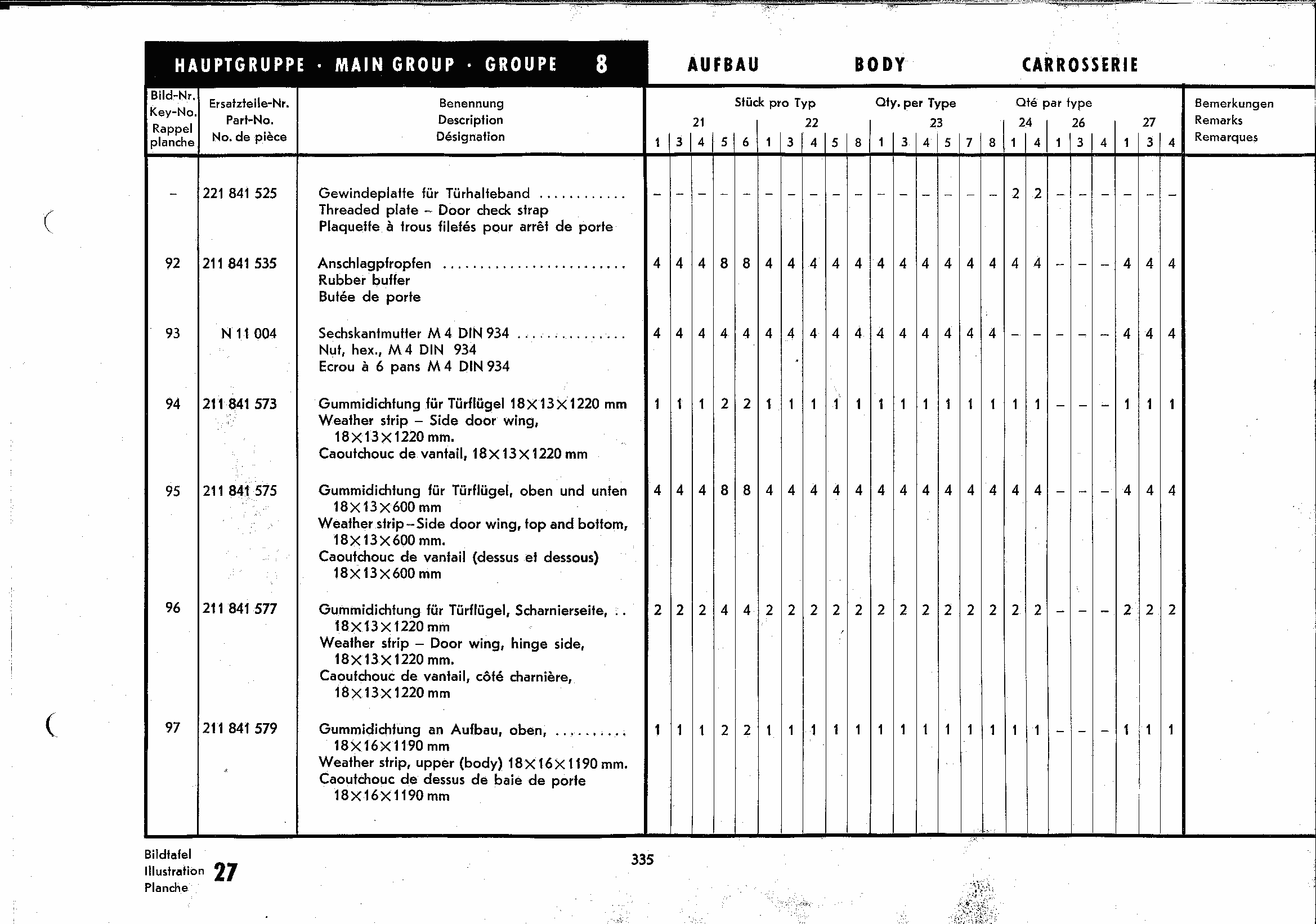

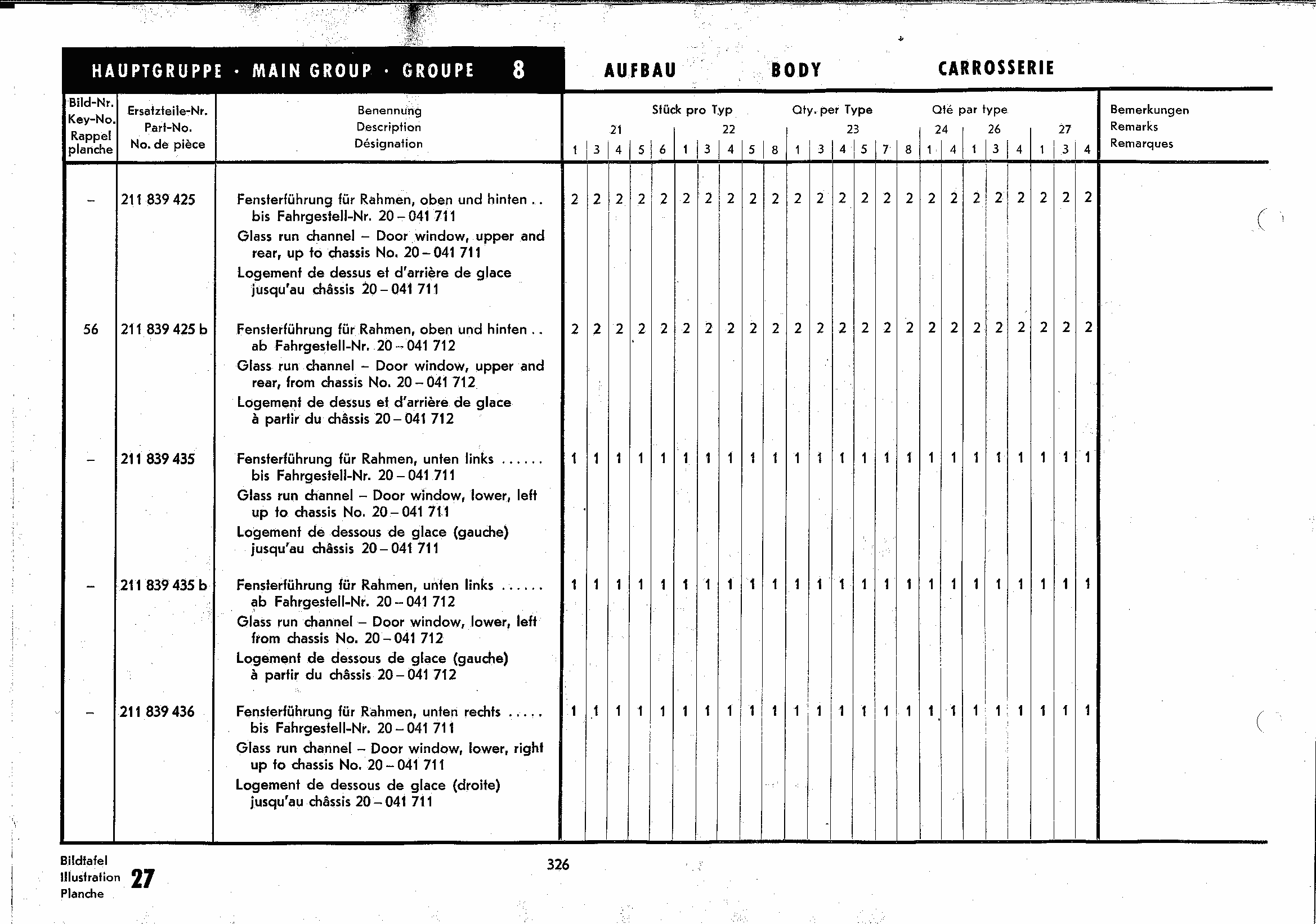

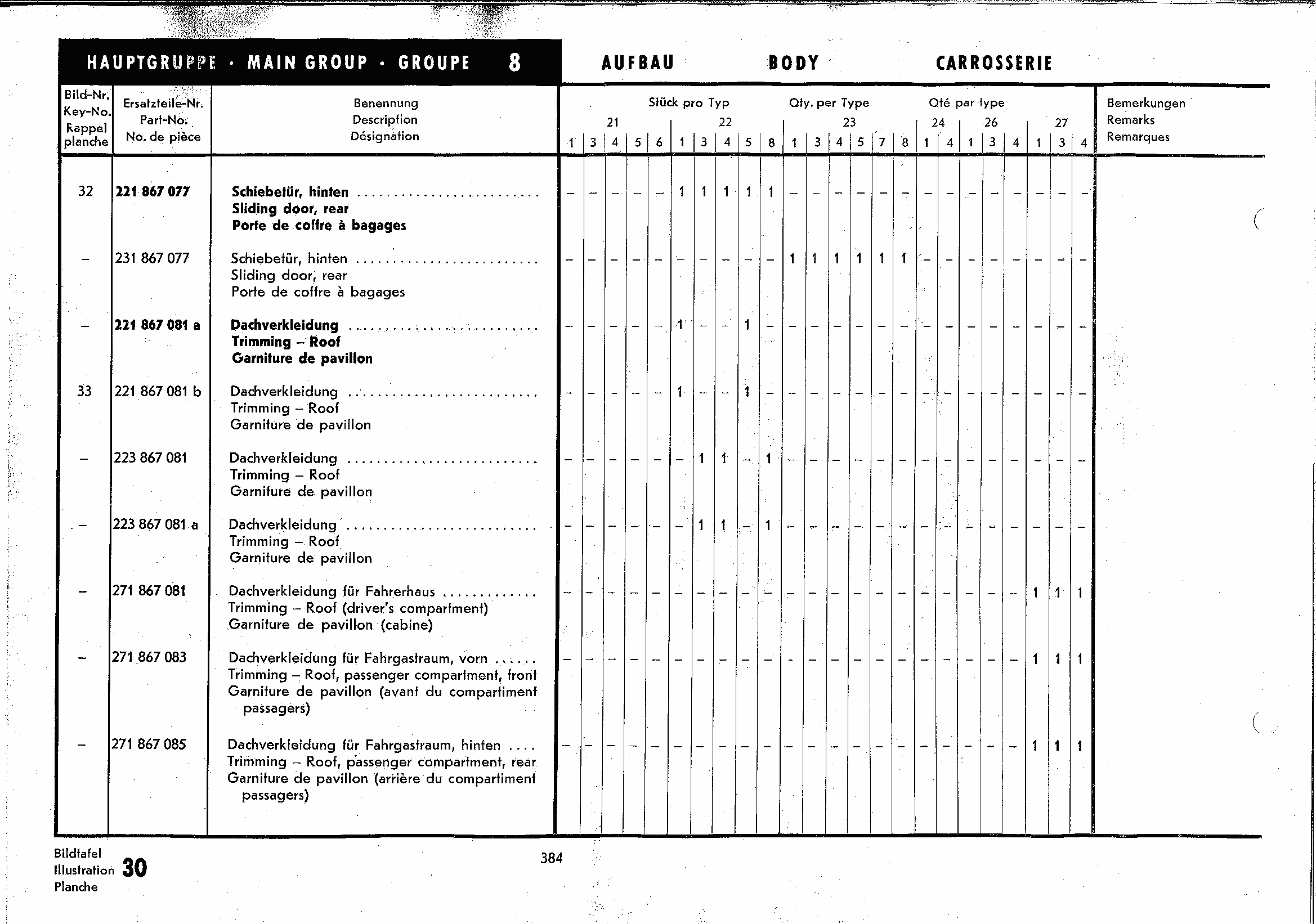

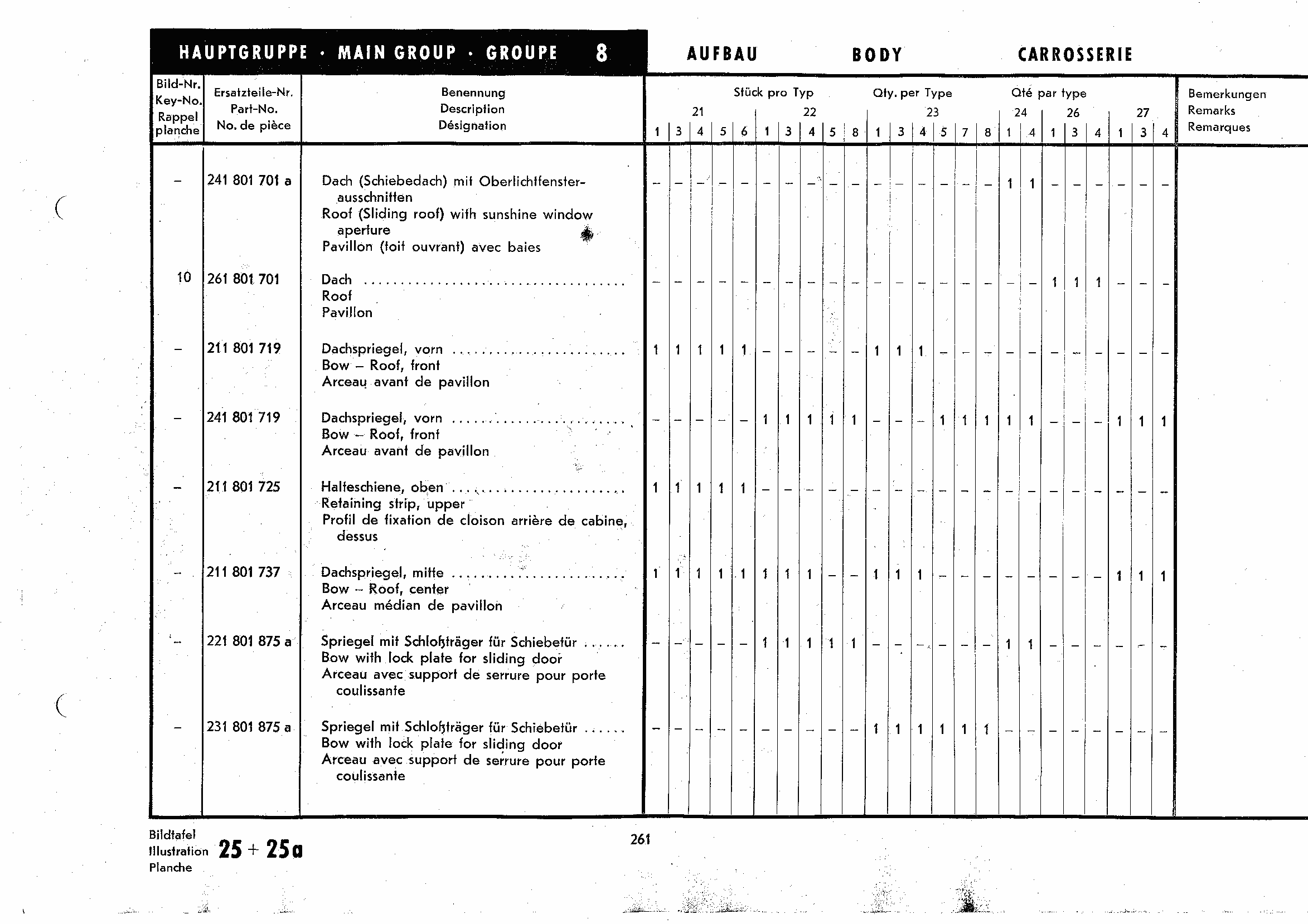

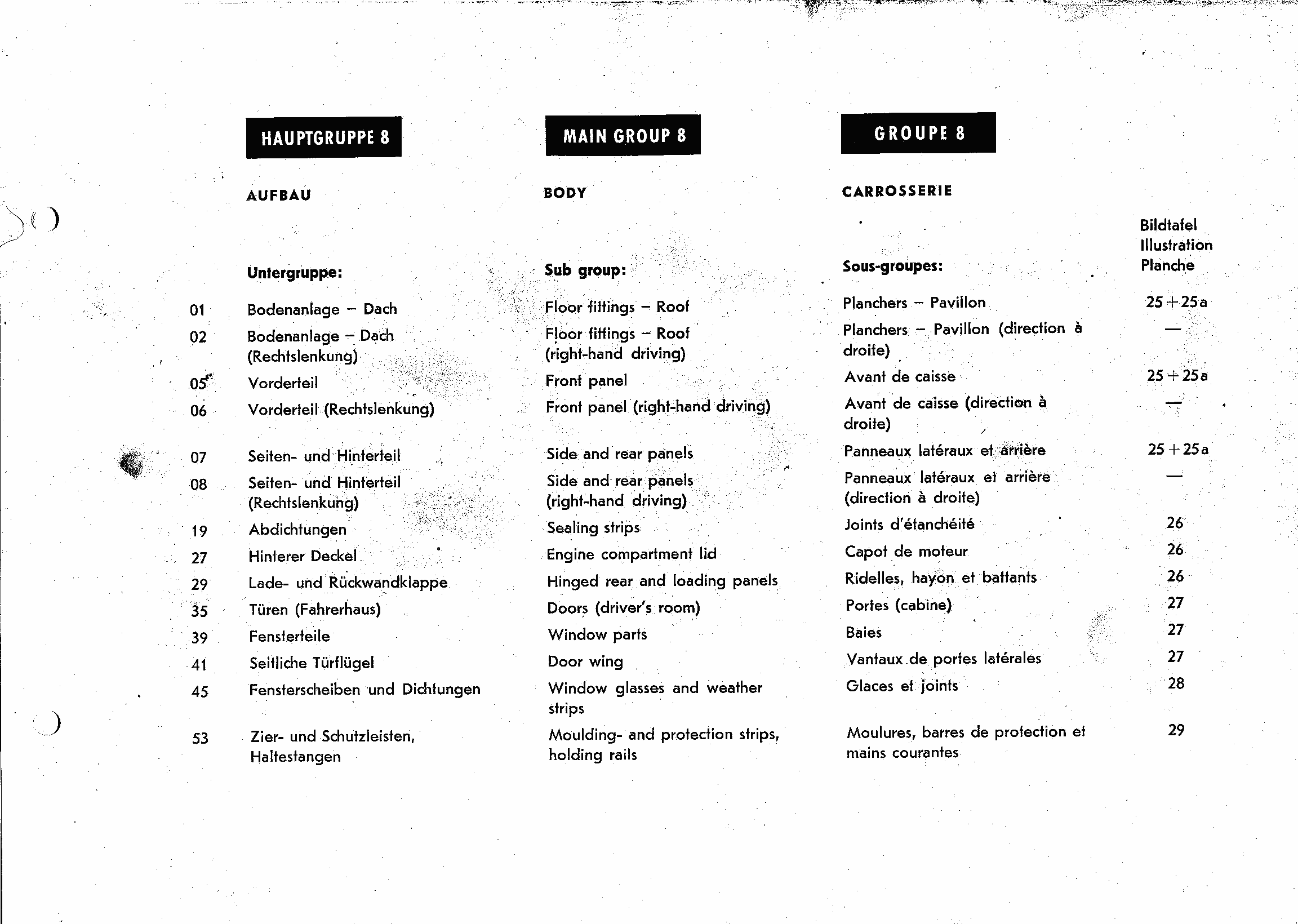

Main Group 8: Body

243 list Main Group 8 index

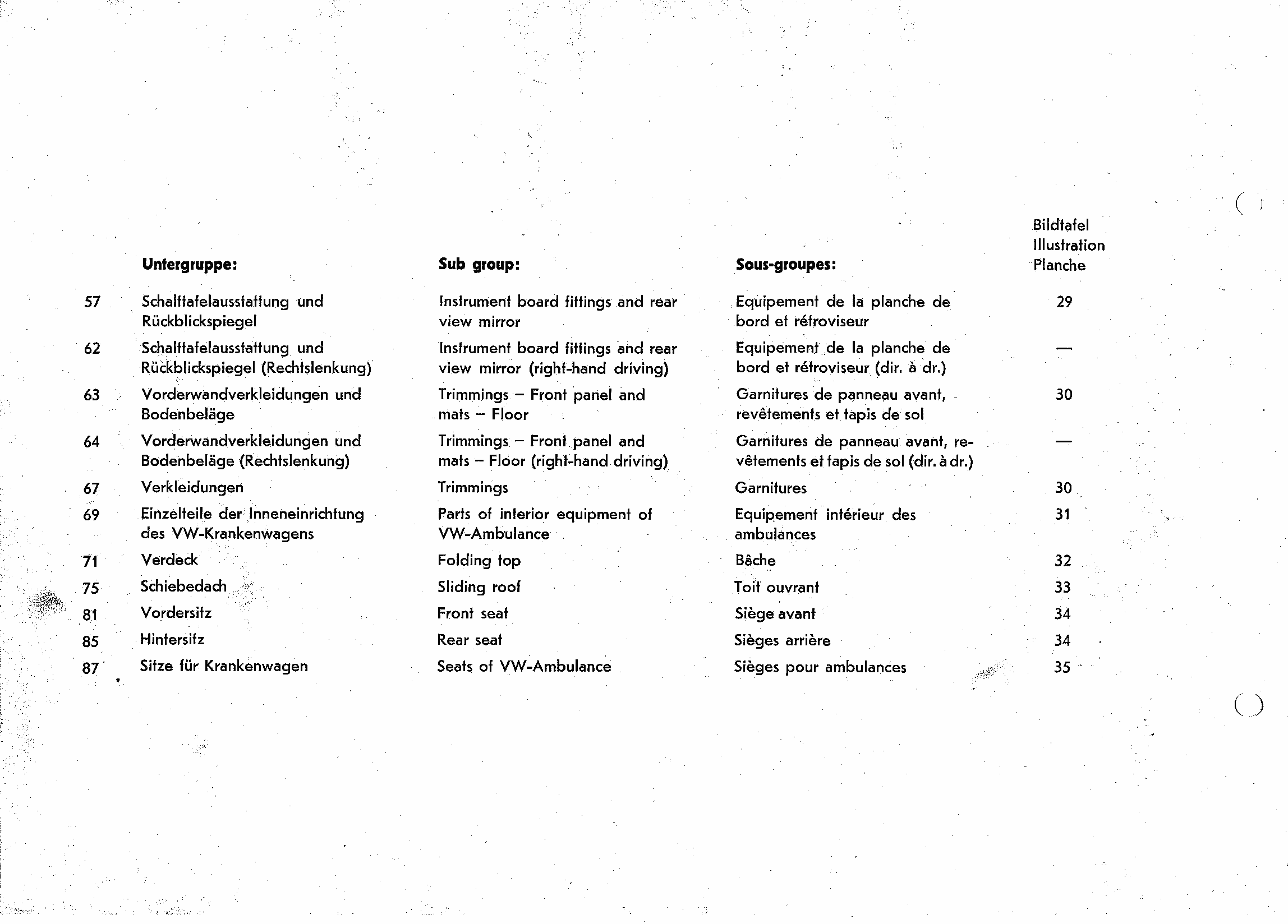

244 list Main Group 8 index
245 special sind auf ihre Werkstoff-Qualitaet geprueft!

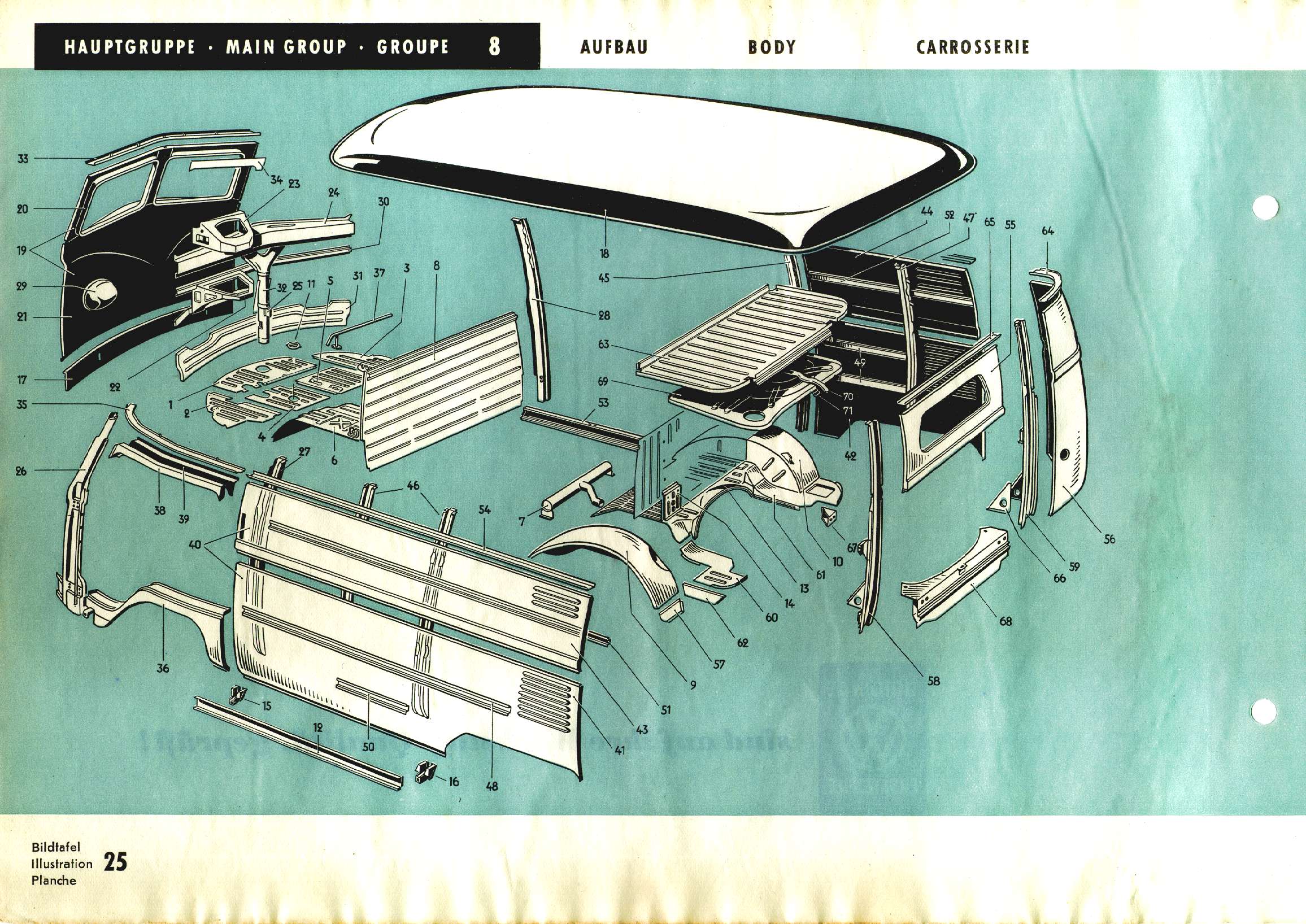

246 diagram Body (Panel)

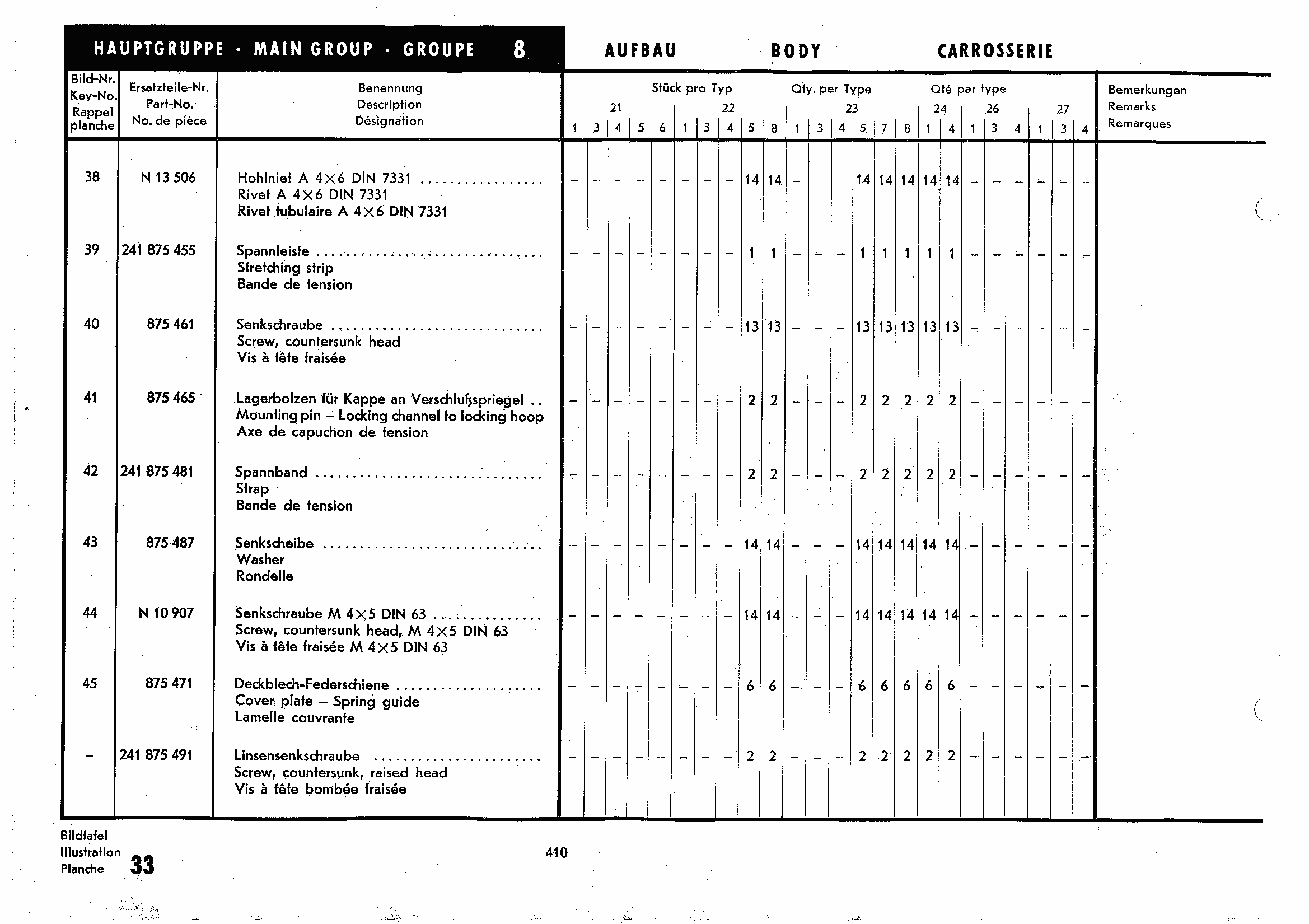

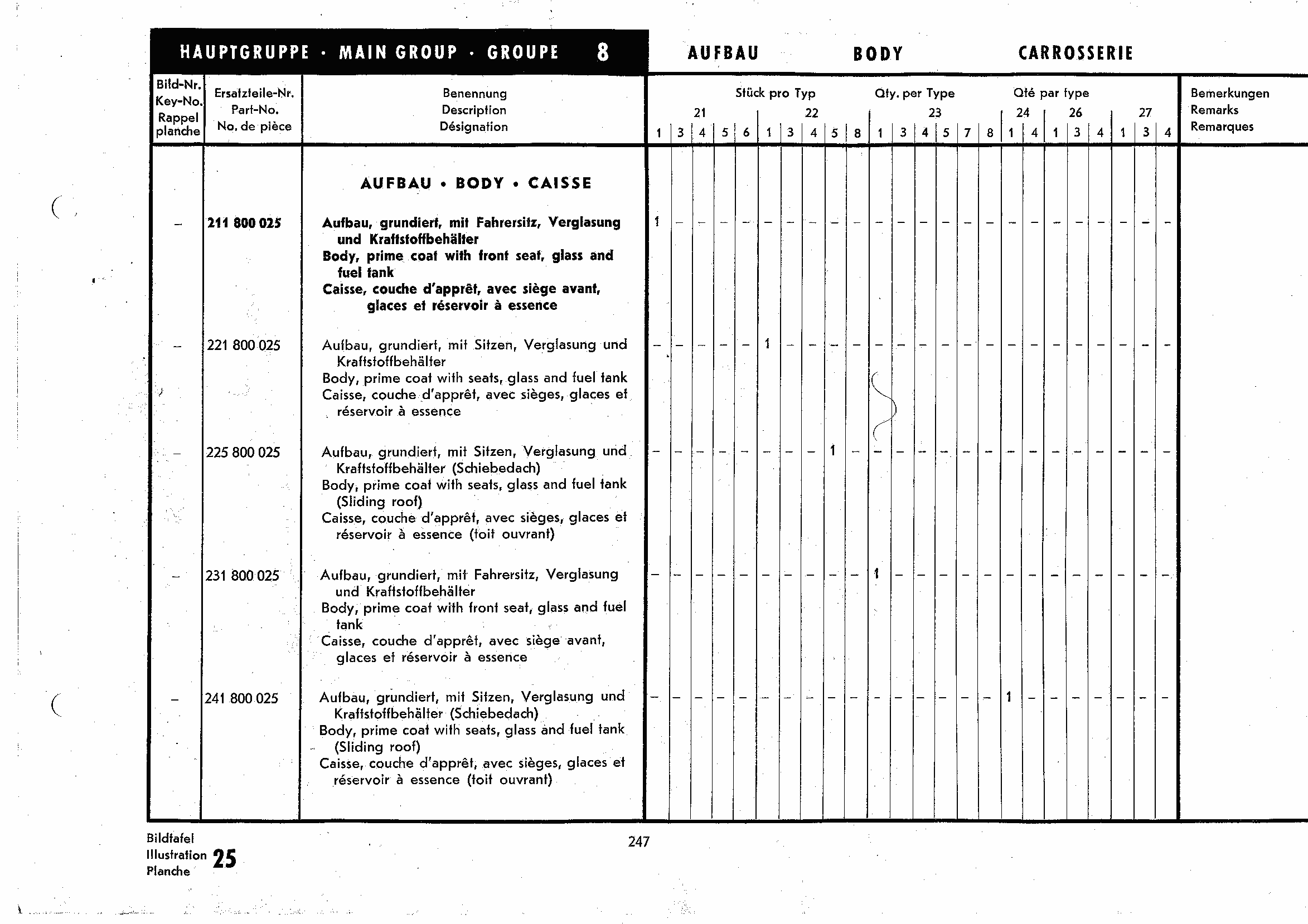

247 list Body

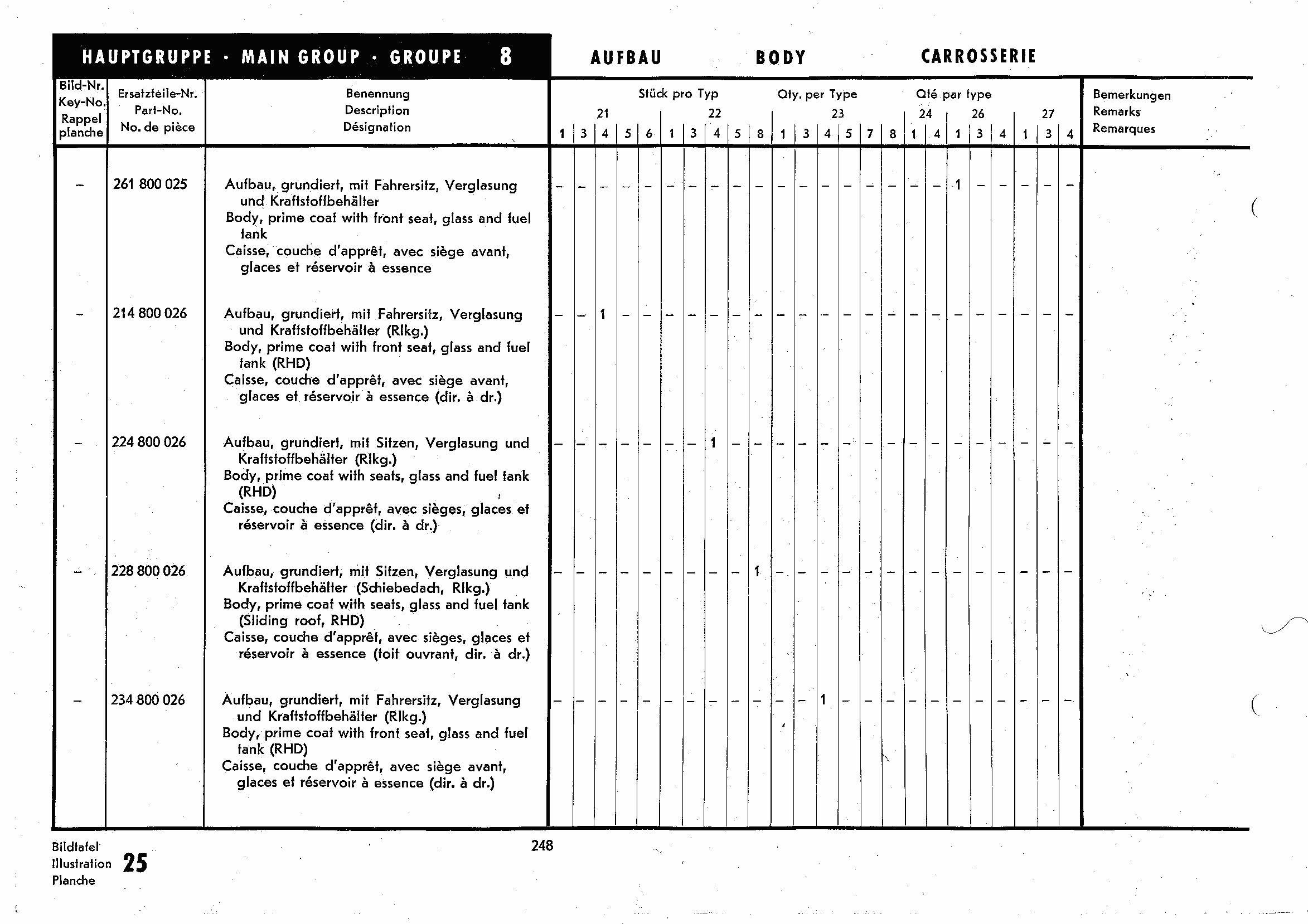

248 list Body

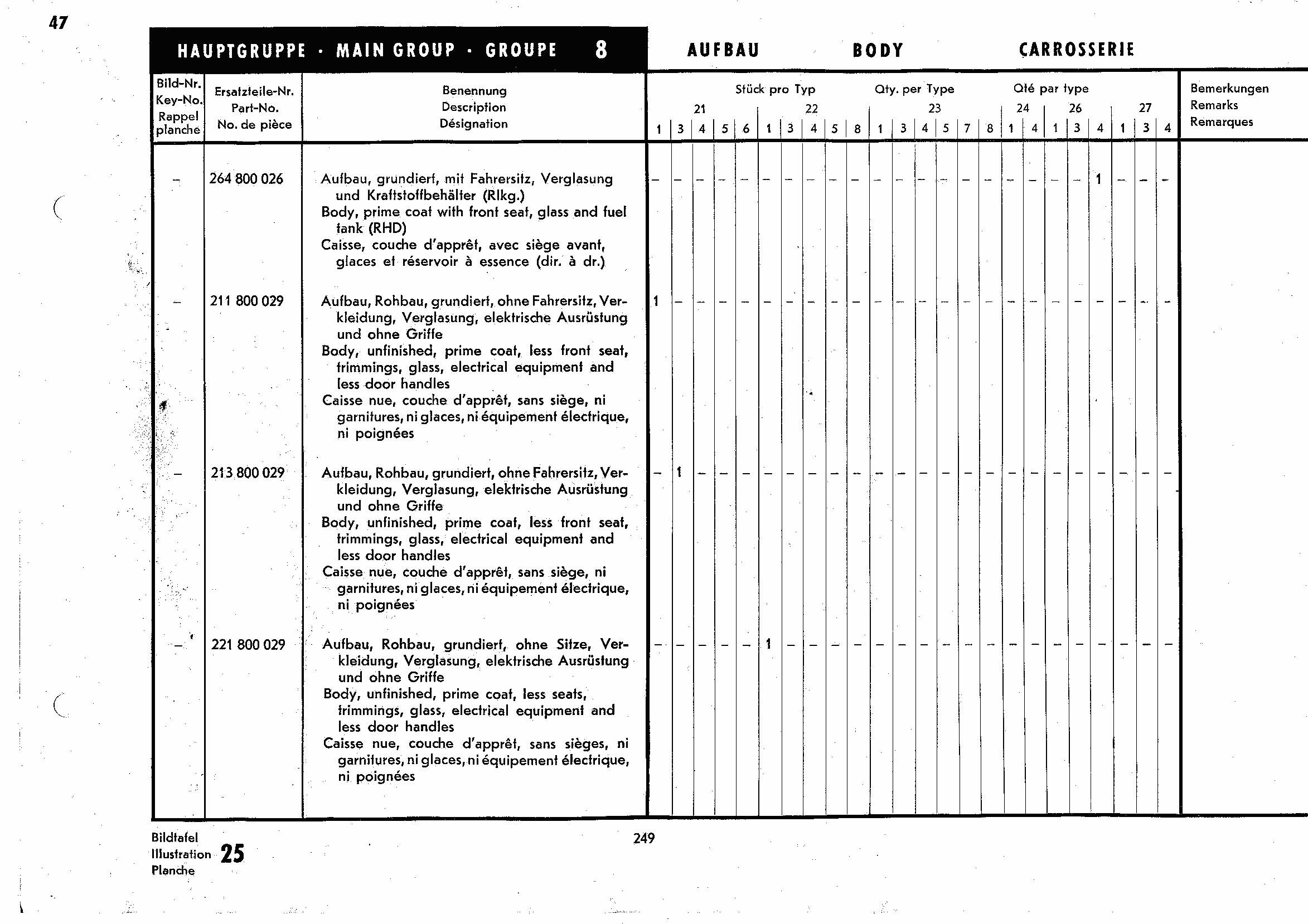

249 list Body

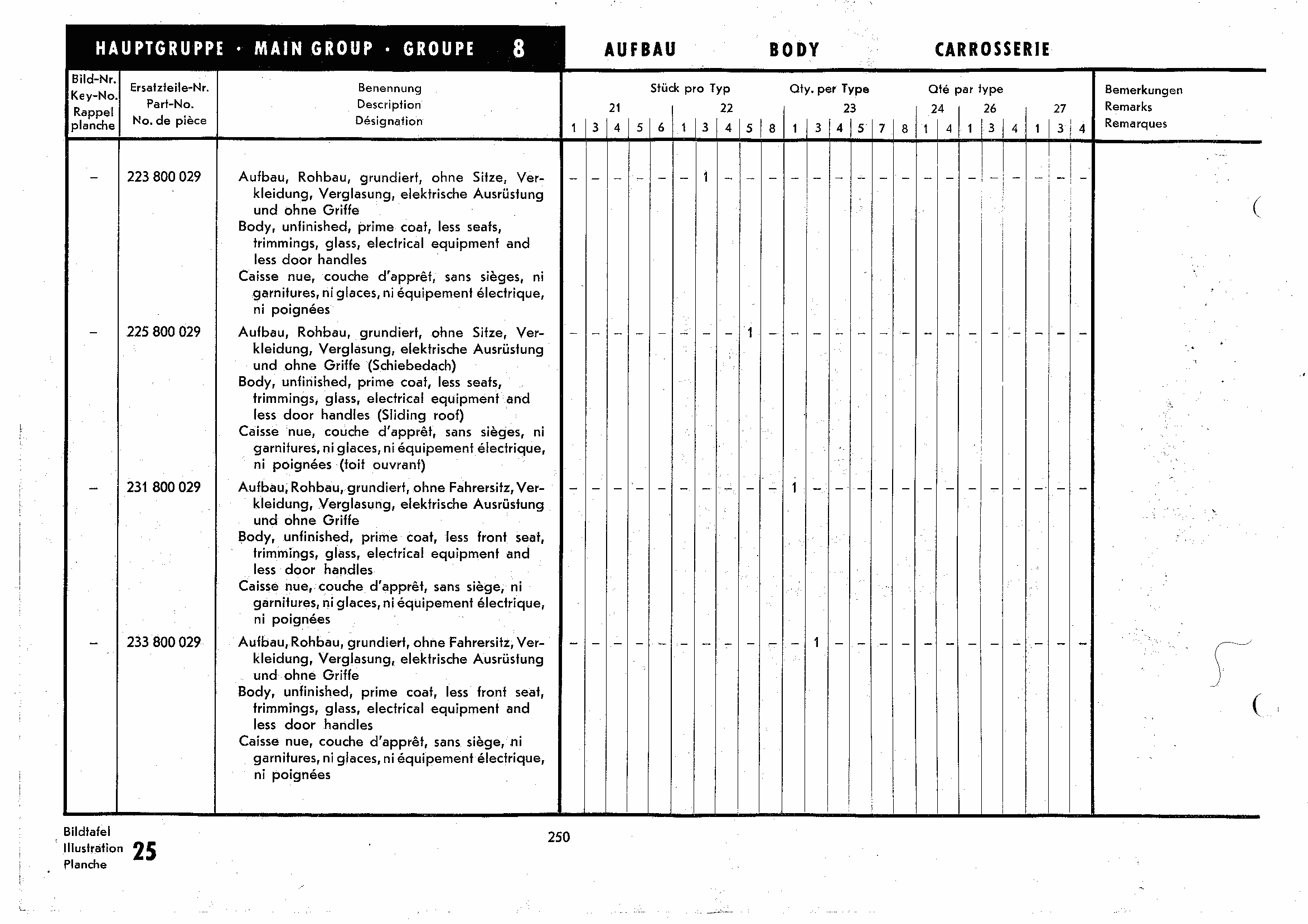

250 list Body

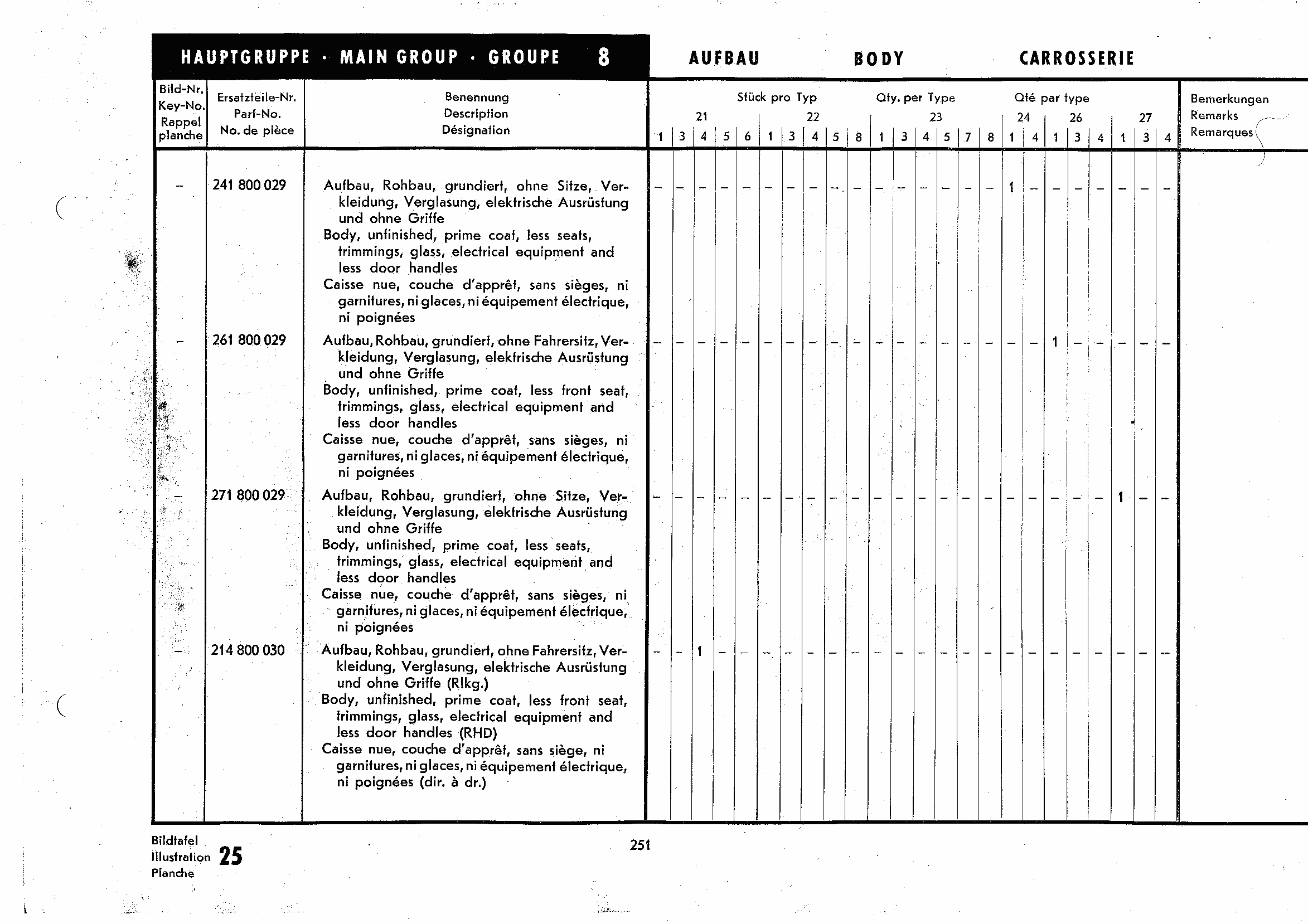

251 list Body

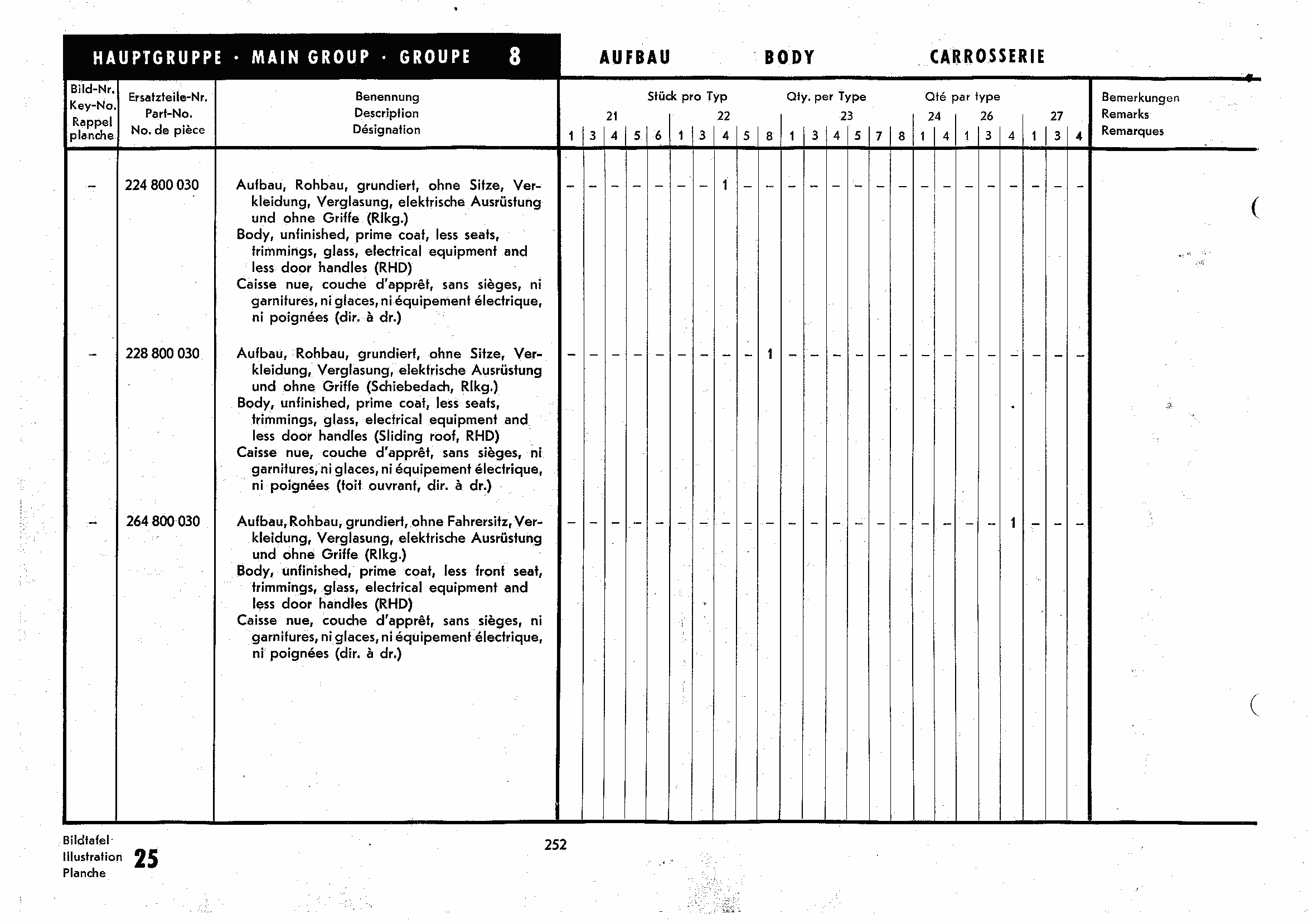

252 list Body
253 special Verwenden Sie nur Original-VW-Ersatzteile. Sie sind massgerech preiswert wirtschaftlich und erhalten die Lebensdauer Ihres Fahrzeuges

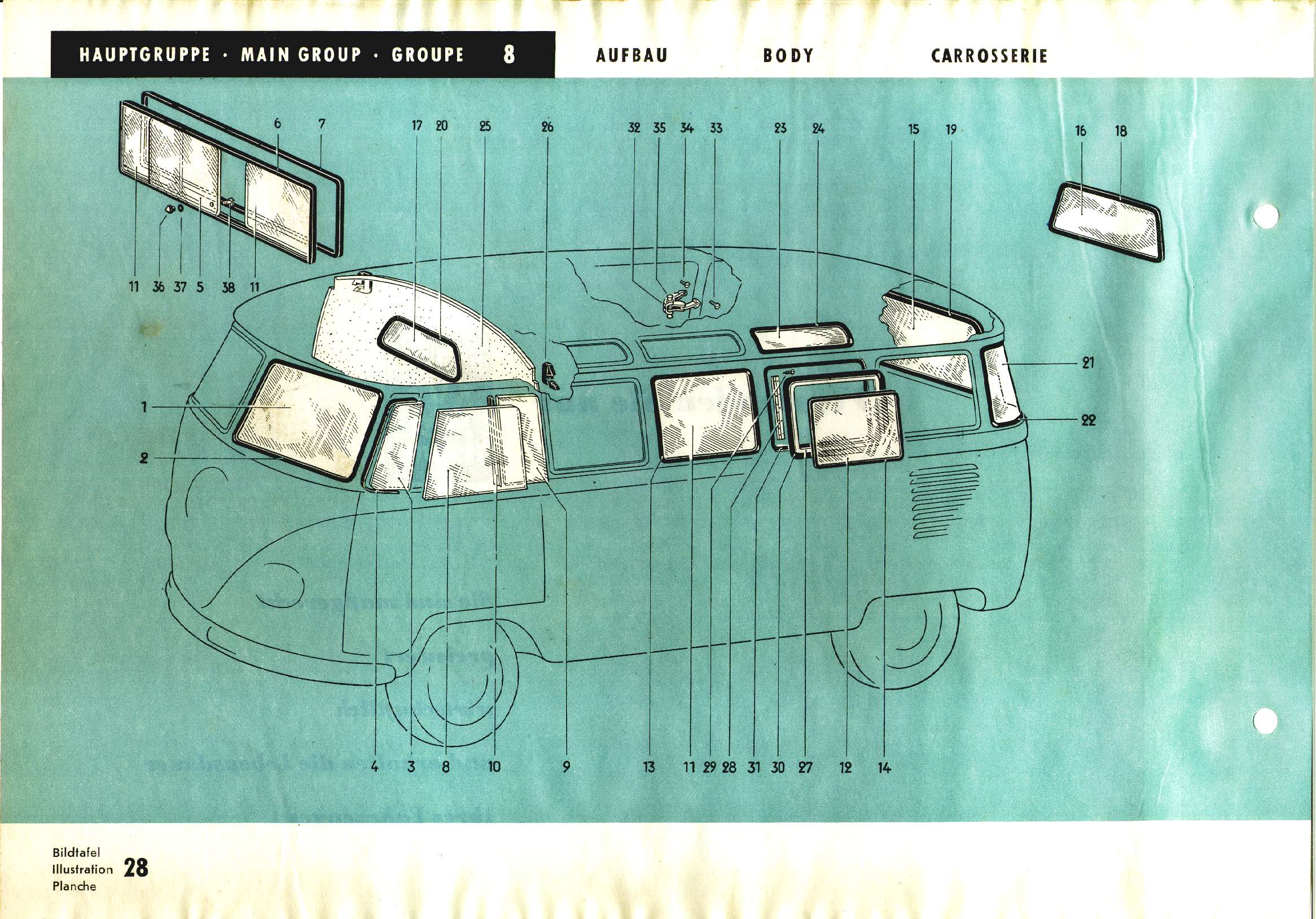

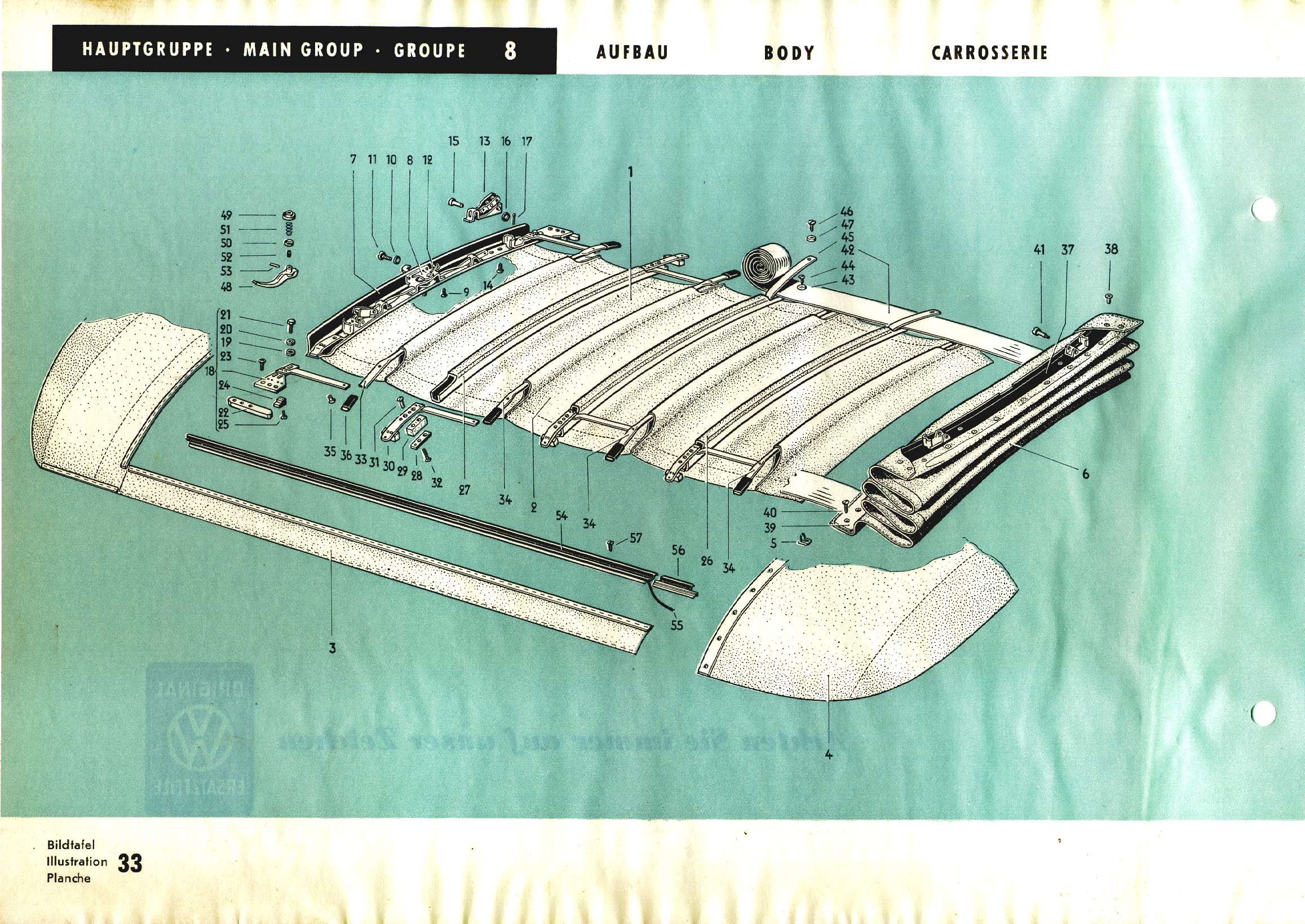

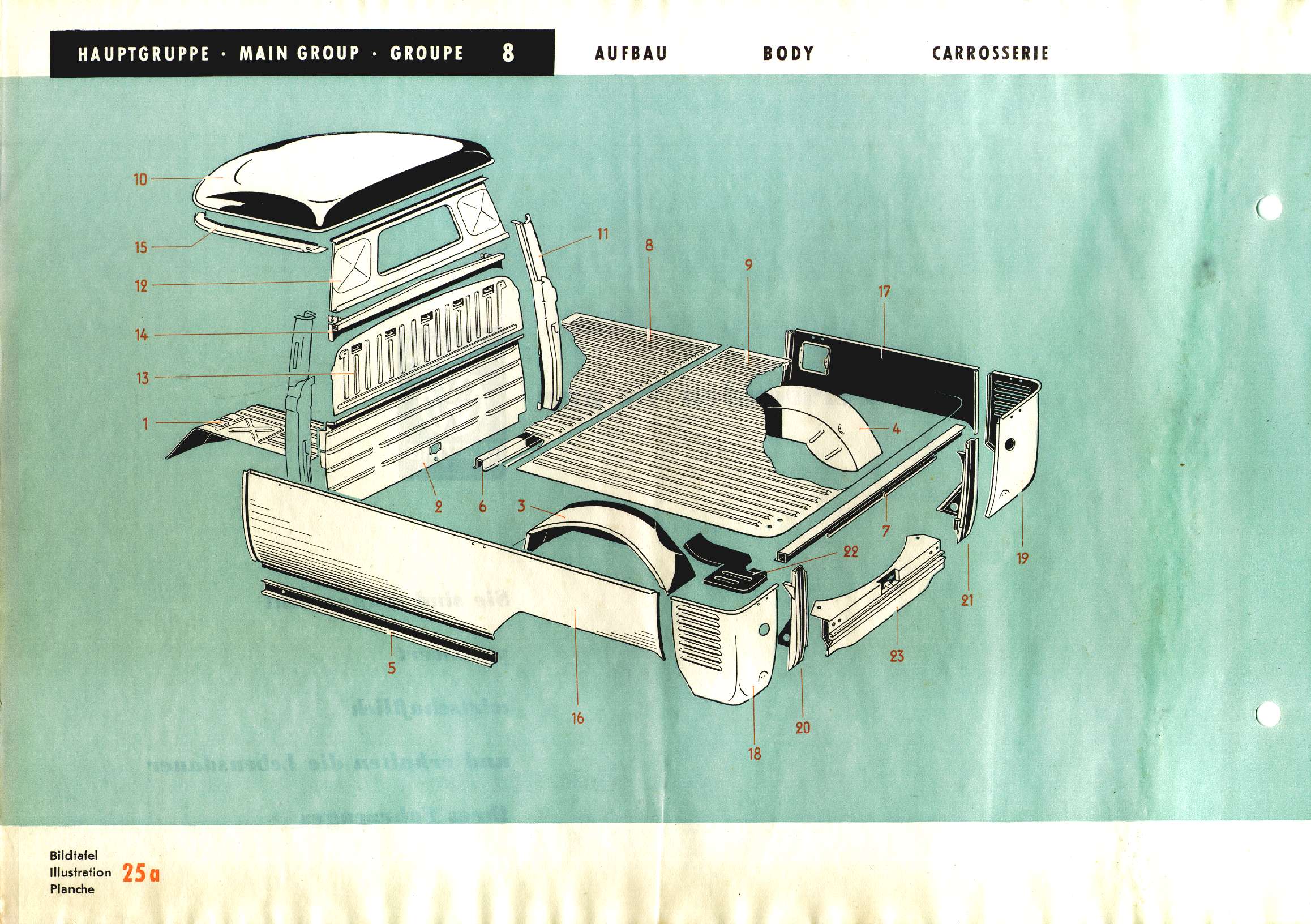

254 diagram Body (Pick-up)

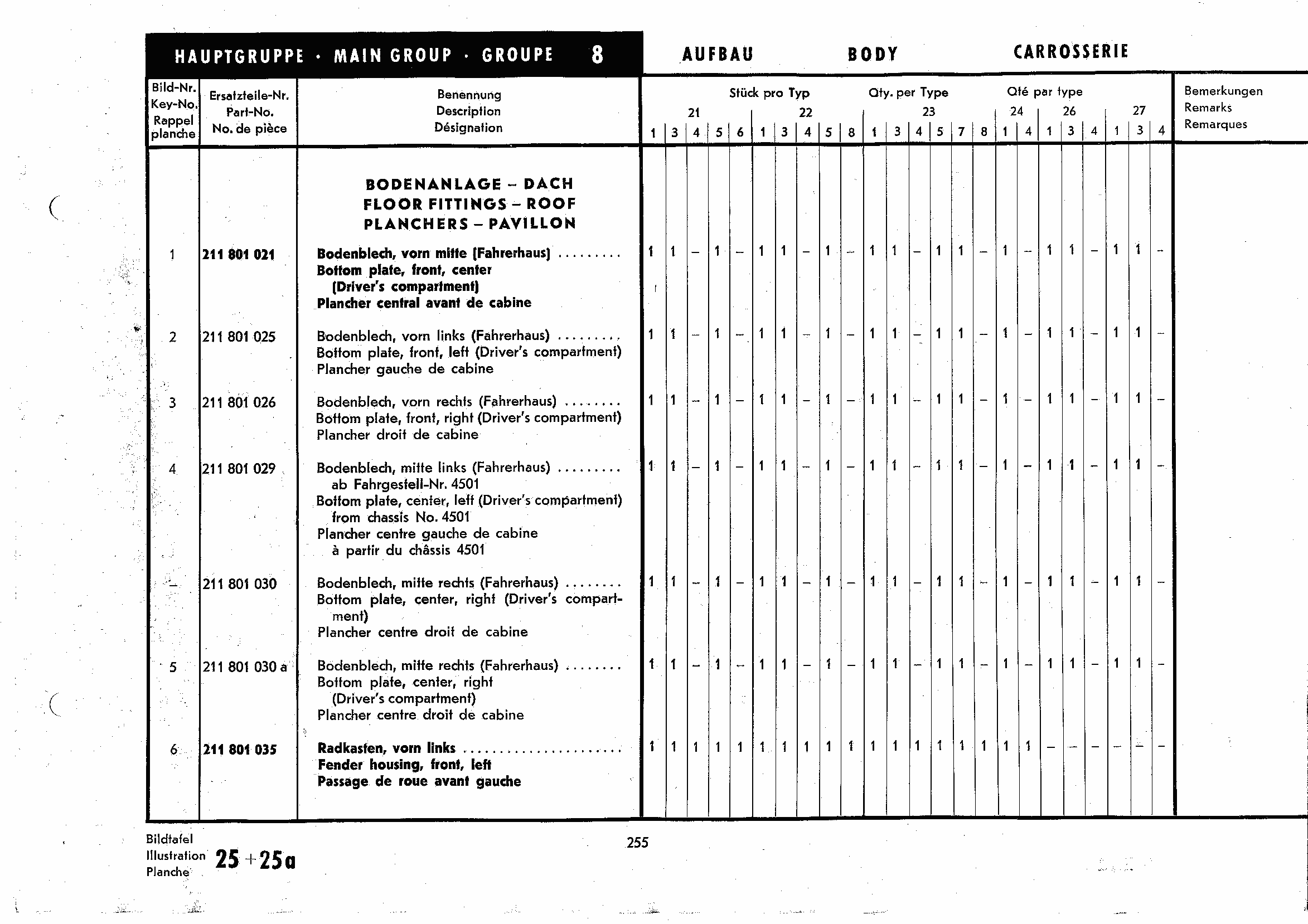

255 list Floor fittings, roof

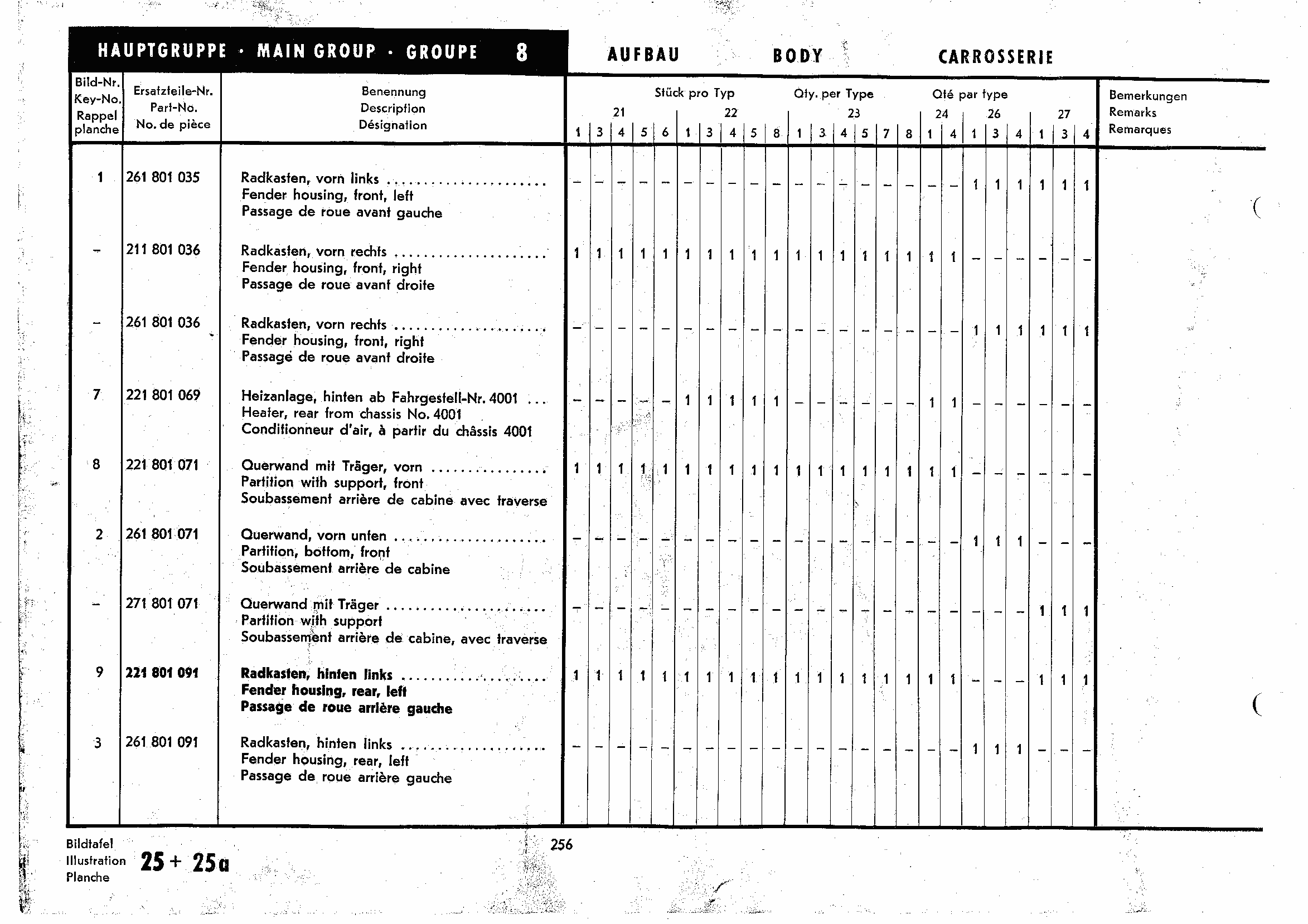

256 list Floor fittings, roof

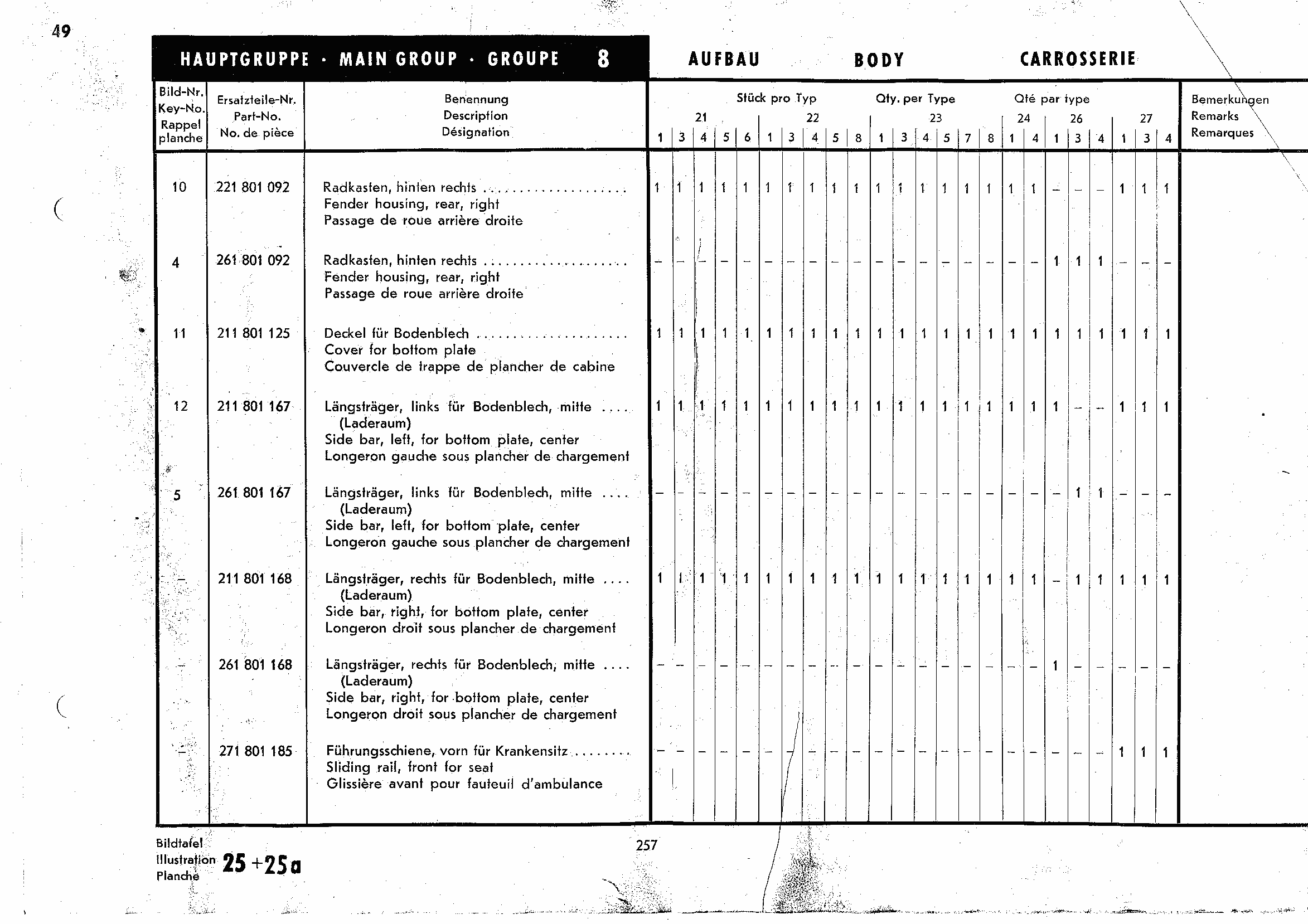

257 list Floor fittings, roof

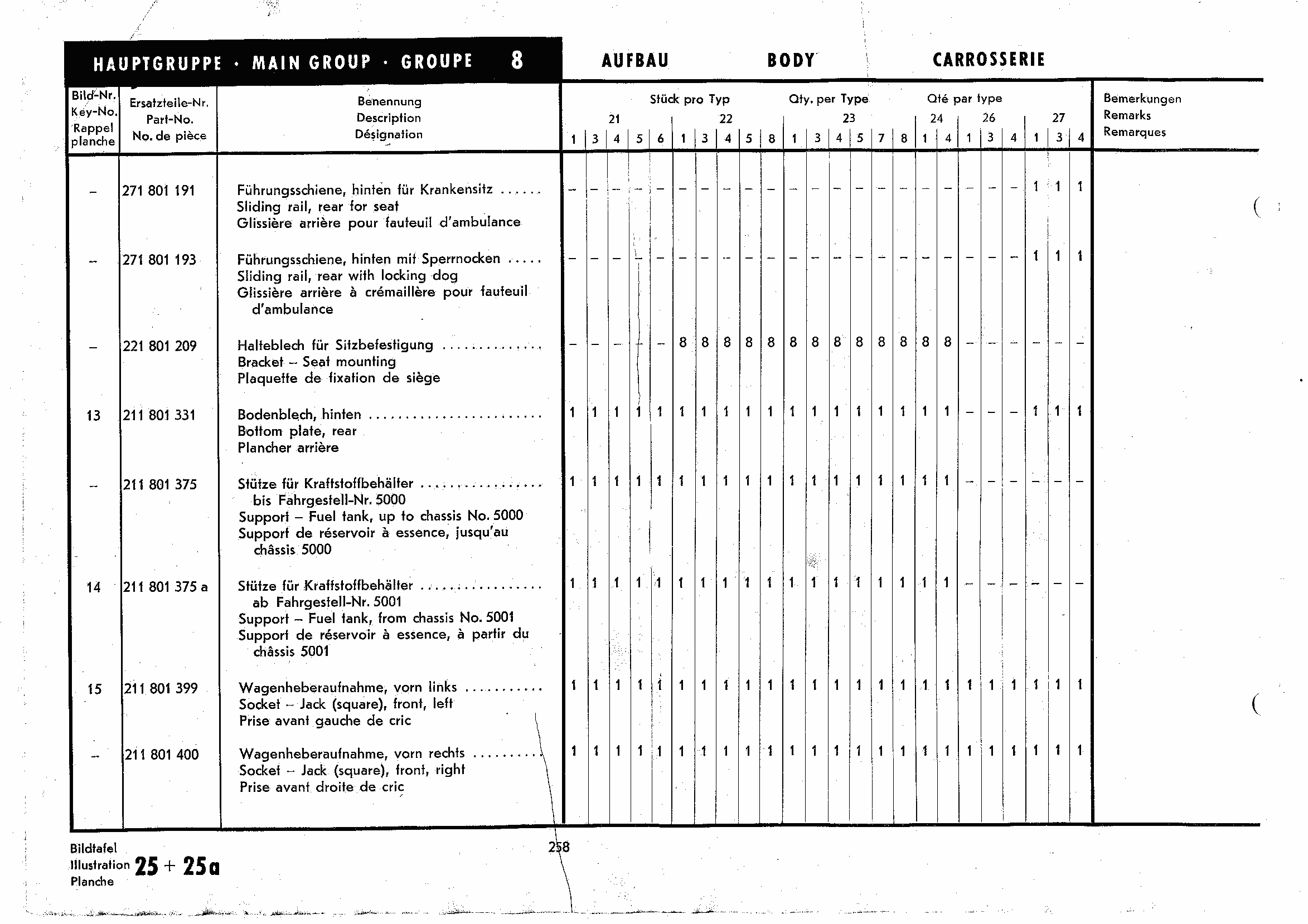

258 list Floor fittings, roof

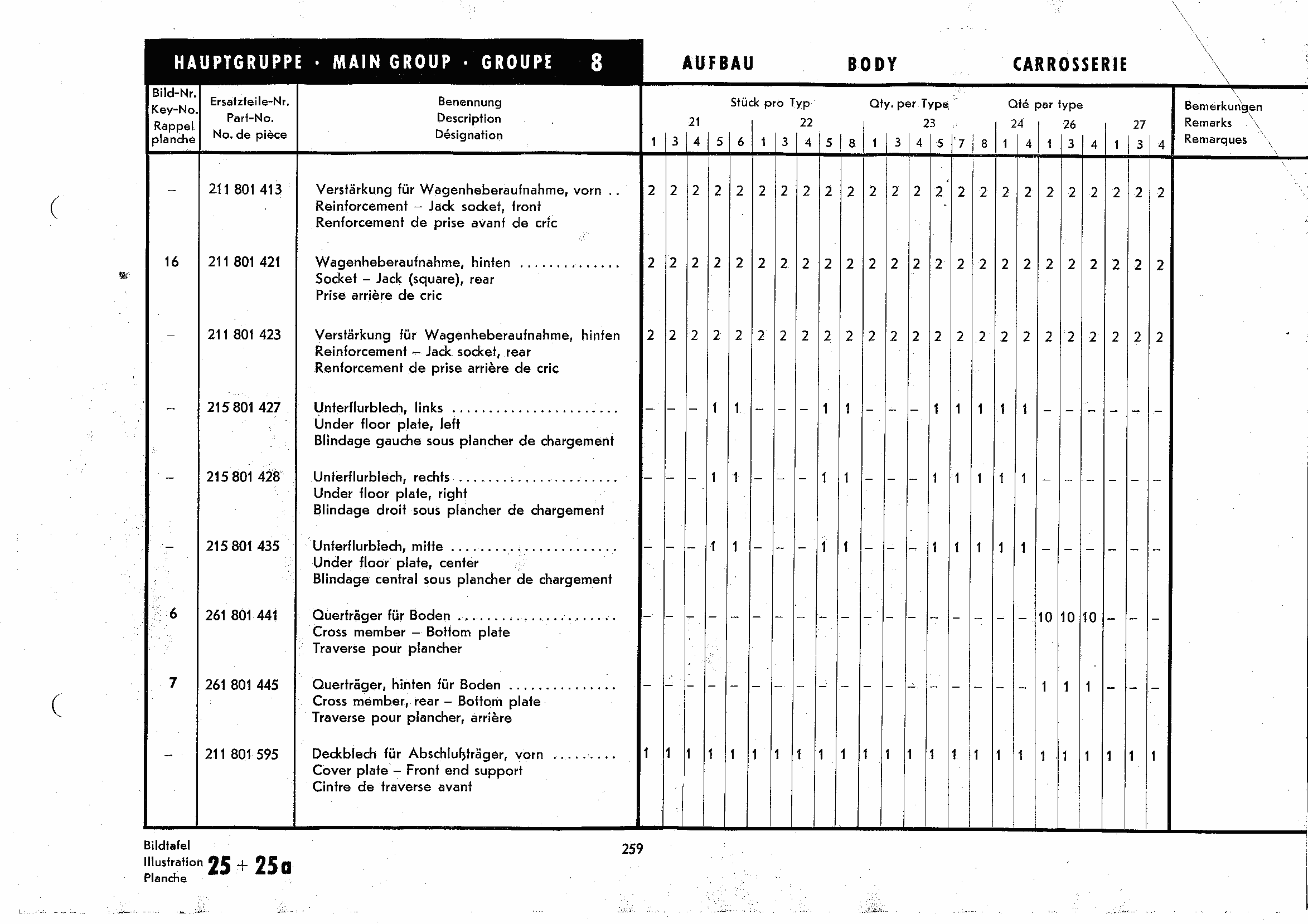

259 list Floor fittings, roof

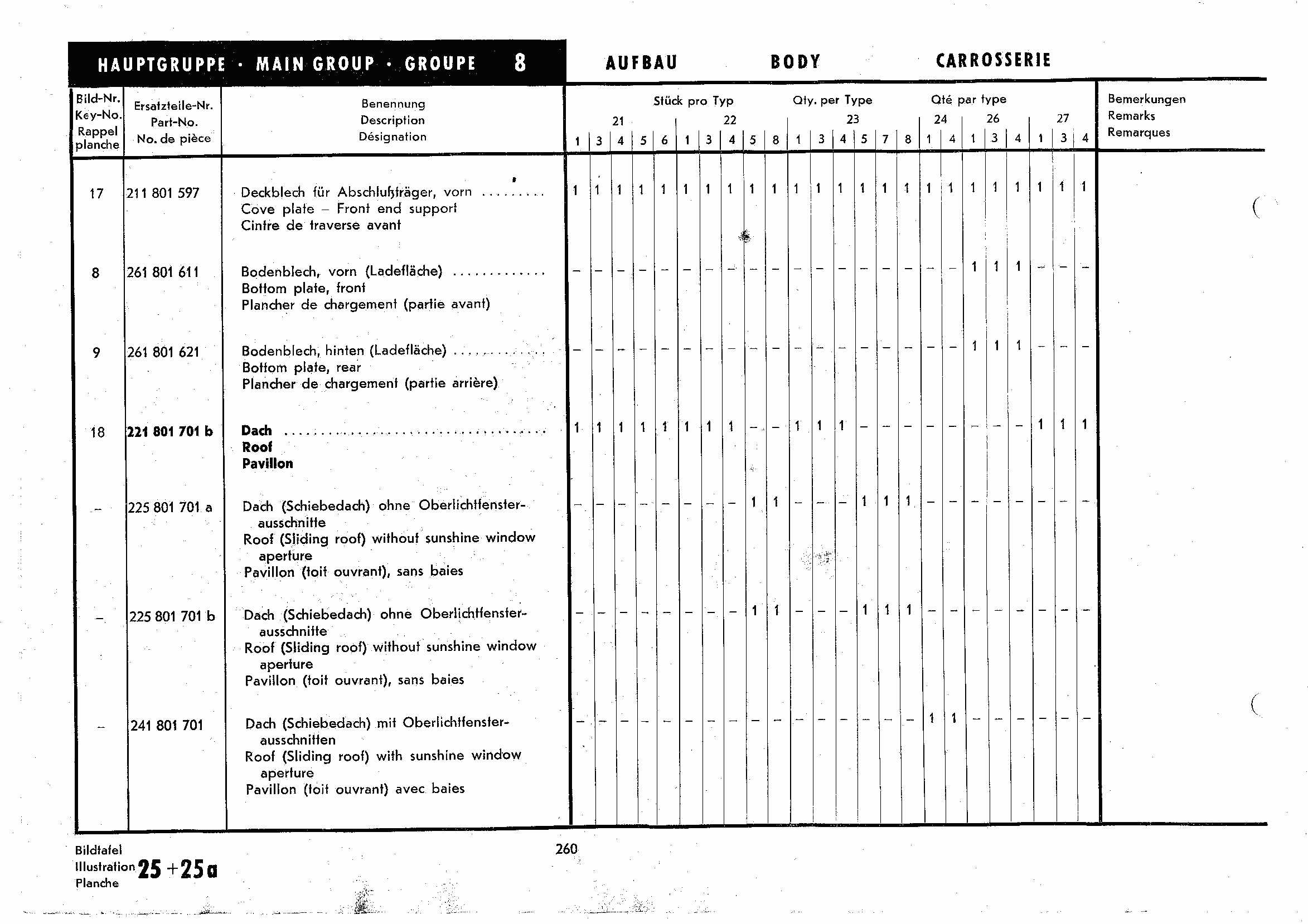

260 list Floor fittings, roof

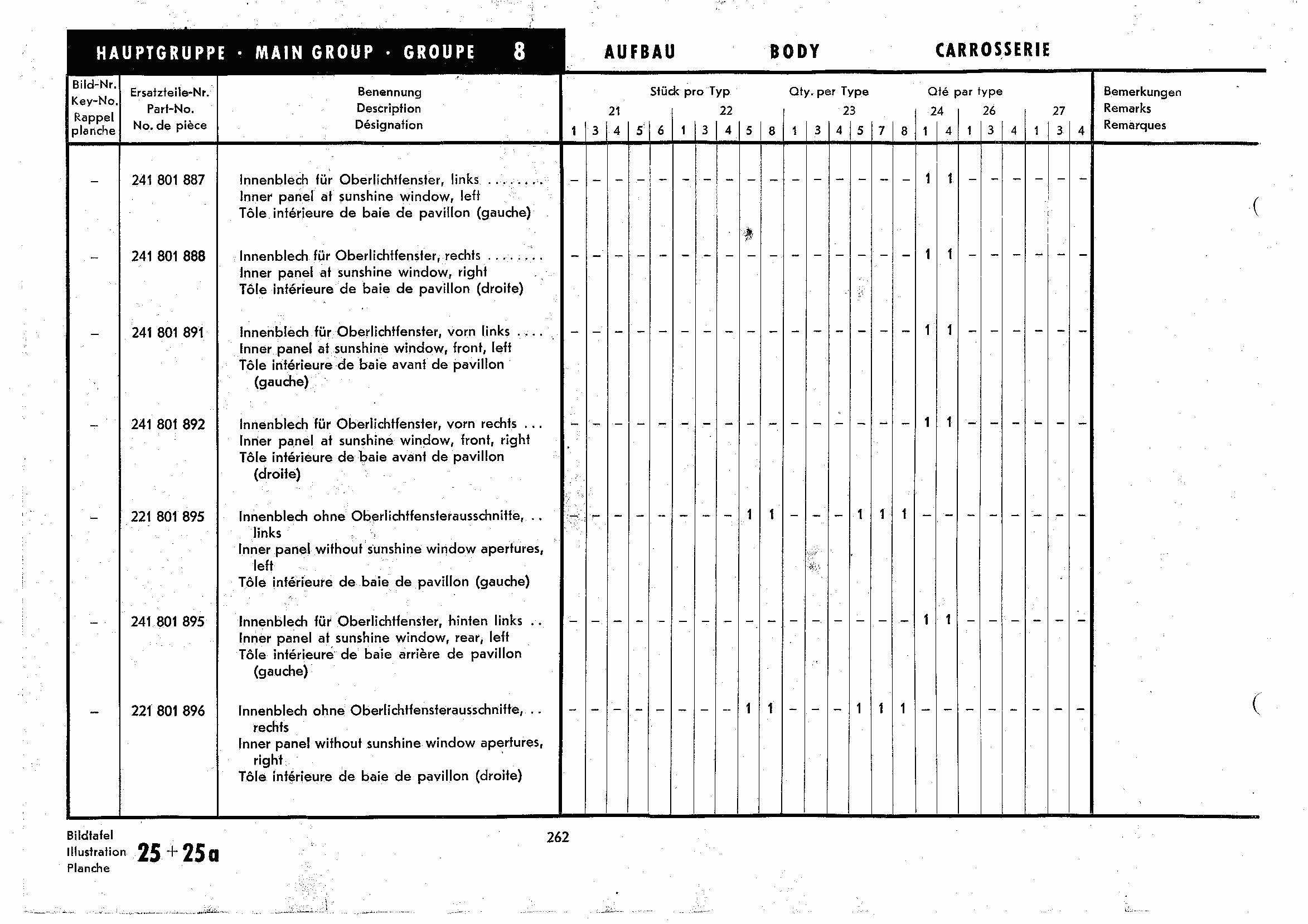

261 list Floor fittings, roof
262 list Floor fittings, roof

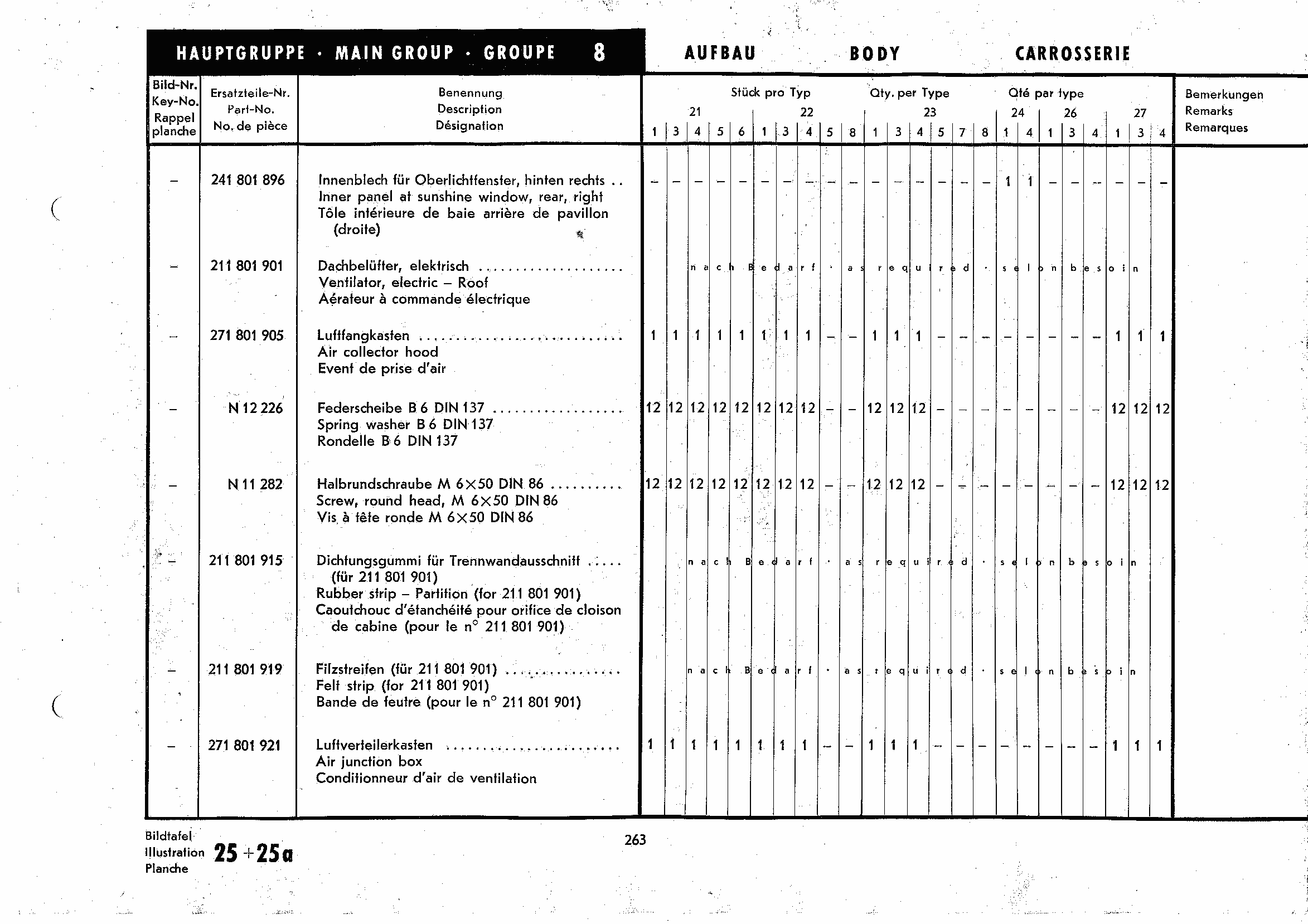

263 list Floor fittings, roof

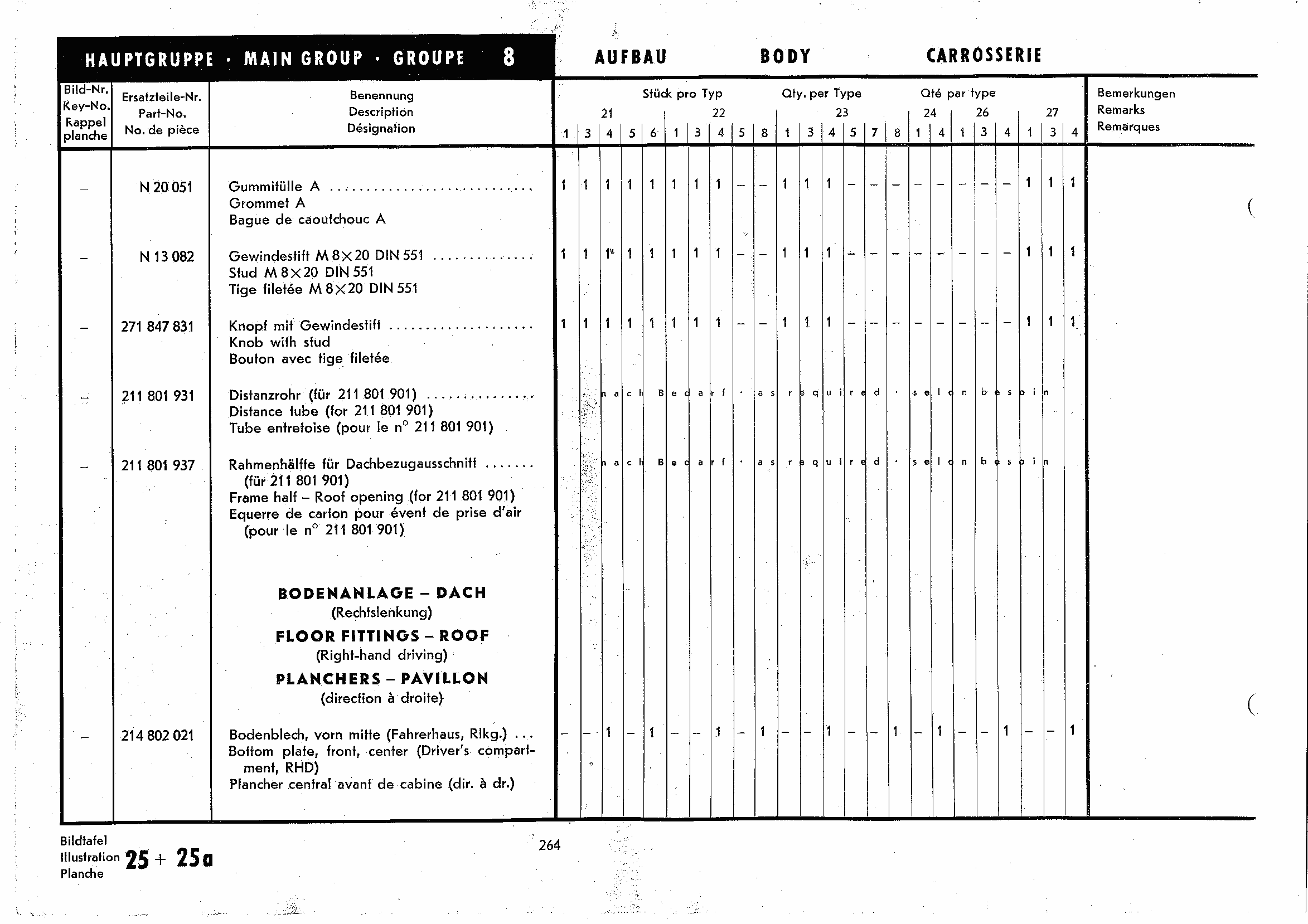

264 list Floor fittings, roof; RHD floor fittings, roof

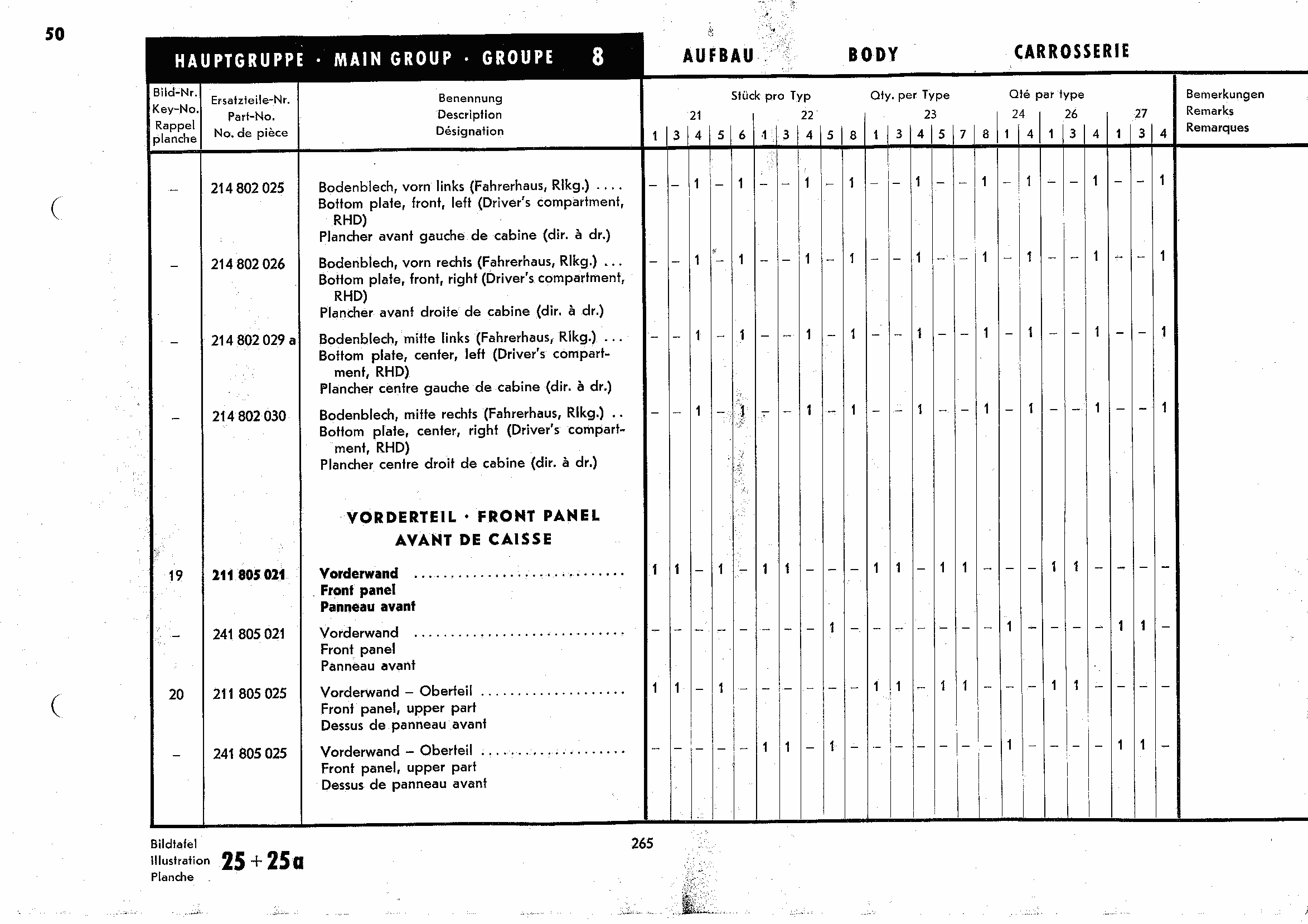

265 list RHD floor fittings, roof; front panel

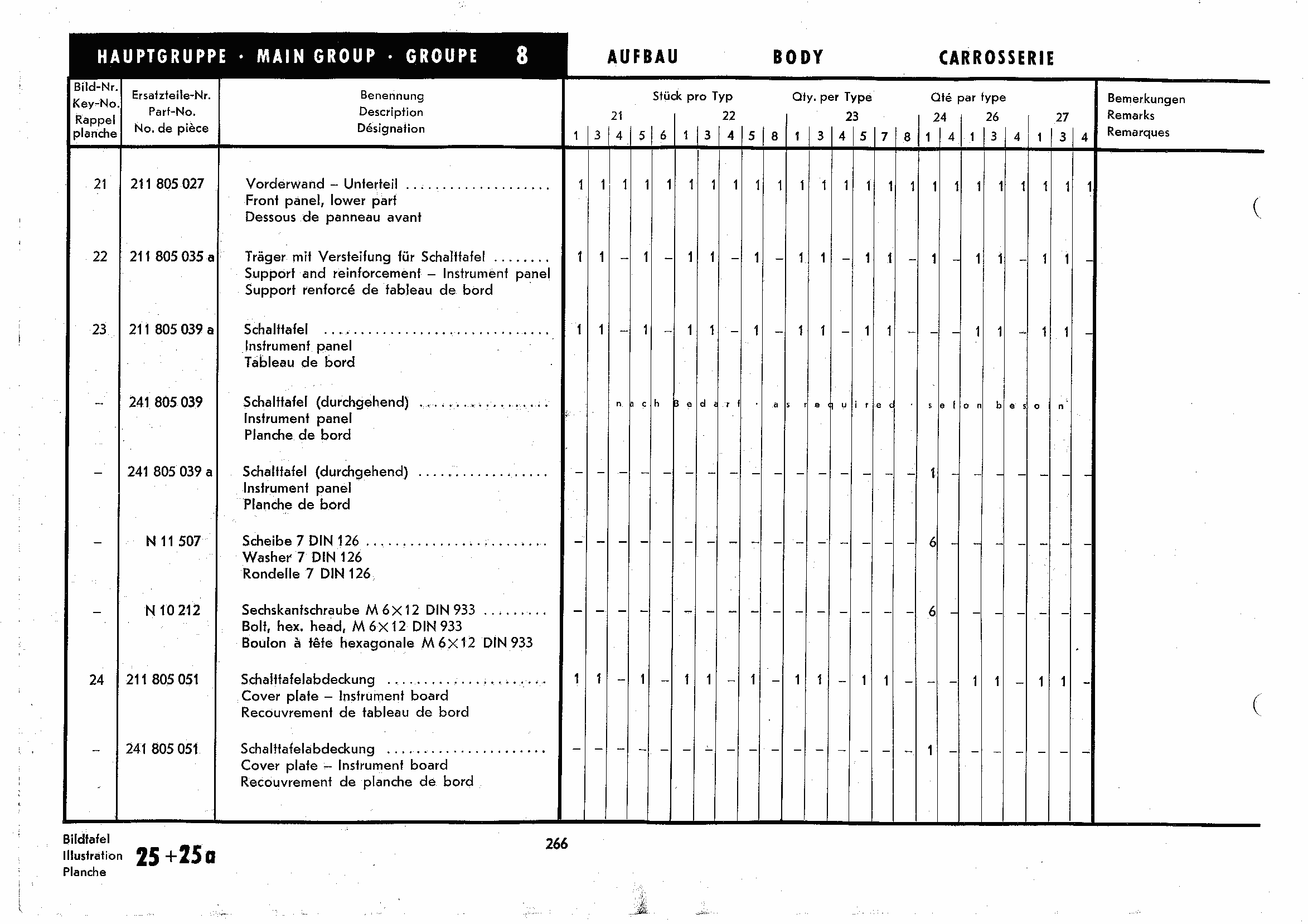

266 list Front panel

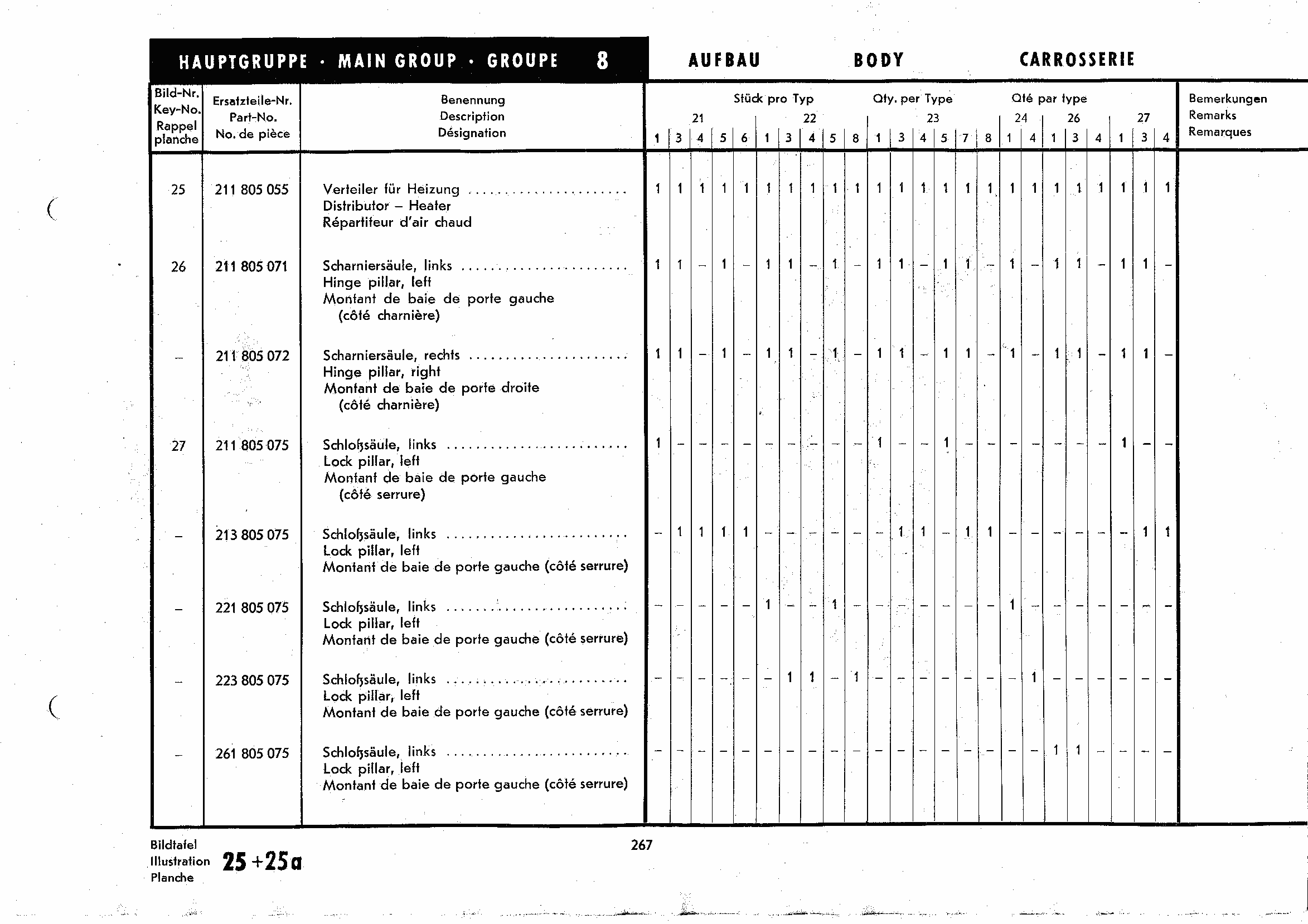

267 list Front panel

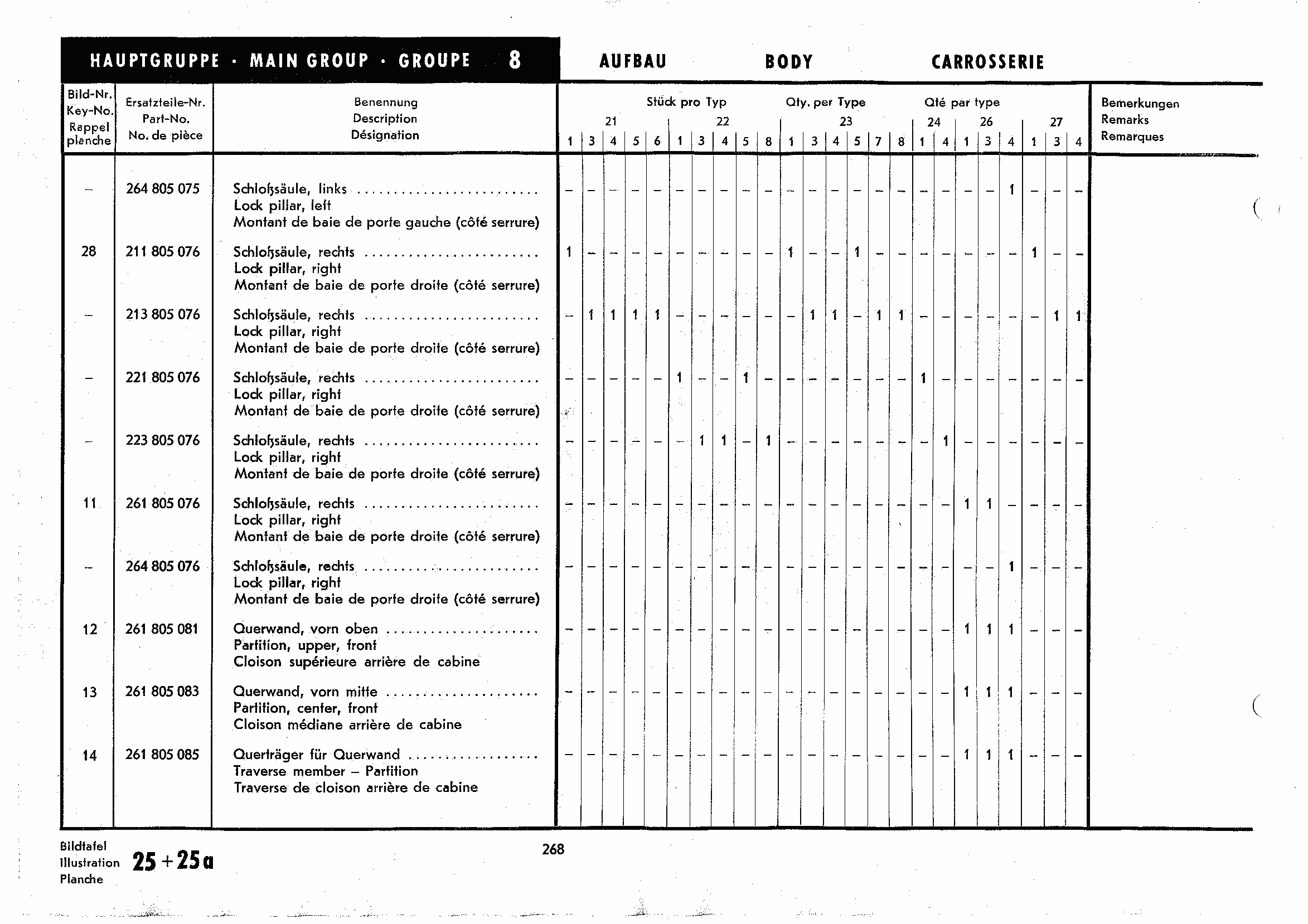

268 list Front panel

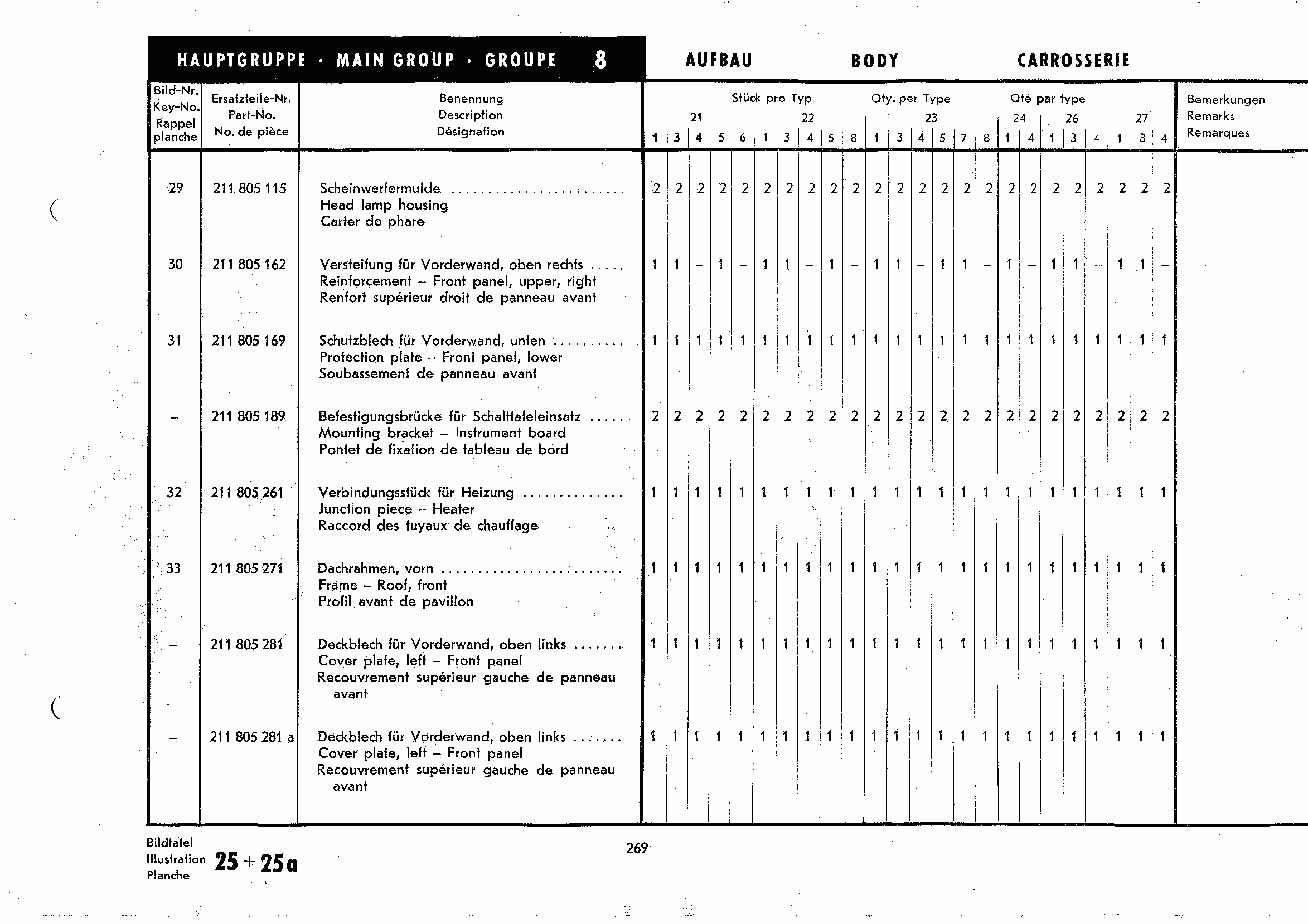

269 list Front panel

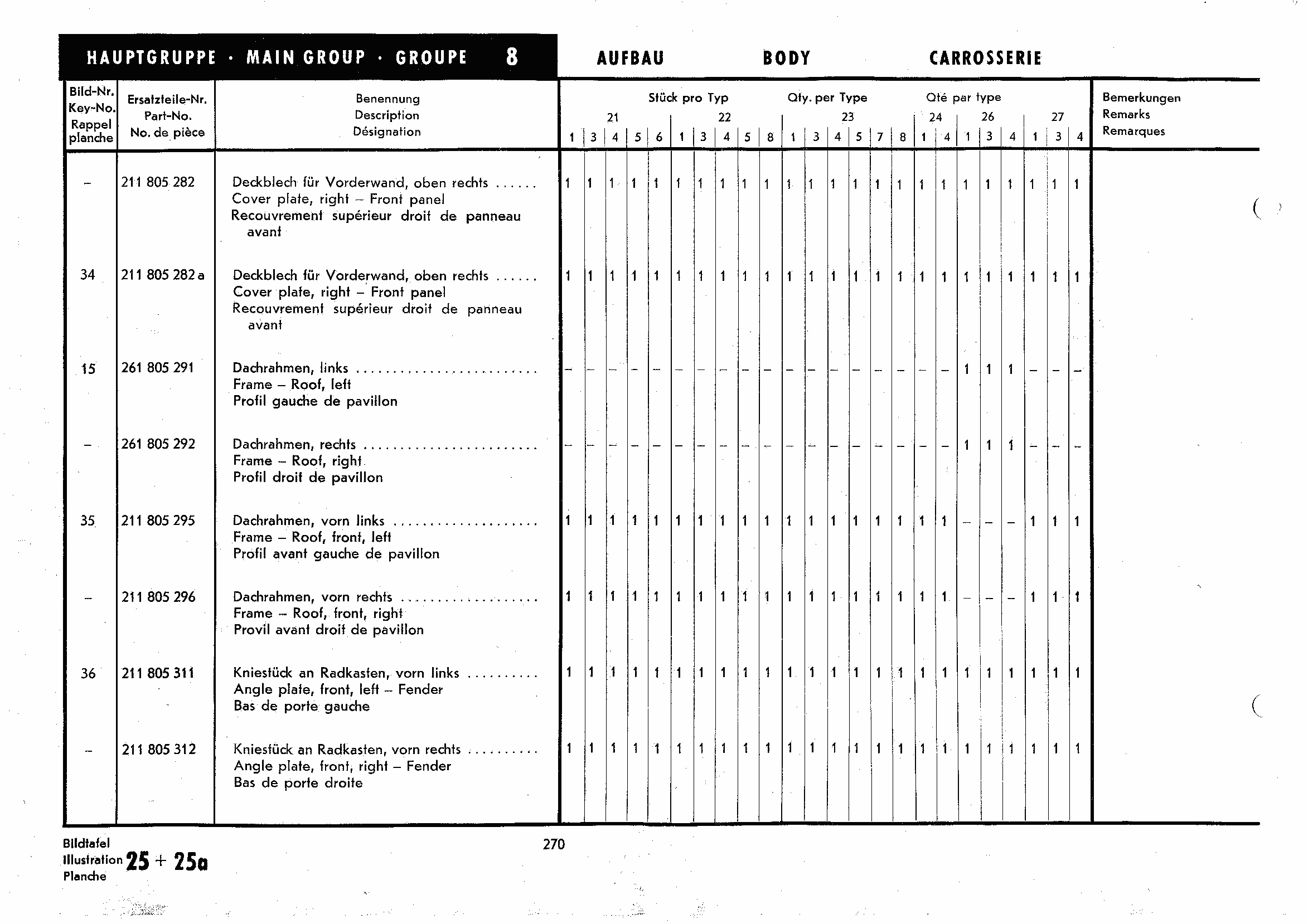

270 list Front panel

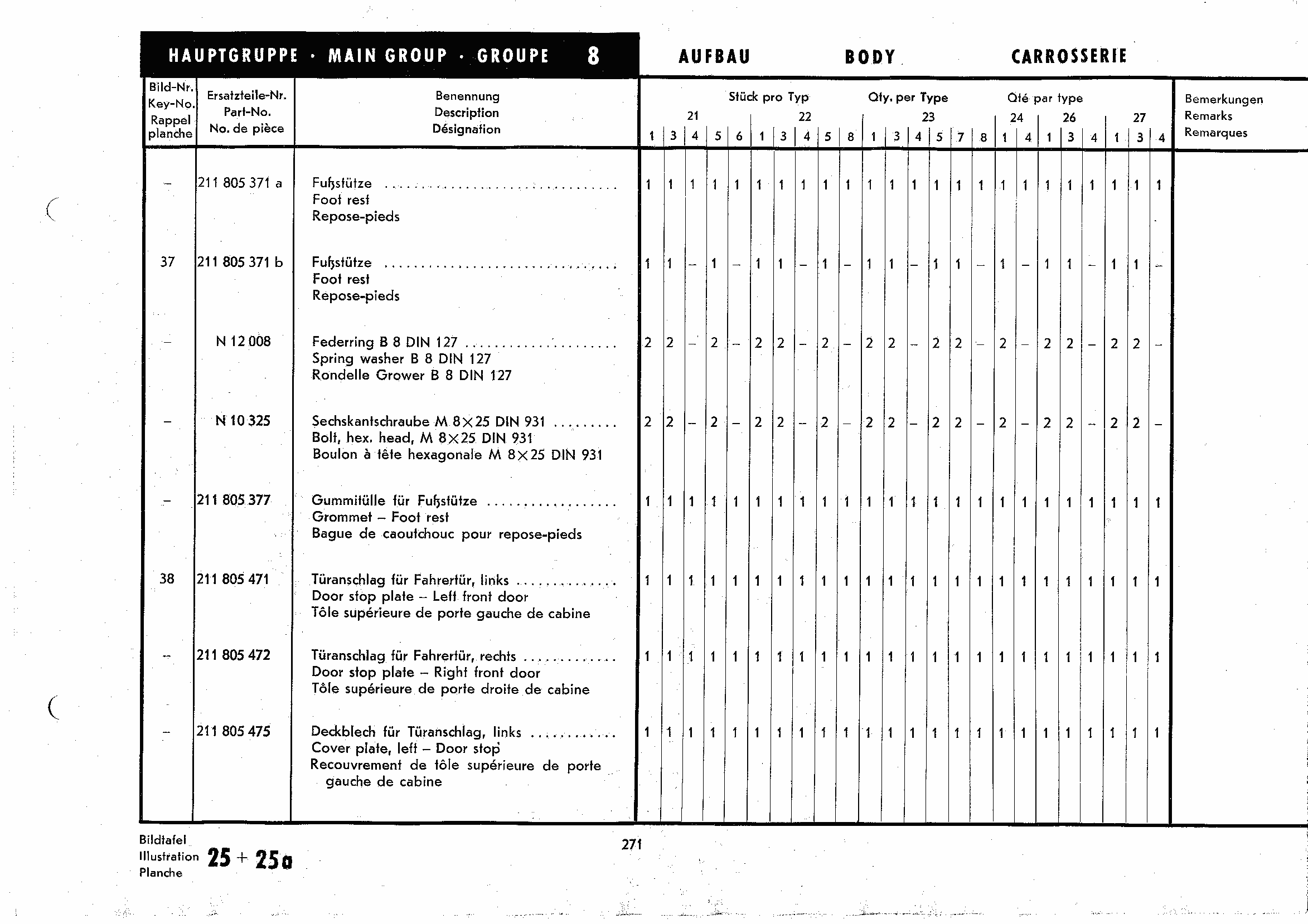

271 list Front panel

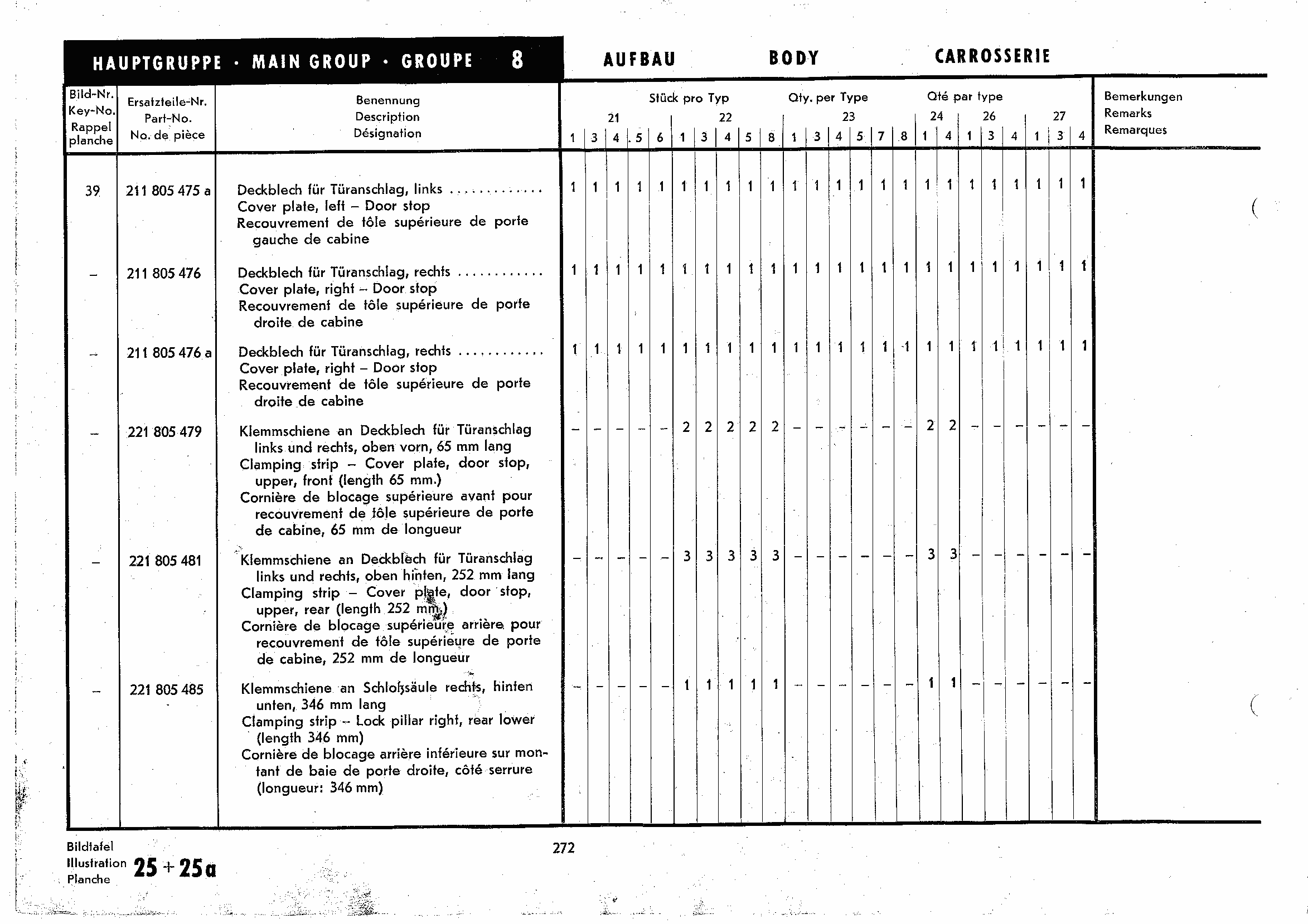

272 list Front panel
273 list Front panel

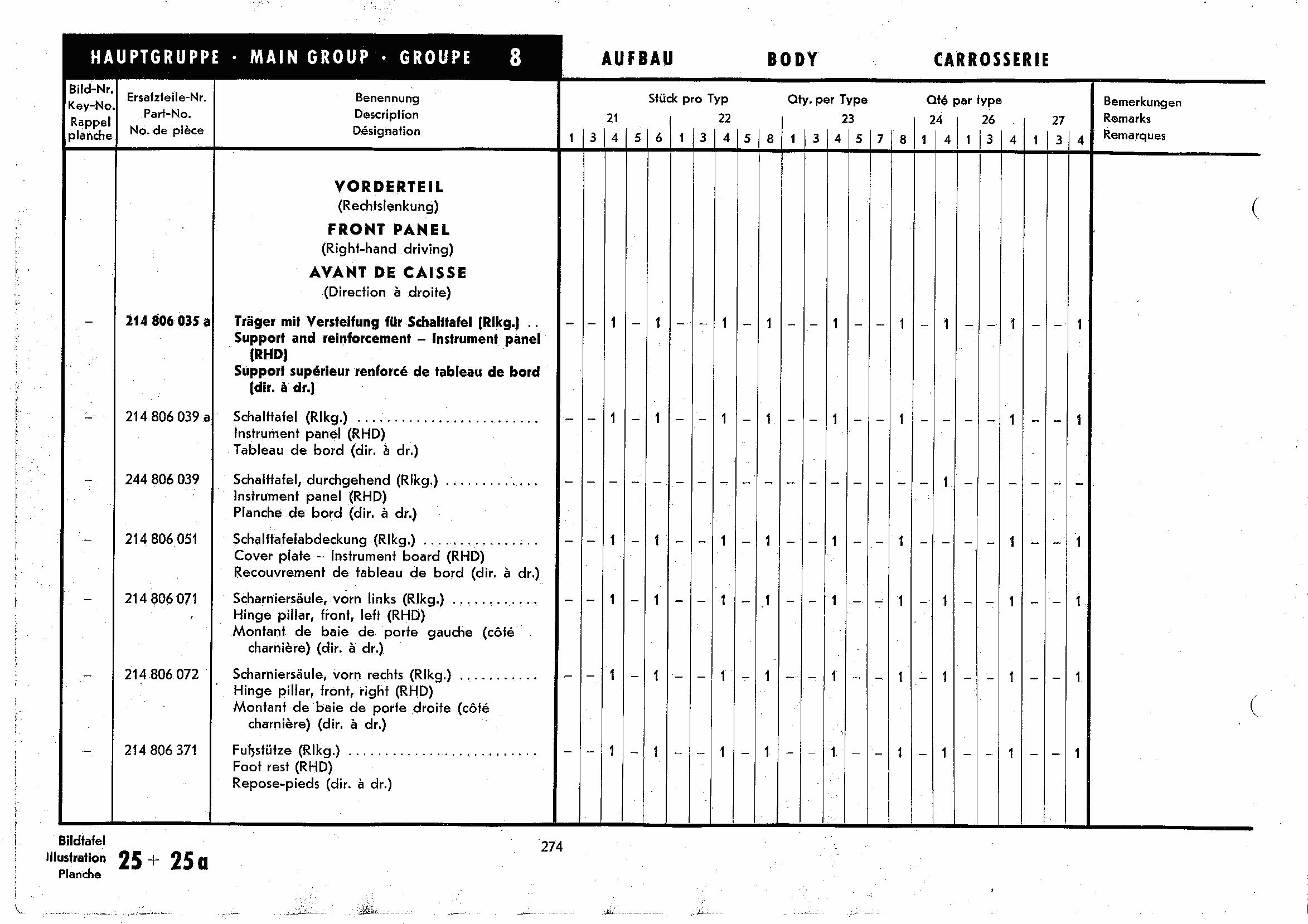

274 list RHD Front panel
275 special Verlangen Sie nur Original-VW-Ersatzteile die Ihnen die Instandsetzung vereinfachen, schnelle und billigste Bedienung gewaehrleisten!

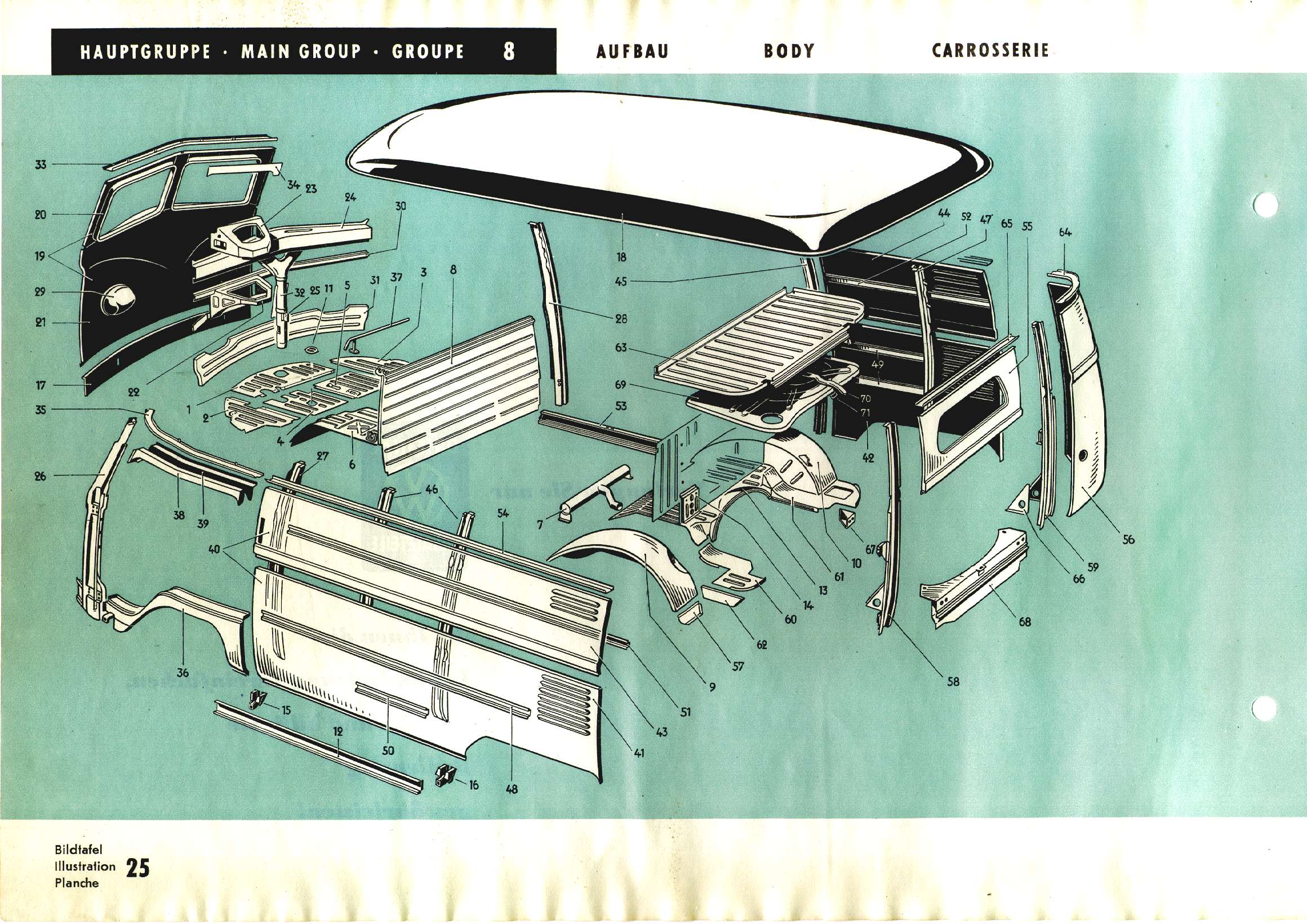

276 diagram Body (Panel)

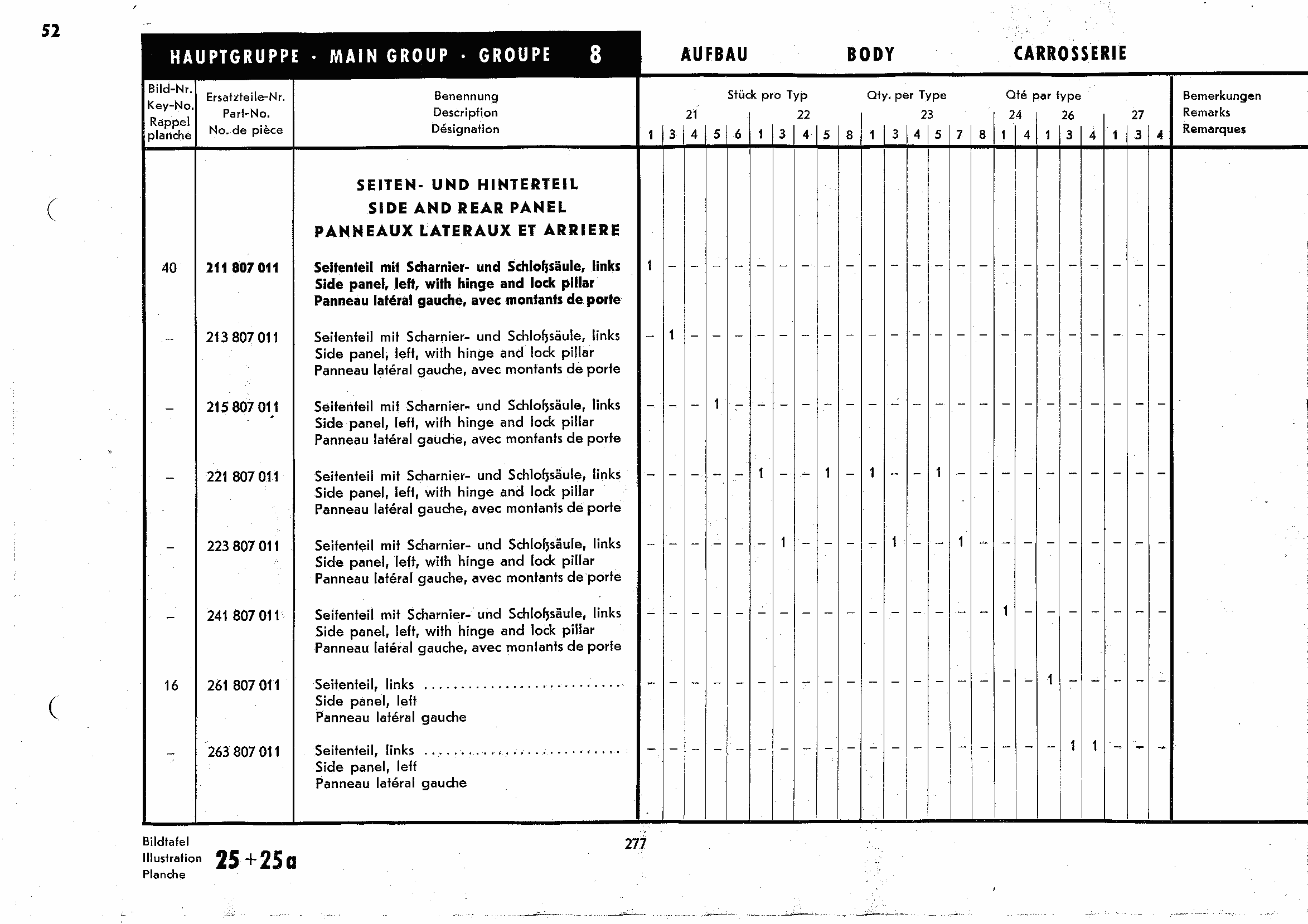

277 list Side and rear panel

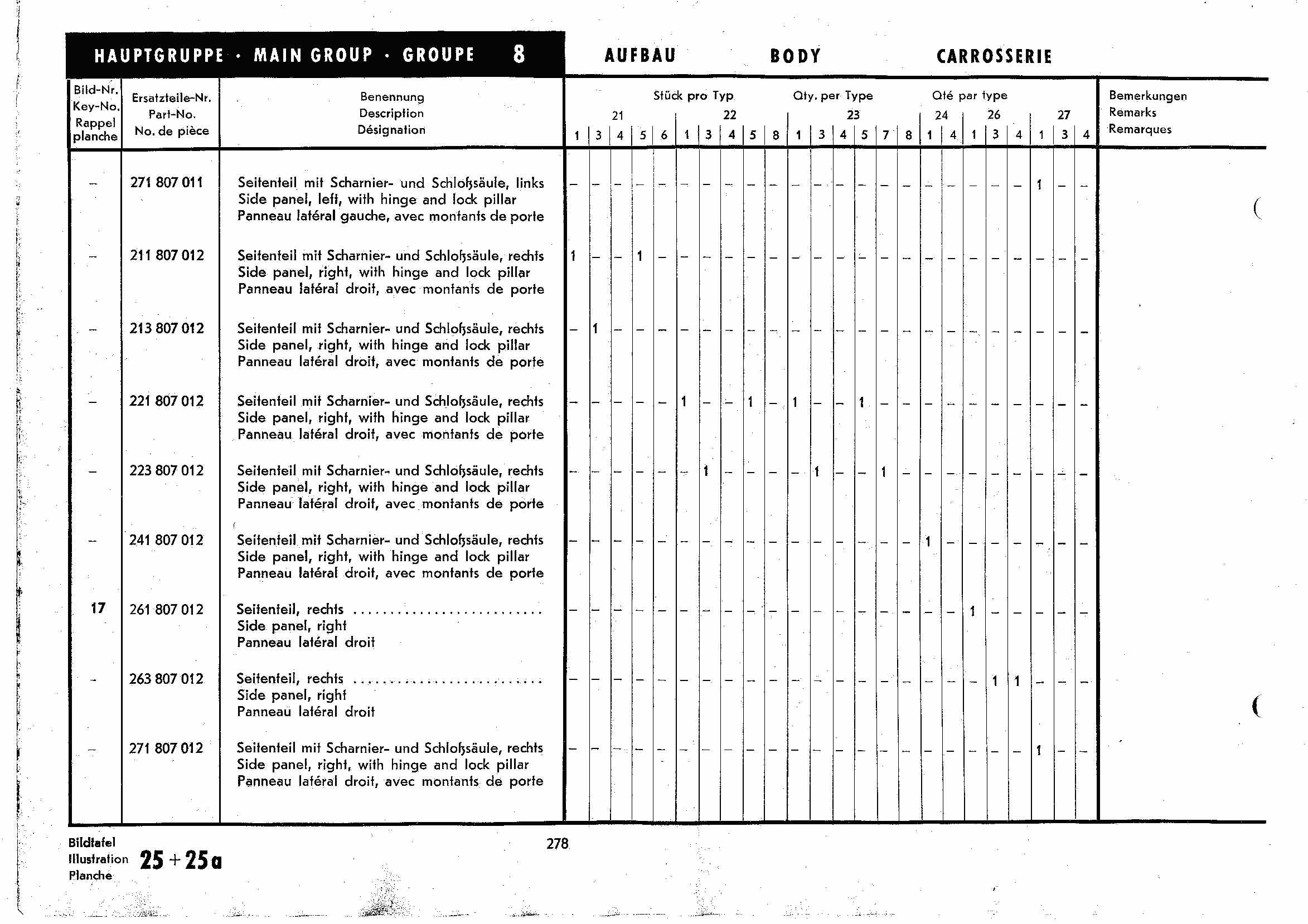

278 list Side and rear panel
279 list Side and rear panel

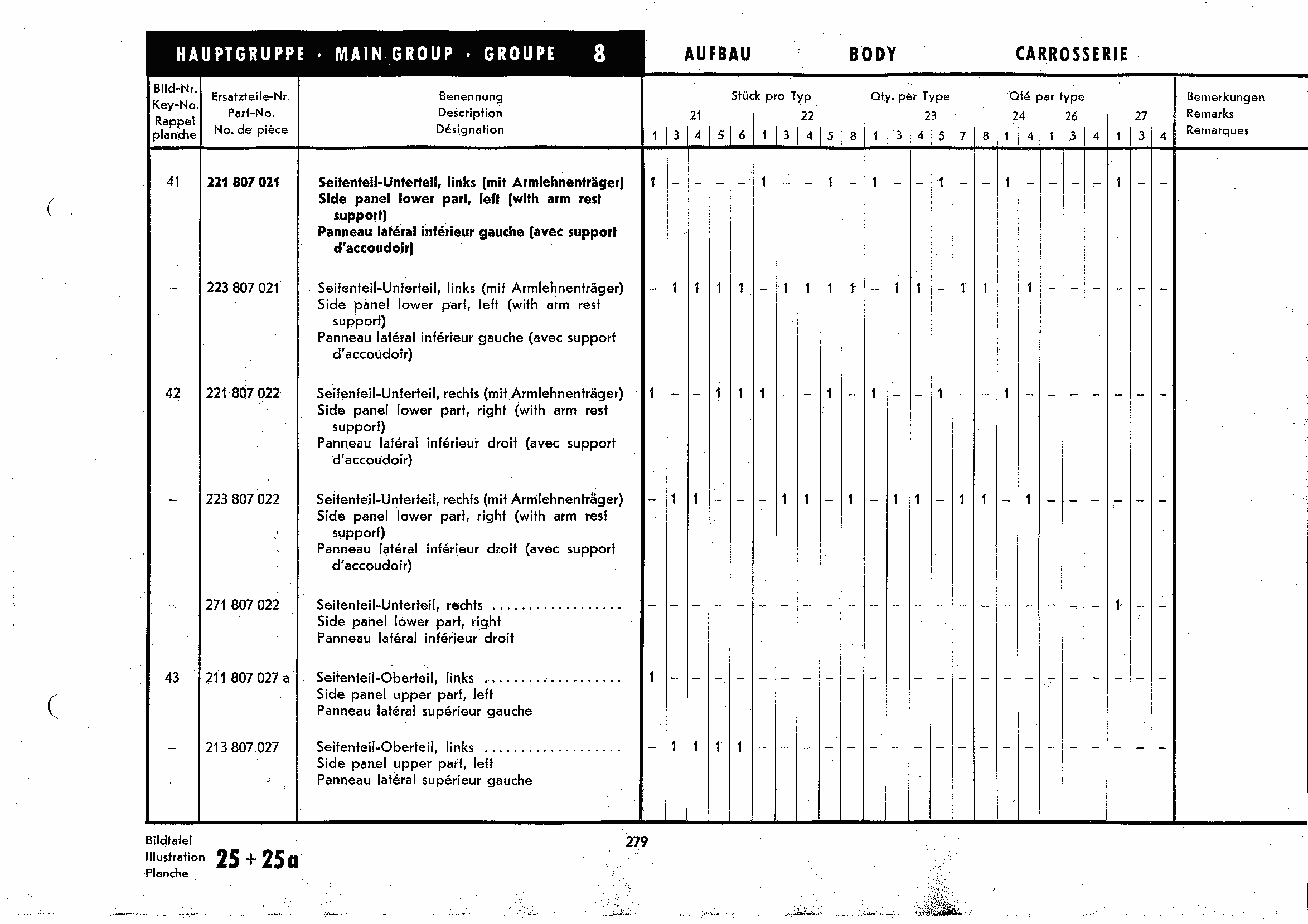

280 list Side and rear panel

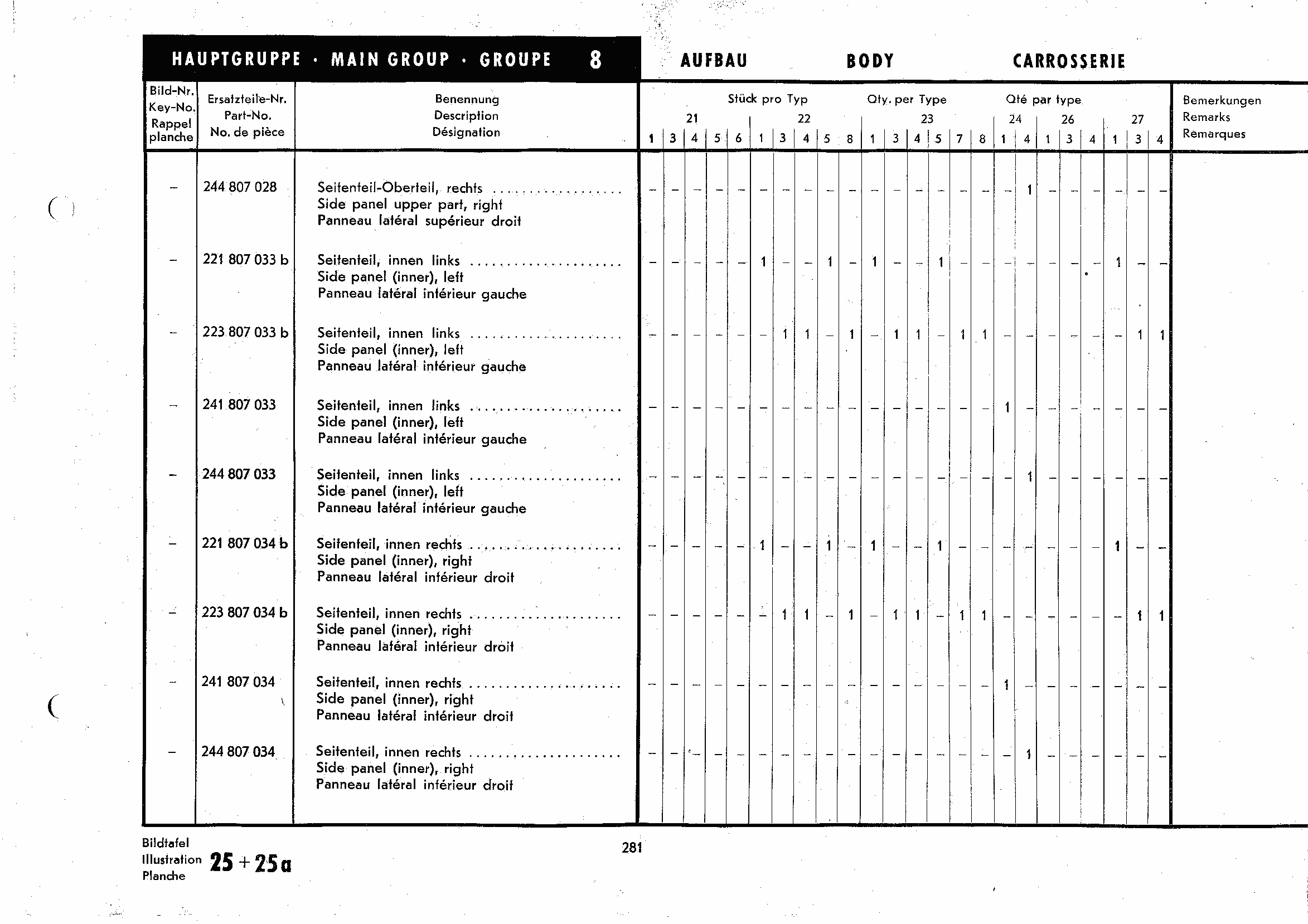

281 list Side and rear panel
282 list Side and rear panel

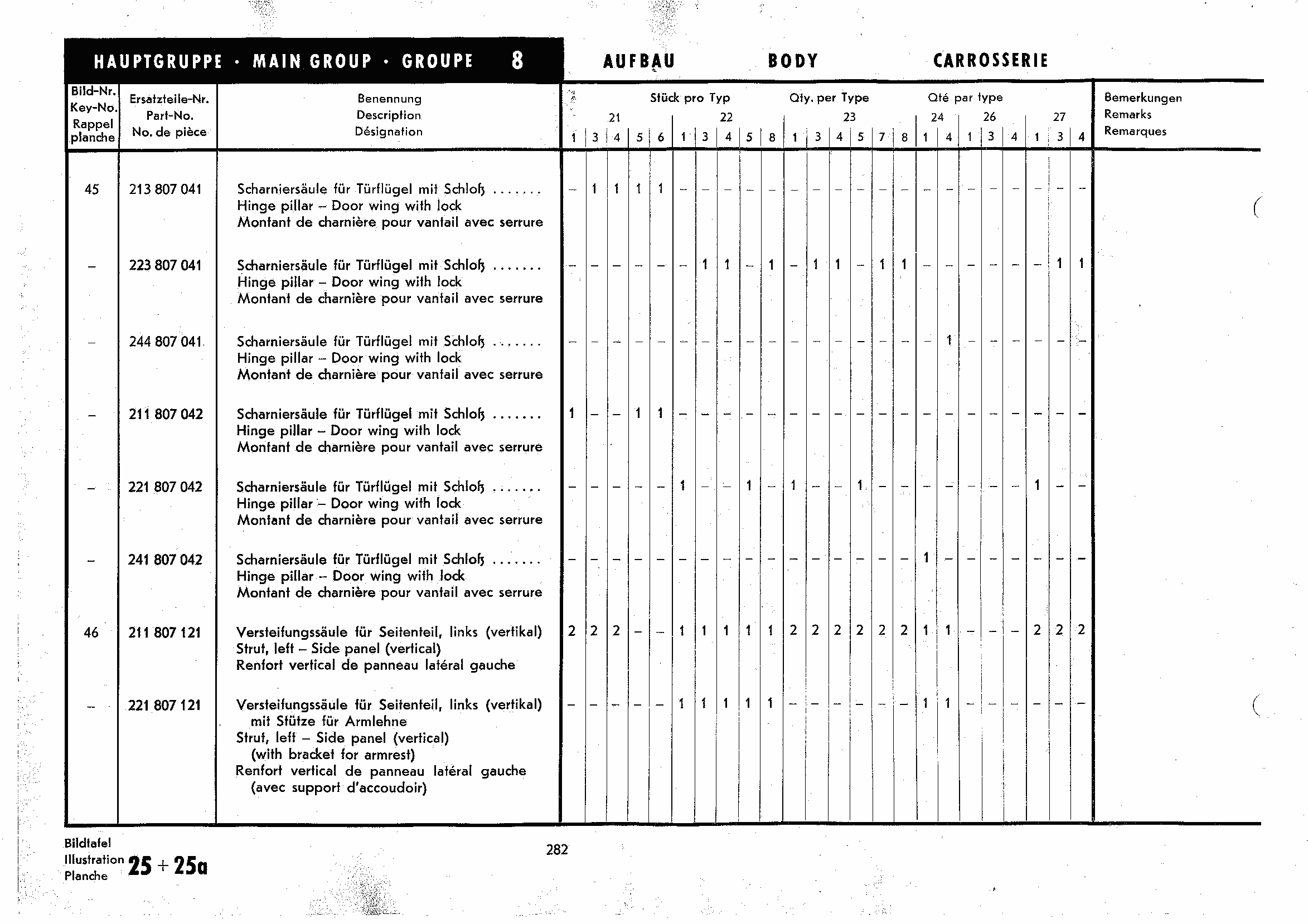

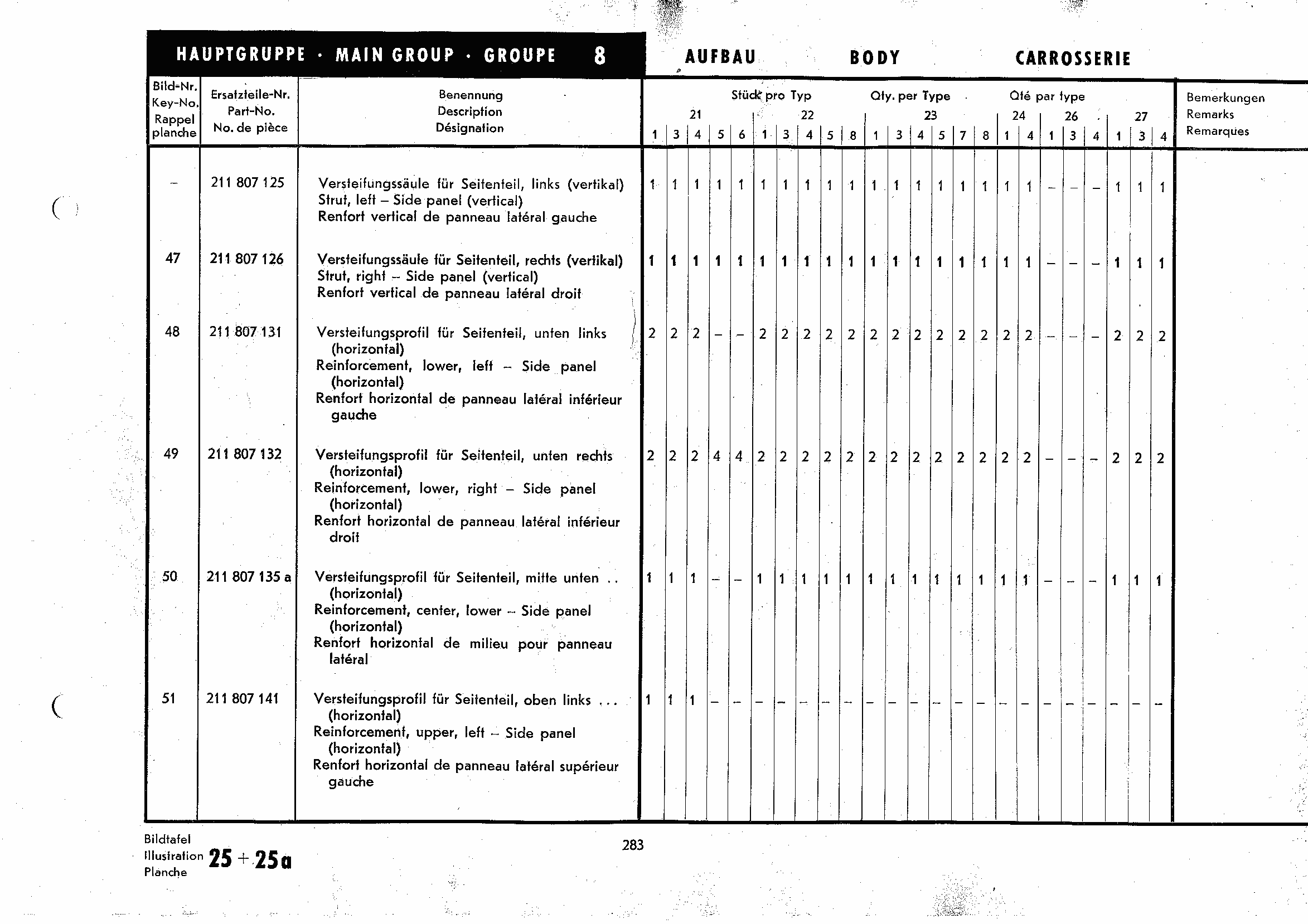

283 list Side and rear panel

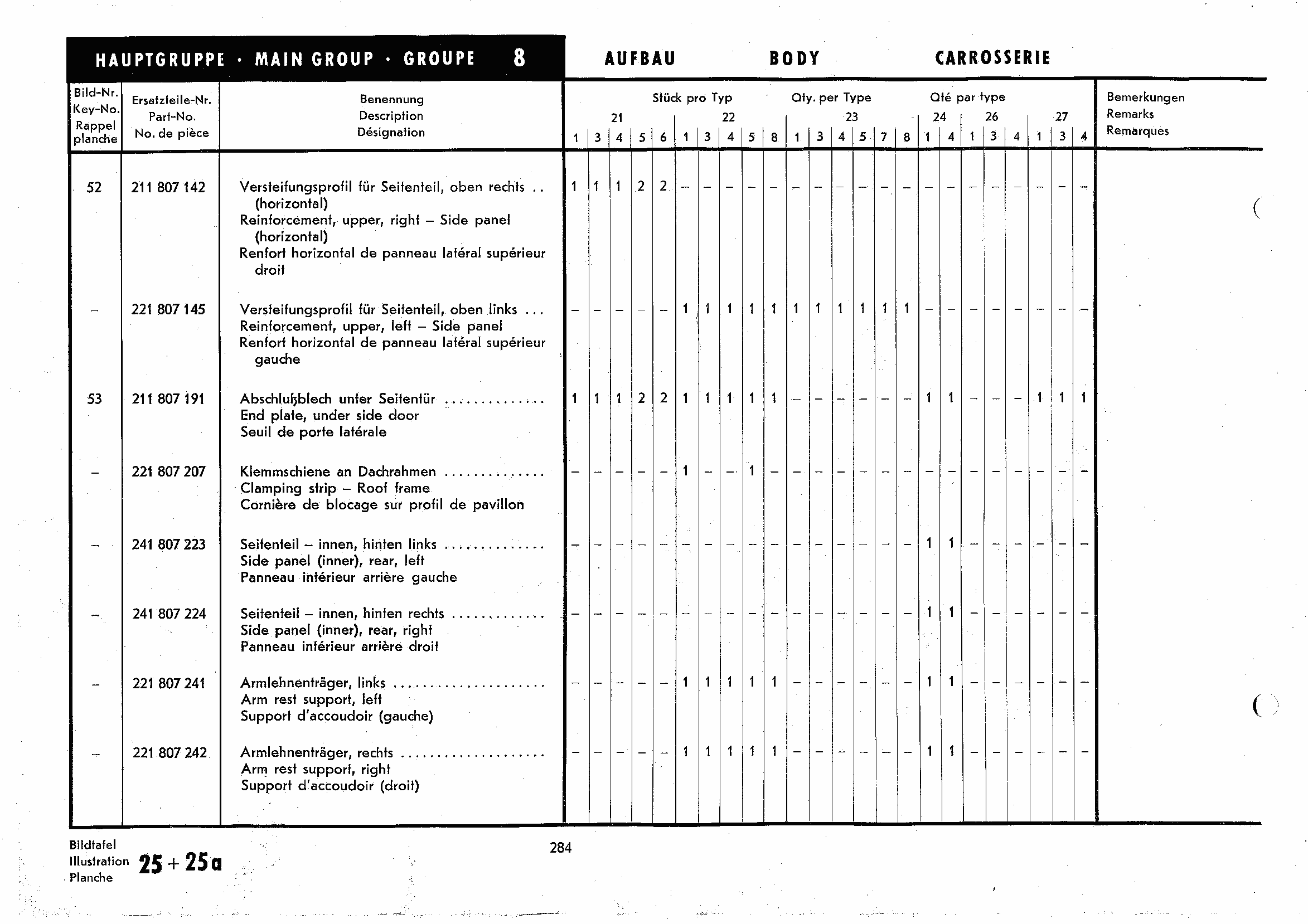

284 list Side and rear panel

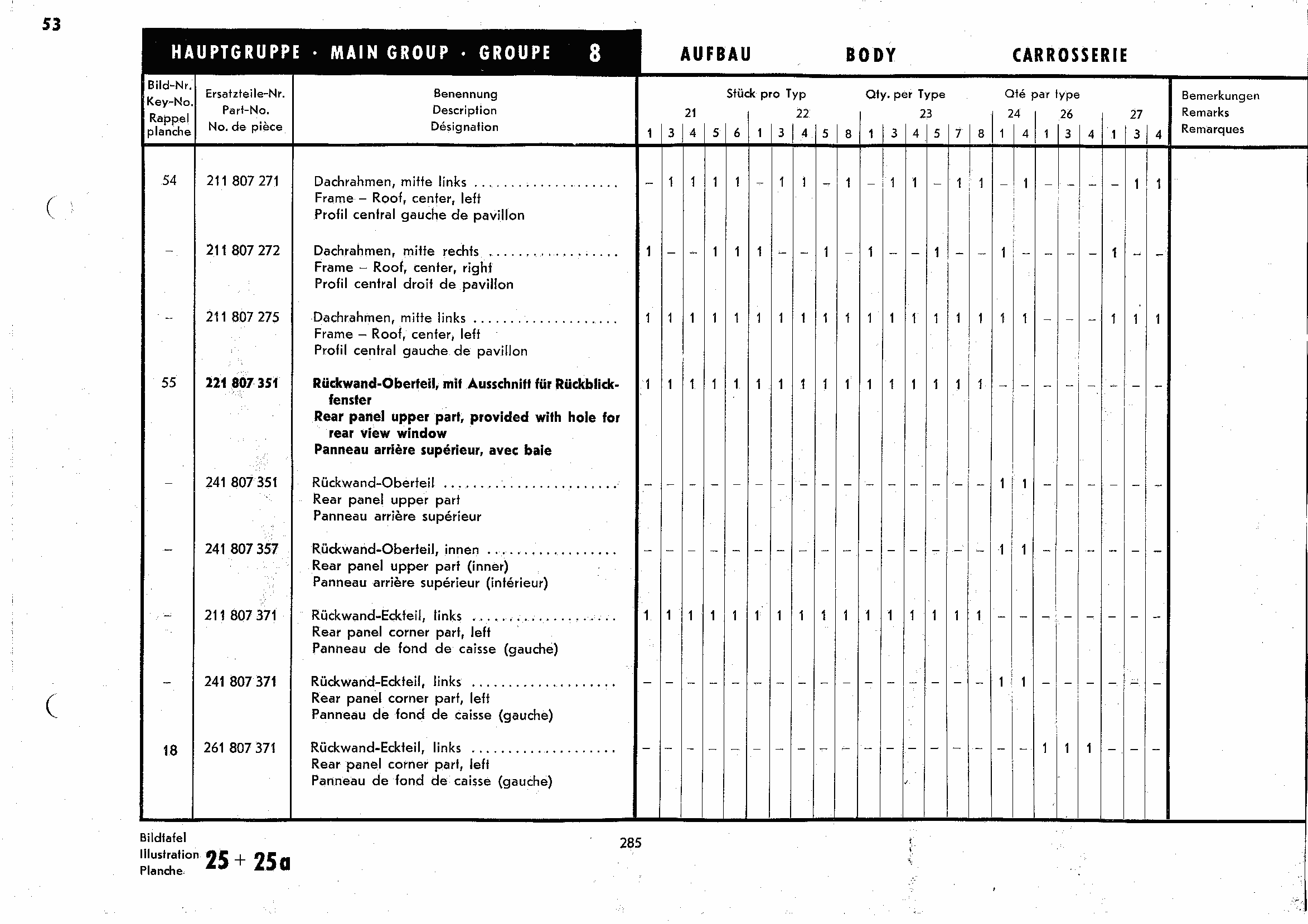

285 list Side and rear panel

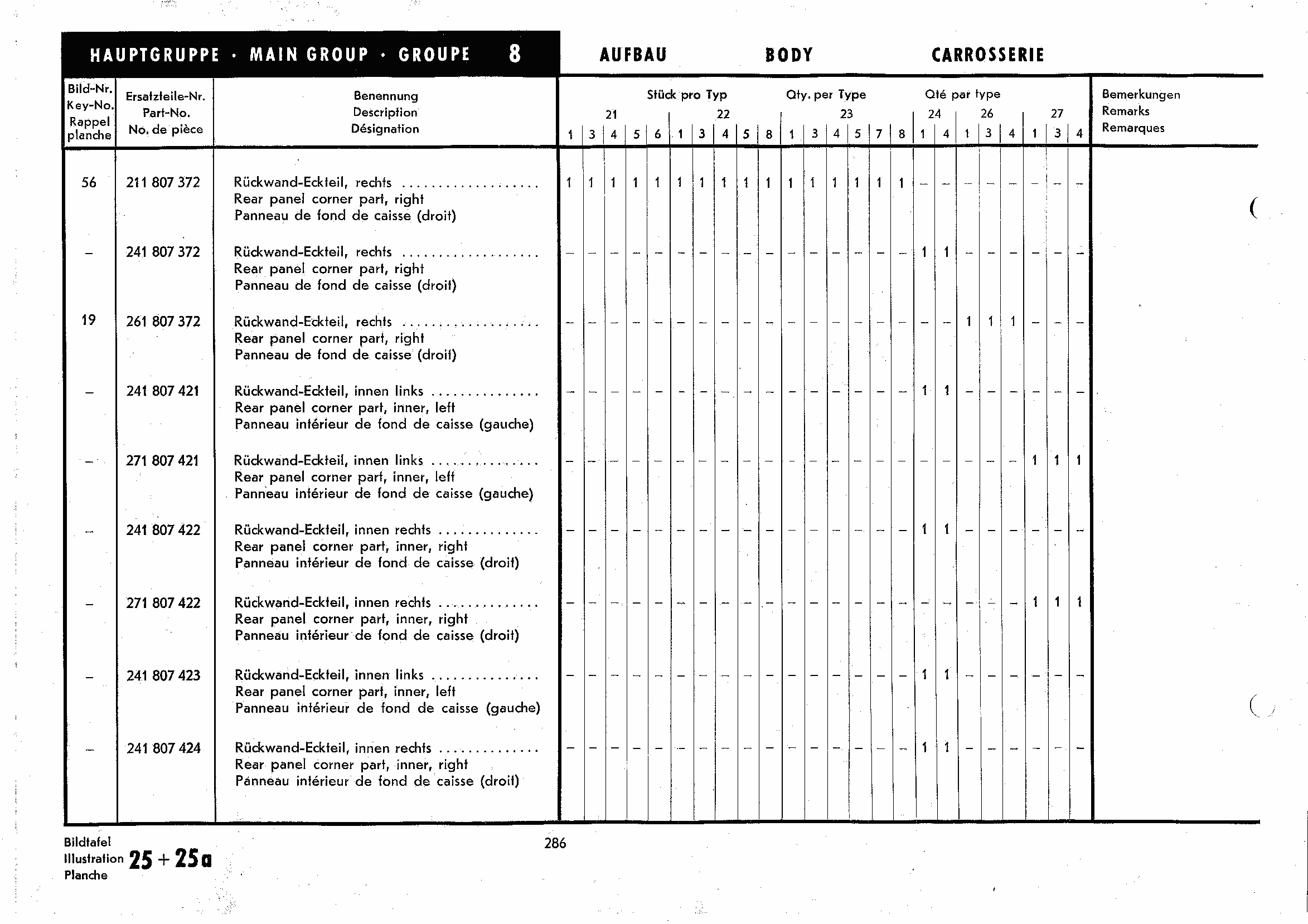

286 list Side and rear panel

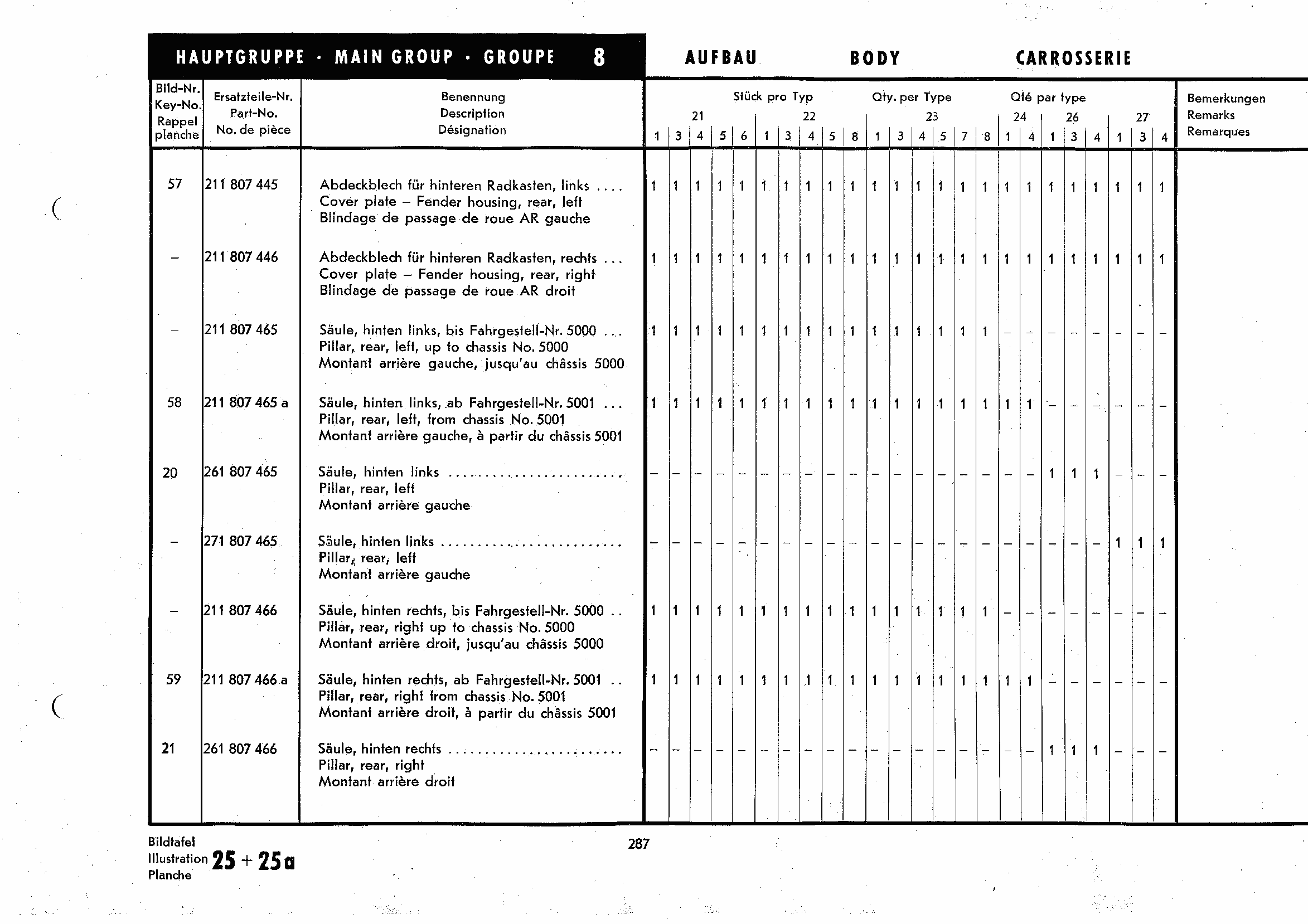

287 list Side and rear panel

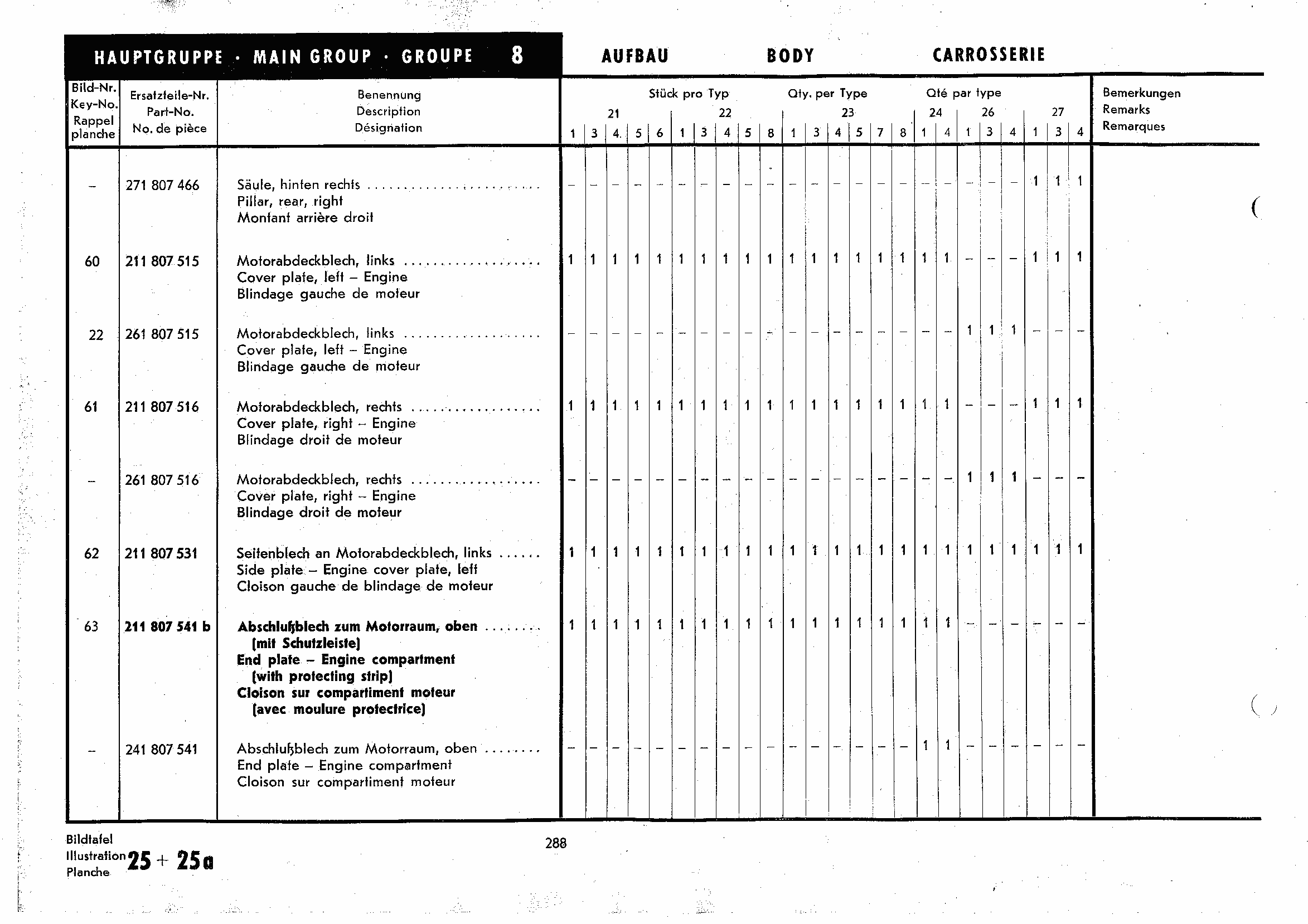

288 list Side and rear panel

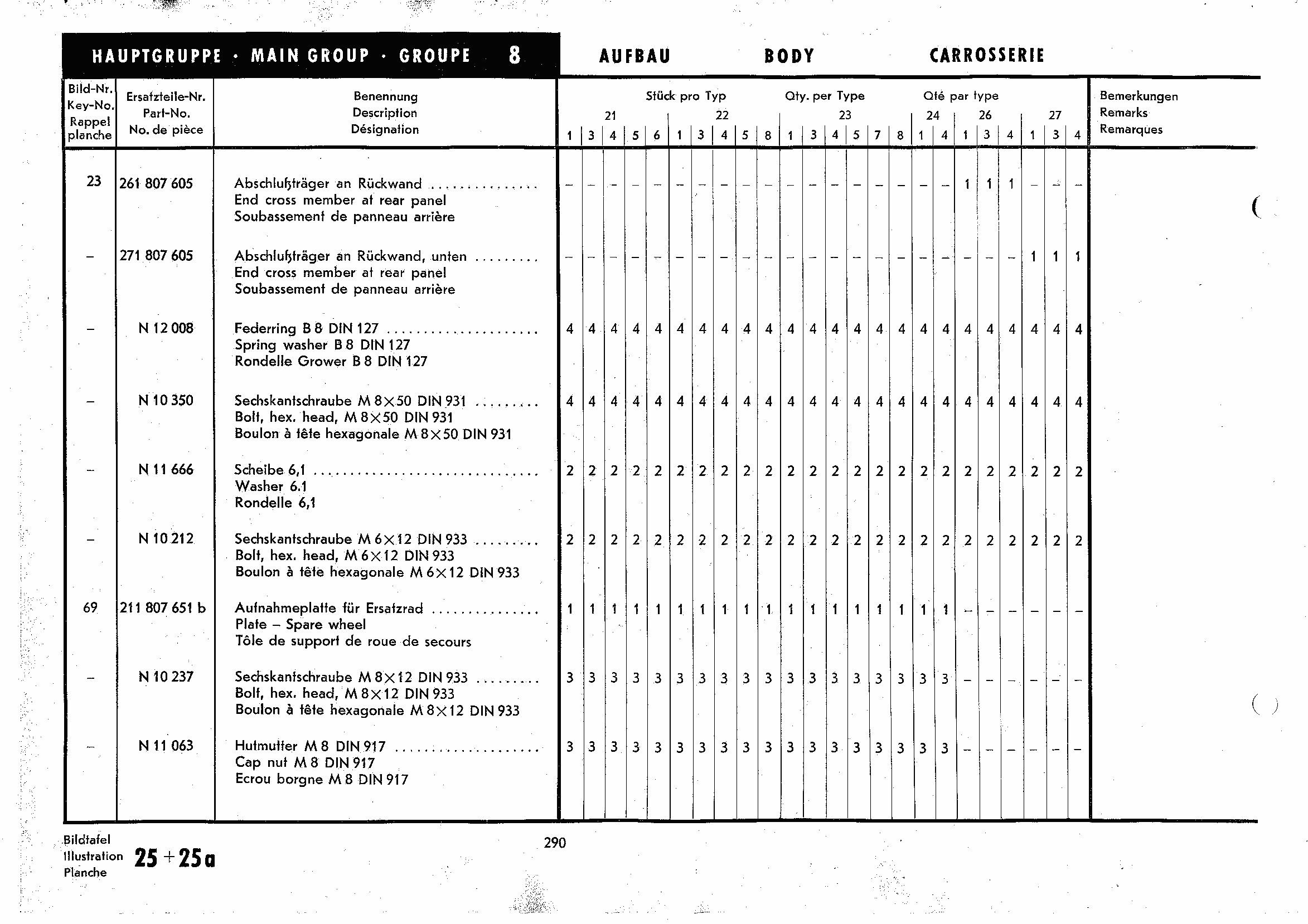

289 list Side and rear panel

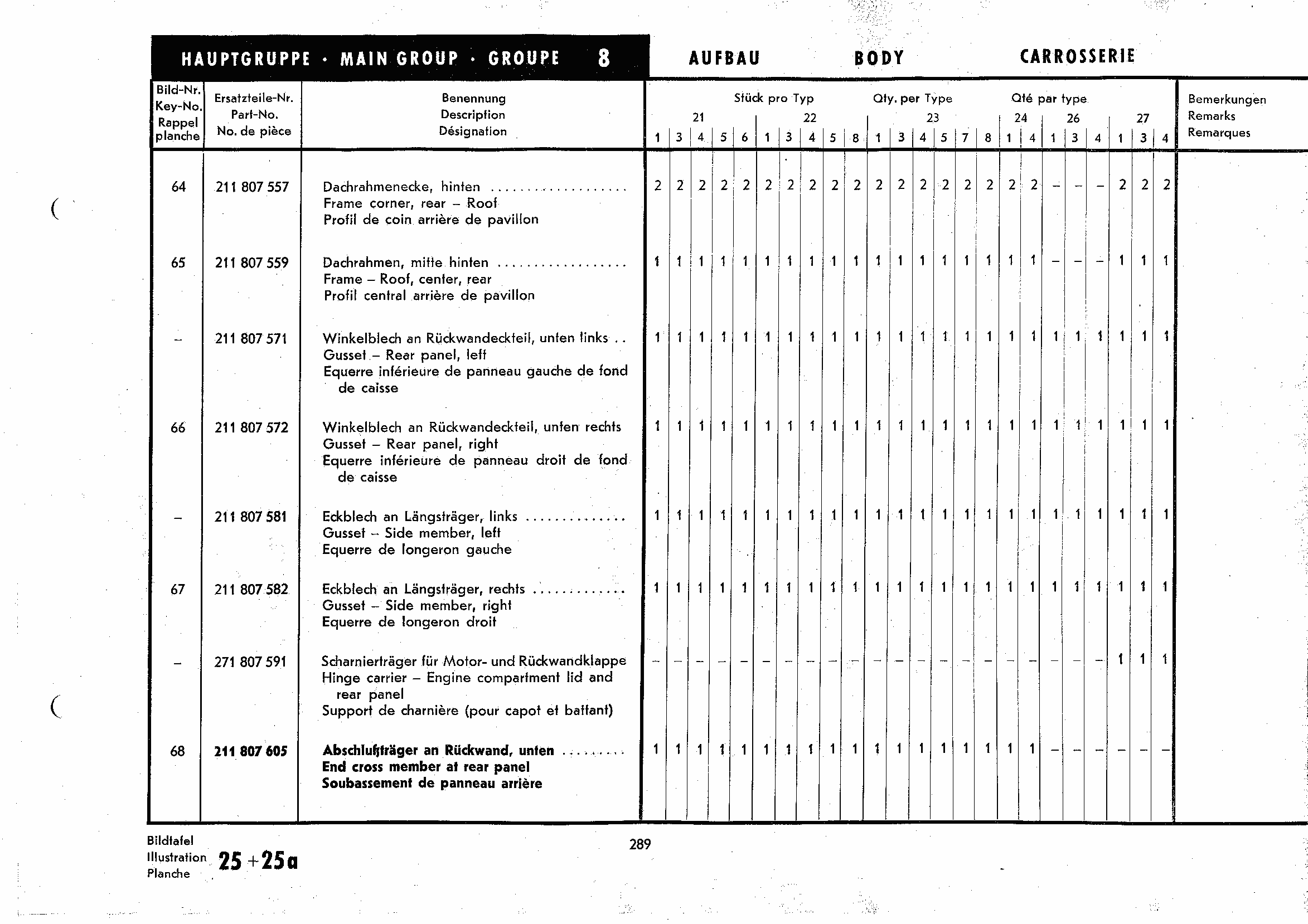

290 list Side and rear panel

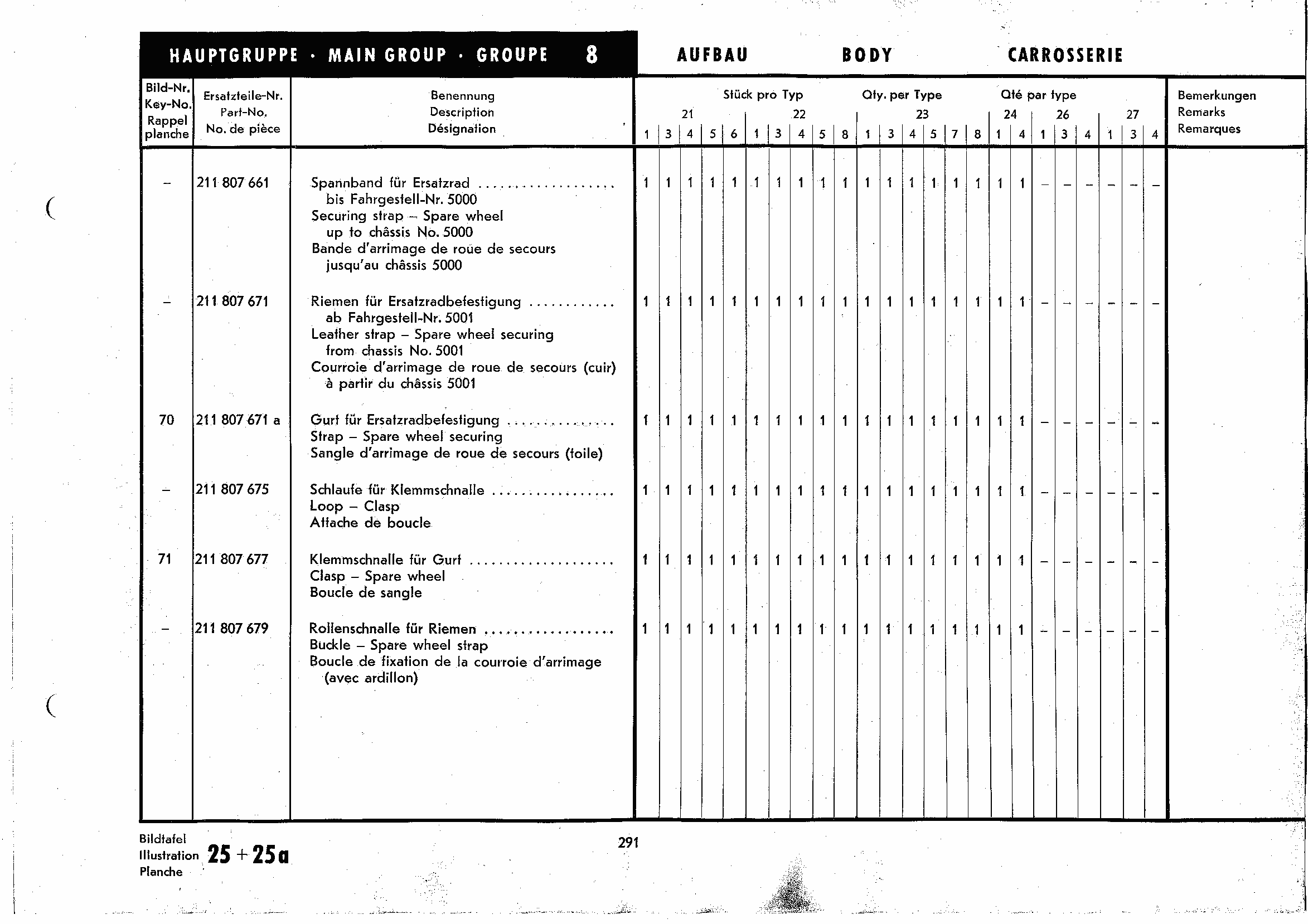

291 list Side and rear panel

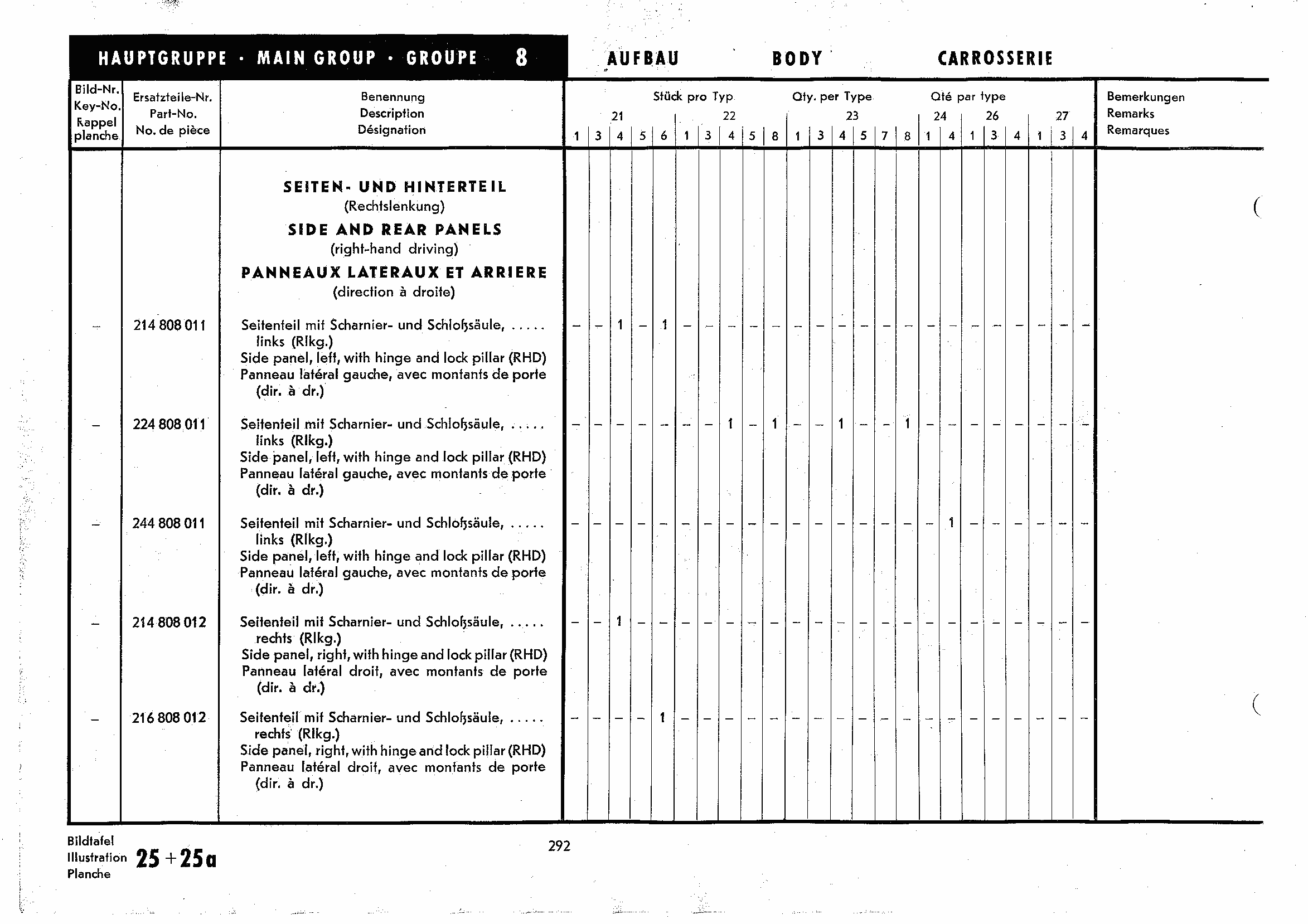

292 list RHD Side and rear panel

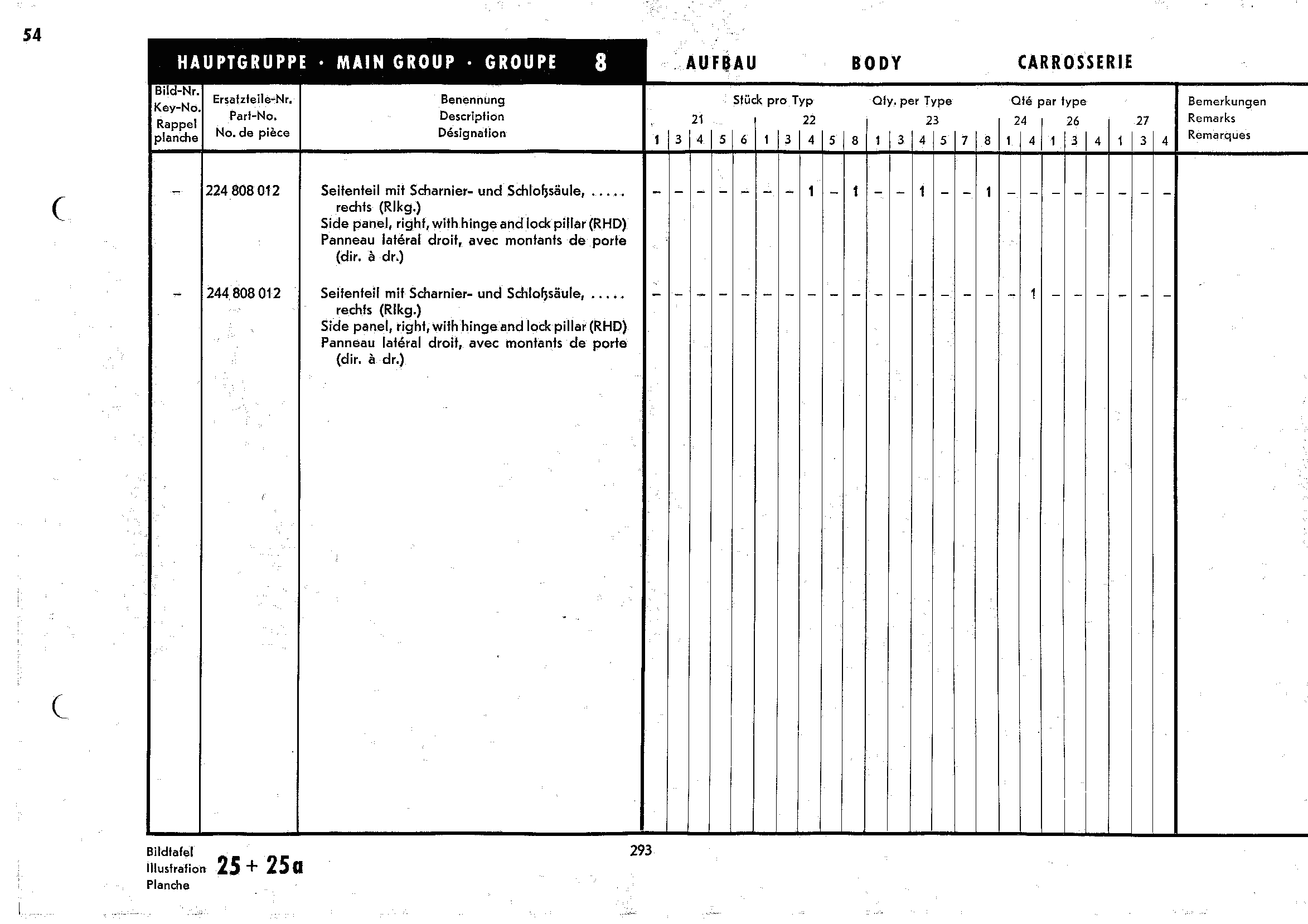

293 list RHD Side and rear panel

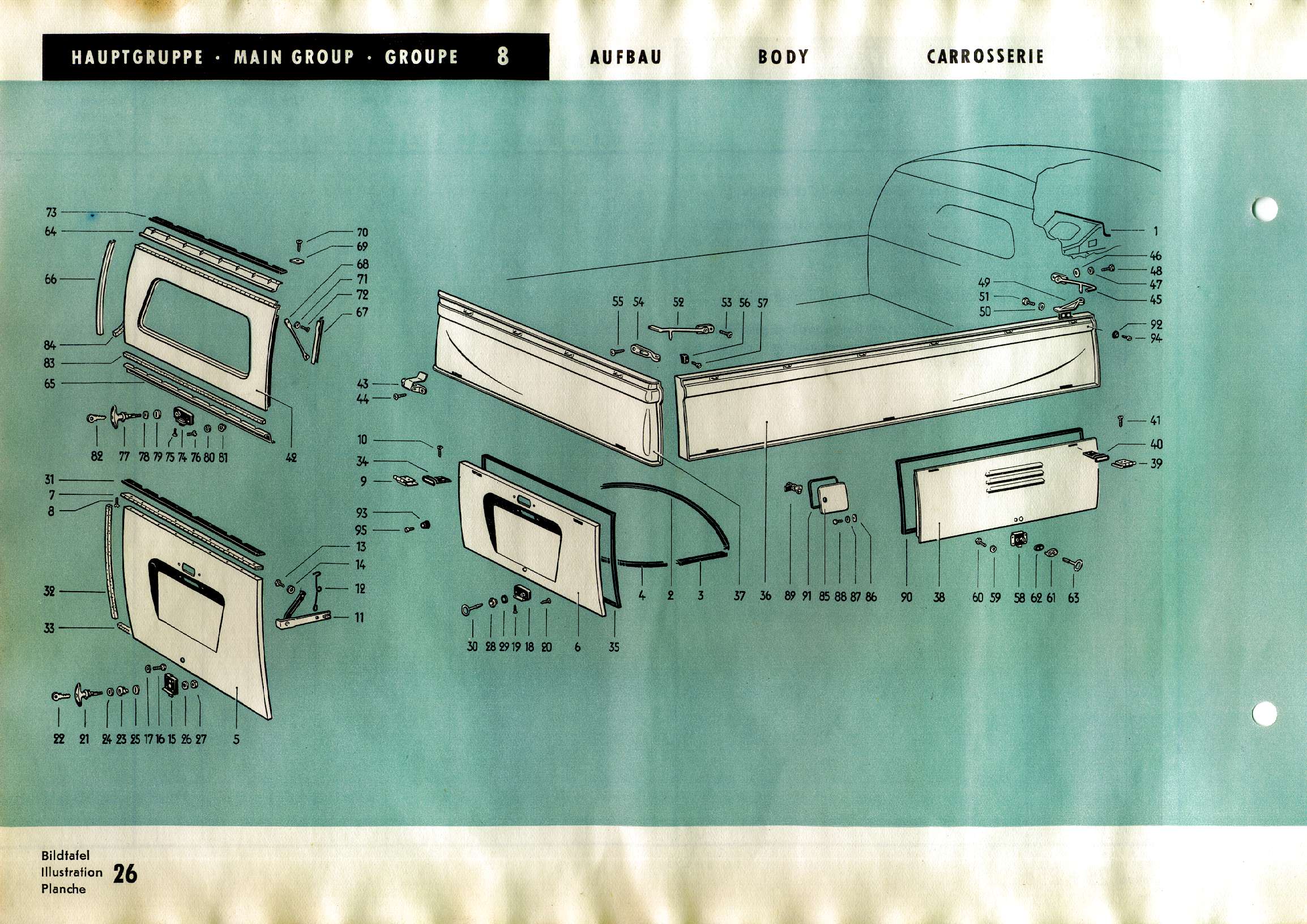

294 diagram Loading boards and rear panel

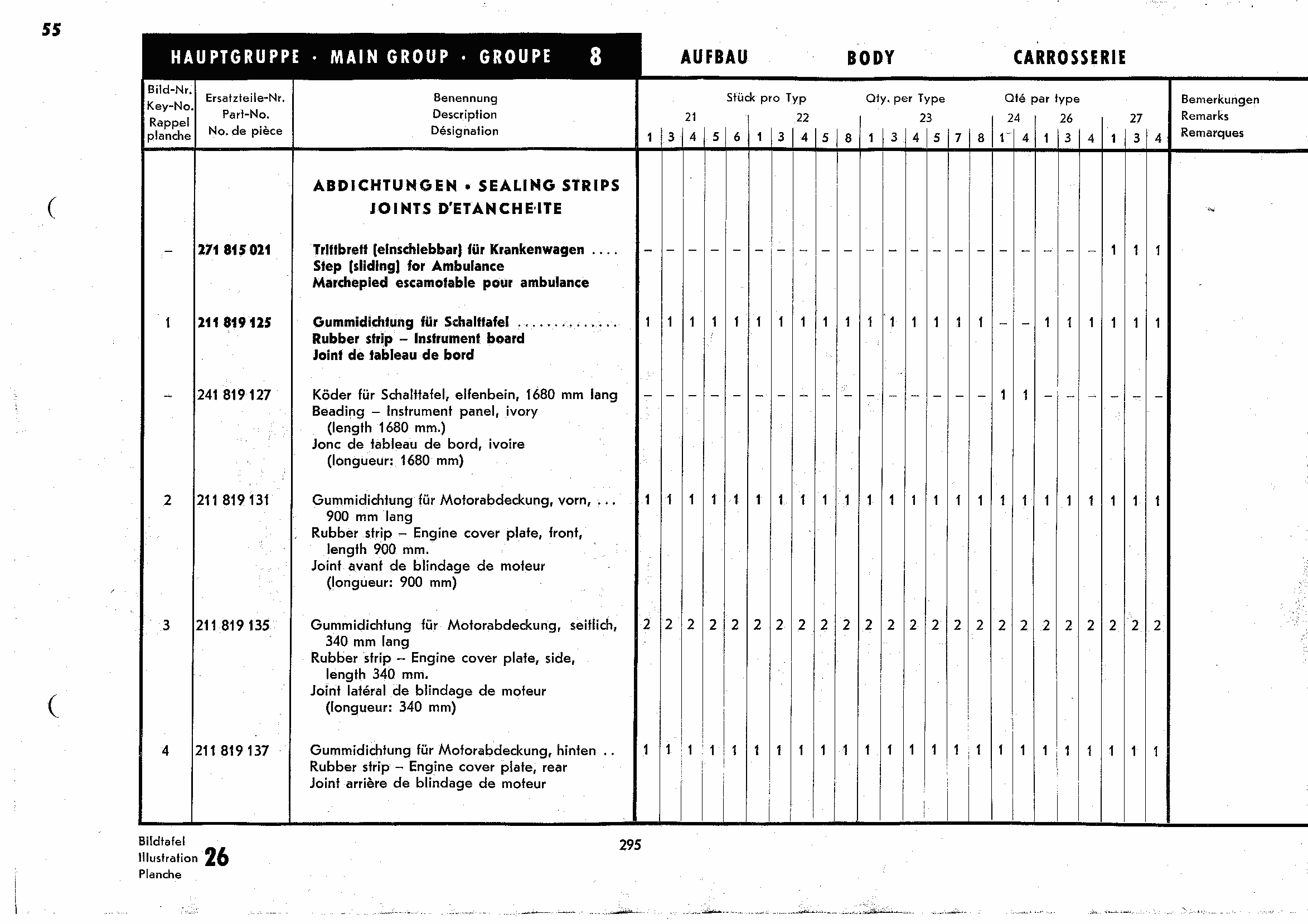

295 list Seating strips

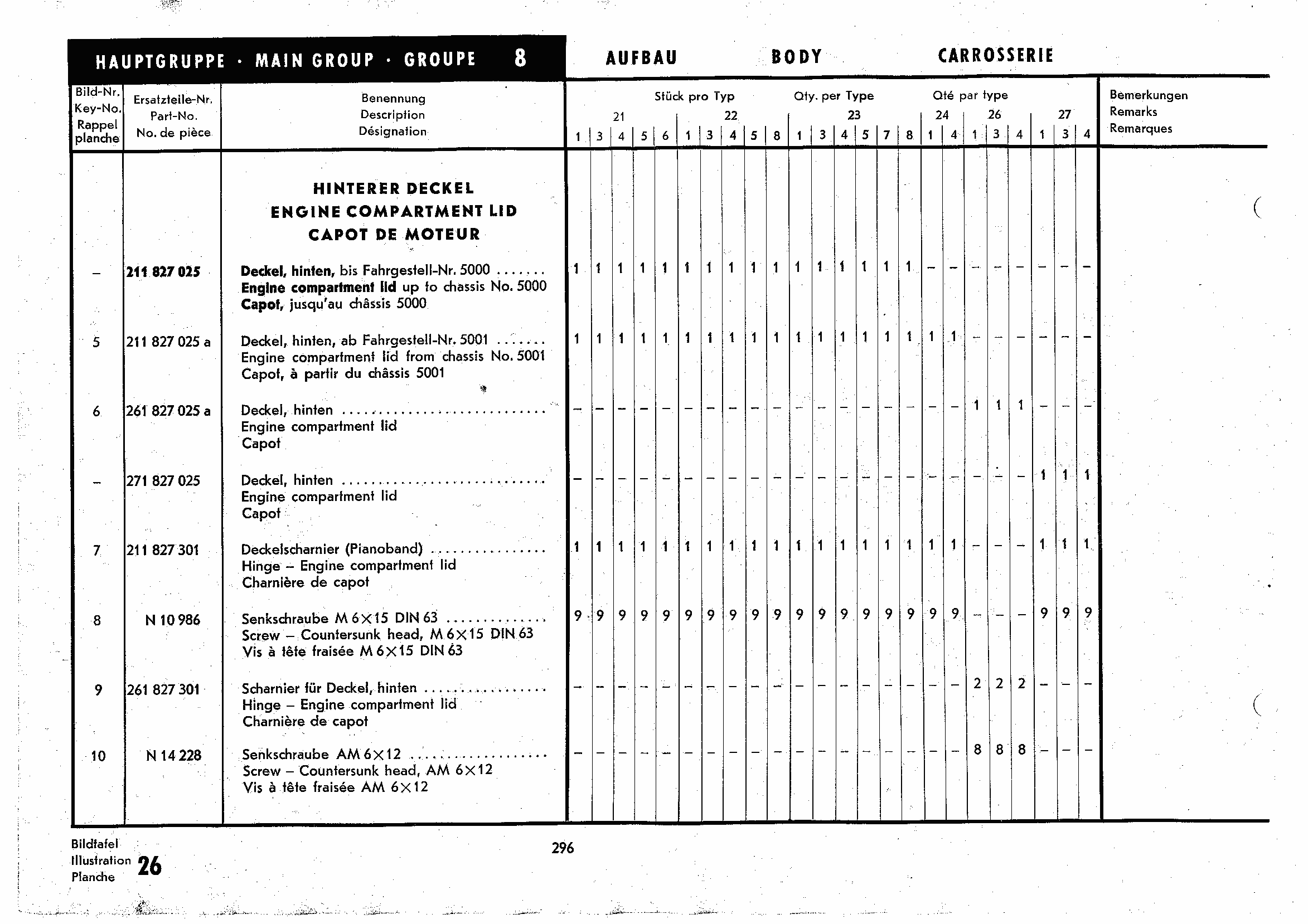

296 list Engine compartment lid
297 list Engine compartment lid

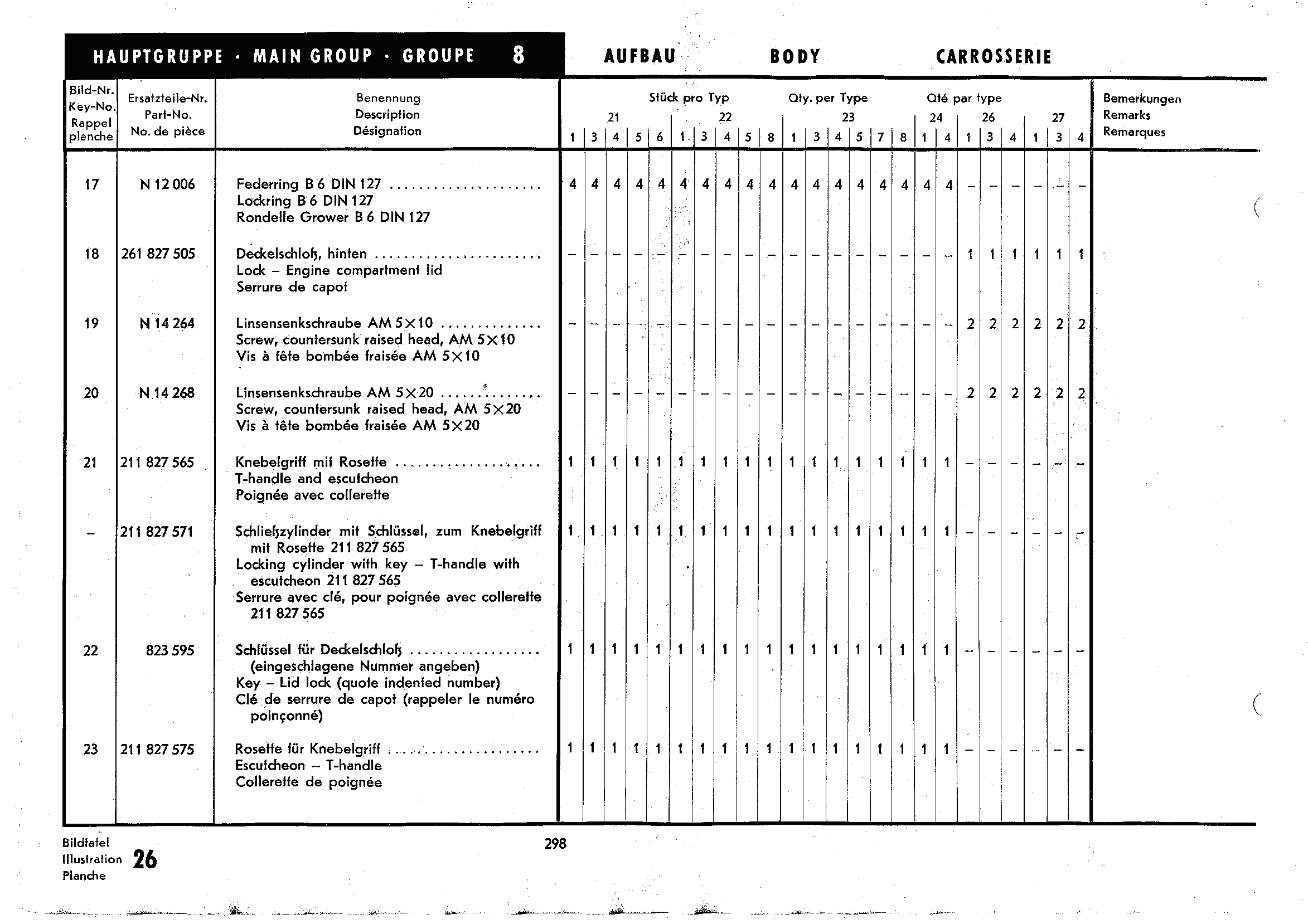

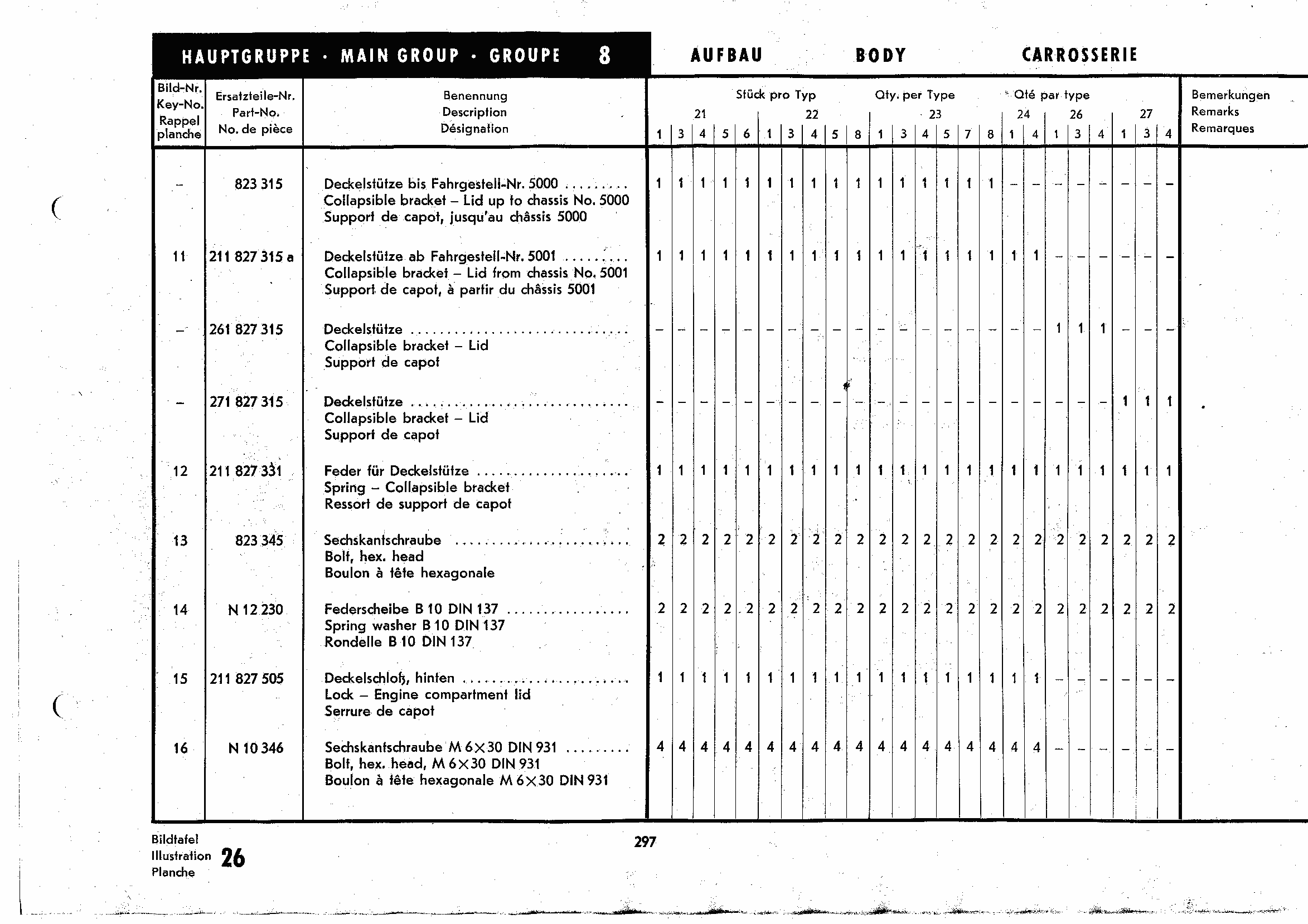

298 list Engine compartment lid

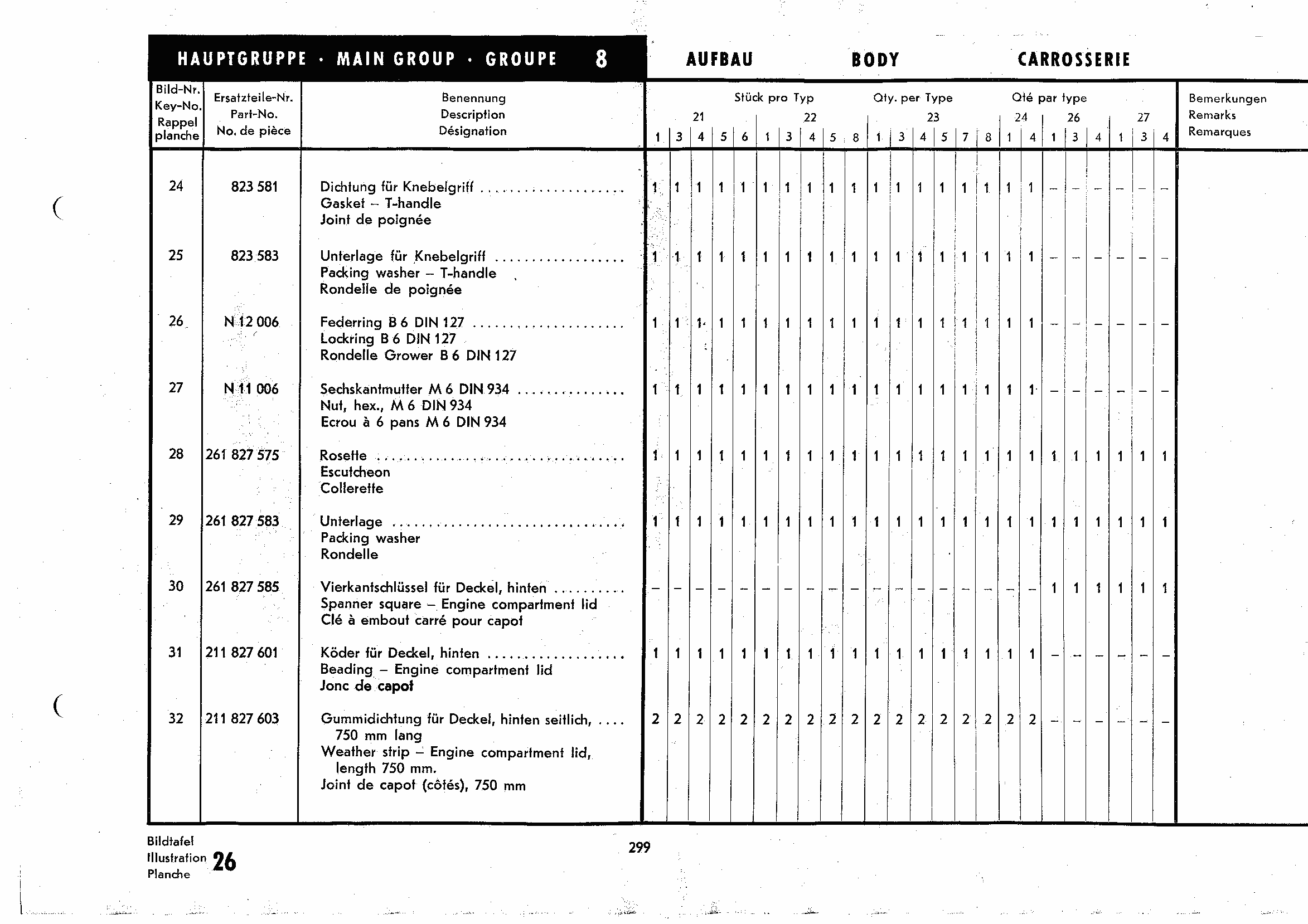

299 list Engine compartment lid

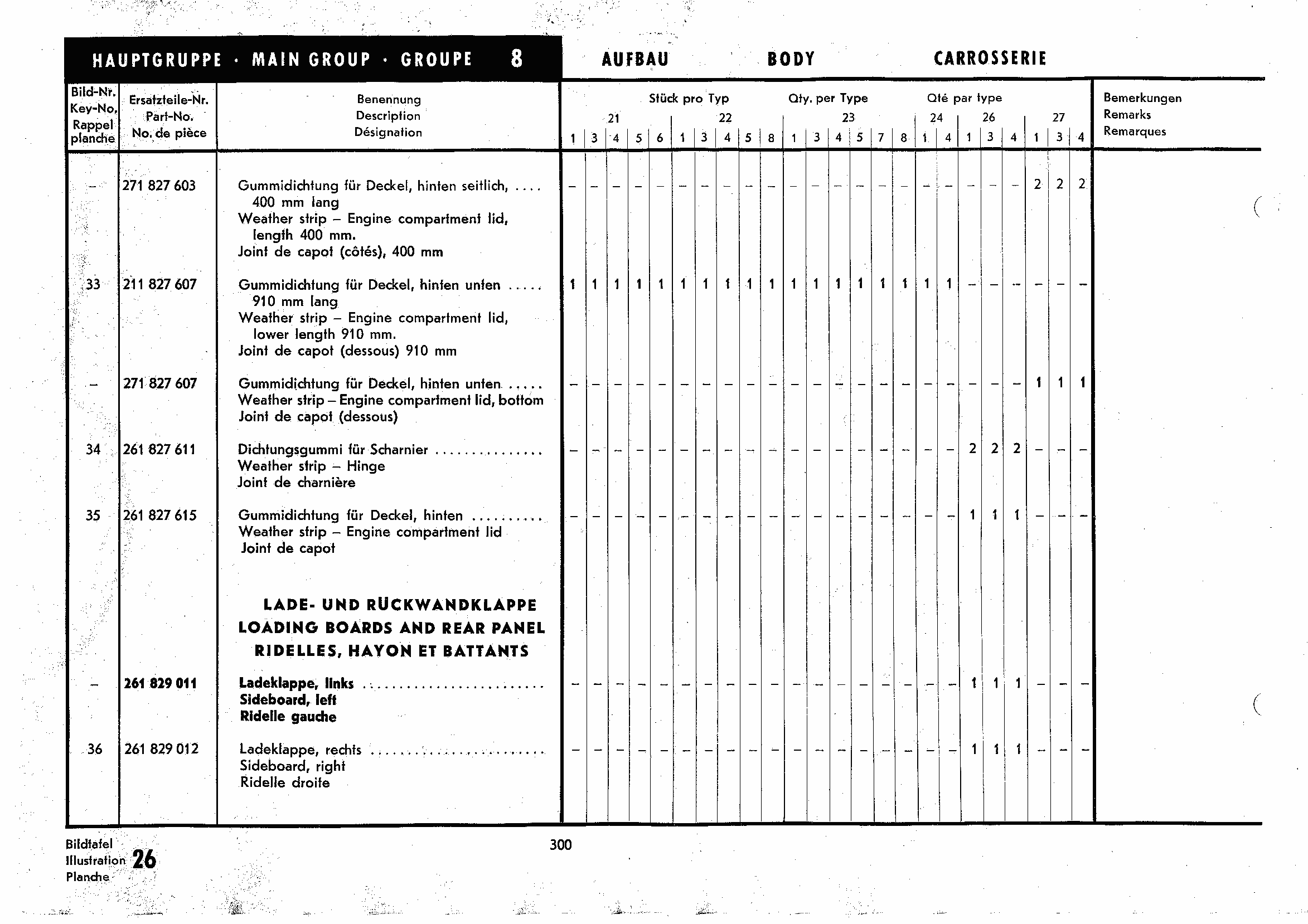

300 list Engine compartment lid, loading boards and rear panel

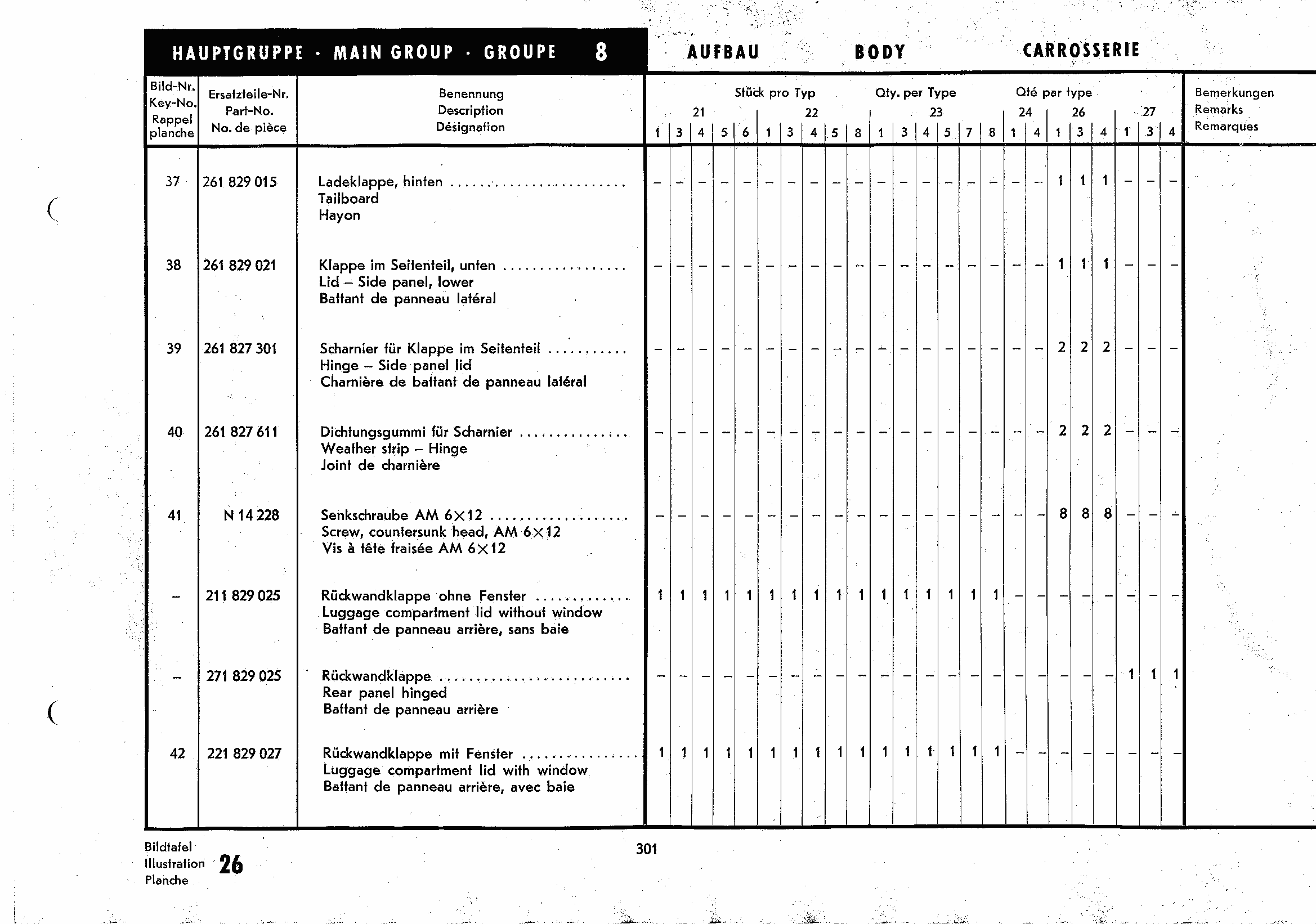

301 list Loading boards and rear panel
302 list Loading boards and rear panel

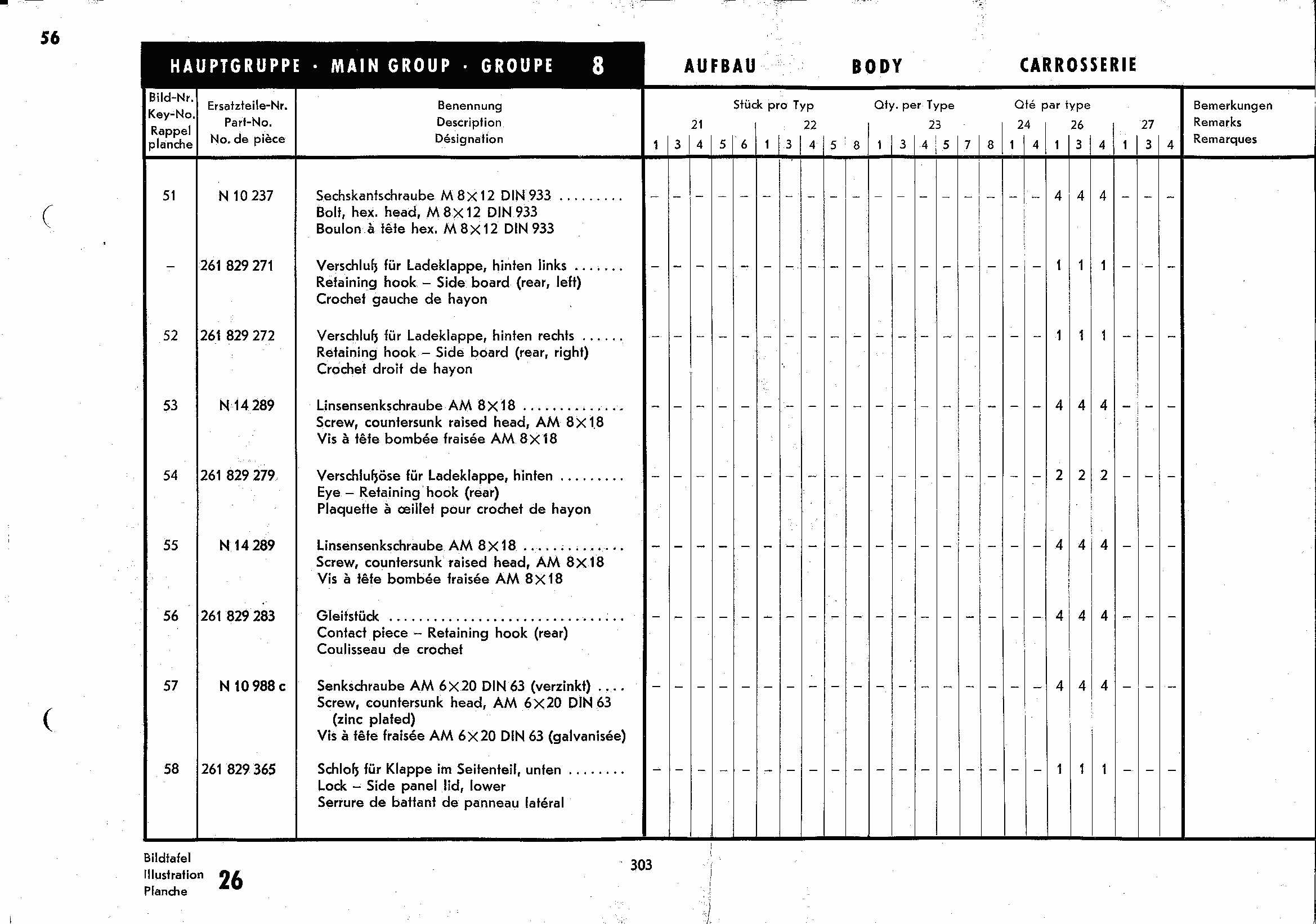

303 list Loading boards and rear panel
304 list Loading boards and rear panel

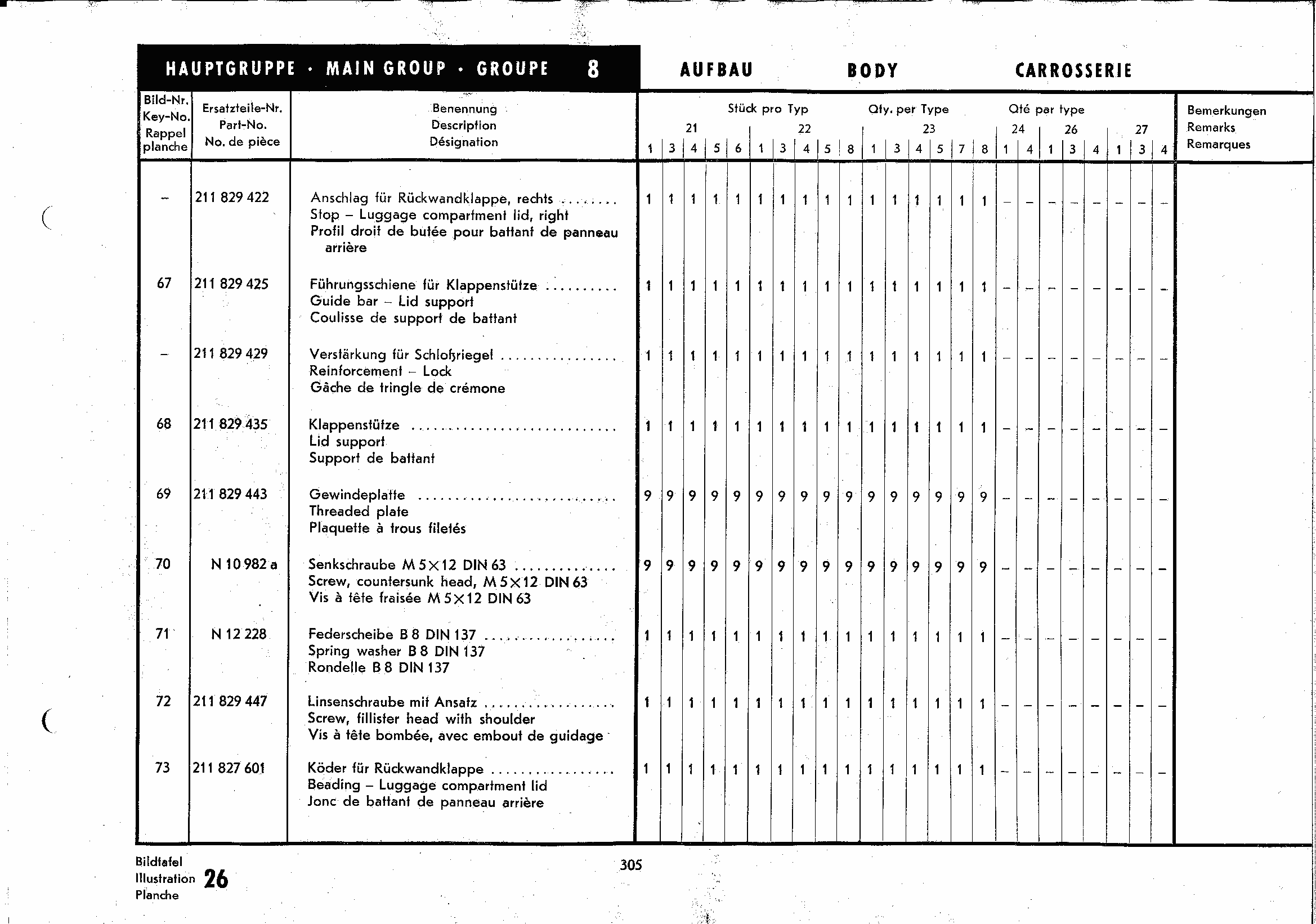

305 list Loading boards and rear panel

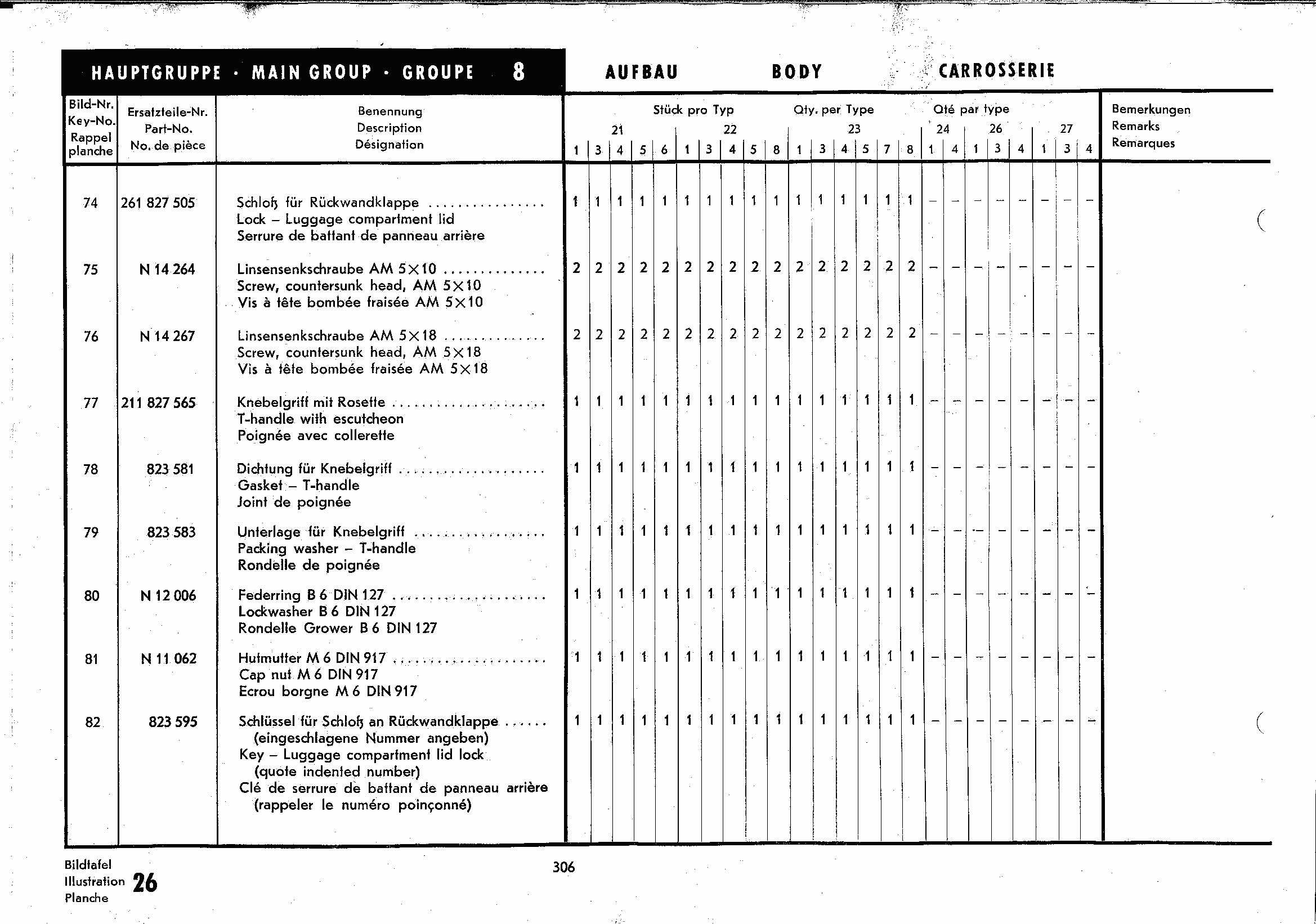

306 list Loading boards and rear panel

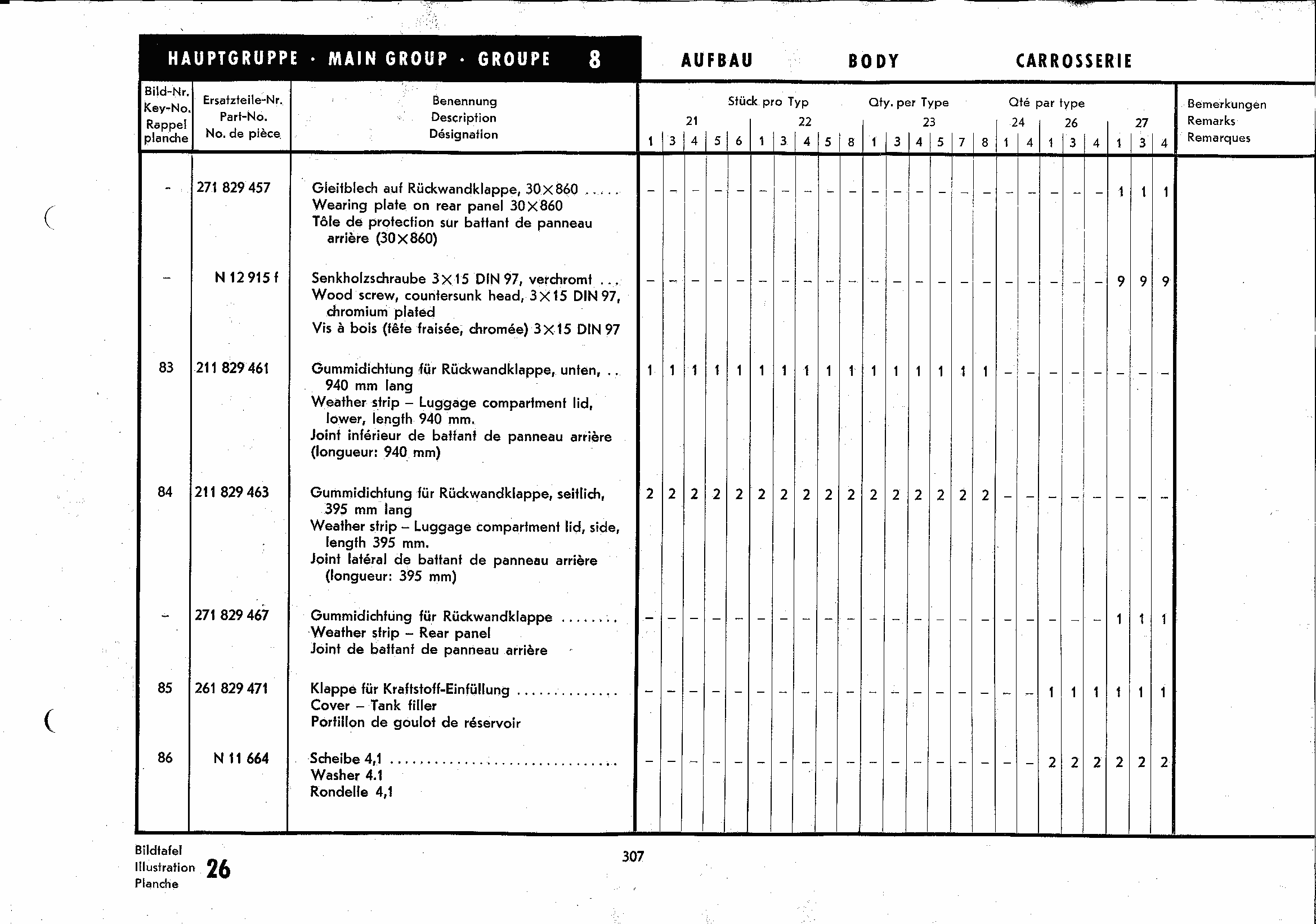

307 list Loading boards and rear panel

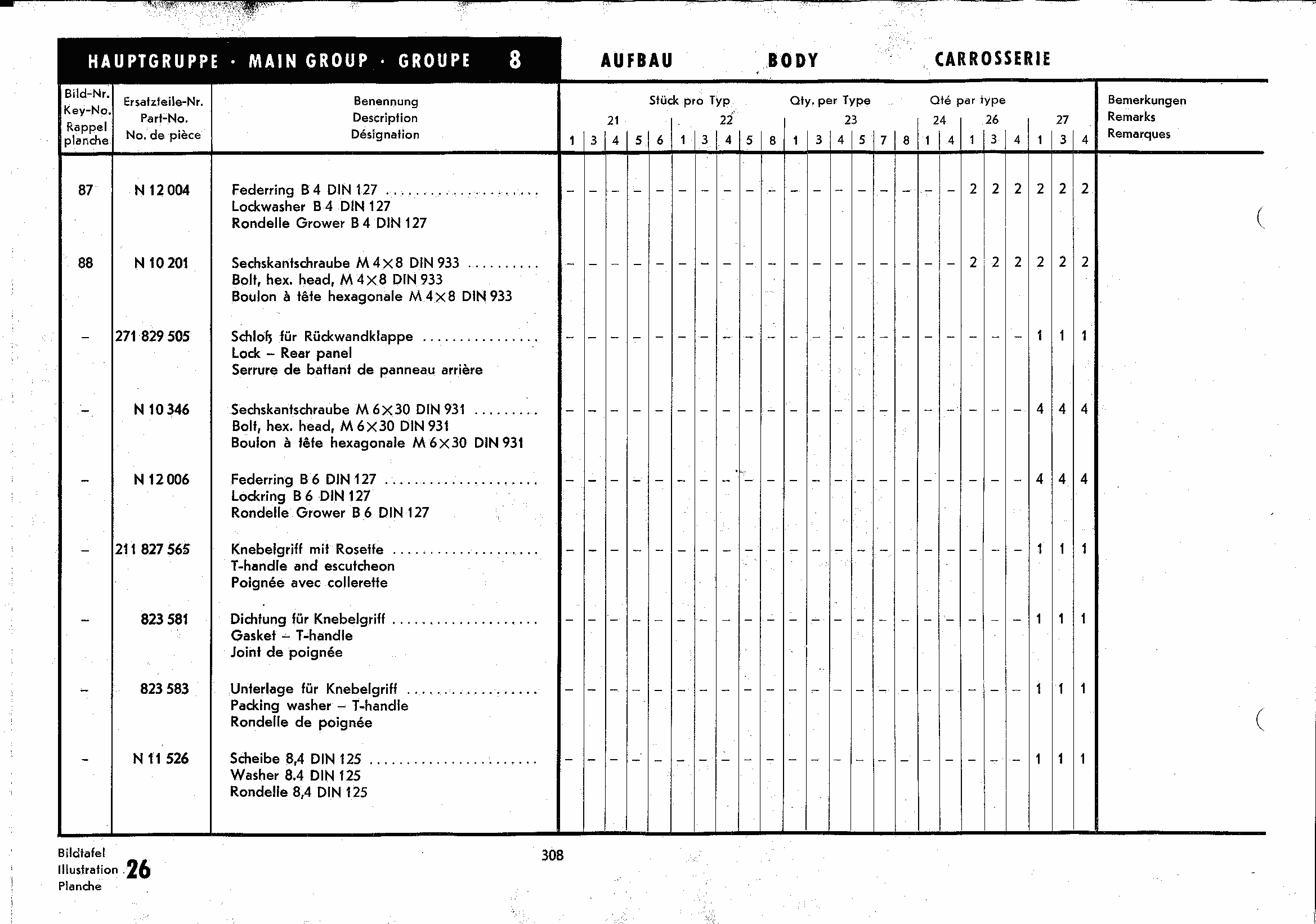

308 list Loading boards and rear panel

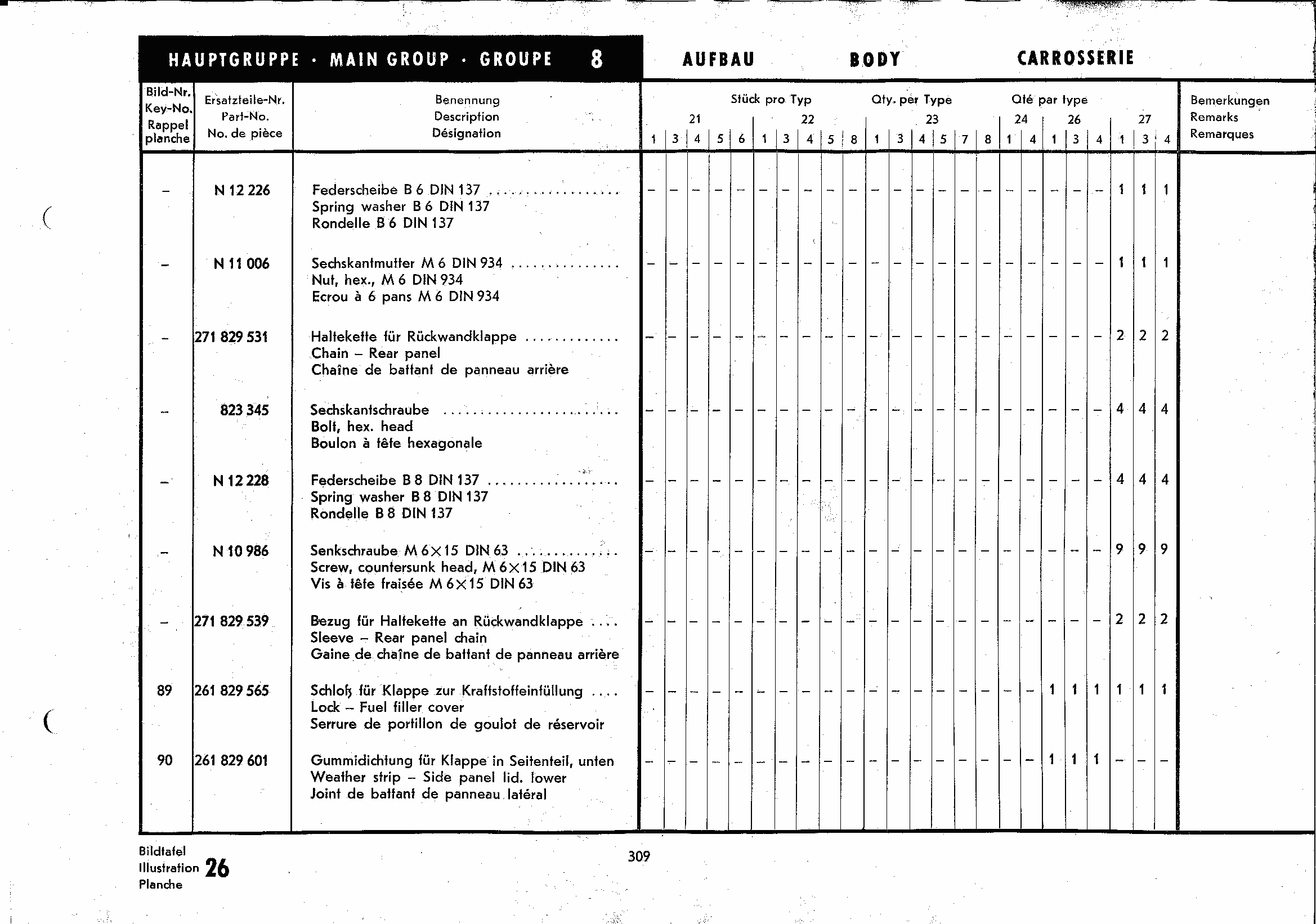

309 list Loading boards and rear panel

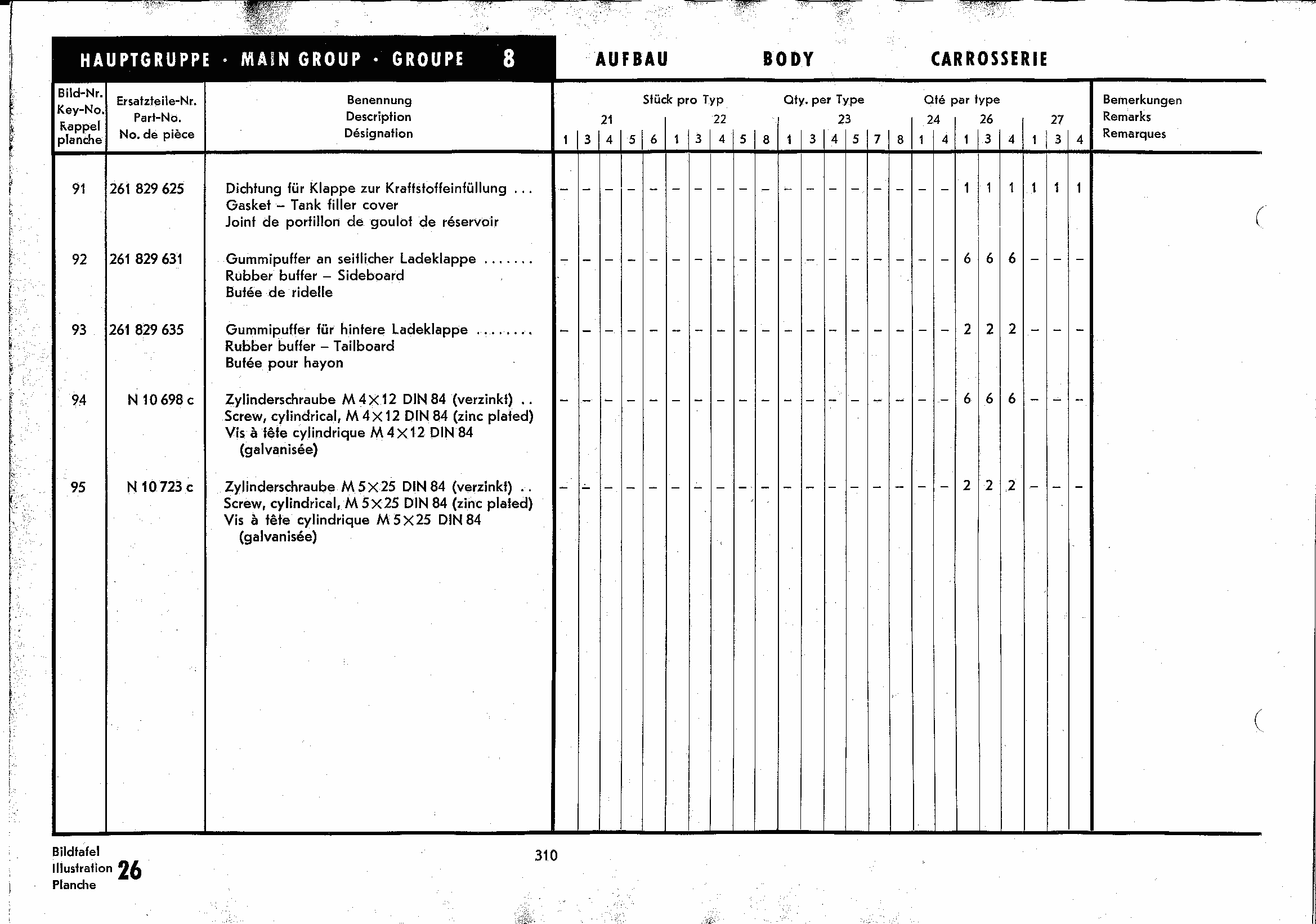

310 list Loading boards and rear panel
311 special Achten Sie immer auf unser Zeichen Original-VW-Ersatzteile

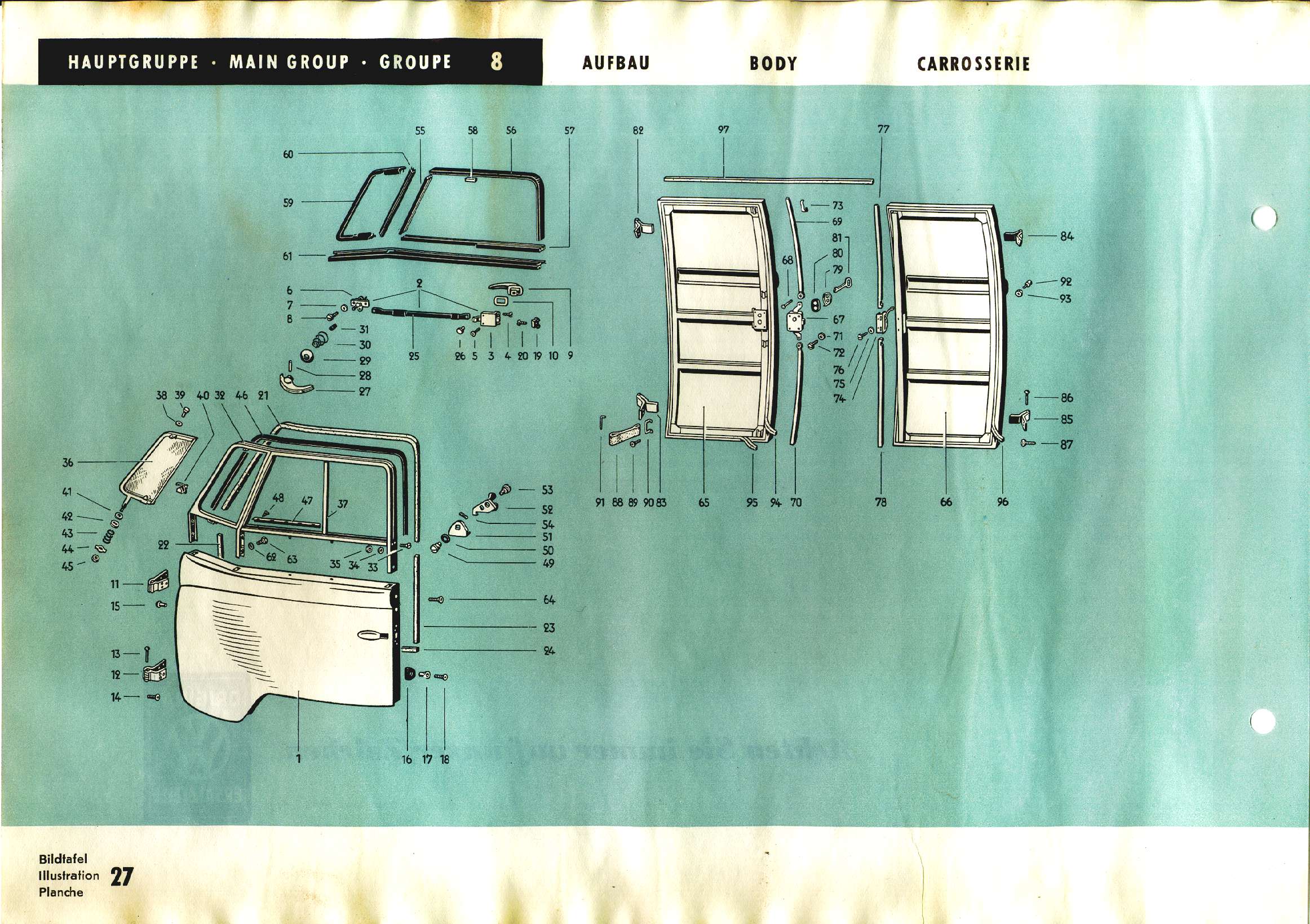

312 diagram Doors

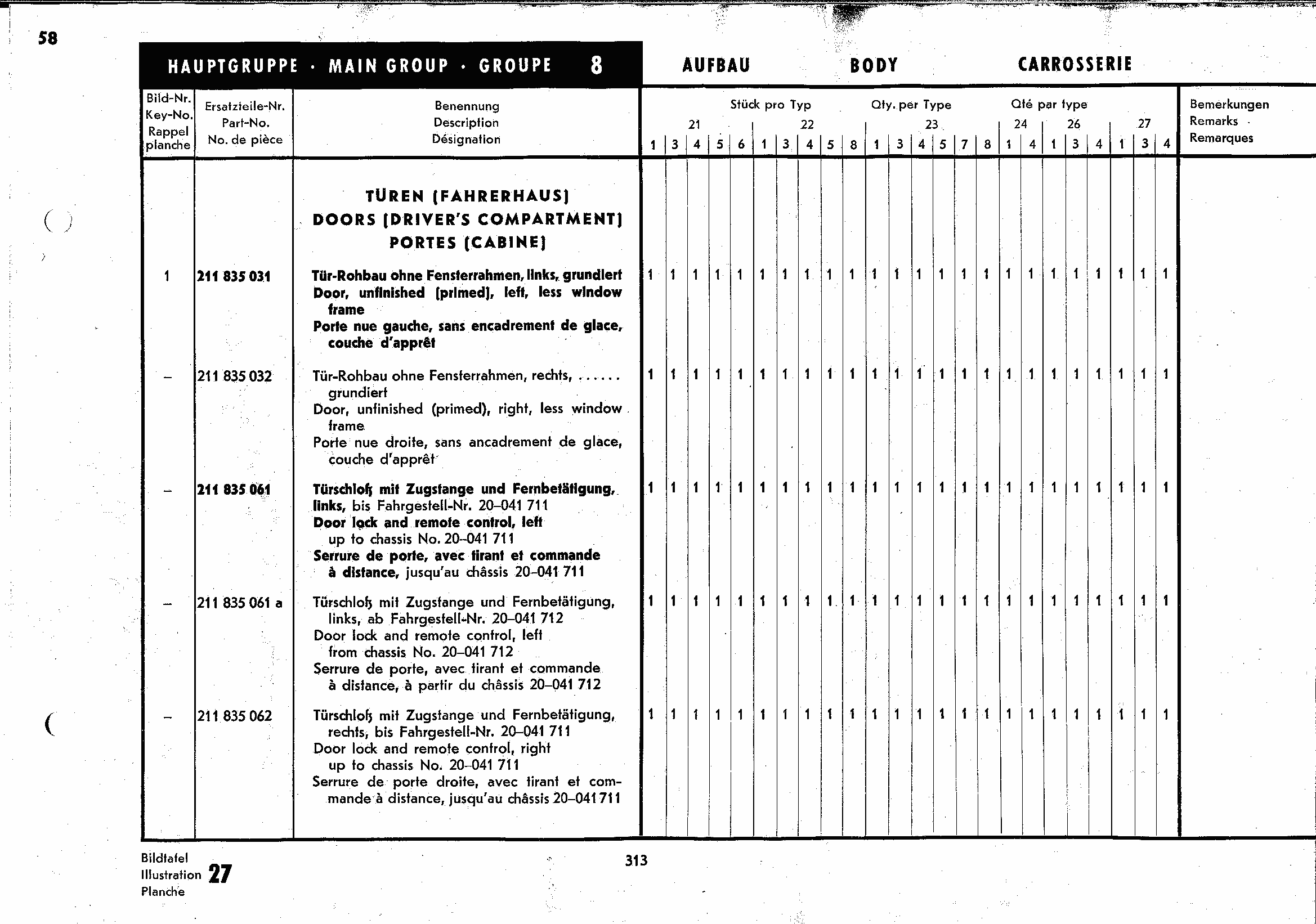

313 list Doors - driver's compartment

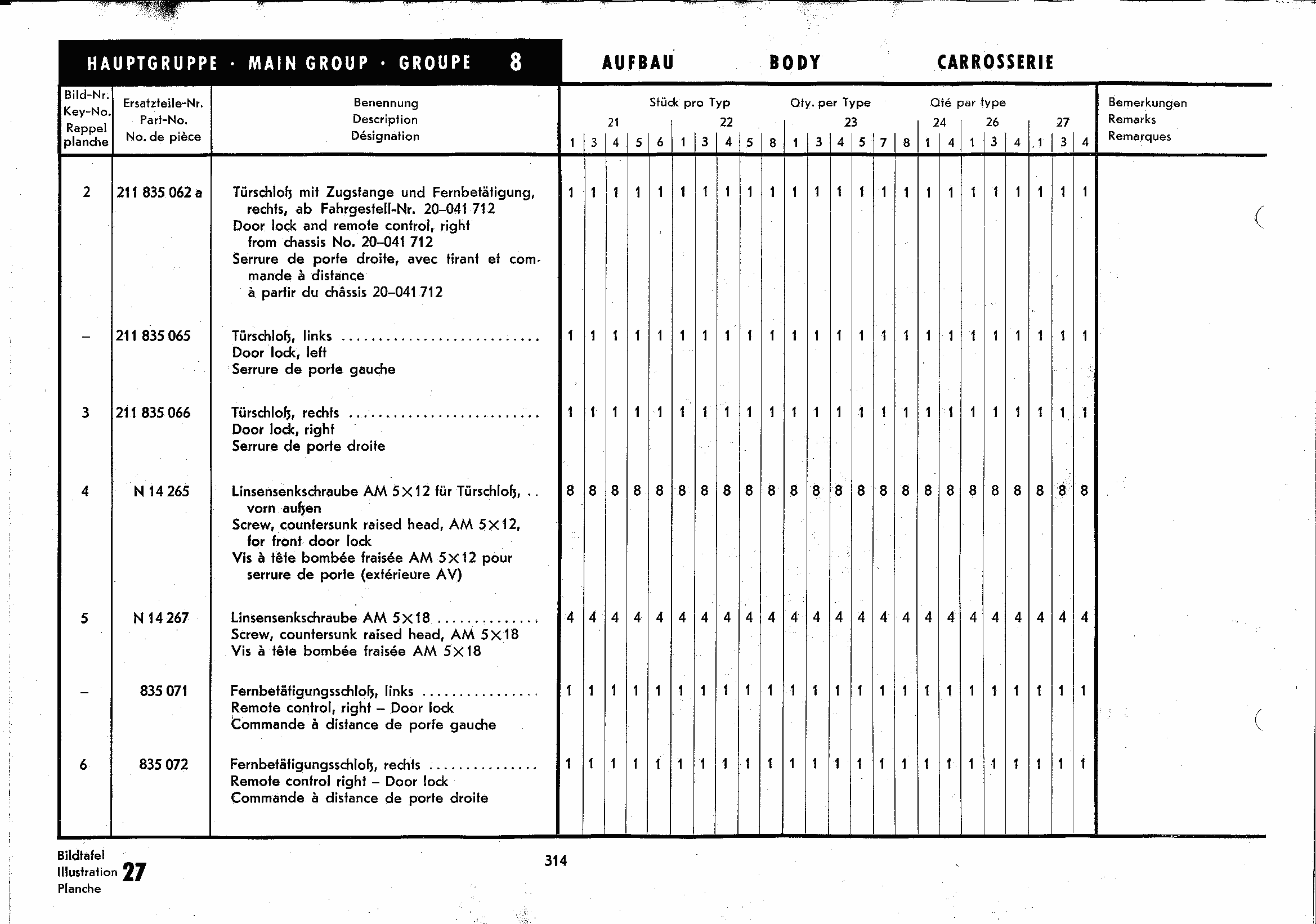

314 list Doors - driver's compartment

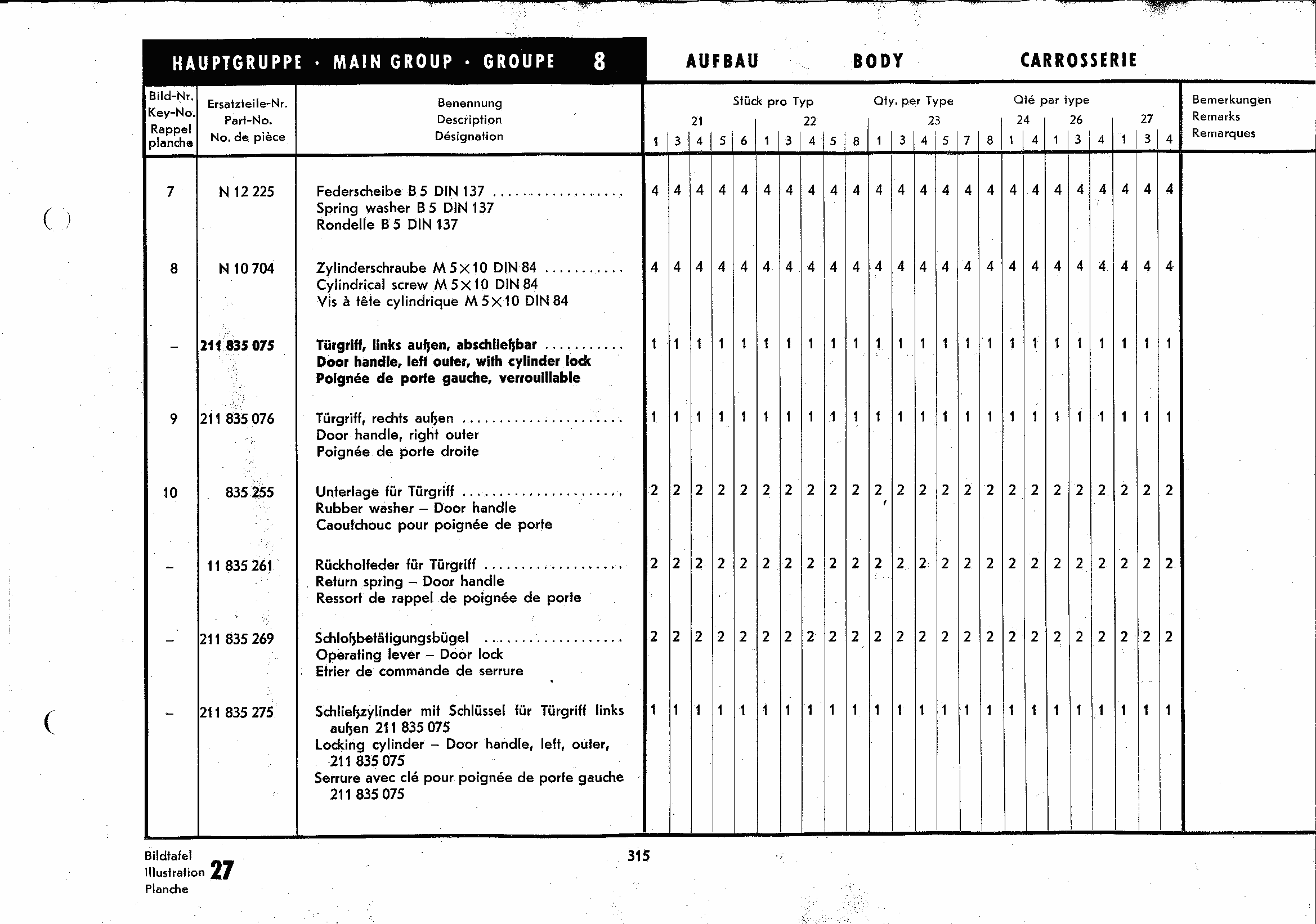

315 list Doors - driver's compartment

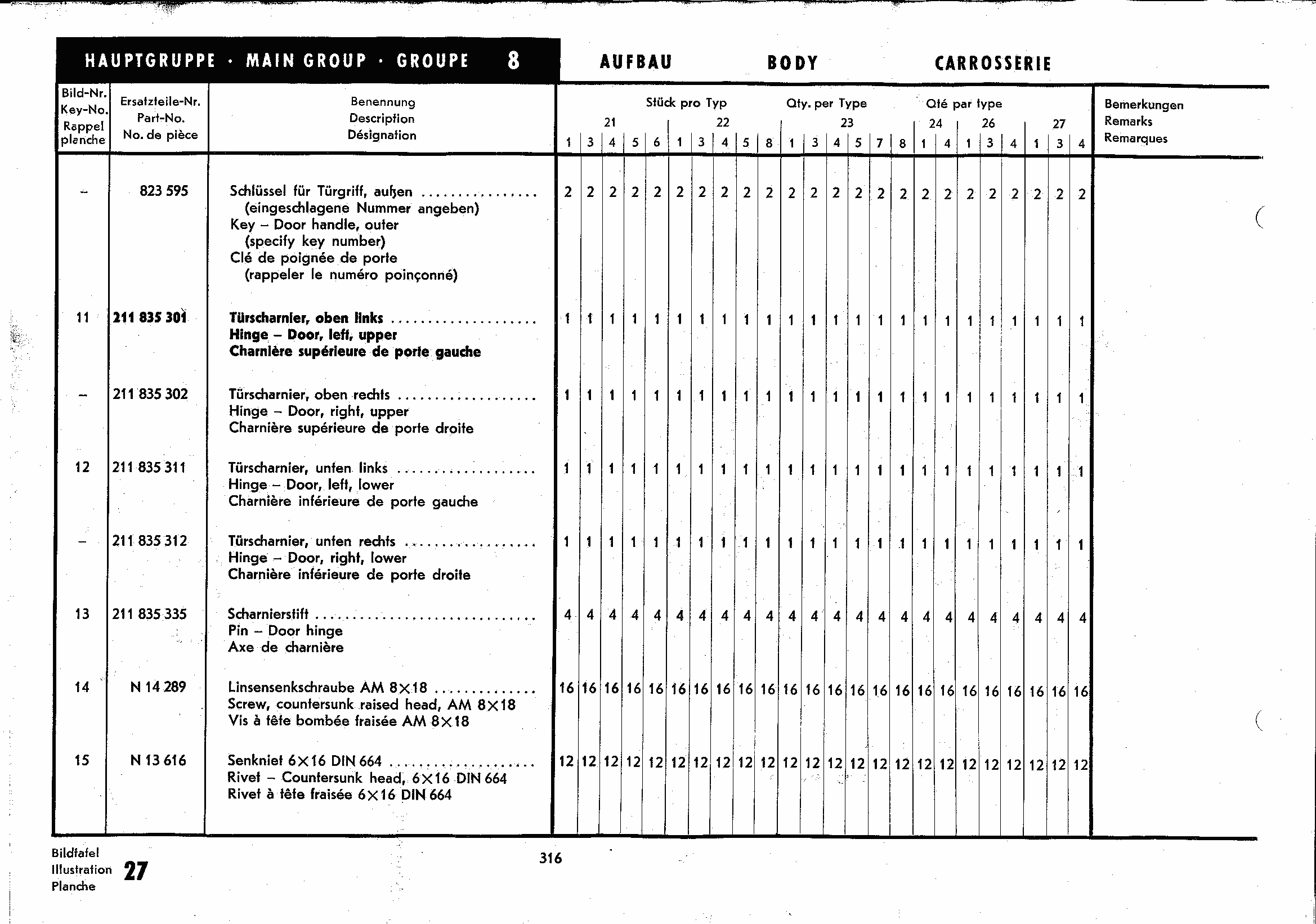

316 list Doors - driver's compartment

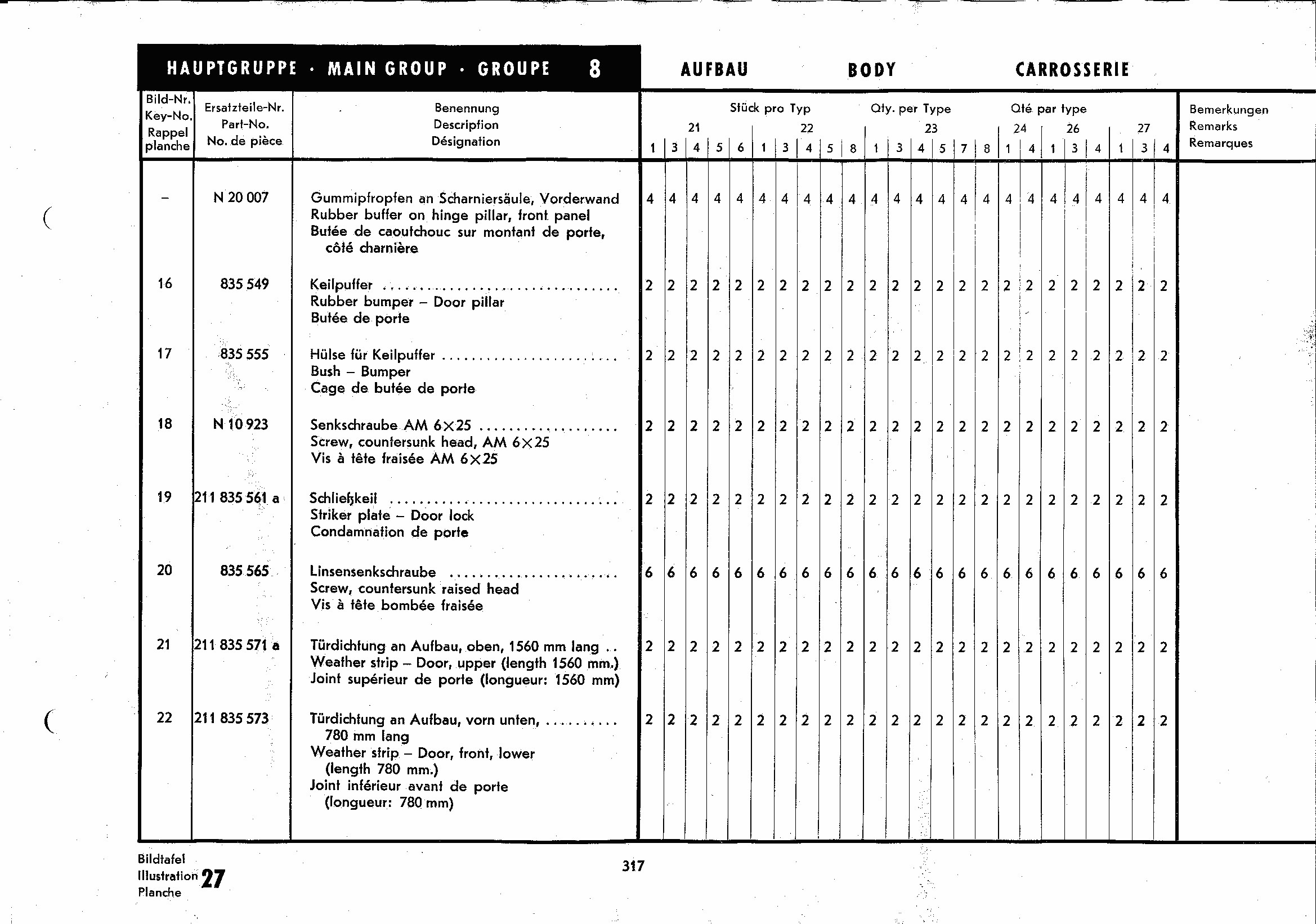

317 list Doors - driver's compartment

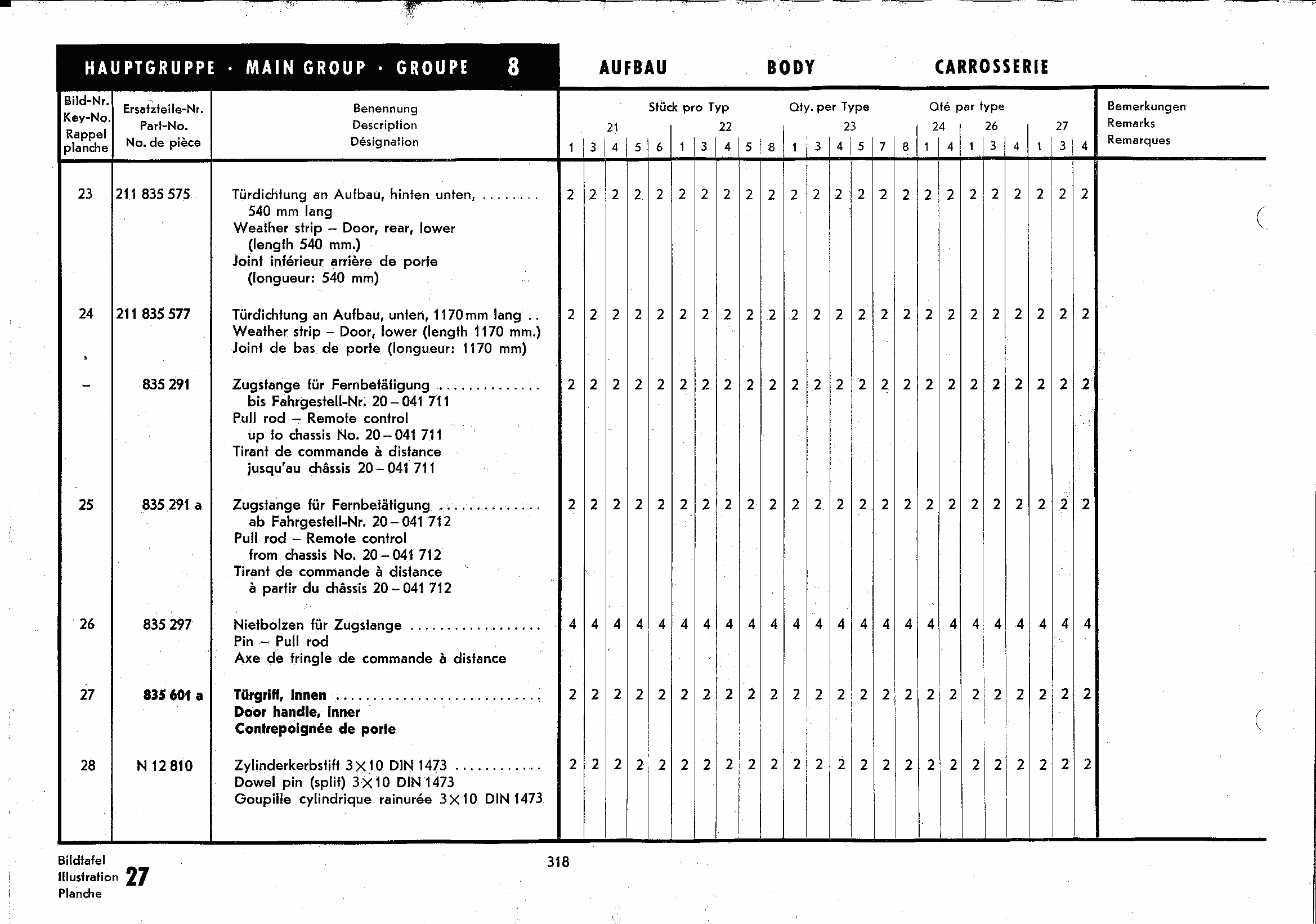

318 list Doors - driver's compartment

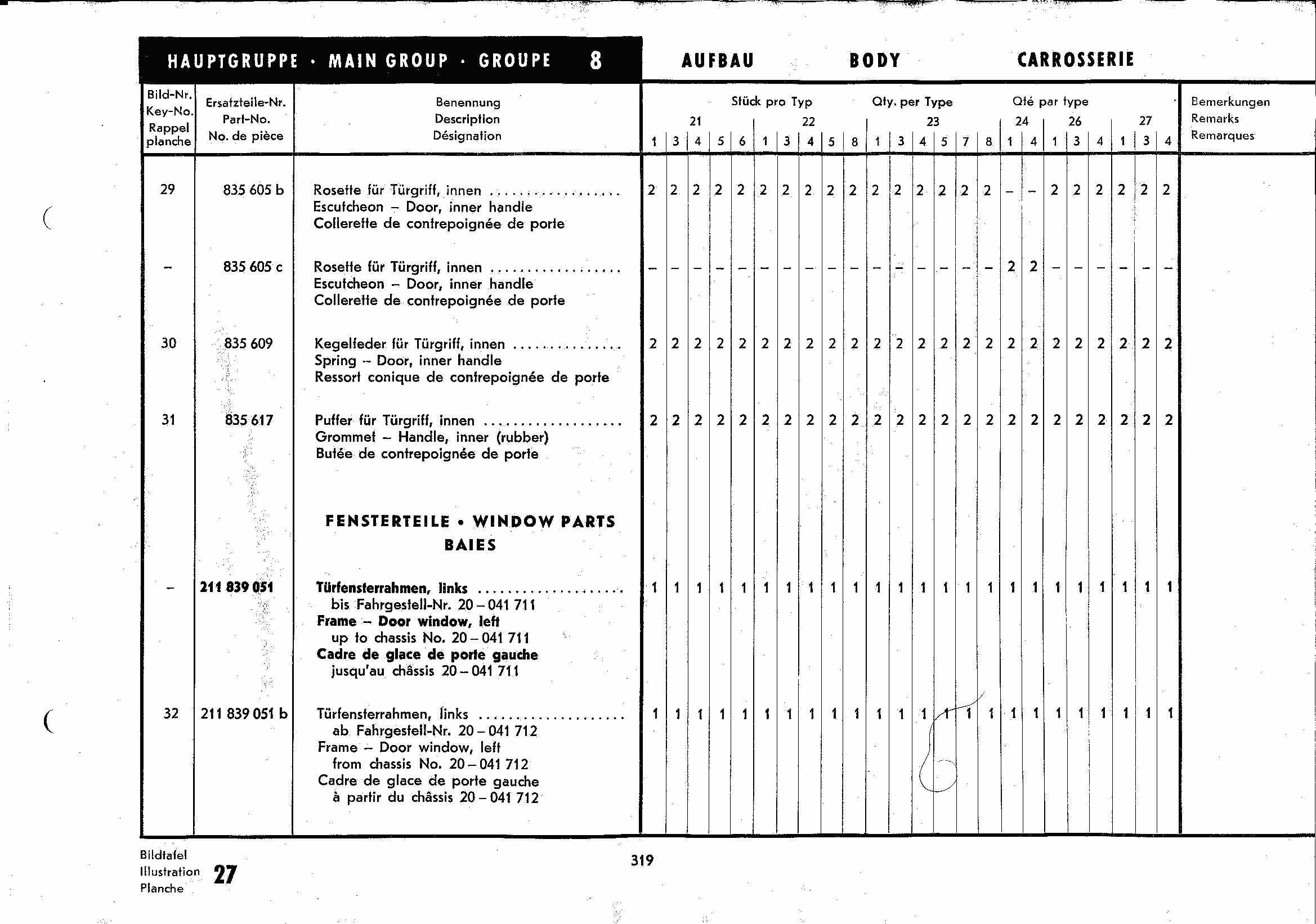

319 list Doors - driver's compartment, window parts

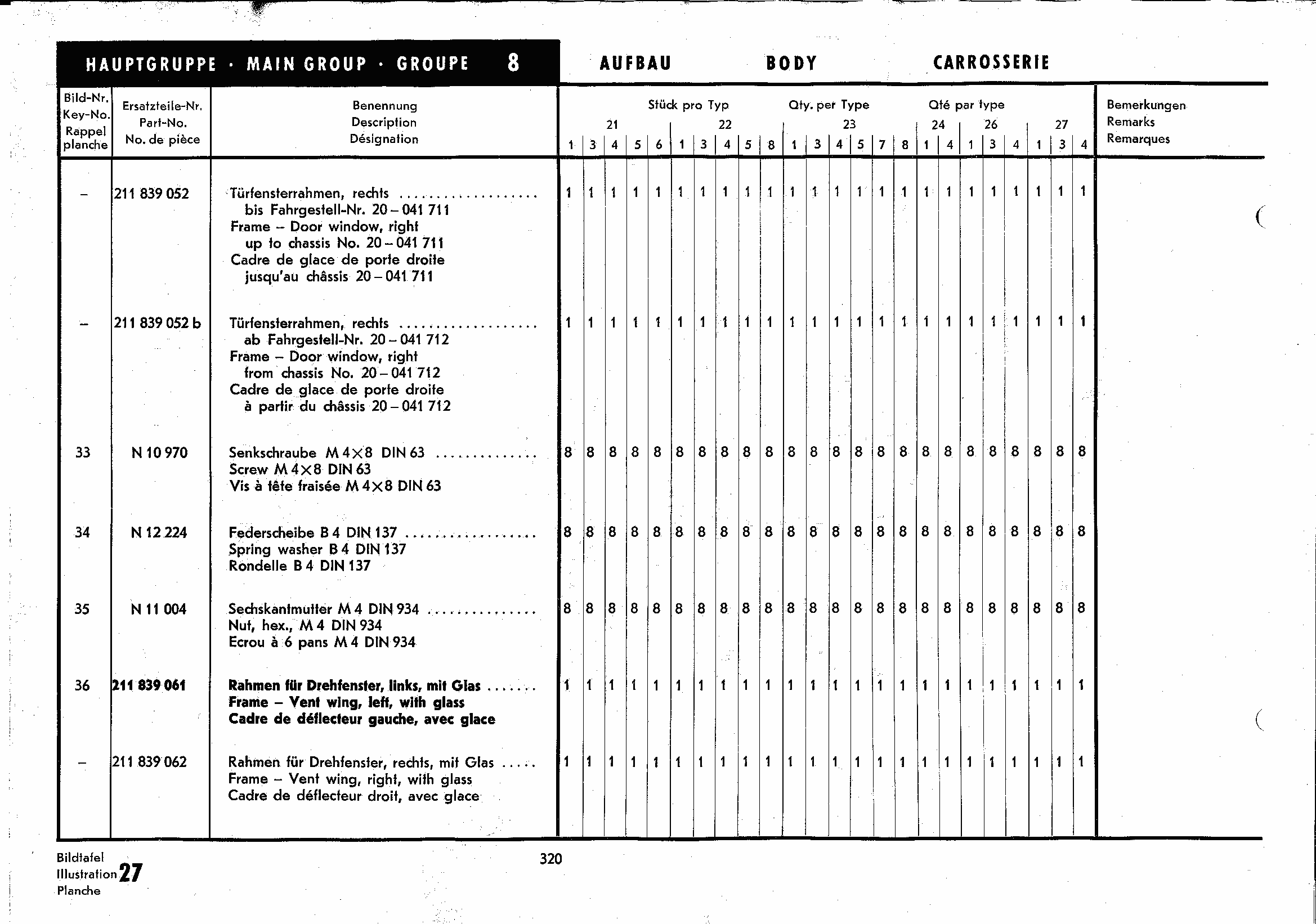

320 list Window parts
321 list Window parts
322 list Window parts

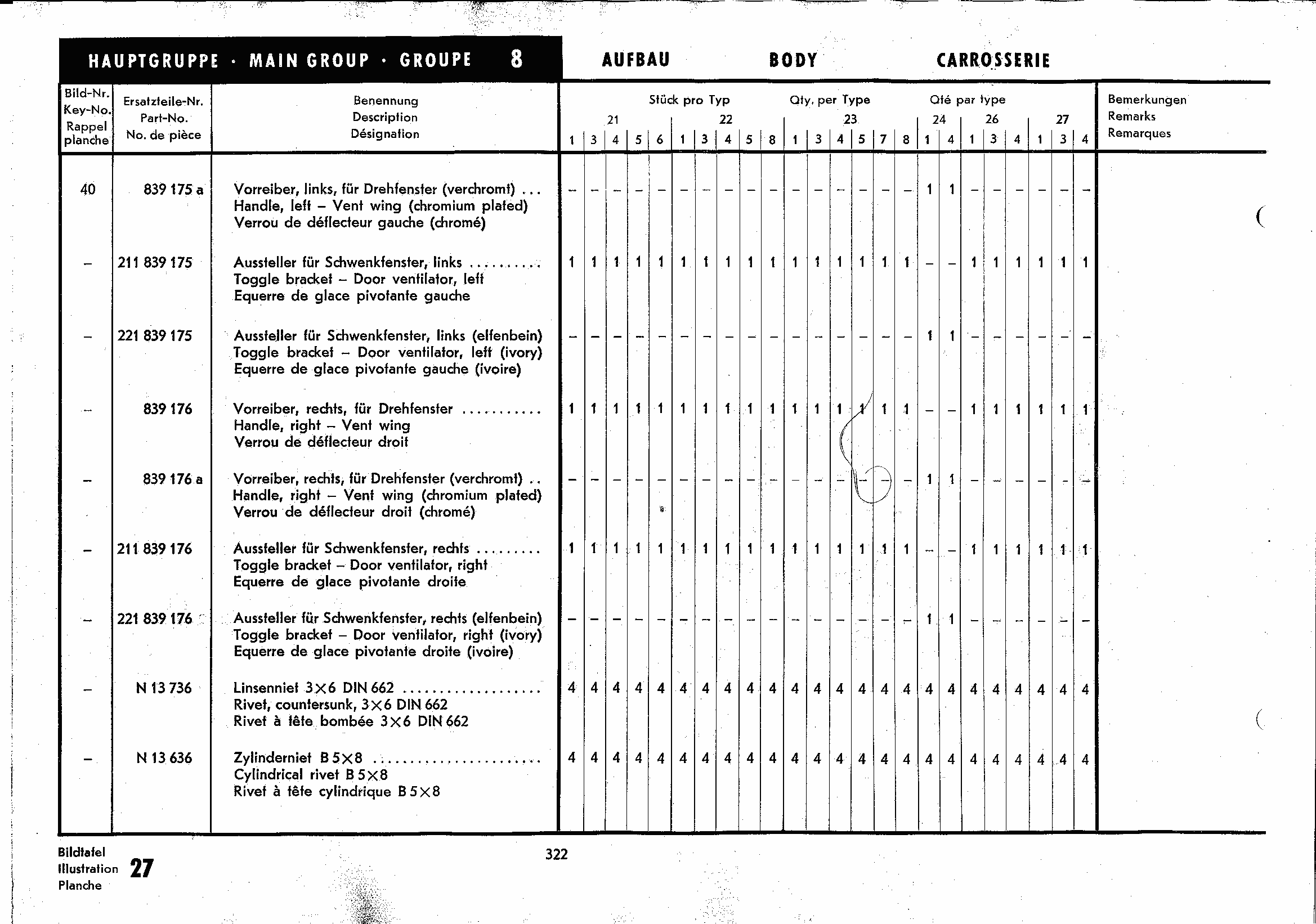

323 list Window parts

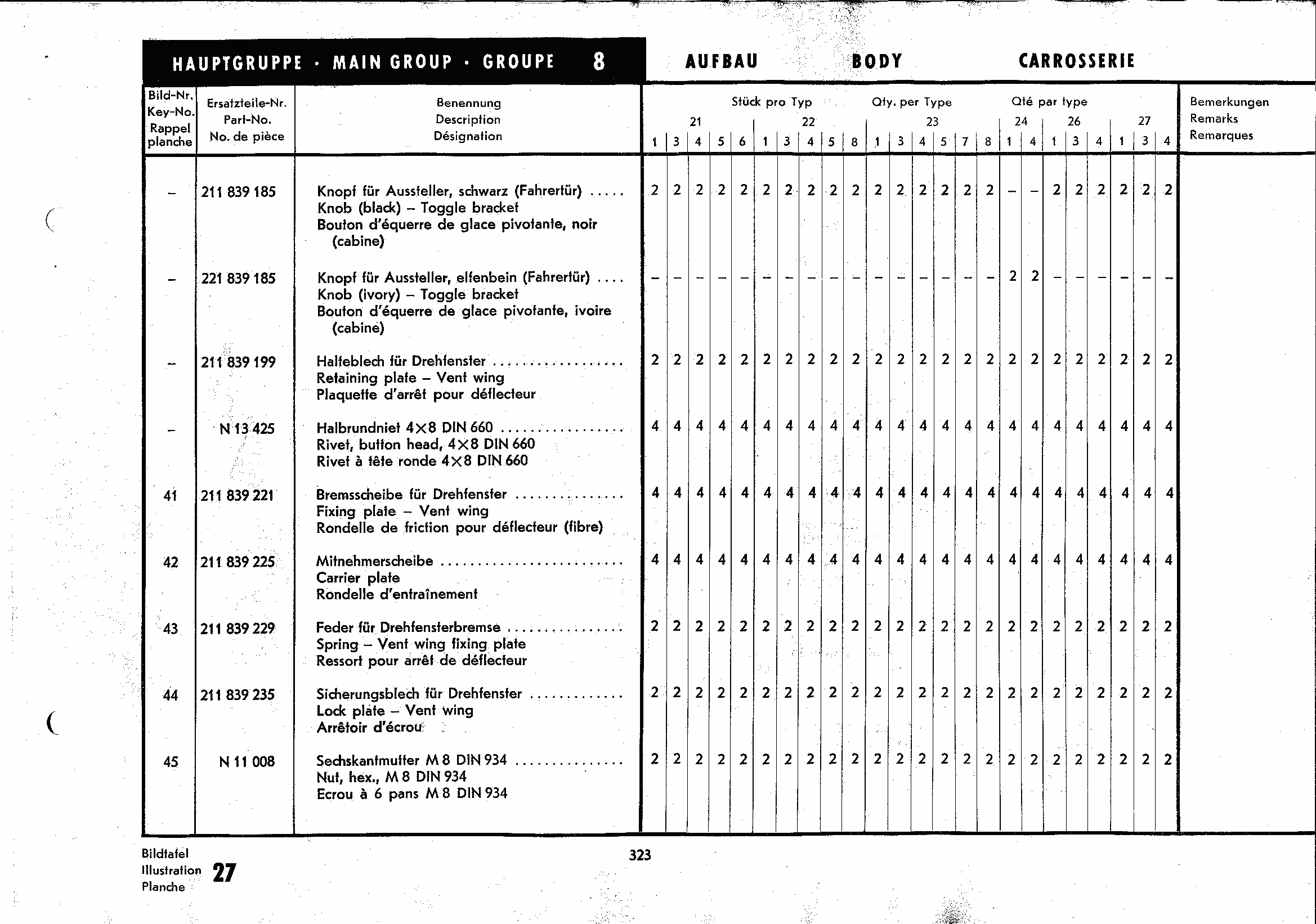

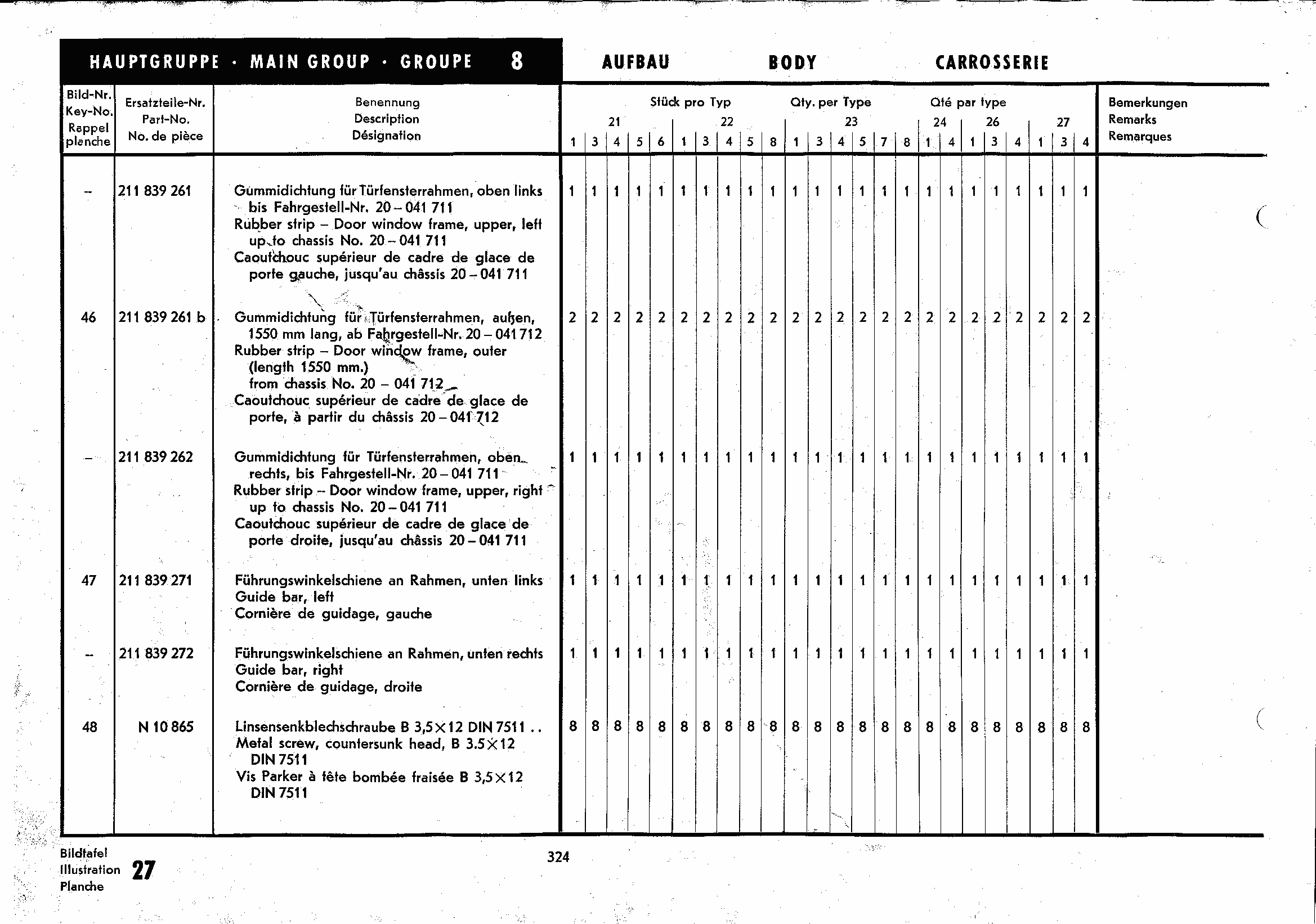

324 list Window parts
325 list Window parts

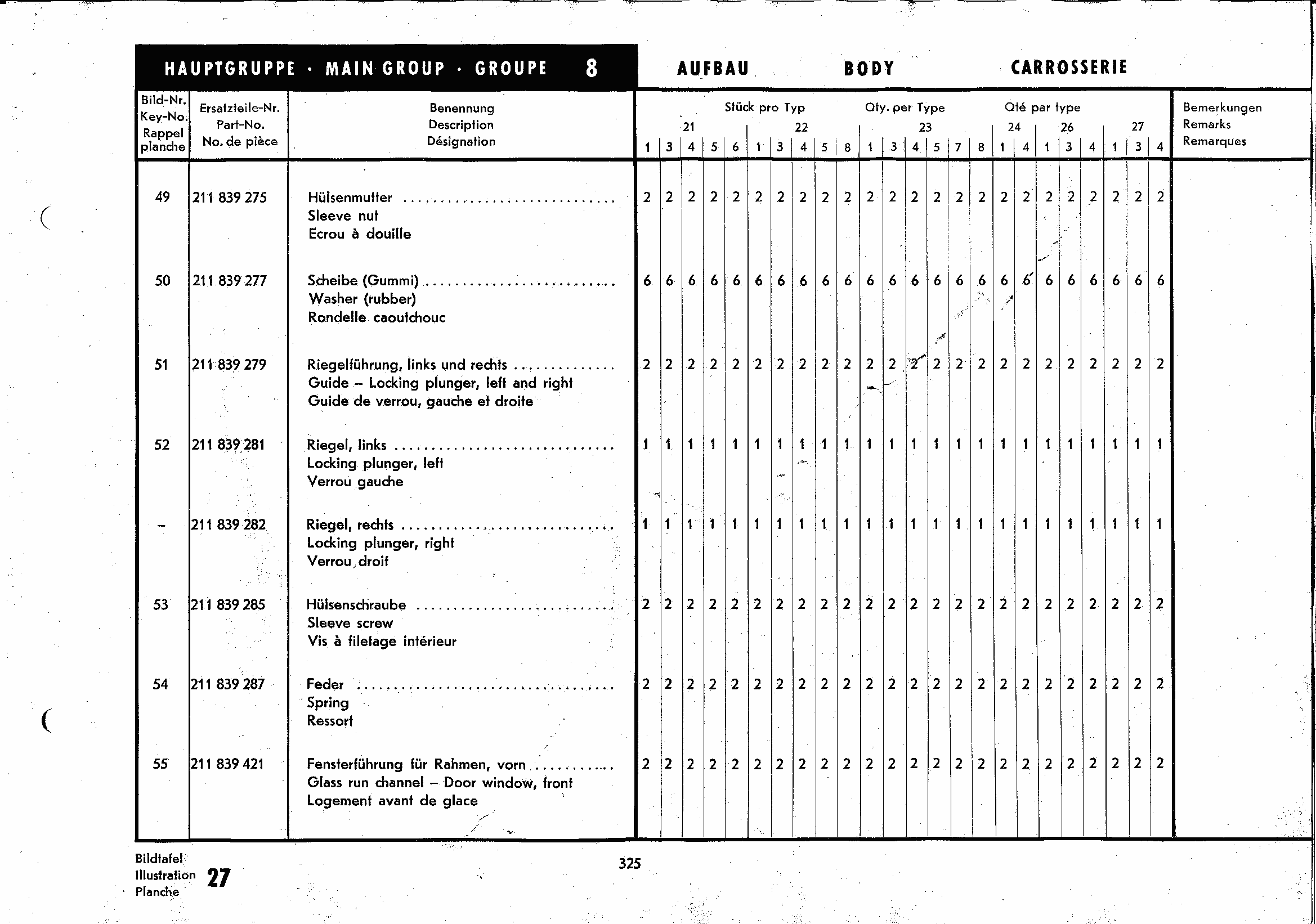

326 list Window parts
327 list Window parts

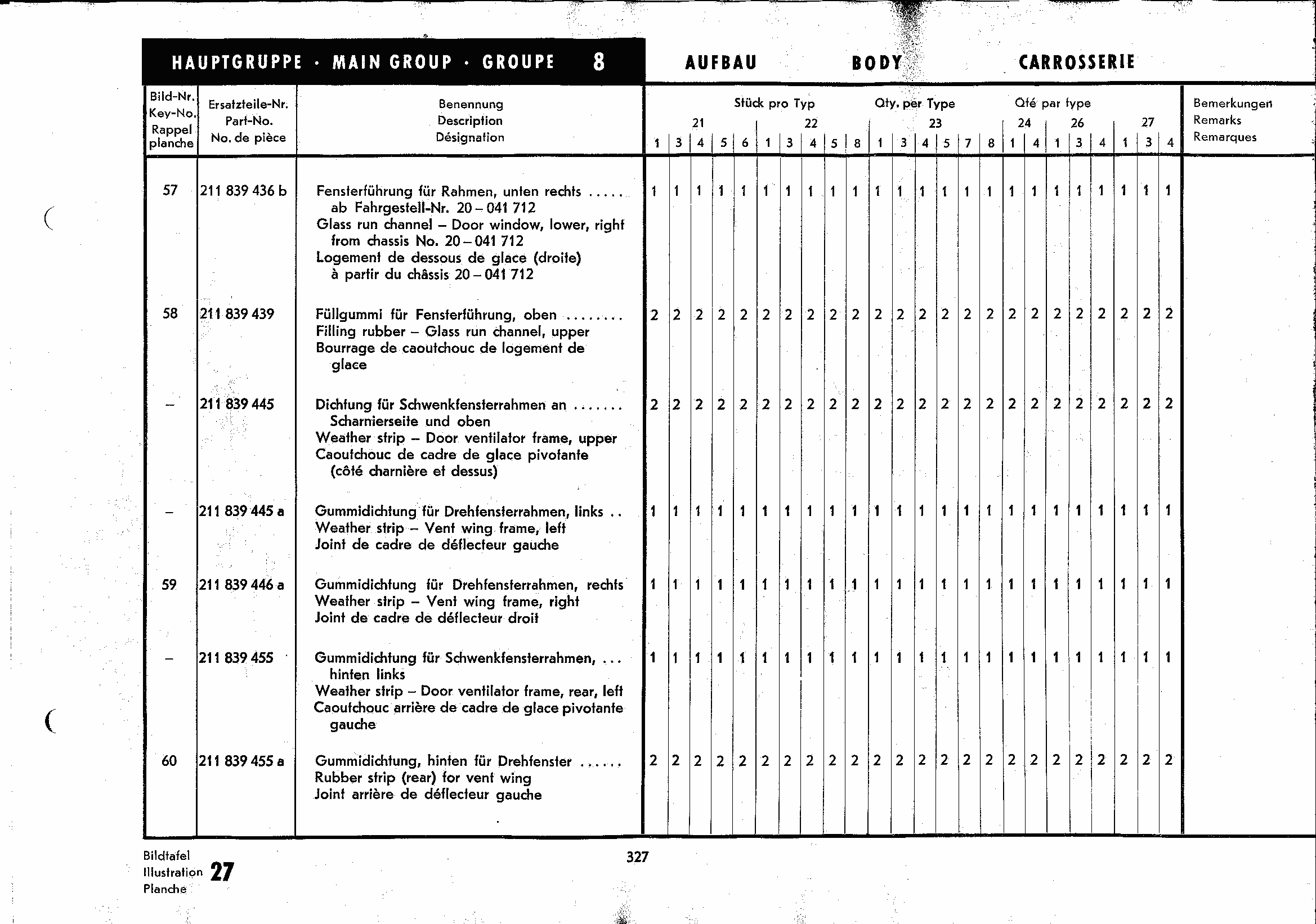

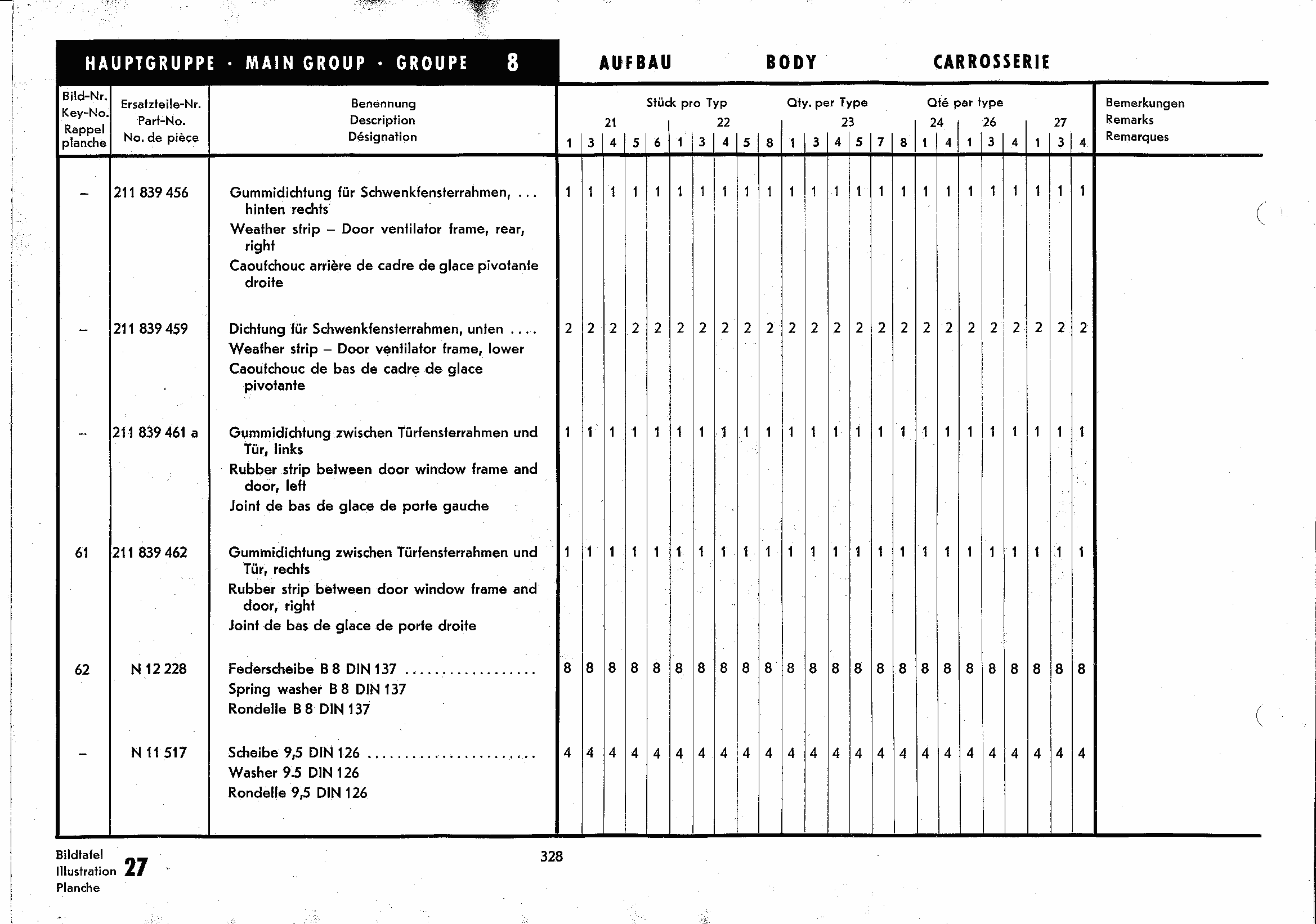

328 list Window parts

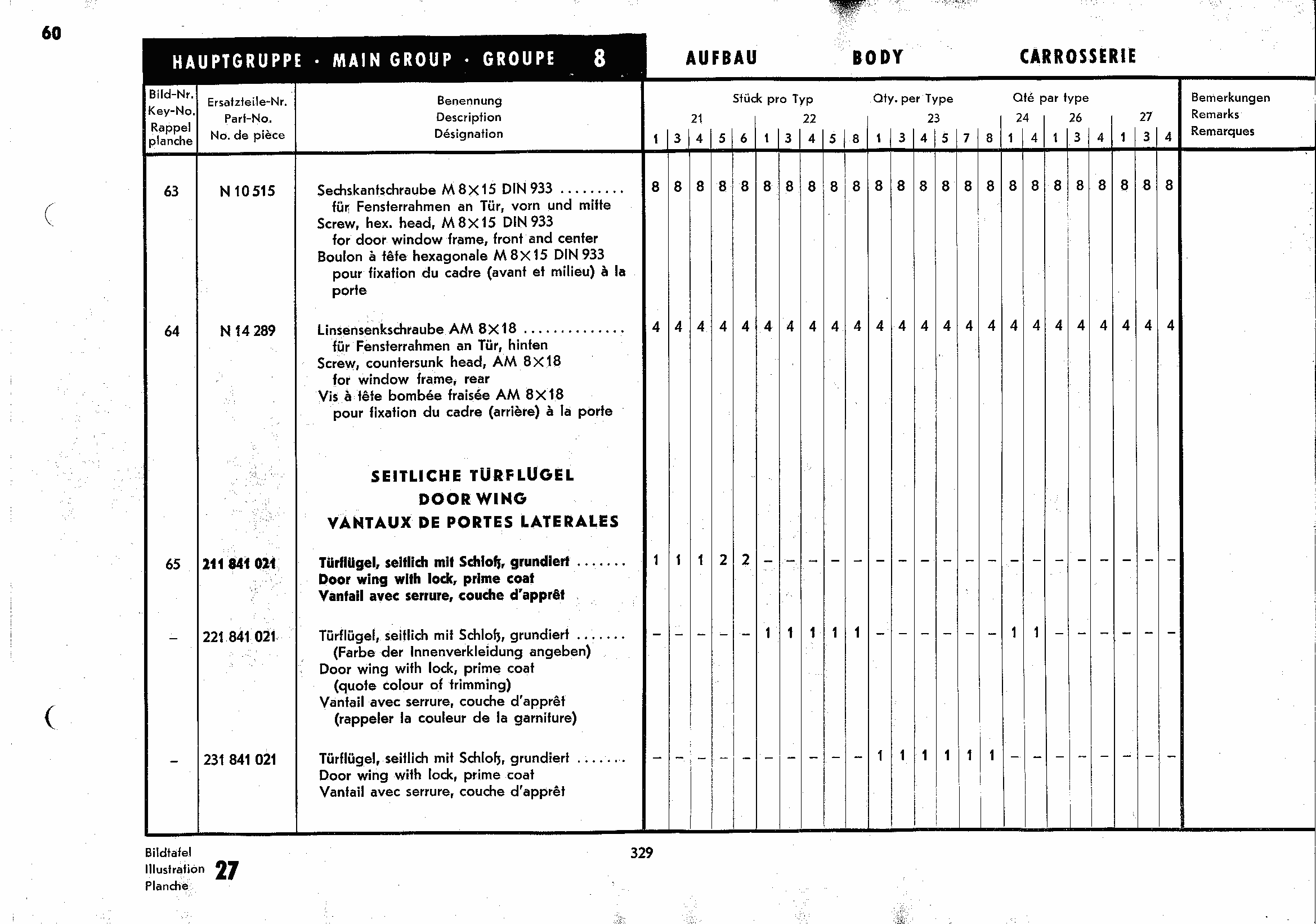

329 list Window parts, wing door

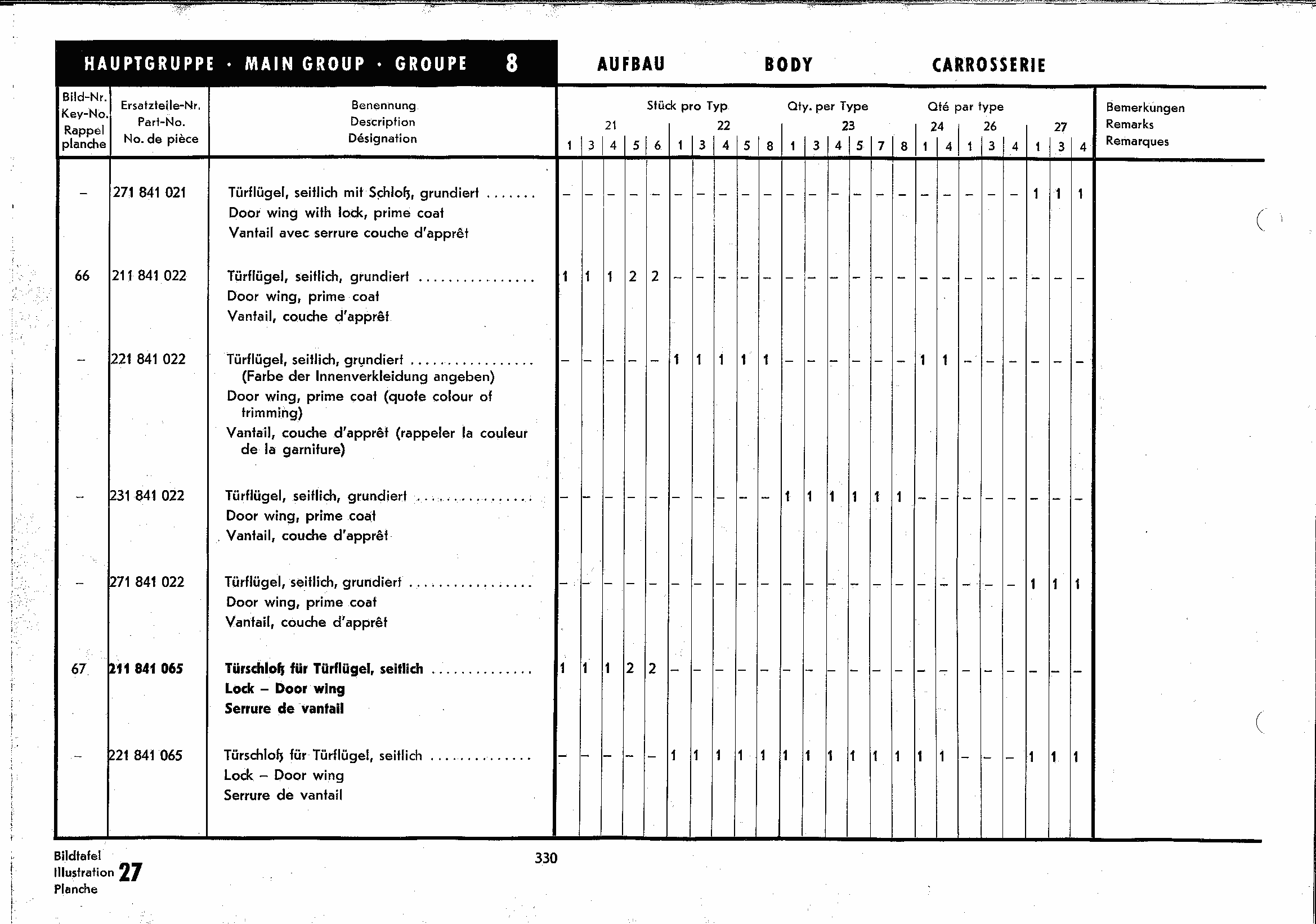

330 list Wing door
331 list Wing door

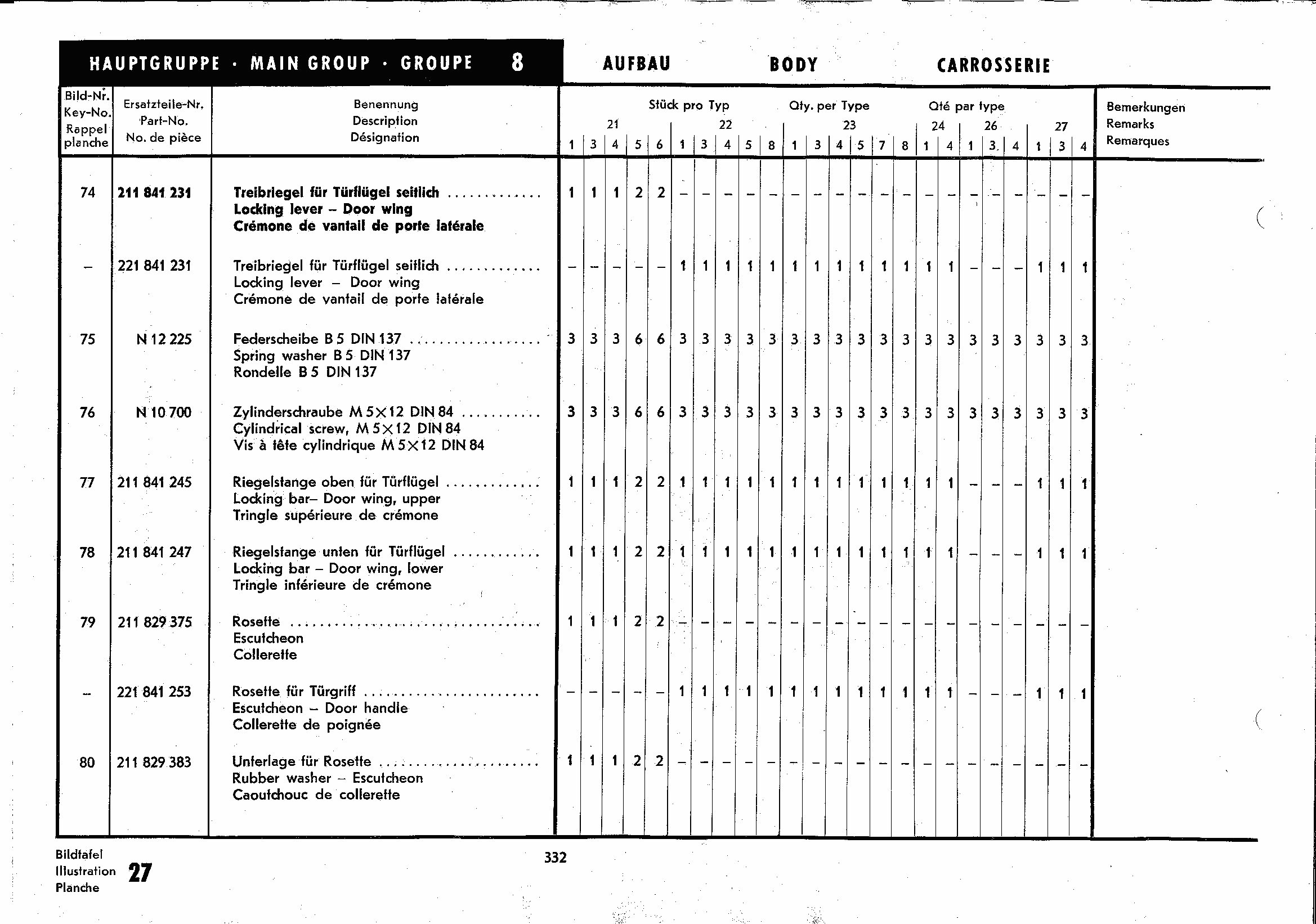

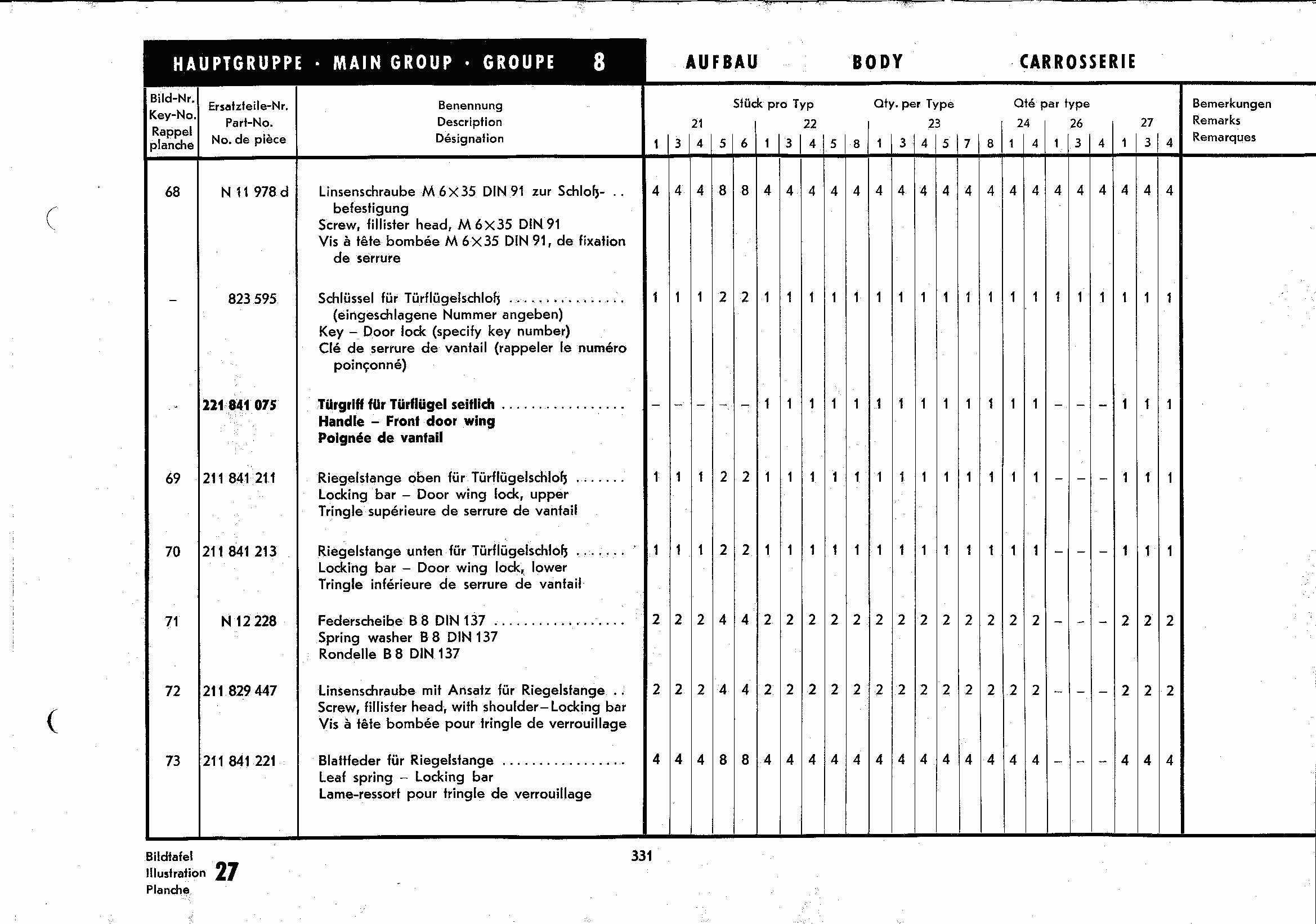

332 list Wing door

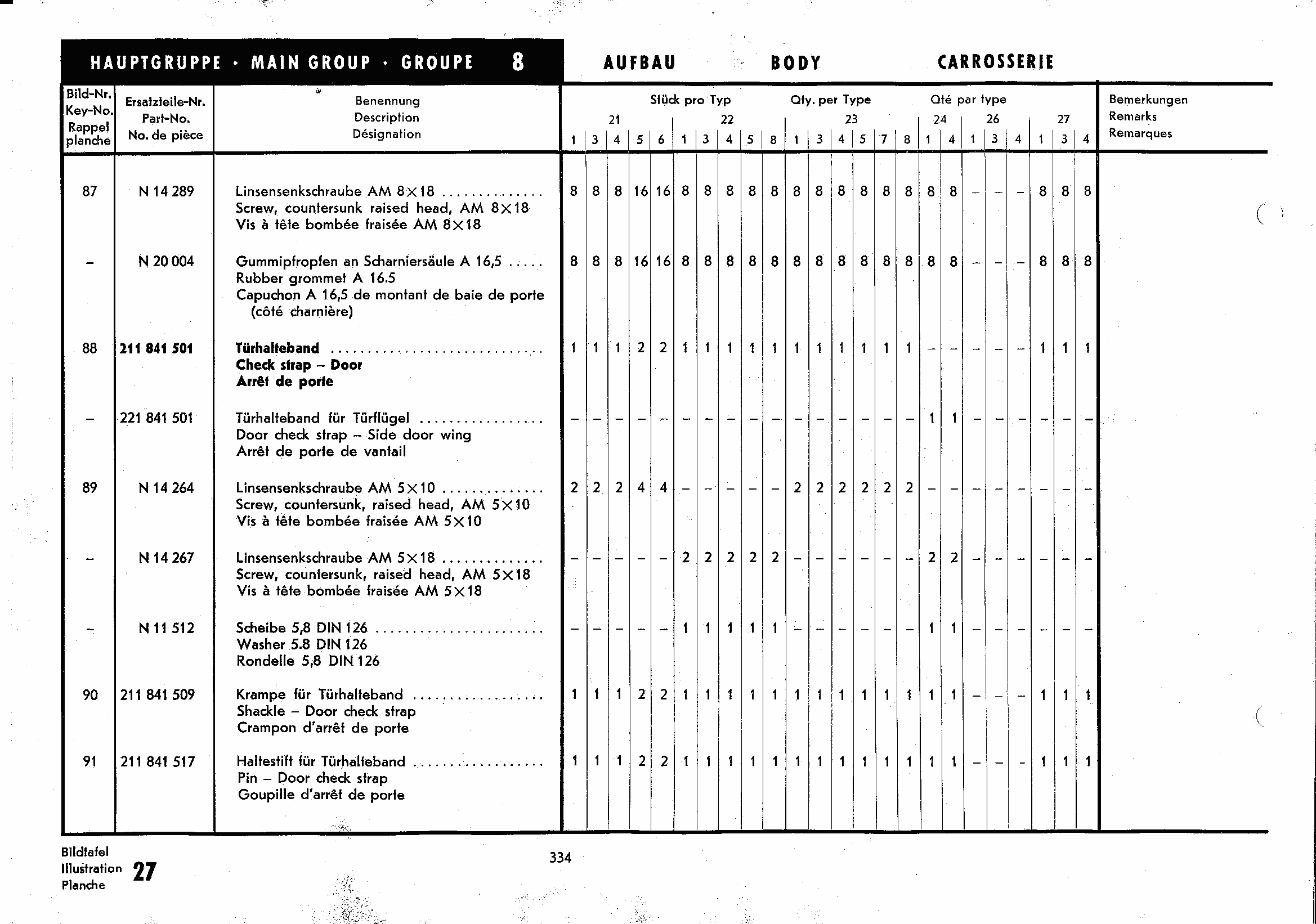

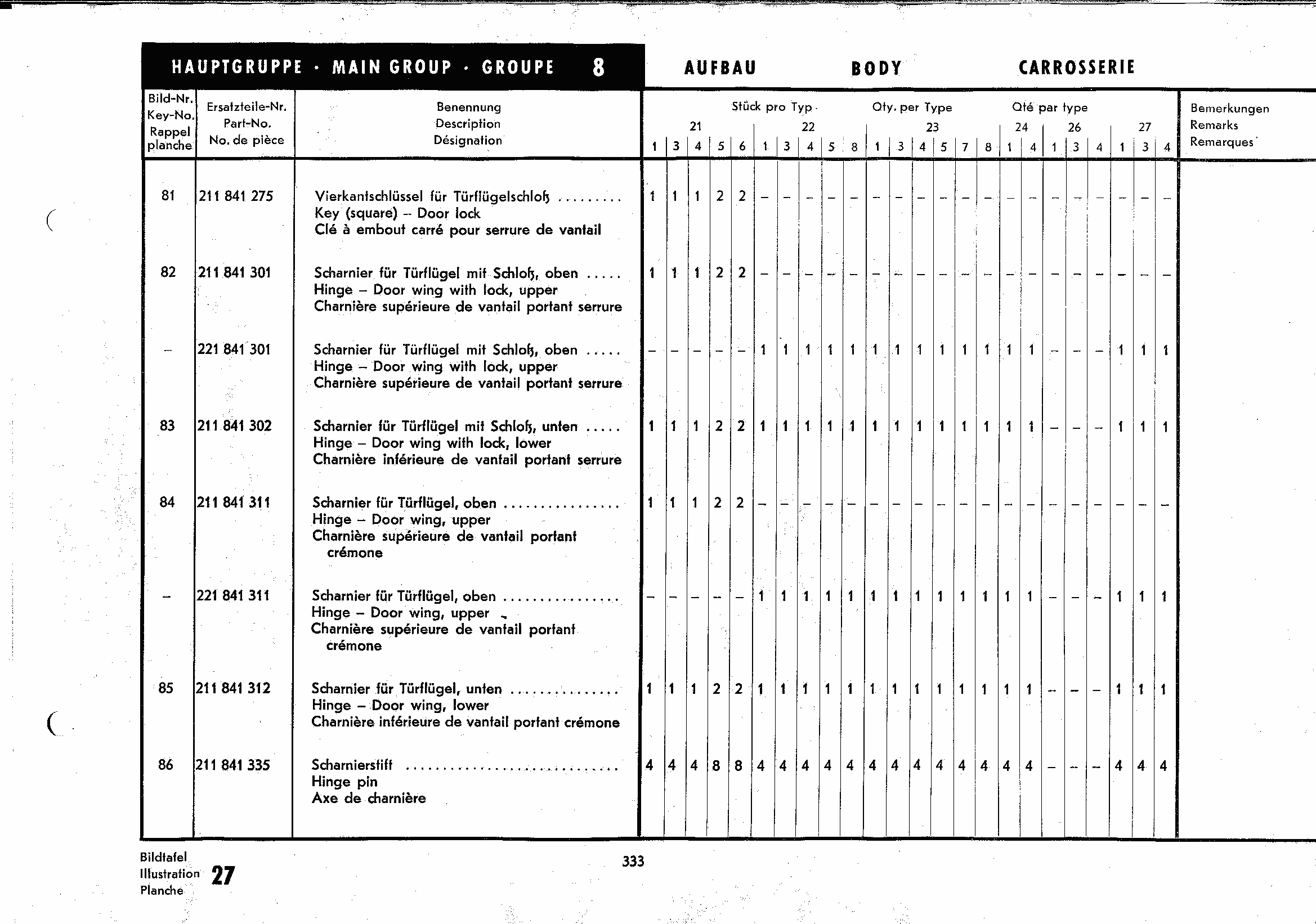

333 list Wing door
334 list Wing door
335 list Wing door

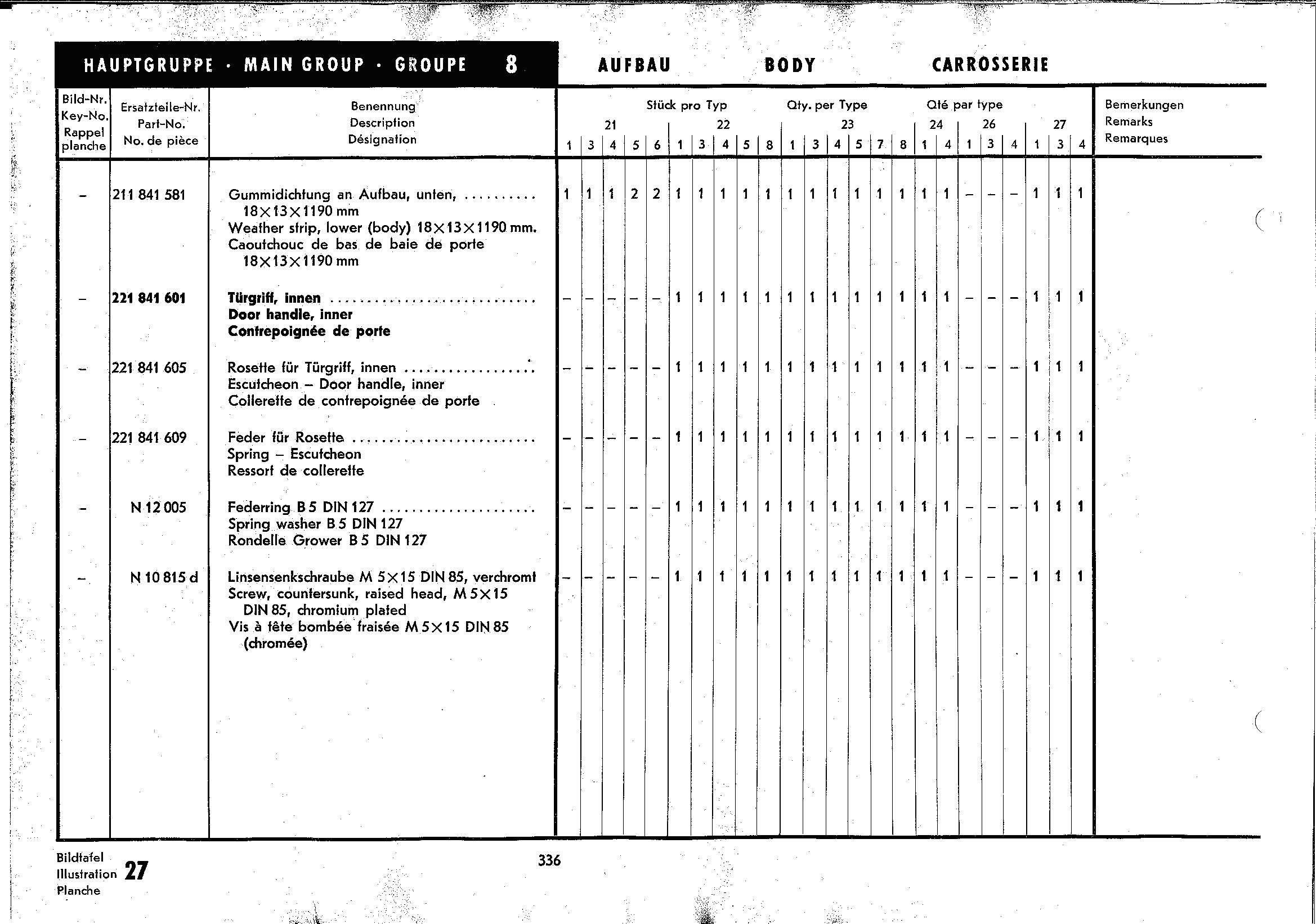

336 list Wing door

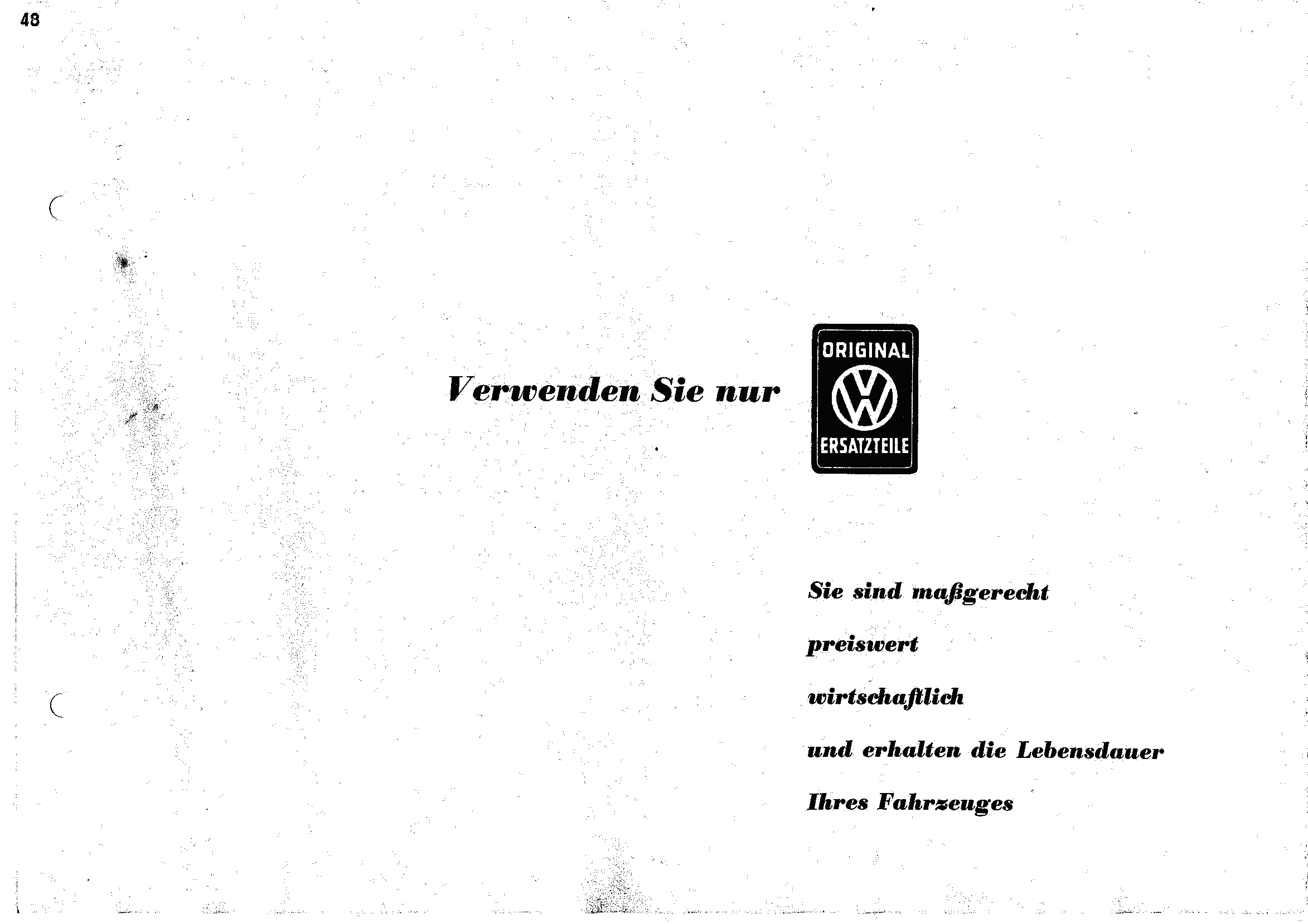

337 special Verwenden Sie nur Original-VW-Ersatzteile. Sie sind massgerech preiswert wirtschaftlich und erhalten die Lebensdauer Ihres Fahrzeuges
338 diagram Window glasses and weather strips

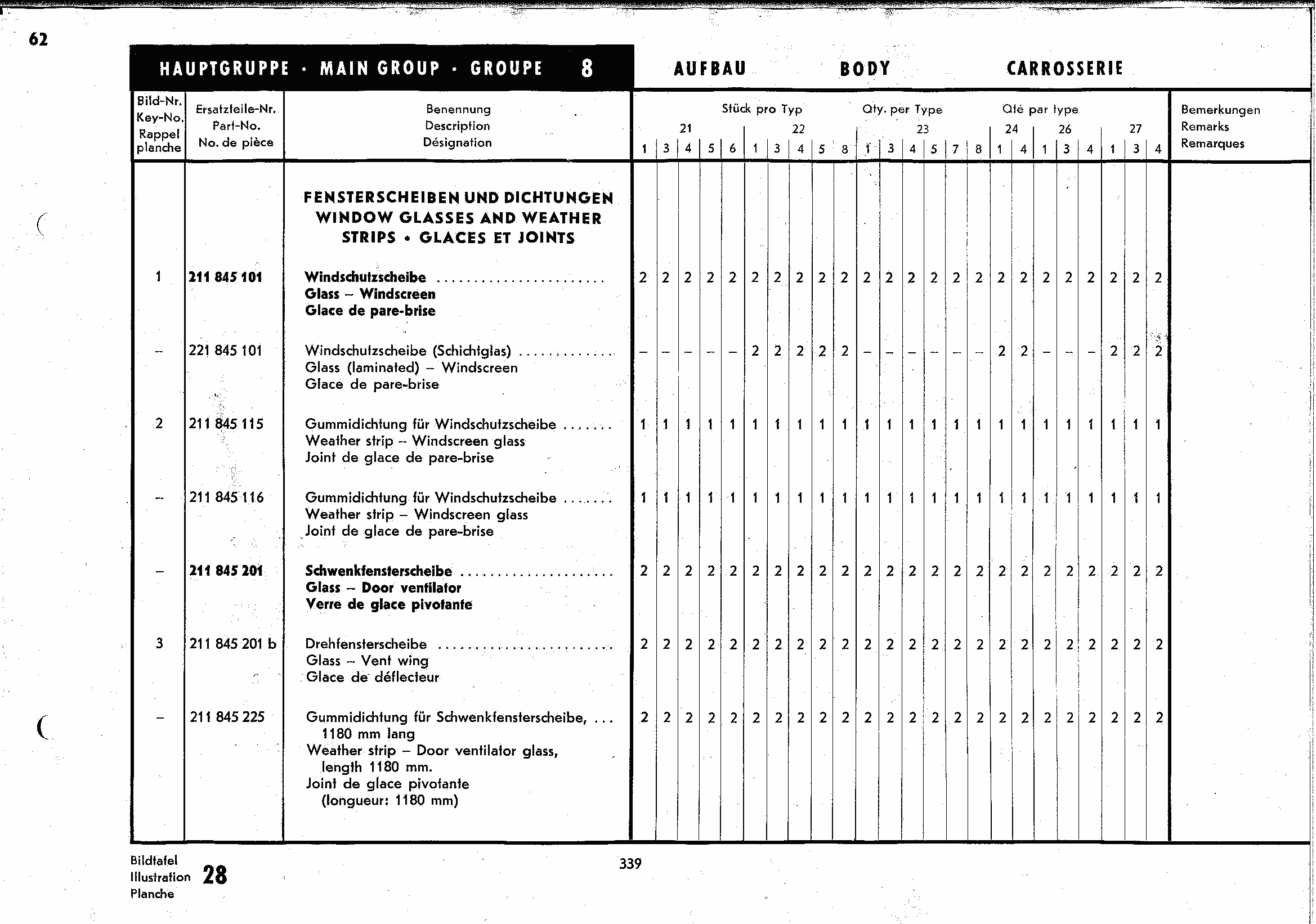

339 list Window glasses and weather strips

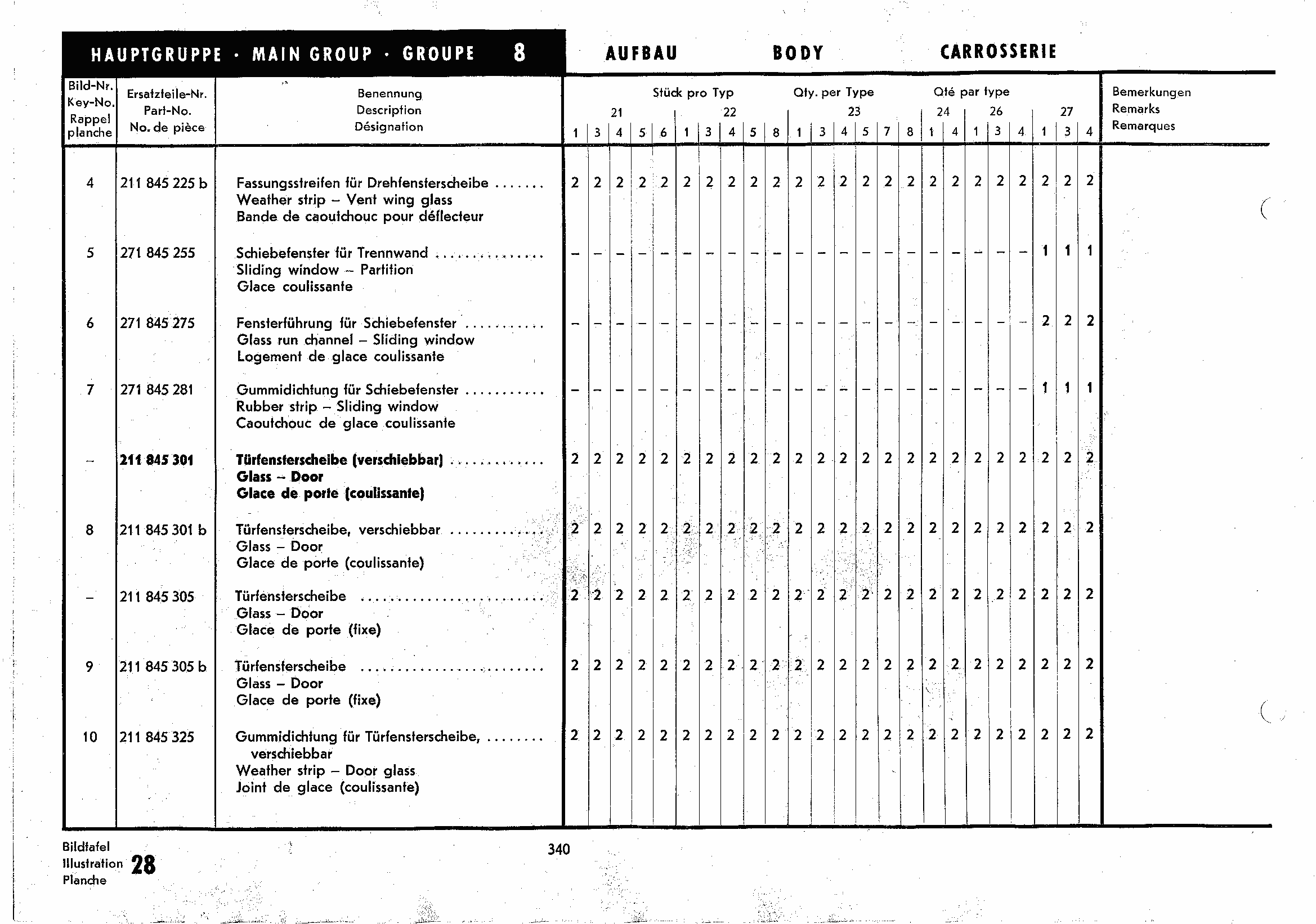

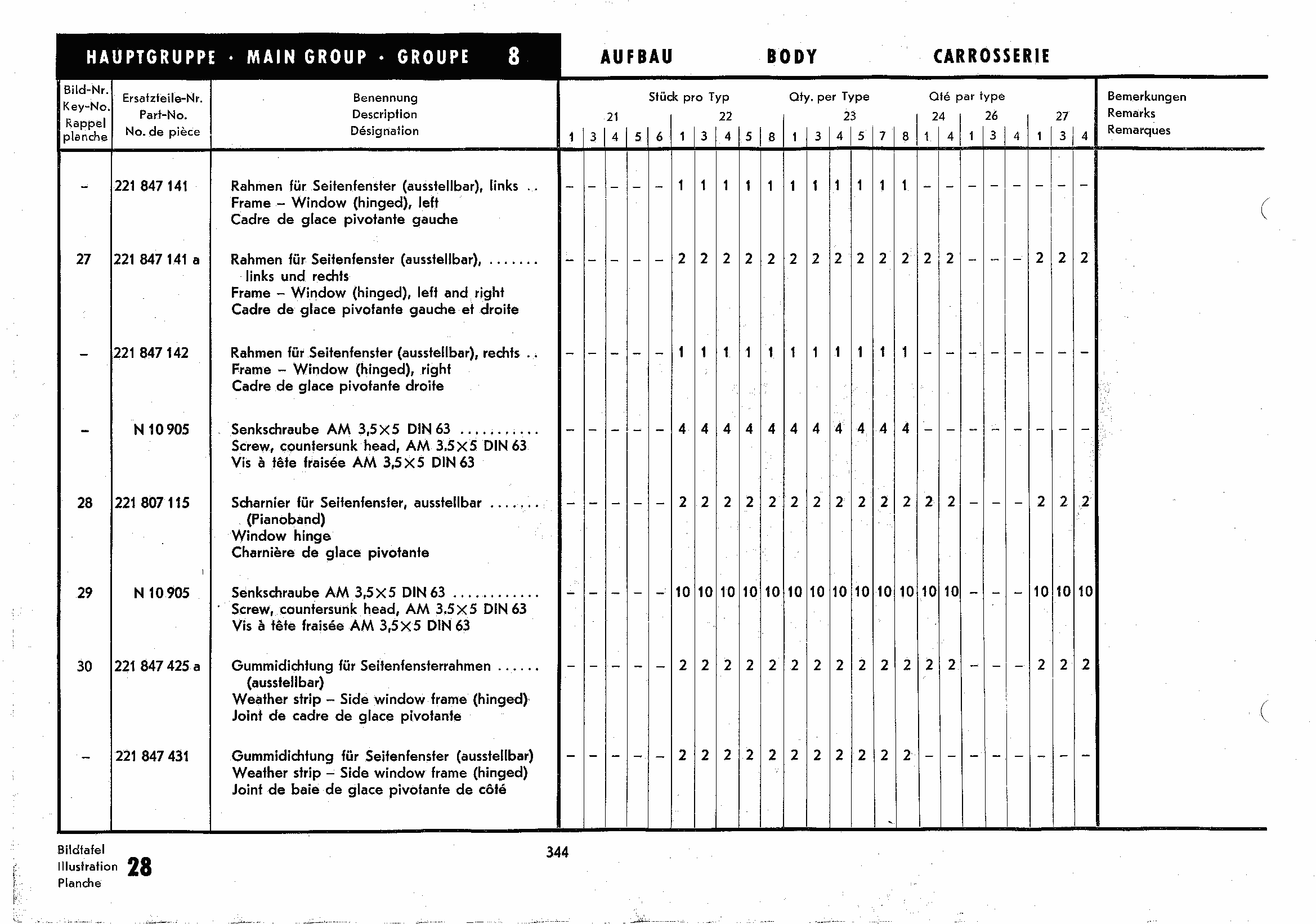

340 list Window glasses and weather strips
341 list Window glasses and weather strips

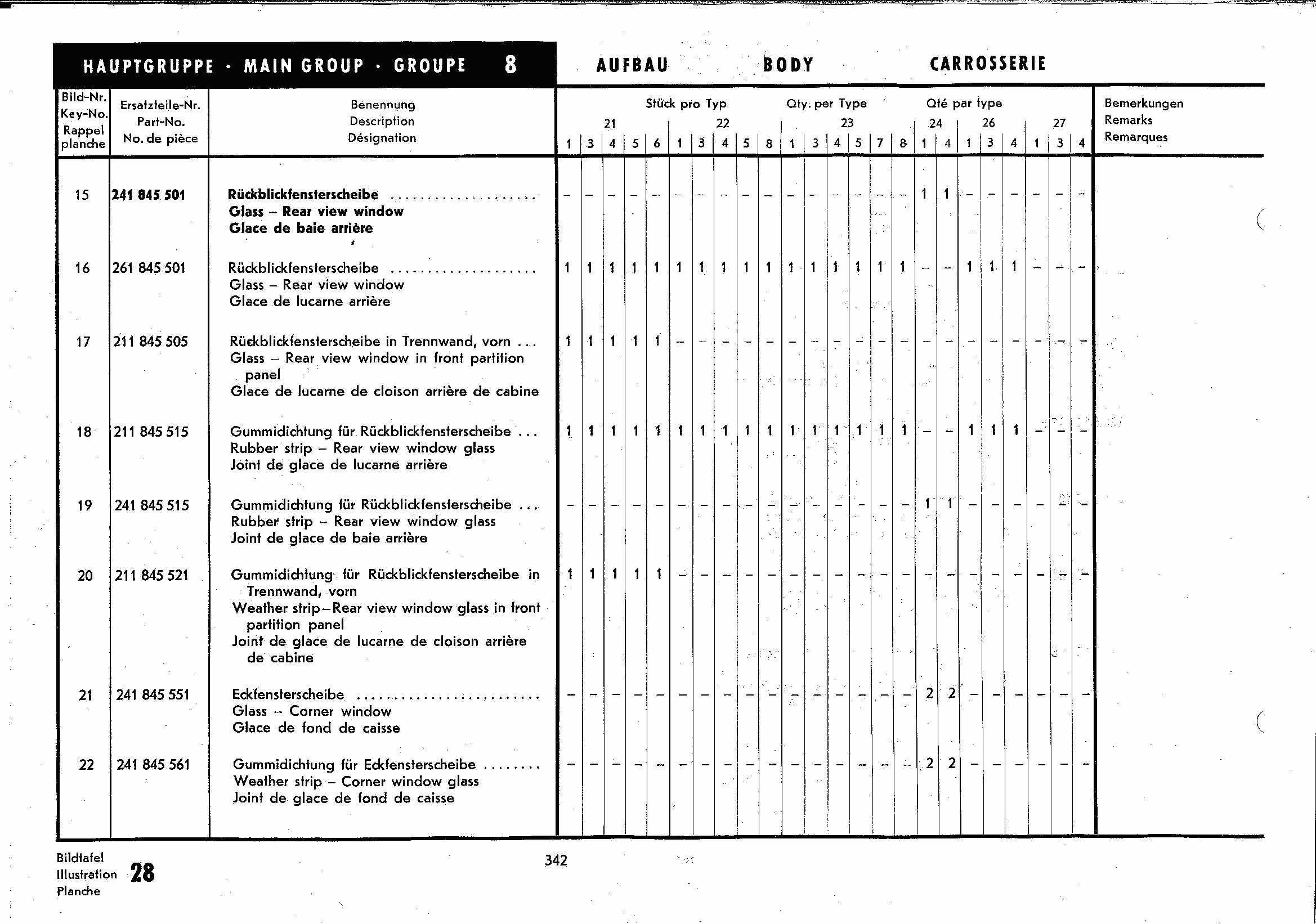

342 list Window glasses and weather strips

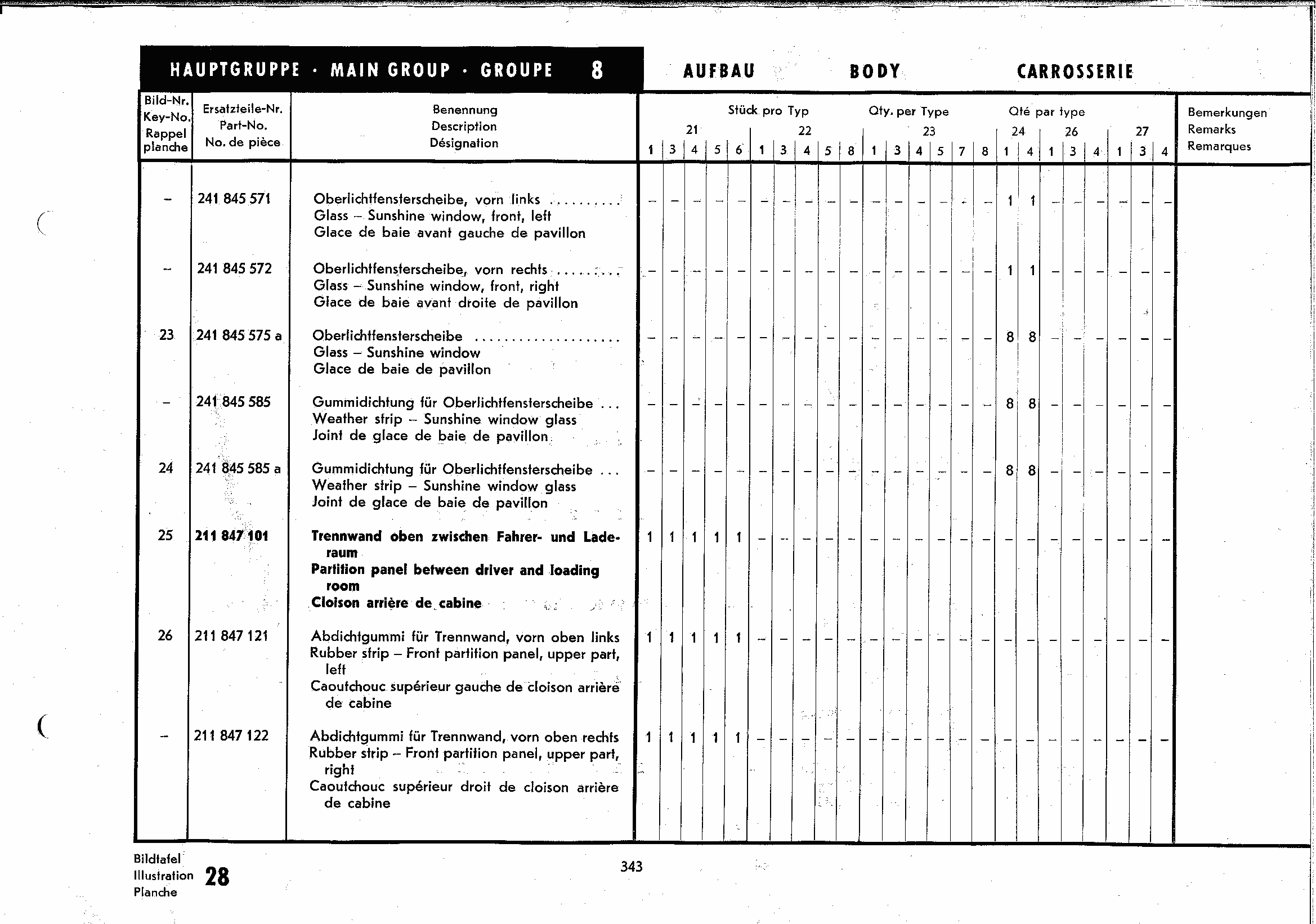

343 list Window glasses and weather strips
344 list Window glasses and weather strips

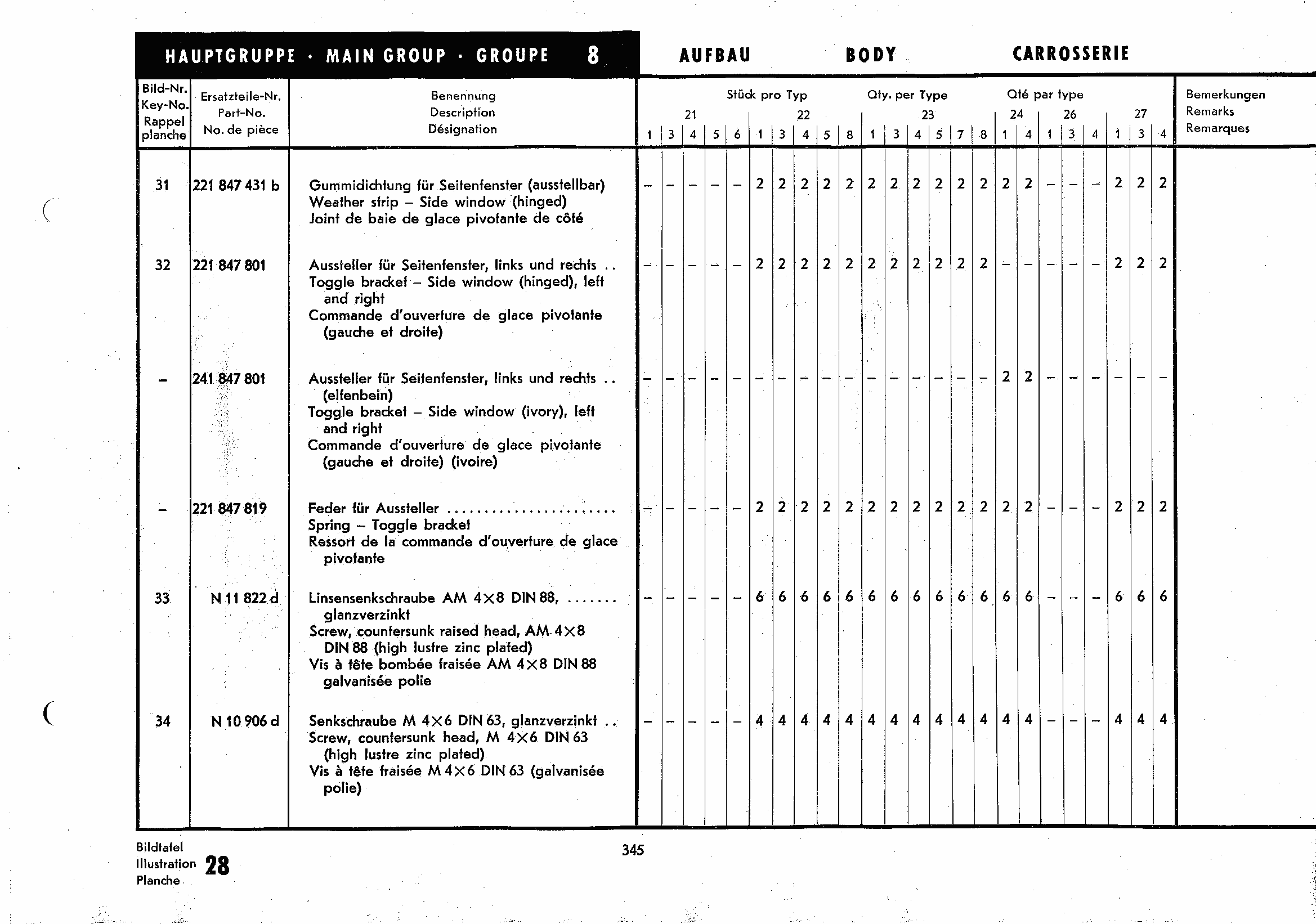

345 list Window glasses and weather strips

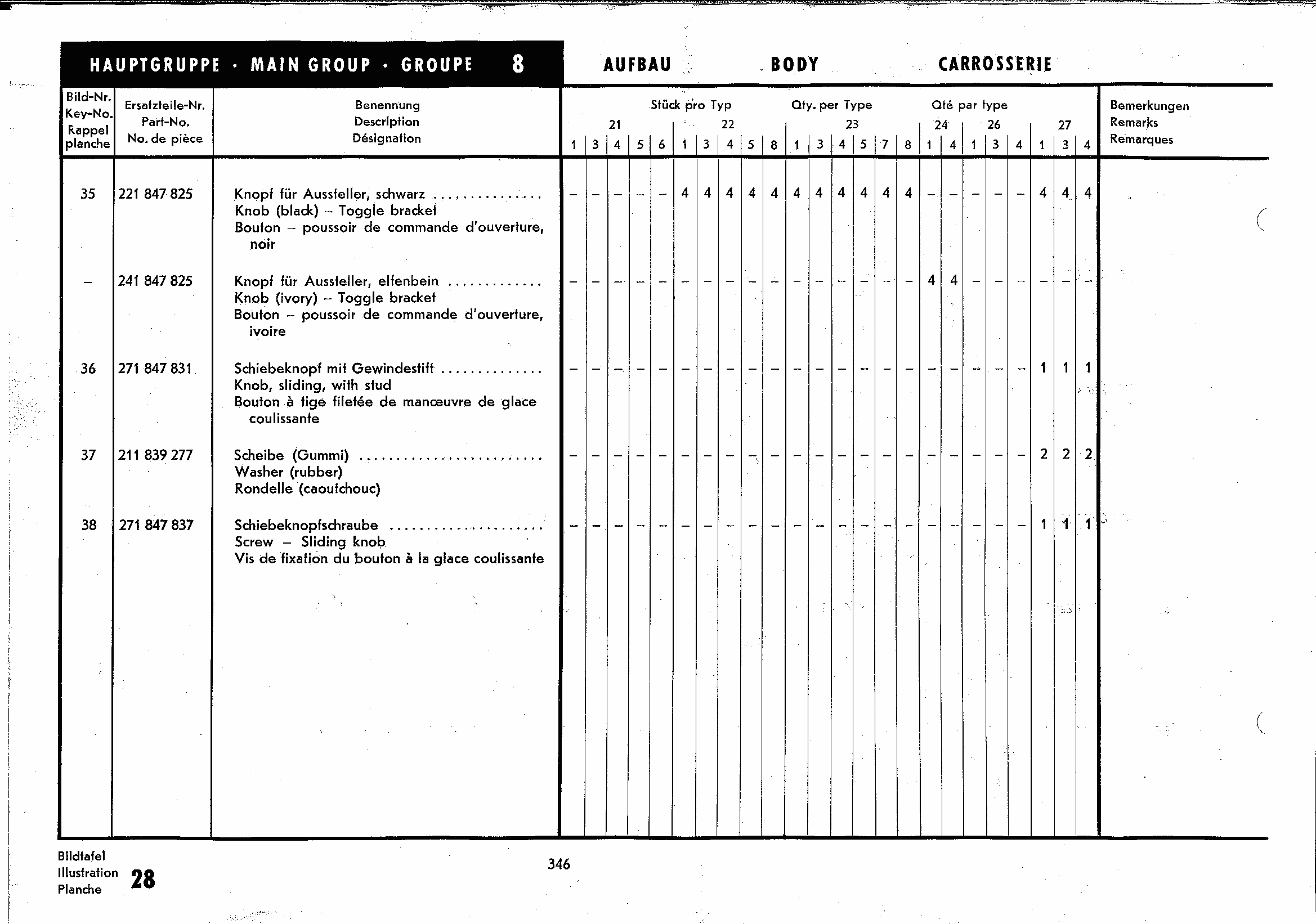

346 list Window glasses and weather strips
347 special Warum nur Original-VW-Ersatztelie

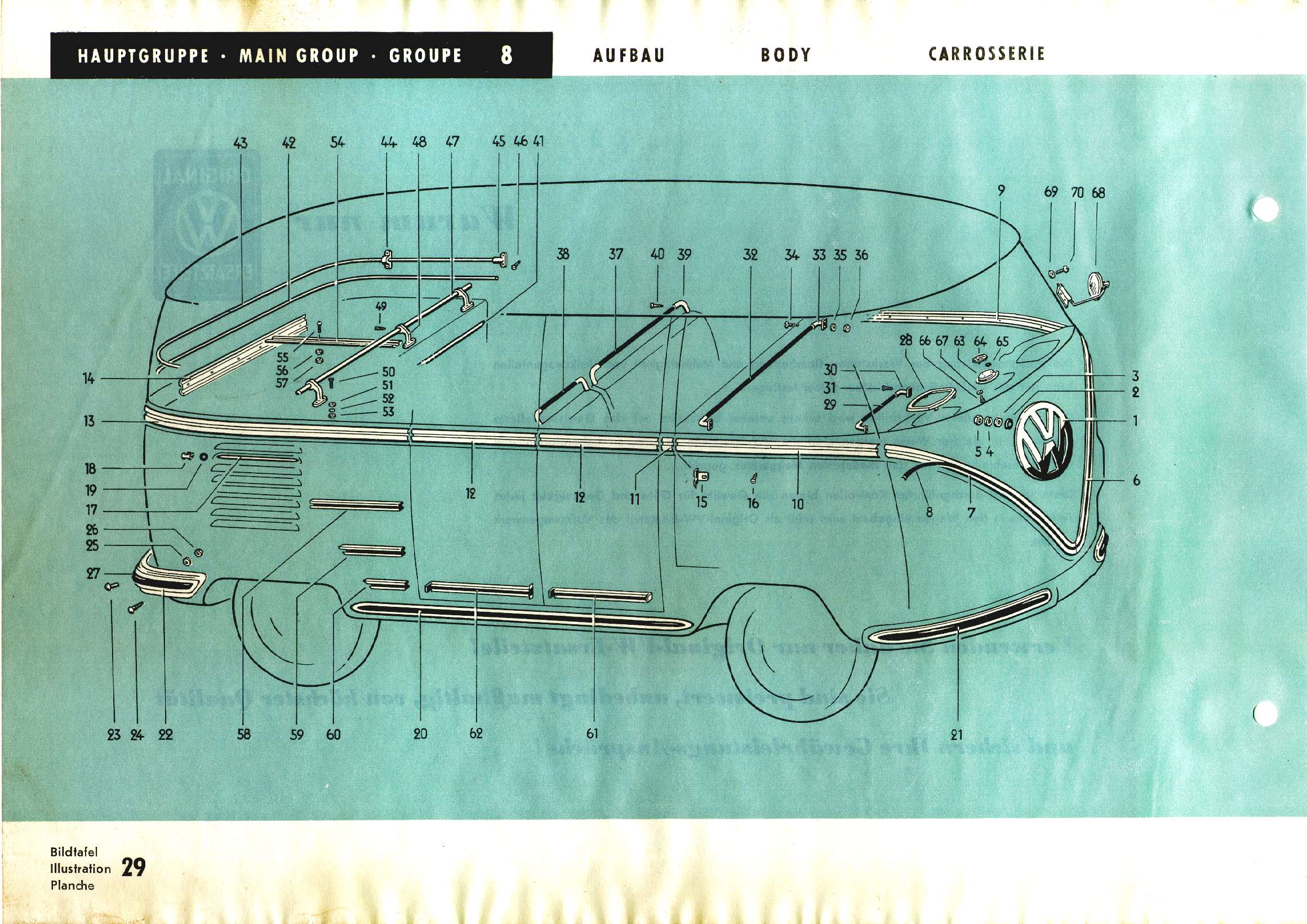

348 diagram Moulding- and protetcing strips, handgrabs

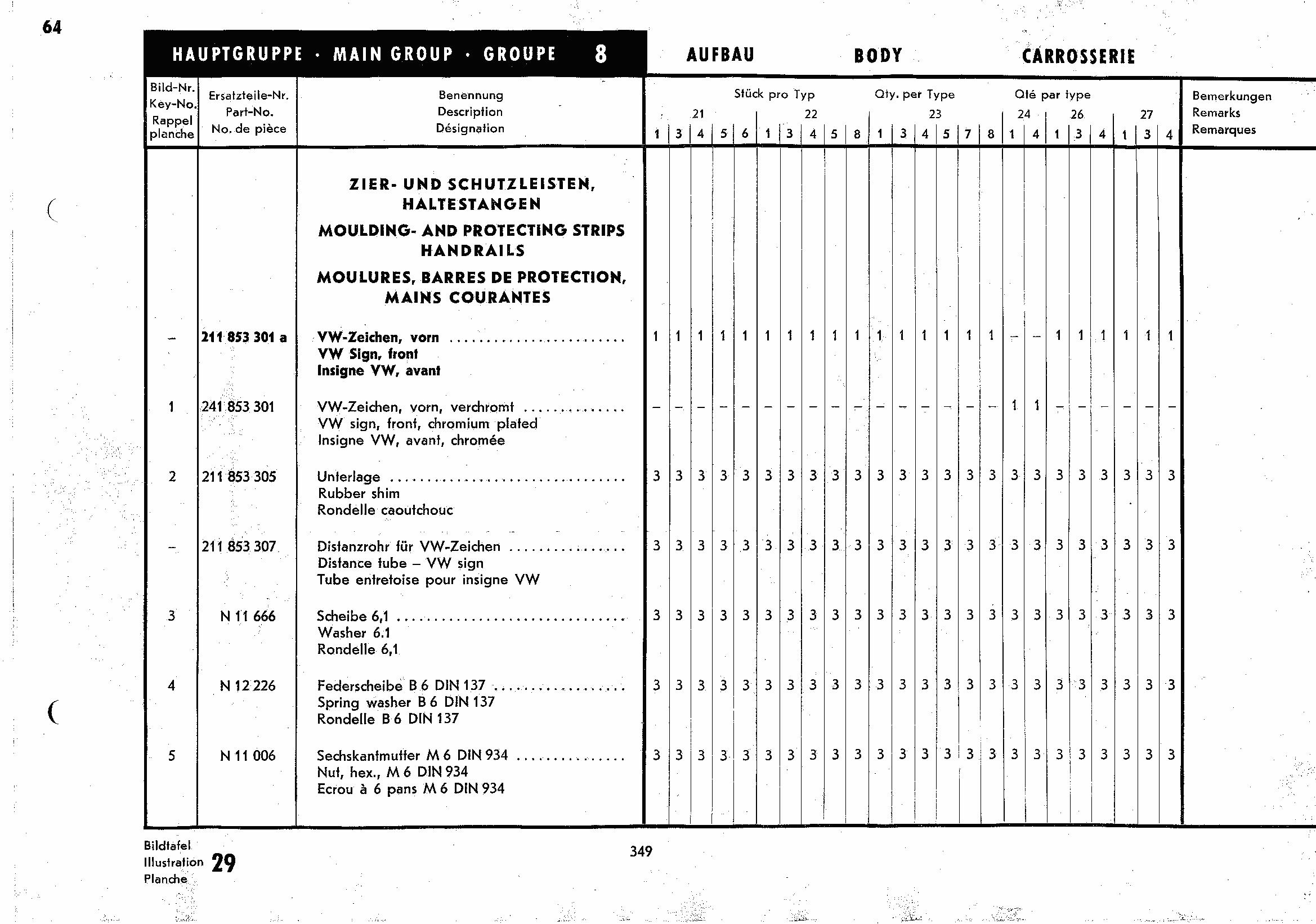

349 list Moulding- and protecting strips, handgrabs
350 list Moulding- and protecting strips, handgrabs

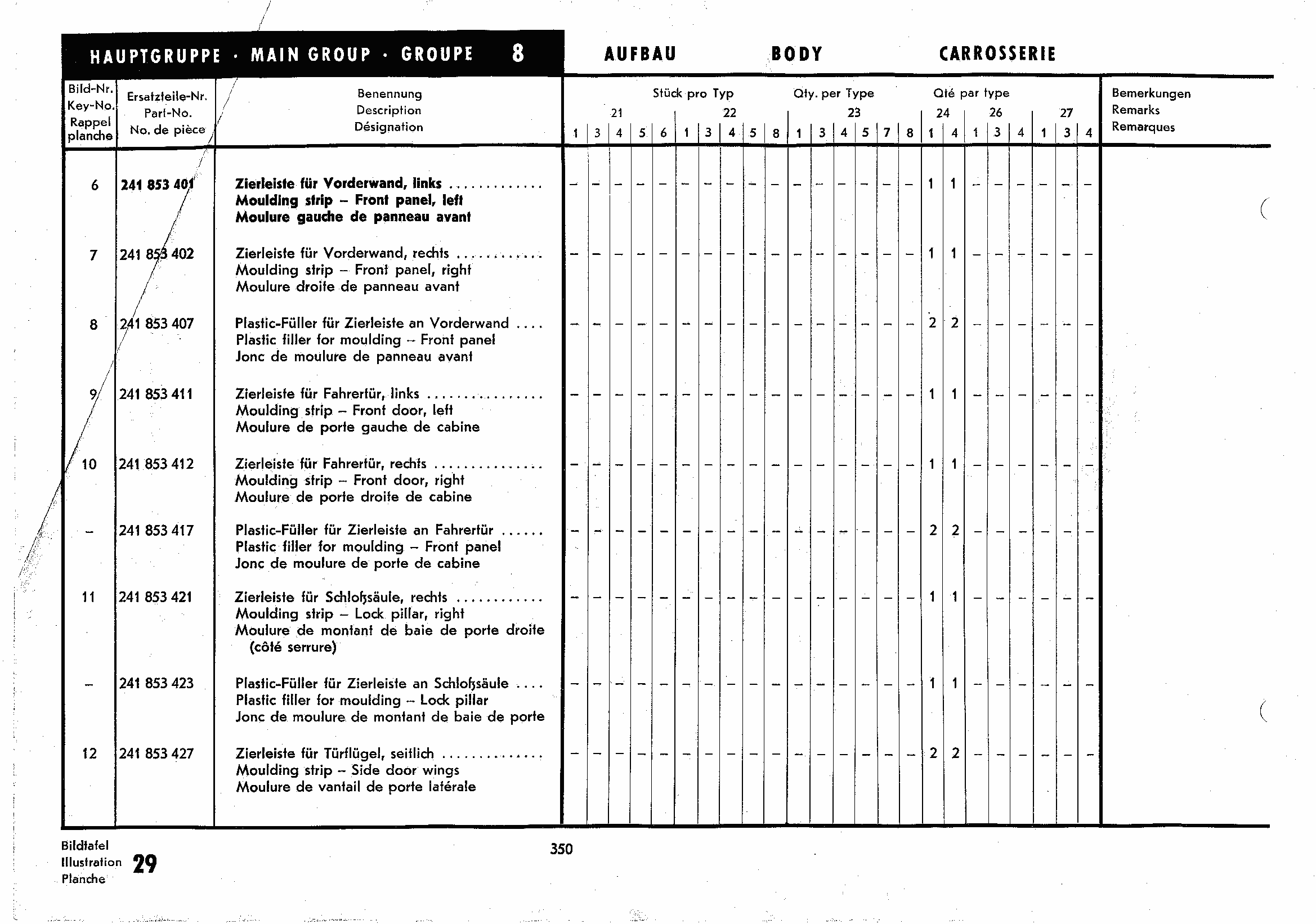

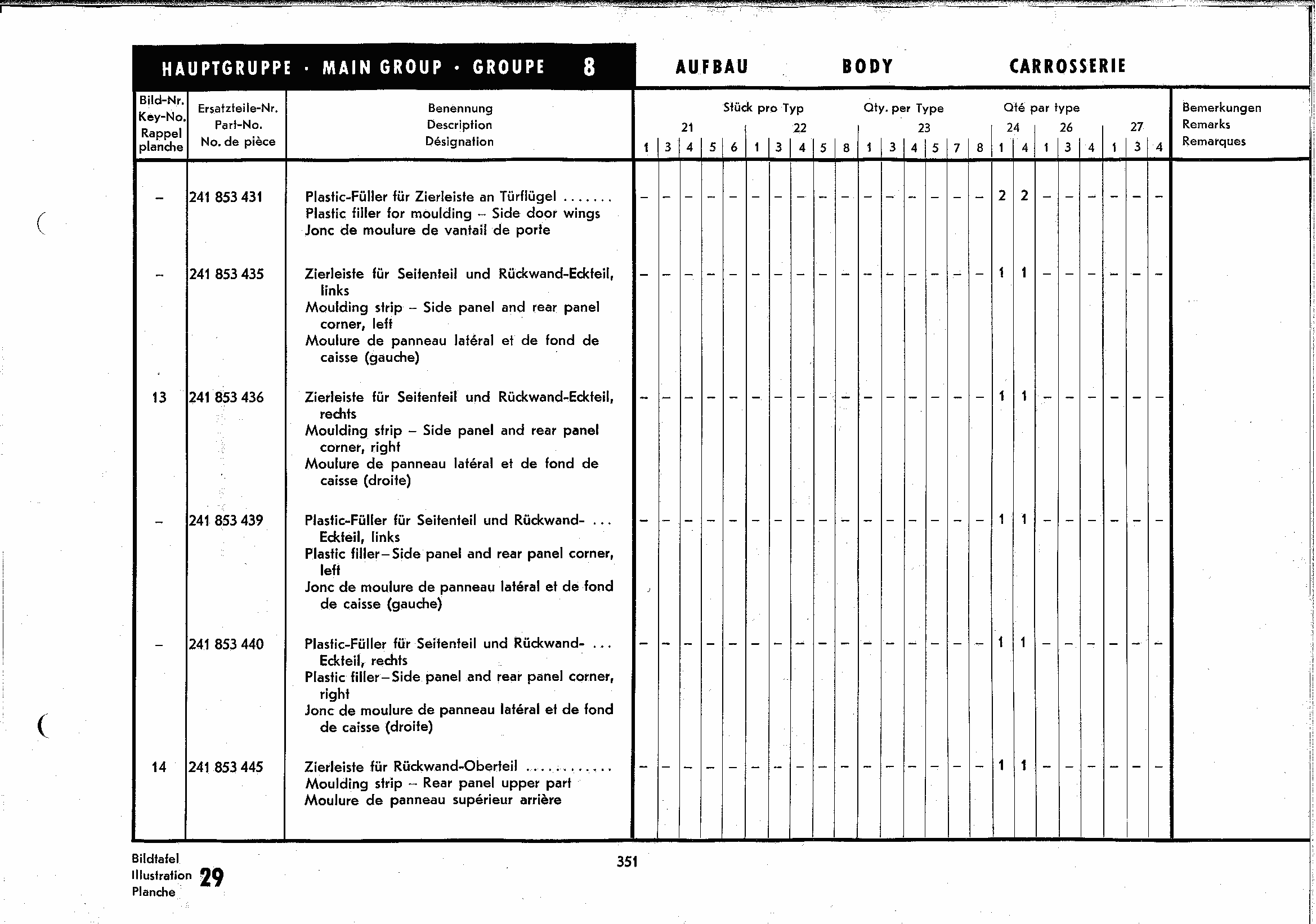

351 list Moulding- and protecting strips, handgrabs
352 list Moulding- and protecting strips, handgrabs

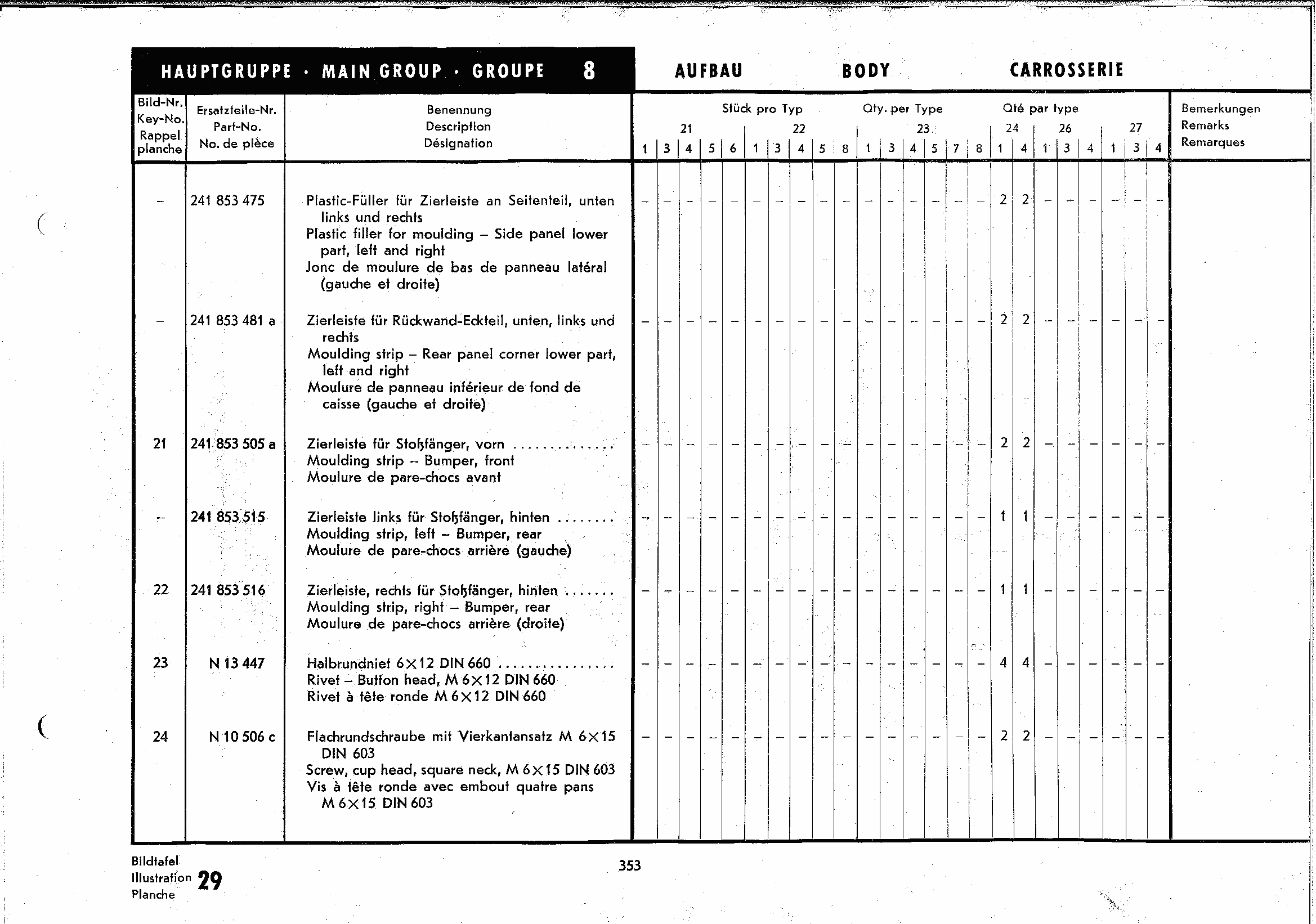

353 list Moulding- and protecting strips, handgrabs

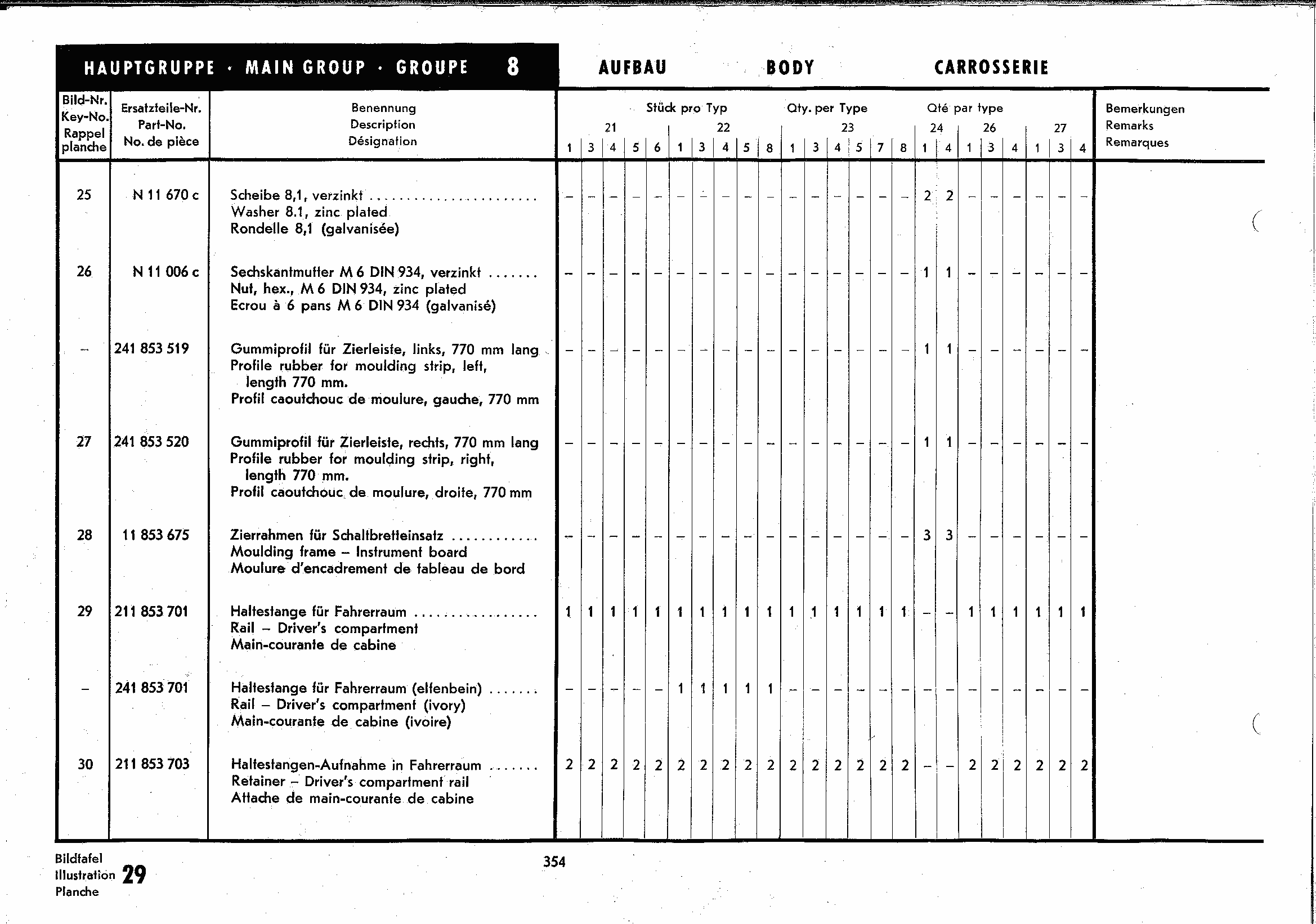

354 list Moulding- and protecting strips, handgrabs

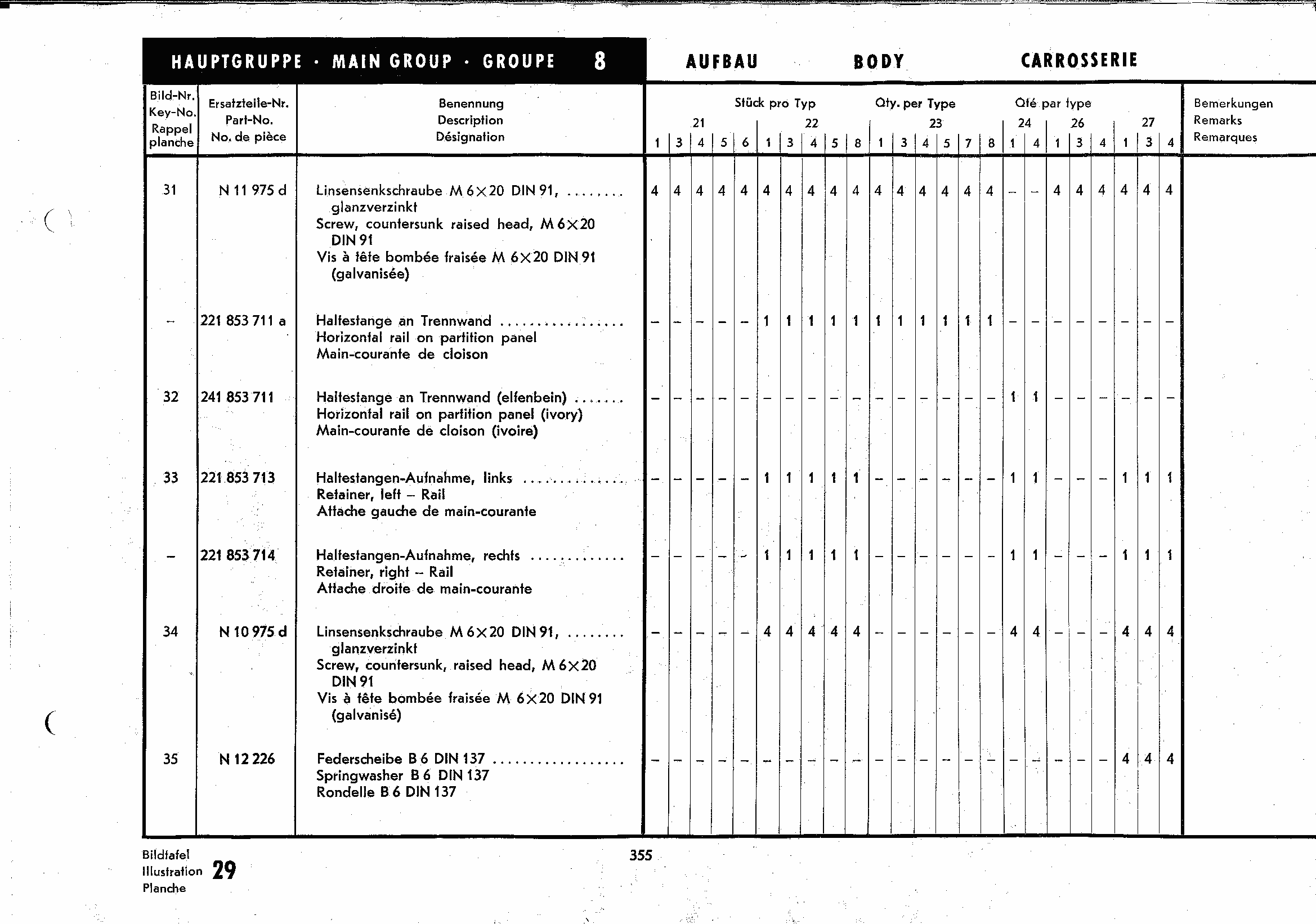

355 list Moulding- and protecting strips, handgrabs

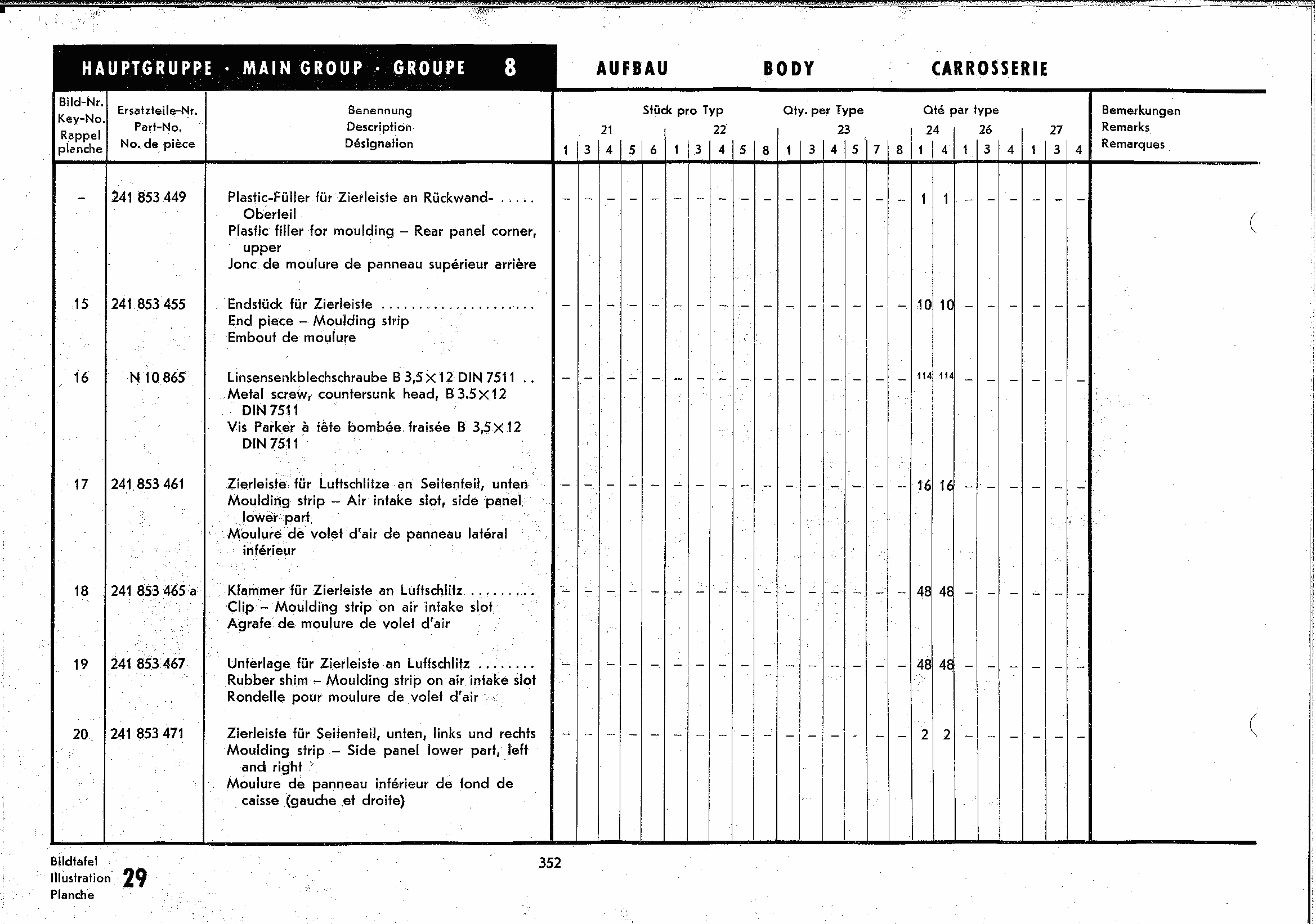

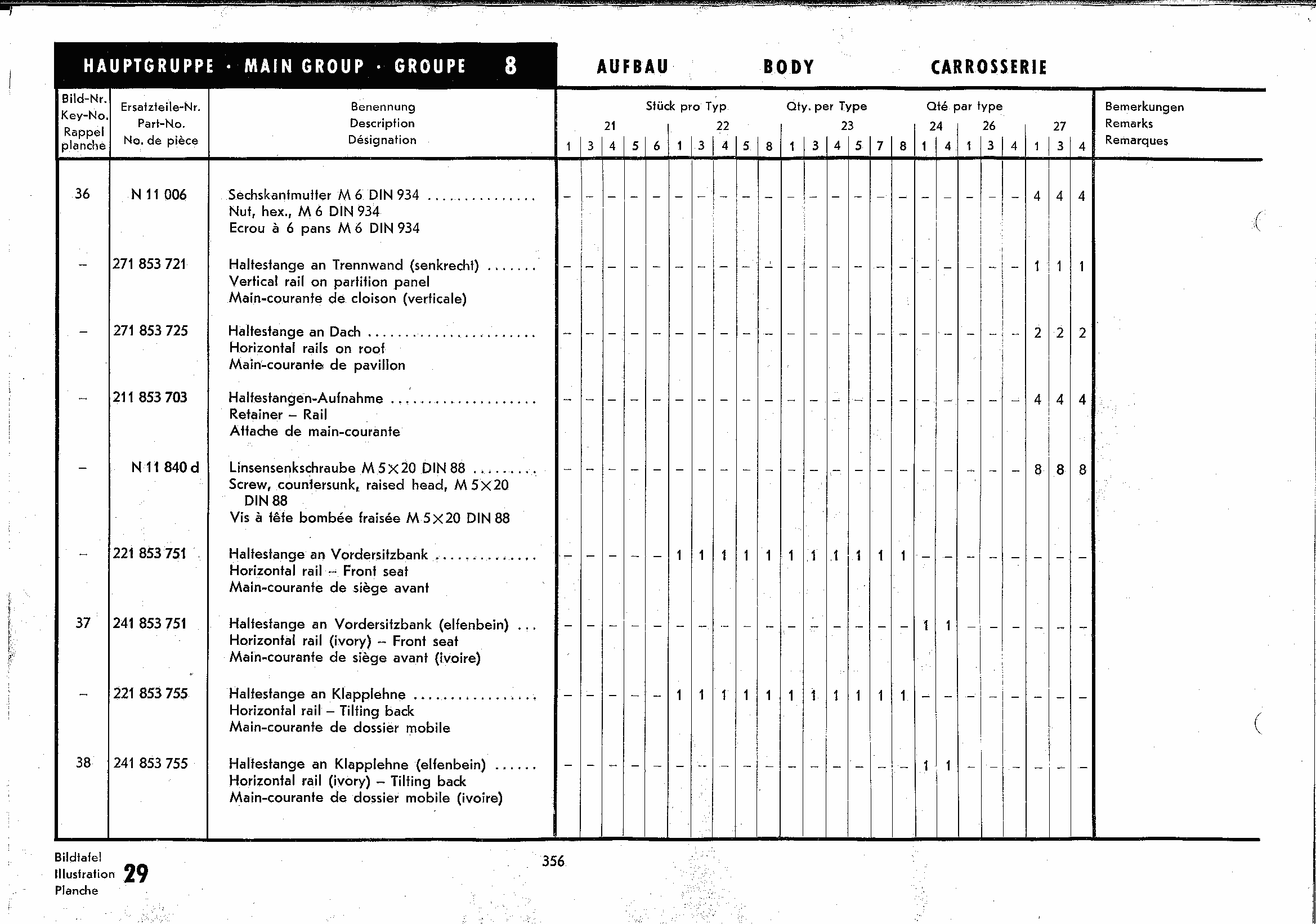

356 list Moulding- and protecting strips, handgrabs

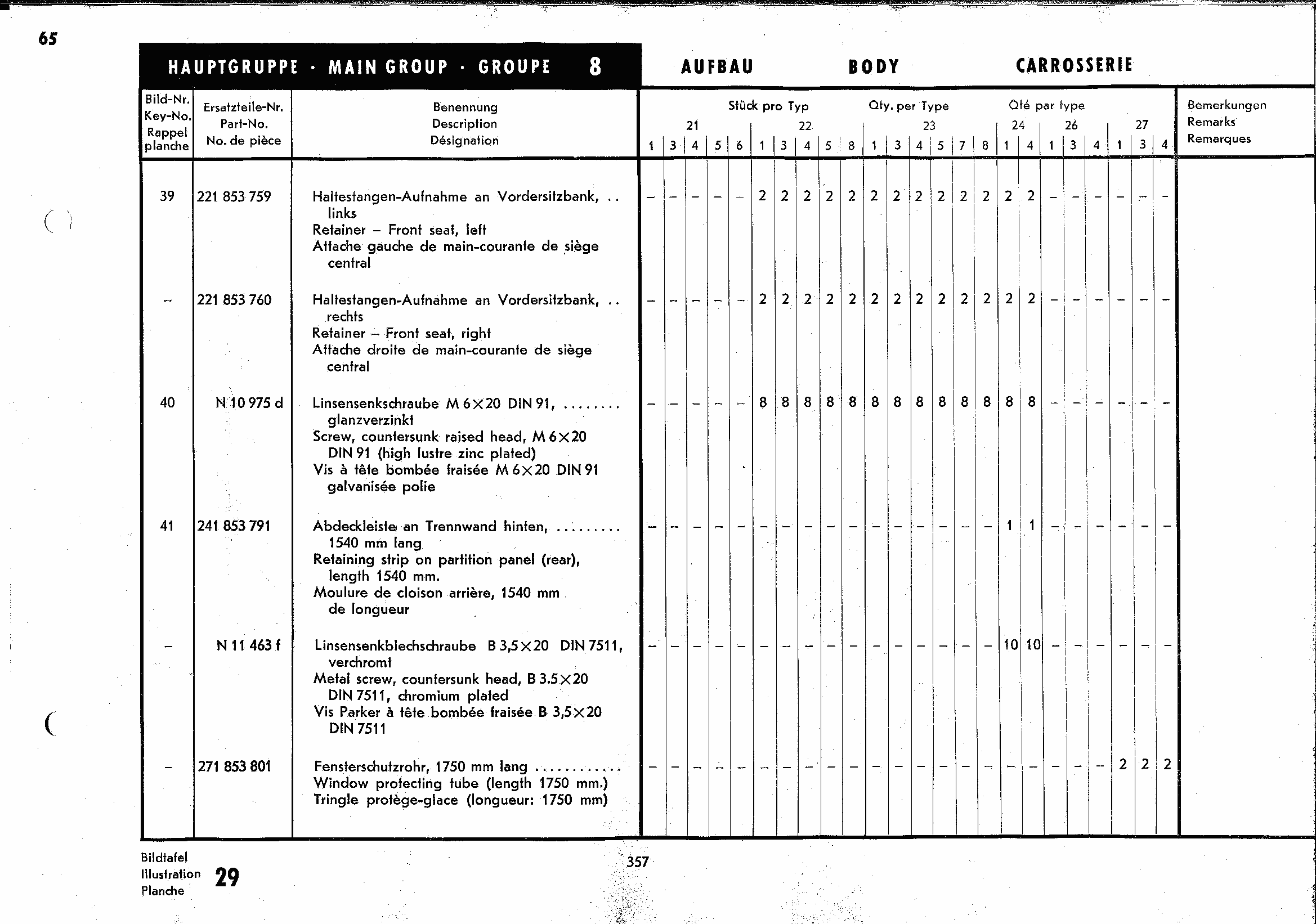

357 list Moulding- and protecting strips, handgrabs

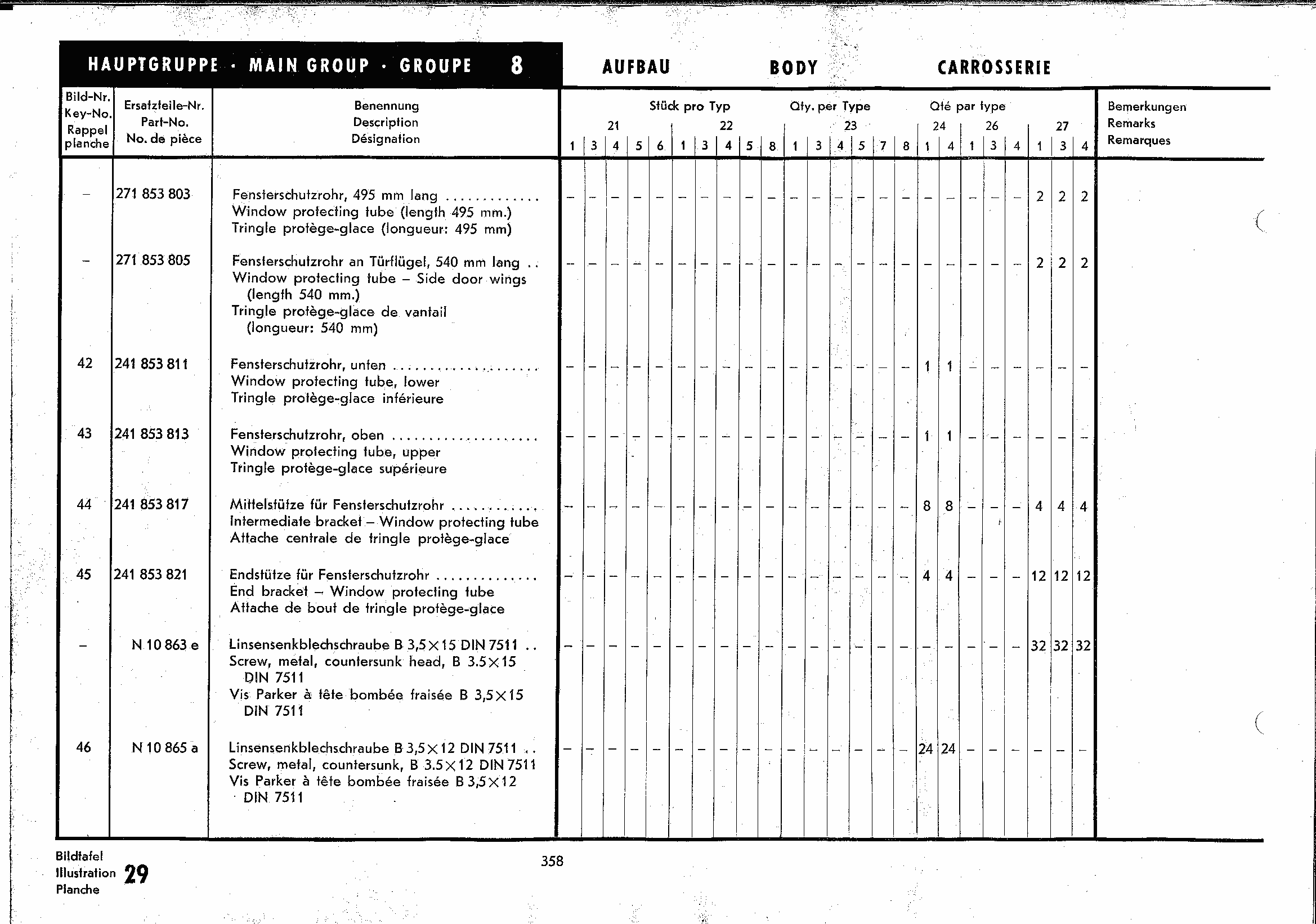

358 list Moulding- and protecting strips, handgrabs

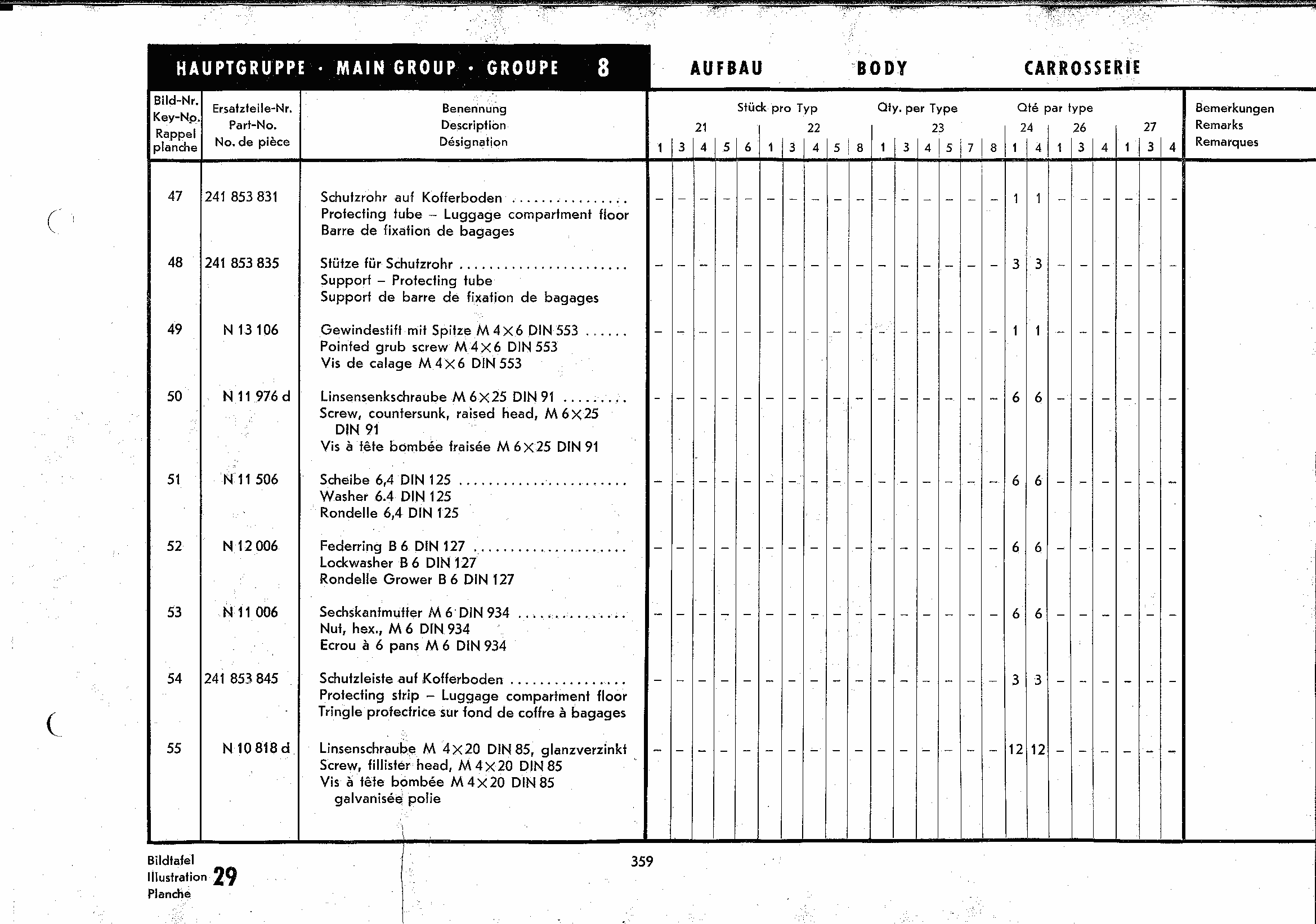

359 list Moulding- and protecting strips, handgrabs

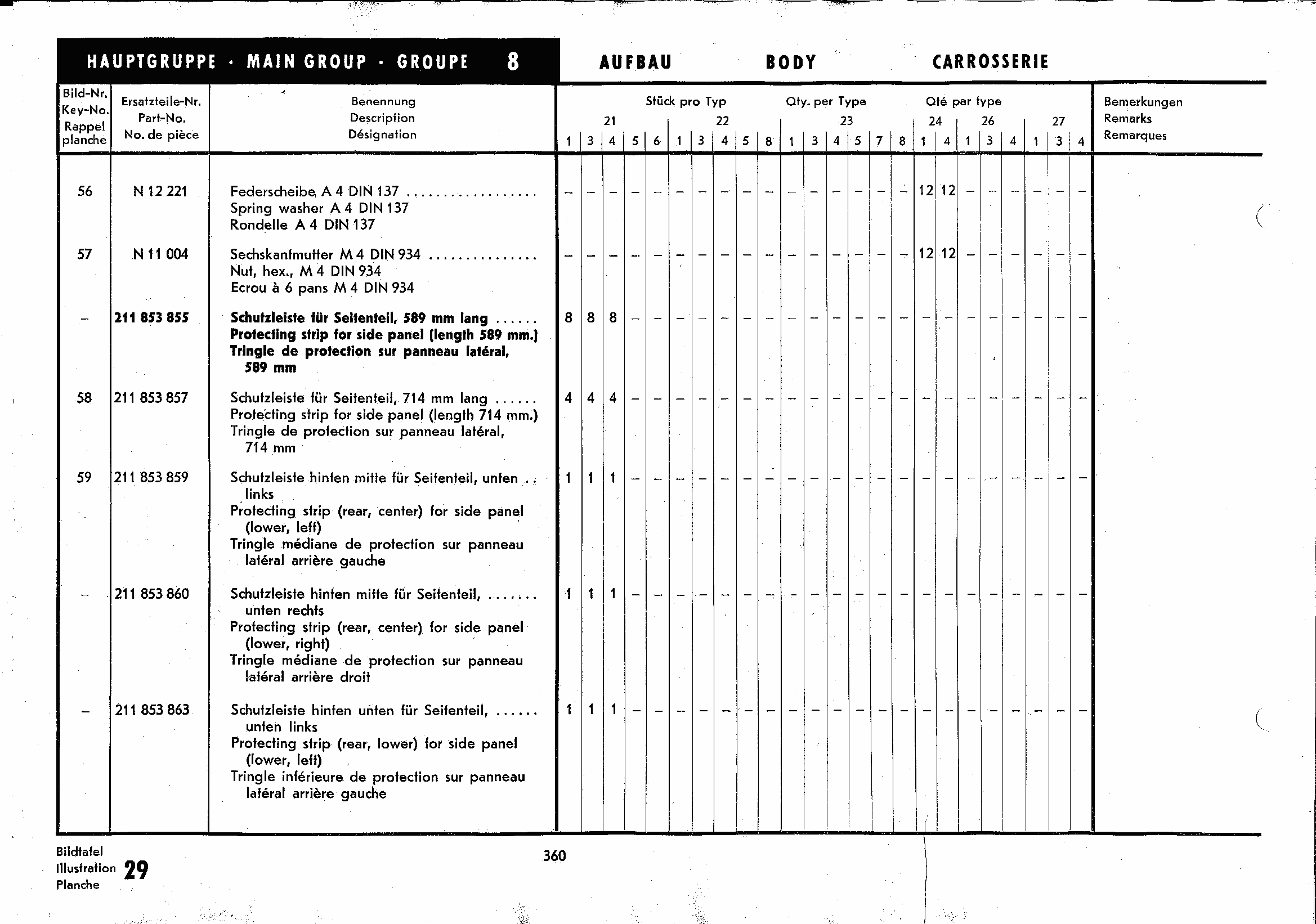

360 list Moulding- and protecting strips, handgrabs
361 list Moulding- and protecting strips, handgrabs; instrument board fittings and rear view mirror

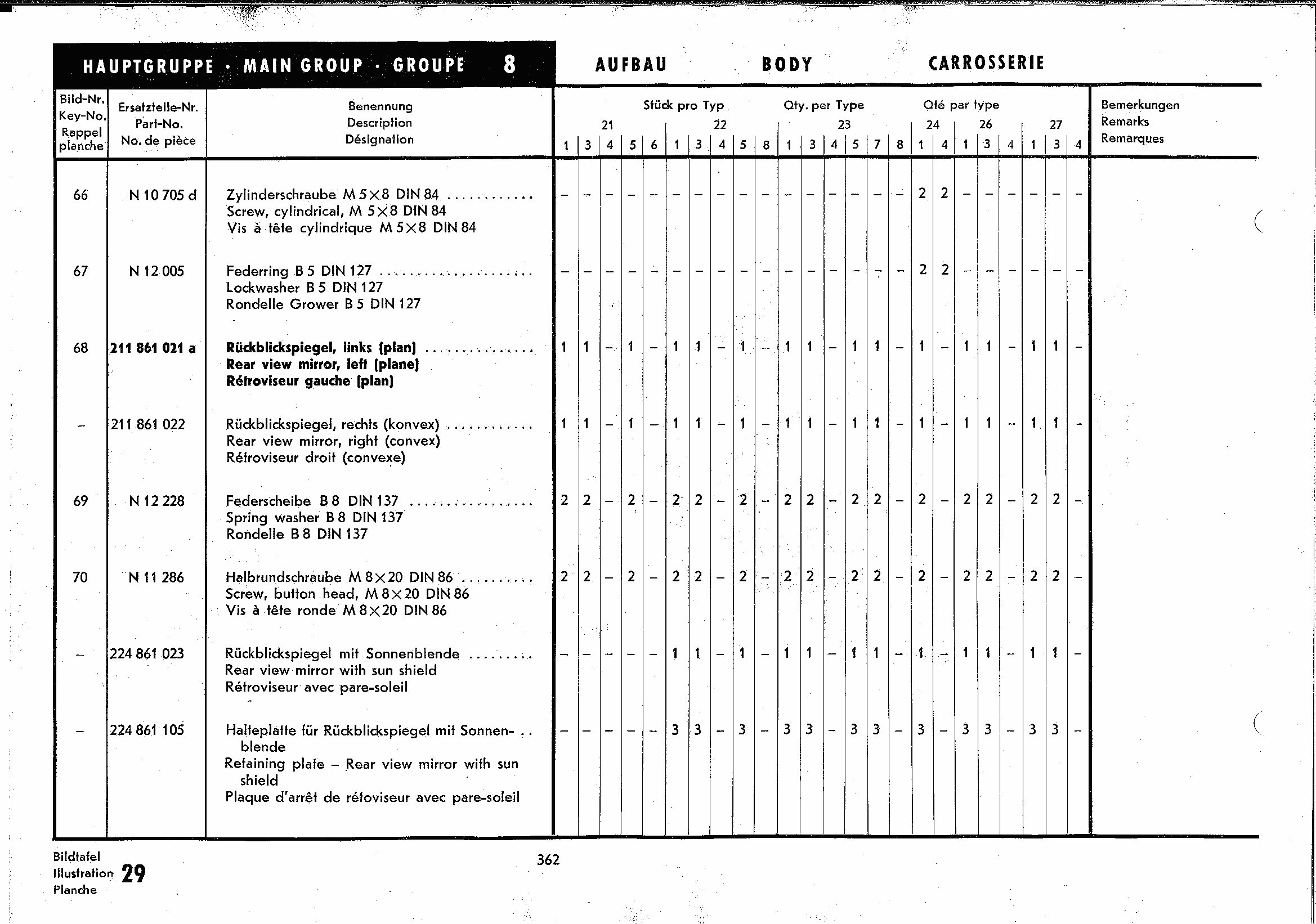

362 list Instrument board fittings and rear view mirror

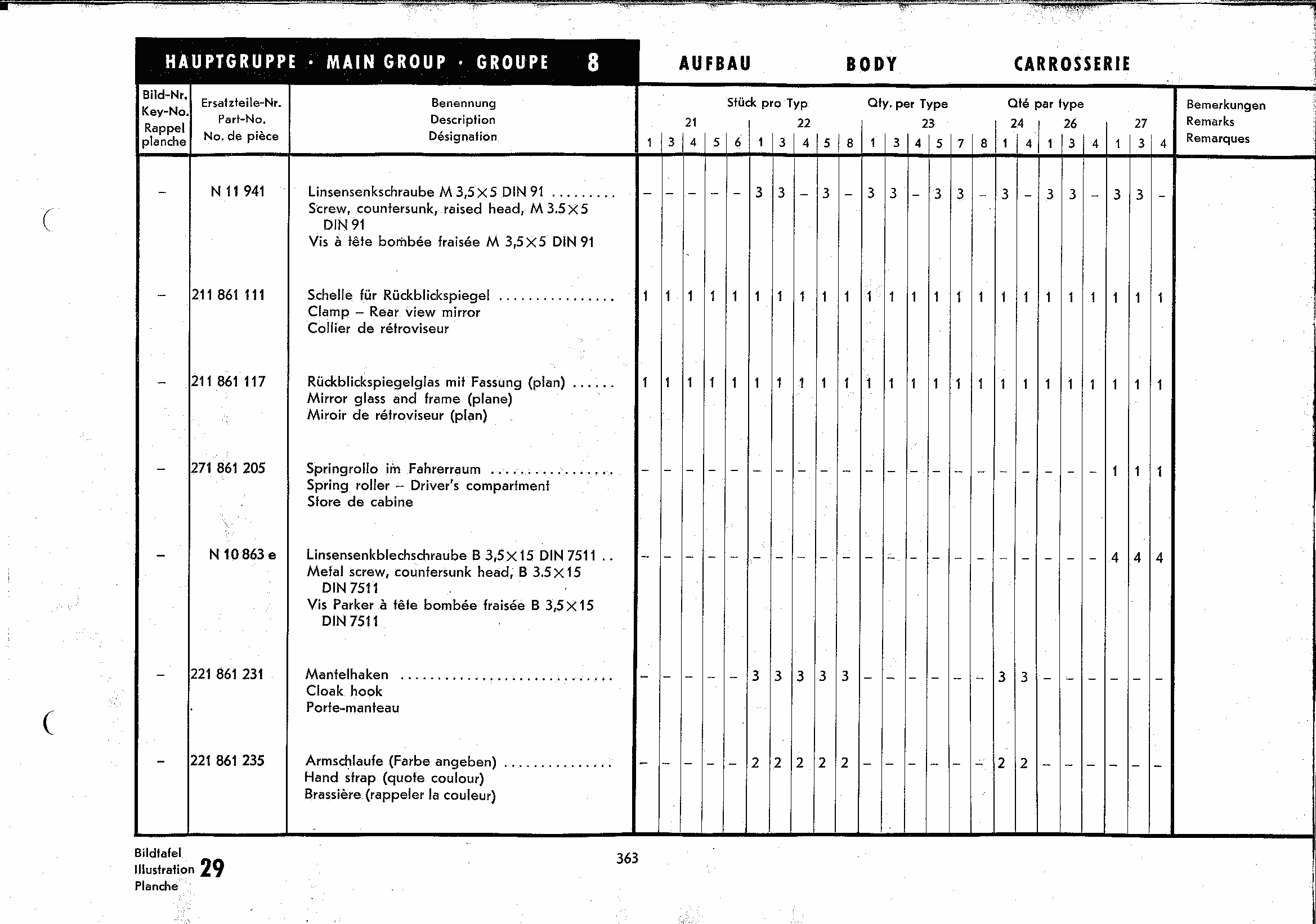

363 list Instrument board fittings and rear view mirror

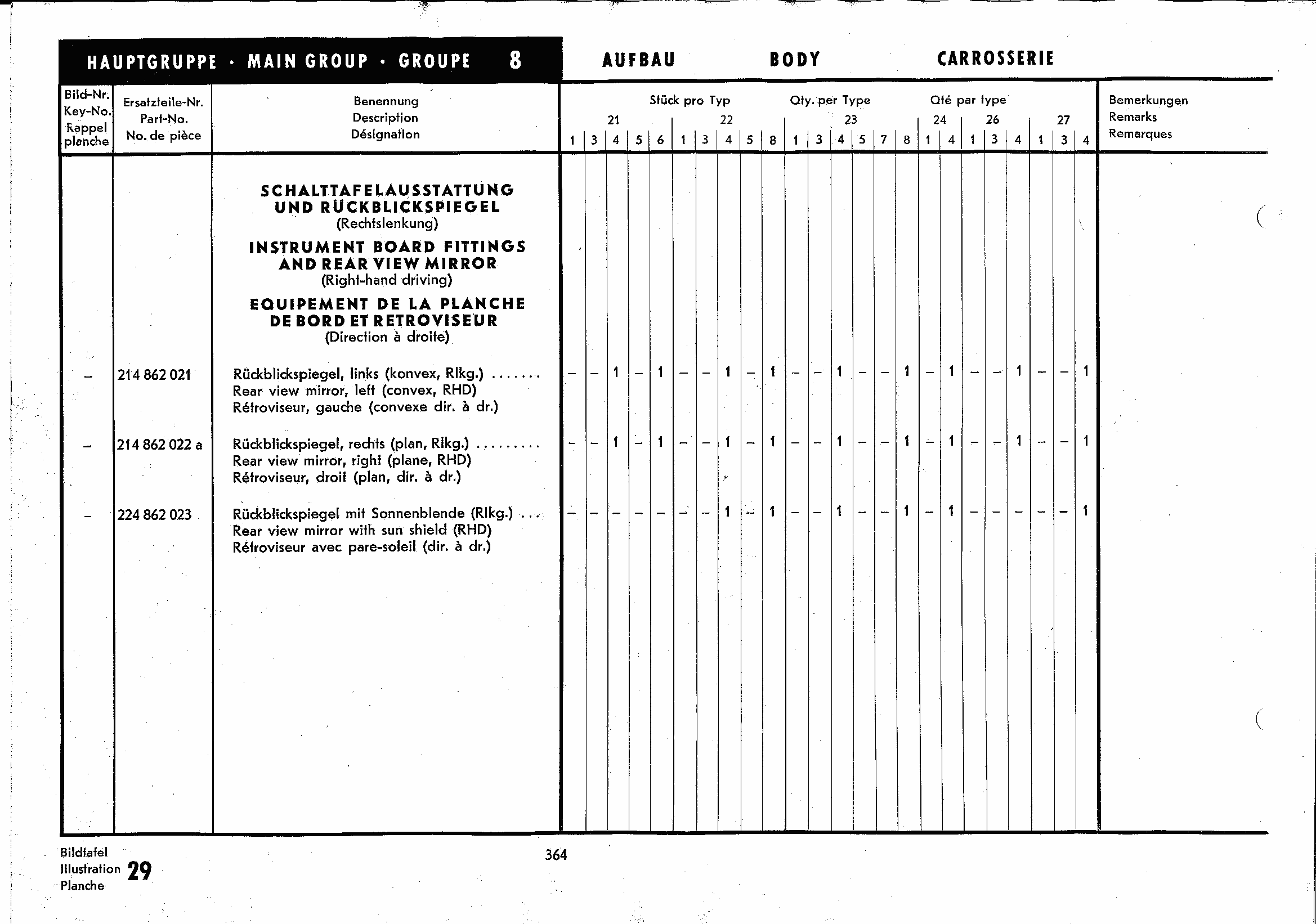

364 list RHD Instrument board fittings and rear view mirror
365 special Nur Original-VW-Ersatzteile sind auf ihre Werkstoff-Qualitaet geprueft

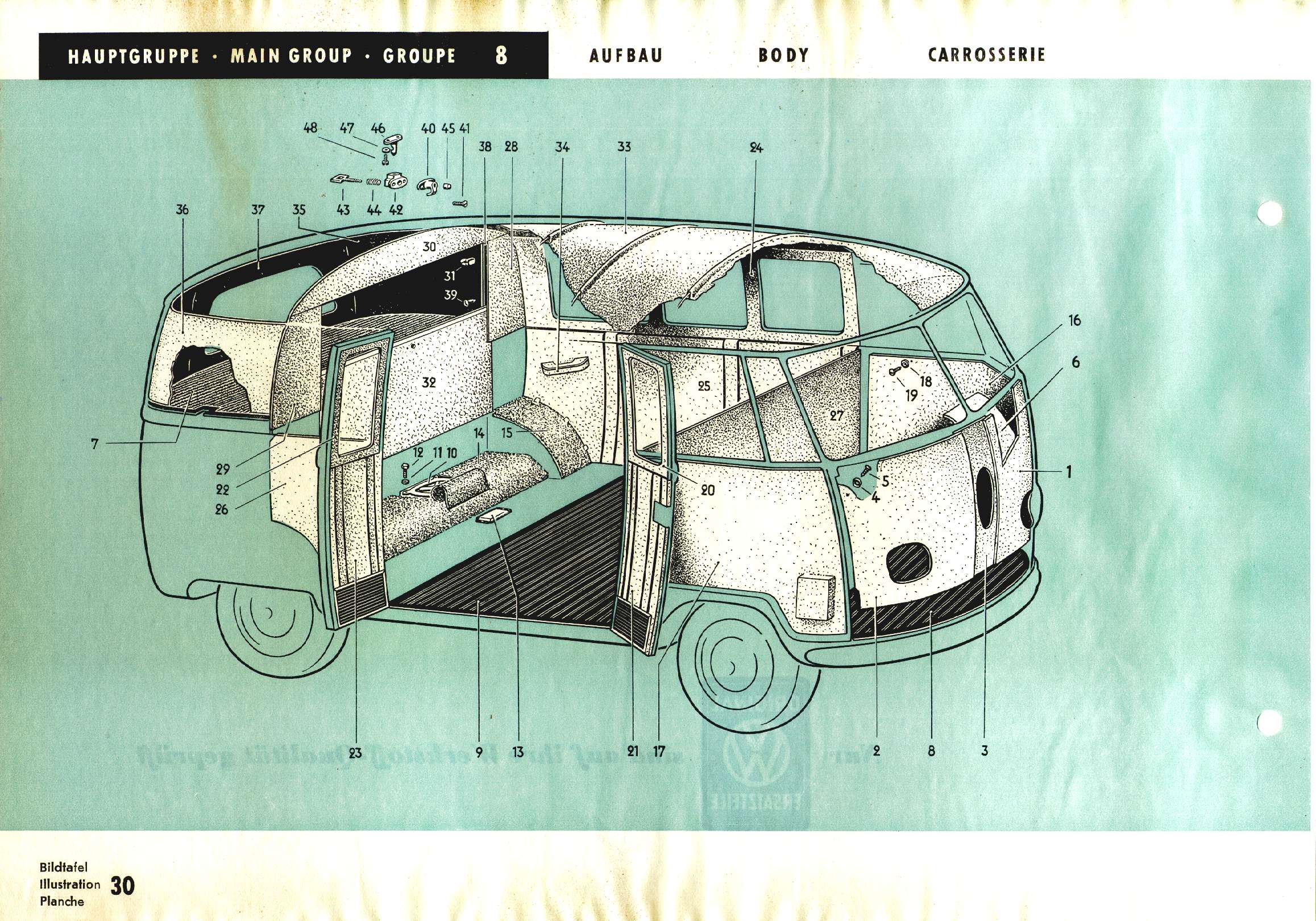

366 diagram Trimmings

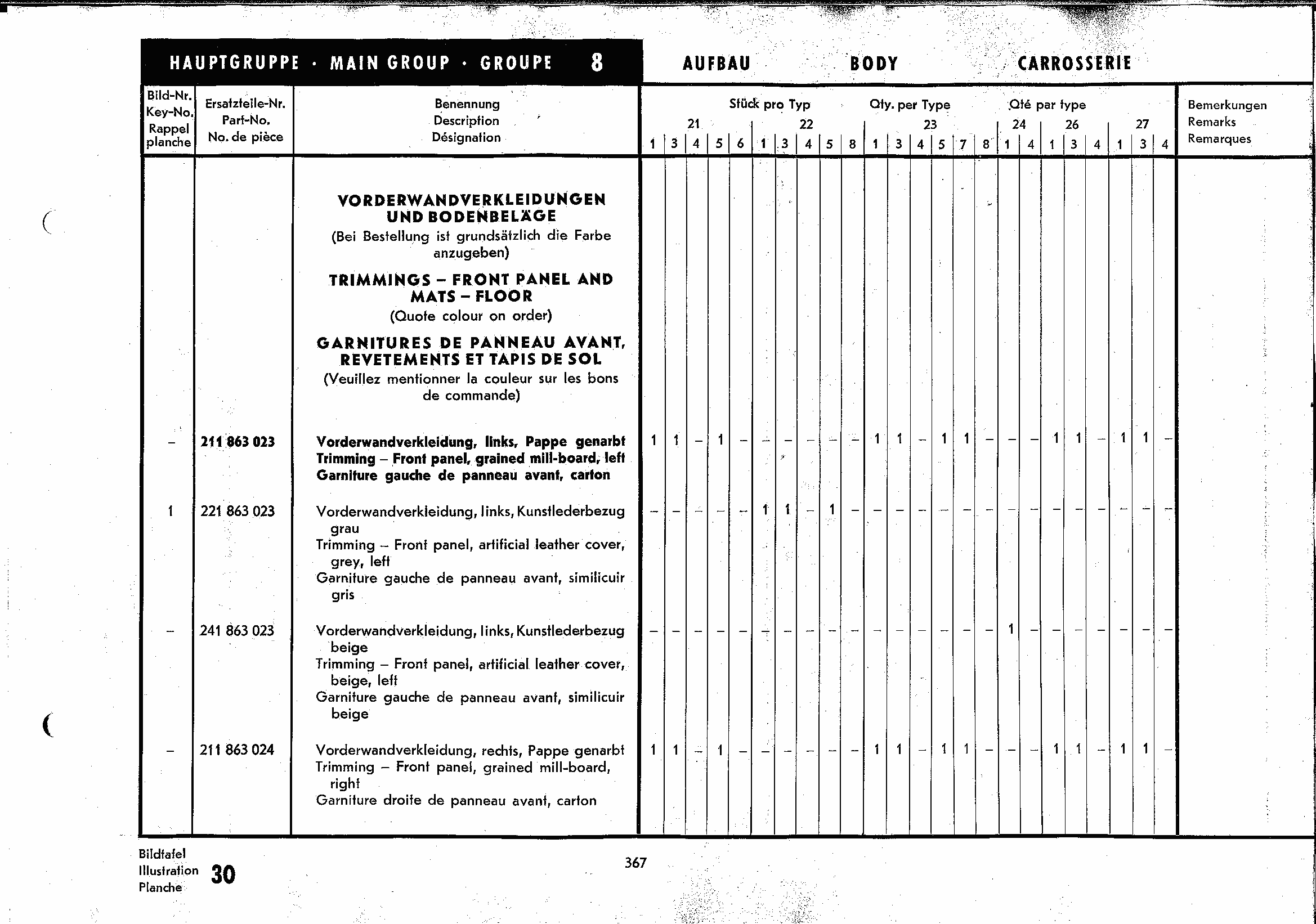

367 list Trimmings-front panel and floor mats

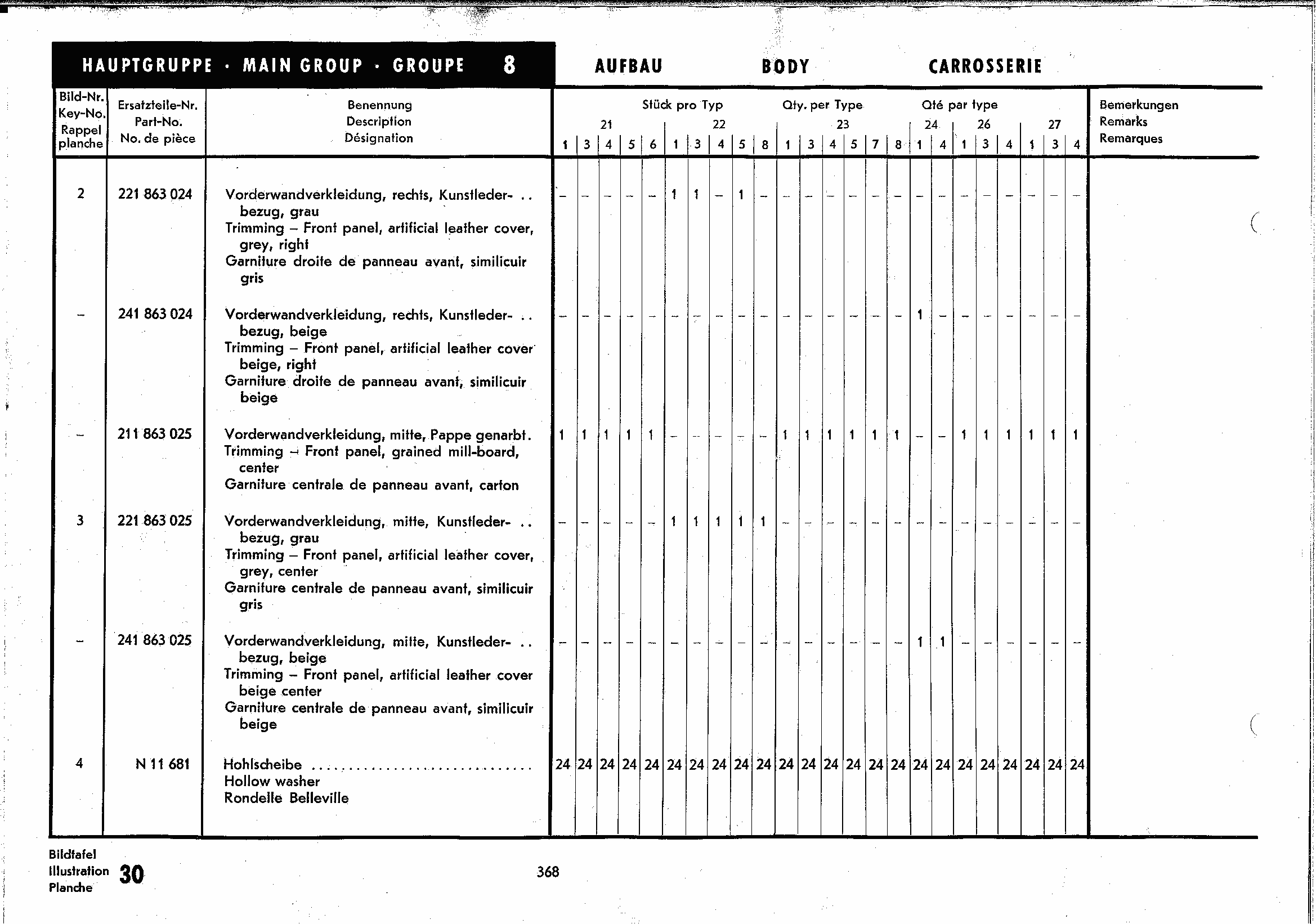

368 list Trimmings-front panel and floor mats

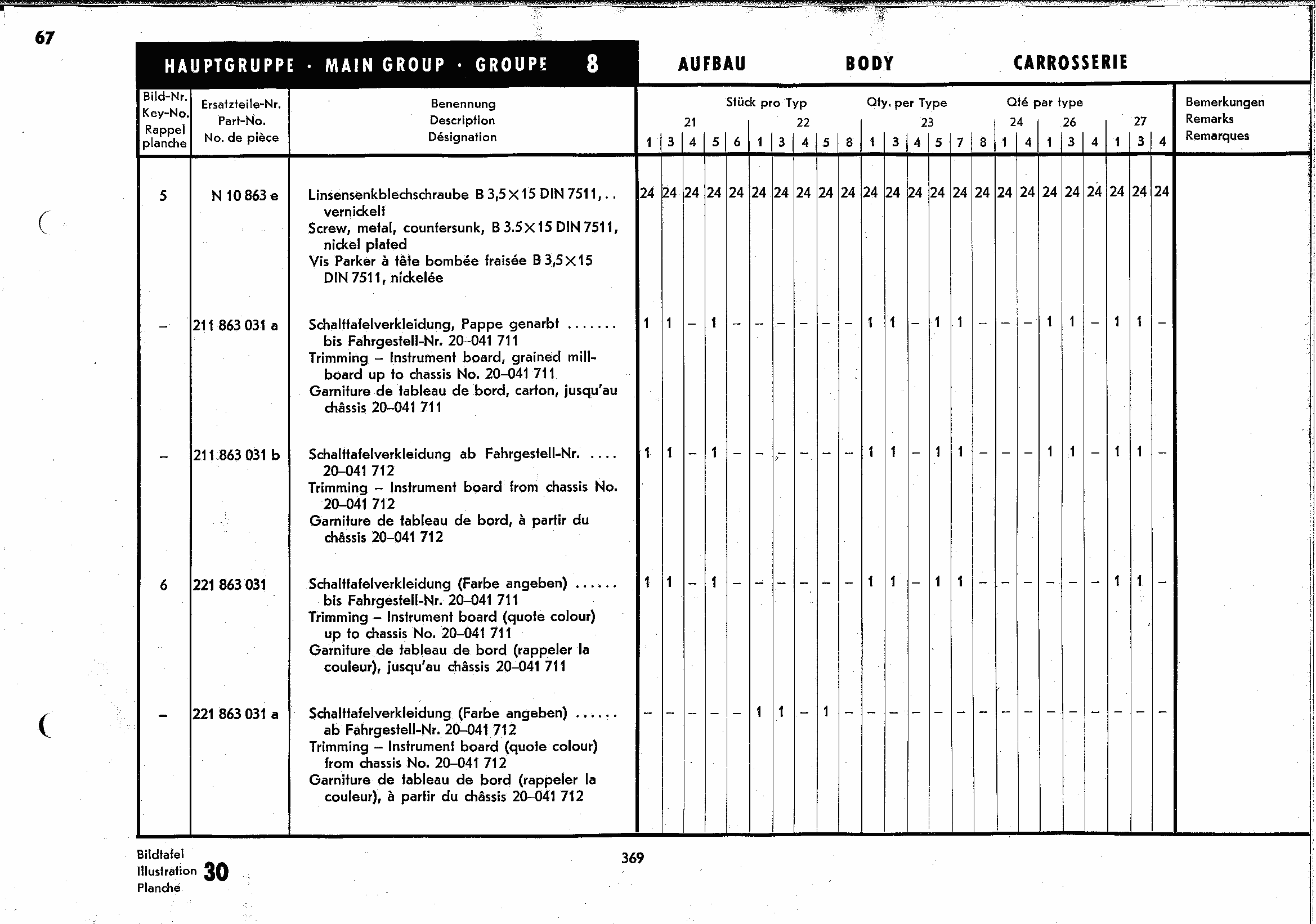

369 list Trimmings-front panel and floor mats

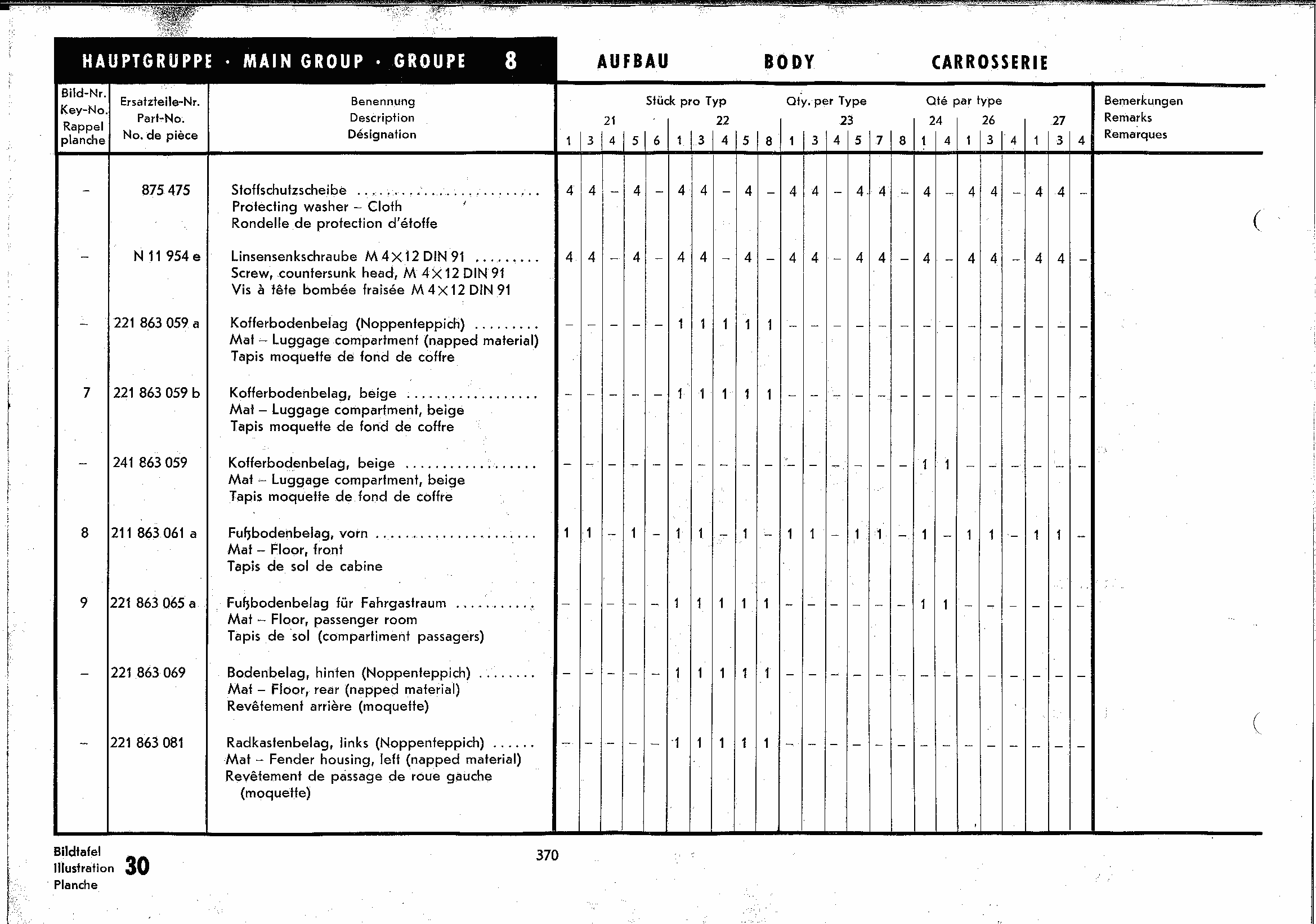

370 list Trimmings-front panel and floor mats

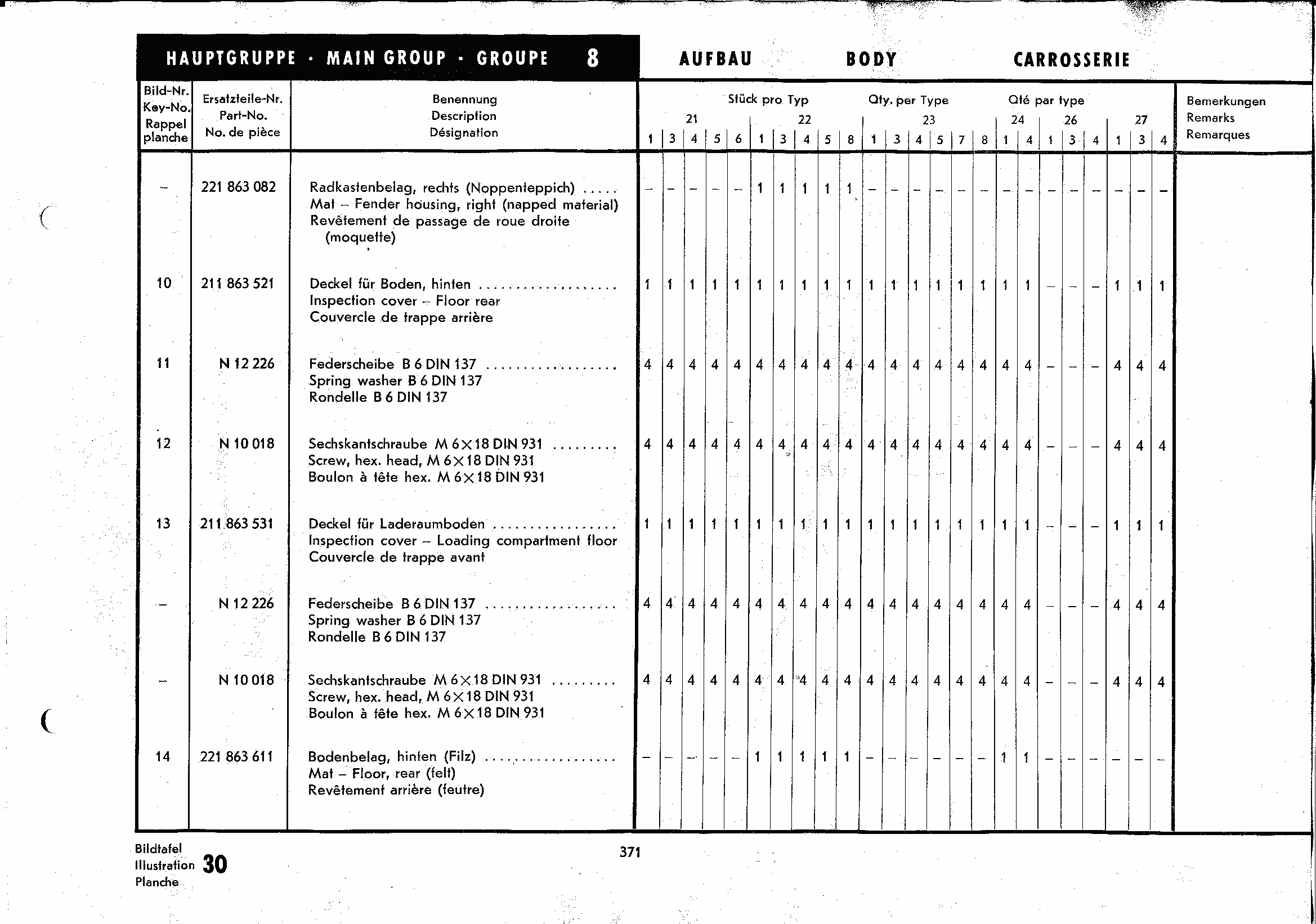

371 list Trimmings-front panel and floor mats

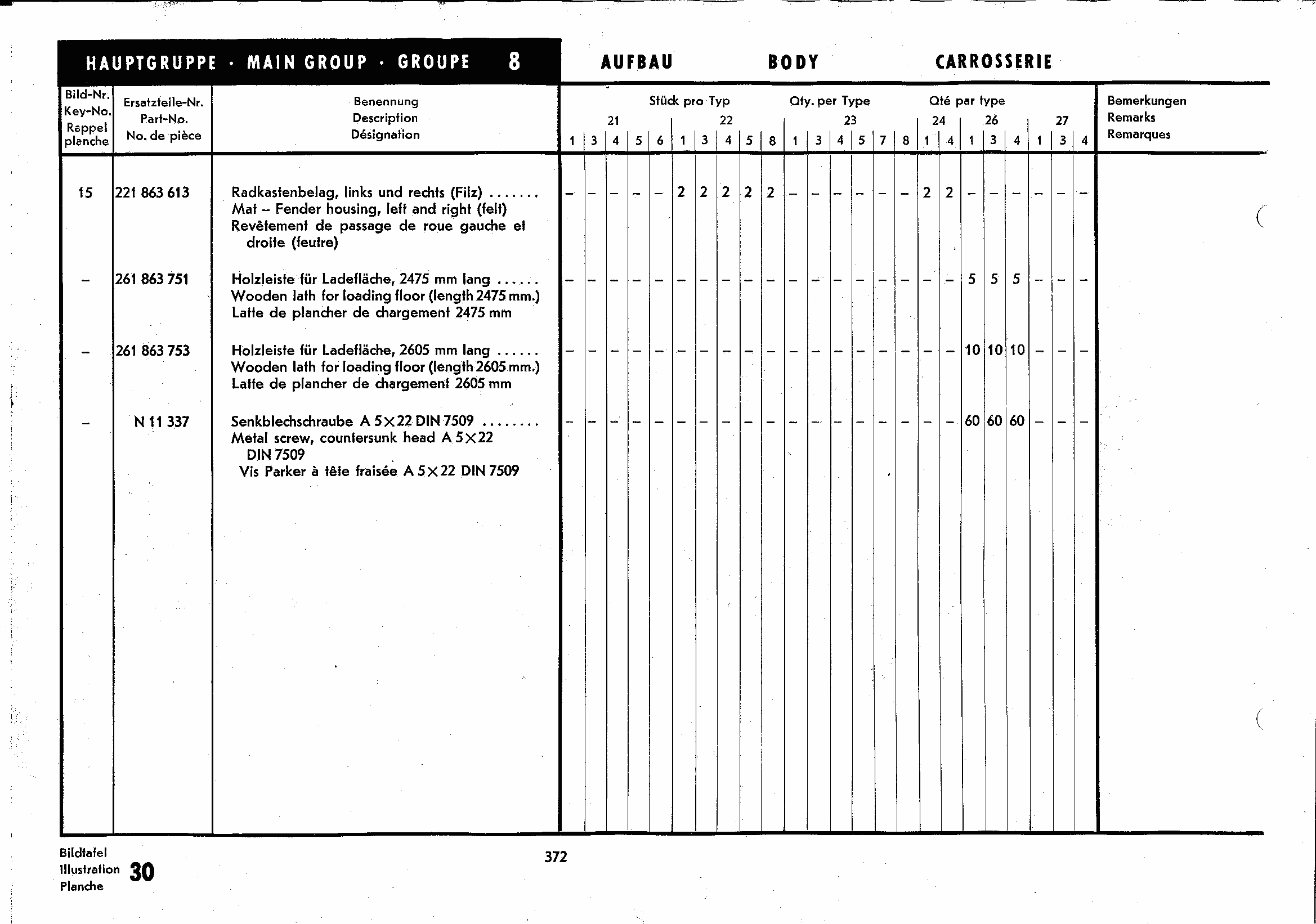

372 list Trimmings-front panel and floor mats
373 list RHD Trimmings-front panel and floor mats

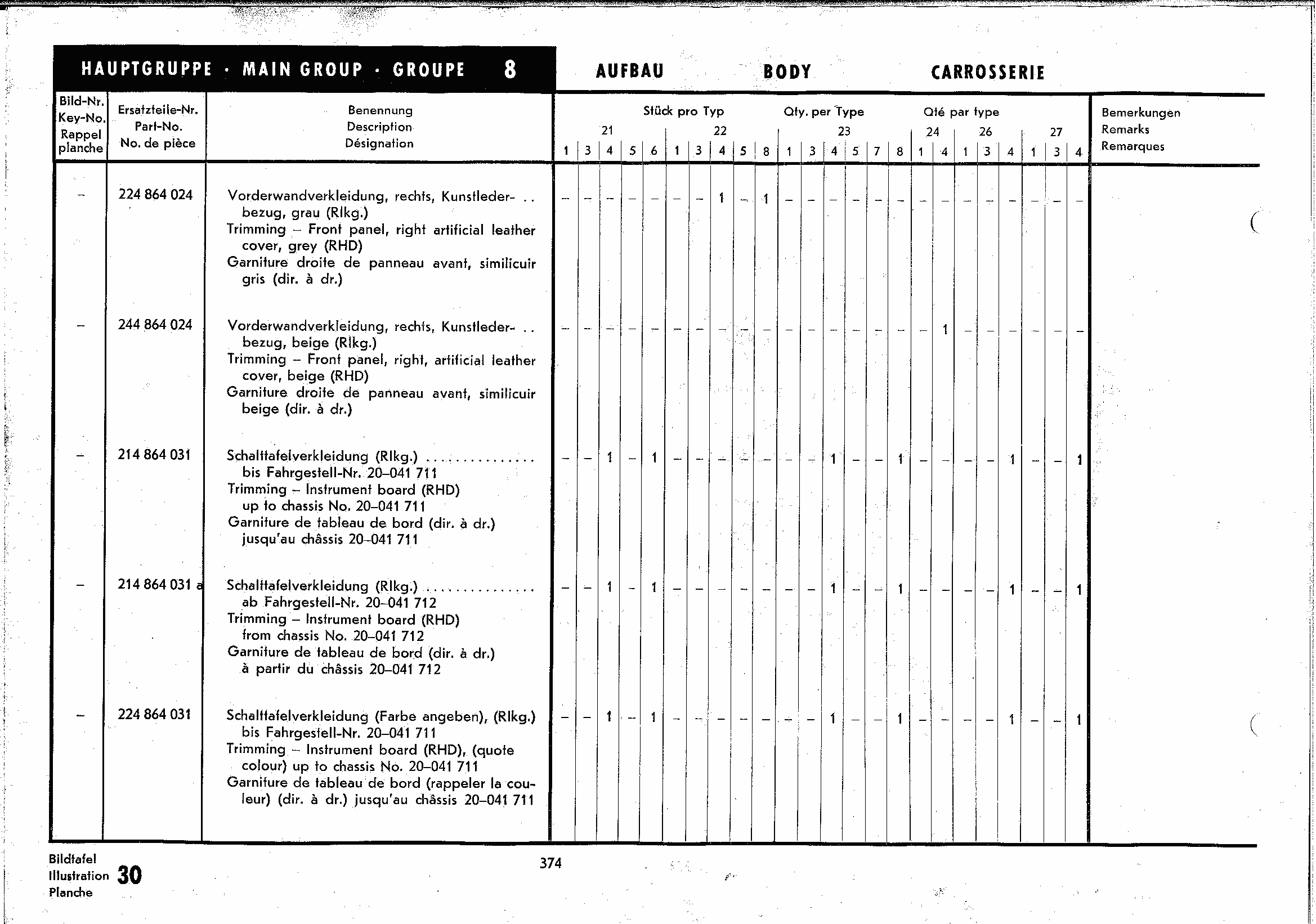

374 list RHD Trimmings-front panel and floor mats

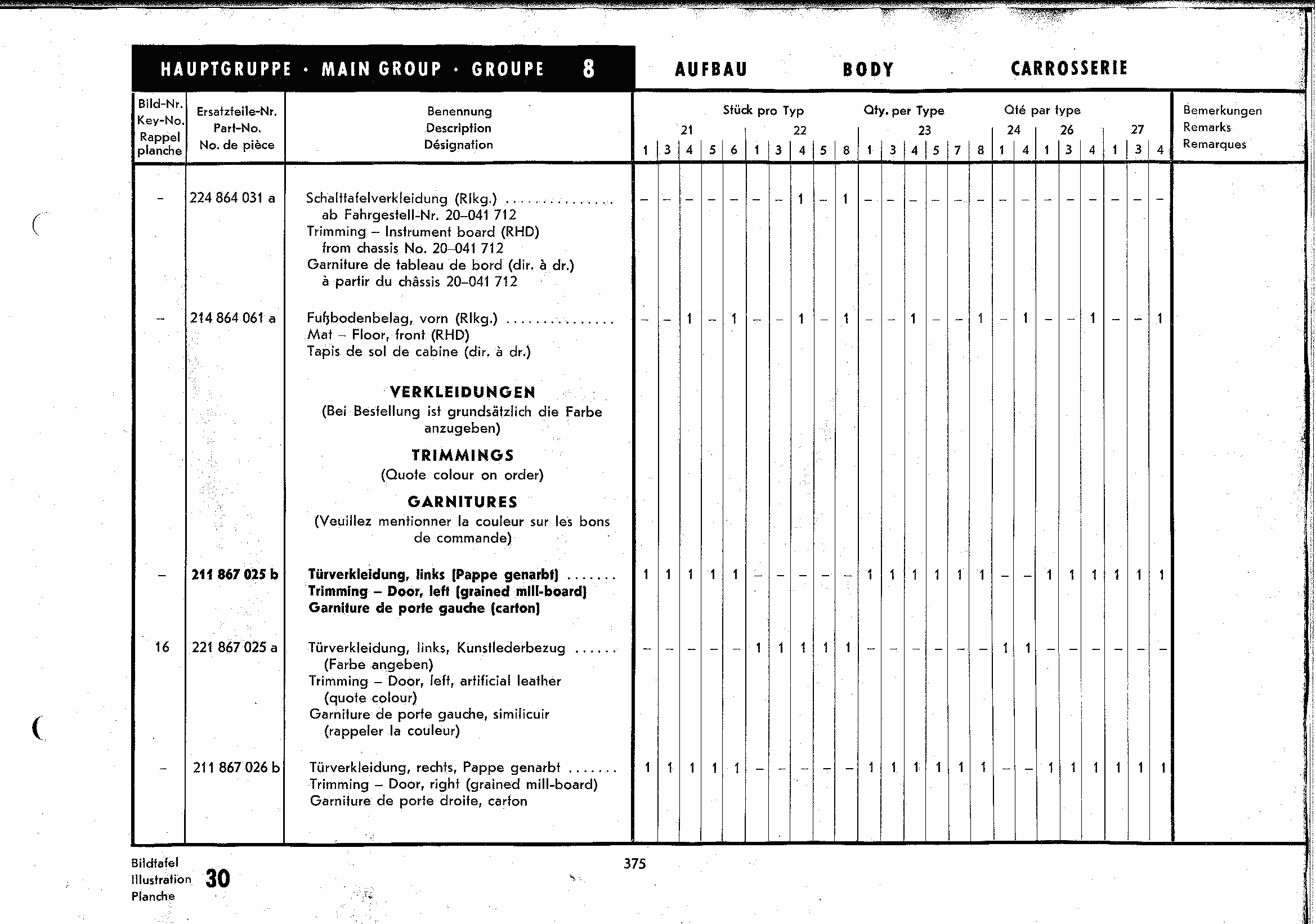

375 list RHD Trimmings-front panel and floor mats; trimmings
376 list Trimmings

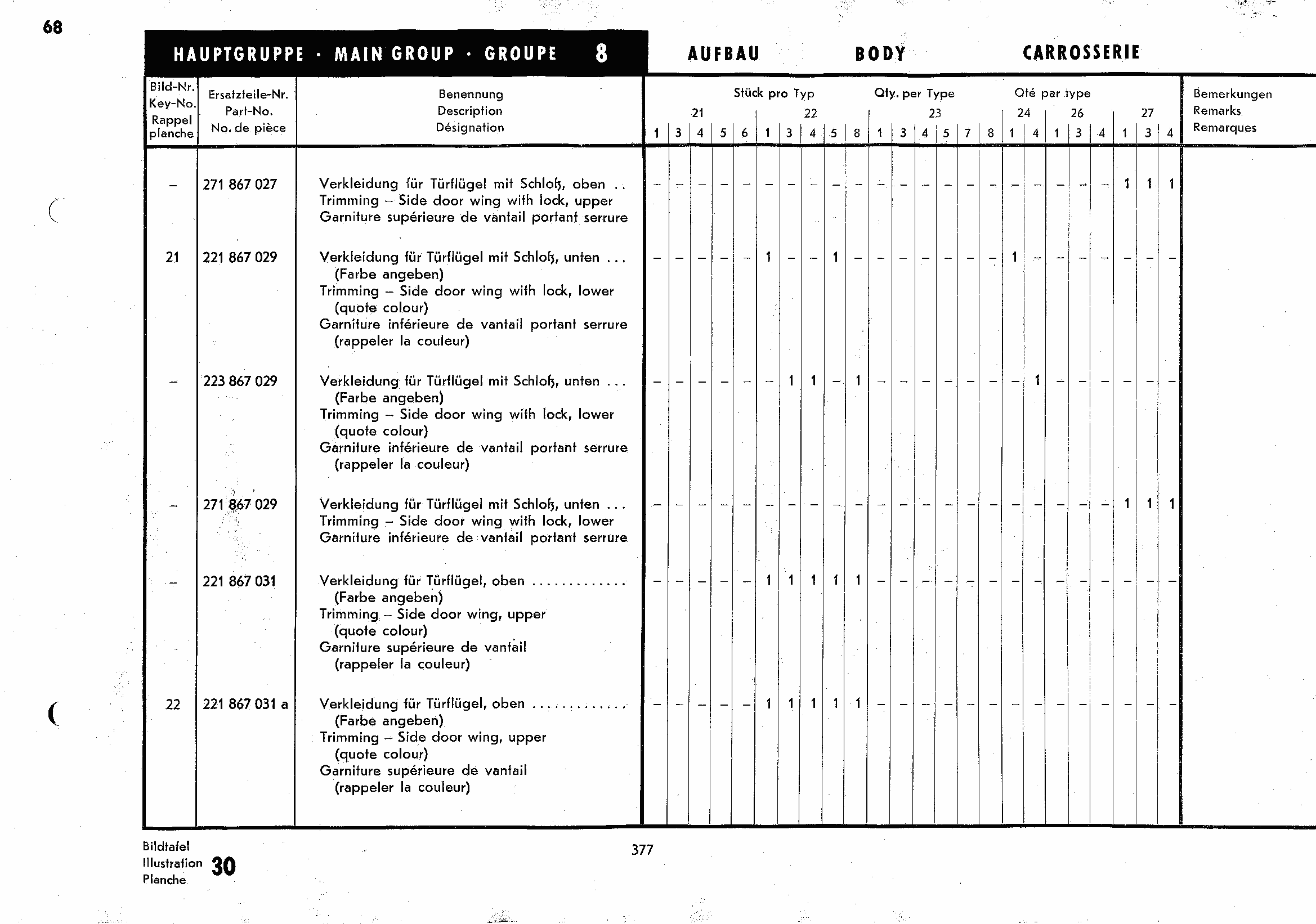

377 list Trimmings

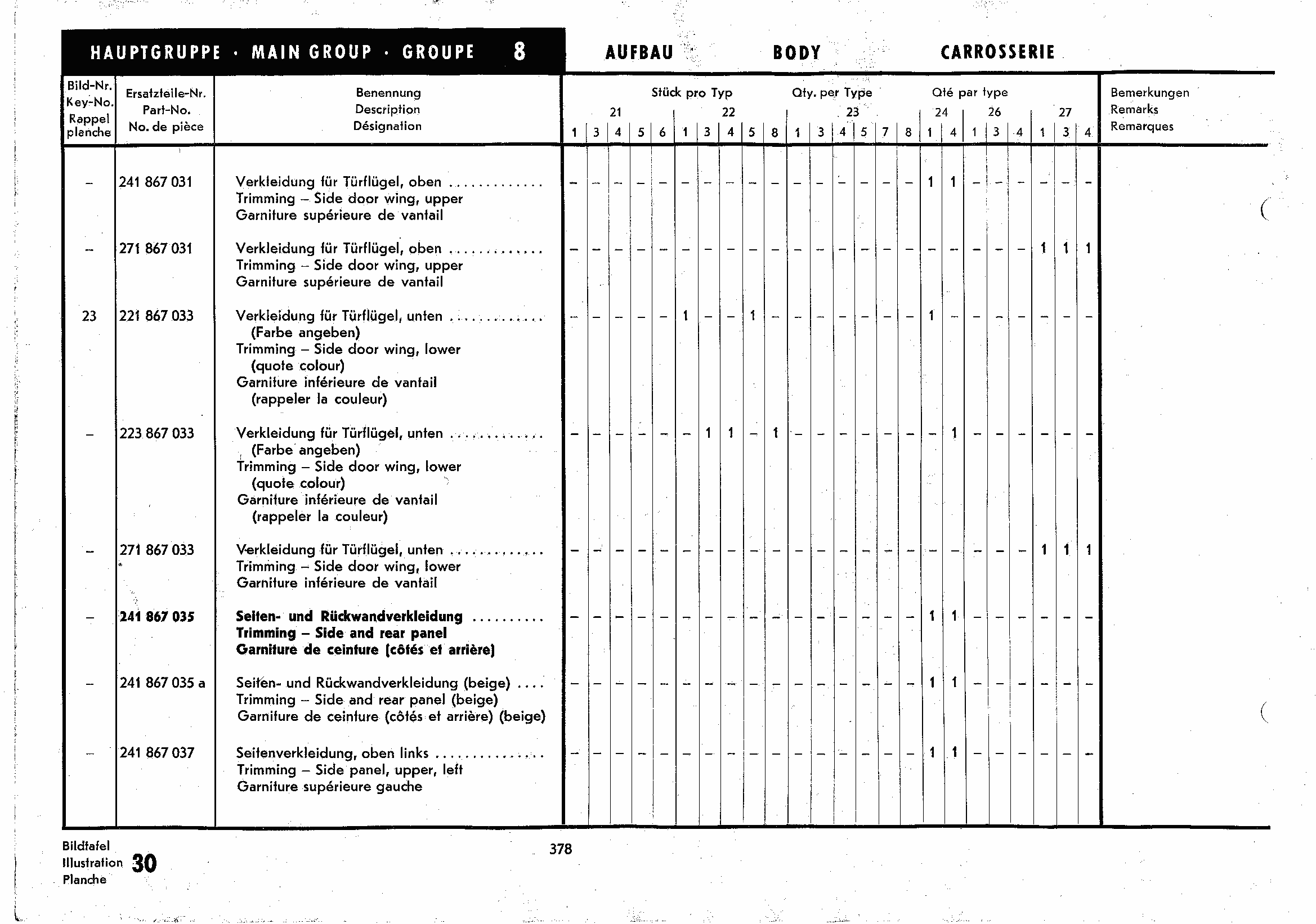

378 list Trimmings
379 list Trimmings

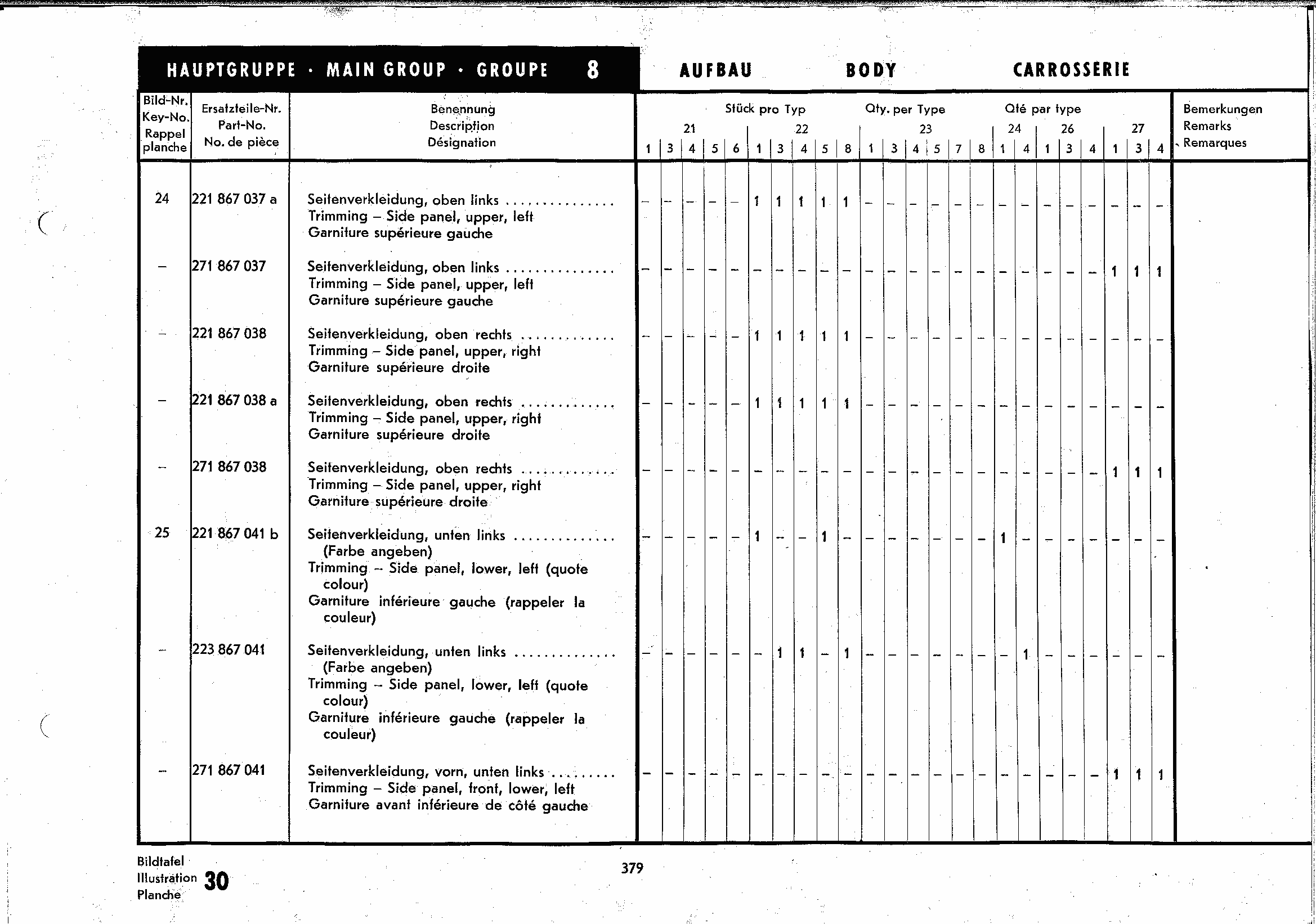

380 list Trimmings

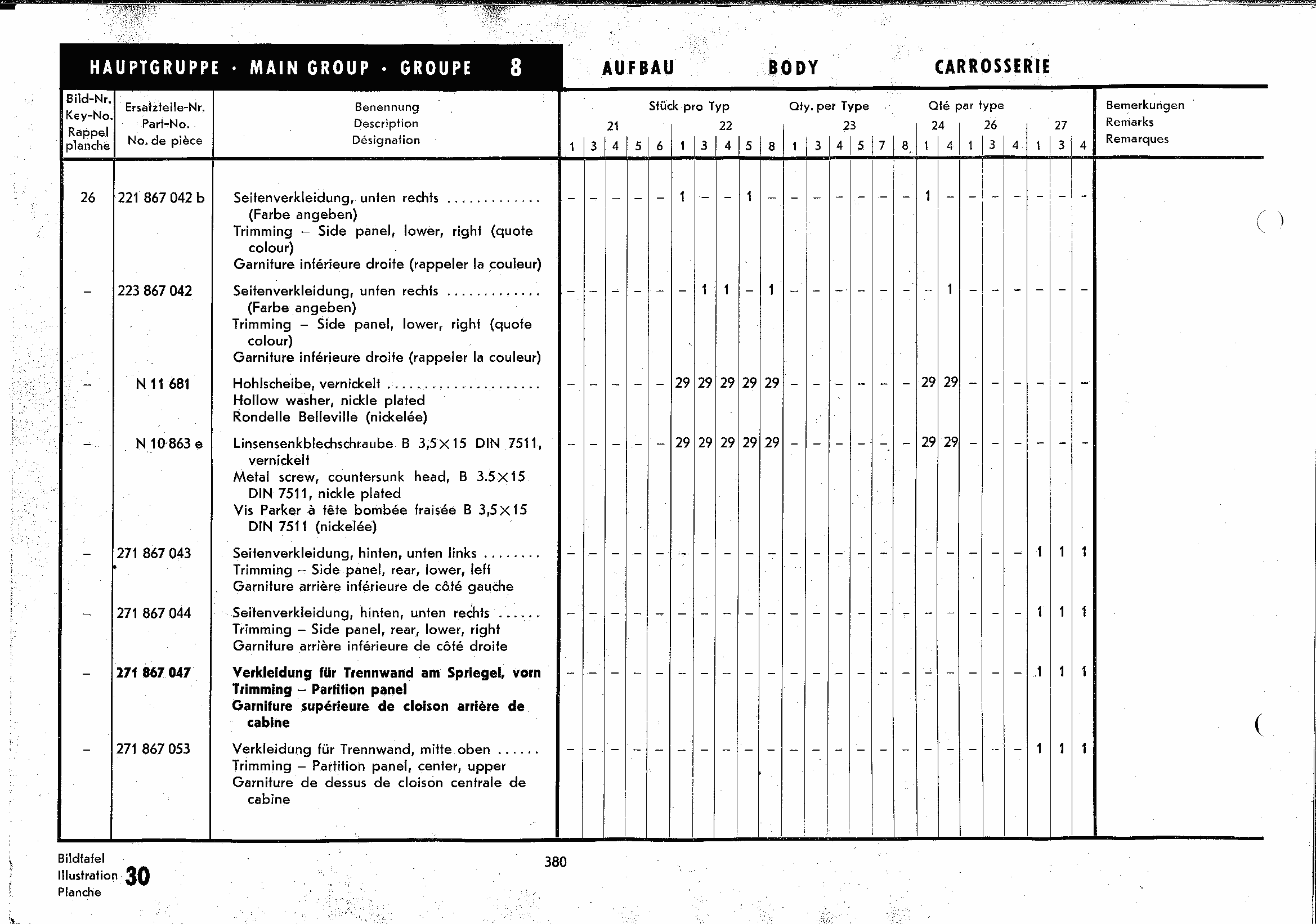

381 list Trimmings

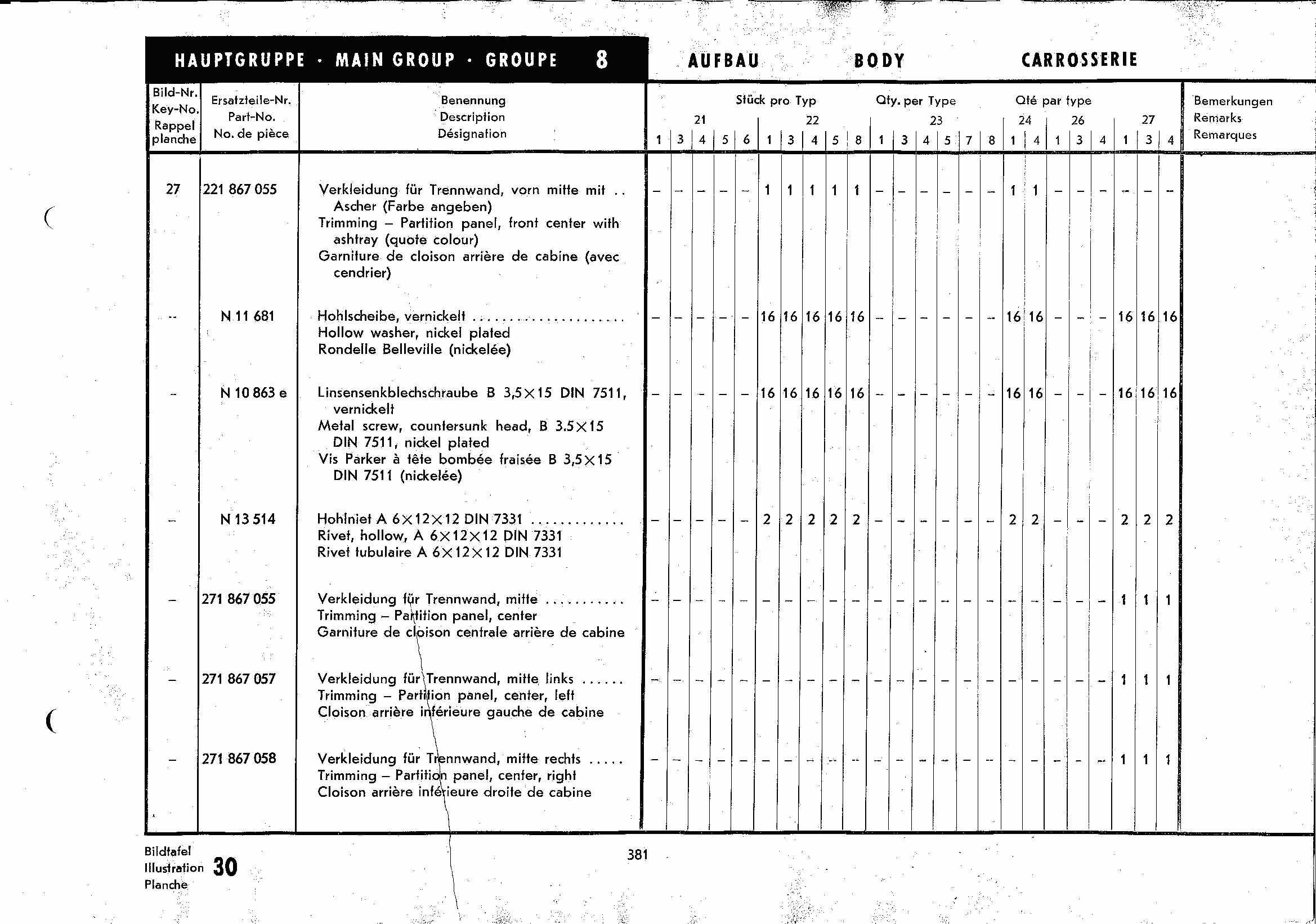

382 list Trimmings
383 list Trimmings
384 list Trimmings
385 list Trimmings

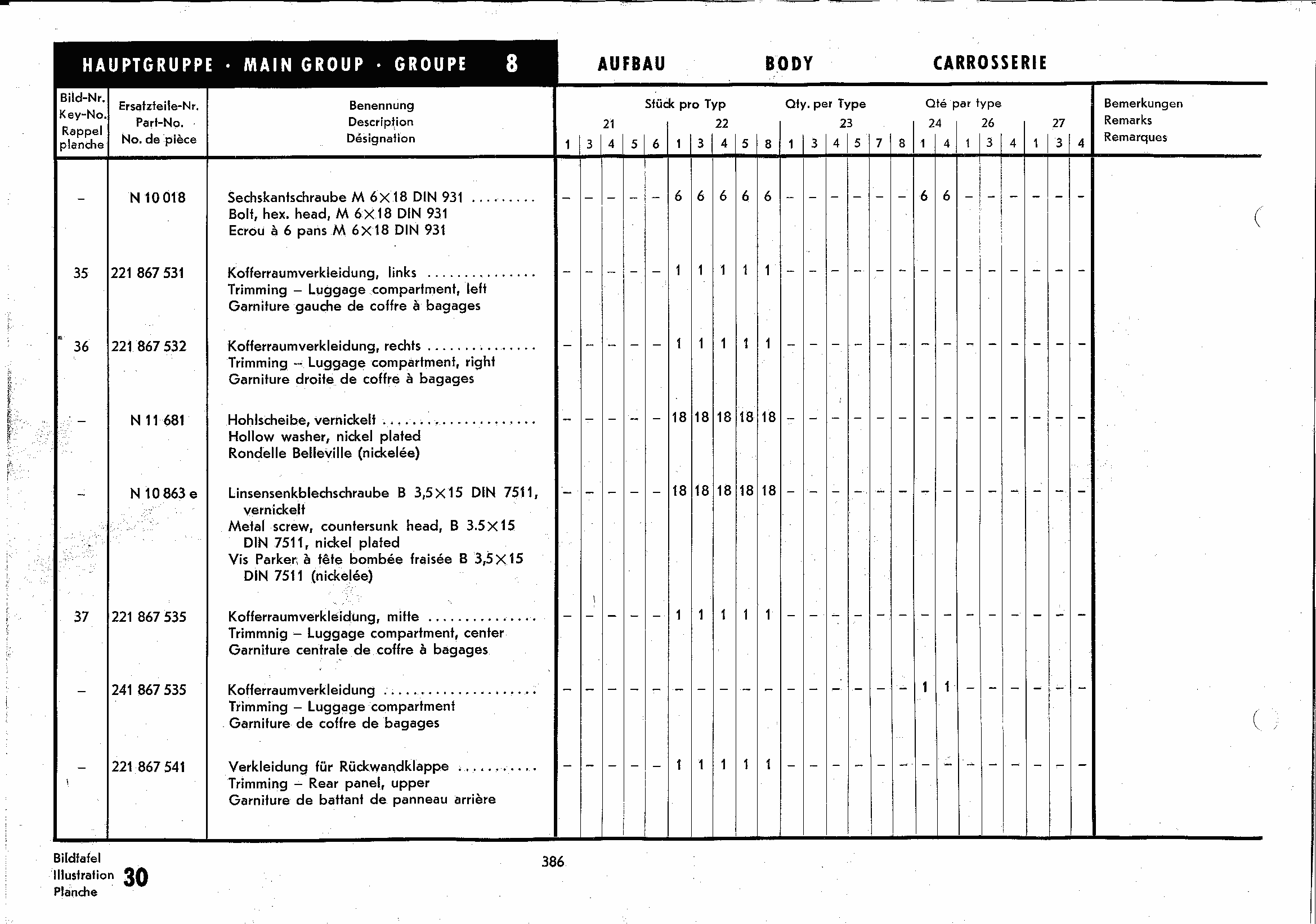

386 list Trimmings

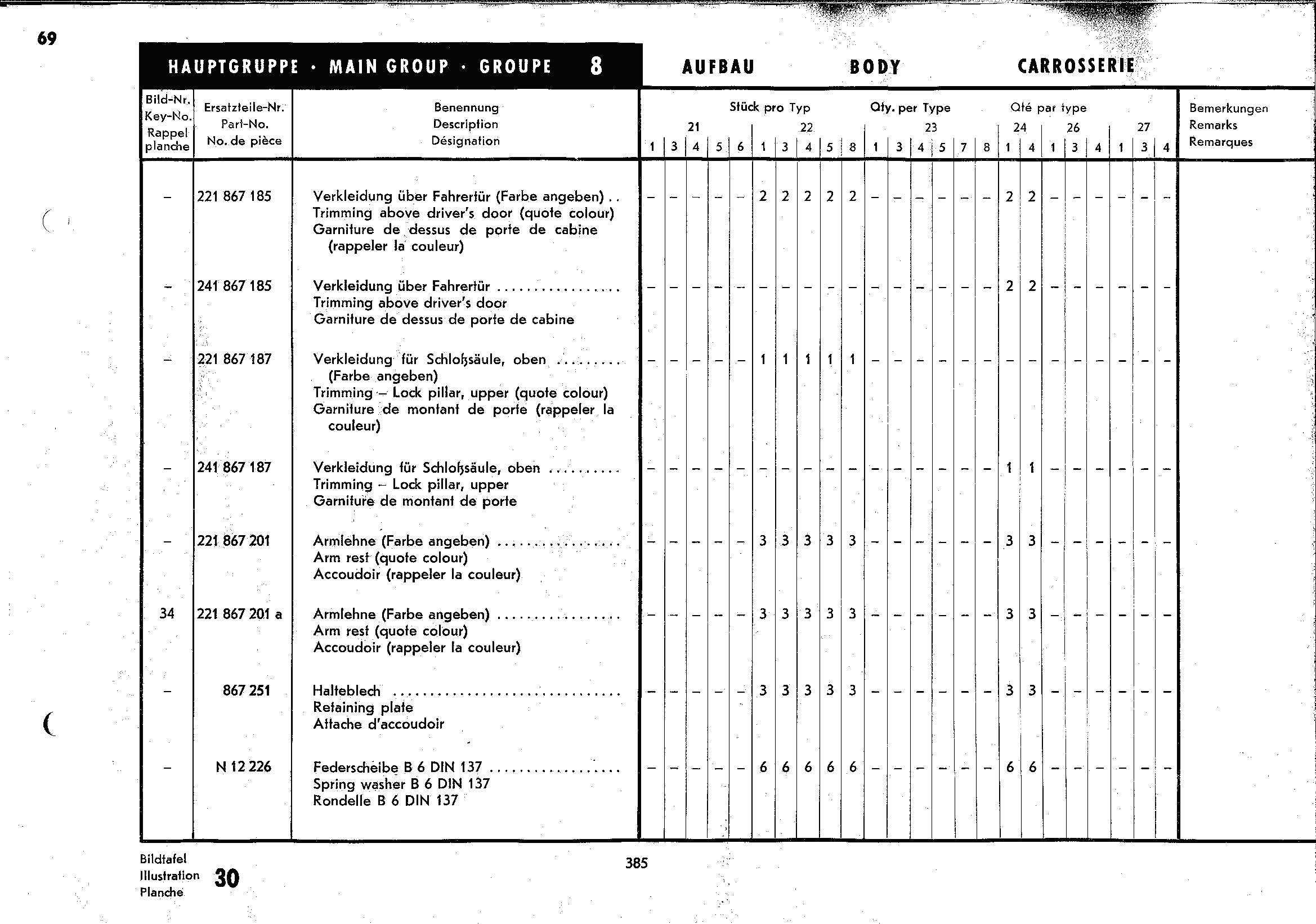

387 list Trimmings

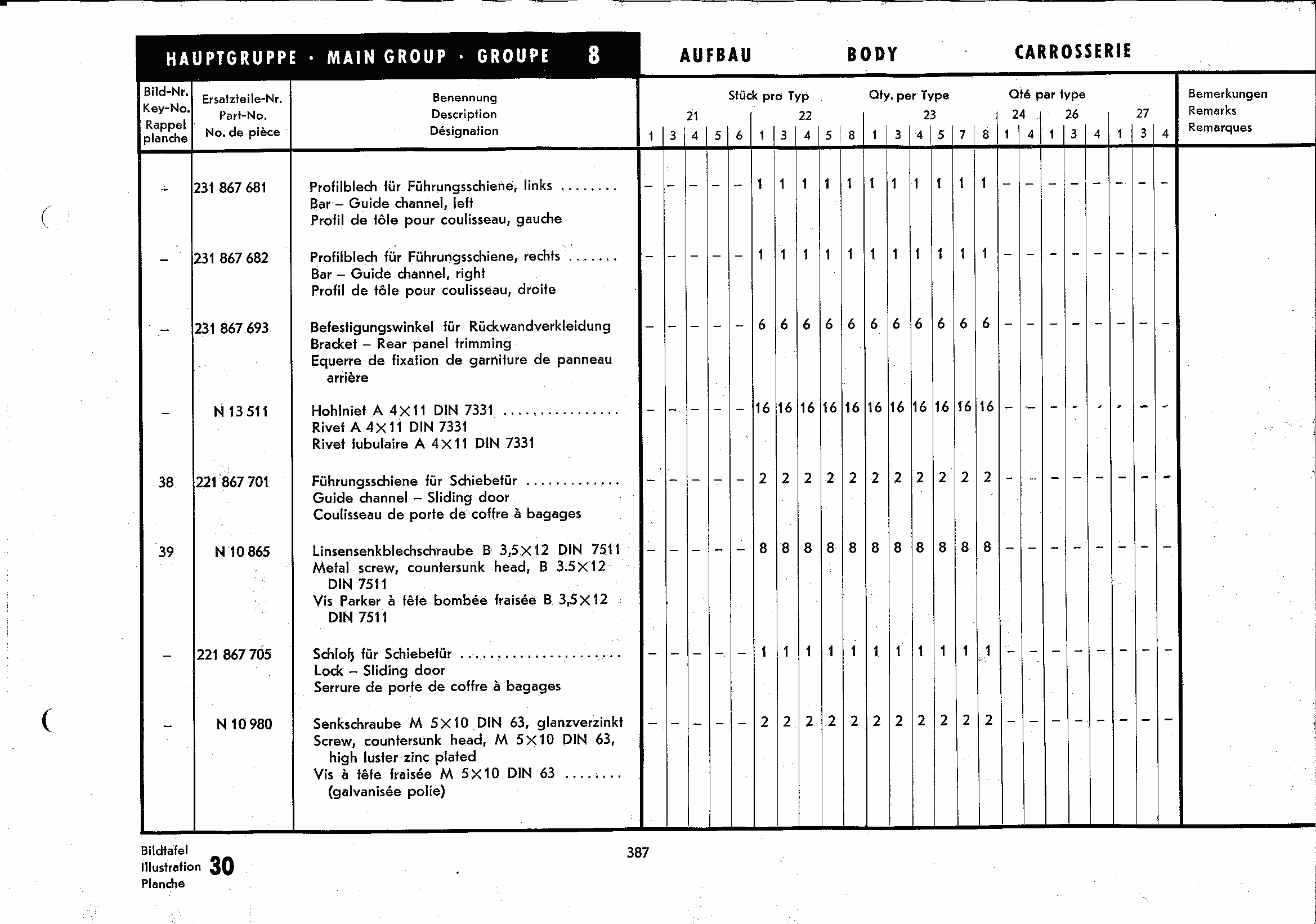

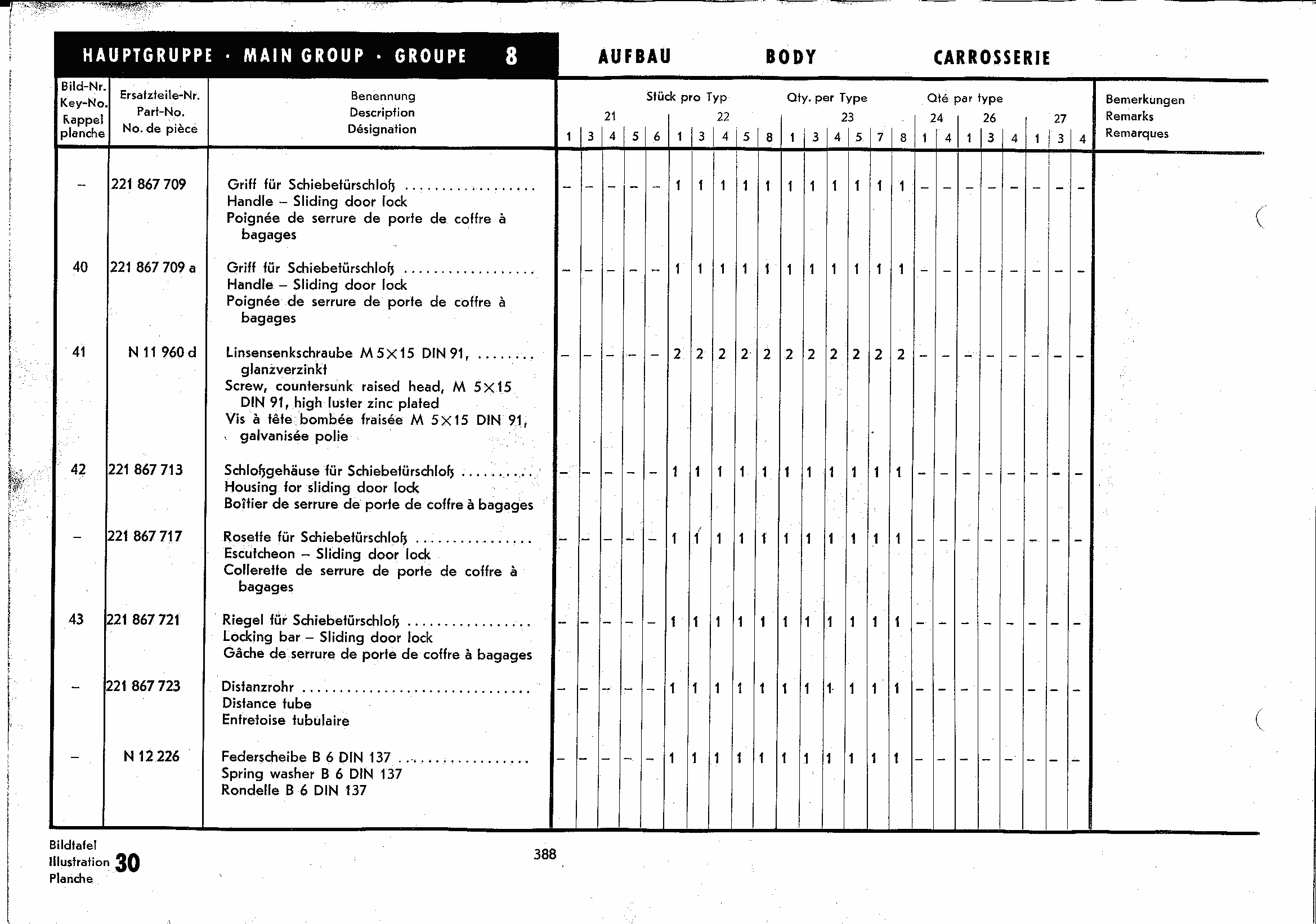

388 list Trimmings

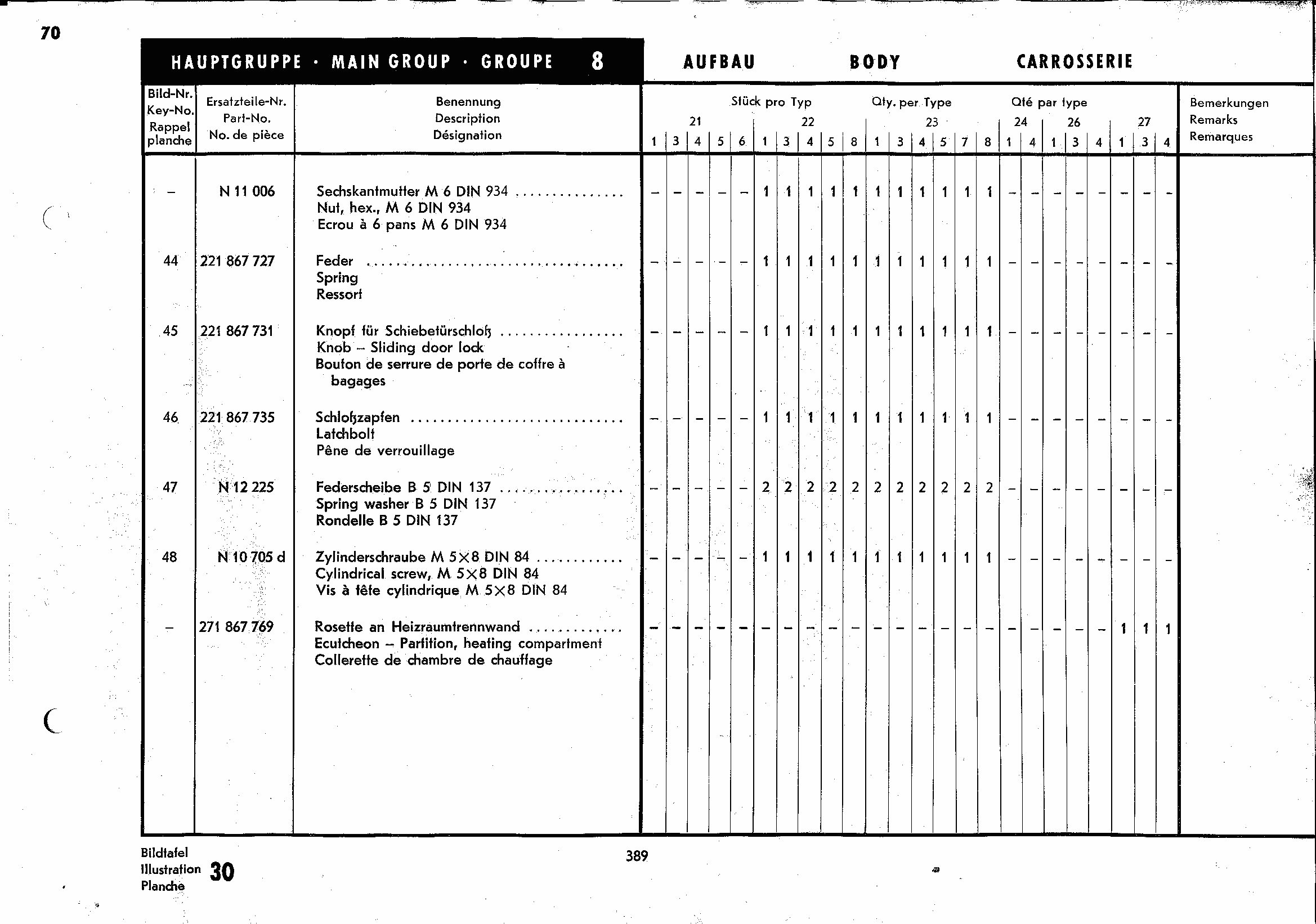

389 list Trimmings

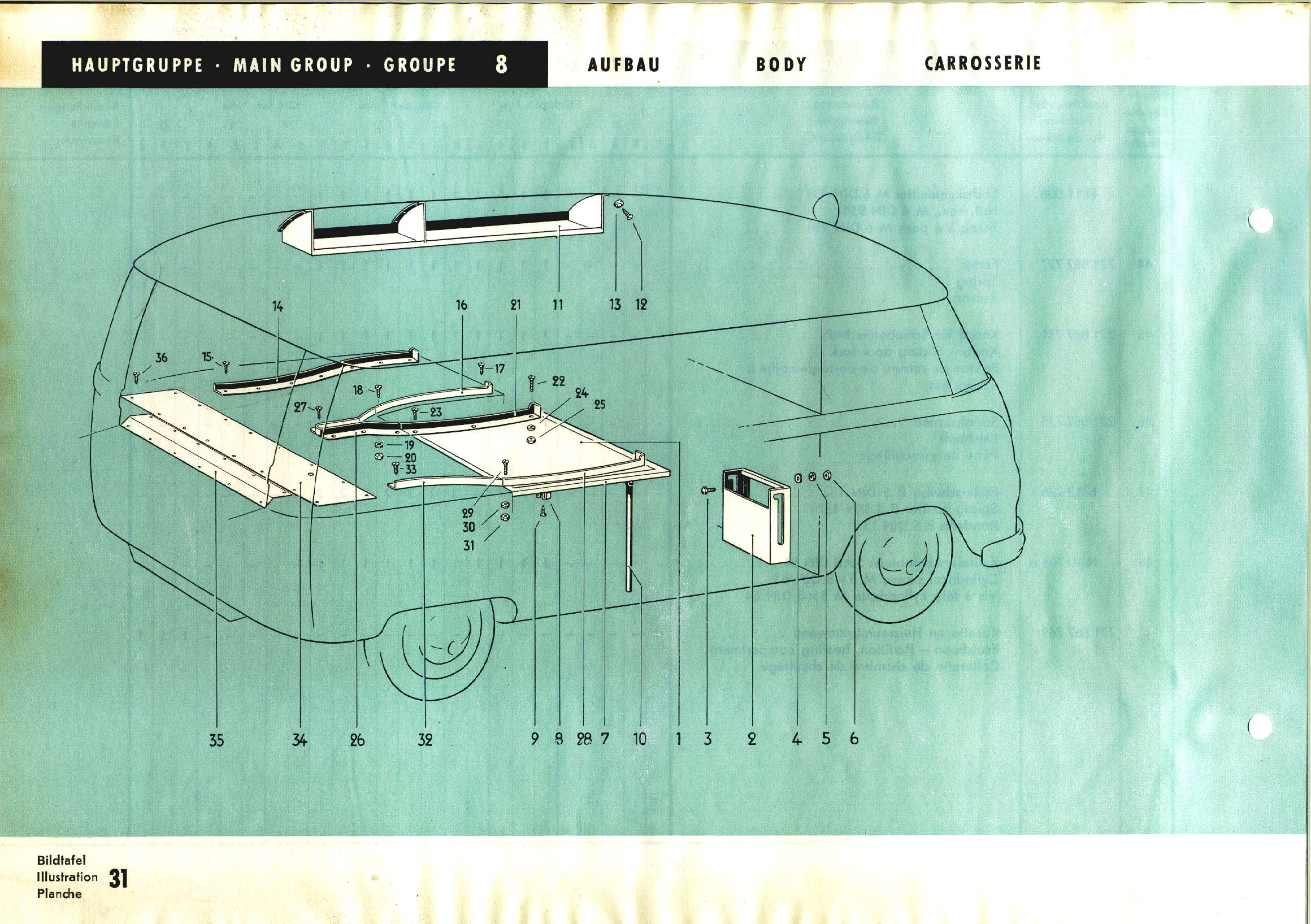

390 diagram Parts of interior equipment of VW Ambulance

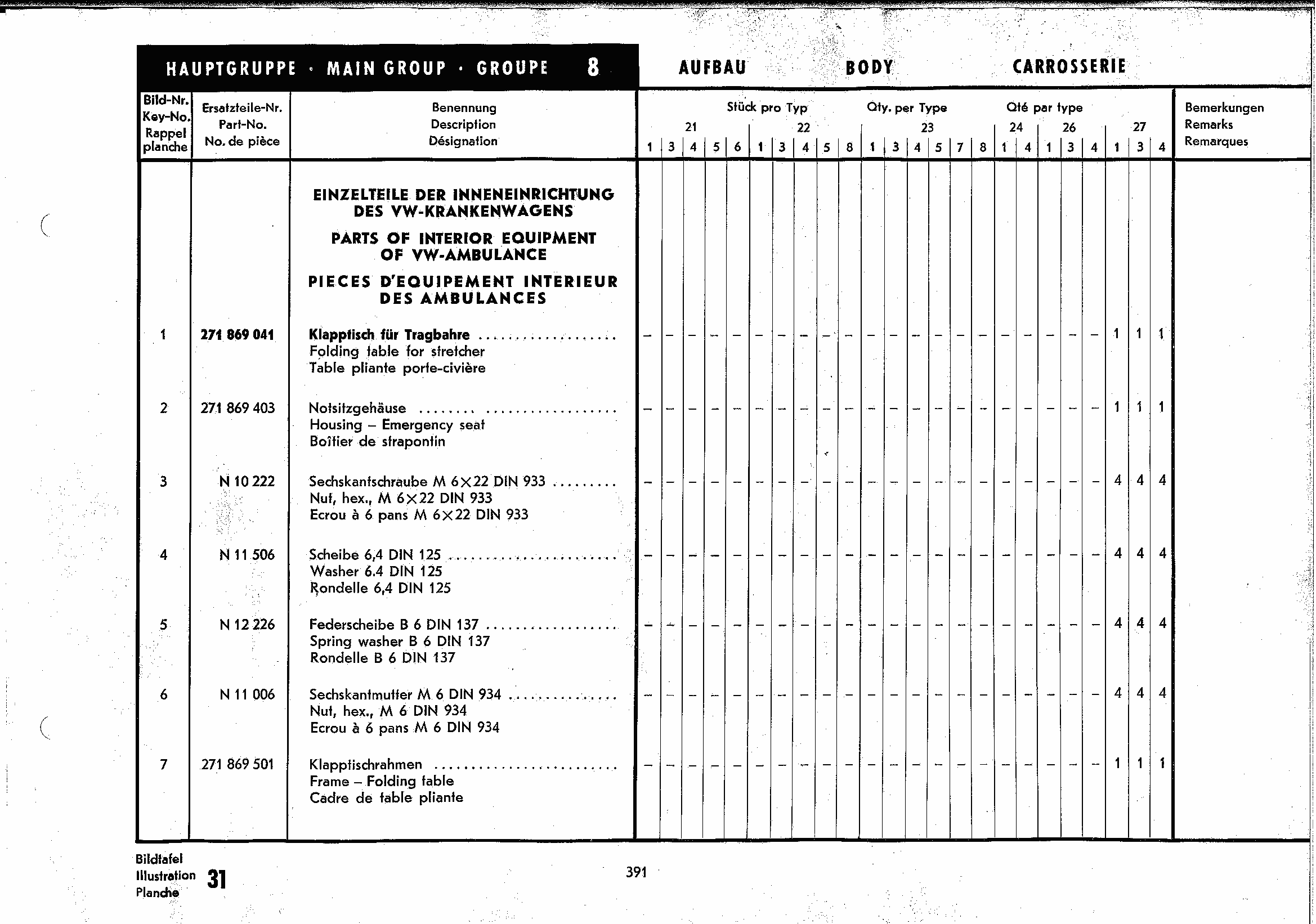

391 list Parts of interior equipment of VW Ambulance

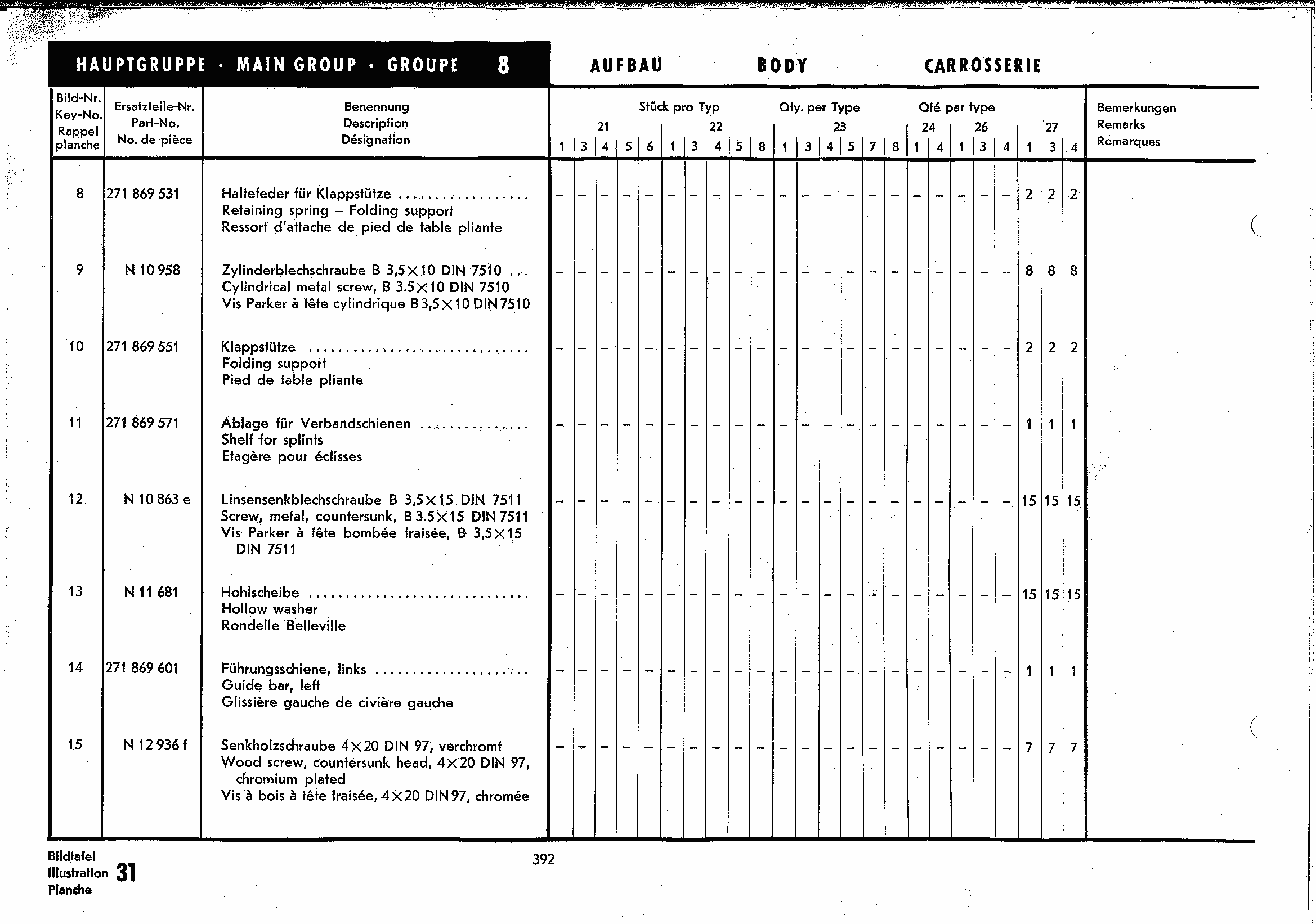

392 list Parts of interior equipment of VW Ambulance

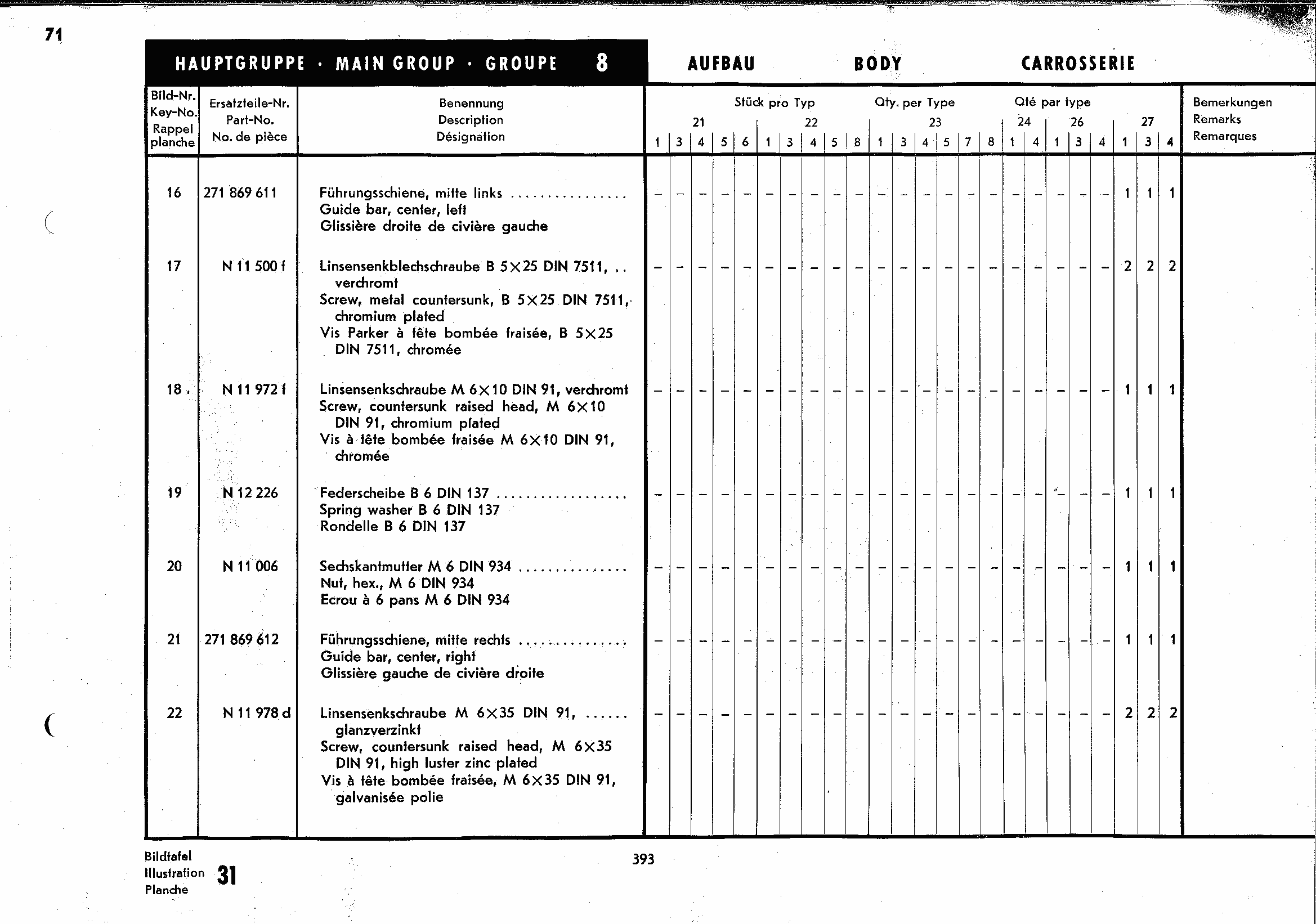

393 list Parts of interior equipment of VW Ambulance

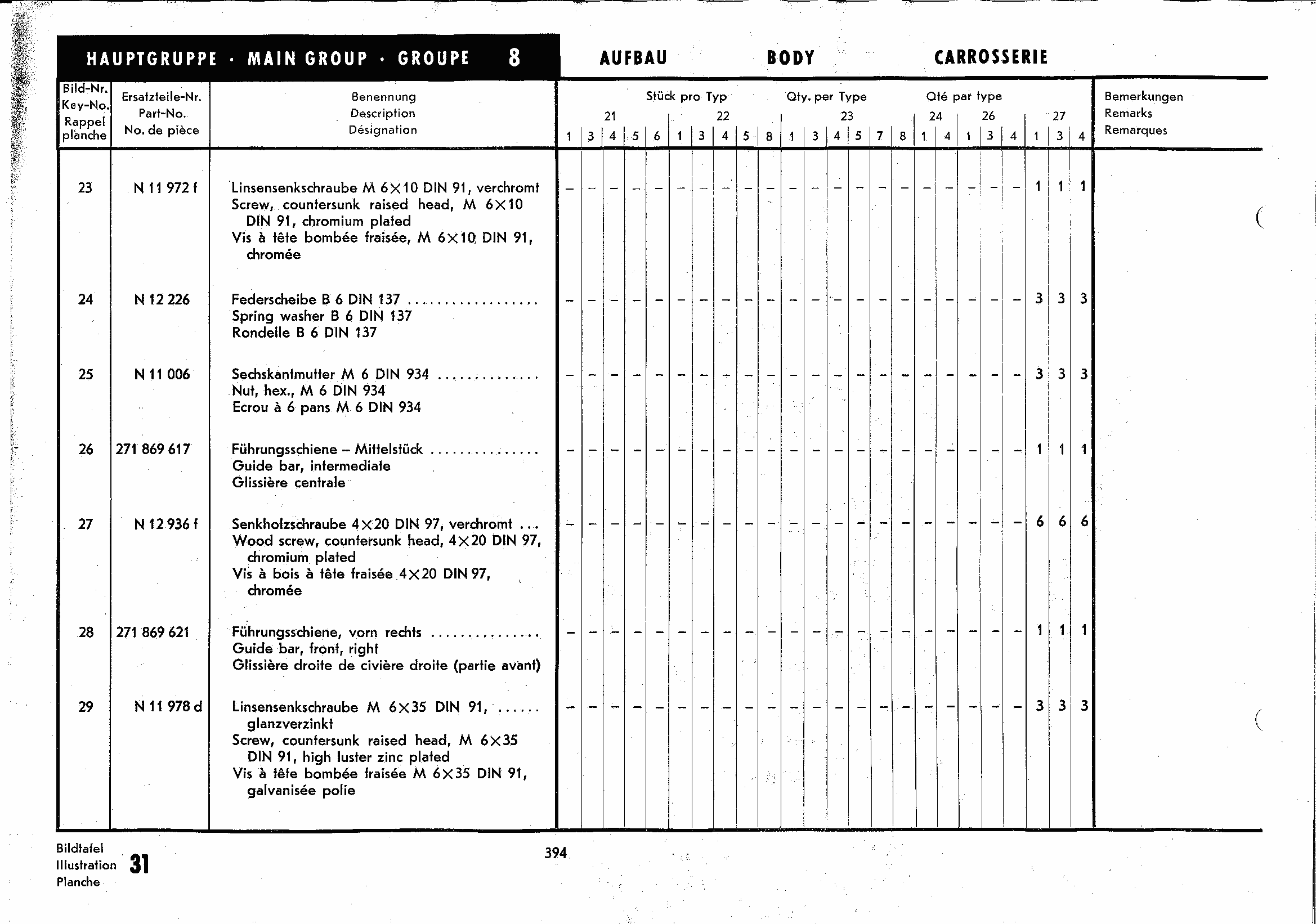

394 list Parts of interior equipment of VW Ambulance

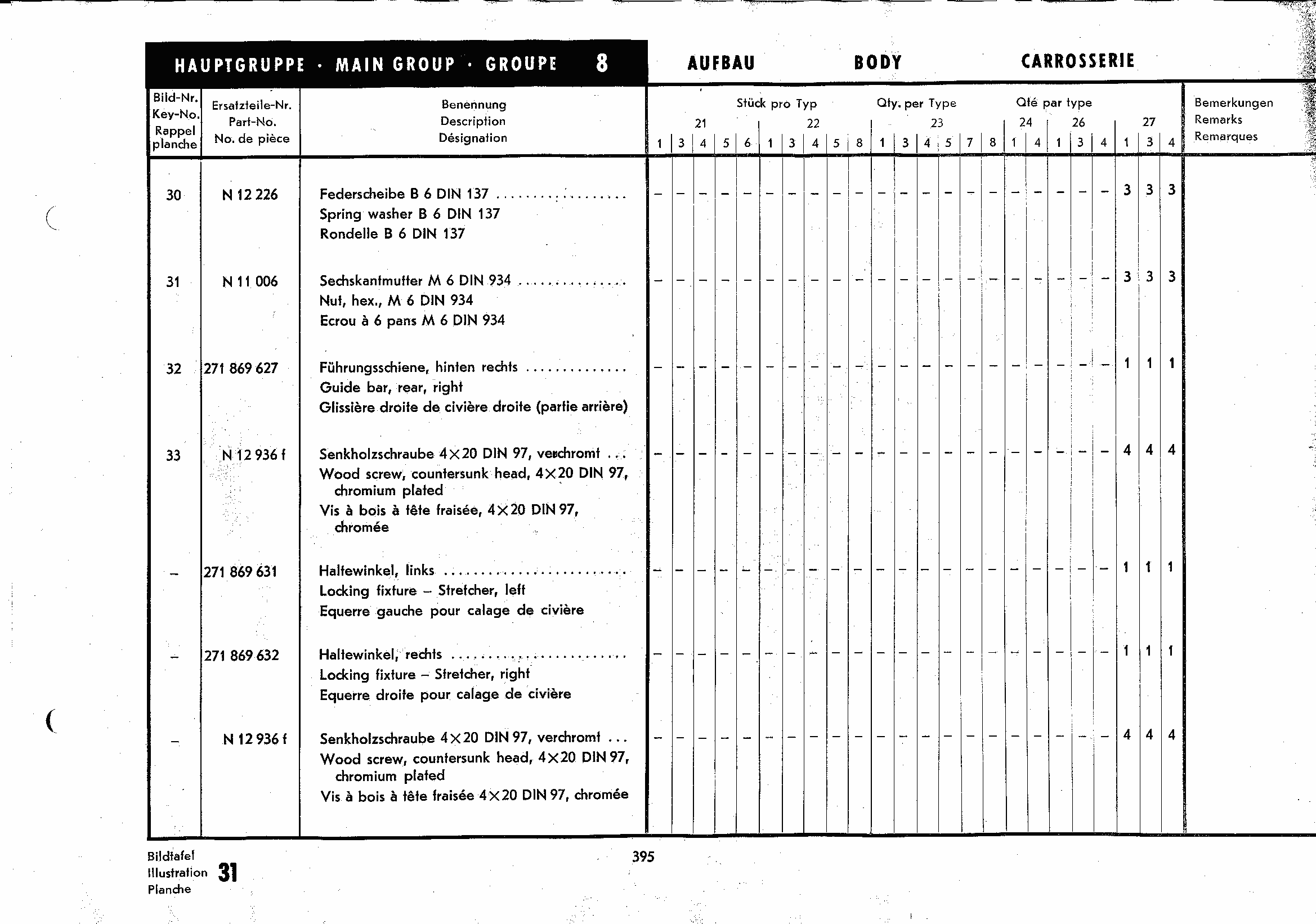

395 list Parts of interior equipment of VW Ambulance

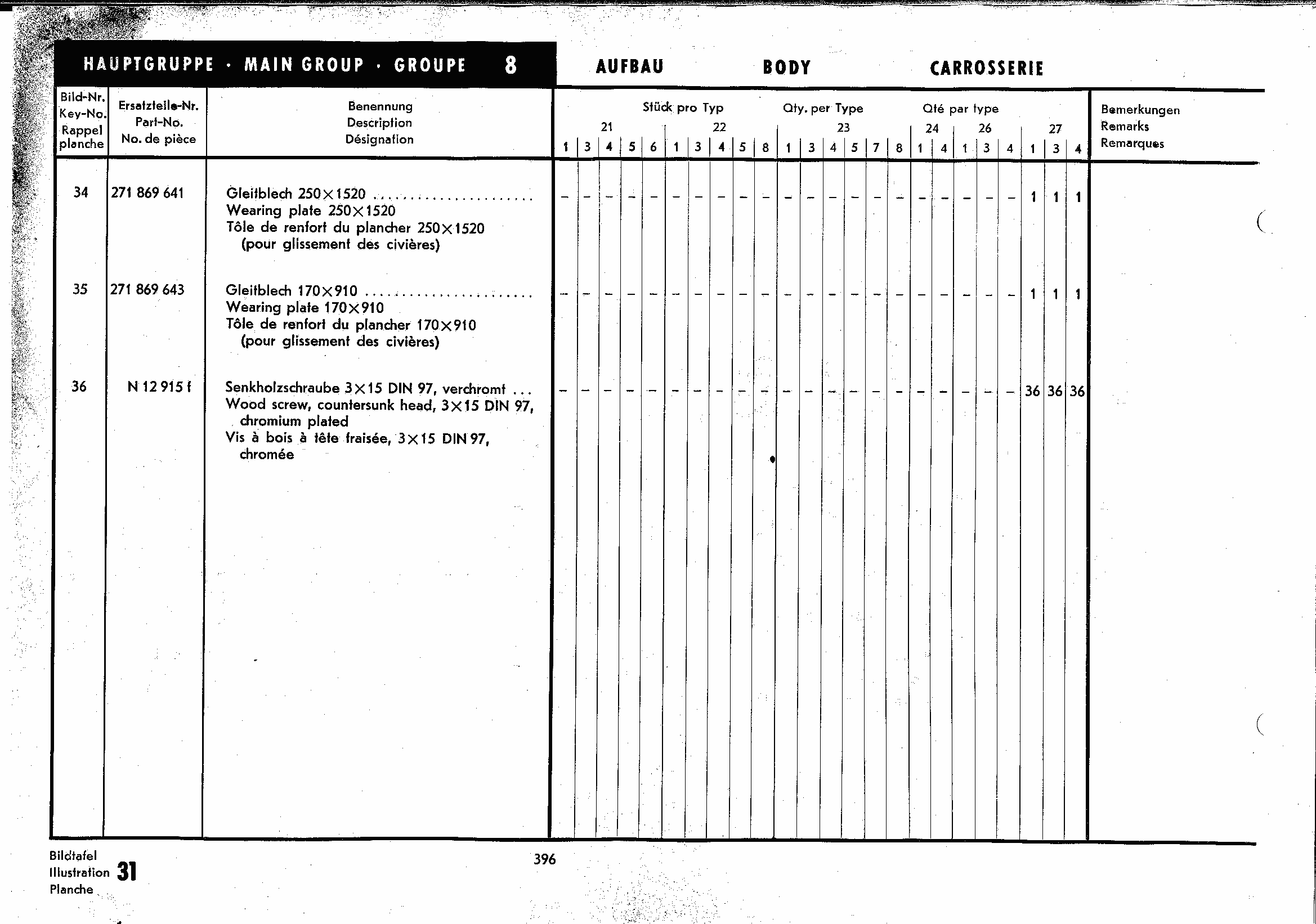

396 list Parts of interior equipment of VW Ambulance
397 special Verlangen Sie nur Original-VW-Ersatzteile die Ihnen die Instandsetzung vereinfachen, schnelle und billigste Bedienung gewaehrleisten!

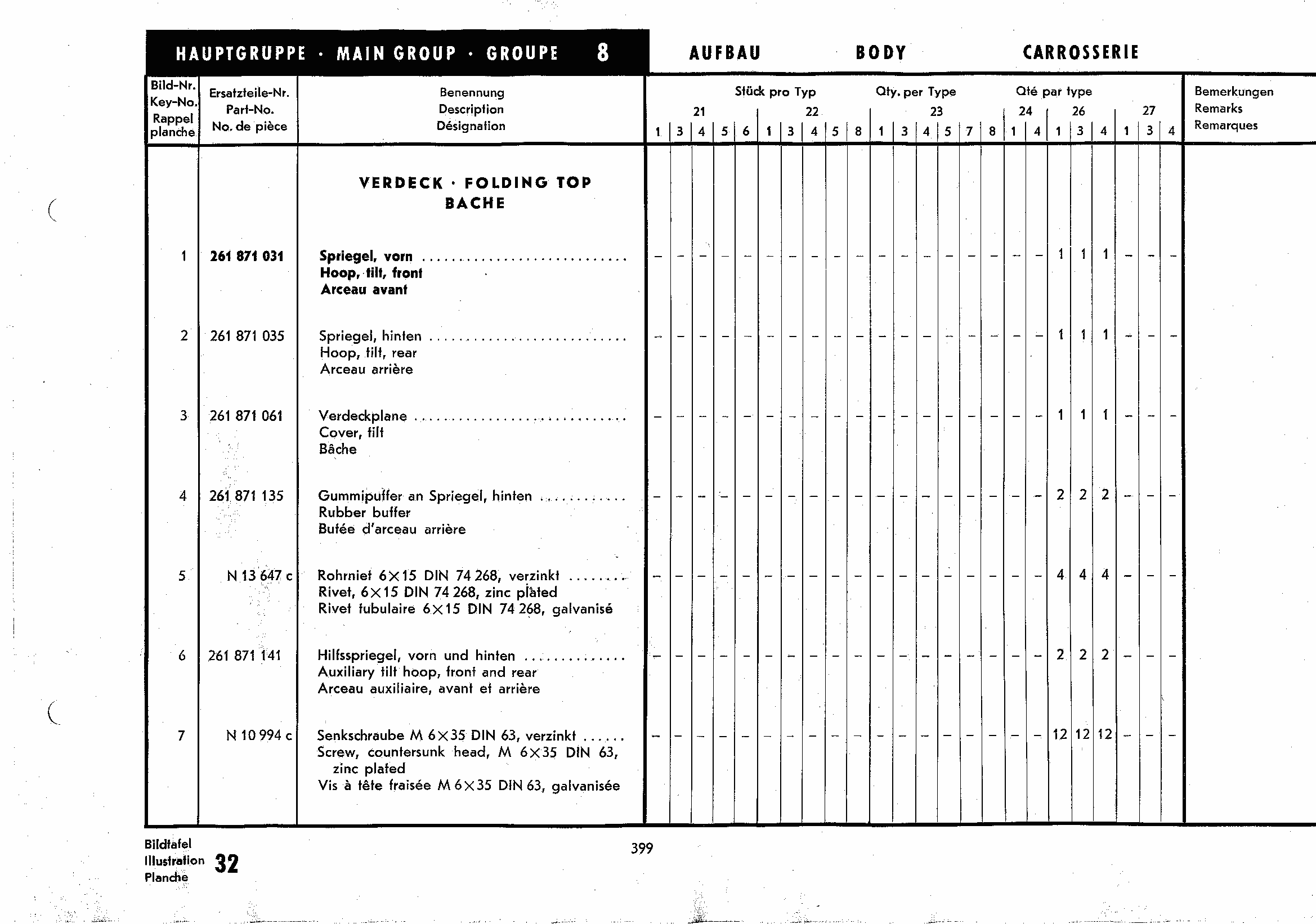

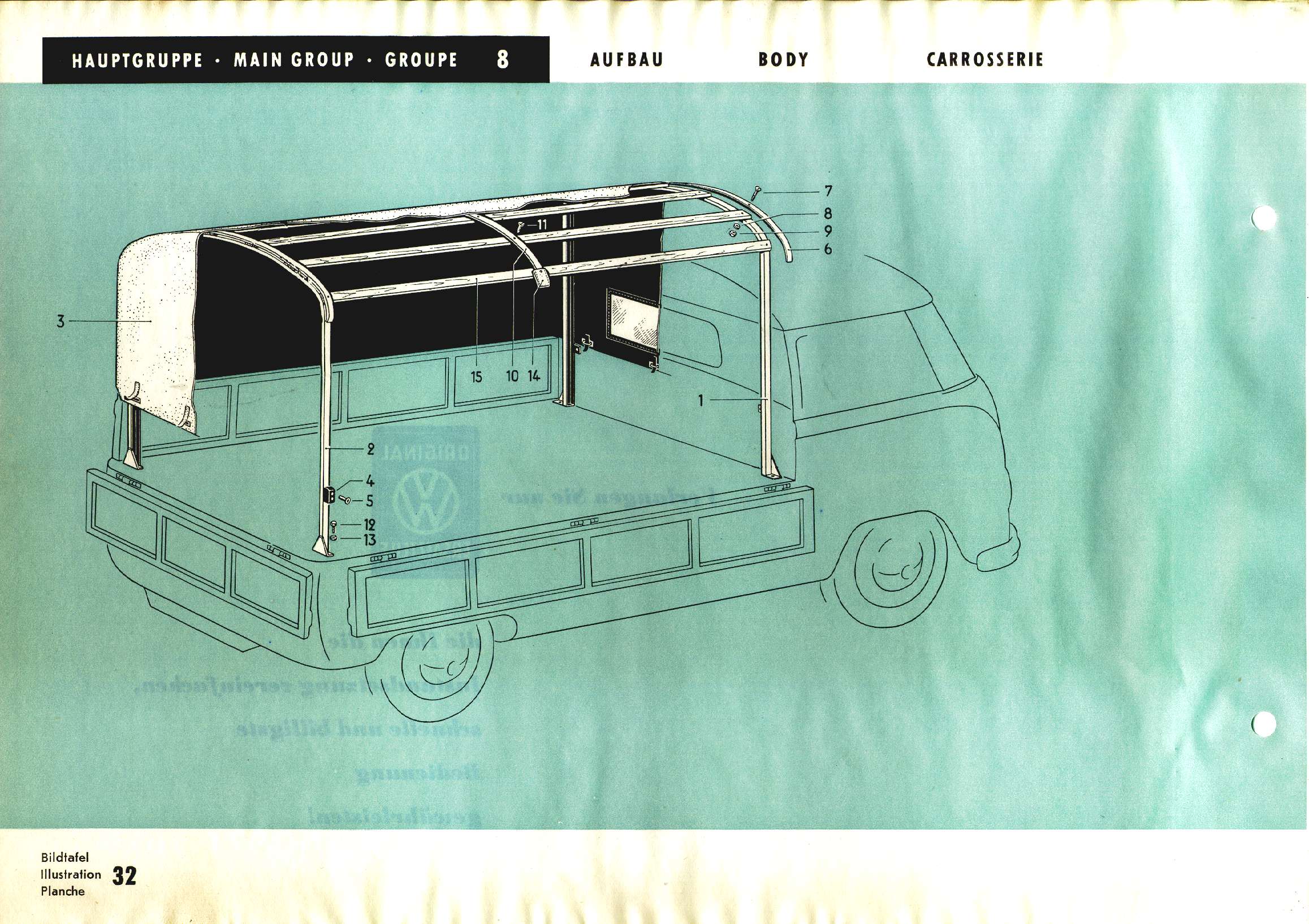

398 diagram Folding top
399 list Folding top

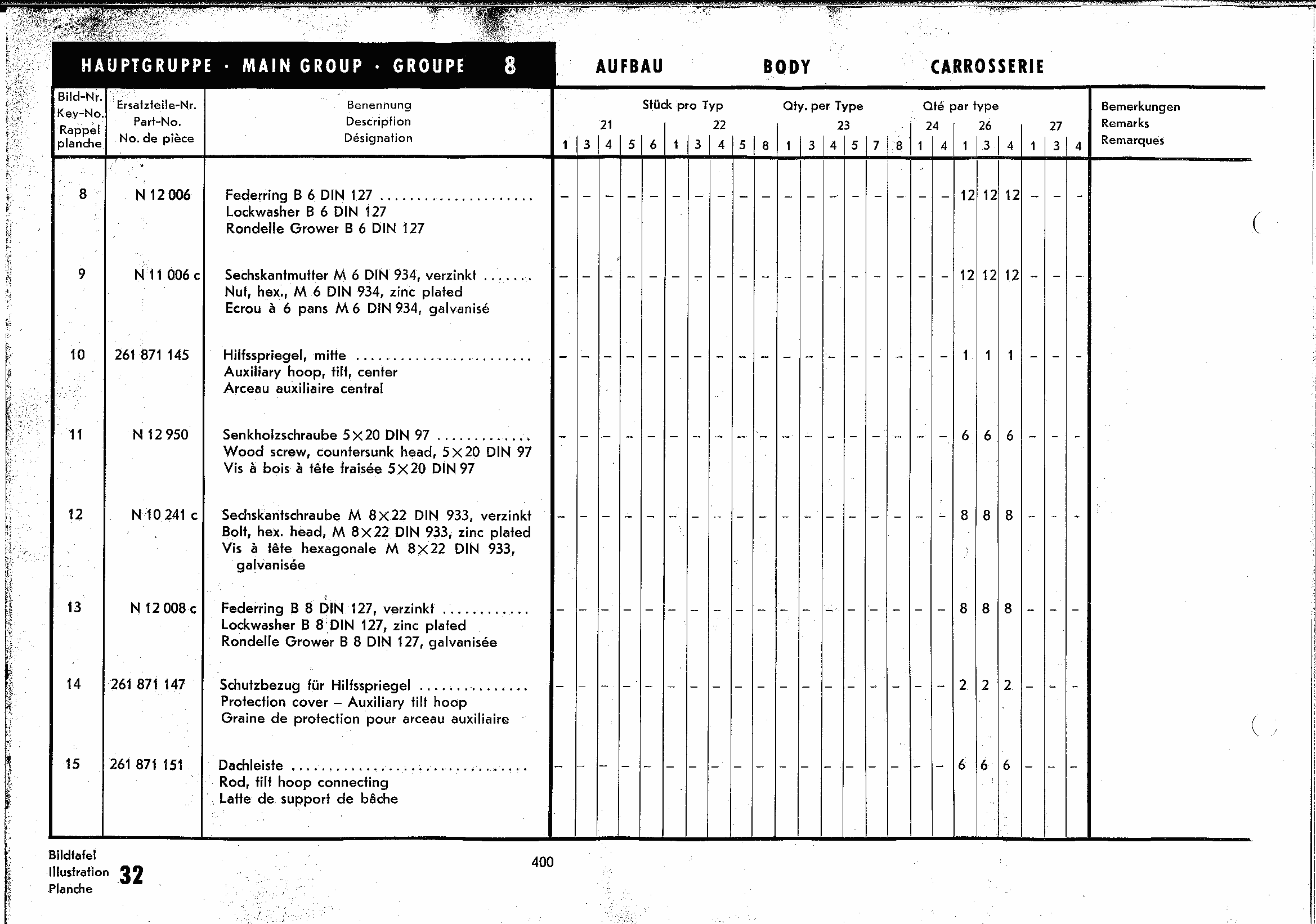

400 list Folding top
401 special Achten Sie immer auf unser Zeichen Original-VW-Ersatzteile
402 diagram Sliding roof

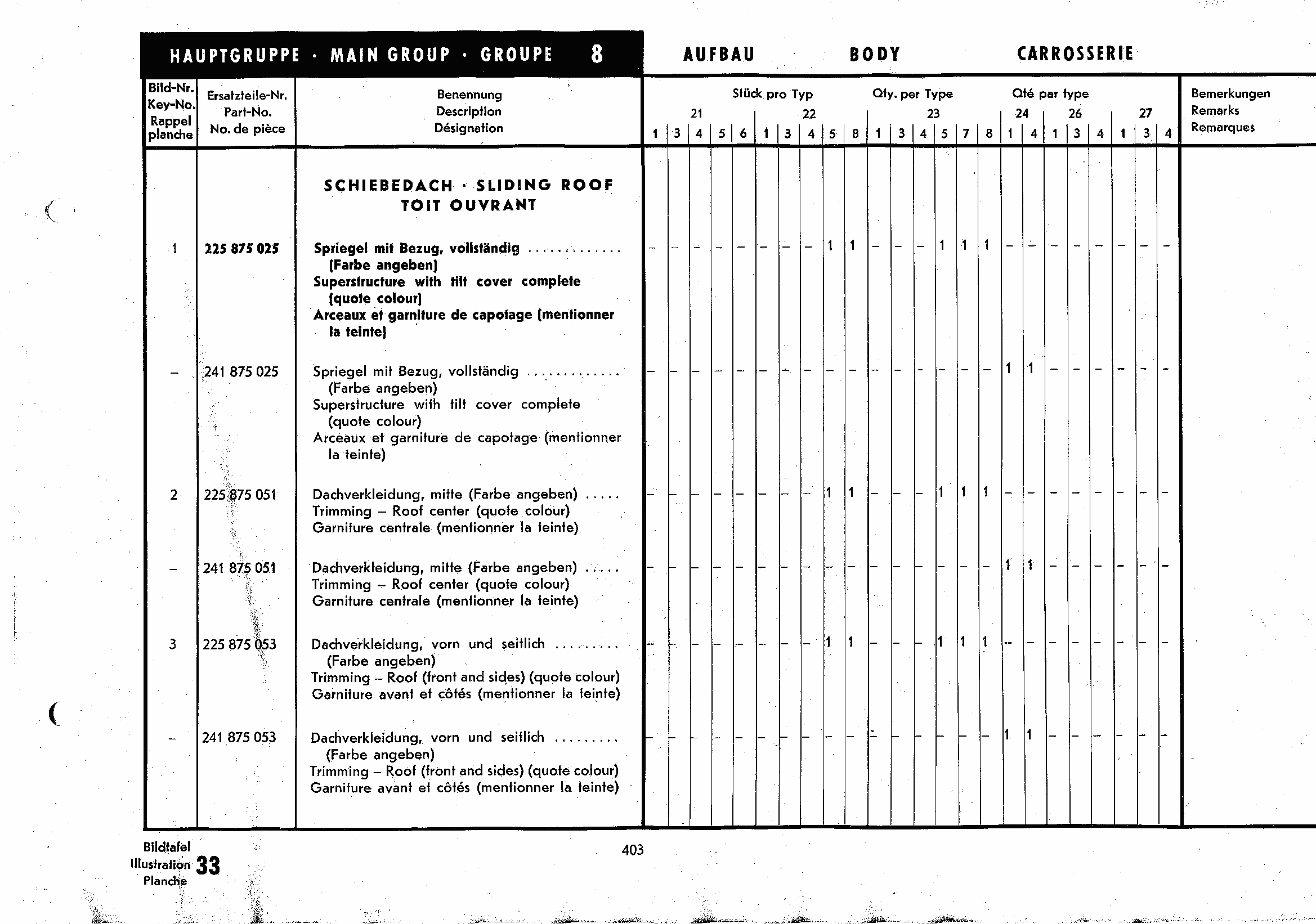

403 list Sliding roof
404 list Sliding roof

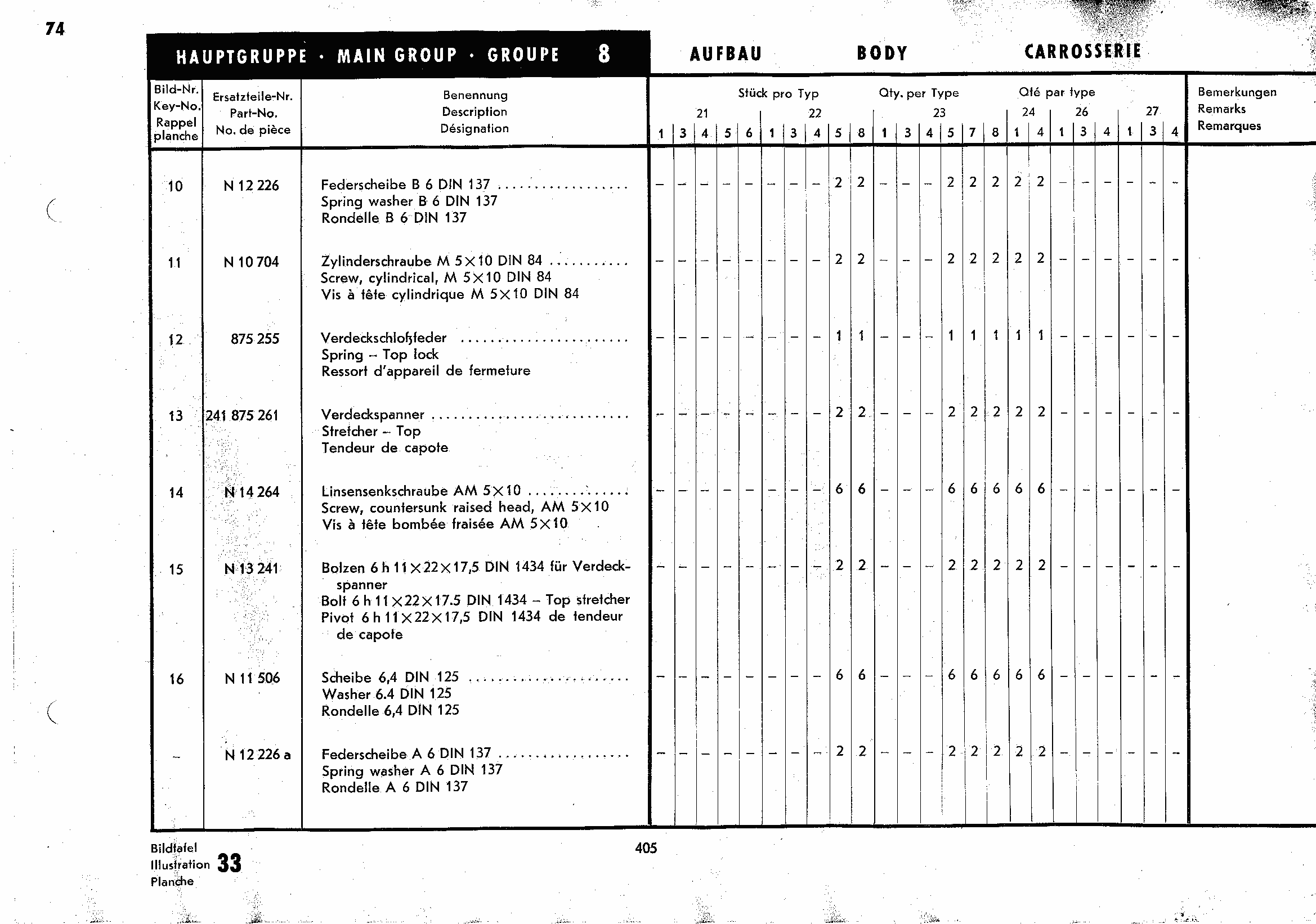

405 list Sliding roof

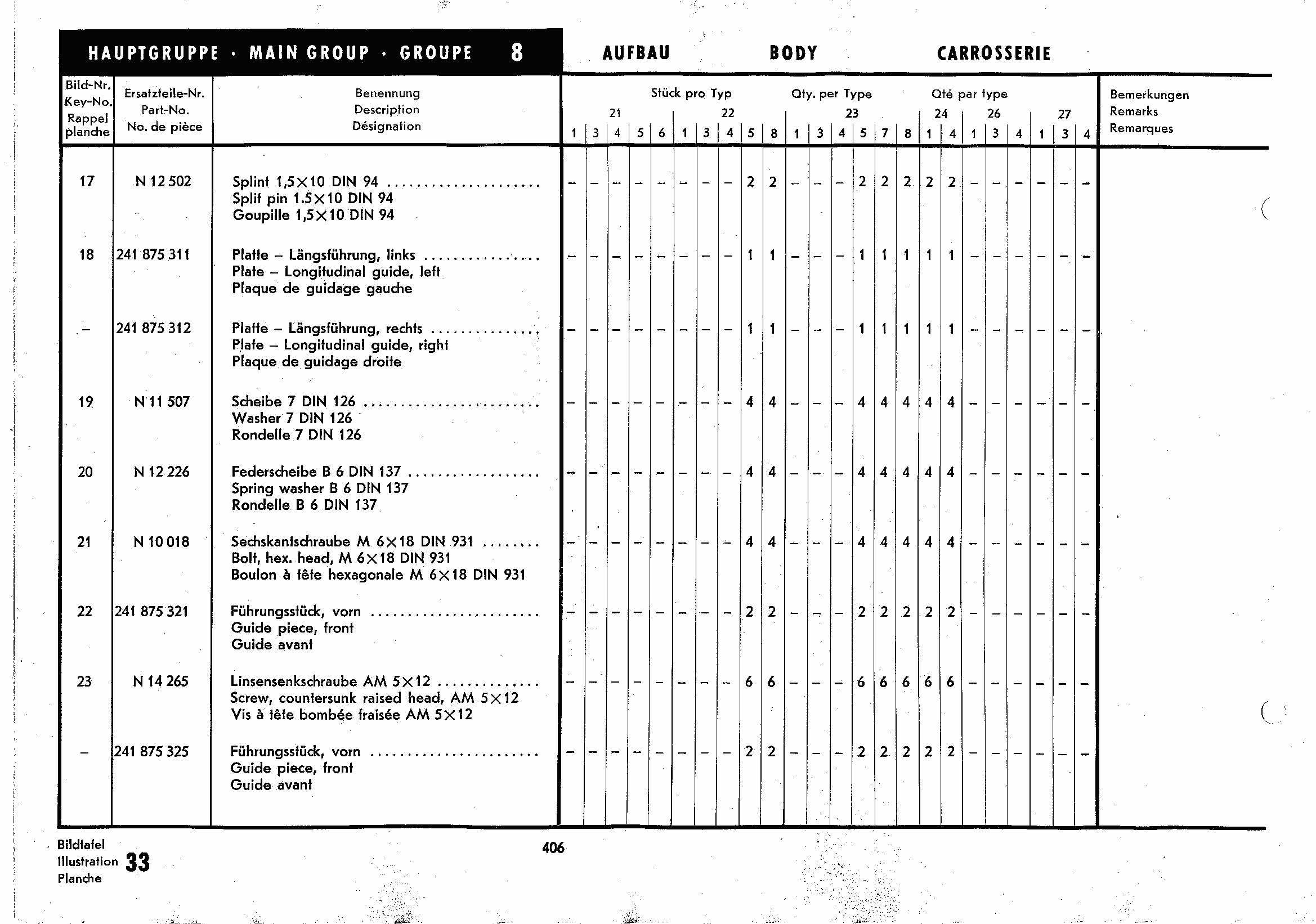

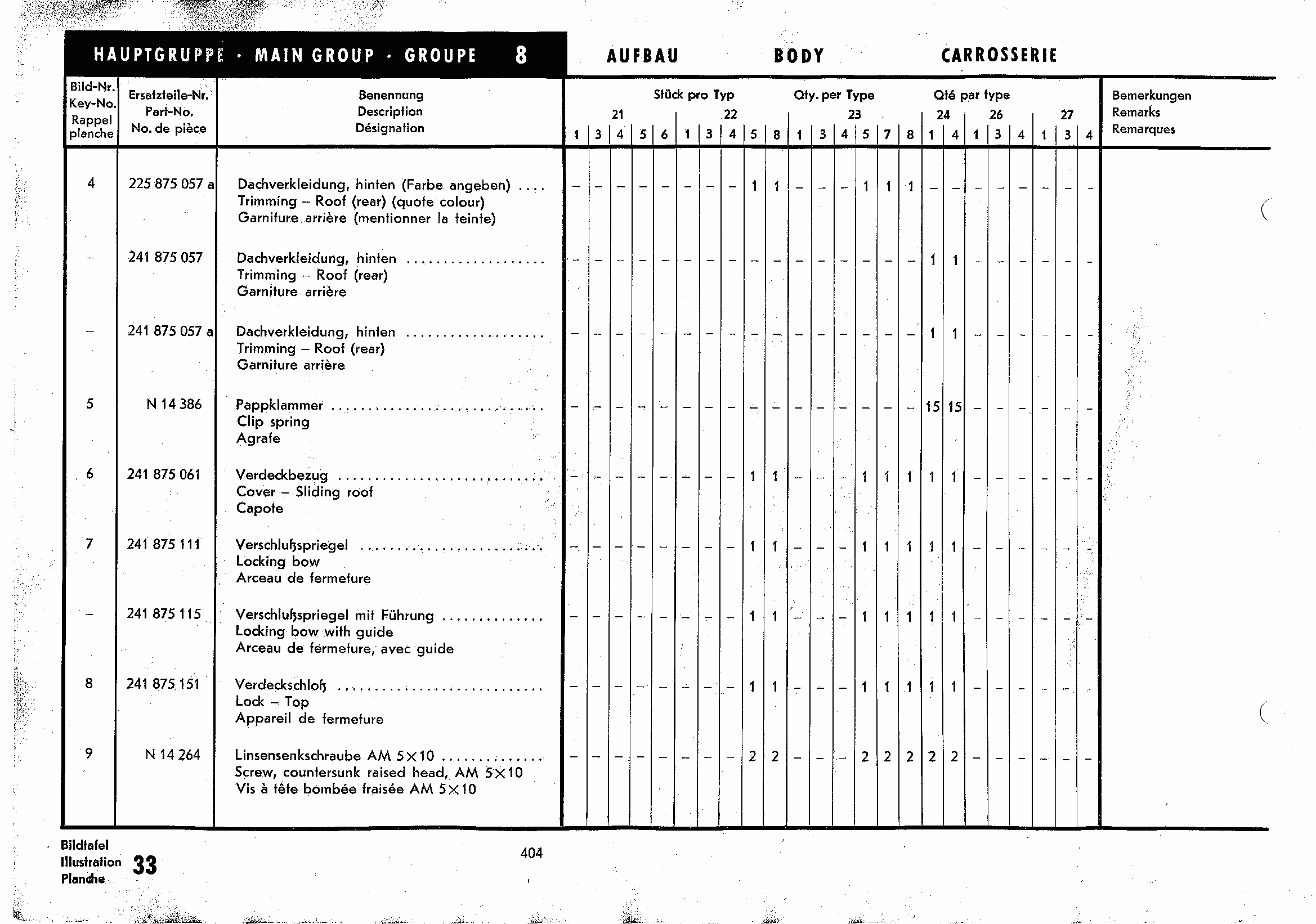

406 list Sliding roof
407 list Sliding roof
408 list Sliding roof

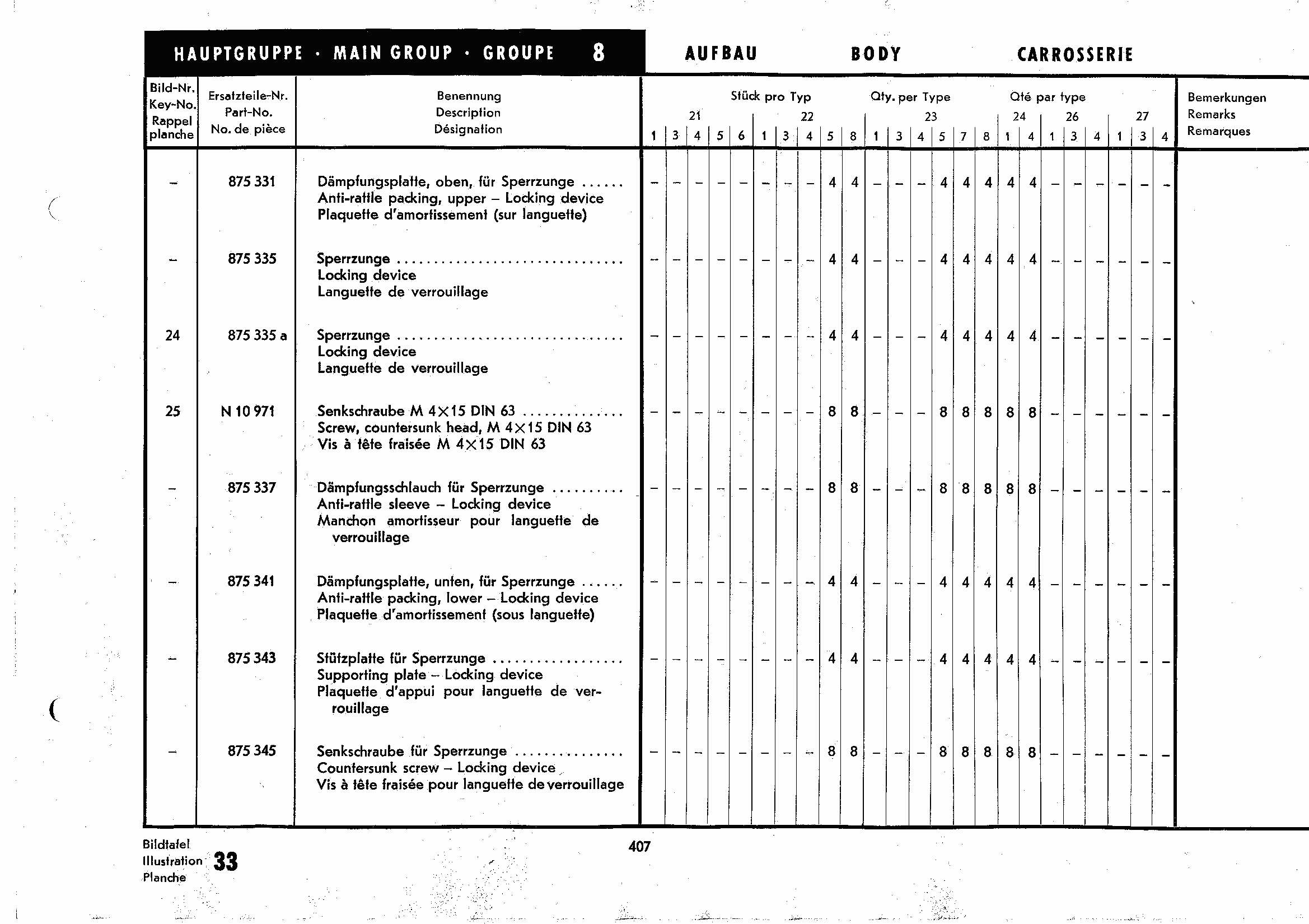

409 list Sliding roof

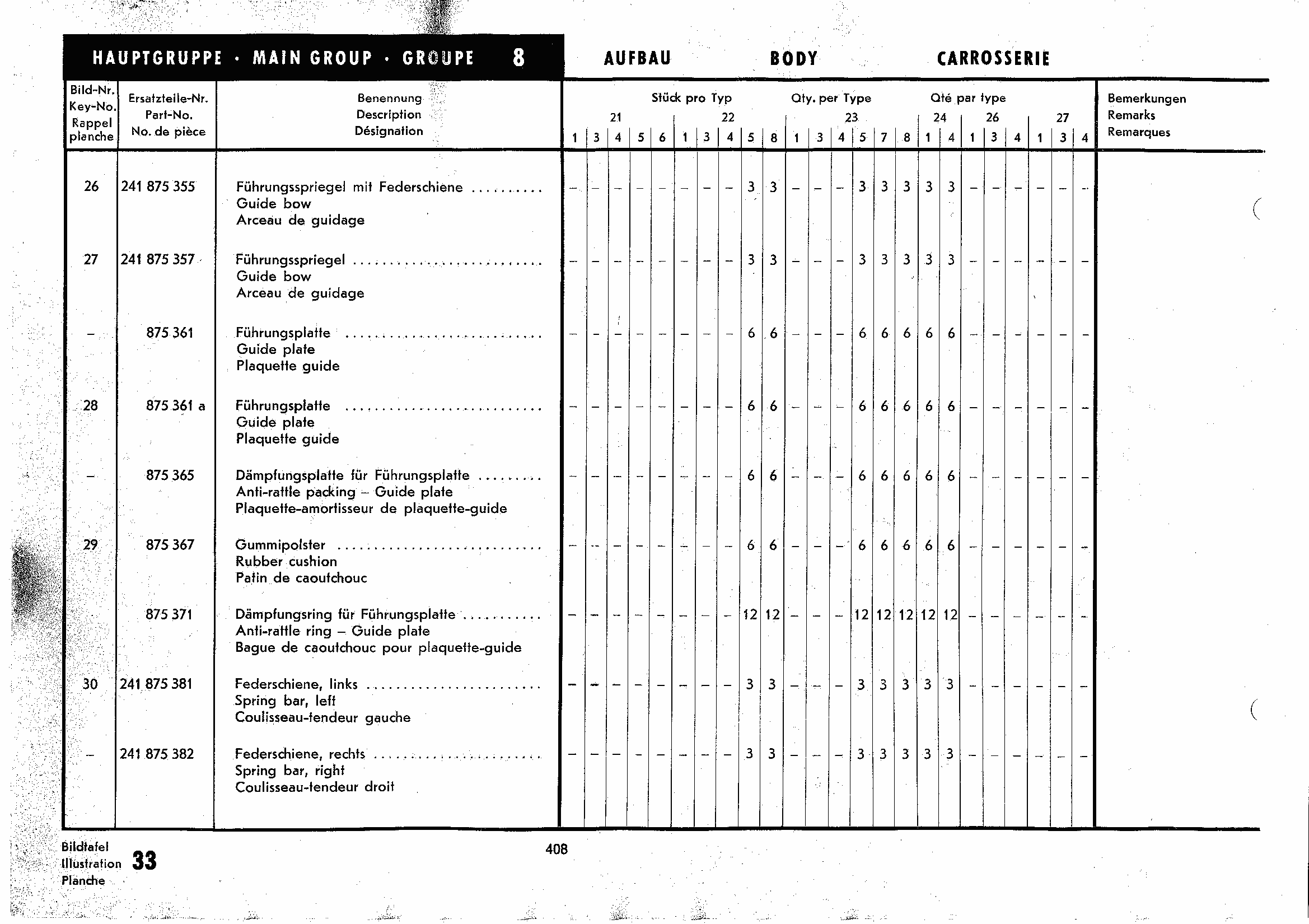

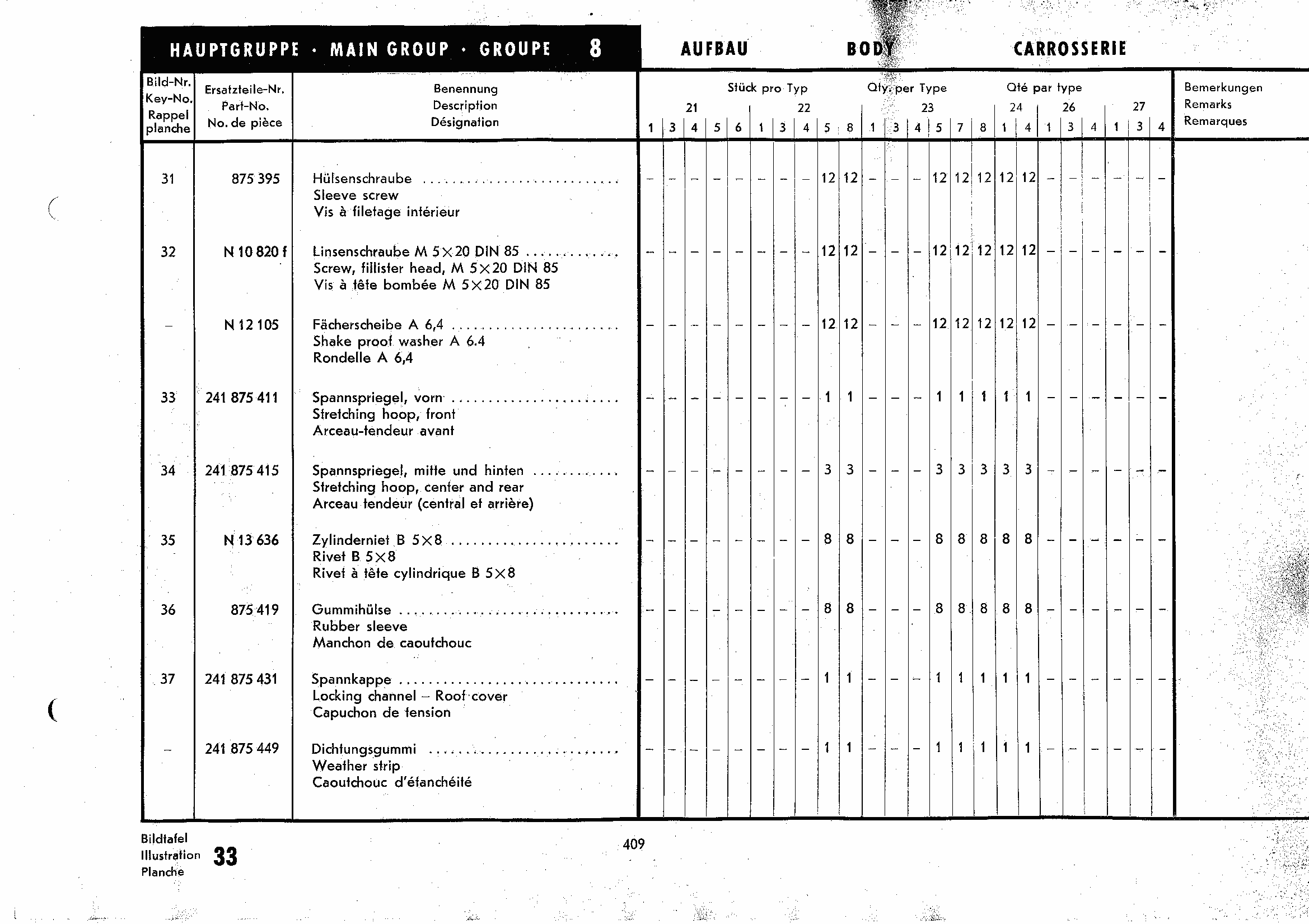

410 list Sliding roof

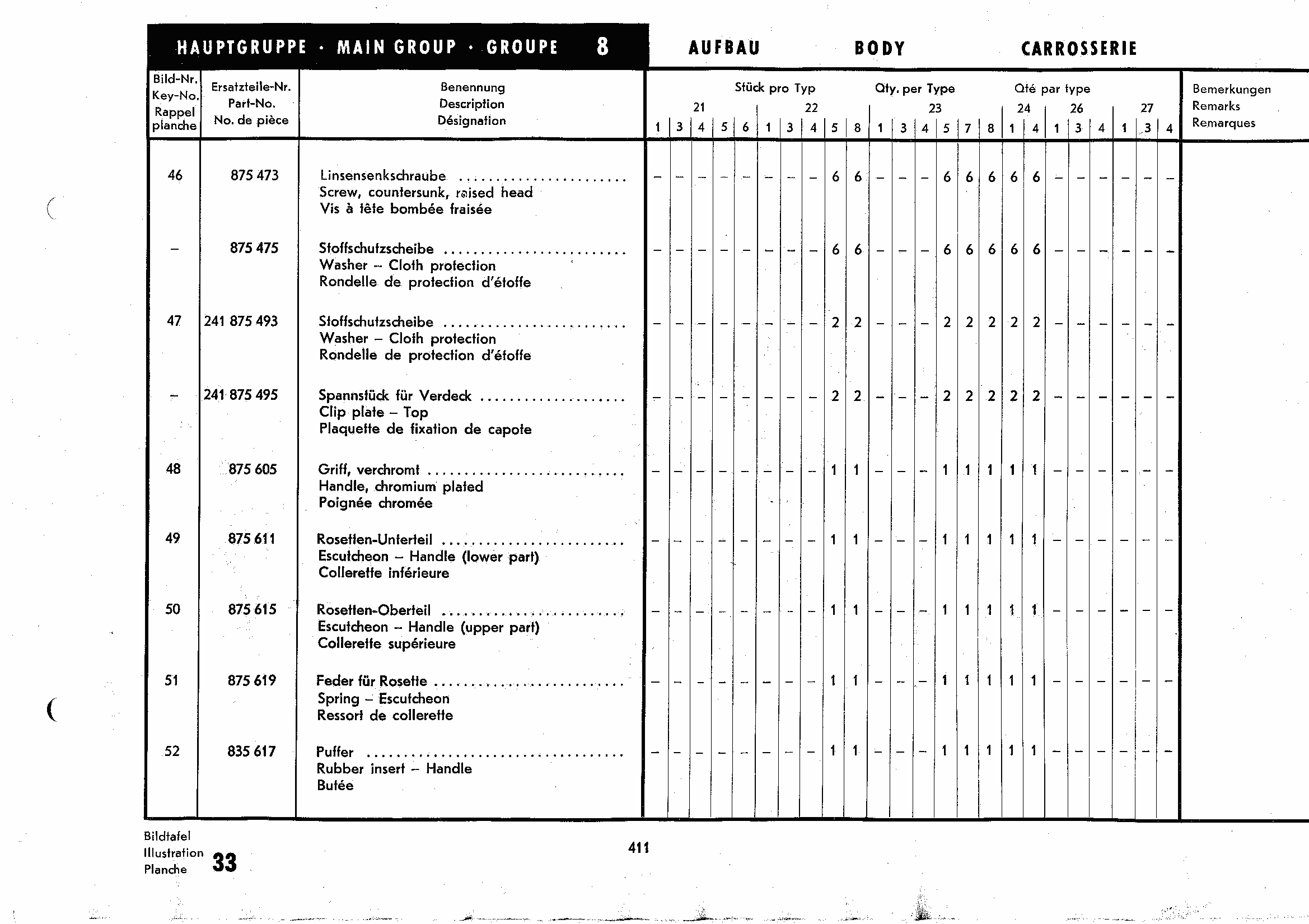

411 list Sliding roof

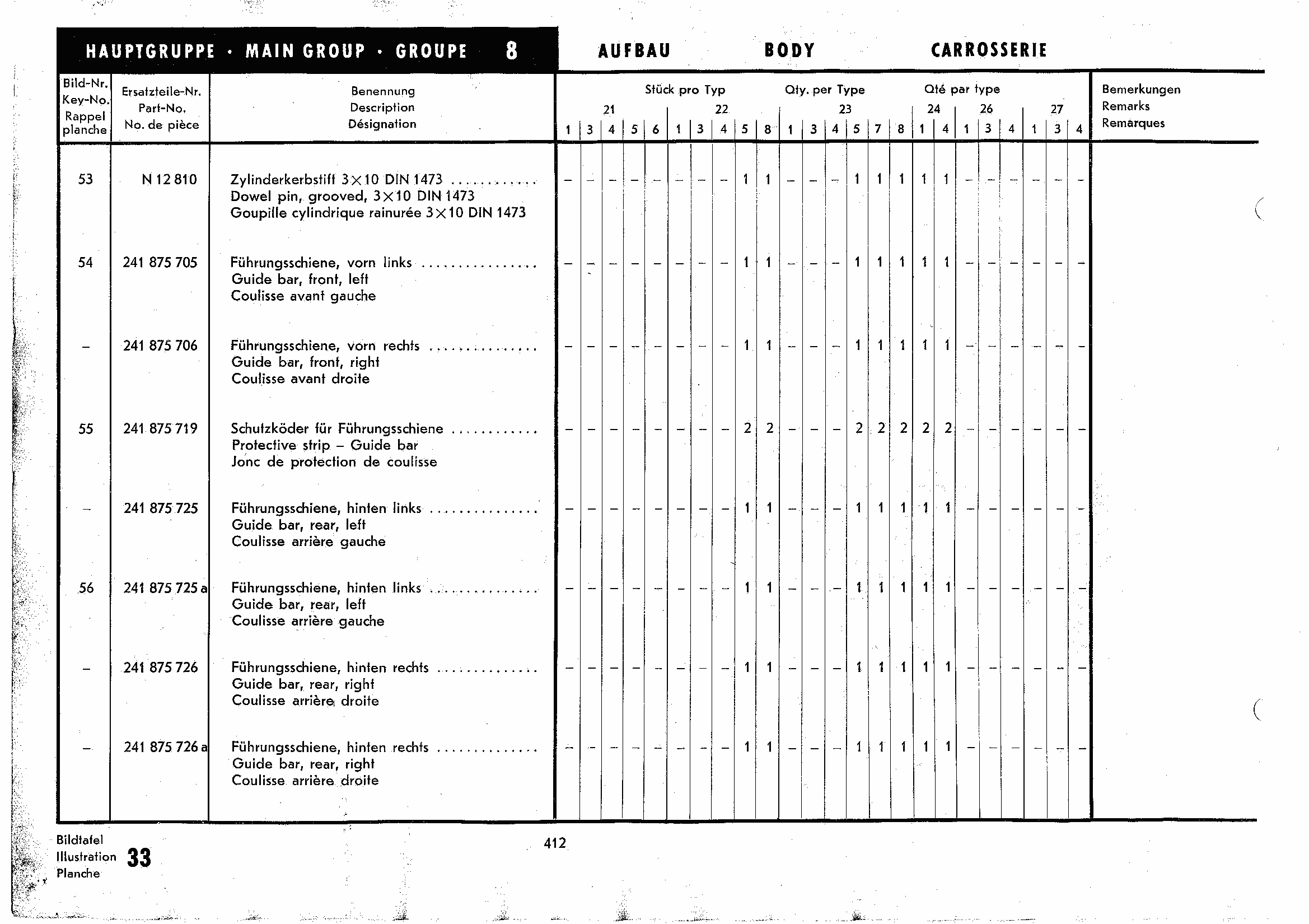

412 list Sliding roof

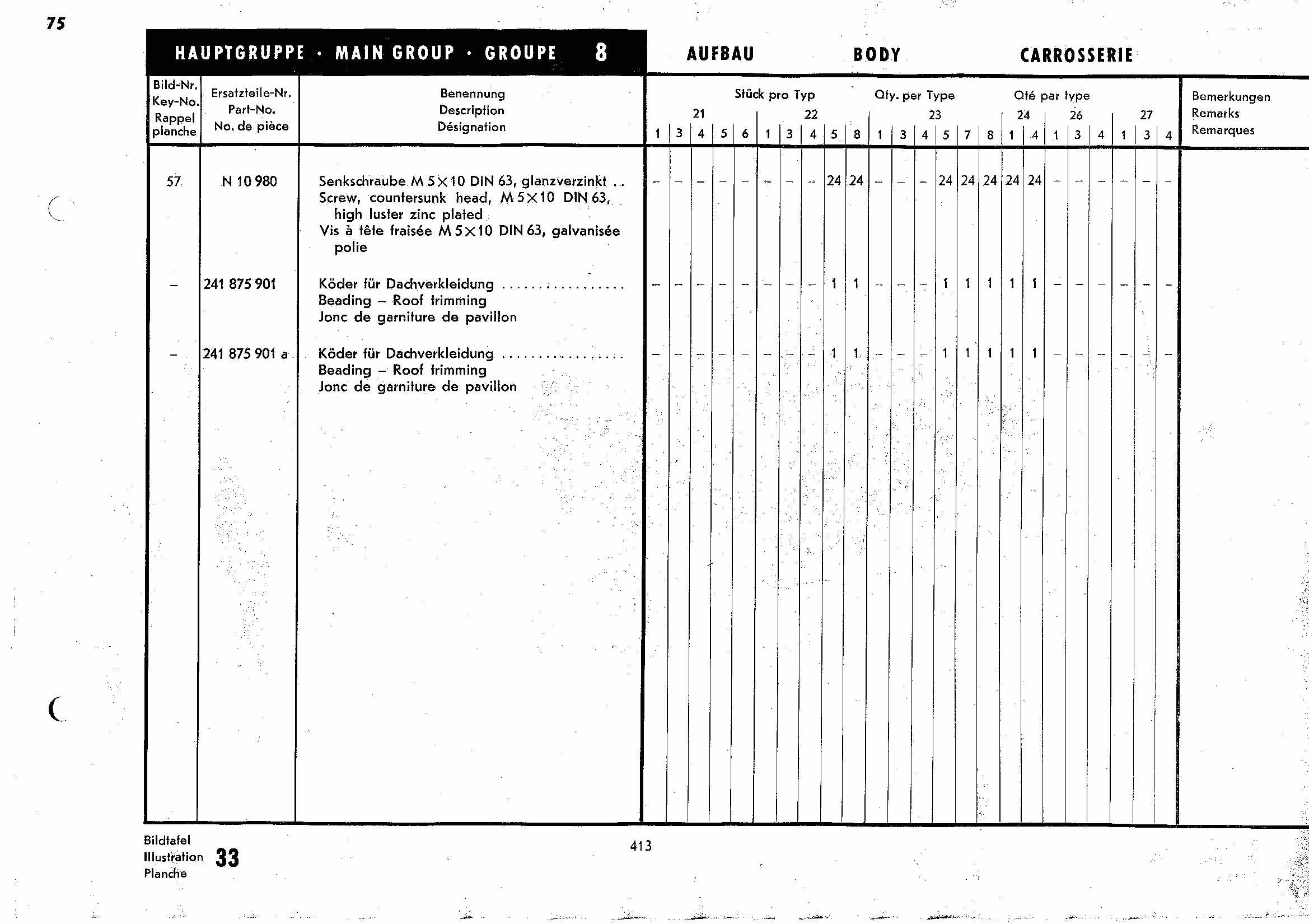

413 list Sliding roof

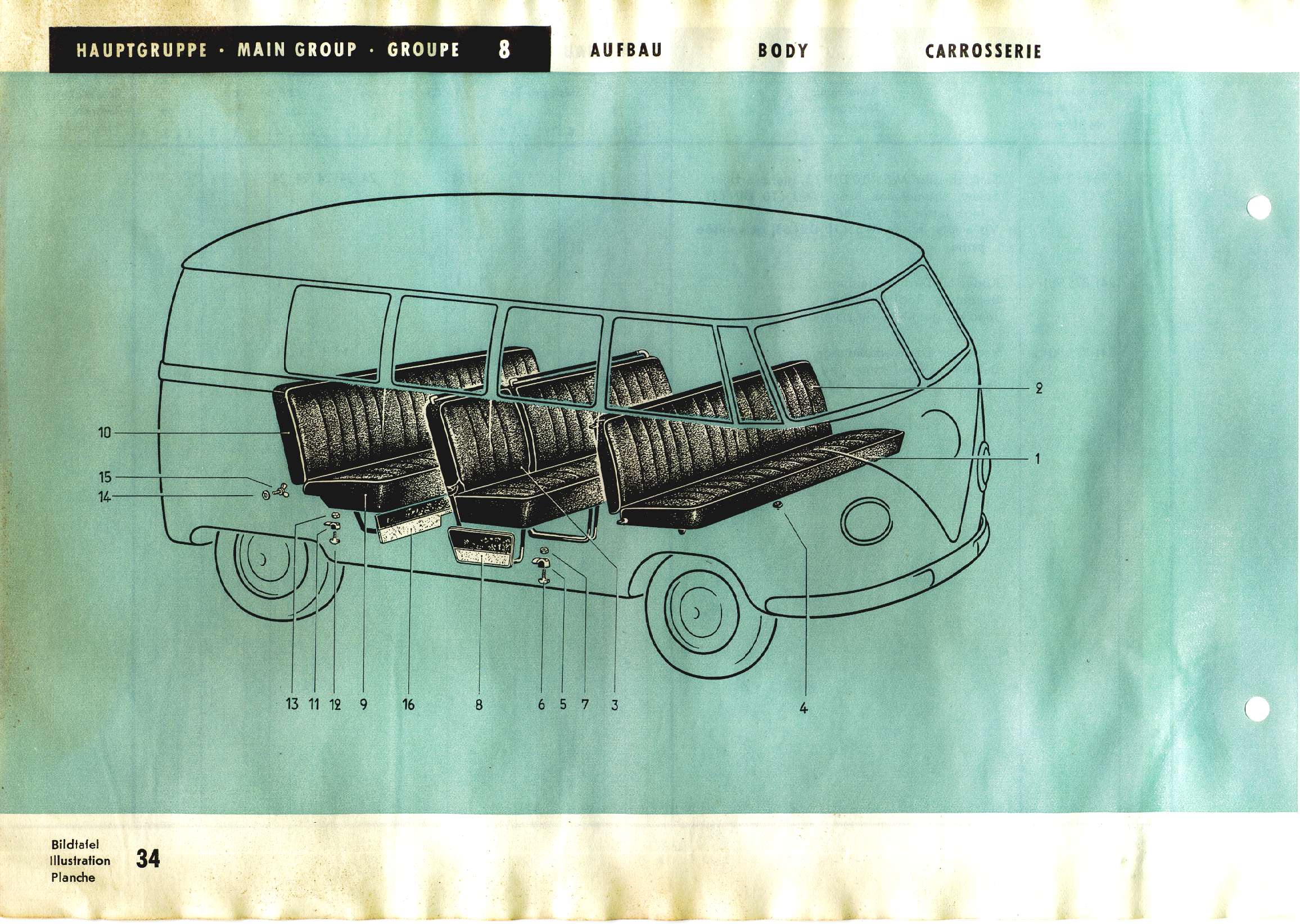

414 diagram Seats

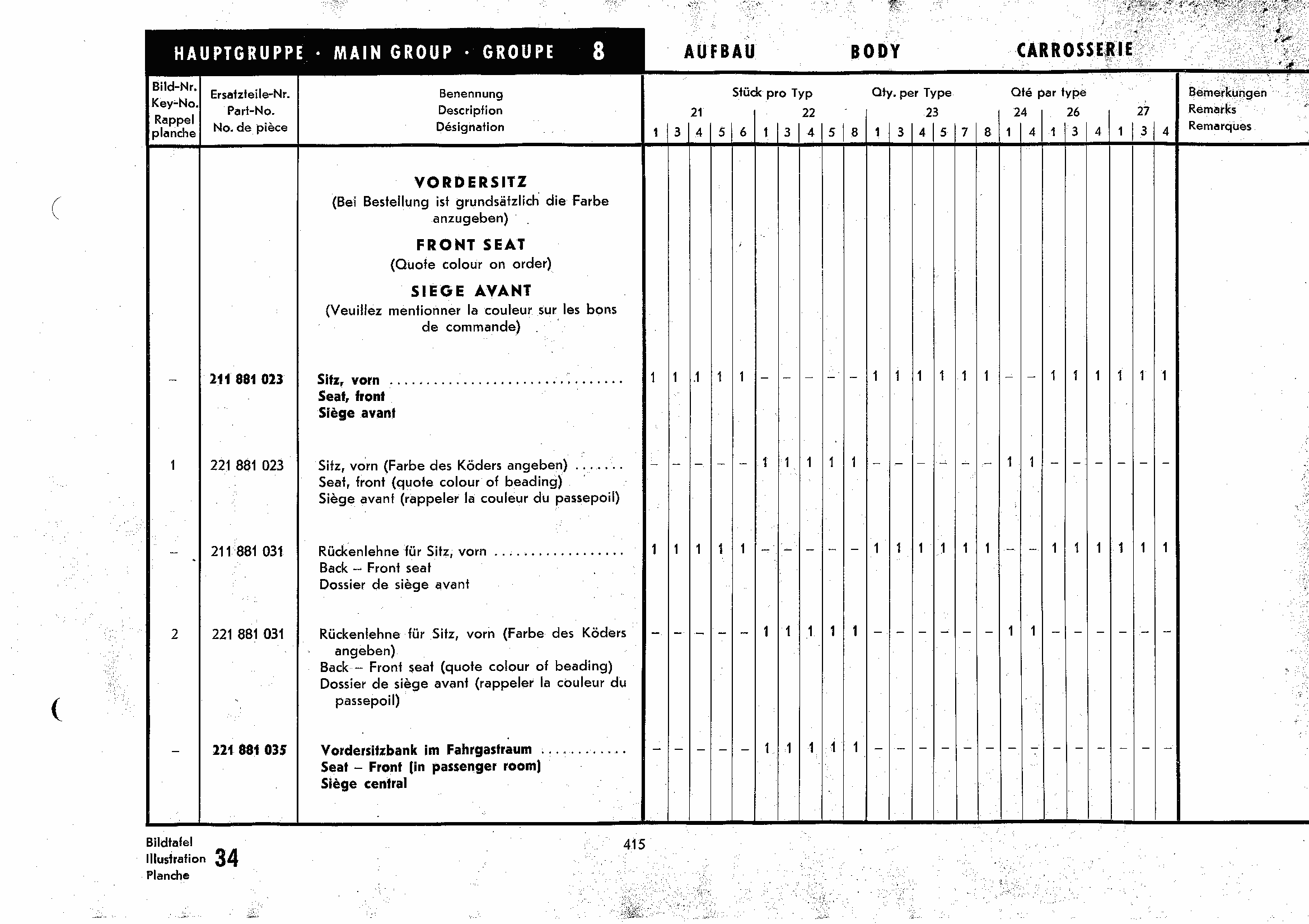

415 list Front seat

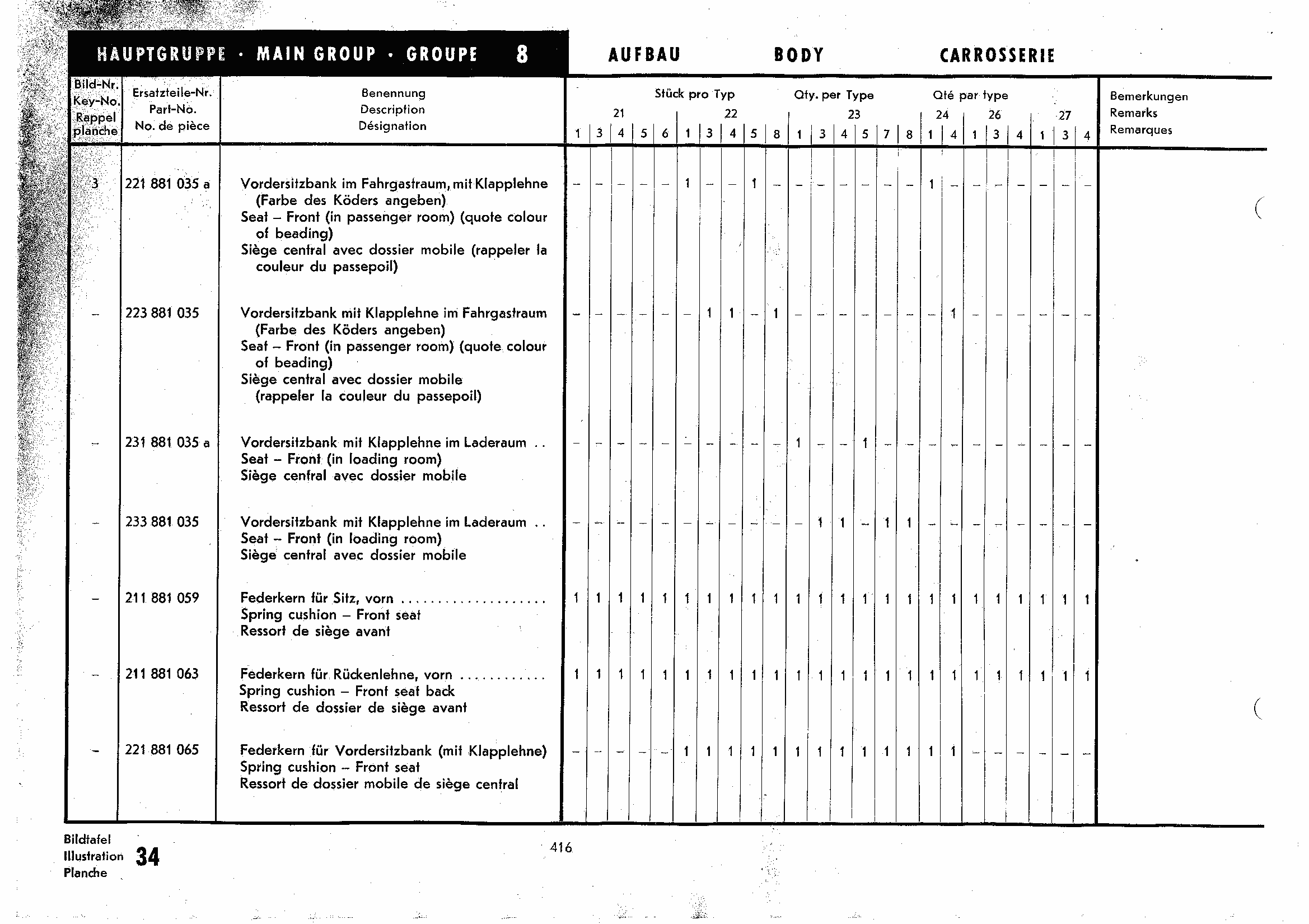

416 list Front seat

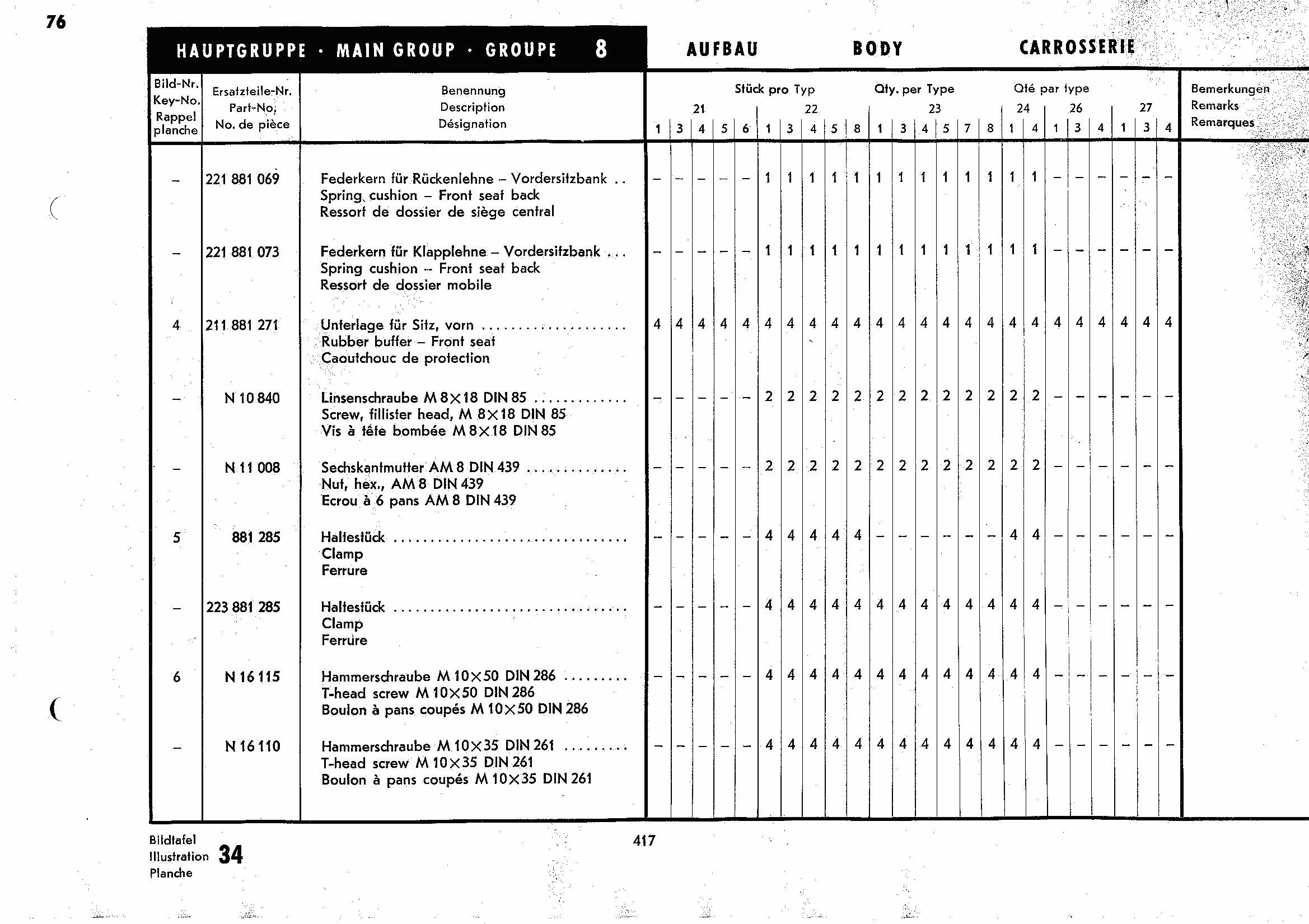

417 list Front seat

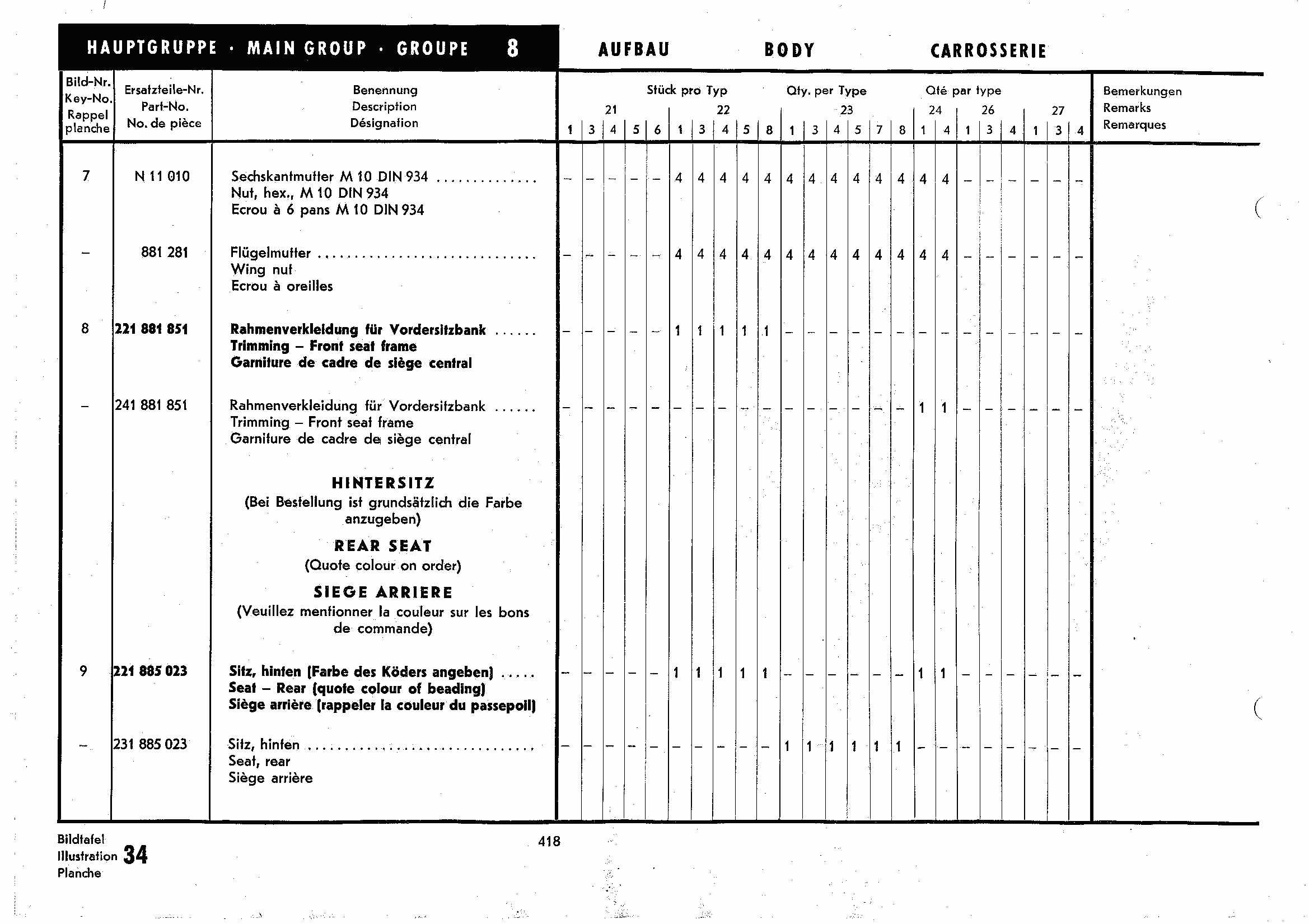

418 list Front seat, rear seat

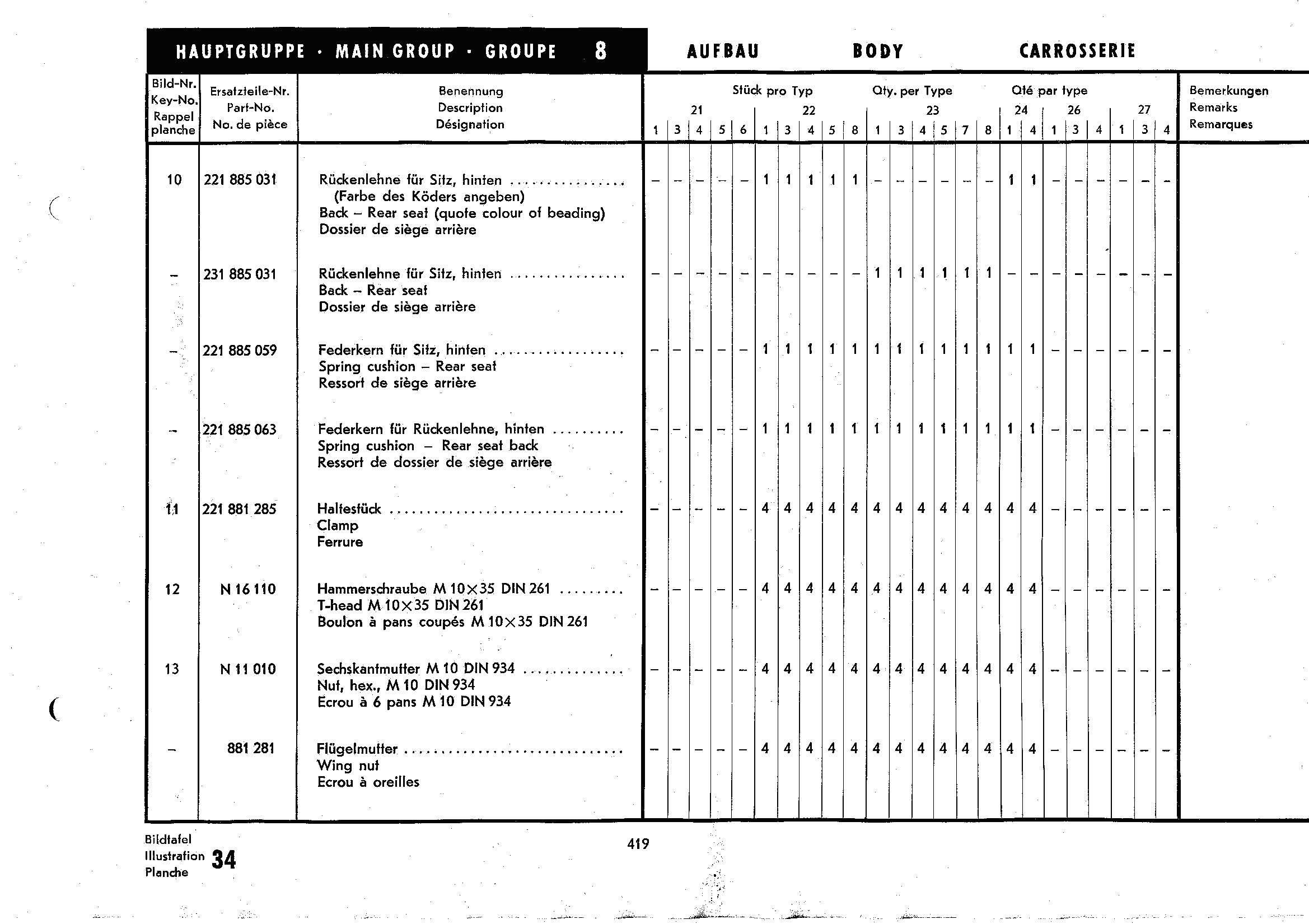

419 list Rear seat

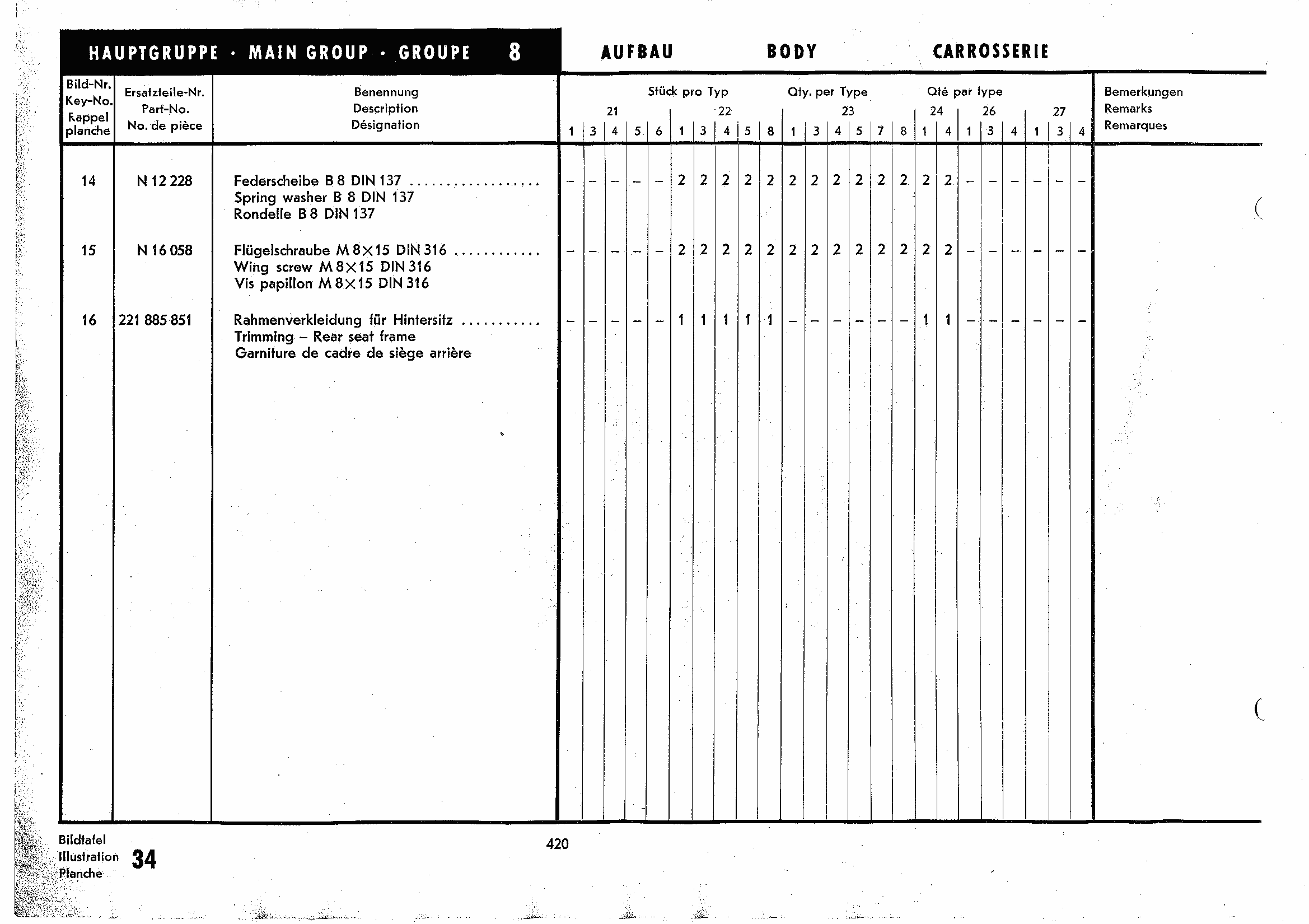

420 list Rear seat
421 special Original-VW-Ersatzteile sind auf ihre Werkstoff-Qualitaet geprueft!

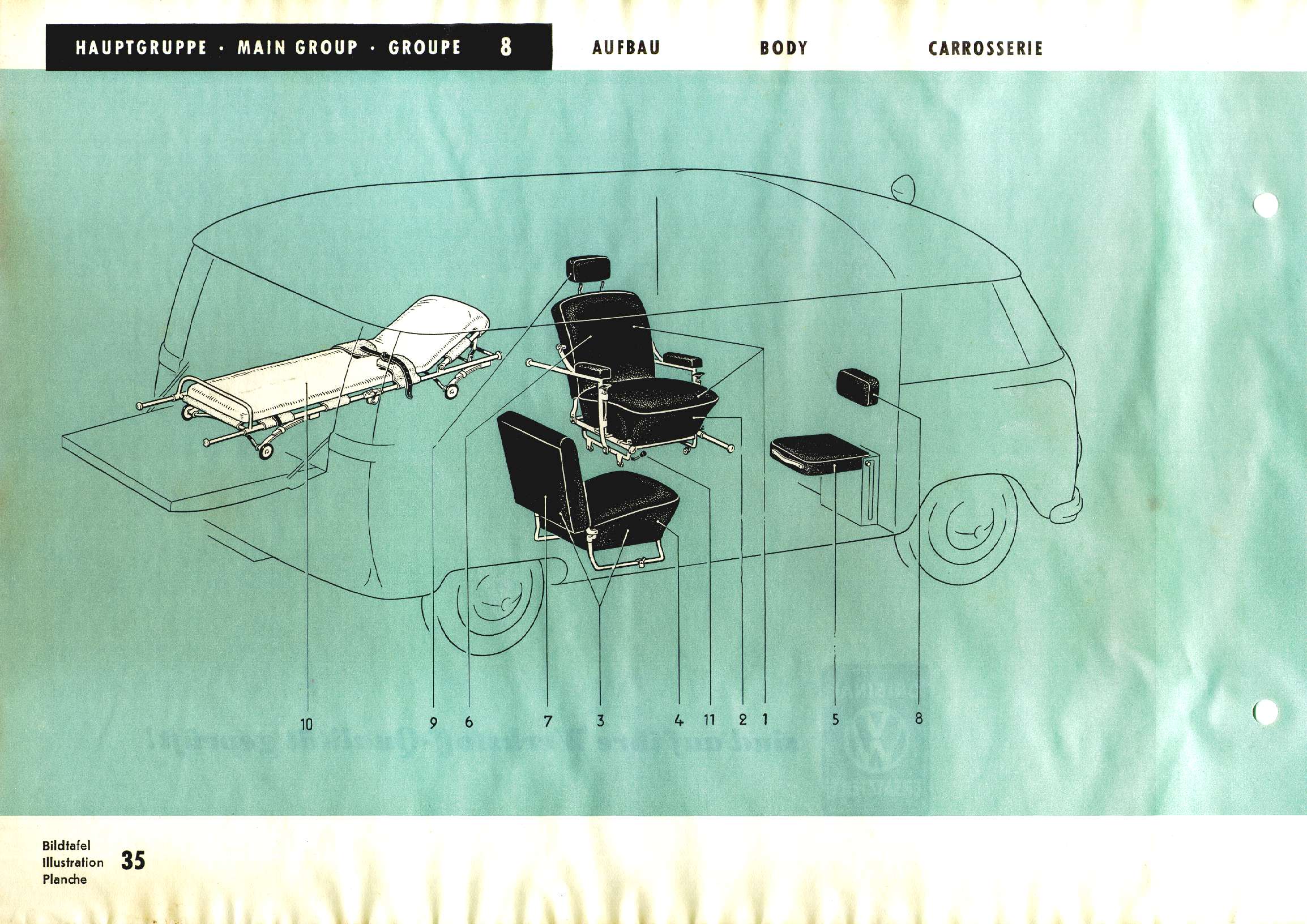

422 diagram Seats of VW Ambulance

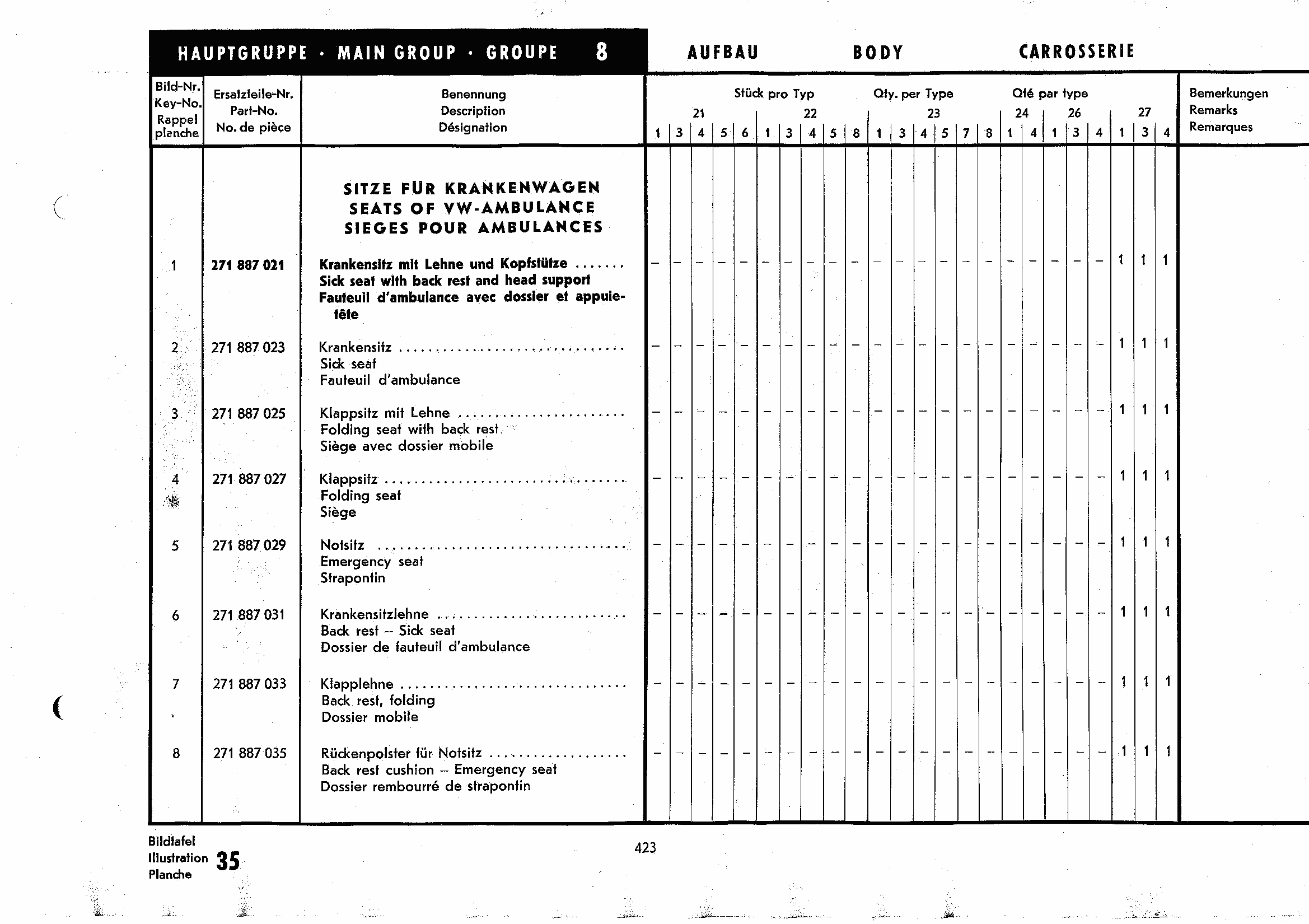

423 list Seats of VW Ambulance

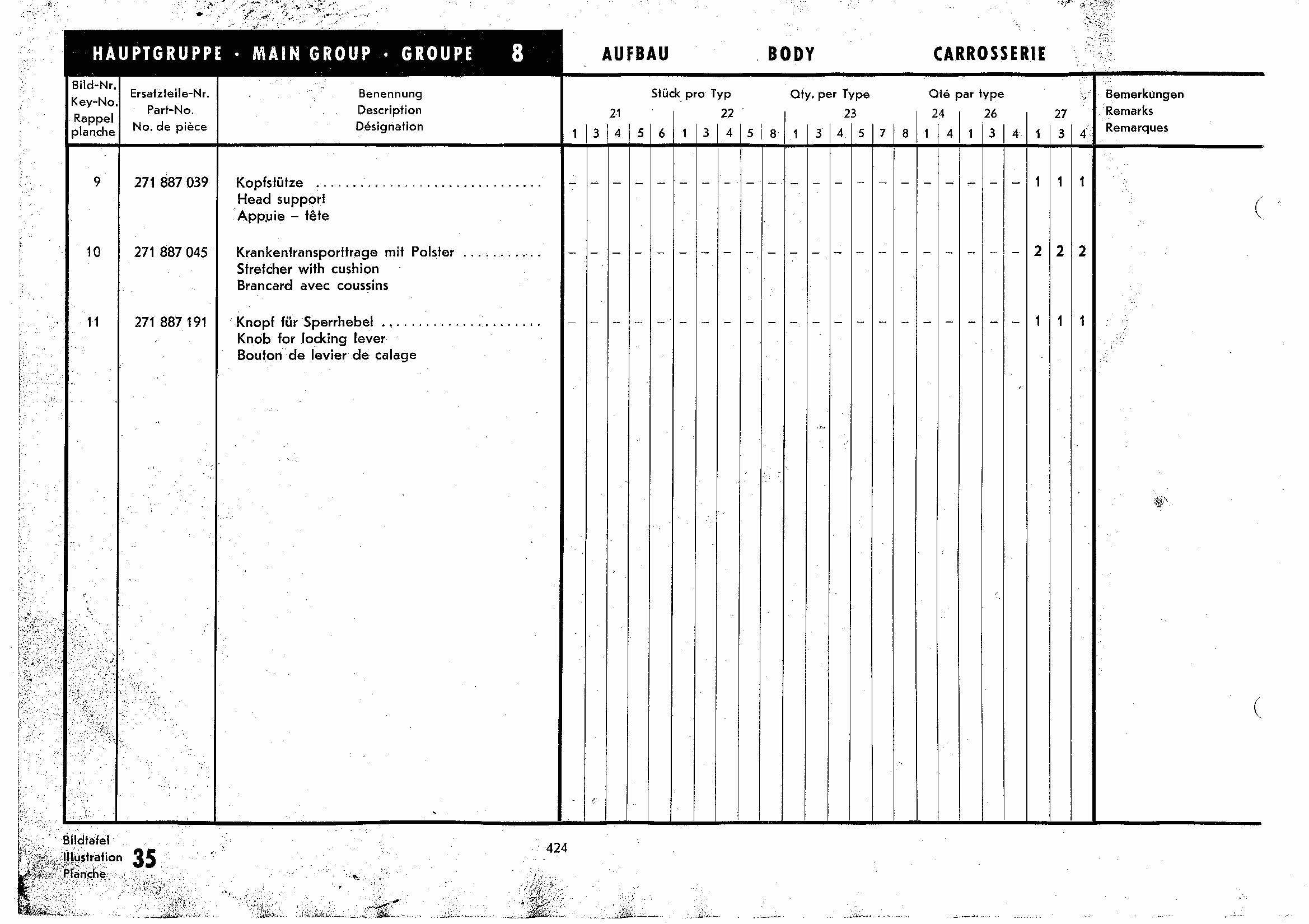

424 list Seats of VW Ambulance

Main Group 9: Electrical Equipment

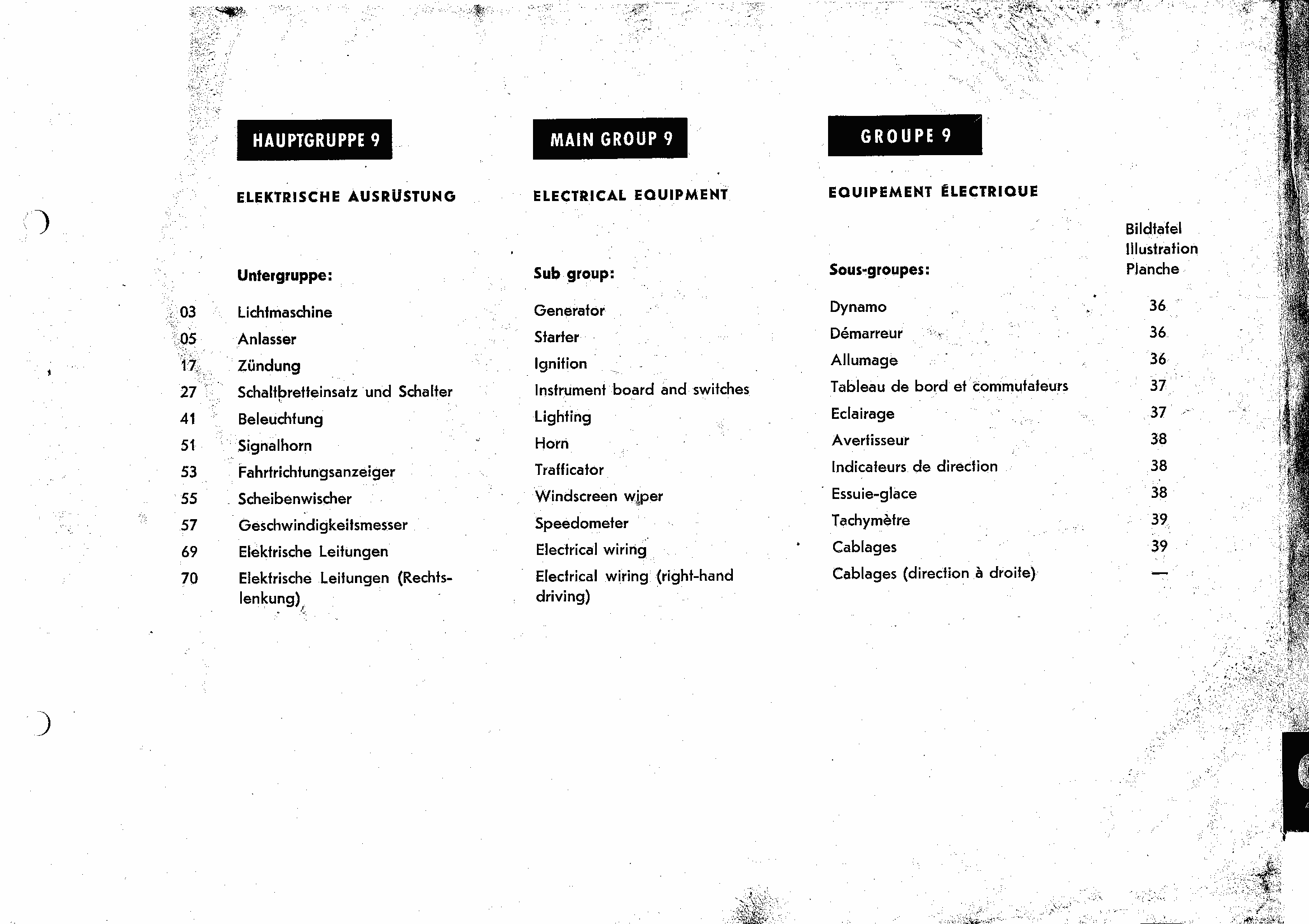

425 list Main Group 9 index

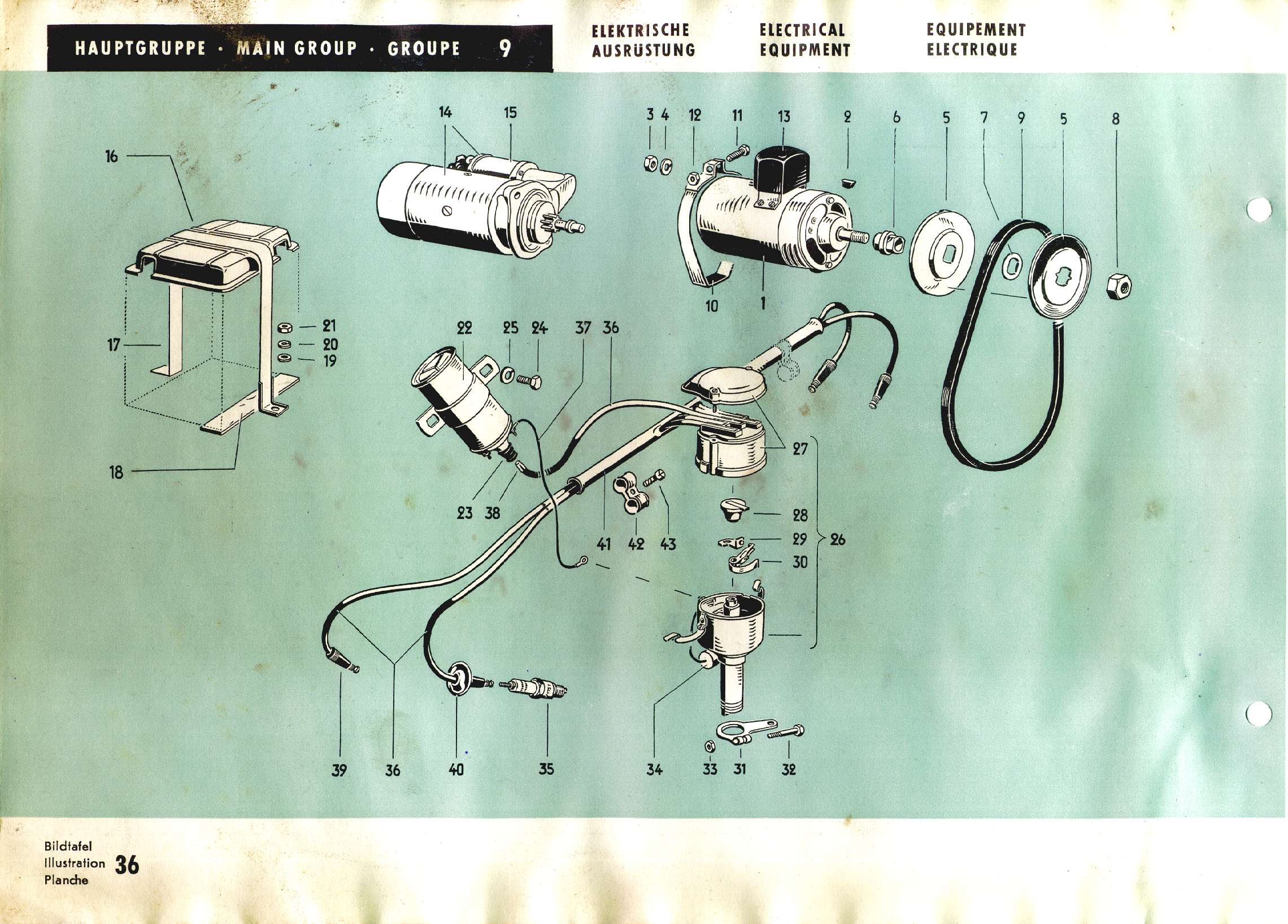

426 diagram Generator, starter, ignition

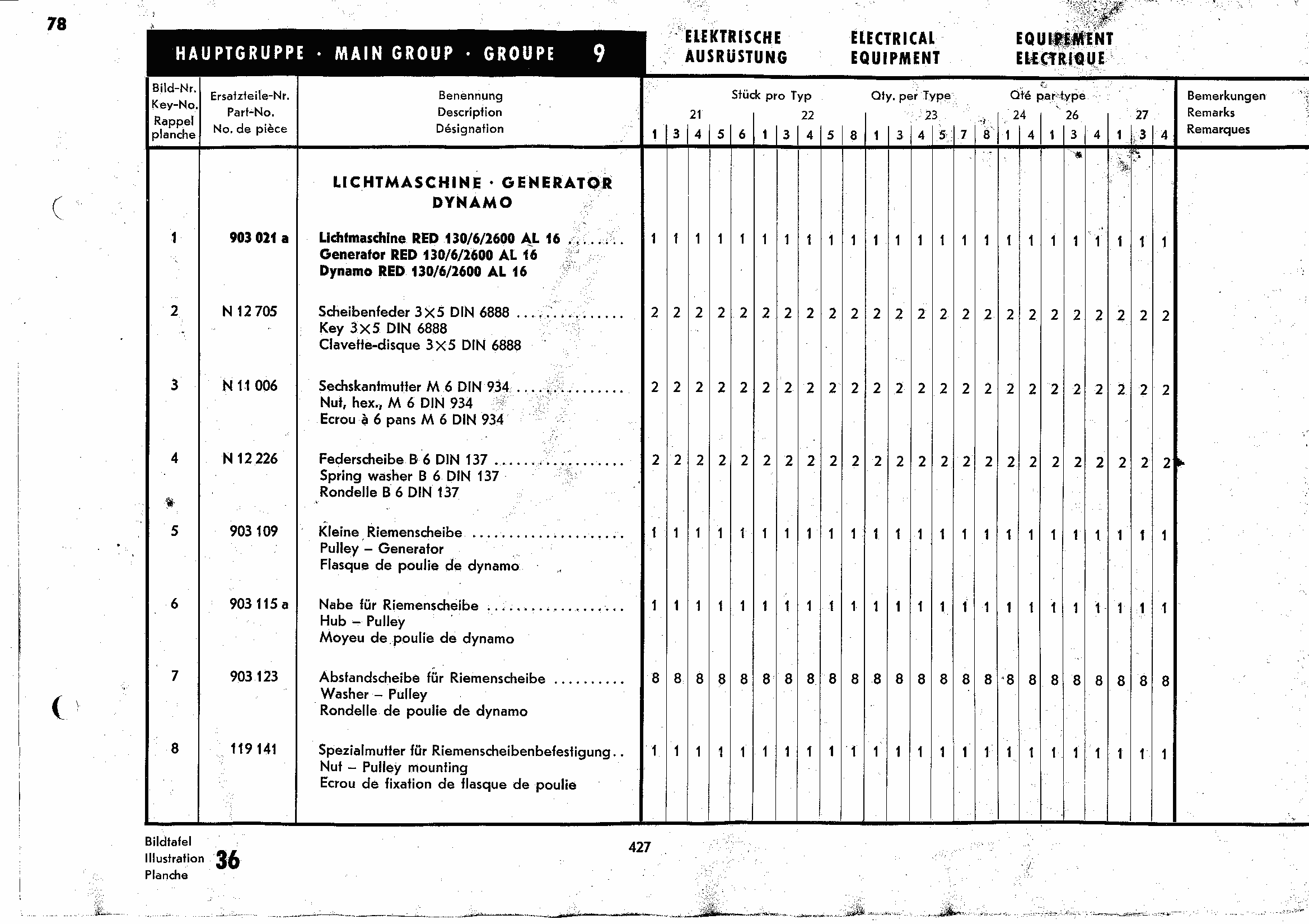

427 list Generator

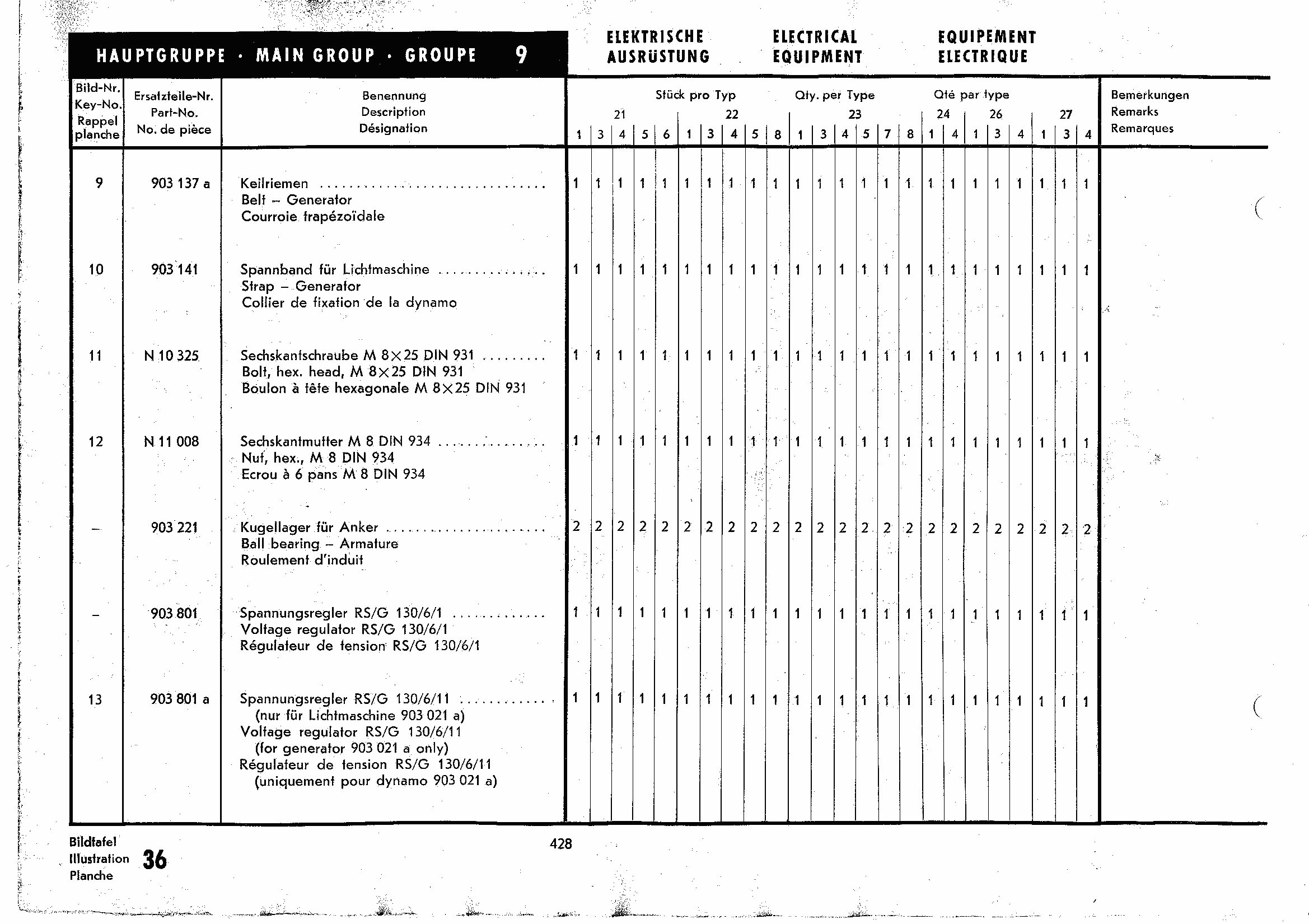

428 list Generator

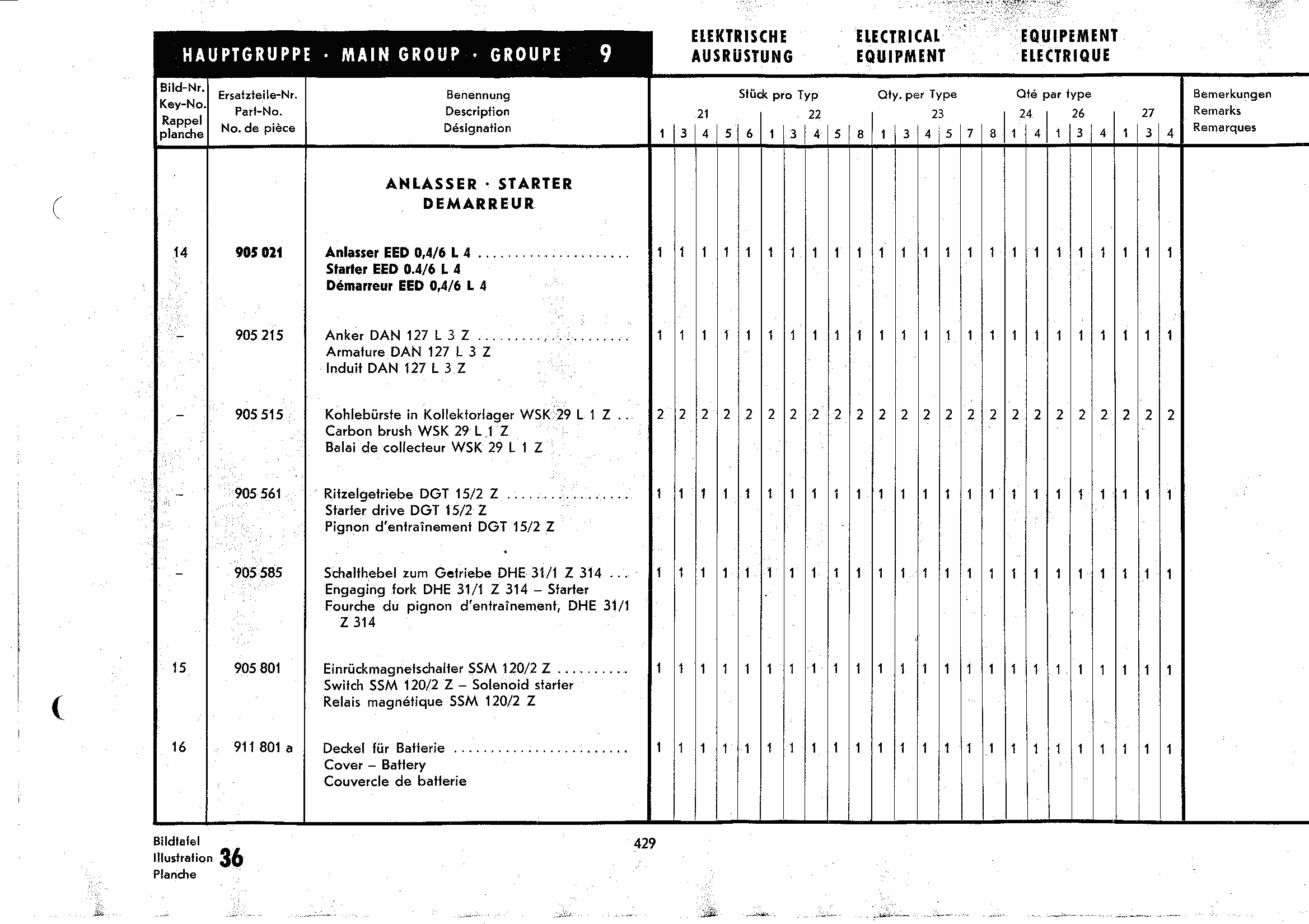

429 list Starter

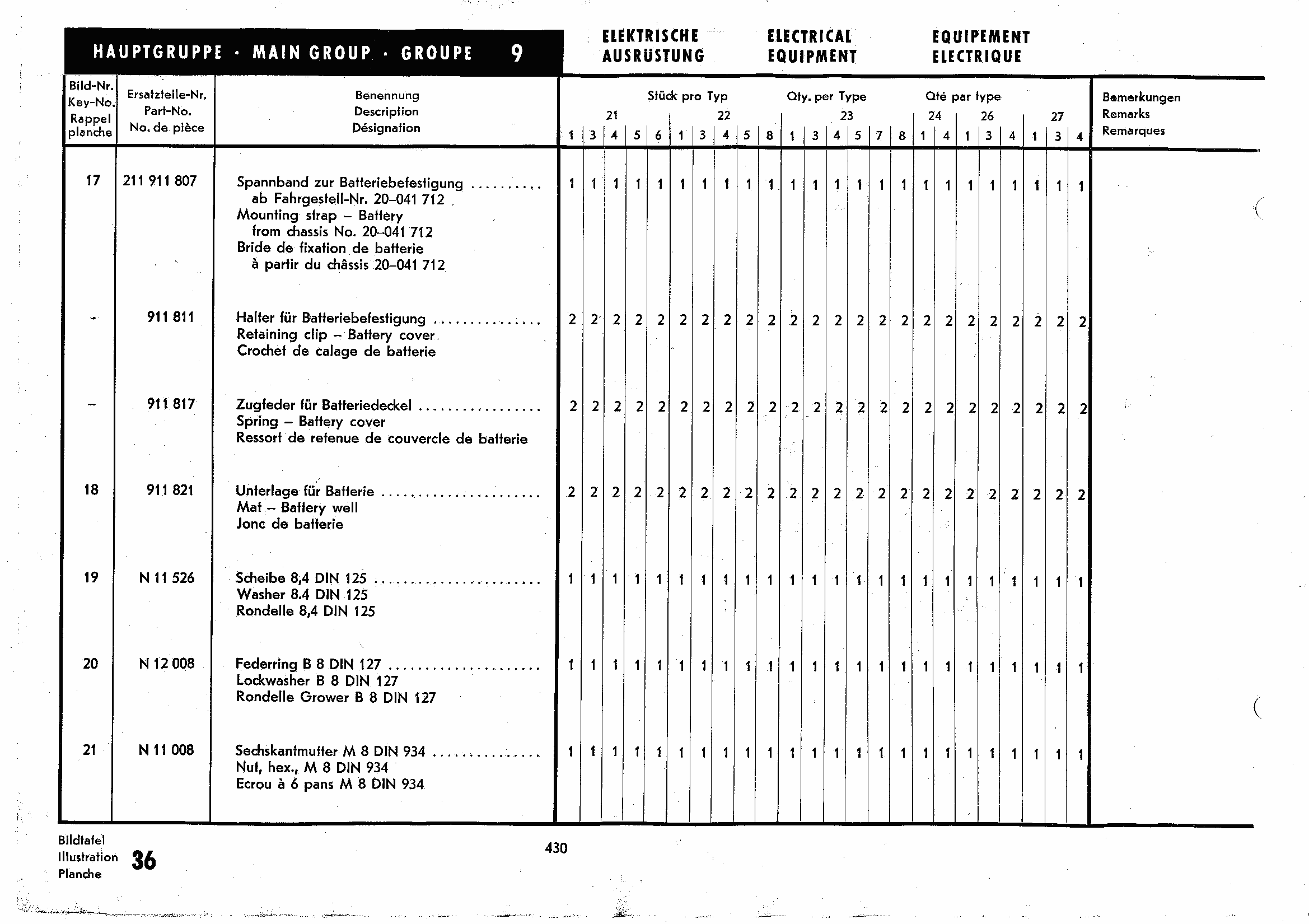

430 list Starter
431 list Ignition

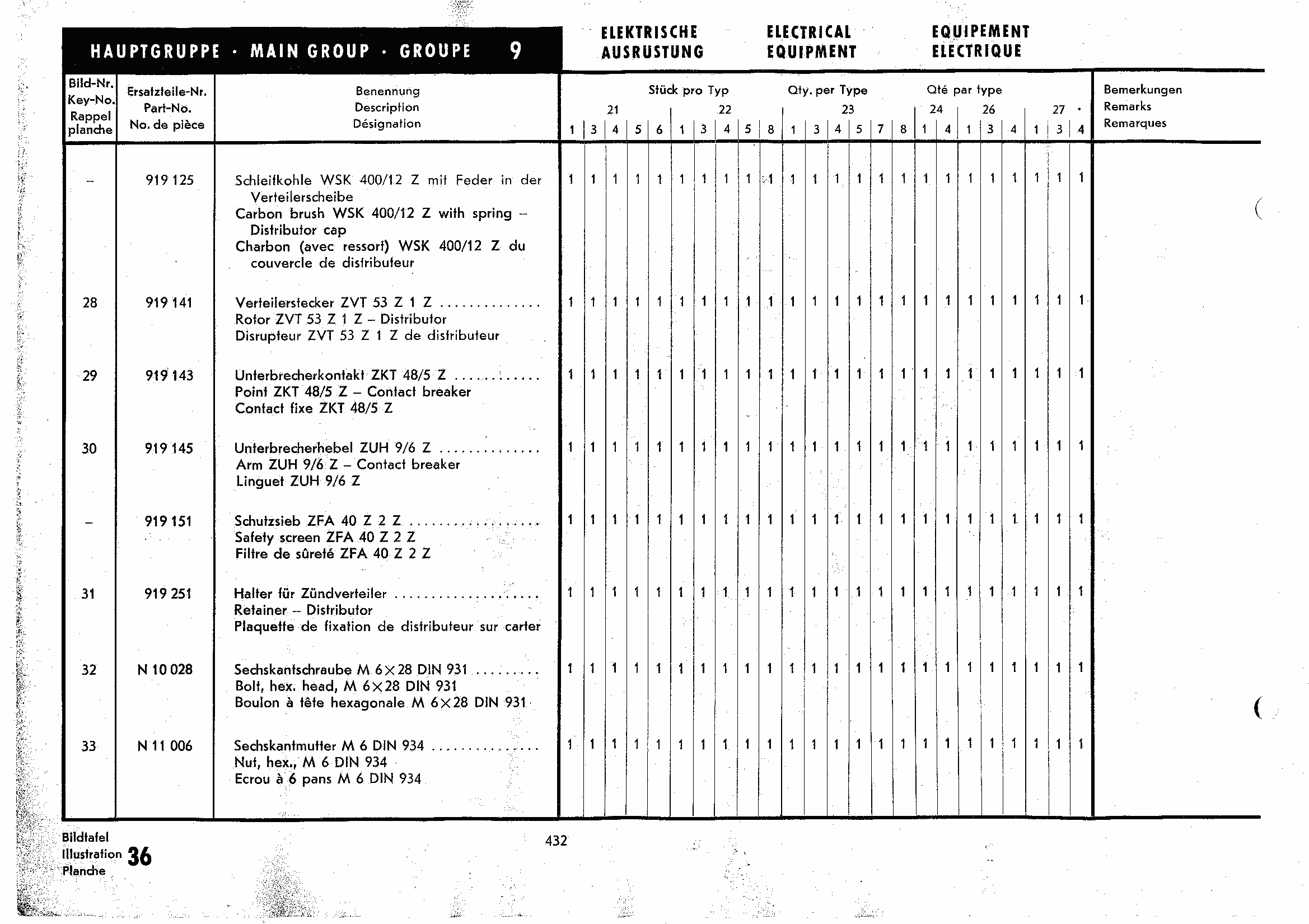

432 list Ignition

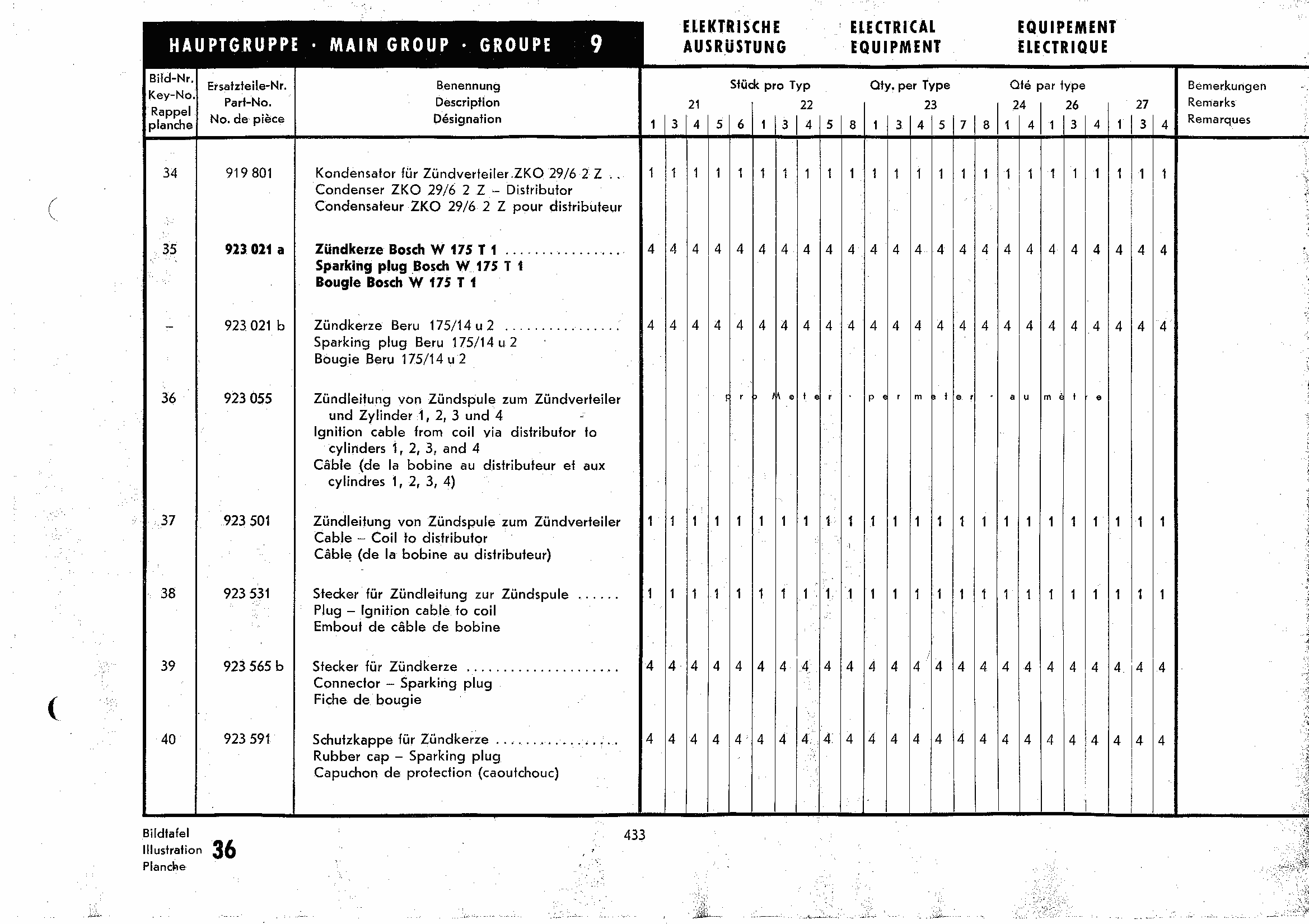

433 list Ignition

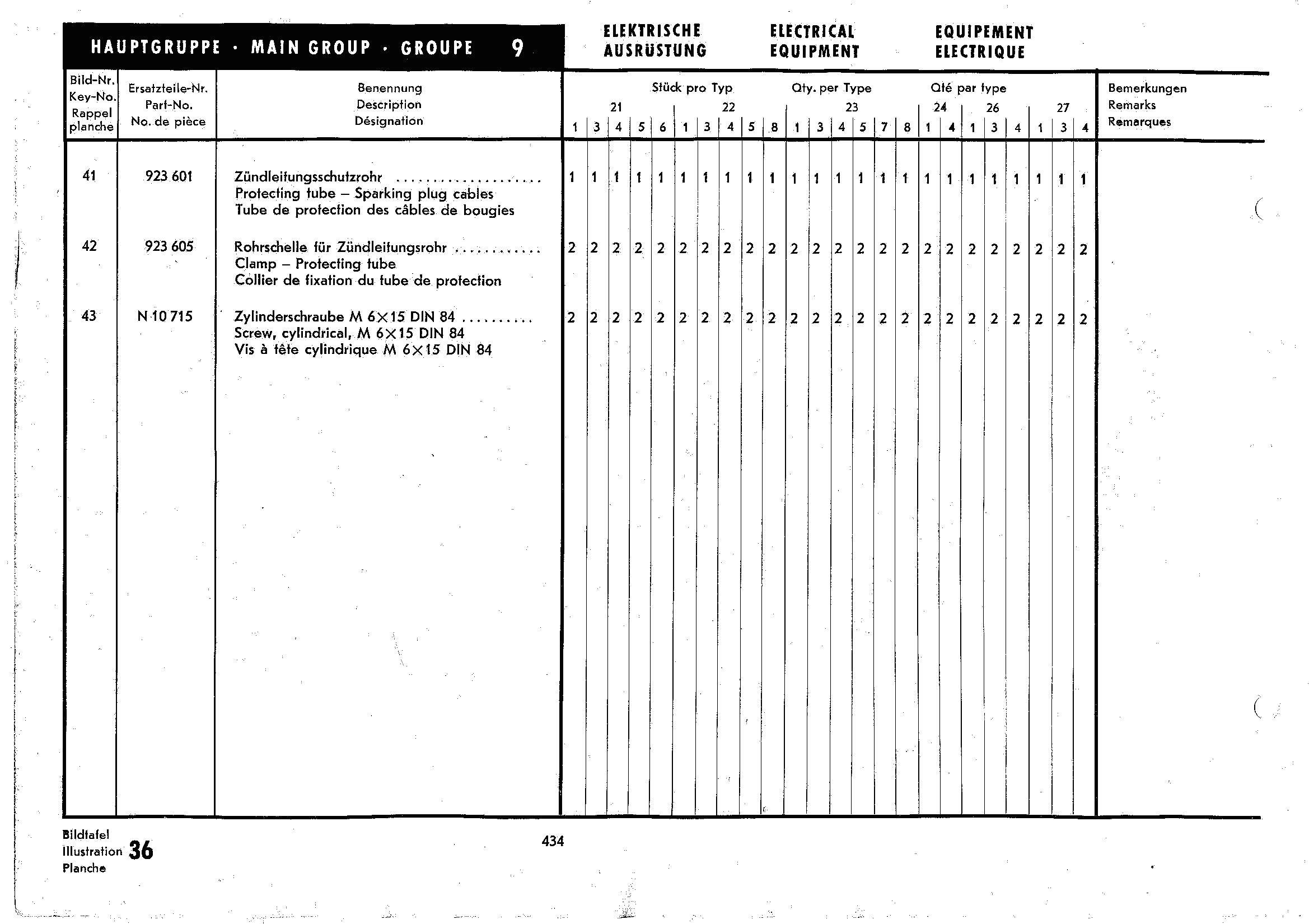

434 list Ignition
435 special Verwenden Sie nur Original-VW-Ersatzteile. Sie sind massgerech preiswert wirtschaftlich und erhalten die Lebensdauer Ihres Fahrzeuges

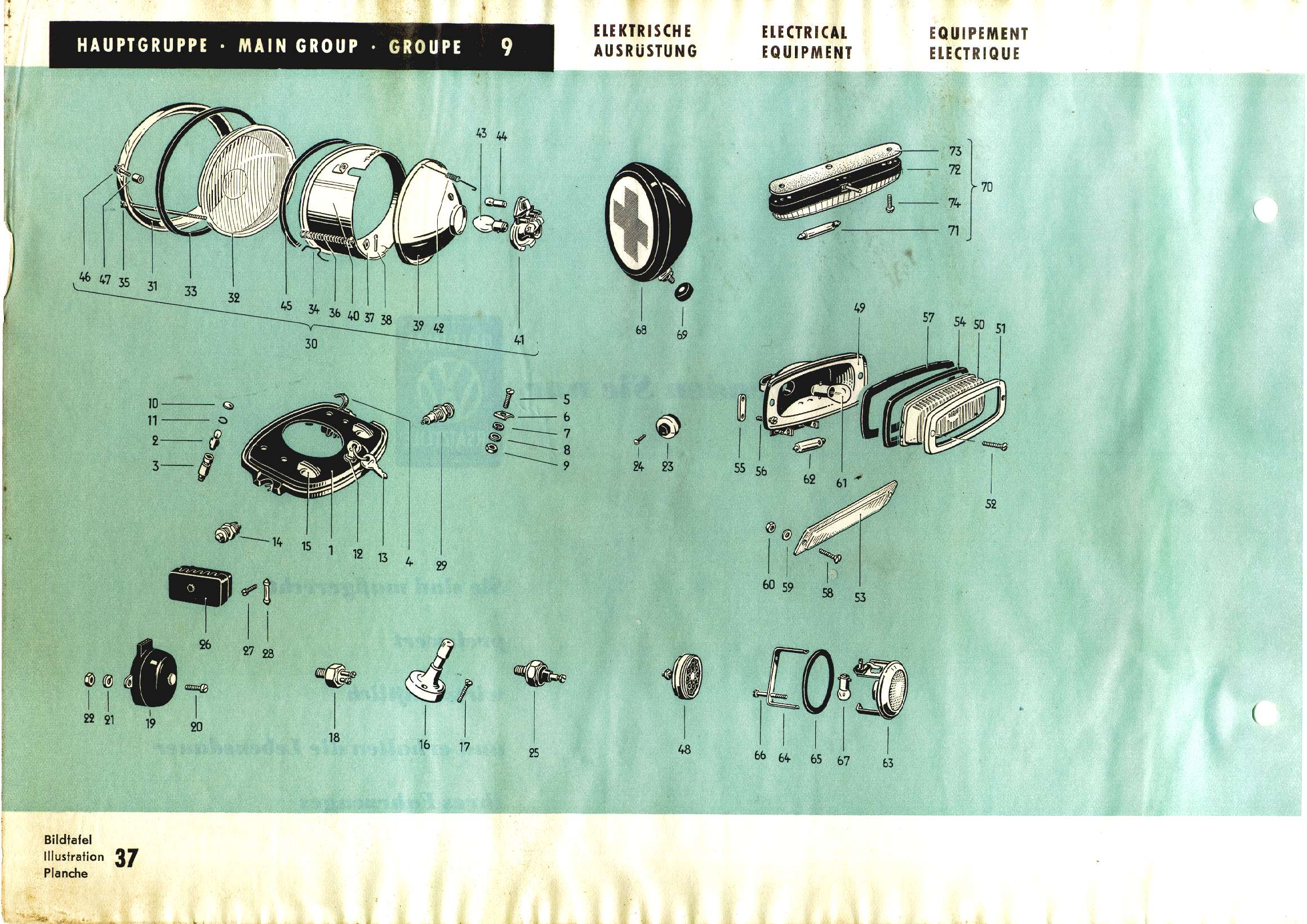

436 diagram Instrument board, switches, lighting

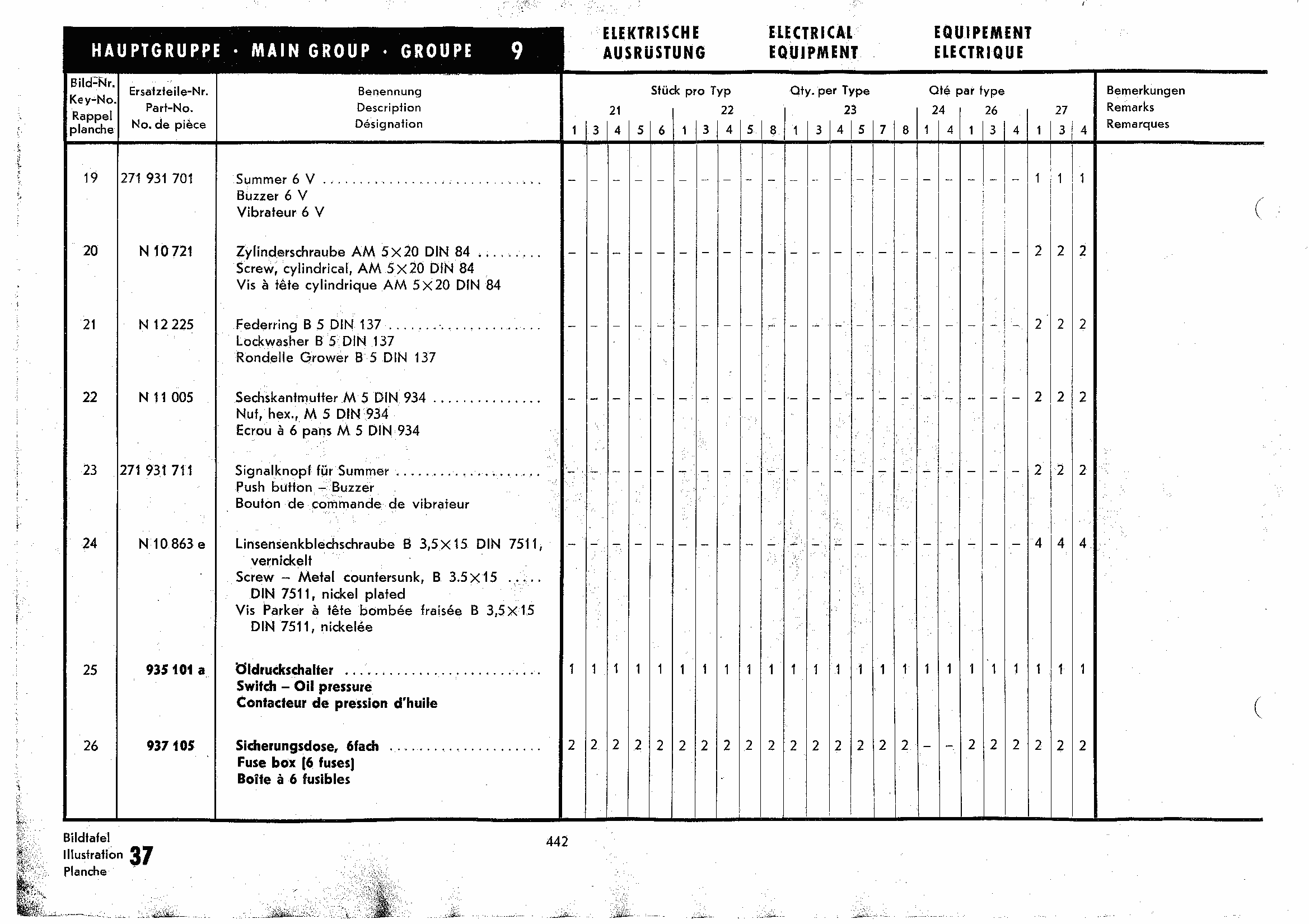

437 list Instrument board, switches

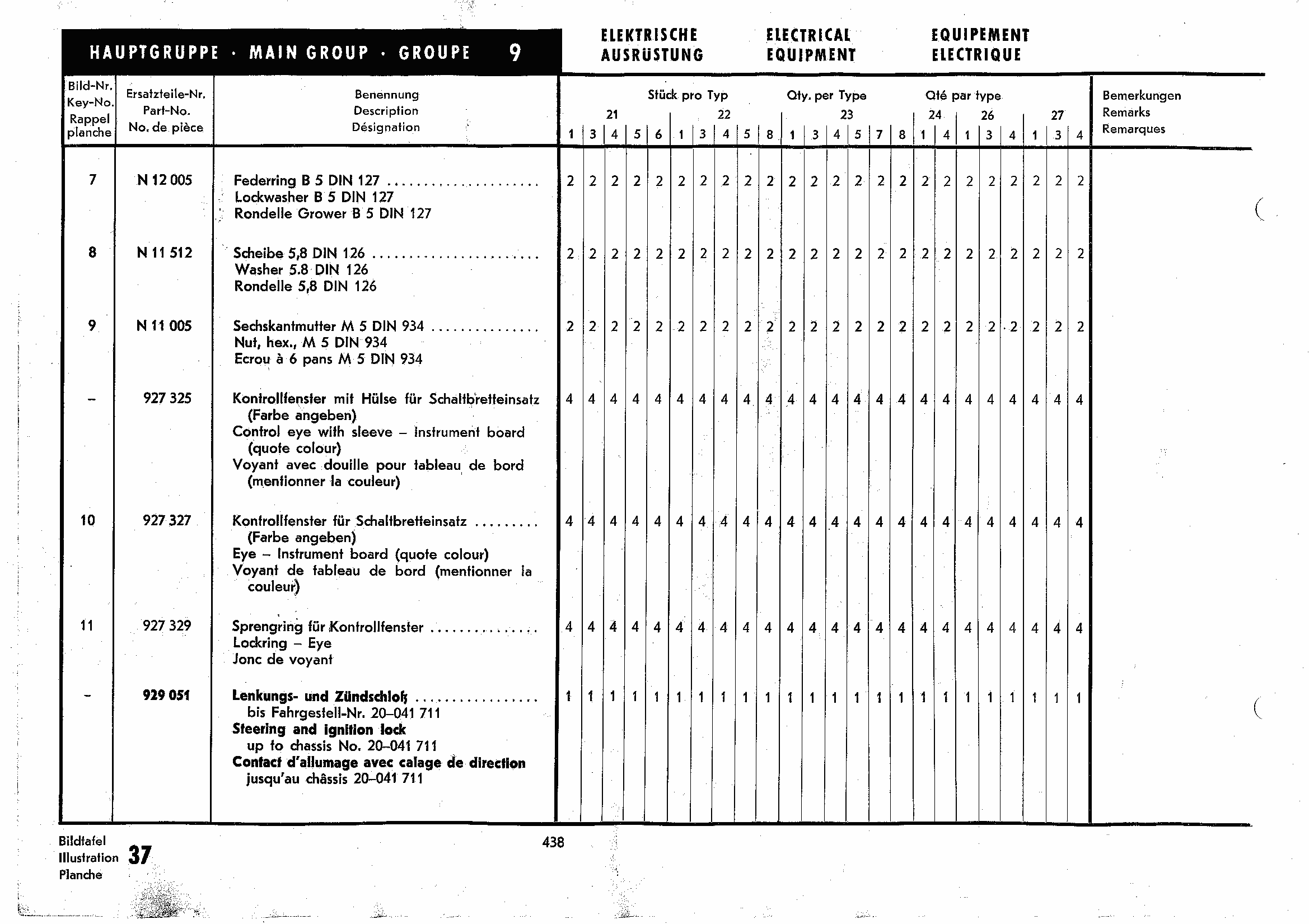

438 list Instrument board, switches

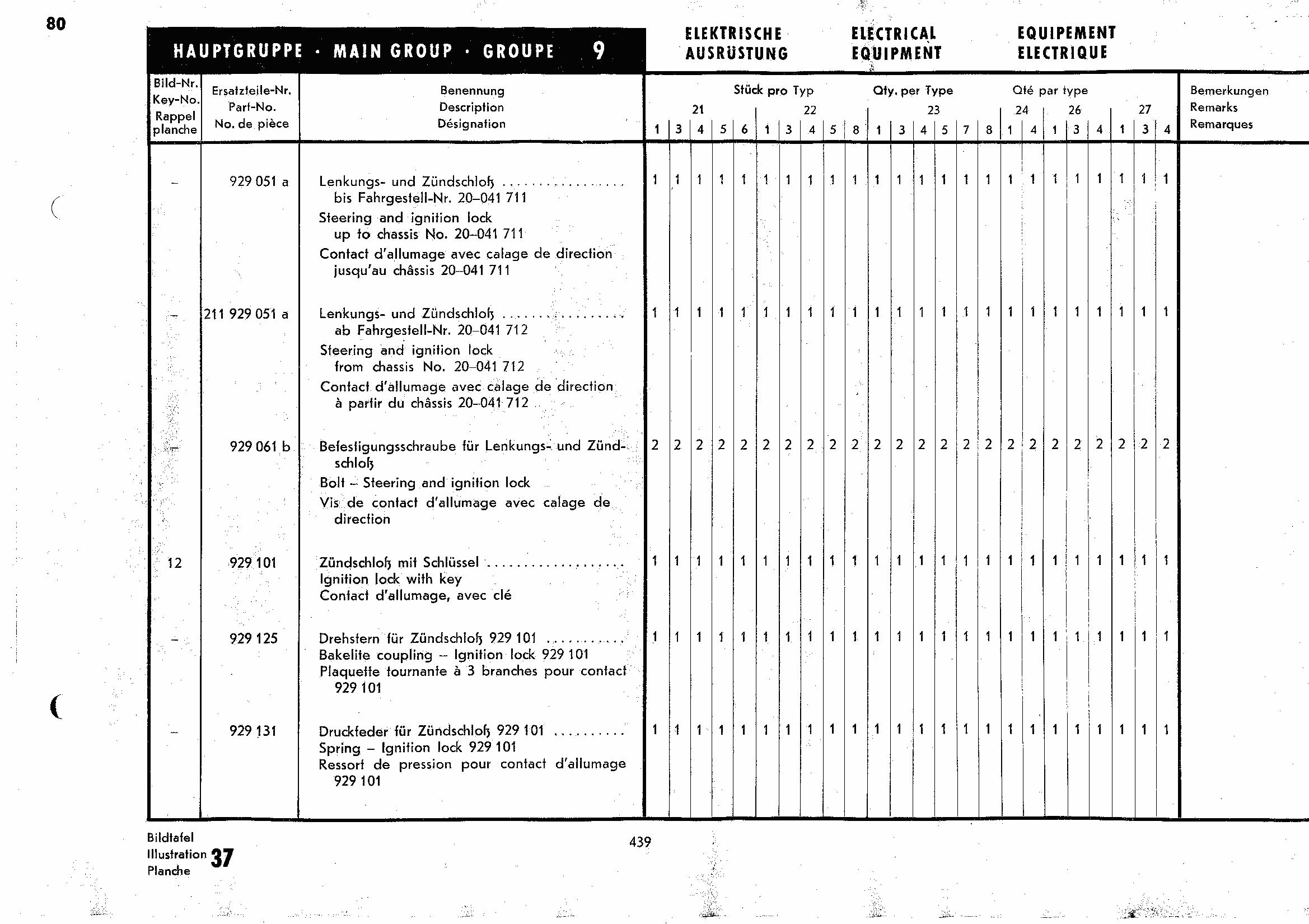

439 list Instrument board, switches

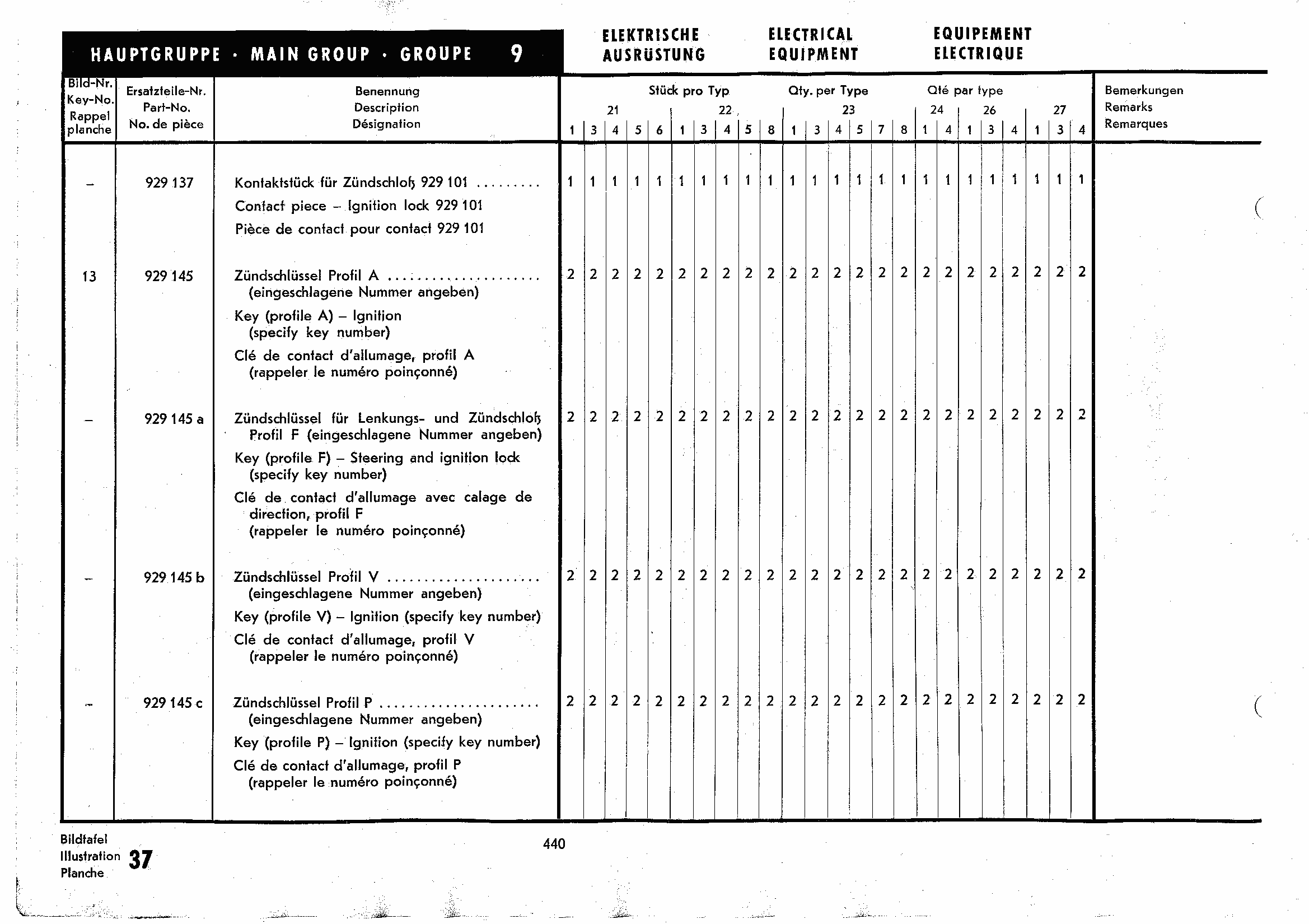

440 list Instrument board, switches
441 list Instrument board, switches
442 list Instrument board, switches

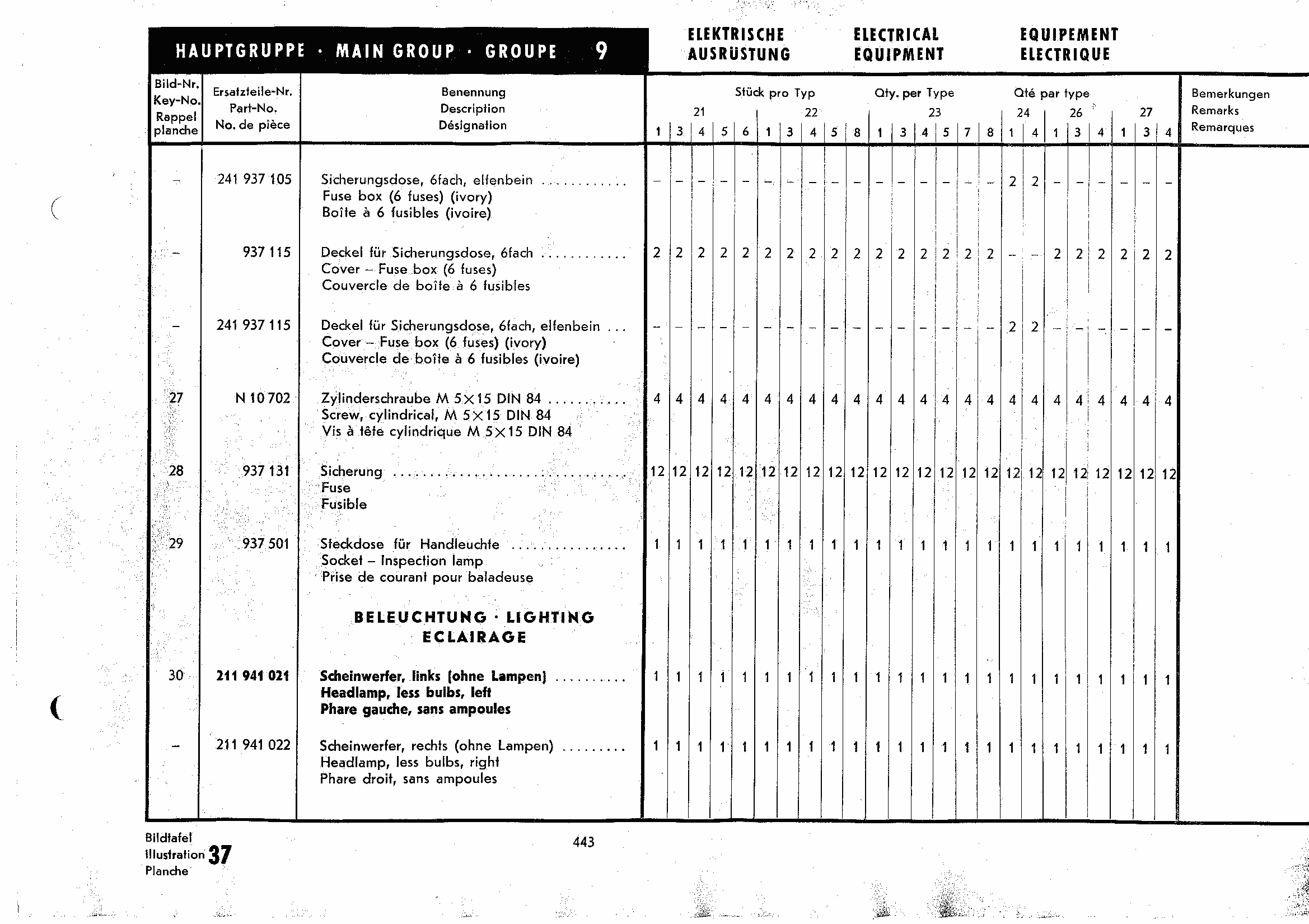

443 list Instrument board, switches; lighting

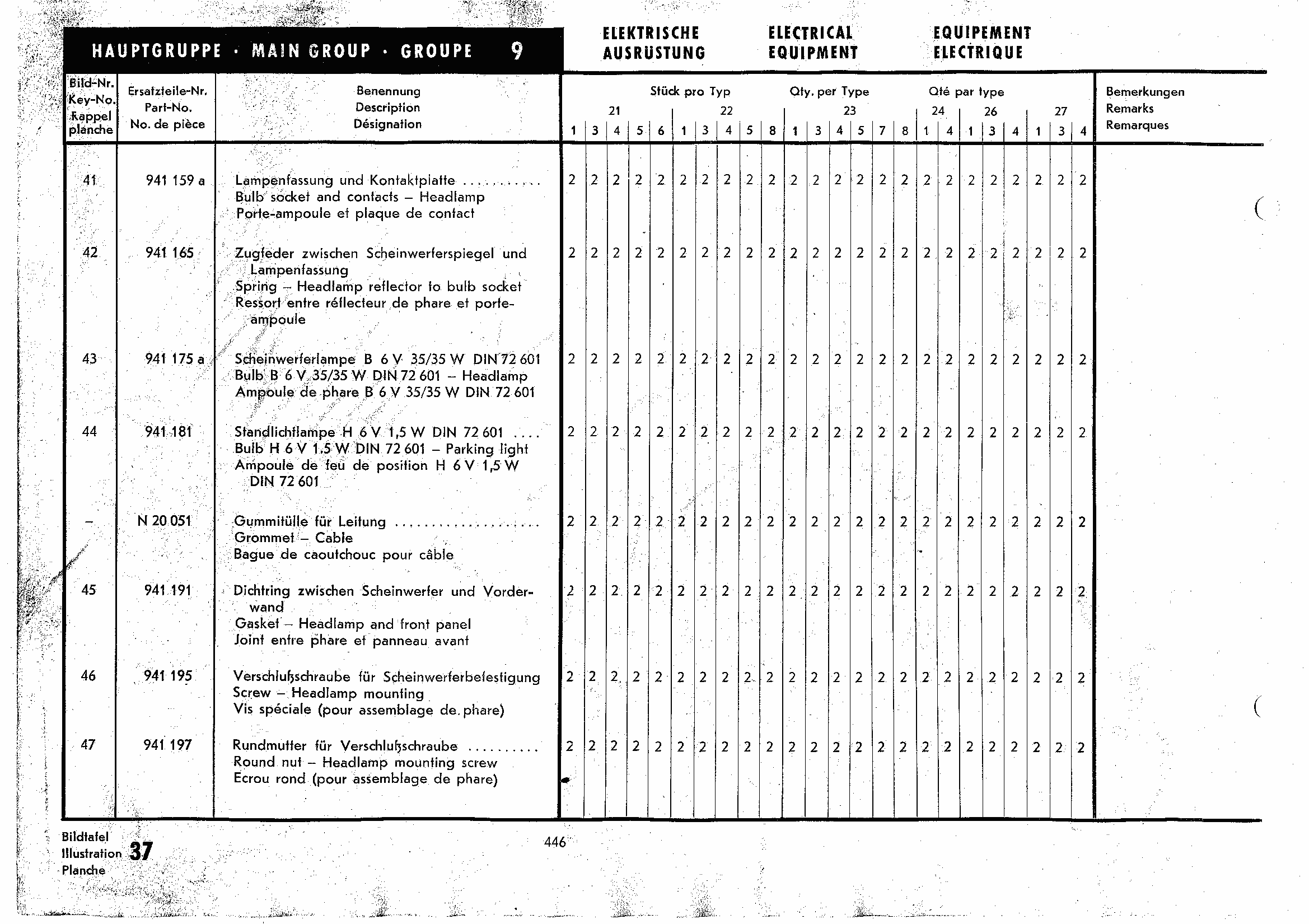

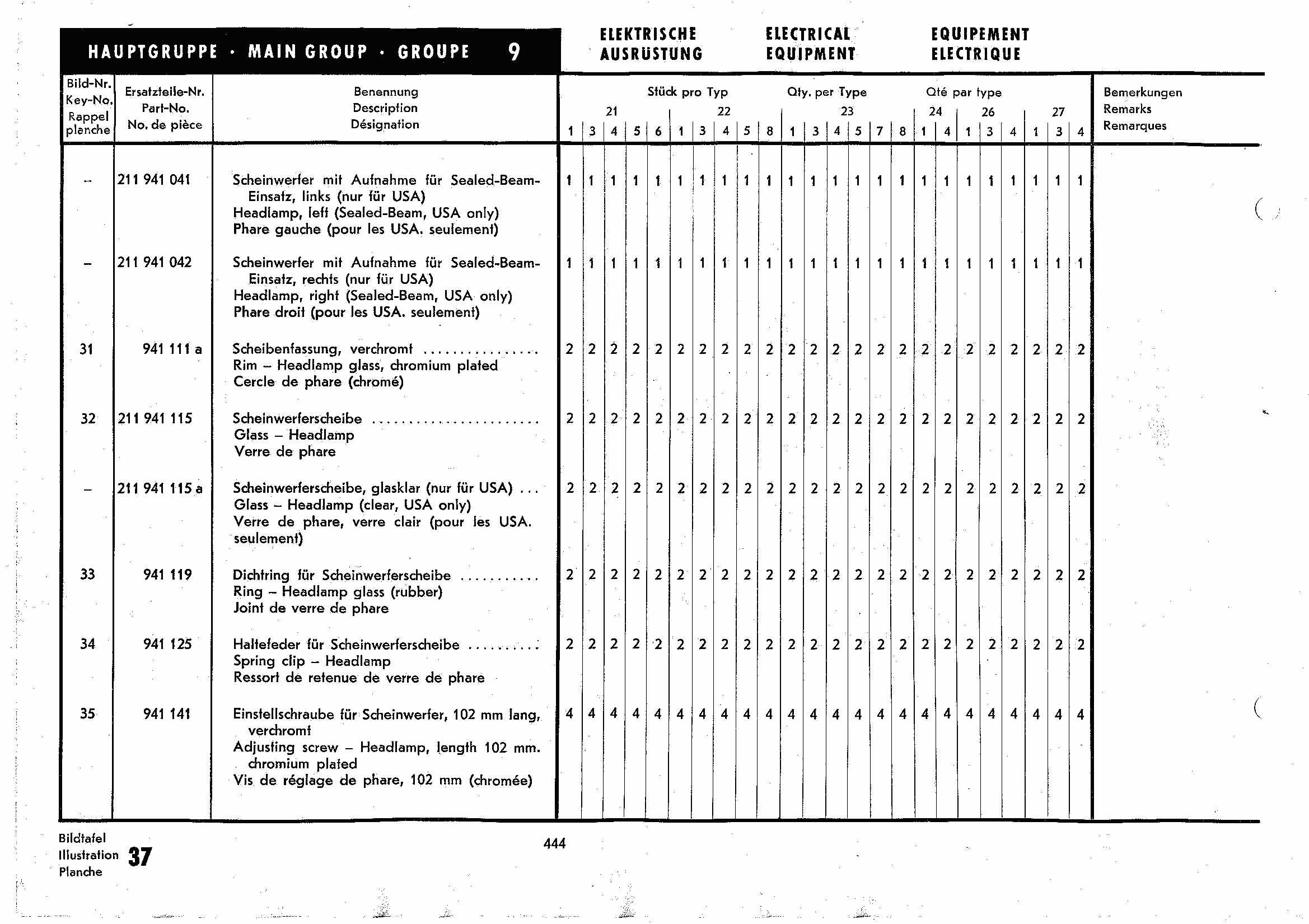

444 list Lighting

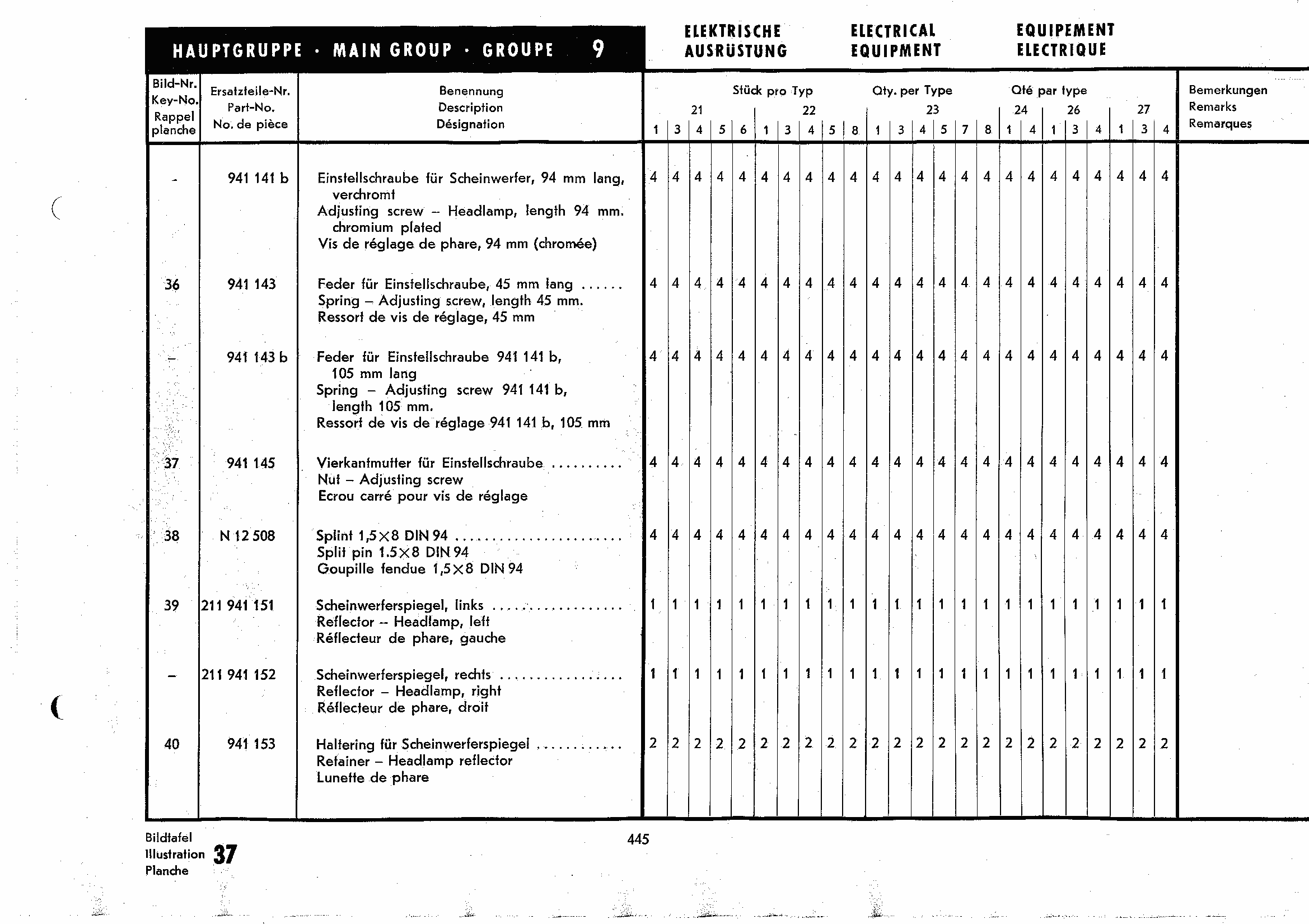

445 list Lighting
446 list Lighting
447 list Lighting

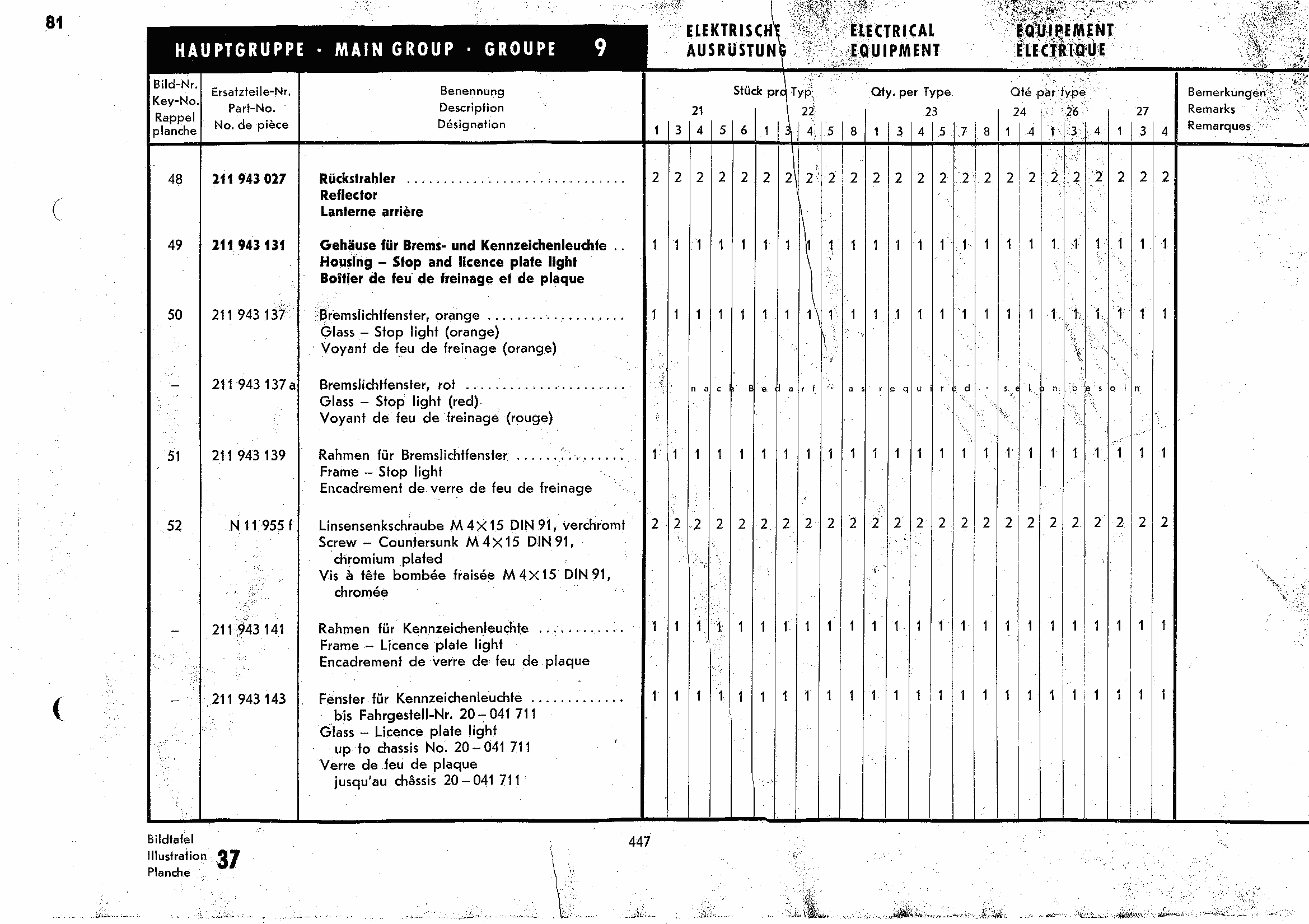

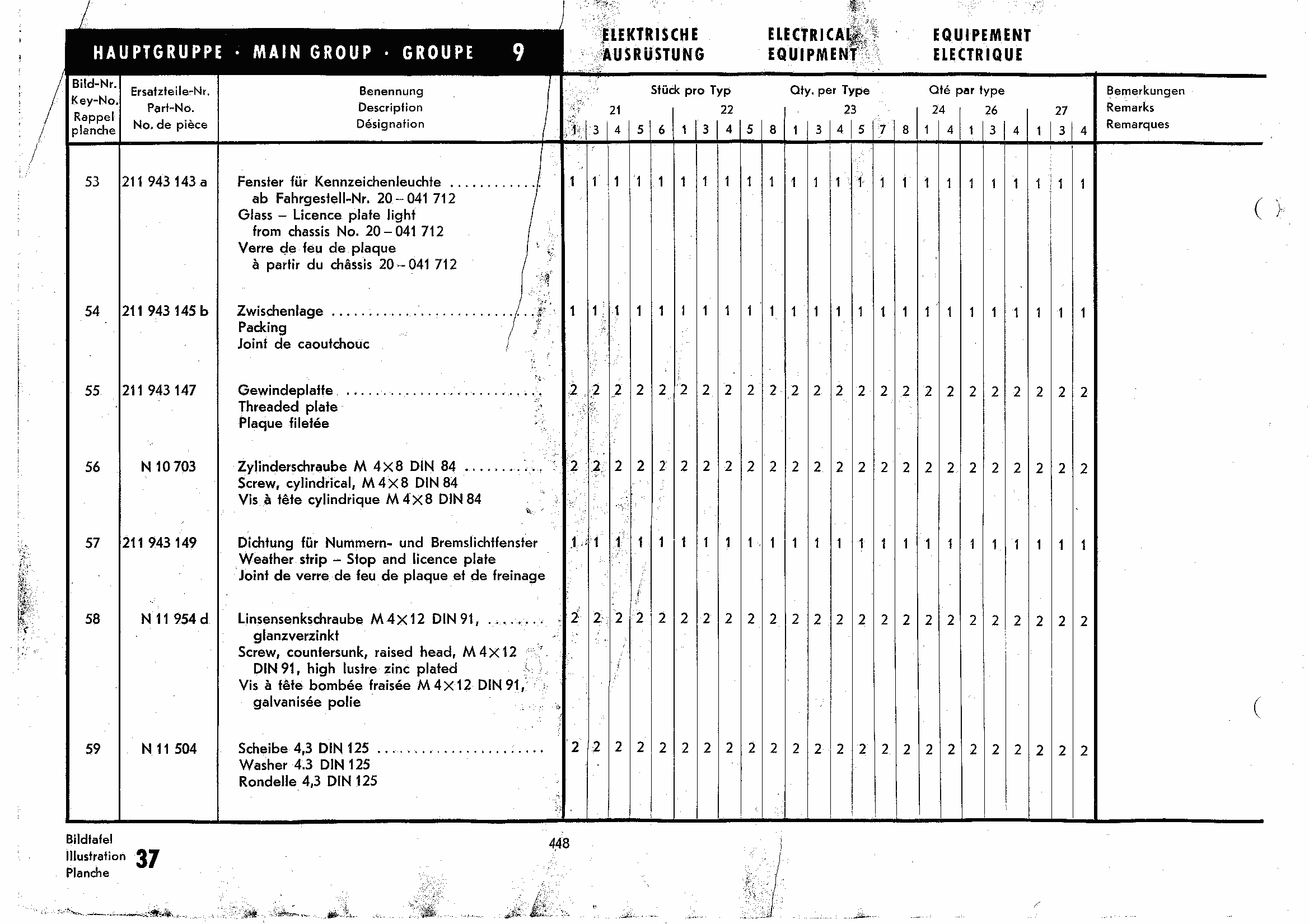

448 list Lighting

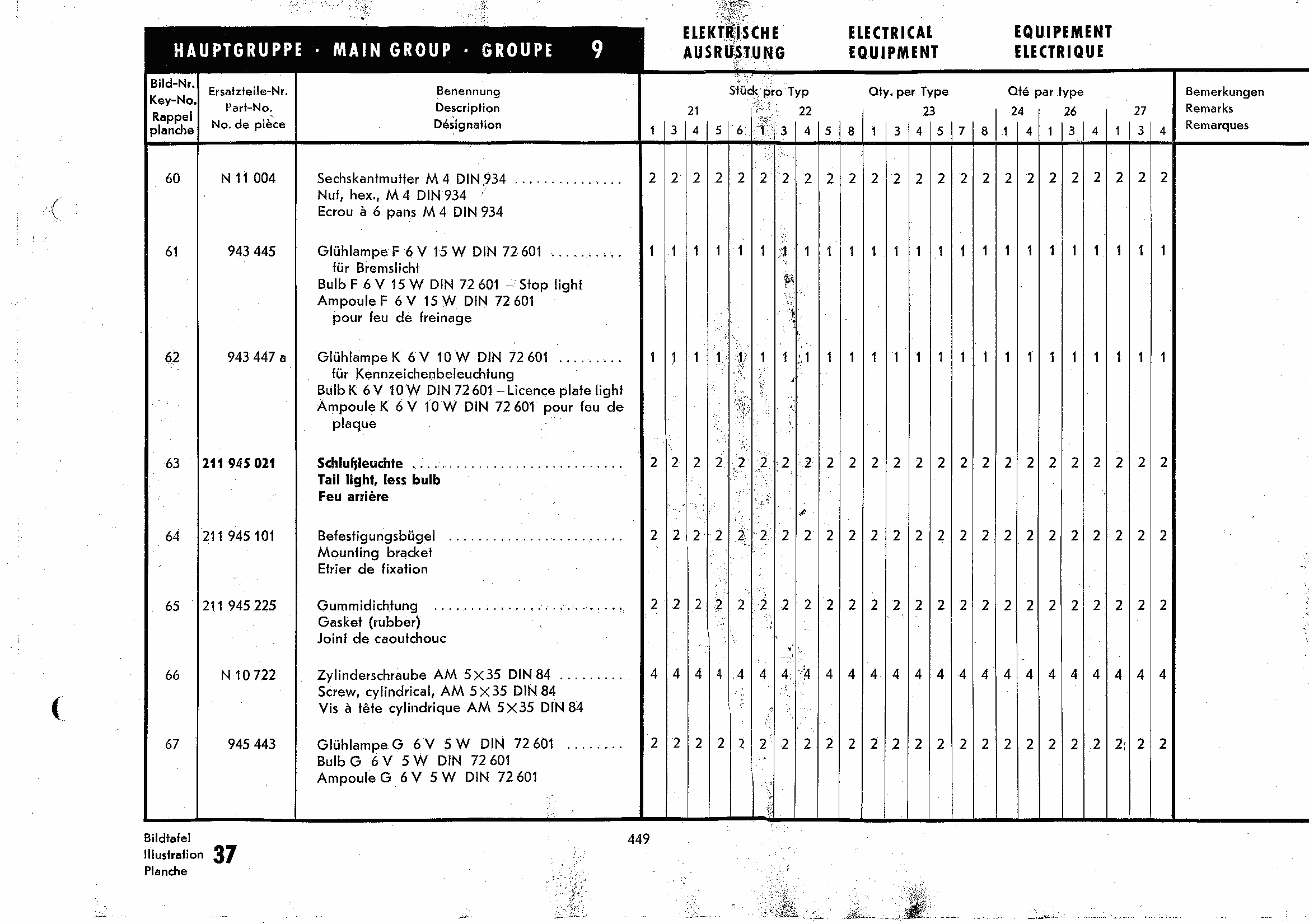

449 list Lighting

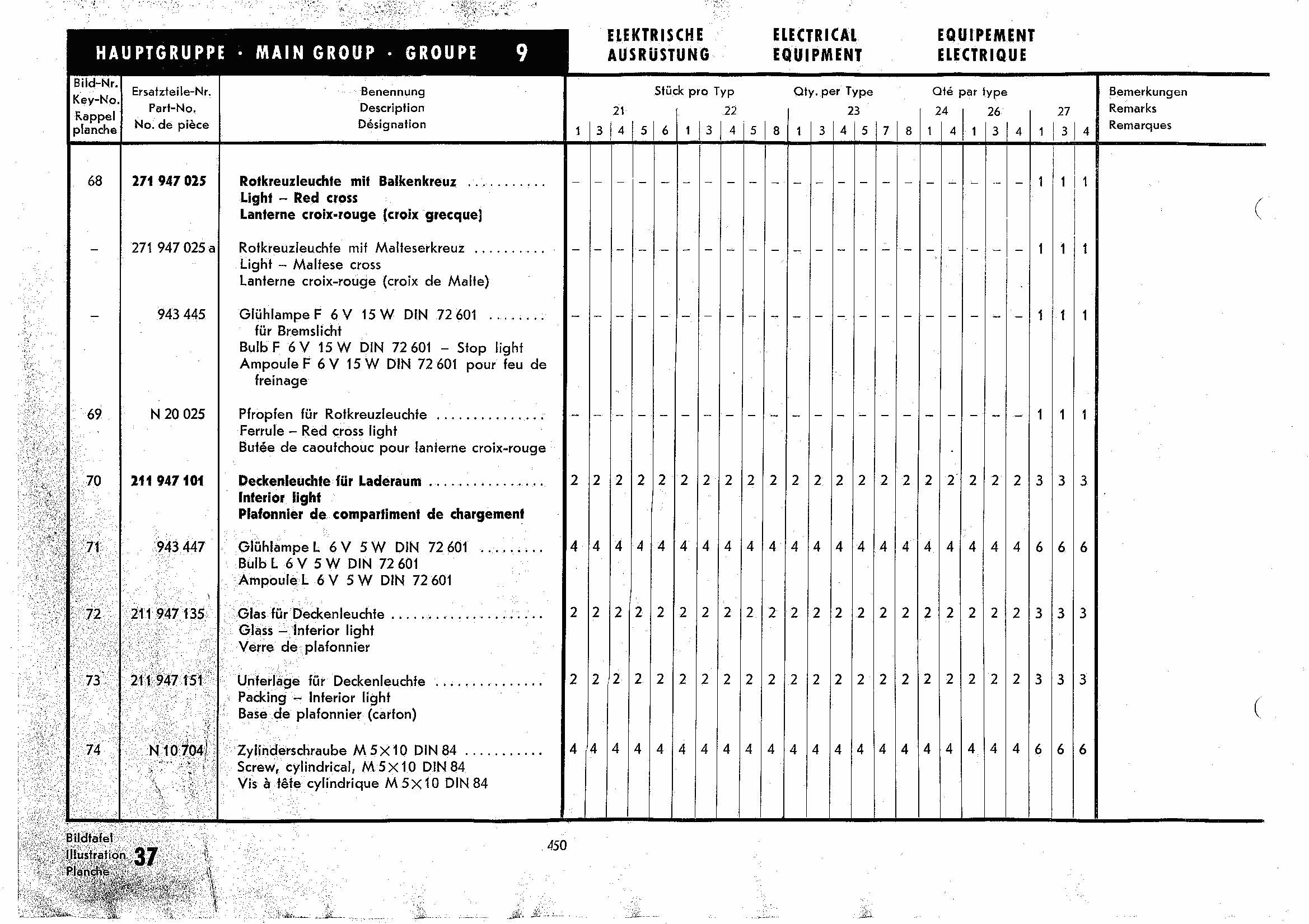

450 list Lighting
451 special Verlangen Sie nur Original-VW-Ersatzteile die Ihnen die Instandsetzung vereinfachen, schnelle und billigste Bedienung gewaehrleisten!

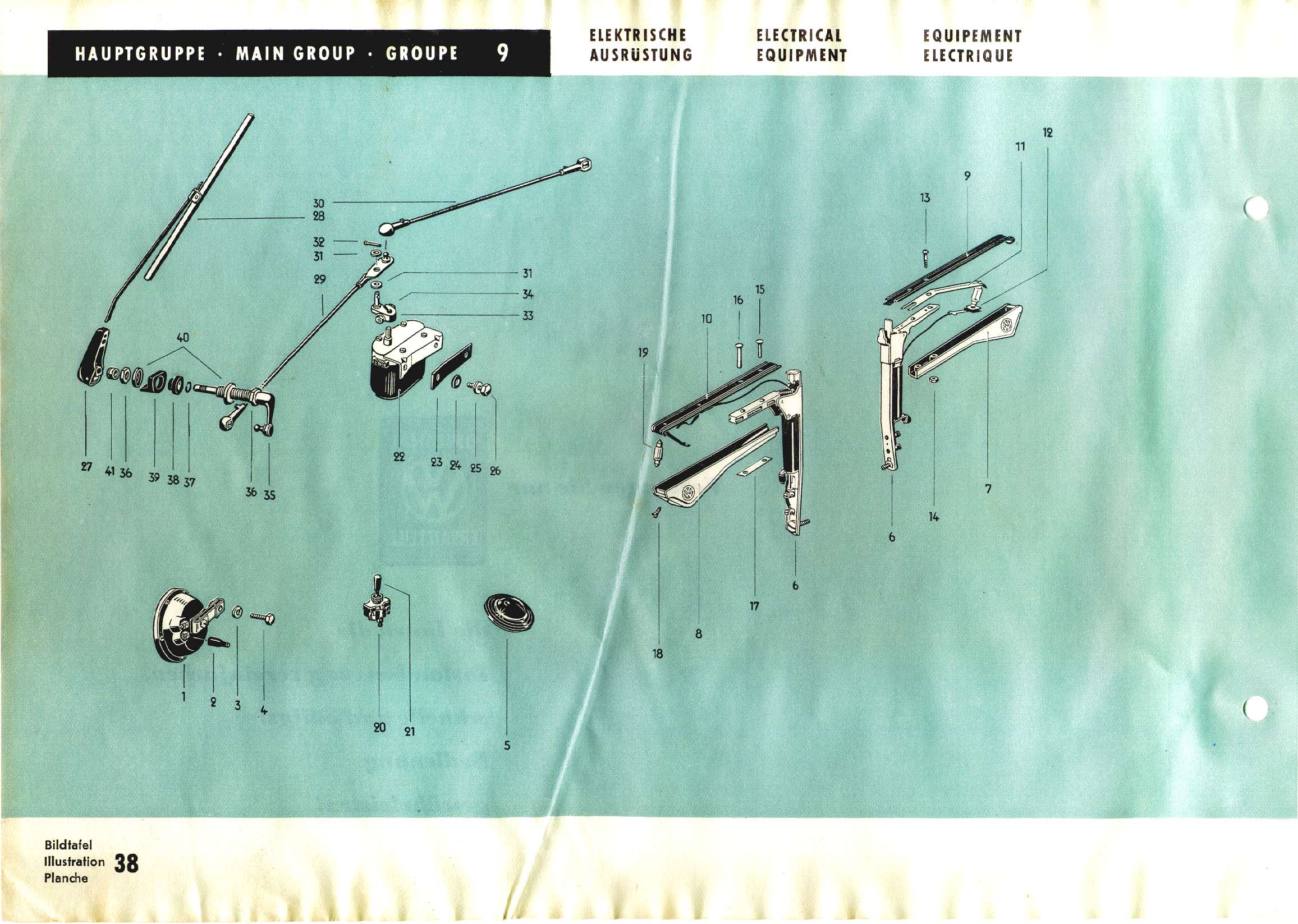

452 diagram Horn, trafficator, windscreen wiper
453 list Horn

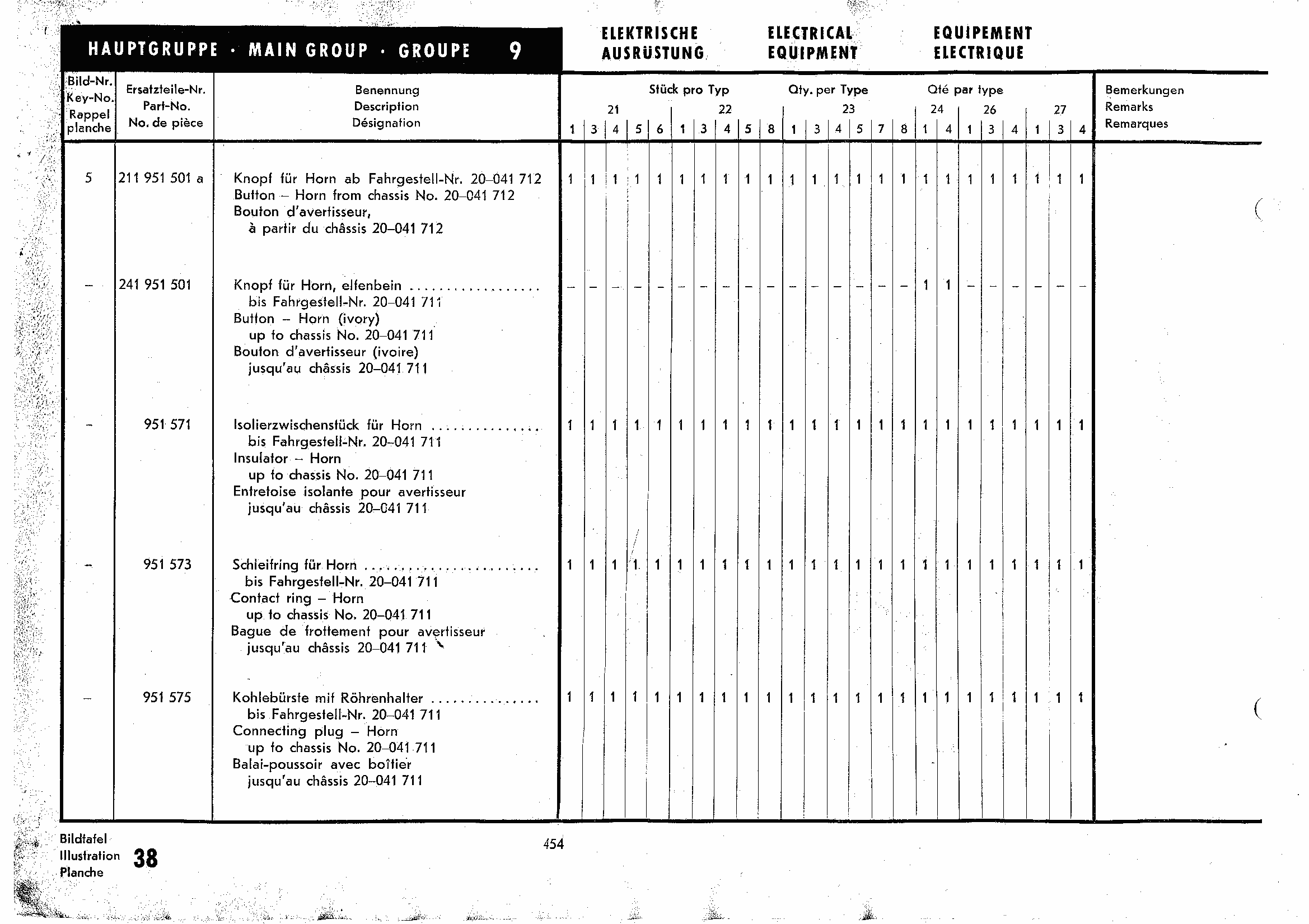

454 list Horn

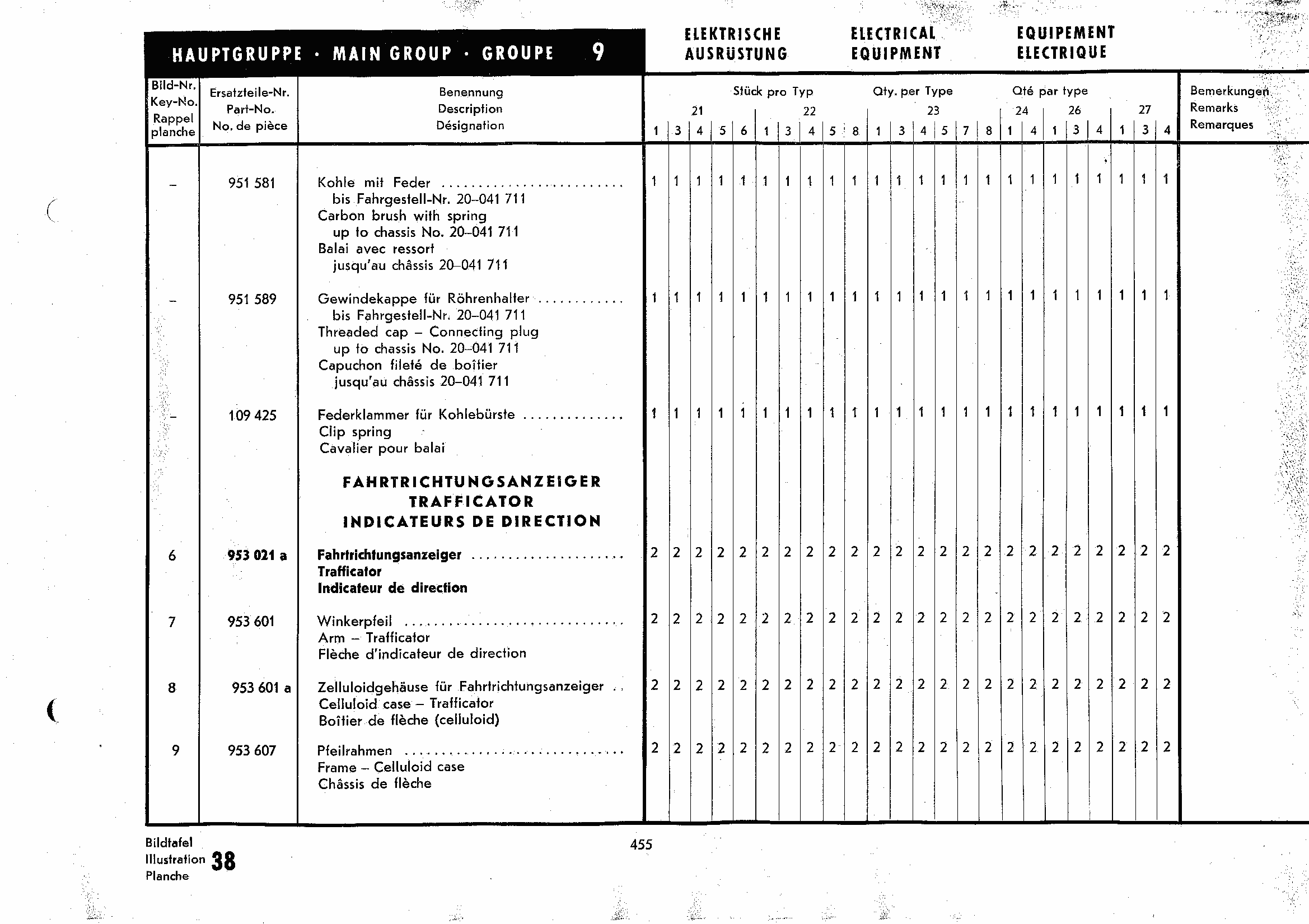

455 list Horn, trafficator

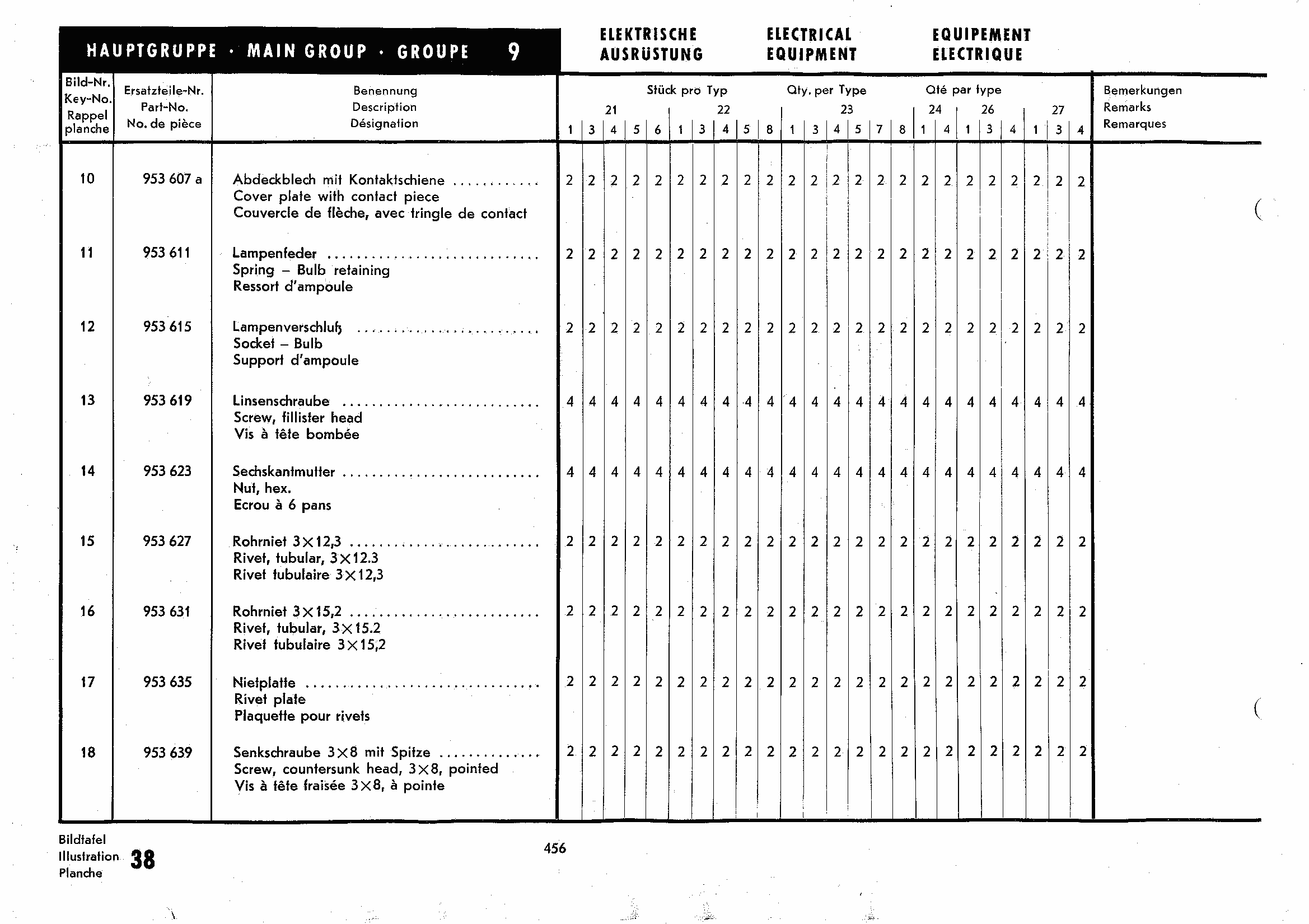

456 list Trafficator

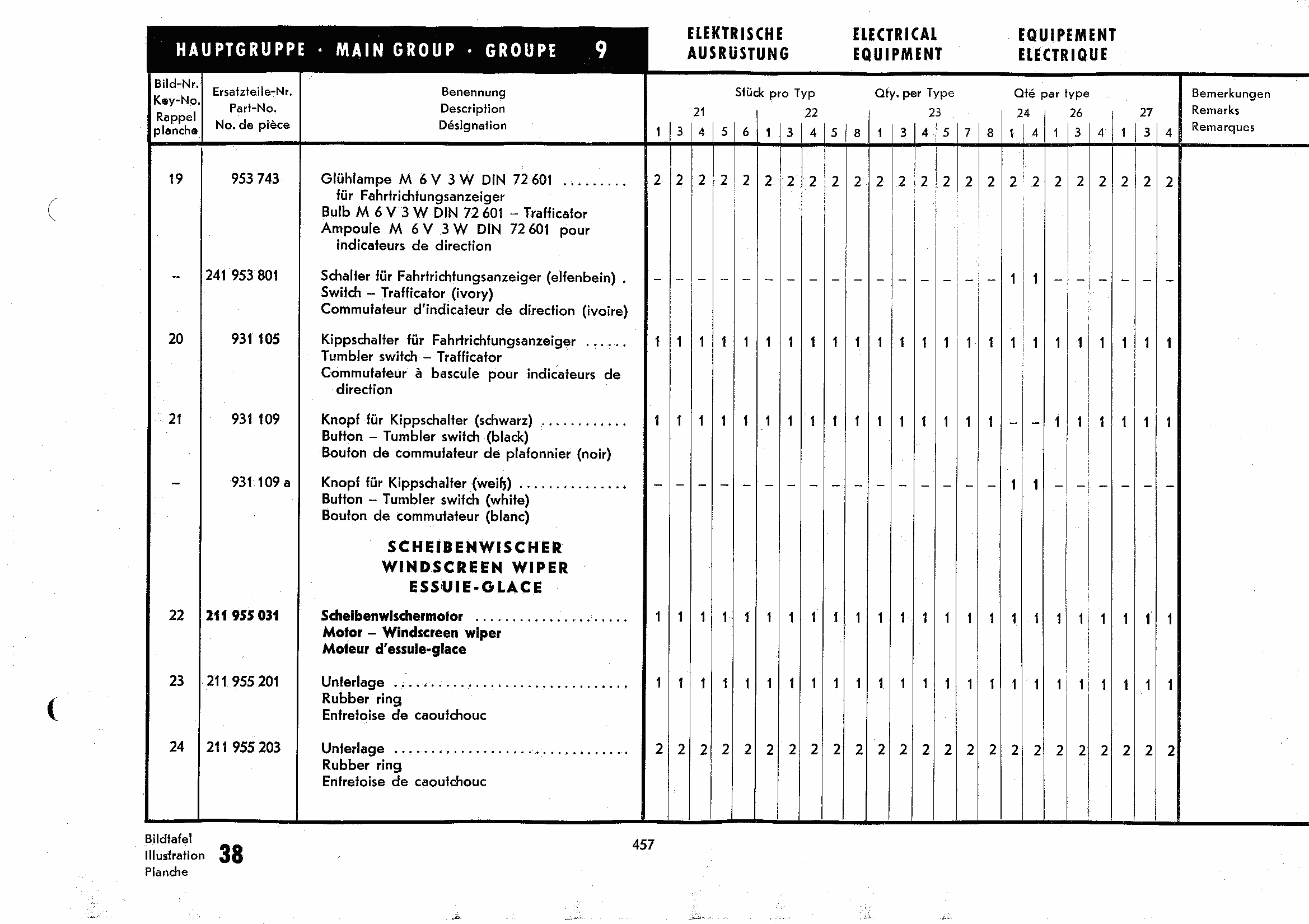

457 list Trafficator, windscreen wiper

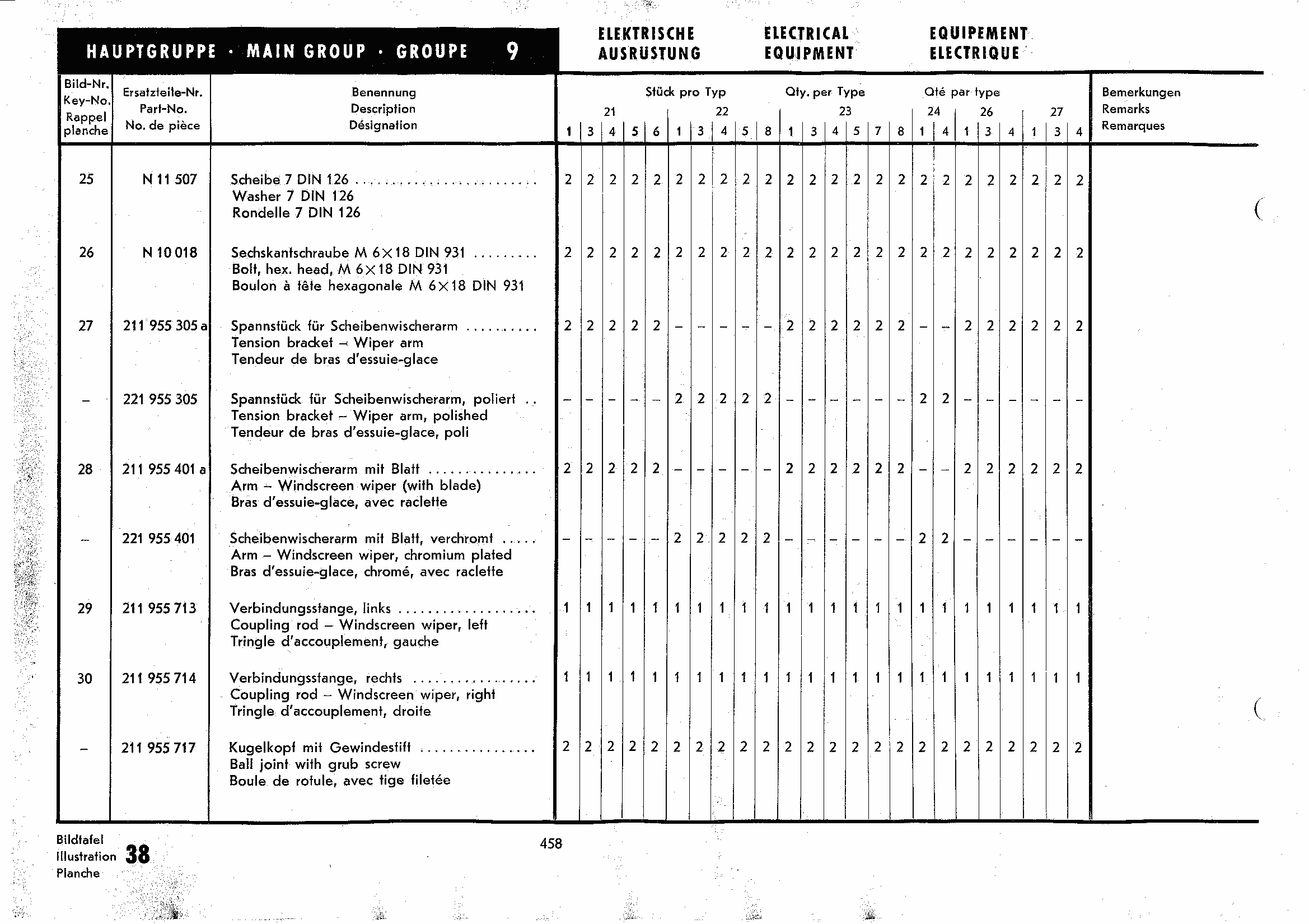

458 list Windscreen wiper
459 list Windscreen wiper

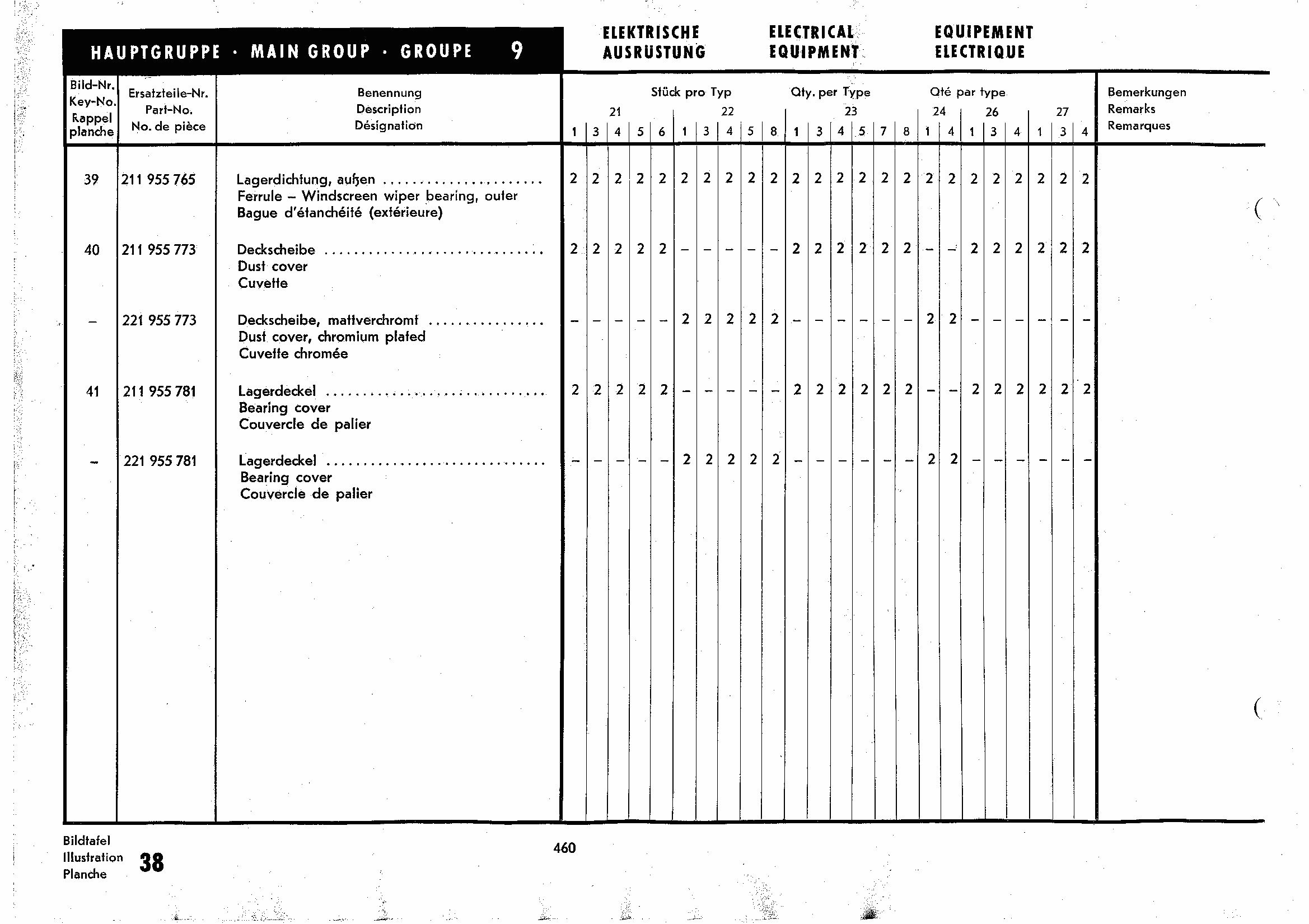

460 list Windscreen wiper
461 special Warum nur Original-VW-Ersatzteile

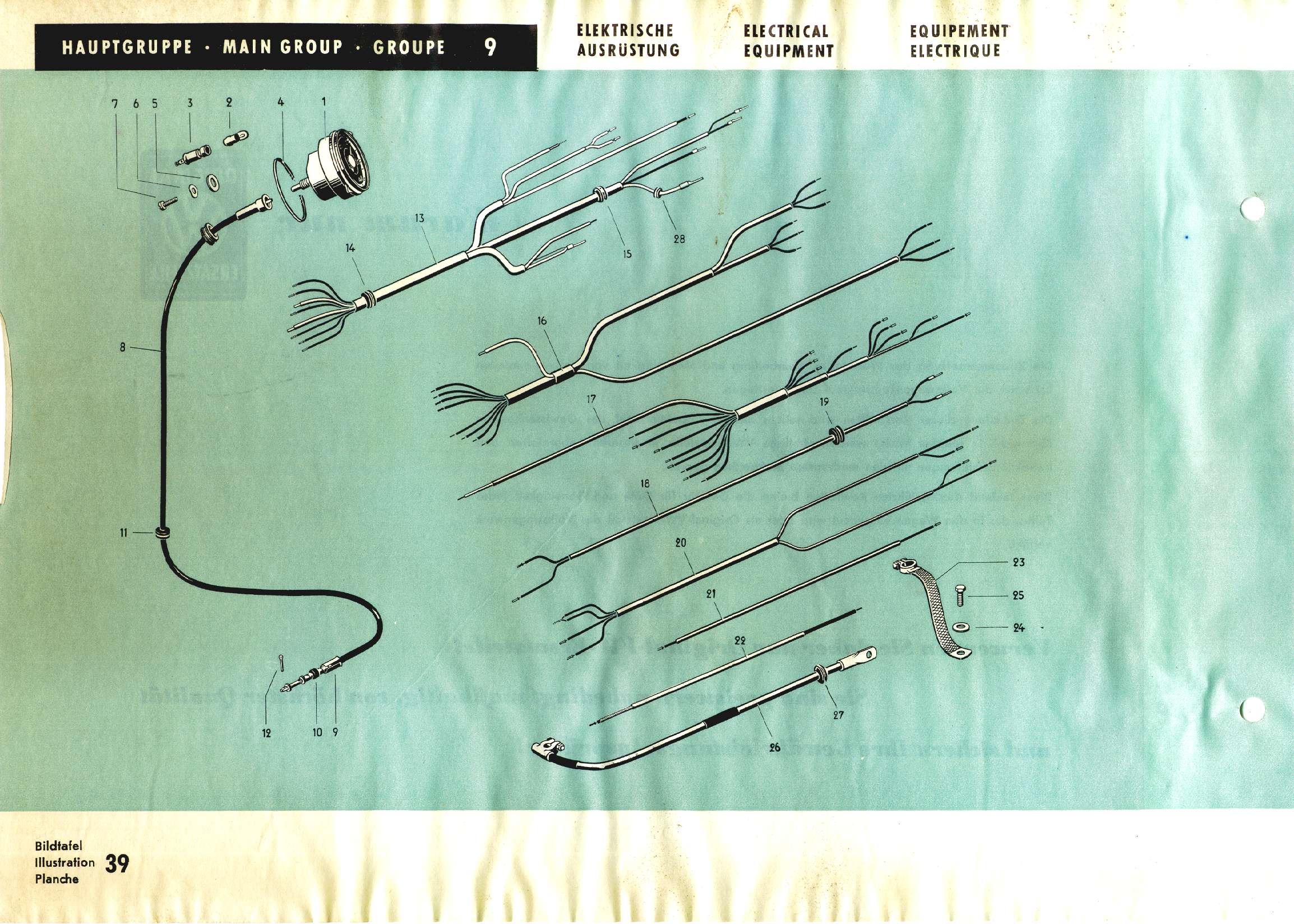

462 diagram Speedometer, electrical wiring
463 list Speedometer

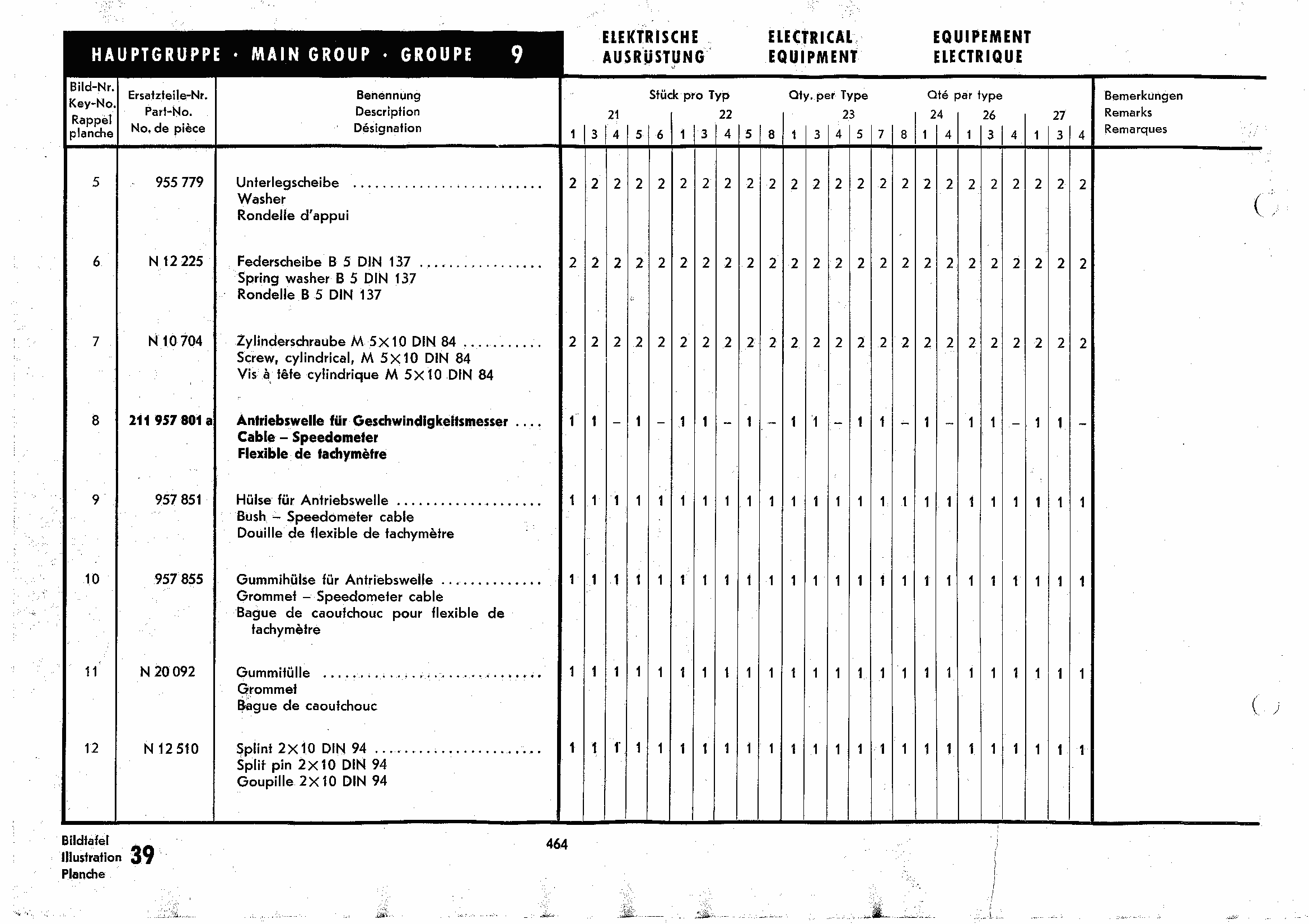

464 list Speedometer

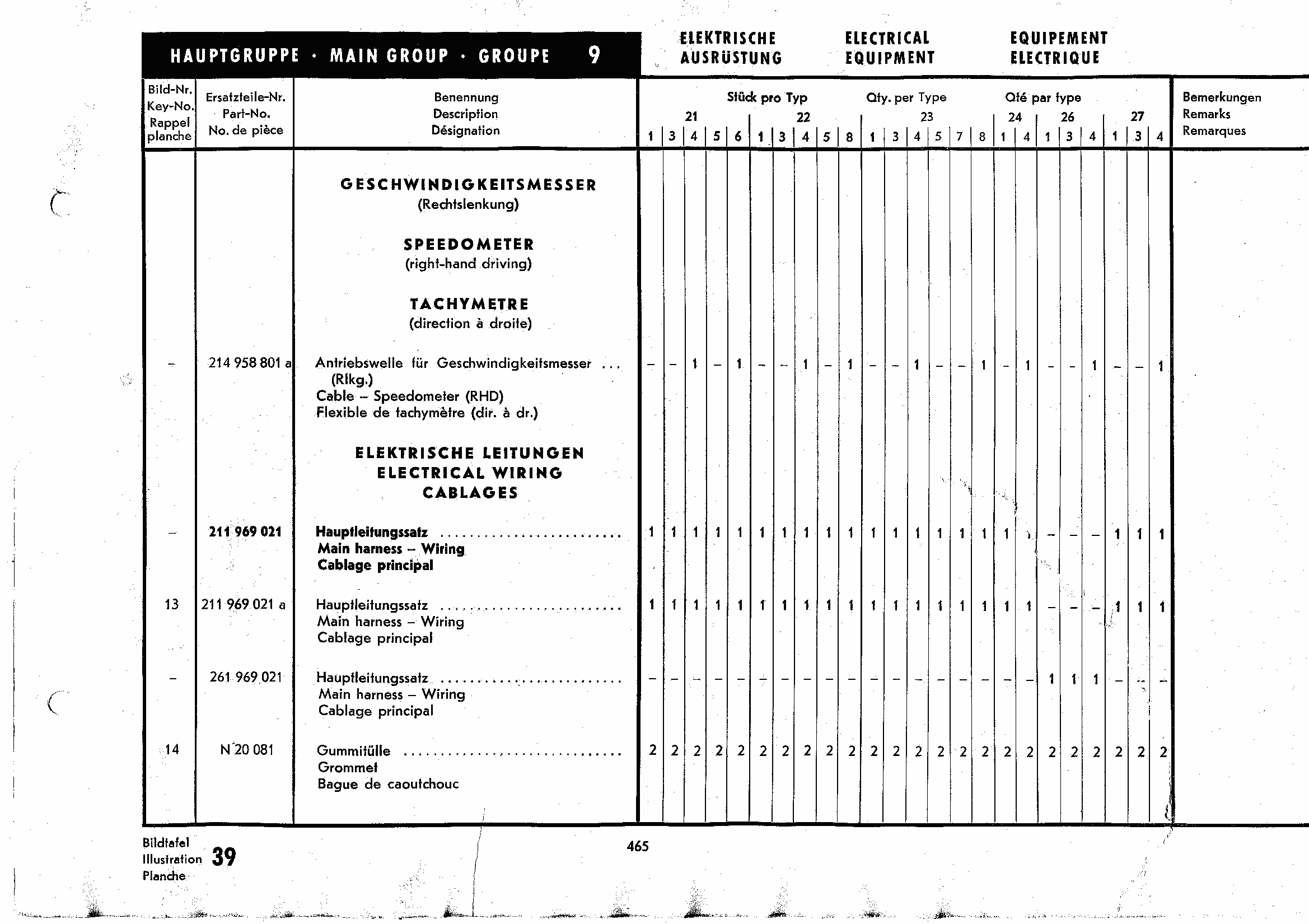

465 list RHD Speedometer, electrical wiring

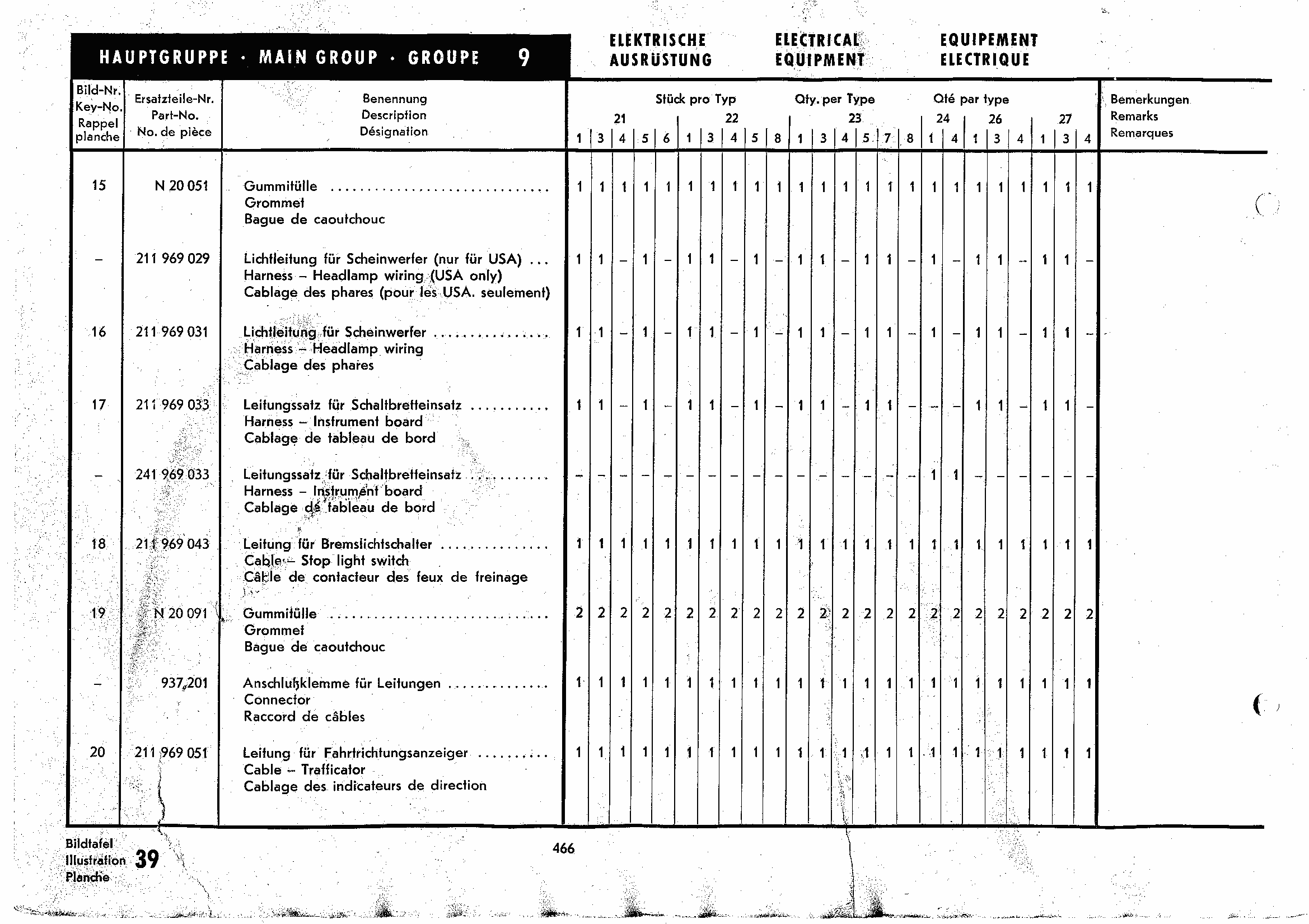

466 list Electrical wiring

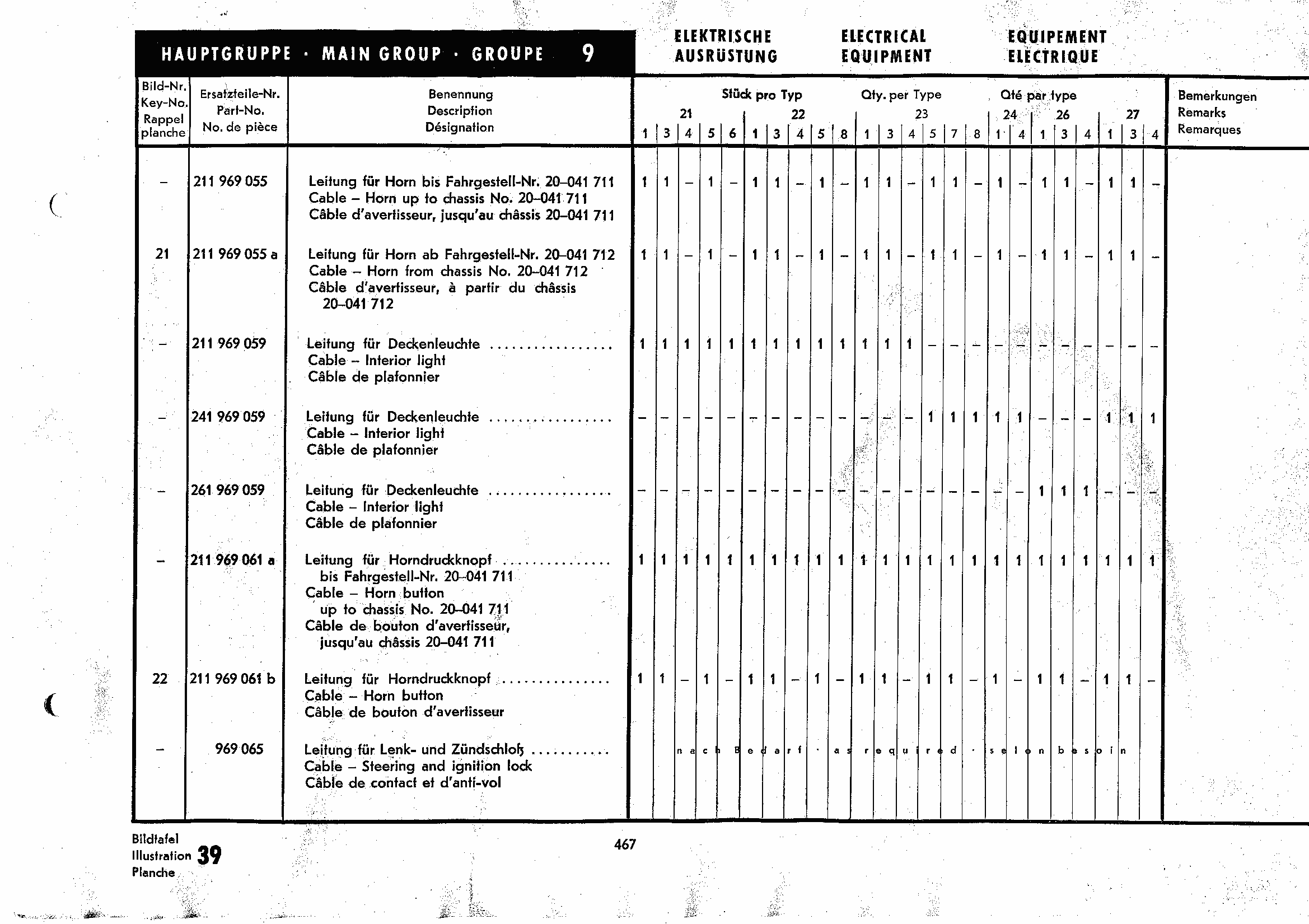

467 list Electrical wiring

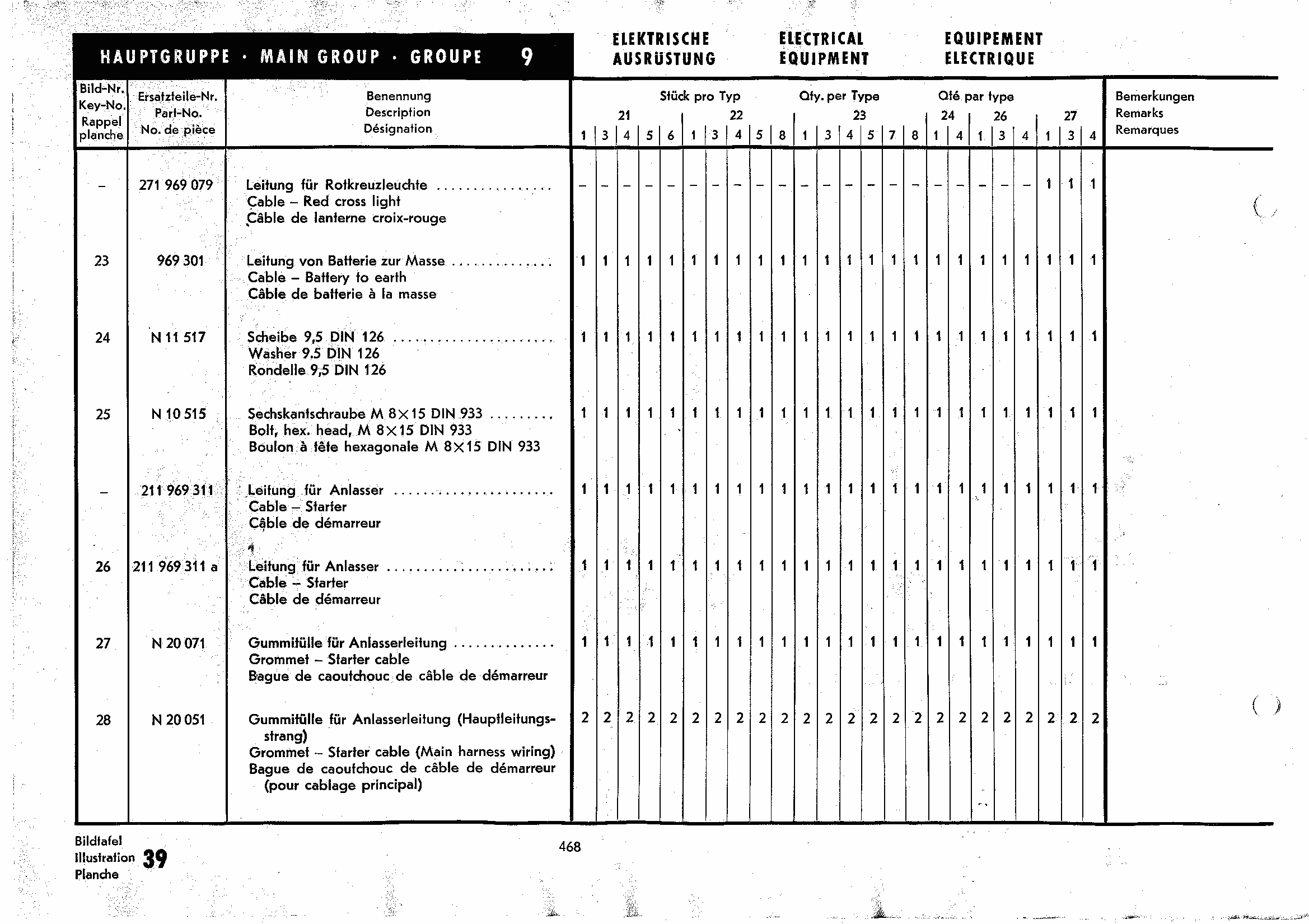

468 list Electrical wiring

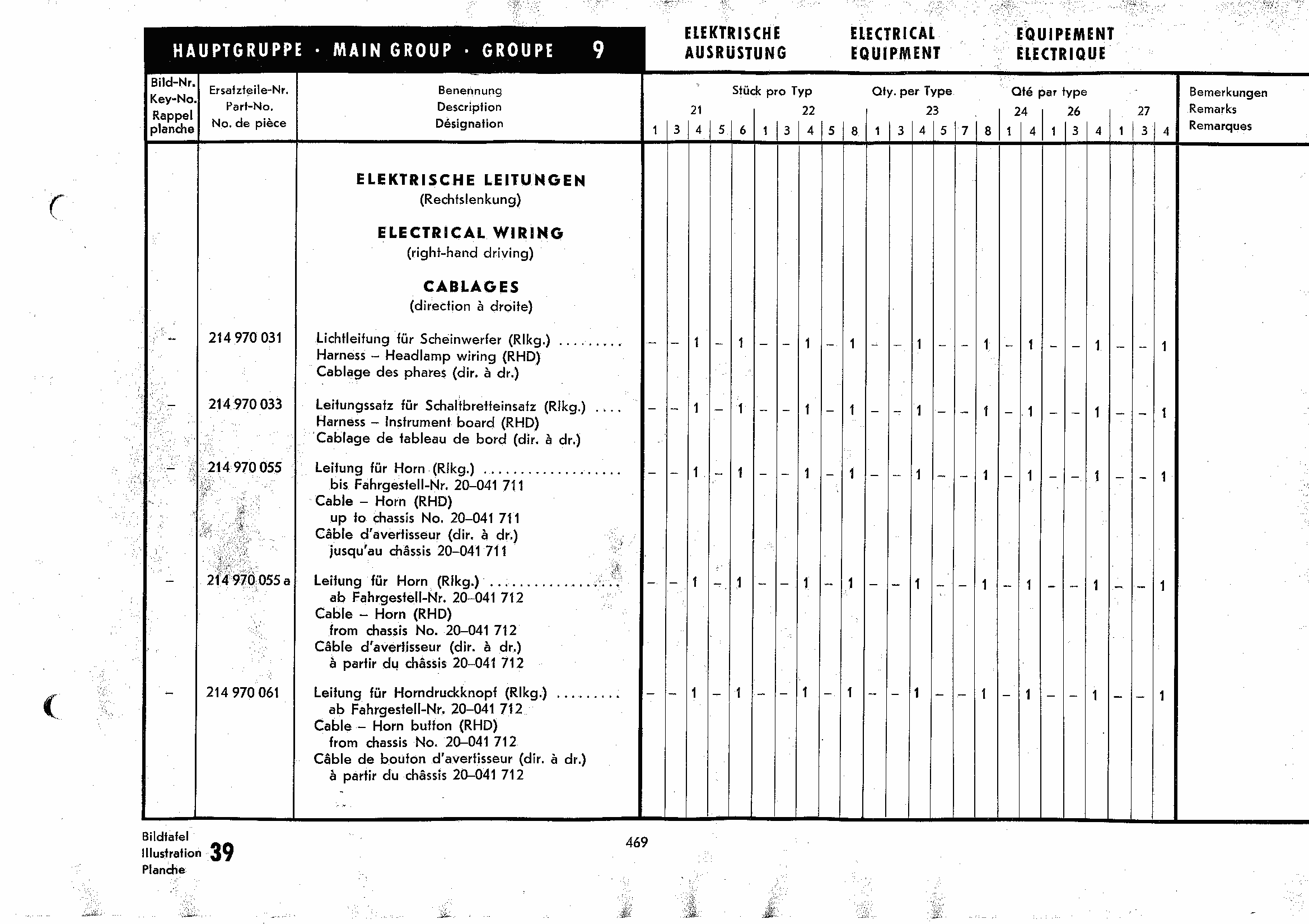

469 list RHD Electrical wiring
470 special Acten Sie immer auf unser Zeichen

Main Group 0: Accessories and Standard Equipment

471 list Main Group 0 index
472 diagram Jack, tools, accessories

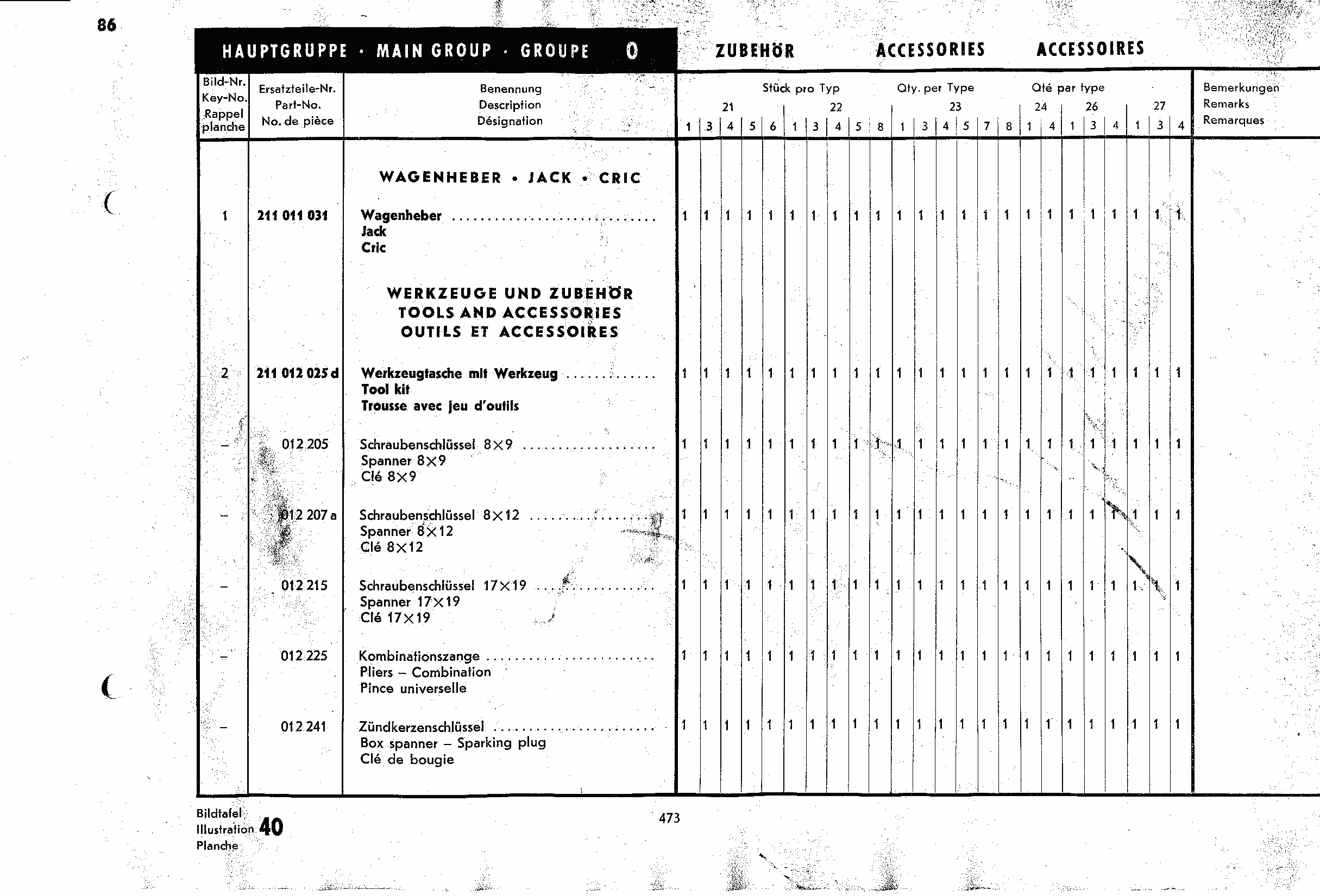

473 list Jack, tools and accessories

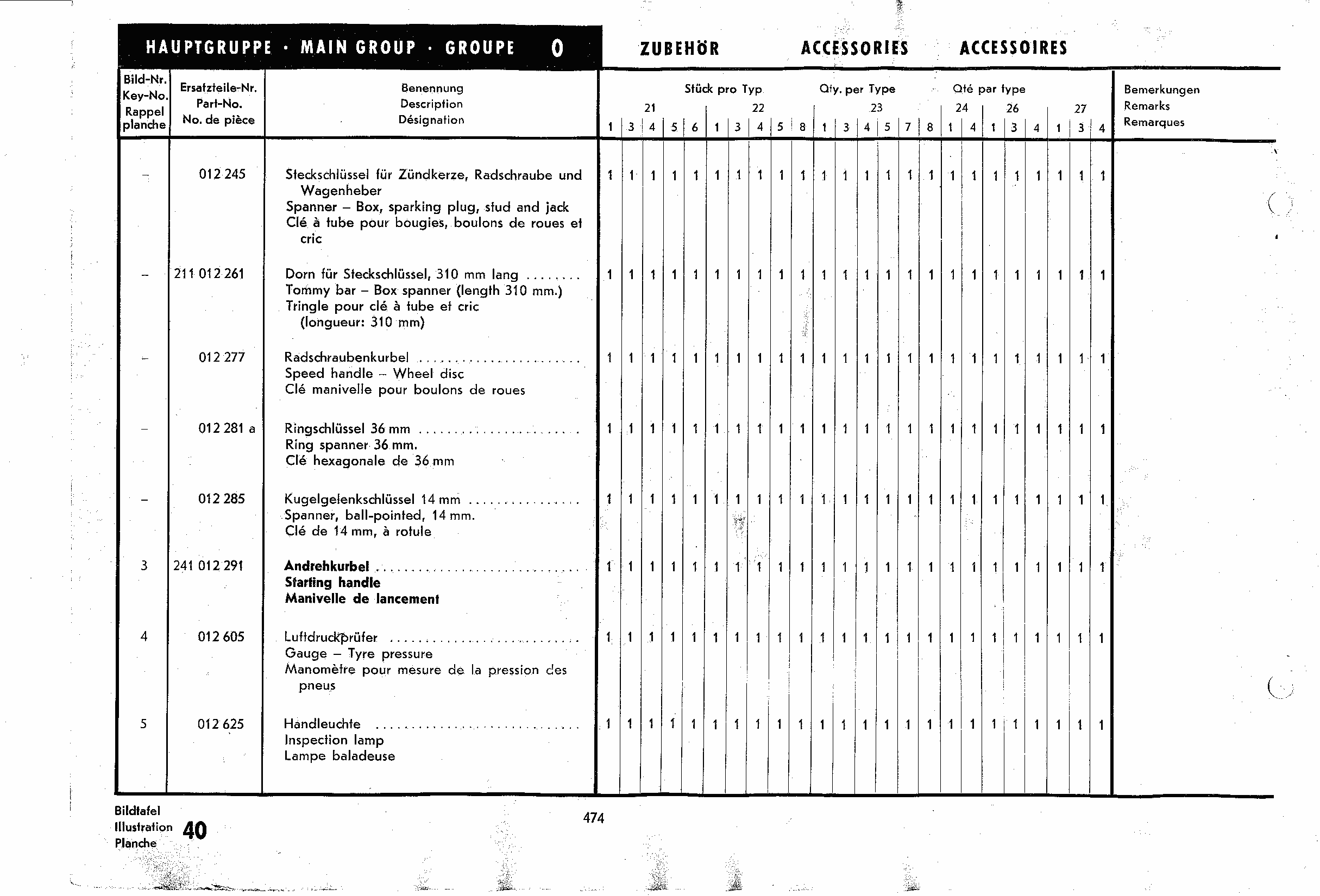

474 list Jack, tools and accessories

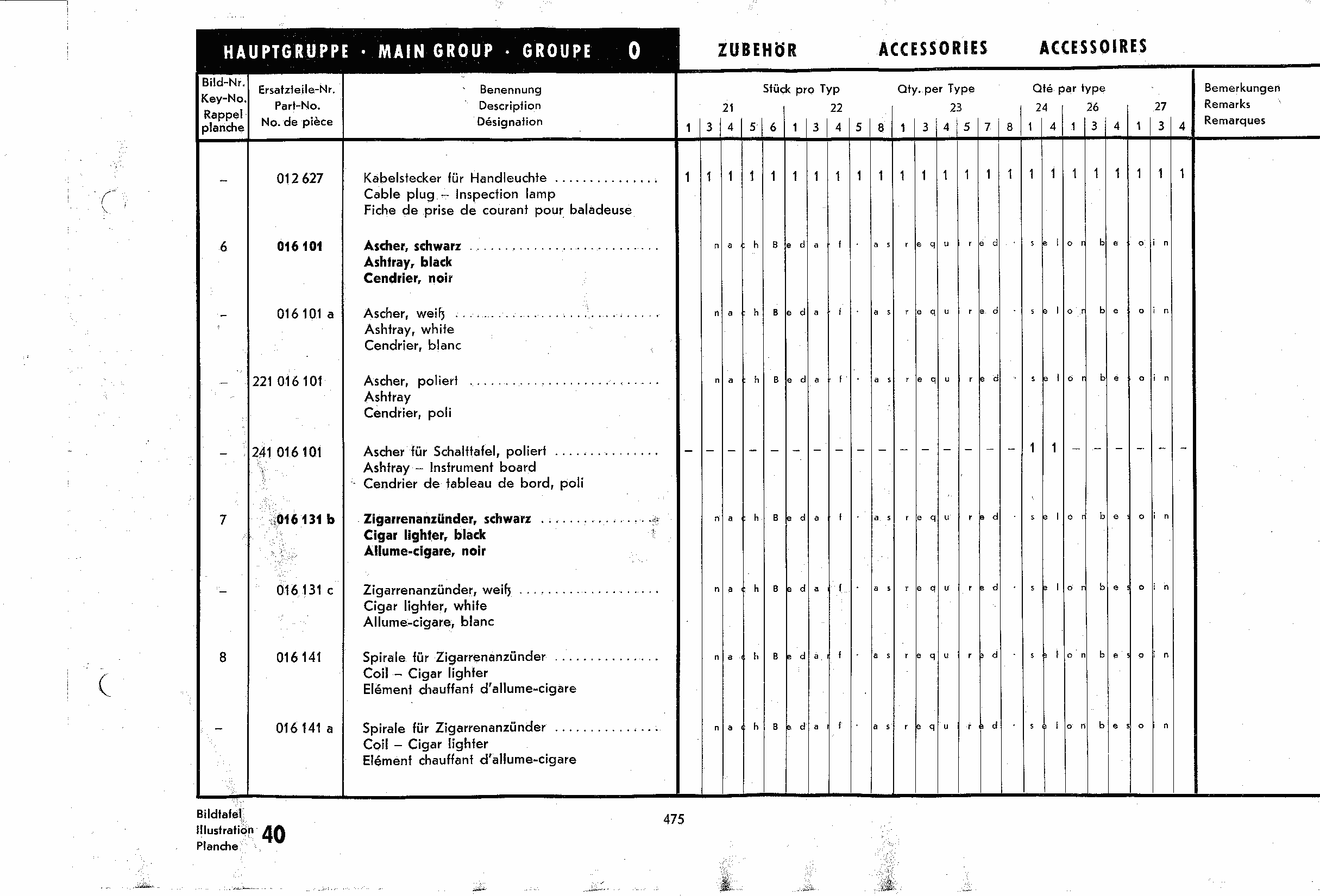

475 list Jack, tools and accessories
476 list Jack, tools and accessories

Addendum: Standard Parts and SP Sets

477 list Standard parts and SP Sets title page
478 list Standard parts

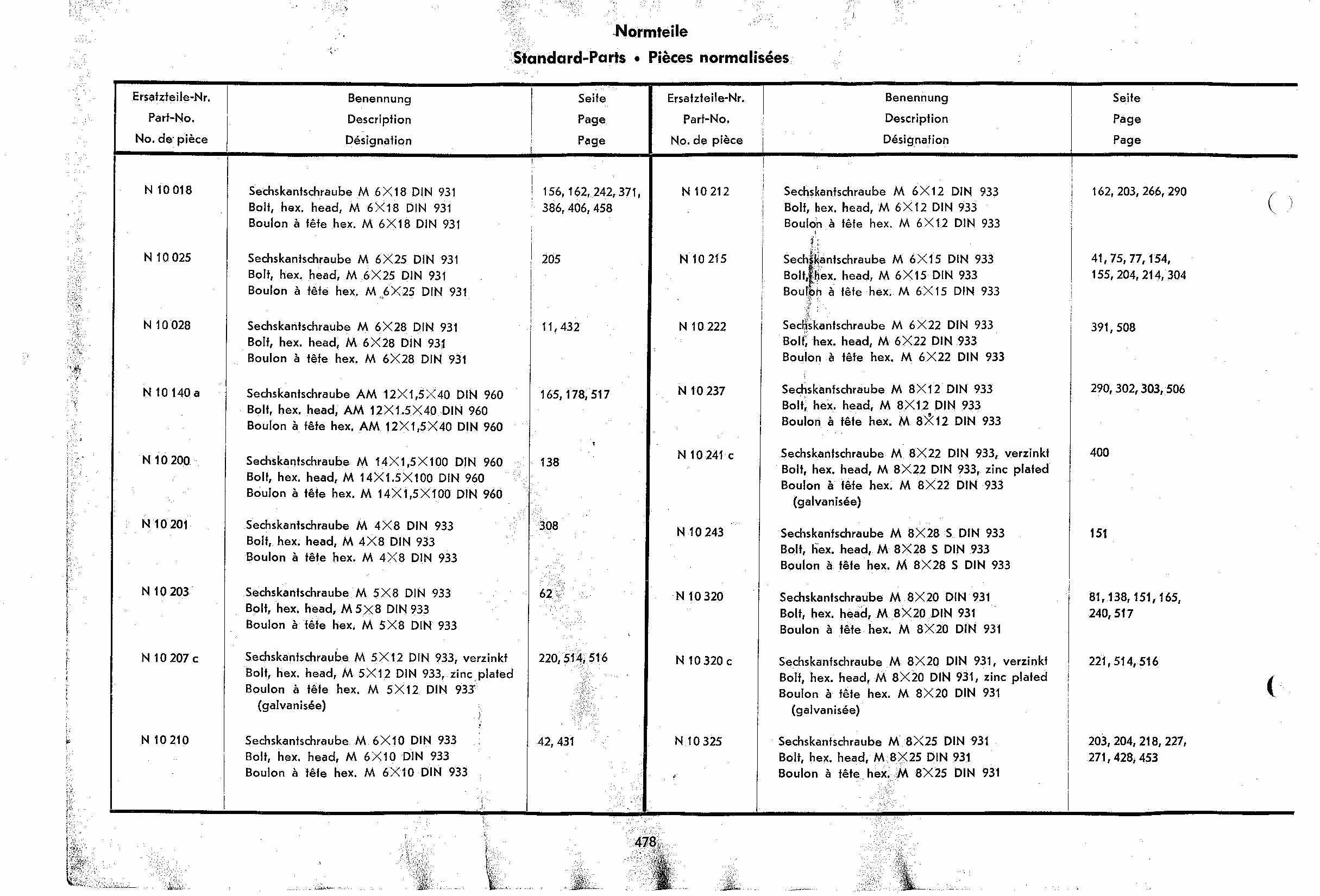

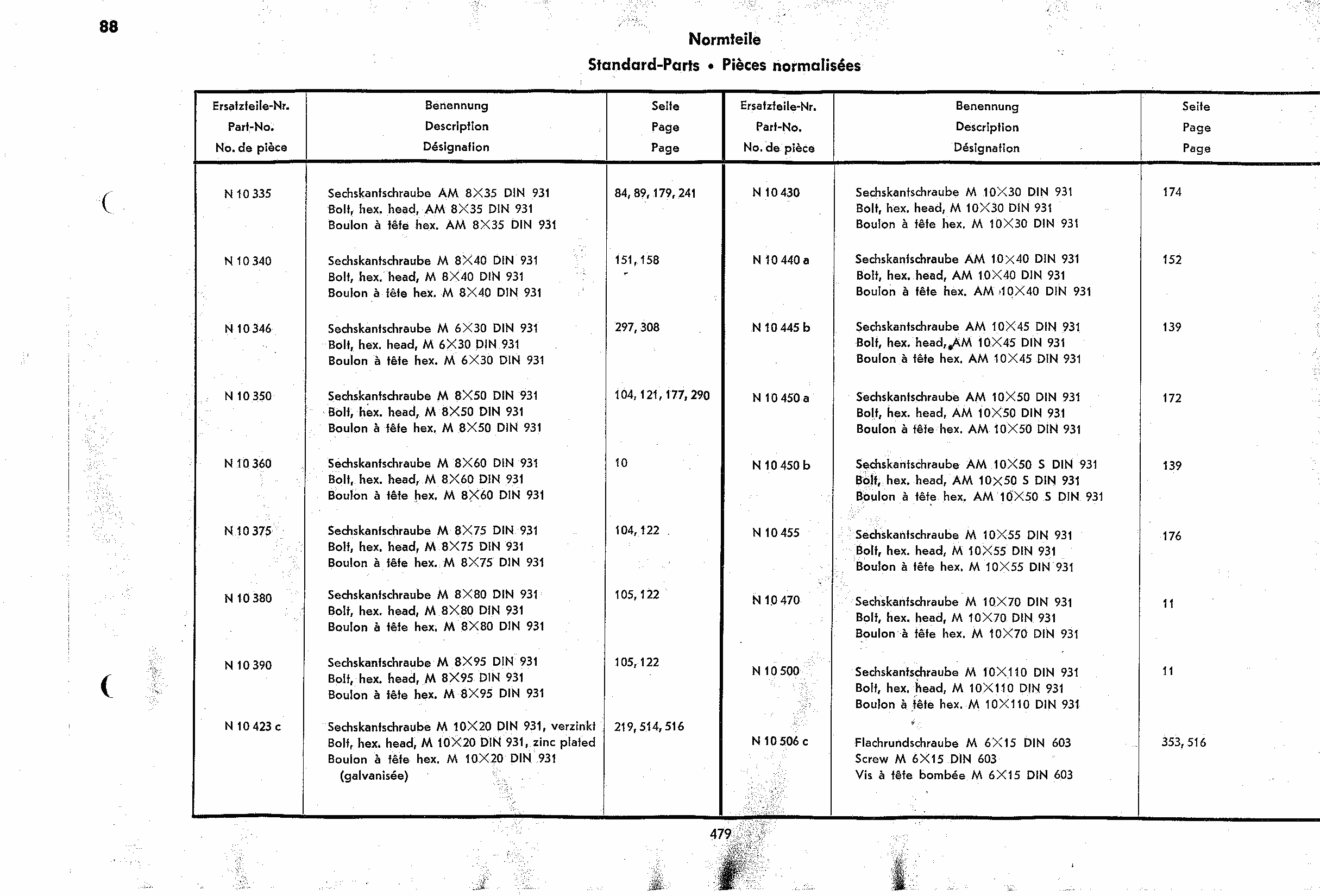

479 list Standard parts

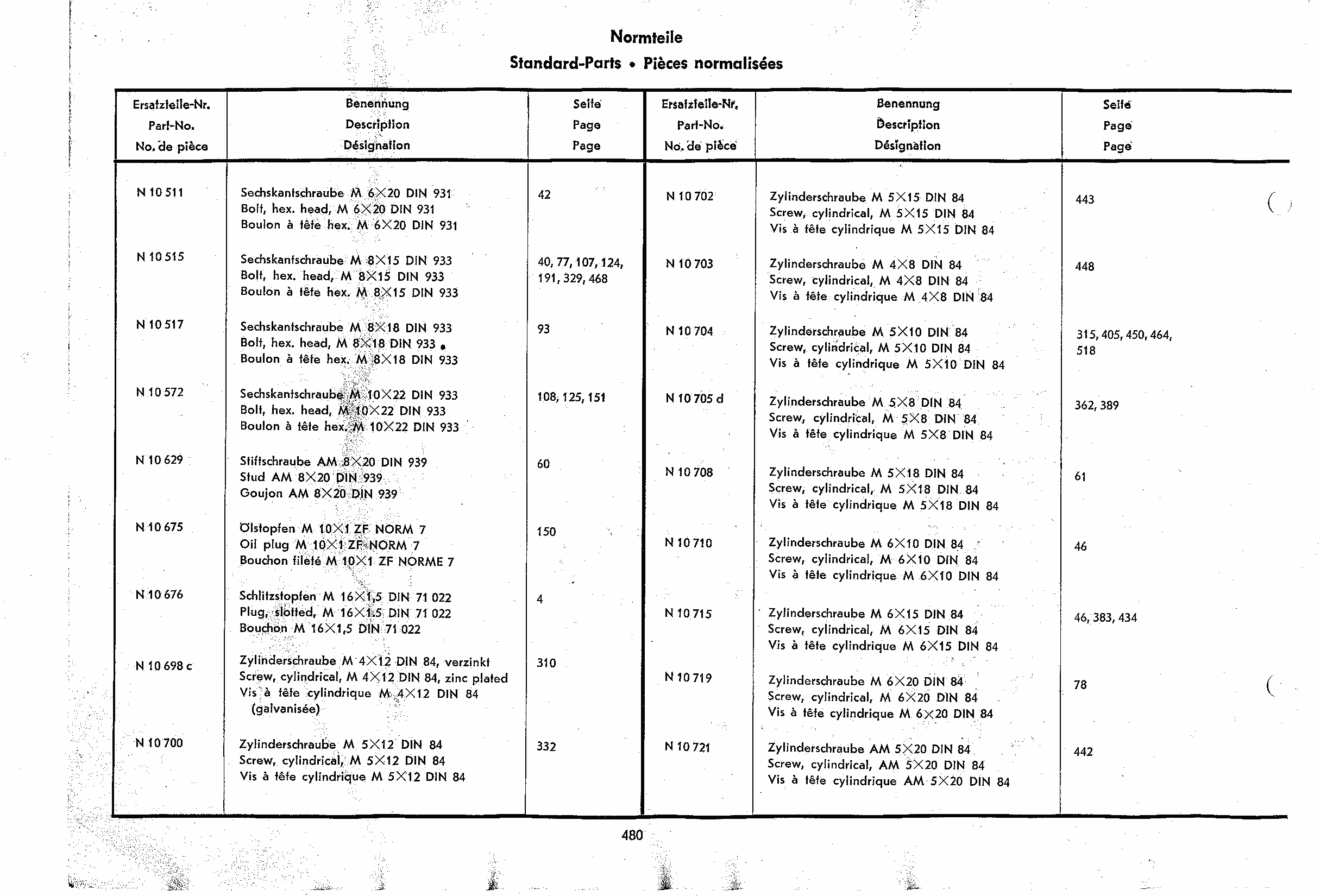

480 list Standard parts

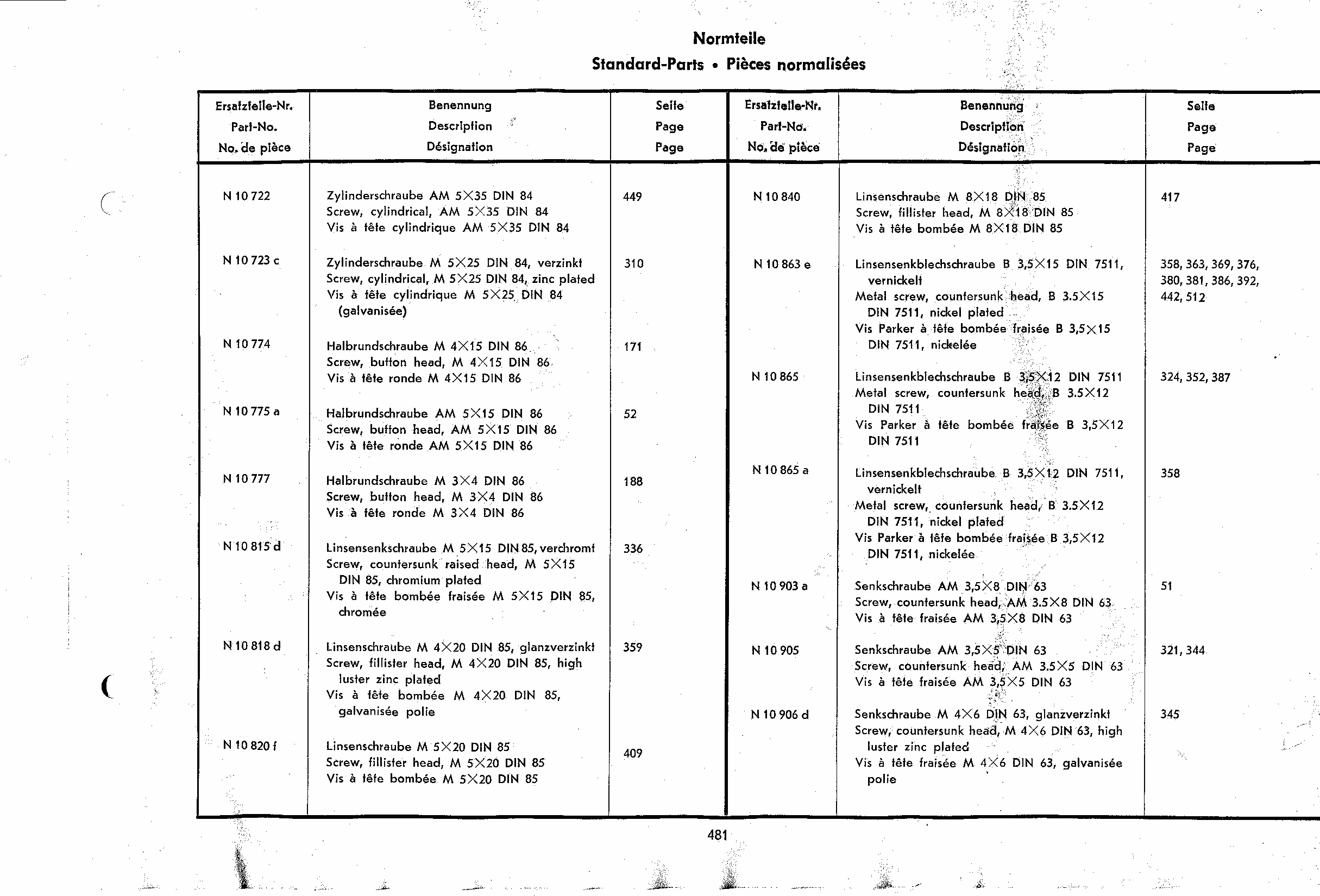

481 list Standard parts

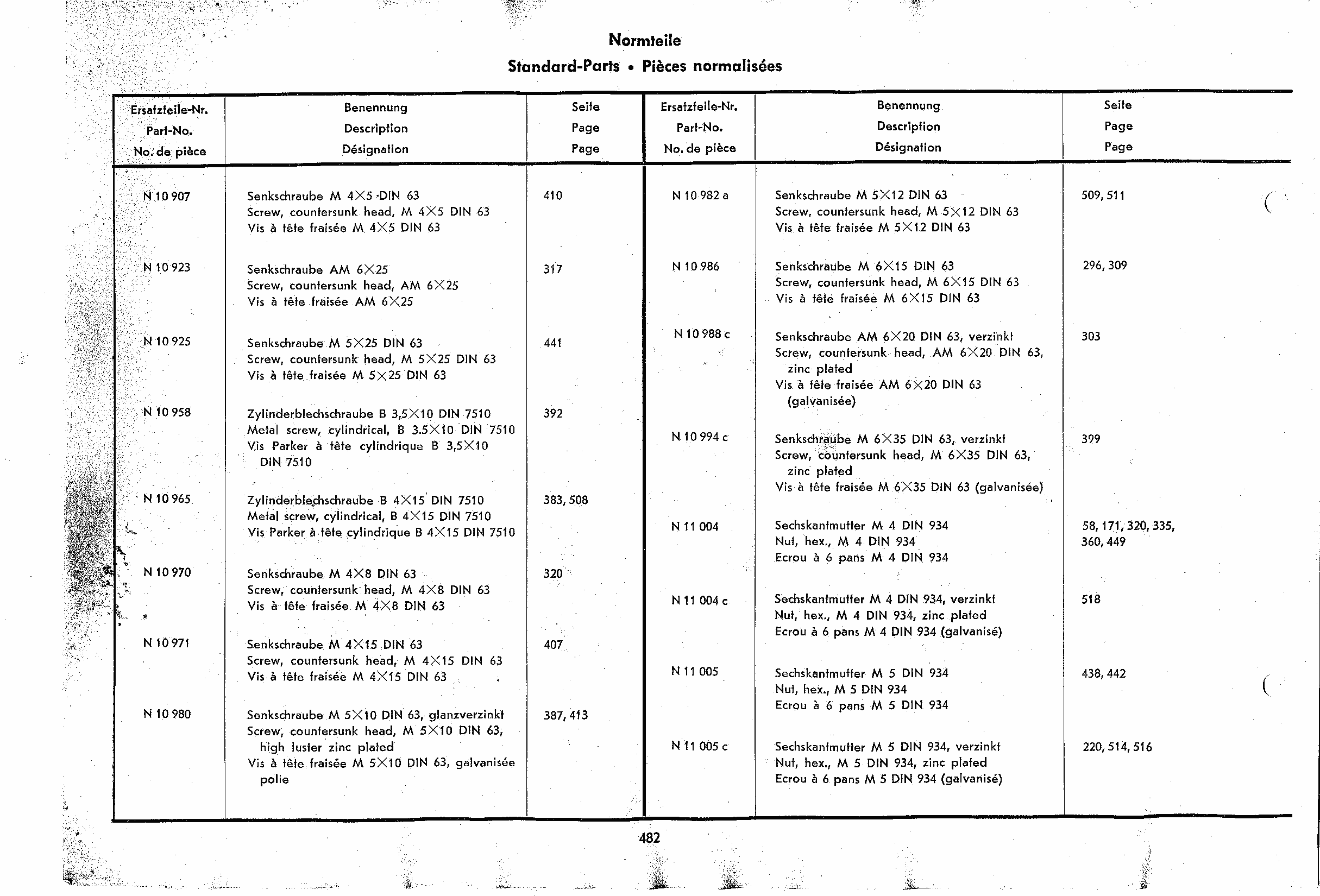

482 list Standard parts

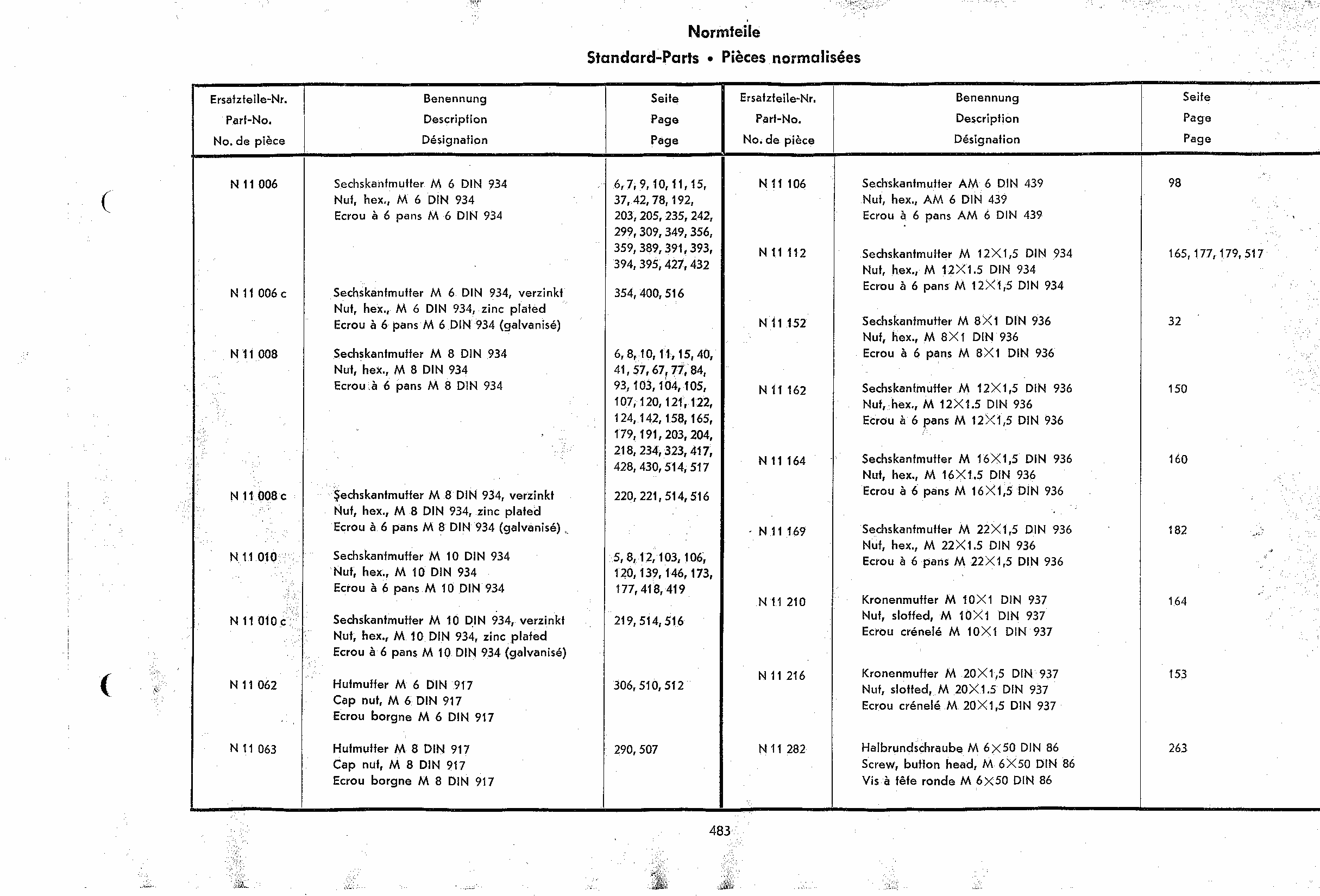

483 list Standard parts
484 list Standard parts

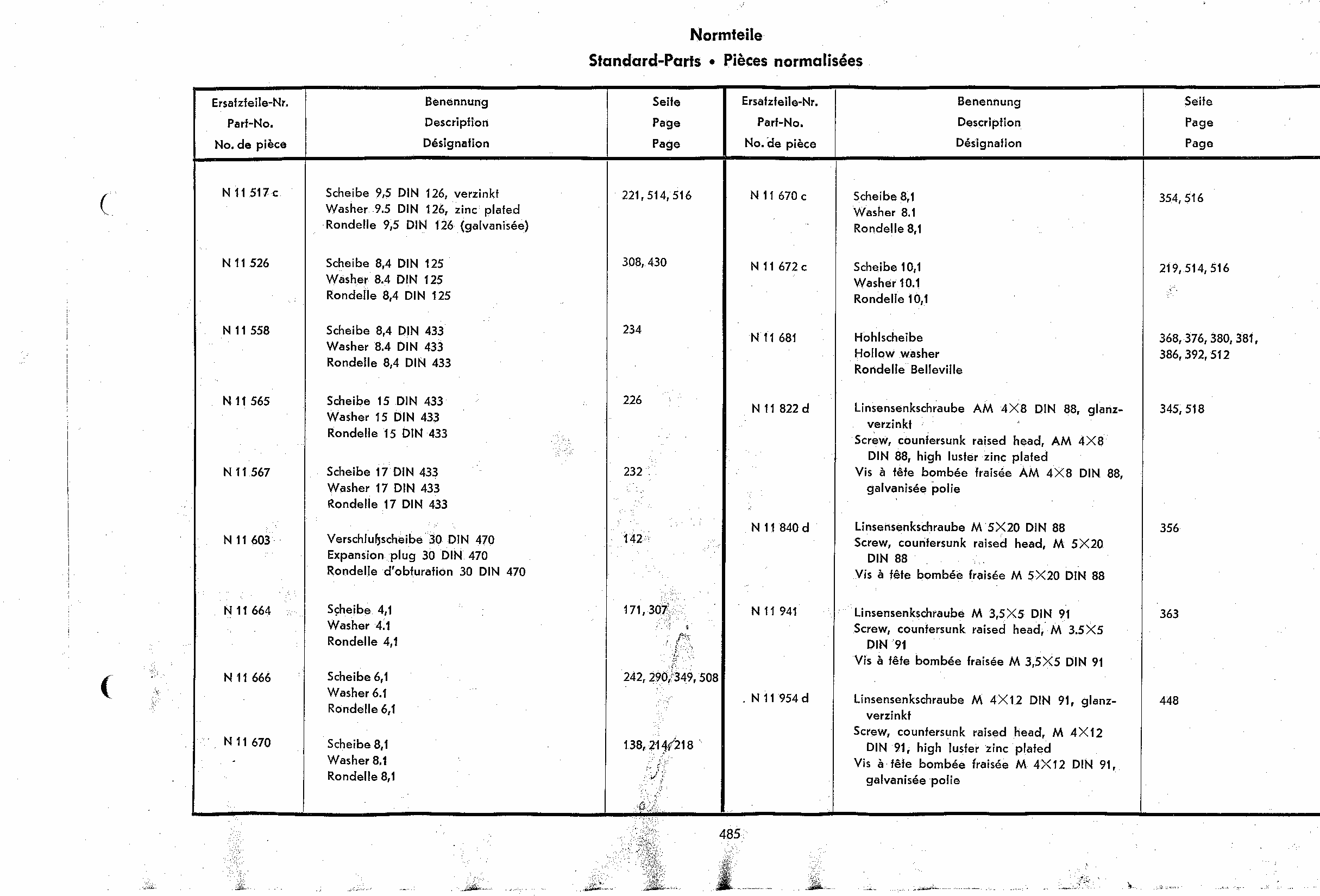

485 list Standard parts

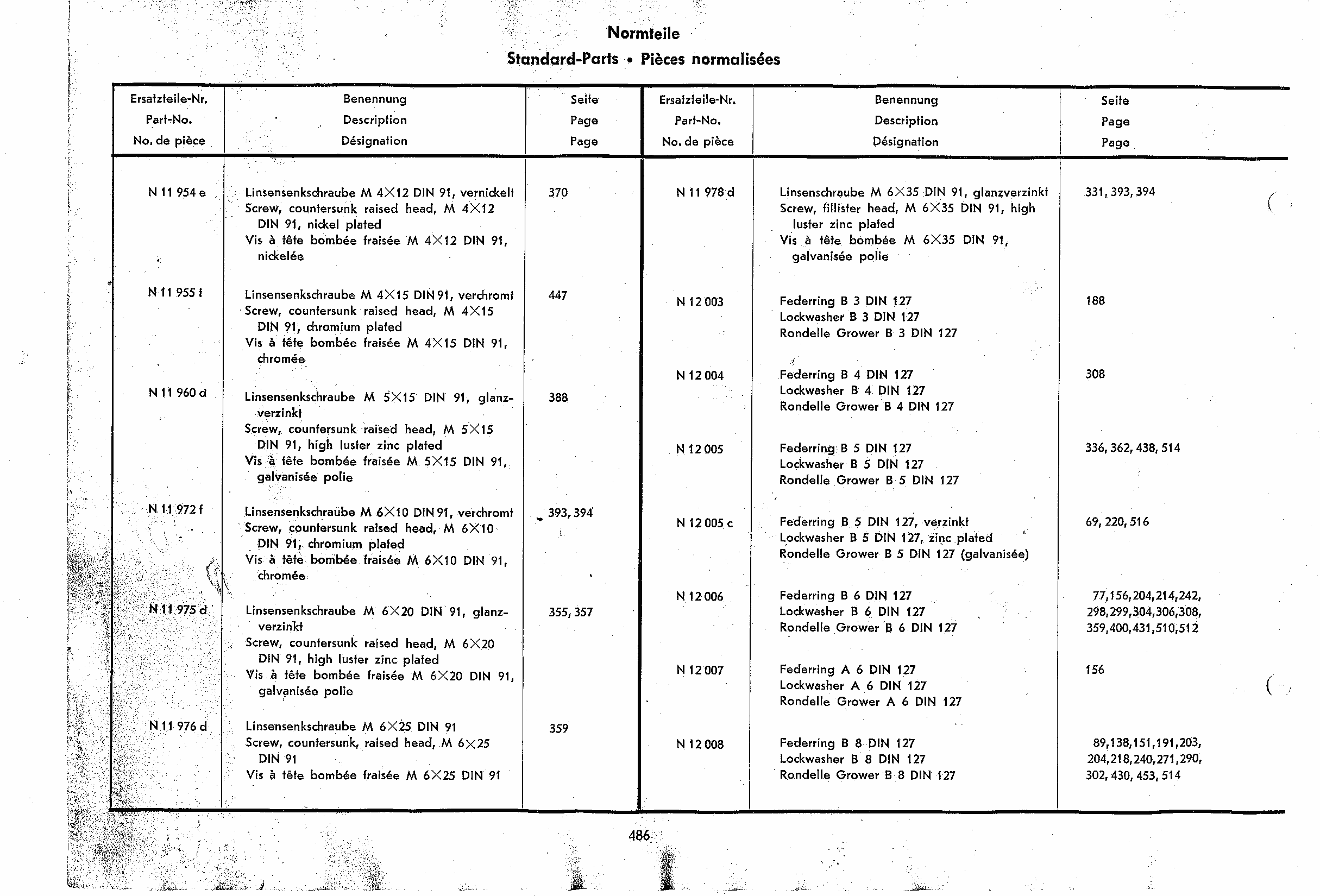

486 list Standard parts

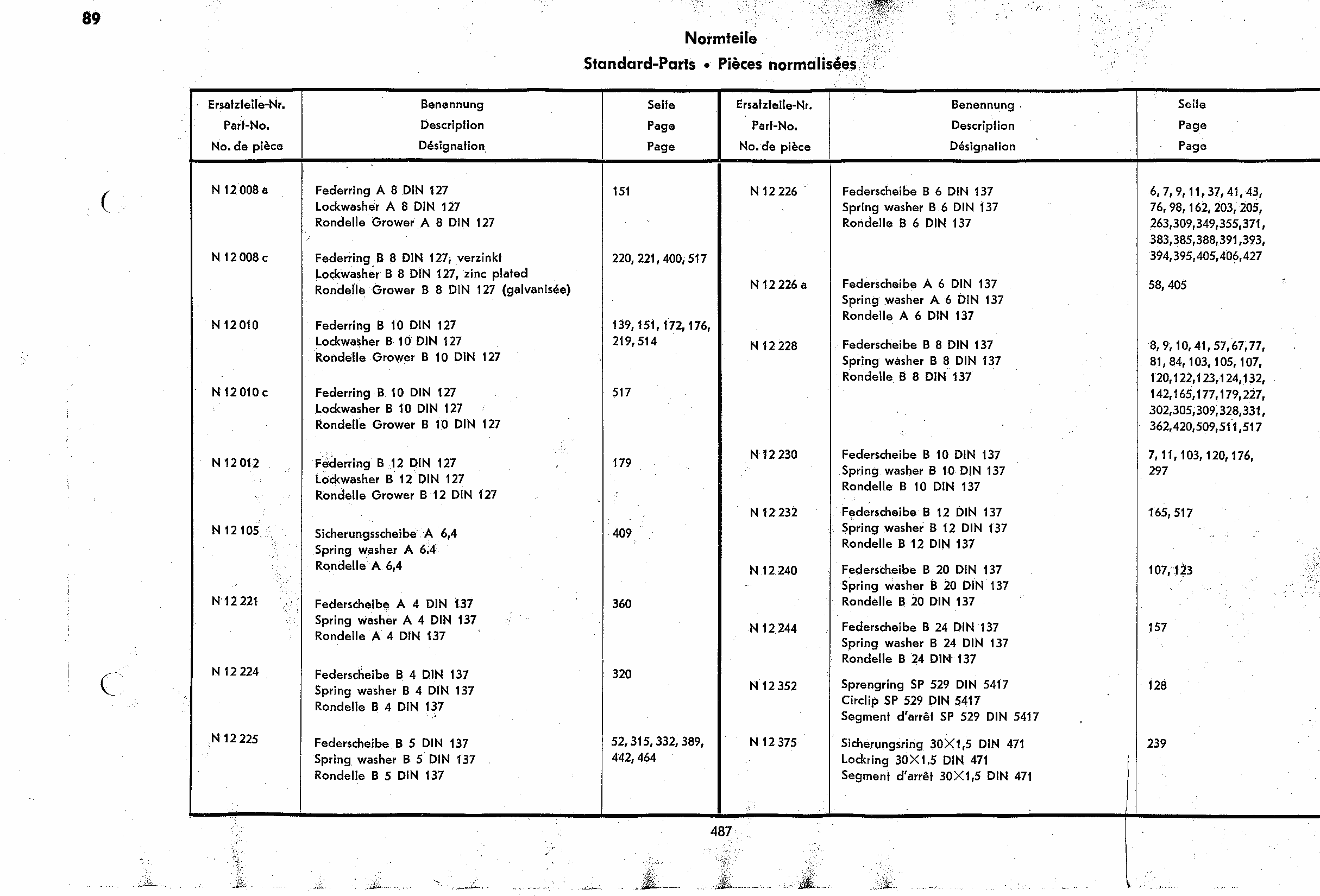

487 list Standard parts

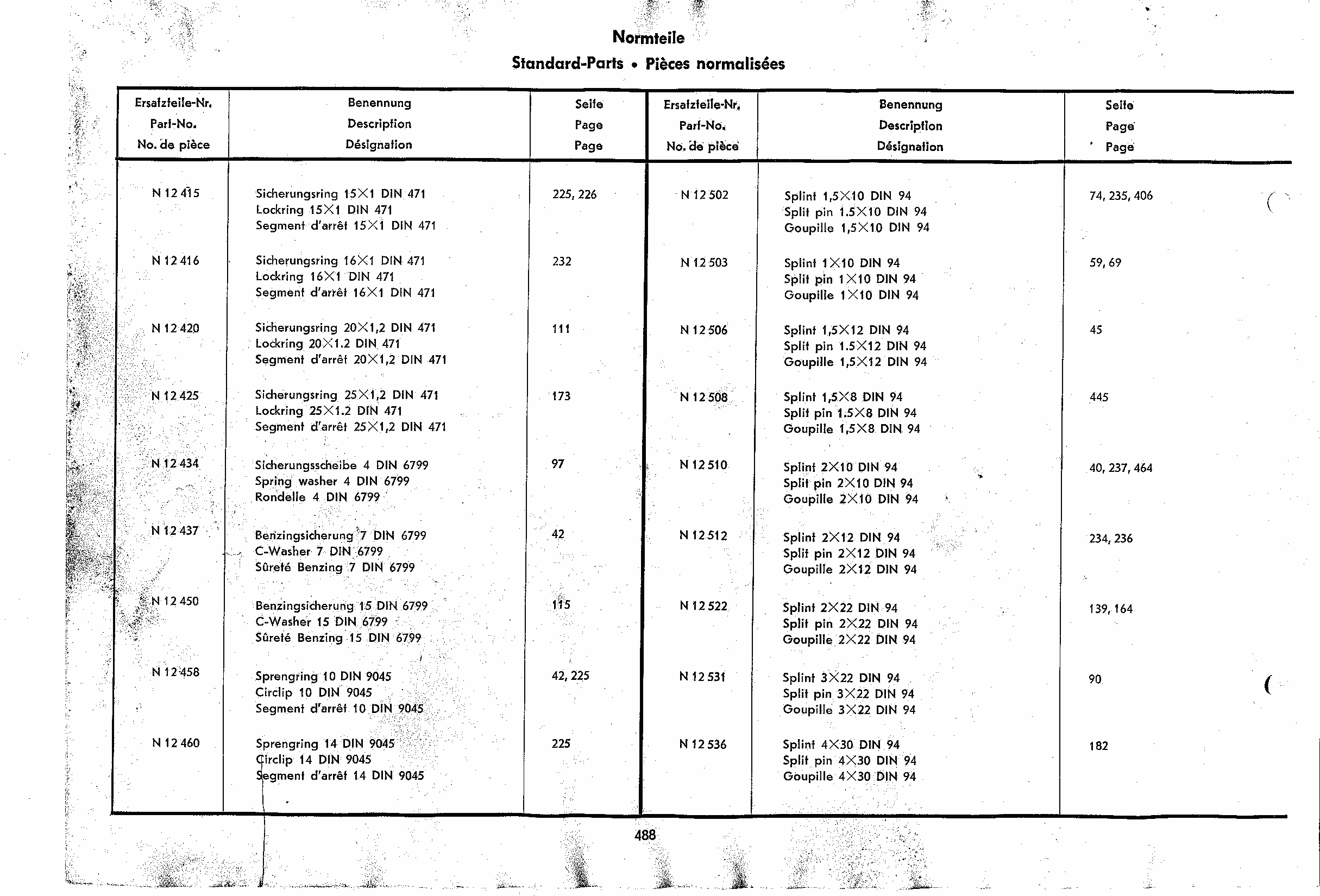

488 list Standard parts
489 list Standard parts

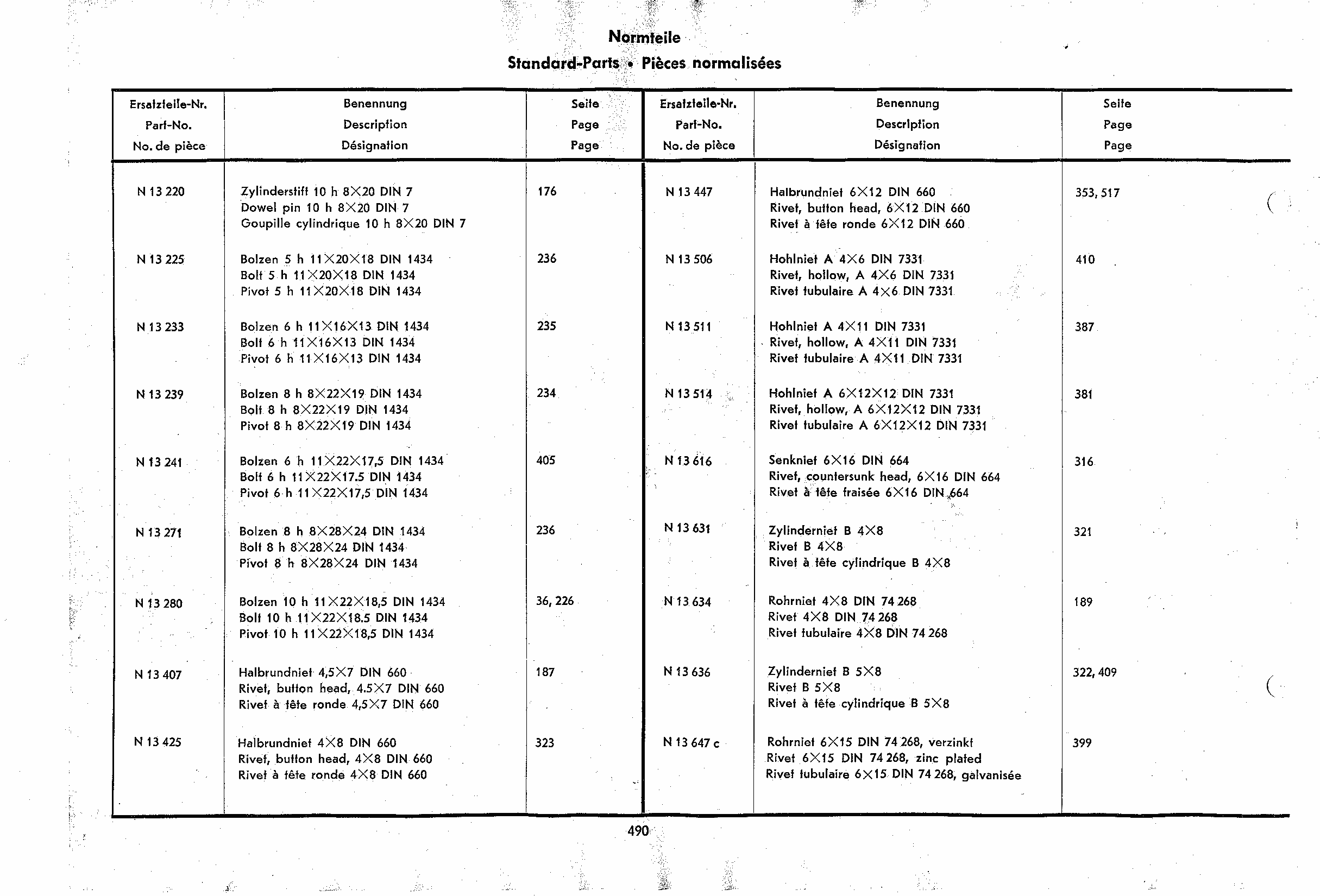

490 list Standard parts

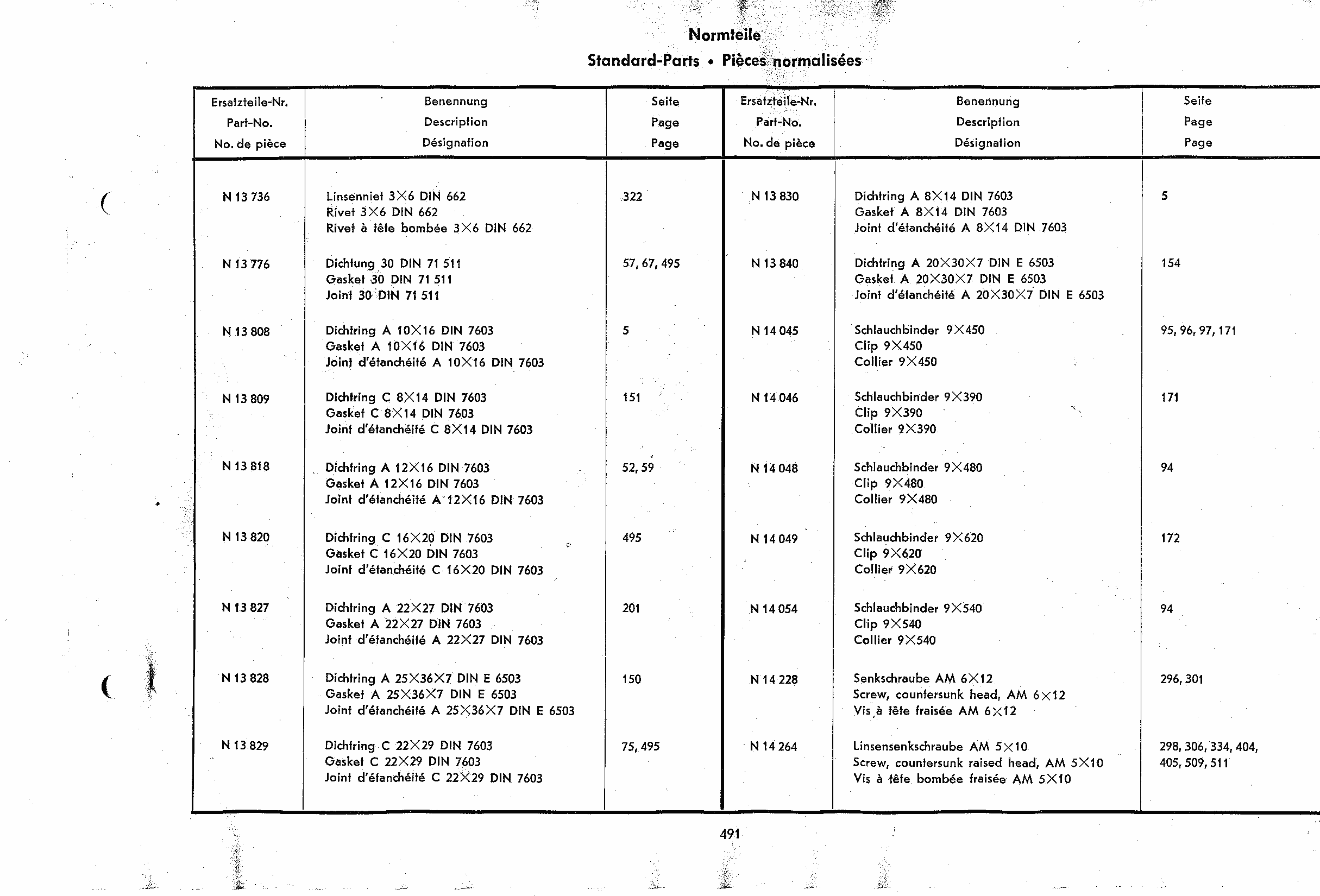

491 list Standard parts
492 list Standard parts

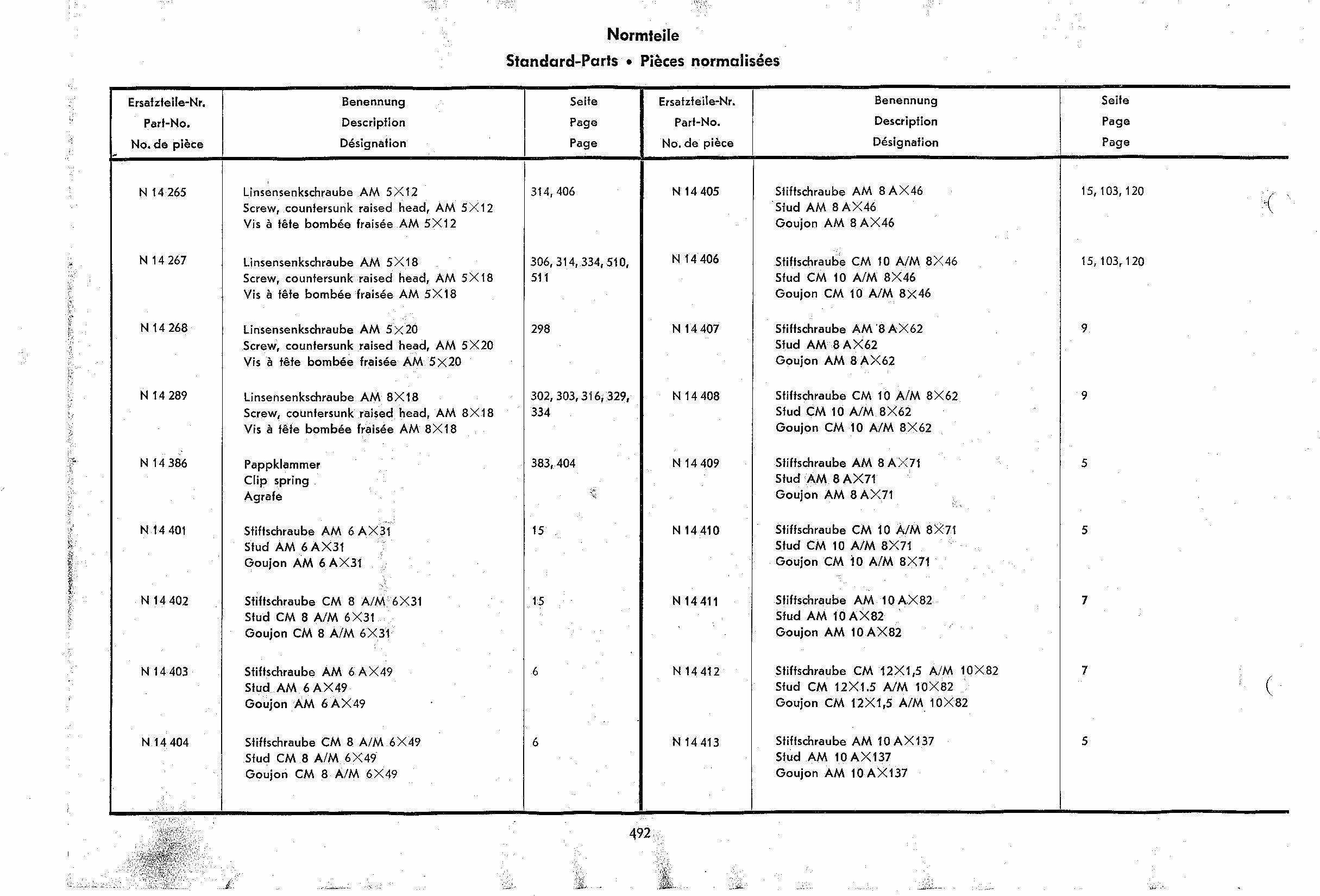

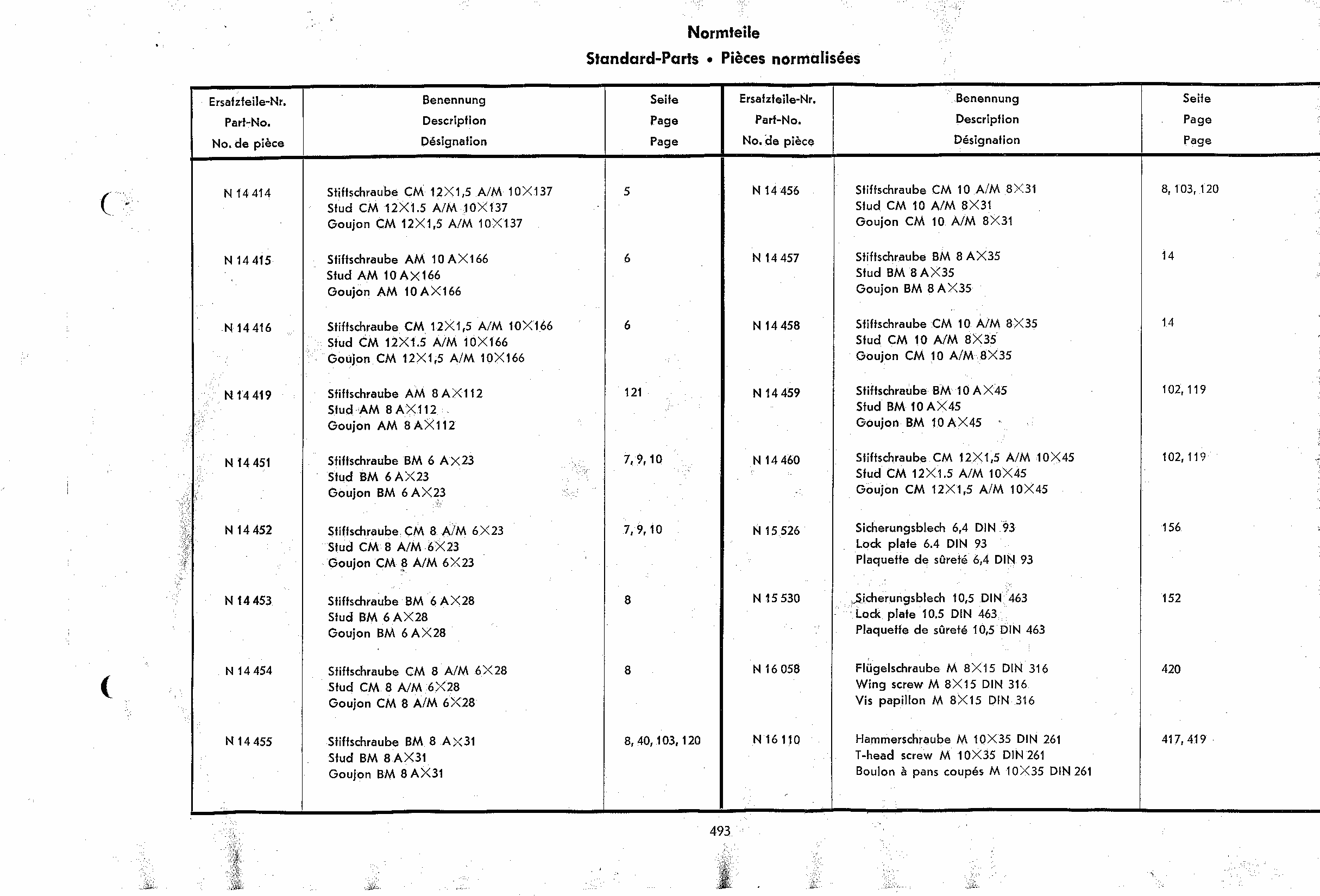

493 list Standard parts

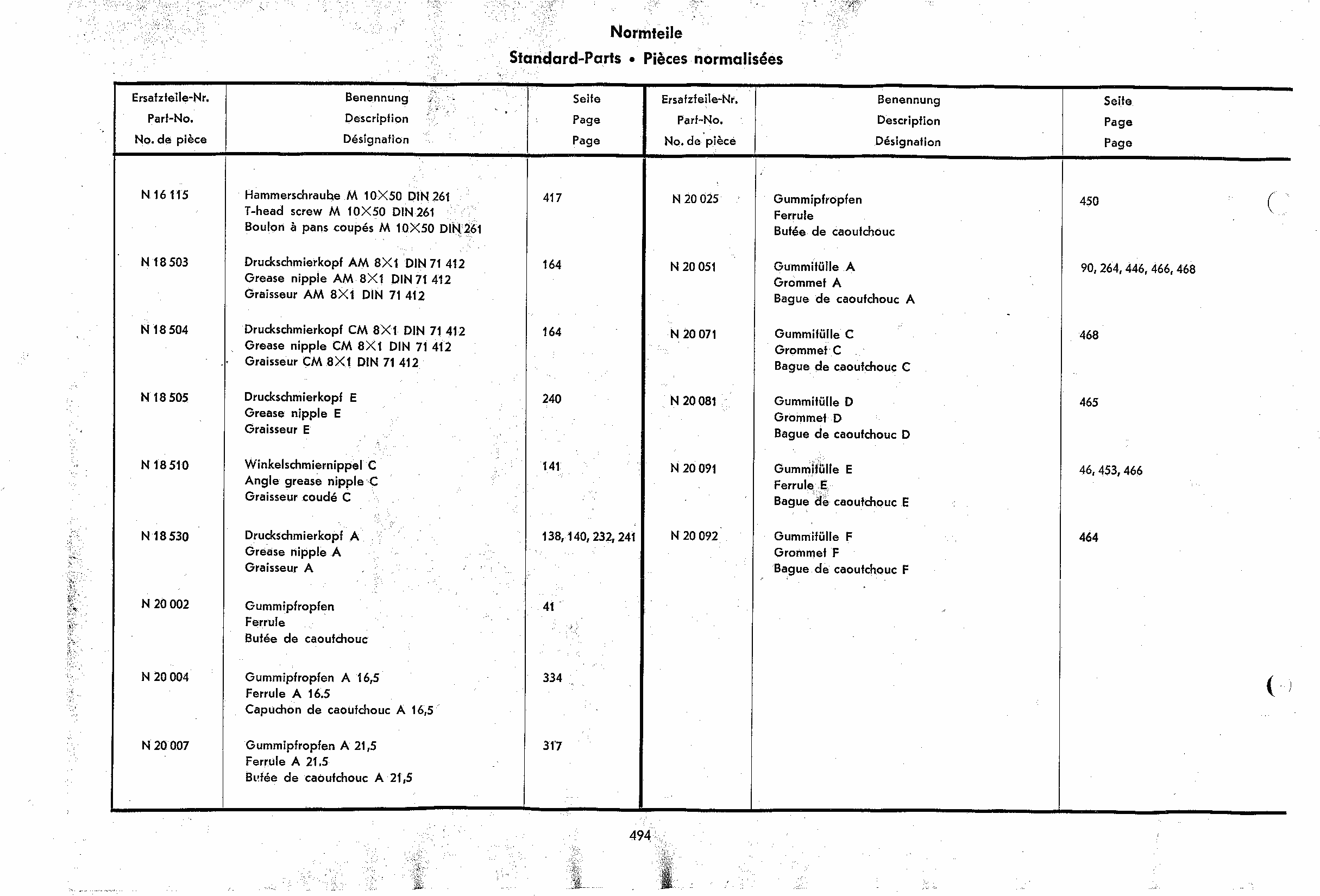

494 list Standard parts

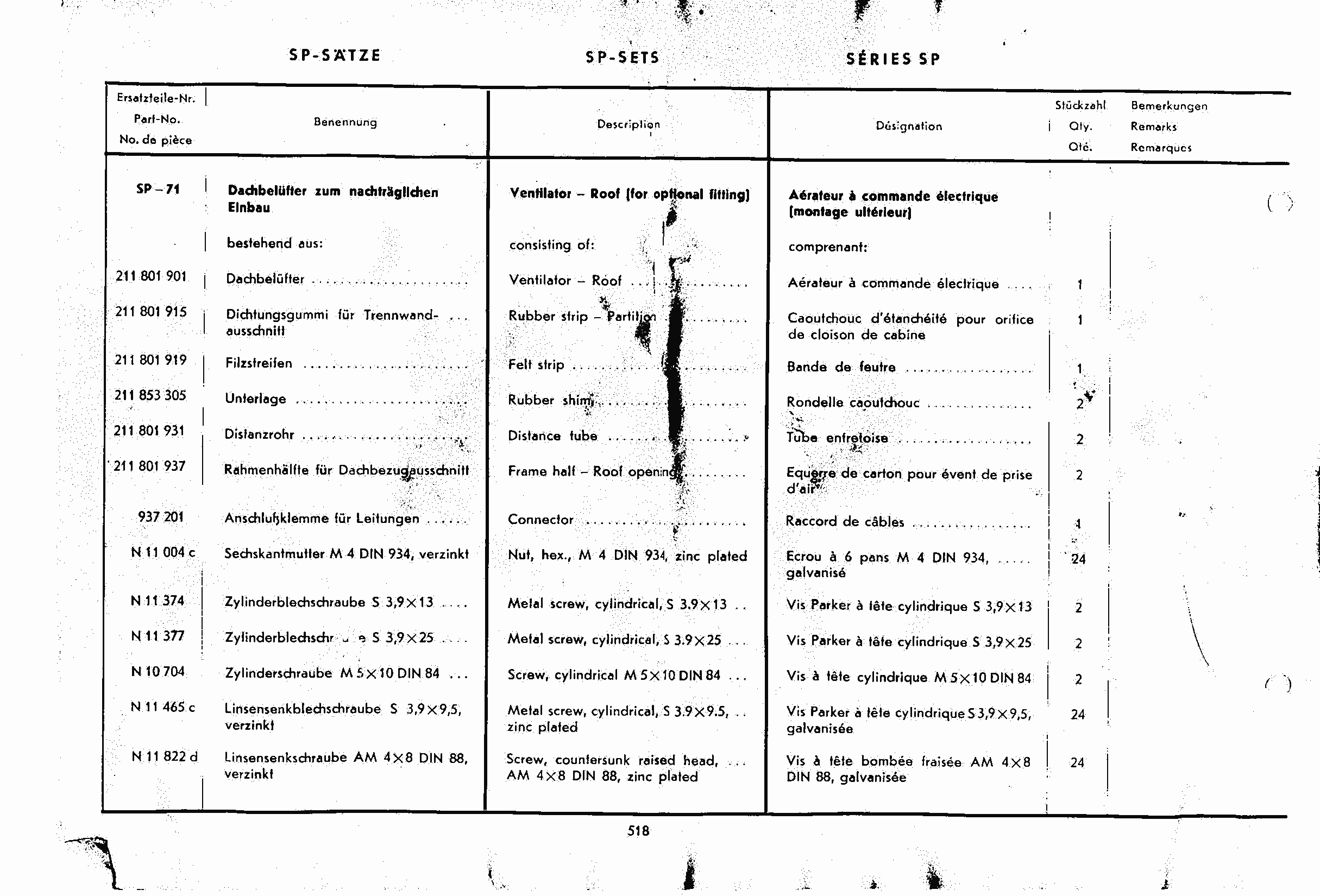

495 list SP Sets

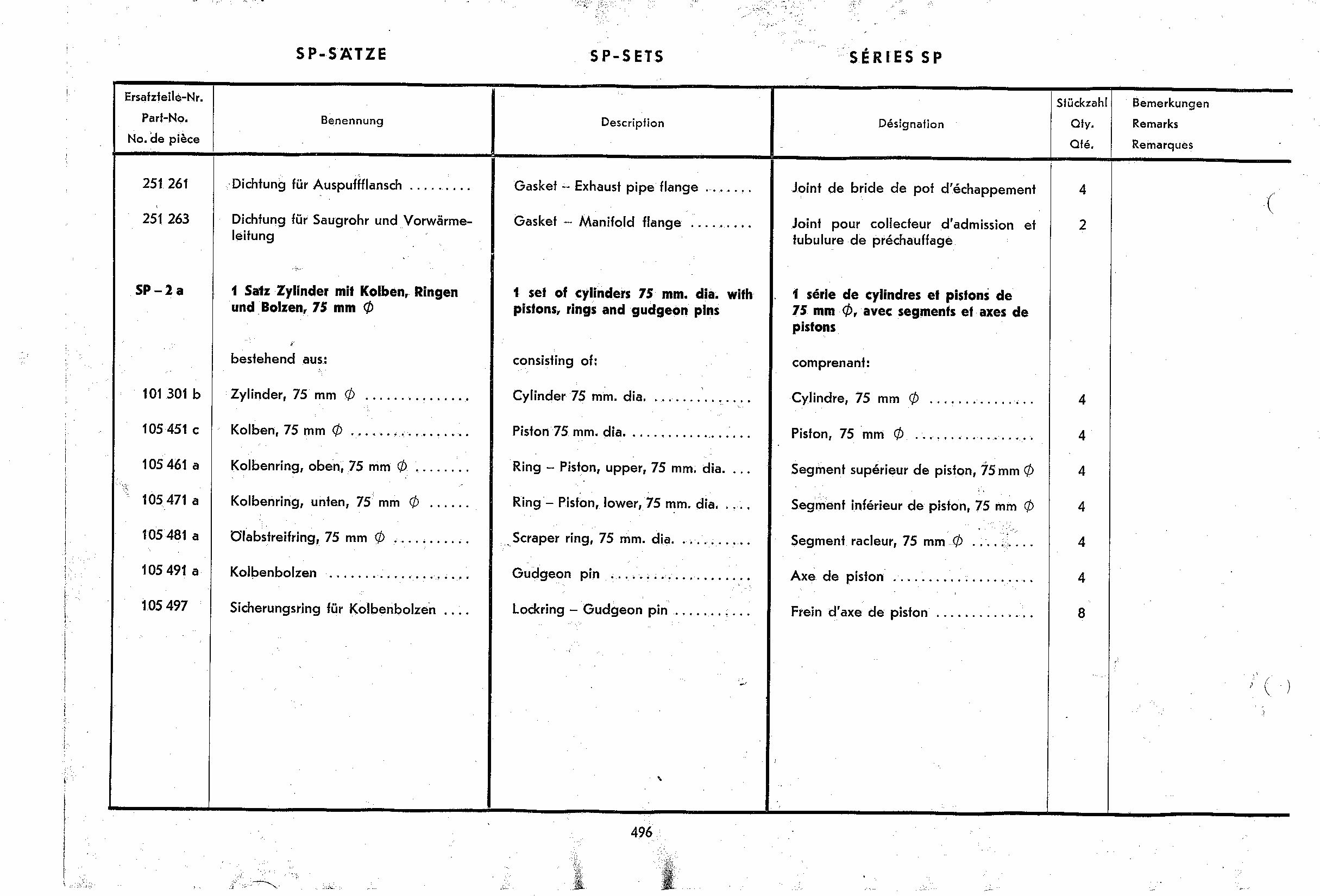

496 list SP Sets

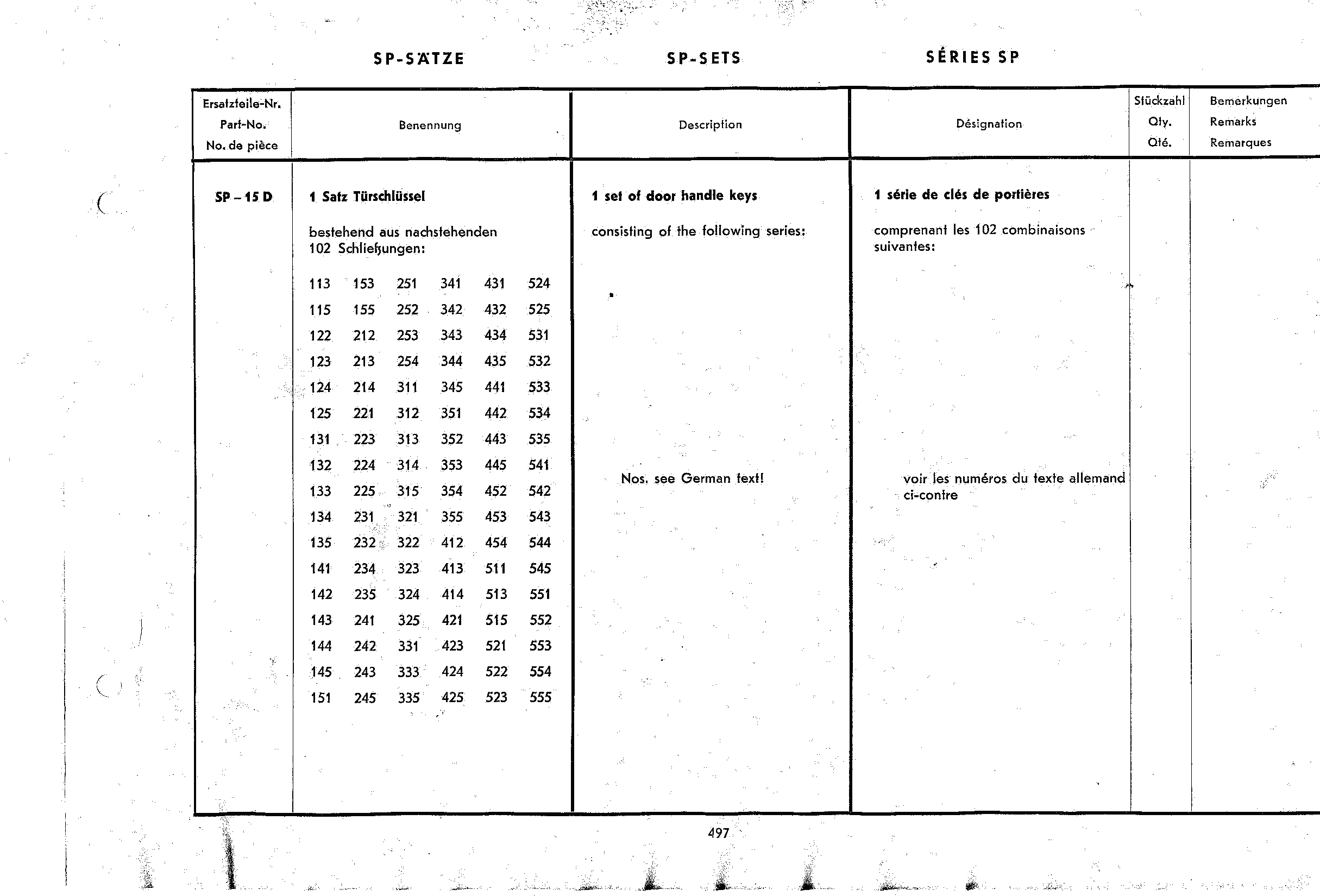

497 list SP Sets

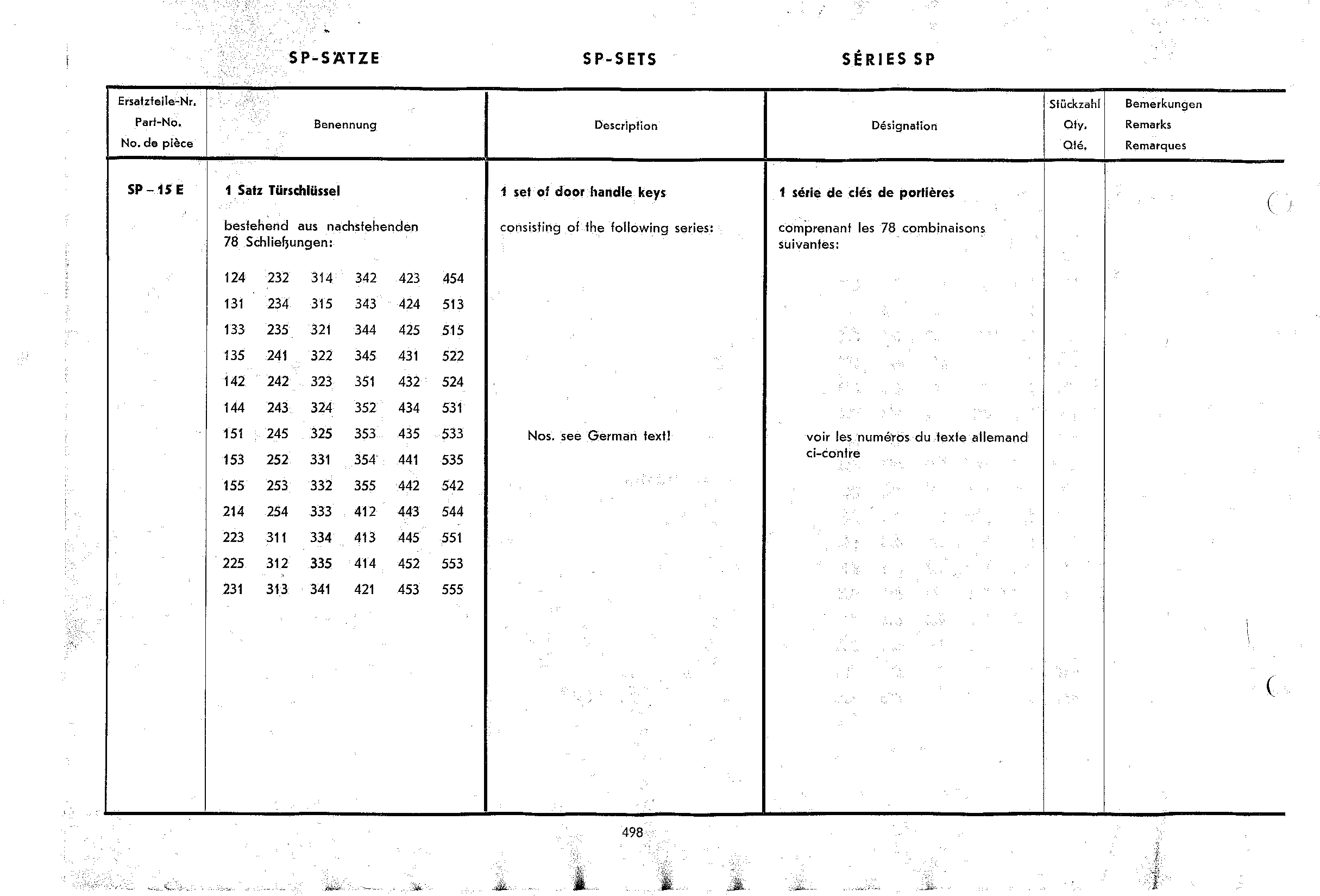

498 list SP Sets

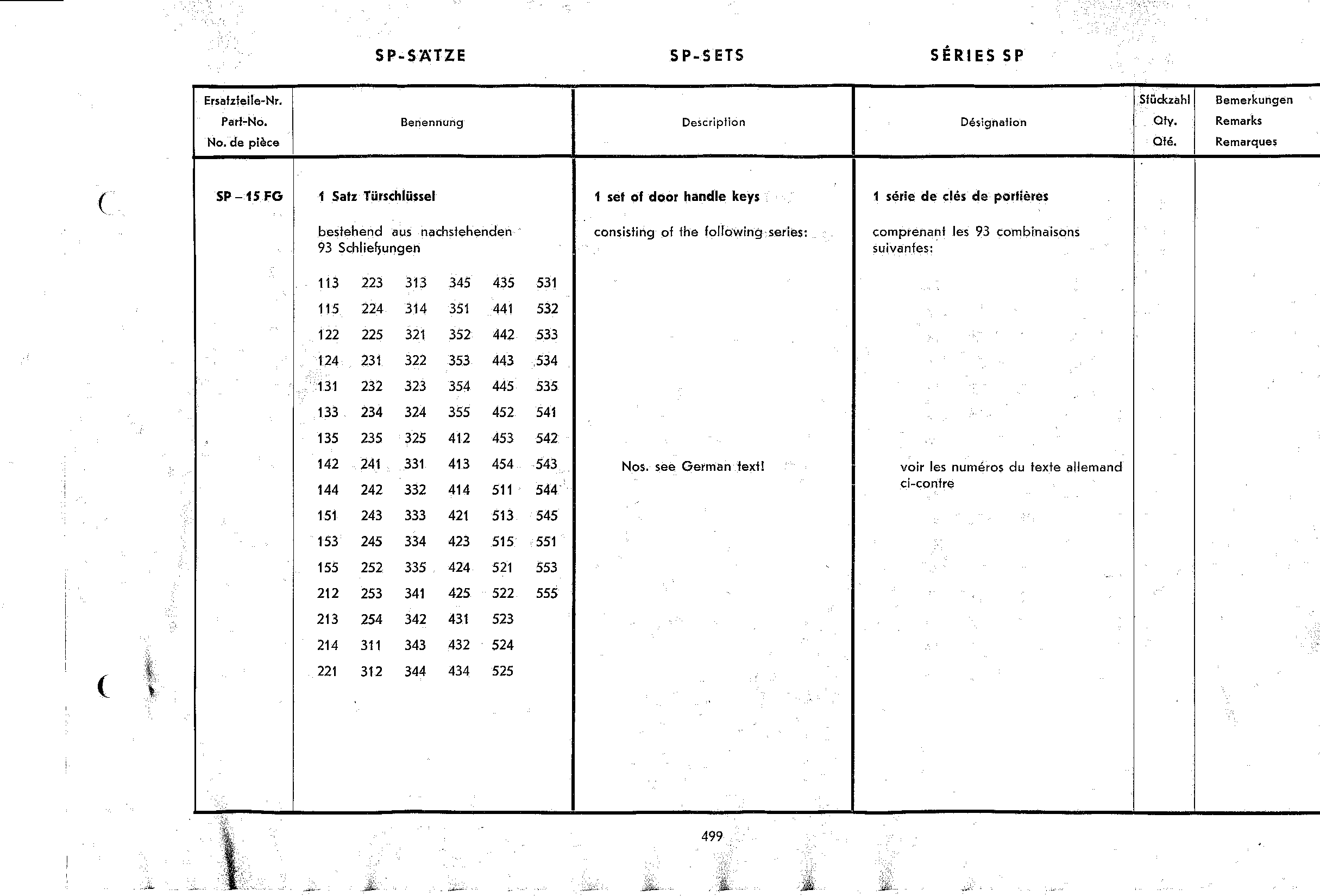

499 list SP Sets

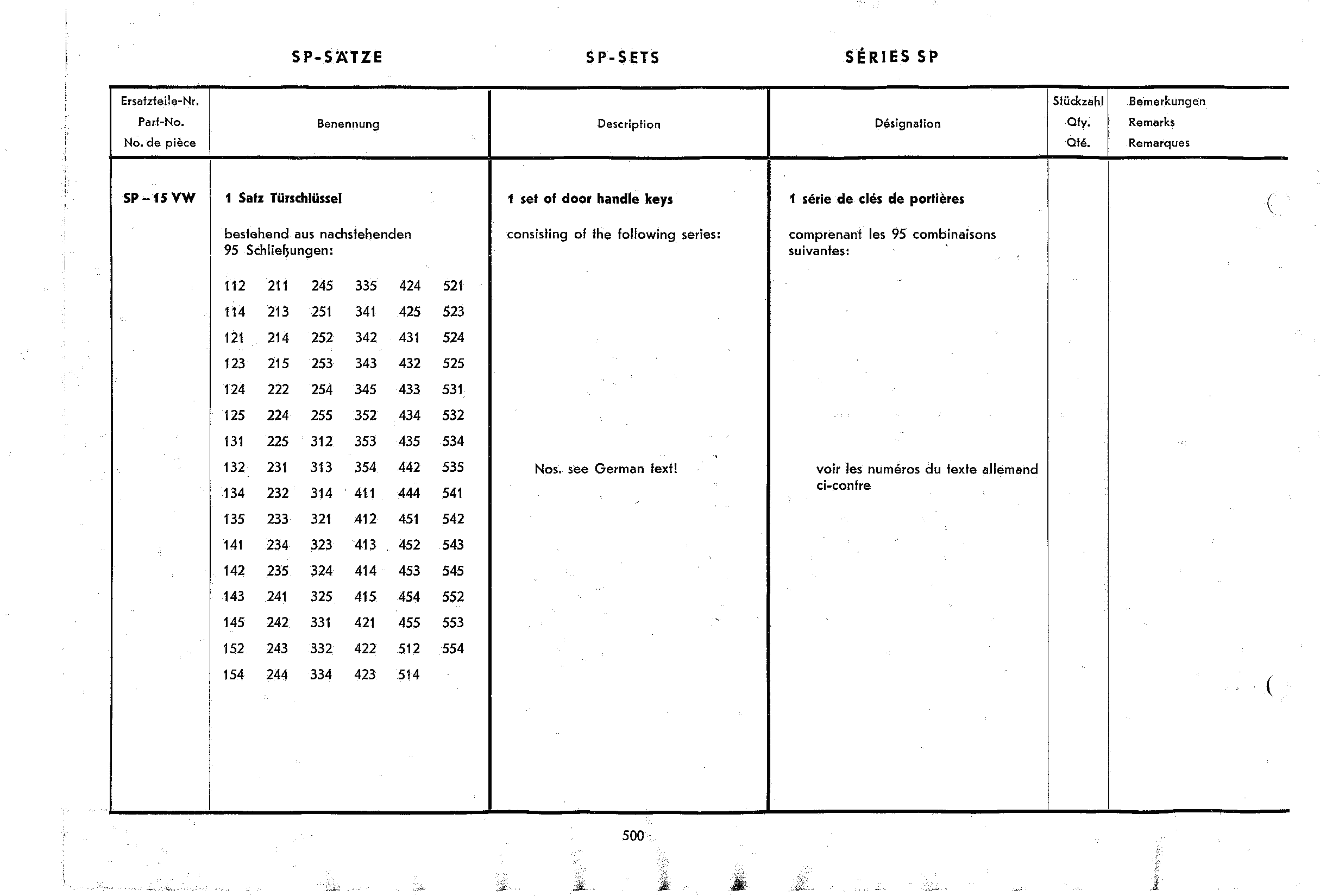

500 list SP Sets
501 list SP Sets

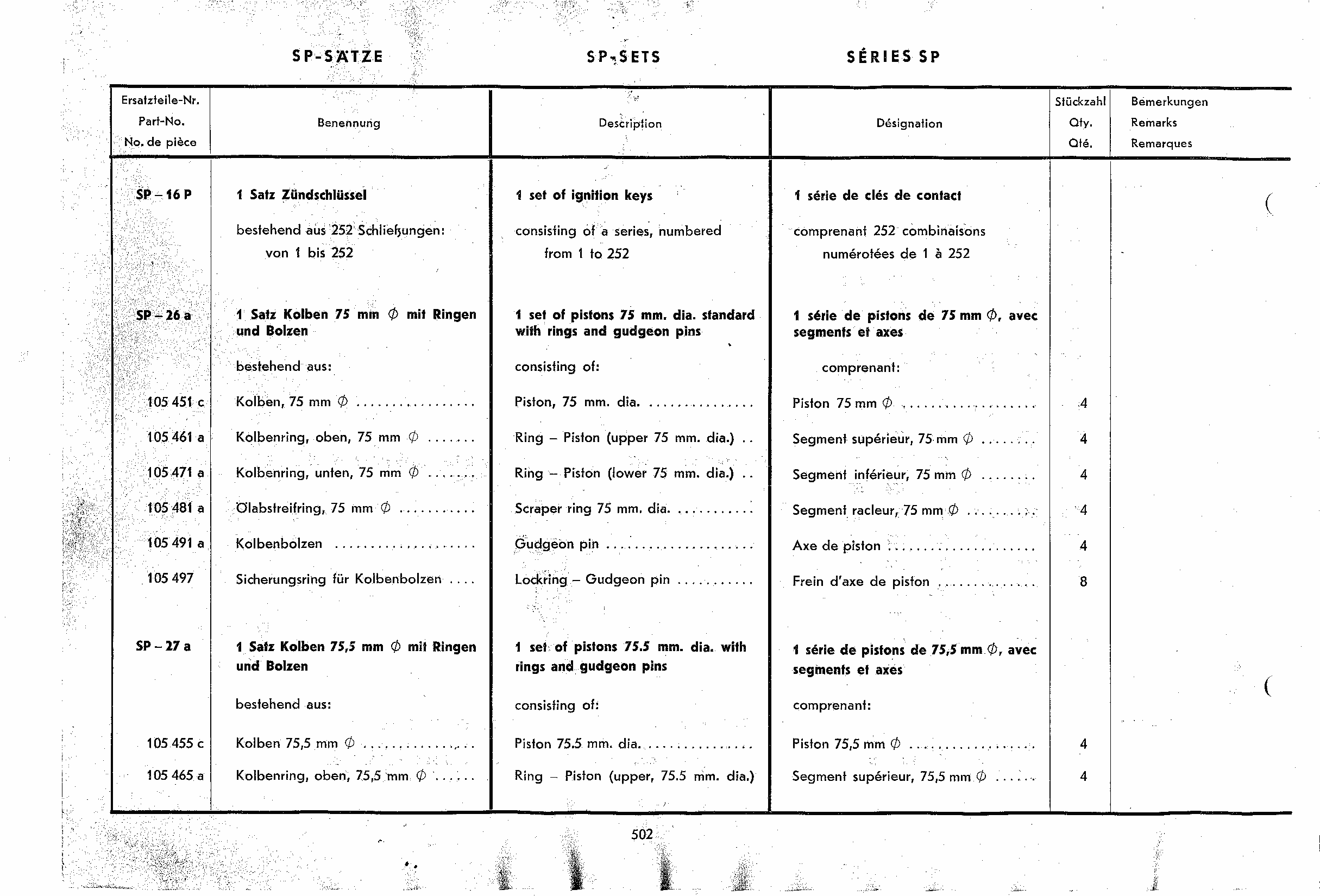

502 list SP Sets
503 list SP Sets
504 list SP Sets

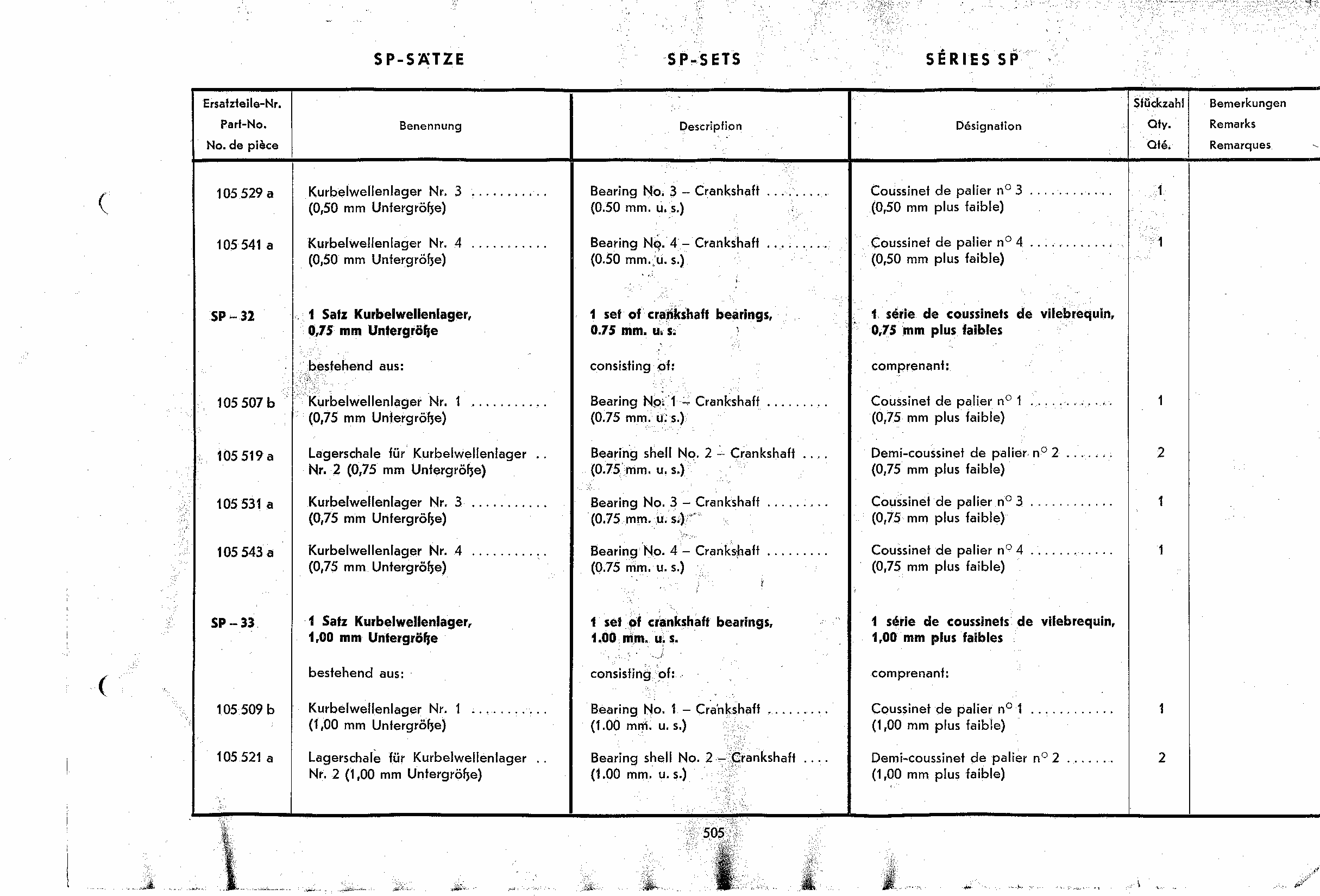

505 list SP Sets

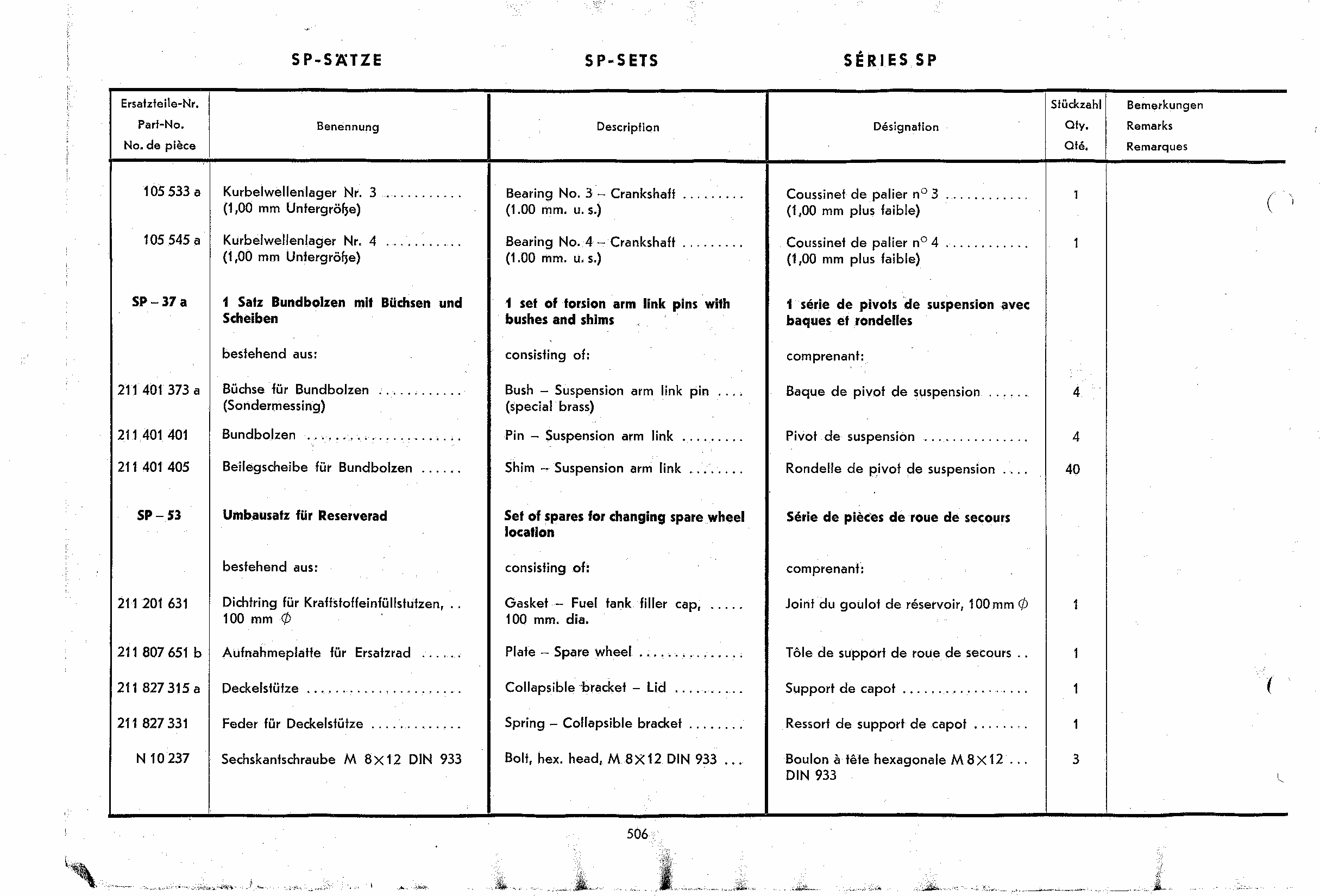

506 list SP Sets
507 list SP Sets

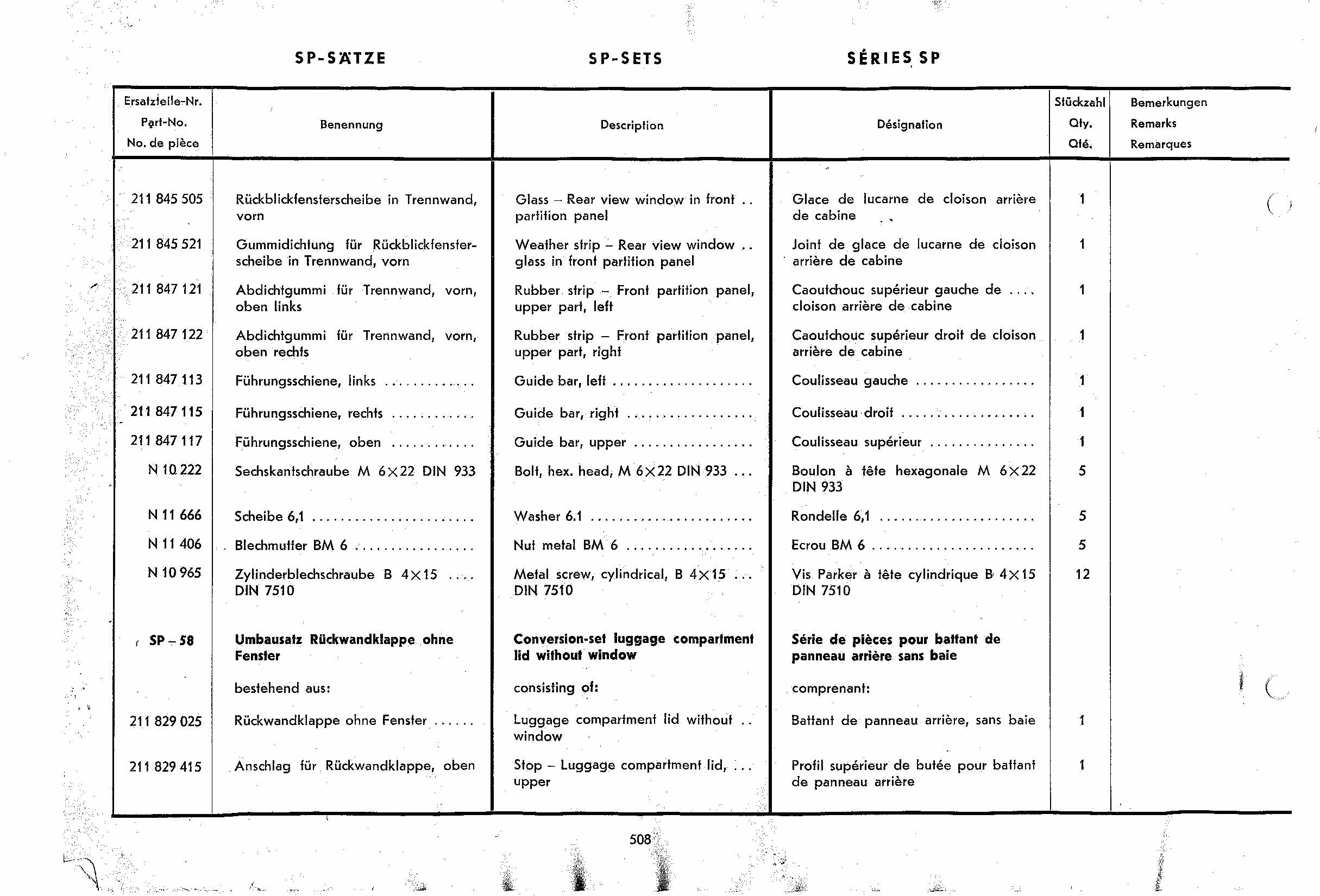

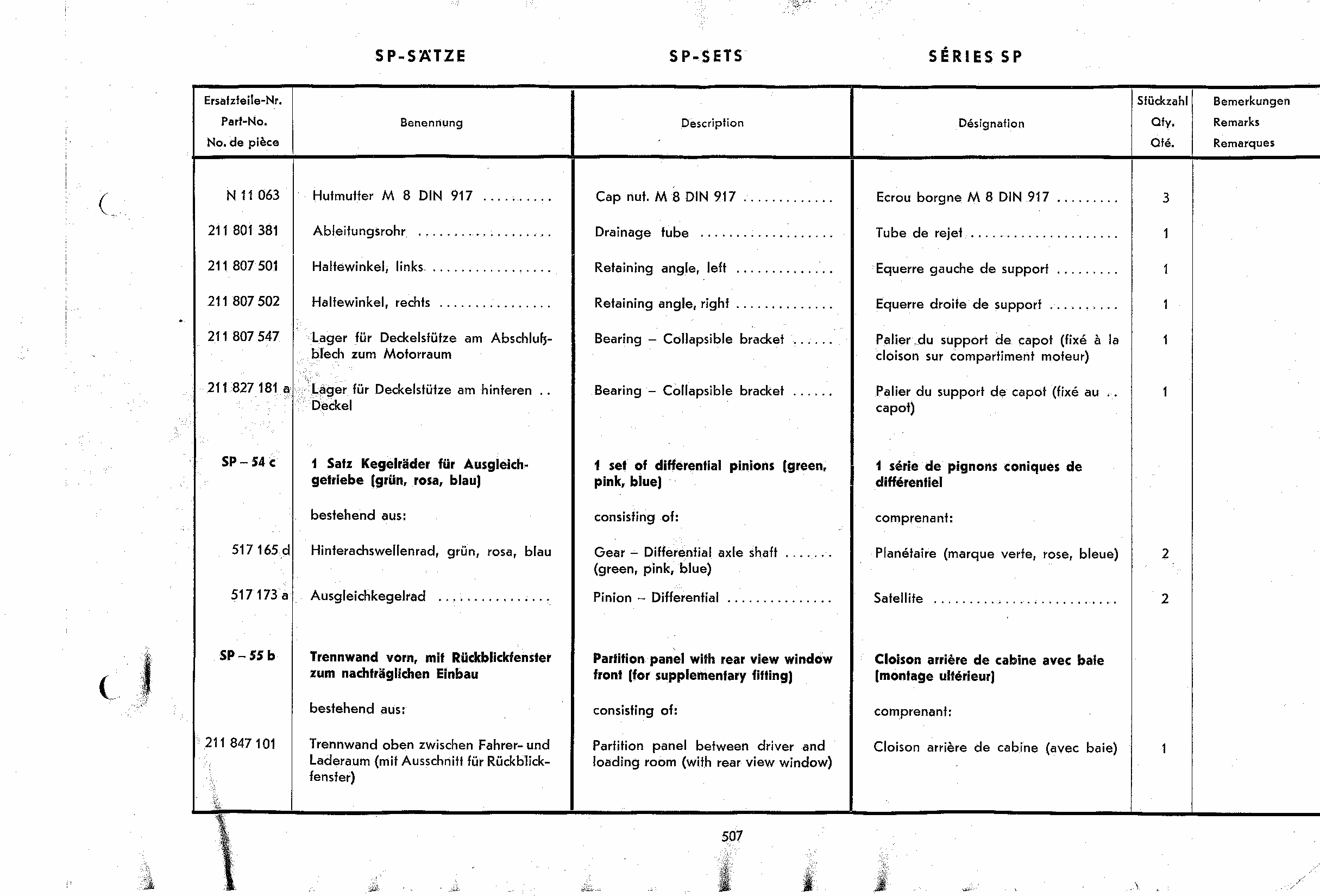

508 list SP Sets

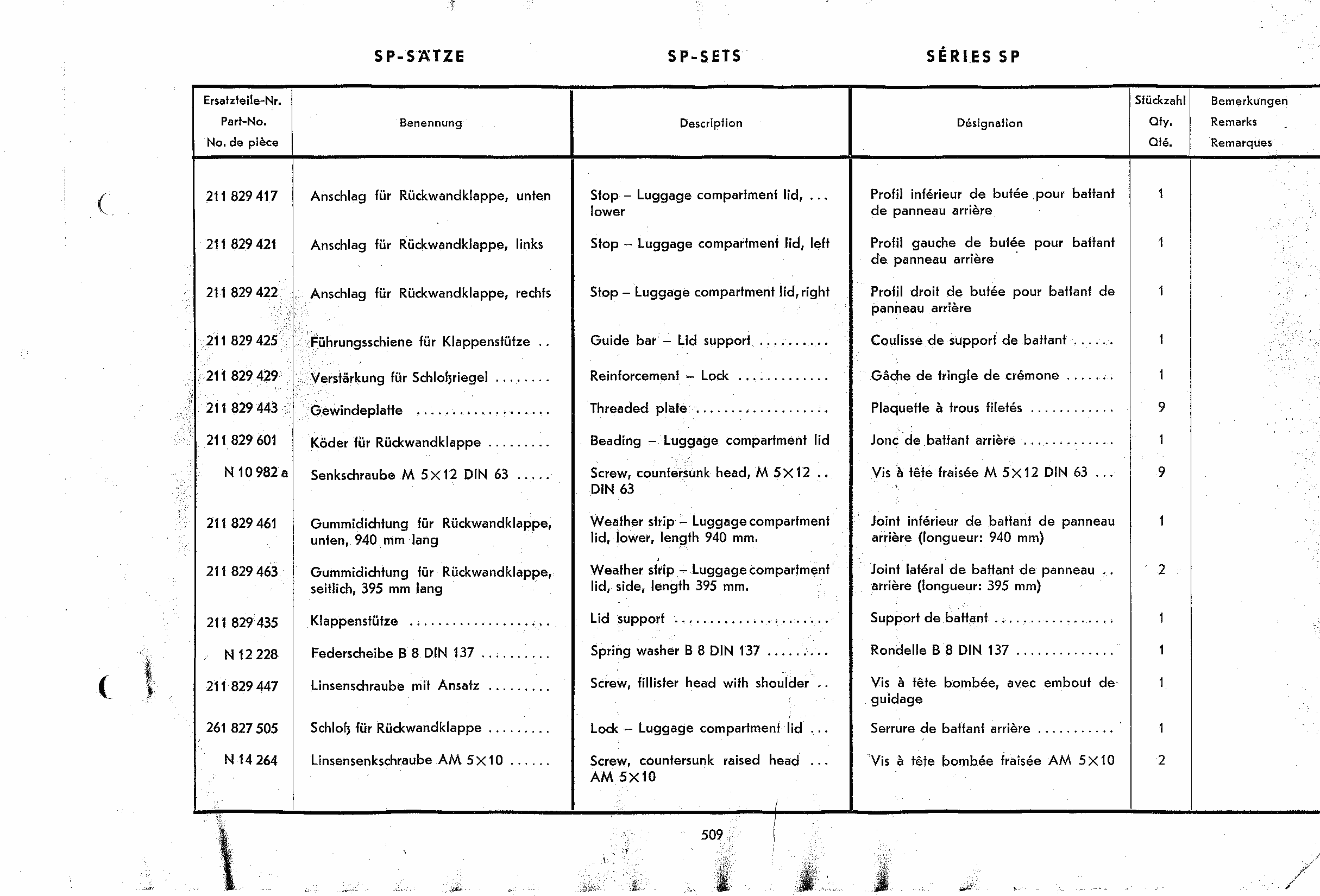

509 list SP Sets
510 list SP Sets

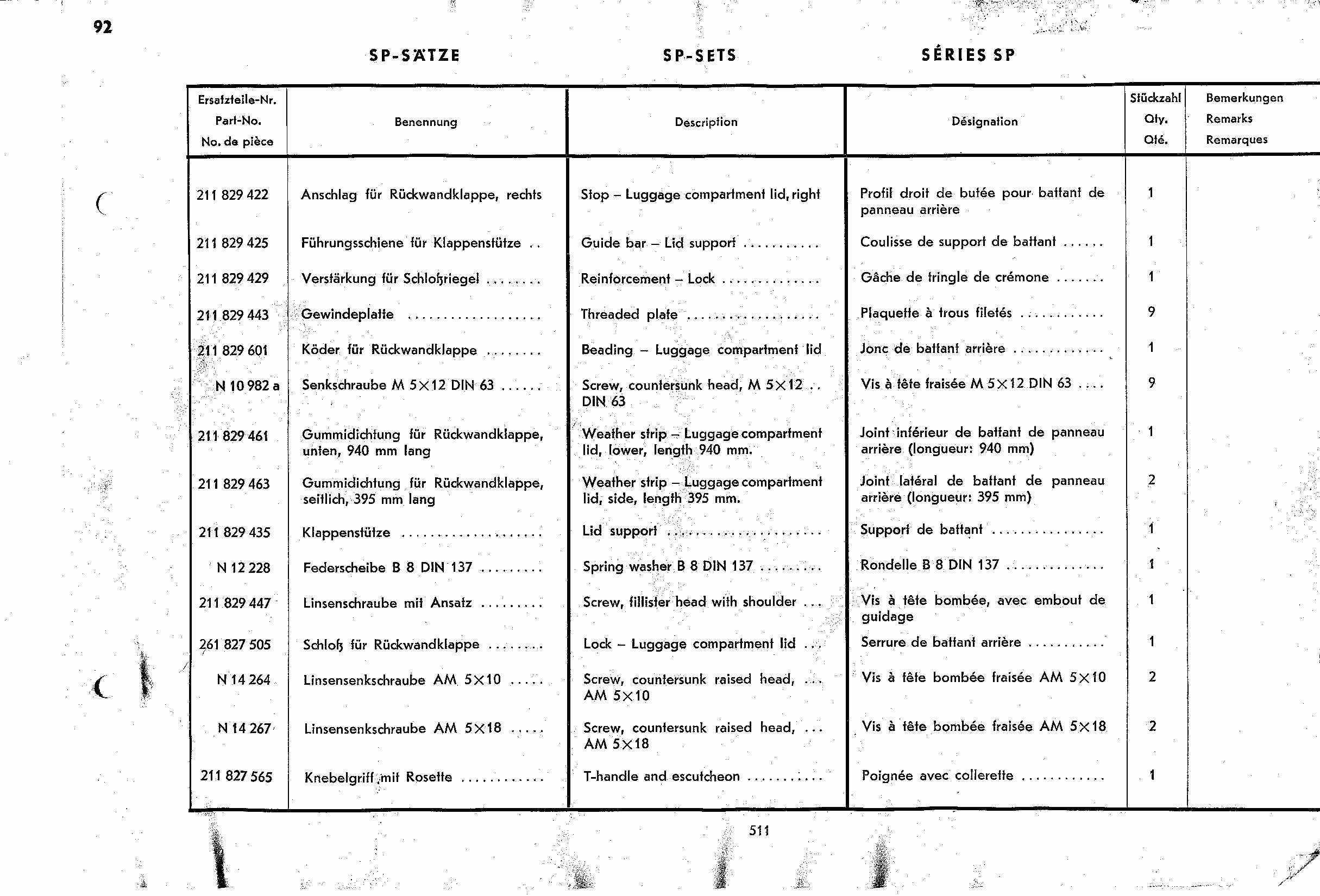

511 list SP Sets

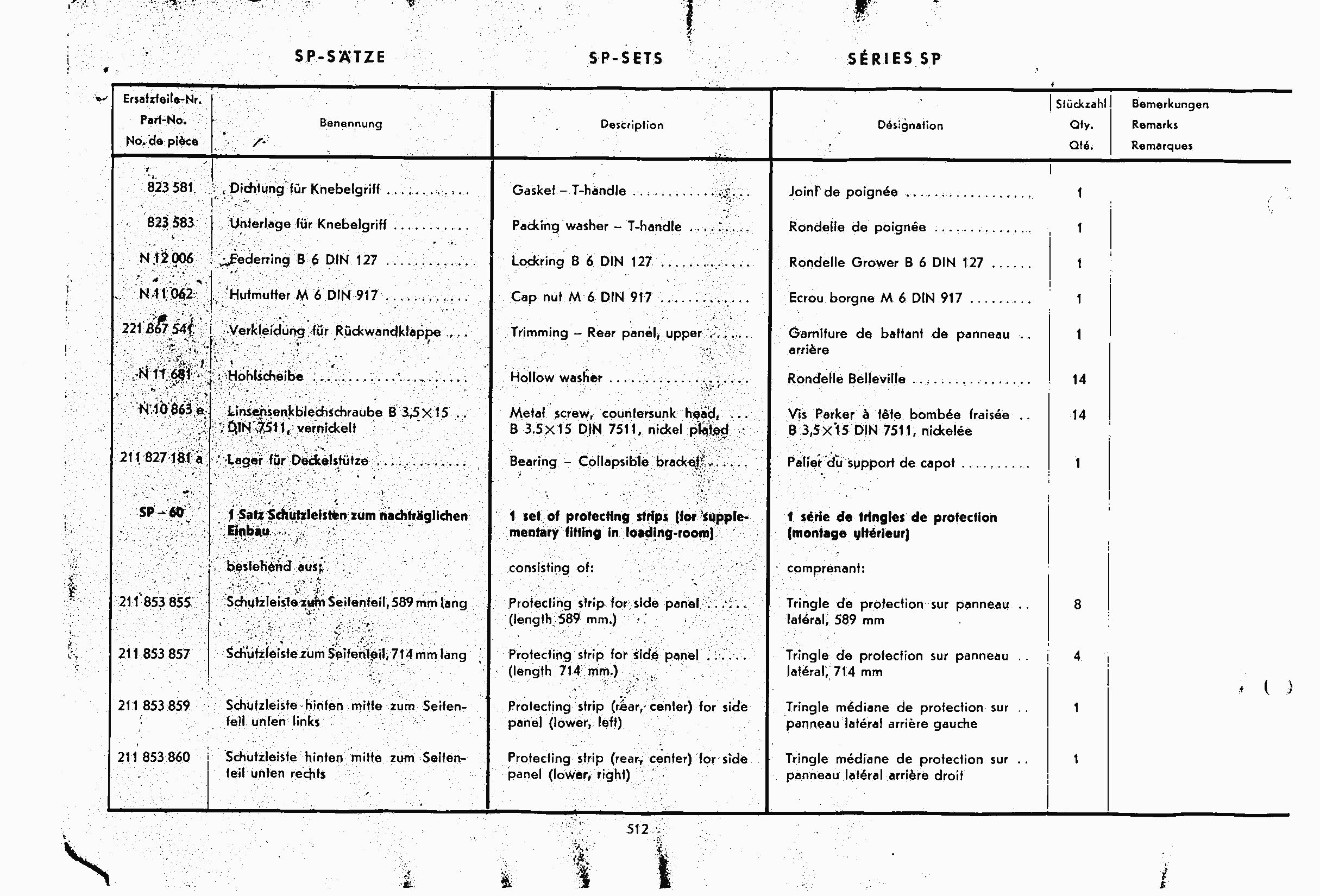

512 list SP Sets

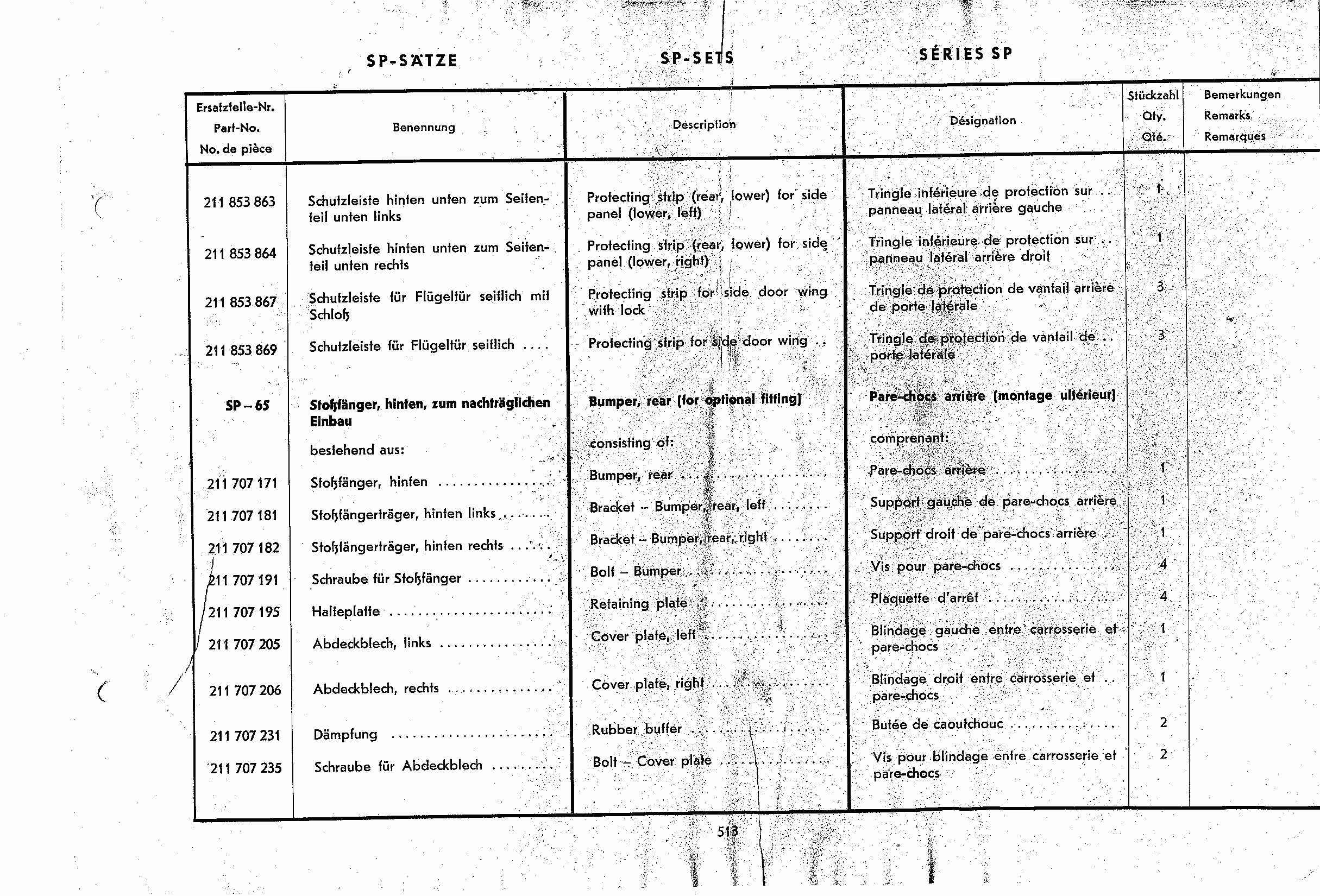

513 list SP Sets

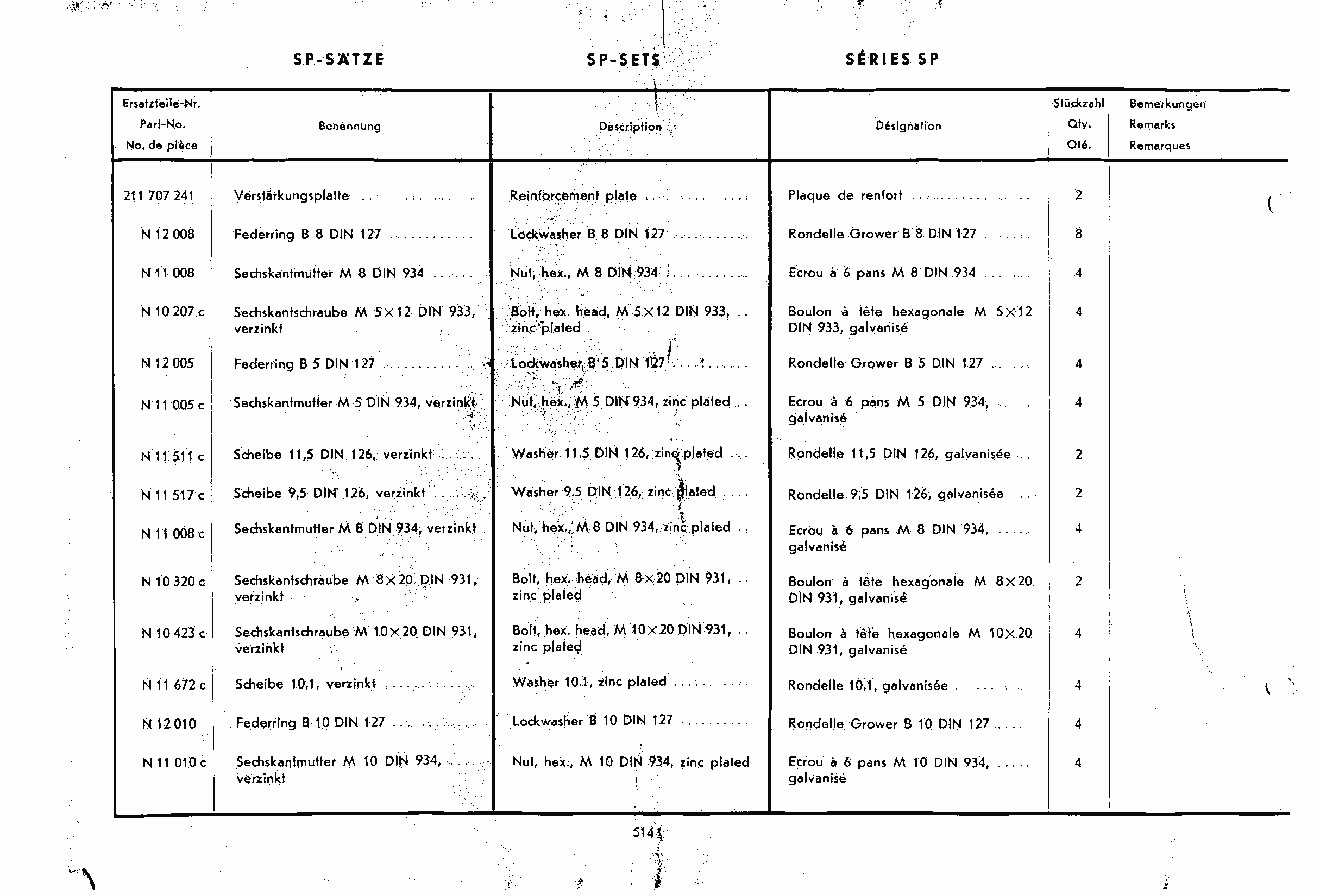

514 list SP Sets
515 list SP Sets
516 list SP Sets

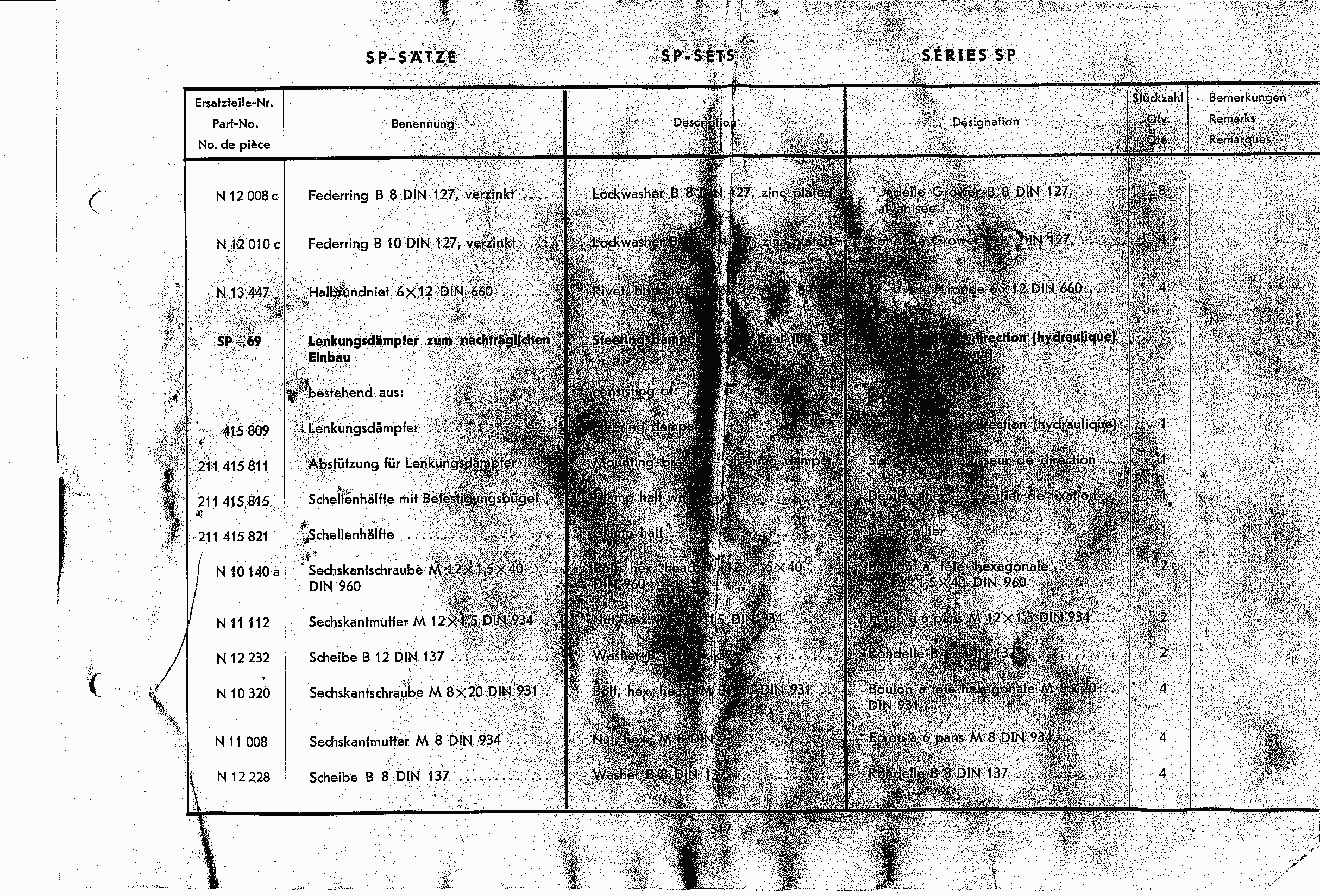

517 list SP Sets
518 list SP Sets
  • Contact
  • vw.oacdp@oacdp.org

  • Legal
  • VW, the VW logo, Volkswagen, and other terms are trademarks or registered trademarks of Volkswagenwerk AG and its world wide subsidiaries. All trademarks are the property of their respective owners and are used solely for identification purposes.
  • See our legal page for more information
The oacdp project source is registered © 2001-2011 and distributed under the GNU General Public License version 3.0. All other copyrighted materials are property of their respective owners and are on display for educational purposes only.
